Model No. 831.14933.0

Serial No.

Write the serial number in the space

above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

• Assembly

• Operation

• Maintenance

• Part List and Drawing

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

WEIGHT BENCH EXERCISER

User’s Manual

Serial

Number

Decal

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ADJUSTMENT ............................................................................16

MAINTENANCE ...........................................................................18

CABLE DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

EXERCISE GUIDELINES ....................................................................21

PART LIST ...............................................................................22

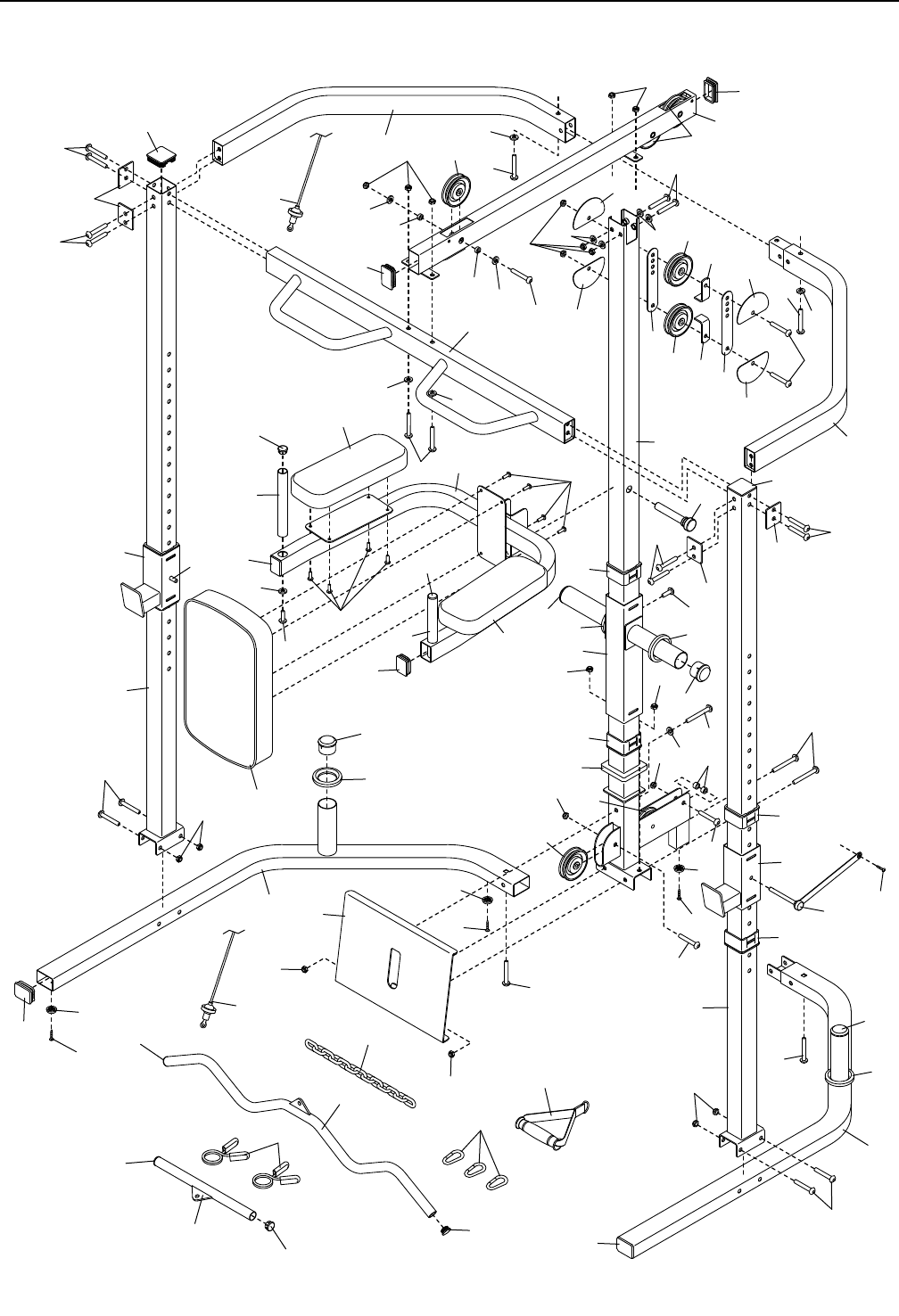

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

90 DAY FULL WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TABLE OF CONTENTS

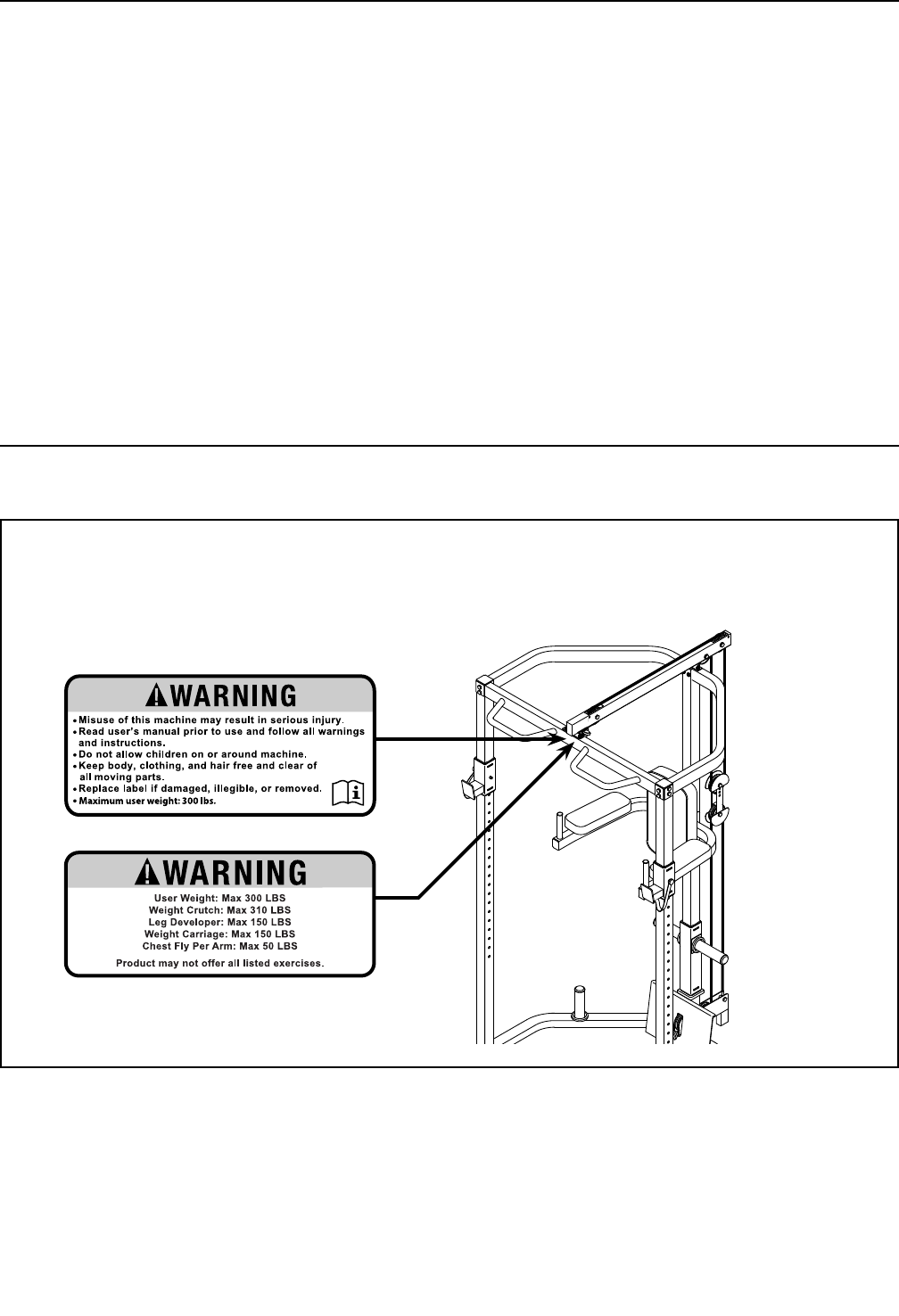

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, call

1-877-992-5999 and request a free replacement decal. Apply the decal in the location shown.

Note: The decal(s) may not be shown at actual size.

IMPORTANT PRECAUTIONS

1. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. Use the weight bench only as described in

this manual.

4. The weight bench is intended for home use

only. Do not use the weight bench in a com-

mercial, rental, or institutional setting.

5. Keep the weight bench indoors, away from

moisture and dust. Do not put the weight

bench in a garage or covered patio, or near

water.

6. Place the weight bench on a level surface,

with a mat beneath it to protect the floor or

carpet. Make sure that there is enough clear-

ance around the weight bench to mount,

dismount, and use it.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the weight bench at all times.

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the weight bench. Wear athletic

shoes for foot protection while exercising.

10. Keep hands and feet away from moving

parts.

11. The weight bench is designed to support a

maximum user weight of 300 lbs. (136 kg)

Do not place more than 150 lbs. (68 kg) of

weight on the weight carriage. Do not place

more than 310 lbs. (141 kg) of weight, includ-

ing a barbell, on the bar cradles. Note: A

barbell is not included.

12. Before you use the bar cradles, make sure

that the adjustment pins are fully inserted

through the bar cradles and through the

uprights.

13. Do not use a barbell that is longer than 6 ft.

(1.8 m) with the weight bench.

14. Make sure that the cables remain on the pul-

leys at all times. If the cables bind while you

are exercising, stop immediately and make

sure that the cables are on the pulleys.

15. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your weight bench before using your weight bench.

Sears assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

Bar Cradle

Adjustment Pin

Pull-up Bar

Weight Tube

Foot Plate

Weight Carriage

Lat Bar

Chain

Row Bar

Handle

Weight Clip

Cable Clip

VKR Frame

High Pulley Station

Low Pulley Station

Upright

BEFORE YOU BEGIN

Thank you for selecting the versatile WEIDER PRO™

weight bench. Whether your goal is to tone your body,

build dramatic muscle size and strength, or improve

your cardiovascular system, the weight bench will help

you to achieve the specific results you want.

For your benefit, read this manual carefully before

using the weight bench. If you have questions after

reading this manual, please see the back cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

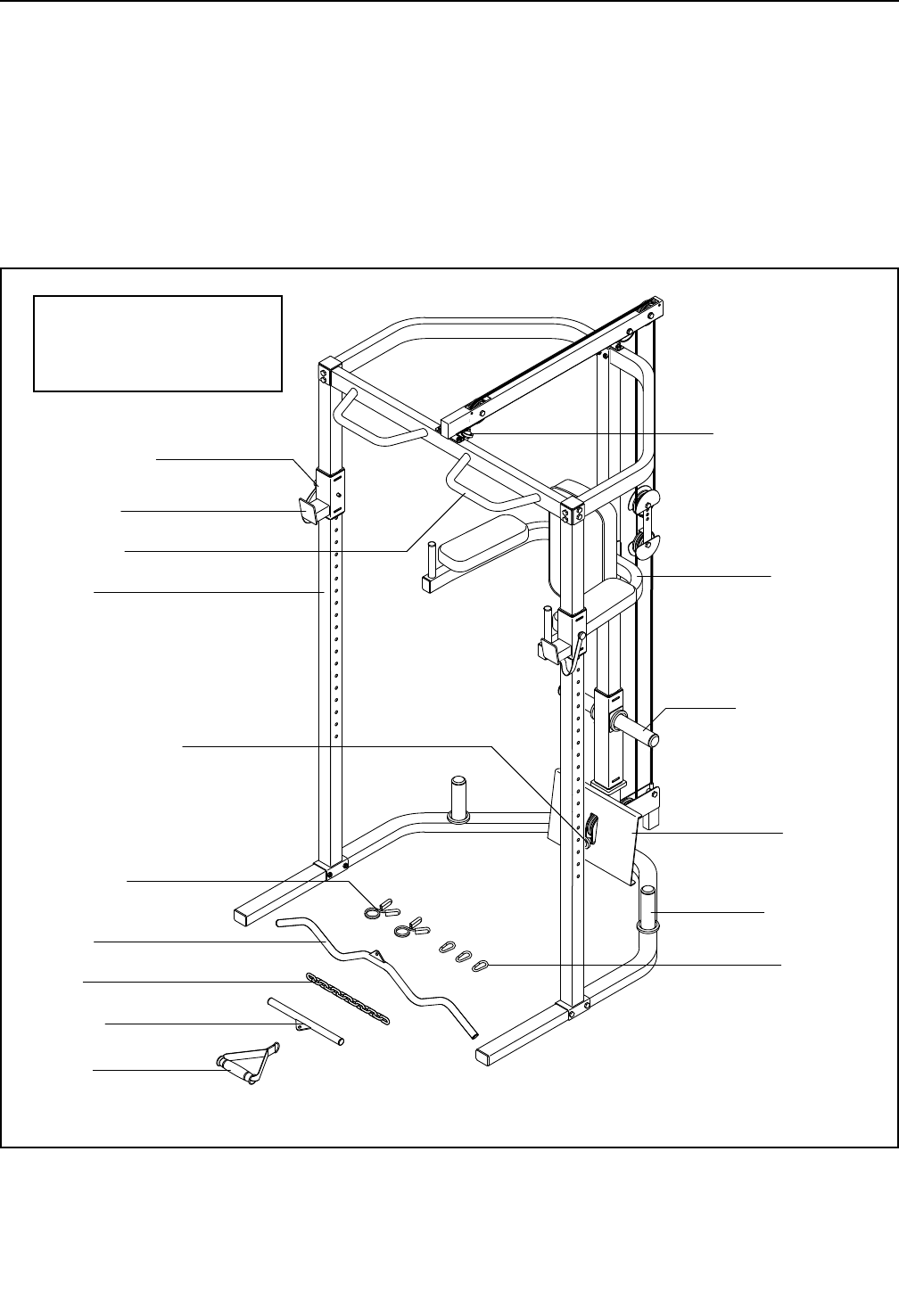

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Length: 4 ft. 9 in. (146 cm)

Width: 4 ft. 2 in. (128 cm)

Height: 7 ft. 3 in. (221 cm)

Left Side

Note: The terms “right side” and

“left side” are determined relative to

a person facing the weight bench.

Right Side

M10 Washer (55)

M10 Locknut (47) M6 x 16mm Screw (44)

M10 x 45mm Bolt (39) M10 x 75mm Bolt/Screw (45)

M10 x 80mm Bolt/Screw (43)

M10 x 50mm Bolt (46)

M10 x 55mm Bolt (40) M10 x 85mm Bolt (41)

M10 x 55mm Carriage Bolt (56)

M10 x 15mm Screw (50) M10 x 20mm Screw (53)

M4 x 19mm

Screw (42)

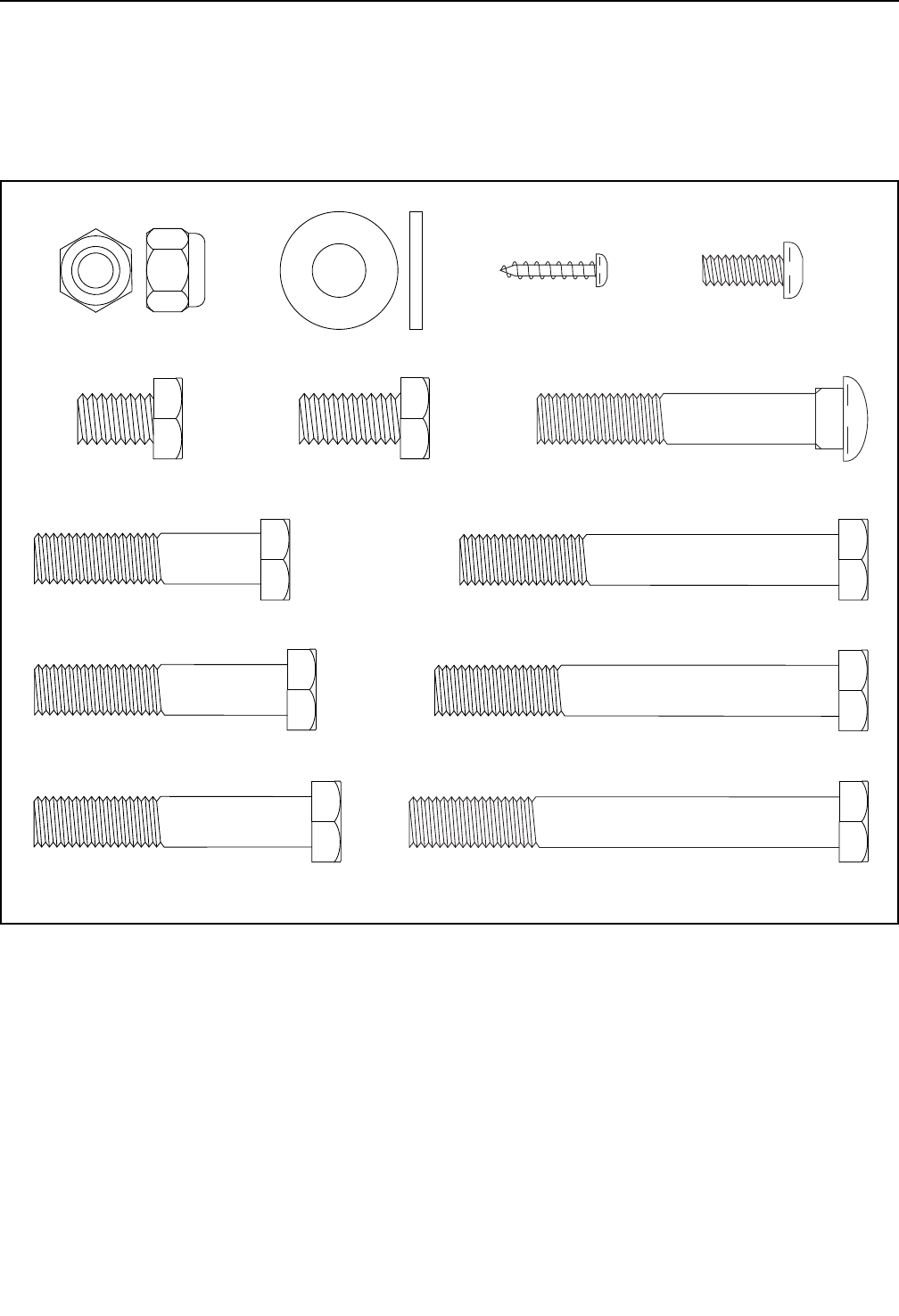

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in

the hardware kit, check to see if it has been preassembled. Extra parts may be included. If a part is miss-

ing, please call 1-877-992-5999.

ASSEMBLY

• Assembly requires two persons.

• Due to its weight and size, the weight bench

should be assembled in the location where it will

be used. Make sure that there is enough clear-

ance to walk around the weight bench as you

assemble it.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 5.

• In addition to the included tool(s), assembly

requires the following tool(s):

two adjustable wrenches

one Phillips screwdriver

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

1. Go to www.weiderservice.com/registration on

your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

1-877-992-5999 and register your product.

The Three Stages of the Assembly Process

Frame Assembly—You will begin by assembling

the bases and the uprights that form the skeleton of

the weight bench.

Cable Assembly—During this stage, you will attach

the cables and pulleys that connect the weight

carriage to the frame.

VKR Assembly—During this stage, you will

assemble the VKR frame and pads.

2. Orient the Right and Left Bases (1, 2) as shown.

Insert the Right Base into the Left Base.

Attach the Guide (4) to the Right and Left Bases

(1, 2) with two M10 x 55mm Carriage Bolts (56)

and two M10 Locknuts (47). Do not fully tighten

the Locknuts yet.

3. Attach the Foot Plate (11) to the Guide (4) with

an M10 x 75mm Screw (45), an M10 Washer

(55), two M10 x 85mm Bolts (41), and two

M10 Locknuts (47). Do not fully tighten the

Locknuts yet.

Frame Assembly

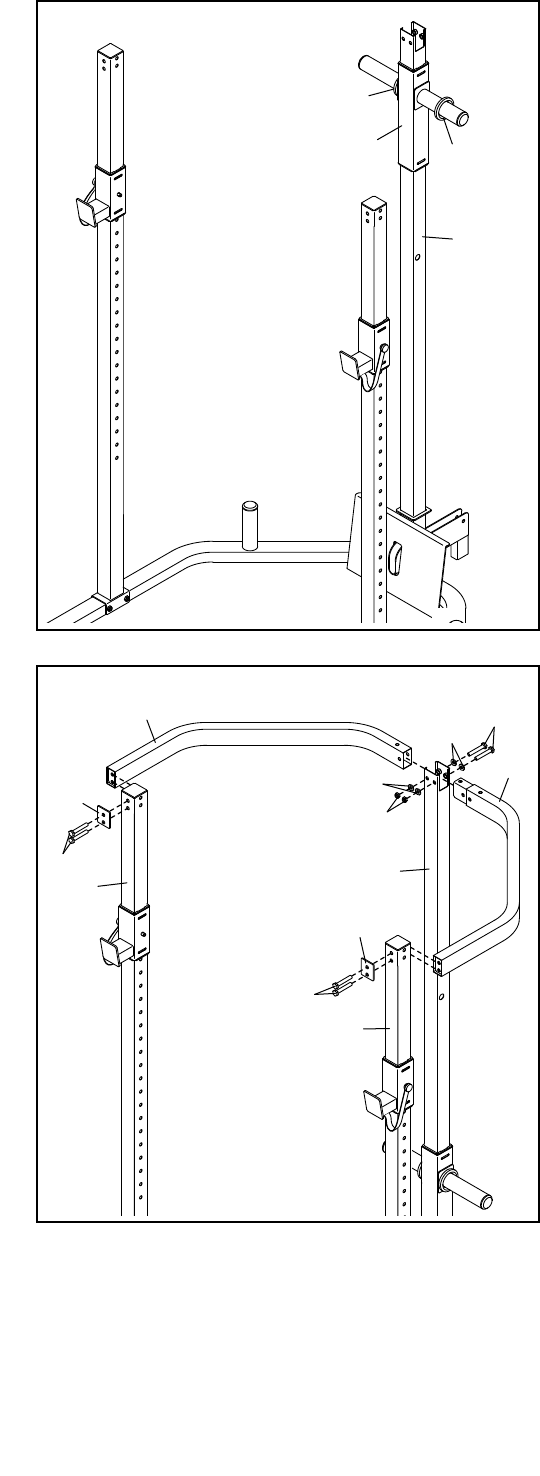

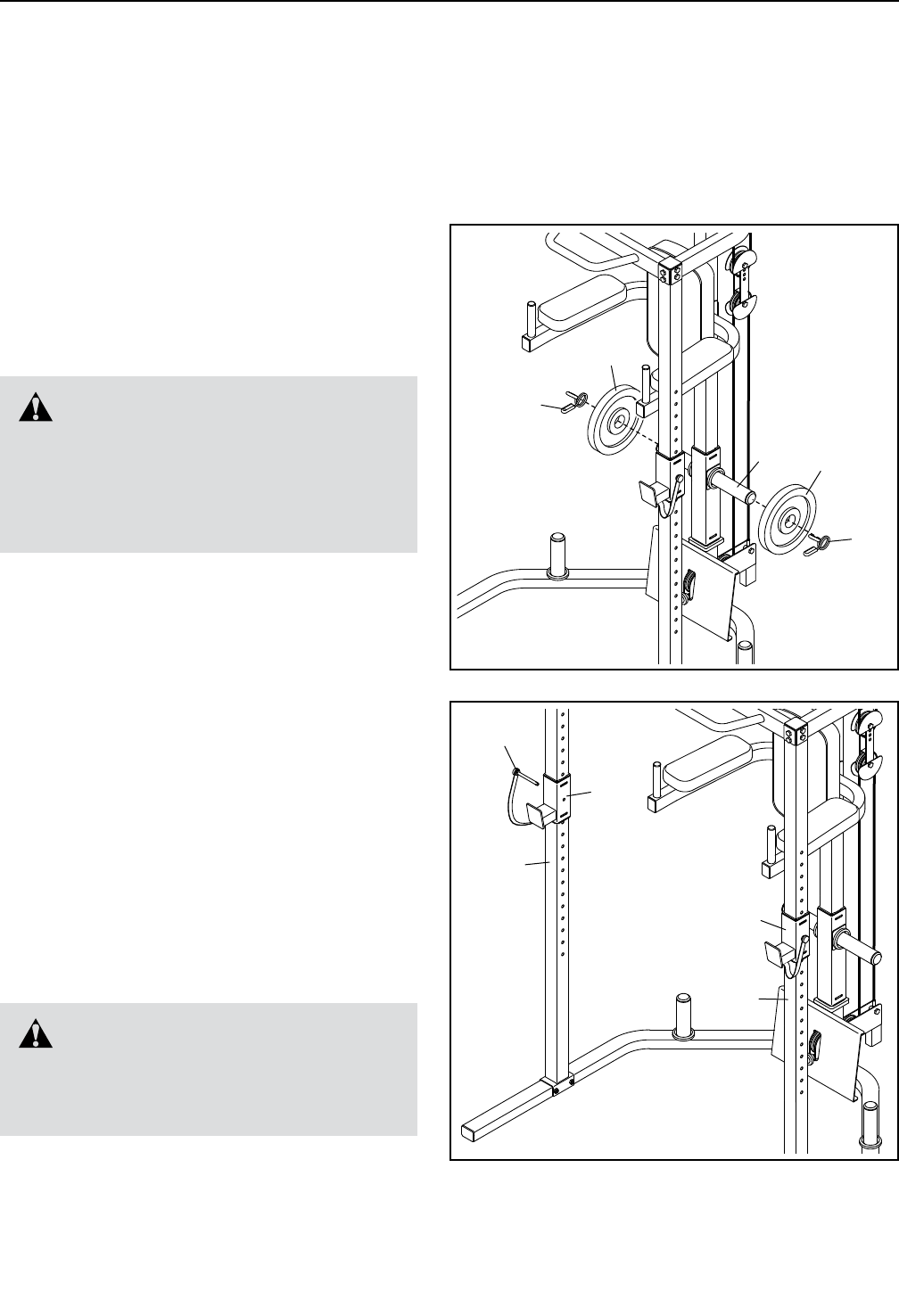

5. Slide a Bar Cradle (12) downward onto the left

Upright (3), and then insert an Adjustment Pin

(30) into the Bar Cradle and into one of the

adjustment holes in the left Upright.

Attach the tether on the Adjustment Pin (30)

to the Bar Cradle (12) with an M4 x 19mm

Screw (42).

Attach the other Bar Cradle (12) to the right

Upright (3) in the same way. Make sure to adjust

the Bar Cradles to the same height.

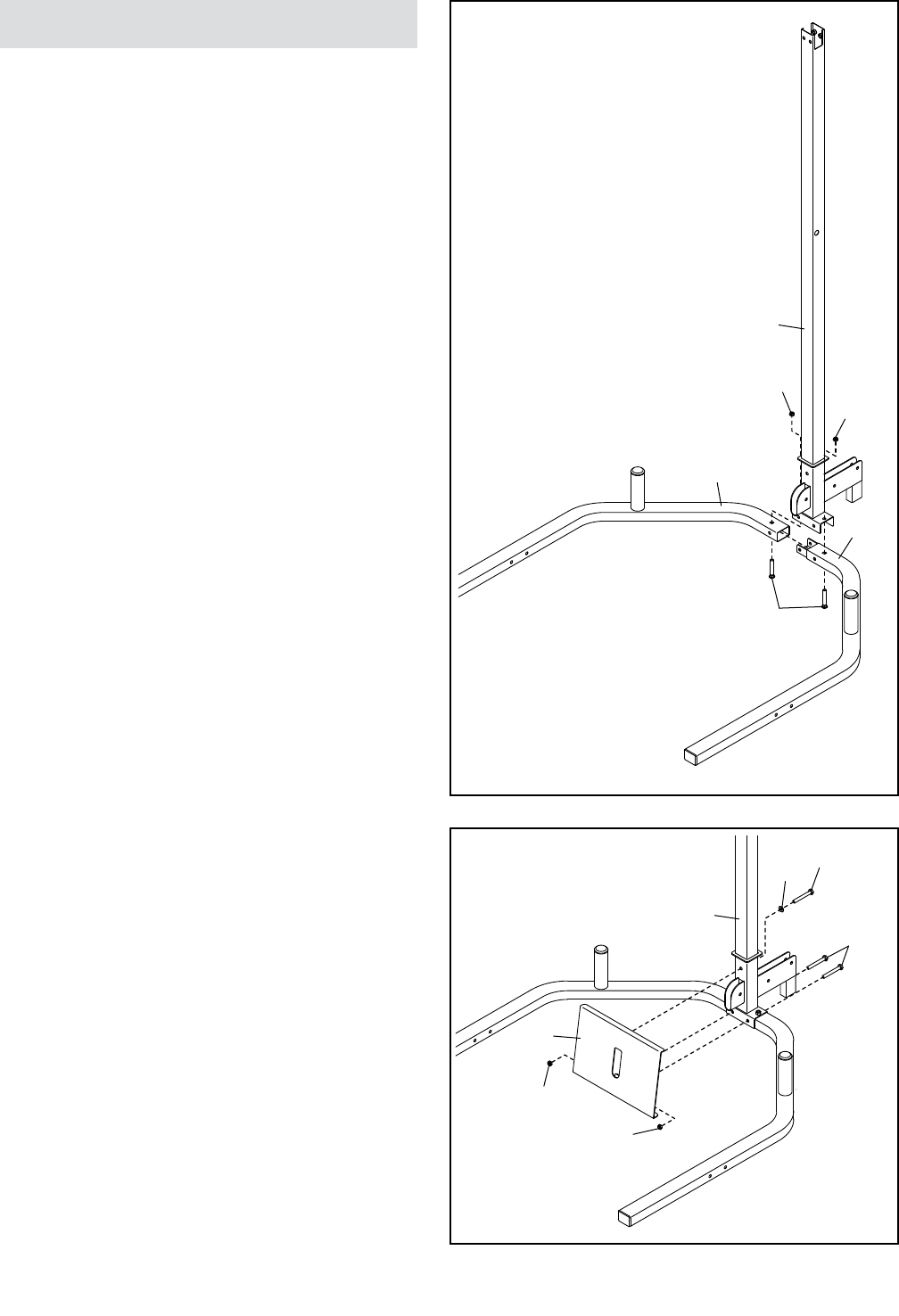

4. Attach an Upright (3) to the Left Base (2)

with two M10 x 80mm Bolts (43) and two

M10 Locknuts (47). Do not fully tighten the

Locknuts yet.

Attach the other Upright (3) to the Right Base (1)

in the same way.

47 3

Tether 3

6. Orient the Weight Carriage (10) as shown and

slide it onto the Guide (4).

Slide a Weight Plate Bumper (20) onto each side

of the Weight Carriage (10).

10 20

7. Orient the Right and Left Frames (5, 6) as

shown. Insert the Right Frame into the Left

Frame.

Have a second person hold the Left and Right

Frames (5, 6) near the tops of the Guide (4) and

the Uprights (3).

Insert the Right and Left Frames (5, 6) into the

top of the Guide (4). Attach the Right and Left

Frames with two M10 x 75mm Bolts (45), four

M10 Washers (55), and two M10 Locknuts (47).

Do not fully tighten the Locknuts yet.

Attach the Right Frame (5) to the right Upright

(3) with two M10 x 80mm Screws (43) and a

Plate (51). Do not fully tighten the Screws yet.

Attach the Left Frame (6) to the left Upright (3) in

the same way.

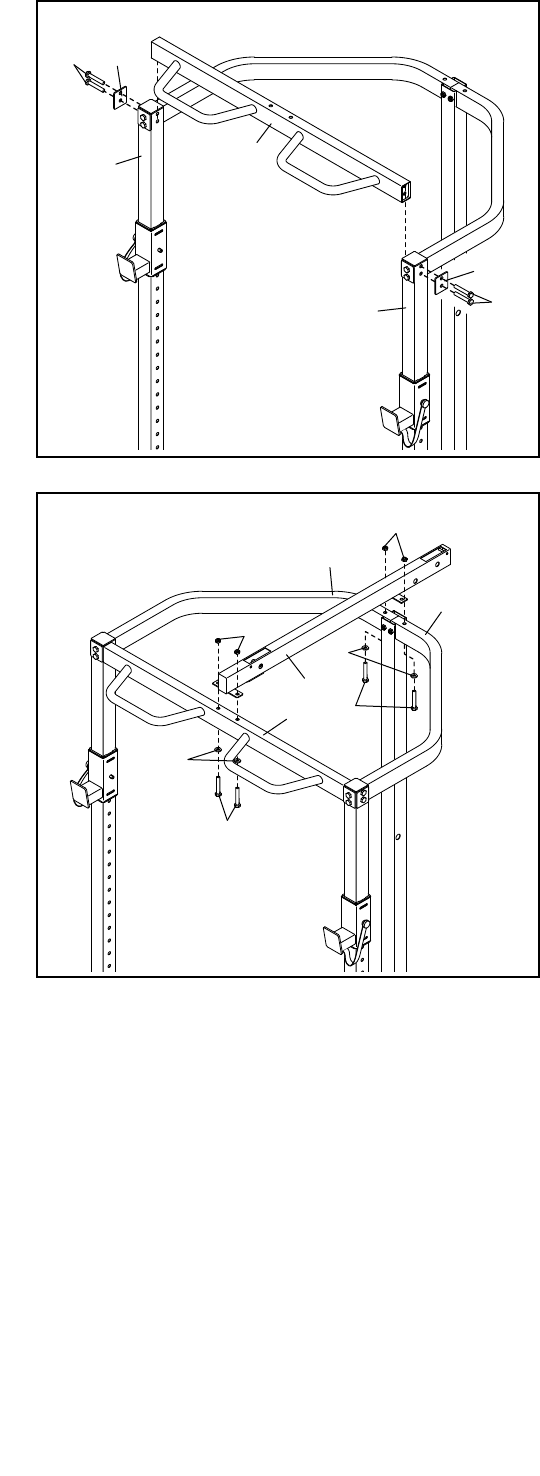

8. Orient the Crossbar (8) as shown. Attach the

Crossbar to the Uprights (3) with four M10 x

80mm Screws (43) and two Plates (51). Do not

fully tighten the Screws yet.

9. Orient the Center Frame (7) as shown. Attach

the Center Frame to the Right and Left Frames

(5, 6) and to the Crossbar (8) with four M10 x

80mm Bolts (43), four M10 Washers (55), and

four M10 Locknuts (47). Do not fully tighten

the Locknuts yet.

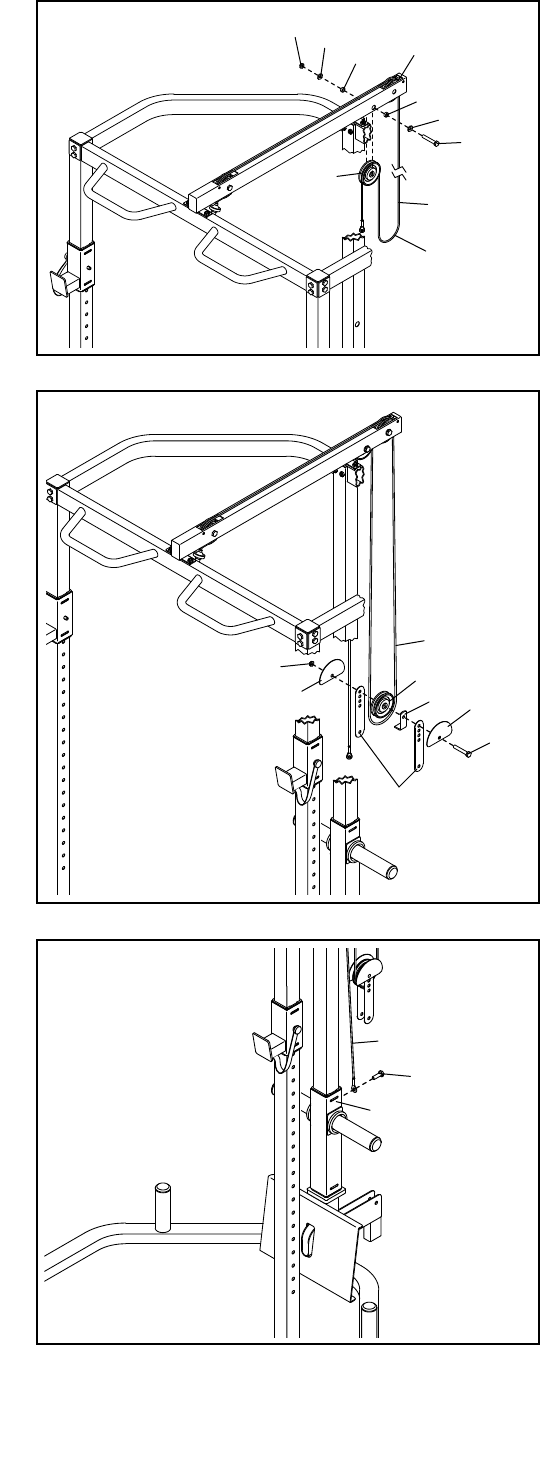

11. Insert a Pulley (32) under the Short Cable (31).

Attach the Pulley (32) inside the Center Frame

(7) with an M10 x 55mm Bolt (40), two M10

Washers (55), two Pulley Bushings (38), and an

M10 Locknut (47).

Stop

38 7

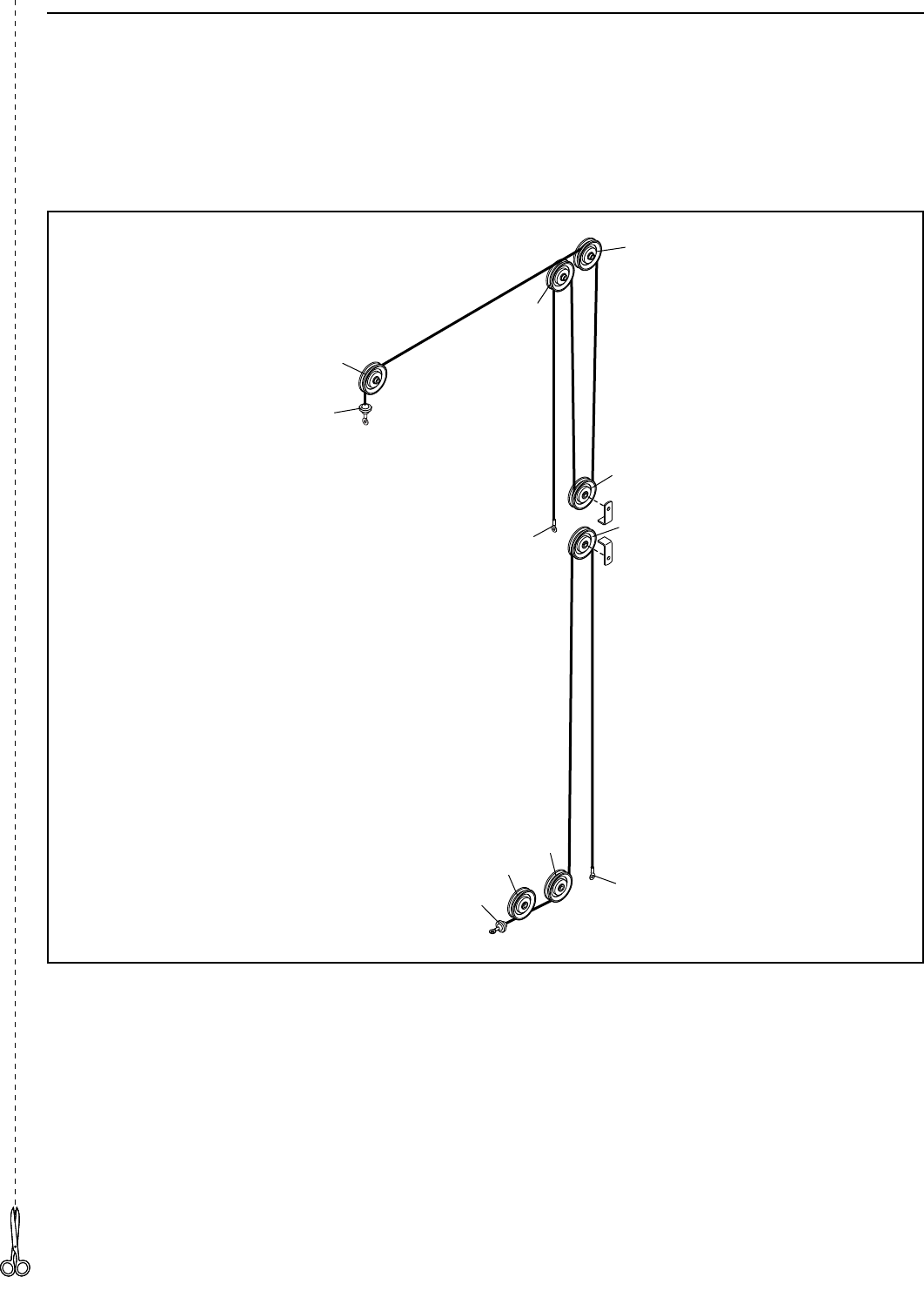

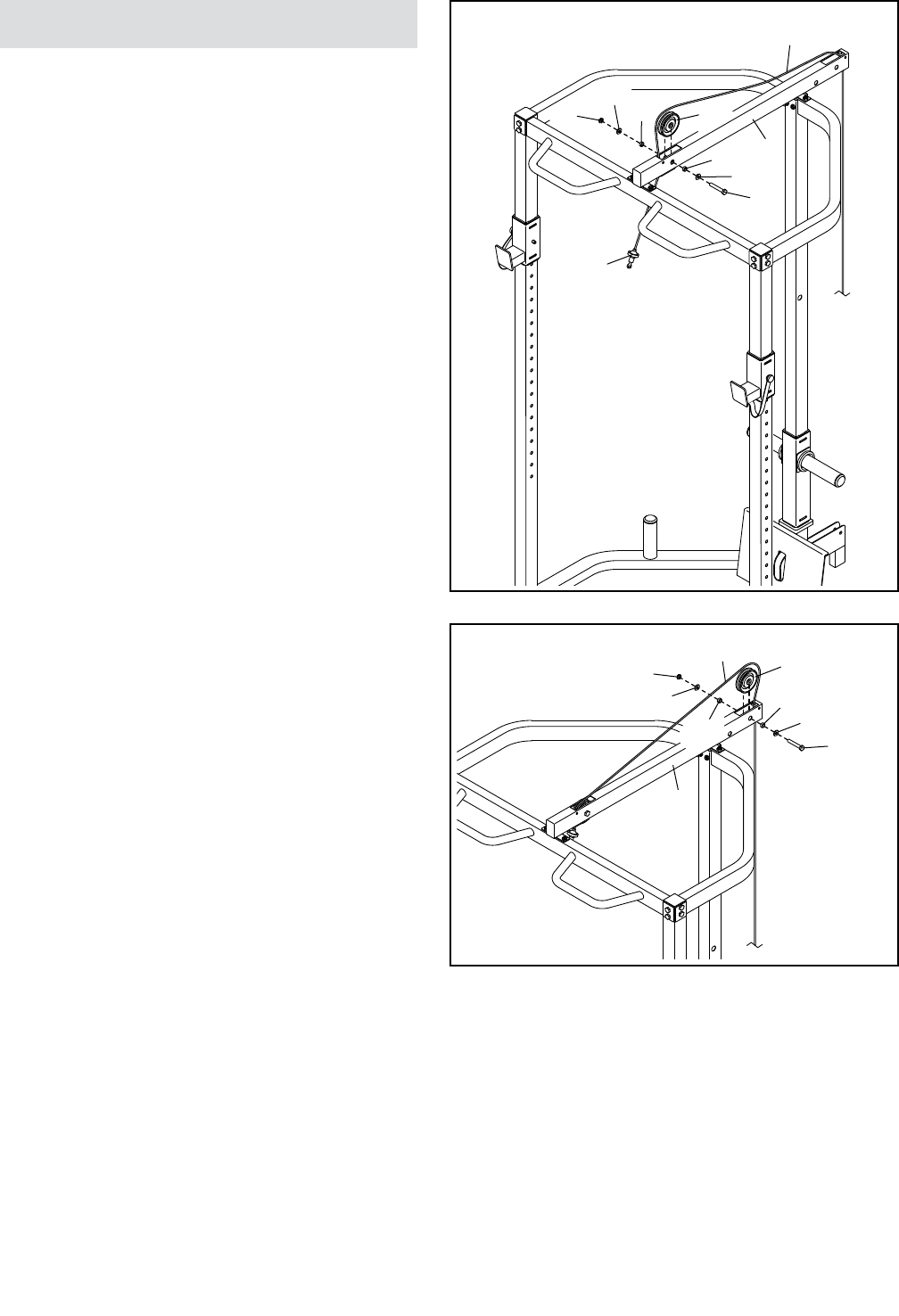

10. IMPORTANT: See the CABLE DIAGRAM on

page 19. Cut along the dotted line, and lay

the CABLE DIAGRAM beside this manual for

reference while you assemble the cables and

the pulleys.

Identify the six Pulley Bushings (38) and the

two Spacers (not shown).

Identify the Short Cable (31). Orient the Short

Cable so that the end with the stop is in the loca-

tion shown.

Route the Short Cable (31) through the Center

Frame (7) as shown.

Insert a Pulley (32) under the Short Cable (31).

Attach the Pulley inside the Center Frame

(7) with an M10 x 55mm Bolt (40), two M10

Washers (55), two Pulley Bushings (38), and an

M10 Locknut (47).

Cable Assembly

55 32

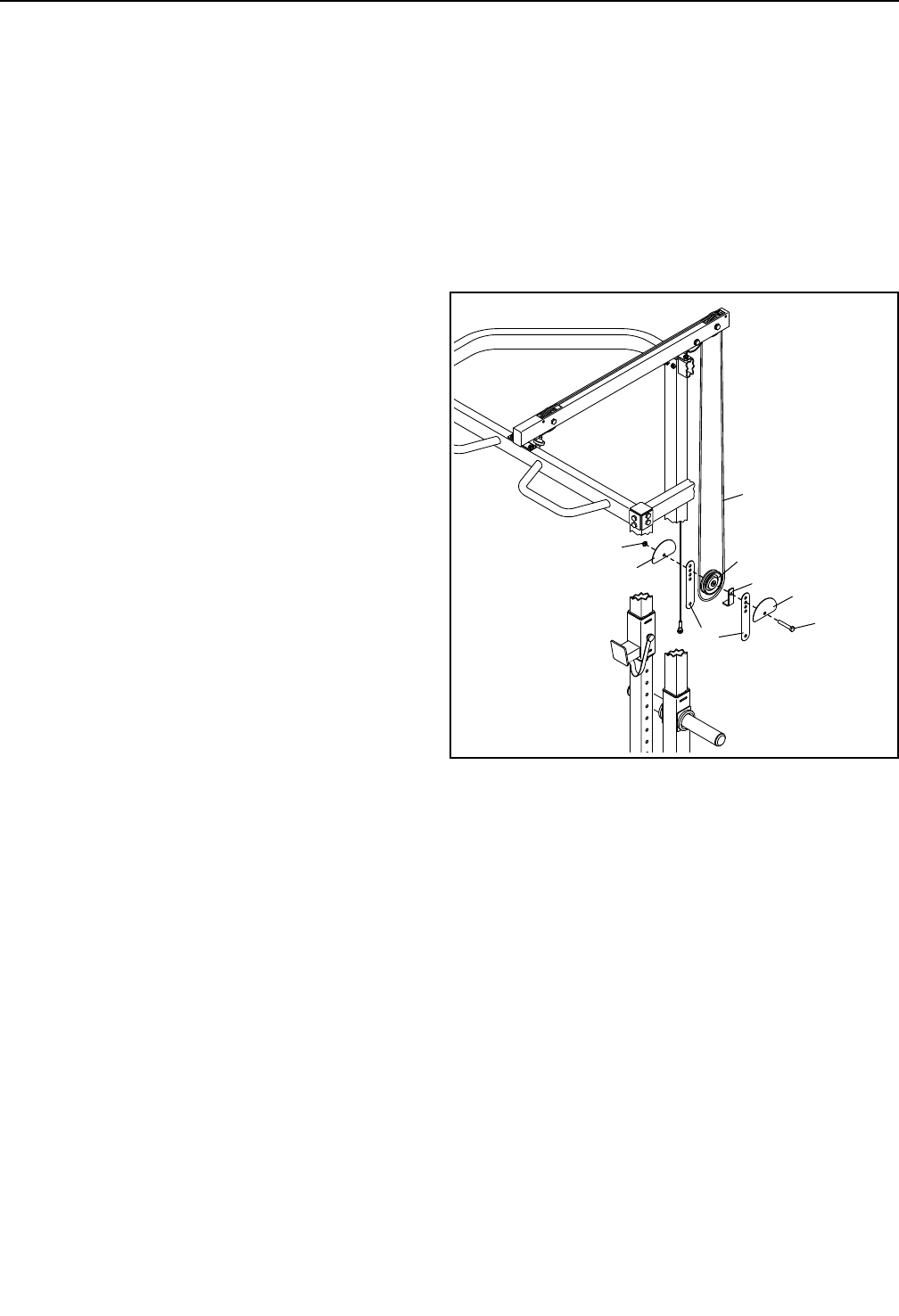

12. Route the Short Cable (31) over a Pulley (32).

Attach the Pulley (32) inside the Center Frame

(7) with an M10 x 55mm Bolt (40), two M10

Washers (55), two Pulley Bushings (38), and an

M10 Locknut (47).

Make sure to leave slack in the Short Cable (31)

in the indicated location.

Slack

13. Insert a Pulley (32) into the loop of the Short

Cable (31) as shown.

Orient two Pulley Plates (34) as shown.

Using the first hole in the Pulley Plates (34),

attach two Half Guards (35), the Pulley Plates,

and a Cable Trap (33) to the Pulley (32) with an

M10 x 50mm Bolt (46) and an M10 Locknut (47).

Make sure that the Cable Trap (33) is oriented

to hold the Short Cable (31) in the groove of

the Pulley (32).

14. Attach the end of the Short Cable (31) to the

Weight Carriage (10) with an M10 x 15mm

Screw (50).

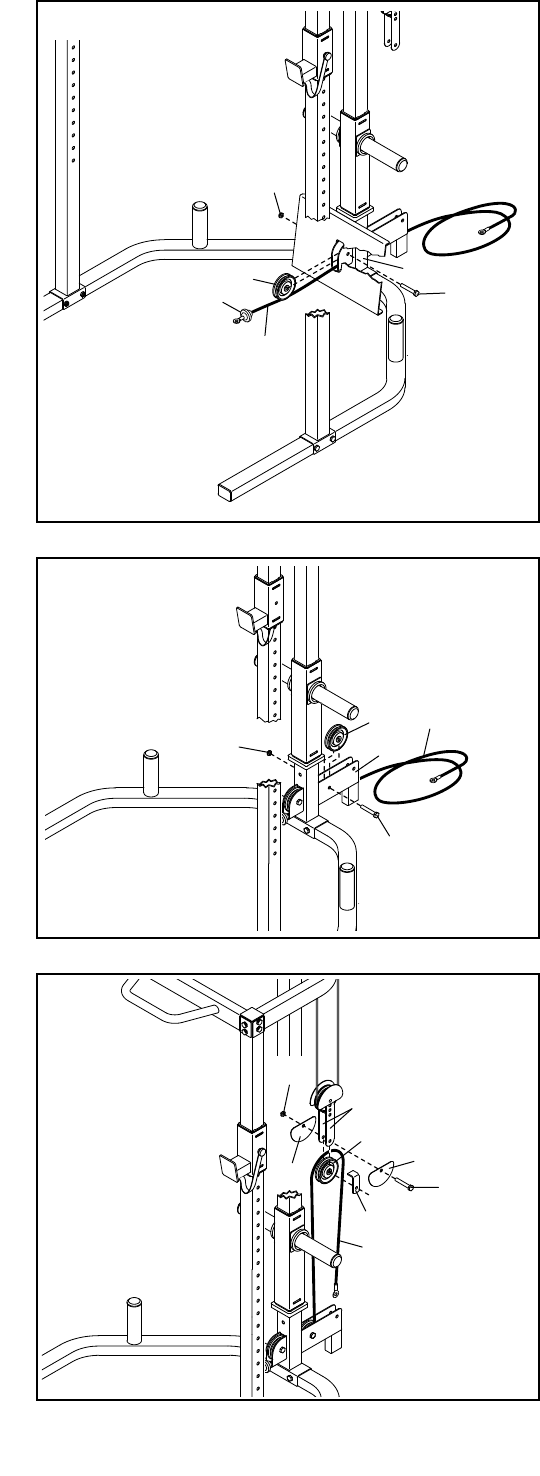

15. See the CABLE DIAGRAM. Identify the Long

Cable (52).

Orient the Long Cable (52) so that the end with

the stop is in the location shown. Route the Long

Cable through the Guide (4).

Insert a Pulley (32) over the Long Cable (52)

inside the Guide (4). Attach the Pulley with an

M10 x 45mm Bolt (39) and an M10 Locknut (47).

Stop

16. Insert a Pulley (32) over the Long Cable (52)

inside the Guide (4). Attach the Pulley with an

M10 x 45mm Bolt (39) and an M10 Locknut (47).

17. Route the Long Cable (52) over a Pulley (32).

Attach two Half Guards (35) and a Cable Trap

(33) to the Pulley Plates (34) and the Pulley

(32) with an M10 x 50mm Bolt (46) and an M10

Locknut (47).

Make sure that the Cable Trap (33) is oriented

to hold the Long Cable (52) in the groove of

the Pulley (32).

18. Attach the end of the Long Cable (52) to the

Guide (4) with an M10 x 45mm Bolt (39), two

Spacers (37), and an M10 Locknut (47).

19. Slide a Weight Plate Bumper (20) onto the tube

on the Left Base (2). Then, slide a Weight Plate

Bumper onto the tube on the Right Base (1).

20. Orient the VKR Frame (9) as shown. Attach an

Arm Pad (14) to the VKR Frame with four M6 x

16mm Screws (44).

Then, attach a VKR Handle (15) to the VKR

Frame (9) with an M10 x 20mm Screw (53) and

an M10 Washer (55).

Repeat this step to attach the other Arm Pad

(14) and the other VKR Handle (15) to the VKR

Frame (9).

VKR Assembly

23. Make sure that all parts are properly tightened before you use the weight bench. Note: Extra parts may

be included. The use of all remaining parts will be explained in ADJUSTMENT, starting on page 16.

21. Attach the Back Pad (13) to the VKR Frame (9)

with four M6 x 16mm Screws (44).

22. Attach the VKR Frame (9) to the Guide (4) with

the VKR Pin (36).

See steps 2, 3, 4, 7, and 9. Tighten the M10

Locknuts (47).

See steps 7 and 8. Tighten the M10 x 80mm

Screws (43).

This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 21 for impor-

tant information about how to get the most benet from your exercise program. Also, refer to the accompanying

exercise guide to see the correct form for several exercises.

Make sure that all parts are properly tightened each time you use the weight bench. Replace any worn parts immedi-

ately. To clean the weight bench, use a damp cloth and a mild, non-abrasive detergent; do not use solvents.

ADJUSTMENT

ATTACHING WEIGHT PLATES TO THE WEIGHT

CARRIAGE

Slide the desired weight plates (A) onto the weight

tubes on the Weight Carriage (10). Then, secure a

Weight Clip (19) onto each weight tube.

WARNING:

Place an equal

amount of weight on each weight tube

on the Weight Carriage (10). Do not place

more than 150 lbs. (68 kg) on the Weight

Carriage. Always secure weight plates with

the Weight Clips (19).

ADJUSTING THE BAR CRADLES

To adjust the height of the left Bar Cradle (12),

remove the Adjustment Pin (30), slide the Bar

Cradle upward or downward to the desired position,

and then insert the Adjustment Pin into one of the

adjustment holes in the left Upright (3). Make sure

that the Adjustment Pin is firmly engaged in an

adjustment hole.

Adjust the right Bar Cradle (12) in the same way.

Make sure to adjust the Bar Cradles to the same

height.

WARNING:

Do not place

a barbell with more than 310 lbs. (141 kg)

of weight on the Bar Cradles (12). Note: A

barbell is not included.

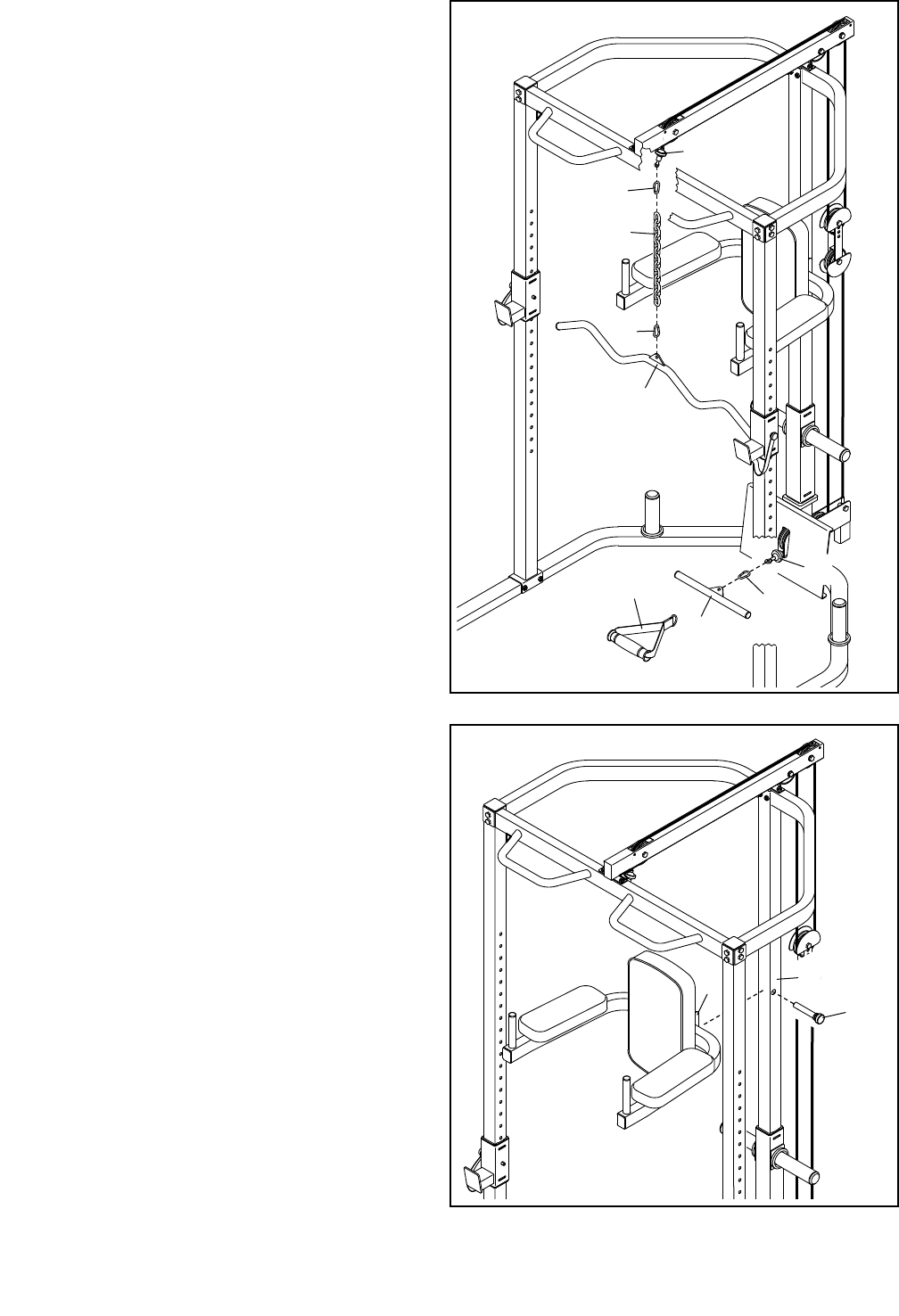

ATTACHING THE ACCESSORIES

Attach the Lat Bar (17) to the Short Cable (31) at the

high pulley station with a Cable Clip (54).

For some exercises, attach the Chain (18) between

the Lat Bar (17) and the Short Cable (31) with two

Cable Clips (54). Adjust the length of the Chain

between the Lat Bar and the Short Cable so that

the Lat Bar is in the correct starting position for

the exercise to be performed.

The Lat Bar (17), the Row Bar (16), or the Handle

(57) can be attached to the Long Cable (52) at the

low pulley station in the same way.

ATTACHING THE VKR FRAME

Attach the VKR Frame (9) to the Guide (4) with the

VKR Pin (36). Remove the VKR Frame from the

weight bench when it is not in use.

Make sure that all parts are properly tightened each time you use the weight bench. Replace any worn parts

immediately. The weight bench can be cleaned with a damp cloth and mild, non-abrasive detergent; do not use

solvents to clean the weight bench.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the weight bench, can stretch slightly when it is first used. If there is

slack in the cables before resistance is felt, the cables should be tightened. To tighten the cables, first place a few

weight plates on the weight carriage. Slack can be removed from the cables in the following way:

Remove an M10 Locknut (47) and an M10 x 50mm

Bolt (46) from two Half Guards (35), two Pulley

Brackets (34), a Cable Trap (33), and a Pulley (32).

Reattach the Pulley (32), the Cable Trap (33), and

the Half Guards (35) to a hole closer to the center of

the Pulley Brackets (34). Make sure that the Cable

Trap is oriented to hold the Short Cable (31) in

the groove of the Pulley and that the Short Cable

and Pulley move smoothly.

Do not overtighten the cables. If the cables are overtightened, the weight carriage will lift away from

the base of the weight bench. If a cable tends to slip off the pulleys often, it may have become twisted.

Remove the cable and reinstall it. If the cables need to be replaced, see the part ordering information on the

back cover of this manual.

MAINTENANCE

Short Cable (31)

10 ft. 4 in. (315 cm)

Long Cable (52)

12 ft. 4 in. (377 cm)

CABLE DIAGRAM

The diagram below shows the proper routing of the cables. The numbers in each drawing show the proper route

of that cable. Cut along the dotted line, and refer to this diagram while you assemble the cables and the pulleys.

If the cables and the pulleys are not assembled correctly, the weight bench will not function properly and damage

may occur. Make sure that the cable traps do not touch or bind the cables. After you assemble the weight

bench, save this diagram with this manual for future reference.

NOTES

EXERCISE GUIDELINES

FOUR TYPES OF STRENGTH WORKOUTS

Note: A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.

Muscle Building—Work your muscles near their maxi-

mum capacity and progressively increase the intensity

of your exercise. Adjust the intensity level of an indi-

vidual exercise as follows:

• Change the amount of resistance used.

• Change the number of repetitions or sets performed.

Use your own judgment to determine the amount of

resistance that is right for you. Begin with 3 sets of 8

repetitions for each exercise you perform. Rest for 3

minutes after each set. When you can complete 3 sets

of 12 repetitions without difficulty, increase the amount

of resistance.

Toning—Tone your muscles by working them to a

moderate percentage of their capacity. Select a moder-

ate amount of resistance and increase the number of

repetitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1 minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss—To lose weight, use a low amount of

resistance and increase the number of repetitions in

each set. Exercise for 20 to 30 minutes, resting for a

maximum of 30 seconds between sets.

Cross Training—Combine strength training and aero-

bic exercise by following this type of program:

• Strength training workouts on Monday, Wednesday,

and Friday.

• 20 to 30 minutes of aerobic exercise on Tuesday and

Thursday.

• One full day of rest each week to give your body time

to regenerate.

WORKOUT GUIDELINES

Familiarize yourself with the equipment and learn the

proper form for each exercise. Use your own judgment

to determine the appropriate length of time for each

workout, and the numbers of repetitions and sets to

complete. Progress at your own pace and be sensitive

to your body’s signals. Follow each workout with at

least one day of rest.

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Working Out—Include 6 to 10 different exercises in

each workout. Select exercises for every major muscle

group, emphasizing areas that you want to develop.

To give balance and variety to your workouts, vary the

exercises from workout to workout.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FORM

Move through the full range of motion for each exer-

cise and move only the appropriate parts of the body.

Perform the repetitions in each set smoothly and

without pausing. The exertion stage of each repeti-

tion should last about half as long as the return stage.

Exhale during the exertion stage of each repetition and

inhale during the return stroke. Never hold your breath.

Rest for a short period of time after each set:

• Muscle Building—Rest for three minutes after each

set.

• Toning—Rest for one minute after each set.

• Weight Loss—Rest for 30 seconds after each set.

STAYING MOTIVATED

For motivation, keep a record of each workout. Write

the date, the exercises performed, the resistance used,

and the numbers of sets and repetitions completed.

Record your weight and key body measurements once

a month. To achieve good results, make exercise a

regular and enjoyable part of your life.

Key No. Qty. Description Key No. Qty. Description

1 1 Right Base

2 1 Left Base

3 2 Upright

4 1 Guide

5 1 Right Frame

6 1 Left Frame

7 1 Center Frame

8 1 Crossbar

9 1 VKR Frame

10 1 Weight Carriage

11 1 Foot Plate

12 2 Bar Cradle

13 1 Back Pad

14 2 Arm Pad

15 2 VKR Handle

16 1 Row Bar

17 1 Lat Bar

18 1 Chain

19 2 Weight Clip

20 4 Weight Plate Bumper

21 2 Tube Cap

22 4 Handle Cap

23 2 Frame Cap

24 2 Base Cap

25 2 Upright Cap

26 5 Foot

27 2 VKR Frame Cap

28 1 Weight Carriage Bumper

29 6 Square Bushing

30 2 Adjustment Pin

31 1 Short Cable

32 7 Pulley

33 2 Cable Trap

34 2 Pulley Plate

35 4 Half Guard

36 1 VKR Pin

37 2 Spacer

38 6 Pulley Bushing

39 3 M10 x 45mm Bolt

40 3 M10 x 55mm Bolt

41 2 M10 x 85mm Bolt

42 7 M4 x 19mm Screw

43 16 M10 x 80mm Bolt/Screw

44 12 M6 x 16mm Screw

45 3 M10 x 75mm Bolt/Screw

46 2 M10 x 50mm Bolt

47 22 M10 Locknut

48 2 Weight Carriage Cap

49 2 Lat Bar Cap

50 1 M10 x 15mm Screw

51 4 Plate

52 1 Long Cable

53 2 M10 x 20mm Screw

54 3 Cable Clip

55 17 M10 Washer

56 2 M10 x 55mm Carriage Bolt

57 1 Handle

* – User’s Manual

* – Exercise Guide

PART LIST Model No. 14933.0 R0814A

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. If a part is missing, call 1-877-992-5999. *These parts are not illustrated.

26 26

49 24

15 14

22 29

42 49

42 42

47 47

47 55 55

48 20

EXPLODED DRAWING Model No. 14933.0 R0814A

If this Sears Weight Bench Exerciser fails due to a defect in material or workmanship within 90 days of

the date of purchase, call 1-800-4-MY-HOME® (1-800-469-4663) to arrange for free repair (or replace-

ment if repair proves impossible).

This warranty does not apply when the Weight Bench Exerciser is used commercially or for rental pur-

poses. This warranty gives you specific legal rights, and you may also have other rights which vary from

state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

90 DAY FULL WARRANTY

Weider Pro Olympic Cage Bench 14933 Users Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
