Weifang Goertek Electronics GBH909 Bluetooth headset User Manual

Weifang Goertek Electronics Co.,Ltd Bluetooth headset Users Manual

User Manual

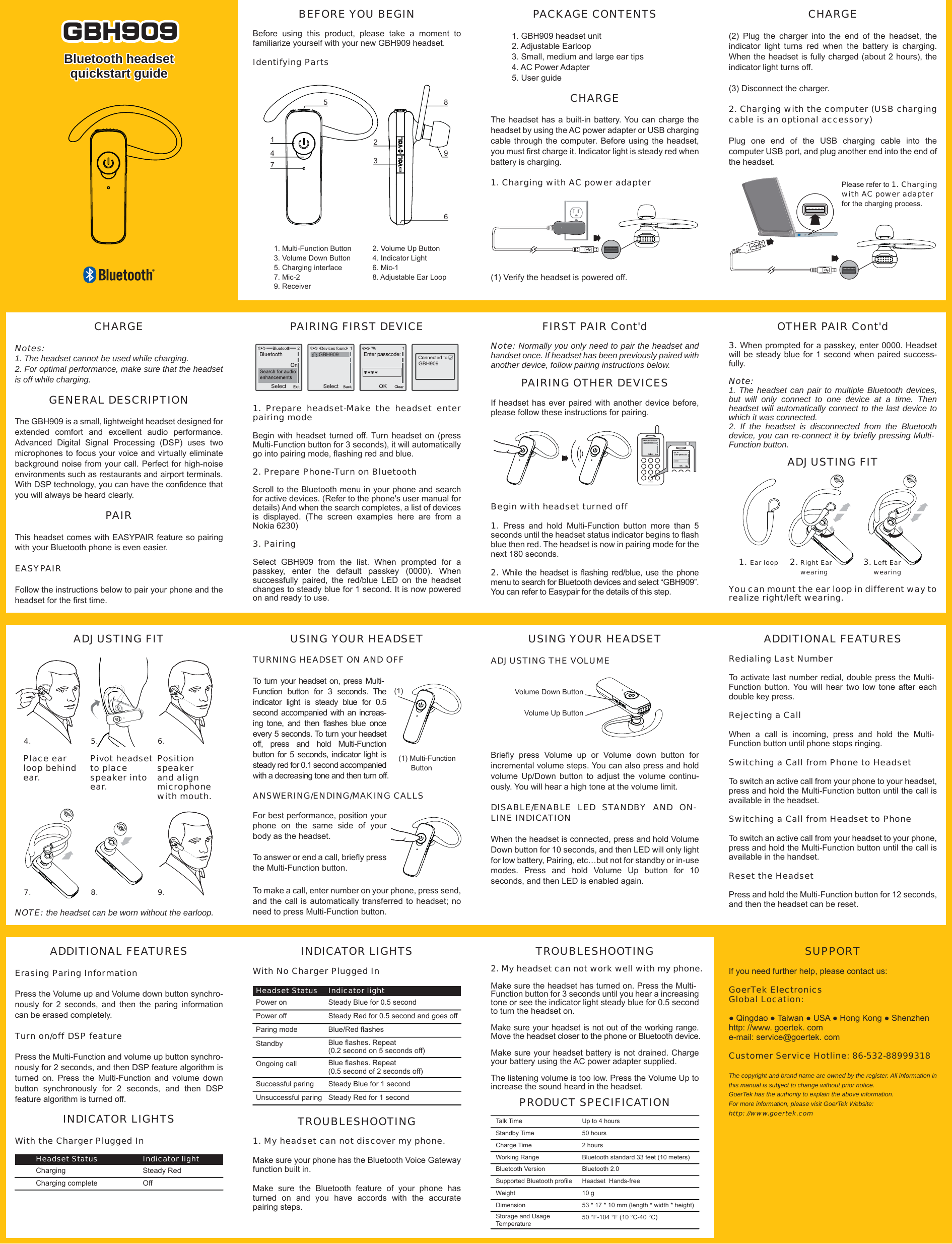

ADDITIONAL FEATURESRedialing Last NumberTo activate last number redial, double press the Multi-Function button. You will hear two low tone after each double key press.Rejecting a CallWhen a call is incoming, press and hold the Multi-Function button until phone stops ringing. Switching a Call from Phone to HeadsetTo switch an active call from your phone to your headset, press and hold the Multi-Function button until the call is available in the headset. Switching a Call from Headset to PhoneTo switch an active call from your headset to your phone, press and hold the Multi-Function button until the call is available in the handset.Reset the HeadsetPress and hold the Multi-Function button for 12 seconds, and then the headset can be reset. USING YOUR HEADSETADJUSTING THE VOLUMEBriefly press Volume up or Volume down button for incremental volume steps. You can also press and hold volume Up/Down button to adjust the volume continu-ously. You will hear a high tone at the volume limit. DISABLE/ENABLE LED STANDBY AND ON-LINE INDICATIONWhen the headset is connected, press and hold Volume Down button for 10 seconds, and then LED will only light for low battery, Pairing, etc…but not for standby or in-use modes. Press and hold Volume Up button for 10 seconds, and then LED is enabled again.Volume Up ButtonVolume Down ButtonINDICATOR LIGHTSWith No Charger Plugged InTROUBLESHOOTING1. My headset can not discover my phone.Make sure your phone has the Bluetooth Voice Gateway function built in. Make sure the Bluetooth feature of your phone has turned on and you have accords with the accurate pairing steps. Power onPower offParing modeStandbyOngoing callSuccessful paringUnsuccessful paringHeadset StatusSteady Blue for 0.5 secondSteady Red for 0.5 second and goes offBlue/Red flashesBlue flashes. Repeat (0.2 second on 5 seconds off)Blue flashes. Repeat (0.5 second of 2 seconds off)Steady Blue for 1 secondSteady Red for 1 secondIndicator lightADDITIONAL FEATURESErasing Paring InformationPress the Volume up and Volume down button synchro-nously for 2 seconds, and then the paring information can be erased completely. Turn on/off DSP featurePress the Multi-Function and volume up button synchro-nously for 2 seconds, and then DSP feature algorithm is turned on. Press the Multi-Function and volume down button synchronously for 2 seconds, and then DSP feature algorithm is turned off. INDICATOR LIGHTSWith the Charger Plugged InChargingCharging completeHeadset StatusSteady RedOffIndicator lightTROUBLESHOOTING2. My headset can not work well with my phone.Make sure the headset has turned on. Press the Multi-Function button for 3 seconds until you hear a increasing tone or see the indicator light steady blue for 0.5 second to turn the headset on.Make sure your headset is not out of the working range. Move the headset closer to the phone or Bluetooth device.Make sure your headset battery is not drained. Charge your battery using the AC power adapter supplied.The listening volume is too low. Press the Volume Up to increase the sound heard in the headset.PRODUCT SPECIFICATIONStandby TimeTalk TimeCharge TimeWorking RangeBluetooth VersionSupported Bluetooth profileWeightDimensionStorage and Usage Temperature50 hoursUp to 4 hours2 hoursBluetooth standard 33 feet (10 meters)Bluetooth 2.0Headset Hands-free10 g53 * 17 * 10 mm (length * width * height)50 °F-104 °F (10 °C-40 °C)SUPPORTIf you need further help, please contact us:GoerTek ElectronicsGlobal Location:● Qingdao ● Taiwan ● USA ● Hong Kong ● Shenzhenhttp: //www. goertek. come-mail: service@goertek. comCustomer Service Hotline: 86-532-88999318The copyright and brand name are owned by the register. All information in this manual is subject to change without prior notice.GoerTek has the authority to explain the above information.For more information, please visit GoerTek Website:http: //www.goertek.comPAIRING FIRST DEVICE1. Prepare headset-Make the headset enter pairing modeBegin with headset turned off. Turn headset on (press Multi-Function button for 3 seconds), it will automatically go into pairing mode, flashing red and blue. 2. Prepare Phone-Turn on BluetoothScroll to the Bluetooth menu in your phone and search for active devices. (Refer to the phone's user manual for details) And when the search completes, a list of devices is displayed. (The screen examples here are from a Nokia 6230)3. PairingSelect GBH909 from the list. When prompted for a passkey, enter the default passkey (0000). When successfully paired, the red/blue LED on the headset changes to steady blue for 1 second. It is now powered on and ready to use.GBH909GBH909CHARGENotes:1. The headset cannot be used while charging.2. For optimal performance, make sure that the headset is off while charging.GENERAL DESCRIPTION The GBH909 is a small, lightweight headset designed for extended comfort and excellent audio performance. Advanced Digital Signal Processing (DSP) uses two microphones to focus your voice and virtually eliminate background noise from your call. Perfect for high-noise environments such as restaurants and airport terminals. With DSP technology, you can have the confidence that you will always be heard clearly.PAIRThis headset comes with EASYPAIR feature so pairing with your Bluetooth phone is even easier. EASYPAIRFollow the instructions below to pair your phone and the headset for the first time.Bluetooth headsetBluetooth headsetquickstart guidequickstart guideBluetooth headsetquickstart guideGBH909GBH909GBH909BEFORE YOU BEGINBefore using this product, please take a moment to familiarize yourself with your new GBH909 headset.Identifying Parts5896123741. Multi-Function Button3. Volume Down Button5. Charging interface7. Mic-29. Receiver2. Volume Up Button4. Indicator Light6. Mic-18. Adjustable Ear LoopPlease refer to 1. Charging with AC power adapter for the charging process.CHARGE(2) Plug the charger into the end of the headset, the indicator light turns red when the battery is charging. When the headset is fully charged (about 2 hours), the indicator light turns off. (3) Disconnect the charger.2. Charging with the computer (USB charging cable is an optional accessory) Plug one end of the USB charging cable into the computer USB port, and plug another end into the end of the headset. FIRST PAIR Cont'dNote: Normally you only need to pair the headset and handset once. If headset has been previously paired with another device, follow pairing instructions below.PAIRING OTHER DEVICESIf headset has ever paired with another device before, please follow these instructions for pairing. Begin with headset turned off1. Press and hold Multi-Function button more than 5 seconds until the headset status indicator begins to flash blue then red. The headset is now in pairing mode for the next 180 seconds.2. While the headset is flashing red/blue, use the phone menu to search for Bluetooth devices and select “GBH909”. You can refer to Easypair for the details of this step. GBH9090000PACKAGE CONTENTS1. GBH909 headset unit2. Adjustable Earloop3. Small, medium and large ear tips4. AC Power Adapter5. User guideCHARGEThe headset has a built-in battery. You can charge the headset by using the AC power adapter or USB charging cable through the computer. Before using the headset, you must first charge it. Indicator light is steady red when battery is charging.1. Charging with AC power adapter (1) Verify the headset is powered off.OTHER PAIR Cont'd3. When prompted for a passkey, enter 0000. Headset will be steady blue for 1 second when paired success-fully.Note:1. The headset can pair to multiple Bluetooth devices, but will only connect to one device at a time. Then headset will automatically connect to the last device to which it was connected.2. If the headset is disconnected from the Bluetooth device, you can re-connect it by briefly pressing Multi-Function button.ADJUSTING FITYou can mount the ear loop in different way to realize right/left wearing. 1. Ear loop 2. Right Ear wearing 3. Left Ear wearingUSING YOUR HEADSETTURNING HEADSET ON AND OFFANSWERING/ENDING/MAKING CALLSTo make a call, enter number on your phone, press send, and the call is automatically transferred to headset; no need to press Multi-Function button.For best performance, position your phone on the same side of your body as the headset.To answer or end a call, briefly press the Multi-Function button.To turn your headset on, press Multi-Function button for 3 seconds. The indicator light is steady blue for 0.5 second accompanied with an increas-ing tone, and then flashes blue once every 5 seconds. To turn your headset off, press and hold Multi-Function button for 5 seconds, indicator light is steady red for 0.1 second accompanied with a decreasing tone and then turn off.(1) Multi-Function Button(1)ADJUSTING FITNOTE: the headset can be worn without the earloop.5.Place ear loop behind ear.Pivot headsetto placespeaker intoear.Positionspeakerand alignmicrophonewith mouth.4. 6.9.8.7.

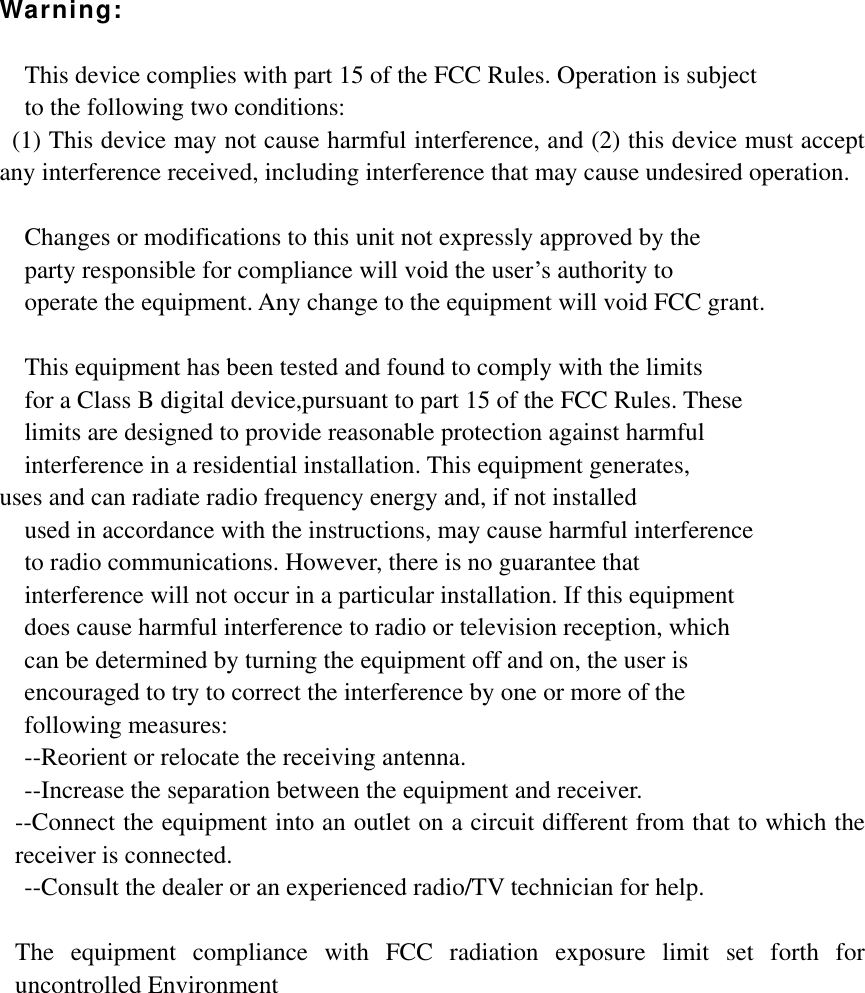

Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment compliance with FCC radiation exposure limit set forth for uncontrolled Environment
