premium wrist
Model: MD 1010 WBPM10 Series / MD 13400
instruction manual
blood pressure monitor
LIFESTYLE
Toll Free Customer Support Line
(866) 633-4660
Daily 8:00 am - 12:00 am CST
except holidays
MD 13400
C
M
Y
CM
MY
CY
CMY
K
13400 EN Aldi US Final Cover.ai 1 26.04.11 09:38:0813400 EN Aldi US Final Cover.ai 1 26.04.11 09:38:08
3
Contents
Introduction ............................................................ 5
Safety Information ................................................. 6
General ...................................................................................6
Safe handling of batteries ................................................7
Service & Repairs .................................................................8
About this device .................................................... 9
Proper use..............................................................................9
Frequently Asked Questions ............................... 10
What is blood pressure? ................................................10
What are systolic and diastolic values? ....................10
What is High Blood Pressure and how is it con-
trolled? .................................................................................11
How does the blood pressure monitor work? .......12
Measuring range ..............................................................13
About your measurement results ....................... 16
Before taking your blood pressure measure-
ment ....................................................................... 17
Initial operation .................................................... 19
Device overview ...............................................................19
Display .................................................................................20
Inserting batteries ...........................................................21
13400 EN Aldi US RC6 Content.indd 113400 EN Aldi US RC6 Content.indd 1 20.04.11 09:51:2420.04.11 09:51:24
4
Setting the date & time ........................................ 22
Putting on the wrist cu ...................................... 24
Correct position for measurement ...................... 25
Automatic measurement ..............................................28
Arrhythmia detection ...................................................28
User settings ......................................................... 29
Selecting user ....................................................................29
Retrieving stored measurement results ..................30
Deleting memory values ...............................................31
Caring for your blood pressure monitor ............. 34
Cleaning/storage .............................................................34
Waste disposal ...................................................... 35
Troubleshooting ................................................... 36
Technical data ....................................................... 38
FCC Statement ...................................................... 40
Blood pressure reading log ................................. 42
Limited Warranty .................................................. 44
13400 EN Aldi US RC6 Content.indd 213400 EN Aldi US RC6 Content.indd 2 20.04.11 09:51:4520.04.11 09:51:45
5
Introduction
Thank you for purchasing the Welby® Wrist Blood
Pressure Monitor. This fully automatic device
measures blood pressure and pulse rate and checks
detects irregular heart beat fast and easily and then
displays the results on the LCD screen. It works
using the oscillometric method of blood pressure
measurement. This means the monitor detects your
blood’s movement through your brachial artery and
converts the movements into a digital reading. An
oscillometric monitor does not need a stethoscope
so the monitor is simple to use by oneself. Please
read this manual thoroughly before use and
save them for future reference. We also highly
recommend that you consult with your physician
or licensed healthcare professional if you have any
questions about your blood pressure either before or
as a result of using this monitor.
Please also save your original receipt as proof
of purchase. It may be required to validate your
warranty in case you need service for this device.
13400 EN Aldi US RC6 Content.indd 313400 EN Aldi US RC6 Content.indd 3 20.04.11 09:51:4520.04.11 09:51:45
6
Safety Information
General
• This device is intended for home use only.
• Do not use this device for self-diagnosis or
self-treatment. Contact your physician or
other licensed health care provider for specific
information about your blood pressure.
• Keep plastic packaging out of the reach of
children. There is a risk of suffocation.
• Keep the device and its accessories out of reach
of children.
• Do not inflate (with the button) until the
device is attached correctly to the wrist.
• Do not drop the device and do not place objects
on top of it.
• Avoid contact with water or moisture!
• Do not use or store the device in extreme
temperature conditions.
• Do not bend or fold the fixed part of the cuff!
13400 EN Aldi US RC6 Content.indd 413400 EN Aldi US RC6 Content.indd 4 20.04.11 09:51:4520.04.11 09:51:45
7
Safe handling of batteries
Batteries may contain combustible materials. If not
handled correctly, batteries can leak, become very
hot, ignite or even explode, which could damage
your device and/or your health. It is very important
that you follow the instructions below:
• Keep batteries away from children. If batteries
are mistakenly swallowed, call poison control or
911 immediately.
• Before inserting the batteries, check that the
contacts in the device and on the batteries are
clean and, if necessary, clean them.
• Never charge batteries (unless it is expressly
specified). Risk of explosion!
• Never short-circuit the batteries.
• Do not dismantle or deform the batteries. You
could injure your hands or fingers or battery
fluid could come into contact with your eyes
or skin. If this happens, rinse the affected areas
immediately with a large amount of clean water
and contact your doctor immediately.
• Never expose the batteries to excessive heat
(such as direct sunlight, fire or similar).
• Always observe the correct polarity. Make sure
that the plus (+) and minus (-) poles are correctly
13400 EN Aldi US RC6 Content.indd 513400 EN Aldi US RC6 Content.indd 5 20.04.11 09:51:4620.04.11 09:51:46
8
inserted to avoid short circuits.
• Remove discharged batteries from the device
immediately.
• Remove the batteries from the device if you do
not intend to use it for an extended period.
• Replace all of the old batteries in device with
new batteries of the same type.
Service & Repairs
Please contact the the Customer Care line if you have
questions about the device or experience technical
problems.
Never try to open or repair the device yourself. There
are no user serviceable parts inside and it will void
your warranty.
13400 EN Aldi US RC6 Content.indd 613400 EN Aldi US RC6 Content.indd 6 20.04.11 09:51:4620.04.11 09:51:46
9
About this device
The device is used to measure blood pressure at the
wrist and can save 60 measurement values in each of
two memory spaces.
Proper use
This device is intended for use in dry, indoor areas
only. The device is only intended for private use and
not for clinical or commercial use. Using the device
under extreme environmental conditions may
damage it.
13400 EN Aldi US RC6 Content.indd 713400 EN Aldi US RC6 Content.indd 7 20.04.11 09:51:4620.04.11 09:51:46
10
Frequently Asked Questions
What is blood pressure?
Blood pressure is the force exerted by blood against
the walls of the aterties as blood is pumped through
the circulatory system and is measured in millimeters
of mercury (mmHg). The higher the pressure, the
harder the heart has to work to supply blood to the
vital organs in the body.
What are systolic and diastolic
values?
With every heartbeat, blood pressure  uctuates
between a maximum value (systolic), when the heart
contracts and pumps blood into the circulatory
system, and a minimum value when the heart
expands and  lls up with blood again (diastolic).
13400 EN Aldi US RC6 Content.indd 813400 EN Aldi US RC6 Content.indd 8 20.04.11 09:51:4620.04.11 09:51:46
11
What is High Blood Pressure and how
is it controlled?
High Blood Pressure, also called by its medical term
Hypertension, is an abnormally high arterial blood
pressure. If left unattended, it can cause many
health problems including stroke and heart attack.
Blood pressure can be higher than usual if parts of
the circulatory system are restricted, diseased or
abnormal in other ways High Blood Pressure can be
controlled by altering one’s lifestyle, avoiding stress,
and with medication under a doctor’s supervision. To
prevent hypertension or to keep it under control:
• Do not smoke
• Exercise regularly
• Reduce salt and fat intake
• Have regular physical checkups
• Maintain proper weight
13400 EN Aldi US RC6 Content.indd 913400 EN Aldi US RC6 Content.indd 9 20.04.11 09:51:4620.04.11 09:51:46
12
How does the blood pressure
monitor work?
Your blood pressure monitor contains high quality
components for measuring and to display the results
on the display using the oscillometric method of
blood pressure measurement. It also measures and
displays your pulse.
The device measures blood pressure indirectly using
a cu around the wrist. In ating the cu presses
the arteries together so that no more blood can
ow through them. If the pressure in the cu is then
reduced, this creates a relationship between the
sleeve pressure and the blood pressure.
The device has electronic step valves that can detect
even slight changes during the measurement,
which can be evened out using the cu pressure. By
reducing the pressure step-by-step,  uctuations in
the cu are recorded by the device and included in
the assessment. If no  uctuations are recorded for a
step, the air pressure is reduced. Existing  uctuations
are assessed at the corresponding step level until
they can be determined precisely.
13400 EN Aldi US RC6 Content.indd 1013400 EN Aldi US RC6 Content.indd 10 20.04.11 09:51:4620.04.11 09:51:46
13
Measuring range
The blood pressure monitor shows your blood
pressure (SYS. = systolic and DIA. = diastolic value),
pulse and the time and date on the display. Blood
pressure is measured in mmHg (millimetres of
mercury).
This devices classi es blood pressure measurements
based on the de nition and standards set by the
World Health Organisation (WHO). WHO de nes high
blood pressure as any measurements above 140
mmHg (systolic) and 90 mmHg (diastolic).
Your blood pressure monitor is  tted with a
color indicator that makes it easier to assess your
measurements.
The following summary can further help you to
assess the values of your own results:
13400 EN Aldi US RC6 Content.indd 1113400 EN Aldi US RC6 Content.indd 11 20.04.11 09:51:4720.04.11 09:51:47
14

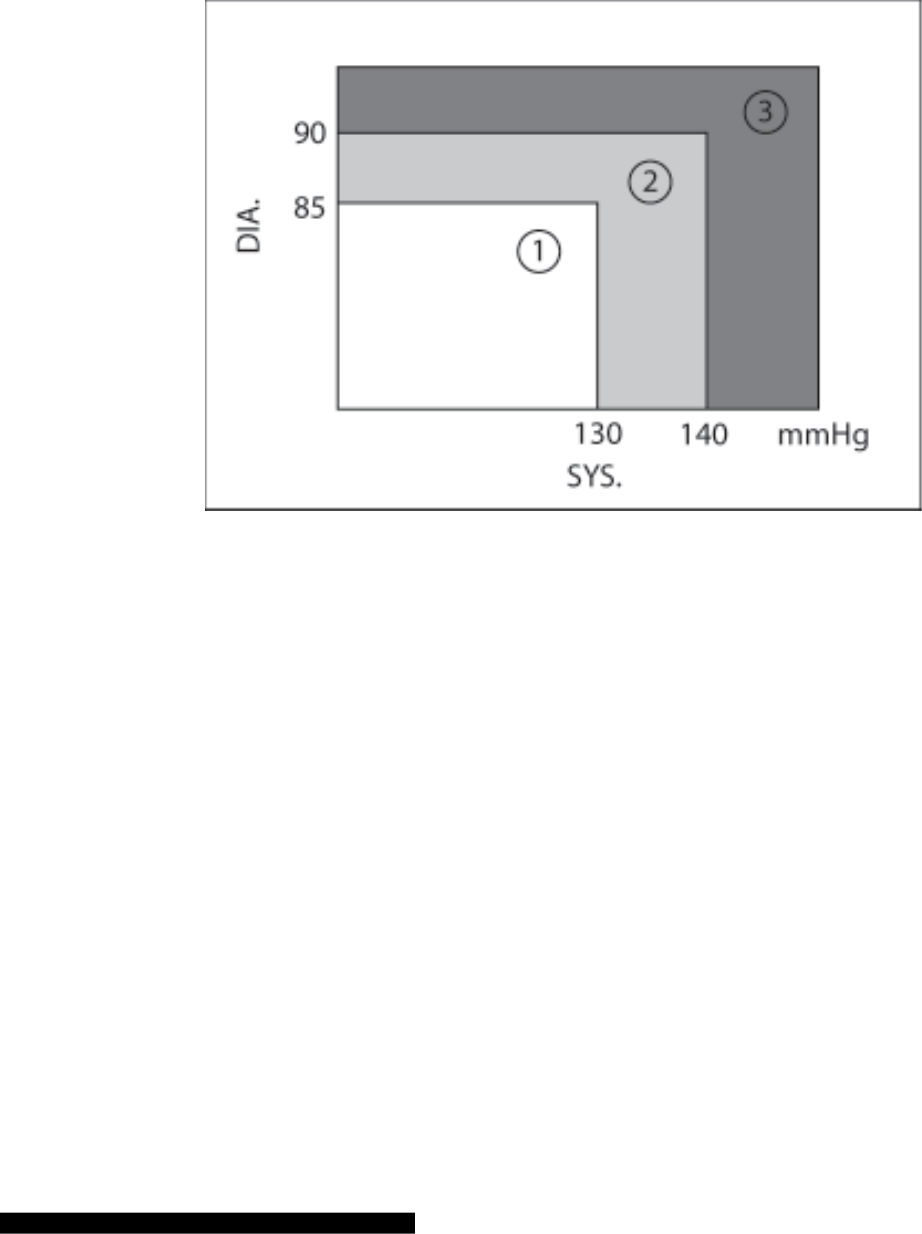

Blood pressure classi cation according to WHO
in mmHg
1 Normal range
2 Borderline high
3 High blood pressure range
13400 EN Aldi US RC6 Content.indd 1213400 EN Aldi US RC6 Content.indd 12 20.04.11 09:51:4720.04.11 09:51:47
15
Range Systolic
mmHg
Diastolic
mmHg Indicator
Low blood
pressure Under 90 Under 50 Green
Normal
blood
pressure
91–129 51–84 Green
Borderline
high blood
pressure
130–139 85–89 Green
Mild high
blood
pressure
140–159 90–99 Yellow
Moderate
high blood
pressure
160–179 100–109 Orange
Severe
high blood
pressure
Over 180 Over 110 Red
13400 EN Aldi US RC6 Content.indd 1313400 EN Aldi US RC6 Content.indd 13 20.04.11 09:51:4720.04.11 09:51:47
16
About your measurement results
If the measurements obtained give you cause to
be concerned about your health, consult with your
physician or licensed health care professional. Do not
change your current treatments and/or dosages of
medication(s) as a result of your measurements unless
you have discussed this  rst with your doctor!
By using your device regularly and recording your
results, you can get a clear overview of your blood
pressure. Everybody’s blood pressure changes
constantly. Fluctuations may be caused by mental
and physical factors such as stress, exertion,
smoking, ca eine and diet. Blood pressure can also
be a ected by the time of day, time of year and
temperature.
In addition, arrhythmia (irregular heartbeat) can lead
to imprecise results. In this case, discuss with your
psysical whether you should be using this device.
13400 EN Aldi US RC6 Content.indd 1413400 EN Aldi US RC6 Content.indd 14 20.04.11 09:51:4720.04.11 09:51:47
17
Before taking your blood pressure
measurement
Note the following points so that the measurement
results give a realistic representation of your blood
pressure:
• Always measure your blood pressure at the same
time of the day.
• Measure your blood pressure when you are
relaxed. Try to rest for fifteen minutes before
measuring your blood pressure.
• You should not eat, drink, smoke or exercise for
at least 60 minutes before taking a measurement.
• Do not measure your blood pressure if you feel
stressed or tense.
• Measure your blood pressure at normal body
temperature, but not if you are too hot or cold.
• Wait for approximately 5 minutes between
measurements.
13400 EN Aldi US RC6 Content.indd 1513400 EN Aldi US RC6 Content.indd 15 20.04.11 09:51:4820.04.11 09:51:48
18
• Please ensure that you always measure your
blood pressure under the same conditions! Also
note the information about maintaining the
correct posture during measurement on page 25.
Different measurement conditions can lead to
markedly different results.
If you have a result that di ers greatly from your
normal blood pressure measurement, you should take
measurement again after a short period of time in
order to exclude the factors listed above that can lead
to an incorrect measurement.
13400 EN Aldi US RC6 Content.indd 1613400 EN Aldi US RC6 Content.indd 16 20.04.11 09:51:4820.04.11 09:51:48
19
Initial operation
Device overview
1 User button
2 Clock button
3 ON/OFF button
4 Battery compartment
5 Cu
6 Save button
7 WHO color indicator
8 Display
13400 EN Aldi US RC6 Content.indd 1713400 EN Aldi US RC6 Content.indd 17 20.04.11 09:51:4820.04.11 09:51:48
20
Display
1 AVG: Average blood pressure
2 Battery indicator
3 M: Display of stored measurement results
4 Systolic blood pressure
5 Diastolic blood pressure
6 Pulse measurement
7 Pulse display with arrhythmia detection indicator
8 User selection
9 Blood pressure range indicator
10 Cu in ation symbol
11 Date and time
13400 EN Aldi US RC6 Content.indd 1813400 EN Aldi US RC6 Content.indd 18 20.04.11 09:51:5120.04.11 09:51:51
21
Inserting batteries
Remove the cover of the
battery compartment at the
notch in the direction of the
arrow.
Insert two 1.5 V R03/LR03/
AAA alkaline batteries.
Replace the cover of the
battery compartment.
It is time to replace the batteries:
• when the battery symbol
on the display is only
half shown and the error
message E6 is displayed, or
• when the display remains blank after pressing
the button.
13400 EN Aldi US RC6 Content.indd 1913400 EN Aldi US RC6 Content.indd 19 20.04.11 09:51:5820.04.11 09:51:58
22
Always change both batteries! Never use new and
old batteries together or di erent types of batteries.
Do not use rechargeable batteries for operating this
device.
Setting the date & time
After you have inserted the batteries, the device will
change into settings mode.
The year  ashes on the display.
Press the M button until the correct year is
displayed.
Con rm your selection by pressing the clock
button . The display will then change to the
month setting.
Press the M button until the correct month is
displayed.
Con rm your selection by pressing the clock
button and the display will change to the day
setting.
Press the M button until the correct day is
displayed.
13400 EN Aldi US RC6 Content.indd 2013400 EN Aldi US RC6 Content.indd 20 20.04.11 09:52:0720.04.11 09:52:07
23
Con rm your selection by pressing the clock
button and the display will change to the hour
setting.
Press the M button until the current time is
displayed.
Con rm your selection by pressing the clock
button and the display will change to the
minute setting.
Press the M button until the correct time is
displayed.
Con rm your selection by pressing the clock
button and now the current time and date will
appear on the display.
Switch o the device by pressing the ON/OFF
button .
You can call up the setting mode at any time.
Press the clock button , the current time and
date will appear on the display.
Press the clock button and hold it down for 3
seconds.
The year  ashes on the display.
13400 EN Aldi US RC6 Content.indd 2113400 EN Aldi US RC6 Content.indd 21 20.04.11 09:52:0920.04.11 09:52:09
24
Putting on the wrist cuff
Remove clothing from left arm or roll up sleeve
making sure it is not too tight on your arm.
Attach the wrist cu in such a way that it is
approx. 1/2” away from the palm of your hand.
Wrap the cu tightly around your wrist so that
there is no gap between the cu and your wrist.
Do not put over clothing.
Wrap the cu according to the shape of your wrist.
If the cu is not  rmly attached, the pressure will
increase and the wrist will become numb. Correct
measurement is then no longer possible.
If the cu cannot be attached to your left wrist and
therefore it is not possible to measure your left arm,
use your right one instead.
13400 EN Aldi US RC6 Content.indd 2213400 EN Aldi US RC6 Content.indd 22 20.04.11 09:52:1120.04.11 09:52:11
25
Correct position for measurement
To measure your blood pressure, sit comfortably on a
chair, take 5 or 6 deep breaths and relax.
Place your left elbow on a table or other supporting
surface so that the the wrist cu is at heart height.
You can also hold your left arm at heart height in
front of your chest and support it using your right
arm.
13400 EN Aldi US RC6 Content.indd 2313400 EN Aldi US RC6 Content.indd 23 20.04.11 09:52:1120.04.11 09:52:11
26
It is important to measure your blood pressure at
home and at the same time each day so that the
blood pressure, which can change over the course of
a day, is recorded properly.
Record your measurements in the chart at the end
of this instruction manual and discuss with your
physician so that you can receive medical advice
based on an evaluation of these measurements.
Blood pressure measured at the wrist can vary
from that measured at the upper arm. The values
may be slightly di erent because of the di erent
measurement positions and the strength of the
blood vessels in the wrist and upper arm.
In many cases, the di erence for healthy people can
be ±10 mmHg of the systolic and diastolic blood
pressure.
If you already have high blood pressure, diabetes, liver
disease, hardening of the arteries or poor circulation
consult your doctor before using this device to monitor
your blood pressure.
Attach the wrist cu to your wrist as described
above.
Press the clock button .
13400 EN Aldi US RC6 Content.indd 2413400 EN Aldi US RC6 Content.indd 24 20.04.11 09:52:1120.04.11 09:52:11
27
The battery symbol, the blinking cu in ation
symbol and the selected user are shown on the
display.
Do not move the cu , your arm or hand muscles
during measurement.
After a few seconds, the cu will in ate. When the
cu pressure is stable, the device will start measuring
automatically.
If you want to stop the measurement, press the
ON/OFF button and the cu will de ates.
If you want to repeat a measurement, you should wait
at least  ve minutes. The cu must be fully de ated.
13400 EN Aldi US RC6 Content.indd 2513400 EN Aldi US RC6 Content.indd 25 20.04.11 09:52:1120.04.11 09:52:11
28
Automatic measurement
If the cu pressure is too low, the device stops
measuring and in ates the cu again. Measurement
starts when the correct cu pressure has been
reached. The device also measures your pulse. The
value displayed will fall during measurement.
When the measurement is complete, the cu will
de ate by itself and the systolic and diastolic blood
pressure as well as the pulse and the pulse symbol
will appear on the display.
The data is automatically saved to the memory bank
of the selected user.
Arrhythmia detection
Normally, the pulse beats with a regular rhythm
(rhythmically). When the device detects an abnormal
pulse rhythm, the symbol appears on the display.
In this case, repeat the measurement.
Abnormal pulse rhythms can have di erent causes.
If the pulse is constantly arrhythmic, please consult
your physician or healthcare provider.
13400 EN Aldi US RC6 Content.indd 2613400 EN Aldi US RC6 Content.indd 26 20.04.11 09:52:1220.04.11 09:52:12
29
User settings
The blood pressure monitor has two memory banks,
which allow two di erent users to save up to 60
measurements each. The device calculates the
average value from the last three measurements.
Selecting user
Press the clock button or user button to
switch the device on. The current time and date,
as well as the current selected user, will appear
on the display.
If necessary, press the user button again to
switch between the two memory banks.
Press the ON/OFF button to switch o the
device.
Note
Please be aware that when there are two
users the most recently selected user will
remain active until a new user has been
selected.
13400 EN Aldi US RC6 Content.indd 2713400 EN Aldi US RC6 Content.indd 27 20.04.11 09:52:1220.04.11 09:52:12
30
Retrieving stored measurement
results
Press the user button to switch on the device.
Press the user button again to select the
desired user.
Press the M button, the average measurement
will be shown on the display. This is indicated on
the display with AVG.
Press the M button repeatedly in order to display
the results of the last measurements.
Press the ON/OFF button to switch o the
device.
13400 EN Aldi US RC6 Content.indd 2813400 EN Aldi US RC6 Content.indd 28 20.04.11 09:52:1220.04.11 09:52:12
31
Deleting memory values
You can delete individually saved measurements or
all of the measurements for each user.
Press the ON/OFF button to switch on the
device.
Press the user button again to select the
desired user.
Press the M button, the average measurement
will be shown on the display.
Select the measurement to be deleted with the
M button.
Press and hold down the M button for approx. 3
seconds. CL and two lines will be shown on the
display.
13400 EN Aldi US RC6 Content.indd 2913400 EN Aldi US RC6 Content.indd 29 20.04.11 09:52:1320.04.11 09:52:13
32
Press the user button , CL and 00 will be shown
on the display. The value has now been deleted.
In order to delete all of the saved measurements
for the selected user, repeat the  rst three steps
until the average measurement is shown on the
display. This is indicated on the display by AVG.
Press and hold down the M button for
approximately 3 seconds. CL and two lines will
be shown on the display.
13400 EN Aldi US RC6 Content.indd 3013400 EN Aldi US RC6 Content.indd 30 20.04.11 09:52:1420.04.11 09:52:14
33
Press the user button , CL and 00 will be shown
on the display. All of the saved measurements for
the selected user have now been deleted.
13400 EN Aldi US RC6 Content.indd 3113400 EN Aldi US RC6 Content.indd 31 20.04.11 09:52:1520.04.11 09:52:15
34
Caring for your blood pressure
monitor
Cleaning/storage
Only use a dry, soft cloth to clean the device. Do not
use chemical solutions or cleaning products because
these may damage the device’s surface or markings.
Store the device in the supplied case when not in
use.
Do not bend the preshaped cu outwards. The cu
should neither be washed nor dry cleaned.
If the device is not going to be used for long periods,
remove the batteries.
13400 EN Aldi US RC6 Content.indd 3213400 EN Aldi US RC6 Content.indd 32 20.04.11 09:52:1520.04.11 09:52:15
35
Waste disposal
Packaging
Your device has been packaged to protect it
from damage in transit. The packaging is
made of environmentally friendly material
which can be recycled.
Device
At the end of its service life, the device
should not be disposed of with the
household trash. Please enquire about
options for environmentally friendly
disposal.
Batteries
Do not dispose of used batteries in the
household trash! They should be disposed of
in an environmentally appropriate way.
13400 EN Aldi US RC6 Content.indd 3313400 EN Aldi US RC6 Content.indd 33 20.04.11 09:52:1520.04.11 09:52:15
36
Troubleshooting
If there are error messages or incorrect
measurements displayed, remove the batteries and
insert them again after about one minute.
Error Possible causes Solutions
Display
is blank
The batteries are
dead.
Replace both
batteries with new
1.5 V R03/LR03/AAA
batteries.
E 1 The cu is not
worn correctly
Make sure cu
is worn properly
and take a new
measurement.
E 2 You moved while
a measurement
was being taken.
Sit still and take a
new measurement.
13400 EN Aldi US RC6 Content.indd 3413400 EN Aldi US RC6 Content.indd 34 20.04.11 09:52:1820.04.11 09:52:18
37
Error Possible causes
and
solutions
E 3 The cu is not
attached correctly.
Fit the cu correctly
and take a new
measurement.
E 4 An error has
occurred in the
measurement
Take a new
measurement.
E 5 Cu pressure
above 300 mmHg
Check the  tting of
the cu and take a
new measurement.
E 6 Batteries are too
weak
Replace both batteries
with new 1.5 V R03/
LR03/AAA batteries.
13400 EN Aldi US RC6 Content.indd 3513400 EN Aldi US RC6 Content.indd 35 20.04.11 09:52:1820.04.11 09:52:18
38
Technical data
Measurement method: Oscillometric
Measuring range
Blood pressure: 30 ~ 280 mmHg
Pulse: 40 ~ 180 beats/min.
Power supply: 2 x 1.5 V alkaline batteries
R03/LR03/AAA
Display: LCD
Memory spaces: 2 x 60 measurement results
In ation: Automatically by pump
Air release: Automatically via a
one-way valve
Measuring accuracy
Blood pressure: +/- 3mmHg
pressure indicator
Pulse: +/- 5% of value displayed
13400 EN Aldi US RC6 Content.indd 3613400 EN Aldi US RC6 Content.indd 36 20.04.11 09:52:1820.04.11 09:52:18
39
Temperatures
Operating temperature: +50 ~ +104 °F,
at humidity
30–85%
Storage temperature: −4 ~ +140 °F,
at humidity
10–95%
Cu size: 5.3” ~ 7.68”
Speci cations subject to change without notice.
13400 EN Aldi US RC6 Content.indd 3713400 EN Aldi US RC6 Content.indd 37 20.04.11 09:52:1820.04.11 09:52:18
40
FCC Statement
NOTE:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE
(for U.S.A. only)
This product has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio interference energy and,
if not installed and used in accordance with the
instructions, may case harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment o
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and the receiver.
• Connect the equipment into an outlet or on a
13400 EN Aldi US RC6 Content.indd 3813400 EN Aldi US RC6 Content.indd 38 20.04.11 09:52:1920.04.11 09:52:19
41
circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
You may also  nd helpful the following booklet,
prepared by the FCC: “How to Identify and Resolve
Radio-TV Interference Problems.” This booklet is
available from the U.S. Government Printing O ce,
Washington D. C. 20402.
Changes or modi cations not expressly approved by
the manufacturer or registrant of this equipment can
void your authority to operate this equipment under
Federal Communications Commissions rules.
Status: 04/2011
13400 EN Aldi US RC6 Content.indd 3913400 EN Aldi US RC6 Content.indd 39 20.04.11 09:52:1920.04.11 09:52:19
42
Blood pressure reading log
User 1
Date &
Time
Sys Dia Pulse Wt. Notes
13400 EN Aldi US RC6 Content.indd 4013400 EN Aldi US RC6 Content.indd 40 20.04.11 09:52:1920.04.11 09:52:19
43
User 2
Date &
Time
Sys Dia Pulse Wt. Notes
13400 EN Aldi US RC6 Content.indd 4113400 EN Aldi US RC6 Content.indd 41 20.04.11 09:52:1920.04.11 09:52:19
44
Limited Warranty
PLEASE READ THIS LIMITED WARRANTY CAREFULLY
TO UNDERSTAND YOUR RIGHTS AND OBLIGATIONS.
MEDION warrants that the Welby® Premium Wrist
Blood Pressure Monitor (MD 13400, Item 1990)
accompanied by this limited warranty is free from
manufacturing defects in material or workmanship
for a period of 36 months from the date of original
purchase. Please save your original cash register
receipt as it may be required to validate original date
of purchase. The limited warranty period also applies
to any implied warranties that may exist under
applicable law. Some States do not allow limitations
on how long an implied warranty lasts, so the above
limitation may not apply to you.
This limited warranty does not apply to products that
have been opened, repaired (except by MEDION or
its authorized Service representatives), or otherwise
altered. This limited warranty does also not apply
to defects resulting from misuse, abuse, accident,
neglect, improper maintenance or handling.
If you believe the product is defective please return
it to MEDION in the manner described below within
the limited warranty period. If MEDION determines
a defect covered by this limited warranty, MEDION
will, at its option, repair or replace the product. This
13400 EN Aldi US RC6 Content.indd 4213400 EN Aldi US RC6 Content.indd 42 20.04.11 09:52:1920.04.11 09:52:19
45
limited warranty extends to repaired products and
replacement products only through the end of the
original limited warranty period.
In no event shall MEDION or any of its distributors
or resellers be liable for incidental, indirect or
consequential damages relating to the product
(including any repaired product or replacement
product) or its use. Some States do not allow the
exclusion or limitation of incidental or consequential
damages, so the above limitation and exclusion may
not apply to you.
This limited warranty gives you speci c legal rights,
and you may have other rights which vary from State
to State.
To make a claim under this limited warranty you
must  rst contact MEDION Customer Care using one
of the options below to obtain a return merchandise
authorization (RMA) number. Once you have
received the RMA, please return the product as
instructed by the RMA. This warranty does not apply
to any products returned to MEDION without a RMA.
13400 EN Aldi US RC6 Content.indd 4313400 EN Aldi US RC6 Content.indd 43 20.04.11 09:52:1920.04.11 09:52:19
46
To obtain a RMA please contact MEDION Toll Free
Customer Care at:
866-633-4660
Daily 8:00 am - 12:00 am CST
except holidays
Email Support (Available 24 x 7, with response in 24
hours or less)
13400 EN Aldi US RC6 Content.indd 4413400 EN Aldi US RC6 Content.indd 44 20.04.11 09:52:1920.04.11 09:52:19
premium wrist
Model: MD 1010 WBPM10 Series / MD 13400
instruction manual
blood pressure monitor
LIFESTYLE
Toll Free Customer Support Line
(866) 633-4660
Daily 8:00 am - 12:00 am CST
except holidays
MD 13400
C
M
Y
CM
MY
CY
CMY
K
13400 EN Aldi US Final Cover.ai 1 26.04.11 09:38:0813400 EN Aldi US Final Cover.ai 1 26.04.11 09:38:08

Navigation menu
