Introduction
Read this manual thoroughly before using the radio.
Symbols
The following symbols are associated with the radio.
Related publications
• Welch Allyn Spot Vital Signs® LXi Directions for Use
• Welch Allyn Spot Vital Signs LXi Service Manual
WARNING A warning statement in this
manual identifies a condition or practice,
which if not corrected or discontinued
immediately, could lead to patient injury,
illness, or death.
Caution A caution statement in this manual
identifies a condition or practice, which if not
corrected or discontinued immediately, could
lead to equipment failure, equipment
damage, or data loss.
Recyclable Temperature limits
Recycle the product separate from other
disposables (see “Product disposal” on
page 7). www.welchallyn.com/weee
Equipment is not protected against the
ingress of liquid.
Restrictions for use of wireless device in
Europe. European Communities Class 2
equipment.
This device complies with the 47 CFR Part 15
radiated and conducted emissions
requirements.
Non-ionizing electromagnetic radiation. This
device contains an approved RLAN module
operating in frequency bands 2.402 GHz to
2.4835 GHz and 5.125 GHz to 5.875 GHz.
Complies with the Restriction of Hazardous
Substances Directive.
Input Medium Access Control
Direct current Wireless Fidelity
Serial number See the accompanying manual.
Reorder number
Welch Allyn 802.11 a/b/g wireless radio
FCC ID: PGUWA11ABG09
IC: 4168A-WA11ABG09
This device complies with FCC and Industry Canada requirements for
international radiators (802.11 wireless).
MAC
WiFi
2Welch Allyn Spot Vital Signs LXi radio accessory
Warnings and cautions
All operating personnel must read and understand the general safety information in this
summary. Specific warnings and cautions are also found throughout this manual.
General warnings
General cautions
WARNING ELECTRIC SHOCK HAZARD. Do not attempt to service the radio.
The radio contains no user-serviceable parts. If you attempt to service the radio,
you will void the product warranty.
WARNING ELECTRIC SHOCK HAZARD. Do not autoclave the radio. Autoclaving
can force moisture inside the case, creating an electric shock hazard. Clean the
radio according to the directions in “Cleaning” on page 7.
WARNING All signal input and output connectors are intended only for
connection of devices complying with IEC 60601-1 or other IEC standards (for
example, IEC 60950) as appropriate to the device. Connecting additional devices
to Spot Vital Signs LXi may increase leakage currents. To maintain operator and
patient safety, it is necessary to consider the requirements of IEC 60601-1-1. Use
only Welch Allyn approved accessories.
WARNING Changes or modifications not expressly approved by Welch Allyn
could void the purchaser’s authority to operate the equipment. This product does
not contain any user-serviceable components. Any unauthorized product changes
or modifications will invalidate Welch Allyn’s warranty and all applicable regulatory
certifications and approvals.
Caution Do not permit water or other fluid to enter any connectors on the radio.
Should this occur, dry the connectors with warm air. Check the accuracy of all
operating functions before putting the radio back in service.
Caution Use the radio only within stated operating temperature ranges. The
radio might not meet performance specifications if used outside these
temperature ranges.
Caution Use only the radio identified in this manual. Using unapproved
accessories with Spot Vital Signs LXi can affect transmission accuracy.
Caution The radio is not intended for hand-held use.
Caution The radio complies with current required standards for
electromagnetic interference and should not present problems to other
equipment or be affected by other devices. As a precaution, avoid using the radio
in close proximity to other equipment.
Caution High-power radars are allocated as primary users of the bandwidth
between 5.25 GHz and 5.35 GHz and between 5.65 GHz and 5.85 GHz. These
radars can interfere with the radio and can damage the radio.
Caution This radio is compliant with FCC RF Exposure requirements for mobile
devices. To ensure compliance, users are cautioned to maintain at least 20 cm (8
inches) between the transmitter and any people.
Directions for use 3
Contents checklist
Unpack the radio and then inspect for missing items. Retain the shipping materials in the
event of shipping damage or for return, if necessary, to Welch Allyn for repair or warranty
service. Report any signs of shipping damage to the carrier. Report any missing or
damaged items to the Welch Allyn Service Center nearest you (see page ii).

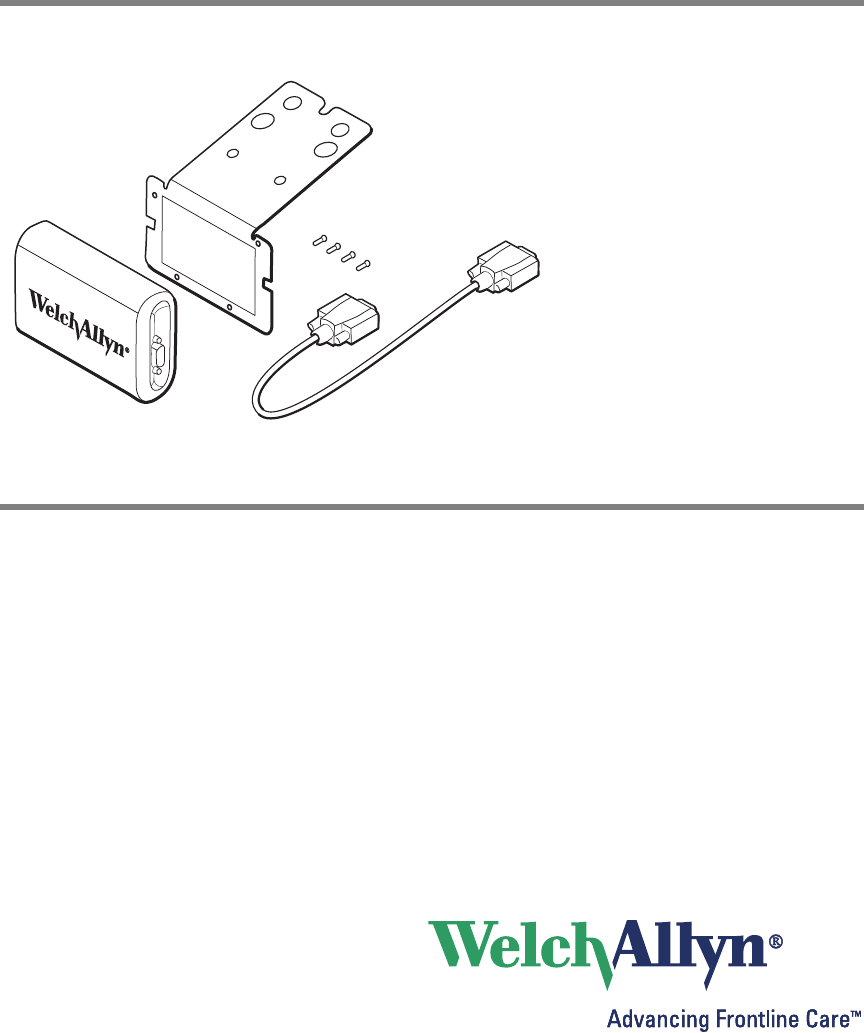

•Radio
• Directions for Use CD
• Serial Cable
• Mounting Bracket and Screws
Mounting the radio to a mobile stand

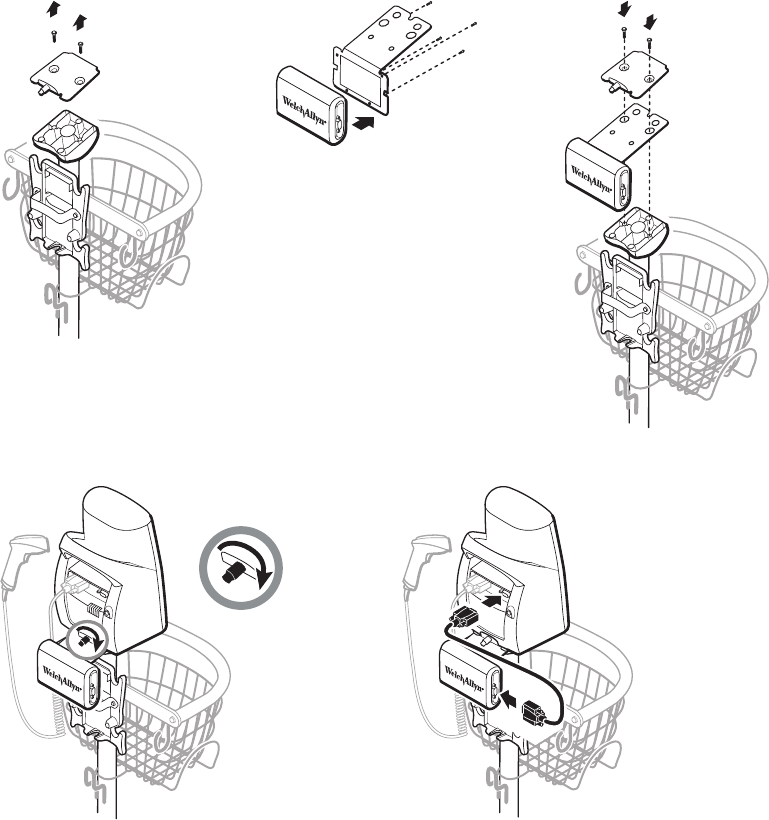

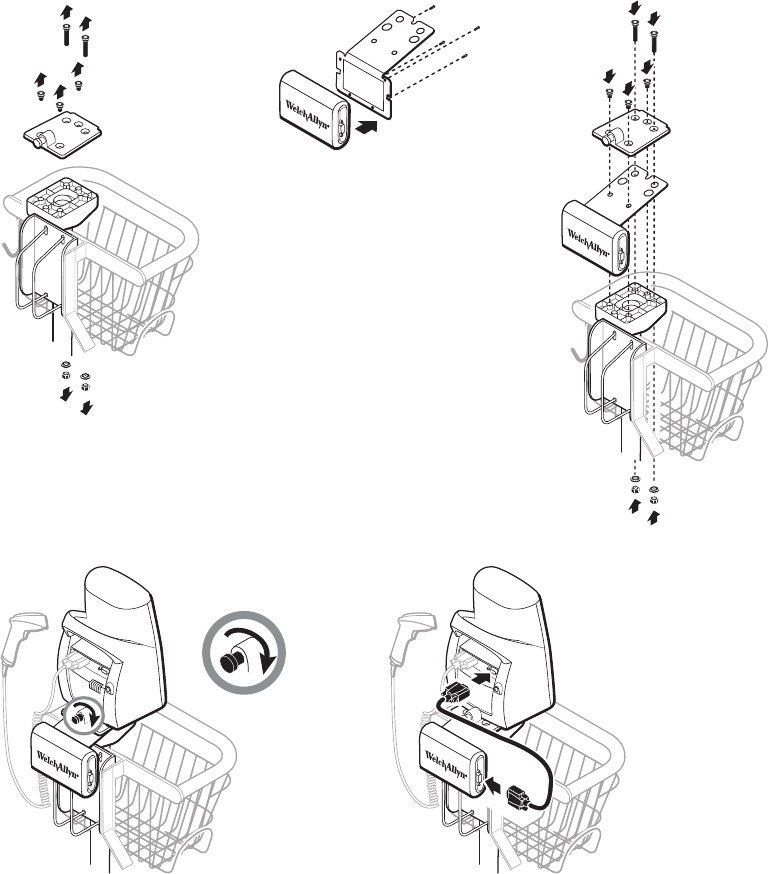

If your mobile stand looks like the one below, follow the instructions on this page. If your
stand looks different, follow the instructions on the next page.
12
45
3
4Welch Allyn Spot Vital Signs LXi radio accessory
12
45
3
Directions for use 5
Setup
Before the radio can be used for the first time, the following tasks must be completed:
1. Set up the wireless LAN to support the radio including ESSID, authentication, and
encryption.
2. Configure the radio for the network using the ESSID, authentication, and encryption
from the previous step.
3. Configure Spot Vital Signs LXi.
To complete these tasks, follow the instructions below.
Setting up the network
To work with the radio, your network must have these features:
• A DHCP server.
• If EAP authentication is enabled: an authentication server (RADIUS).
• Welch Allyn Connex® software.
Ensure that your network meets these requirements.
Configuring the radio for the network
To complete this task, you need the Spot Vital Signs LXi Radio Configuration CD.
The CD installs a configuration utility and procedure on your computer.
Refer to the procedure for instructions on how to complete the configuration process.
Configuring Spot Vital Signs LXi
After configuring the radio for the network, you must configure the Spot Vital Signs LXi
device.
To complete this task, you must change a few settings in the Internal Configuration Mode
of the device. When changed, these settings become the default power-up settings.
This task also requires you to connect the radio and barcode scanner to the appropriate
serial ports on the back of the device.
To configure Spot Vital Signs LXi
1. Disconnect all devices from Port I and Port II on the back of Spot Vital Signs LXi.
2. Press to turn off Spot Vital Signs LXi.
3. Press and hold and simultaneously for 5 seconds. The Configuration Menu
screen appears.
4. Use to choose External Devices and press to access the options.
The External Devices option enables or disables available external devices.
5. Use to choose Information System and press . Use to select On and
press .
6Welch Allyn Spot Vital Signs LXi radio accessory
6. Choose Barcode Patient ID and select On.
Instructions appear on the display.
7. Follow the instructions by connecting the barcode scanner to the port listed on the
display and pressing to return to the External Devices menu.
8. Choose Wireless Module and select DPAC. (“DPAC” refers to the radio.)
Instructions appear on the display.
9. Follow the instructions by connecting the radio to the port listed on the display and
pressing .
10. Turn off Spot Vital Signs LXi.
Transmitting patient readings
You can transmit patient readings after completing the steps described in “Setup” on
page 5.
To transmit a patient’s readings immediately after taking them
1. Measure the patient’s vital signs. Use the barcode scanner to read the Patient ID. The
words “Send/Next Reading” appear in the Navigation Window. You can enter the
Patient ID any time before the data is sent.
2. When vitals readings are complete, use to choose Send/Next Reading. Press
.
The device displays “Sending reading to Information System” in the Navigation
Window and the successful operation icon ( ) upon completion.
If the reading was not sent, it is retained in memory, the device displays the failed
send operation icon ( ), and the reading count increments. The device attempts to
resend all unsent readings at the next send attempt.
Data is deleted from the device only after an acknowledgement is received from
Connex.
To manually transmit all readings
Press , use to choose Send Reading and press .
Note
If more than 50 readings are stored, taking another reading may result in deletion
of the oldest reading in memory, depending on the device configuration. For
details, see the Spot Vital Signs LXi directions for use.
X
MEM
Directions for use 7
Cleaning
To clean the exterior, use a soft cloth slightly moistened with a mild detergent solution.
Technical assistance
If you have an equipment problem that you cannot resolve, call the Welch Allyn Service
Center nearest you for assistance (see page ii). Technical service telephone support is
available on normal business days.
If you are advised to return a product to Welch Allyn for repair or routine maintenance,
schedule the repair with the service center nearest you.
Before returning a product for repair, you must obtain authorization from Welch Allyn.
Service personnel will give you a Service Notification number. Please note this number on
the outside of your shipping box. Returns without a Service Notification number will not
be accepted for delivery.
Product disposal
Do not dispose of this product as unsorted municipal waste. Prepare this product for
reuse or separate collection as specified by Directive 2002/96/EC of the European
Parliament and the Council of the European Union on Waste Electronic and Electrical
Equipment (WEEE). If this product is contaminated, this directive does not apply.
For more specific disposal information, see www.welchallyn.com/weee, or contact Welch
Allyn Customer Service.
Supplies and accessories
Caution IPXØ Equipment is not protected against the ingress of liquid.
Caution Do not use abrasive cleaners.
Caution Do not immerse the module in any liquid.
REF Description REF Description
705310 Spot Vital Signs LXi Directions for Use 704432 Spot Vital Signs LXi Service Manual
4500-915 2D Barcode Scanner with Mounting Bracket 4500-927 Cable kit for serial connectivity
4500-926 Cable for use with the USB-to-serial adapter 4500-906 Spot Vital Signs LXi Radio Configuration CD
8Welch Allyn Spot Vital Signs LXi radio accessory
Troubleshooting
Problem: The radio does not connect or communicate with the network.
For more information, see the Spot Vital Signs LXi service manual.
Specifications
Radio
Operates on Welch Allyn FlexNet™ Network and other 802.11 networks.
Channel restrictions in the 5-GHz band are determined by country.
Possible cause Corrective action
Spot Vital Signs LXi is outside the radio signal
range. Move the device closer to a wireless connection. Refer to the
Signal Strength Indicator (no bar = out of range).
The radio is not configured to match the network
settings. Reconfigure the radio with the Spot Vital Signs LXi Radio
Configuration CD.
Wireless network interface IEEE 802.11b/g, 802.11a
Frequency 802.11b/g: 2.402 GHz to 2.4835 GHz
802.11a: 5.125 GHz to 5.875 GHz
Channels Up to 14 in 802.11b/g, up to 24 in 802.11a; country-dependent
Security/encryption/authentication WPA2/AES (either EAP or PSK authentication)
Antenna Internal multiband PIFA
Wireless data rates 802.11b: 1 Mbps or higher during vitals transmission only
802.11a/g: 6 Mbps or higher during vitals transmission only
(approximately 2 seconds per reading)
Agency approvals US: FCC Part 15, Class B, C/UL, CE
Europe: ETSI
Canada: RSS-210
Protocols UDP, DHCP, TCP/IP
Data transfer protocols UDP/TCP/IP
Modulation OFDM (802.11a/g), DSSS/CCK (802.11b)
Output power 40 mW typical, country-dependent
Ancillary IEEE standards 802.11e, 802.11h, 802.11i, 802.1X
Caution Some countries restrict the use of 5-GHz bands. The 802.11a radio in
Spot Vital Signs LXi uses only the channels indicated by the access point with
which the radio associates. The hospital IT department must therefore configure
access points to operate within approved domains.
Directions for use 9
Mechanical
Configuration options
Compliance
General
This radio card must be installed and used in strict accordance with the manufacturer’s
instructions.
This product encrypts data. It is unlawful to export it from the U.S. without obtaining a
U.S. Export License.
Federal Communications Commission (FCC)
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy. If not installed and used in
accordance with the instructions, it may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
Dimensions 4.64 in L x 3.35 in W x 1.45 in T
118 mm L x 85 mm W x 37 mm T
Mounting Aluminum Bracket
Operating temperature 0° C to +40° C (32° F to +104° F)
Storage temperature -20° C to +60° C (-4° F to 140° F)
Authentication and
encryption
None
802.1X WPA2 (AES)
Pre-shared key WPA2 (AES)
Certificates Welch Allyn
Customer
EAP types TLS, TTLS, PEAP
Radio bands 802.11b/g (2.4 GHz)
802.11a (5 GHz)
ESSID 16 alphanumeric character
Webserver password Alphanumeric string
PSK user Alphanumeric string
PSK password Alphanumeric string
EAP identity Alphanumeric string
EAP password Alphanumeric string
10 Welch Allyn Spot Vital Signs LXi radio accessory
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by tuning the equipment off and on, the
user is encouraged to try and correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The user may find the following booklet prepared by the Federal Communications
Commission helpful: The Interference Handbook
This booklet is available from the U.S. Government Printing Office, Washington, D.C.
20402. Stock No. 004-000-0034504.
Welch Allyn is not responsible for any radio or television interference caused by
unauthorized modification of the devices included with this Welch Allyn product, or the
substitution or attachment of connecting cables and equipment other than specified by
Welch Allyn.
The correction of interference caused by such unauthorized modification, substitution or
attachment will be the responsibility of the user.
Industry Canada (IC) emissions
This device complies with RSS 210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of this device.
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit
pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout
brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le
fonctionnement du dispositif.
High-power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85
GHz bands. These radar stations can cause interference with and/or damage this device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conform à la norme NMB-003 du Canada.
European Union
Czech Welch Allyn tímto prohlašuje, ze tento RLAN device je ve shodě se základními po_adavky a
dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Danish Undertegnede Welch Allyn erklærer herved, at følgende udstyr RLAN device overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Dutch Hierbij verklaart Welch Allyn dat het toestel RLAN device in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Bij deze verklaart Welch Allyn dat deze RLAN device voldoet aan de essentiële eisen en aan de
overige relevante bepalingen van Richtlijn 1999/5/EC.
English Hereby, Welch Allyn, declares that this RLAN device is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Directions for use 11
EMC
Special precautions concerning electromagnetic compatibility (EMC) must be taken for all
medical electrical equipment. Portable and mobile RF communications equipment can
affect the behavior of medical electrical equipment.
Welch Allyn Spot Vital Signs LXi devices and accessories comply with all applicable and
required standards for electromagnetic interference.
• They do not normally affect nearby equipment and devices.
• They are not normally affected by nearby equipment and devices.
• It is safe to operate them in the presence of high-frequency surgical equipment;
however, it is good practice to avoid using the devices near other equipment.
Estonian Käesolevaga kinnitab Welch Allyn seadme RLAN device vastavust direktiivi 1999/5/EÜ põhinõuetele
ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Finnish Welch Allyn vakuuttaa täten että RLAN device tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
French Par la présente Welch Allyn déclare que l'appareil RLAN device est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Par la présente, Welch Allyn déclare que ce RLAN device est conforme aux exigences essentielles et
aux autres dispositions de la directive 1999/5/CE qui lui sont applicables.
German Hiermit erklärt Welch Allyn, dass sich dieser/diese/dieses Managed Accces Point in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften
der Richtlinie 1999/5/EG befindet. (BMWi)
Hiermit erklärt Welch Allyn die Übereinstimmung des Gerätes RLAN device mit den grundlegenden
Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG. (Wien)
Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Welch Allyn ΔΗΛΩΝΕΙ ΟΤΙ RLAN device ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Hungarian Alulírott, Welch Allyn nyilatkozom, hogy a RLAN device megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Italian Con la presente Welch Allyn dichiara che questo RLAN device è conforme ai requisiti essenziali ed
alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latvian Ar šo Welch Allyn deklarē, ka RLAN device atbilst Direktīvas 1999/5/EK būtiskajām prasībām
un citiem ar to saistītajiem noteikumiem.
Lithuanian Šiuo Welch Allyn deklaruoja, kad šis RLAN device atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti Hawnhekk, Welch Allyn, jiddikjara li dan RLAN device jikkonforma mal-htigijiet essenzjali u ma
provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Portuguese Welch Allyn declara que este RLAN device está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovak Welch Allyn týmto vyhlasuje, ze RLAN device spĺňa základné po_iadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Slovene Šiuo Welch Allyn deklaruoja, kad šis RLAN device atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Spanish Por medio de la presente Welch Allyn declara que el RLAN device cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Swedish Härmed intygar Welch Allyn att denna RLAN device står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
12 Welch Allyn Spot Vital Signs LXi radio accessory
Warranty
Welch Allyn warrants that the Spot Vital Signs LXi Radio products meet the labeled
specifications of the products and will be free from defects in materials and workmanship
that occur within one year after the date of purchase.
The date of purchase is one of the following:
• the date specified in our records if you purchased the product directly from us
• the date specified in the warranty registration card that we ask you to send to us
• the date of purchase of product from the authorized Welch Allyn distributor as
documented from a receipt from said distributor
This warranty does not cover damage caused by:
• handling during shipping
• use or maintenance contrary to labeled instructions
• alteration or repair by anyone not authorized by Welch Allyn
• accidents
If a product or accessory covered by this warranty is determined to be defective because
of defective materials, components, or workmanship, and if the warranty claim is made
within the warranty period described above, Welch Allyn will repair or replace, at its
discretion, the defective product or accessory free of charge.
You must obtain a Service Notification number from Welch Allyn to return your product
before you send it to Welch Allyn’s designated service center for repair. Contact Welch
Allyn Technical Support.
This warranty is in lieu of all other warranties, express or implied, including but not limited
to the implied warranties of merchantability and fitness for a particular purpose. Welch
Allyn’s obligation under this warranty is limited to repair or replacement of products
containing a defect. Welch Allyn is not responsible for any indirect or consequential
damages resulting from a product covered by the warranty.
