Manual
REF 9502-036-50
Ambulatory X-12
Operator’s
Manual
______________________________________________________________________________
CAUTION: Federal law restricts this device for sale to and use by or on the order of a physician.
®
Copyright© 2001
by Mortara Instrument, Inc.
7865 N. 86th Street
Milwaukee, Wisconsin 53224
This document contains confidential information that belongs to Mortara Instrument, Inc. No part of this document
may be transmitted, reproduced, used, or disclosed outside of the receiving organization without the express written
consent of Mortara Instrument, Inc. Mortara is a registered trademark of Mortara Instrument, Inc. Ambulatory X-
12 is a trademark of Mortara Instrument, Inc.
REF 9500-067-01
i
Technical Support and Service
Following are telephone numbers and addresses for contacting various technical support and service personnel.
Mortara Instrument, Inc.
7865 N. 86th St.
Milwaukee, WI 53224
Telephone Number: 414-354-1600
Toll-free Telephone Number: 800-231-7437
Toll-free Service Number: 888-MORTARA
Fax: 414-354-4760
E-mail address: sales@mortara.com
24 hour technical support
Over 120 trained field service technicians
Same day shipment of replacement parts
Biomedical training classes
Extended warranties/service contracts
Sales Support/Supplies & Accessories
Mortara Instrument, Inc.
7865 N. 86th St.
Milwaukee, WI 53224
Phone: 414-354-1600
Fax: 414-354-4760
Internet: http://www.mortara.com
European Economic Community Representative
Mortara Rangoni
Via Oradour, 7 40016
San Giorgio di Piano
Bologna, Italy
Phone: 39-51-6650-701
Fax: 39-51-6651-012
Additional International Support Offices
Mortara France (France)
Immeubles Burolines - Bat. 2
2 Ter, Rue Marcel Doret
31700 Blagnac
Telephone number: 33-561-164000
Fax number: 33-561-164001
Mortara Instrument, Inc., GMBH (Germany)
Henricistr. 124
45136 Essen
Telephone number: 49-201-268311
Fax: 49-201-268313
Mortara Instrument, Inc., B.V.
(The Netherlands).
H. Dunantplein 6
3731 CL De Bilt
Postbus 131
3720 AC Bilthoven
Telephone number: 31-30-2205050
Fax: 31-30-2201531
ii
Notices
Manufacturer’s Responsibility
Mortara Instrument, Inc., is responsible for the effects on safety, and performance only if
• Assembly operations, extensions, re-adjustments, modifications or repairs are carried out by persons
authorized by Mortara Instrument,
• The electrical installation of the relevant room complies with the requirements of appropriate
regulations, and
• The Ambulatory X-12 is used in accordance with the instructions for use.
Responsibility of the Customer
The user of this product is responsible for ensuring the implementation of a satisfactory maintenance
schedule. Failure to do so may cause undue failure and possible health hazards.
Equipment Identification
Mortara Instrument equipment is identified by serial numbers on the back or bottom of the device. Care
should be taken so that these numbers are not defaced.
Information pertinent to tracking and manufacturing is found under the battery compartment of the product
and may be called upon if service of the device is required.
Copyright and Trademark Notices
This document contains information that is protected by copyright. All rights are reserved. No part of this
document may be photocopied, reproduced or translated to another language without prior written consent
of Mortara Instrument, Inc. The information contained in this document is subject to change without
notice.
Other Important Information
The information in this document is subject to change without notice.
Mortara Instrument, Inc., makes no warranty of any kind with regard to this material, including, but not limited to
implied warranties of merchant ability and fitness for a particular purpose. Mortara Instrument, Inc., assumes no
responsibility for any errors of omissions that may appears in this document. Mortara Instrument makes no
commitment to update nor to keep current the information contained in this document.
iii
Warranty Information
Your Mortara Warranty
MORTARA INSTRUMENT, INC. (hereinafter referred to as “Mortara”) hereby warrants that Mortara products
(hereinafter referred to as “Products”) shall be free from defects in material and workmanship under normal use,
service and maintenance for one year of such Product from Mortara or an authorized distributor or representative of
Mortara. Normal use, service and maintenance means operation and maintenance in accordance with appropriate
instructions and/or information guides. This Warranty does not apply to damage to the Products caused by any or all
of the following circumstances or conditions:
a) Freight damage;
b) Parts and/or accessories of the Products not obtained from or approved by Mortara;
c) Misapplication, misuse, abuse and failure to follow the Product instruction sheets and/or information
guides;
d) Accident, a disaster affecting the Products;
e) Alterations or modifications to the Products not authorized by Mortara;
f) Other events outside of Mortara’s reasonable control or not arising under normal operating
conditions.
THE REMEDY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT WITHOUT
CHARGE FOR LABOR OR MATERIALS, OR ANY PRODUCTS FOUND UPON EXAMINATION BY
MORTARA TO HAVE BEEN DEFECTIVE. This remedy shall be conditioned upon receipt of notice by Mortara
of any alleged defects promptly after discovery thereof within the warranty period. Mortara’s obligations under the
foregoing warranty will further be conditioned upon the assumption by the purchaser of the Products (i) of all
carrier charges with respect to any Products returned to Mortara’s principal place or any other place as specifically
designated by Mortara or an authorized distributor or representative of Mortara, and (ii) all risk of loss in transit. It
is expressly agreed that the liability of Mortara is limited and that Mortara does not function as an insurer. A
purchaser of a Product, by its acceptance and purchase thereof, acknowledges and agrees that Mortara is not liable
for loss, harm or damage due directly or indirectly to an occurrence or consequence therefrom relating to the
Products. If Mortara should be found liable to anyone under any theory (except the expressed warranty set forth
herein) for loss, harm or damage, the liability of Mortara shall be limited to the lesser of the actual loss, harm or
damage, or the original purchase price of the Product when sold.
EXCLUDED FROM THE LIMITED WARRANTY SET FORTH ABOVE ARE CONSUMABLE ITEMS SUCH
AS PAPER, BATTERIES, ELECTRODES, PATIENT CABLES, LEAD WIRES AND MAGNETIC STORAGE
MEDIUMS.EXCEPT AS SET FORTH HEREIN WITH RESPECT TO REIMBURSEMENT OF LABOR
CHARGES, A PURCHASER’S SOLE EXCLUSIVE REMEDY AGAINST MORTARA FOR CLAIMS
RELATING TO THE PRODUCTS FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY
CAUSE SHALL BE THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS TO THE EXTENT
THAT THE DEFECT IS NOTICED AND MORTARA IS NOTIFIED WITHIN THE WARRANTY PERIOD. IN
NO EVENT, INCLUDING THE CLAIM FOR NEGLIGENCE, SHALL MORTARA BE LIABLE FOR
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR FOR ANY OTHER LOSS, DAMAGE OR
EXPENSE OF ANY KIND, INCLUDING LOSS OF PROFITS, WHETHER UNDER TORT, NEGLIGENCE OR
STRICT LIABILITY THEORIES OF LAW, OR OTHERWISE. THIS WARRANTY IS EXPRESSLY IN LIEU
OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO THE
IMPLIED WARRANTY OF MERCHANT ABILITY AND THE WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE.
iv
User Safety Information
Warning:
Means there is the possibility of personal
injury to you or others.
Caution:
Means there is the possibility of damage to
the equipment.
Note: Provides information to further assist in the
use of the device.
Federal law restricts this device to sale by or on the order of a
physician.
Warning(s)
• Device (Ambulatory X-12) transmits data reflecting a patient’s physiological condition to a properly equipped
electrocardiograph and when reviewed by a trained physician or clinician can be useful in determining a
diagnosis. However, the data should not be used as a sole means for determining a patient’s diagnosis.
• To maintain designed operator and patient safety, peripheral equipment and accessories used that can come in
direct patient contact, must be in compliance with UL 2601-1, IEC 601-1 and IEC 601-2-25.
• To maintain designed operator and patient safety, only use parts and accessories supplied with the device and
available through Mortara Instrument, Inc..
• To avoid the possibility of serious injury or death during patient defibrillation, do not come into contact with
device or patient cables. Additionally, proper placement of defibrillator paddles in relation to the electrodes is
required to minimize harm to the patient.
• A possible explosion hazard exists, do not use the device in the presence of flammable anesthetics.
• Defibrillation protection is guaranteed only if the original patient cable is used.
• Simultaneous connection to other equipment may increase leakage current.
• Some stimulators may cause interference with the signal.
• ECG electrodes could cause skin irritation and should be examined daily. Reposition and change electrodes
every 24 hours, though it may be necessary to do so sooner if signs of irritation or inflammation occur.
• Before attempting to use the device for clinical applications the operator must read and understand the contents
of the manual and any documents accompanying the device.
v
Caution(s)
• To prevent possible damage to the keypad, do not use sharp or hard objects to depress keys, only use fingertips.
• Do not attempt to clean the device or patient cables by submersing into a liquid, autoclaving, or steam cleaning.
• Wipe the exterior surface of the device and patient cables with a sterilizing disinfectant, then dry with a clean
cloth.
• Conductive parts of the patient cable, electrodes and associated Type CF connections, including the neutral
conductor of the patient cable and electrode, should not come into contact with other conductive parts,
including earth ground.
• The Ambulatory X-12 and Patient Cable should be cleaned between each use.
• Do not pull or stretch patient cables as this could result in mechanical and/or electrical failures. Patient cables
should be stored after forming them into a loose loop.
• The Ambulatory X-12 will only work with electrocardiographs that are equipped with the appropriate option.
• No user serviceable parts are inside. Any modification of this device may alter defibrillator protection. Any
modification to any part of this device is to be performed by qualified service personnel only.
• The following equipment may cause interference with the RF channel: microwave ovens, diathermy units with
LANs (spread spectrum), amateur radios and government radar.
Warning(s)

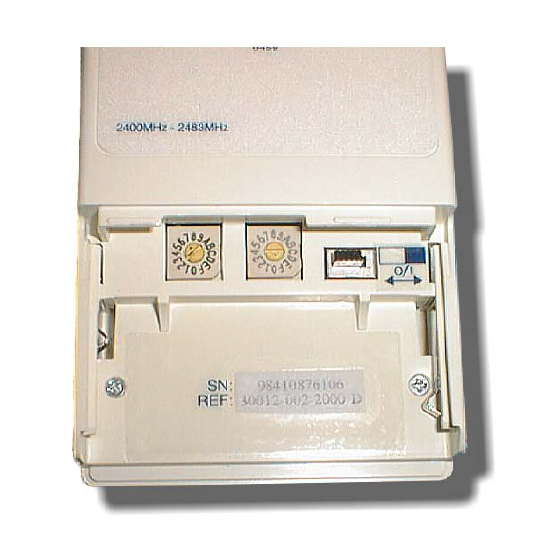

In some countries the use of the X-12 transmitter (2400 MHz version) has been limited as follows:
Spain: use is limited to channels in the range 8B to E6 (inclusive).
France: use is limited to channels in the range 8E to A5 (inclusive).
The channel setting of the X-12, when used in the above listed countries, must be set accordingly, as explained
in this manual at section 2.
In the United States and Canada, use of the X-12 transmitter (600 MHz version) is regulated by Federal
Communications Commission (FCC) rules, Part 15.
• The X-12 must be used solely on the premises of health care facilities (see Part 15, section 15.242a).
• A health care facility operating the X-12 must coordinate with the directors of existing nearby TV
stations and Radio Astronomy Observatories to ensure compatible use. Minimum separation distances
from such facilities may apply. It may be necessary to obtain written authorization from such facilities
prior to installation and use of the X-12 (Part 15, section 15.242d,e).
vi
Notes
• Proper patient preparation is important to proper application of ECG electrodes and operation of the device.
• Patient cables should be checked for cracks or breakage in its exterior properties prior to use.
• As defined by IEC 601-1 and IEC 601-2-25, the device is classified as follows:
- Internally powered
- Type CF applied parts
- Ordinary equipment
- Not suitable for use in the presence of flammable anesthetics
- Continuous operation
vii
Equipment Symbols
Symbol Delineation
Attention, consult
accompanying documents
Attention, consult
accompanying documents.
Compliance with Directive
1999/5/EC
Defibrillator-proof type CF input
Battery
Enables lead check test
Toggles through each lead
Indicates compliance to
applicable EEC Directives
ON (power)
OFF (power)
viii
Table of Contents
1 Introduction
Manual Purpose ......................................................................................... 1-1
Audience..................................................................................................... 1-1
System Description..................................................................................... 1-1

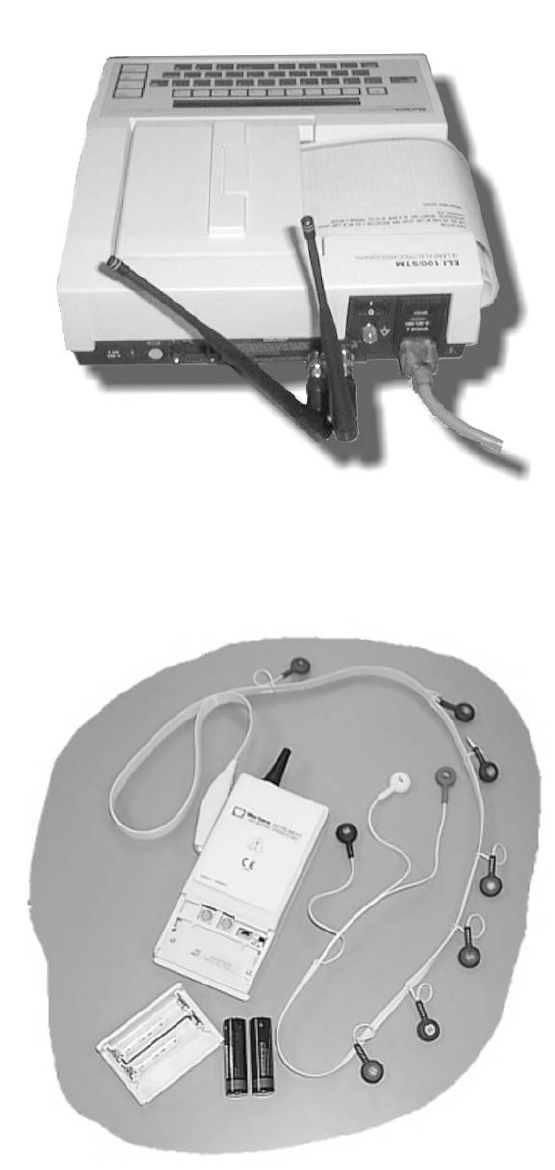

Equipment Included.................................................................................... 1-1
Features...................................................................................................... 1-1
Using the Ambulatory X-12 Telemetry Module in Conjunction with Mortara
Electrocardiographs.................................................................................... 1-2

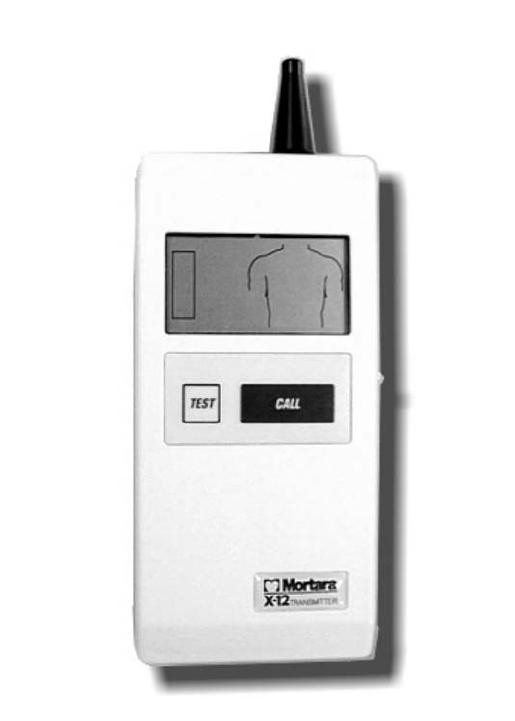

Ambulatory X-12 Transmitter...................................................................... 1-2
Ambulatory X-12 Specifications.................................................................. 1-3
Supplies ...................................................................................................... 1-4
Operation
2
Read Instructions ....................................................................................... 2-1
Electrocardiograph Equipped with Wireless Option ................................... 2-2
Ambulatory X-12 Transmitter Back View.................................................... 2-2
Power Supply.............................................................................................. 2-3
Battery Installation ...................................................................................... 2-3
Patient Preparation..................................................................................... 2-4
Lead Fail ..................................................................................................... 2-4
Lead Check................................................................................................. 2-4
Transmitting ................................................................................................ 2-5
Miscellaneous............................................................................................. 2-5
Removal and Installation of Antenna.......................................................... 2-6
3 Maintenance and Troubleshooting
Cleaning the Ambulatory X-12 Transmitter and Patient Cable .................. 3-1
Periodic Maintenance ................................................................................. 3-1
Disposal of Waste Material......................................................................... 3-1
Trouble Shooting ........................................................................................ 3-2
Appendix System Information Log
A
System Information Log.............................................................................. A-1
Glossary ......................................................................................... G-1
Index ................................................................................................... I-1
ix
____________________________________________________________________________Section 1
1-1
1 Introduction
Manual Purpose
The Ambulatory X-12 Operator's Manual explains how to operate the transmitter (Ambulatory X-12). You
can use this manual as a learning tool as well as a source of reference information. It explains how to acquire
and transmit 12-lead cardiac signals without direct connections to an electrocardiograph:
Audience
This manual is written for clinical professionals. They are expected to have working knowledge of medical
procedures and terminology as required for monitoring cardiac patients.
System Description
The Mortara Instrument Ambulatory X-12 Telemetry Module represents the state-of-the-art in Wireless
Electrocardiographic Technology. It provides a means to acquire and transmit 12-lead cardiac signals without direct
connections to an electrocardiograph. Design innovations implemented in the Ambulatory X-12 Telemetry Module
achieve real-time acquisition, RF transmission of simultaneous 12-lead ECG data with diagnostic quality to the
Mortara Receiver Module while allowing the patient to be ambulatory.
In addition, by using a very high monitoring frequency to transmit cardiac signals, the diagnostic bandwidth of the
signals is maintained.
The Ambulatory X-12 affords the patient complete freedom of movement. Unlimited range can also be obtained
with addition of the Mortara Antenna Network Box(s).
Equipment Included
The following equipment is necessary to use the Ambulatory X-12 Telemetry Module:
• Ambulatory X-12 (transmitter),
• Two AA batteries, 1.5V,
• Mortara Receiver Module with Antennas,
• Patient cable
• Antenna Network (optional)
Ambulatory X-12______________________________________________________________________
1-2
Features
• Continuous 12-lead signal acquisition and transmission,
• User selectable channel,
• User lead check (LC), nine selections,
• Automatic notification of lead fail,
• AA battery operation,
• Notification of low battery
Using the Ambulatory X-12 in Conjunction With Mortara
Electrocardiographs
See the appropriate Mortara operator’s manual for electrocardiograph.
Figure 1-a Ambulatory X-12 Transmitter
____________________________________________________________________________Section 1
1-3
Ambulatory X-12 Specifications
Environmental
Temperature Operating
Temperature Storage
Humidity Operating
Humidity Storage
Atmospheric Pressure
10° C to 32° C
0° C to 45° C
20% to 80%
10% to 90%
700 - 1060 millibars
Dimensions 14 cm x 6.6 cm x 2.5 cm, 5.5” x 2.6” x 1”
Weight, with and without battery
With: 8.3 ounces, (240 grams)
Without: 6.7 ounces, (200 grams)
Batteries 2, AA alkaline, 30 hour typical life
Display LCD of lead fail, lead quality, power ON/OFF, low battery
Frequency range 1) 608.48 to 631.52 MHz, or 904.76 to 925.16 MHz, or 2400.96 MHz
to 2482.56MHz
Function keys (2) One provides multi-purpose call or activation; the other provides
lead quality activation
Leads connector Single-block, 10 lead
Tunable Yes
Number of channels 256
Leads transmitted 12
NOTE: Manufacturer does not supply accessories for direct cardiac applications.
15 meters with no barriers
Operating Range
Performance 2)
1)Operating frequency range is dependent on Ambulatory X-12 part number
2)Based on ELI 100 (electrocardiograph) equipped with wireless option
Ambulatory X-12______________________________________________________________________
1-4
Ambulatory X-12 Supply List
Standard Ambulatory X-12 orders include the following accessories:
• REF 9293-017-XX Resting Patient Cable (international or domestic))
• REF 4800-001 Two AA Batteries
• REF 9502-036-50 Operator’s Manual
• REF 9503-031-01 Short Form Instruction Card
• REF 34999-002-50 Carrying Case with Strap
Refer to the respective Mortara electrocardiograph’s manual for electrode supplies.
To order additional supplies, contact a Mortara Instrument customer service representative at:
Mortara Instrument, Inc.
7865 N. 86th Street
Milwaukee, WI 53224
Phone: 1-888-MORTARA (667-8272)
Fax: (414) 354-4760
Internet: http://www.mortara.com
____________________________________________________________________________Section 2
2-1
Operation
2
Please Read Instructions before Operating this Device
The user of this device is cautioned that any changes or modifications not expressly approved by
Mortara Instrument, Inc., could void the user’s authority to operate the equipment.
This cable complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired
operation.
Operating frequencies are 608.48-631.52 MHz, or 904.76-925.16 MHz, or 2400.96-2452.96 MHz
operating frequency range.
FCC ID: HJR-X12-600-15
FCC ID: HJR-X12-915
FCC ID: HJR-X12-2500
This device is defibrillator-protected in compliance with AAMI standards and IEC 601-2-25.
Ambulatory X-12______________________________________________________________________
2-2
Electrocardiograph
Figure 2-a Electrocardiograph Equipped with Wireless Option
Figure 2-b Ambulatory X-12, Back View Battery Compartment, Inner View
____________________________________________________________________________Section 2
2-3
Power Supply
Two disposable AA batteries (industrial AA’s), which you insert into the unit’s battery compartment, are used
to power the Ambulatory X-12. The typical life of two AA batteries is 30 hours.
When you turn the unit on, ON appears on the LCD screen to the lower left of the torso.
NOTE: Alkaline batteries are recommended .
Battery Installation and Ambulatory X-12 Operation
To install the new batteries and operate the Ambulatory X-12:
n Position the Ambulatory X-12 with its back facing you. (See the illustration which follows.)
o Grasp the device with one hand on each side, placing your right and left thumbs on the back’s grooved
sections of the battery compartment. Then gently push your thumbs down and away to remove the battery
compartment.
p Turn the compartment over and insert one new battery in each battery slot. To be sure of correct
placement, align the positive (+) and negative (-) locators of each battery with the respective designator in
each battery slot. (See the previous illustration, “Ambulatory X-12, Back View, with Battery Compartment
Removed.”
q Push the ON/OFF switch, located next to the channel selectors, to the ON position.
r Re-insert the battery compartment.
s When the Ambulatory X-12 is not in use, push the ON/OFF switch to the OFF position.
Note: If the batteries are not functioning, or the ON/OFF switch is in the OFF position, the message ON will
not appear on the LCD screen, and the leads will not flash on the torso.
Ambulatory X-12______________________________________________________________________
2-4
Patient Preparation
Correct electrode placement is important for acquiring a successful ECG (see Patient Hookup below).
Although most resting cardiograms are completely successful without patient preparation, consider performing
some patient preparation procedures to remove oils, lotions, and hair from the skin, particularly on obese
individuals.
Patient Hookup

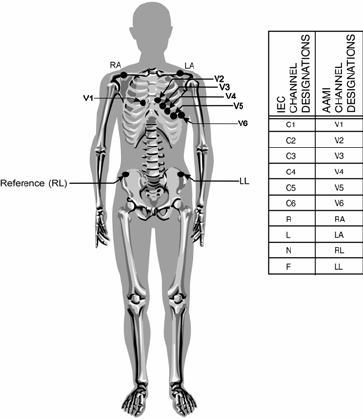

Figure 2-c Patient Hook-Up
The 12-lead patient cable is attached to the patient, and the patient cable input connector is inserted into the
receptacle located on the right topside of the Ambulatory X-12.
WARNING: QRS morphology may be slightly different from the standard ECG because of different position
of lower limb electrodes. To reduce these differences, try to position LL electrode as low as
possible, e.g., iliac crest, leg root.
Lead Fail
A lead in failure is displayed as a blinking lead designator located on the torso. If the patient cable is not
attached, the LL, V1, V2, V3, V4, V5, and V6 lead designators blink on the torso.
Lead Check
To check the electrode contact quality, you may review the impedance measured for each of the leads. The
Ambulatory X-12 presents this information in the impedance check graph located on the left side of the display
in the triangular box on the left of the LCD. To interpret the impedance check graph, read the instructions on
the back of the Ambulatory X-12.
NOTE: Ambulatory X-12 is not waterproof. Prevent liquid from penetrating, and avoid submerging in any
liquid. Sterilization is not allowed.
The greater the impedance, the more the signal quality is compromised. Increments of impedance are
represented as black bars located within the rectangular box. Six black bars represent minimum impedance, or
optimal signal quality; one bar represents maximum impedance, poor signal quality, or lead fail.
____________________________________________________________________________Section 2
2-5
To check the impedance of each lead:
n Press and hold down the Test key located on the front of the Ambulatory X-12 until the message LC (Lead
Check) appears on the bottom of the display. The LA (left arm) lead designator appears on the upper right
section of the torso. The impedance check graph depicts the value measured for the LA (left arm) lead.
o Press the Call key to check the remaining leads: LL (left arm), V1, V2, V3, V4, V5, V6, RA (right arm).
p To exit the impedance check mode, continue to press the Call key until the LC message is erased.
Once signal quality is confirmed, you are ready to initiate monitoring on the electrocardiograph.
Transmitting
Refer to the appropriate appendix of the Mortara electrocardiograph operator’s manual for setting up the
Wireless Patient Cable.
CAUTION: Failure to properly set up the electrocardiograph with the Ambulatory X-12 Telemetry Module
will result in poor or non-operation of the Ambulatory X-12.
Miscellaneous
Channel Number
The Ambulatory X-12 transmits the patient's cardiac signals to the electrocardiograph using a specific channel
number. The Ambulatory X-12 is preset at the facility with a channel number of 80H. You may, however,
choose individually from any of the 256 channels. If you experience ECG signal loss, for instance, you might
want to change the transmission channel.
The two-channel selector dials are located on the inside of the battery compartment,
A
B
C
D
E
F
0
1
2
3
4
56789
A
B
C
D
E
F
0
1
2
3
4
56789
Figure 2-d Channel Selector Dials
By adjusting the slot located on the inside of the inner circle of each dial, you may select a new channel.
Each dial is numbered in a hexadecimal format, beginning with the alphanumeric value of 0 and ending with F
(0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E and F). Select one number from a choice of 16 alphanumeric values for
each dial. The left dial represents the first alphanumeric value and the right dial the second. The total number
of two alphanumeric combinations is 256.
To change the currently selected channel, insert a small, flat screwdriver in the slot located in the circle of the
dial. Turn the screwdriver clockwise, and release when the arrow inside the circle is aligned with the desired
number.
Ambulatory X-12______________________________________________________________________
2-6
Removal and Installation of Antenna
When attached directly to a Electrocardiograph:
n To remove an antenna, gently rotate the ridged band counterclockwise while simultaneously pushing in on
the band. The small post is released in the diagonal groove, freeing the antenna from the connector.
o To install an antenna, position the small post in the groove. Push in the antenna and gently rotate the
ridged band, allowing the post to engage and lock in the curved end portion of the groove.
When a Telementry Receiver Processor Card is used:
Antenna should not be removed. If necessary to tighten or clean, the antenna screws on and off in
clockwise/counterwise manner.
____________________________________________________________________________Section 3
3-1
Maintenance and Troubleshooting
3
Cleaning the Ambulatory X-12 and Patient Cable
Turn off the Ambulatory X-12, and clean the outside with a damp cloth (possibly moistened with alcohol). Dry
the equipment completely before use.
WARNING: The Ambulatory X-12 is not water-proof. Prevent liquid from penetrating, and avoid
submerging the Ambulatory X-12 in any liquid. Sterilization is not allowed.
Periodic Maintenance
Check the Ambulatory X-12 and patient cable everyday to be sure they are not damaged or broken.
Disposal of Waste Materials
The Ambulatory X-12 needs two alkaline batteries and disposable electrodes. Their disposal must be in
accordance with the following procedures:
Batteries: chemical waste
Electrodes: normal waste
Ambulatory X-12______________________________________________________________________
3-2
Troubleshooting
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS
No or noisy waveform 1. Mismatched frequency setting
2. Frequency channel selected
has interference
3. Bent pins on patient cable
interface connector
4. Poor signal from electrode
1. Ensure frequency setting at
electrocardiograph (receiver) is the
same as the Ambulatory X-12’s.
2. Select a different frequency for both
the electrocardiograph (refer to the
appropriate manual) and Ambulatory
X-12.
3. Contact Mortara Service
Department at 1-888-MORTARA (667-
8272).
4a. +Verify good prep before placing
electrodes on patient.
4b.Verify electrodes are good (not
beyond expiration date).
4c.Perform lead check test.
Blinking lead on torso 1. Cable is not attached
2. Poor lead placement or
attachment
1. Check cable to ensure it is
connected to the Ambulatory X-12
and patient electrodes.
2a.Verify good prep before placing
electrodes on patient.
2b.Verify electrodes are good (not
beyond expiration date).
2c.Perform lead check test.
Display does not show ON 1. Ambulatory X-12 not
turned ON
2. Dead batteries
3. No batteries
1. Remove battery compartment door
batteries and turn switch to ON.
2. Install new batteries.
3. Install new batteries.
Display shows Lb Low battery Replace batteries with new batteries.
WARNING: If you are not able to correct the Ambulatory X-12 Telemetry Module’s questionable operating
state using the above guide, do not attempt to service it yourself. Contact Mortara Service at 1-888-
MORTARA (667-8272).
__________________________________________________________________________Appendix A
A-1
Appendix System Information Log
A
The following system information log is provided for your convenience. You need this information to set up
your system if it needs servicing. Be sure to update the information log when you add options or your system
has been serviced.
Record the model and serial number of all components, dates of removal, and/or replacement of components,
and the name of the vendor from whom the component was purchased and/or installed.
In addition to having records of this information, the system information provides a warranty record of when
your system was placed in service.
System Information Log
Manufacturer:
Mortara Instrument, Inc.
7865 N. 86th St.
Milwaukee, WI 53224
Telephone Numbers:
Domestic: 800-231-7437
European: +39-51-6650-701
Sales Department: 800-231-7437
Service Department: 888-MORTARA
Product Information:
Name of Unit/Product: ____________________
Date of Purchase: ___/___/_____
Purchased Unit From: ____________________
Serial Number: _______________
Software Version: _____________
Ambulatory X-12______________________________________________________________________
A-2
System Information Log
For questions and service information,
when calling have serial number and part
number available.
(The Serial Number and Part Number (REF) are
found under the batteries , in the battery
compartment on the back side of the unit.
Similar to the one pictured below.)
Figure A-a Serial Number (SN) Part Number (REF) Location
Notes:
_____________________________________________________________________________Glossar
y
G-1
Glossary
TERM DEFINITION
Limb lead Bipolar lead that represents the
differences of electrical potential
between two selected sites (leads I, II,
III).
Muscle noise Grossly uneven baseline caused by
patient body tremor or other muscle
movement. The artifact may be so large
that it overtakes the complex.
