Well Communication AWR2440 WIRELESS ADSL ROUTER User Manual USERS MANUAL
Well Communication Corporation WIRELESS ADSL ROUTER USERS MANUAL
USERS MANUAL
ADSL Wireless Router
For AWR-2410/AWR-2440
Package Contents:
AWR-2410/2440
CD-ROM containing Manual
Ethernet Cable (CAT5 UTP Straight-Through)
ADSL Cable (Standard telephone cable)
Power Adapter
Quick Installation Guide hardcopy
Splitter (Optional)
Connect Hardware
RJ-45 Ethernet port connect
Ethernet cable here
Factory reset button
Splitter (optional and
changes depending on
country specification)
AWR-2410
USB CABLE
RJ-11
A
DSL port connect
ADSL cable here Power Adapter
Power cord connect here
RJ-45 Ethernet port connect
Ethernet cable here
Splitter (optional and
changes depending on
country specification)
Power Adapter
Power cord connect here
Factory reset button
AWR-2440
RJ-11
A
DSL port connect
ADSL cable here

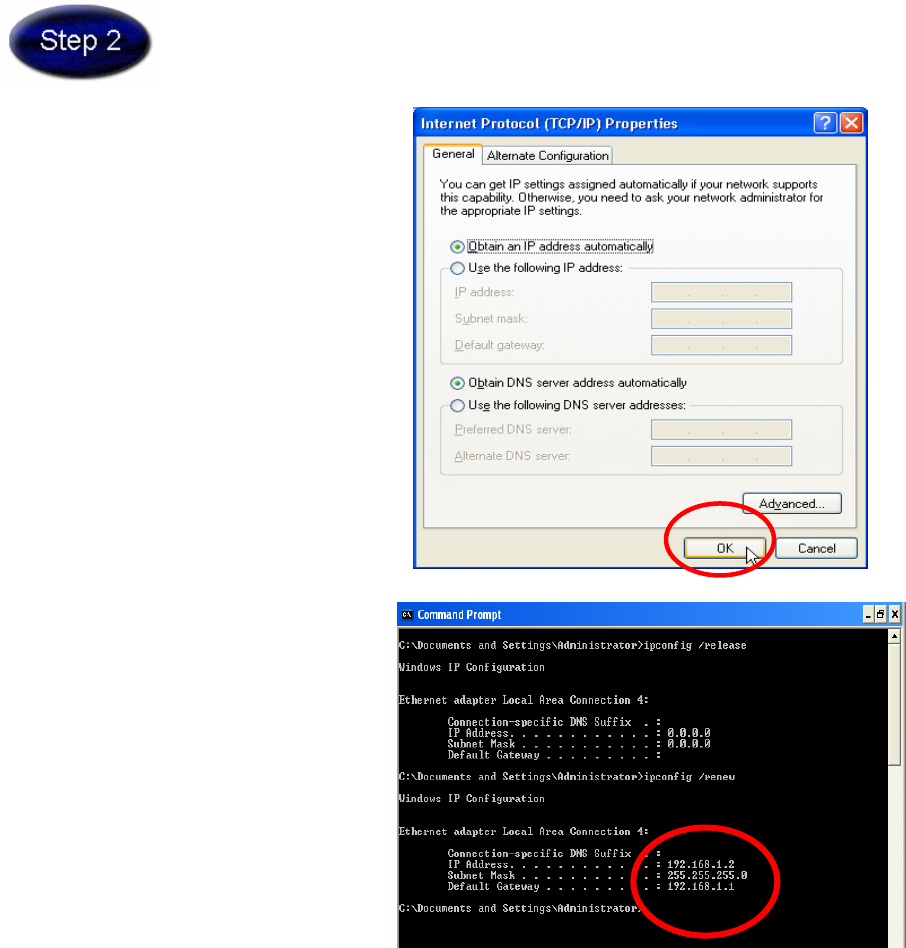

1. Select Obtain an IP Address
automatically: by clicking once
in the circle. Click OK button to
confirm and save your changes,
and the close the Control Panel.
2. Release IP
3. Renew IP
4. Check Default Gateway:
192.168.1.1.

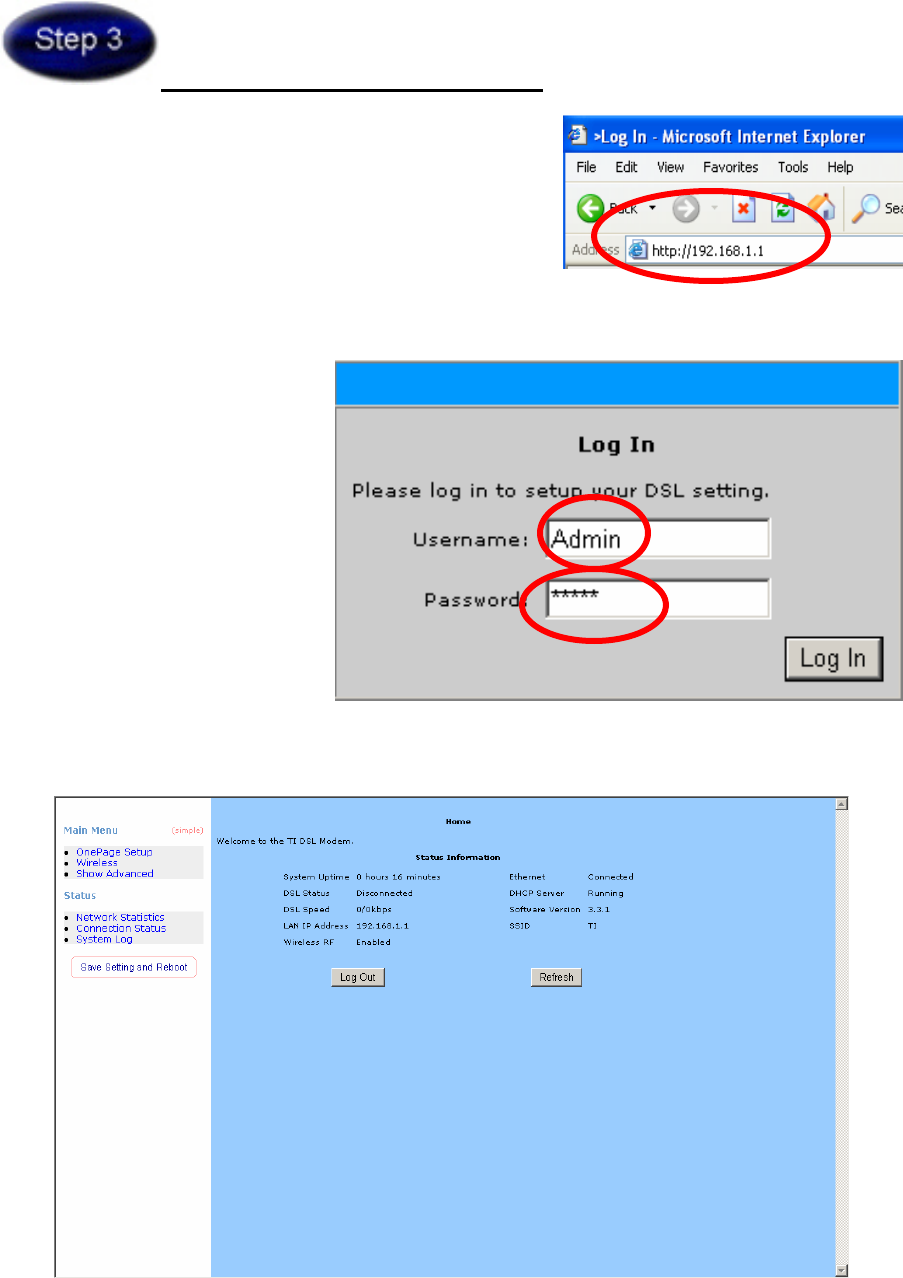

Device Configuration
1. Launch your PC web browser and enter the
URL: http://192.168.1.1.
2. In the Username prompt
type Admin and in the
Password prompt type
Admin then click OK
button coming setup
page.
3. When you see this web page. You have finished login.
Note: for more complete information on the device, please see the full manual which
is included on the CD.
Hereby, Well Communication Corp., declares that this device is in compliance with the
essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC.
This device will be sold in the following EEA countries: Austria, Italy. Belgium, Liechtenstein.
Denmark, Luxembourg. Finland, Netherlands. France, Norway. Germany, Portugal. Greece,
Spain. Iceland, Sweden. Ireland, United Kingdom.
FEDERAL COMMUNICATIONS COMMISSION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiated radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
This device and its antenna(s) must not be co-located or operating in conjunction with any
other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity
to the antenna shall not be less than 20cm (8 inches) during normal operation.
