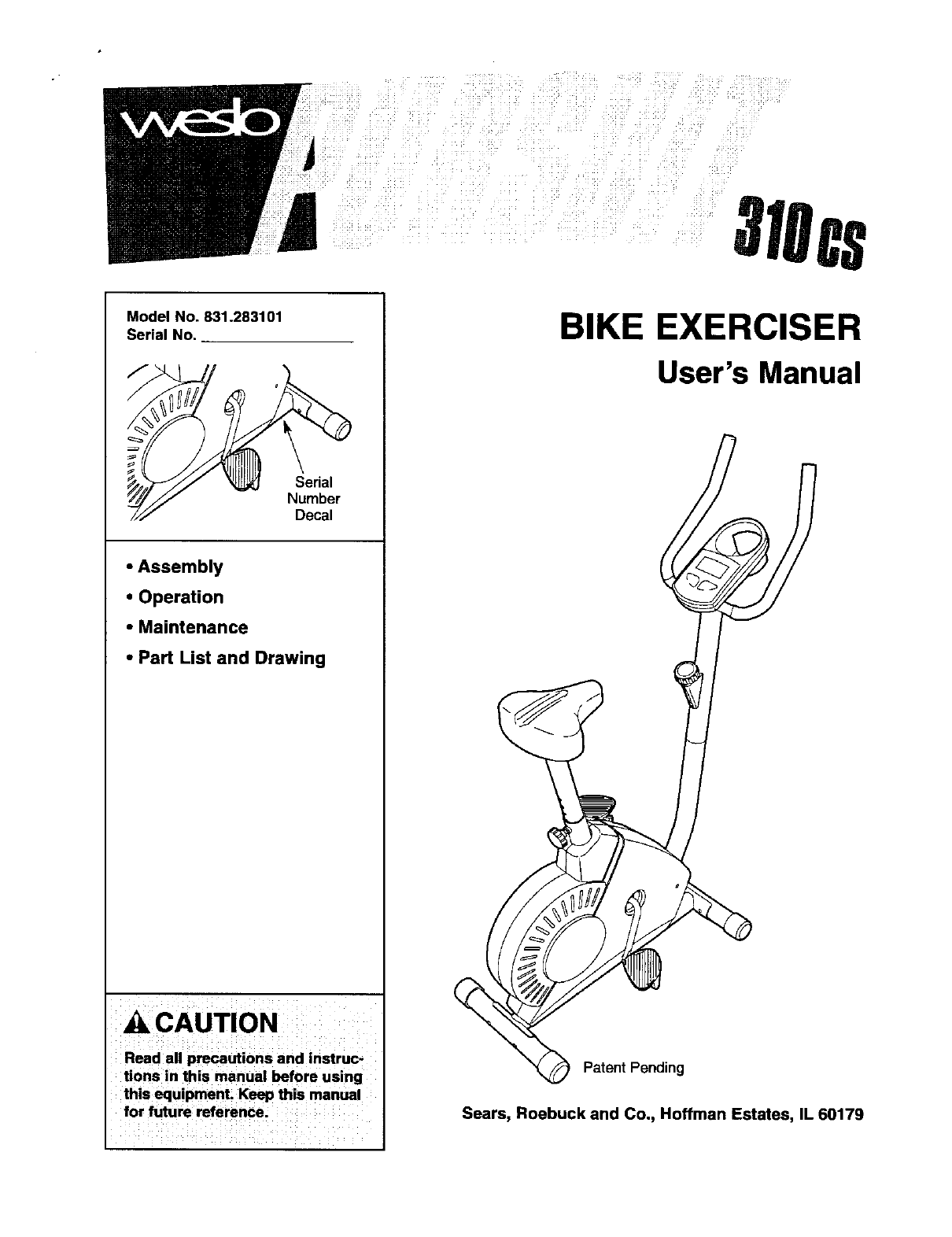

Model No. 831.283101

Serial No.

Serial

Number

Decal

• Assembly

•Operation

•Maintenance

•Part List and Drawing

_k CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

BIKE EXERCISER

User's Manual

Patent Pending

Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................ 2

BEFORE YOU BEGIN ...................................................................... 3

ASSEMBLY ............................................................................... 4

HOW TO OPERATE THE EXERCISE CYCLE .................................................... 8

MAINTENANCE AND TROUBLESHOOTING ................................................... 10

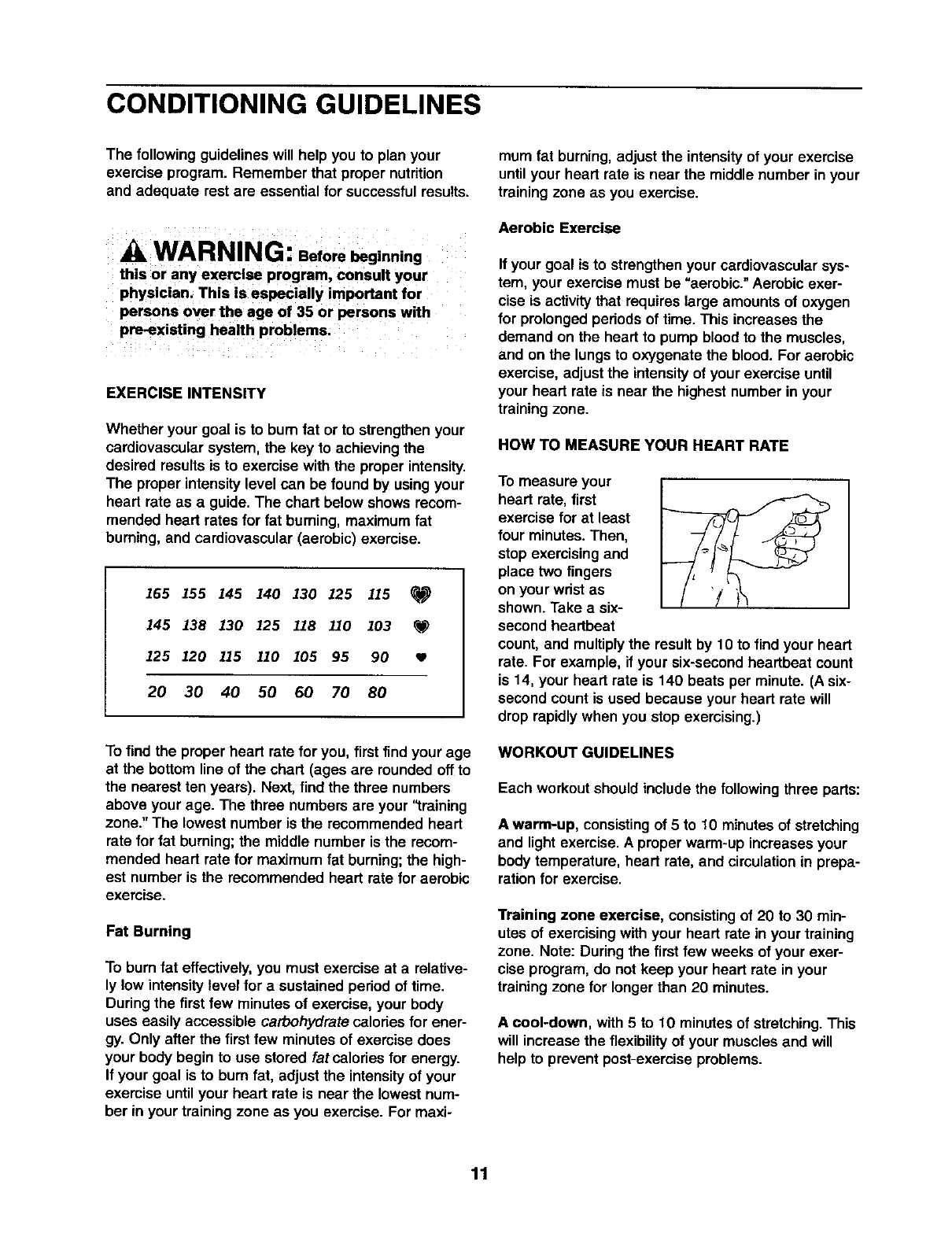

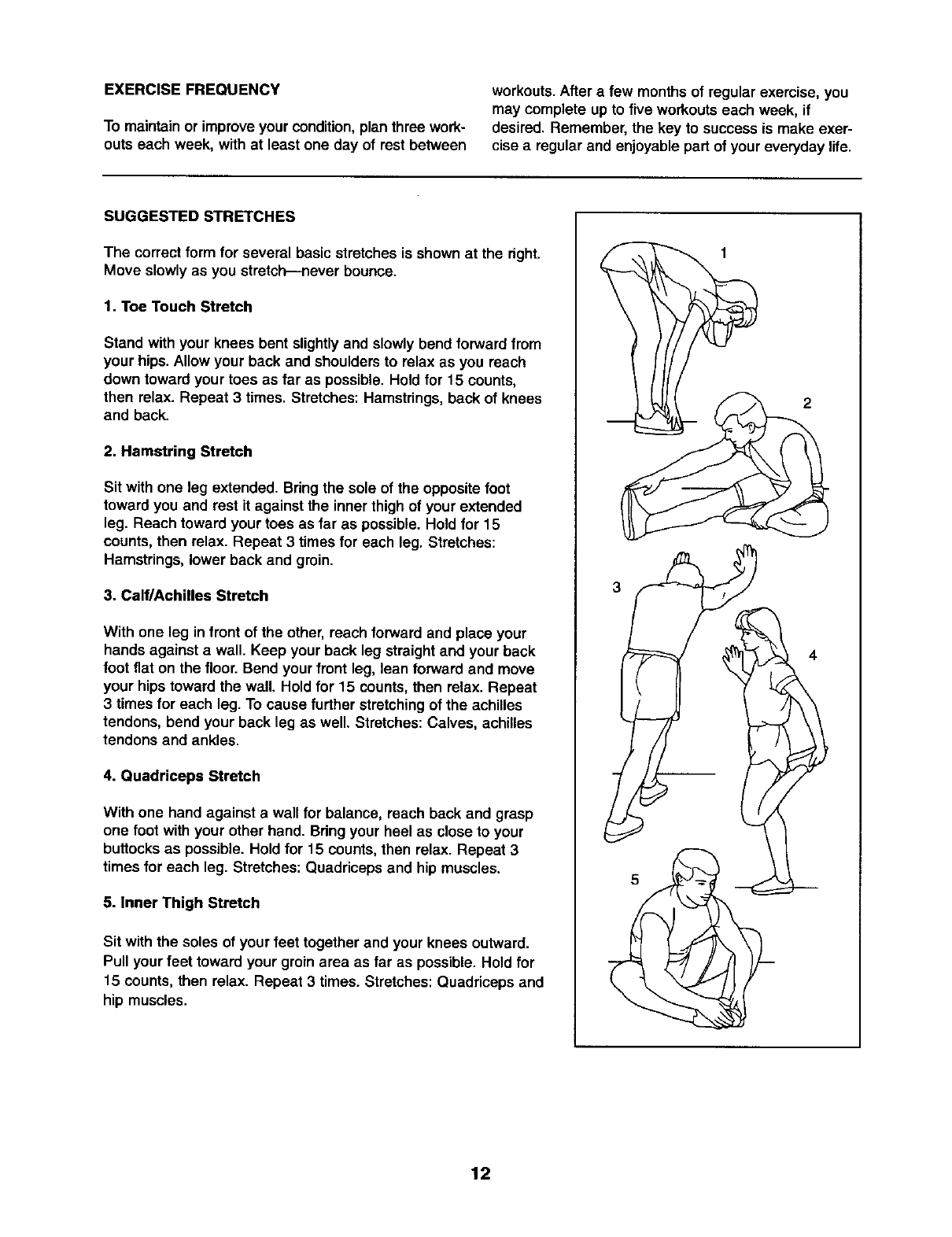

CONDITIONING GUIDELINES ............................................................... 12

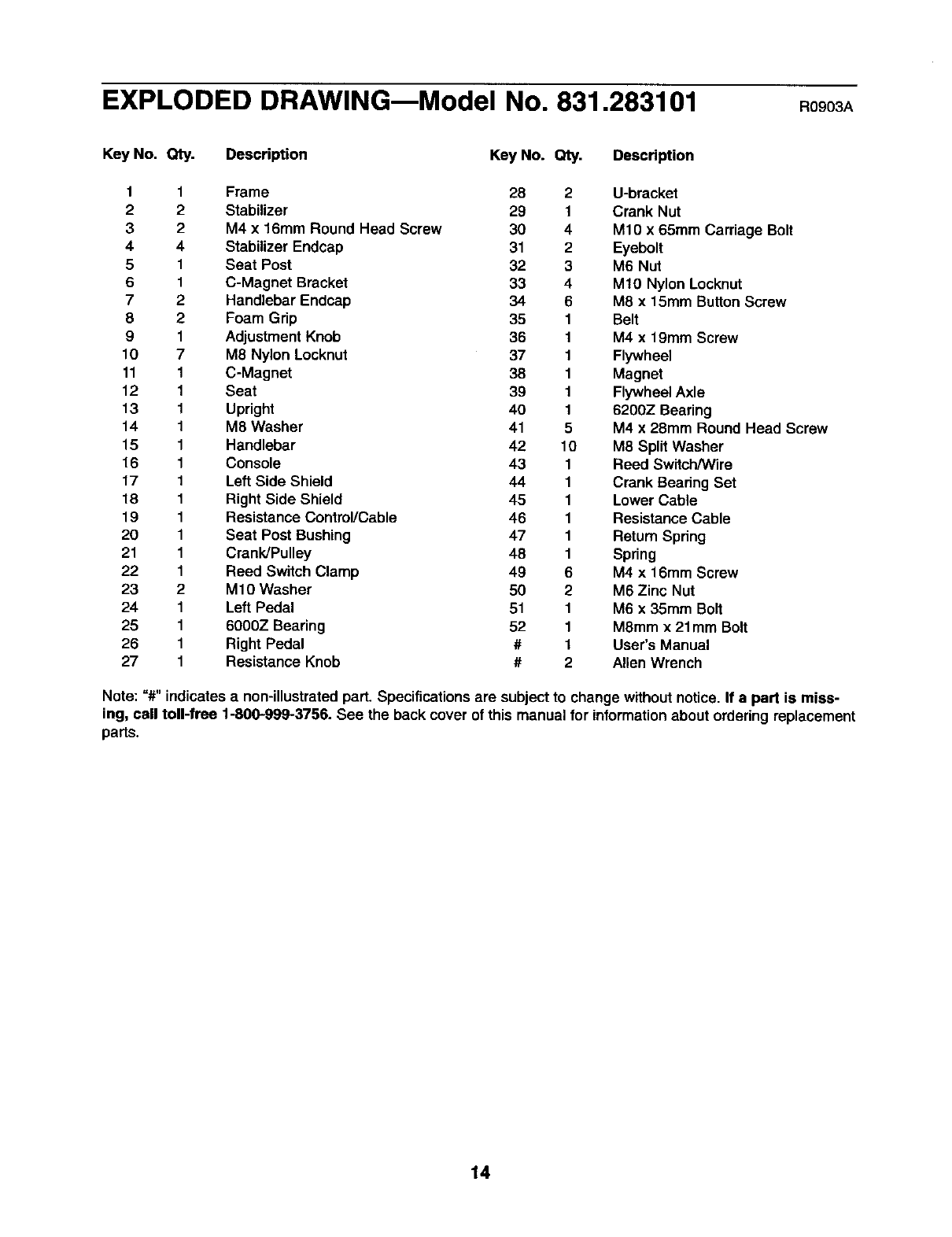

PART LIST .............................................................................. 14

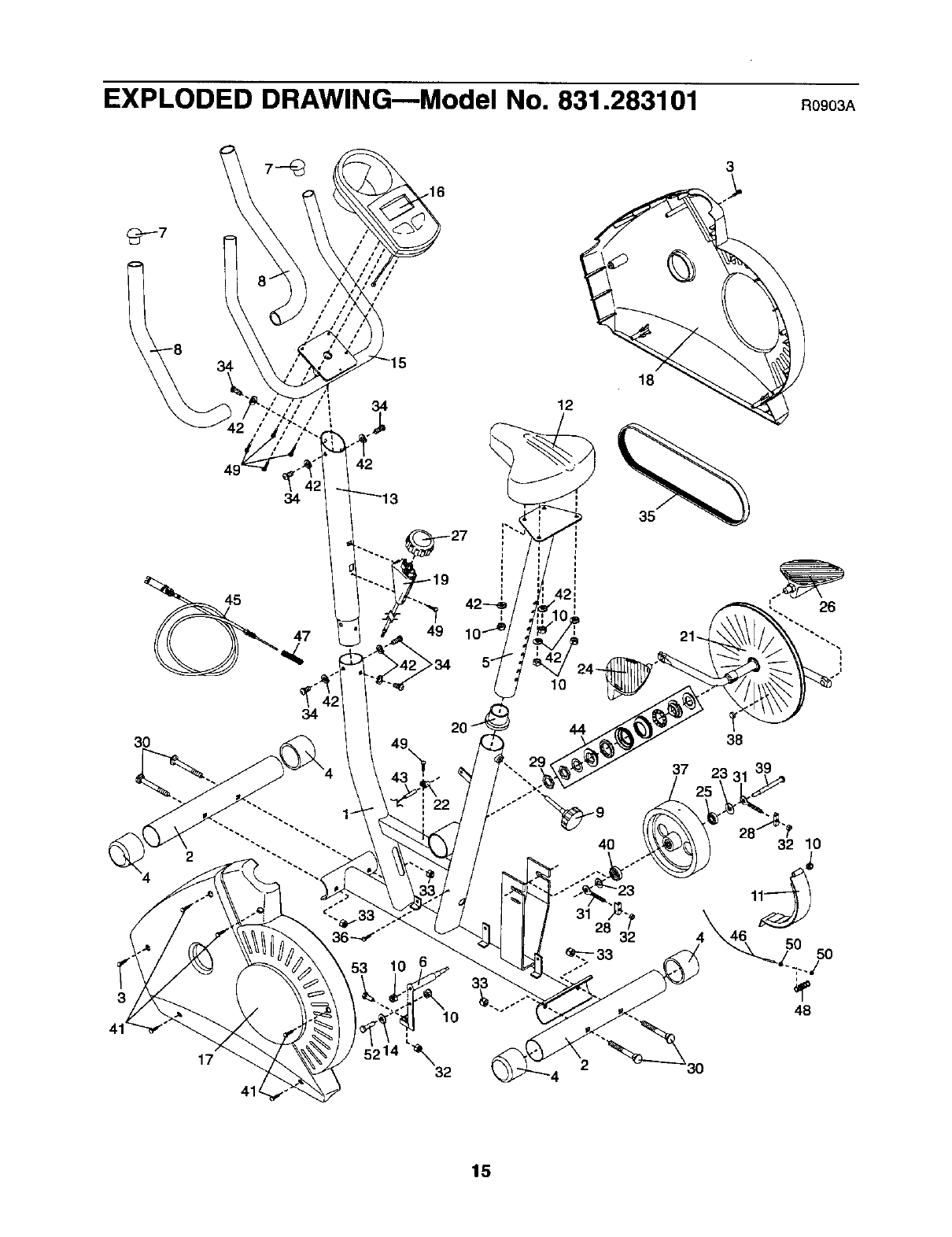

EXPLODED DRAWING .................................................................... 15

ORDERING REPLACEMENT PARTS .................................................. Back Cover

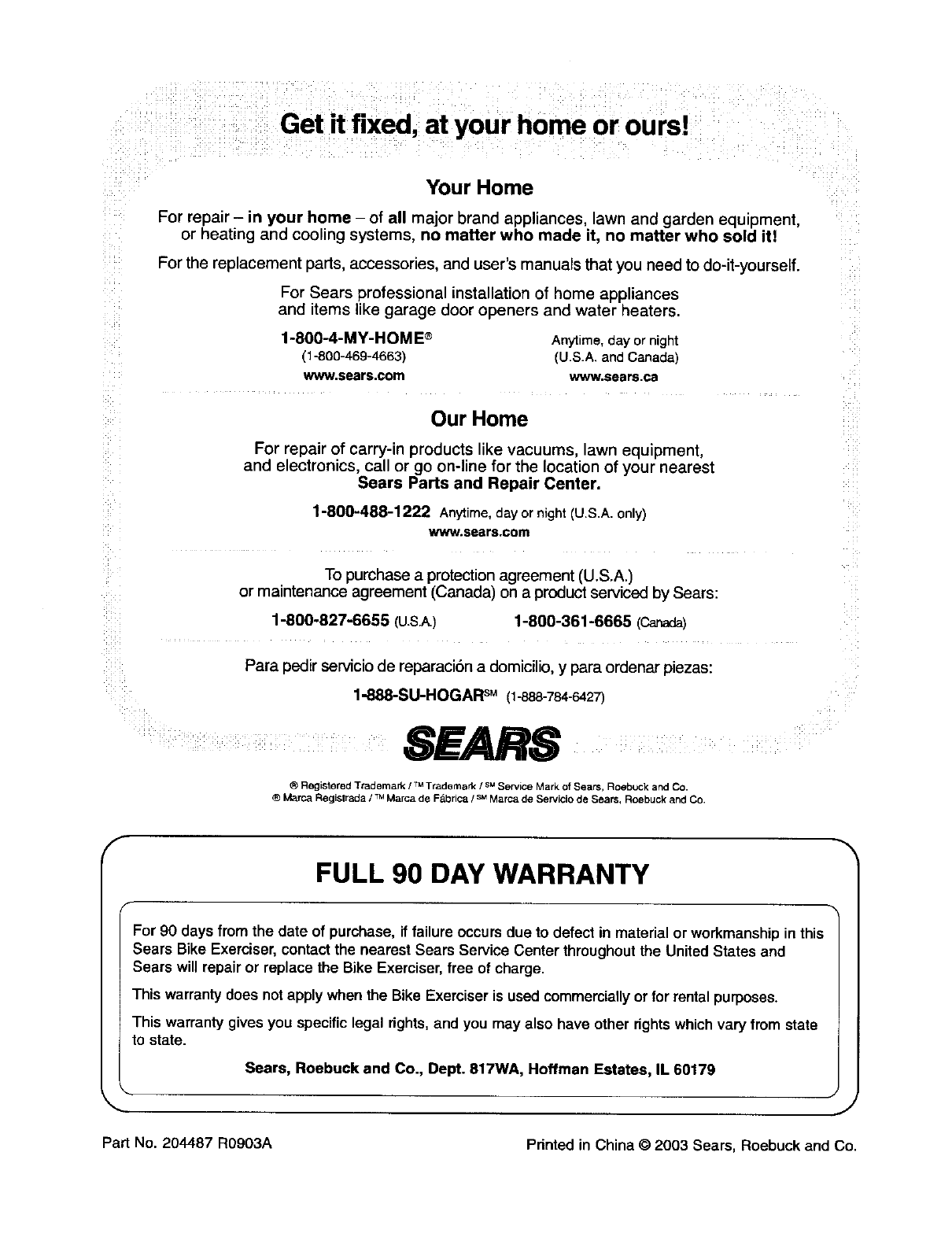

LIMITED WARRANTY .............................................................. Back Cover

IMPORTANT PRECAUTIONS

WARNING: TO reduce the dsk of serious injury, read the following important precau-

tions before using the exercise cycle.

1. Read all instructions in this manual before

using the exercise cycle.

2. Use the exercise cycle only as described in

this manual.

3. It is the responsibility of the owner to ensure

5. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

7. Wear appropriate clothes when exercising; do

not wear loose clothes that could become

caught on the exercise cycle. Always wear

athletic shoes for foot protection.

8. The exercise cycle should not be used by

persons weighing more than 250 pounds.

that all users of the exercise cycle are ade-

quately informed of all precautions. 9. Always keep your back straight while using

the exercise cycle; do not arch your back.

Use the exercise cycle indoors on a level sur-

face. Keep the exercise cycle away from 10. If you feel pain or dizziness while exercising,

moisture and dust. Place a mat under the stop .......... and cool down.

exercise cycle to protect the floor.

11. The exercise cycle does not have a free

wheel; the pedals will continue to move until

the flywheel stops.

6. Keep children under the age of 12 and pets

away from the exercise cycle at all times. 12. The exercise cycle is intended for home use

only. Do not use the exercise cycle in

a commercial, rental, or institutional setting.

WARNIN G: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. SEARS assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

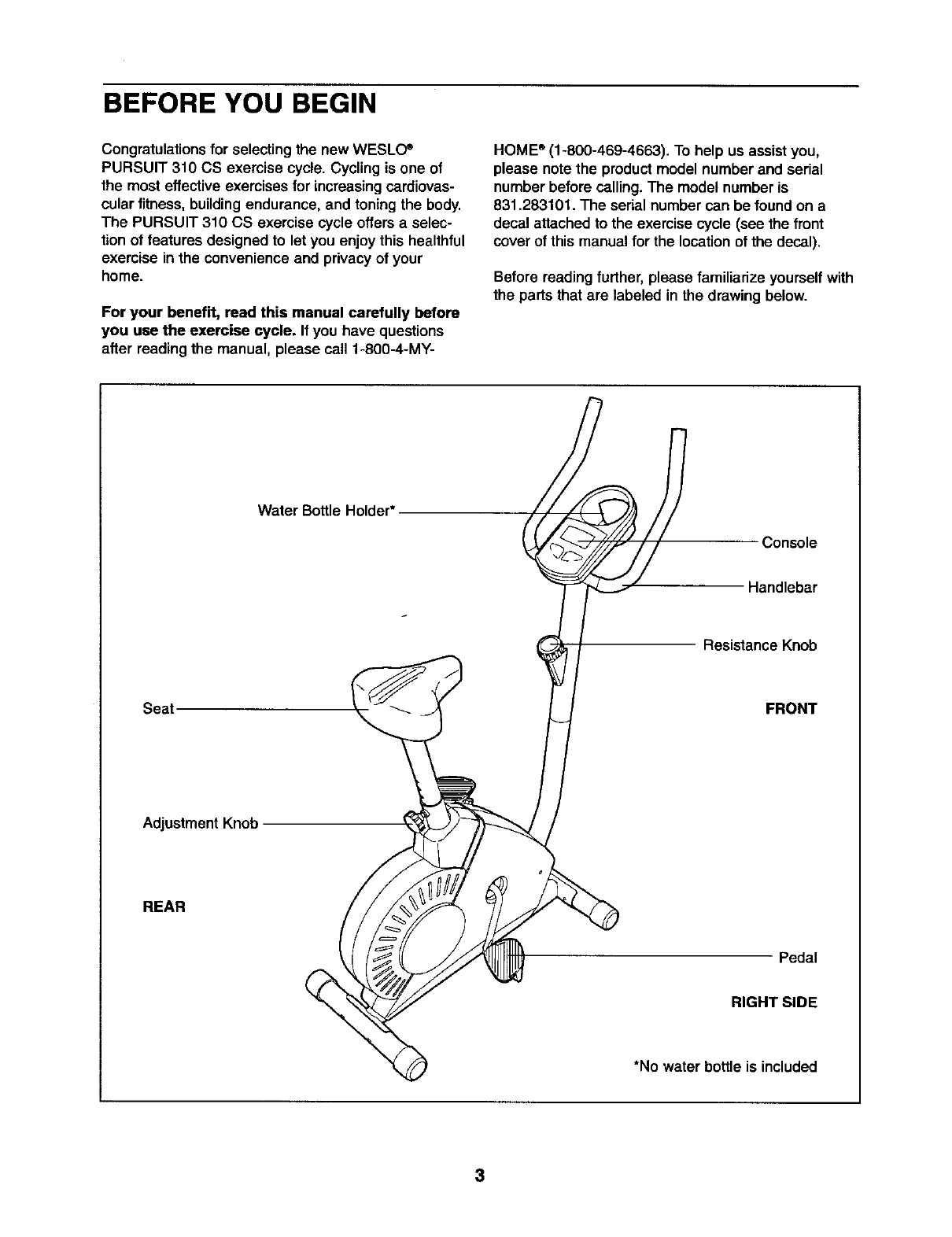

BEFORE YOU BEGIN

Congratulations for selecting the new WESLO °

PURSUIT 310 CS exercise cycle. Cycling is one of

the most effective exercises for increasing cardiovas-

cular fitness, building endurance, and toning the body.

The PURSUIT 310 CS exercise cycle offers a selec-

tion of features designed to let you enjoy this healthful

exercise in the convenience and privacy of your

home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading the manual, please call 1-800-4-MY-

HOME ®(1-800-469-4663). To help us assist you,

please note the product model number and serial

number before calling. The model number is

831.283101. The serial number can be found on a

decal attached to the exercise cycle (see the front

cover of this manual for the location of the decal).

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Water Bottle Holder*

Console

Handlebar

Seat

Adjustment Knob

REAR

Resistance Knob

FRONT

Pedal

RIGHT SIDE

*No water bottle is included

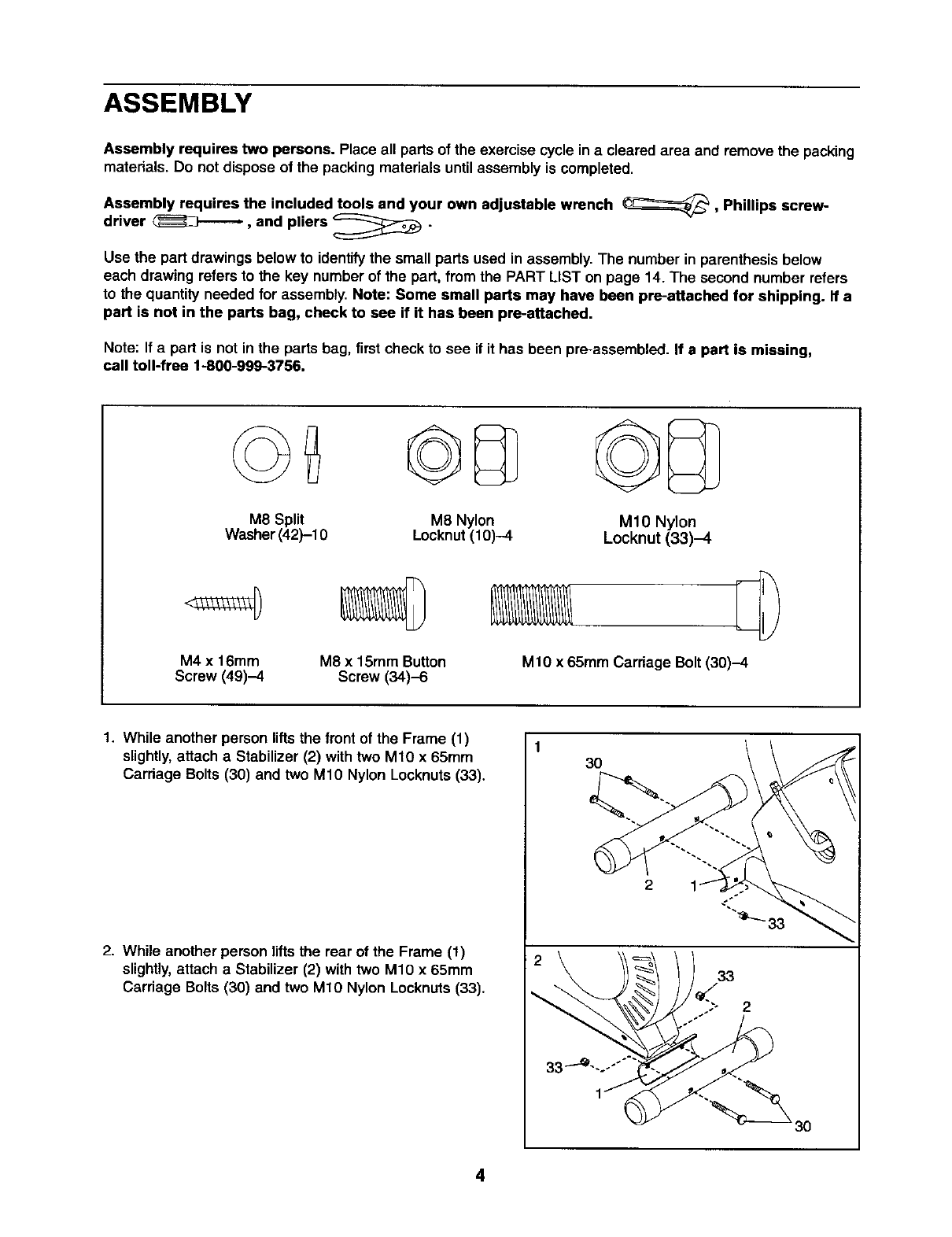

ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and removethe packing

materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included tools and your own adjustable wrench _, Phillips screw-

driver _Y,,..-,,.=,--, and pliers _.

Use the part drawings below to identifythe small parts used in assembly. The number in parenthesis below

each drawing refers to the key number of the part,from the PART LIST on page 14. The second number refers

to the quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a

part is not in the parts bag, check to see if it has been pre-attached.

Note: If a part is not inthe parts bag, firstcheck to see if it has been pre-assembled. If a part is missing,

call toll-free 1-800-999-3756.

M8 Split M8 Nylon

Washer (42)-10 Locknut(10)-4

M4 x 16mm

Screw (49)-4 M8 x 15mm Button

Screw (34)-6

M10 Nylon

Locknut (33)-4

M10 x 65mm Carriage Bolt (30)-4

1. While another person lifts the front of the Frame (1)

slightly, attach a Stabilizer (2) with two MIO x 65ram

Carriage Bolts (30) and two MIO Nylon Locknuts (33).

2. While another person lifts the rear of the Frame (1)

slightly, attach a Stabilizer (2) with two MIO x 65mm

Carriage Bolts (30) and two MIO Nylon Locknuts (33).

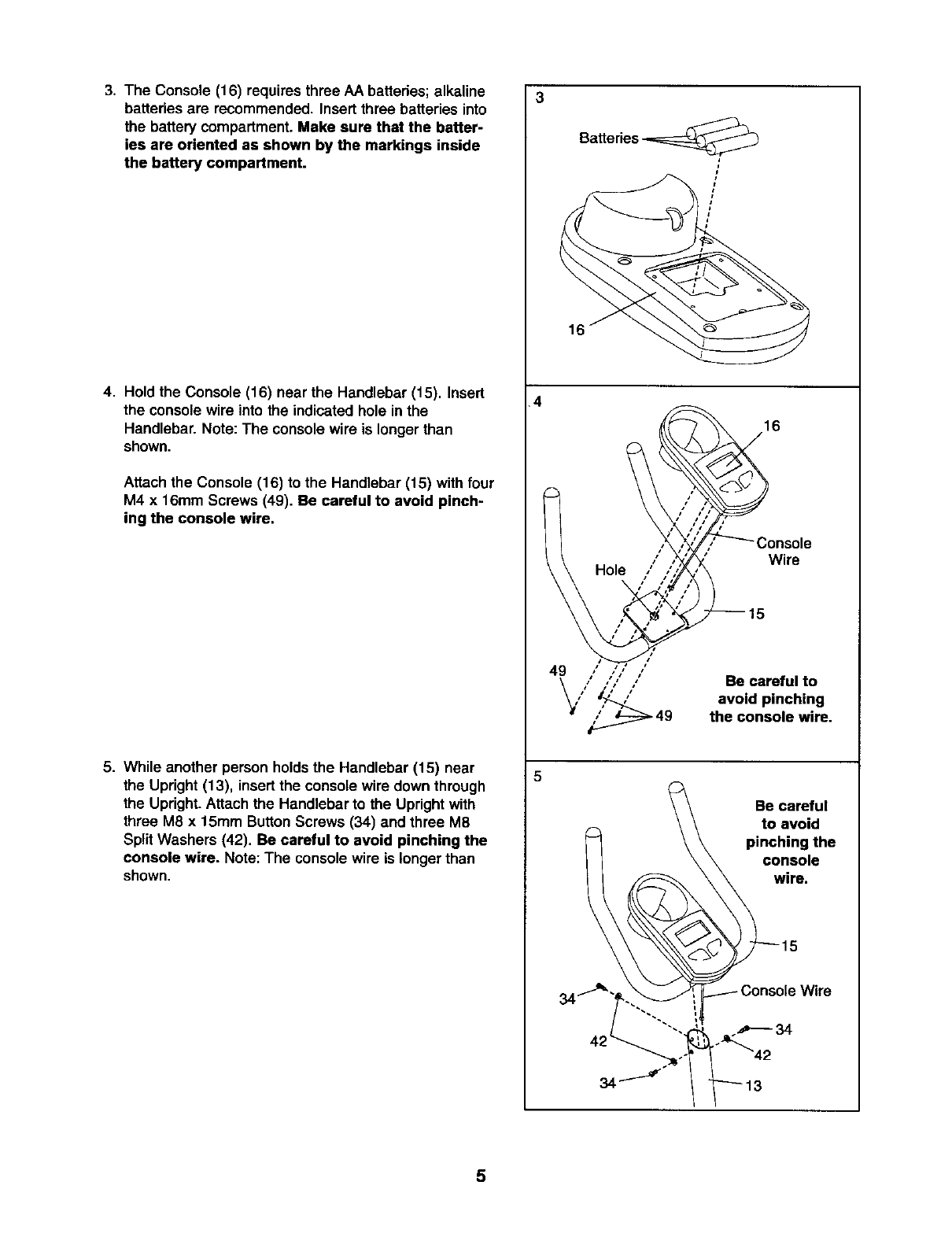

3. The Console (16) requires three AA batteries; alkaline

batteries are recommended. Insert three batteries into

the battery compartment. Make sure that the batter-

ies are oriented as shown by the markings inside

the battery compartment.

4. Hold the Console (16) near the Handlebar (15). Insert

the console wire into the indicated hole in the

Handlebar. Note: The console wire is longer than

shown.

Attach the Console (16) to the Handlebar (15) with four

M4 x 16mm Screws (49). Be careful to avoid pinch-

ing the console wire,

5. While another person holds the Handlebar (15) near

the Upright (13), insert the console wire down through

the Upright. Attach the Handlebar te the Upright with

three M8 x 15ram Button Screws (34) and three M8

Split Washers (42). Be careful to avoid pinching the

console wire. Note: The console wire is longer than

shown,

Batteries

Wire

is I Be careful to

avoid pinching

the console wire.

Be careful

to avoid

pinching the

console

wire.

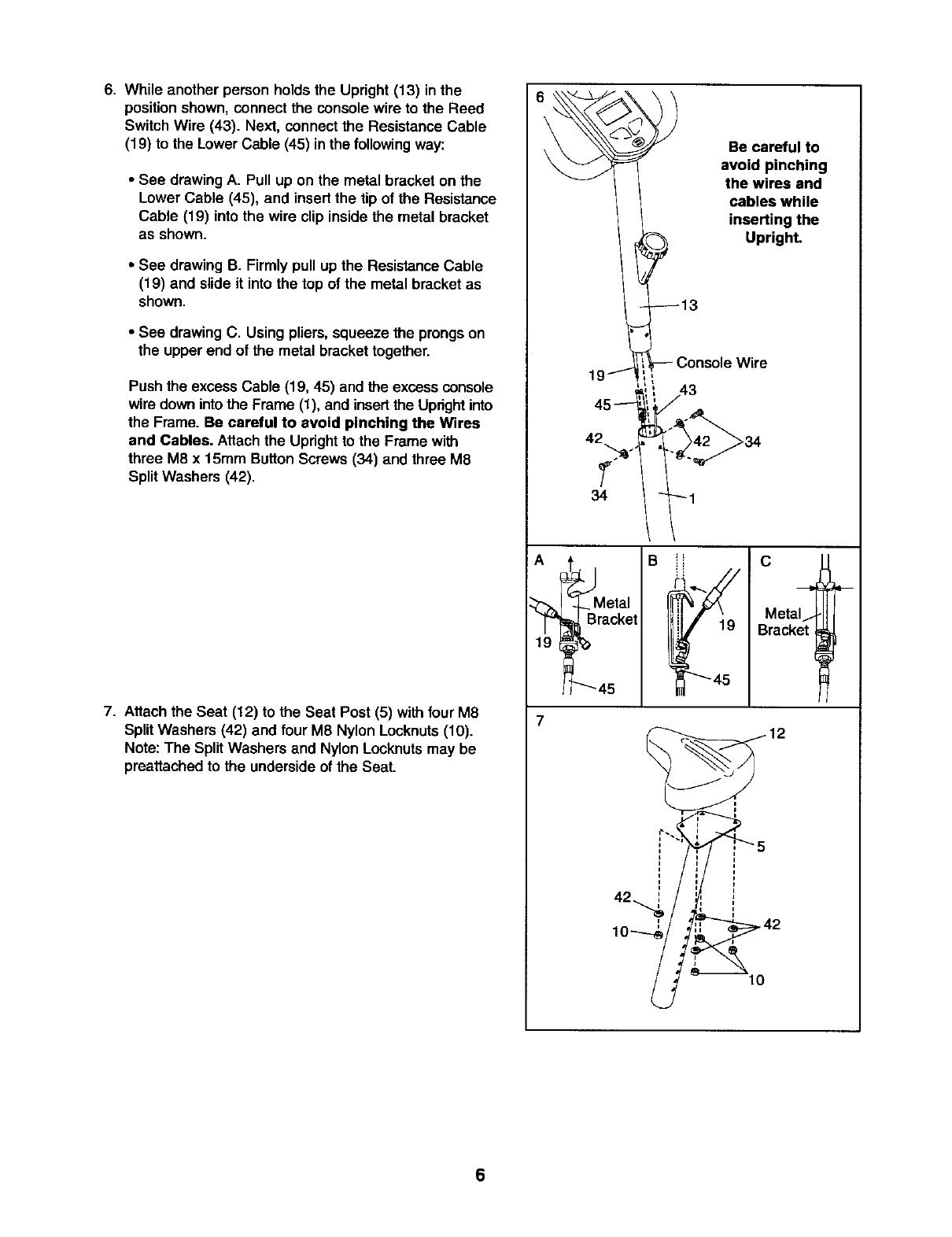

6. While another person holds the Upright (13) inthe

positionshown, connect the console wire to the Reed

Switch Wire (43). Next, connect the Resistance Cable

(19) to the Lower Cable (45) in the following way:

• See drawing A. Pull up on the metal bracket on the

Lower Cable (45), and insert the tip of the Resistance

Cable (19) into the wire clip inside the metal bracket

as shown.

•See drawing B. Firmly pull up the ResistanceCable

(19) and slide it into the top of the metal bracket as

shown.

• See drawing C. Using pliers, squeeze the prongs on

the upper end of the metal brackettogether.

Pushthe excess Cable (19, 45) and the excess console

wire down into the Frame (1), and insertthe Uprightinto

the Frame. Be careful to avoid pinching the Wires

and Cables. Attachthe Uprightto the Frame with

three M8 x 15mm ButtonScrews (34) and three M8

Split Washers (42).

7. Attach the Seat (12) to the Seat Post (5) withfour M8

Split Washers (42) and four M8 Nylon Locknuts (10).

Note: The Split Washers and Nylon Locknuts may be

preattached to the underside of the Seat.

Be careful to

avoid pinching

the wires and

cables while

inserting the

-_-_-JMetal

racket

/_ Upright.

- _13

_r- Console Wire

19/!ii

=_ _ 43

34 i _ _- 1

Bii

i 19

.-..i

Metal..

Bracket P

42 /s

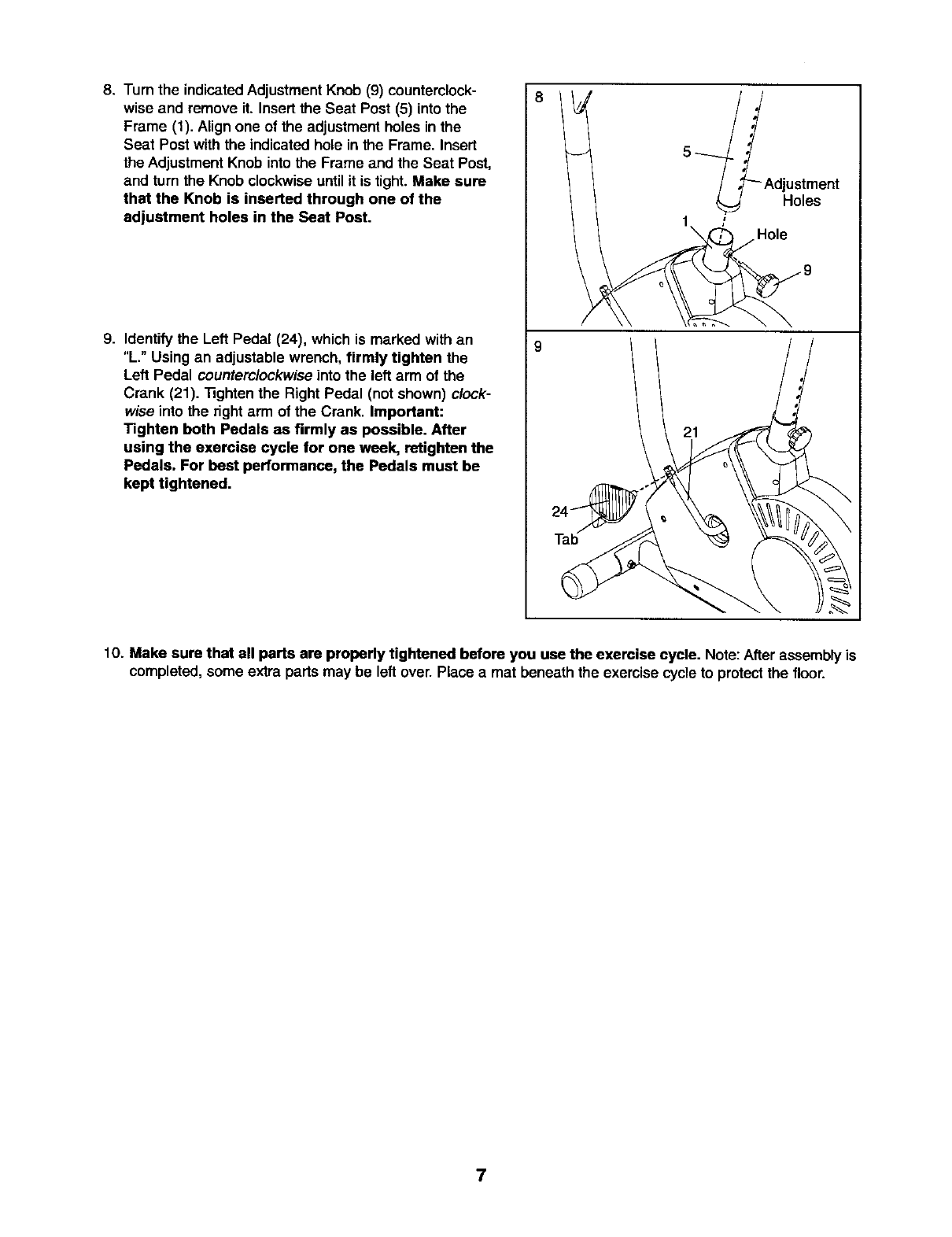

8. Turn the indicated Adjustment Knob (9) counterclock-

wise and remove it. Insert the Seat Post (5) intothe

Frame (1). Align one of the adjustmentholes inthe

Seat Post with the indicatedhole in the Frame. Insert

the Adjustment Knob into the Frame and the Seat Post,

and turn the Knob clockwise untilit is tight. Make sure

that the Knob is inserted through one of the

adjustment holes in the Seat Post.

9. Identify the Left Pedal (24), which is marked withan

"L." Using an adjustable wrench, firmly tighten the

Left Pedal counterclockwise into the left arm of the

Crank (21). Tighten the Right Pedal (not shown) clock-

wise into the right arm of the Crank. Important:

Tighten both Pedals as firmly as possible. After

using the exercise cycle for one week, retighten the

Pedals. For best performance, the Pedals must be

kept tightened.

/ / /,_Adjustment

/ / 1,, _ Holes

/F_'_ H°le 9

10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is

completed, some extra parts may be left over. Place a mat beneath the exercise cycleto protectthe floor.

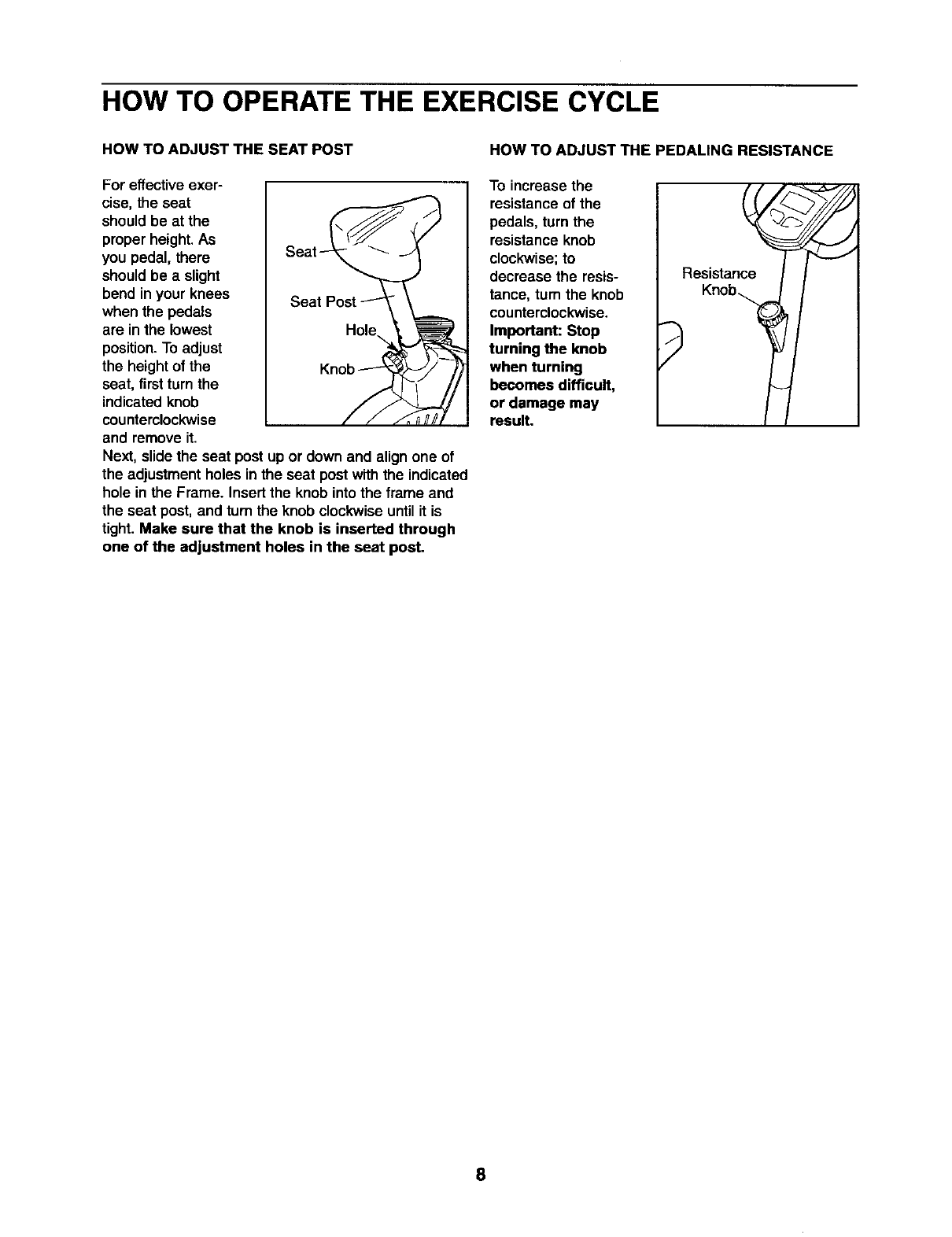

HOW TO OPERATE THE EXERCISE CYCLE

HOW TO ADJUST THE SEAT POST

For effectiveexer-

cise, the seat

should be at the

proper height. As

you pedal, there

should be a slight

bend in your knees

when the pedals

are in the lowest

position.To adjust

the heightof the

seat, first turn the

indicatedknob

counterclockwise

and remove it.

Next, slide the seat post up or down and align one of

the adjustment holes in the seat post with the indicated

hole in the Frame. Insert the knob into the frame and

the seat post, and turn the knob clockwise until it is

tight. Make sure that the knob is inserted through

one of the adjustment holes in the seat post.

Seat-

Seat

Hole.

HOW TO ADJUST THE PEDALING RESISTANCE

To increase the

resistance of the

pedals, turn the

resistance knob

clockwise;to

decrease the resis-

tance, turn the knob

counterclockwise.

Important: Stop

turning the knob

when turning

becomes difficult,

or damage may

result.

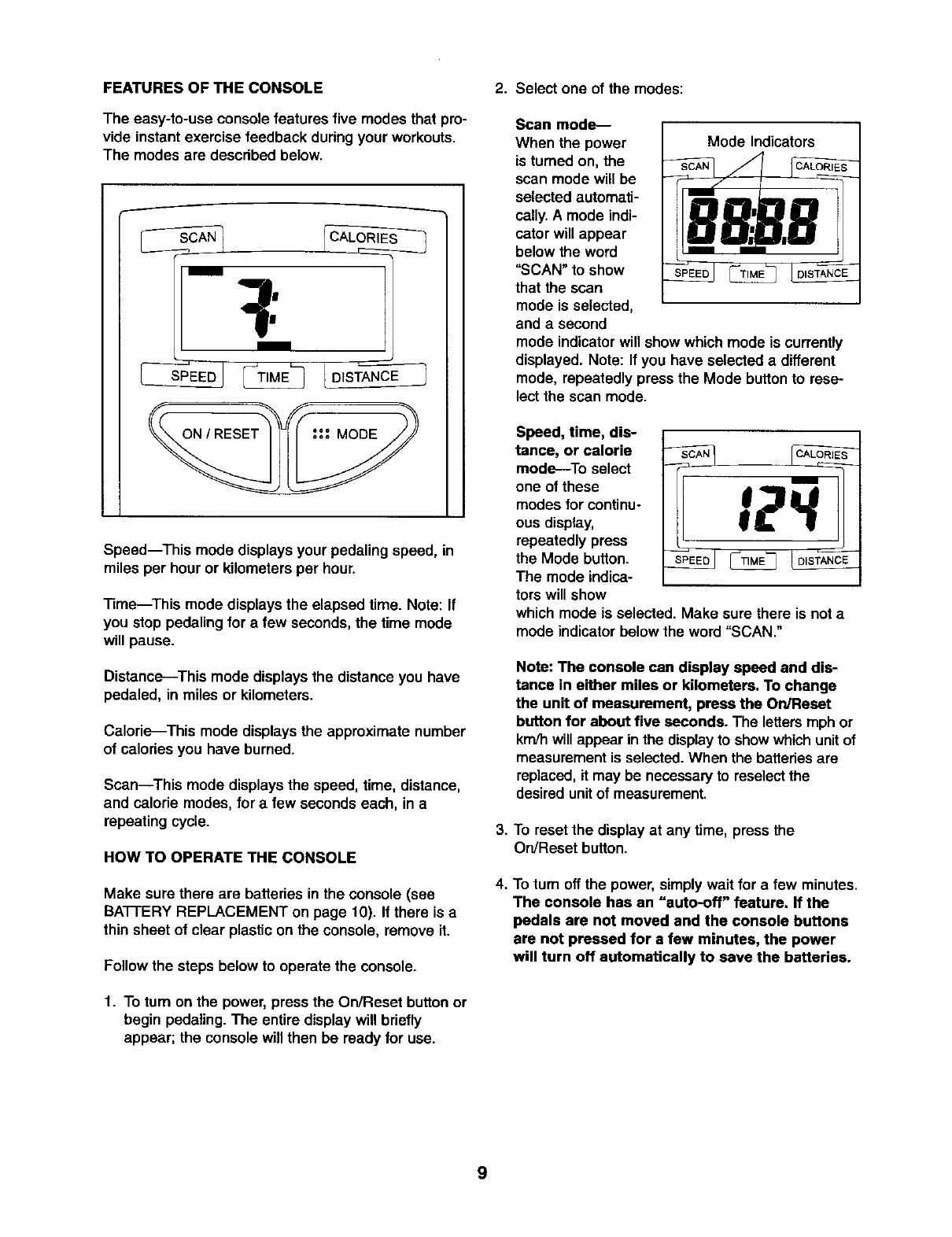

FEATURESOFTHECONSOLE

Theeasy-to-useconsolefeatures five modes that pro-

vide instant exemise feedback during your workouts.

The modes are described below.

Speed--This mode displays your pedaling speed, in

miles per hour or kilometers per hour.

"rime--This mode displays the elapsed time. Note: If

you stop pedaling for afew seconds,the time mode

will pause.

Distance---This mode displays the distance you have

pedaled, in miles or kilometers.

Calorie--This mode displays the approximate number

of calories you have burned.

Scan--This mode displays the speed, time, distance,

and calorie modes, for a few seconds each, in a

repeating cycle.

HOW TO OPERATE THE CONSOLE

Make sure there are batteries in the console (see

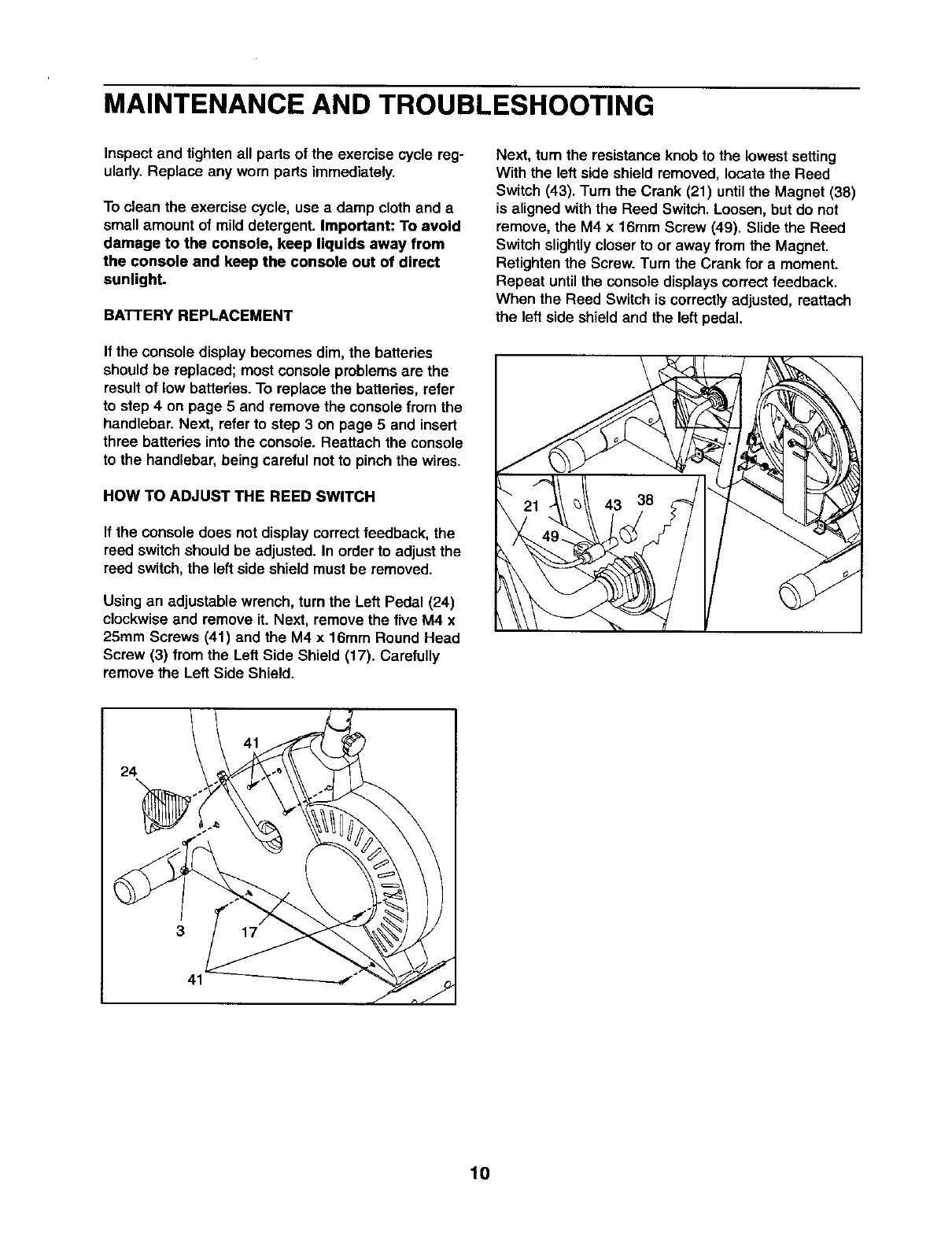

BA'I-I'ERYREPLACEMENT on page 10). If there is a

thin sheet of clear plastic on the console, remove it.

Follow the steps below to operate the console.

1. To turn on the power, press the On/Reset button or

begin pedaling. The entire displaywill briefly

appear; the console will then be ready for use.

2. Select one of the modes:

Scan modem

When the power Mode Indicators

is turned on, the

scan mode will be

selected automati-

cally. A mode indi-

cator will appear

below the word

=SCAN" to show DISTANCE

that the scan

mode is selected,

and a second

mode indicator will show which mode is currently

displayed. Note: If you have selected a different

mode, repeatedly press the Mode button to rese-

lect the scan mode.

Speed, time, dis-

tance, or calorie

mode--To select

one of these

modes for continu-

ous display,

repeatedly press

the Mode button.

The mode indica-

tors will show

SCAN

which mode is selected. Make sure there is not a

mode indicatorbelow the word "SCAN."

Note: The console can display speed and dis-

tance in either miles or kilometers, To change

the unit of measurement, press the On/Reset

button for about five seconds. The lettersmph or

km/h will appear in the displayto show which unitof

measurement is selected. When the batteriesare

replaced, it may be necessaryto reselectthe

desired unitof measurement.

3. To reset the display at any time, press the

On/Reset button.

4. To turn off the power, simplywait for afew minutes.

The console has an "auto.off" feature. If the

pedals are not moved and the console buttons

are not pressed for a few minutes, the power

will turn off automatically to save the batteries.

MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the exercise cycle reg-

ularly.Replace any worn parts immediately.

To clean the exercise cycle, use adamp cloth and a

small amount of mild detergent. Important: To avoid

damage to the console, keep liquids away from

the console and keep the console out of direct

sunlight.

BATTERY REPLACEMENT

If the console display becomes dim, the batteries

should be replaced; most console problems are the

result of low batteries. To replace the batteries, refer

to step 4 on page 5 and remove the consolefrom the

handlebar. Next, refer to step 3 on page 5 and insert

three batteries into the console. Reattach the console

to the handlebar, being careful notto pinchthe wires.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. In order to adjust the

reed switch, the left side shield must be removed.

Using an adjustable wrench, turn the Left Pedal (24)

clockwise and remove it. Next, remove the five M4 x

25mm Screws (41) and the M4 x 16mm Round Head

Screw (3) from the Left Side Shield (17). Carefully

remove the Left Side Shield.

Next, turn the resistance knob to the lowest setting

With the left side shield removed, locate the Reed

Switch (43). Turn the Crank (21) untilthe Magnet (38)

is aligned with the Reed Switch. Loosen, but do not

remove, the M4 x 16mm Screw (49). Slide the Reed

Switch slightlycloser to or away from the Magnet.

Retighten the Screw. Turn the Crank for a moment.

Repeat untilthe console displayscorrect feedback.

When the Reed Switch is correctlyadjusted, reattach

the left side shield and the left pedal.

CONDITIONING GUIDELINES

The following guidelines will help you to plan your

exercise program. Remember that proper nutrition

and adequate rest are essential for successful results.

WARNING: Beforebeginning

this or any exercise program, consult your

physician. This is especially important for

persons over the age of 35 or persons with

pre-existing health problems.

EXERCISE INTENSITY

Whether your goal is to bum fat or to strengthen your

cardiovascular system, the key to achieving the

desired results is to exercise with the proper intensity.

The proper intensitylevel can be found by usingyour

heart rate as a guide. The chart below shows recom-

mended heart rates for fat burning, maximum fat

burning, and cardiovascular (aerobic) exercise.

165 155 145 140 130 125 115

145 138 130 125 118 110 103

125 120 115 110 105 95 90

20 30 40 50 60 70 80

To find the proper heart rate for you, firstfind your age

at the bottom line of the chart (ages are roundedoff to

the nearest ten years). Next, find the three numbers

above your age. The three numbers are your "training

zone." The lowest number is the recommended heart

rate for fat burning;the middle number is the recom-

mended heart rate for maximum fat burning;the high-

est number is the recommended heart rate for aerobic

exercise.

Fat Burning

To burnfat effectively, you must exercise at a relative-

ly low intensitylevel for a sustained period of time.

Duringthe first few minutes of exercise, your body

uses easily accessible carbohydrate caloriesfor ener-

gy. Only after the first few minutes of exemise does

your body begin to use stored fat caloriesfor energy.

If your goal is to bum fat, adjust the intensityof your

exemise until your heart rate is near the lowest num-

ber in your training zone as you exercise. For maxi-

mum fat burning, adjust the intensityof your exercise

untilyour heart rate is near the middlenumber in your

training zone as you exercise.

Aerobic Exercise

If your goal is to strengthenyour cardiovascular sys-

tem, your exercise must be "aerobic." Aerobic exer-

cise is activitythat requires large amounts of oxygen

for prolonged pedods of time. This increases the

demand on the heart to pump bloodto the muscles,

and on the lungsto oxygenate the blood. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number in your

trainingzone.

HOW TO MEASURE YOUR HEART RATE

To measure your

heart rate, first

exercise for at least

four minutes.Then,

stop exercising and

place two fingers

on your wdst as

shown. Take a six-

second heartbeat

count, and multiply the result by 10 to find your heart

rate. For example, if your six-second heartbeat count

is 14, your heart rate is 140 beats per minute. (A six-

second count is used because your heart rate will

drop rapidly when you stop exercising.)

WORKOUT GUIDELINES

Each workout should include the following three pads:

A warm-up, consisting of 5to 10 minutes of stretching

and light exercise. Aproper warm-up increases your

body temperature, heart rate, and circulationin prepa-

ration for exercise.

Training zone exercise, consistingof 20 to 30 min-

utes of exercisingwith your heart rate in your training

zone. Note: During the first few weeks of your exer-

cise program, do not keep your heart rate in your

trainingzone for longer than 20 minutes.

A cool-down, with5 to 10 minutes of stretching.This

will increase the flexibility of your musclesand will

help to prevent post-exerciseproblems.

EXERCISE FREQUENCY

To maintain or improveyour condition,plan three work-

outs each week, with at least one day of rest between

workouts.After a few months of regular exercise, you

may complete up to five workouts each week, if

desired. Remember, the key to success is make exer-

cise a regular and enjoyable part of your everyday life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right.

Move slowly as you stretch--never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts,

then relax. Repeat 3 times. Stretches: Hamstrings, back of knees

and back.

2. Hamstring Stretch

Sit with one leg extended. Bringthe sole of the opposite foot

toward you and rest it against the inner thigh of your extended

leg. Reach toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times for each leg. Stretches:

Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg infront of the other, reach forward and place your

hands against a wall. Keep your back leg straightand your back

foot flat on the floor. Bend your front leg, lean forward and move

your hips toward the wall. Hold for 15 counts, then relax. Repeat

3 times for each leg. To cause further stretchingof the achilles

tendons, bend your back leg as well. Stretches: Calves, achilles

tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp

one foot with your other hand. Bring your heel as close to your

buttocks as possible. Hold for 15 counts, then relax. Repeat 3

times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for

15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and

hip muscles.

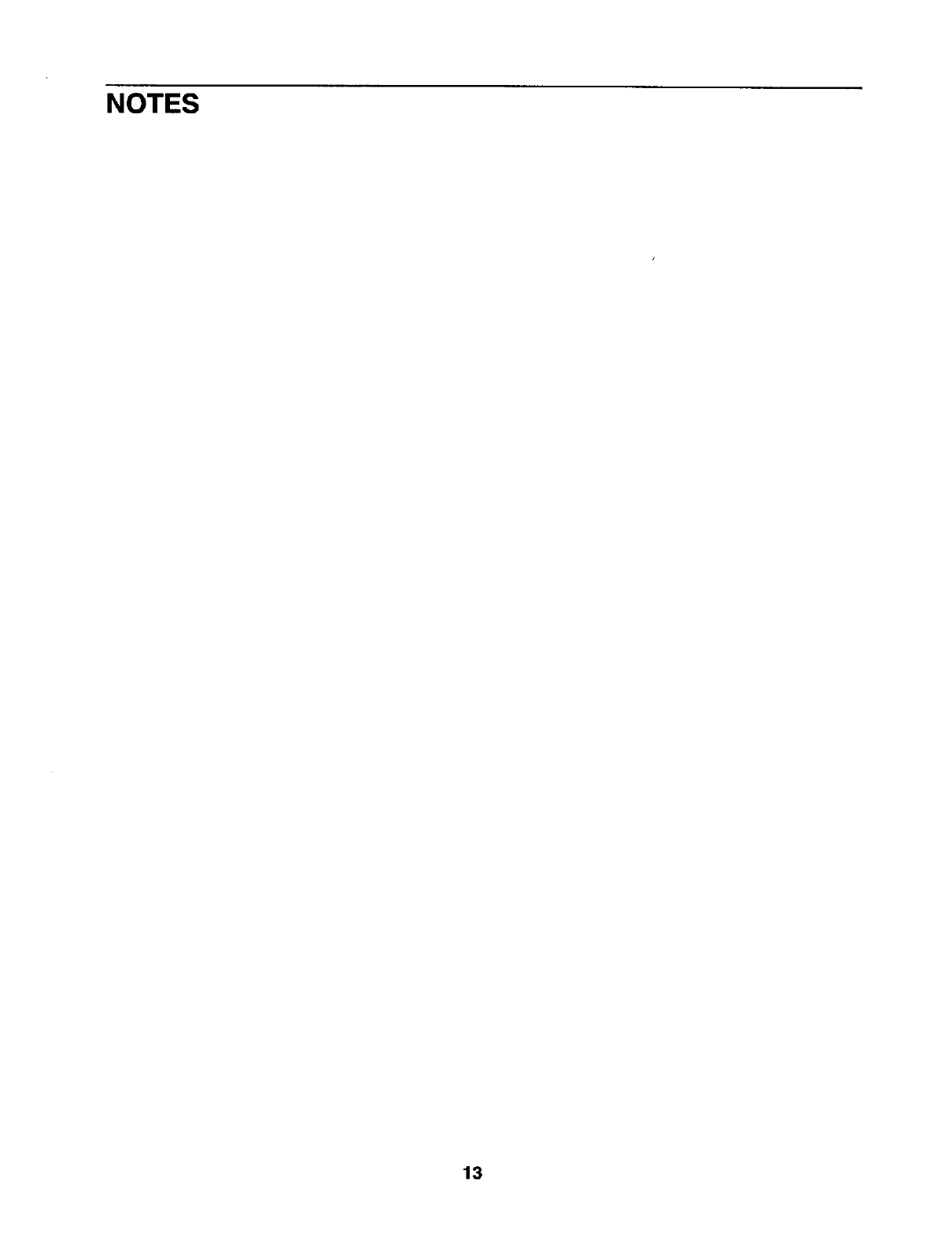

NOTES

EXPLODED DRAWINGmModel No. 831.283101 R0903A

Key No. Qty. Description Key No. Qty. Description

11 Frame 28 2 U-bracket

22 Stabilizer 29 1 Crank Nut

32M4 x 16mm Round Head Screw 30 4 M10 x 65mm Carriage Bolt

4 4 Stabilizer Endcap 31 2 Eyebolt

51Seat Post 32 3 M6 Nut

6 1 C-Magnet Bracket 33 4 M10 Nylon Locknut

72Handlebar Endcap 34 6 M8 x15mm Button Screw

8 2 Foam Grip 35 1 Belt

9 1 Adjustment Knob 36 1 M4 x 19mm Screw

10 7 M8 Nylon Locknut 37 1 Flywheel

11 1 C-Magnet 38 1 Magnet

12 1 Seat 39 1 Flywheel Axle

13 1 Upright 40 1 6200Z Bearing

14 1 M8 Washer 41 5 M4 x 28mm Round Head Screw

15 1 Handlebar 42 10 M8 Split Washer

16 1 Console 43 1 Reed Switch/Wire

17 1 Left Side Shield 44 1 Crank Bearing Set

18 1 Right Side Shield 45 1 Lower Cable

19 1 Resistance Control/Cable 46 1 Resistance Cable

20 1 Seat Post Bushing 47 1 Return Spring

21 1 Crank/Pulley 48 1 Spring

22 1 Reed Switch Clamp 49 6 M4 x 16mm Screw

23 2 M10 Washer 50 2 M6 Zinc Nut

24 1 Left Pedal 51 1 M6 x 35mm Bolt

25 1 6000Z Bearing 52 1 M8mm x 21mm Bolt

26 1 Right Pedal # 1 User's Manual

27 1 Resistance Knob # 2 Allen Wrench

Note: "#" indicates a non-illustratedpart. Specificationsare subject to change withoutnotice. If a part is miss-

ing, call toll-free 1-800-999-3756. See the back cover of this manual for informationabout ordering replacement

parts.

EXPLODED DRAWING--Model No. 831.283101 Rogo3A

41'

53 10

>34

Get it fixed, at your home or ours!

Your Home

For repatr- in your home - of all major brand appliances, lawn and garden equipment,

or heating and cooling systems, no matter who made it, no matter who sold it!

For the replacement parts, accessories, and user's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOM E_ Anytime,day ornight

_1-800-469-4663) (U.S.A.and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears,Gom

To purchase aprotection agreement (U.S.A.)

or maintenance agreement (Canada) on aproduct serviced by Sears:

1-800-827-6655 (U.S._) 1-800-361-6665 (Canada)

Para pedir servicio de reparacion a domicilio, y para ordenar piezas:

1-888-SU-HOGAR s'_ (1-888-784-6427)

SEARS

®Registered Trademark /_ Trademark /su Service Mark of Sears, Roebuck and CO.

®Marca Registrada /TM Marca de F&bdca /SMMarca de Servicio de Sears, Roebuck and Co.

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this

Sears Bike Exerciser,contact the nearest Sears Service Center throughoutthe United States and

Sears will repair or replace the Bike Exerciser, free of charge.

This warranty does notapply when the Bike Exerciser is used commerciallyor for rental purposes.

This warranty givesyou specific legal rights,and you may also have other rightswhichvary from state

to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Weslo 831283101 User Manual PURSUIT 310CS Manuals And Guides L0410177

WESLO Cycle Manual L0410177 WESLO Cycle Owner's Manual, WESLO Cycle installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
