Westel Wireless Systems CI00066 Base Station 100W VHF User Manual 400 013

Westel Wireless Systems Pty Ltd Base Station 100W VHF 400 013

users manual

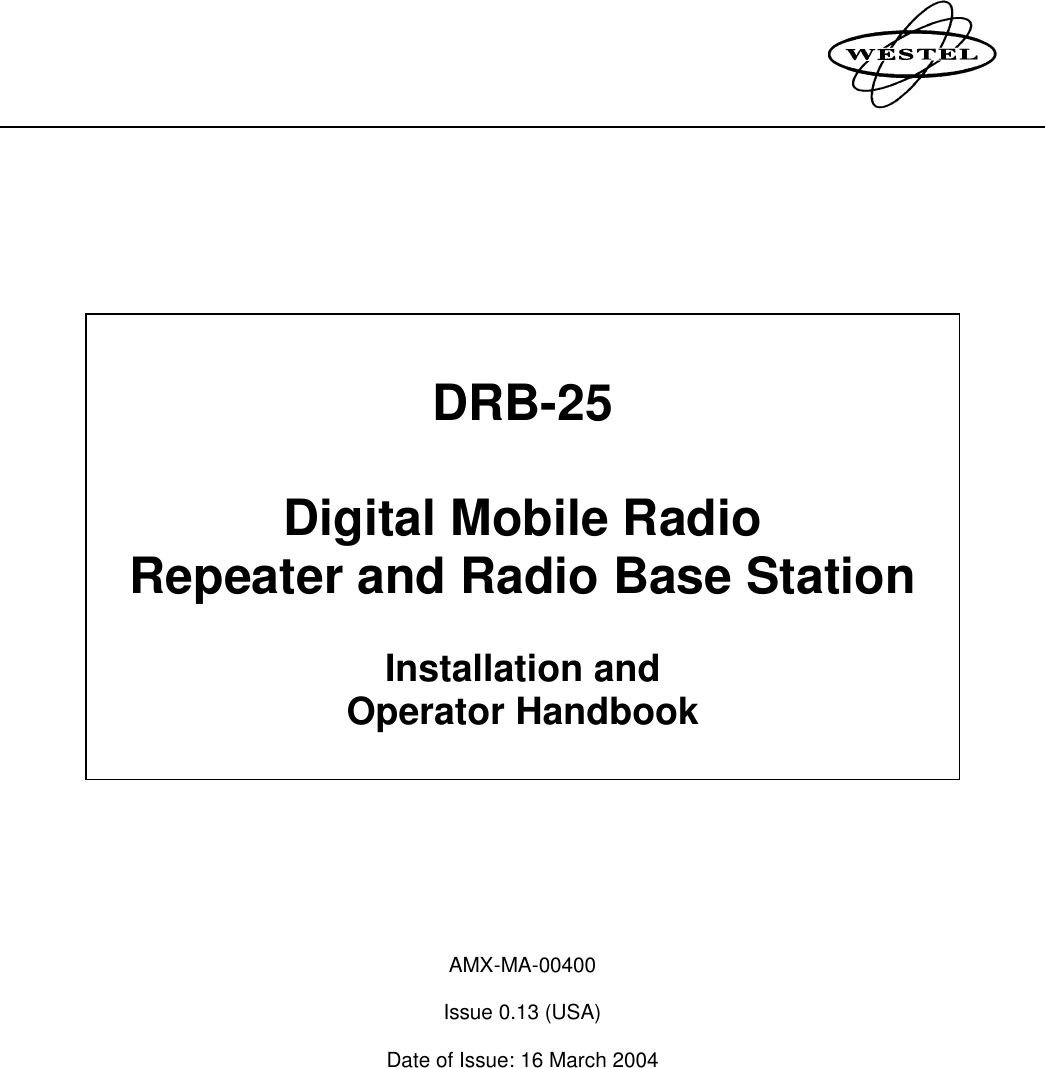

            DRB-25  Digital Mobile Radio Repeater and Radio Base Station  Installation and  Operator Handbook      AMX-MA-00400  Issue 0.13 (USA)  Date of Issue: 16 March 2004

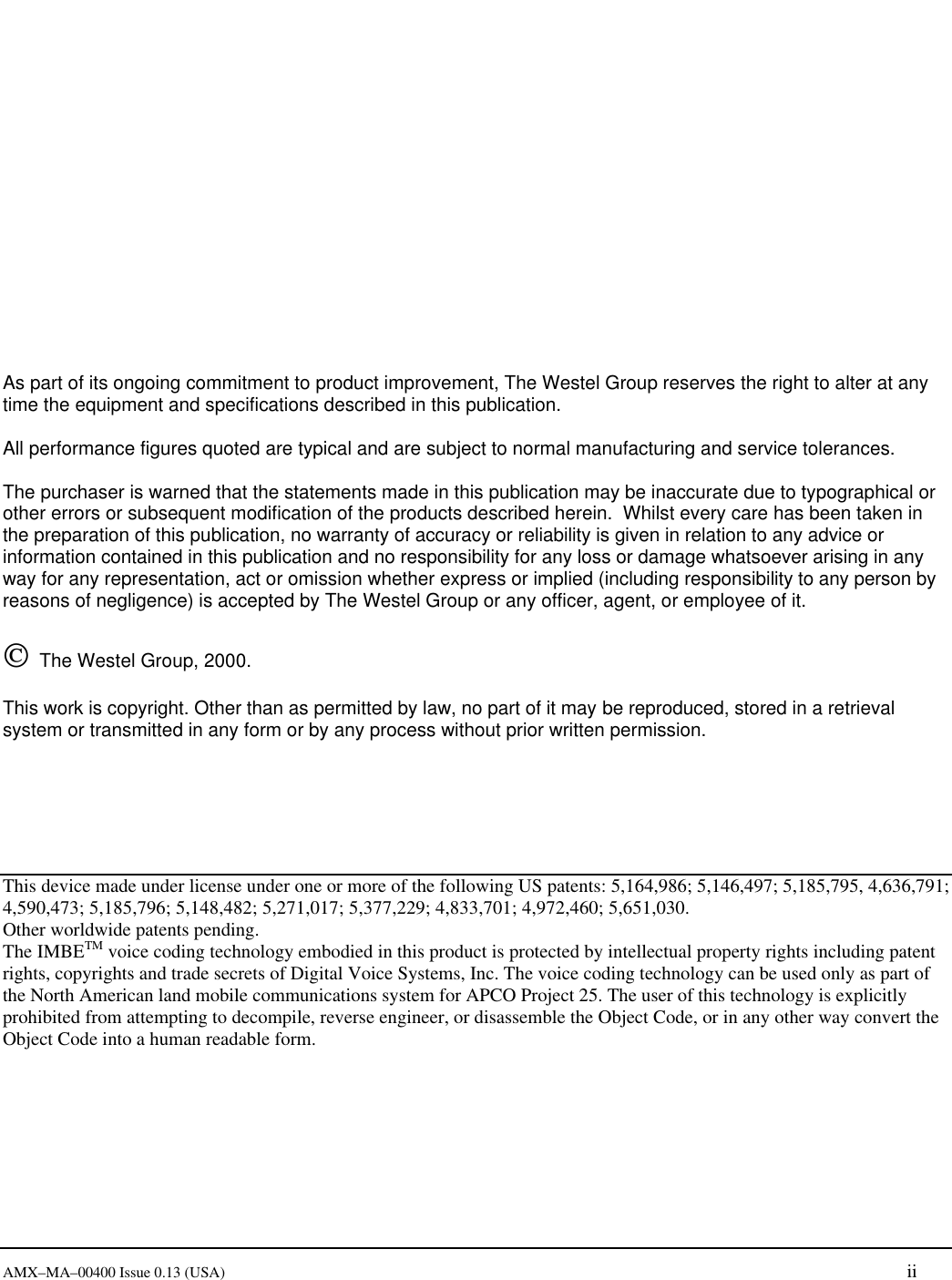

      AMX–MA–00400 Issue 0.13 (USA) ii                 As part of its ongoing commitment to product improvement, The Westel Group reserves the right to alter at any time the equipment and specifications described in this publication.  All performance figures quoted are typical and are subject to normal manufacturing and service tolerances.  The purchaser is warned that the statements made in this publication may be inaccurate due to typographical or other errors or subsequent modification of the products described herein.  Whilst every care has been taken in the preparation of this publication, no warranty of accuracy or reliability is given in relation to any advice or information contained in this publication and no responsibility for any loss or damage whatsoever arising in any way for any representation, act or omission whether express or implied (including responsibility to any person by reasons of negligence) is accepted by The Westel Group or any officer, agent, or employee of it.     The Westel Group, 2000.    This work is copyright. Other than as permitted by law, no part of it may be reproduced, stored in a retrieval system or transmitted in any form or by any process without prior written permission.       This device made under license under one or more of the following US patents: 5,164,986; 5,146,497; 5,185,795, 4,636,791; 4,590,473; 5,185,796; 5,148,482; 5,271,017; 5,377,229; 4,833,701; 4,972,460; 5,651,030. Other worldwide patents pending. The IMBETM voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights and trade secrets of Digital Voice Systems, Inc. The voice coding technology can be used only as part of the North American land mobile communications system for APCO Project 25. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into a human readable form.

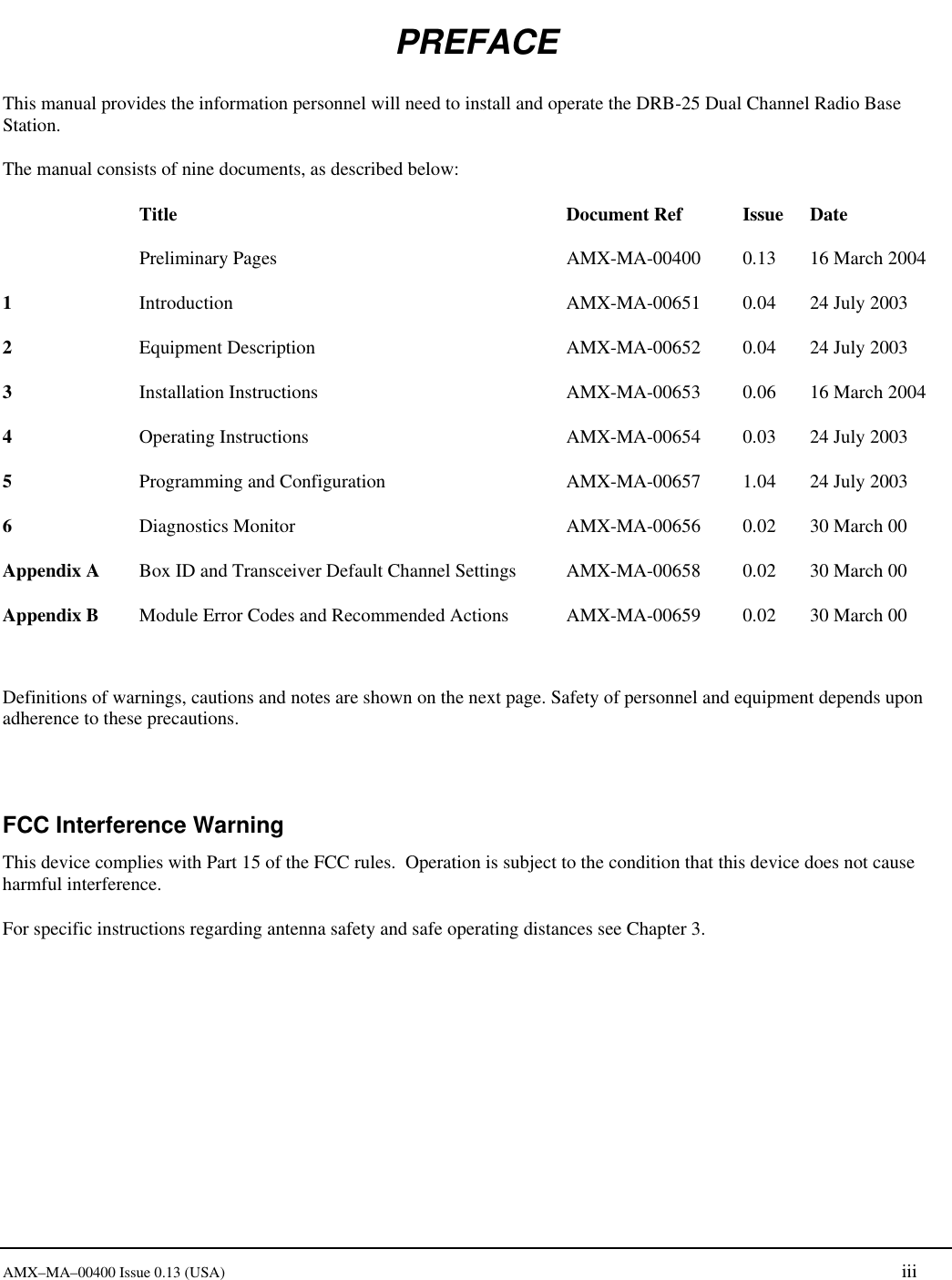

      AMX–MA–00400 Issue 0.13 (USA) iii PREFACE This manual provides the information personnel will need to install and operate the DRB-25 Dual Channel Radio Base Station. The manual consists of nine documents, as described below:  Title Document Ref Issue Date  Preliminary Pages AMX-MA-00400 0.13 16 March 2004 1 Introduction AMX-MA-00651 0.04 24 July 2003 2 Equipment Description AMX-MA-00652 0.04 24 July 2003 3 Installation Instructions AMX-MA-00653 0.06 16 March 2004 4 Operating Instructions AMX-MA-00654 0.03 24 July 2003 5 Programming and Configuration AMX-MA-00657 1.04 24 July 2003 6 Diagnostics Monitor  AMX-MA-00656 0.02 30 March 00 Appendix A   Box ID and Transceiver Default Channel Settings AMX-MA-00658 0.02 30 March 00 Appendix B   Module Error Codes and Recommended Actions AMX-MA-00659 0.02 30 March 00    Definitions of warnings, cautions and notes are shown on the next page. Safety of personnel and equipment depends upon adherence to these precautions.  FCC Interference Warning This device complies with Part 15 of the FCC rules.  Operation is subject to the condition that this device does not cause harmful interference.   For specific instructions regarding antenna safety and safe operating distances see Chapter 3.

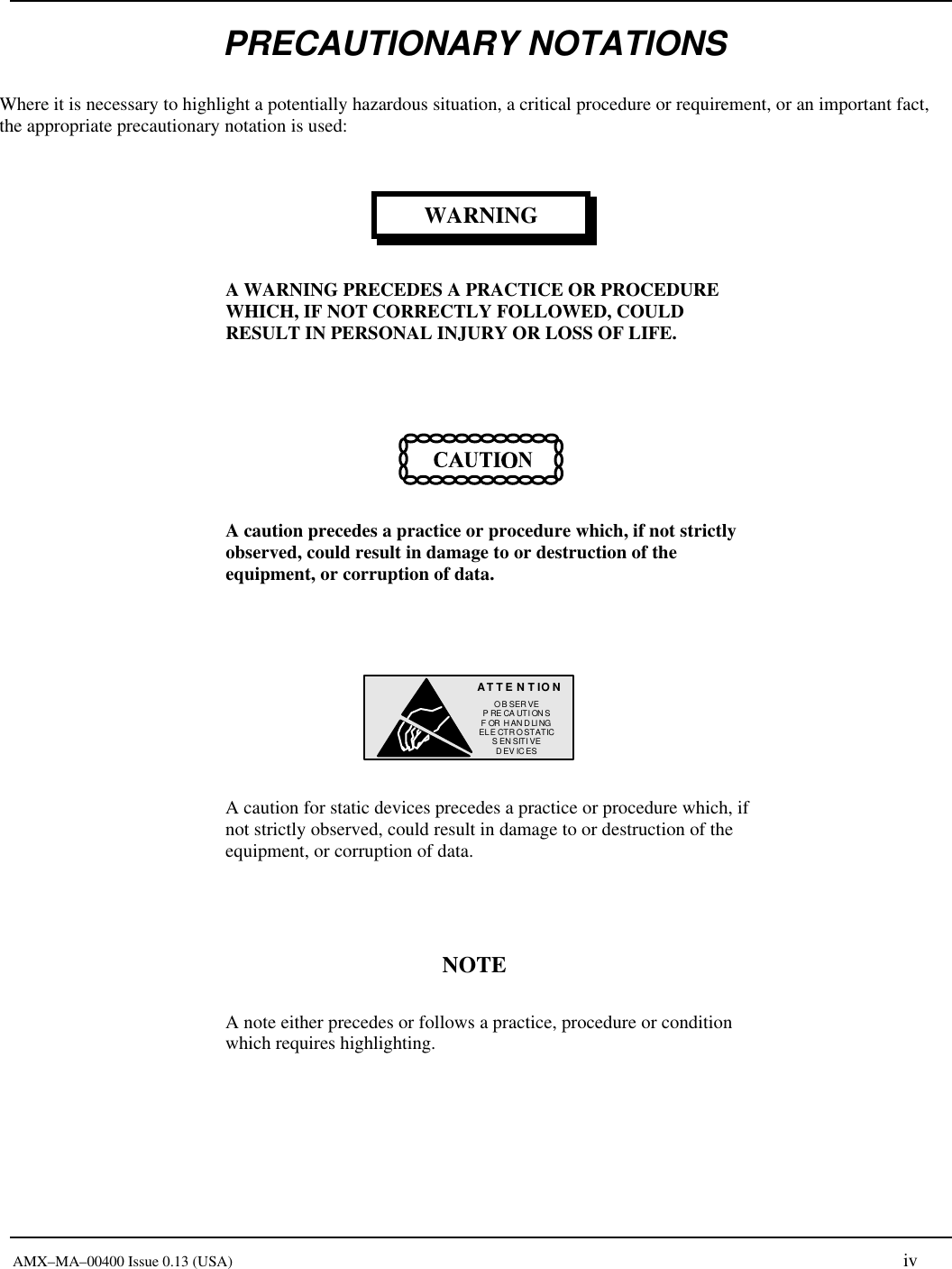

      AMX–MA–00400 Issue 0.13 (USA) iv PRECAUTIONARY NOTATIONS Where it is necessary to highlight a potentially hazardous situation, a critical procedure or requirement, or an important fact, the appropriate precautionary notation is used: WARNING A WARNING PRECEDES A PRACTICE OR PROCEDURE WHICH, IF NOT CORRECTLY FOLLOWED, COULD RESULT IN PERSONAL INJURY OR LOSS OF LIFE.   A caution precedes a practice or procedure which, if not strictly observed, could result in damage to or destruction of the equipment, or corruption of data.  AT T ENTIONOB SERVEPRECAUTIONSFOR HAN D LINGELECTROSTATICS ENSITIVEDEV ICES  A caution for static devices precedes a practice or procedure which, if not strictly observed, could result in damage to or destruction of the equipment, or corruption of data.  NOTE A note either precedes or follows a practice, procedure or condition which requires highlighting.

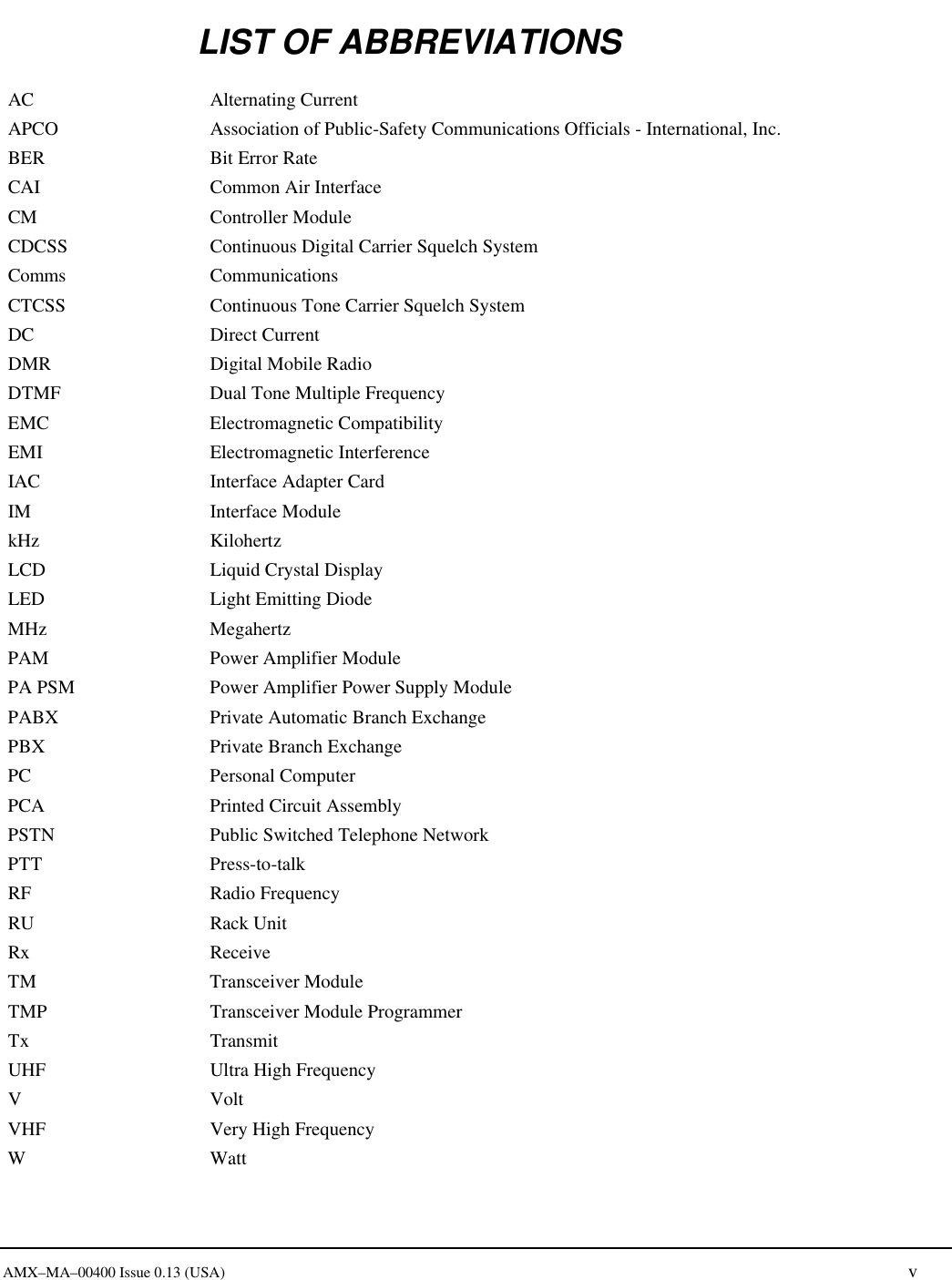

      AMX–MA–00400 Issue 0.13 (USA) v LIST OF ABBREVIATIONS AC Alternating Current APCO Association of Public-Safety Communications Officials - International, Inc. BER Bit Error Rate CAI Common Air Interface CM Controller Module CDCSS Continuous Digital Carrier Squelch System Comms Communications CTCSS Continuous Tone Carrier Squelch System DC Direct Current DMR Digital Mobile Radio DTMF Dual Tone Multiple Frequency EMC Electromagnetic Compatibility EMI Electromagnetic Interference IAC Interface Adapter Card IM Interface Module kHz Kilohertz LCD Liquid Crystal Display LED Light Emitting Diode MHz Megahertz PAM Power Amplifier Module PA PSM Power Amplifier Power Supply Module PABX Private Automatic Branch Exchange PBX Private Branch Exchange PC Personal Computer PCA Printed Circuit Assembly PSTN Public Switched Telephone Network PTT Press-to-talk RF Radio Frequency RU Rack Unit Rx Receive TM Transceiver Module TMP Transceiver Module Programmer Tx Transmit UHF Ultra High Frequency V Volt VHF Very High Frequency W Watt
