Installation Manual
Table of Contents
Product Registration Information......................................................................................................................... 4
Document Purpose / Intended Users .................................................................................................................. 4
Application ......................................................................................................................................................... 4
Safety Guidelines ............................................................................................................................................... 4
Important Safety Information ............................................................................................................................... 5
Terms Used in This Manual ................................................................................................................................ 5
Product Introduction ........................................................................................................................................... 5
Band Plans ........................................................................................................................................................ 6
Filter File Naming Conventions ........................................................................................................................... 7
LED Indicator ..................................................................................................................................................... 8
Functional Overview ............................................................................................................................................ 8
Local Communication Interface Ports ................................................................................................................. 9
Monitoring & Alarms ........................................................................................................................................... 9
Ethernet ............................................................................................................................................................. 9
USB Interface ..................................................................................................................................................... 9
System Set-Up Considerations ........................................................................................................................ 10
Attenuator Selection Guidelines: ...................................................................................................................... 11
Mounting the Digital Repeater .......................................................................................................................... 12
Optional Accessories ....................................................................................................................................... 13
Important Installation Notes .............................................................................................................................. 13
Circuit Operational Description ......................................................................................................................... 13
Functional Block Diagram ................................................................................................................................ 14
Mechanical Specifcations ................................................................................................................................. 15
AC Power Specifcations ................................................................................................................................... 15
Operating Power Parameters ........................................................................................................................... 16
Environmental Requirements ............................................................................................................................ 16
Mechanical Drawing ........................................................................................................................................ 17
System Status: ................................................................................................................................................ 18
Web based GUI Session .................................................................................................................................. 18
Local Network: ................................................................................................................................................. 19
Program a Filter: .............................................................................................................................................. 20
RF Configuration: ............................................................................................................................................. 20
Remote Network: ............................................................................................................................................. 21
SNMP Configuration: ........................................................................................................................................ 21
System Health: ................................................................................................................................................ 22
Install & Upload:.............................................................................................................................................. 22
Reboot: ............................................................................................................................................................ 23
Email Configuration: ......................................................................................................................................... 23
Alarm Configuration: ......................................................................................................................................... 23
Log Configuration: ............................................................................................................................................ 24
Change Password: ........................................................................................................................................... 24
Text Menu Interface (Local Access) .................................................................................................................. 25
Telnet Session (Remote Access) ...................................................................................................................... 29
Modem Interface (Remote Access with login) ................................................................................................... 31
Additional Tips ................................................................................................................................................. 32
Suggested Spectrum Analyzer Setting: ............................................................................................................ 34
RF Notes: ........................................................................................................................................................ 34
Warranty .......................................................................................................................................................... 35
Industry Certifications/Registration Numbers: ................................................................................................... 35
One Year Limited Warranty .............................................................................................................................. 35
Index ................................................................................................................................................................ 36
- 4 -
Application
This guide should be applied whenever a need exists to add Digital Repeater capability to an
existing system or when this capability is being included with a new installation.
Safety Guidelines
The general safety information in this guideline applies to both operating and service personnel.
Specific warnings and cautions will be found in other parts of this manual where they apply, but
may not appear in this summary. Failure to comply with these precautions or specific warnings
elsewhere in the manual violates safety standards of design, manufacture, and intended use of
equipment. Cellular Specialties, Inc. assumes no liability for the customer’s failure to comply with
these requirements:
Grounding
This Digital Repeater system is designed to operate from 100-240 VAC and should always
be operated with the ground wire properly connected. Do not remove or otherwise alter the
grounding lug on the power cord.
Explosive Atmospheres
To avoid explosion or fire, do not operate this product in the presence of flammable
gases or fumes.
Lightning Danger
Do not install or make adjustments to this unit during an electrical storm. Use of a suitable
lightning arrester, such as CSI’s model number CSI-CAP, is very strongly recommended.
No User Serviceable Parts Inside
HAZARDOUS VOLTAGES ARE PRESENT WHEN THE COVER IS REMOVED. Opening the
chassis will void your warranty. If you suspect a malfunction with this product, call your dealer or
the Cellular Specialties Support Line at: (603) 626-6677, Toll Free (USA) 1-877-844-4274.
The serial number may be found on the label on the bottom panel near the power
connectors. Note this number below. Retain this manual, along with proof of pur-
chase, to serve as a permanent record of your purchase.
MODEL NUMBER SERIAL NUMBER DATE OF PURCHASE
POINT OF SALE COMPANY
Product Registration Information
DISCLAIMER: All information and statements contained herein are accurate to the best of the knowledge of Cellular Specialties,
Inc. (CSI), but Cellular Specialties makes no warranty with respect thereto, including without limitation any results that
may be obtained from the products described herein or the infringement by such products of any proprietary rights of
any persons. Use or application of such information or statements is at the users sole risk, without any liability on the
part of Cellular Specialties, Inc. Nothing herein shall be construed as licence or recommendation for use, which infringes
upon any proprietary rights of any person. Product material and specifications are subject to change without notice.
Cellular Specialties’ standard terms of sale and the specific terms of any particular sale apply.
Document Purpose / Intended Users
The purpose of this document is to provide a step-by-step procedure to help the experienced
technician/engineer install and commission an in-building wireless enhancement repeater
system using CSI’s Digital Repeater. Following the procedures outlined will minimize risks
associated with modifying a live system and prevent service interruptions. This document
assumes the technician/engineer understands the basic principles and functionality involved
with Repeater and in-building systems. It is geared to the practical concerns of the installer.
Radio and Television Interference
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense. In order to maintain compliance with FCC
regulations shielded cables must be used with this equipment. Operation with
non-approved equipment or unshieled cabled is likely to result in interference to
radio & television reception. Changes and Modifications not expressly approved by
Cellular Specialties can void your authority to operate this equipment under
Federal Communications Commissions rules.
- 5 -
Product Introduction
Cellular Specialties, Inc. (CSI) developed this digital repeater for use within enclosed structures where
sufficient signal from local cell sites to operate wireless phones is unavailable. Adequate signal must be
available outside the structure as a prerequisite to achieving in-building coverage. The Digital Repeater is
connected to an external antenna, usually on the roof, and to one or more internal antennas placed
strategically throughout the area where wireless service is desired.
The external antenna typically is directional, such as a “yagi”. Internal antennas are typically omnidirec-
tional, although various other types may be used depending on the coverage application. The repeater
amplifies both the “uplink”(phone to tower) & “downlink”(tower to phone) signals thus facilitating
communications to and from the intended wireless infrastructure.
With a maximum total of +85dB nominal gain on both the up and down links, gain can be adjusted over a
range from +53.5dB to +85dB in 0.5dB steps. Control of the repeater is achieved utilizing a computer
connected to comm. port 1 or 2 or via a Crossover Ethernet cable connected to the Ethernet port. There
are also an LED indicator indicate ALARM status.
A specific filtering process modifies each amplification chain. This process digitally converts the assigned
spectrum and then applies digital signal processing (DSP) techniques. DSP is used to create passbands
that selects the RF energy passing through either the uplink or downlink paths. After the digital processing
is complete, the information is converted back to an analog signal that is applied to the remaining stages
of amplification. The resulting signals emitted by the repeater are specific to the network service providers’
requirements. If these requirements change, only the DSP configuration parameters need change in order
to adapt. Configuration parameters are created at the factory and supplied as files that may be down-
loaded to the repeater. The filter set configurations stored in memory determine the unit’s adaptability to
various field applications. The following pages describe the PCS band plan as well as the convention CSI
uses to identify and store the files that make up the filter set. All units are shipped with an active filter set
that is programmed according to the ordering parties’ specifications. In most cases, the installer will not
have to program a filter.
Important Safety Information
Antennas used for the purpose of radiating signals indoors are limited to a maximum gain of 3 dBi. The outdoor antenna used for the
purpose of communicating to the wireless infrastructure is limited to 14dBi gain, or any combination of gain and loss that equates to
14dB at input. Each antenna must be positioned to observe minimum separation requirements from all users and bystanders. The
following guidelines should be used when considering separation distances.
INDOOR antennas must be placed such that, under normal conditions, personnel cannot come within 20 cm (~8.0 in.) from any inside
antenna. Adhering to this minimum separation will ensure that the employee or bystander cannot exceed RF exposures beyond the
maximum permissible limit as defined by section 1.1310 i.e. limits for General Population/Uncontrolled Exposure.
OUTDOOR antenna must be positioned such that, under normal conditions, personnel cannot approach closer than 183 cm. (~6 ft.). A
directional antenna having a maximum gain of 14 dBi is used, precautions should be taken to prevent personnel from routinely passing
through the main radiation beam at a distance closer than specified.
Terms Used in This Manual
AGC= Automatic Gain Control ERP= Effective Radiated Power
APC= Automatic Power Control FCS= Feedback Cancellation System
AUI= Attachment Unit Interface FPGA= Field Programmable Gate Array
CPU= Central Processing Unit LED= Light Emitting Diode
CSI= Cellular Specialties, Inc. OIP3= Third-Order Intercept Point
DAS= Distributed Antenna System RF= Radio Frequency
DHCP= Dynamic Host Configuration SBC= Single Board Computer
Protocol SNMP= Simple Network Management Protocol
DSP= Digital Signal Processing TMI= Text Menu Interface
EEPROM= Electrically Erasable USB = Universal Serial Bus
Programmable read- UHCI = Universal Host Controller Interface
only Memory
- 6-

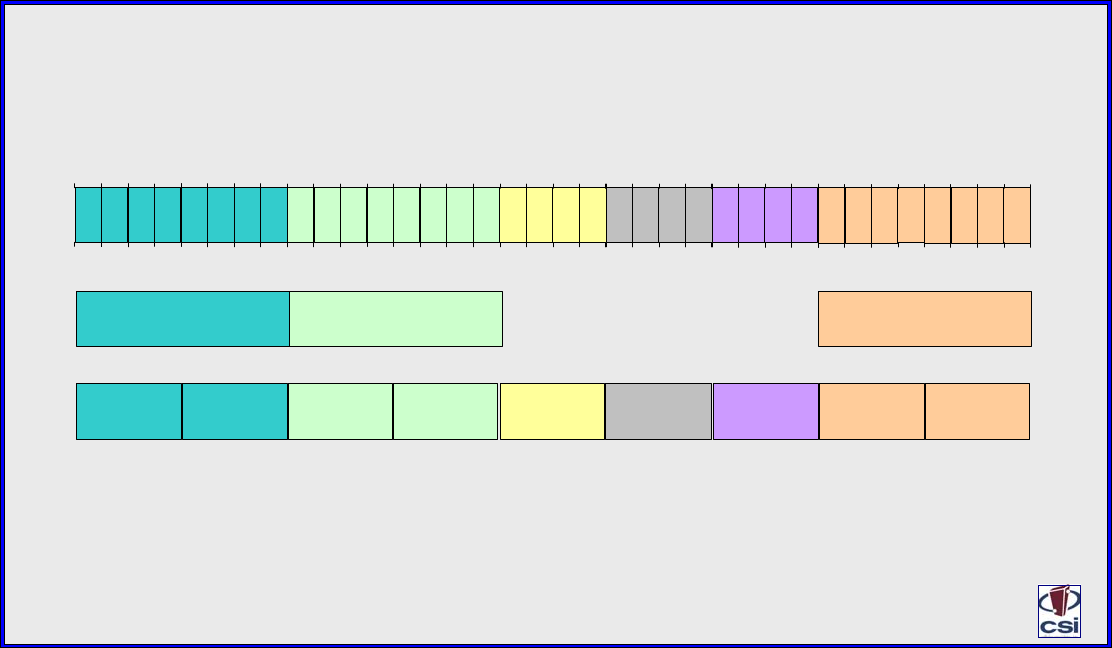

CSI’s DSP AWS-1 Band Plan
Mobile
(MHz)
Base
(MHz)
2110
1710 ABC
DEF
1720
2120
1730 1735 1740 1745 1755
2130 2135 2140 2145 2155
Mobile
(MHz)
Base
(MHz)
A0 B0
C0 D0 E0
F0
UL1710-1720
DL2110-2120
UL1720-1730
DL2120-2130
UL1730-1735
DL2130-2135
UL1735-1740
DL2135-2140
UL1740-1745
DL2140-2145
UL1745-1755
DL2145-2155
A1 A2
UL1710-1715
DL2110-2115
UL1715-1720
DL2115-2120
B1 B2
UL1720-1725
DL2120-2125
UL1725-1730
DL2125-2130
F1 F2
UL1745-1750
DL2145-2150
UL1750-1755
DL2150-2155
Note: All frequencies are shown in MHz
Band Plan
- 7 -

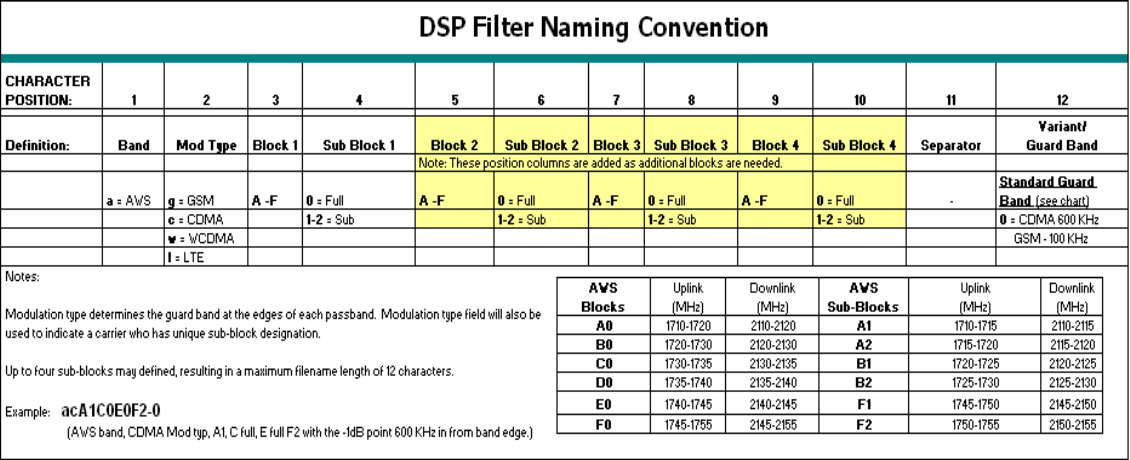

Note: Filter file names will be from six to twelve characters long. Each character position in the filter file name is
used to define the characteristics of the filter as shown above. All frequencies are shown in MHz
Filter File Naming Convention
- 8-
Functional Overview
CSI digital repeaters incorporates the following features for convenient operation, access,
protection, and control.
•Network Configuration and Control using either a webpage style GUI through
any standard browser or a menu driven user interface using the serial port.
Note: GUI does not require Internet access.
•User Gain Control (affects all passbands)
•Automatic Gain Control
•Automatic Power Control
•Oscillation Protection
•Over Drive Protection (P.A. limiting)
•Under/Over Voltage Protection
•Fault Protection
•Alarm Notification - Local/Remote
•Upgrade Support - Local/Remote
•External Interfaces - USB/Ethernet/Serial
•Re-loadable filters - Local/Remote
•Web-based monitoring and control - Local/Remote
•Persistent Status and Error information
LED Indicator
Automatic safety precautions are built into the amplifier system. In the case of a catastrophic system
event, a shutdown circuit is incorporated that will disable all emissions should the uplink input or downlink
input be over driven or should an oscillation or output overpower event occur. The amplifier will periodi-
cally attempt to recover from the detected condition automatically.
*Note: During Power up, the repeater will require a approximately three minutes for
the internal computer to boot up. During this time the LED on the front panel may light
and go out several times.
Do not unplug the unit while it is in the boot up process!
When a boot up is complete and no alarm conditions exist, the LED indicator will be illuminated green.
Should a fault condition develop the LED will illuminate red and the user may check the status page
of the GUI for the nature of the fault.*
- 9 -
EIA232 Pin Specifications
The diagram above is for reference only, it’s intended to provide a quick source for pinout
information in the event it should be necessary to adapt your serial cable because of an
unusual connector configuration. In the vast majority of cases this information will not be
needed.
Local Communication Interface Ports
To allow monitoring and control, the repeater is equipped with four ports that provide external
communication access (1 Ethernet CAT-5, 2 DB-9 serial, and 1 USB). The Ethernet, CAT-5 port
is provided as a primary communications port to the PC. One serial interface provides commu-
nications to local PC and the second to an external modem when provided. The USB interface
provides a means to download files from a memory device and may also be used by an
external modem. The DB-9 pin assignments conform to the standard Electronic Industries
Association (EIA232) specification. A diagram of the pin descriptions is provided on this page
for reference.

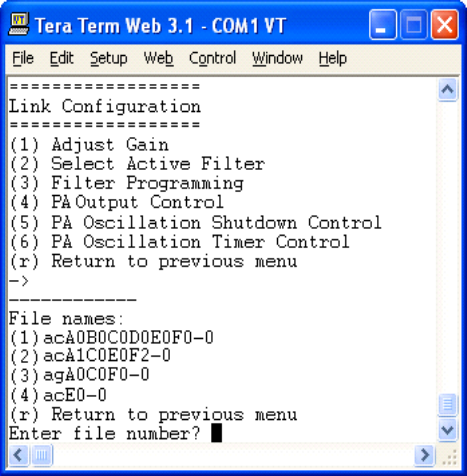

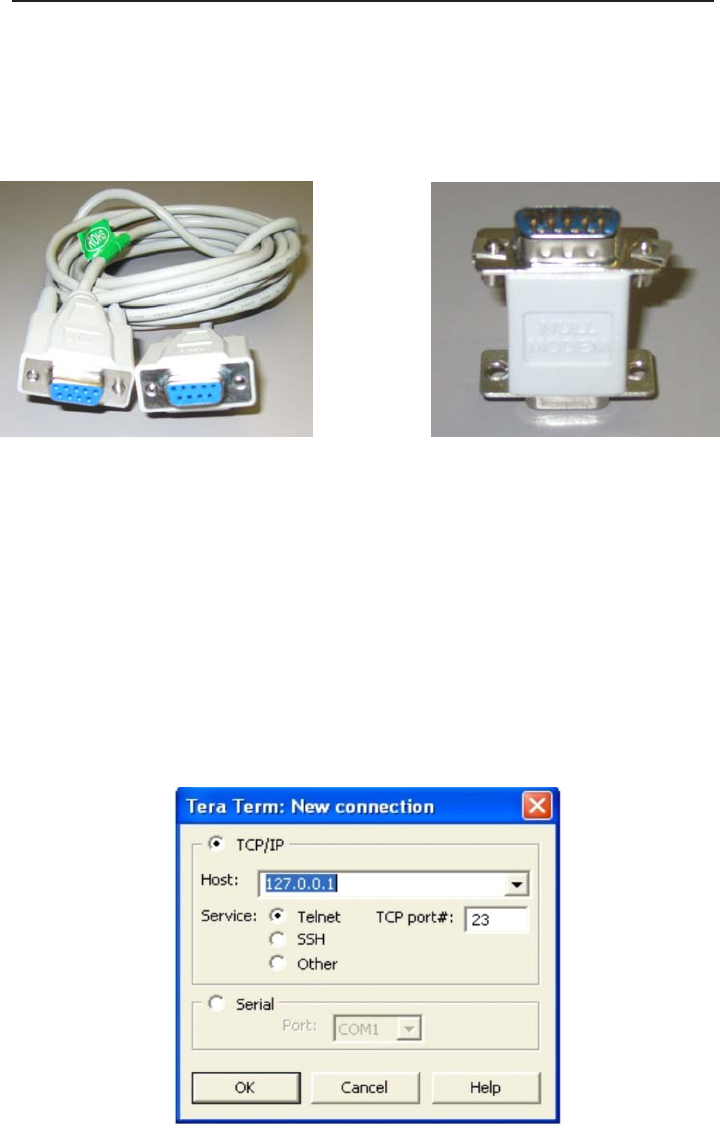

Connecting a null modem cable to one of the COM ports and using a terminal emulation
program with a PC will allow communication to the control processor’s Text Menu Interface
(TMI). See command line interface section for further detail.
Monitoring & Alarms
There are no physical connections provided to specifically communicate system or alarm
status. This information is embedded in the information accessible via the communication
ports described earlier.
USB Interface
The Universal Serial Bus (USB) interface conforms to Intel’s Universal Host Controller
Interface (UHCI) version 1.1 dated March 21, 1996. This interface will support data
transfer rates up to 12 Mbps and can be used for software updates and filter file
uploads.
Ethernet
The Ethernet AUI conforms to IEEE 802.3 and is capable of supporting 10/100 Mbps
communications speeds. This port is used to provide access to the GUI.
-10-
System Set-Up Considerations
All cables should be checked for shorts and opens. Also verify that there are no cables with loose or poor
connections. RF leakage could cause oscillation to occur under some conditions.
The rooftop antenna (Donor Antenna), if directional, should be checked for proper alignment along the calculated
compass heading. Typically, the directional antenna would be aimed at the same site that your handset uses, but it
may not always be so. It is critical the installer contact the service provider for information on, and
approval of, the cell site he or she has selected before the system is turned on.
If cables and alignment are acceptable and a problem persists, it may be necessary to use a spectrum analyzer to
examine the signal environment in which the repeater is operating. The existence of strong adjacent channel
signals within the frequency band(s) can cause the AGC to reduce the amplifier’s gain or cause alarms. In some
cases additional filtering or attenuation might be required to reject these unwanted signals. In some instances, the
donor antenna can be reoriented horizontally, to place the interference source in an antenna pattern “null”. There
also may be some cases where the interference from outside signals is so great that they cannot be filtered or
otherwise reduced or eliminated without expensive and possibly prohibitive measures. In these cases it may not
be practical to use the repeater for providing coverage to these sites.
Selection of external attenuators to be used in line with the Antenna Port(s):
1:1 PORT CONFIGURATION
Input: One single band duplex port, from the dual band donor.
Output: One single band duplex port to the DAS.
DONOR PORT
If a unit is installed in an area with very strong desired and/or undesired signals, it is important to ensure that the
overall signal levels are optimized to be within the best operating range of the repeater. Additionally, de-sensing of a
nearby base station site must be avoided. These goals can be accomplished by properly attenuating the antenna
port(s) in the path of the donor antenna(s). In effect, one can imagine that the particular repeater deployment is
electrically moved farther from the base station using attenuators that are equivalent to increasing the path loss from
the donor antenna to the base station. The following potential outcomes result from the use of attenuators on the
donor port(s) of the repeater: Uplink output power, as reported by the unit, is reduced by the value of the attenua-
tion, protecting nearby base stations. Downlink signal to noise ratio is high at the point of the attenuator, resulting in
slight but negligible reduction in downlink performance. Other performance is essentially unchanged.
SERVER PORT
Server port attenuation may also be necessary, particularly where a powered DAS is present. The selection guide-
lines below apply to both server and donor ports. In order to properly measure uplink signal strength, a signal
generator should be used. If a signal generator is not available, placing a test call while under the server antenna
with the least path loss to the repeater should provide reasonable data.
The following potential outcomes result from the use of attenuators on the server port(s) of the repeater: Downlink
output power, as reported by the unit, is reduced by the value of the attenuation. Uplink incoming power from the
DAS is reduced, along with potentially strong and/or harmful out-of-band signals (including noise) that are generated
by the DAS.
-11 -
Attenuator Selection Guidelines:
Accurate attenuator values need to be chosen to ensure that the maximum total power (higher of Composite or In-
Band Input) applied to the donor and server port(s) does not exceed the following thresholds:
Input Signal Max Gain Input Signal Max Gain
<-45 dBm 85 dB -32.2 dBm 69 dB
-44.3 dBm 84 dB -31.4 dBm 68 dB
-43.6 dBm 83 dB -30.6 dBm 67 dB
-42.9 dBm 82 dB -29.8 dBm 66 dB
-42.2 dBm 81 dB -29 dBm 65 dB
-41.5 dBm 80 dB -28.2 dBm 64 dB
-40.6 dBm 79 dB -27.4 dBm 63 dB
-39.7 dBm 78 dB -26.6 dBm 62 dB
-38.8 dBm 77 dB -25.8 dBm 61 dB
-37.9 dBm 76 dB -25 dBm 60 dB
-37 dBm 75 dB -24.4 dBm 59 dB*
-36.2 dBm 74 dB -23.8 dBm 58 dB*
-35.4 dBm 73 dB -23.2 dBm 57 dB*
-34.6 dBm 72 dB -22.6 dBm 56 dB*
-33.8 dBm 71 dB -22 dBm < 55 dB*
-33 dBm 70 dB
*We recommend padding this level due to potential for fluctuating signal.
-25 dBm is the maximum input signal level that should be applied to the repeater, even if the gain is lower than 55 dB.
Input signals exceeding these thresholds will result in composite input attenuation, called “ADC Protect” (Analog to Digital
Converter Protection). Output power is reduced whenever the above thresholds are exceeded by reducing the gain by 1dB for
each 1 dB that the threshold is exceeded. ADC Protect should not be confused with AGC (Automatic Gain Control), which
reduces gain to prevent In-Band (measured) output power from exceeding the specified maximum output level.
To determine the total power applied to the donor and server ports, please reference the “Composite Input” values as reported in
the Web (“System Status”) or Menu (“Link Status”) interfaces (depicted and explained later in this manual).
Large delta’s between in-band and composite input signals:
Care should be taken to isolate the best donor site to ensure the least possible delta between in-band and composite downlink
signals.
If the (downlink) composite input exceeds the in-band input by more than 5 dB, the maximum output power will be reduced.
Example:
AWS Band
In-Band Input -45 dBm
Composite Input -38 dBm
Max Gain = 68 dB
Max Output = 23 dBm
-12 -
Mounting the Digital Repeater

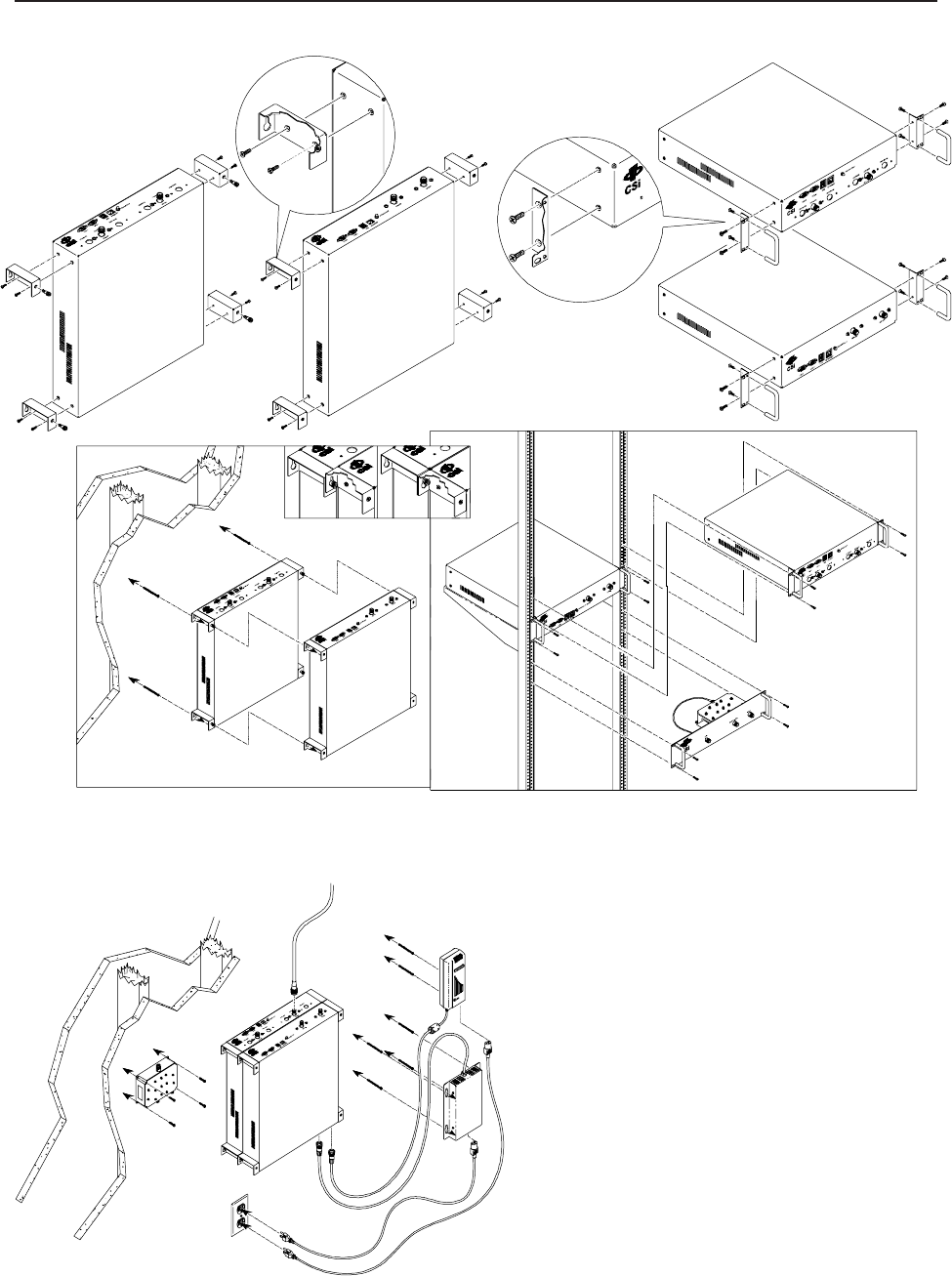

The following diagrams illustrates the methods for mounting the repeater(s) in a typical wall or rack installation.
Brackets are provided for both options. Note: Dual and single band modules are shown for illustration purposes.
Rack mount of the repeaters requires just two brackets mounted to the front corners of each module. Note: the CSI digital repeaters
must be supported in the rack system with a shelf or slide rail. Do not rely on the brackets exclusively to support all the
weight of the modules.
Mount the Cross Band Coupler on the wall close enough
to the repeater modules to allow the RF jumpers to reach
from the CBC to the repeaters. The attachment system
used to anchor the CBC to the wall must be able to
support at lease 8.4 lbs / 3.8 kg.
The wall anchoring system you use for the repeaters
will need to be able to support at lease 39.2 lbs/ 17.8
kg for each dual band module and 23.2 lbs/ 10.5 kg for
each single band add on module. The power supplies
are mounted approxamately as shown.
- 13 -

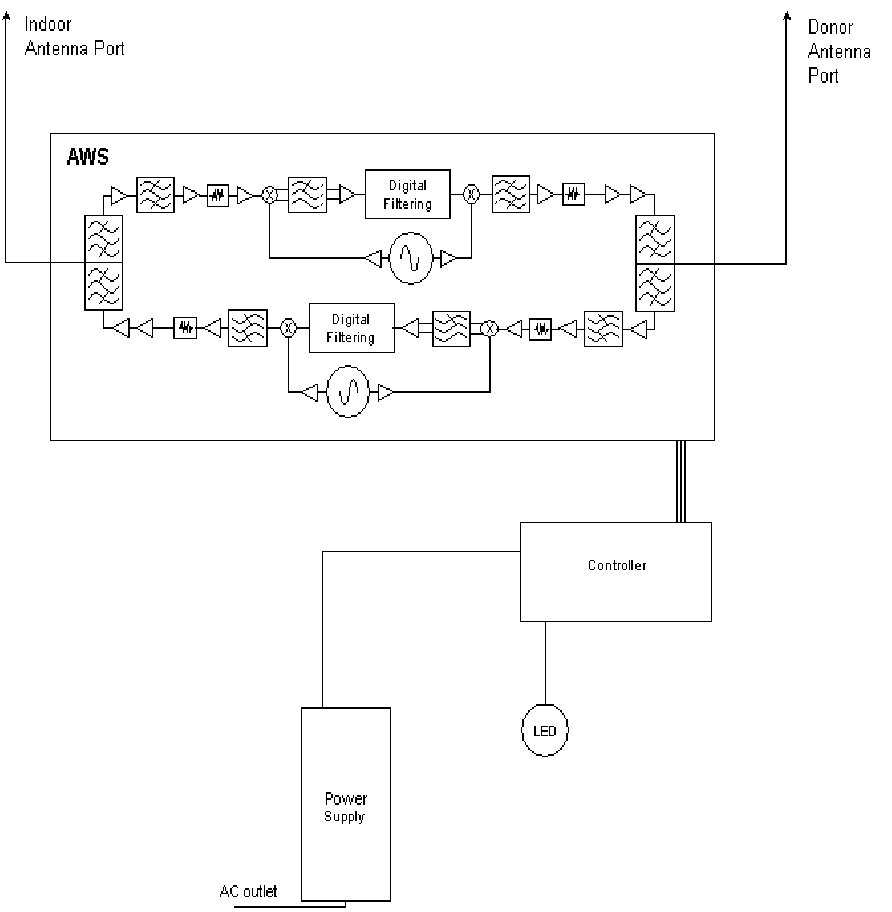

Circuit Operational Description
The repeater uses a single down-conversion/up-conversion scheme. There are multiple RF amplifier stages
prior to each down-converting mixer. The down-converting mixers are followed by a single IF amplifier. A Digital
Signal Processor block then processes the resultant digitized IF signal that was previously generated by an
Analog-to-Digital Converter. The processed (filtered) digital signal is fed to a Digital-to-Analog converter and then
up-converted to RF. A driver amplifier and a final power amplifier make up the final gain stages before application
to the diplexer. The maximum total system gain (diplexer input to diplexer output) is nominally 85 dB for either the
downlink or the uplink paths with both links having independent manual and automatic gain controls (AGC).
AGC reacts to analog power detection on both the input and output of the uplink and downlink RF chains.
A control algorithm continuously monitors these detected values and dynamically adjusts various gain
stages such that the net system gain value, entered manually, is optimally maintained without either
exceeding FCC parameters or overdriving the A/D converters.
An LED on the front panel provides immediate visual indications of the unit’s primary power and major or
minor alarm status. The repeater features automatic shutdown protection, as a safety measure, should
excessive drive be applied to the input or an oscillation condition occur. When in a protected mode, a
control algorithm determines the appropriate method of recovery to a normal, previously defined state, or
maintains the protection until manually reset. If recovery has been established, the LED will either be
extinguished or available to be reset. The events that trigger the error will be saved in the event log.
Important Installation Notes
•Inadequate isolation between the outside and inside antennas may cause regenerative
feedback in the system. This feedback can cause the amplifier to emit a continuous signal at
maximum amplitude and, in some cases, interfere with normal operation of the cell site. Careful
consideration of the layout and placement of the system is imperative.
•The installer should refer to the Safety Guidelines section on page 4 and the Important Safety
Information section on page 5 for proper antenna selection and installation. To avoid serious injury or
death and damage to the repeater, do not install donor or server antennas near overhead power lines
or high power components. Allow enough distance so that if antennas should fall they will not come
in contact with those components.
••
••
•Close proximity to the donor or server antennas with the repeater in operation may expose
the user or installer to RF fields that exceed FCC limits for human exposure.
WARNING! AMPLIFIER OR HANDSET DAMAGE MAY OCCUR IF A HANDSET IS CONNECTED DIRECTLY
TO THE REPEATER OR THE COAX THAT LEADS TO THE REPEATER.
Optional Accessories
A complete line of accessories is available from Cellular Specialties, Inc. Check with your CSI distributor for
any additional items needed. Below are just a few examples suitable for most in-building needs.
•Outside Donor Antenna •UPS
AWS - model number: CSI-AP/806-2.5K/7-10 Battery backup, 2 hr Single band
1 hour dual band - model number: CS48-985-600
•Inside Omnidirectional Antenna
Quad-band - model number: CSI-AO/700/2.7K/3 Battery backup, 4 hr Single band
•Power Dividers 2 hour dual band - model number: CS48-985-601
2:1 - model number: CSI-SPD2/700-2.5K/N •Cross Band Couplers
3:1 - model number: CSI-SPD3/700-2.5K/N Quad band Rack Mount: CSI-CM250-7/C/AW/P
4:1 - model number: CSI-SPD4/700-2.5K/N (700 LTE, Cell, AWS and PCS)
•Grounding Kit - model number: CSI-GKIT Quad band Wall Mount: CSI-CBC/696-2170/N
•Lightning Arrestor - model number: CSI-CAP (700 LTE, Cell, AWS and PCS)
•Directional Couplers Tri band Rack Mount: CSI-CM250-U7C/C/P
6dB - model number: CSI-DC6/700-2K/N (700 Upper C LTE, Cell and PCS)
10dB - model number: CSI-DC10/700-2K/N Tri band Wall Mount: CSI-CBC21/740-1990/N
15dB - model number: CSI-DC15/700-2K/N (700 Upper C LTE, Cell and PCS)
20dB - model number: CSI-DC20/700-2K/N Tri band Rack Mount: CSI-CM250-L7AB/C/P
30dB - model number: CSI-DC30/700-2K/N (700 Lower A/B LTE, Cell and PCS)
Tri band Wall Mount: CSI-CBC21/696-1990/N
(700 Lower A/B LTE, Cell and PCS)
-14 -
Functional Block Diagram
- 15 -
Color Satin Black
AC Voltage 100 - 240 VAC External Power Supply
AC Power Frequency 47 - 63 Hz
Box Weight 11.6lbs / 5.3 kg
Box Thermal Management Fan cooled
Surface Coating Powder Coat
AC Current 1.7 Amps @ 120 VAC
0.9 Amps @ 230 VAC
Parameter Specification Notes
Repeater Size
Height 3.48 in.
Width 19.00 in.
Depth 18.00 in.
Heat Output 500 BTU/Hr
Mechanical Specifcations
AC Power Specifcations
Parameter Specification Notes
-16 -
OIP3 Measured with 2 CW tones at 14
dBm/tone
Noise Figure (Avg) 5.0 dB At Maximum Gain
Parameter Specification Notes
Maximum RF input Power +10 dBm
without damage
Linear Gain 85 dB Factory Calibrated Gain
Pass Band Ripple +/-1.5 dB
Automatic Gain Control (AGC) 30 dB max In 0.5 dB steps
range
Manual Gain Control 53.5-85 dB max In 0.5 dB steps
RMS Vector Error (EVM) 3% max TDMA, EDGE, W-CDMA, CDMA2000
CDMA RHO 0.98 min CDMA2000, 1x-EVD0
Spurious Emissions &
Applicable Documents
FCC -13 dBm max Per FCC parts 2 and 27
Industry Canada -13 dBm max
Propagation Delay <2.5 usec
Input VSWR (Typ) <1.5:1
+ 43 dBm
Parameter Specification Notes
Relative Humidity 5% to 95% Non-condensing
Industrial Dust <15mg/m3 Telcordia GR-63-CORE
Temperature Range -30 to +48 C
(-22 to +118 F)
00
00
1dB Compression Uplink and Downlink
+ 33 dBm
Connectors N-Female (2)
Linear Output Power + 27dBm max Uplink and Downlink
(CSI-DSP85-250-AW&CSI-DSP85I-250-AW) **AGC Set Point
(CSI-DSP85-250-S-AW&CSI-DSP85I-250-S-AW) AWS +25dBm **
Linear Output Power + 30dBm max Uplink and Downlink
(CSI-DSP85-251-AW&CSI-DSP85I-251-AW) **AGC Set Point
(CSI-DSP85-250-S-AW&CSI-DSP85I-250-S-AW) AWS +28dBm **
Operating Power Parameters
Environmental Requirements
-17 -

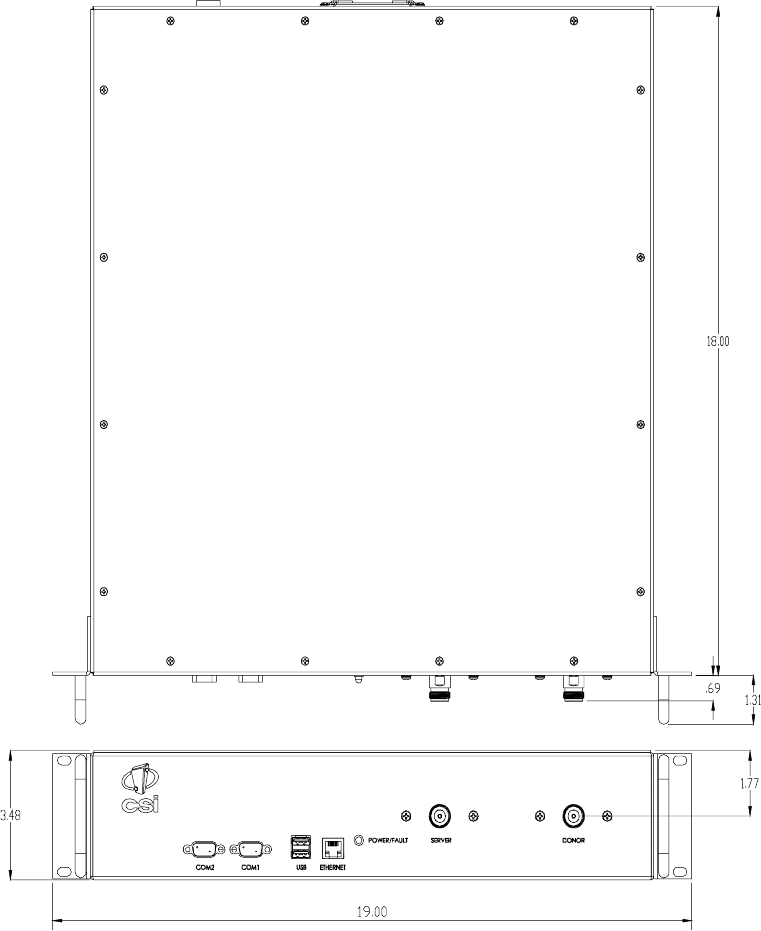

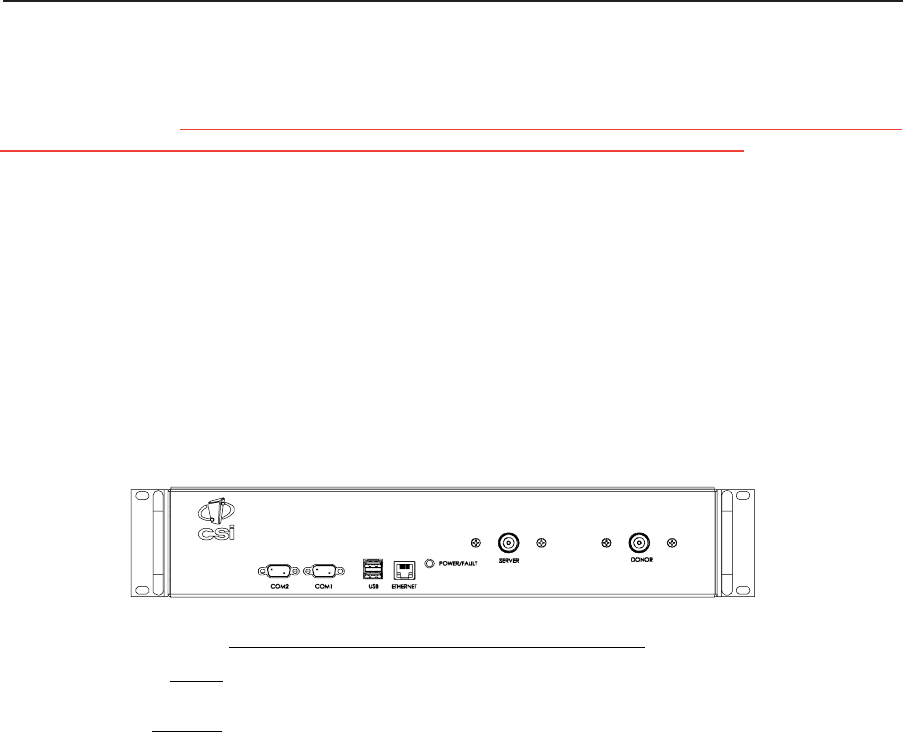

Mechanical Drawing
- 18 -
When login is complete the user is brought to the system status page. The links shown in the
navagation box on the left are activated by clicking on them.

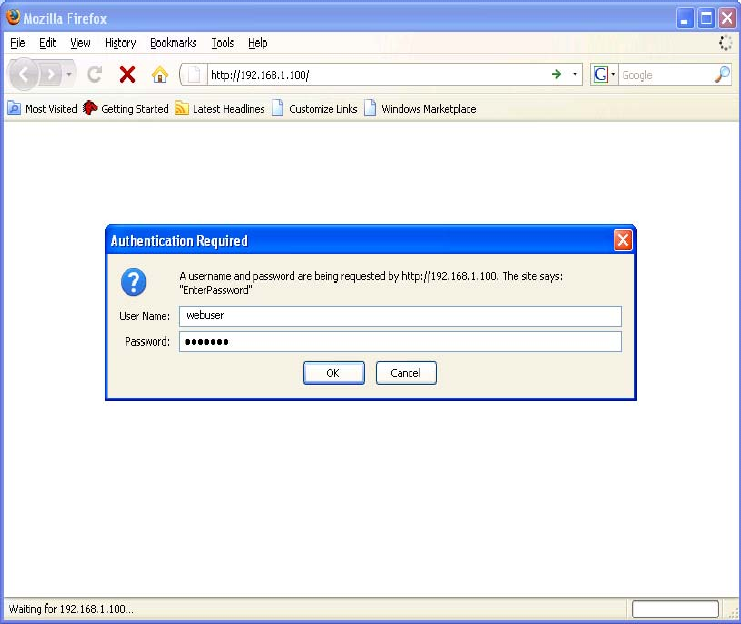

Primary access to the repeater is gained using a LAN connection and a web browser
program such as Firefox by Mozilla, or Internet Explorer from Microsoft. The repeater ships
with the default IP address of 192.168.1.100, but it can be changed later if required.
If connecting directly to the repeater from a laptop or PC with a crossover CAT-5E cable or
over a LAN the user types the IP address of the repeater into the browser address line to

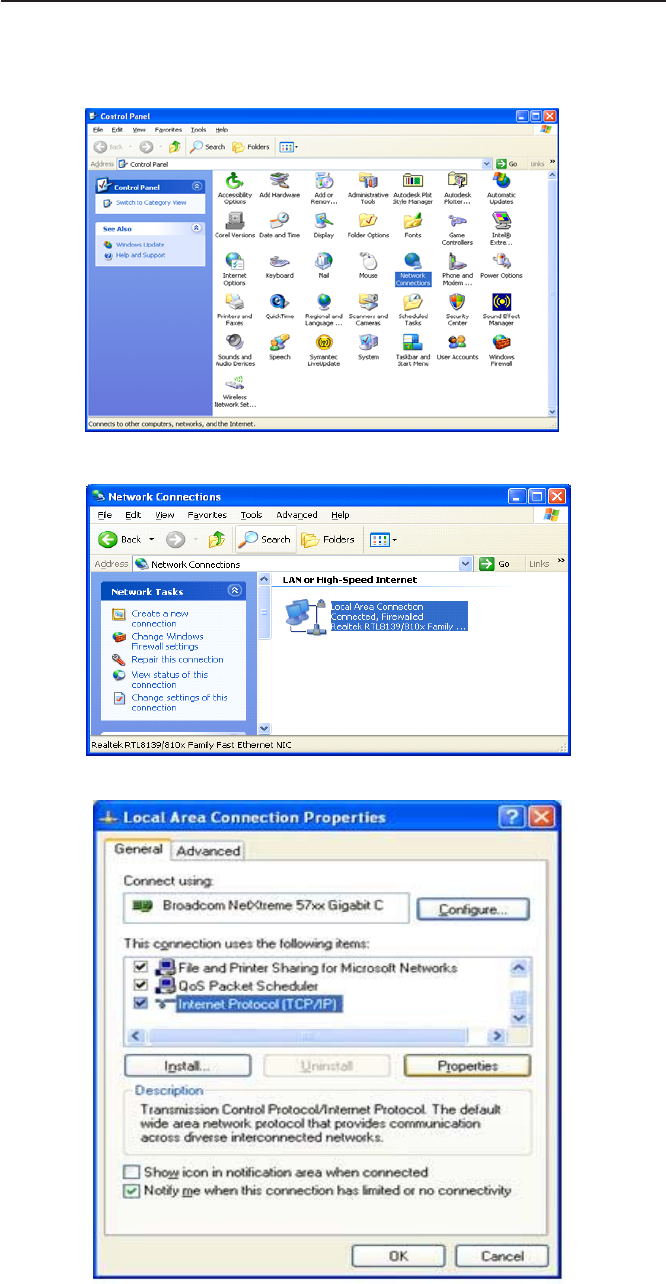

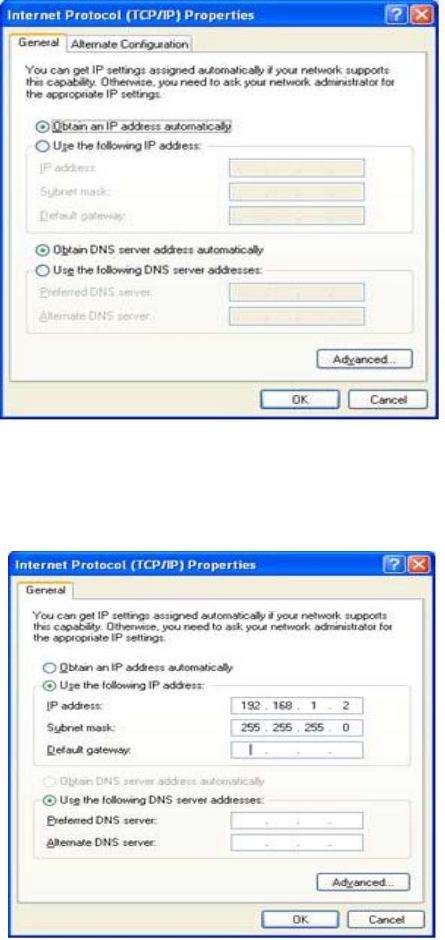

connect. (Note: Most users will need to update the TCP/IP settings on their computer to enable
connection to a host that has a static IP. Select “Use the following IP Address” and enter the IP
Address as follows: 192.168.1.x, where “x” = any number from 2 to 254 inclusive other than
100. The subnet mask is 255.255.255.0. Questions pertaining to these settings should be
referred to the user’s IT department or you may refer to the Additional Tips section at the end
of this manual.) When connection is made the user will be prompted for a user name and
password. For the purpose of the GUI session, the default user name is webuser and the
password is csi1234. This can also be changed as required. Internet access is not required
to use the GUI. (Note: If you are connecting using a laptop, verify that your Ethernet port is
powered. Some laptops will not allow Ethernet connection when on battery power. If this is
the case with the laptop you are using you will need to plug it in or update the power settings.)

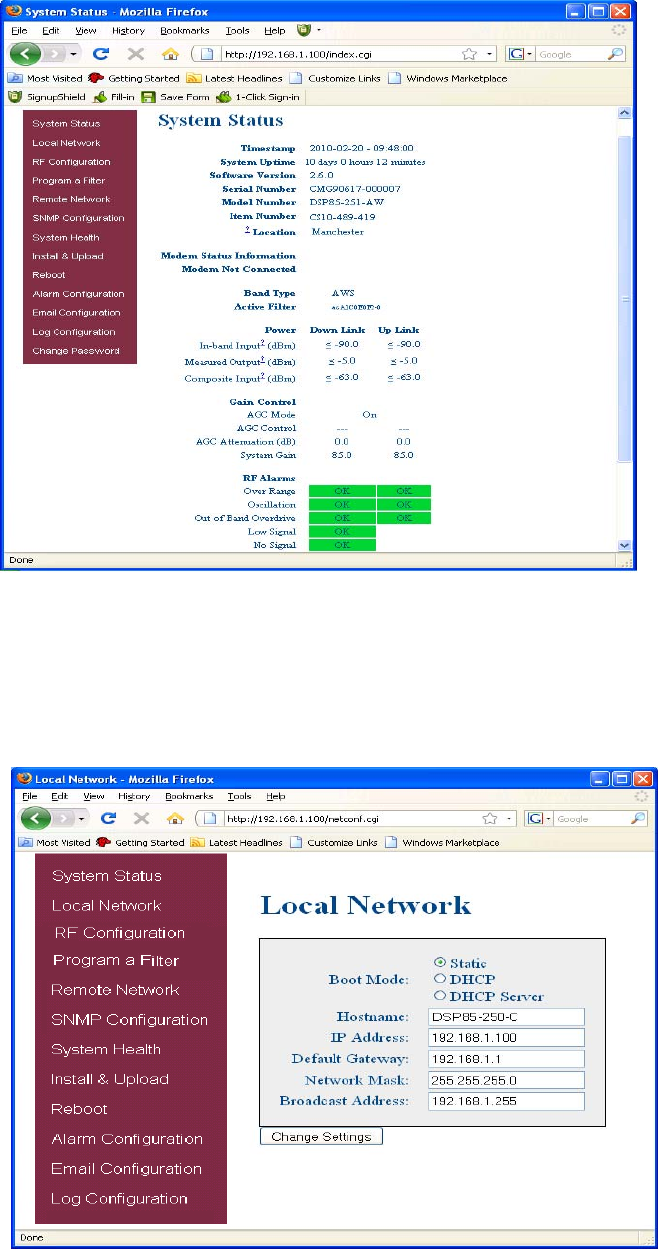

System Status:
Web based GUI Session
- 19 -
After any changes are made press the refresh button to review the fields and ensure
the change made is correct. Note: changing network settings will cause the current TCP/IP
connection to fail because the change will take effect immediately. From here the user may return
to the System Status screen or click on the other options.
If the user selects Local Network from the System Status page, the following screen is displayed
and from here network configuration can be modified as required. The default is set to Static. Check
with your IT department for explanation and approval of the DHCP and DHCP Server options you
plan to use before you select them. *NOTE: In units with software version 2.2.4 or prior, only
letters, numbers and underscores are acceptable nomenclature. In units with software version
2.3.0 and up, Underscores are not acceptable; however, hyphens are acceptable.
Local Network:
- 20 -

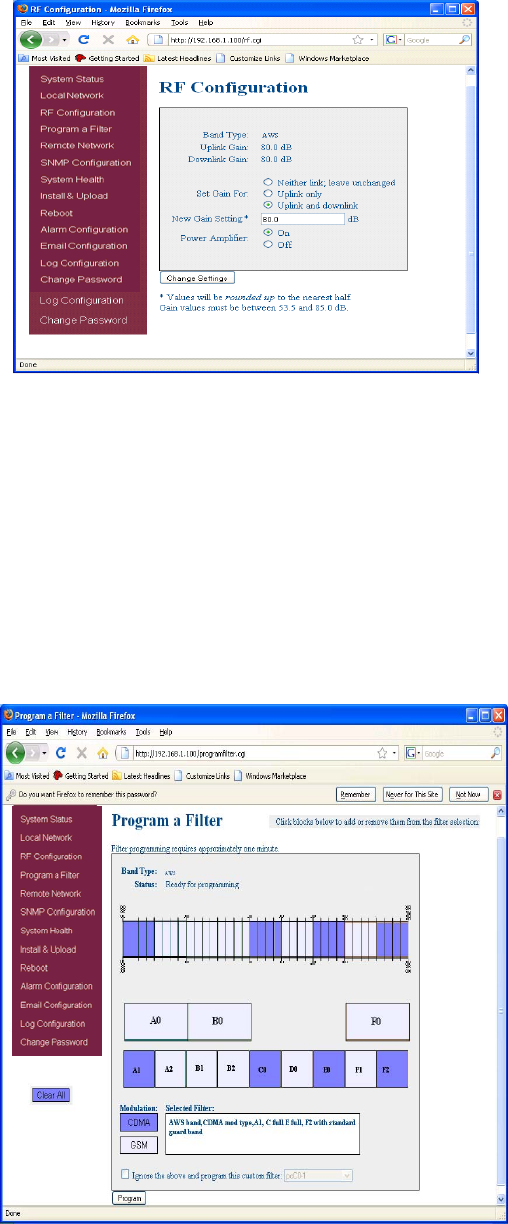

If the user would like to modify RF configuration click on the words RF Configuration in the
navigation box and the screen below is displayed.
The user may select the desired filter by pressing the band/sub-band and modulation selection
buttons. Undesired bands/sub-bands if lit will require the user to manually “deselect” them before
programming. Pressing the Program button will complete the selection and load the desired filter.
The time required to complete this process will take just a few moments. Note: If the filter desired
is not currently in the unit, additional filters along with instructions on how to load them are
available by contacting CSI.
To change gain settings the user will select the Uplink only or Uplink and Downlink radio buttons.
The user then inputs the gain value desired. Gain values from 53.5 dB to 85.0 dB may be selected.
The repeater will not allow the user to set values outside this range. By pressing the Change
Settings button the gain change is implemented. When a new filter set is required, it may be
selected by clicking Program a Filter in the navigation box.
RF Configuration:
Program a Filter:
- 21 -
To change SNMP settings select SNMP Configuration in the navigation box, the screen below will
be displayed. If the user is not well versed in Simple Network Management Protocol he or she
should check with their IT professional for proper setting requirements.
Remote Network:
SNMP Configuration:

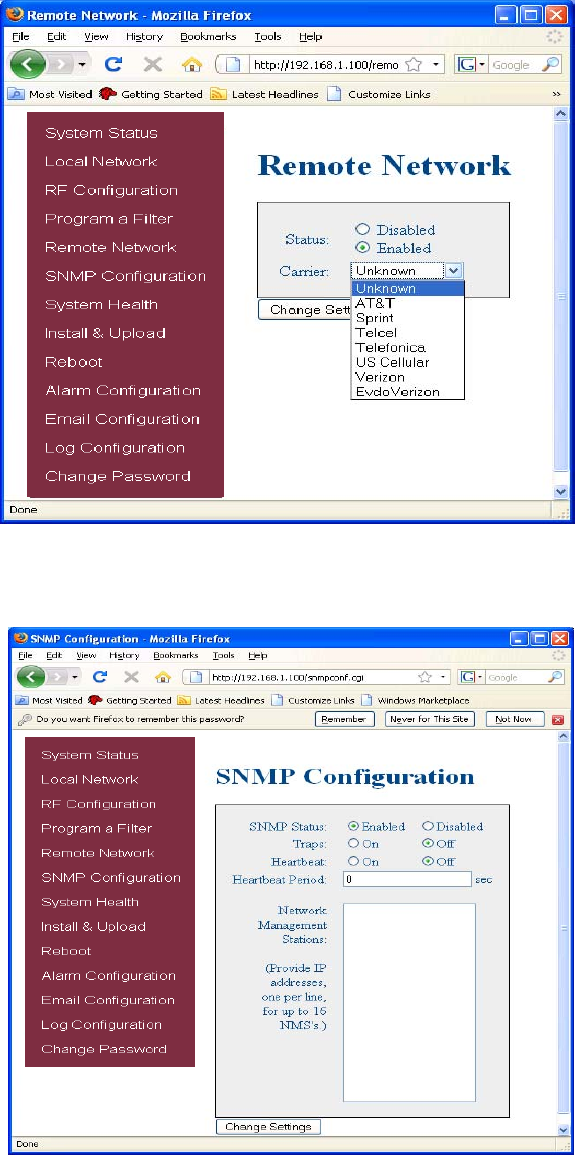

If the repeater includes a USB modem kit, click on Remote Network in the navigation box and the
screen below is displayed. Highlight the carrier on whose network the repeater and modem will be
configured and click the Change Settings button. Refer to the documentation included with the
modem kit for addtional information on configuring the modem. If the repeater is connected to an
ethernet device for remote access and/or monitoring, this feature must be disabled.
- 22 -

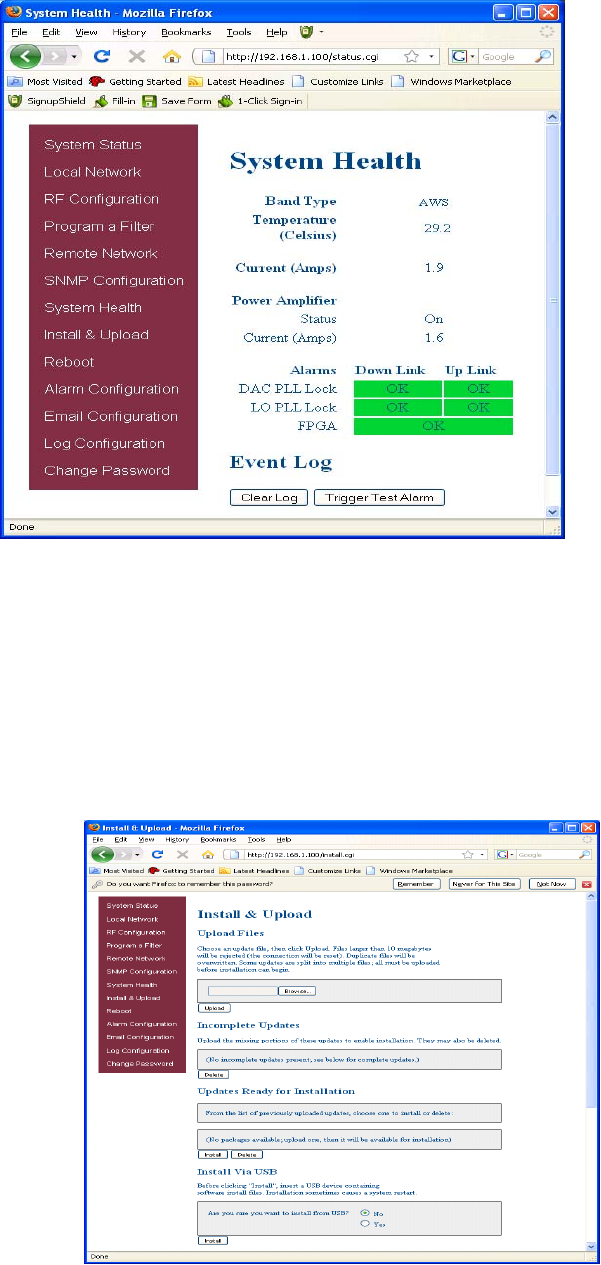

By clicking System Health the current state of the repeater can be reviewed.
***The user may clear LED indicator, alarms and the Event Log by clicking the Clear Log button.
***
System Health:
Should a software install or upgrade be needed it can be done from the Install & Upload screen
shown below. As with the other screens it can be reached by clicking the words in the
navigation box. Contact CSI for updates and instructions.
Install & Upload:
**** If required in your market, visit the “System Health” screen and click on “Trigger Test Alarm”
and wait for confirmation that the Wireless Service Provider representative that is responsible
for monitoring the repeater has been notified of the alarm. Be sure to “Clear All Logs” prior to
logging out of the Web Interface.
****
-23 -
If a reboot of the repeater becomes
necessary click on the Reboot option in the
navigation box and the Reboot page is
displayed.
Reboot: Alarm Configuration:
The Alarm Configuration page allows the user to specify what
events will trigger an alarm.
*NOTE: Letters, numbers & hyphens are the only
acceptable nomenclature for the Location field and hyphens
may not be used as the first or last character.
Email Configuration:
Email Configuration page allows the user to enter up to five Email addresses to which the repeater can send
specified alarm messages when the repeater is connected via ethernet or wireless modem and Email Alarm Notifica-
tion or Remote Networking are enabled. *NOTE: In all fields the software will not allow the user to enter invalid
characters.
- 24-
To end the session: exit the browser, the user will be automatically logged out.

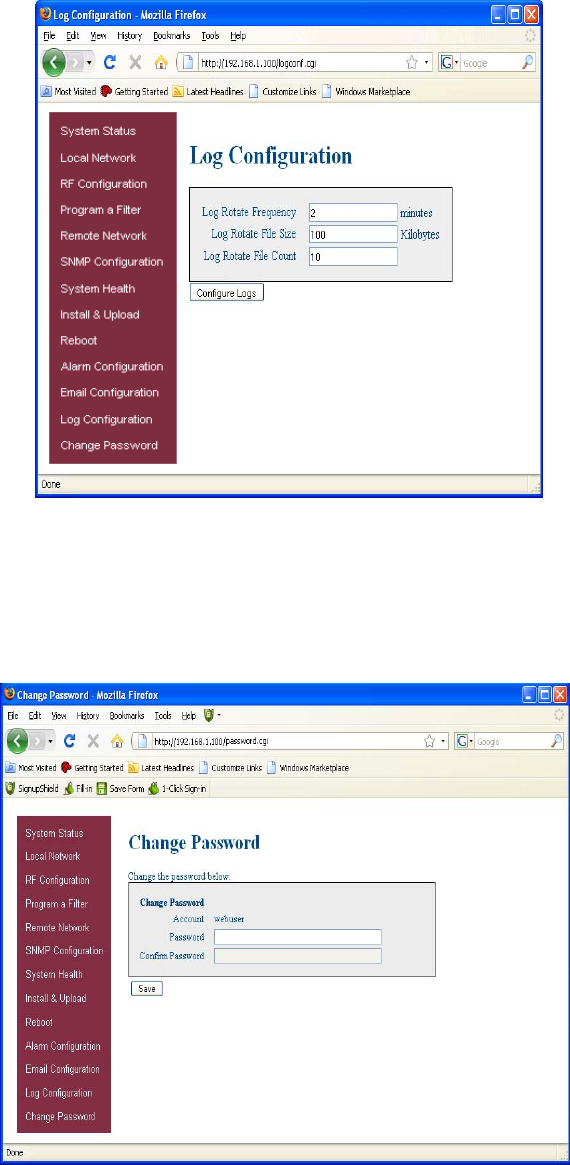

The Log Configuration page provides the user with the means to modify three aspects of how log files are created
and stored as shown below.
Log Configuration:
By clicking on the Change Password link the user is brought to the Change Password page. From here he or
she can quickly and easily reset the password for the unit. A word of warning here, be careful when setting
the new password. If you forget what you set your password to you’ll need to contact CSI at 1-877-844-4274
for assistance.
Change Password:
-25 -
Figure 1 Figure 2
Text Menu Interface (Local Access)
Local access to the repeater TMI, also known as the console interface, is made by connecting a
serial cable (optional), as shown in figure 1, from the serial connector of the laptop to either of
the serial ports on the bottom end panel of the repeater. These connectors are labeled COM 1 and
COM 2. In some cases, if the gender of the connector is not the same as shown in figure 1, a null
modem adapter (optional) as shown in figure 2 may also be required.
Many terminal emulation programs will work if properly configured. In the following description,
“TeraTerm” is used to establish the TMI session. This program is readily available via the Internet
and is free from Ayera Technologies at:
http://www.ayera.com/teraterm/
TeraTerm Pro Web works on Windows 95/98, 2000, XP. Here is the latest TeraTerm Pro Web
release: Version 3.1.3, October 8, 2002. ttpro313.zip
When the program is started, the following screen is displayed.
-26 -
Pressing “OK” will open up a blank dialog screen. Go to the setup dropdown menu and
select Serial port to make changes to the serial port setup.
Configure the terminal program for the correct COM port, in this case COM 1 and 115200
baud rate as shown below.
Select the Serial radio button and press OK as shown below.
Note: It may be necessary, in the System Properties section of the control panel; using Device
Manager to determine what COM port your computer uses for the communications port. In this case
it is COM 1. This is not to be confused with the serial port on the repeater labeled COM 1.
- 27 -

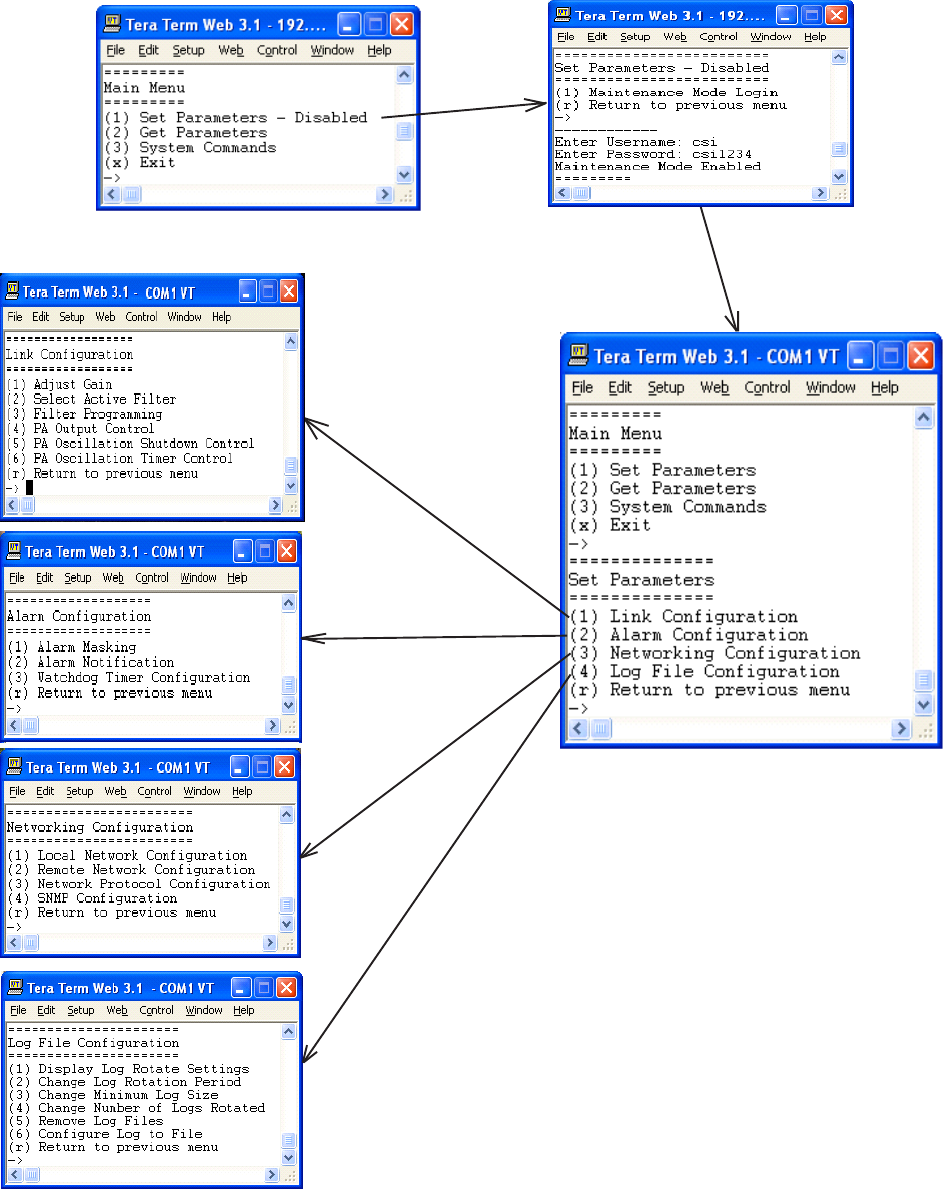

After completing the serial port changes (pressing the enter key will be required to complete
the action) the user will be prompted for a user name and password. The default user name is
“user”. The default password “csi1234”. After entering the password and pressing enter
the TMI main menu will appear. Note: by default the Set Parameters option is disabled. To re-
enable the user will press 1 and will be prompted for a username and password. The default
user name is csi and the password is csi1234.
The actions displayed
are self-explanatory.
Pressing “1” will
continue to expand this
session screen and
allow the following
parameters to be set.
- 28 -

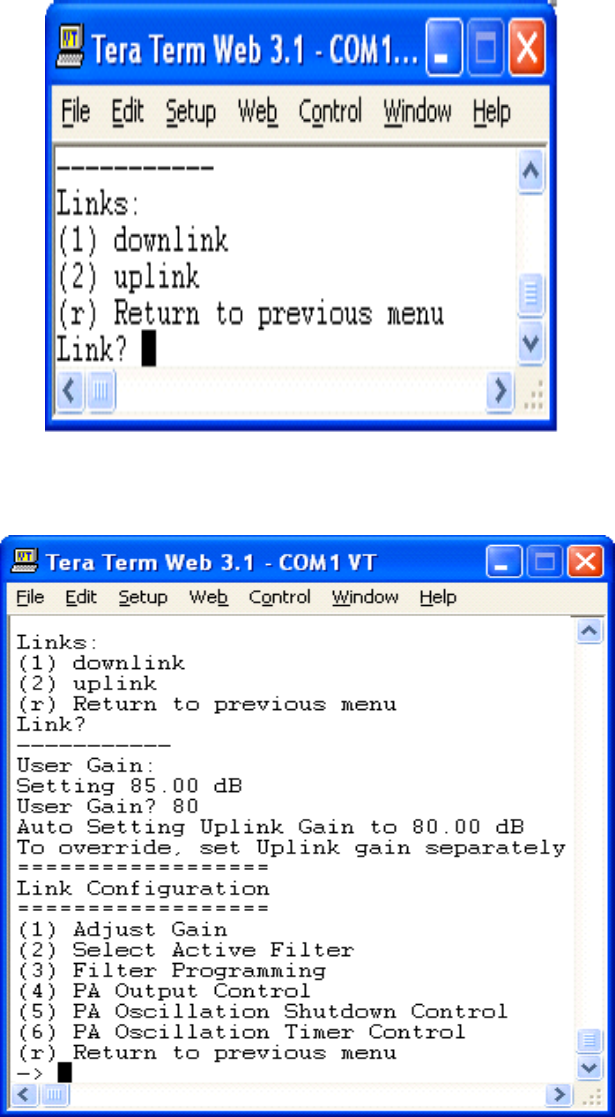

After selecting option 1, downlink, the current user gain is displayed and the option to change it
is accomplished by typing the desired gain at the prompt. The user is then returned to the
previous menu.
Each “Set Parameter” selection, when chosen will be expanded to allow changing or setting of that
parameter. For example from the Link Configuration menu on the previous page, selecting 1 - Adjust
Gain will display the menu shown below.
- 29 -
All the other options operate in much the same way. Some of the options will offer the user
additional selections and will be self-explanatory. Below is one example of these additional options,
the one shown below is the result of selecting (3) Filter Programming.
Note: Graceful session termination is important. Use Disconnect under the file dropdown menu
to terminate a session, otherwise the port may become disabled and force the system to be
rebooted.
Telnet Session (Remote Access)
Remote access to the repeater may be gained through a LAN connection and a terminal emula-
tion program for TCP/IP. As with the serial connection, many terminal emulation programs will
work, if properly configured. In the following description, again, “Teraterm” is used to establish the
Telnet session. Also, it will be required that the network configuration of the computer and the
repeater being controlled be set up with the same Sub Net and Sub Net Mask in order to establish
a link. In other words, the IP addresses of both the computer used and of the repeater must be
the same group of IP address number sets. For example, the repeater ships with the default IP
address of 192.168.1.100 and a Sub Net Mask of 255.255.255.0. In order to connect, the
computer to be used for the link would normally need an IP address of something like
192.168.1.12 with a Sub Net Mask of 255.255.255.0, the same Sub Net Mask as the repeater. In
this example, note: the last digit of the IP address may be any number except 1,100 and 255,
Configuring your PC is normally fairly straight forward but it does vary somewhat with the
operating system involved. If you require assistance, contact your IT department and they will
be able to set up your PC for you or you may review the Additional Tips Section at the end of the
manual.

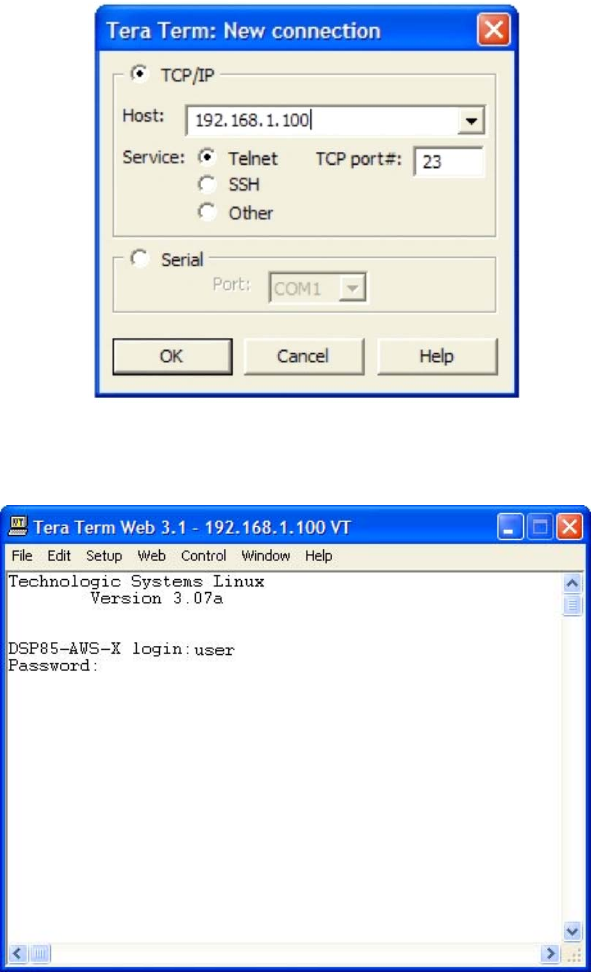

When the Tera Term program is started, the following screen is displayed. Change the default host
IP address to the IP address of the repeater to be controlled. In the case of a new install, the
default address is 192.168.1.100 and has been assigned at the factory. Select the service Telnet.
The TCP Port must be 23.
- 30 -
Pressing the “OK” button will bring the user to the following screen, which will require the user
to log in. The default user name is “user”.
In the field after the prompt type the user name. The default password is “csi1234”. After typing
the password press the enter key and the main menu will be displayed as shown next.
- 31 -
Telnet and serial sessions both provide access to the same Text Menu Interface. We
have already shown many of the options available and all are self explanatory, so they
will not be repeated.
Modem Interface (Remote Access with login)
A modem can also be used to gain remote access to the unit provided the repeater has been
properly equipped. A selection of modems is available as an option. If the modem requires a SIM
card for activation, special requirements must be met for the SIM card to become fully functional,
contact the service provider. In addition, an IP address must be obtained and entered into the
repeater
Once the modem has been installed and activated, it can be accessed from any terminal emulation
program just as in the serial and Telnet examples provided earlier. Access response time will
depend on many factors, some of which are:
•Quality of the connection (RF signal in the case of wireless modems)
•Technology (CDMA, EDGE, GPRS, etc.)
•Network congestion (Throughput)
When a connection has been established, the same login screen shown in both the serial and
Telnet examples is presented.
- 32 -
Additional Tips
Instructions to change TCP/IP settings on your Windows computer.
Click in the Network Connections Icon in the Control Panel. See below.
Right click on Local Area Connection - and select “Properties”.
Scroll down to “Internet Protocol (TCP/IP) and click on the “Properties” button.
- 33-
If you are set up to use DHCP, the window shown below will be displayed.
Select “Use the following IP address:” and enter “192.168.1.2.” The subnet mask
should automatically populate to “255.255.255.0”.
Nothing else will need to be chosen or entered. Click “OK”, then “OK again and
retry connection.
A crossover Ethernet cable (supplied) must be used for Web Interface access. As
a reminder, you must verify the Ethernet port on your laptop is powered. If your
laptop is on battery power, the Ethernet port may be inactive by default. If this is
the case simply plug in the laptop to a 110vac source or change the power settings
to enable the Ethernet port when the laptop is using battery power.
- 34 -
When troubleshooting RF issues, and when surveying challenging RF environ-
ments, it’s important to have a spectrum analyzer capable of measuring the
frequency that you are working with. An attenuator should be used to protect the
input, when connected to a source of RF power such as the repeater or a
powered DAS.
Both Uplink and Downlink should be measured. Downlink should be measured
on the donor cable and at the output (server) port of the powered up repeater,
and Uplink at the lead from the DAS (on fiber/powered DAS’s, where the lead
would connect to the server port on the repeater) and at the donor port with the
repeater powered up. Measurements may also be necessary at server
antenna locations. Your spectrum analyzer will need to be equipped with a
whip antenna for this.
Resolution Bandwidth (RBW) should be set at 200 kHz for GSM and 1 MHz for
CDMA. If you cannot select these values, the closest available values should
be used. Video filter should be about one tenth of RBW. Other settings like
span are whatever is appropriate. One should also make sure that there are
no signals above the top of the screen.
If you cannot see an adjacent out of band signal when using the 1 MHz RBW
filter, you can decrease the RBW, to see the close-in-frequency signals. Be
sure to set the RBW back when you want to measure the power level.
RF Notes:
To prevent overload of the DSP input stages, the maximum measured level of
in-band or out of band signals should be less than -50 dBm when the DSP gain
is set to 85 dB, -40 dBm when set to 75 dB, etc. This applies when there is
one dominant signal and applies TO BOTH THE DOWNLINK AND UPLINK. If
there are two dominant signals, and the gain is set to 85 dB, then the level of
each signal should be kept to less than -53 dBm. With three signals, each
should be less than -55 dBm. With ten signals each should be less than -60
dBm. This latter reduction prevents the composite power of the multiple
signals from exceeding an acceptable level. Add fixed attenuators in line with
the donor antenna line/DAS feed to keep signals below the levels indicated
above.
Suggested Spectrum Analyzer Setting:
Warranty
- 35 -
One Year Limited Warranty
Seller warrants that its products are transferred rightfully and with good title;
that its products are free from any lawful security interest or other lien or
encumbrance unknown to Buyer; and that for a period of one year from the
date of installation or fifteen months from the date of original shipment, which-
ever period expires first, such products will be free from defects in material and
workmanship which arise under proper and normal use and service. Buyer’s
exclusive remedy hereunder is limited to Seller’s correction (either at its plant
or at such other place as may be agreed upon between Seller and Buyer) of
such defects by repair or replacement at no cost to Buyer. Transportation costs
in connection with the return of products to Seller’s plant or designated facility
shall be paid by Buyer. The provisions of this warranty shall be applicable with
respect to any product which Seller replaces pursuant to it. SELLER MAKES
NO WARRANTY, EXPRESS OR IMPLIED, OTHER THAN AS SPECIFICALLY
STATED ABOVE. EXPRESSLY EXCLUDED ARE THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR PURPOSE. THE FOREGOING
SHALL CONSTITUTE ALL OF SELLER’S LIABILITY (EXCEPT AS TO PATENT
INFRINGEMENT) WITH RESPECT TO THE PRODUCTS. IN NO EVENT
SHALL SELLER BE LIABLE FOR SPECIAL, CONSEQUENTIAL OR INCIDEN-
TAL DAMAGES, INSTALLATION COSTS, LOST REVENUE OR PROFITS, OR
ANY OTHER COSTS OF ANY NATURE AS A RESULT OF THE USE OF
PRODUCTS MANUFACTURED BY THE SELLER, WHETHER USED IN
ACCORDANCE WITH INSTRUCTIONS OR NOT. UNDER NO CIRCUM-
STANCES SHALL SELLER’S LIABILITY TO BUYER EXCEED THE ACTUAL
SALES PRICE OF THE PRODUCTS PROVIDED HEREUNDER. No represen-
tative is authorized to assume for Seller any other liability in connection with
the products.
Industry Certifications/Registration Numbers:
FCC: NVRCSI-DSP85-251-AW IC: 4307A-DSP85-251-AW
- 36 -
Index
A
AC Current 15
AC Power Frequency 15
AC Voltage 15
Additional Tips 32
AGC 5
Alarm Configuration 23
APC 5
Application 4
AUI 5
B
Box Thermal Management 15
Box Weight 15
C
CDMA RHO 16
Change Password 24
Circuit Operational Description
13, 19, 20, 21, 22, 23
Color 15
Connectors 16
CPU 5
CSI 5
D
DAS 5
Depth 15
DHCP 5
Document Purpose 4
DONOR PORT 10
DSP 5
E
EEPROM 5
Email Configuration: 23
ERP 5
Ethernet 9
Event Log 22
Explosive Atmospheres 4
F
FPGA 5
Functional Block Diagram 14, 15, 16
Functional Overview 8
G
Grounding 4
H
Height 15
I
Important Installation Notes 13
Important Safety Information 5
Inadequate isolation 13
Industry Certifications/Registration
Numbers 35
Input VSWR 16
Install Software 22
Intended Users 4
IP address 33
L
LED 5
LED Indicators 8
Lightning Danger 4
Linear Gain 16
Liner Output Power 16
Local Area Connection 32
Local Communication Interface Ports
9
Local Network 19
Log Configuration 24
login 18
M
Manual Gain Control 16
Maximum RF input 16
Mechanical Drawing 17
Modem Interface 31
Monitoring & Alarms 9
N
No User Serviceable Parts Inside 4
Noise Figure 16
O
OIP3 16
Optional Accessories 13
P
Pass Band Ripple 16
Product Introduction 5
Product Registration Information 4
Program a Filter 20
Propagation Delay 16
R
Reboot 23
Remote Network 21
RF Configuration 20
RF Notes 34
RMS Vector Error 16
S
Safety Guidelines 4
SBC 5
SERVER PORT 10
SNMP 5
Spurious Emissions 16
Suggested spectrum analyzer setting
34
Surface Coating 15
System Health 22
System Set-Up Considerations 10
System Status 19
T
TCP/IP settings 32
Telnet Session 29
TeraTerm 25
Terms used in this manual 5
Text Menu Interface 25
TMI 5
U
UHCI 5
USB 5
USB Interface 9
W
Wall Mounting 12
Warranty 35
Web based GUI Session 18
Width 15
- 37 -
Notes
- 38 -
Notes
- 39 -
Notes
960-1041-013 rev A ECO2356
