Westell CSI110-01 Bidirectional Amplifier User Manual

Westell, Inc. Bidirectional Amplifier

Contents

User Manual

1Mini-IBA Manual
05/31/01
Cellular Specialties, Inc.

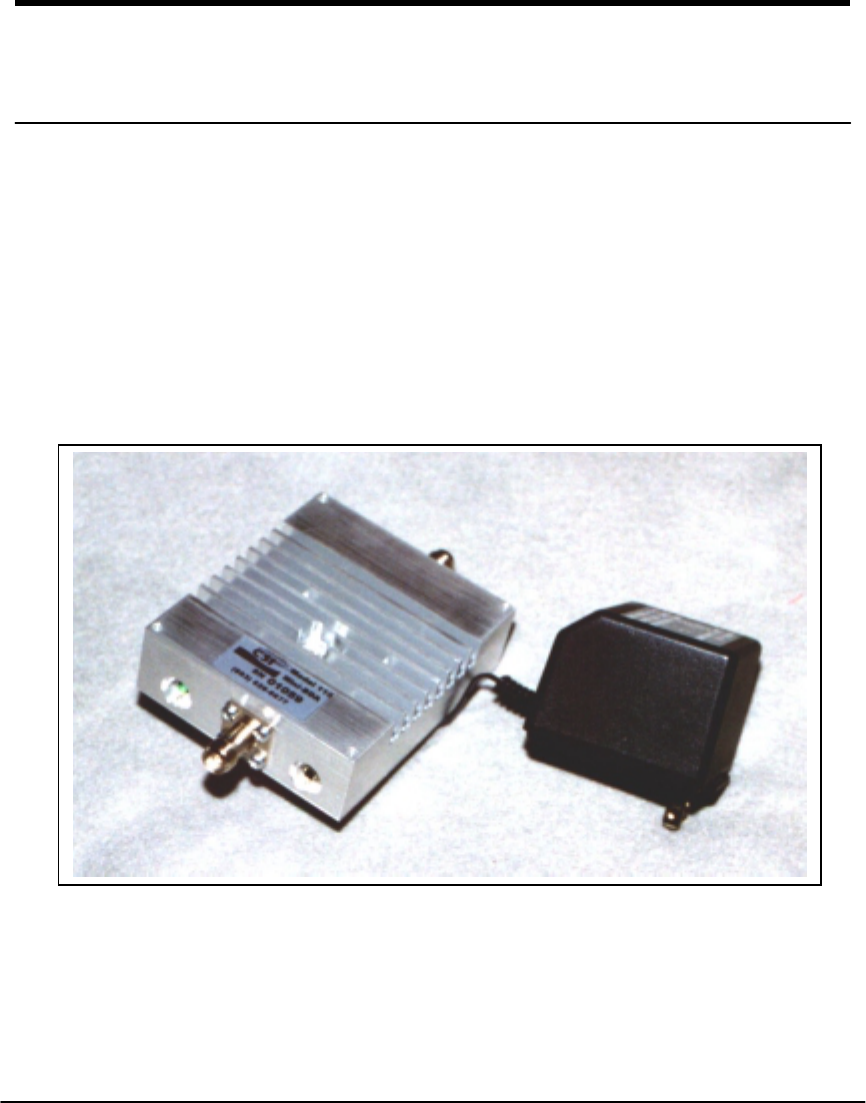

Model 110 Miniature In-Building Amplifier
Operation and Users Manual
2Mini-IBA Manual
05/31/01
Table of Contents
1. Product Description
Background
Functional Description
Functional Block Diagram
Outline Drawing
2. General Specifications
3. Inspection and Installation
Inspection of Contents
Package Contents
Installation
3Mini-IBA Manual
05/31/01
1. Product Description
Background
The performance of a cell phone can be easily degraded when in enclosed
structures where signals from a local cell site are not sufficient for reliable
phone operation. The Model 110 Miniature In-Building Amplifier (Mini-
IBA) was developed by Cellular Specialties, Inc. (CSI) to enhance cellular
performance within these enclosed structures. Specifically, the Mini-IBA is
designed to cover small areas such as home offices, small workshops, etc.
Functional Description
The Mini-IBA boosts the cellular performance by providing amplification of
both transmit and receive signals. The unit receives the portable phone’s
signal through an interior antenna, amplifies it and then sends it to an outside
antenna. This signal is referred to as the “Uplink”. The Mini-IBA also
receives signals from the Cell Site base station through the outside antenna.
This signal is amplified and re-radiated to the portable phone and is referred
to as the “Downlink”. It is necessary that sufficient signal be available at the
external antenna.
The external antenna is usually a directional type such as a “Yagi”, however
an Omni-directional antenna may be used when the structure is located in
close proximity to one or more cell sites. Internal antennas are usually
Omni-directional although other types, such as low profile wall or ceiling
mount, may be used for special installations.
As shown in Figure 1, there are three stages of gain in the Downlink and 2
stages in the Uplink for a nominal gain of 40 dB in each link. The maximum
linear output power for the Uplink is 500 milli-Watts and 30 milli-Watts for
the Downlink.
An LED indicator on the unit shows the application of power.
4Mini-IBA Manual
05/31/01

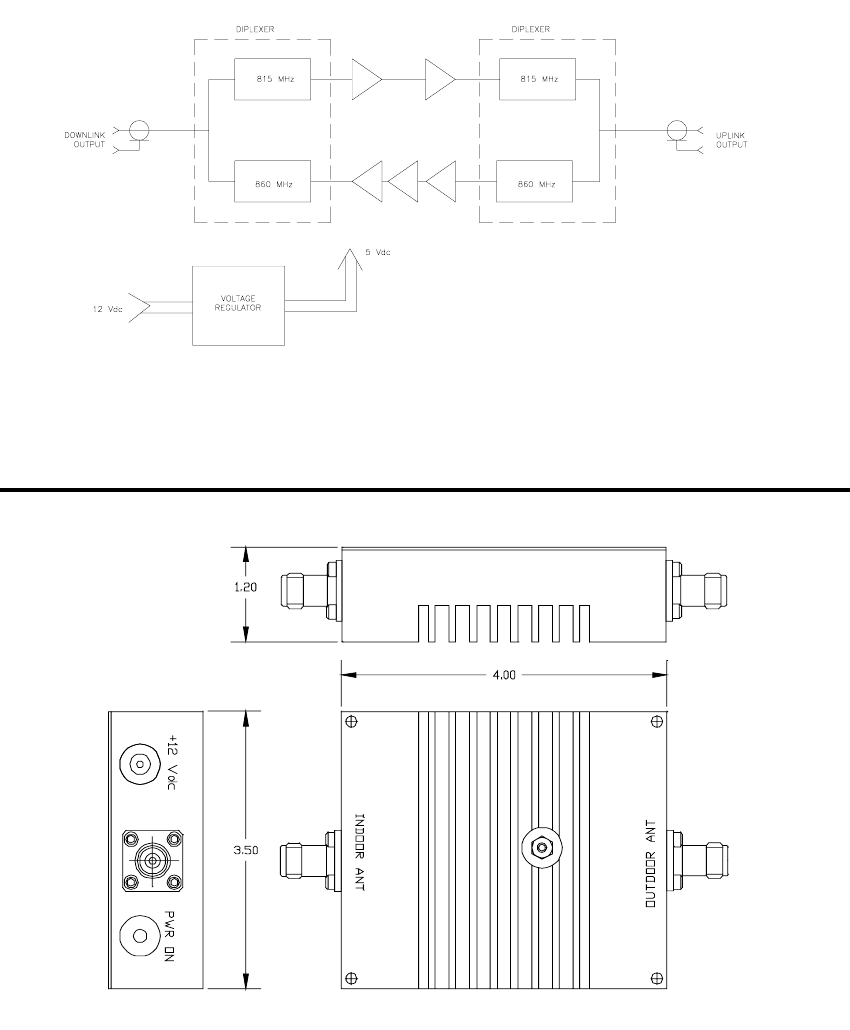

FIGURE 1 Functional Block Diagram
FIGURE 2 Outline Drawing
5Mini-IBA Manual
05/31/01
2. General Specifications
All specifications stated as typical unless otherwise noted. Cellular Specialties, Inc.
reserves the right to change these specifications at any time without prior notice.
Downlink Uplink
Frequency Band 851-866 MHz 806-821 MHz
Gain 40 dB 40 dB
Typical Power Out +28 dBm +15 dBm
Noise Figure 6 dB 6 dB
3rd Order Intercept +43 dBm +27 dBm
Propagation Delay <1 microsecond <1 microsecond
VSWR <2:1 <2:1
Passband Ripple (max) 2 dB pk-pk 2 dB pk-pk
Connectors Mini-UHF
Power Requirements +6 Vdc, 1.0 A
Dimensions 3.5”x4.0”x1.2”
Weight 1 lbs.
Indicator LED “Power-On”
6Mini-IBA Manual
05/31/01
3. Inspection and Installation
Inspection
Inspect the equipment as soon as possible after purchase. If any part of the
equipment has been damaged in transit, report the damage to the
transportation company and also to the company where purchased.
Contents
The unit package contains the following:
Model 110 Mini-IBA
Power Transformer, 110 volt to 6 volt – model number ( )
User Manual
Optional Accessories
Accessories are available directly from Cellular Specialties, Inc. or any of
CSI’s distributors.
Exterior High Gain Antenna – model number ( )
Exterior Omni Antenna – model number ( )
Interior Omni Antenna – model number ( )
Power Cable w/cigarette lighter adapter – model number ( )
Installation
The installation of the Mini-IBA is relatively simple. If possible,
measurements of the Received Signal Strength Indicator (RSSI) should be
recorded as close as possible to the proposed exterior antenna location.
Optimum performance will be obtained with RSSI readings greater than –85
dBm.
With the exact location of the exterior antenna and the coordinates of the cell
sits closest to the building in which the unit is being installed, the distance
and bearings to each of the local cells can be determined. The first choice
would be the closest site unless there is blockage in the form of buildings or
terrain. If blockage exists, an alternate site may be available.
If coordinates are not available, measure the RSSI at the external antenna
output by connecting a phone to the external antenna and slowly rotating the
antenna until a maximum reading is obtained.
7Mini-IBA Manual
05/31/01
The Mini-IBA and interior antenna should be centrally located, keeping
coaxial cable runs to a minimum. A maximum length of 100 feet of low loss
cable is recommended. The actual coax used should be RG-8 type with a
flame retardant rating as a minimum. If the coax is run through an area
where heating and/or cooling air is channeled, a plenum rated coax should
be used. When mounting the amplifier, take care to avoid areas of high heat
or extreme cold. In general, do not place the unit on or near the top of high
ceilings, by heaters or in cold storage areas.
During installation, care must be taken to provide the maximum isolation
between interior and exterior antennas. This isolation should be in the order
of 70 dB to prevent any re-generative feedback in the system. Feedback of
this nature may cause the amplifier to emit a continuous signal at maximum
amplitude and could, in some cases, interfere with the normal operation of
the cell site.
There are no installation or user adjustments or tuning on this unit.
