Westhold TXLI-01 Electronic timing and scoring User Manual 9 Volt Transmitter

Westhold Corporation Electronic timing and scoring 9 Volt Transmitter

Manual

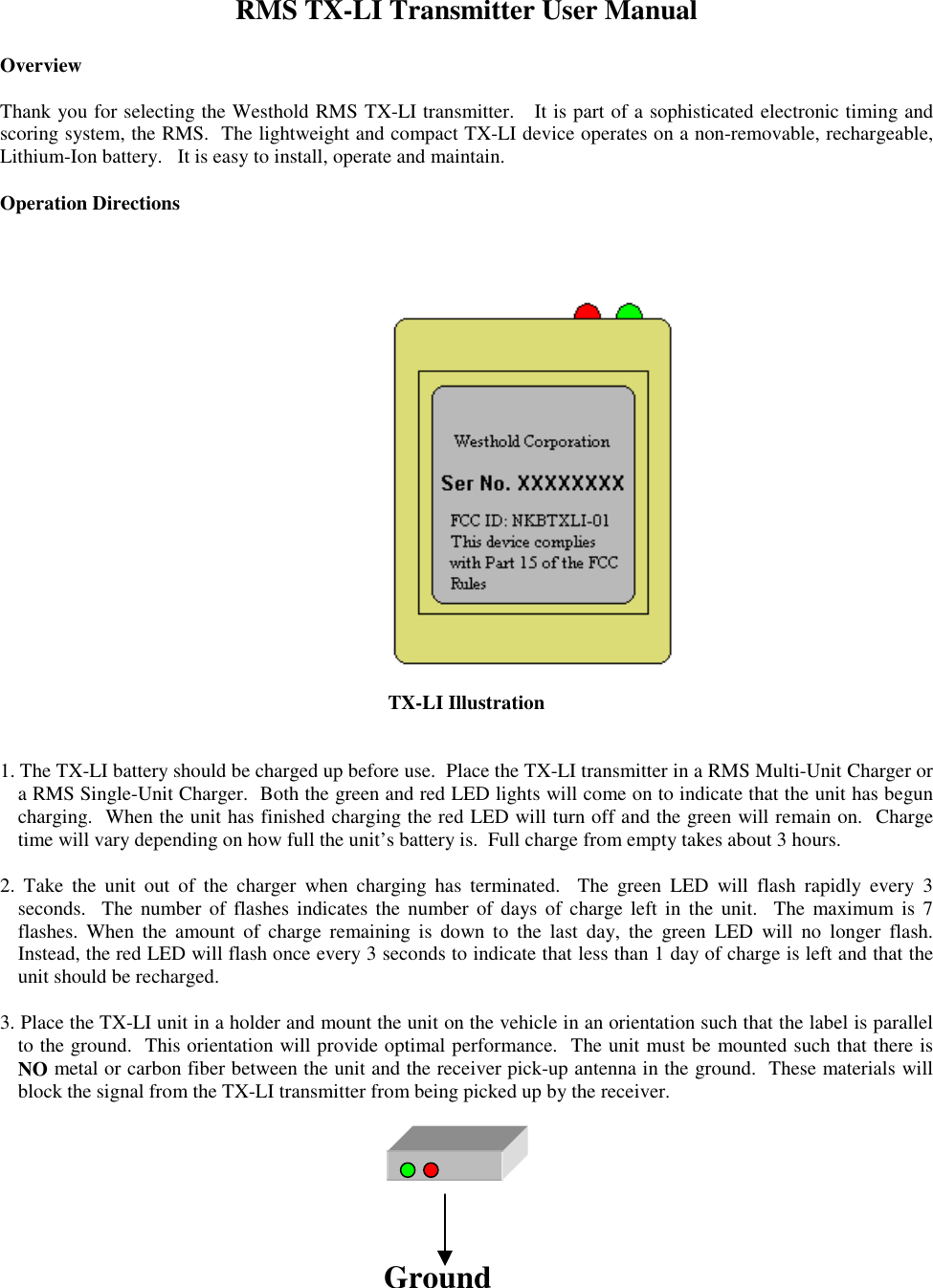

RMS TX-LI Transmitter User ManualOverviewThank you for selecting the Westhold RMS TX-LI transmitter. It is part of a sophisticated electronic timing andscoring system, the RMS. The lightweight and compact TX-LI device operates on a non-removable, rechargeable,Lithium-Ion battery. It is easy to install, operate and maintain.Operation Directions TX-LI Illustration1. The TX-LI battery should be charged up before use. Place the TX-LI transmitter in a RMS Multi-Unit Charger ora RMS Single-Unit Charger. Both the green and red LED lights will come on to indicate that the unit has beguncharging. When the unit has finished charging the red LED will turn off and the green will remain on. Chargetime will vary depending on how full the unit’s battery is. Full charge from empty takes about 3 hours.2. Take the unit out of the charger when charging has terminated. The green LED will flash rapidly every 3seconds. The number of flashes indicates the number of days of charge left in the unit. The maximum is 7flashes. When the amount of charge remaining is down to the last day, the green LED will no longer flash.Instead, the red LED will flash once every 3 seconds to indicate that less than 1 day of charge is left and that theunit should be recharged.3. Place the TX-LI unit in a holder and mount the unit on the vehicle in an orientation such that the label is parallelto the ground. This orientation will provide optimal performance. The unit must be mounted such that there isNO metal or carbon fiber between the unit and the receiver pick-up antenna in the ground. These materials willblock the signal from the TX-LI transmitter from being picked up by the receiver.Ground

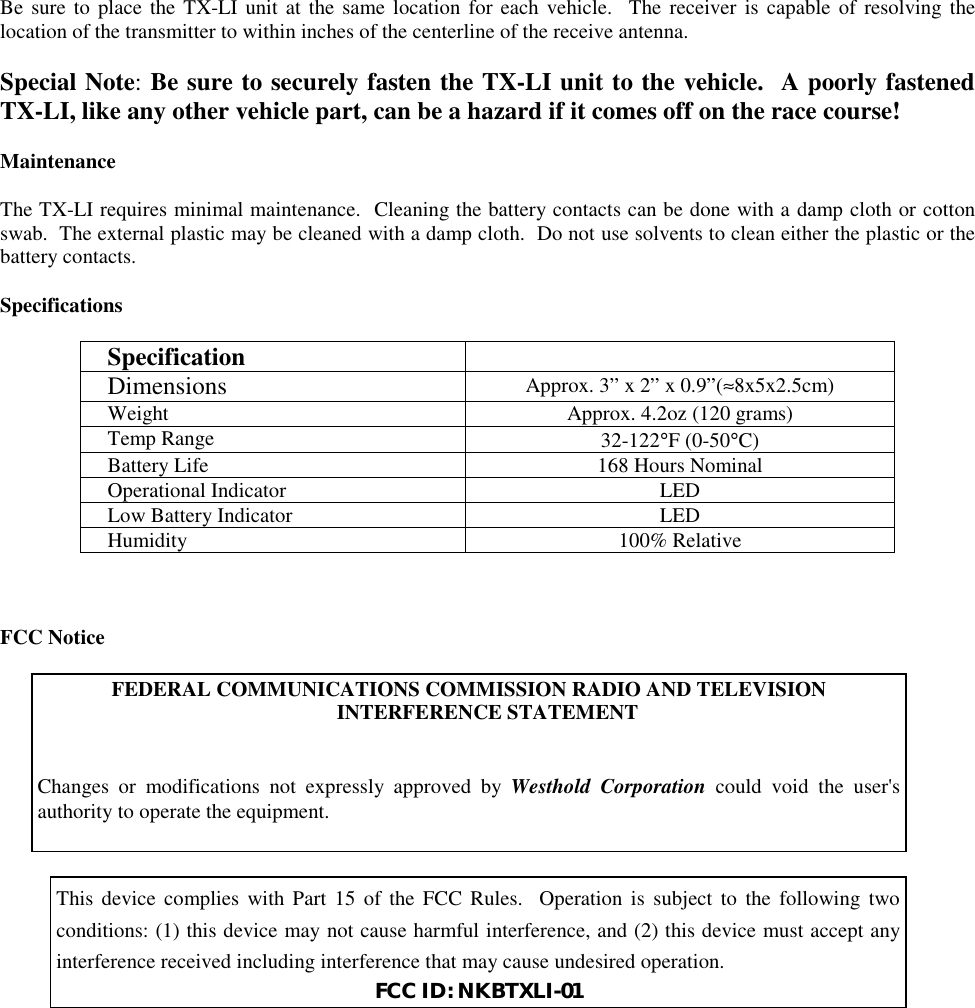

Be sure to place the TX-LI unit at the same location for each vehicle. The receiver is capable of resolving thelocation of the transmitter to within inches of the centerline of the receive antenna.Special Note: Be sure to securely fasten the TX-LI unit to the vehicle. A poorly fastenedTX-LI, like any other vehicle part, can be a hazard if it comes off on the race course!MaintenanceThe TX-LI requires minimal maintenance. Cleaning the battery contacts can be done with a damp cloth or cottonswab. The external plastic may be cleaned with a damp cloth. Do not use solvents to clean either the plastic or thebattery contacts.SpecificationsSpecificationDimensions Approx. 3” x 2” x 0.9”(≈8x5x2.5cm)Weight Approx. 4.2oz (120 grams)Temp Range 32-122°F (0-50°C)Battery Life 168 Hours NominalOperational Indicator LEDLow Battery Indicator LEDHumidity 100% RelativeFCC NoticeFEDERAL COMMUNICATIONS COMMISSION RADIO AND TELEVISIONINTERFERENCE STATEMENTChanges or modifications not expressly approved by Westhold Corporation could void the user'sauthority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device must accept anyinterference received including interference that may cause undesired operation.FCC ID: NKBTXLI-01
