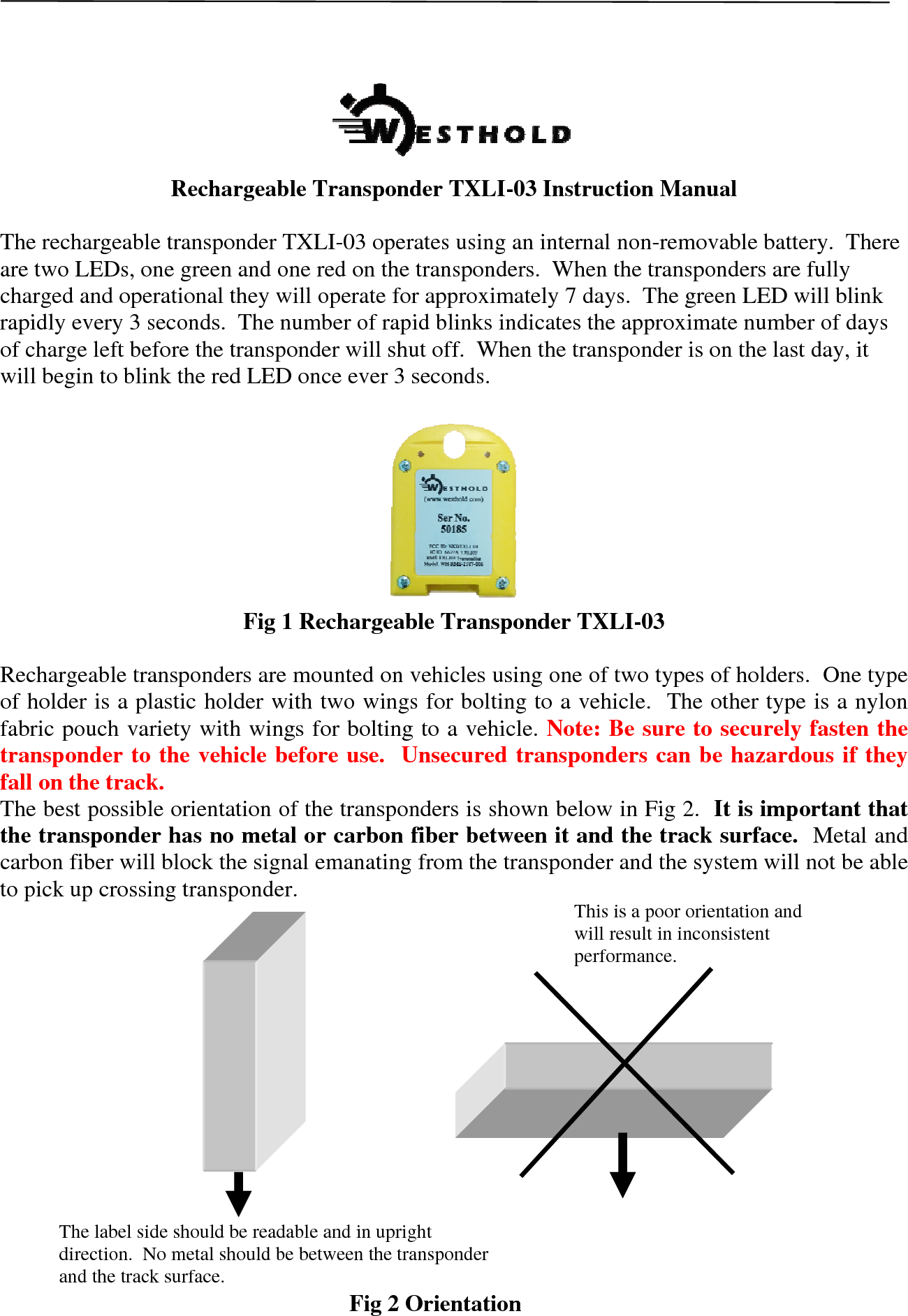

Rechargeable Transponder TXLI-03 Instruction Manual The rechargeable transponder TXLI-03 operates using an internal non-removable battery. There are two LEDs, one green and one red on the transponders. When the transponders are fully charged and operational they will operate for approximately 7 days. The green LED will blink rapidly every 3 seconds. The number of rapid blinks indicates the approximate number of days of charge left before the transponder will shut off. When the transponder is on the last day, it will begin to blink the red LED once ever 3 seconds. Fig 1 Rechargeable Transponder TXLI-03 Rechargeable transponders are mounted on vehicles using one of two types of holders. One type of holder is a plastic holder with two wings for bolting to a vehicle. The other type is a nylon fabric pouch variety with wings for bolting to a vehicle. Note: Be sure to securely fasten the transponder to the vehicle before use. Unsecured transponders can be hazardous if they fall on the track. The best possible orientation of the transponders is shown below in Fig 2. It is important that the transponder has no metal or carbon fiber between it and the track surface. Metal and carbon fiber will block the signal emanating from the transponder and the system will not be able to pick up crossing transponder. Fig 2 Orientation The label side should be readable and in upright direction. No metal should be between the transponder and the track surface. This is a poor orientation and will result in inconsistent performance.
