Rechargeable Transponder TXLI-03 Instruction Manual
The rechargeable transponder TXLI-03 operates using an internal non-removable battery. There
are two LEDs, one green and one red on the transponders. When the transponders are fully
charged and operational they will operate for approximately 7 days. The green LED will blink
rapidly every 3 seconds. The number of rapid blinks indicates the approximate number of days
of charge left before the transponder will shut off. When the transponder is on the last day, it
will begin to blink the red LED once ever 3 seconds.

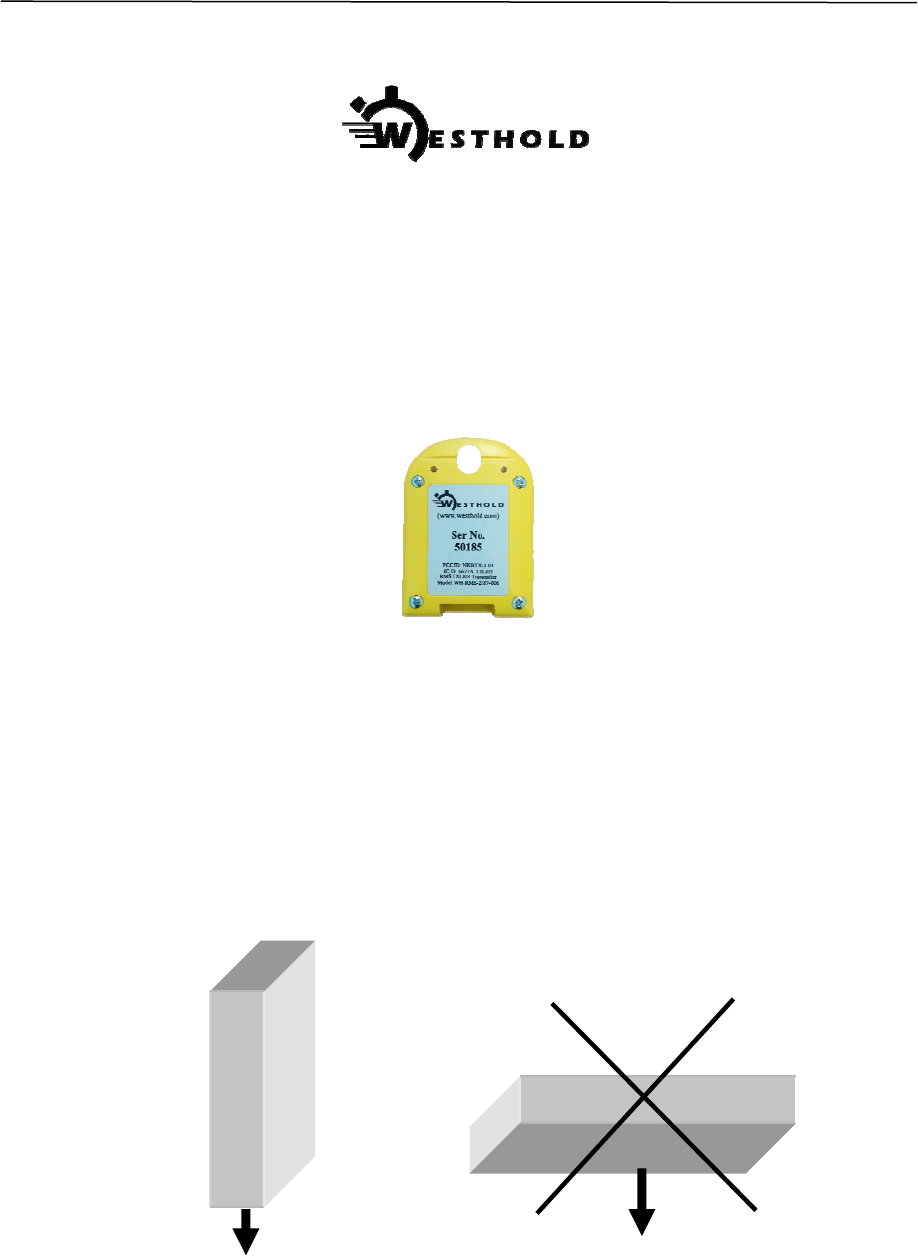

Fig 1 Rechargeable Transponder TXLI-03
Rechargeable transponders are mounted on vehicles using one of two types of holders. One type
of holder is a plastic holder with two wings for bolting to a vehicle. The other type is a nylon
fabric pouch variety with wings for bolting to a vehicle. Note: Be sure to securely fasten the
transponder to the vehicle before use. Unsecured transponders can be hazardous if they
fall on the track.
The best possible orientation of the transponders is shown below in Fig 2. It is important that
the transponder has no metal or carbon fiber between it and the track surface. Metal and
carbon fiber will block the signal emanating from the transponder and the system will not be able
to pick up crossing transponder.
Fig 2 Orientation
The label side should be readable and in upright
direction. No metal should be between the transponder
and the track surface.
This is a poor orientation and
will result in inconsistent
p
erformance.
2
• Label side of the transponder is upright and readable. It does not matter which way the lights
face. Those are just indicators of battery life.
Note: There are other transponders, such as the rechargeable transponder TXLI-02, that
use a different orientation. Be careful about mixing the orientations.
• No metal or carbon fiber between transponder and track. The transponder must have a clear
shot to the ground.
Note: Signals can go through plastic so it is possible to use a piece of plastic as a mounting
plate.

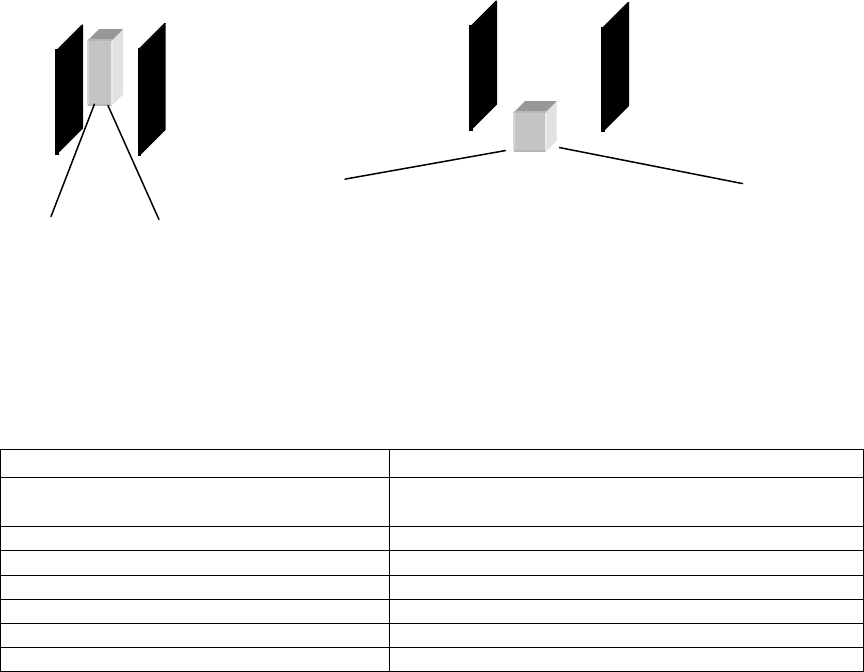

Recessing the transponder can create problems such as shown below.
Transponder - Rechargeable TXLI Model
Dimensions Approx. 3” x 2" x 1"
(7.6 x 5.1 x 2.5cm)
Weight Approx. 2.1 oz (60grams)
Temp Range 32-122F (0-50C)
Battery Life 7 Days on full charge
Operational Indicator LED
Low Battery Indicator LED
Humidity 90% Relative
Poor location: Narrow window for
detection. The signal can’t be seen well.
Good location: No metal to block the signal.
The detection window is very wide.
3
FCC Declaration:
FEDERAL COMMUNICATIONS COMMISSION RADIO AND TELEVISION INTERFERENCE
STATEMENT
Changes or modifications not expressly approved by Westhold Corporation could void the user's authority
to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received including interference that may cause undesired operation.
FCC ID: NKBTXLI-03
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two
onditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts
de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas
produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un
brouillage susceptible de rovoquer un fonctionnement indésirable.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
IC: 677A-TXLI03
