Whalen Furniture Audio with Bluetooth
user manual
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg., Inc. Page 1 Factory # 98-15326
Striped Gaming Rocker Chair
Model #WC-492EXBTGR
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
866-632-6632
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our website www.levelupgear.com
Or e-mail your request to: support@levelupgear.com
LOT NUMBER:
DATE PURCHASED: / /
Model # WC-492EXBTGR
Please call for replacement parts or assistance: 866-632-6632
Whalen Furniture Mfg., Inc. Page 2 Factory # 98-15326
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
IMPORTANT SAFETY INSTRUCTIONS
Model # WC-492EXBTGR
Please call for replacement parts or assistance: 866-632-6632
Whalen Furniture Mfg., Inc. Page 3 Factory # 98-15326
INPUT DC-9V/0.6A

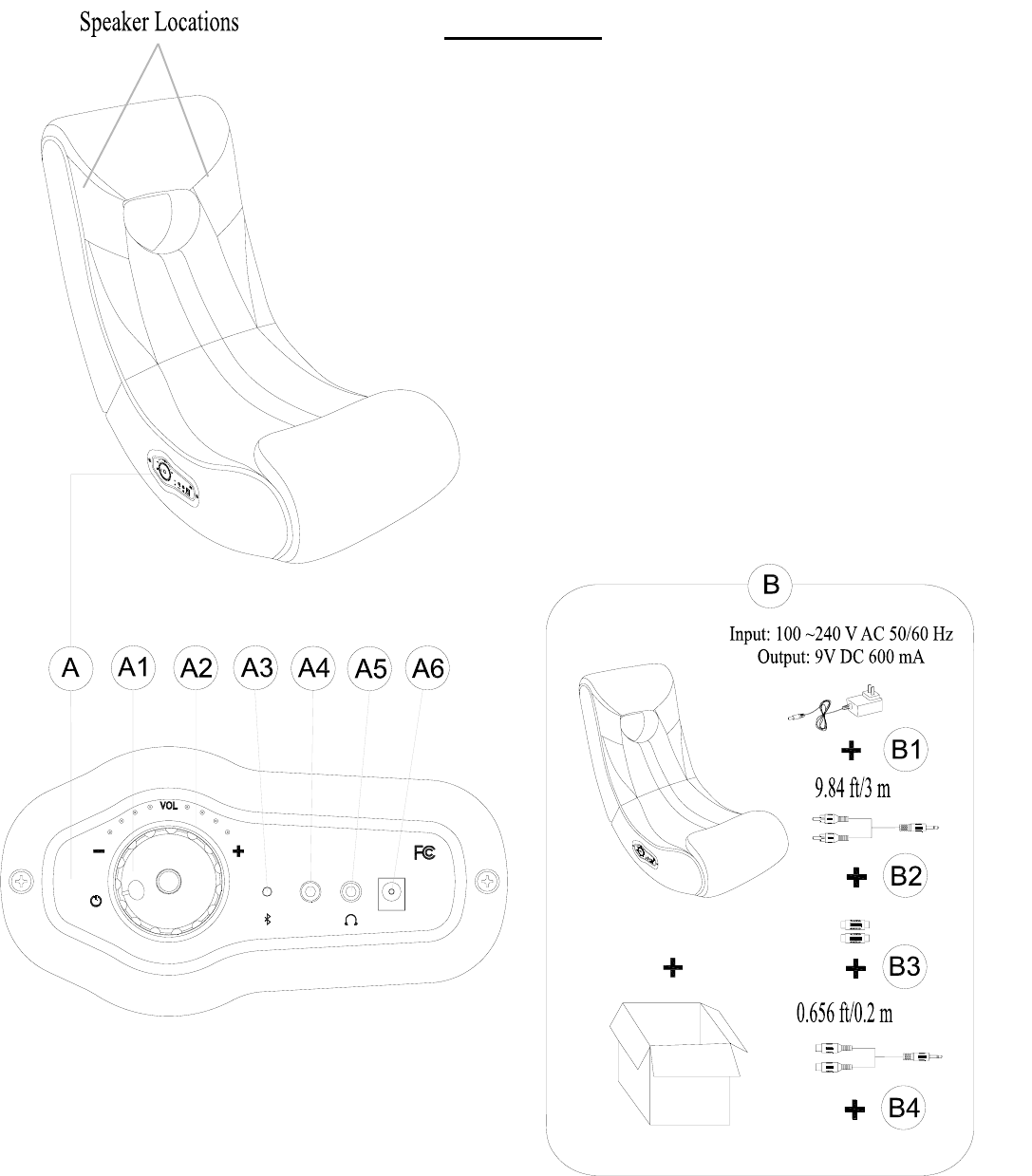

FEATURES
B- Accessories Supplied
B1- AC Power Adapter (1 pc)
B2- 3 m RCA Stereo Male to 3.5 mm Stereo Male Cable (1 pc)
B3- RCA Female-to-Female Barrel Adapter (2 pcs)
B4- 0.2 m RCA Stereo Female to 3.5 mm Stereo Male Cable
(
1
p
c
)
A- Control Panel
A1- Volume Adjustment/Power On/Off
A2- Power Indicator Light
A3- Bluetooth Indicator
A4- Audio Input Jack
A5- Headphone Plug in Jack
A6
-
DC Power Input Jac
k
Model # WC-492EXBTGR
Please call for replacement parts or assistance: 866-632-6632
Whalen Furniture Mfg., Inc. Page 4 Factory # 98-15326
Set up and Adjustments
1. Unpack the unit and remove any packing from the carton. Lift the gaming rocker chair out of the
carton and set the accessories pack aside for later use.

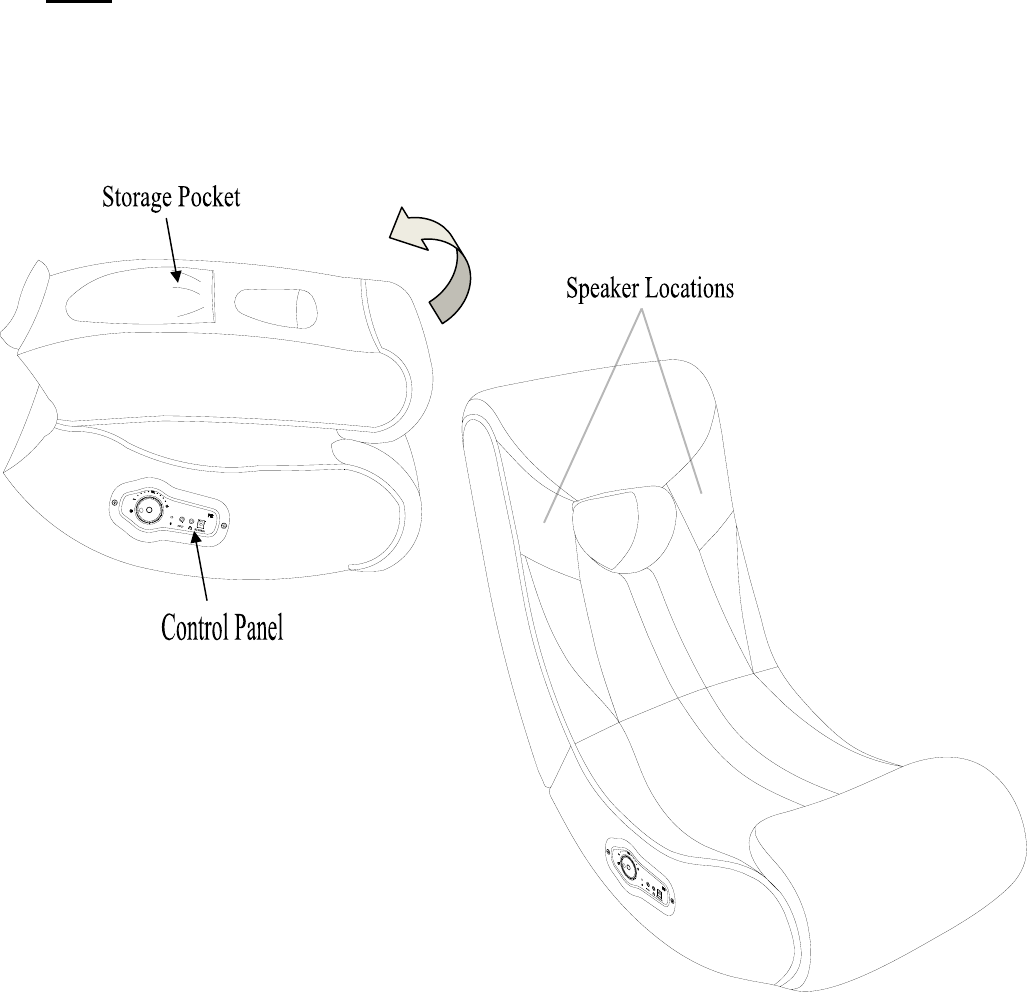

2. Keep the chair in the folded position and place it on the floor with the back storage pocket facing up.
3. Flip the back side of the chair up and attach to the bottom of the seat using the Velcro strips.
NOTE: Keep hands and fingers away from the joint to prevent from crush hazard.
4. Unpack the AC Power Adapter (B1) and connect it to the Power Input Jack (A6) on the Side Control
Panel. Insert the two-prong plug into an outlet to supply power for the gaming rocker chair.
5. Turn the Power Dial (A1) and confirm that the Power Indicator Light (A2) is on.
Model # WC-492EXBTGR
Please call for replacement parts or assistance: 866-632-6632
Whalen Furniture Mfg., Inc. Page 5 Factory # 98-15326
Set up and Adjustments

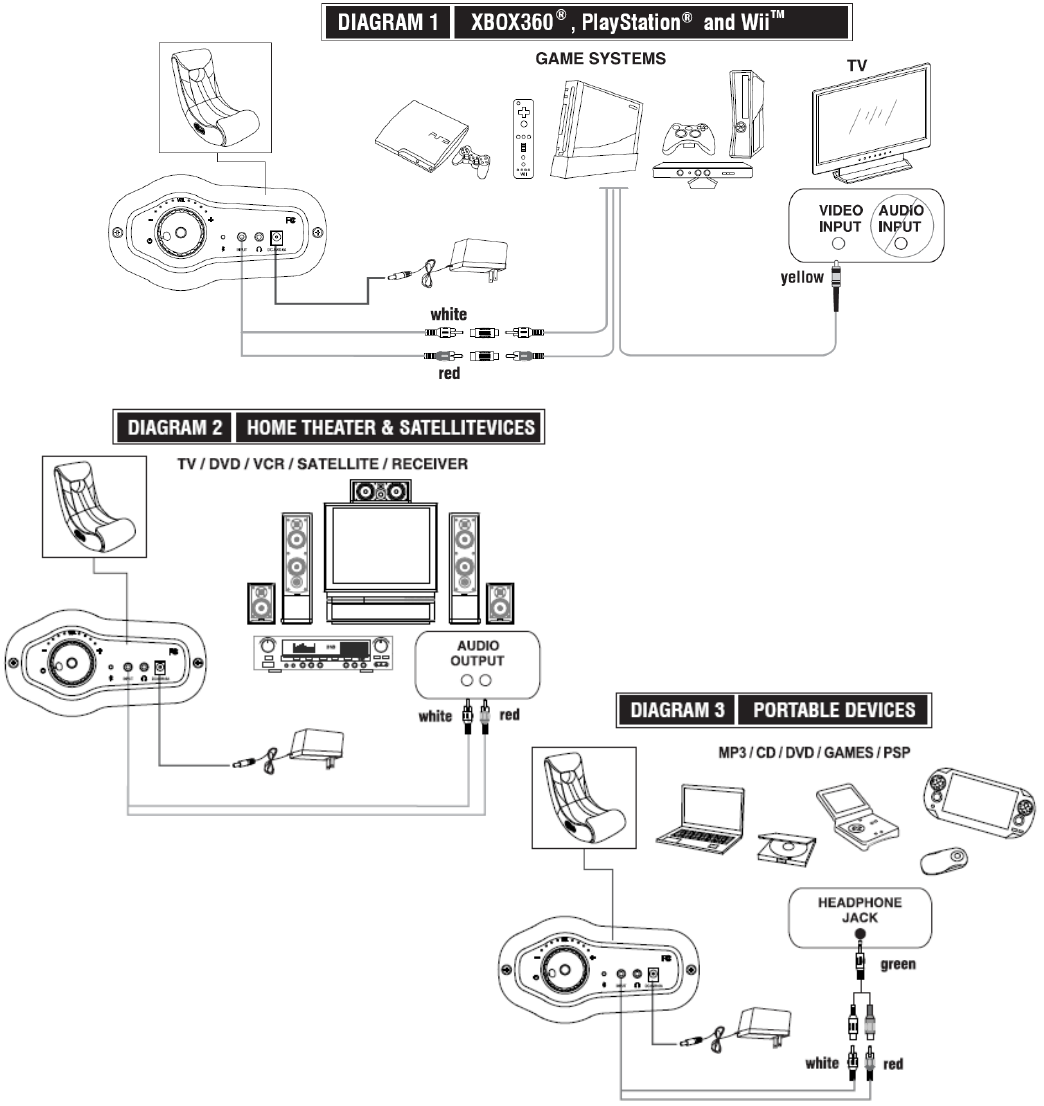

6. Follow the connection diagrams below to connect the gaming rocker chair to the audio equipment of
your choice.
7. Adjust the bass and volume levels to your preference. Now you can enjoy the gaming rocker chair.
Model # WC-492EXBTGR
Please call for replacement parts or assistance: 866-632-6632
Whalen Furniture Mfg., Inc. Page 6 Factory # 98-15326
Assembly Instructions
8. The gaming chair features a build in Bluetooth® receiver. You can connect your Bluetooth® audio
player with this speaker without wires or cords over a short distance of approximately 10 meters
(approx. 33feet). To communicate the speaker with your Bluetooth® devices, you will need to follow
the steps below:
1) Turn on audio unit (red light on), make sure nothing is connected to the input jack (A4). If the unit
has been on for a while you may need to turn the power off then back on to place the Bluetooth into
pairing/discovery mode.
2) The Bluetooth indicator will be quick flashing, indicating it is in pairing mode. If the Bluetooth
indicator light is on solid it indicates that it is paired and connected to Bluetooth device.
3) Pair phone / device featuring Bluetooth® technology to LevelUp in Bluetooth settings:
a. Activate Bluetooth® on your device. Please check your mobile phone /audio device owner’s manual
for further details.
b. Search for new Bluetooth® device on the mobile phone /audio device. You should LevelUp Game
Chair under available devices.
c. Select LevelUp Game Chair to pair, no pass code is needed.
d. The Bluetooth indicator will turn solid when paired.
4) If you want to switch back to a wired source simply plug into the 3.5mm input jack. Bluetooth will
turn off and switch to the wired input.
Model # WC-492EXBTGR
Please call for replacement parts or assistance: 866-632-6632
Whalen Furniture Mfg., Inc. Page 7 Factory # 98-15326
Care, Cleaning and Maintenance
z Always make sure that the Velcro strip is attached before moving or sitting in the chair.
z To ensure your product maintains its finish clean only with a soft dry cloth.
z Do not use chemical based products or solvents or place in direct sunlight.
z Use of audio speaker devices for extended periods at high volumes could pose a risk of hearing loss.
z Use of headphones and earphones for extended periods at high volumes could pose a risk of hearing loss.
Thank you for choosing Whalen Furniture!
We hope you have many years of enjoyment.
Unable to hear any sound from the Striped Gaming Rocker Chair
1. Make sure that the power adapter is connected properly. If connected properly, the power indicator light
on the control panel should light up. If the power indicator light does not light up, try a different power
outlet.
2. Ensure the power unit is turned on and power indicator light on the control panel is lit. If not, turn the
power switch on the control panel.
3. After completing steps 1. and 2. Please review the diagram illustrations in the instruction guide. Double
check all audio connections. Check that the hand remote volume level is turned to an audible level as
well as on both the TV and the chair.
4. After completing steps 1 – 3 and still do not hear sound, connect another audio source (CD player,
television or game console) and repeat the steps once again. If it’s still not working, please call our
customer service department at 866-632-6632 or 866-942-5362. Office hours are 8:30 a.m. - 4:30 p.m.
pacific standard time.
Model # WC-492EXBTGR
Please call for replacement parts or assistance: 866-632-6632
Whalen Furniture Mfg., Inc. Page 8 Factory # 98-15326
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
RSS-210 STATEMENT
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
QUALITY GUARANTEE
We are confident that you will be delighted with your LEVELUP purchase.
Should this product be defective in workmanship or materials, or fail under normal use, we will repair or
replace it for up to one (1) year from date of purchase. Every LEVELUP product is designed to meet your
highest expectations. We guarantee that you will immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary from State to
State.
Customer Service: 866-632-6632
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.levelupgear.com
SAVE THESE INSTRUCTIONS
Modifications not approved by the party responsible for compliance could void
user’s authority to operate the equipment.
