Whetron Electonics Co.,Ltd SMART KEY Key FOB Users Manual
Users Manual
1
SMART KEY Key FOB
Model Name: SMART KEY Key FOB
Trade Name: -
Model Number: APT-RX002
L.O freq: 4MHz
Electrical Specifications Characteristics：
Item Specifications Remarks
Rated voltage DC12V -
Operation voltage DC12V±3V -
<20mA(max)@12VDC Passive mode
Dark current <50mA(max)@12VDC Active mode
RF receiving frequency 315MHz ± 150KHz -
LF transmitting frequency 125KHz ± 1KHz -
Transmission standard ISO14443A -
Communication format Wiegand 34bits -
Operating temperature range -10℃~+60℃ -
Storage temperature range -10℃~+60℃ -

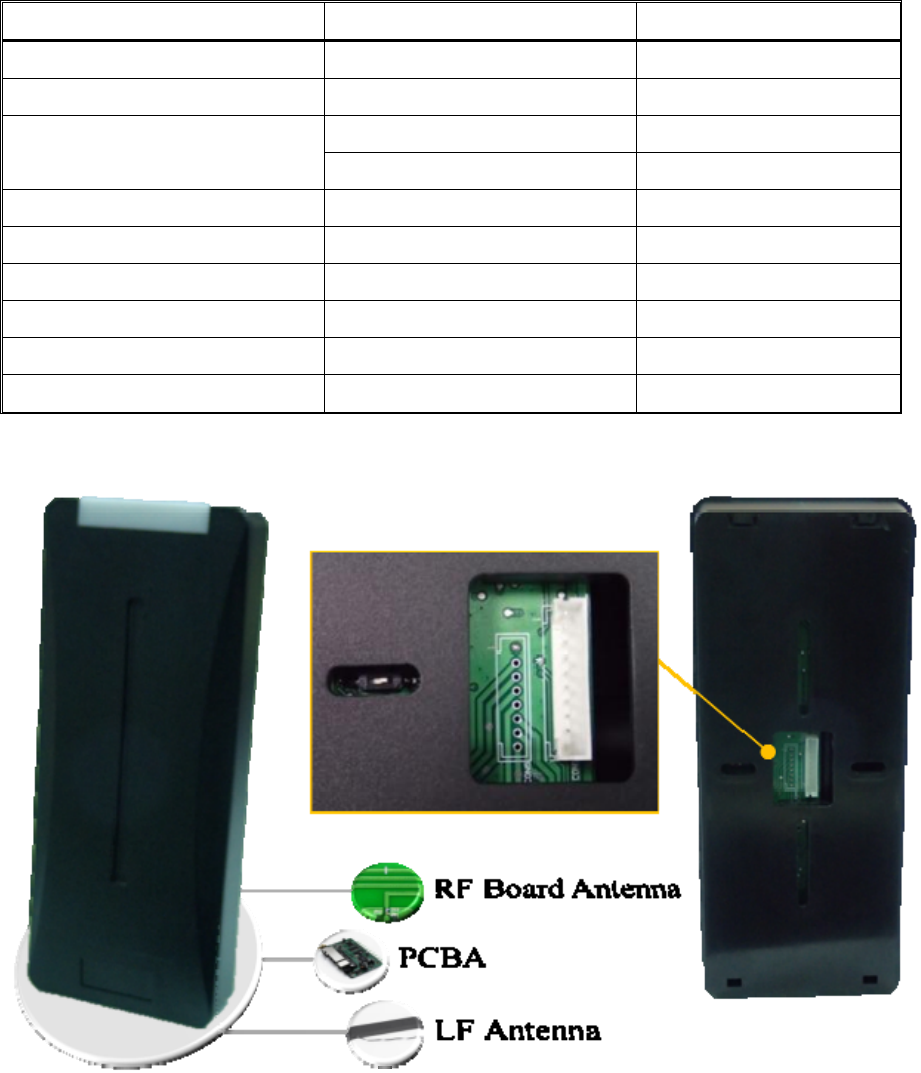

PHOTOGRAPHS：
2
SMART KEY Key FOB
Model Name: SMART KEY Key FOB
Trade Name: -
Model Number: APT-RX002
L.O freq: 4MHz

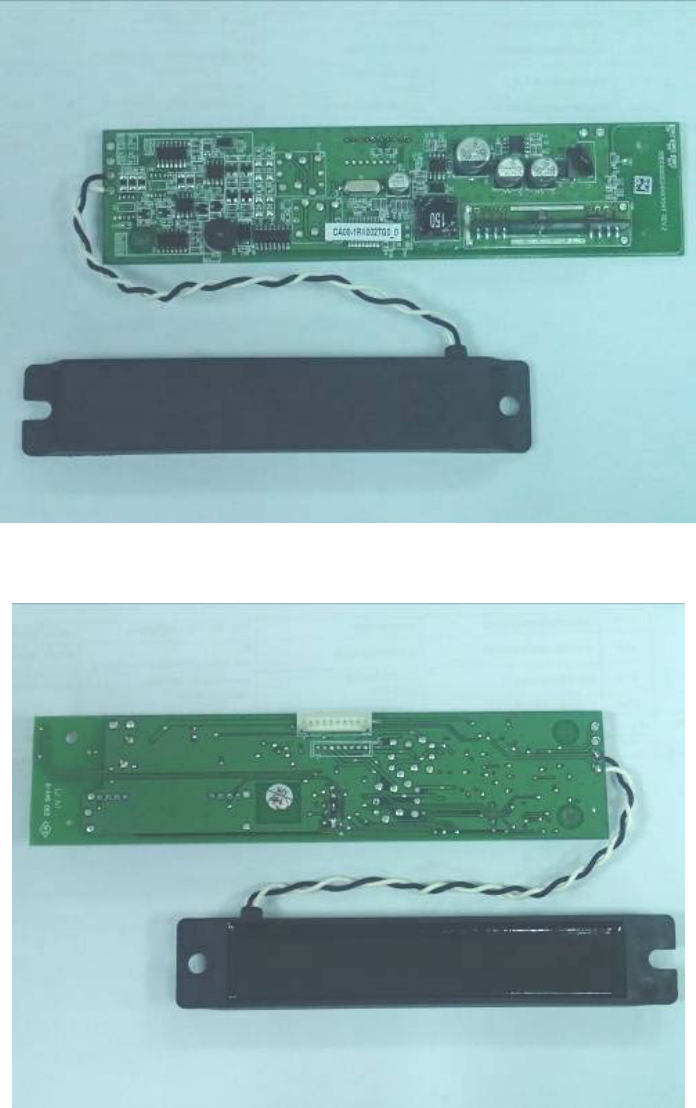

P.C.B (Front)：
P.C.B (Back)：
4
REMOTE KEYLESS BASE STATION
Model Name: REMOTE KEYLESS BASE STATION
Trade Name: -
Model Number: APT-RX001
L.O freq: 4MHz
Electrical Specifications Characteristics：
Item Specifications Remarks
Rated voltage DC12V -
Operation voltage DC12V±3V -
<20mA(max)@12VDC Passive mode
Dark current <50mA(max)@12VDC Active mode
RF receiving frequency 315MHz ± 150KHz -
LF transmitting frequency 125KHz ± 1KHz -
Transmission standard ISO14443A -
Communication format Wiegand 34bits -
Operating temperature range -10℃~+60℃ -
Storage temperature range -10℃~+60℃ -

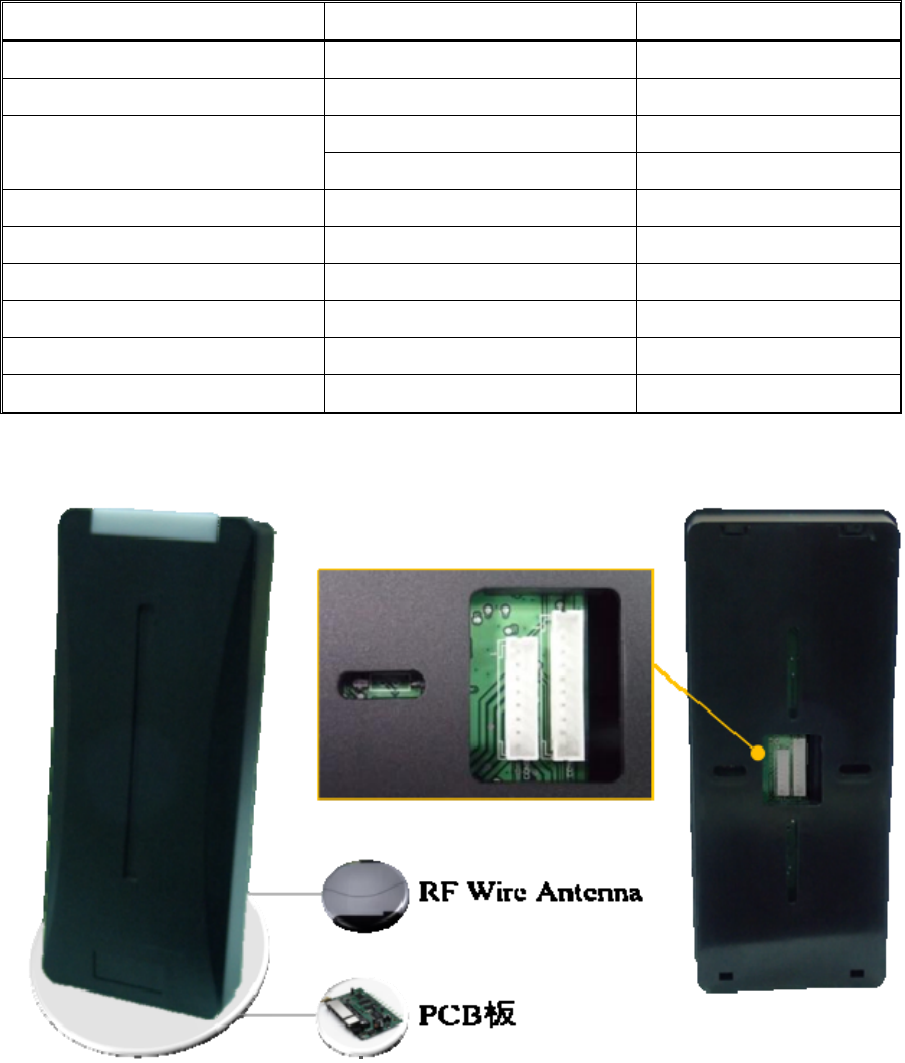

PHOTOGRAPHS：
5
REMOTE KEYLESS BASE STATION
Model Name: REMOTE KEYLESS BASE STATION
Trade Name: -
Model Number: APT-RX001
L.O freq: 4MHz

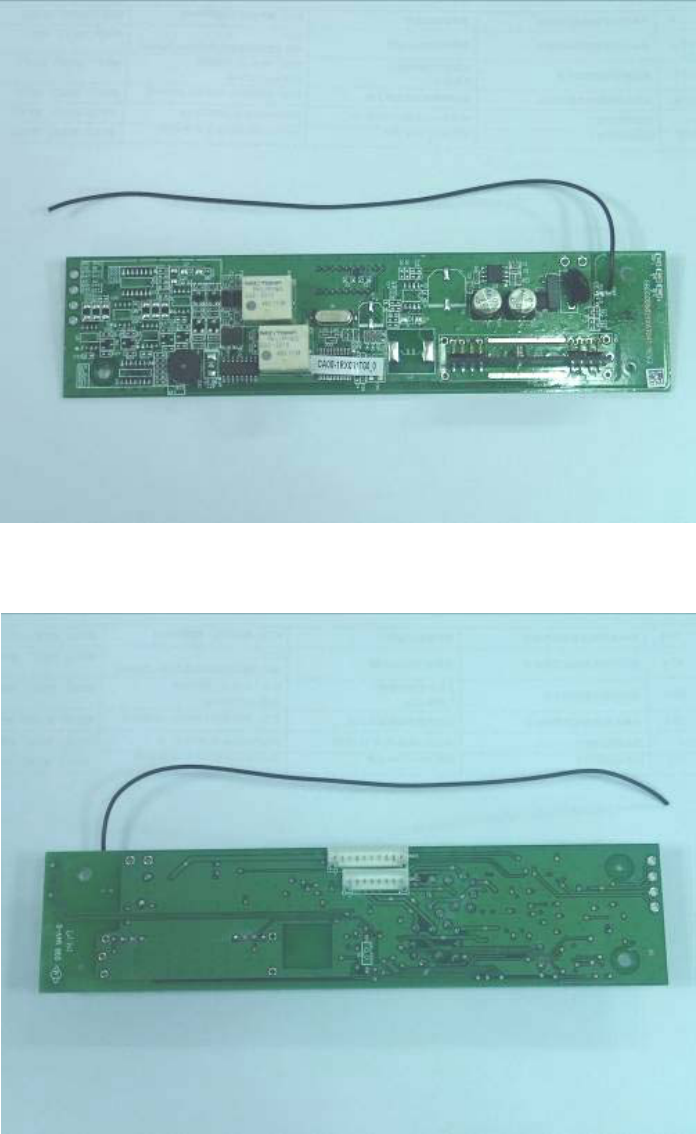

P.C.B (Front)：
P.C.B (Back)：
7
SMART KEYLESS KEYFOB
Model Name: SMART KEYLESS KEYFOB
Trade Name: -
Model Number: CA00-1TX001TG0
L.O freq: 4MHz(MCU Internal oscillator)
Electrical Specifications Characteristics：
Item Specifications Remarks
Rated voltage DC3V -
Operating current <8mA(max) -
Dark current <8uA(max) -
RF receiving frequency 315MHz ± 150KHz -
LF transmitting frequency 125KHz ± 1KHz -
Battery Type CR2032 -
Operating temperature range -10℃~+60℃ -
Storage temperature range -10℃~+60℃ Without batteries

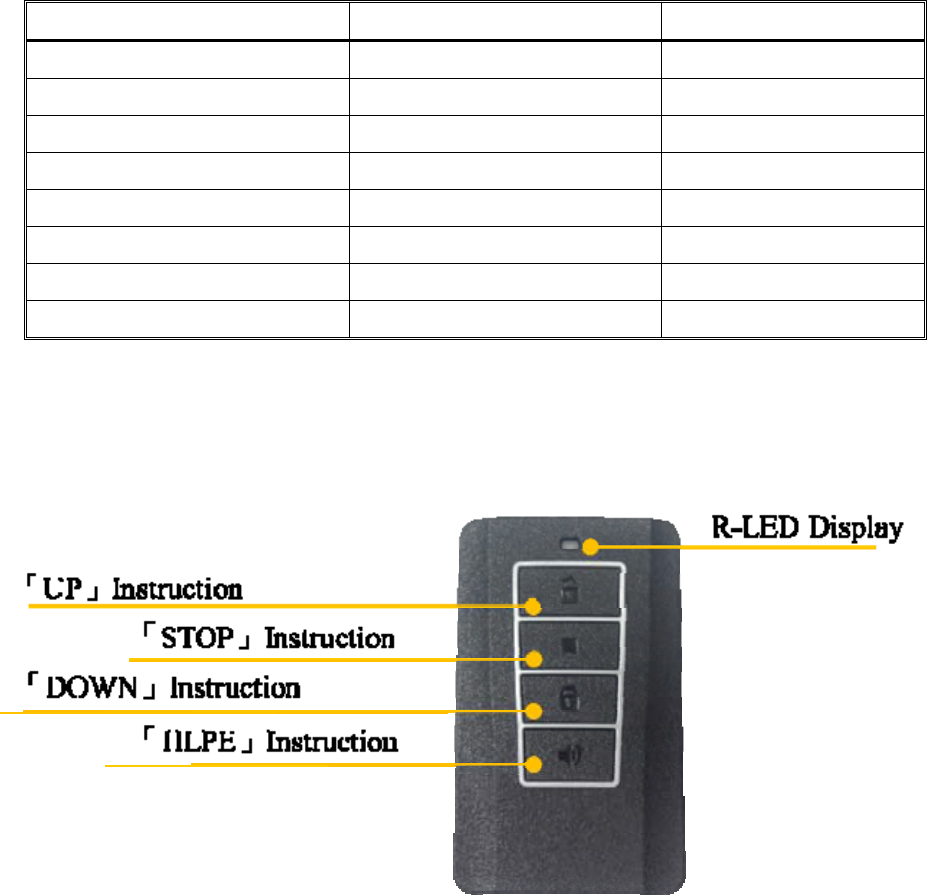

Photographs：
8
SMART KEYLESS KEYFOB
Model Name: SMART KEYLESS KEYFOB
Trade Name: -
Model Number: CA00-1TX001TG0
L.O freq: 4MHz(MCU Internal oscillator)

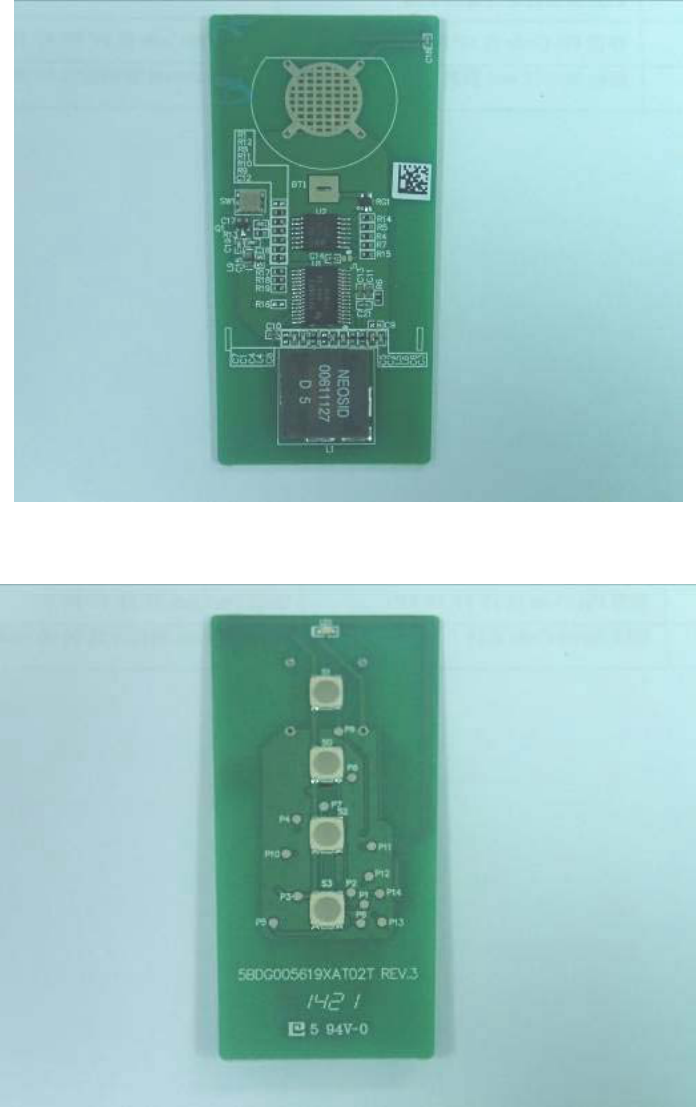

P.C.B (Front)：
P.C.B (Back)：
11
Cautions:
To prevent electric shock or short circuit damage, please ask a qualified technician for installing.
Please use an independent power supply so that the failure caused by the unstable power will not
occur.
Metal will block the radio signal. Therefore, stay away from metal when installing the product.
Remote control distance will also become shorter when there is a same frequency signal around.
Adjacent products should be separated at least 3 meters.
If there is a malfunction of the product, please contact the service department.
FCC Notices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
CAUTION: Change or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
RF exposure warning:
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment. The equipment must not be co-located or operating in conjunction with any
other antenna or transmitter.
