MICROWAVE HOOD COMBINATION SAFETY
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
When using electrical appliances basic safety precautions should be followed, including the following:
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of burns, electric shock, fire,
injury to persons, or exposure to excessive microwave energy:
Read all instructions before using the microwave oven.
Read and follow the specific “PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY” found in this section.
The microwave oven must be grounded. Connect only to
properly grounded outlet. See “GROUNDING INSTRUCTIONS”
found in this section and in the provided Installation Instructions.
Install or locate the microwave oven only in
accordance with the provided Installation Instructions.
Some products such as whole eggs in the shell and
sealed containers - for example, closed glass jars -
are able to explode and should not be heated in the
microwave oven.
W10918338A
2
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Use the microwave oven only for its intended use as
described in the manual. Do not use corrosive chemicals or
vapors in the microwave oven. This type of oven is
specifically designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
As with any appliance, close supervision is necessary when
used by children.
Do not operate the microwave oven if it has a damaged cord
or plug, if it is not working properly, or if it has been damaged
or dropped.
The microwave oven should be serviced only by qualified
service personnel. Call an authorized service company for
examination, repair, or adjustment.
Do not cover or block any openings on the microwave oven.
Do not store this microwave oven outdoors. Do not use the
microwave oven near water - for example, near a kitchen
sink, in a wet basement, near a swimming pool, or similar
locations.
Do not immerse cord or plug in water.
Keep cord away from heated surfaces.
Do not let cord hang over edge of table or counter.
See door surface cleaning instructions in the “Microwave
Oven Care” section.
To reduce the risk of fire in the oven cavity:
– Do not overcook food. Carefully attend the microwave oven
when paper, plastic, or other combustible materials are
placed inside the oven to facilitate cooking.
– Remove wire twist-ties from paper or plastic bags before
placing bags in oven.
– If materials inside the oven ignite, keep oven door closed,
turn oven off, and disconnect the power cord, or shut off
power at the fuse or circuit breaker panel.
– Do not use the cavity for storage purposes. Do not leave
paper products, cooking utensils, or food in the cavity when
not in use.
Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to
be boiling. Visible bubbling or boiling when the container
is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE CONTAINER
IS DISTURBED OR A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
– Do not overheat the liquid.
– Stir the liquid both before and halfway through heating it.
– Do not use straight-sided containers with narrow necks.
– After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
– Use extreme care when inserting a spoon or other
utensil into the container.
Do not mount over a sink.
Do not store anything directly on top of the microwave
oven when the microwave oven is in operation.
Clean Ventilating Hoods Frequently - Grease should not
be allowed to accumulate on hood or filter.
When flambéing foods under the hood, turn the fan on.
Suitable for use above both gas and electric cooking
equipment.
Intended to be used above ranges with maximum width of
36" (91.44 cm).
Use care when cleaning the vent-hood filter. Corrosive
cleaning agents, such as lye-based oven cleaners, may
damage the filter.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
(b) Do not place any object between the oven front face and
the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there
is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
3
Electrical Requirements
Observe all governing codes and ordinances.
Required:
A 120-volt, 60 Hz, AC-only, 15- or 20-amp electrical supply
with a fuse or circuit breaker.
Recommended:
A time-delay fuse or time-delay circuit breaker.
A separate circuit serving only this microwave oven.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
For all cord connected appliances:
The microwave oven must be grounded. In the event of
an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric
current. The microwave oven is equipped with a cord
having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed
and grounded.
WARNING: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions are
not completely understood, or if doubt exists as to whether
the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord is
too short, have a qualified electrician or serviceman install
an outlet near the microwave oven.
This device complies with Part 18 of the FCC Rules.
OPERATING YOUR MICROWAVE OVEN
IMPORTANT: If there are 2 packing spacers on top of the vent grille, remove them before using the microwave oven.

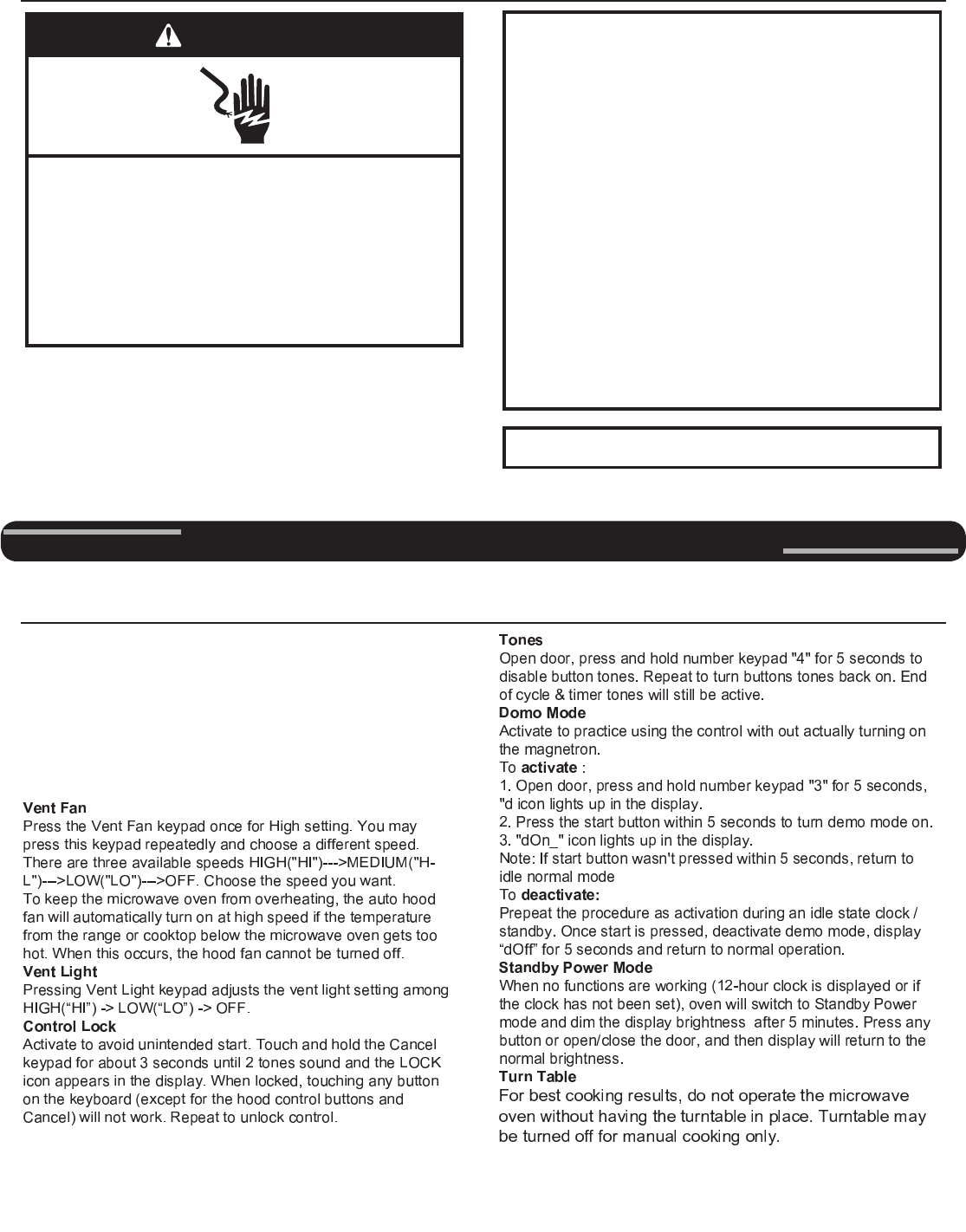

Settings
Clock
The clock is a 12-hour (12:00-11:59) clock. Touch CLOCK, enter
time, then touch CLOCK or the Start control.
Timer
With the microwave oven in Standby mode, touch the Timer
control, enter time, then touch the Timer control or the Start
control. Cook functions may be entered while the Timer is
counting down. To cancel timer, touch Timer control while the
Timer countdown is active in the display.
Control Lock
Activate to avoid unintended start. Touch and hold the Cancel
control for about 3 seconds until 2 tones sound and Padlock icon
appears in the display. Repeat to unlock control.
Vent Fan
High (“SPd2”), low (“SPd1”), and off. Comes on automatically as
cooling fan during any cook function.
Vent Timer (on some models): Set vent fan to run for exactly
30 minutes or to run for only 30 minutes more (off after
30 minutes). The vent fan may be turned off at any time using the
Vent Fan control. Touch and hold number keypad “4” for about
3 seconds, until a tone sounds and the vent fan turns on.
Tones
Programming tones and signals. Programming tones may be
turned off, or all tones (including end-of-function signals) may be
turned off. To turn off programming tones, touch and hold number
keypad “1” for about 3 seconds, until a confirmation tone sounds.
Repeat to turn back on programming tones. To turn off all tones,
touch and hold number keypad “2” for about 3 seconds, until a
confirmation tone sounds. Repeat to turn back on all tones.
Demo Mode
Activate to practice using the control without actually turning on
the magnetron. Touch and hold number keypad “3” for about
3 seconds, until a confirmation tone sounds and “DEMO” icon
lights up in the display. Repeat to deactivate.
Standby Mode
When no functions are working (12-hour clock is displayed or if the
clock has not been set), oven will switch to Standby Power mode
and dim the LED brightness after 5 minutes. Press any button or
open/close the door, and then display will return to the normal
brightness.
Turntable
For best cooking results, do not operate the microwave oven
without having the turntable in place.
4
Cookware and Dinnerware
Microwave-Safe
Browning dish (Follow manufacturer recommendations.)
Ceramic glass, glass
China, earthenware (Follow manufacturer recommendations.)
Melamine (Follow manufacturer recommendations.)
Paper towels, paper plates, napkins (Use non-recycled paper.)
Plastic wraps, bags, covers, dinnerware, containers (Follow
manufacturer recommendations.)
Pottery and clay (Follow manufacturer recommendations.)
Silicone bakeware (Follow manufacturer recommendations.)
Wax paper
Do Not Use
Metal cookware and bakeware
Straw or wicker
Gold, silver, or pewter
Non-approved meat thermometers, skewers
Twist ties
Foil liners, such as sandwich wrappers
Staples
Objects with gold or silver trim or with metallic glaze
To Test Cookware/Dinnerware: Place dish in microwave oven with 1 cup (250 mL) of water beside it. Program 1 minute of cook time
at 100%. If dish becomes hot and the water stays cool, do not use the dish in the microwave oven.
Microwave Oven Use
For list of preset programs, see the Cooking Guide label on the front facing of the microwave oven opening, behind the door.

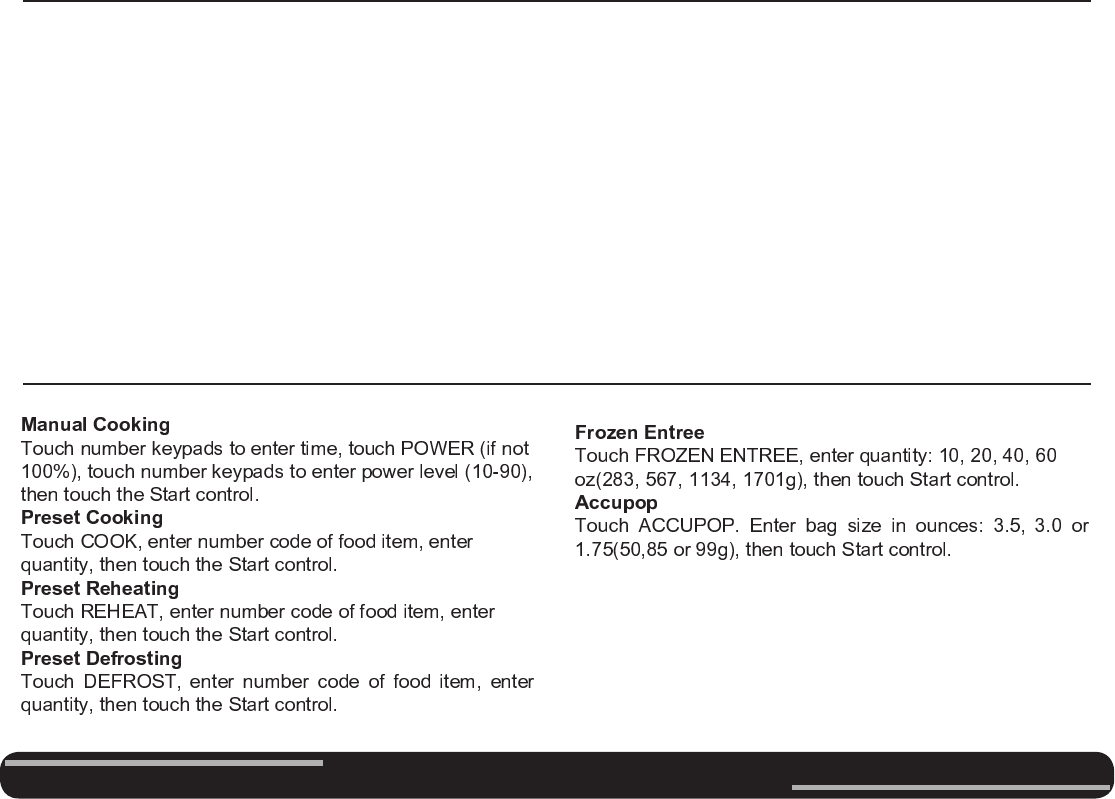

Manual Cooking/Stage Cooking
Touch COOK TIME, touch number keypads to enter time, touch
COOK POWER (if not 100%), touch number keypads to enter
power level (10-90), then touch the Start control.
If programming additional stages, enter the cook time and cook
power of each before touching the Start control.
Preset Cooking
Touch COOK, enter number code of food item, enter quantity, then
touch the Start control.
Preset Reheating
Touch REHEAT, enter number code of food item, enter quantity if
needed, then touch the Start control.
Preset Defrosting
Unwrap food. Touch DEFROST, enter number code of food item,
enter weight, then touch the Start control.
Soften/Melt
Touch SOFTEN/MELT, enter number code of food item, enter
quantity, then touch the Start control.
Popcorn
Touch POPCORN. Enter bag size in ounces: 3.0 or 3.5 (85 or 99 g),
then touch Start control.
(Baked) Potato
Touch (BAKED) POTATO. Enter number of potatoes: 1, 2, 3, or 4,
about 10 to 13 oz (283 to 367 g) each, then touch Start control.
NOTE: Place fork-pierced potatoes around turntable edges, at
least 1" (2.5 cm) apart. Place a single potato to the side of the
turntable (not in the center).
Pizza (reheat)
Touch PIZZA. Enter number of slices: 1, 2, or 3, about 4 oz (113 g)
each, then touch Start control.
MICROWAVE OVEN CARE
General Cleaning
IMPORTANT: Before cleaning, make sure all controls are OFF and
the microwave oven is cool. Always follow label instructions on
cleaning products.
To avoid damage to the microwave oven caused by arcing due
to soil buildup, keep cavity, microwave inlet cover, cooking rack
supports, and area where the door touches the frame clean.
Clean with mild soap, water, and a soft cloth or sponge or as
indicated below.
Grease filter: mild soap and water or dishwasher
Door and exterior: mild soap and water, or glass cleaner
applied to paper towel
Control panel: sponge or soft cloth and water
Stainless steel (on some models): mild soap and water, then
rinse with clean water and dry with soft cloth, or use stainless
steel cleaner.
Turntable: mild soap and water or dishwasher
Installing/Replacing Filters and Light Bulbs
Grease filters: Grease filters are on the underside of microwave
oven. Clean monthly. Slide the filter away from the tab area
and drop out the filter. To reinstall, place end of the filter into
the opening opposite the tab area, swing up the other end,
and slide it toward the tab area.
Charcoal filter: The charcoal filter is behind the vent grille at
the top front of the microwave oven. The charcoal filter cannot
be cleaned and should be replaced about every 6 months.
Remove 2 screws on the vent grille, slide the vent grille to the
left, tilt it forward, lift it out, and remove the filter. To reinstall,
place the filter into its 2-hook area with the wire mesh side to
the front. Replace the vent grille by inserting the 3 bottom latch
hooks of the vent grille into the front holes, tilt the vent grille
backwards, slide it to the right, and secure with screws.
Cooktop light: The cooktop light is located on the underside
of the microwave oven and is replaceable. Remove bulb cover
screws and open the bulb cover. Replace bulb, close bulb
cover, and secure with screws.
Cavity light: The cavity light bulb is located behind the vent
grille at the top front of the microwave oven, under the bulb
cover, and is replaceable. Remove 2 screws on the vent grille,
slide the vent grille to the left, tilt it forward, and lift it out. Open
the bulb cover and replace bulb. To reinstall, close bulb cover.
Replace the vent grille by inserting the 3 bottom latch hooks of
the vent grille into the front holes, tilt the vent grille backwards,
slide it to the right, and secure with screws.
5
Following is a list of available parts and supplies which may be purchased separately. Please refer to the “Warranty” section for
contact information.
Replacement Parts
Turntable
Turntable support and rollers
Turntable hub
Grease filter
Charcoal filter
Cooktop light bulb
Cavity light bulb
Cleaning Supplies
Heavy-duty degreaser
affresh® Kitchen Appliance Cleaner
affresh® Stainless Steel Cleaner
affresh® Stainless Steel Wipes
ACCESSORIES
TROUBLESHOOTING
First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call,
refer to the warranty page in this manual and scan the code with your mobile device, or visit http://www.whirlpool.com/product_help.
Contact us by mail with any questions or concerns at the address below:
Whirlpool Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
If you experience Recommended Solutions
Microwave oven will
not operate
Check the following:
Household fuse or circuit breaker: If a household fuse has blown or a circuit breaker has tripped, replace
the fuse or reset the circuit breaker. If the problem continues, call an electrician.
Magnetron: Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does
not heat, try the steps in the bullets below. If microwave oven still does not operate, call for service.
Door: Firmly close door. On some models, if a packaging spacer is attached to inside of the door, remove
it, then firmly close door.
If a message about the door appears in the display, the door has been closed for 5 minutes or more
without the microwave oven being started. This occurs to avoid unintended starting of the microwave
oven. Open and close the door, then start the cycle.
Control: Make sure control is set properly. Make sure Control Lock is OFF. Make sure Demo mode
(on some models) is OFF.
Packing spacers: Make sure to remove the 2 packing spacers from the top of the vent grille before using
the microwave oven.
Arcing in the
microwave oven
Check the following:
Soil buildup: Soil buildup on cavity walls, microwave inlet cover, cooking rack supports, and area
where the door touches the frame can cause arcing. See “General Cleaning” in the “Microwave Oven
Care” section.
Turntable alternates
rotation directions
This is normal and depends on motor rotation at the beginning of the cycle.
Display shows
messages
A flashing “:” or “PF” means there has been a power failure. Reset the clock.
A letter followed by a number is an error indicator. Call for assistance.
Fan running during
cooktop usage
This is normal. The microwave oven’s cooling fan, which is separate from the vent fan, automatically
comes on during microwave oven operation to cool the microwave oven. It may also automatically come
on and cycle on and off to cool the microwave oven’s controls while the cooktop below is being used.
Radio, TV, or cordless
phone interference
Check the following:
Proximity: Move the receiver away from the microwave oven, or adjust the radio or TV antenna.
Soil: Make sure the microwave oven door and sealing surfaces are clean.
Frequency: Some 2.4 GHz-based cordless phones and home wireless networks may experience static
or noise while microwave oven is ON. Use a corded phone, a different frequency cordless phone or avoid
using these items during microwave oven operation.
W10918338A
SP PN: W10918353 ®/™ ©2016 Whirlpool. All rights reserved. /16
11/14
IF YOU NEED SERVICE:
1. Before contacting us to arrange service, please determine whether your product requires repair. Some
questions can be addressed without service. Please take a few minutes to review the Troubleshooting or
Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional
resources, or visit www.whirlpool.com/product_help.
2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and
Canada, direct all requests for warranty service to:
Whirlpool Customer eXperience Center
In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.
If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.
WHIRLPOOL®
MAJOR APPLIANCE
LIMITED WARRANTY
ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED
TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you call the
Customer eXperience Center:
Name, address and telephone number
Model number and serial number
A clear, detailed description of the problem
Proof of purchase including dealer or retailer name and address
ONE YEAR LIMITED WARRANTY
WHAT IS COVERED WHAT IS NOT COVERED
For one year from the date of purchase,
when this major appliance is installed,
operated and maintained according to
instructions attached to or furnished
with the product, Whirlpool Corporation
or Whirlpool Canada LP (hereafter
“Whirlpool”) will pay for Factory
Specified Replacement Parts and repair
labor to correct defects in materials or
workmanship that existed when this
major appliance was purchased, or at
its sole discretion replace the product.
In the event of product replacement,
your appliance will be warranted for
the remaining term of the original units
warranty period.
YOUR SOLE AND EXCLUSIVE
REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN.
Service must be provided by a
Whirlpool designated service company.
This limited warranty is valid only in
the United States or Canada and
applies only when the major appliance
is used in the country in which it was
purchased. This limited warranty is
effective from the date of original
consumer purchase. Proof of original
purchase date is required to obtain
service under this limited warranty.
1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or
installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with
electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses
or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or waterlters, preservation solutions, etc.).
5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.
6. Conversion of products from natural gas or L.P. gas.
7. Damage from accident, misuse, abuse,re,oods, acts of God or use with products not approved by
Whirlpool.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service,
alteration or modification of the appliance.
9. Cosmetic damage including scratches, dents, chips, and other damage to the appliancenishes
unless such damage results from defects in materials and workmanship and is reported to Whirlpool
within 30 days.
10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including
but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
11. Food or medicine loss due to product failure.
12. Pick-up or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool
servicer is not available.
14. Removal or reinstallation of inaccessible appliances or built-inxtures (i.e. trim, decorative panels,
flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or
replacement of the product.
15. Service or parts for appliances with original model/serial numbers removed, altered or not easily
determined.
The cost of repair or replacement under these excluded circumstances shall be borne by
the customer.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow
limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific
legal rights, and you also may have other rights that vary from state to state or province to province.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations
contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you
should ask Whirlpool or your retailer about buying an extended warranty.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL
SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of
incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you
also may have other rights that vary from state to state or province to province.
www.whirlpool.com/product_help

Navigation menu
