Whirlpool Microwave Development I2205X Microwave Oven User Manual
Whirlpool Microwave Products Development Limited. Microwave Oven
Users Manual
Models/Modelos/Modèles IMH1205 IMH2205
W10464602A
MICROWAVE HOOD COMBINATION
Use and Care Guide
For questions about features, operation/performance, parts, accessories or service, call: 1-866-664-2449.
In Canada, for assistance, installation or service, call: 1-866-664-2449.
For warranty concerns, do not take the appliance back to the store. Please contact us in U.S.A. or Canada at 1-866-664-2449.
This product features a Limited Warranty - See the “Warranty”" section for complete details. IKEA appliances carry a 5 year warranty
(excludes LAGAN family - see warranty for coverage details).
NOTE: Proof of Purchase is required to obtain warranty service.
COMBINACIÓN MICROONDAS CAMPANA
Manual de uso y cuidado
Para consultas respecto a características, operación/desempeño, partes, accesorios o servicio, llame al: 1-866-664-2449.
En Canadá, para asistencia, instalación o servicio llame al: 1-866-664-2449.
Si tiene dudas acerca de la garantía, no devuelva el aparato a la tienda. Póngase en contacto con nosotros en los EE.UU. o en
Canadá al 1-866-664-2449.
Este producto tiene una garantía limitada - Consulte la sección “Garantía” para obtener todos los detalles. Los aparatos IKEA tienen
una garantía de 5 años (excluyendo los de la familia LAGAN - consulte la garantía para ver los detalles acerca de la cobertura).
NOTA: Se requiere la prueba de compra para obtener servicio bajo la garantía.
ENSEMBLE FOUR À MICRO-ONDES/HOTTE
Guide d’utilisation et d’entretien
Au Canada, pour assistance, installation ou service composez le 1-866-664-2449.
Pour toute question concernant l’application de la garantie, ne pas rapporter l’appareil au magasin. Veuillez nous contacter aux É.-U.
ou au Canada au 1-866-664-2449.
Ce produit est couvert par une garantie limitée – Voir la section “Garantie” pour des détails complets. Les appareils IKEA sont
couverts par une garantie de 5 ans (hormis les appareils de la série LAGAN - voir la garantie pour des détails concernant les
modalités de garantie).
REMARQUE : Une preuve d’achat est obligatoire pour obtenir l'application de la garantie.
Table of Contents/Índice/Table des matières ..........................2, 3
2
TABLE OF CONTENTS
WARRANTY ....................................................................................3
MICROWAVE HOOD COMBINATION SAFETY ...........................5
Electrical Requirements ...............................................................6

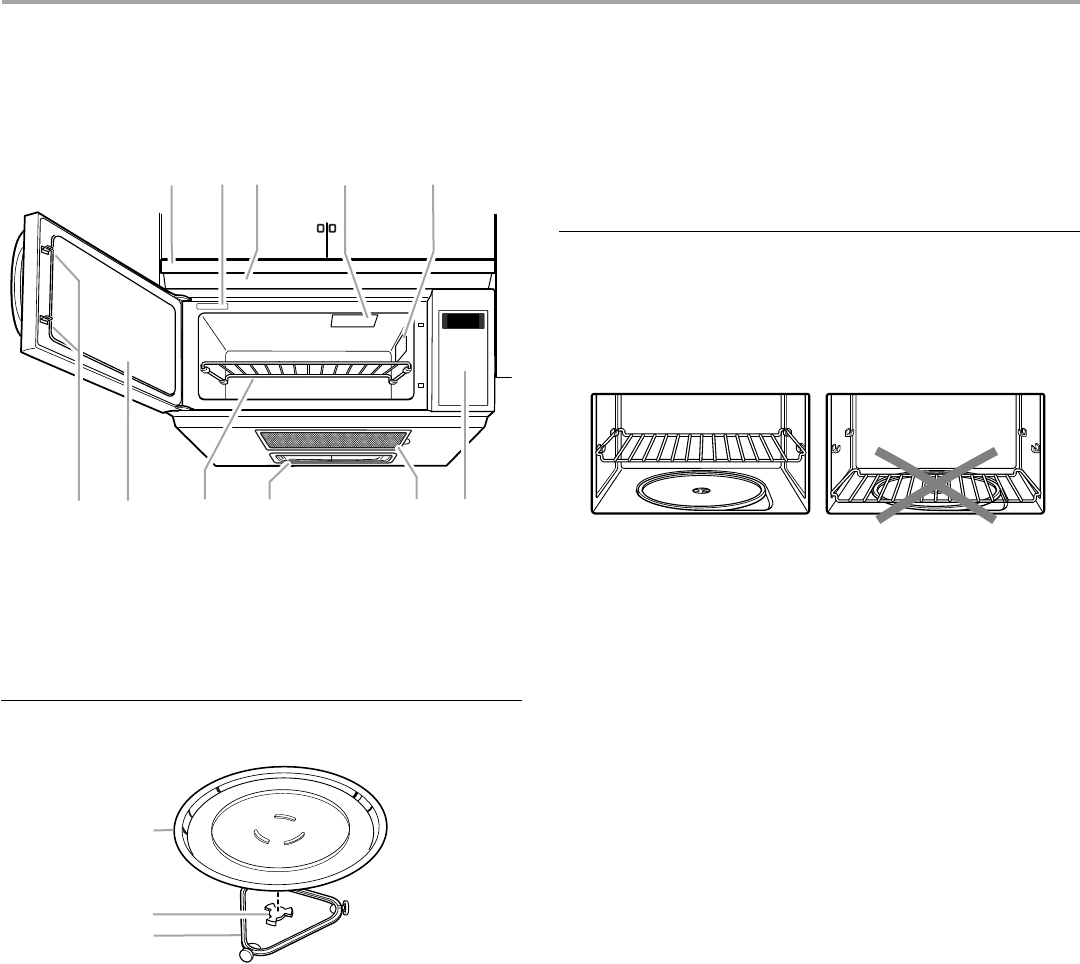

PARTS AND FEATURES................................................................7
Turntable ......................................................................................7

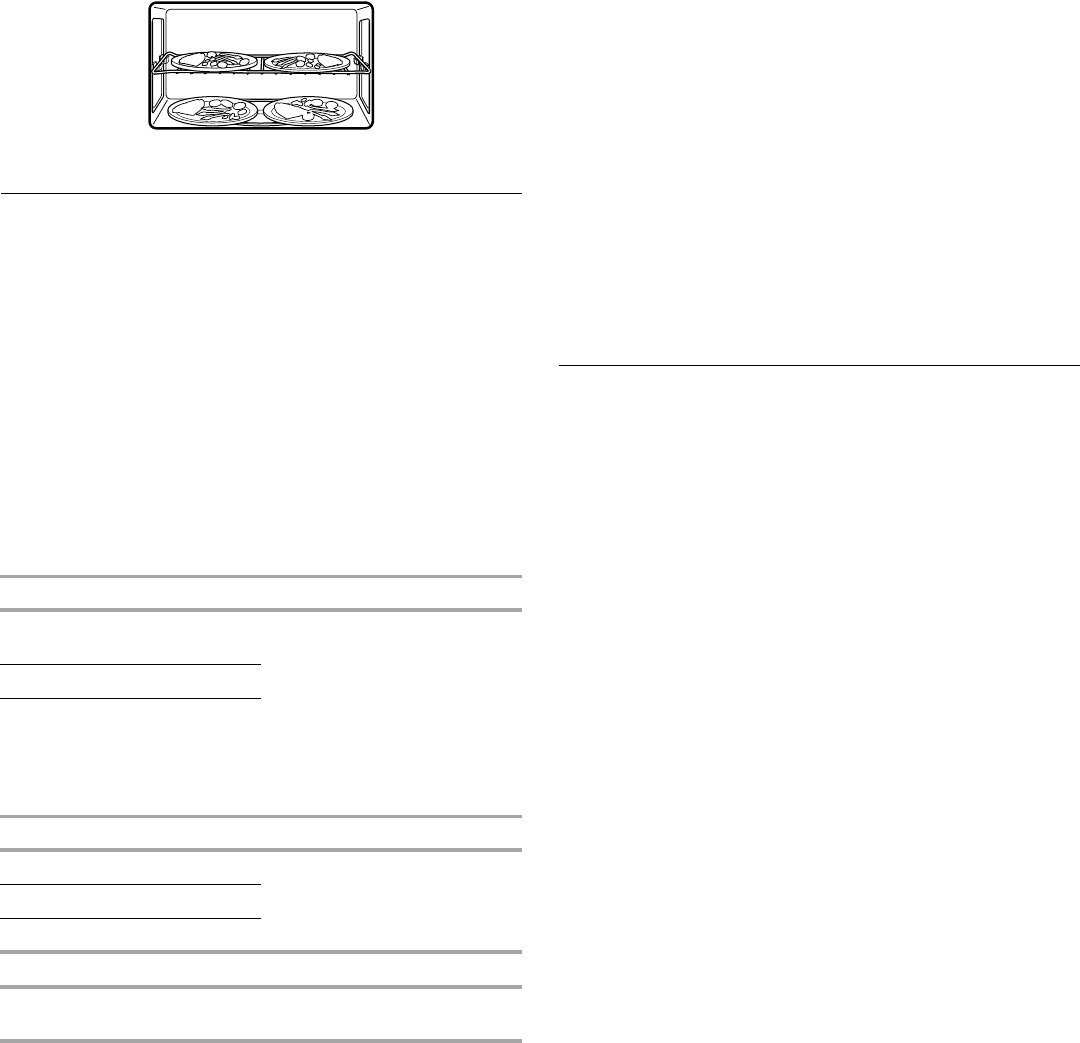

Cooking Rack...............................................................................7

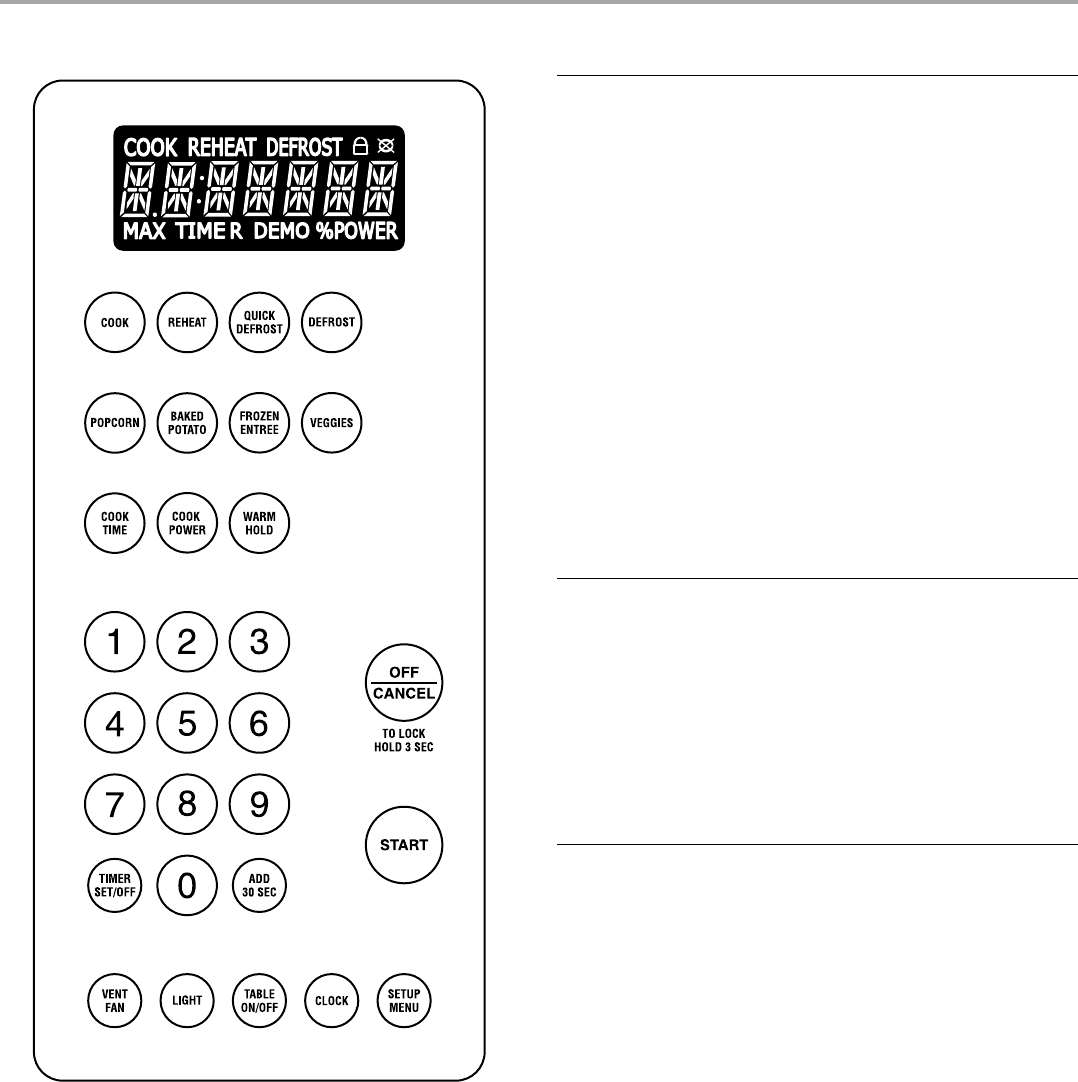

MICROWAVE OVEN CONTROL....................................................8
Display..........................................................................................8
Start..............................................................................................8
Off Cancel.....................................................................................8
Add 30 Seconds...........................................................................9
Clock ............................................................................................9
Tones............................................................................................9
Demo Mode..................................................................................9
Vent Fan .......................................................................................9
Cooktop Light...............................................................................9
Setup Menu................................................................................10
Control Lock...............................................................................10
MICROWAVE OVEN USE ............................................................11
Food Characteristics..................................................................11
Cooking Guidelines....................................................................11
Cookware and Dinnerware ........................................................12
Aluminum Foil and Metal ...........................................................12
Microwave Cooking Power........................................................12
Manual Cooking .........................................................................13
Cooking in Stages (or steps)......................................................13
Sensor Cooking..........................................................................13
Preset Cook................................................................................14
Reheat ........................................................................................14
Defrost ........................................................................................15
Quick Defrost..............................................................................15
Popcorn......................................................................................16
Baked Potato..............................................................................16
Frozen Entrée .............................................................................16
Veggies.......................................................................................16
Warm Hold..................................................................................17
MICROWAVE OVEN CARE..........................................................17
General Cleaning........................................................................17

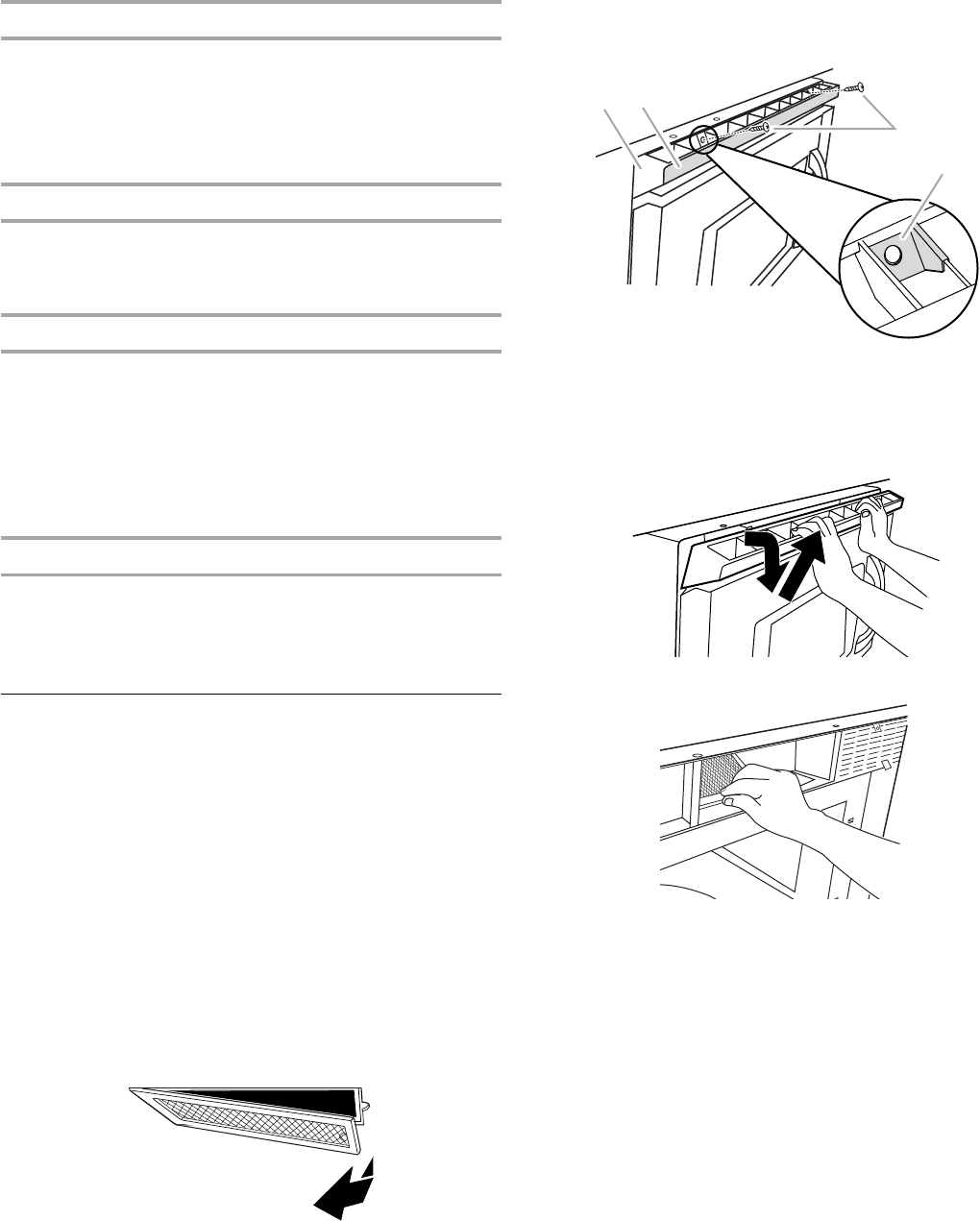

Replacing Filters.........................................................................18
Replacing Microwave Oven Light ..............................................19
Replacing Cooktop Light ...........................................................19
TROUBLESHOOTING ..................................................................19
ASSISTANCE OR SERVICE.........................................................21
In the U.S.A. ...............................................................................21
In Canada ...................................................................................21
Replacement Parts.....................................................................21
ÍNDICE
WARRANTY ....................................................................................3
MICROWAVE HOOD COMBINATION SAFETY ...........................5
Electrical Requirements ...............................................................6
PARTS AND FEATURES................................................................7
Turntable ......................................................................................7
Cooking Rack...............................................................................7
MICROWAVE OVEN CONTROL....................................................8
Display..........................................................................................8
Start..............................................................................................8
Off Cancel.....................................................................................8
Add 30 Seconds...........................................................................9
Clock ............................................................................................9
Tones............................................................................................9
Demo Mode..................................................................................9
Vent Fan .......................................................................................9
Cooktop Light...............................................................................9
Setup Menu................................................................................10
Control Lock...............................................................................10
MICROWAVE OVEN USE ............................................................11
Food Characteristics..................................................................11
Cooking Guidelines....................................................................11
Cookware and Dinnerware ........................................................12
Aluminum Foil and Metal ...........................................................12
Microwave Cooking Power........................................................12
Manual Cooking .........................................................................13
Cooking in Stages (or steps)......................................................13
Sensor Cooking..........................................................................13
Preset Cook................................................................................14
Reheat ........................................................................................14
Defrost ........................................................................................15
Quick Defrost..............................................................................15
Popcorn......................................................................................16
Baked Potato..............................................................................16
Frozen Entrée .............................................................................16
Veggies.......................................................................................16
Warm Hold..................................................................................17
MICROWAVE OVEN CARE..........................................................17
General Cleaning........................................................................17
Replacing Filters.........................................................................18
Replacing Microwave Oven Light ..............................................19
Replacing Cooktop Light ...........................................................19
TROUBLESHOOTING ..................................................................19
ASSISTANCE OR SERVICE.........................................................21
In the U.S.A. ...............................................................................21
In Canada ...................................................................................21
Replacement Parts.....................................................................21
3
TABLE DES MATIÈRES
WARRANTY ....................................................................................3
MICROWAVE HOOD COMBINATION SAFETY ...........................5
Electrical Requirements ...............................................................6
PARTS AND FEATURES................................................................7
Turntable ......................................................................................7
Cooking Rack...............................................................................7
MICROWAVE OVEN CONTROL....................................................8
Display..........................................................................................8
Start..............................................................................................8
Off Cancel.....................................................................................8
Add 30 Seconds...........................................................................9
Clock ............................................................................................9
Tones............................................................................................9
Demo Mode..................................................................................9
Vent Fan .......................................................................................9
Cooktop Light...............................................................................9
Setup Menu................................................................................10
Control Lock...............................................................................10
MICROWAVE OVEN USE ............................................................11
Food Characteristics..................................................................11
Cooking Guidelines....................................................................11
Cookware and Dinnerware ........................................................12
Aluminum Foil and Metal ...........................................................12
Microwave Cooking Power........................................................12
Manual Cooking .........................................................................13
Cooking in Stages (or steps)......................................................13
Sensor Cooking..........................................................................13
Preset Cook................................................................................14
Reheat ........................................................................................14
Defrost ........................................................................................15
Quick Defrost..............................................................................15
Popcorn......................................................................................16
Baked Potato..............................................................................16
Frozen Entrée .............................................................................16
Veggies.......................................................................................16
Warm Hold..................................................................................17
MICROWAVE OVEN CARE..........................................................17
General Cleaning........................................................................17
Replacing Filters.........................................................................18
Replacing Microwave Oven Light ..............................................19
Replacing Cooktop Light ...........................................................19
TROUBLESHOOTING ..................................................................19
ASSISTANCE OR SERVICE.........................................................21
In the U.S.A. ...............................................................................21
In Canada ...................................................................................21
Replacement Parts.....................................................................21
IKEA MAJOR APPLIANCE WARRANTY
How long is the IKEA limited warranty valid?
This limited warranty is valid for five years from the date of purchase, when this major appliance is operated and maintained according
to instructions attached to or furnished with the product, unless the appliance is named LAGAN in which case this limited warranty is
valid for one year from the date of purchase. This limited warranty is valid only in the United States or Canada and applies only when the
major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this
limited warranty.
Which appliances are not covered by the IKEA five (5) year limited warranty?
For major appliances named “LAGAN,” this limited warranty is valid for one year from the date of purchase.
Who will execute the service?
This limited warranty is provided by Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”). Service must be provided by
a Whirlpool designated service company.
What does this limited warranty cover?
The limited warranty will pay for factory specified parts and repair labor to correct defects in materials or workmanship that existed
when the major appliance was purchased. The exceptions are specified under the headline “What is not covered under this limited
warranty?”.
What will be done to correct the problem?
The designated service company will examine the product and decide, at its sole discretion, if it is covered under this limited warranty.
If considered covered, the designated service company will then repair the defect. Your sole and exclusive remedy under this limited
warranty shall be product repair as provided herein.
What is not covered under this limited warranty?
■Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or
repair house fuses, or to correct house wiring or plumbing.
■Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty
coverage.
■Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used
in a manner that is inconsistent to published user or operator instructions and/or installation instructions.
■Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in
accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved for use.
■Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage
results from defects in materials or workmanship and is reported within 30 days from the date of purchase.
4
■Any food loss or medicine loss due to refrigerator or freezer product failures.
■Pick up and delivery. This major appliance is intended to be repaired in your home.
■Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
■Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an
authorized servicer is not available.
■The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with
published installation instructions.
■Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered or cannot
be easily determined.
The cost of repair or replacement under these excluded circumstances shall be borne by the customer.
Disclaimer of Implied Warranties
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS (ONE YEAR FOR MAJOR APPLIANCES NAMED “LAGAN”) OR THE
SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of
merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have
other rights that vary from state to state or province to province.
Limitation of Remedies; Exclusion of Incidental and Consequential Damages
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.
WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
How to reach us if you need our service
If outside the 50 United States and Canada, contact your authorized IKEA retailer to determine if another warranty applies.
If you need service, please read the Installation Instructions and/or the “Troubleshooting” section of the Use & Care Guide before
contacting us. If you need additional help, do not hesitate to contact us in the U.S.A. and Canada at 1-866-664-2449. 2/09
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your major appliance
to better help you obtain assistance or service if you ever need it.
You will need to know your complete model number and serial
number. You can find this information on the model and serial
number label located on the product.
Dealer name____________________________________________________
Address ________________________________________________________
Phone number__________________________________________________
Model number __________________________________________________
Serial number __________________________________________________
Purchase date __________________________________________________
5
MICROWAVE HOOD COMBINATION SAFETY
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
When using electrical appliances basic safety precautions should be followed, including the following:
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of burns, electric
shock, fire, injury to persons, or exposure to excessive
microwave energy:
■ Read all instructions before using the microwave oven.
■ Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found in this section.
■ The microwave oven must be grounded. Connect only
to properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found in this section and in the
provided Installation Instructions.
■ Install or locate the microwave oven only in
accordance with the provided Installation Instructions.
■ Some products such as whole eggs in the shell and
sealed containers – for example, closed glass jars –
are able to explode and should not be heated in the
microwave oven.
■ Use the microwave oven only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in the microwave oven. This type
of oven is specifically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory use.
■ As with any appliance, close supervision is necessary
when used by children.
■ Do not operate the microwave oven if it has a
damaged cord or plug, if it is not working properly, or
if it has been damaged or dropped.
■ The microwave oven should be serviced only by
qualified service personnel. Call an authorized service
company for examination, repair, or adjustment.
■ See door surface cleaning instructions in the
“Microwave Oven Care” section.
■ To reduce the risk of fire in the oven cavity:
– Do not overcook food. Carefully attend the microwave oven
when paper, plastic, or other combustible materials are placed
inside the oven to facilitate cooking.
– Remove wire twist-ties from paper or plastic bags before
placing bags in oven.
– If materials inside the oven ignite, keep oven door closed, turn
oven off, and disconnect the power cord, or shut off power at
the fuse or circuit breaker panel.
– Do not use the cavity for storage purposes. Do not leave
paper products, cooking utensils, or food in the cavity when
not in use.
■ Liquids, such as water, coffee, or tea are able to be overheated
beyond the boiling point without appearing to be boiling. Visible
bubbling or boiling when the container is removed from the
microwave oven is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
– Do not overheat the liquid.
– Stir the liquid both before and halfway through heating it.
– Do not use straight-sided containers with narrow necks.
– After heating, allow the container to stand in the microwave
oven for a short time before removing the container.
– Use extreme care when inserting a spoon or other utensil into
the container.
■ Oversized foods or oversized metal utensils should not be
inserted in the microwave oven as they may create a fire or risk
of electric shock.
■ Do not clean with metal scouring pads. Pieces can burn off the
pad and touch electrical parts involving a risk of electric shock.
6
Electrical Requirements
Observe all governing codes and ordinances.
Required:
■A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply
with a fuse or circuit breaker.
Recommended:
■A time-delay fuse or time-delay circuit breaker.
■A separate circuit serving only this microwave oven.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
■ Suitable for use above both gas and electric cooking
equipment.
■ Intended to be used above ranges with maximum width of
36" (91.44 cm).
■ Clean Ventilating Hoods Frequently - Grease should not
be allowed to accumulate on hood or filter.
■ Do not use paper products when appliance is operated in
convection, combination, grill or “PAN BROWN” mode (on
models with such features).
■ Do not store any materials, other than manufacturer’s
recommended accessories, in this oven when not in use.
■ Do not store anything directly on top of the microwave
oven when the microwave oven is in operation.
■ When flambeing foods under the hood, turn the fan on.
■ Use care when cleaning the vent-hood filter. Corrosive
cleaning agents, such as lye-based oven cleaners, may
damage the filter.
■ Do not cover or block any openings on the microwave oven.
■ Do not store this microwave oven outdoors. Do not use the
microwave oven near water - for example, near a kitchen
sink, in a wet basement, or near a swimming pool, or similar
locations.
■ Do not immerse cord or plug in water.
■ Keep cord away from heated surfaces.
■ Do not let cord hang over edge of table or counter.
■ Do not mount over a sink.
■ Do not cover racks or any other part of the oven with metal
foil. This will cause overheating of the oven.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
(b) Do not place any object between the oven front face and
the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there
is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
■ For all cord connected appliances:
The microwave oven must be grounded. In the event of
an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric
current. The microwave oven is equipped with a cord
having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed
and grounded.
WARNING: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions are
not completely understood, or if doubt exists as to whether
the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord is
too short, have a qualified electrician or serviceman install
an outlet near the microwave oven.
This device complies with Part 18 of the FCC Rules.
7
PARTS AND FEATURES
This manual may cover several different models. The model you
have purchased may have some or all of the features shown here.
The appearance of your particular model may differ slightly from
the illustrations in this manual.
Turntable
The turntable can rotate in either direction to help cook food
more evenly. For best cooking results, do not operate the
microwave oven without having the turntable in place. See
“Assistance or Service” to reorder any of the parts.
To Install:
1. Remove tape from the hub.
2. Place the support on the microwave oven cavity bottom.
3. Place the turntable on the support.
Fit the raised, curved lines in the center of the turntable
bottom between the three spokes of the hub. The rollers on
the support should fit inside the turntable bottom ridge.
Turning Off the Turntable
The turntable can be turned off for manual cooking cycles only.
This is helpful when cooking with plates that are larger than the
turntable, or when cooking with 2 plates that are side by side.
To Turn Off: Touch TURNTABLE ON/OFF. A “turntable off” icon
will appear in the display. The turntable will turn back on
automatically when cooking is over or OFF CANCEL is touched.
Cooking Rack
The cooking rack is ideal for two-level cooking. It provides extra
cavity space for cooking 2 or more containers at the same time.
Insert the rack securely into the rack supports on the side walls of
the microwave oven. See “Assistance or Service” section to
order replacement parts.
■When not using the rack for cooking, remove it from the
microwave oven. Damage to the microwave oven could result
if someone unintentionally turns on the microwave oven.
■Rack will become hot. Always use oven mitts or pot holders
when handling.
■To avoid damage to the microwave oven, do not allow the
rack to touch the inside cavity walls, ceiling or floor.
■Use the rack only when cooking on 2 levels.
■To avoid damage to the microwave oven, do not use metal
cookware, utensils, or a browning dish with the rack.
■To avoid damage to the microwave oven, do not let food
container on rack touch the top or sides of the microwave
oven.
■Remove rack before using Popcorn function.
■Do not cook food directly on the rack. Always use a
microwave-safe container.
■The rack is designed specifically for this microwave oven. Do
not attempt to use any other rack in this microwave oven.
■To avoid damage to the microwave oven due to soil buildup,
clean rack supports often (see “General Cleaning” section).
A. Vent grille
B. Model and serial number plate
C. Charcoal filter (behind vent grille)
D. Microwave oven light
E. Microwave inlet cover
F. Door lock system
G. Window
H. Cooking rack
I. Cooktop light
J. Grease filter
K. Control panel
Parts and Features not shown
Turntable
A. Turntable
B. Hub
C. Support
A B C D E
F G H I J K
A
B
C
8
MICROWAVE OVEN CONTROL
Display
When power is first supplied to the microwave oven, the
language prompt (“PRESS 1-ENGL 2-FRNCH”) will scroll across
the display. Follow the prompts to select the language, then
follow the subsequent prompts to set the clock.
If an invalid value is entered, the invalid entry tones will sound,
and the input prompt will scroll again in the display. Retry your
entry. If no inputs are entered, the microwave oven will go into
standby mode, the “:” will blink in the display, and the language
will default to English. The display language may be changed
using the Setup Menu. See “Setup Menu” section.
If the blinking colon (“:”) appears at any other time, a power
failure has occurred. See “Clock” section for clock setting
instructions. See “Setup Menu” section for language changing
instructions.
When the microwave oven is in use, the display shows the
cooking power, cook time remaining, operating function,
quantities, weights and/or prompts. Then the microwave oven is
not in use (in standby mode), the display shows the time of day (if
clock is set) or Timer countdown (if Timer has been activated).
The speed of the scrolling text may be adjusted, if necessary. See
“Setup Menu” section for instructions.
Start
The START control begins any function. If it is not touched within
5 seconds after touching a function control or a number pad,
“PRESS START OR COOK POWER” will scroll in the display as a
reminder. If cooking is interrupted by opening the door, touching
START will resume the preset cycle.
NOTE: To avoid unintentional operation of the microwave oven,
a cooking function cannot be started if the microwave oven door
has been closed for about 5 minutes. “OPEN AND CLOSE
DOOR” will scroll in the display as a reminder. Open and close
the door, then touch START.
Off Cancel
The OFF CANCEL control clears any incorrect command, and
cancels the program during cooking. It will not erase the time
of day.
The microwave oven will also turn off when the door is opened.
Close the door and touch START to resume the cycle.
The OFF CANCEL control is also used to lock and unlock the
control panel. See “Control Lock” section.
9
Add 30 Seconds
The ADD 30 SEC control automatically starts the microwave oven
at 100% power for 30 seconds, and adds 30 seconds of cook
time, up to 10 minutes, with each additional touch of the control.
Touching ADD 30 SEC during a manual cook cycle will add
30 seconds of cook time at the current cook power.
NOTE: To avoid unintentional operation of the microwave oven,
a cooking function cannot be started if the microwave oven door
has been closed for about 5 minutes. “OPEN AND CLOSE
DOOR” will scroll in the display as a reminder. Open and close
the door, then touch ADD 30 SEC.
Clock
This is a standard 12-hour clock (12:00-11:59) with a.m. and p.m.
To Set:
The microwave oven and timer must be off (in standby mode).
1. Touch CLOCK.
2. Touch the number pads to set the time of day.
3. Touch CLOCK or START.
To Remove:
1. Touch CLOCK.
2. Touch 0.
3. Touch CLOCK.
The time will disappear, and “:” will appear on the display.
Tones
Tones are audible signals that can be turned off using the Setup
Menu. See “Setup Menu” section. These tones indicate the
following:
One tone
■Valid entry (short tone)
■End of Timer countdown
■Reminder, repeat each minute after end-of-Timer tone
Two tones
■End of stage in multistage cooking
■Control Lock active
■Hidden feature has been entered or exited
■Reminder, repeat each minute after the end-of-cycle tones
Three tones
■Invalid entry (short tones)
■Turn, stir, add or remove food
Four tones
■End of cycle
■Attention (door open during sensing) (short tones)
Demo Mode
The Demo Mode is ideal for learning how to use the microwave
oven. When set, functions can be entered, with real displays and
tones, without actually turning on the microwave generator
(magnetron). While functions are operating in the Demo Mode,
the microwave oven light will come on, the fan will run, and the
turntable will rotate (if set ON).
While the Demo Mode is active, the DEMO indicator is shown in
the display. During cook functions that are operating in Demo
mode, the DEMO indicator will blink. If a control pad is touched
after 5 minutes of inactivity, a reminder will scroll in the display.
To Activate/Deactivate Demo Mode: Touch SETUP MENU and
follow the prompts for “DEMO MODE.” See “Setup Menu”
section.
Vent Fan
The vent (exhaust) fan has 3 speeds: high, medium and low.
The vent fan is also the cooling fan, and will start at low speed
when any cooking function begins. It will remain on until the
cooking function ends.
To keep the microwave oven from overheating, the vent fan will
automatically turn on at high speed if the temperature from the
range or cooktop below the microwave oven gets too hot. It may
stay on for up to 5 minutes to cool the microwave oven. When
this occurs, the vent fan cannot be turned off. If the vent fan pad
is touched during automatic fan operation, “AUTO FAN IS ON,
FAN SPEED WILL REMAIN ON UNTIL HEAT IS NO LONGER
SENSED” will scroll in the display as a reminder.
During automatic cooling, sensor functions may be temporarily
disabled until microwave oven has been cooled.
To Turn Vent Fan On/Off: Touch VENT FAN pad once for high,
twice for medium, 3 times for low or 4 times for off.
Vent Timer
The vent fan may be set to run for 30 minutes, then shut off
automatically by touching SETUP MENU, and following the
prompts for “VENT TIMER.” See “Setup Menu” section.
Filters
The “CLEAN/CHANGE FILTERS” message may scroll in the
display when the VENT FAN pad is touched. See “Replace
Filters” section for information on filter maintenance.
After filters are replaced, reset the filter status by touching SETUP
MENU, and following the prompts for “FILTER RESET.” See
“Setup menu” section.
Cooktop Light
The cooktop light has 3 settings: high, low and off.
To Turn Light On/Off: Touch LIGHT pad once for high, twice for
low or 3 times for off.
Light Timer
NOTE: Clock must be set in order to use this feature.
The cooktop light may be programmed to turn on and off at
certain times daily. Program the light on and off times, and/or set
the light timer on or off by touching SETUP MENU, and following
the prompts to “LIGHT TIMER.” See “Setup Menu” section.
10
Setup Menu
Microwave oven features may be activated/deactivated and
settings may be adjusted using the SETUP MENU control. During
setup, the display prompts will guide you through each setting
selection. Following is a brief description of each setup option.
*The “CANCEL LIGHT TIMER” option is available after initial light
timer setup.
To Use SETUP MENU:
1. With microwave oven in standby mode, touch SETUP MENU.
The list of options will scroll in the display.
2. Touch SETUP MENU repeatedly until the desired option is
displayed,
or
Touch number pad of desired option.
The available option settings will scroll in the display
3. Follow the prompts to select the desired settings.
4. Touch START, when prompted, to confirm selections.
Control Lock
The Control Lock shuts down the control panel pads to avoid
unintended use of the microwave oven.
When the control is locked, only the Vent Fan and Light pads will
function. If any other control pad is touched, “LOCKED” will
appear in the display and the invalid entry tones will sound.
To Lock/Unlock Control: The microwave oven must be in
standby mode. Touch and hold OFF CANCEL for 3 seconds until
2 tones sound and a padlock icon appears in the display. Repeat
to unlock and remove the padlock icon from display.
OPTION DESCRIPTION/SETTINGS
1-Vent Timer Turn of or off vent timer.
See “Vent Fan” section.
2-Light Timer Setup light timer (set time on and time off), or
cancel light timer*.
See “Cooktop Light” section.
NOTE: Clock must be set in order to use this
feature.
3-Filter Reset Reset filter status.
See “Replace Filters” section.
4-Sound On/Off Turn on or off “KEY SOUND” (valid/invalid
entry tones), or turn on or off “ALL SOUND”
(all tones).
See “Tones” section.
5-Scroll Speed Adjust speed of scrolling text to slow, normal
or fast.
6-Demo Mode Turn Demo Mode on or off.
See “Demo Mode” section.
7-Language Change display language to English or
French.
11
MICROWAVE OVEN USE
A magnetron in the microwave oven produces microwaves which
reflect off the metal floor, walls and ceiling and pass through the
turntable and appropriate cookware to the food. Microwaves are
attracted to and absorbed by fat, sugar and water molecules in
the food, causing them to move, producing friction and heat
which cooks the food.
■To avoid damage to the microwave oven, do not lean on or
allow children to swing on the microwave oven door.
■To avoid damage to the microwave oven, do not operate
microwave oven when it is empty.
■Baby bottles and baby food jars should not be heated in
microwave oven.
■Clothes, flowers, fruit, herbs, wood, gourds, paper, including
brown paper bags and newspaper, should not be dried in
microwave oven.
■Paraffin wax will not melt in the microwave oven because it
does not absorb microwaves.
■Use oven mitts or pot holders when removing containers from
microwave oven.
■Do not overcook potatoes. At the end of the recommended
cook time, potatoes should be slightly firm. Let potatoes
stand for 5 minutes. They will finish cooking while standing.
■Do not cook or reheat whole eggs inside the shell. Steam
buildup in whole eggs may cause them to burst, requiring
significant cleanup of microwave oven cavity. Cover poached
eggs and allow a standing time.
Food Characteristics
When microwave cooking, the amount, size and shape, starting
temperature, composition and density of the food affect cooking
results.
Amount of Food
The more food heated at once, the longer the cook time needed.
Check for doneness and add small increments of time if
necessary.
Size and Shape
Smaller pieces of food will cook more quickly than larger pieces,
and uniformly shaped foods cook more evenly than irregularly
shaped food.
Starting Temperature
Room temperature foods will heat faster than refrigerated foods,
and refrigerated foods will heat faster than frozen foods.
Composition and Density
Foods high in fat and sugar will reach a higher temperature, and
will heat faster than other foods. Heavy, dense foods, such as
meat and potatoes, require a longer cook time than the same size
of a light, porous food, such as cake.
Cooking Guidelines
Covering
Covering food helps retain moisture, shorten cook time and
reduce spattering. Use the lid supplied with cookware. If a lid is
not available, wax paper, paper towels or plastic wrap approved
for microwave ovens may be used. Plastic wrap should be turned
back at one corner to provide an opening to vent steam.
Condensation on the door and cavity surfaces is normal during
heavy cooking.
Stirring and Turning
Stirring and turning redistribute heat evenly to avoid overcooking
the outer edges of food. Stir from outside to center. If possible,
turn food over from bottom to top.
Arranging
If heating irregularly shaped or different sized foods, arrange the
thinner parts and smaller sized items toward the center. If
cooking several items of the same size and shape, place them in
a ring pattern, leaving the center of the ring empty.
Piercing
Before heating, use a fork or small knife to pierce or prick foods
that have a skin or membrane, such as potatoes, egg yolks,
chicken livers, hot dogs, and sausage. Prick in several places to
allow steam to vent.
Shielding
Use small, flat pieces of aluminum foil to shield the thin pieces of
irregularly shaped foods, bones and foods such as chicken
wings, leg tips and fish tail. See “Aluminum Foil and Metal” first.
Standing Time
Food will continue to cook by the natural conduction of heat even
after the microwave cooking cycle ends. The length of standing
time depends on the volume and density of the food.
12
Cookware and Dinnerware
Cookware and dinnerware must fit on the turntable. Always use
oven mitts or pot holders when handling because any dish may
become hot from heat transferred from the food. Do not use
cookware and dinnerware with gold or silver trim. Use the
following chart as a guide, then test before using.
To Test Cookware or Dinnerware for Microwave Use:
1. Place cookware or dinnerware in microwave oven with
1 cup (250 mL) of water beside it.
2. Cook at 100% cooking power for 1 minute.
Do not use cookware or dinnerware if it becomes hot and the
water stays cool.
Aluminum Foil and Metal
Always use oven mitts or pot holders when removing dishes from
the microwave oven.
Aluminum foil and some metal can be used in the microwave
oven. If not used properly, arcing (a blue flash of light) can occur
and cause damage to the microwave oven.
OK for Use
Racks and bakeware supplied with the microwave oven (on some
models), aluminum foil for shielding, and approved meat
thermometers may be used with the following guidelines:
■To avoid damage to the microwave oven, do not allow
aluminum foil or metal to touch the inside cavity walls,
ceiling or floor.
■Always use the turntable.
■To avoid damage to the microwave oven, do not allow
contact with another metal object during microwave cooking.
Do Not Use
Metal cookware and bakeware, gold, silver, pewter, non-
approved meat thermometers, skewers, twist ties, foil liners
such as sandwich wrappers, staples and objects with gold or
silver trim or a metallic glaze should not be used in the
microwave oven.
Microwave Cooking Power
Many recipes for microwave cooking specify which cooking
power to use by percent or name. For example,
70%=Medium-High.
Use the following chart as a general guide for the suggested
cooking power of specific foods.
MATERIAL RECOMMENDATIONS
Aluminum Foil,
Metal See “Aluminum Foil and Metal” section.
Browning Dish Bottom must be at least 3/16" (5 mm)
above the turntable. Follow manufacturer’s
recommendations.
Ceramic Glass,
Glass Acceptable for use.
China,
Earthenware Follow manufacturer’s recommendations.
Melamine Follow manufacturer’s recommendations.
Paper: Towels,
Dinnerware,
Napkins
Use nonrecycled and those approved by
the manufacturer for microwave oven use.
Plastic: Wraps,
Bags, Covers,
Dinnerware,
Containers
Use those approved by the manufacturer
for microwave oven use.
Pottery and Clay Follow manufacturer’s recommendations.
Silicone
Bakeware Follow manufacturer’s recommendations.
Straw, Wicker,
Wooden
Containers
Do not use in microwave oven.
Wax Paper Acceptable for use.
PERCENT/NAME USE
100%, High
(default setting) Quick heating convenience foods and
foods with high water content, such as
soups, beverages and most vegetables.
90% Cooking small, tender pieces of meat,
ground meat, poultry pieces and fish fillets.
Heating cream soups.
80% Heating rice, pasta or stirrable casseroles.
Cooking and heating foods that need a
cook power lower than high. For example,
whole fish and meat loaf.
70%,
Medium-High Reheating a single serving of food.
60% Cooking sensitive foods such as cheese
and egg dishes, pudding and custards.
Cooking non-stirrable casseroles, such as
lasagna.
50%, Medium Cooking ham, whole poultry and pot
roasts.
Simmering stews.
40% Melting chocolate.
Heating bread, rolls and pastries.
30%, Medium-
Low, Defrost Defrosting bread, fish, meats, poultry and
precooked foods.
20% Softening butter, cheese, and ice cream.
10%, Low Taking chill out of fruit.
13
Manual Cooking
To Use:
1. Place food on the turntable and close the door.
2. Touch number pads to enter a length of time to cook
or
Touch COOK TIME, then enter a length of time to cook
If cooking with 100% power, skip Step 3.
3. Touch COOK POWER, then enter the desired power level
using the appropriate number pad
or
Touch COOK POWER repeatedly to select the desired power
level. See “Microwave Cooking Power” chart.
4. Touch START.
The display will count down the cook time.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
5. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
The cook time and power may be changed after touching START
without interrupting cooking.
To Change Cook Time: Touch COOK TIME. The countdown will
freeze for a few seconds. Enter the new cook time and touch
START or wait a few seconds for the countdown to resume.
To Change Cook Power: Touch COOK POWER repeatedly to
scroll through the cook power levels. Touch START.
Cooking in Stages (or steps)
The microwave oven can be set for manual cooking at different
cooking powers for various lengths of time, up to 3 stages.
Sensor cooking cannot be done in stages.
To Cook in Stages:
1. Place food on the turntable and close the door.
2. Touch number pads to enter a length of time to cook
or
Touch COOK TIME, then enter a length of time to cook for the
first stage.
If cooking with 100% power, skip Step 3.
3. Touch COOK POWER, then enter the desired power level
using the appropriate number pad
or
Touch COOK POWER repeatedly to select the desired power
level for the first stage. See “Microwave Cooking Power”
chart.
4. Repeat steps 2 and 3 for the second and third stages.
5. Touch START.
The display will count down each of the cook times. The
display will switch briefly to “STEP 1,” “STEP 2” or “STEP 3”
every 30 seconds during their respective stages.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
6. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
The cook time and cooking power of the operating stage can be
changed after touching START without interrupting cooking.
To Change Cook Time: Touch COOK TIME. The countdown will
freeze for a few seconds. Enter the new cook time and touch
START or wait a few seconds for the countdown to resume.
To Change Cook Power: Touch COOK POWER repeatedly to
scroll through the cook power levels. Touch START.
Sensor Cooking
A sensor in the microwave oven detects humidity released from
the food as it heats, and adjusts the cook time accordingly.
Many sensor cycles require the covering of foods. Microwave-
safe containers or steamers with loose-fitting lids are
recommended. The loose-fitting lid allows enough steam to
escape to be detected by the sensor. When covering foods with
plastic wrap, be sure to leave a large enough vent opening to
allow the steam to escape.
NOTES:
■The microwave oven should be plugged in for at least
3minutes.
■The microwave oven cavity and the exterior of the cooking
container should be dry.
■The room temperature should not exceed 95°F (35°C).
■If the door is opened during a sensor cycle, sensing will stop
and the program will be canceled.
Max Time
During sensor cooking, “SENSING” remains in the display during
the first phase of the cycle. After cook time is estimated, “MAX
TIME” and the approximate number of remaining minutes may be
displayed. If an exact time is calculated, it will begin counting
down in the display during the final phase of the cycle.
NOTE: During some sensor cooking cycles, “SENSING” will
remain in the display during the entire cycle.
14
Preset Cook
Times and cooking power have been preset for certain
microwavable foods. Use the following chart as a guide.
*Differences in the amount of fat, meat, thickness, and curing
process affect results. Average is 16 slices per pound.
During programming, the display prompts will guide you through
the menu selections.
To Use Cook:
1. Place food on the turntable, and close the door.
2. Touch COOK.
The list of Cook menu items will scroll in the display.
3. Touch number pad of desired menu item.
For Rice (a sensor program), the display indicates that
sensing is taking place. Skip Step 4.
For non-sensor items, the display will prompt you to enter the
quantity.
4. Enter quantity.
5. Touch START.
The display will count down the cook time for non-sensor
items. For sensor items, the display may vary. See “Sensor
Cooking” section.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
6. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
Reheat
Times and cooking power have been preset for reheating specific
food types. Use the following chart as a guide.
*For smaller rolls, 2 rolls may be counted as 1 piece.
During programming, the display prompts will guide you through
the menu selections.
To Use Reheat:
1. Place food on the turntable, and close the door.
2. Touch REHEAT.
The list of Reheat menu items will scroll in the display.
3. Touch number pad of desired menu item.
For sensor programs (see chart), the display indicates that
sensing is taking place. Skip Step 4.
For non-sensor items, the display will prompt you to enter the
quantity.
4. Enter quantity.
5. Touch START.
The display will count down the cook time for non-sensor
items. For sensor items, the display may vary. See “Sensor
Cooking” section.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
6. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
FOOD QUANTITY/INSTRUCTIONS
1-Bacon* 1, 2, 3, 4, 5 or 6 slices, average thickness/
Follow directions on the package.
2-Canned
Vegetables 1, 2, 3 or 4 cups (250, 500, 750 mL or 1 L)/
Place in microwave-safe dish. Cover with
plastic wrap, and vent. Stir and let stand
2-3 minutes after cooking.
3-French Toast 1, 2, 3 or 4 pieces/
Follow directions on the package.
4-Cereal 1, 2, 3 or 4 servings/
Follow directions on the package. Use
microwave-safe bowl with high sides.
5-Rice (sensor) 0.5 to 2.0 cups (125 to 500 mL) dry, white
long grain/
Follow measurements on package for
ingredient amounts. Use microwave-safe
dish with loose-fitting lid. Let stand
5 minutes after cooking, or until liquid is
absorbed. Stir.
FOOD QUANTITY/INSTRUCTIONS
1-Pizza (refrigerated) 1-3 slices, 3 oz (85 g) each/
Place on paper towel-lined paper
plate.
2-Casserole 1-4 cups (250 mL-1 L)/
Place in microwave-safe container,
and cover with plastic wrap. Stir and
let stand 2-3 minutes after reheating.
3-Dinner Plate
(sensor) 1 serving (1 plate), 8-16 oz (227-
454 g)/
Place food on microwave-safe plate,
cover with plastic wrap and vent. Let
stand 2-3 minutes after reheating.
4-Sauce (sensor) 1-4 cups (250 mL-1 L)/
Place in microwave-safe container.
Cover with plastic wrap, and vent. Stir
and let stand 2-3 minutes after
reheating.
5-Soup (sensor) 1-4 cups (250 mL-1 L)/
Place in microwave-safe container.
Cover with plastic wrap, and vent. Stir
and let stand 2-3 minutes after
reheating.
6-Baked Goods
(example: medium
muffin or bagel)
1-6 pieces, 2 oz (57 g) each*/
Place on paper towel.
7-Beverage 1 or 2 cups, 8 oz (250 mL) each/
Do not cover. The diameter of the
cup’s opening will affect how the liquid
heats. Beverages in cups with smaller
openings may heat faster.
15
To Reheat Manually: Follow directions in “Manual Cooking”
section, and use 70% cooking power. See “Microwave Cooking
Power” chart.
Two or More Plates (manual reheating only)
Two plates may be heated side by side, or 1 dish larger than the
turntable, plus 2 plates on the cooking rack. For best results,
halfway through heating, turn the plates (or larger dish) halfway
around, and switch plates between top and bottom (if heating
more than 2 plates). See “Cooking Rack” section.
The turntable must be turned off while heating 2 bottom plates or
1 larger dish. See “Turntable” section.
Defrost
The automatic Defrost feature can be used or the microwave
oven can be manually set to defrost.
■Unwrap foods and remove lids (for example, from fruit juice
containers) before defrosting.
■Shallow packages will defrost more quickly than deep blocks.
■Separate food pieces as soon as possible during or at the
end of cycle for more even defrosting.
■Use small pieces of aluminum foil to shield parts of food such
as chicken wings, leg tips and fish tails. See “Aluminum Foil
and Metal” first.
The automatic Defrost feature has 3 categories: Meat, Poultry
and Fish. It should not be used for food left outside the freezer
more than 20 minutes and frozen ready-made food. Use the
following chart as a guide.
During programming, the display prompts will guide you through
the menu selections.
To Use Defrost:
1. Unwrap food, place on the turntable, and close the door.
2. Touch DEFROST.
The list of Defrost menu items will scroll in the display.
3. Touch number pad of desired menu item (1 for Meat, 2 for
Poultry or 3 for Fish)
4. Enter the weight in pounds and tenths of pounds.
Meats and Poultry can be set from 0.2 to 6.6 lbs (90 g to
3 kg). Fish can be set from 0.2 to 4.4 lbs (90 g to 2 kg).
5. Touch START.
The display will count down the defrost time.
If prompted midway through defrosting, open the door and
stir or turn food. Close door, and touch START to resume.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
6. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
To Defrost Manually: Follow directions in “Manual Cooking”
section, and use 30% cooking power. See “Microwave Cooking
Power” chart.
Quick Defrost
The microwave oven’s Quick Defrost feature automatically
defrosts 1 lb (454 g) of frozen food.
To Use Quick Defrost:
1. Unwrap food, place on turntable, and close the door.
2. Touch QUICK DEFROST. The microwave oven will
automatically start the defrost cycle.
The display will count down the defrost time.
If prompted midway through defrosting, open the door and
stir or turn food. Close door, and touch START to resume.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
3. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
MEAT
Beef: ground, steaks, roast,
stew The narrow or fatty areas of
irregular shaped cuts should
be shielded with foil before
defrosting.
Do not defrost less than 1/4 lb
(113 g) or two 4 oz (113 g)
patties.
Place all meats in microwave-
safe baking dish.
Lamb: stew and chops
Pork: chops, ribs, roasts,
sausage
POULTRY
Chicken: whole and cut up Place in microwave-safe
baking dish, chicken breast
side up.
Cornish hens
Turkey: breast
FISH
Fillets, Steaks, Whole,
Shellfish Place in microwave-safe
baking dish.
16
Popcorn
Popcorn is a sensor function. The sensor determines the
appropriate popping time of commercially packaged
microwavable popcorn. Allowable bag sizes are between 3.0 oz
(85 g) and 3.5 oz (99 g).
NOTE: During Popcorn function, as with all microwave cooking
functions, the microwave oven should be attended at all times.
Listen for popping to slow to 1 pop every 1 or 2 seconds, then
stop the cycle.
■To avoid damage to the microwave oven, do not use regular
paper bags or glassware.
■Pop only 1 package of popcorn at a time.
■Follow manufacturer’s instructions when using a microwave
popcorn popper.
■For best cooking results, do not try to pop unpopped kernels.
■Use fresh bags of popcorn for optimal results.
■Cooking results may vary by brand and fat content. For bag
sizes not listed in this section, follow directions on the
package.
To Use POPCORN:
1. Place popcorn bag on the turntable.
2. Touch POPCORN.
“SENSES 3.0-5.5 OZ” will scroll in the display, and the
microwave oven will automatically start the popping cycle.
“SENSING” will remain in the display during the entire cycle.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
3. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
Baked Potato
Baked Potato is a sensor function. The sensor determines the
appropriate cooking time for one to four 10-13 oz (283-369 g)
potatoes.
■Pierce each potato several times with a fork before cooking.
■Place a single potato on the turntable, off to the side (not
centered). Place 2, 3 or 4 potatoes on the turntable around
the edges, at least 1" (2.5 cm) apart.
■Let potato(es) stand for 5 minutes after cooking.
To Use Baked Potato:
1. Place potato(es) on a paper towel on the turntable, and close
the door.
2. Touch BAKED POTATO.
“SENSES 1-4 PIECES” will scroll in the display, and the
microwave oven will automatically start the cooking cycle.
“SENSING” will remain in the display during part or all of the
cooking cycle.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
3. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
Frozen Entrée
Frozen Entrée has both sensor and non-sensor programs.
The sensor determines the appropriate cooking times for 10 oz
(283 g) and 20 oz (567 g) entrées.
The microwave oven has preset cooking times for 40 oz (1134 g)
and 60 oz (1701 g) entrées.
■Remove from package.
■Loosen cover on 3 sides.
■If entrée is not in a microwave-safe dish, place on plate,
cover with plastic wrap, and vent.
To Use Frozen Entrée:
1. Place food on the turntable, and close the door.
2. Touch FROZEN ENTREE.
“ENTER 10 OR 20 OR 40 OR 60 OZ” will scroll in the display.
3. Touch number pads to enter entrée size.
4. Touch START.
If cooking 10 oz (283 g) or 20 oz (567 g), “SENSING” will
remain in the display during part or all of the cooking cycle.
If cooking 40 oz (1134 g) or 60 oz (1701 g), The display will
count down the cook time.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
5. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
Veggies
Veggies is a sensor function. The sensor determines the
appropriate cooking time for 1 to 4 cups (250 mL to 1 L) of fresh
or frozen vegetables.
■Remove frozen vegetables from package.
■Place in a microwave-safe dish, add 2-4 tbs (30-60 mL)
water. Cover with plastic wrap, and vent.
■Stir and let stand 2-3 minutes after cooking.
To Use Veggies:
1. Place food on the turntable, and close the door.
2. Touch VEGGIES.
“PRESS 1-FRESH VEG 2-FROZN VEG” will scroll in the
display.
3. Touch number pad to select fresh or frozen vegetables.
“SENSES 1-4 CUPS” will scroll in the display, and the
microwave oven will automatically start the cooking cycle.
“SENSING” will remain in the display during part or all of the
cooking cycle.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
4. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
17
Warm Hold
Hot cooked food can be kept warm in the microwave oven. The
Warm Hold function uses 10% cook power. Warm Hold can be
used by itself or can be programmed to follow a cooking cycle.
Opening the door during Warm Hold will cancel the function.
■Cover plates of food.
■Cover foods that were covered while being cooked.
■For best results, do not cover baked goods such as pastries,
pies, turnovers, etc.
To Use (for single cycle):
1. Place hot cooked food on the turntable and close the door.
2. Touch WARM HOLD.
The default maximum time will appear in the display.
3. Touch number pads to adjust time, if desired
or
Touch START.
“WARM” will appear in the display during the entire cycle.
When the cycle ends, “END” will appear in the display, and
the end-of-cycle tones will sound, followed by reminder
tones.
4. Touch OFF CANCEL or open the door to clear the display
and/or stop reminder tones.
To Set at end of cycle: Touch WARM HOLD while setting a
cooking cycle before touching START, or during cooking.
MICROWAVE OVEN CARE
General Cleaning
IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on
cleaning products.
Soap, water and a soft cloth or sponge are suggested unless otherwise noted.
GREASE FILTERS
Do not use ammonia or corrosive cleaning agents such as lye-
based oven cleaners.
■Hot water and mild detergent:
Soak filters, then scrub and swish to remove embedded dirt
and grease. Rinse well and shake to dry.
■Dishwasher:
Wash separately, not with dirty dishes, because food can be
trapped in the filters.
NOTE: Some discoloration of the filters may occur after
cleaning them in the dishwasher. This is normal, and will not
affect the performance of the grease filters.
MICROWAVE OVEN CAVITY
To avoid damage to the microwave oven cavity, do not use soap-
filled scouring pads, abrasive cleaners, steel-wool pads, gritty
washcloths or some recycled paper towels.
To avoid damage to stainless steel models, rub in direction of
grain.
The area where the microwave oven door and frame touch when
closed should be kept clean.
Average soil
■Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
Heavy soil
■Mild, nonabrasive soaps and detergents:
Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave
oven. Steam will soften soil. Rinse with clean water and dry
with soft, lint-free cloth.
Odors
■Lemon juice or vinegar:
Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either
lemon juice or vinegar for 2 to 5 minutes in microwave oven.
Microwave Inlet Cover
To avoid arcing and microwave oven damage, the microwave
inlet cover (see “Parts and Features”) should be kept clean.
■Wipe with wet cloth.
MICROWAVE OVEN DOOR AND EXTERIOR
The area where the microwave oven door and frame touch when
closed should be kept clean.
■Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
■Glass cleaner and paper towels or nonabrasive plastic
scrubbing pad:
Apply glass cleaner to towel, not directly to surface.
Stainless Steel (on some models)
To avoid damage to microwave oven door and exterior, do not
use soap-filled scouring pads, abrasive cleaners, steel-wool
pads, gritty washcloths or some paper towels. Rub in direction of
grain.
■Stainless Steel Cleaner and Polish (not included):
See “Assistance or Service” section to order.
■Liquid detergent or all-purpose cleaner:
Rinse with clean water and dry with soft, lint-free cloth.
■Vinegar for hard water spots
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
18
CONTROL PANEL
■Sponge or soft cloth and water:
Dampen sponge with water and wipe panel. Dry with soft
cloth.
■To avoid damage to the control panel, do not use chemical or
abrasive cleansers.
COOKING RACK
Dishwasher cleaning is not recommended. To avoid damage to
the cooking rack, do not use abrasive cleansers or scrubbers.
■Mild cleanser, water and washcloth
RACK SUPPORTS
To avoid soil buildup which may lead to arcing and cause
damage to the microwave oven, clean rack supports often.
Do not use soap-filled scouring pads, abrasive cleaners, steel-
wool pads, gritty washcloths or some recycled paper towels.
■Mild, nonabrasive soap or detergent and washcloth,
toothbrush or cotton swab:
Rinse with clean water and dry with soft, lint-free cloth.
TURNTABLE
Replace turntable immediately after cleaning. Do not operate the
microwave oven without the turntable in place.
■Mild cleanser and scouring pad
■Dishwasher
Replacing Filters
The grease filter should be removed and cleaned at least once a
month. Do not operate the microwave oven or exhaust fan
without the grease filter in place. The charcoal filter cannot be
washed and should be replaced every 6 to 12 months. See
“General Cleaning” for cleaning instructions. See “Assistance or
Service” to reorder filters.
Filter Status Indicator
As a reminder, approximately every 6 months, the “CLEAN/
CHANGE FILTERS” message will scroll in the display when the
VENT FAN control is touched. After filters are replaced, reset the
filter status. See “Setup Menu” section.
To Remove and Replace Grease Filter:
1. Remove the grease filter by the sliding filter to the left side of
the microwave oven until the right end of the filter drops
down, then pull out the filter.
2. Replace grease filter by inserting one end of the filter into the
left rim of the frame. Swing the right end of the filter up and
slide it into position.

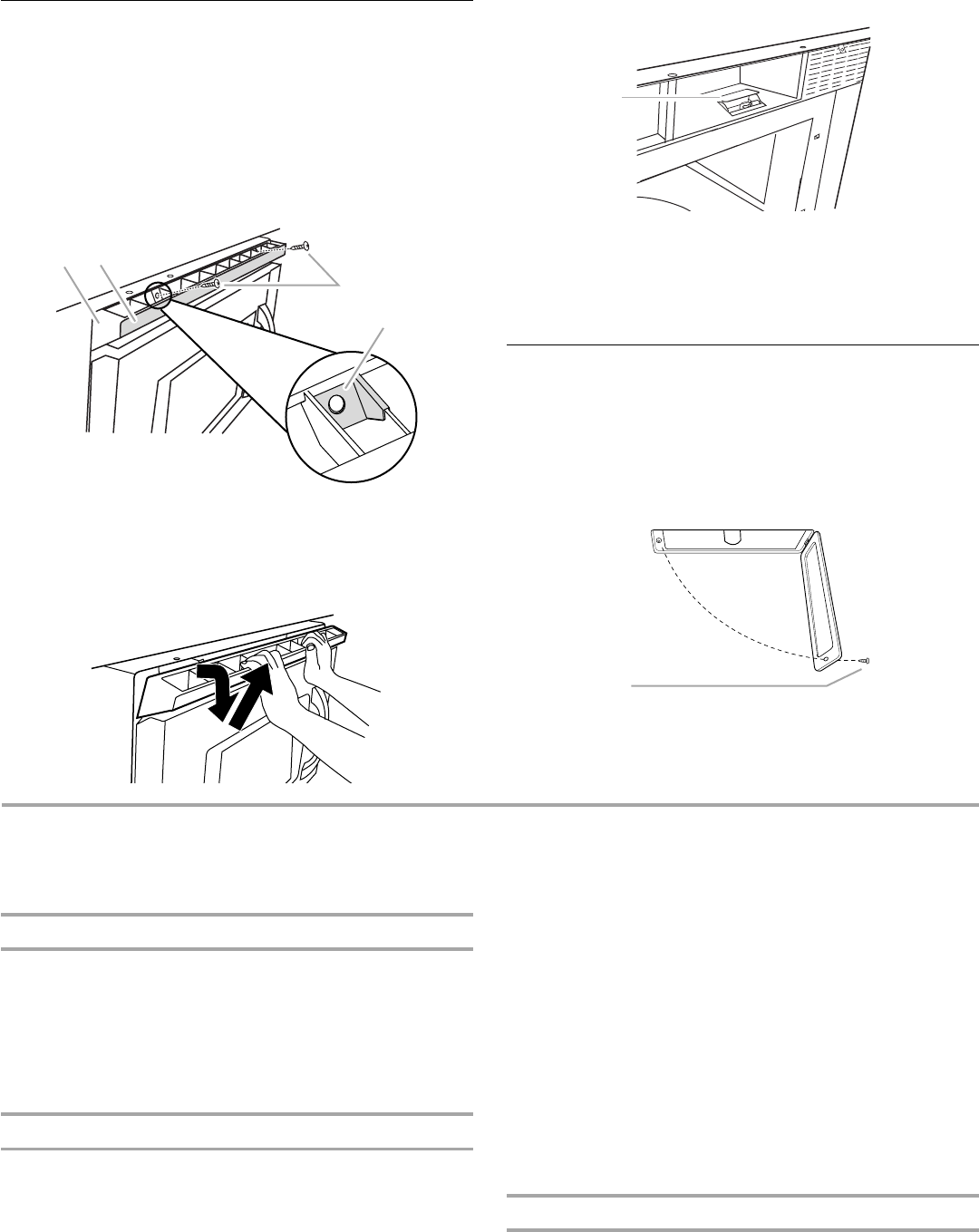

To Remove and Replace Charcoal Filter:
1. Remove the 2 vent grille mounting screws and mounting
braces located directly behind the top louver.
2. Tip the vent grille forward and down, then lift to remove.
3. Slide filter back slightly, lift front end, and pull out filter.
4. Install new charcoal filter.
5. Replace vent grille, mounting braces and mounting screws.
A. Vent grille
B. Top louver
C. Mounting screws
D. Mounting braces (2)
A
C
D
B
19
Replacing Microwave Oven Light
The microwave oven light is a candelabra base bulb. It will
automatically come on when the door is opened and when the
microwave oven is operating. See “Assistance or Service”
section to reorder.
To Replace:
1. Unplug microwave oven or disconnect power.
2. Remove the 2 vent grille mounting screws and mounting
braces located directly behind the top louver.
3. Tip the vent grille forward and down, then lift out to remove.
4. Lift up the bulb cover.
A. Bulb cover
5. Replace light. Close bulb cover.
6. Reattach vent grille. Replace the mounting braces and
mounting screws.
7. Plug in microwave oven or reconnect power.
Replacing Cooktop Light
The cooktop light is a candelabra base bulb. See “Assistance or
Service” section to reorder.
To Replace:
1. Unplug microwave oven or disconnect power.
2. Remove the bulb cover mounting screw.
A. Mounting screw
3. Replace light. Close bulb cover. Replace mounting screw.
4. Plug in microwave oven or reconnect power.
TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the cost of an unnecessary service call.
Nothing will operate
■Has a household fuse blown, or has a circuit breaker
tripped?
Replace the fuse or reset the circuit breaker. If the problem
continues, call an electrician.
■Is the microwave oven wired properly?
See Installation Instructions provided with your microwave
oven.
Microwave oven will not operate
■Is the magnetron working properly?
Try to heat 1 cup (250 mL) of cold water for 2 minutes at
100% cooking power. If water does not heat, try the steps
below. If microwave oven still does not operate, call for
service. See “Assistance or Service” section.
■Is the door completely closed?
Firmly close door.
■Does a message about the door appear in the display?
The door has been closed for 5 minutes or more. Open and
close the door, then touch START to start the cooking cycle.
See “Start” section.
■Is a packaging spacer (on some models) attached to the
inside of the door?
Remove packaging spacer, then firmly close door.
■Is the electronic microwave oven control set correctly?
See “Microwave Oven Control” section.
■On some models, is the Control Lock set?
See “Control Lock” section.
■On some models, is the Demo Mode activated?
See “Demo Mode” section.
Microwave oven makes humming noise
■This is normal and occurs when the power supply switches
the magnetron on and off.
A. Vent grille
B. Top louver
C. Mounting screws
D. Mounting braces (2)
A
C
D
B
A
A
20
Microwave oven door looks wavy
■This is normal and will not affect performance.
Turntable will not operate
■Has the tape been removed from turntable hub?
See “Turntable” section.
■Is the turntable properly in place?
Make sure turntable is correct side up and is sitting securely
on the turntable support.
■Is the turntable support operating properly?
Remove turntable. Remove and clean turntable support and
rollers. Replace turntable support. Replace turntable. Place
1 cup (250 mL) of water on the turntable, then restart
microwave oven. If it still is not working, call for service. See
“Assistance or Service” section. Do not operate the
microwave oven without turntable and turntable support
working properly.
Turntable alternates rotation directions
■This is normal and depends on motor rotation at the
beginning of the cycle.
Display shows messages
■Is the display showing “:”?
There has been a power failure, or the clock time has been
turned off. See “Display” section to clear display. See “Clock”
section to reset the clock or to turn it on.
■Is the display showing a letter followed by a number?
Clear the display. If it reappears, call for service. See
“Assistance or Service” section.
Display shows time countdown, but is not operating
■Is the Timer in use?
See “Timer” section.
■On some models, is the Demo Mode in use?
See “Demo Mode” section.
Tones are not sounding
■Are tones turned off?
See “Tones” section.
Steam is coming from the vent grille
■Some steam is normal.
Fan running slower than usual
■Has the microwave oven been stored in a cold area?
The fan will run slower until the microwave oven warms up to
normal room temperature.
Fan running during microwave cooking
■This is normal. The fan comes on to cool the microwave oven.
See “Vent Fan” section.
Fan comes on during cooktop usage
■This is normal. The fan automatically comes on to cool the
microwave oven if the temperature from the cooktop below
gets too hot. See “Vent Fan” section.
Cooking times seem too long
■Is the cooking power set properly?
See “Microwave Cooking Power” section.
■Are large amounts of food being heated?
Larger amounts of food need longer cooking times.
■Is the incoming voltage less than that specified in
“Microwave Hood Combination Safety?”
Have a qualified electrician check the electrical system in the
home.
Radio, TV or cordless phone interference
■Is the radio or TV receiver near the microwave oven?
Move the receiver away from the microwave oven, or adjust
the radio or TV antenna.
■Are the microwave oven door and sealing surfaces clean?
Make sure these areas are clean.
■Is the cordless phone frequency 2.4 GHz?
Some 2.4 GHz-based cordless phones and home wireless
networks may experience static or noise while the microwave
oven is on. Use a corded phone, a different frequency
cordless phone or avoid using these items during microwave
oven operation.
21
ASSISTANCE OR SERVICE
Before calling for assistance or service, please check
“Troubleshooting.” It may save you the cost of a service call. If
you still need help, follow the instructions below.
When calling, please know the purchase date and the complete
model and serial number of your appliance. This information will
help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend that you
use only factory specified parts. Factory specified parts will fit
right and work right because they are made with the same
precision used to build every new IKEA® appliance.
To locate factory specified parts in your area, call us or your
nearest designated service center.
In the U.S.A.
Call the Whirlpool Customer eXperience Center
toll free: 1-866-664-2449.
Our consultants provide assistance with:
■Features and specifications on our full line of appliances.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Specialized customer assistance (Spanish speaking, hearing
impaired, limited vision, etc.).
■Referrals to local dealers, repair parts distributors, and
service companies. Whirlpool designated service technicians
are trained to fulfill the product warranty and provide after-
warranty service, anywhere in the United States.
To locate the Whirlpool designated service company in your
area, you can also look in your telephone directory Yellow
Pages.
For further assistance
If you need further assistance, you can write to Whirlpool
Corporation with any questions or concerns at:
IKEA Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
In Canada
Call the Whirlpool Canada LP Customer eXperience Centre toll
free: 1-866-664-2449.
Our consultants provide assistance with:
■Features and specifications on our full line of appliances.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■Referrals to local dealers, repair parts distributors, and
service companies. Whirlpool Canada LP designated service
technicians are trained to fulfill the product warranty and
provide after-warranty service, anywhere in Canada.
For further assistance
If you need further assistance, you can write to Whirlpool
Canada LP with any questions or concerns at:
Customer eXperience Centre
Whirlpool Canada LP
200 – 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Please include a daytime phone number in your correspondence.
Replacement Parts
Cleaning Supplies
Turntable
Part Number 4393799
Turntable Support and Rollers
Part Number 8206227
Turntable Hub
Part Number 8206228
Grease Filter
Part Number W10208631
Charcoal Filter
Part Number 8206230
Cooktop Light Bulb
Part Number 8206232
Microwave Oven Light Bulb
Part Number 4393681
affresh™ Kitchen Appliance
Cleaner
Part Number W10355010
affresh™ Stainless Steel
Cleaner
Part Number W10355016
affresh™ Stainless Steel Wipes
Part Number W10355049
Heavy Duty Degreaser
Part Number 31552A
W10464602A
© 2011.
All rights reserved.
Todos los derechos reservados.
Tous droits réservés.
® IKEA is a registered trademark of Inter-Ikea Systems B.V.
TM AFFRESH is a Trademark of Whirlpool, U.S.A.
® IKEA es una marca registrada de Inter-Ikea Systems B.V.
TM AFFRESH es una marca de comercio de Whirlpool, U.S.A.
® IKEA est une marque déposée de Inter-Ikea Systems B.V.
TM AFFRESH est une marque de commerce de Whirlpool, U.S.A.
12/11
Printed in China
Impreso en China
Imprimé en Chine
