MICROWAVE OVEN SAFETY
When using electrical appliances basic safety precautions should be followed, including the following:
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of burns, electric shock,
fire, injury to persons, or exposure to excessive microwave
energy:
Read all instructions before using the microwave oven.
Read and follow the specific “PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY” found in this section.
The microwave oven must be grounded. Connect only to
properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found in the “INSTALLATION
INSTRUCTIONS” section.
Install or locate the microwave oven only in accordance
with the provided Installation Instructions.
Some products such as whole eggs in the shell and
sealed containers - for example, closed glass jars - are
able to explode and should not be heated in the
microwave oven.
Use the microwave oven only for its intended use as
described in the manual. Do not use corrosive chemicals
or vapors in the microwave oven. This type of oven is
specifically designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
As with any appliance, close supervision is necessary
when used by children.
Do not operate the microwave oven if it has a damaged
cord or plug, if it is not working properly, or if it has been
damaged or dropped.
The microwave oven should be serviced only by qualified
service personnel. Call an authorized service company for
examination, repair, or adjustment.
Do not cover or block any openings on the microwave oven.
Do not store this microwave oven outdoors. Do not use the
microwave oven near water - for example, near a kitchen
sink, in a wet basement, near a swimming pool, or similar
locations.
Do not immerse cord or plug in water.
Keep cord away from heated surfaces.
Do not let cord hang over edge of table or counter.
See door surface cleaning instructions in the “Microwave
Oven Care” section.
To reduce the risk of fire in the oven cavity:
Do not overcook food. Carefully attend the microwave
oven when paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
Remove wire twist-ties from paper or plastic bags before
placing bags in oven.
If materials inside the oven ignite, keep oven door closed,
turn oven off, and disconnect the power cord, or shut off
power at the fuse or circuit breaker panel.
– Do not use the cavity for storage purposes. Do not leave
paper products, cooking utensils, or food in the cavity when
not in use.
3
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
(b) Do not place any object between the oven front face and
the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there
is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other
reproductive harm.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to
be boiling. Visible bubbling or boiling when the container
is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE CONTAINER
IS DISTURBED OR A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
– Do not overheat the liquid.
– Stir the liquid both before and halfway through heating it.
– Do not use straight-sided containers with narrow necks.
– After heating, allow the container to stand in the microwave
oven for a short time before removing the container.
Use extreme care when inserting a spoon or other utensil
into the container.
Do not mount over a sink.
Do not store anything directly on top of the microwave oven
when the microwave oven is in operation.
4
PARTS AND FEATURES
Feature Guide
This manual covers several models. Your model may have some or all of the items listed. Refer to this manual or the Product Help section
of our website at www.whirlpool.com for more detailed instructions. In Canada, refer to the Product Help section at
www.whirlpool.ca.
Electrical Requirements
This device complies with Part 18 of the FCC Rules.
Observe all governing codes and ordinances.
Required:
A 120-volt, 60 Hz, AC-only, 15- or 20-amp electrical supply
with a fuse or circuit breaker.
Recommended:
A time-delay fuse or time-delay circuit breaker.
A separate circuit serving only this microwave oven.

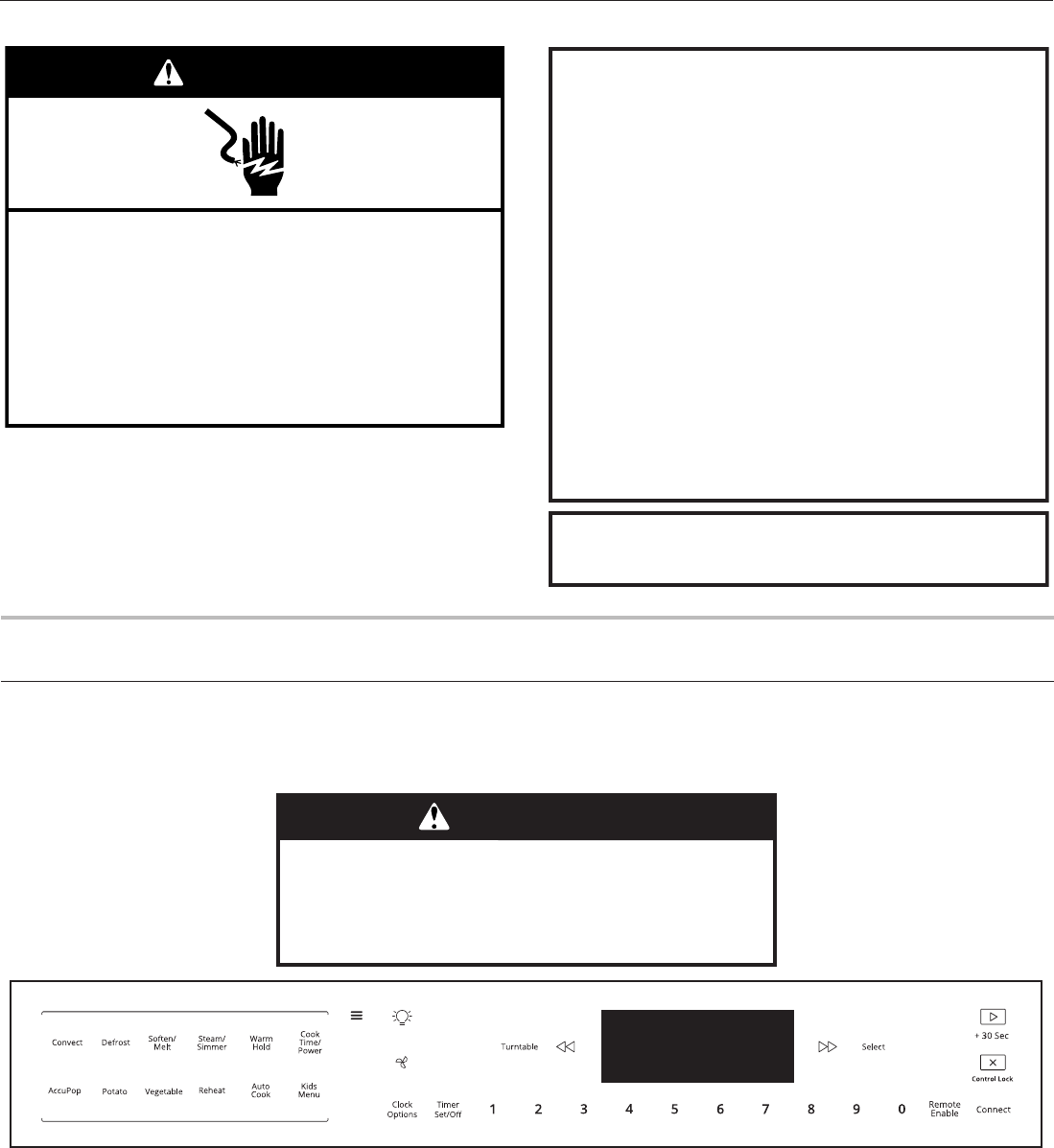

Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
For all cord connected appliances:
The microwave oven must be grounded. In the event of
an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric
current. The microwave oven is equipped with a cord
having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed
and grounded.
WARNING: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions are
not completely understood, or if doubt exists as to whether
the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord is
too short, have a qualified electrician or serviceman install
an outlet near the microwave oven.
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
5
Keypad Feature Instructions
CLOCK/OPTIONS Set the Clock The Clock is a 12-hour (12:00-11:59) or 24-hour (0:00-23:59) clock. Touch CLOCK/
OPTIONS to reach Clock submenu and follow the prompts to set the Clock. Clock
format (12 hours with AM and PM, 12 hours without AM and PM, or 24 hours) may also
be set in the Clock submenu.
CLOCK/OPTIONS Reach Options
Menu
1. Touch CLOCK/OPTIONS. The oven display will scroll through the various options.
You can also touch CLOCK/OPTIONS repeatedly to manually scroll through the list
of options.
2. Touch the number keypad for the specific option to toggle the function setup.
MENU Turn On Backlit
Buttons
Press the menu keypad to light up the back-lit buttons.
LIGHT Turn On Light Press the light keypad to turn the light beneath the hood on or off.
FAN Turn On Fan Press the fan keypad to the fan on or off.
TIMER (SET/OFF) Kitchen Timer 1. Touch TIMER SET/OFF.
2. Touch the number keypads to set the length of time.
3. Touch TIMER SET/OFF.
If the keypad is not touched, the control will continue to wait for TIMER SET/OFF to
be touched.
When the set time ends, 4 chimes will continuously repeat until TIMER SET/OFF is
touched.
4. If the Cancel keypad is touched, the microwave oven will turn off; however, the Timer
can only be turned off using the Timer Set/Off keypad.
Start/Add 30 Sec Touching the Start/Add 30 Sec keypad when the microwave oven is off will start 30
seconds of cook time at 100% power. If cooking is interrupted by opening the door,
touching Start/Add 30 Sec after the door is closed again will resume the preset cycle.
CANCEL Microwave Oven
Cancel
The Cancel keypad stops any microwave oven function except for the Clock, Timer, and
Control Lock.
The oven will also turn off when the door is opened. When the door is opened, the
element(s) and fan will turn off, but the oven light will remain on. Close the door and
touch the Start keypad to resume the preset cycle.
The oven cooling fan may continue to operate even after an oven function has been
canceled or completed, depending on the oven temperature.
Left Arrow
Navigate Menu Press the Left Arrow keypad to move through the menu.
Right Arrow
Navigate Menu Press the Right Arrow keypad to move through the menu.
SELECT Select Options Touch SELECT to select options.
COOK TIME/POWER Manual Cooking 1. Touch COOK TIME/POWER and then number keypads to set a length of time to
cook.
2. Touch the Start keypad.
Touch the number keypads to set the cook power if other than 100%.
Touch the Start keypad.
The display will count down the cook time.
When the stop time is reached, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every
minute.
3. Touch the Cancel keypad or open the door to clear the display and/or stop reminder
tones.
6
Keypad Feature Instructions
CONVECT Convection
Cooking
1. Position convection grid on turntable in microwave oven, or place baking tray on slide
rails and close the door.
2. Touch CONVECT.
3. Touch number keypad to select food category from the Convection Chart.
OR
Touch CONVECT repeatedly to scan and select food category. For example, to select
the Meats setting, Convect must be touched twice.
4. Touch the number keypads to set a standard temperature. Temperature can be set
between 170°F and 450°F (77°C and 232°C).
5. Touch the number keypads to set a length of standard time to cook. Time can be set up
to 11 hours and 59 minutes.
NOTE: Doneness function is not active for Convect.
6. Touch START. “Preheating” and “Lo” will appear on the upper oven display. Once the
temperature reaches 170°F (77°C), “Lo” will be replaced by the increasing temperature.
Time and temperature will be automatically converted for convection cooking.
When preheating is complete, 2 tones will sound, and the display will show the set
temperature and “Insert Food” prompt.
7. Place food or bakeware on convection grid or on baking tray and close the door.
8. Touch the Start keypad. The upper oven display will count down the cook time and
show temperature for convection cooking.
When the stop time is reached, the oven will shut off automatically and “Cooking
Complete” will appear on the oven display.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every
minute.
9. Touch the Cancel keypad or open the door to clear the display and/or stop reminder
tones.
DEFROST Automatic
Defrost
1. Touch DEFROST.
2. Touch the number keypad from the Defrost Chart to select food.
OR
Touch DEFROST repeatedly to scroll through foods. For example, to select the Meats
setting, DEFROST must be touched twice.
3. Touch number keypads to enter the weight.
To change the doneness setting, touch COOK TIME/POWER to toggle through and
select a doneness of Normal, More, or Less.
4. Touch the Start keypad.
The display will count down the defrost time. For better results, a preset standing time
is included in the defrosting time. This may make the defrosting time seem longer than
expected.
When the stop time is reached, the oven will shut off automatically.
If enabled end-of-cycle tones will sound, and then reminder tones will sound every
minute.
5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder
tones.
DEFROST Manual Defrost 1. Touch DEFROST.
2. Touch the number “6” keypad.
OR
Touch DEFROST repeatedly to scan to the Manual setting.
3. Touch the number keypads to set a length of time to defrost. Time can be set up to 99
minutes and 99 seconds.
NOTE: The doneness function is not available for manual defrosting.
4. The default power level is 30%. To change power level, touch COOK TIME/POWER and
then enter the desired power level. See the Cooking Power Chart.
NOTE: If a cook time has not been entered, after 5 seconds of inactivity the power level
will be automatically confirmed. The screen will then prompt to enter cook time.
5. Touch the Start keypad. The display will count down the defrost time.
When the stop time is reached, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every
minute.
6. Touch the Cancel keypad or open the door to clear the display and/or stop reminder
tones.
7
Keypad Feature Instructions
SOFTEN/MELT Soften 1. Touch SOFTEN/MELT.
2. Touch number keypad to select food type from the Soften Chart.
OR
Touch SOFTEN/MELT repeatedly to scan and select food settings.
3. Touch number keypads to enter quantity (weight or sticks).
To change the doneness setting, touch the Power keypad before or after the “Start?” prompt is
displayed to toggle through and select a doneness of Normal, More, or Less.
4. Touch the Start keypad.
The upper oven display will count down the soften time.
When the stop time is reached, the oven will shut off automatically and “Soften Complete” will
appear in the display.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.
5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.
SOFTEN/MELT Melt 1. Touch SOFTEN/MELT.
2. Touch number keypad to select food type from the Soften Chart.
OR
Touch SOFTEN/MELT repeatedly to scan and select food settings.
3. Touch number keypads to enter quantity (weight or sticks).
To change the doneness setting, touch the Power keypad before or after the “Start?” prompt is
displayed to toggle through and select a doneness of Normal, More, or Less.
4. Touch the Start keypad.
The upper oven display will count down the melt time.
When the stop time is reached, the oven will shut off automatically and “Soften Complete” will
appear in the display.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.
5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.
STEAM/
SIMMER
Auto Steam
Cook
1. Touch STEAM/SIMMER.
2. Touch STEAM/SIMMER repeatedly to scan and select food type. For example, to select the Fresh
Vegetables setting, Steam Cook must be touched twice.
To change the doneness setting, touch COOKTIME/POWER to toggle through and select a
doneness of Normal, More, or Less.
3. Touch the Start keypad. The display will count down the steam time once the sensor identifies the
cooking duration.
When the steam time has ended, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.
4. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.
STEAM/
SIMMER
Manual
Steam Cook
1. Touch STEAM/SIMMER.
2. Touch STEAM/SIMMER repeatedly to scan and select the Manual steam setting.
3. Touch the number keypads to set a length of time to steam. Time can be set up to 99 minutes and
99 seconds.
NOTE: Doneness function is not active for manual steam cooking.
4. Touch START.
Once the boiling point is reached, the upper oven display will start to count down the steam time.
When the stop time is reached, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.
5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.
8
Keypad Feature Instructions
STEAM/
SIMMER
Auto Simmer
Cook
1. Touch STEAM/SIMMER.
2. Touch STEAM/SIMMER repeatedly to scan and select food type. For example, to select the
Fresh Vegetables setting, Steam Cook must be touched twice.
To change the doneness setting, touch COOKTIME/POWER to toggle through and select a
doneness of Normal, More, or Less.
3. Touch the Start keypad. The display will count down the steam time once the sensor identifies
the cooking duration.
When the steam time has ended, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.
4. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.
STEAM/
SIMMER
Manual
Simmer Cook
1. Touch STEAM/SIMMER.
2. Touch STEAM/SIMMER repeatedly to scan and select the Manual steam setting.
3. Touch the number keypads to set a length of time to steam. Time can be set up to 99 minutes
and 99 seconds.
NOTE: Doneness function is not active for manual steam cooking.
4. Touch START.
Once the boiling point is reached, the upper oven display will start to count down the steam
time.
When the stop time is reached, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.
5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.
WARM HOLD Keep Food
Warm
1. Touch WARM HOLD and then number keypads to set a length of time to warm.
OR
Touch the number keypads to set a length of time to warm. To use this feature, the display must
be in time of day visualization.
2. Touch COOK TIME/POWER.
3. Touch the number “1” keypad to set cook power at 10%.
NOTE: Doneness function is not active for manual cooking.
4. Touch START.
The display will count down the warming time.
When the stop time is reached, the oven will shut off automatically and “Cooking Complete”
will appear in the display.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.
5. Touch the Cancel keypad or open the door to clear the display and/or stop the reminder tones.
ACCUPOP Popcorn 1. Touch ACCUPOP.
NOTE: Doneness function is not active for popcorn setting.
2. Touch START.
When the stop time is reached, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.
3. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.
POTATO Potato 1. Touch POTATO.
NOTE: Doneness function is not active for potato setting.
2. Touch START.
When the stop time is reached, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.
3. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.
9
Keypad Feature Instructions
VEGETABLE Vegetable 1. Touch VEGETABLE.
2. Touch number keypad to select food type from the Vegetable Chart.
OR
Touch VEGETABLE repeatedly to scan and select food settings. To select a setting,
VEGETABLE must be touched twice.
3. Touch number keypads to enter quantity (slices or cups).
To change the doneness setting, touch COOK TIME/POWER to toggle through and select
a doneness of Normal, More, or Less.
4. Touch START.
When the stop time is reached, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every
minute.
5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder
tones.
REHEAT Automatic
Reheat
1. Touch REHEAT.
2. Touch number keypad to select food type from the Reheat Chart.
OR
Touch REHEAT repeatedly to scan and select food settings. For example, to select the
Casserole setting, REHEAT must be touched twice.
3. Touch number keypads to enter quantity (slices or cups).
To change the doneness setting, touch COOK TIME/POWER to toggle through and select
a doneness of Normal, More, or Less.
4. Touch START.
When the stop time is reached, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every
minute.
5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder
tones.
REHEAT Manual Reheat 1. Touch REHEAT.
2. Touch the number “7” keypad.
OR
Touch REHEAT repeatedly to scan to the Manual setting.
3. Touch the number keypads to set a length of time to reheat. Reheat time can be set up to
99 minutes and 99 seconds.
NOTE: The doneness function is not active during manual reheating.
4. The default power level is 70%. To change the power level, touch COOK TIME/POWER
and then enter the desired power level. See the Cooking Power Chart.
NOTE: If a cook time has not been entered, after 5 seconds of inactivity the power level
will be automatically confirmed. The screen will then prompt to enter cook time.
5. Touch START. Display will count down the reheat time.
When the stop time is reached, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every
minute.
6. Touch the Cancel keypad or open the door to clear the display and/or stop reminder
tones.
AUTO COOK Auto Cook 1. Touch AUTO COOK.
2. Touch number keypad to select food type from the Auto Cook Chart.
OR
Touch AUTO COOK repeatedly to scan and select food settings. To select a setting,
AUTO COOK must be touched twice.
3. Touch number keypads to enter quantity (slices or cups).
To change the doneness setting, touch COOK POWER before or after the “Start?” prompt
is displayed to toggle through and select a doneness of Normal, More, or Less.
4. Touch START.
When the stop time is reached, the oven will shut off automatically and “reheat complete”
will appear on the oven display.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every
minute.
5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder
tones.
10
Vent Fan
Various speeds, ranging from HIGH, MED-Hi, MEDIUM, LOW,
and OFF. Comes on automatically as cooling fan during any cook
function.
30 Minute Fan Timer (Option 6 or 7 of Options/Clock Menu):
Set vent fan to run for exactly 30 minutes or to run for only 30
minutes more (off after 30 minutes). The vent fan may be turned off
at any time using the Vent Fan control.
Auto Vent Fan (on some models): To keep the microwave oven
from overheating, the auto vent fan will automatically turn on at
high speed if the temperature from the range or cooktop below
the microwave oven gets too hot. When this occurs, the vent fan
cannot be turned off. “AUTO FAN ON for heat circulation” appears
in the display.
Standby Mode
When no functions are working (12-hour clock is displayed or if the
clock has not been set), oven will switch to Standby Power mode
and dim the LCD brightness after 5 minutes. Touch any keypad
or open/close the door, and the display will return to the normal
brightness.
Additional Features
CLEANRELEASE® Cavity Coating (on some models)
The durable, nonstick coating resists soil buildup by making
cleaning easier. See the “Microwave Oven Care” section.
6th SENSE™ System
A sensor in the microwave oven detects moisture released from
food as it heats, and adjusts the cooking time accordingly.
Convection Element and Fan
The convection element and fan are embedded in the wall of the
microwave oven cavity, behind the metal screen.
Back-Lighting
Some of the keypads will be darkened after about 2 minutes of
inactivity. Press the menu keypad to light up the back-lit buttons.
Opening the door will not light up the back lighting.
Keypad Feature Instructions
KIDS MENU Kids Menu 1. Touch KIDS MENU.
2. Touch number keypad to select food type from the Kids Menu Chart.
OR
Touch KIDS MENU repeatedly to scan and select food settings. To select a setting,
KIDS MENU must be touched twice.
3. Touch number keypads to enter quantity (slices or cups).
To change the doneness setting, touch COOK TIME/POWER to toggle through and
select a doneness of Normal, More, or Less.
4. Touch START.
When the stop time is reached, the oven will shut off automatically.
If enabled, end-of-cycle tones will sound, and then reminder tones will sound every
minute.
5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder
tones.
TURNTABLE Turn on Turntable By touching the Turntable On/Off keypad, it is possible to switch the turntable On and Off
during some microwave cycles. The turntable can be turned On or Off during the Manual
Cook, Manual Reheat, Manual Defrost, Manual Steam Cook, and all Easy Convect cycles.
REMOTE ENABLE Enable Remote
App Control
Press REMOTE ENABLE to enable the ability to utilize the Whirlpool® app.
CONNECT Connect to Wi-Fi Press and hold CONNECT while your router’s WPS indicator light is blinking to connect
your range to your Wi-Fi network. See the “Connectivity Setup” section for more detailed
instructions.
CANCEL Activate Control
Lock
Activate to avoid unintended start. Touch and hold the Cancel keypad for about
3 seconds until 2 tones sound and padlock icon appears in the display. Repeat to unlock
control.
11
Control Lock
Activate to avoid unintended start. Touch the Control Lock keypad
for about 3 seconds until 2 tones sound and padlock icon appears
in the display. Repeat to unlock control.
Timer
With the microwave oven in Standby mode, touch the Timer
keypad, enter time, then touch the +30 Sec keypad. Cook
functions may be entered while the Timer is counting down. To
cancel timer, touch Timer keypad while the Timer countdown is
active in the display.
Options
CLOCK/OPTIONS allows access to the microwave settings.
To Use:
1. Touch CLOCK/OPTIONS. The oven display will scroll through
the various options,
You can also touch CLOCK/OPTIONS repeatedly to manually
scroll through the list of options.
2. Touch the number keypad for the specific option to toggle the
function setup.
Tones
Tones are audible signals, indicating the following:
One beep
Valid keypad touch
Function has been entered
One chime
Preheat cycle has been completed
Three beeps
Invalid keypad touch
Three chimes
End of a cooking cycle
Four chimes
When timer reaches zero
Includes using the Timer for functions other than cooking.
Clock
The Clock is a 12-hour (12:00-11:59) or 24-hour (0:00-23:59)
clock. Touch CLOCK/OPTIONS to reach Clock submenu and
follow the prompts to set the Clock. Clock format (12 hours with
AM and PM, 12 hours without AM and PM, or 24 hours) may also
be set in the Clock submenu.
Tone Volume
The volume is preset at low, but can be changed to high. Touch
CLOCK/OPTIONS and then the number “3” keypad to toggle
volume between high and low settings.
End-of-Cycle and Reminder Tones
The Timed Cooking end-of-cycle and reminder tones are preset
on, but can be turned off. If all tones have been turned off, the
end-of-cycle and reminder tones cannot be independently turned
on. Touch CLOCK/OPTIONS and then the number “5” keypad to
toggle tones between On and Off settings.
NOTE: The Timer is not affected by these reminder tones.
Light Timer
Set the cooktop light to turn on and off at certain times. Touch
CLOCK/OPTIONS to reach the Light Timer submenu, and follow
the prompts to set the light on time and light off time in hours and
minutes or to cancel Light Timer.
NOTE: Light Timer uses 12-hour clock only.
Filter Alert
Reset the filter status after replacing and/or cleaning the filters.
Touch CLOCK/OPTIONS to reach the Filter Alert submenu, and
activate reset.
Sound (Tones)
Programming tones and signals. Programming tones may be
turned off or all tones (including end-of-function signals) may be
turned off. Touch CLOCK/OPTIONS to reach the Sound submenu,
and then follow the prompts to turn off or on the programming
tones or all tones.
NOTE: The Timer is not affected by reminder tones.
Scroll Speed
Scroll speed of the text may be adjusted. Touch the CLOCK/
OPTIONS to reach the Scroll Speed submenu and follow the
prompts to set speed.
Demo Mode
Activate to practice using the control without actually turning on
the magnetron. Touch CLOCK/OPTIONS to reach the Demo mode
submenu, then follow the prompts to activate. The DEMO icon will
light up in the display. Repeat to deactivate.
Energy Save
To conserve energy, the Clock will automatically turn off when
the microwave oven goes into Standby mode. Touch CLOCK/
OPTIONS to reach the Clock and Energy Save submenu, and
follow the prompts to turn on Clock.
Language (Canada models)
Language of the display text may be changed. Touch the CLOCK/
OPTIONS to reach the Language submenu and follow the prompts
to set language to English or French.
Temp Calibration
The actual convection cooking temperature may be calibrated
higher or lower than the displayed temperature. For example,
if you want the microwave oven to be a bit hotter, you may try
setting the calibration to +10°. Touch CLOCK/OPTIONS to reach
the Calibration submenu. The current setting will appear in the
display with a checkmark next to it. Use number keypads to select
temperature variations in degrees Fahrenheit: 1 = ±0° (reset to
default), 2 = +5° (+2.8°C), 3 = +10° (+5.6°C), 4 = +15° (+8.3°C),
5 = +20° (+11.1°C), 6 = -5° (-2.8°C), 7 = -10° (-5.6°C), -8 = -15°
(-8.3°C) and 9 = -20° (-11.1°C).
NOTE: The microwave oven will remember the setting after a
power failure.
12
Scenario 2: Cooking during first few hours of Sabbath
1. Set the appliance to Convection Bake 350 F (or other
temperature) and set Cook Time.
2. While the oven is in cooking mode, press CLOCK/OPTIONS
until you see “KCF mode”.
3. Follow the directions on the display to activate KCF mode.
4. The oven is now cooking.
NOTE: Do not open the oven door during cooking. Opening
the oven door during cooking will cause heating elements and
fans to turn off.
5. Once cooking is completed, opening the oven door will not
turn on the cavity light, allowing you to remove food from the
oven.
NOTE: KCF can work for all cooking cycles.
NOTE: Do not open the oven door while it is in Convection
Bake cycle during Sabbath. Due to interlock switches, opening
the door will immediately turn off heating elements.
How To Deactivate KCF Mode
1. Press CLOCK/OPTIONS until you see “KCF mode”. Follow
directions on the display to deactivate KCF mode.
NOTE: In case of emergency, and to comply with code
regulations, pressing CANCEL will turn off the cooking cycle
during KCF mode.
Blower Motor Maximum Time-Out During KCF Mode
If the blower motor is turned on at High Speed, it will automatically
turn off after 4 hours of operation.
Turntable
NOTE: By touching the Turntable keypad, it is possible to switch
the turntable On and Off during some microwave cycles. The
turntable can be turned On or Off during the Manual Cook,
Manual Reheat, Manual Defrost, Manual Steam Cook, and all Easy
Convect cycles.
The turntable rotates in both directions to help cook food more
evenly. Do not operate the microwave oven without having the
turntable in place. See the “Assistance or Service” section to
reorder any of the parts.
The raised, curved lines in the center of the turntable bottom fit
between the 3 spokes of the hub. The hub turns the turntable
during microwave oven use. The rollers on the support should fit
inside the turntable bottom ridge.

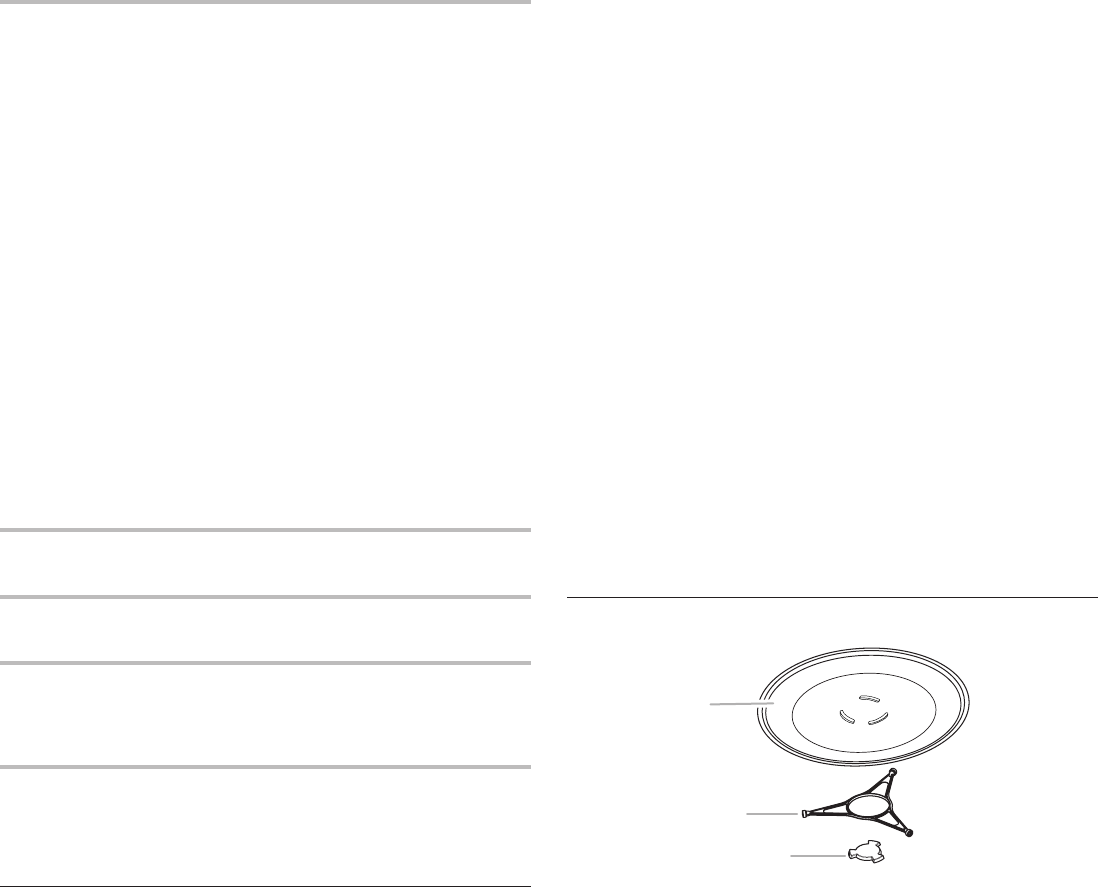

A
B
C
A. Turntable
B. Support and rollers
C. Hub
KCF Mode
KCF mode is another name of Sabbath mode for display. Touch
CLOCK/OPTIONS to reach the KCF mode submenu, where KCF
mode can be enabled of disabled. Once this mode is enabled,
press and hold CLOCK/OPTIONS for 3 seconds. KCF mode can
be activated or deactivated.
When KCF mode is activated:
Manual intervention such as “turn the food,” “stir the food,”
and “place the food” will be skipped.
For Convect function, preheating will be skipped and cook
cycle will run for the remainder of the timer countdown.
When cook cycle finishes, there are no more beeps and no
cook end display, go to KCF Idle mode.
State of hood light, vent fan, and turntable cannot be changed
manually.
Cavity light and fan will be off when door is open.
No buzzer sound for any key touch response.
An open door will cancel cook cycle and change display to
KCF idle mode.
Touching the Control Lock keypad will cancel the cook cycle
and change display KCF idle mode.
Refer to the “Sabbath Mode” section for more information.
Factory Reset
User may set machine back to default state.
Remote Enable
Enable and disable app control to appliance.
Connect
Start appliance to connect to home router. Touch and hold for 15
seconds to disconnect the connection between home router and
appliance. Specifically refer to prompt on appliance display.
Appliance Registration
Go to www.mysmartsppliances.com on your home computer and
input the SAID (start date of appliance), which can be found on the
label located on the oven frame behind the top right side of the
oven door.
Sabbath Mode (KCF)
In Sabbath mode, the appliance will not turn lights or sound on/off
so that the appliance may be used during the Sabbath.
How To Use
The below scenarios provide examples of how you may use this
mode.
Scenario 1: No cooking activity during Sabbath
1. Press CLOCK/OPTIONS until you see “KCF mode”.
2. Follow the directions on display to activate KCF mode.
NOTE: During KCF mode, oven light will not turn on when you
open the oven door.
13

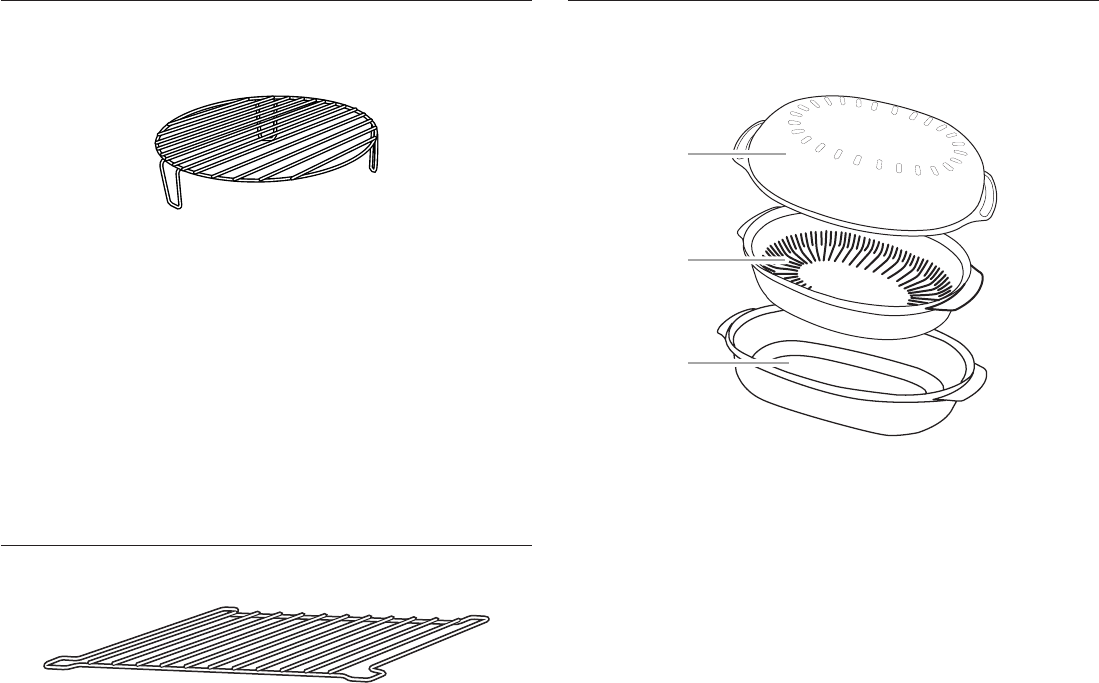

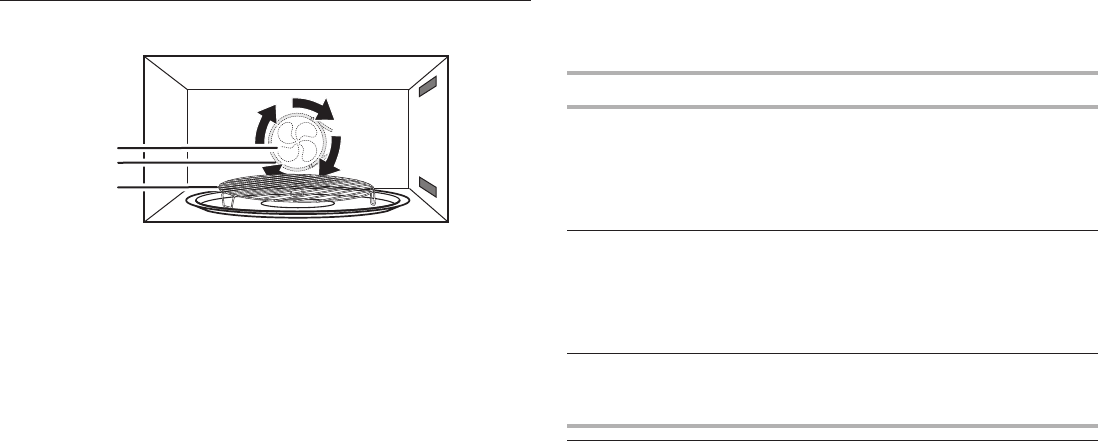

Convection Rack
The convection rack provides optimal heat circulation for
convection cooking.
The rack will become hot. Always use oven mitts or pot
holders when handling.
To avoid damage to the microwave oven, do not allow the rack
to touch the inside cavity walls, ceiling or floor.
Always use the turntable.
To avoid damage to the microwave oven, do not store the rack
in the microwave oven.
Two-level cooking is not recommended.
For best results, do not place popcorn bags on the rack.
The rack is designed specifically for this microwave oven. For
best cooking results, do not attempt to use any other rack in
this microwave oven.
See the “Assistance or Service” section to reorder.
Cooking Rack
The cooking rack can be used only with convection cooking.
To avoid damage to the microwave oven, do not use in
combination with microwave cooking.
The cooking rack will become hot. Always use oven mitts or
pot holders when handling.

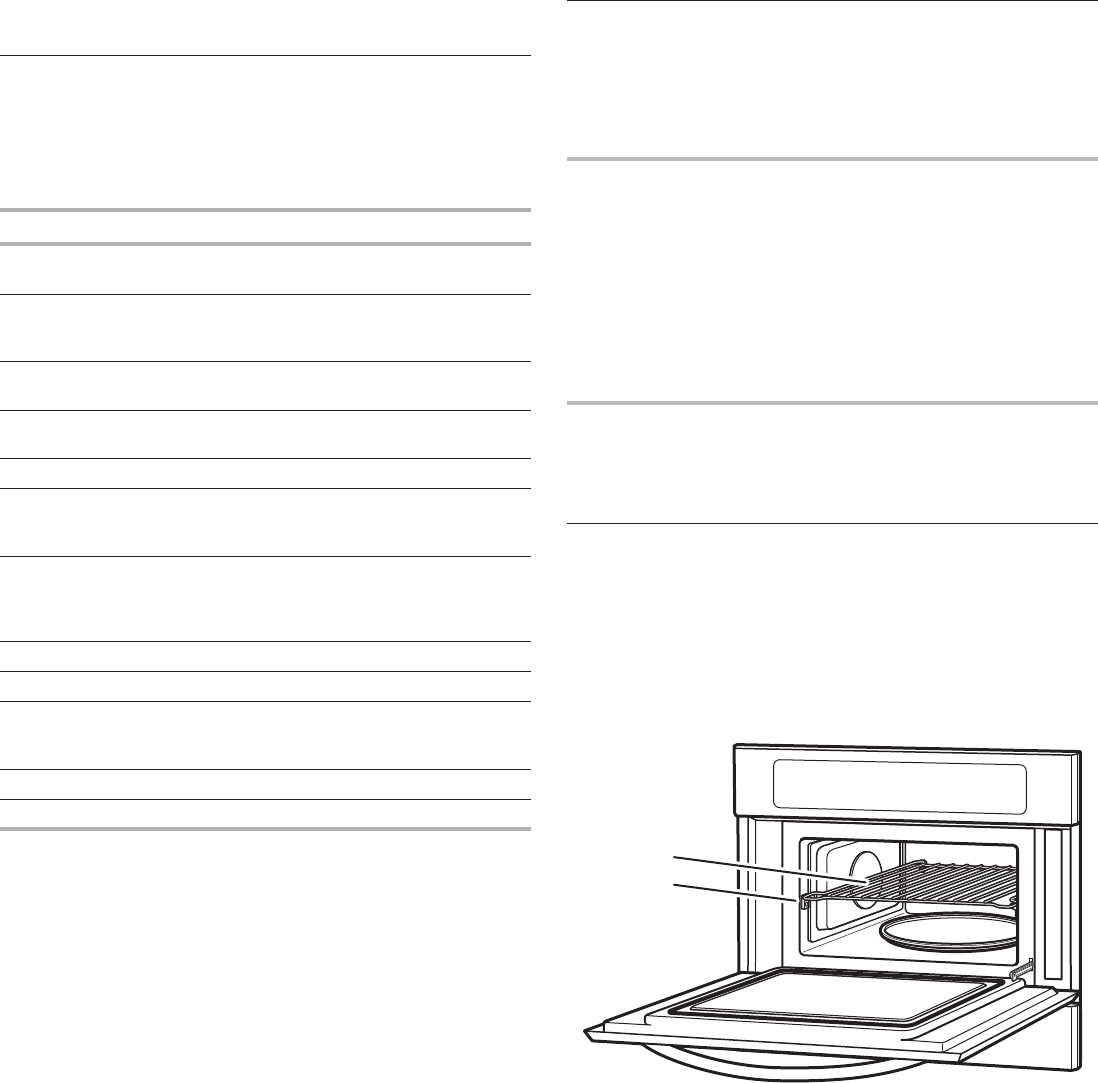

See the “Positioning Cooking Rack” section before using.
See the “Assistance or Service” section to reorder.
Steamer Vessel
Use the Steamer Vessel with the Steam Cook feature to steam
foods.
The steamer vessel will become hot. Always use oven mitts or
pot holders when handling.
The steamer vessel is designed to be used only in the
microwave oven. To avoid damaging steamer vessel, do
not use in a convectional- or combination-type oven, with
any other convection or crisp function, or on electric or gas
burners.
Do not use plastic wrap or aluminum foil when covering the
food.
Always place the steamer vessel on the glass turntable. Check
that the turntable turns freely before starting the microwave
oven.
Do not remove lid while the base is inside the microwave oven,
as the rush of steam will disrupt the sensor settings.
To avoid scratching, use plastic utensils.
Do not overfill with water. See the steam chart in the “Steam
Cooking” section for the amount of water recommended.
Lid: Always use the lid when steaming. Place directly over the
insert and base or just the base.
Insert: Use when steam cooking to keep foods such as fish and
vegetables out of the water. Place insert with food directly over the
base. Do not use when simmering.
Base: For steam cooking, place water in base. For simmering
foods such as rice, potatoes, pasta and vegetables, place food
and water/liquid in base.
See the “Assistance or Service” section to order replacements.
See the “General Cleaning” section for instructions on cleaning.
A
B
C
A. Lid
B. Insert
C. Base
14

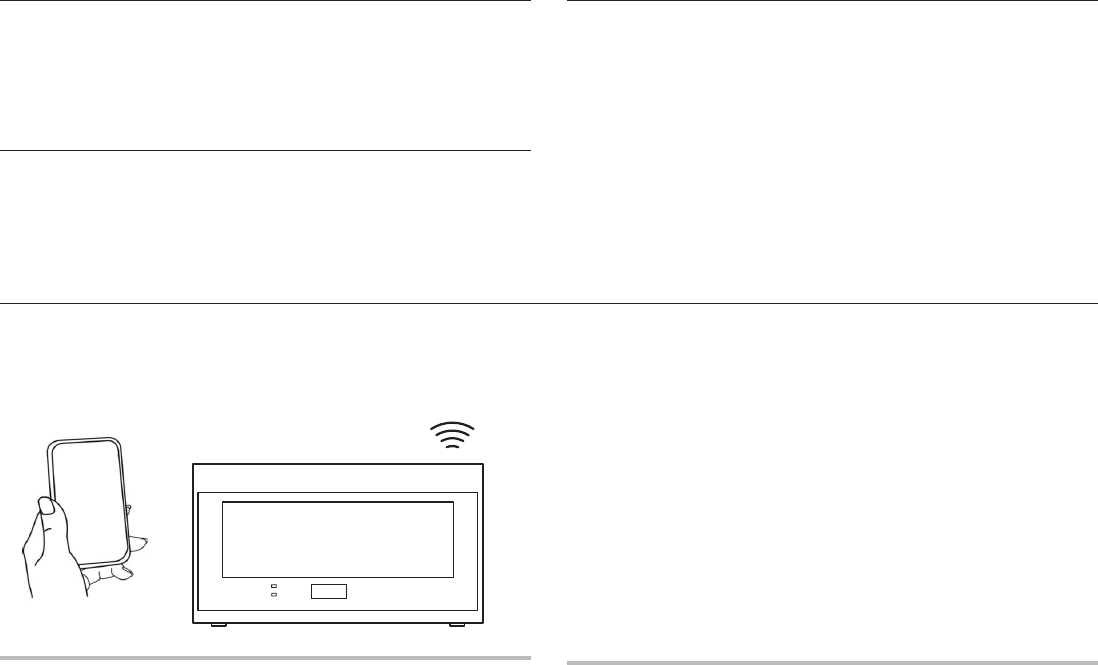

Connectivity Features
Wi-Fi connectivity allows your Smart appliance to connect to the Internet and interact with the Whirlpool® app from your smartphone
or mobile device. This connection opens up several Smart options to you: options intended to save you valuable time and energy.
Smart Features
Smart Features help make your every day more efficient by letting
you remotely monitor, manage, and maintain your appliance.
Remote Enable
What it does: Allows you to send remote control of your appliance
to your smartphone or mobile device via the Whirlpool® app.
What it does for you: Lets you manage when to start your
cooking cycle. This allows you to have cooked dishes when
you are ready for them.
Cycle Progress
What it does: Gives you an up-to-the-minute look at your cooking
cycle progress.
What it does for you: Lets you know the remaining cook time
from anywhere.
Cook Notification (Opt-In)
What it does: Your appliance will send you a push notification
when its current cooking cycle is complete.
What it does for you: Alerts you precisely when the cooking cycle
is done, so you can move on to other things.
Kosher Consumer Friendly Mode (App only)
What it does: During this mode the controls and lights will not
operate and the interior lights will be off.
What it does for you: Automatically sets up the range for
observance of the Sabbath.
Get Started
Refer to the “Connectivity Setup” section in this User Guide and
follow the instructions to get connected.
Check the Whirlpool® app frequently for additional information and
features.
NOTES:
a. Only Convection Bake cycle can be remotely activated
(i.e. no features using microwave or convection roast may
be remotely activated).
b. While the oven is set up and waiting for remote activation, the
oven door must NOT open. If the oven door is opened (say by
another member of the family) while it is in “waiting mode”,
then REMOTE ENABLE will be canceled and the remote
enable icon will be turned off from display to indicate this.

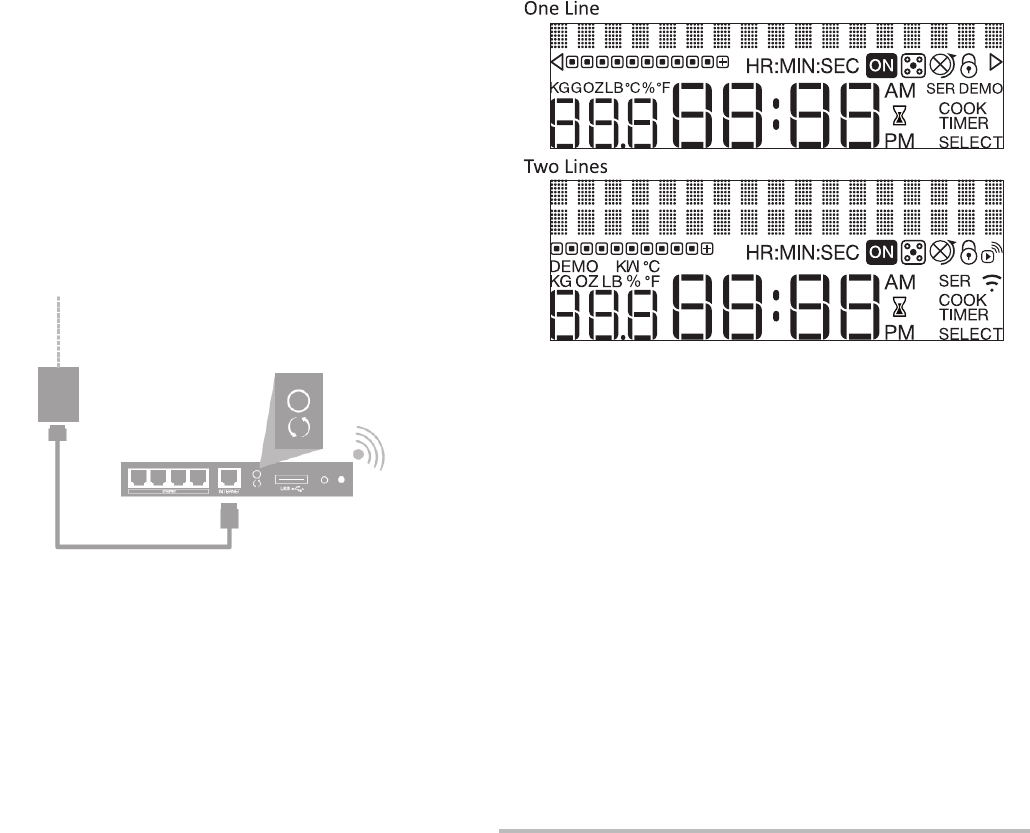

Display
When power is first supplied to the microwave oven, the timer
display will flash “12:00”. Enter the time by touching the number
keypads. Then touch the START keypad to allow operation.
To allow operation without changing the time, touch START or
CANCEL.
Number Codes
The oven is preset with shortcut number codes. A number code
includes one or more of the following; food category, cooking
power, cook time, and food quantity or weight. See the code
charts in the “Reheating,” “Defrosting,” “Steam,” “Soften/Melt,”
and “EasyConvect™” sections for additional information.
Control Lock
The Control Lock shuts down the control panel keypads to avoid
unintended use of the oven. The Control Lock will remain set after
a power failure, if set before the power failure occurs.
When the control is locked, only the Set/Start, Oven Light, and
Timer Set/Off keypads will function.
The Control Lock is preset unlocked, but can be locked.
To Lock Control: Touch CANCEL for approximately 3 seconds,
until two tones sound and a lock icon appears in the display.
To Unlock Control: Repeat to unlock. Two tones will sound and
the lock icon will be removed.
15
Connectivity Setup
Get the app and connect instructions, terms of use, and privacy policy at www.whirlpool.com/connect.
Requires Wi-Fi and an account creation. App features and functionality subject to change. Data rates may apply.
If you have any problems or questions, call Whirlpool Corporation Connected Appliances at 1-866-333-4591.
IMPORTANT: Proper installation of your appliance prior to use is your responsibility. Be sure to read and follow the Installation Instructions
that came with your appliance.
Setup Instructions – App Assisted
You will need:
A home wireless router.
The wireless home network name (SSID) and associated
password.
The Smart Appliance ID (SAID) from your appliance. This can
be found in the Settings menu.
NOTE: The router should be on and have a live Internet
connection.
STEP 1
Download App and Account Setup
If you already have the app and a user account:
Skip ahead to Step 3, “Register Your Appliance in Your User
Account.”
If This is Your First Smart Appliance:
You will need to download the Whirlpool® app and create an online
user account. You can download the app on Google Play™ or the
Apple® App Store®.
STEP 2
Create a User Account
Once installed, tap the Whirlpool® app icon to run the app. You will
be guided through the steps to set up a user account. The app will
make sure to get the necessary personal and home information.
For additional information, terms of use and privacy policy go to
www.whirlpool.com/connect.
STEP 3
Register Your Appliance in Your User Account
Select Add Appliance on the app to begin the process of
selecting your appliance, connecting it to your home network, and
registering it to your user account.
Follow the instructions in the app to connect your appliance.
If the app assisted setup is not successful, follow the “Alternate
Setup Instructions” section to connect your appliance to your
wireless home network.
Alternate Setup Instructions – Wi-Fi Protected Setup (WPS)
(Use alternate setup if app assisted setup is unsuccessful)
You will need:
A home wireless router capable of Wi-Fi Protected Setup
(WPS). The router should be on and have a live Internet
connection.
The Smart Appliance ID (SAID) from your appliance. This can
be found in the Settings menu.
NOTE: If your home wireless router is not equipped with a WPS
button, please check the user manual of your router to confirm
if it is WPS capable. If not, alternate setup instructions are at
www.whirlpool.com/connect.
STEP 1
Download App and Account Setup
If You Already Have the App and a User Account:
Skip ahead to the “Register Your Appliance in Your User Account”
section.
If This is Your First Smart Appliance:
You will need to download the Whirlpool® app and create
an online user account. You can download the app on Google
Play™ or the Apple® App Store®.
Once installed, tap the Whirlpool® app icon
to run the app. You will be guided through
the steps to set up a user account. The app
will make sure to get the necessary personal
and home information, as well as information
about your energy company.
For additional information, terms of use and
privacy policy go to www.whirlpool.com/
connect.
SET UP
Register Your Appliance in Your User Account
Registering your appliance in your user account is a necessary
step in order for you to take full advantage of the Smart features.
When prompted by the app, enter the 10-character Smart
Appliance Identification Number (SAID) (case sensitive) which
can be found in the Settings menu.
My Smart Appliance ID# is: _________________________________
16
NOTES:
Once you’ve connected your appliance to your home Wi-Fi
network, it will remain linked even if the power goes out, you
move the appliance, or if you put it in storage for a while.
If you replace your wireless router (or get a different Smart
appliance) you will need to repeat this connectivity setup
process.
To see terms of use, privacy policy and additional information
go to www.whirlpool.com/connect.
If you have any problems or questions, call the Whirlpool
Connected Appliance Team at 1-866-333-4591.
STEP 2
Router Setup
Press (and hold on some models) the WPS button on the router.
An indicator light will begin blinking.
HELPFUL TIP: The WPS function on your router is active for 2
minutes. Complete the next step within 2 minutes or you will need
to reinitiate WPS.
STEP 3
Appliance Setup (time sensitive step)
While the router’s WPS indicator light is blinking, touch and hold
CONNECT on the appliance for 5 seconds. The Wireless Status
icon (A) will blink slowly and the Time Display LEDs will animate to
show that the appliance is attempting to connect with the router.
Connection can take up to 2 minutes.
The Wireless Status icon will stay lit upon successful connection;
if not successful, the Wireless Status icon will blink rapidly and
turn off.
Once the appliance connects to your router, the appliance will
automatically attempt connection with the Whirlpool server over
the Internet.
When your appliance is connected to Wi-Fi and successfully
communicating with the Whirlpool server, return to the app and
add an appliance. Choose the option in the app that the appliance
you are adding is already connected to Wi-Fi.
If Your Appliance Doesn’t Connect
If your appliance still fails to connect, refer to the
“Troubleshooting” section of this User Guide, check any
connection instructions for your specific router, and refer to
alternate instructions at www.whirlpool.com/connect. If you
have further problems or questions, call the Connected Appliance
Team at 1-866-333-4591.
How to Use Remote Enable
This feature allows you to turn on the appliance (in Convection
Bake mode) when you are away from home using your mobile
device. The following steps provide a possible scenario on how to
use this feature:
1. Open the oven door and place food in the oven (if desired).
2. Close the oven door.
3. Press REMOTE ENABLE. You should see an icon ( ) light up
in the display to let you know that the appliance can be turned
on using your mobile device.
4. Use your mobile device to turn on a cooking cycle (e.g.
Convection Bake 350 F).
NOTES:
a. Only Convection Bake cycle can be remotely activated
(i.e. no features using microwave or convection roast may
be remotely activated).
b. While the oven is set up and waiting for remote activation (i.e.
between steps 3 and 4 above), the oven door must NOT open.
If the oven door is opened (say by another member of the
family) while it is in “waiting mode”, then REMOTE ENABLE
will be canceled and the remote enable icon will be turned off
from display to indicate this.
Modem
(may be included
inside the router)
Internet
Wi-Fi protected
setup (WPS)
Home wireless
router
17
MICROWAVE OVEN USE
A magnetron in the oven produces microwaves which reflect off
the metal floor, walls, and ceiling and pass through the turntable
and appropriate cookware to the food. Microwaves are attracted
to and absorbed by fat, sugar, and water molecules in the food,
causing them to move, producing friction and heat which cooks
the food.
To avoid damage to the microwave oven, do not lean on or
allow children to swing on the microwave oven door.
To avoid damage to the microwave oven, do not operate
microwave oven when it is empty.
The turntable must be in place and correct side up when
microwave oven is in use. Do not use if turntable is chipped or
broken. See the “Assistance or Service” section to reorder.
Baby bottles and baby food jars should not be heated in
microwave oven.
Clothes, flowers, fruit, herbs, wood, gourds, and paper,
including brown paper bags and newspaper, should not be
dried in microwave oven.
Paraffin wax will not melt in the microwave oven because it
does not absorb microwaves.
Use oven mitts or pot holders when removing containers from
microwave oven.
Do not overcook potatoes. At the end of the recommended
cook time, potatoes should be slightly firm. Let potatoes stand
for 5 minutes. They will finish cooking while standing.
Do not cook or reheat whole eggs inside the shell. Steam
buildup in whole eggs may cause them to burst. Cover
poached eggs and allow a standing time.
Food Characteristics
When microwave cooking, the amount, size and shape, starting
temperature, composition, and density of the food affect cooking
results.
Amount of Food
The more food heated at once, the longer the cook time needed.
Check for doneness and add small increments of time if
necessary.
Size and Shape
Smaller pieces of food will cook more quickly than larger pieces,
and uniformly shaped foods cook more evenly than irregularly
shaped food.
Starting Temperature
Room temperature foods will heat faster than refrigerated foods,
and refrigerated foods will heat faster than frozen foods.
Composition and Density
Foods high in fat and sugar will reach a higher temperature and
will heat faster than other foods. Heavy, dense foods, such as
meat and potatoes, require a longer cook time than the same size
of a light, porous food, such as cake.
Cooking Guidelines
Covering
Covering food helps retain moisture, shorten cook time, and
reduce spattering. Use the lid supplied with cookware. If a lid is
not available, wax paper, paper towels, or plastic wrap approved
for microwave ovens may be used. Plastic wrap should be
turned back at one corner to provide an opening to vent steam.
Condensation on the door and cavity surfaces is normal during
heavy cooking.
Stirring and Turning
Stirring and turning redistributes heat evenly to avoid overcooking
the outer edges of food. Stir from outside to center. If possible,
turn food over from bottom to top.
Arranging
If heating irregularly shaped or different sized foods, arrange the
thinner parts and smaller sized items toward the center. If cooking
several items of the same size and shape, place them in a ring
pattern, leaving the center of the ring empty.
Piercing
Before heating, use a fork or small knife to pierce or prick foods
that have a skin or membrane, such as potatoes, egg yolks,
chicken livers, hot dogs, and sausage. Prick in several places to
allow steam to vent.
Shielding
Use small, flat pieces of aluminum foil to shield the thin pieces of
irregularly shaped foods, bones, and foods such as chicken wings,
leg tips, and fish tails. See the “Aluminum Foil and Metal” section
first.
Standing Time
Food will continue to cook by the natural conduction of heat even
after the microwave cooking cycle ends. The length of standing
time depends on the volume and density of the food.
18
Turntable On/Off
For best performance, the turntable should be on during
microwave cooking.
If using oversized cookware that does not turn freely on the
microwave turntable, turn the turntable OFF. To turn off the
turntable, touch TURNTABLE. When cooking with the turntable
OFF, food should be turned halfway through the cooking process.
NOTE: The turntable cannot be turned off during any auto cooking
cycle.
Cookware and Dinnerware
Cookware and dinnerware must fit on the turntable. Always
use oven mitts or pot holders when handling because any dish
may become hot from heat transferred from the food. Do not
use cookware and dinnerware with gold or silver trim. Use the
following chart as a guide, then test before using.
Material Recommendations
Aluminum Foil,
Metal
See the “Aluminum Foil and Metal” section.
Browning Dish Bottom must be at least 3/16" (5 mm)
above the turntable. Follow manufacturer’s
recommendations.
Ceramic Glass,
Glass
Acceptable for use.
China,
Earthenware
Follow manufacturer’s recommendations.
Melamine Follow manufacturer’s recommendations.
Paper: Towels,
Dinnerware,
Napkins
Use non-recycled and those approved by
the manufacturer for microwave oven use.
Plastic: Wraps,
Bags, Covers,
Dinnerware,
Containers
Use those approved by the manufacturer
for microwave oven use.
Pottery and Clay Follow manufacturer’s recommendations.
Silicone Bakeware Follow manufacturer’s recommendations.
Straw, Wicker,
Wooden
Containers
Do not use in microwave oven.
Styrofoam®† Do not use in microwave oven.
Wax Paper Acceptable for use.
To Test Cookware or Dinnerware for Microwave Use:
1. Place cookware or dinnerware in microwave oven with 1 cup
(250 mL) of water beside it.
2. Cook at 100% cooking power for 1 minute.
Do not use cookware or dinnerware if it becomes hot and the
water stays cool.
Aluminum Foil and Metal
Always use oven mitts or pot holders when removing dishes from
the microwave oven.
Aluminum foil and some metal can be used in the microwave
oven. If not used properly, arcing (a blue flash of light) can occur
and cause damage to the microwave oven.
OK for Use
Racks and bakeware supplied with the microwave oven (on
some models), aluminum foil for shielding, and approved meat
thermometers may be used with the following guidelines:
To avoid damage to the microwave oven, do not allow
aluminum foil or metal to touch the inside cavity walls, ceiling
or floor.
Always use the turntable.
To avoid damage to the microwave oven, do not allow contact
with another metal object during microwave cooking.
Do Not Use
Metal cookware and bakeware, gold, silver, pewter, non-approved
meat thermometers, skewers, twist ties, foil liners such as
sandwich wrappers, staples, and objects with gold or silver trim or
a metallic glaze should not be used in the microwave oven.
Positioning Cooking Rack
The cooking rack can only be used with convection cooking and
broiling (on some models). To avoid damage to the microwave
oven, do not use the cooking rack in combination with microwave
cooking.
Place the cooking rack on slide rails as shown below. Push in the
baking tray to stop position. Check that the cooking rack is level.
For best cooking results, use the cooking rack only in the
recommended position.
A
B
A. Slide rail
B. Cooking rack
19
Microwave Cooking Power
Many recipes for microwave cooking specify which cooking
power to use by percent, name, or number. For example,
70%=Medium-High=7.
Use the following chart as a general guide for the suggested
cooking power of specific foods.
MICROWAVE COOKING POWER CHART
Percent/
Name Number Use
100%, High
(default
setting)
10 Quick heating convenience
foods and foods with high
water content, such as soups,
beverages, and most vegetables.
90% 9Cooking small, tender pieces
of meat, ground meat, poultry
pieces, and fish fillets.
Heating cream soups.
80% 8Heating rice, pasta, or casseroles.
Cooking and heating foods that
need a cook power lower than
high. For example, whole fish and
meat loaf.
70%, Medium-
High
7Reheating a single serving of
food.
60% 6Cooking sensitive foods such as
cheese and egg dishes, pudding,
and custards.
Cooking non-stirrable casseroles,
such as lasagna.
50%, Medium 5Cooking ham, whole poultry, and
pot roasts.
Simmering stews.
40% 4Melting chocolate.
Heating bread, rolls, and pastries.
30%, Medium-
Low, Defrost
3Defrosting bread, fish, meats,
poultry, and precooked foods.
20% 2Softening butter, cheese, and ice
cream.
10%, Low 1Taking chill out of fruit.
NOTE: A percentage of 0% is also acceptable. This will not heat
up.
Doneness
Doneness is a function used for adjusting the cook time. This
feature is used on all sensor and non-sensor functions with the
exception of Manual Cooking, Popcorn, Convect, Custom Reheat
(beverage-manual), Defrost (manual), and Steam (manual).
The 3 Doneness levels are Normal (default), More, or Less and
will appear once activated on the lower text line of the upper oven
display. Doneness can be changed only before starting the cycle.
To Change Doneness Setting:
After setting a function, the Doneness setting can be changed if
desired. This can be done before or after the “START?” prompt
appears in the display. Touch COOK POWER repeatedly to toggle
through Doneness options of Normal, More, or Less.
Sensor Cook
The Sensor Cook function is used in Reheat (meal), Steam
Cooking, and Popcorn.
During the Sensor Cook function, a sensor automatically adjusts
for the cook time and power level.
The microwave oven display will show the “Maximum Time
Remaining” prompt and the time countdown once the sensor
identifies the cooking duration.
If the microwave oven door is opened during a sensor function,
the microwave oven will turn off, and any additional operations will
be canceled.
For best cooking performance:
Before using a sensor cook function, make sure power has been
supplied to the microwave oven for at least 2 minutes, the room
temperature is not above 95°F (35°C), and the outside of the
cooking container and the microwave oven cavity are dry.
20
Reheat
Times and cooking powers have been preset for reheating a
number of food types.
Manual Reheat requires that a cook time and a power level be
entered if using other than 70% cook power.
Use the following chart as a guide.
REHEAT CHART
Food Code Quantity
Meal
Place food on plate.
Cover with plastic
wrap and vent. Let
stand 2-3 minutes after
reheating.
18-16 oz (227-454 g)
Casserole
Place in microwave-
safe container. Cover
with plastic wrap and
vent. Stir and let stand
2-3 minutes after
reheating.
21-4 cups (250 mL-1 L)
Beverage
Do not cover.
31-2 cups (250 mL-500 mL)
Pizza
Place on a paper towel
lined microwave-safe
plate.
41-3 slices (3 oz [85 g] each)
Soup
Place in microwave-
safe container. Cover
with plastic wrap and
vent. Stir and let stand
2-3 minutes after
reheating.
51-4 cups (250 mL-1 L)
Sauce
Place in microwave-
safe container. Cover
with plastic wrap and
vent. Stir and let stand
2-3 minutes after
reheating.
61-4 cups (250 mL-1 L)
Manual 7Default power level 70%
Defrost
The Defrost feature can be used, or the microwave oven can be
manually set to defrost by using 30% cook power.
For optimal results, food should be 0°F (-18°C) or colder when
defrosting.
Unwrap foods and remove lids (from fruit juice) before
defrosting.
Shallow packages will defrost more quickly than deep blocks.
Separate food pieces as soon as possible during or at the end
of the cycle for more even defrosting.
Foods left outside the freezer for more than 20 minutes or
frozen ready-made food should not be defrosted using the
Defrost feature, but should be defrosted manually.
Use small pieces of aluminum foil to shield parts of food such
as chicken wings, leg tips, and fish tails. See the “Aluminum
Foil and Metal” section first.
Times and cooking powers have been preset for defrosting a
number of food types.
Manual Defrost requires that a cook time and power level be
entered if using other than 30% cook power.
Use the following chart as a guide.
DEFROST CHART
Food Code Weight
Poultry* 10.1 - 6.6 lbs (45 g - 3 kg)
Meats* 20.1 - 6.6 lbs (45 g - 3 kg)
Fish* 30.1 - 6.6 lbs (45 g - 3 kg)
Bread 40.1 - 2.0 lbs (45 g - 907 g)
Juice 56, 12 or 16 oz (177, 355 or 473 mL)
Manual 6Default power level 30%
* See the Defrost Preparation Chart at end of the “Defrost” section
for cuts, sizes, and instructions.
Use the following chart as a guide when defrosting meat, poultry,
or fish.
DEFROST PREPARATION CHART
MEAT
Beef: ground, steaks,
roast, stew
The narrow or fatty areas of irregular
shaped cuts should be shielded with
foil before defrosting.
Do not defrost less than 1/4 lb (113 g)
or two 4 oz (113 g) patties.
Place all meats in a microwave-safe
baking dish.
Lamb: stew and chops
Pork: chops, ribs,
roasts, sausage
POULTRY
Chicken: whole and
cut up
Place in a microwave-safe baking dish,
chicken breast-side up.
Remove giblets from whole chicken.
Cornish hens
Turkey: breast
FISH
Fillets, Steaks,
Whole, Shellfish
Place in a microwave-safe baking dish.
21
Steam Cooking
Steam Cook is a sensor cooking function that uses microwaves
to steam food. Always use steamer vessel. See the “KitchenAid™
Steamer Vessel” section before using. Use Steam Cook for foods
such as vegetables, fish and potatoes.
Times and cooking powers have been preset for steaming a
number of food types.
Manual Steam Cook requires that a cook time be entered.
It is recommended to add ½ cup (125 mL) of water to Steamer
Vessel before steaming.
Use the following chart as a guide.
STEAM COOKING CHART
Food Code Quantity
Potatoes 12-6 cups (500 mL-1.5 L)
Fresh vegetables 22-6 cups (500 mL-1.5 L)
Frozen vegetables 32-6 cups (500 mL-1.5 L)
Fish 48-16 oz (227-454 g)
Shrimp 55-10 oz (142-283 g)
Manual 6Sensing
Popcorn
Do not use regular paper bags or glassware.
Pop only 1 package of popcorn at a time.
Follow manufacturer’s instructions when using a microwave
popcorn popper.
Listen for popping to slow to 1 pop every 1 or 2 seconds, and
then stop the cycle. Do not repop unpopped kernels.
For best results, use fresh bags of popcorn.
Cooking results may vary by brand and fat content.
Recommended bag sizes are 3.5 oz, 3.0 oz, and 1.75 oz.
NOTE: Follow the instructions provided by the microwave popcorn
manufacturer.
Keeping Food Warm
Hot cooked food can be kept warm in the microwave oven.
Cover plates of food.
Cover foods that were covered while being cooked.
Do not cover baked goods such as pastries, pies, turnovers,
etc.
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
To Keep Food Warm:
1. Touch COOK TIME and then number keypads to set a length
of time to warm.
OR
Touch the number keypads to set a length of time to warm.
To use this feature, the display must be in time of day
visualization.
2. Touch COOK POWER.
3. Touch the number “1” keypad to set cook power at 10%.
NOTE: Doneness function is not active for manual cooking.
4. Touch START.
The display will count down the warming time.
When the stop time is reached, the oven will shut off
automatically and “Cooking Complete” will appear in the
display.
If enabled, end-of-cycle tones will sound, and then reminder
tones will sound every minute.
5. Touch CANCEL or open the door to clear the display and/or
stop the reminder tones.
Soften/Melt
Soften and Melt functions may be used to soften or melt your
food. Times and cooking powers have been preset for a number of
food types. Use the following chart as a guide.
SOFTEN CHART
Use the following chart as a guide.
Food Code Quantity Preparation
Butter 11/2-2 sticks Unwrap and place
in microwave-safe
container.
Margarine 21/2-2 sticks
Ice cream 316, 32, or 64 oz
(454, 907 g,
or 1.8 kg)
Cream cheese 43 or 8 oz
(85 g or 227 g)
Unwrap and place
in microwave-safe
container.
MELT CHART
Food Code Quantity Preparation
Butter 11/2-2 sticks Unwrap and place
in microwave-safe
container.
Margarine 21/2-2 sticks
Chocolate 32, 4, 6, 8 oz
(57, 113, 170,
227 g)
Cut squares into
small pieces or
use chips. Place
in microwave-safe
container.
Cheese 48 or 16 oz
(227 or 454 g)
Cut into small
pieces and place
in microwave-safe
container.
Marshmallows 55 or 10 oz
(142 or 283 g)
Place in
microwave-safe
container.
22
Convect
Convection cooking uses the convection element, the broil
element, and the fan. Hot air is circulated throughout the oven
cavity by the fan. The constantly moving air surrounds the food to
heat the outer portion quickly.
The convect function may be used to cook small amounts of
food on a single rack.
Always use the convection grid placed on turntable or baking
tray.
Always use the turntable “On” option when convection
cooking with the convection grid (default setting).
Do not cover turntable or convection grid or baking tray with
aluminum foil.
Do not use light plastic containers, plastic wrap or paper
products. All heatproof cookware or metal utensils can be
used in convection cooking. Round pizza pans are excellent
for convection cooking.
Use convection cooking for items such as souffles, breads,
cookies, angel food cakes, pizza, and most meats and fish.
All Convect functions require preheating before use. Place
food in microwave oven after preheating is complete.
Convect is a function that converts a standard thermal bake cook
time and temperature into an ideal cook time and temperature for
convection cooking after the oven has preheated.
Convection temperatures and times differ from those of standard
cooking. The oven can automatically reduce standard recipe
temperatures and times for convection cooking.
A
B
C
A. Convection fan
B. Convection element
C. Convection grid
The conversion may not be exact because foods are grouped in
general categories. Use the following chart as a guide.
CONVECTION CHART
Setting Foods Code
BAKED
GOODS
Biscuits, Breads: quick and yeast
Cakes and Cookies
Casseroles: including frozen entrées
and soufflés
Fish
1
MEATS Baked potatoes
Chicken: whole and pieces, meatloaf
Roasts: pork, beef, and ham
* Turkey and large poultry are not
included because their cook times vary.
2
OTHER
FOODS
Convenience foods: french fries, nuggets,
fish sticks, pizza
Pies: fruit and custard
3
For Use With Convection/Combination
Cycles (on some models)
Metal bakeware may be used only during convection (bake)
cycles. Use ovenproof, microwave-safe cookware for all other
convection and combination cycles.
23
MICROWAVE OVEN CARE
General Cleaning
IMPORTANT: Before cleaning, make sure all controls are off and
the microwave oven is cool. Always follow label instructions on
cleaning products.
Soap, water, and a soft cloth or sponge are suggested first, unless
otherwise noted.
STAINLESS STEEL (on some models)
NOTE: To avoid damage to stainless steel surfaces, do not use
soap-filled scouring pads, abrasive cleaners, cooktop polishing
creme, steel-wool pads, gritty washcloths, or abrasive paper
towels. Damage may occur to stainless steel surfaces, even
with one-time or limited use.
Rub in direction of grain to avoid damaging.
Cleaning Method:
affresh® Stainless Steel Cleaner Part Number W10355016
(not included):
See the “Assistance or Service” section to order.
Vinegar for hard water spots.
MICROWAVE OVEN DOOR EXTERIOR
Cleaning Method:
Glass cleaner and a soft cloth or sponge:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
affresh® Kitchen Appliance Cleaner Part Number W10355010
(not included):
See the “Assistance or Service” section to order.
MICROWAVE OVEN CAVITY
To avoid damage to microwave oven cavity, do not use soap-
filled scouring pads, abrasive cleaners, steel-wool pads, gritty
washcloths, or some paper towels.
On stainless steel models, rub in direction of grain to avoid
damaging.
The area where the oven door and frame touch when closed
should be kept clean.
Cleaning Method:
Average soil
Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
Heavy soil
Mild, nonabrasive soaps and detergents:
Heat 1 cup (250 mL) of water for 2 to 5 minutes in oven.
Steam will soften soil. Rinse with clean water and dry with soft,
lint-free cloth.
Odors
Lemon juice or vinegar:
Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either
lemon juice or vinegar for 2 to 5 minutes in oven.
MICROWAVE OVEN CEILING
The broil element does not need cleaning since the intense heat
will burn off any food spatters. However, the ceiling above the
broil element may need regular cleaning.
Cleaning Method:
Warm water, mild detergent and a sponge.

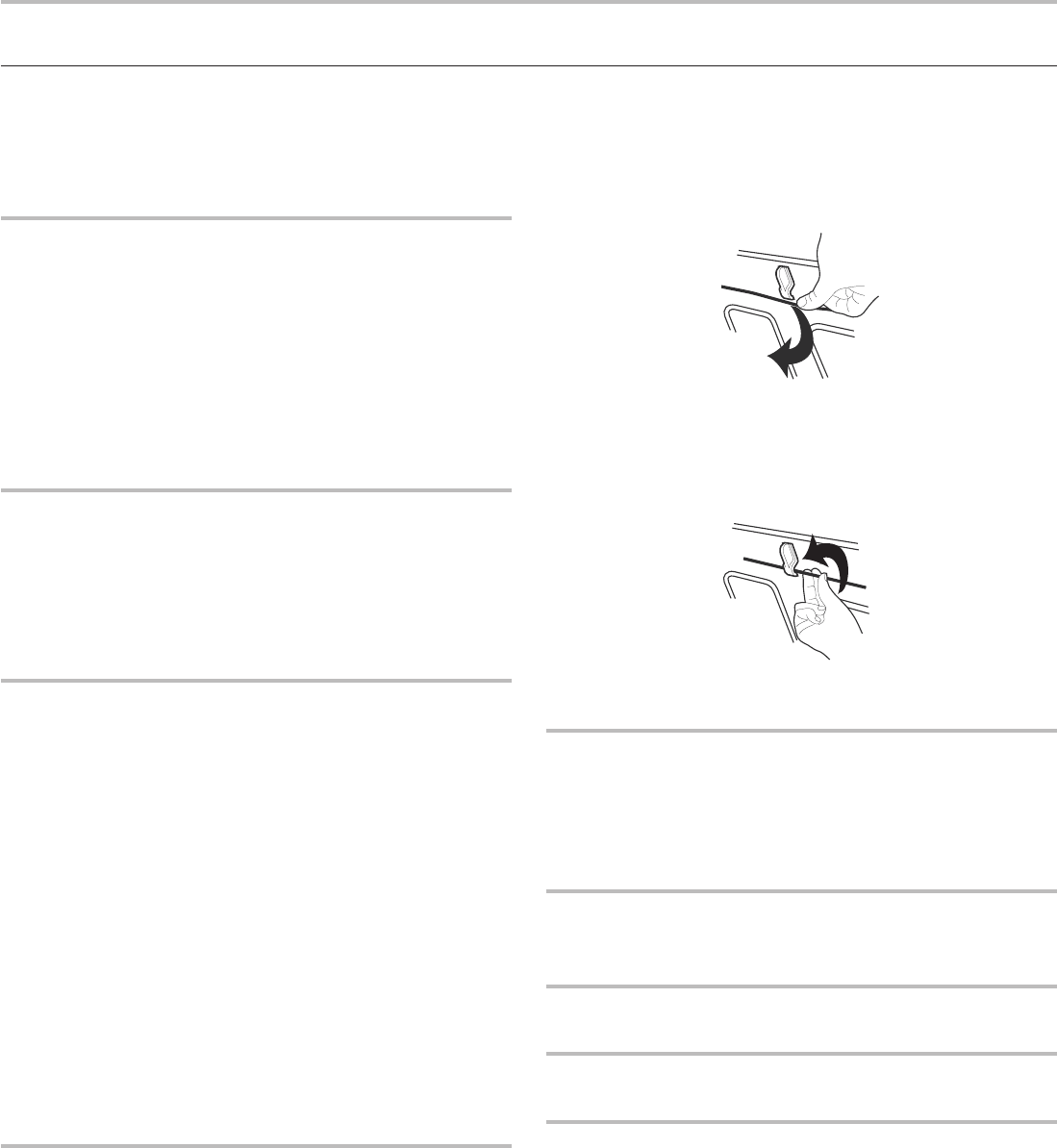

To clean:
1. Push the fastening thread gently toward the back of the ceiling
and then lower it to release the broil element.
2. Lower the front of the broil element to access the ceiling for
cleaning.
3. Raise broil element back up and return the fastening thread
back to its original location.
Always return the broil element to the cooking position after
cleaning.
TURNTABLE
Replace turntable immediately after cleaning. Do not operate the
microwave oven without the turntable in place.
Cleaning Method:
Mild cleanser and scouring pad
Dishwasher
RACK
Steel-wool pad
Dishwasher
COOKING RACK
Dishwasher
STEAMER VESSEL
Dishwasher
TURNTABLE SUPPORT AND ROLLERS, HUB
Dishwasher
24
TROUBLESHOOTING
First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a
service call, refer to the warranty page in this manual and scan the code there with your mobile device, or visit
http://www.whirlpool.com/product_help. In Canada, visit http://www.whirlpool.ca.
Contact us by mail with any questions or concerns at the address below:
In the U.S.A.:
Whirlpool Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
In Canada:
Whirlpool Brand Home Appliances
Customer eXperience Centre
200 - 6750 Century Ave.
Mississauga, Ontario L5N 0B7
Please include a daytime phone number in your correspondence.
If you experience Recommended Solutions
Microwave oven will
not operate
Check the following:
Household fuse or circuit breaker: If a household fuse has blown or a circuit breaker has tripped, replace
the fuse or reset the circuit breaker. If the problem continues, call an electrician.
Magnetron: Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does
not heat, try the steps in the bullets below. If microwave oven still does not operate, call for service.
Door: Firmly close door. On some models, if a packaging spacer is attached to inside of the door, remove
it, then firmly close door.
If a message about the door appears in the display, the door has been closed for 5 minutes or more
without the microwave oven being started. This occurs to avoid unintended starting of the microwave
oven. Open and close the door, then start the cycle.
Control: Make sure control is set properly. Make sure Control Lock is off. Make sure Demo mode (on
some models) is off.
Arcing in the
microwave oven
Check the following:
Soil buildup: Soil buildup on cavity walls, microwave inlet cover, cooking rack supports, and area where
the door touches the frame can cause arcing. See “General Cleaning” in the “Microwave Oven Care”
section.
Turntable alternates
rotation directions This is normal and depends on motor rotation at the beginning of the cycle.
Display shows
messages
“Enter clock” with flashing digits means there has been a power failure. Reset the clock.
A letter followed by a number is an error indicator. Call for assistance.
Fan running during
cooktop usage
This is normal. The microwave oven’s cooling fan, which is separate from the vent fan, automatically
comes on during microwave oven operation to cool the microwave oven. It may also automatically come
on and cycle on and off to cool the microwave oven’s controls while the cooktop below is being used.
Radio, TV, or cordless
phone interference
Check the following:
Proximity: Move the receiver away from the microwave oven, or adjust the radio or TV antenna.
Soil: Make sure the microwave oven door and sealing surfaces are clean.
Frequency: Some 2.4 GHz-based cordless phones and home wireless networks may experience static
or noise while microwave oven is on. Use a corded phone, a different frequency cordless phone, or avoid
using these items during microwave oven operation.
Cannot connect
to router
New router installed: Erase the old router information by pressing and holding CONNECT for approximately
15 seconds. Repeat the steps from the “Connectivity Setup” section for the new router.
Wi-Fi signal strength low: Reposition router closer to the appliance. Call the connected customer service
center to confirm signal strength. See the “Warranty” section for contact information.
Appliance not
connected
Loss of power to router: Restore power to router.
Remote app isn’t
working and/or is
not receiving push
notifications
Router not working: Ensure router is connected to the internet and the Wi-Fi indicator is on.
Push notifications are disabled: Ensure that push notifications are enabled on your remote app.
User account not set up: Set up a user account and register the appliance on the remote app.
25
CONNECTED APPLIANCE REGULATORY NOTICES
Federal Communications Commission (FCC) and Industry
Canada (IC) Compliance Notices
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
Industry Canada (IC) Compliance Notice
This Device complies with Industry Canada License-exempt RSS
standard(s). Operation is subject to the following two conditions:
1. This device may not cause interference,
2. This device must accept any interference, including
interference that may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may
only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that necessary for successful
communication.
This radio transmitter IC: 10248A-XPWG3 has been approved
by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this
device.
Antenna
Type
Maximum Permissible
Antenna Gain (dBi)
Required Impedance
(OHM)
Slot 1.76 50
F1.24 50
Planar F 4.2 50
RF Exposure Information
To comply with FCC/IC RF exposure requirements for mobile
transmitting devices, this transmitter should only be used or
installed at locations where there is at least 20 cm separation
distance between the antenna and all persons.
To comply with FCC/IC RF exposure limits for general population/
uncontrolled exposure, the antenna(s) used for this transmitter
must be installed to provide a separation distance of at least
20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
The user manual for the end product must include the
following information in a prominent location:
“To comply with FCC and Industry Canada RF radiation exposure
limits for general population, the antenna(s) used for this
transmitter must be installed such that a minimum separation
distance of 20 cm is maintained between the radiator (antenna)
and all persons at all times and must not be co-located or
operating in conjunction with any other antenna or transmitter.”
26
OPEN SOURCE LICENSE USAGE
The following statements refer to the portions of this software based in part on FreeRTOS v7.0.2, http://www.freertos.org. The use of this
software is governed by the terms of GNU General Public License v. 2, which is available at: http://www.gnu.org/licenses/gpl-2.0.html.
A copy of the source code may be obtained by written request for the software by name to opensource@whirlpool.com, along with the
address for delivery.
The following statements refer to those portions of the software copyrighted by Eclipse Foundation, Inc. Copyright © 2007, Eclipse
Foundation, Inc. and its licensors. All rights reserved.
Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the
documentation and/or other materials provided with the distribution.
Neither the name of the Eclipse Foundation, Inc. nor the names of its contributors may be used to endorse or promote products
derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.
The following statements refer to those portions of the software copyrighted by Swedish Institute of Computer Science.
Copyright © 2001-2004 Swedish Institute of Computer Science. All rights reserved.
1. Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. The name of the author may not be used to endorse or promote products derived from this software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE AUTHOR “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,
OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The following statements refer to those portions of the software copyrighted by Marvell International Ltd. Copyright © Marvell International
Ltd. All rights reserved.
DISCLAIMER. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.
The following statements refer to those portions of the software based on jQuery, jsmn. Copyright © 2011 John Resig, http://jquery.com/,
copyright 2011, The Dojo Foundation, Copyright © 2010 Serge A. Zaitsev.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the
“Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish,
distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the
following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT
SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN
ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE
OR OTHER DEALINGS IN THE SOFTWARE.
The following statements refer to those portions of the software copyrighted by Adam Dunkels.
Copyright © 2004, Adam Dunkels.
All rights reserved.
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. Neither the name of the Institute nor the names of its contributors may be used to endorse or promote products derived from this
software without specific prior written permission.
27
THIS SOFTWARE IS PROVIDED BY THE INSTITUTE AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE INSTITUTE OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The following statements refer to those portions of the software copyrighted by Jouni Malinen.
Copyright © 2002-2008, Jouni Malinen <j@w1.fi> and contributors
All Rights Reserved.
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
3. Neither the name(s) of the above-listed copyright holder(s) nor the names of its contributors may be used to endorse or promote
products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED
TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.
The following statements refer to those portions of the software copyrighted by The Regents of the University of California.
Copyright © 1991, 1993 The Regents of the University of California. All rights reserved.
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
ACCESSORIES
For accessories in the U.S.A., you can visit our website at www.whirlpool.com or call us at 1-800-253-1301.
In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777.
Replacement Parts
Turntable
Turntable support and rollers
Turntable hub
Cooking rack
Rack clip
Rack support
Grease filter
Charcoal filter
Cooktop light bulb
Cavity light bulb
Provided Accessories
Convection rack
Steamer vessel
Cleaning Supplies
Heavy Duty Degreaser
affresh® Kitchen Appliance Cleaner
affresh® Stainless Steel Cleaner
affresh® Stainless Steel Wipes
11/14
IF YOU NEED SERVICE:
1. Before contacting us to arrange service, please determine whether your product requires repair. Some
questions can be addressed without service. Please take a few minutes to review the Troubleshooting or
Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional
resources, or visit www.whirlpool.com/product_help.
2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and
Canada, direct all requests for warranty service to:
Whirlpool Customer eXperience Center
In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.
If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.
WHIRLPOOL®
MAJOR APPLIANCE
LIMITED WARRANTY
ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED
TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you call the
Customer eXperience Center:
Name, address and telephone number
Model number and serial number
A clear, detailed description of the problem
Proof of purchase including dealer or retailer name and address
ONE YEAR LIMITED WARRANTY
WHAT IS COVERED WHAT IS NOT COVERED
For one year from the date of purchase,
when this major appliance is installed,
operated and maintained according to
instructions attached to or furnished
with the product, Whirlpool Corporation
or Whirlpool Canada LP (hereafter
“Whirlpool”) will pay for Factory
Specified Replacement Parts and repair
labor to correct defects in materials or
workmanship that existed when this
major appliance was purchased, or at
its sole discretion replace the product.
In the event of product replacement,
your appliance will be warranted for
the remaining term of the original unit’s
warranty period.
YOUR SOLE AND EXCLUSIVE
REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN.
Service must be provided by a
Whirlpool designated service company.
This limited warranty is valid only in
the United States or Canada and
applies only when the major appliance
is used in the country in which it was
purchased. This limited warranty is
effective from the date of original
consumer purchase. Proof of original
purchase date is required to obtain
service under this limited warranty.
1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or
installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with
electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses
or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).
5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.
6. Conversion of products from natural gas or L.P. gas.
7. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by
Whirlpool.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service,
alteration or modification of the appliance.
9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes
unless such damage results from defects in materials and workmanship and is reported to Whirlpool
within 30 days.
10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including
but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
11. Food or medicine loss due to product failure.
12. Pick-up or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool
servicer is not available.
14. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels,
flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or
replacement of the product.
15. Service or parts for appliances with original model/serial numbers removed, altered or not easily
determined.
The cost of repair or replacement under these excluded circumstances shall be borne by
the customer.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow
limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific
legal rights, and you also may have other rights that vary from state to state or province to province.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations
contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you
should ask Whirlpool or your retailer about buying an extended warranty.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL
SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of
incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you
also may have other rights that vary from state to state or province to province.
www.whirlpool.com/product_help
W11037870A ®/™ ©2017 Whirlpool. All rights reserved. 01/17

Navigation menu
