THANK YOU for purchasing this high-quality product. Register your microwave oven at www.whirlpool.com. In Canada, register

your range at www.whirlpool.ca.

For future reference, please make a note of your product model and serial numbers. These can be found on the label located on the

oven frame behind the top right side of the oven door.

Model Number __________________________________________ Serial Number _________________________________________

Para una versión de estas instrucciones en español, visite www.whirlpool.com.

Deberá tener a mano el número de modelo y de serie, que están ubicados en el marco del horno, detrás del lado derecho superior

de la puerta del horno.

Table of Contents

W11037870A

MICROWAVE OVEN

HOOD COMBINATION

USER INSTRUCTIONS

MICROWAVE OVEN SAFETY ........................................................2

Electrical Requirements ...............................................................4

PARTS AND FEATURES ................................................................4

Feature Guide ...............................................................................4

Vent Fan......................................................................................10

Standby Mode ............................................................................10

Additional Features ....................................................................10

Control Lock ...............................................................................11

Timer ...........................................................................................11

Options .......................................................................................11

Sabbath Mode (KCF) .................................................................12

Turntable ..................................................................................... 12

Convection Rack ........................................................................13

Cooking Rack .............................................................................13

Steamer Vessel ...........................................................................13

Display ........................................................................................14

Number Codes ...........................................................................14

Connectivity Features ................................................................14

Control Lock ...............................................................................14

Connectivity Setup .....................................................................15

MICROWAVE OVEN USE ............................................................. 17

Food Characteristics ..................................................................17

Cooking Guidelines ....................................................................17

Cookware and Dinnerware.........................................................18

Aluminum Foil and Metal ...........................................................18

Positioning Cooking Rack ..........................................................18

Microwave Cooking Power ........................................................19

Doneness ...................................................................................19

Sensor Cook...............................................................................19

Reheat ........................................................................................20

Defrost ........................................................................................20

Steam Cooking...........................................................................21

Popcorn ...................................................................................... 21

Keeping Food Warm ..................................................................21

Soften/Melt .................................................................................21

Convect ......................................................................................22

BUILT-IN MICROWAVE OVEN CARE ..........................................23

General Cleaning ........................................................................23

TROUBLESHOOTING ..................................................................24

CONNECTED APPLIANCE REGULATORY NOTICES ...............25

OPEN SOURCE LICENSE USAGE ..............................................26

ACCESSORIES .............................................................................27

WARRANTY ..................................................................................28

MICROWAVE OVEN SAFETY

When using electrical appliances basic safety precautions should be followed, including the following:

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of burns, electric shock,

fire, injury to persons, or exposure to excessive microwave

energy:

■ Read all instructions before using the microwave oven.

■ Read and follow the specific “PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY” found in this section.

■ The microwave oven must be grounded. Connect only to

properly grounded outlet. See “GROUNDING

INSTRUCTIONS” found in the “INSTALLATION

INSTRUCTIONS” section.

■ Install or locate the microwave oven only in accordance

with the provided Installation Instructions.

■ Some products such as whole eggs in the shell and

sealed containers - for example, closed glass jars - are

able to explode and should not be heated in the

microwave oven.

■ Use the microwave oven only for its intended use as

described in the manual. Do not use corrosive chemicals

or vapors in the microwave oven. This type of oven is

specifically designed to heat, cook, or dry food. It is not

designed for industrial or laboratory use.

■ As with any appliance, close supervision is necessary

when used by children.

■ Do not operate the microwave oven if it has a damaged

cord or plug, if it is not working properly, or if it has been

damaged or dropped.

■ The microwave oven should be serviced only by qualified

service personnel. Call an authorized service company for

examination, repair, or adjustment.

■ Do not cover or block any openings on the microwave oven.

■ Do not store this microwave oven outdoors. Do not use the

microwave oven near water - for example, near a kitchen

sink, in a wet basement, near a swimming pool, or similar

locations.

■ Do not immerse cord or plug in water.

■ Keep cord away from heated surfaces.

■ Do not let cord hang over edge of table or counter.

■ See door surface cleaning instructions in the “Microwave

Oven Care” section.

■ To reduce the risk of fire in the oven cavity:

– Do not overcook food. Carefully attend the microwave

oven when paper, plastic, or other combustible materials

are placed inside the oven to facilitate cooking.

– Remove wire twist-ties from paper or plastic bags before

placing bags in oven.

– If materials inside the oven ignite, keep oven door closed,

turn oven off, and disconnect the power cord, or shut off

power at the fuse or circuit breaker panel.

– Do not use the cavity for storage purposes. Do not leave

paper products, cooking utensils, or food in the cavity when

not in use.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open

since open-door operation can result in harmful exposure

to microwave energy. It is important not to defeat or

tamper with the safety interlocks.

(b) Do not place any object between the oven front face and

the door or allow soil or cleaner residue to accumulate on

sealing surfaces.

important that the oven door close properly and that there

is no damage to the:

(1) Door (bent),

(2) Hinges and latches (broken or loosened),

(3) Door seals and sealing surfaces.

(d) The oven should not be adjusted or repaired by anyone

except properly qualified service personnel.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other

reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ Liquids, such as water, coffee, or tea are able to be

overheated beyond the boiling point without appearing to

be boiling. Visible bubbling or boiling when the container

is removed from the microwave oven is not always

present. THIS COULD RESULT IN VERY HOT LIQUIDS

SUDDENLY BOILING OVER WHEN THE CONTAINER

IS DISTURBED OR A SPOON OR OTHER UTENSIL IS

INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons:

– Do not overheat the liquid.

– Stir the liquid both before and halfway through heating it.

– Do not use straight-sided containers with narrow necks.

– After heating, allow the container to stand in the microwave

oven for a short time before removing the container.

– Use extreme care when inserting a spoon or other utensil

into the container.

■ Do not mount over a sink.

■ Do not store anything directly on top of the microwave oven

when the microwave oven is in operation.

PARTS AND FEATURES

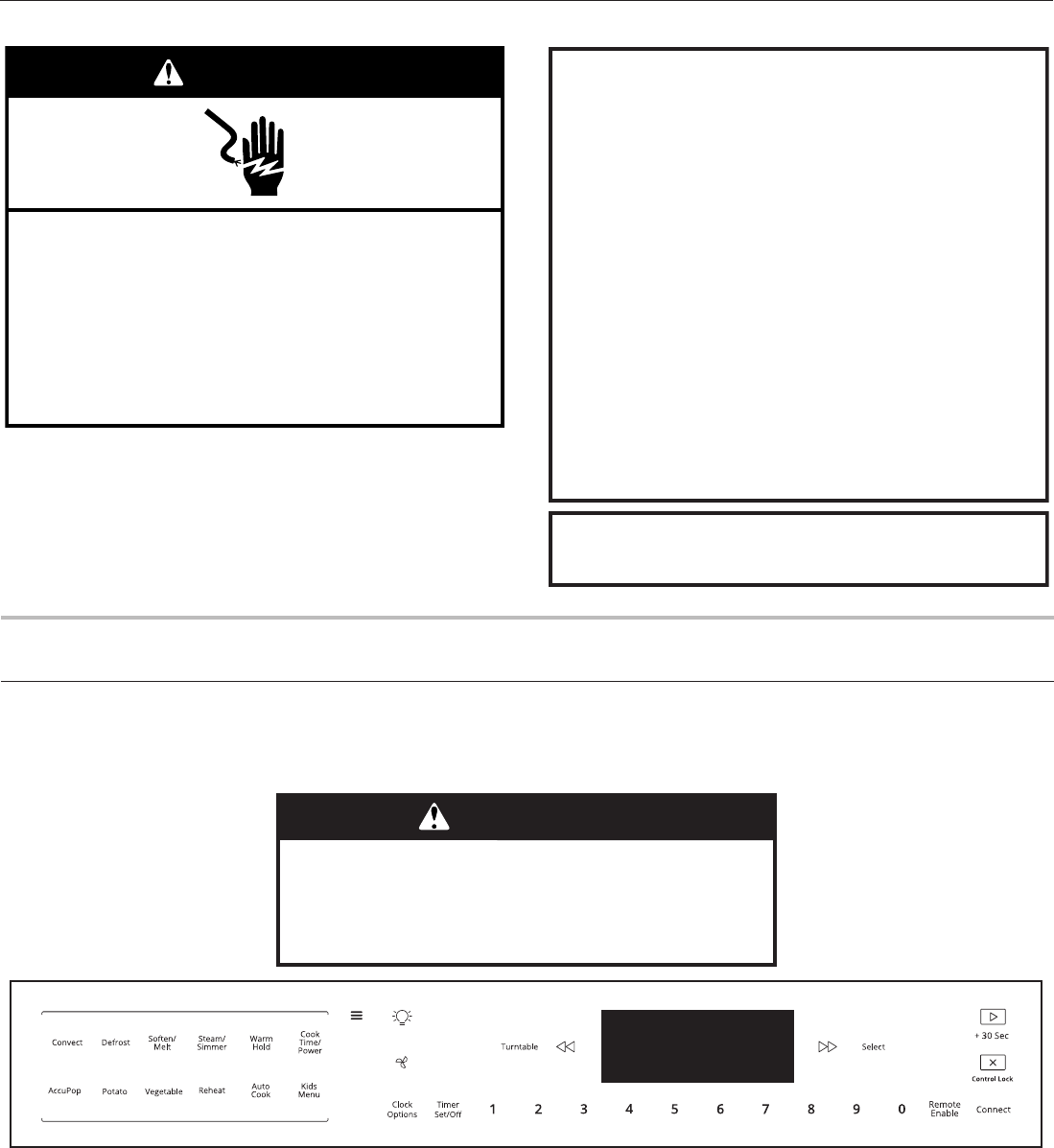

Feature Guide

This manual covers several models. Your model may have some or all of the items listed. Refer to this manual or the Product Help section

of our website at www.whirlpool.com for more detailed instructions. In Canada, refer to the Product Help section at

www.whirlpool.ca.

Electrical Requirements

This device complies with Part 18 of the FCC Rules.

This device complies with Industry Canada ICES-001.

Observe all governing codes and ordinances.

Required:

■A 120-volt, 60 Hz, AC-only, 15- or 20-amp electrical supply

with a fuse or circuit breaker.

Recommended:

■A time-delay fuse or time-delay circuit breaker.

■A separate circuit serving only this microwave oven.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ For all cord connected appliances:

The microwave oven must be grounded. In the event of

an electrical short circuit, grounding reduces the risk of

electric shock by providing an escape wire for the electric

current. The microwave oven is equipped with a cord

having a grounding wire with a grounding plug. The plug

must be plugged into an outlet that is properly installed

and grounded.

WARNING: Improper use of the grounding plug can

result in a risk of electric shock. Consult a qualified

electrician or serviceman if the grounding instructions are

not completely understood, or if doubt exists as to whether

the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is

too short, have a qualified electrician or serviceman install

an outlet near the microwave oven.

WARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before

or after cooking.

Doing so can result in food poisoning or sickness.

Keypad Feature Instructions

CLOCK/OPTIONS Set the Clock The Clock is a 12-hour (12:00-11:59) or 24-hour (0:00-23:59) clock. Touch CLOCK/

OPTIONS to reach Clock submenu and follow the prompts to set the Clock. Clock

format (12 hours with AM and PM, 12 hours without AM and PM, or 24 hours) may also

be set in the Clock submenu.

CLOCK/OPTIONS Reach Options

1. Touch CLOCK/OPTIONS. The oven display will scroll through the various options.

You can also touch CLOCK/OPTIONS repeatedly to manually scroll through the list

of options.

2. Touch the number keypad for the speciﬁc option to toggle the function setup.

MENU Turn On Backlit

Buttons

Press the menu keypad to light up the back-lit buttons.

LIGHT Turn On Light Press the light keypad to turn the light beneath the hood on or off.

FAN Turn On Fan Press the fan keypad to the fan on or off.

TIMER (SET/OFF) Kitchen Timer 1. Touch TIMER SET/OFF.

2. Touch the number keypads to set the length of time.

3. Touch TIMER SET/OFF.

If the keypad is not touched, the control will continue to wait for TIMER SET/OFF to

be touched.

When the set time ends, 4 chimes will continuously repeat until TIMER SET/OFF is

touched.

4. If the Cancel keypad is touched, the microwave oven will turn off; however, the Timer

can only be turned off using the Timer Set/Off keypad.

Start/Add 30 Sec Touching the Start/Add 30 Sec keypad when the microwave oven is off will start 30

seconds of cook time at 100% power. If cooking is interrupted by opening the door,

touching Start/Add 30 Sec after the door is closed again will resume the preset cycle.

CANCEL Microwave Oven

Cancel

The Cancel keypad stops any microwave oven function except for the Clock, Timer, and

Control Lock.

The oven will also turn off when the door is opened. When the door is opened, the

element(s) and fan will turn off, but the oven light will remain on. Close the door and

touch the Start keypad to resume the preset cycle.

The oven cooling fan may continue to operate even after an oven function has been

canceled or completed, depending on the oven temperature.

Left Arrow

Navigate Menu Press the Left Arrow keypad to move through the menu.

Right Arrow

Navigate Menu Press the Right Arrow keypad to move through the menu.

SELECT Select Options Touch SELECT to select options.

COOK TIME/POWER Manual Cooking 1. Touch COOK TIME/POWER and then number keypads to set a length of time to

cook.

2. Touch the Start keypad.

Touch the number keypads to set the cook power if other than 100%.

Touch the Start keypad.

The display will count down the cook time.

When the stop time is reached, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every

minute.

3. Touch the Cancel keypad or open the door to clear the display and/or stop reminder

tones.

Keypad Feature Instructions

CONVECT Convection

Cooking

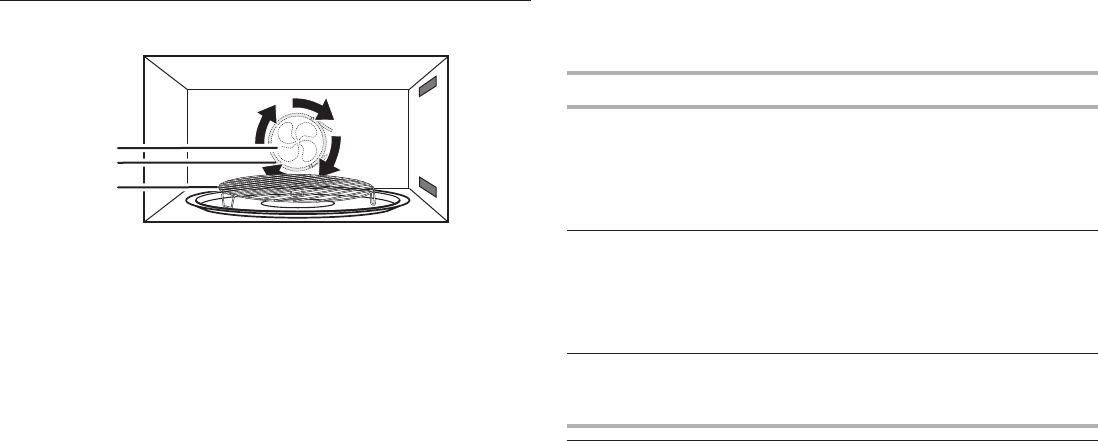

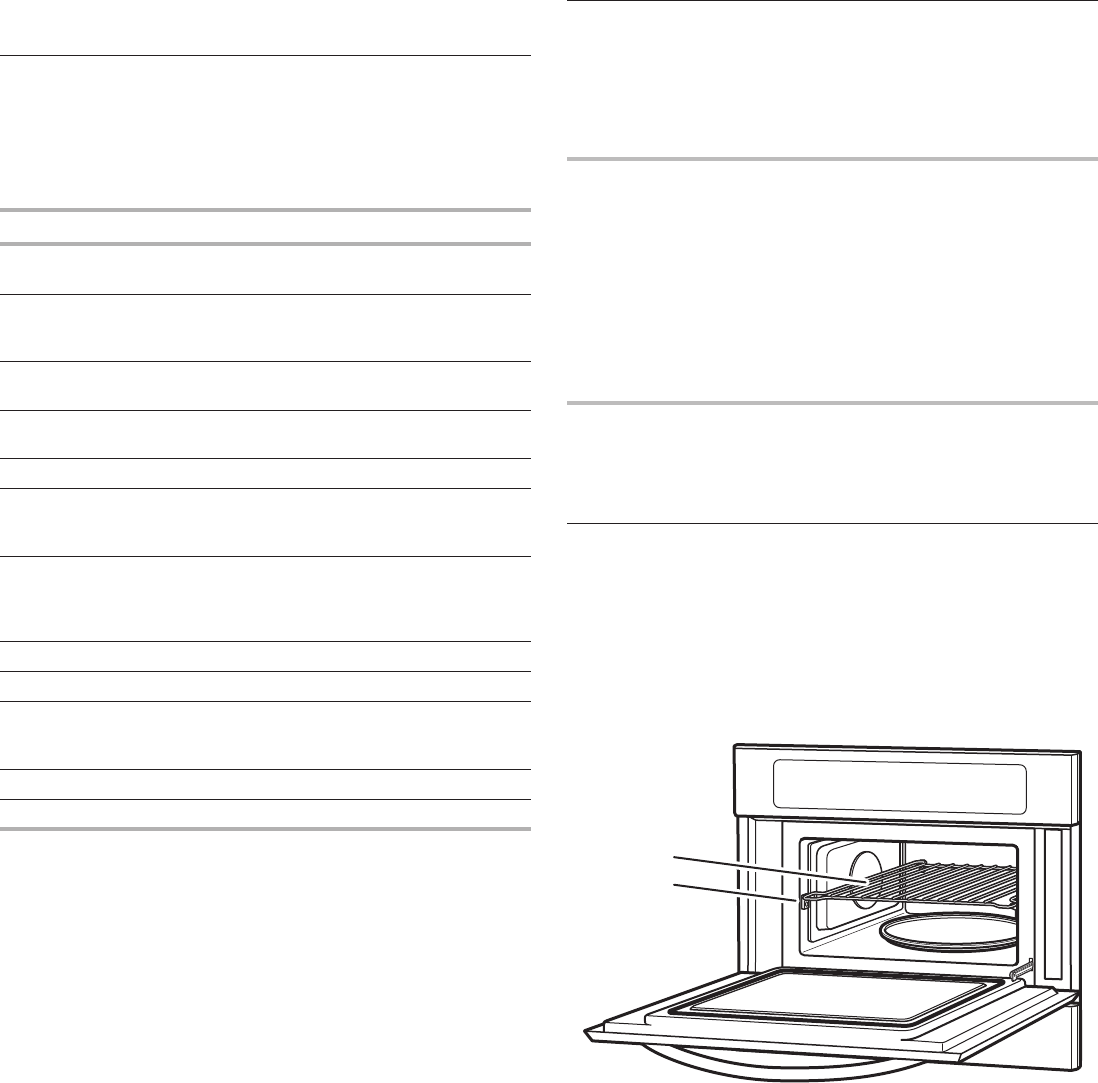

1. Position convection grid on turntable in microwave oven, or place baking tray on slide

rails and close the door.

2. Touch CONVECT.

3. Touch number keypad to select food category from the Convection Chart.

Touch CONVECT repeatedly to scan and select food category. For example, to select

the Meats setting, Convect must be touched twice.

4. Touch the number keypads to set a standard temperature. Temperature can be set

between 170°F and 450°F (77°C and 232°C).

5. Touch the number keypads to set a length of standard time to cook. Time can be set up

to 11 hours and 59 minutes.

NOTE: Doneness function is not active for Convect.

6. Touch START. “Preheating” and “Lo” will appear on the upper oven display. Once the

temperature reaches 170°F (77°C), “Lo” will be replaced by the increasing temperature.

Time and temperature will be automatically converted for convection cooking.

When preheating is complete, 2 tones will sound, and the display will show the set

temperature and “Insert Food” prompt.

7. Place food or bakeware on convection grid or on baking tray and close the door.

8. Touch the Start keypad. The upper oven display will count down the cook time and

show temperature for convection cooking.

When the stop time is reached, the oven will shut off automatically and “Cooking

Complete” will appear on the oven display.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every

minute.

9. Touch the Cancel keypad or open the door to clear the display and/or stop reminder

tones.

DEFROST Automatic

Defrost

1. Touch DEFROST.

2. Touch the number keypad from the Defrost Chart to select food.

Touch DEFROST repeatedly to scroll through foods. For example, to select the Meats

setting, DEFROST must be touched twice.

3. Touch number keypads to enter the weight.

To change the doneness setting, touch COOK TIME/POWER to toggle through and

select a doneness of Normal, More, or Less.

4. Touch the Start keypad.

The display will count down the defrost time. For better results, a preset standing time

is included in the defrosting time. This may make the defrosting time seem longer than

expected.

When the stop time is reached, the oven will shut off automatically.

If enabled end-of-cycle tones will sound, and then reminder tones will sound every

minute.

5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder

tones.

DEFROST Manual Defrost 1. Touch DEFROST.

2. Touch the number “6” keypad.

Touch DEFROST repeatedly to scan to the Manual setting.

3. Touch the number keypads to set a length of time to defrost. Time can be set up to 99

minutes and 99 seconds.

NOTE: The doneness function is not available for manual defrosting.

4. The default power level is 30%. To change power level, touch COOK TIME/POWER and

then enter the desired power level. See the Cooking Power Chart.

NOTE: If a cook time has not been entered, after 5 seconds of inactivity the power level

will be automatically conﬁrmed. The screen will then prompt to enter cook time.

5. Touch the Start keypad. The display will count down the defrost time.

When the stop time is reached, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every

minute.

6. Touch the Cancel keypad or open the door to clear the display and/or stop reminder

tones.

Keypad Feature Instructions

SOFTEN/MELT Soften 1. Touch SOFTEN/MELT.

2. Touch number keypad to select food type from the Soften Chart.

Touch SOFTEN/MELT repeatedly to scan and select food settings.

3. Touch number keypads to enter quantity (weight or sticks).

To change the doneness setting, touch the Power keypad before or after the “Start?” prompt is

displayed to toggle through and select a doneness of Normal, More, or Less.

4. Touch the Start keypad.

The upper oven display will count down the soften time.

When the stop time is reached, the oven will shut off automatically and “Soften Complete” will

appear in the display.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.

5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.

SOFTEN/MELT Melt 1. Touch SOFTEN/MELT.

2. Touch number keypad to select food type from the Soften Chart.

Touch SOFTEN/MELT repeatedly to scan and select food settings.

3. Touch number keypads to enter quantity (weight or sticks).

To change the doneness setting, touch the Power keypad before or after the “Start?” prompt is

displayed to toggle through and select a doneness of Normal, More, or Less.

4. Touch the Start keypad.

The upper oven display will count down the melt time.

When the stop time is reached, the oven will shut off automatically and “Soften Complete” will

appear in the display.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.

5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.

STEAM/

SIMMER

Auto Steam

Cook

1. Touch STEAM/SIMMER.

2. Touch STEAM/SIMMER repeatedly to scan and select food type. For example, to select the Fresh

Vegetables setting, Steam Cook must be touched twice.

To change the doneness setting, touch COOKTIME/POWER to toggle through and select a

doneness of Normal, More, or Less.

3. Touch the Start keypad. The display will count down the steam time once the sensor identiﬁes the

cooking duration.

When the steam time has ended, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.

4. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.

STEAM/

SIMMER

Manual

Steam Cook

1. Touch STEAM/SIMMER.

2. Touch STEAM/SIMMER repeatedly to scan and select the Manual steam setting.

3. Touch the number keypads to set a length of time to steam. Time can be set up to 99 minutes and

99 seconds.

NOTE: Doneness function is not active for manual steam cooking.

4. Touch START.

Once the boiling point is reached, the upper oven display will start to count down the steam time.

When the stop time is reached, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.

5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.

Keypad Feature Instructions

STEAM/

SIMMER

Auto Simmer

Cook

1. Touch STEAM/SIMMER.

2. Touch STEAM/SIMMER repeatedly to scan and select food type. For example, to select the

Fresh Vegetables setting, Steam Cook must be touched twice.

To change the doneness setting, touch COOKTIME/POWER to toggle through and select a

doneness of Normal, More, or Less.

3. Touch the Start keypad. The display will count down the steam time once the sensor identiﬁes

the cooking duration.

When the steam time has ended, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.

4. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.

STEAM/

SIMMER

Manual

Simmer Cook

1. Touch STEAM/SIMMER.

2. Touch STEAM/SIMMER repeatedly to scan and select the Manual steam setting.

3. Touch the number keypads to set a length of time to steam. Time can be set up to 99 minutes

and 99 seconds.

NOTE: Doneness function is not active for manual steam cooking.

4. Touch START.

Once the boiling point is reached, the upper oven display will start to count down the steam

time.

When the stop time is reached, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.

5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.

WARM HOLD Keep Food

Warm

1. Touch WARM HOLD and then number keypads to set a length of time to warm.

Touch the number keypads to set a length of time to warm. To use this feature, the display must

be in time of day visualization.

2. Touch COOK TIME/POWER.

3. Touch the number “1” keypad to set cook power at 10%.

NOTE: Doneness function is not active for manual cooking.

4. Touch START.

The display will count down the warming time.

When the stop time is reached, the oven will shut off automatically and “Cooking Complete”

will appear in the display.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.

5. Touch the Cancel keypad or open the door to clear the display and/or stop the reminder tones.

ACCUPOP Popcorn 1. Touch ACCUPOP.

NOTE: Doneness function is not active for popcorn setting.

2. Touch START.

When the stop time is reached, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.

3. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.

POTATO Potato 1. Touch POTATO.

NOTE: Doneness function is not active for potato setting.

2. Touch START.

When the stop time is reached, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every minute.

3. Touch the Cancel keypad or open the door to clear the display and/or stop reminder tones.

Keypad Feature Instructions

VEGETABLE Vegetable 1. Touch VEGETABLE.

2. Touch number keypad to select food type from the Vegetable Chart.

Touch VEGETABLE repeatedly to scan and select food settings. To select a setting,

VEGETABLE must be touched twice.

3. Touch number keypads to enter quantity (slices or cups).

To change the doneness setting, touch COOK TIME/POWER to toggle through and select

a doneness of Normal, More, or Less.

4. Touch START.

When the stop time is reached, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every

minute.

5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder

tones.

REHEAT Automatic

Reheat

1. Touch REHEAT.

2. Touch number keypad to select food type from the Reheat Chart.

Touch REHEAT repeatedly to scan and select food settings. For example, to select the

Casserole setting, REHEAT must be touched twice.

3. Touch number keypads to enter quantity (slices or cups).

To change the doneness setting, touch COOK TIME/POWER to toggle through and select

a doneness of Normal, More, or Less.

4. Touch START.

When the stop time is reached, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every

minute.

5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder

tones.

REHEAT Manual Reheat 1. Touch REHEAT.

2. Touch the number “7” keypad.

Touch REHEAT repeatedly to scan to the Manual setting.

3. Touch the number keypads to set a length of time to reheat. Reheat time can be set up to

99 minutes and 99 seconds.

NOTE: The doneness function is not active during manual reheating.

4. The default power level is 70%. To change the power level, touch COOK TIME/POWER

and then enter the desired power level. See the Cooking Power Chart.

NOTE: If a cook time has not been entered, after 5 seconds of inactivity the power level

will be automatically conﬁrmed. The screen will then prompt to enter cook time.

5. Touch START. Display will count down the reheat time.

When the stop time is reached, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every

minute.

6. Touch the Cancel keypad or open the door to clear the display and/or stop reminder

tones.

AUTO COOK Auto Cook 1. Touch AUTO COOK.

2. Touch number keypad to select food type from the Auto Cook Chart.

Touch AUTO COOK repeatedly to scan and select food settings. To select a setting,

AUTO COOK must be touched twice.

3. Touch number keypads to enter quantity (slices or cups).

To change the doneness setting, touch COOK POWER before or after the “Start?” prompt

is displayed to toggle through and select a doneness of Normal, More, or Less.

4. Touch START.

When the stop time is reached, the oven will shut off automatically and “reheat complete”

will appear on the oven display.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every

minute.

5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder

tones.

Vent Fan

Various speeds, ranging from HIGH, MED-Hi, MEDIUM, LOW,

and OFF. Comes on automatically as cooling fan during any cook

function.

30 Minute Fan Timer (Option 6 or 7 of Options/Clock Menu):

Set vent fan to run for exactly 30 minutes or to run for only 30

minutes more (off after 30 minutes). The vent fan may be turned off

at any time using the Vent Fan control.

Auto Vent Fan (on some models): To keep the microwave oven

from overheating, the auto vent fan will automatically turn on at

high speed if the temperature from the range or cooktop below

the microwave oven gets too hot. When this occurs, the vent fan

cannot be turned off. “AUTO FAN ON for heat circulation” appears

in the display.

Standby Mode

When no functions are working (12-hour clock is displayed or if the

clock has not been set), oven will switch to Standby Power mode

and dim the LCD brightness after 5 minutes. Touch any keypad

or open/close the door, and the display will return to the normal

brightness.

Additional Features

CLEANRELEASE® Cavity Coating (on some models)

The durable, nonstick coating resists soil buildup by making

cleaning easier. See the “Microwave Oven Care” section.

6th SENSE™ System

A sensor in the microwave oven detects moisture released from

food as it heats, and adjusts the cooking time accordingly.

Convection Element and Fan

The convection element and fan are embedded in the wall of the

microwave oven cavity, behind the metal screen.

Back-Lighting

Some of the keypads will be darkened after about 2 minutes of

inactivity. Press the menu keypad to light up the back-lit buttons.

Opening the door will not light up the back lighting.

Keypad Feature Instructions

KIDS MENU Kids Menu 1. Touch KIDS MENU.

2. Touch number keypad to select food type from the Kids Menu Chart.

Touch KIDS MENU repeatedly to scan and select food settings. To select a setting,

KIDS MENU must be touched twice.

3. Touch number keypads to enter quantity (slices or cups).

To change the doneness setting, touch COOK TIME/POWER to toggle through and

select a doneness of Normal, More, or Less.

4. Touch START.

When the stop time is reached, the oven will shut off automatically.

If enabled, end-of-cycle tones will sound, and then reminder tones will sound every

minute.

5. Touch the Cancel keypad or open the door to clear the display and/or stop reminder

tones.

TURNTABLE Turn on Turntable By touching the Turntable On/Off keypad, it is possible to switch the turntable On and Off

during some microwave cycles. The turntable can be turned On or Off during the Manual

Cook, Manual Reheat, Manual Defrost, Manual Steam Cook, and all Easy Convect cycles.

REMOTE ENABLE Enable Remote

App Control

Press REMOTE ENABLE to enable the ability to utilize the Whirlpool® app.

CONNECT Connect to Wi-Fi Press and hold CONNECT while your router’s WPS indicator light is blinking to connect

your range to your Wi-Fi network. See the “Connectivity Setup” section for more detailed

instructions.

CANCEL Activate Control

Lock

Activate to avoid unintended start. Touch and hold the Cancel keypad for about

3 seconds until 2 tones sound and padlock icon appears in the display. Repeat to unlock

control.

Control Lock

Activate to avoid unintended start. Touch the Control Lock keypad

for about 3 seconds until 2 tones sound and padlock icon appears

in the display. Repeat to unlock control.

Timer

With the microwave oven in Standby mode, touch the Timer

keypad, enter time, then touch the +30 Sec keypad. Cook

functions may be entered while the Timer is counting down. To

cancel timer, touch Timer keypad while the Timer countdown is

active in the display.

Options

CLOCK/OPTIONS allows access to the microwave settings.

To Use:

1. Touch CLOCK/OPTIONS. The oven display will scroll through

the various options,

You can also touch CLOCK/OPTIONS repeatedly to manually

scroll through the list of options.

2. Touch the number keypad for the speciﬁc option to toggle the

function setup.

Tones

Tones are audible signals, indicating the following:

One beep

■Valid keypad touch

■Function has been entered

One chime

■Preheat cycle has been completed

Three beeps

■Invalid keypad touch

Three chimes

■End of a cooking cycle

Four chimes

■When timer reaches zero

Includes using the Timer for functions other than cooking.

Clock

The Clock is a 12-hour (12:00-11:59) or 24-hour (0:00-23:59)

clock. Touch CLOCK/OPTIONS to reach Clock submenu and

follow the prompts to set the Clock. Clock format (12 hours with

AM and PM, 12 hours without AM and PM, or 24 hours) may also

be set in the Clock submenu.

Tone Volume

The volume is preset at low, but can be changed to high. Touch

CLOCK/OPTIONS and then the number “3” keypad to toggle

volume between high and low settings.

End-of-Cycle and Reminder Tones

The Timed Cooking end-of-cycle and reminder tones are preset

on, but can be turned off. If all tones have been turned off, the

end-of-cycle and reminder tones cannot be independently turned

on. Touch CLOCK/OPTIONS and then the number “5” keypad to

toggle tones between On and Off settings.

NOTE: The Timer is not affected by these reminder tones.

Light Timer

Set the cooktop light to turn on and off at certain times. Touch

CLOCK/OPTIONS to reach the Light Timer submenu, and follow

the prompts to set the light on time and light off time in hours and

minutes or to cancel Light Timer.

NOTE: Light Timer uses 12-hour clock only.

Filter Alert

Reset the ﬁlter status after replacing and/or cleaning the ﬁlters.

Touch CLOCK/OPTIONS to reach the Filter Alert submenu, and

activate reset.

Sound (Tones)

Programming tones and signals. Programming tones may be

turned off or all tones (including end-of-function signals) may be

turned off. Touch CLOCK/OPTIONS to reach the Sound submenu,

and then follow the prompts to turn off or on the programming

tones or all tones.

NOTE: The Timer is not affected by reminder tones.

Scroll Speed

Scroll speed of the text may be adjusted. Touch the CLOCK/

OPTIONS to reach the Scroll Speed submenu and follow the

prompts to set speed.

Demo Mode

Activate to practice using the control without actually turning on

the magnetron. Touch CLOCK/OPTIONS to reach the Demo mode

submenu, then follow the prompts to activate. The DEMO icon will

light up in the display. Repeat to deactivate.

Energy Save

To conserve energy, the Clock will automatically turn off when

the microwave oven goes into Standby mode. Touch CLOCK/

OPTIONS to reach the Clock and Energy Save submenu, and

follow the prompts to turn on Clock.

Language (Canada models)

Language of the display text may be changed. Touch the CLOCK/

OPTIONS to reach the Language submenu and follow the prompts

to set language to English or French.

Temp Calibration

The actual convection cooking temperature may be calibrated

higher or lower than the displayed temperature. For example,

if you want the microwave oven to be a bit hotter, you may try

setting the calibration to +10°. Touch CLOCK/OPTIONS to reach

the Calibration submenu. The current setting will appear in the

display with a checkmark next to it. Use number keypads to select

temperature variations in degrees Fahrenheit: 1 = ±0° (reset to

default), 2 = +5° (+2.8°C), 3 = +10° (+5.6°C), 4 = +15° (+8.3°C),

5 = +20° (+11.1°C), 6 = -5° (-2.8°C), 7 = -10° (-5.6°C), -8 = -15°

(-8.3°C) and 9 = -20° (-11.1°C).

NOTE: The microwave oven will remember the setting after a

power failure.

Scenario 2: Cooking during ﬁrst few hours of Sabbath

1. Set the appliance to Convection Bake 350 F (or other

temperature) and set Cook Time.

2. While the oven is in cooking mode, press CLOCK/OPTIONS

until you see “KCF mode”.

3. Follow the directions on the display to activate KCF mode.

4. The oven is now cooking.

NOTE: Do not open the oven door during cooking. Opening

the oven door during cooking will cause heating elements and

fans to turn off.

5. Once cooking is completed, opening the oven door will not

turn on the cavity light, allowing you to remove food from the

oven.

NOTE: KCF can work for all cooking cycles.

NOTE: Do not open the oven door while it is in Convection

Bake cycle during Sabbath. Due to interlock switches, opening

the door will immediately turn off heating elements.

How To Deactivate KCF Mode

1. Press CLOCK/OPTIONS until you see “KCF mode”. Follow

directions on the display to deactivate KCF mode.

NOTE: In case of emergency, and to comply with code

regulations, pressing CANCEL will turn off the cooking cycle

during KCF mode.

Blower Motor Maximum Time-Out During KCF Mode

If the blower motor is turned on at High Speed, it will automatically

turn off after 4 hours of operation.

Turntable

NOTE: By touching the Turntable keypad, it is possible to switch

the turntable On and Off during some microwave cycles. The

turntable can be turned On or Off during the Manual Cook,

Manual Reheat, Manual Defrost, Manual Steam Cook, and all Easy

Convect cycles.

The turntable rotates in both directions to help cook food more

evenly. Do not operate the microwave oven without having the

turntable in place. See the “Assistance or Service” section to

reorder any of the parts.

The raised, curved lines in the center of the turntable bottom ﬁt

between the 3 spokes of the hub. The hub turns the turntable

during microwave oven use. The rollers on the support should ﬁt

inside the turntable bottom ridge.

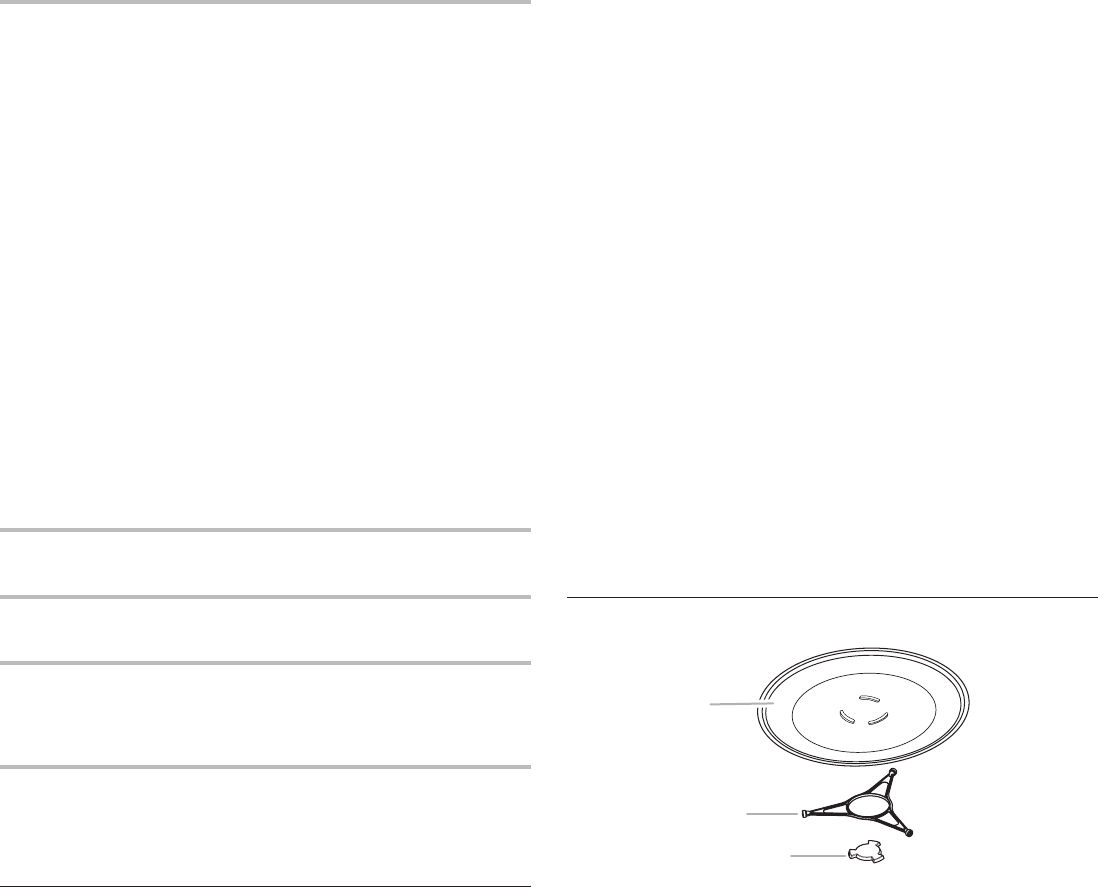

A. Turntable

B. Support and rollers

C. Hub

KCF Mode

KCF mode is another name of Sabbath mode for display. Touch

CLOCK/OPTIONS to reach the KCF mode submenu, where KCF

mode can be enabled of disabled. Once this mode is enabled,

press and hold CLOCK/OPTIONS for 3 seconds. KCF mode can

be activated or deactivated.

When KCF mode is activated:

■Manual intervention such as “turn the food,” “stir the food,”

and “place the food” will be skipped.

■For Convect function, preheating will be skipped and cook

cycle will run for the remainder of the timer countdown.

■When cook cycle ﬁnishes, there are no more beeps and no

cook end display, go to KCF Idle mode.

■State of hood light, vent fan, and turntable cannot be changed

manually.

■Cavity light and fan will be off when door is open.

■No buzzer sound for any key touch response.

■An open door will cancel cook cycle and change display to

KCF idle mode.

■Touching the Control Lock keypad will cancel the cook cycle

and change display KCF idle mode.

Refer to the “Sabbath Mode” section for more information.

Factory Reset

User may set machine back to default state.

Remote Enable

Enable and disable app control to appliance.

Connect

Start appliance to connect to home router. Touch and hold for 15

seconds to disconnect the connection between home router and

appliance. Speciﬁcally refer to prompt on appliance display.

Appliance Registration

Go to www.mysmartsppliances.com on your home computer and

input the SAID (start date of appliance), which can be found on the

label located on the oven frame behind the top right side of the

oven door.

Sabbath Mode (KCF)

In Sabbath mode, the appliance will not turn lights or sound on/off

so that the appliance may be used during the Sabbath.

How To Use

The below scenarios provide examples of how you may use this

mode.

Scenario 1: No cooking activity during Sabbath

1. Press CLOCK/OPTIONS until you see “KCF mode”.

2. Follow the directions on display to activate KCF mode.

NOTE: During KCF mode, oven light will not turn on when you

open the oven door.

Convection Rack

The convection rack provides optimal heat circulation for

convection cooking.

■The rack will become hot. Always use oven mitts or pot

holders when handling.

■To avoid damage to the microwave oven, do not allow the rack

to touch the inside cavity walls, ceiling or ﬂoor.

■Always use the turntable.

■To avoid damage to the microwave oven, do not store the rack

in the microwave oven.

■Two-level cooking is not recommended.

■For best results, do not place popcorn bags on the rack.

■The rack is designed speciﬁcally for this microwave oven. For

best cooking results, do not attempt to use any other rack in

this microwave oven.

■See the “Assistance or Service” section to reorder.

Cooking Rack

■The cooking rack can be used only with convection cooking.

■To avoid damage to the microwave oven, do not use in

combination with microwave cooking.

■The cooking rack will become hot. Always use oven mitts or

pot holders when handling.

■See the “Positioning Cooking Rack” section before using.

■See the “Assistance or Service” section to reorder.

Steamer Vessel

Use the Steamer Vessel with the Steam Cook feature to steam

foods.

■The steamer vessel will become hot. Always use oven mitts or

pot holders when handling.

■The steamer vessel is designed to be used only in the

microwave oven. To avoid damaging steamer vessel, do

not use in a convectional- or combination-type oven, with

any other convection or crisp function, or on electric or gas

burners.

■Do not use plastic wrap or aluminum foil when covering the

food.

■Always place the steamer vessel on the glass turntable. Check

that the turntable turns freely before starting the microwave

oven.

■Do not remove lid while the base is inside the microwave oven,

as the rush of steam will disrupt the sensor settings.

■To avoid scratching, use plastic utensils.

■Do not overﬁll with water. See the steam chart in the “Steam

Cooking” section for the amount of water recommended.

Lid: Always use the lid when steaming. Place directly over the

insert and base or just the base.

Insert: Use when steam cooking to keep foods such as ﬁsh and

vegetables out of the water. Place insert with food directly over the

base. Do not use when simmering.

Base: For steam cooking, place water in base. For simmering

foods such as rice, potatoes, pasta and vegetables, place food

and water/liquid in base.

See the “Assistance or Service” section to order replacements.

See the “General Cleaning” section for instructions on cleaning.

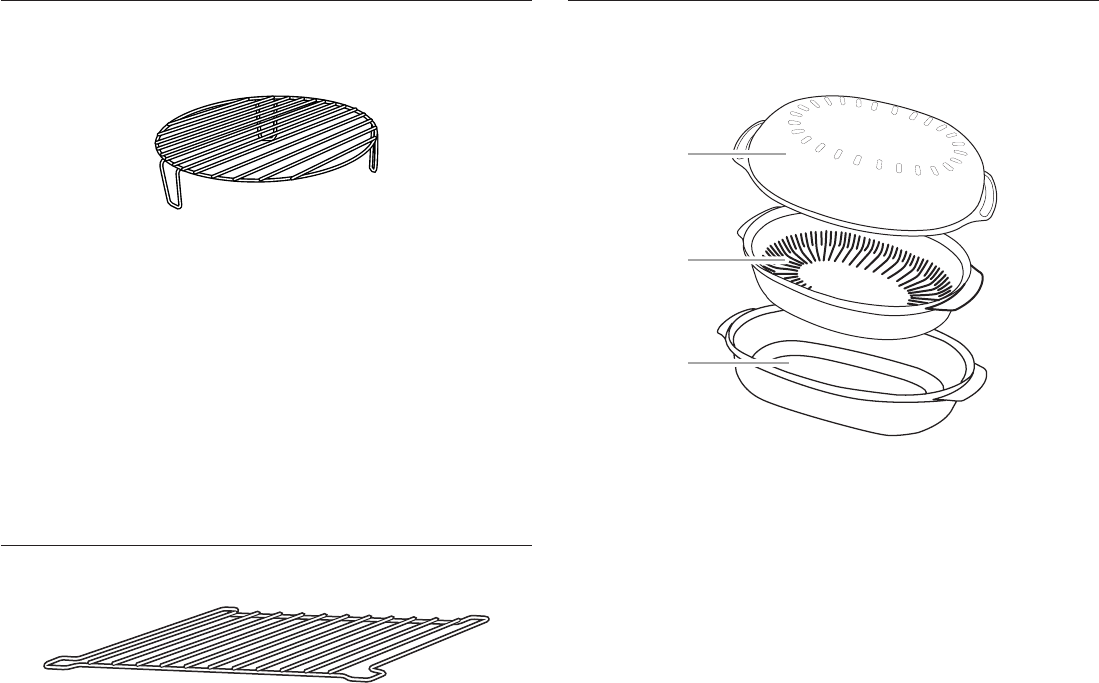

A. Lid

B. Insert

C. Base

Connectivity Features

Wi-Fi connectivity allows your Smart appliance to connect to the Internet and interact with the Whirlpool® app from your smartphone

or mobile device. This connection opens up several Smart options to you: options intended to save you valuable time and energy.

Smart Features

Smart Features help make your every day more efﬁcient by letting

you remotely monitor, manage, and maintain your appliance.

Remote Enable

What it does: Allows you to send remote control of your appliance

to your smartphone or mobile device via the Whirlpool® app.

What it does for you: Lets you manage when to start your

cooking cycle. This allows you to have cooked dishes when

you are ready for them.

Cycle Progress

What it does: Gives you an up-to-the-minute look at your cooking

cycle progress.

What it does for you: Lets you know the remaining cook time

from anywhere.

Cook Notiﬁcation (Opt-In)

What it does: Your appliance will send you a push notiﬁcation

when its current cooking cycle is complete.

What it does for you: Alerts you precisely when the cooking cycle

is done, so you can move on to other things.

Kosher Consumer Friendly Mode (App only)

What it does: During this mode the controls and lights will not

operate and the interior lights will be off.

What it does for you: Automatically sets up the range for

observance of the Sabbath.

Get Started

Refer to the “Connectivity Setup” section in this User Guide and

follow the instructions to get connected.

Check the Whirlpool® app frequently for additional information and

features.

NOTES:

a. Only Convection Bake cycle can be remotely activated

(i.e. no features using microwave or convection roast may

be remotely activated).

b. While the oven is set up and waiting for remote activation, the

oven door must NOT open. If the oven door is opened (say by

another member of the family) while it is in “waiting mode”,

then REMOTE ENABLE will be canceled and the remote

enable icon will be turned off from display to indicate this.

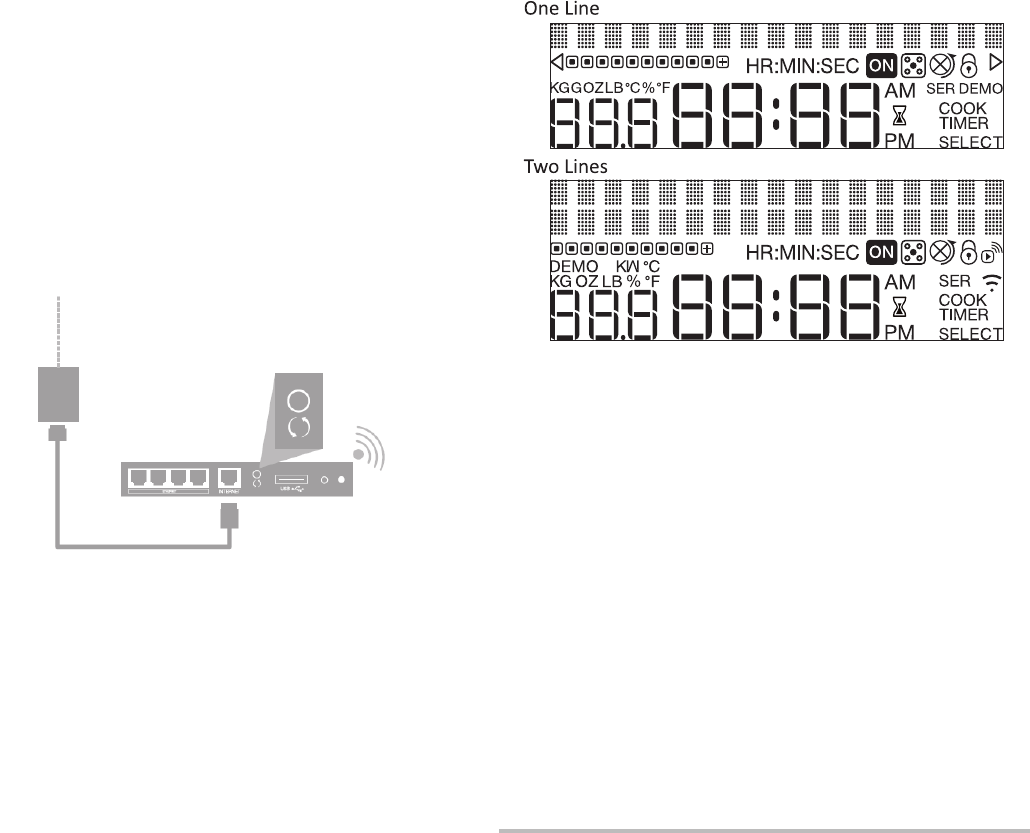

Display

When power is ﬁrst supplied to the microwave oven, the timer

display will ﬂash “12:00”. Enter the time by touching the number

keypads. Then touch the START keypad to allow operation.

To allow operation without changing the time, touch START or

CANCEL.

Number Codes

The oven is preset with shortcut number codes. A number code

includes one or more of the following; food category, cooking

power, cook time, and food quantity or weight. See the code

charts in the “Reheating,” “Defrosting,” “Steam,” “Soften/Melt,”

and “EasyConvect™” sections for additional information.

Control Lock

The Control Lock shuts down the control panel keypads to avoid

unintended use of the oven. The Control Lock will remain set after

a power failure, if set before the power failure occurs.

When the control is locked, only the Set/Start, Oven Light, and

Timer Set/Off keypads will function.

The Control Lock is preset unlocked, but can be locked.

To Lock Control: Touch CANCEL for approximately 3 seconds,

until two tones sound and a lock icon appears in the display.

To Unlock Control: Repeat to unlock. Two tones will sound and

the lock icon will be removed.

Connectivity Setup

Get the app and connect instructions, terms of use, and privacy policy at www.whirlpool.com/connect.

Requires Wi-Fi and an account creation. App features and functionality subject to change. Data rates may apply.

If you have any problems or questions, call Whirlpool Corporation Connected Appliances at 1-866-333-4591.

IMPORTANT: Proper installation of your appliance prior to use is your responsibility. Be sure to read and follow the Installation Instructions

that came with your appliance.

Setup Instructions – App Assisted

You will need:

■A home wireless router.

■The wireless home network name (SSID) and associated

password.

■The Smart Appliance ID (SAID) from your appliance. This can

be found in the Settings menu.

NOTE: The router should be on and have a live Internet

connection.

STEP 1

Download App and Account Setup

If you already have the app and a user account:

Skip ahead to Step 3, “Register Your Appliance in Your User

Account.”

If This is Your First Smart Appliance:

You will need to download the Whirlpool® app and create an online

user account. You can download the app on Google Play™† or the

Apple® App Store®.‡

STEP 2

Create a User Account

Once installed, tap the Whirlpool® app icon to run the app. You will

be guided through the steps to set up a user account. The app will

make sure to get the necessary personal and home information.

For additional information, terms of use and privacy policy go to

www.whirlpool.com/connect.

STEP 3

Select Add Appliance on the app to begin the process of

selecting your appliance, connecting it to your home network, and

registering it to your user account.

Follow the instructions in the app to connect your appliance.

If the app assisted setup is not successful, follow the “Alternate

Setup Instructions” section to connect your appliance to your

wireless home network.

Alternate Setup Instructions – Wi-Fi Protected Setup (WPS)

(Use alternate setup if app assisted setup is unsuccessful)

You will need:

■A home wireless router capable of Wi-Fi Protected Setup

(WPS). The router should be on and have a live Internet

connection.

■The Smart Appliance ID (SAID) from your appliance. This can

be found in the Settings menu.

NOTE: If your home wireless router is not equipped with a WPS

button, please check the user manual of your router to conﬁrm

if it is WPS capable. If not, alternate setup instructions are at

www.whirlpool.com/connect.

STEP 1

Download App and Account Setup

If You Already Have the App and a User Account:

Skip ahead to the “Register Your Appliance in Your User Account”

section.

If This is Your First Smart Appliance:

You will need to download the Whirlpool® app and create

an online user account. You can download the app on Google

Play™ or the Apple® App Store®.

Once installed, tap the Whirlpool® app icon

to run the app. You will be guided through

the steps to set up a user account. The app

will make sure to get the necessary personal

and home information, as well as information

about your energy company.

For additional information, terms of use and

connect.

SET UP

Registering your appliance in your user account is a necessary

step in order for you to take full advantage of the Smart features.

When prompted by the app, enter the 10-character Smart

Appliance Identiﬁcation Number (SAID) (case sensitive) which

can be found in the Settings menu.

My Smart Appliance ID# is: _________________________________

NOTES:

■Once you’ve connected your appliance to your home Wi-Fi

network, it will remain linked even if the power goes out, you

move the appliance, or if you put it in storage for a while.

■If you replace your wireless router (or get a different Smart

appliance) you will need to repeat this connectivity setup

process.

■To see terms of use, privacy policy and additional information

go to www.whirlpool.com/connect.

■If you have any problems or questions, call the Whirlpool

Connected Appliance Team at 1-866-333-4591.

STEP 2

Router Setup

Press (and hold on some models) the WPS button on the router.

An indicator light will begin blinking.

HELPFUL TIP: The WPS function on your router is active for 2

minutes. Complete the next step within 2 minutes or you will need

to reinitiate WPS.

STEP 3

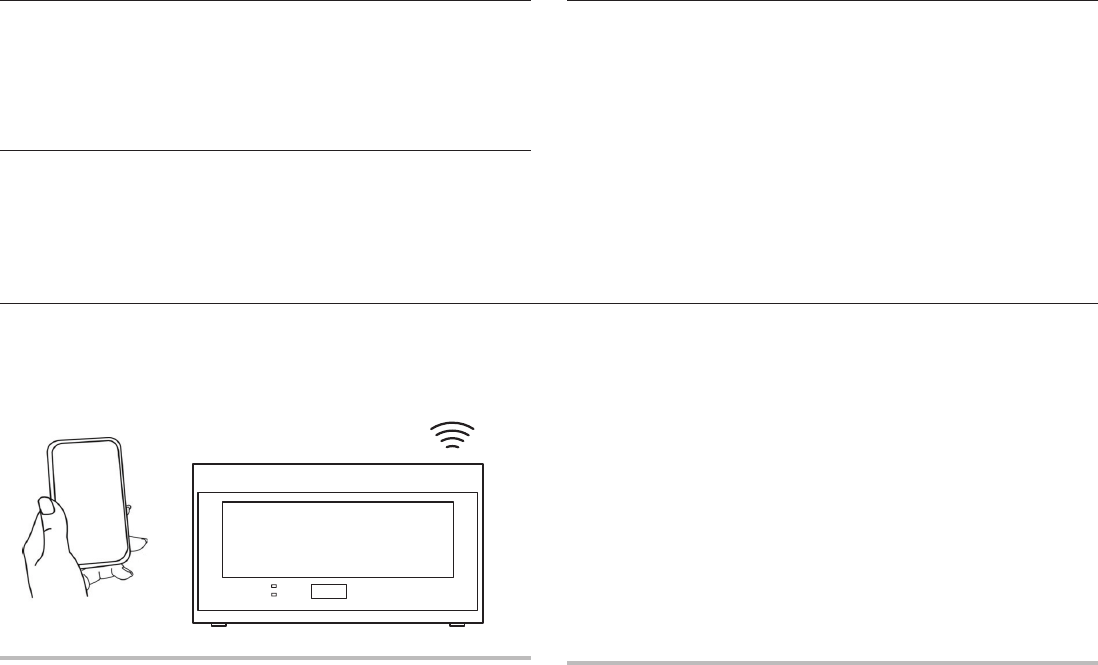

Appliance Setup (time sensitive step)

While the router’s WPS indicator light is blinking, touch and hold

CONNECT on the appliance for 5 seconds. The Wireless Status

icon (A) will blink slowly and the Time Display LEDs will animate to

show that the appliance is attempting to connect with the router.

Connection can take up to 2 minutes.

The Wireless Status icon will stay lit upon successful connection;

if not successful, the Wireless Status icon will blink rapidly and

turn off.

Once the appliance connects to your router, the appliance will

automatically attempt connection with the Whirlpool server over

the Internet.

When your appliance is connected to Wi-Fi and successfully

communicating with the Whirlpool server, return to the app and

add an appliance. Choose the option in the app that the appliance

you are adding is already connected to Wi-Fi.

If Your Appliance Doesn’t Connect

If your appliance still fails to connect, refer to the

“Troubleshooting” section of this User Guide, check any

connection instructions for your speciﬁc router, and refer to

alternate instructions at www.whirlpool.com/connect. If you

have further problems or questions, call the Connected Appliance

Team at 1-866-333-4591.

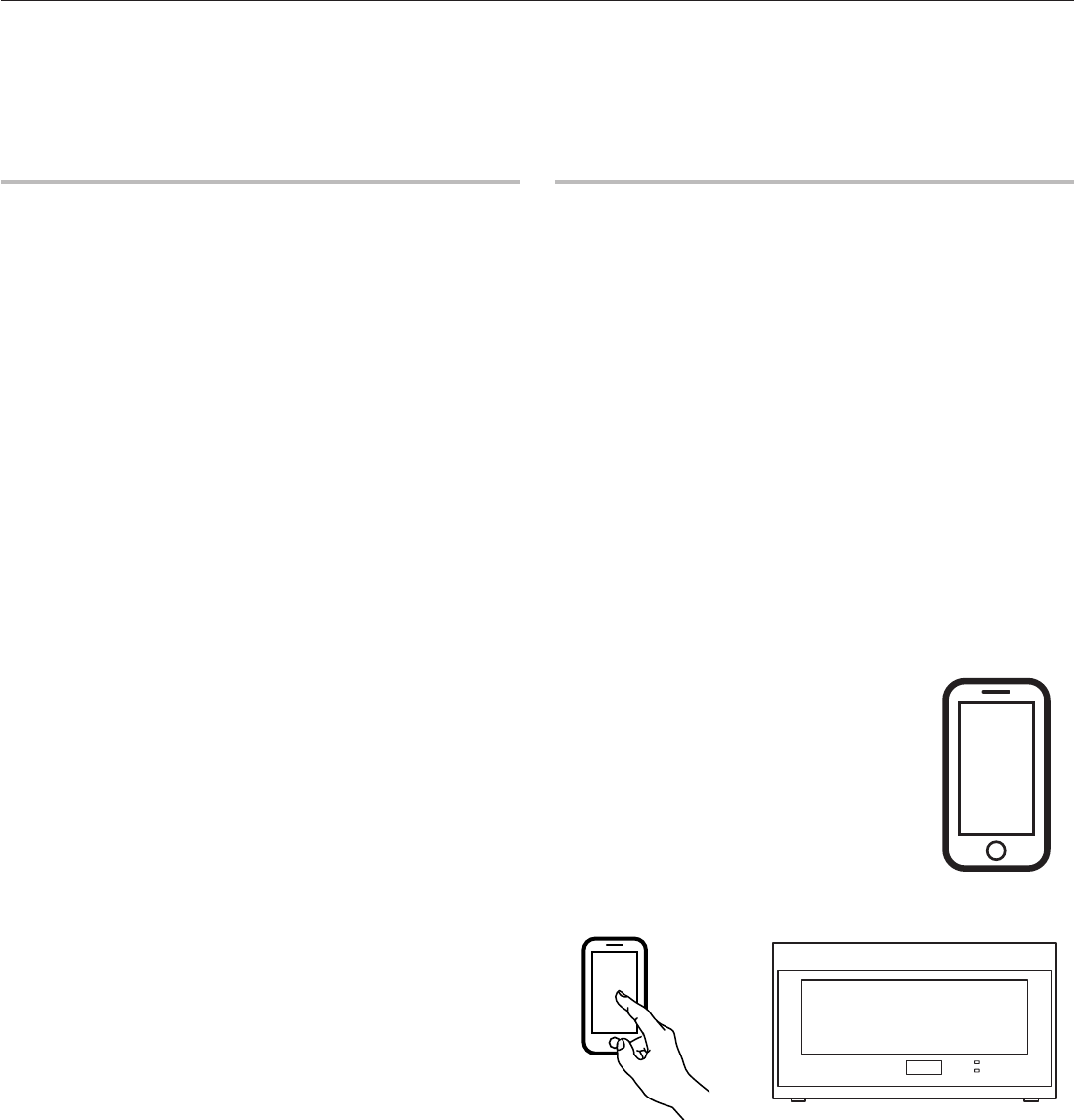

How to Use Remote Enable

This feature allows you to turn on the appliance (in Convection

Bake mode) when you are away from home using your mobile

device. The following steps provide a possible scenario on how to

use this feature:

1. Open the oven door and place food in the oven (if desired).

2. Close the oven door.

3. Press REMOTE ENABLE. You should see an icon ( ) light up

in the display to let you know that the appliance can be turned

on using your mobile device.

4. Use your mobile device to turn on a cooking cycle (e.g.

Convection Bake 350 F).

NOTES:

a. Only Convection Bake cycle can be remotely activated

(i.e. no features using microwave or convection roast may

be remotely activated).

b. While the oven is set up and waiting for remote activation (i.e.

between steps 3 and 4 above), the oven door must NOT open.

If the oven door is opened (say by another member of the

family) while it is in “waiting mode”, then REMOTE ENABLE

will be canceled and the remote enable icon will be turned off

from display to indicate this.

Modem

(may be included

inside the router)

Internet

Wi-Fi protected

setup (WPS)

Home wireless

router

MICROWAVE OVEN USE

A magnetron in the oven produces microwaves which reﬂect off

the metal ﬂoor, walls, and ceiling and pass through the turntable

and appropriate cookware to the food. Microwaves are attracted

to and absorbed by fat, sugar, and water molecules in the food,

causing them to move, producing friction and heat which cooks

the food.

■To avoid damage to the microwave oven, do not lean on or

allow children to swing on the microwave oven door.

■To avoid damage to the microwave oven, do not operate

microwave oven when it is empty.

■The turntable must be in place and correct side up when

microwave oven is in use. Do not use if turntable is chipped or

broken. See the “Assistance or Service” section to reorder.

■Baby bottles and baby food jars should not be heated in

microwave oven.

■Clothes, ﬂowers, fruit, herbs, wood, gourds, and paper,

including brown paper bags and newspaper, should not be

dried in microwave oven.

■Parafﬁn wax will not melt in the microwave oven because it

does not absorb microwaves.

■Use oven mitts or pot holders when removing containers from

microwave oven.

■Do not overcook potatoes. At the end of the recommended

cook time, potatoes should be slightly ﬁrm. Let potatoes stand

for 5 minutes. They will ﬁnish cooking while standing.

■Do not cook or reheat whole eggs inside the shell. Steam

buildup in whole eggs may cause them to burst. Cover

poached eggs and allow a standing time.

Food Characteristics

When microwave cooking, the amount, size and shape, starting

temperature, composition, and density of the food affect cooking

results.

Amount of Food

The more food heated at once, the longer the cook time needed.

Check for doneness and add small increments of time if

necessary.

Size and Shape

Smaller pieces of food will cook more quickly than larger pieces,

and uniformly shaped foods cook more evenly than irregularly

shaped food.

Starting Temperature

Room temperature foods will heat faster than refrigerated foods,

and refrigerated foods will heat faster than frozen foods.

Composition and Density

Foods high in fat and sugar will reach a higher temperature and

will heat faster than other foods. Heavy, dense foods, such as

meat and potatoes, require a longer cook time than the same size

of a light, porous food, such as cake.

Cooking Guidelines

Covering

Covering food helps retain moisture, shorten cook time, and

reduce spattering. Use the lid supplied with cookware. If a lid is

not available, wax paper, paper towels, or plastic wrap approved

for microwave ovens may be used. Plastic wrap should be

turned back at one corner to provide an opening to vent steam.

Condensation on the door and cavity surfaces is normal during

heavy cooking.

Stirring and Turning

Stirring and turning redistributes heat evenly to avoid overcooking

the outer edges of food. Stir from outside to center. If possible,

turn food over from bottom to top.

Arranging

If heating irregularly shaped or different sized foods, arrange the

thinner parts and smaller sized items toward the center. If cooking

several items of the same size and shape, place them in a ring

pattern, leaving the center of the ring empty.

Piercing

Before heating, use a fork or small knife to pierce or prick foods

that have a skin or membrane, such as potatoes, egg yolks,

chicken livers, hot dogs, and sausage. Prick in several places to

allow steam to vent.

Shielding

Use small, ﬂat pieces of aluminum foil to shield the thin pieces of

irregularly shaped foods, bones, and foods such as chicken wings,

leg tips, and ﬁsh tails. See the “Aluminum Foil and Metal” section

ﬁrst.

Standing Time

Food will continue to cook by the natural conduction of heat even

after the microwave cooking cycle ends. The length of standing

time depends on the volume and density of the food.

Turntable On/Off

For best performance, the turntable should be on during

microwave cooking.

If using oversized cookware that does not turn freely on the

microwave turntable, turn the turntable OFF. To turn off the

turntable, touch TURNTABLE. When cooking with the turntable

OFF, food should be turned halfway through the cooking process.

NOTE: The turntable cannot be turned off during any auto cooking

cycle.

Cookware and Dinnerware

Cookware and dinnerware must ﬁt on the turntable. Always

use oven mitts or pot holders when handling because any dish

may become hot from heat transferred from the food. Do not

use cookware and dinnerware with gold or silver trim. Use the

following chart as a guide, then test before using.

Material Recommendations

Aluminum Foil,

Metal

See the “Aluminum Foil and Metal” section.

Browning Dish Bottom must be at least 3/16" (5 mm)

above the turntable. Follow manufacturer’s

recommendations.

Ceramic Glass,

Glass

Acceptable for use.

China,

Earthenware

Follow manufacturer’s recommendations.

Melamine Follow manufacturer’s recommendations.

Paper: Towels,

Dinnerware,

Napkins

Use non-recycled and those approved by

the manufacturer for microwave oven use.

Plastic: Wraps,

Bags, Covers,

Dinnerware,

Containers

Use those approved by the manufacturer

for microwave oven use.

Pottery and Clay Follow manufacturer’s recommendations.

Silicone Bakeware Follow manufacturer’s recommendations.

Straw, Wicker,

Wooden

Containers

Do not use in microwave oven.

Styrofoam®† Do not use in microwave oven.

Wax Paper Acceptable for use.

To Test Cookware or Dinnerware for Microwave Use:

1. Place cookware or dinnerware in microwave oven with 1 cup

(250 mL) of water beside it.

2. Cook at 100% cooking power for 1 minute.

Do not use cookware or dinnerware if it becomes hot and the

water stays cool.

Aluminum Foil and Metal

Always use oven mitts or pot holders when removing dishes from

the microwave oven.

Aluminum foil and some metal can be used in the microwave

oven. If not used properly, arcing (a blue ﬂash of light) can occur

and cause damage to the microwave oven.

OK for Use

Racks and bakeware supplied with the microwave oven (on

some models), aluminum foil for shielding, and approved meat

thermometers may be used with the following guidelines:

■To avoid damage to the microwave oven, do not allow

aluminum foil or metal to touch the inside cavity walls, ceiling

or ﬂoor.

■Always use the turntable.

■To avoid damage to the microwave oven, do not allow contact

with another metal object during microwave cooking.

Do Not Use

Metal cookware and bakeware, gold, silver, pewter, non-approved

meat thermometers, skewers, twist ties, foil liners such as

sandwich wrappers, staples, and objects with gold or silver trim or

a metallic glaze should not be used in the microwave oven.

Positioning Cooking Rack

The cooking rack can only be used with convection cooking and

broiling (on some models). To avoid damage to the microwave

oven, do not use the cooking rack in combination with microwave

cooking.

Place the cooking rack on slide rails as shown below. Push in the

baking tray to stop position. Check that the cooking rack is level.

For best cooking results, use the cooking rack only in the

recommended position.

A. Slide rail

B. Cooking rack

Microwave Cooking Power

Many recipes for microwave cooking specify which cooking

power to use by percent, name, or number. For example,

70%=Medium-High=7.

Use the following chart as a general guide for the suggested

cooking power of speciﬁc foods.

MICROWAVE COOKING POWER CHART

Percent/

Name Number Use

100%, High

(default

setting)

10 Quick heating convenience

foods and foods with high

water content, such as soups,

beverages, and most vegetables.

90% 9Cooking small, tender pieces

of meat, ground meat, poultry

pieces, and ﬁsh ﬁllets.

Heating cream soups.

80% 8Heating rice, pasta, or casseroles.

Cooking and heating foods that

need a cook power lower than

high. For example, whole ﬁsh and

meat loaf.

70%, Medium-

High

7Reheating a single serving of

food.

60% 6Cooking sensitive foods such as

cheese and egg dishes, pudding,

and custards.

Cooking non-stirrable casseroles,

such as lasagna.

50%, Medium 5Cooking ham, whole poultry, and

pot roasts.

Simmering stews.

40% 4Melting chocolate.

Heating bread, rolls, and pastries.

30%, Medium-

Low, Defrost

3Defrosting bread, ﬁsh, meats,

poultry, and precooked foods.

20% 2Softening butter, cheese, and ice

cream.

10%, Low 1Taking chill out of fruit.

NOTE: A percentage of 0% is also acceptable. This will not heat

up.

Doneness

Doneness is a function used for adjusting the cook time. This

feature is used on all sensor and non-sensor functions with the

exception of Manual Cooking, Popcorn, Convect, Custom Reheat

(beverage-manual), Defrost (manual), and Steam (manual).

The 3 Doneness levels are Normal (default), More, or Less and

will appear once activated on the lower text line of the upper oven

display. Doneness can be changed only before starting the cycle.

To Change Doneness Setting:

After setting a function, the Doneness setting can be changed if

desired. This can be done before or after the “START?” prompt

appears in the display. Touch COOK POWER repeatedly to toggle

through Doneness options of Normal, More, or Less.

Sensor Cook

The Sensor Cook function is used in Reheat (meal), Steam

Cooking, and Popcorn.

During the Sensor Cook function, a sensor automatically adjusts

for the cook time and power level.

The microwave oven display will show the “Maximum Time

Remaining” prompt and the time countdown once the sensor

identiﬁes the cooking duration.

If the microwave oven door is opened during a sensor function,

the microwave oven will turn off, and any additional operations will

be canceled.

For best cooking performance:

Before using a sensor cook function, make sure power has been

supplied to the microwave oven for at least 2 minutes, the room

temperature is not above 95°F (35°C), and the outside of the

cooking container and the microwave oven cavity are dry.

Reheat

Times and cooking powers have been preset for reheating a

number of food types.

Manual Reheat requires that a cook time and a power level be

entered if using other than 70% cook power.

Use the following chart as a guide.

REHEAT CHART

Food Code Quantity

Meal

Place food on plate.

Cover with plastic

wrap and vent. Let

stand 2-3 minutes after

reheating.

18-16 oz (227-454 g)

Casserole

Place in microwave-

safe container. Cover

with plastic wrap and

vent. Stir and let stand

2-3 minutes after

reheating.

21-4 cups (250 mL-1 L)

Beverage

Do not cover.

31-2 cups (250 mL-500 mL)

Pizza

Place on a paper towel

lined microwave-safe

plate.

41-3 slices (3 oz [85 g] each)

Soup

Place in microwave-

safe container. Cover

with plastic wrap and

vent. Stir and let stand

2-3 minutes after

reheating.

51-4 cups (250 mL-1 L)

Sauce

Place in microwave-

safe container. Cover

with plastic wrap and

vent. Stir and let stand

2-3 minutes after

reheating.

61-4 cups (250 mL-1 L)

Manual 7Default power level 70%

Defrost

The Defrost feature can be used, or the microwave oven can be

manually set to defrost by using 30% cook power.

■For optimal results, food should be 0°F (-18°C) or colder when

defrosting.

■Unwrap foods and remove lids (from fruit juice) before

defrosting.

■Shallow packages will defrost more quickly than deep blocks.

■Separate food pieces as soon as possible during or at the end

of the cycle for more even defrosting.

■Foods left outside the freezer for more than 20 minutes or

frozen ready-made food should not be defrosted using the

Defrost feature, but should be defrosted manually.

■Use small pieces of aluminum foil to shield parts of food such

as chicken wings, leg tips, and ﬁsh tails. See the “Aluminum

Foil and Metal” section ﬁrst.

■Times and cooking powers have been preset for defrosting a

number of food types.

■Manual Defrost requires that a cook time and power level be

entered if using other than 30% cook power.

Use the following chart as a guide.

DEFROST CHART

Food Code Weight

Poultry* 10.1 - 6.6 lbs (45 g - 3 kg)

Meats* 20.1 - 6.6 lbs (45 g - 3 kg)

Fish* 30.1 - 6.6 lbs (45 g - 3 kg)

Bread 40.1 - 2.0 lbs (45 g - 907 g)

Juice 56, 12 or 16 oz (177, 355 or 473 mL)

Manual 6Default power level 30%

* See the Defrost Preparation Chart at end of the “Defrost” section

for cuts, sizes, and instructions.

Use the following chart as a guide when defrosting meat, poultry,

or ﬁsh.

DEFROST PREPARATION CHART

MEAT

Beef: ground, steaks,

roast, stew

The narrow or fatty areas of irregular

shaped cuts should be shielded with

foil before defrosting.

Do not defrost less than 1/4 lb (113 g)

or two 4 oz (113 g) patties.

Place all meats in a microwave-safe

baking dish.

Lamb: stew and chops

Pork: chops, ribs,

roasts, sausage

POULTRY

Chicken: whole and

cut up

Place in a microwave-safe baking dish,

chicken breast-side up.

Remove giblets from whole chicken.

Cornish hens

Turkey: breast

FISH

Fillets, Steaks,

Whole, Shellﬁsh

Place in a microwave-safe baking dish.

Steam Cooking

Steam Cook is a sensor cooking function that uses microwaves

to steam food. Always use steamer vessel. See the “KitchenAid™

Steamer Vessel” section before using. Use Steam Cook for foods

such as vegetables, ﬁsh and potatoes.

■Times and cooking powers have been preset for steaming a

number of food types.

■Manual Steam Cook requires that a cook time be entered.

■It is recommended to add ½ cup (125 mL) of water to Steamer

Vessel before steaming.

Use the following chart as a guide.

STEAM COOKING CHART

Food Code Quantity

Potatoes 12-6 cups (500 mL-1.5 L)

Fresh vegetables 22-6 cups (500 mL-1.5 L)

Frozen vegetables 32-6 cups (500 mL-1.5 L)

Fish 48-16 oz (227-454 g)

Shrimp 55-10 oz (142-283 g)

Manual 6Sensing

Popcorn

■Do not use regular paper bags or glassware.

■Pop only 1 package of popcorn at a time.

■Follow manufacturer’s instructions when using a microwave

popcorn popper.

■Listen for popping to slow to 1 pop every 1 or 2 seconds, and

then stop the cycle. Do not repop unpopped kernels.

■For best results, use fresh bags of popcorn.

■Cooking results may vary by brand and fat content.

■Recommended bag sizes are 3.5 oz, 3.0 oz, and 1.75 oz.

NOTE: Follow the instructions provided by the microwave popcorn

manufacturer.

Keeping Food Warm

Hot cooked food can be kept warm in the microwave oven.

■Cover plates of food.

■Cover foods that were covered while being cooked.

■Do not cover baked goods such as pastries, pies, turnovers,

etc.

WARNING

Food Poisoning Hazard

Do not let food sit in oven more than one hour before

or after cooking.

Doing so can result in food poisoning or sickness.

To Keep Food Warm:

1. Touch COOK TIME and then number keypads to set a length

of time to warm.

Touch the number keypads to set a length of time to warm.

To use this feature, the display must be in time of day

visualization.

2. Touch COOK POWER.

3. Touch the number “1” keypad to set cook power at 10%.

NOTE: Doneness function is not active for manual cooking.

4. Touch START.

The display will count down the warming time.

When the stop time is reached, the oven will shut off

automatically and “Cooking Complete” will appear in the

display.

If enabled, end-of-cycle tones will sound, and then reminder

tones will sound every minute.

5. Touch CANCEL or open the door to clear the display and/or

stop the reminder tones.

Soften/Melt

Soften and Melt functions may be used to soften or melt your

food. Times and cooking powers have been preset for a number of

food types. Use the following chart as a guide.

SOFTEN CHART

Use the following chart as a guide.

Food Code Quantity Preparation

Butter 11/2-2 sticks Unwrap and place

in microwave-safe

container.

Margarine 21/2-2 sticks

Ice cream 316, 32, or 64 oz

(454, 907 g,

or 1.8 kg)

Cream cheese 43 or 8 oz

(85 g or 227 g)

Unwrap and place

in microwave-safe

container.

MELT CHART

Food Code Quantity Preparation

Butter 11/2-2 sticks Unwrap and place

in microwave-safe

container.

Margarine 21/2-2 sticks

Chocolate 32, 4, 6, 8 oz

(57, 113, 170,

227 g)

Cut squares into

small pieces or

use chips. Place

in microwave-safe

container.

Cheese 48 or 16 oz

(227 or 454 g)

Cut into small

pieces and place

in microwave-safe

container.

Marshmallows 55 or 10 oz

(142 or 283 g)

Place in

microwave-safe

container.

Convect

Convection cooking uses the convection element, the broil

element, and the fan. Hot air is circulated throughout the oven

cavity by the fan. The constantly moving air surrounds the food to

heat the outer portion quickly.

■The convect function may be used to cook small amounts of

food on a single rack.

■Always use the convection grid placed on turntable or baking

tray.

■Always use the turntable “On” option when convection

cooking with the convection grid (default setting).

■Do not cover turntable or convection grid or baking tray with

aluminum foil.

■Do not use light plastic containers, plastic wrap or paper

products. All heatproof cookware or metal utensils can be

used in convection cooking. Round pizza pans are excellent

for convection cooking.

■Use convection cooking for items such as soufﬂes, breads,

cookies, angel food cakes, pizza, and most meats and ﬁsh.

■All Convect functions require preheating before use. Place

food in microwave oven after preheating is complete.

Convect is a function that converts a standard thermal bake cook

time and temperature into an ideal cook time and temperature for

convection cooking after the oven has preheated.

Convection temperatures and times differ from those of standard

cooking. The oven can automatically reduce standard recipe

temperatures and times for convection cooking.

A. Convection fan

B. Convection element

C. Convection grid

The conversion may not be exact because foods are grouped in

general categories. Use the following chart as a guide.

CONVECTION CHART

Setting Foods Code

BAKED

GOODS

Biscuits, Breads: quick and yeast

Cakes and Cookies

Casseroles: including frozen entrées

and soufﬂés

Fish

MEATS Baked potatoes

Chicken: whole and pieces, meatloaf

Roasts: pork, beef, and ham

* Turkey and large poultry are not

included because their cook times vary.

OTHER

FOODS

Convenience foods: french fries, nuggets,

ﬁsh sticks, pizza

Pies: fruit and custard

For Use With Convection/Combination

Cycles (on some models)

Metal bakeware may be used only during convection (bake)

cycles. Use ovenproof, microwave-safe cookware for all other

convection and combination cycles.

MICROWAVE OVEN CARE

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are off and

the microwave oven is cool. Always follow label instructions on

cleaning products.

Soap, water, and a soft cloth or sponge are suggested ﬁrst, unless

otherwise noted.

STAINLESS STEEL (on some models)

NOTE: To avoid damage to stainless steel surfaces, do not use

soap-ﬁlled scouring pads, abrasive cleaners, cooktop polishing

creme, steel-wool pads, gritty washcloths, or abrasive paper

towels. Damage may occur to stainless steel surfaces, even

with one-time or limited use.

Rub in direction of grain to avoid damaging.

Cleaning Method:

■affresh® Stainless Steel Cleaner Part Number W10355016

(not included):

See the “Assistance or Service” section to order.

■Vinegar for hard water spots.

MICROWAVE OVEN DOOR EXTERIOR

Cleaning Method:

■Glass cleaner and a soft cloth or sponge:

Apply glass cleaner to soft cloth or sponge, not directly on

panel.

■affresh® Kitchen Appliance Cleaner Part Number W10355010

(not included):

See the “Assistance or Service” section to order.

MICROWAVE OVEN CAVITY

To avoid damage to microwave oven cavity, do not use soap-

ﬁlled scouring pads, abrasive cleaners, steel-wool pads, gritty

washcloths, or some paper towels.

On stainless steel models, rub in direction of grain to avoid

damaging.

The area where the oven door and frame touch when closed

should be kept clean.

Cleaning Method:

Average soil

■Mild, nonabrasive soaps and detergents:

Rinse with clean water and dry with soft, lint-free cloth.

Heavy soil

■Mild, nonabrasive soaps and detergents:

Heat 1 cup (250 mL) of water for 2 to 5 minutes in oven.

Steam will soften soil. Rinse with clean water and dry with soft,

lint-free cloth.

Odors

■Lemon juice or vinegar:

Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either

lemon juice or vinegar for 2 to 5 minutes in oven.

MICROWAVE OVEN CEILING

The broil element does not need cleaning since the intense heat

will burn off any food spatters. However, the ceiling above the

broil element may need regular cleaning.

Cleaning Method:

■Warm water, mild detergent and a sponge.

To clean:

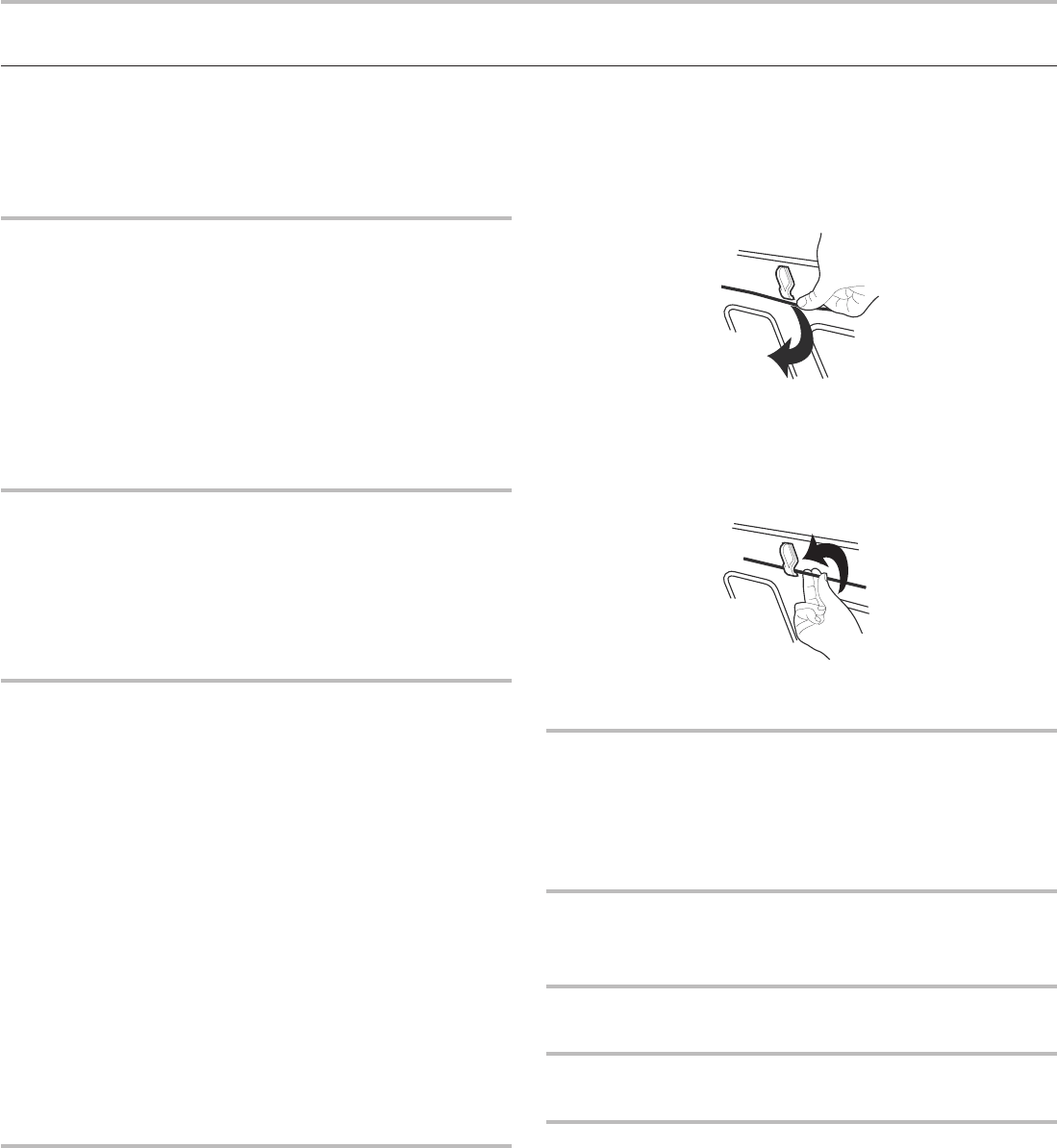

1. Push the fastening thread gently toward the back of the ceiling

and then lower it to release the broil element.

2. Lower the front of the broil element to access the ceiling for

cleaning.

3. Raise broil element back up and return the fastening thread

back to its original location.

Always return the broil element to the cooking position after

cleaning.

TURNTABLE

Replace turntable immediately after cleaning. Do not operate the

microwave oven without the turntable in place.

Cleaning Method:

■Mild cleanser and scouring pad

■Dishwasher

RACK

■Steel-wool pad

■Dishwasher

COOKING RACK

■Dishwasher

STEAMER VESSEL

■Dishwasher

TURNTABLE SUPPORT AND ROLLERS, HUB

■Dishwasher

TROUBLESHOOTING

First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a

service call, refer to the warranty page in this manual and scan the code there with your mobile device, or visit

http://www.whirlpool.com/product_help. In Canada, visit http://www.whirlpool.ca.

In the U.S.A.:

Whirlpool Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

In Canada:

Whirlpool Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

If you experience Recommended Solutions

Microwave oven will

not operate

Check the following:

■Household fuse or circuit breaker: If a household fuse has blown or a circuit breaker has tripped, replace

the fuse or reset the circuit breaker. If the problem continues, call an electrician.

■Magnetron: Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does

not heat, try the steps in the bullets below. If microwave oven still does not operate, call for service.

■Door: Firmly close door. On some models, if a packaging spacer is attached to inside of the door, remove

it, then ﬁrmly close door.

If a message about the door appears in the display, the door has been closed for 5 minutes or more

without the microwave oven being started. This occurs to avoid unintended starting of the microwave

oven. Open and close the door, then start the cycle.

■Control: Make sure control is set properly. Make sure Control Lock is off. Make sure Demo mode (on

some models) is off.

Arcing in the

microwave oven

Check the following:

■Soil buildup: Soil buildup on cavity walls, microwave inlet cover, cooking rack supports, and area where

the door touches the frame can cause arcing. See “General Cleaning” in the “Microwave Oven Care”

section.

Turntable alternates

rotation directions ■This is normal and depends on motor rotation at the beginning of the cycle.

Display shows

messages

■“Enter clock” with ﬂashing digits means there has been a power failure. Reset the clock.

■A letter followed by a number is an error indicator. Call for assistance.

Fan running during

cooktop usage

■This is normal. The microwave oven’s cooling fan, which is separate from the vent fan, automatically

comes on during microwave oven operation to cool the microwave oven. It may also automatically come

on and cycle on and off to cool the microwave oven’s controls while the cooktop below is being used.

Radio, TV, or cordless

phone interference

Check the following:

■Proximity: Move the receiver away from the microwave oven, or adjust the radio or TV antenna.

■Soil: Make sure the microwave oven door and sealing surfaces are clean.

■Frequency: Some 2.4 GHz-based cordless phones and home wireless networks may experience static

or noise while microwave oven is on. Use a corded phone, a different frequency cordless phone, or avoid

using these items during microwave oven operation.

Cannot connect

to router

New router installed: Erase the old router information by pressing and holding CONNECT for approximately

15 seconds. Repeat the steps from the “Connectivity Setup” section for the new router.

Wi-Fi signal strength low: Reposition router closer to the appliance. Call the connected customer service

center to conﬁrm signal strength. See the “Warranty” section for contact information.

Appliance not

connected

Loss of power to router: Restore power to router.

Remote app isn’t

working and/or is

not receiving push

notiﬁcations

Router not working: Ensure router is connected to the internet and the Wi-Fi indicator is on.

Push notiﬁcations are disabled: Ensure that push notiﬁcations are enabled on your remote app.

User account not set up: Set up a user account and register the appliance on the remote app.

CONNECTED APPLIANCE REGULATORY NOTICES

Federal Communications Commission (FCC) and Industry

Canada (IC) Compliance Notices

Changes or modiﬁcations not expressly approved by the party

responsible for compliance could void the user’s authority to

operate the equipment.

Industry Canada (IC) Compliance Notice

This Device complies with Industry Canada License-exempt RSS

standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference,

2. This device must accept any interference, including

interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may

only operate using an antenna of a type and maximum (or lesser)

gain approved for the transmitter by Industry Canada. To reduce

potential radio interference to other users, the antenna type and its

gain should be so chosen that the equivalent isotropically radiated

power (e.i.r.p.) is not more than that necessary for successful

communication.

This radio transmitter IC: 10248A-XPWG3 has been approved

by Industry Canada to operate with the antenna types listed

below with the maximum permissible gain and required antenna

impedance for each antenna type indicated. Antenna types not

included in this list, having a gain greater than the maximum gain

indicated for that type, are strictly prohibited for use with this

device.

Antenna

Type

Maximum Permissible

Antenna Gain (dBi)

Required Impedance

(OHM)

Slot 1.76 50

F1.24 50

Planar F 4.2 50

RF Exposure Information

To comply with FCC/IC RF exposure requirements for mobile

transmitting devices, this transmitter should only be used or

installed at locations where there is at least 20 cm separation

distance between the antenna and all persons.

To comply with FCC/IC RF exposure limits for general population/

uncontrolled exposure, the antenna(s) used for this transmitter

must be installed to provide a separation distance of at least

20 cm from all persons and must not be co-located or operating in

conjunction with any other antenna or transmitter.

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct

the interference by one of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for

help.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including

interference that may cause undesired operation.

OEM Responsibilities to comply with FCC

and Industry Canada Regulations

The XPWG3 Module has been certiﬁed for integration into

products only by OEM integrators under the following conditions:

1. The antenna(s) must be installed such that a minimum

separation distance of 20 cm is maintained between the

radiator (antenna) and all persons at all times.

2. The transmitter module must not be co-located or operating in

conjunction with any other antenna or transmitter.

As long as the two conditions above are met, further transmitter

testing will not be required. However, the OEM integrator is

still responsible for testing their end-product for any additional

compliance requirements required with this module installed (for

example, digital device emissions, PC peripheral requirements,

etc.).

IMPORTANT NOTE: In the event that these conditions cannot

be met (for certain conﬁgurations or co-location with another

transmitter), then the FCC and Industry Canada authorizations are

no longer considered valid and the FCC ID and IC Certiﬁcation

Number cannot be used on the ﬁnal product.

In these circumstances, the OEM integrator will be responsible

for re-evaluating the end product (including the transmitter) and

obtaining a separate FCC and Industry Canada authorization.

End Product Labeling

The XPWG3 Module is labeled with its own FCC ID and IC

Certiﬁcation Number. If the FCC ID and IC Certiﬁcation Number

are not visible when the module is installed inside another device,

then the outside of the device into which the module is installed

must also display a label referring to the enclosed module. In that

case, the ﬁnal end product must be labeled in a visible area with

the following:

“Contains Transmitter Module FCC ID: A5UXPWG3”

“Contains Transmitter Module IC: 10248A-XPWG3”

“Contains FCC ID: A5UXPWG3”

“Contains IC: 10248A-XPWG3”

The OEM of the XPWG3 Module must only use the approved

antenna(s), which have been certiﬁed with this module. The OEM

integrator has to be aware not to provide information to the end

user regarding how to install or remove this RF module or change

RF related parameters in the user manual of the end product.

The user manual for the end product must include the

following information in a prominent location:

“To comply with FCC and Industry Canada RF radiation exposure

limits for general population, the antenna(s) used for this

transmitter must be installed such that a minimum separation

distance of 20 cm is maintained between the radiator (antenna)

and all persons at all times and must not be co-located or

operating in conjunction with any other antenna or transmitter.”

OPEN SOURCE LICENSE USAGE

The following statements refer to the portions of this software based in part on FreeRTOS v7.0.2, http://www.freertos.org. The use of this

software is governed by the terms of GNU General Public License v. 2, which is available at: http://www.gnu.org/licenses/gpl-2.0.html.

A copy of the source code may be obtained by written request for the software by name to opensource@whirlpool.com, along with the

address for delivery.

■Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer.

■Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the

documentation and/or other materials provided with the distribution.

■Neither the name of the Eclipse Foundation, Inc. nor the names of its contributors may be used to endorse or promote products

derived from this software without speciﬁc prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR

ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED

TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY

OF SUCH DAMAGE.

The following statements refer to those portions of the software copyrighted by Swedish Institute of Computer Science.

1. Redistributions of source code must retain the above copyright notice, this list of conditions, and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions, and the following disclaimer in the

documentation and/or other materials provided with the distribution.

3. The name of the author may not be used to endorse or promote products derived from this software without speciﬁc prior written

permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN

NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL

DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA,

OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,

STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

DISCLAIMER. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS

OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE

FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED

TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY

OF SUCH DAMAGE.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation ﬁles (the

“Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish,

distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the

following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED

TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT

SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN

ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE

OR OTHER DEALINGS IN THE SOFTWARE.

The following statements refer to those portions of the software copyrighted by Adam Dunkels.

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the

documentation and/or other materials provided with the distribution.

3. Neither the name of the Institute nor the names of its contributors may be used to endorse or promote products derived from this

software without speciﬁc prior written permission.

THIS SOFTWARE IS PROVIDED BY THE INSTITUTE AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

ARE DISCLAIMED. IN NO EVENT SHALL THE INSTITUTE OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY

THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING

IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The following statements refer to those portions of the software copyrighted by Jouni Malinen.

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the

documentation and/or other materials provided with the distribution.

3. Neither the name(s) of the above-listed copyright holder(s) nor the names of its contributors may be used to endorse or promote

products derived from this software without speciﬁc prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR

ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED

TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING

NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY

OF SUCH DAMAGE.

The following statements refer to those portions of the software copyrighted by The Regents of the University of California.

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the

documentation and/or other materials provided with the distribution.

4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from

this software without speciﬁc prior written permission.

THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS’’ AND ANY EXPRESS OR IMPLIED WARRANTIES,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE

GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY

THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING

IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

ACCESSORIES

For accessories in the U.S.A., you can visit our website at www.whirlpool.com or call us at 1-800-253-1301.

In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777.

Replacement Parts

■Turntable

■Turntable support and rollers

■Turntable hub

■Cooking rack

■Rack clip

■Rack support

■Grease ﬁlter

■Charcoal ﬁlter

■Cooktop light bulb

■Cavity light bulb

Provided Accessories

■Convection rack

■Steamer vessel

Cleaning Supplies

■Heavy Duty Degreaser

■affresh® Kitchen Appliance Cleaner

■affresh® Stainless Steel Cleaner

■affresh® Stainless Steel Wipes

11/14

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some

questions can be addressed without service. Please take a few minutes to review the Troubleshooting or

Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional

resources, or visit www.whirlpool.com/product_help.

2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and

Canada, direct all requests for warranty service to:

Whirlpool Customer eXperience Center

In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.

If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.

WHIRLPOOL®

MAJOR APPLIANCE

LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED

TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the

Customer eXperience Center:

■Name, address and telephone number

■Model number and serial number

■A clear, detailed description of the problem

■Proof of purchase including dealer or retailer name and address

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

For one year from the date of purchase,

when this major appliance is installed,

operated and maintained according to

instructions attached to or furnished

with the product, Whirlpool Corporation

or Whirlpool Canada LP (hereafter

“Whirlpool”) will pay for Factory

Speciﬁed Replacement Parts and repair

labor to correct defects in materials or

workmanship that existed when this

major appliance was purchased, or at

its sole discretion replace the product.

In the event of product replacement,

your appliance will be warranted for

the remaining term of the original unit’s

warranty period.

YOUR SOLE AND EXCLUSIVE

REMEDY UNDER THIS LIMITED

WARRANTY SHALL BE PRODUCT

REPAIR AS PROVIDED HEREIN.

Service must be provided by a

Whirlpool designated service company.

This limited warranty is valid only in

the United States or Canada and

applies only when the major appliance

is used in the country in which it was

purchased. This limited warranty is

effective from the date of original

consumer purchase. Proof of original

purchase date is required to obtain

service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or

installation instructions.

2. In-home instruction on how to use your product.

3. Service to correct improper product maintenance or installation, installation not in accordance with

electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses

or water inlet hoses).

4. Consumable parts (i.e. light bulbs, batteries, air or water ﬁlters, preservation solutions, etc.).

5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.

6. Conversion of products from natural gas or L.P. gas.

7. Damage from accident, misuse, abuse, ﬁre, ﬂoods, acts of God or use with products not approved by

Whirlpool.

8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service,

alteration or modiﬁcation of the appliance.

9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance ﬁnishes

unless such damage results from defects in materials and workmanship and is reported to Whirlpool

within 30 days.

10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including

but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.

11. Food or medicine loss due to product failure.

12. Pick-up or delivery. This product is intended for in-home repair.

13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool

servicer is not available.

14. Removal or reinstallation of inaccessible appliances or built-in ﬁxtures (i.e. trim, decorative panels,

ﬂooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or

replacement of the product.

15. Service or parts for appliances with original model/serial numbers removed, altered or not easily

determined.

The cost of repair or replacement under these excluded circumstances shall be borne by

the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A

PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow

limitations on the duration of implied warranties of merchantability or ﬁtness, so this limitation may not apply to you. This warranty gives you speciﬁc

legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations

contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you

should ask Whirlpool or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL

SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of

incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you speciﬁc legal rights, and you

also may have other rights that vary from state to state or province to province.

Whirlpool Microwave Development RED78109Y Microwave Oven User Manual

Whirlpool Microwave Products Development Limited. Microwave Oven Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
