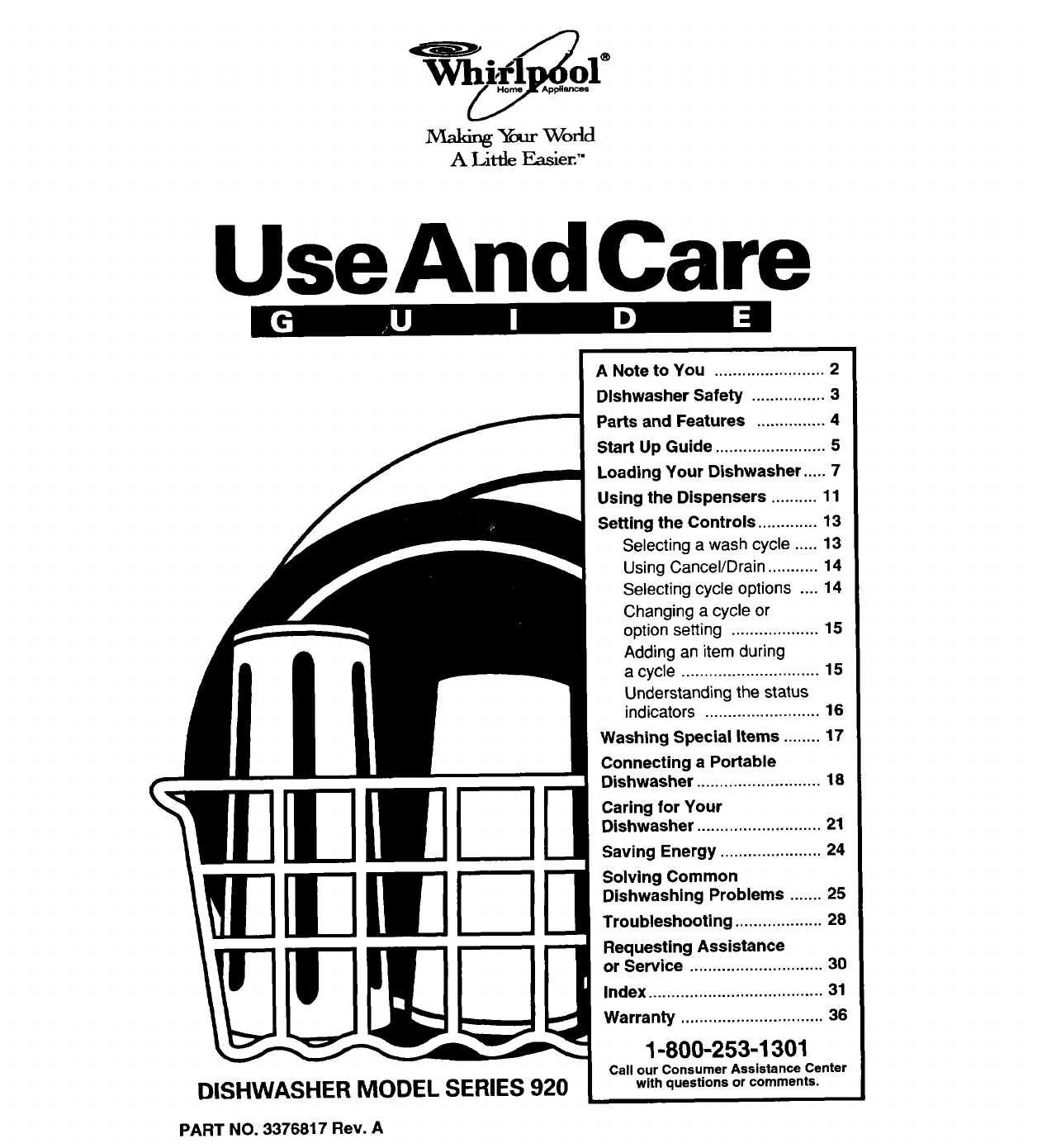

UseAndCare
DISHWASHER MODEL SERIES 920
A Note to You ........................ 2
Dishwasher Safety ................ 3
Parts and Features ............... 4
Start Up Guide ........................ 5
Loading Your Dishwasher ..... 7
Using the Dispensers .......... 11
Setting the Controls ............. 13
Selecting awash cycle ..... 13
Using Cancel/Drain ........... 14
Selecting cycle options .... 14
Changing a cycle or
option setting ................... 15
Adding an item during
acycle .............................. 15
Understanding the status
indicators ......................... 16

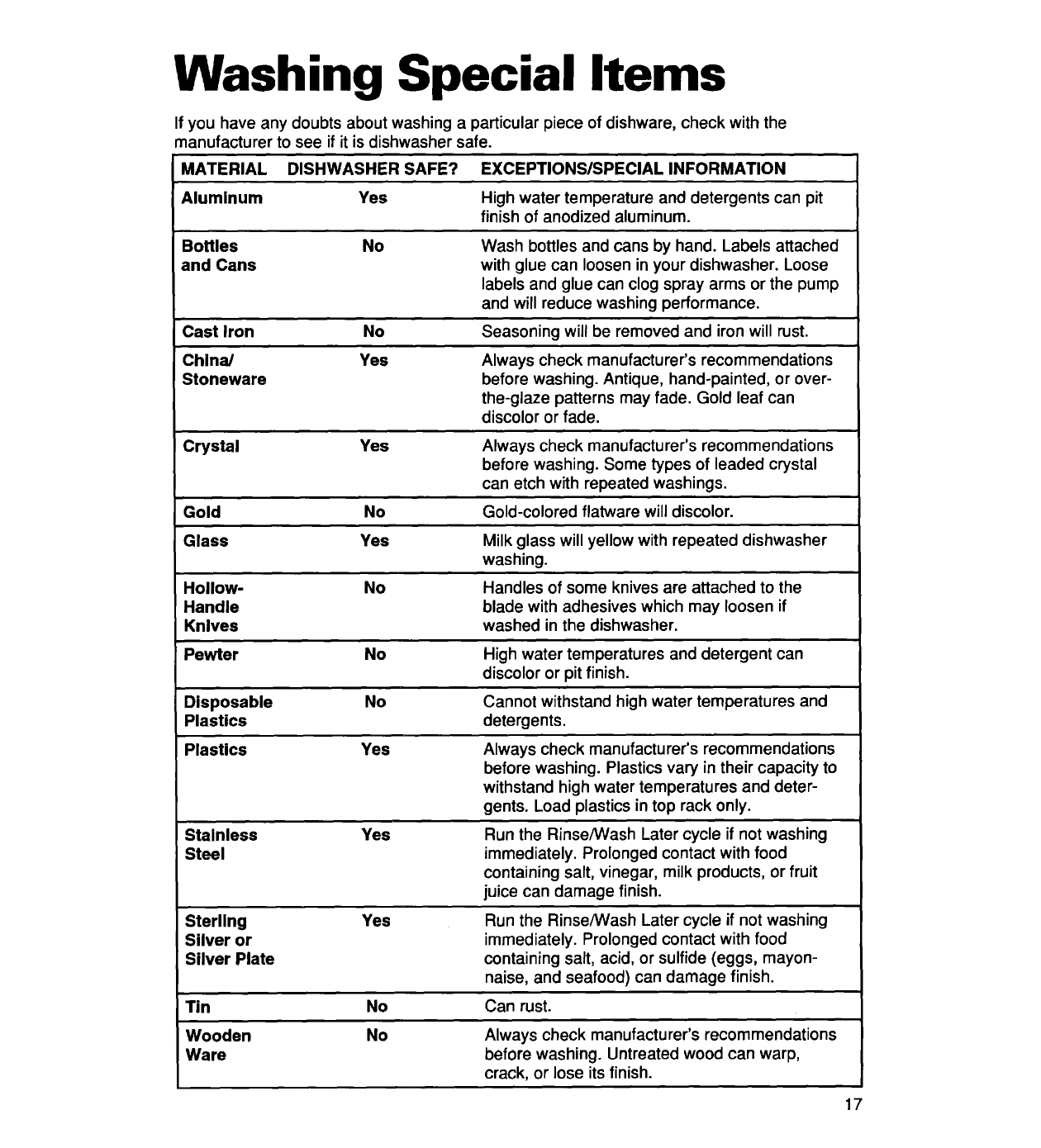

Washing Special Items ........ 17
Connecting a Portable
Dishwasher ........................... 18
Caring for Your
Dishwasher ........................... 21
Saving Energy ...................... 24
Solving Common
Dishwashing Problems ....... 25
Troubleshooting ................... 28
Requesting Assistance
or Service ............................. 30
Index ...................................... 31
Warranty ............................... 36
1-800-253-1301
Call our Consumer Assistance Center
with questions or comments.
PART NO. 3376817 Rev. A

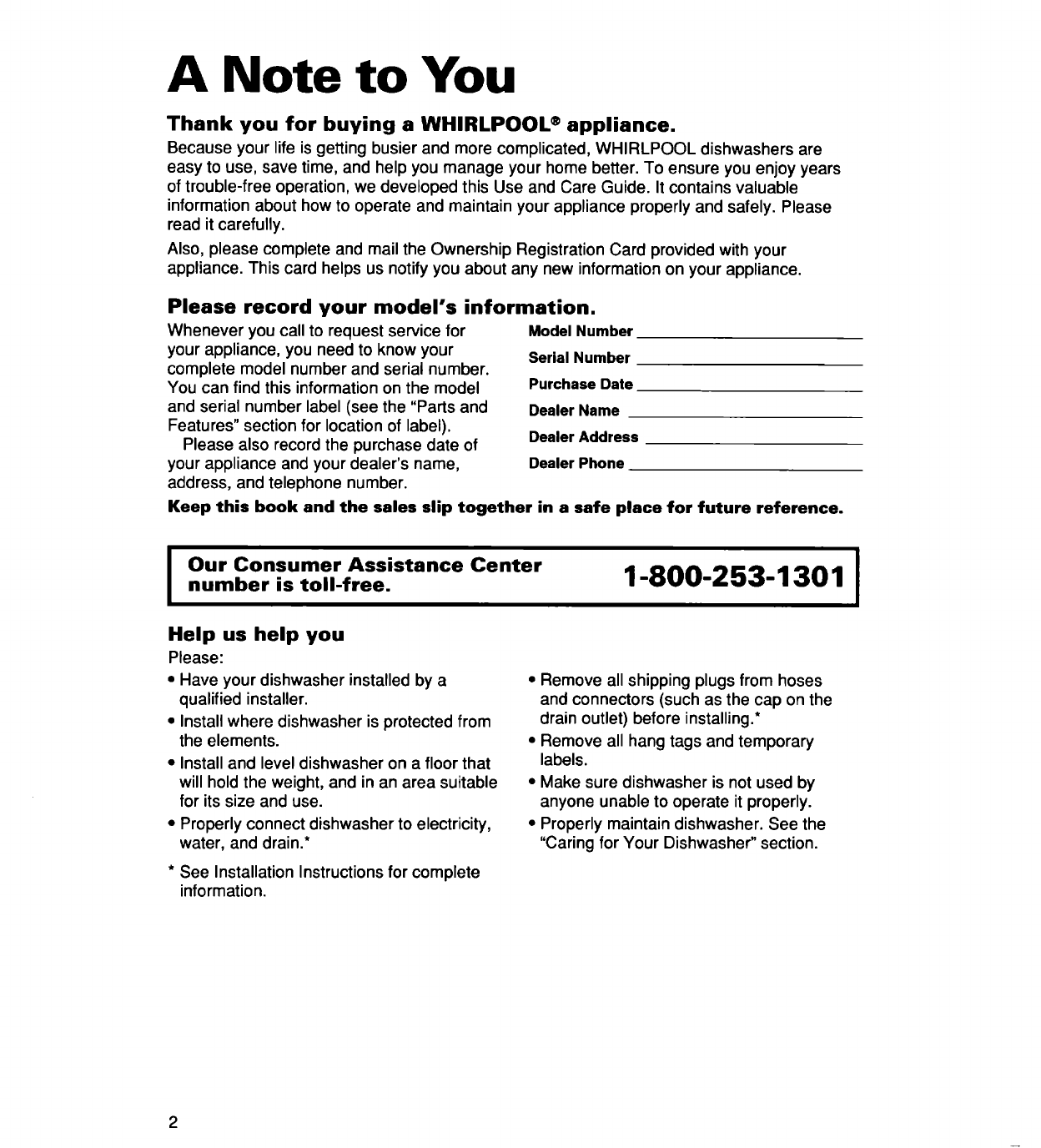

A Note to You
Thank you for buying a WHIRLPOOL ®appliance.
Because your life is getting busier and more complicated, WHIRLPOOL dishwashers are
easy to use, save time, and help you manage your home better. To ensure you enjoy years
of trouble-free operation, we developed this Use and Care Guide. It contains valuable
information about how to operate and maintain your appliance properly and safely. Please
read it carefully.
Also, please complete and mail the Ownership Registration Card provided with your
appliance. This card helps us notify you about any new information on your appliance.
Please record your model's information.
Whenever you call to request service for
your appliance, you need to know your
complete model number and serial number.
You can find this information on the model
and serial number label (see the "Parts and
Features" section for location of label).
Please also record the purchase date of
your appliance and your dealer's name,
address, and telephone number.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference.
I ur Consumer Assistance Center
number is toll-free. 1-800-253-1301 I
Help us help you
Please:
•Have your dishwasher installed by a
qualified installer.
• Install where dishwasher is protected from
the elements.
• Install and level dishwasher on a floor that
will hold the weight, and in an area suitable
for its size and use.
• Properly connect dishwasher to electricity,
water, and drain.*
* See Installation Instructions for complete
information.
• Remove all shipping plugs from hoses
and connectors (such as the cap on the
drain outlet) before installing.*
• Remove all hang tags and temporary
labels.
• Make sure dishwasher is not used by
anyone unable to operate it properly.
• Properly maintain dishwasher. See the
"Caring for Your Dishwasher" section.
2

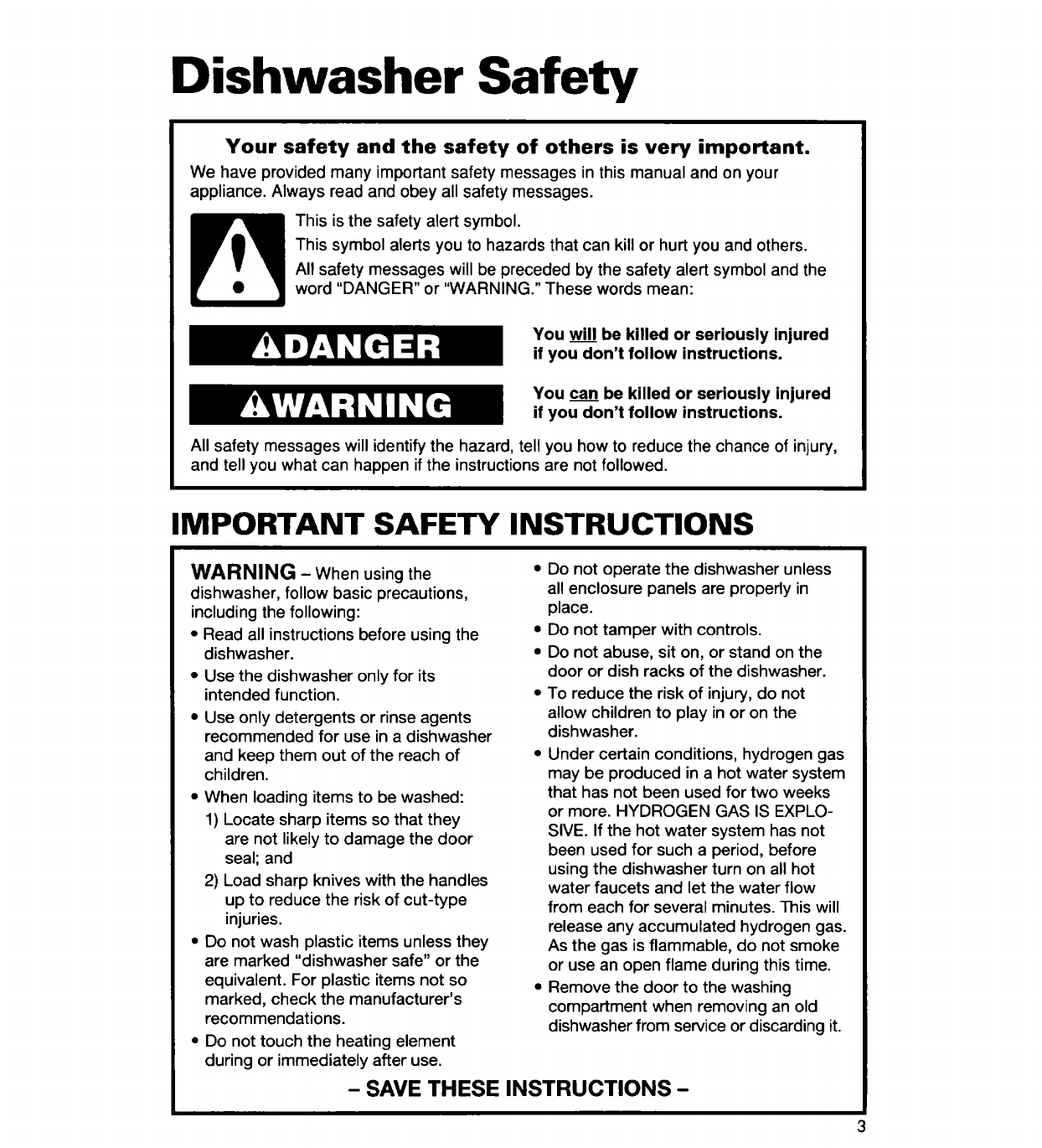

Dishwasher Safety
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the
word "DANGER" or "WARNING." These words mean:
You will be killed or seriously injured
if you don't follow instructions.
You can be killed or seriously injured
if you don't follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING -When using the
dishwasher, follow basic precautions,
including the following:
•Read all instructions before using the
dishwasher.
• Use the dishwasher only for its
intended function.
•Use only detergents or rinse agents
recommended for use in a dishwasher
and keep them out of the reach of
children.
• When loading items to be washed:
1) Locate sharp items so that they
are not likely to damage the door
seal; and
2) Load sharp knives with the handles
up to reduce the risk of cut-type
injuries.
• Do not wash plastic items unless they
are marked "dishwasher safe" or the
equivalent. For plastic items not so
marked, check the manufacturer's
recommendations.
• Do not touch the heating element
during or immediately after use.
• Do not operate the dishwasher unless
all enclosure panels are properly in
place.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the
door or dish racks of the dishwasher.
• To reduce the risk of injury, do not
allow children to play in or on the
dishwasher.
• Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks
or more. HYDROGEN GAS IS EXPLO-
SIVE. If the hot water system has not
been used for such a period, before
using the dishwasher turn on all hot
water faucets and let the water flow
from each for several minutes. This will
release any accumulated hydrogen gas.
As the gas is flammable, do not smoke
or use an open flame during this time.
• Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding it.
- SAVE THESE INSTRUCTIONS -

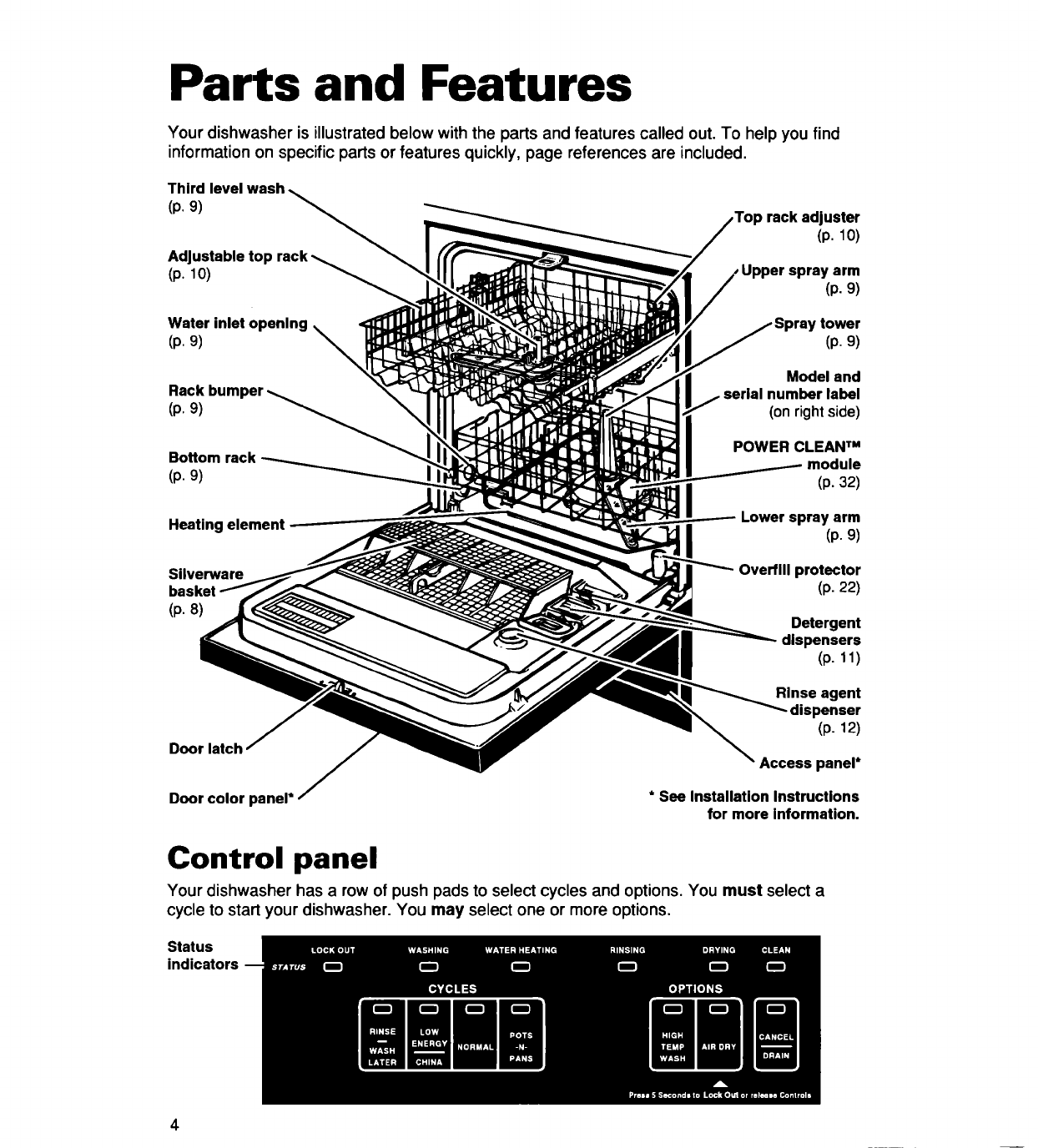

Parts and Features
Your dishwasher is illustrated below with the parts and features called out. To help you find
information on specific parts or features quickly, page references are included.
Third level
(p. 9)
Adjustable top rack
(p. 10)
rack adjuster
(p. 10)
spray arm
(p. 9)
Water inlet opening 'tower
(p. 9) (p. 9)
Model and
Rack bumper ,serial number label
(p. 9) (on right side)
Bottom rack POWER CLEAN TM
module
(p. 9) (p. 32)
Heating element ILower spray arm
(p. 9)
Silverware Overfill protector
(p. 22)
(p. 8) Detergent
dispensers
(p. 11)
Door latch
Rinse agent
dispenser
(p. 12)
Access panel*
Door color panel * Sea Installation Instructions
for more Information.
Control panel
Your dishwasher has a row of push pads to select cycles and options. You must select a
cycle to start your dishwasher. You may select one or more options.
Status
indicators

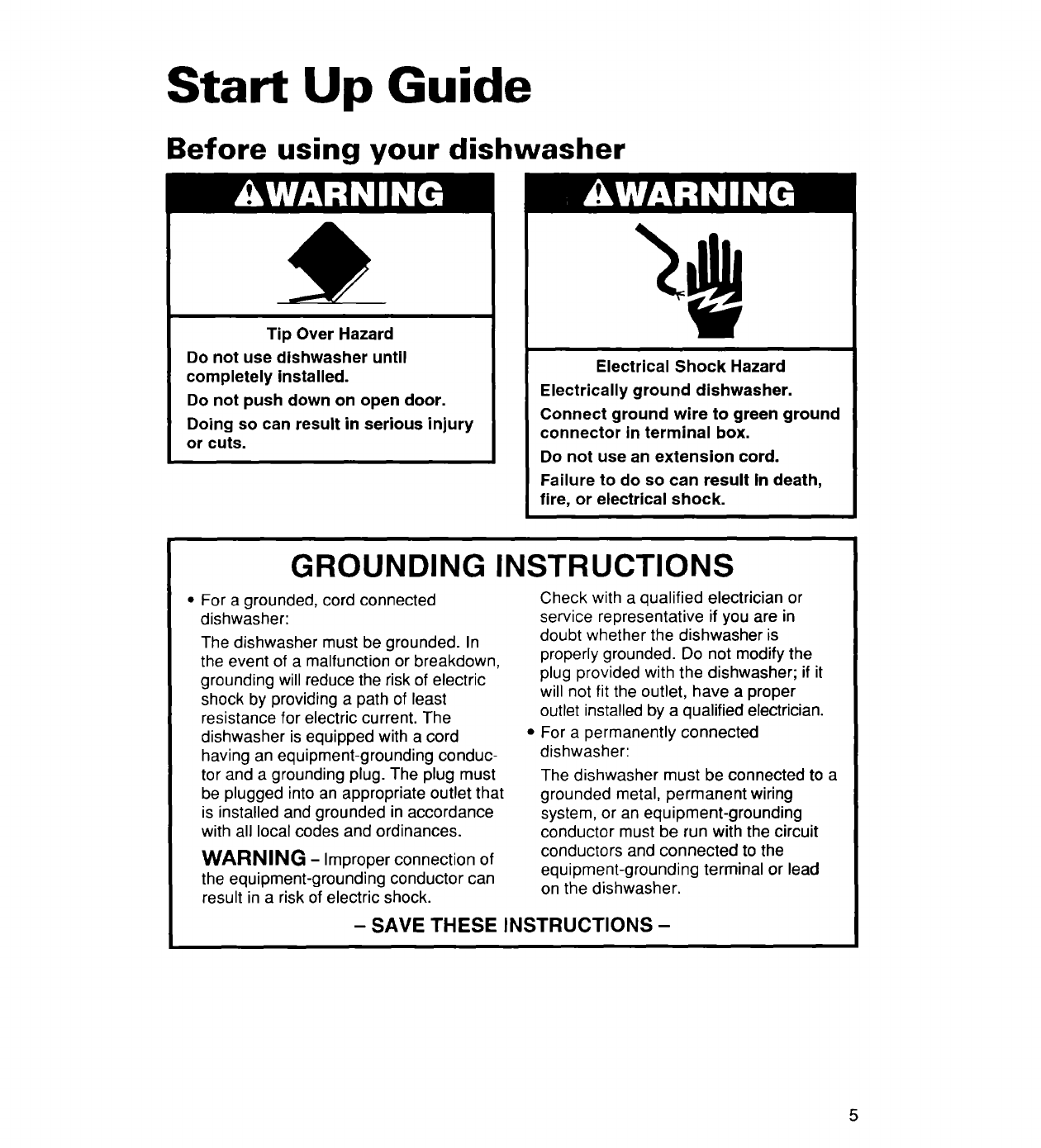

Start Up Guide
Before using your dishwasher
Tip Over Hazard
Do not use dishwasher until
completely installed.
Do not push down on open door.
Doing so can result in serious injury
or cuts.
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground
connector in terminal box.
Do not use an extension cord.
Failure to do so can result in death,
fire, or electrical shock.
GROUNDING INSTRUCTIONS
•For a grounded, cord connected
dishwasher:
The dishwasher must be grounded. In
the event of a malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least
resistance for electric current. The
dishwasher is equipped with a cord
having an equipment-grounding conduc-
tor and a grounding plug. The plug must
be plugged into an appropriate outlet that
is installed and grounded in accordance
with all local codes and ordinances.
WARNING - Improper connection of
the equipment-grounding conductor can
result in a risk of electric shock.
Check with a qualified electrician or
service representative if you are in
doubt whether the dishwasher is
properly grounded. Do not modify the
plug provided with the dishwasher; if it
will not fit the outlet, have a proper
outlet installed by a qualified electrician.
For a permanently connected
dishwasher:
The dishwasher must be connected to a
grounded metal, permanent wiring
system, or an equipment-grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
on the dishwasher.
- SAVE THESE INSTRUCTIONS -
5

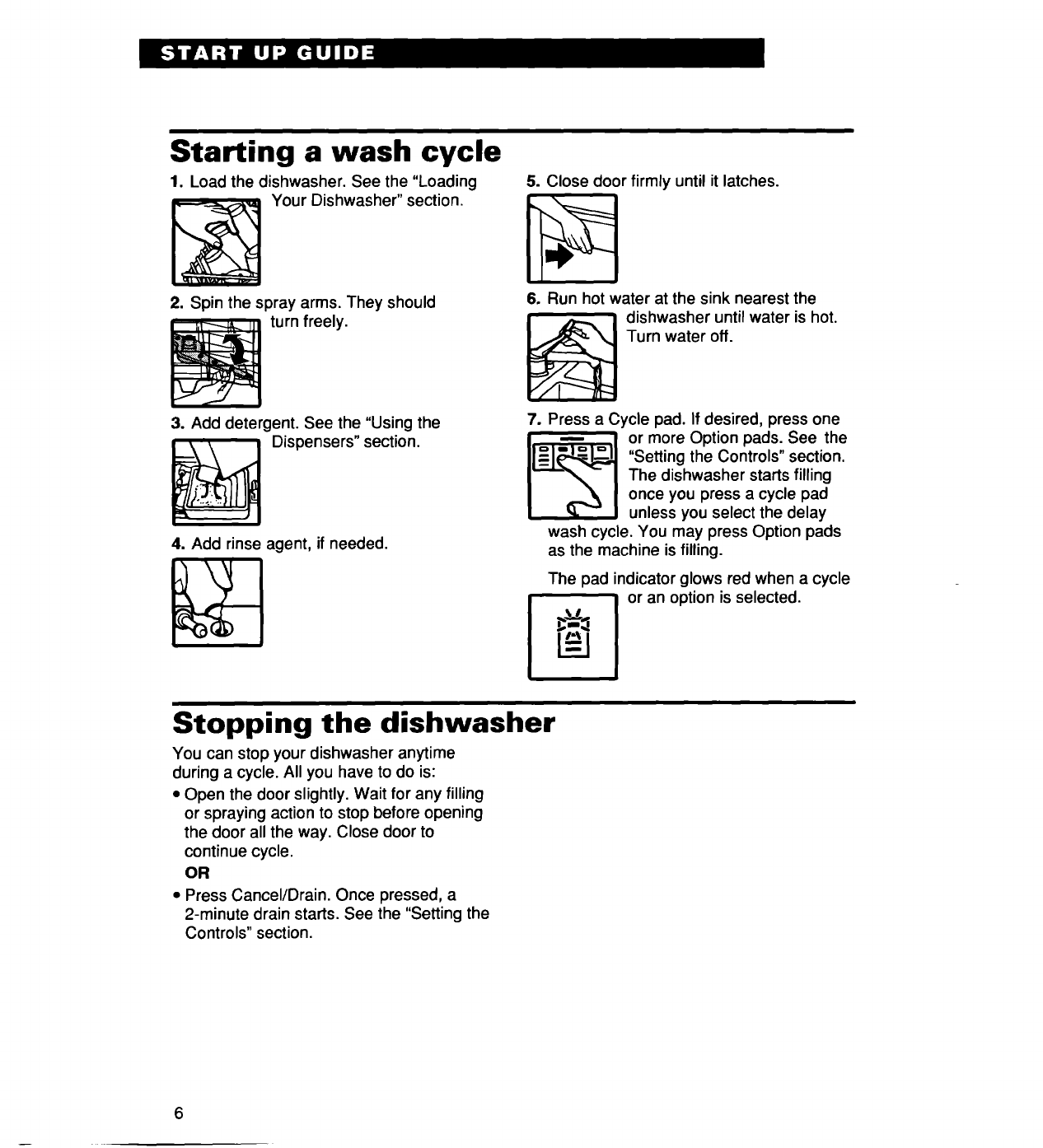

Starting a wash cycle
1. Load the dishwasher. See the "Loading
Your Dishwasher" section.
2. Spin the spray arms. They should
turn freely.
3. Add detergent. See the "Using the
Dispensers" section.
4. Add rinse agent, if needed.
5. Close door firmly until it latches.
6. Run hot water at the sink nearest the
_ dishwasher until water is hot.
Turn water off.
7. Press a Cycle pad. If desired, press one
I1__1_1_ or more Opti°n pads" See the
"Setting the Controls" section.
The dishwasher starts filling
once you press a cycle pad
unless you select the delay
wash cycle. You may press Option pads
as the machine is filling.
The pad indicator glows red when a cycle
or an option is selected.
_,.;j
Stopping the dishwasher
You can stop your dishwasher anytime
during a cycle. All you have to do is:
•Open the door slightly. Wait for any filling
or spraying action to stop before opening
the door all the way. Close door to
continue cycle.
OR
• Press Cancel/Drain. Once pressed, a
2-minute drain starts. See the "Setting the
Controls" section.
Loading Your Dishwasher
This section tells how to properly load your dishwasher for best washing and rinsing results.

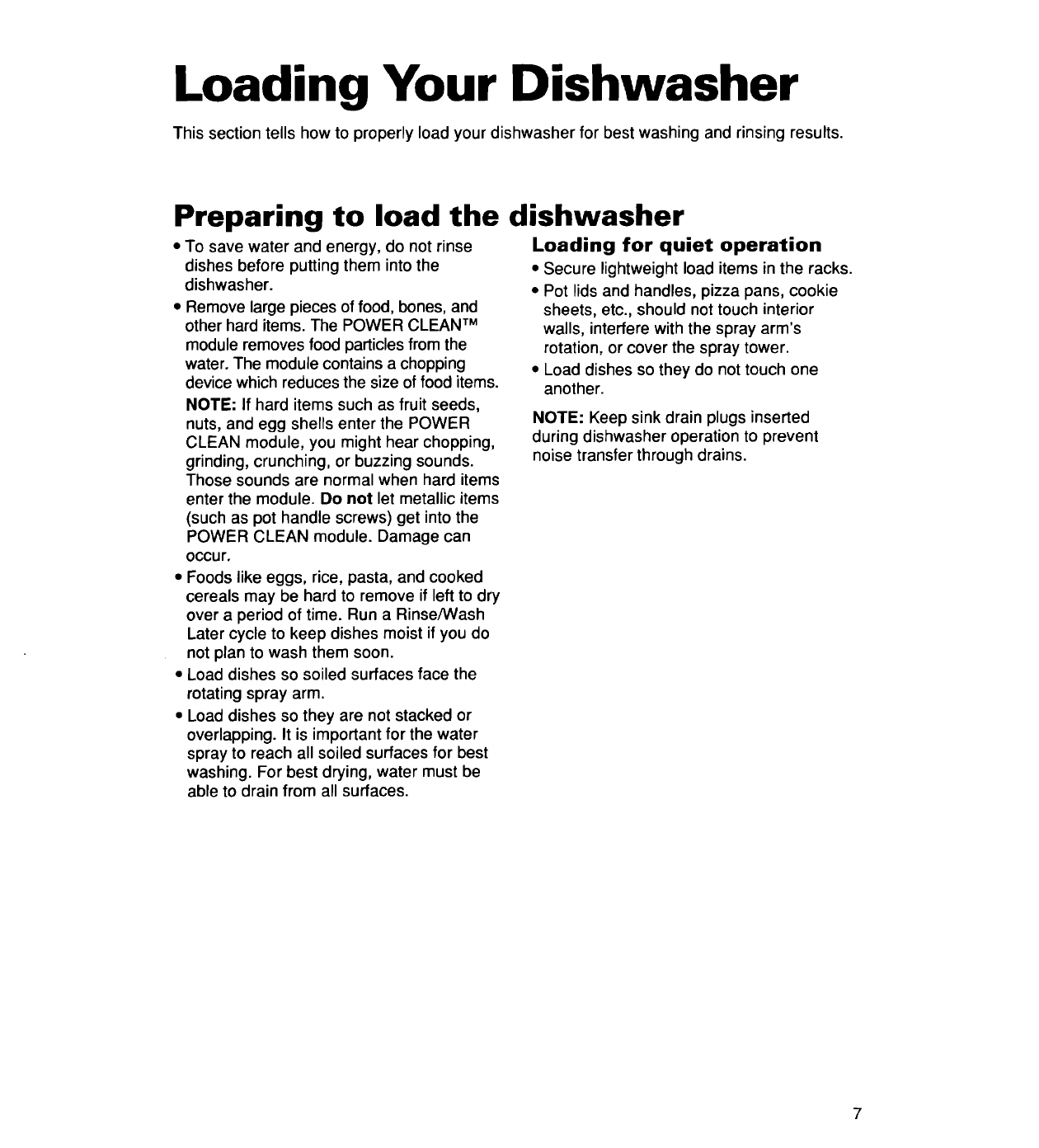

Preparing to load the dishwasher
• To save water and energy, do not rinse
dishes before putting them into the
dishwasher.
• Remove large pieces of food, bones, and
other hard items. The POWER CLEAN TM
module removes food particles from the
water. The module contains a chopping
device which reduces the size of food items.
NOTE- If hard items such as fruit seeds,
nuts, and egg shells enter the POWER
CLEAN module, you might hear chopping,
grinding, crunching, or buzzing sounds.
Those sounds are normal when hard items
enter the module. Do not let metallic items
(such as pot handle screws) get into the
POWER CLEAN module. Damage can
occur.
•Foods like eggs, rice, pasta, and cooked
cereals may be hard to remove if left to dry
over a period of time. Run a Rinse/Wash
Later cycle to keep dishes moist if you do
not plan to wash them soon.
•Load dishes so soiled surfaces face the
rotating spray arm.
•Load dishes so they are not stacked or
overlapping. It is important for the water
spray to reach all soiled surfaces for best
washing. For best drying, water must be
able to drain from all surfaces.
Loading for quiet operation
• Secure lightweight load items in the racks.
• Pot lids and handles, pizza pans, cookie
sheets, etc., should not touch interior
walls, interfere with the spray arm's
rotation, or cover the spray tower.
• Load dishes so they do not touch one
another.
NOTE: Keep sink drain plugs inserted
during dishwasher operation to prevent
noise transfer through drains.

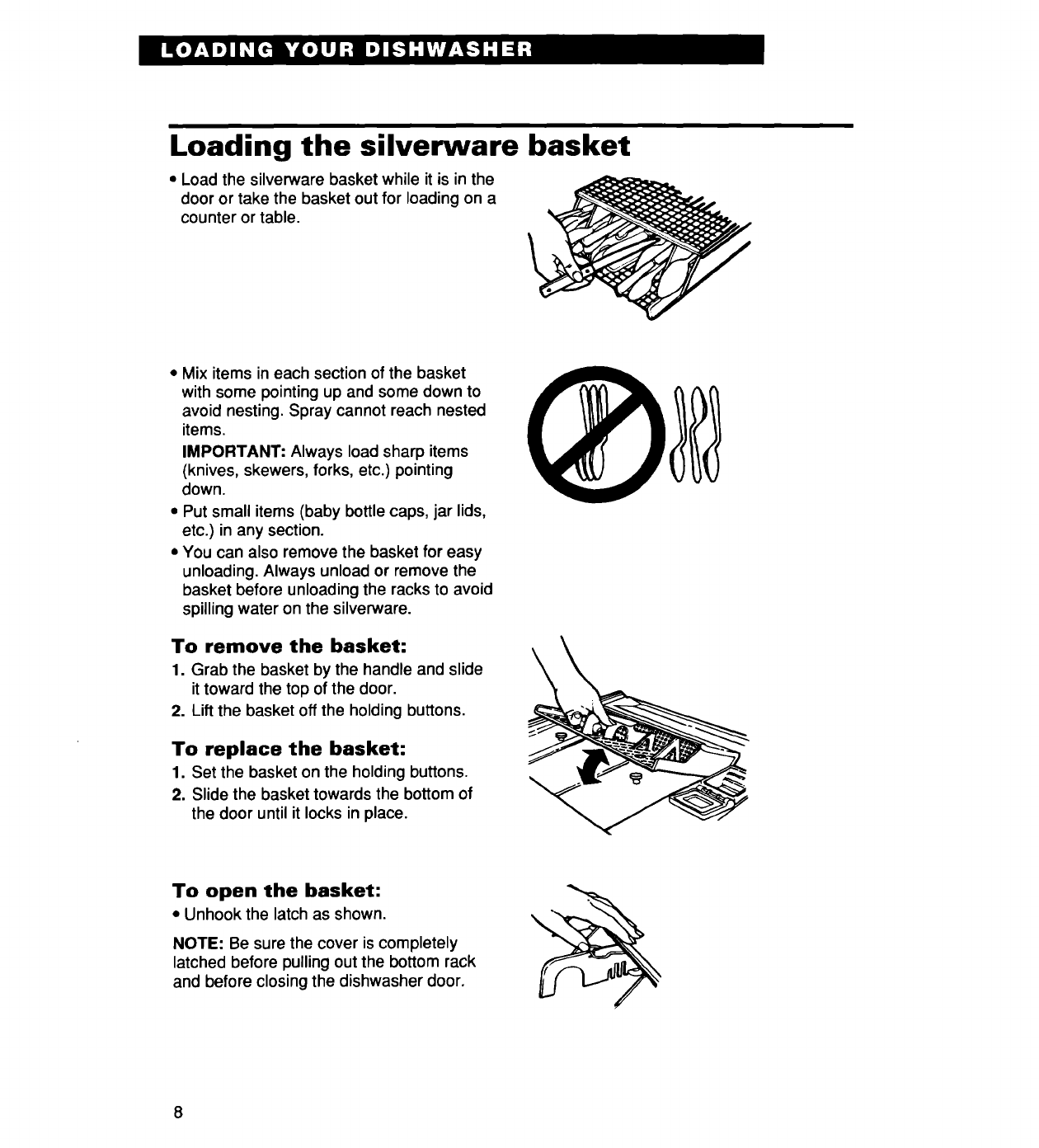

Loading the silverware basket
• Load the silverware basket while it is in the
door or take the basket out for loading on a
counter or table.
• Mix items in each section of the basket
with some pointing up and some down to
avoid nesting. Spray cannot reach nested
items.
IMPORTANT: Always load sharp items
(knives, skewers, forks, etc.) pointing
down.
• Put small items (baby bottle caps, jar lids,
etc.) in any section.
• You can also remove the basket for easy
unloading. Always unload or remove the
basket before unloading the racks to avoid
spilling water on the silverware.
To remove the basket:
1. Grab the basket by the handle and slide
it toward the top of the door.
2. Lift the basket off the holding buttons.
To replace the basket:
1. Set the basket on the holding buttons.
2. Slide the basket towards the bottom of
the door until it locks in place.
To open the basket:
• Unhook the latch as shown.
NOTE: Be sure the cover is completely
latched before pulling out the bottom rack
and before closing the dishwasher door.

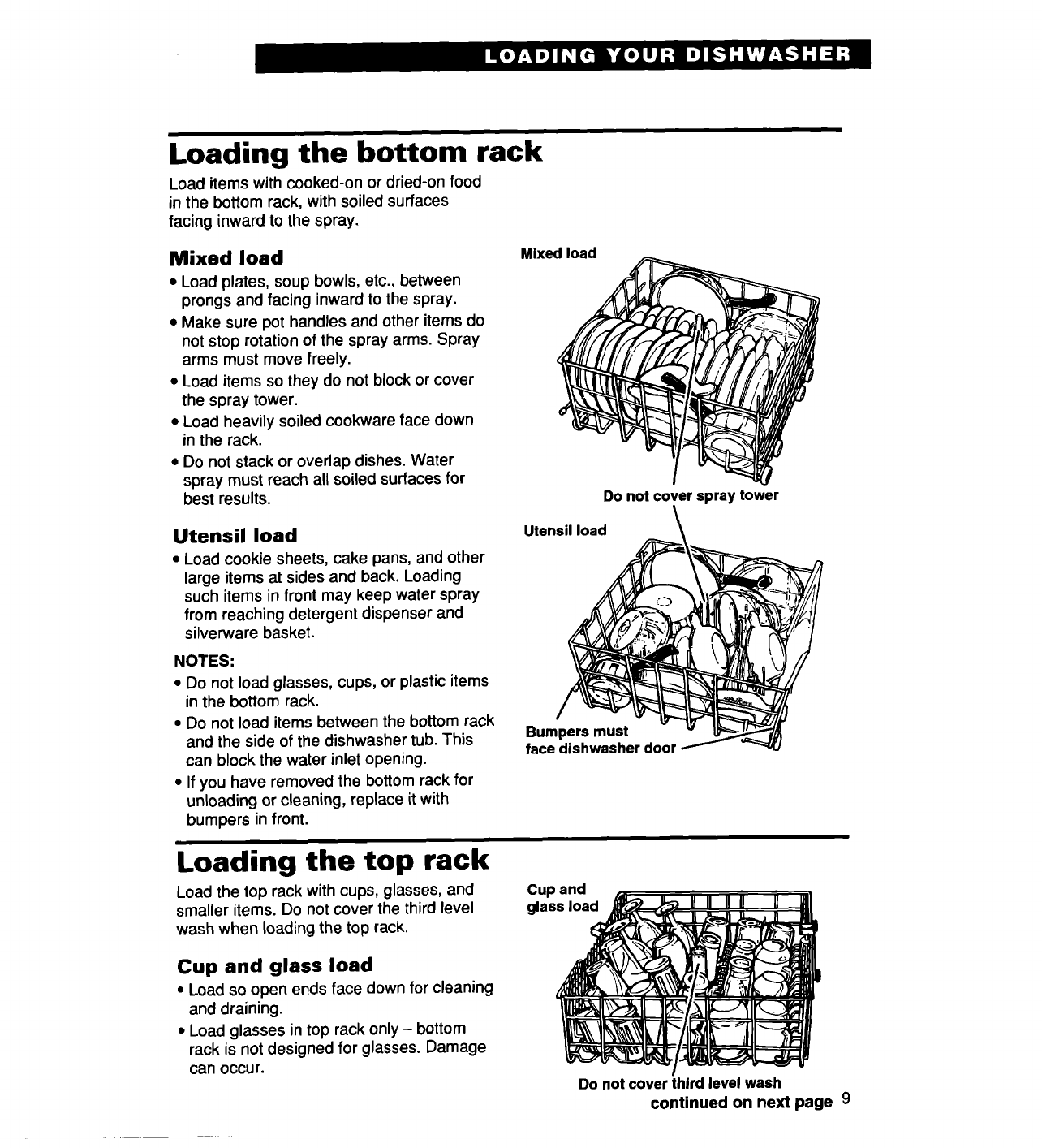

Loading the bottom rack
Load items with cooked-on or dried-on food
in the bottom rack, with soiled surfaces
facing inward to the spray.
Mixed load
•Load plates, soup bowls, etc., between
prongs and facing inward to the spray.
•Make sure pot handles and other items do
not stop rotation of the spray arms. Spray
arms must move freely.
• Load items so they do not block or cover
the spray tower.
• Load heavily soiled cookware face down
in the rack.
• Do not stack or overlap dishes. Water
spray must reach all soiled surfaces for
best results.
Mixed load
Do not cover spray tower
Utensil load
• Load cookie sheets, cake pans, and other
large items at sides and back. Loading
such items in front may keep water spray
from reaching detergent dispenser and
silverware basket.
Utensil load
NOTES:
•Do not load glasses, cups, or plastic items
in the bottom rack.
• Do not load items between the bottom rack
and the side of the dishwasher tub. This Bumpers must
face dishwasher door
can block the water inlet opening.
•If you have removed the bottom rack for
unloading or cleaning, replace it with
bumpers in front.
Loading the top rack
Load the top rack with cups, glasses, and Cup and
smaller items. Do not cover the third level glass load
wash when loading the top rack.
Cup and glass load
•Load so open ends face down for cleaning
and draining.
• Load glasses in top rack only - bottom
rack is not designed for glasses. Damage
can occur. Do not cover third level wash
continued on next page 9

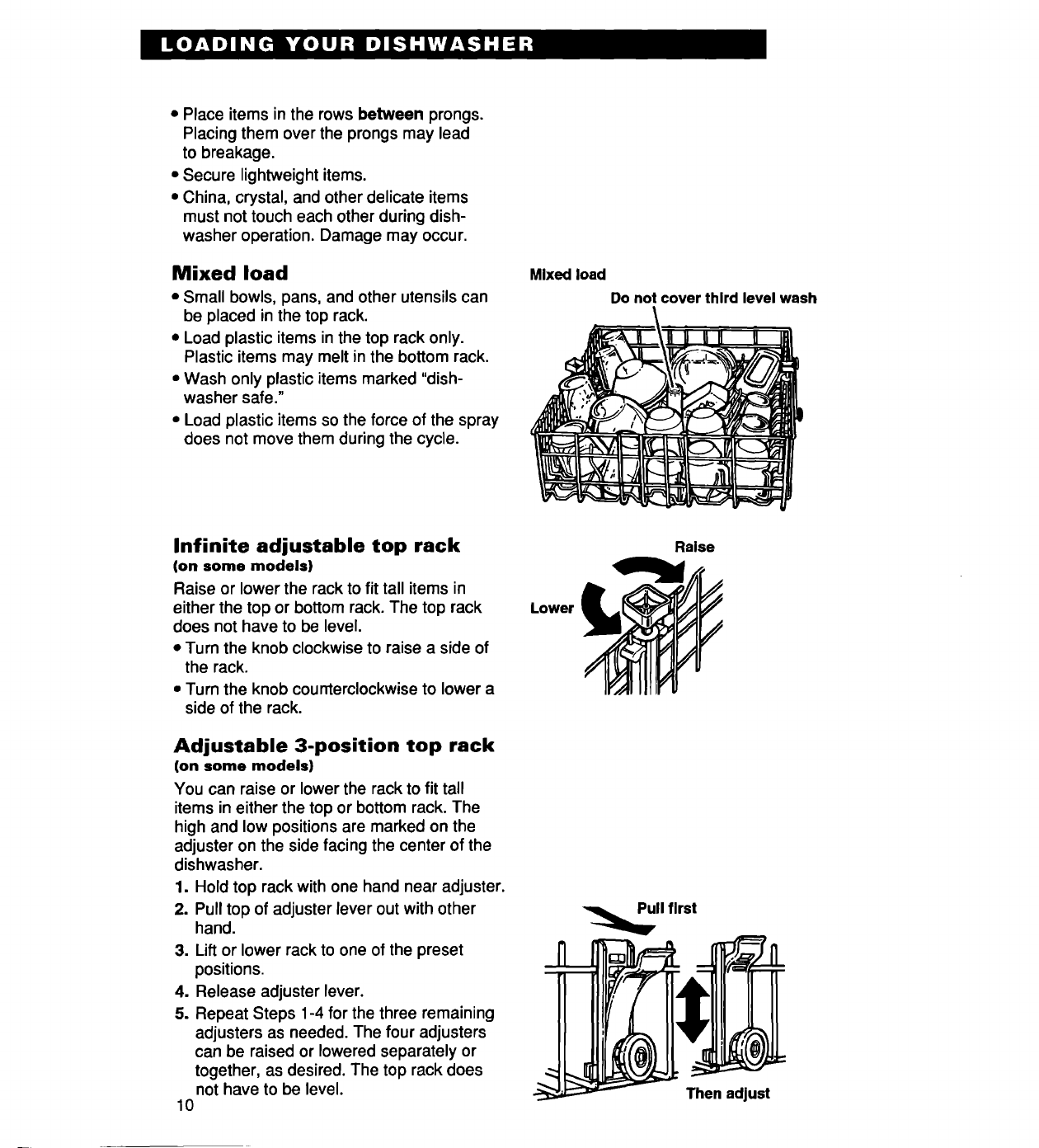

• Place items in the rows between prongs.
Placing them over the prongs may lead
to breakage.
• Secure lightweight items.
•China, crystal, and other delicate items
must not touch each other during dish-
washer operation. Damage may occur.
Mixed load
• Small bowls, pans, and other utensils can
be placed in the top rack.
• Load plastic items in the top rack only.
Plastic items may melt in the bottom rack.
• Wash only plastic items marked "dish-
washer safe."
• Load plastic items so the force of the spray
does not move them during the cycle.
Mixed load
Do not cover third level wash
Infinite adjustable top rack
(on some models)
Raise or lower the rack to fit tall items in
either the top or bottom rack. The top rack
does not have to be level.
• Turn the knob clockwise to raise a side of
the rack.
• Turn the knob counterclockwise to lower a
side of the rack.
Adjustable 3-position top rack
(on some models)
You can raise or lower the rack to fit tall
items in either the top or bottom rack. The
high and low positions are marked on the
adjuster on the side facing the center of the
dishwasher.
1. Hold top rack with one hand near adjuster.
2. Pull top of adjuster lever out with other
hand.
3. Lift or lower rack to one of the preset
positions.
4. Release adjuster lever.
5. Repeat Steps 1-4 for the three remaining
adjusters as needed. The four adjusters
can be raised or lowered separately or
together, as desired. The top rack does
not have to be level.
10
Lower
Raise
Then adjust

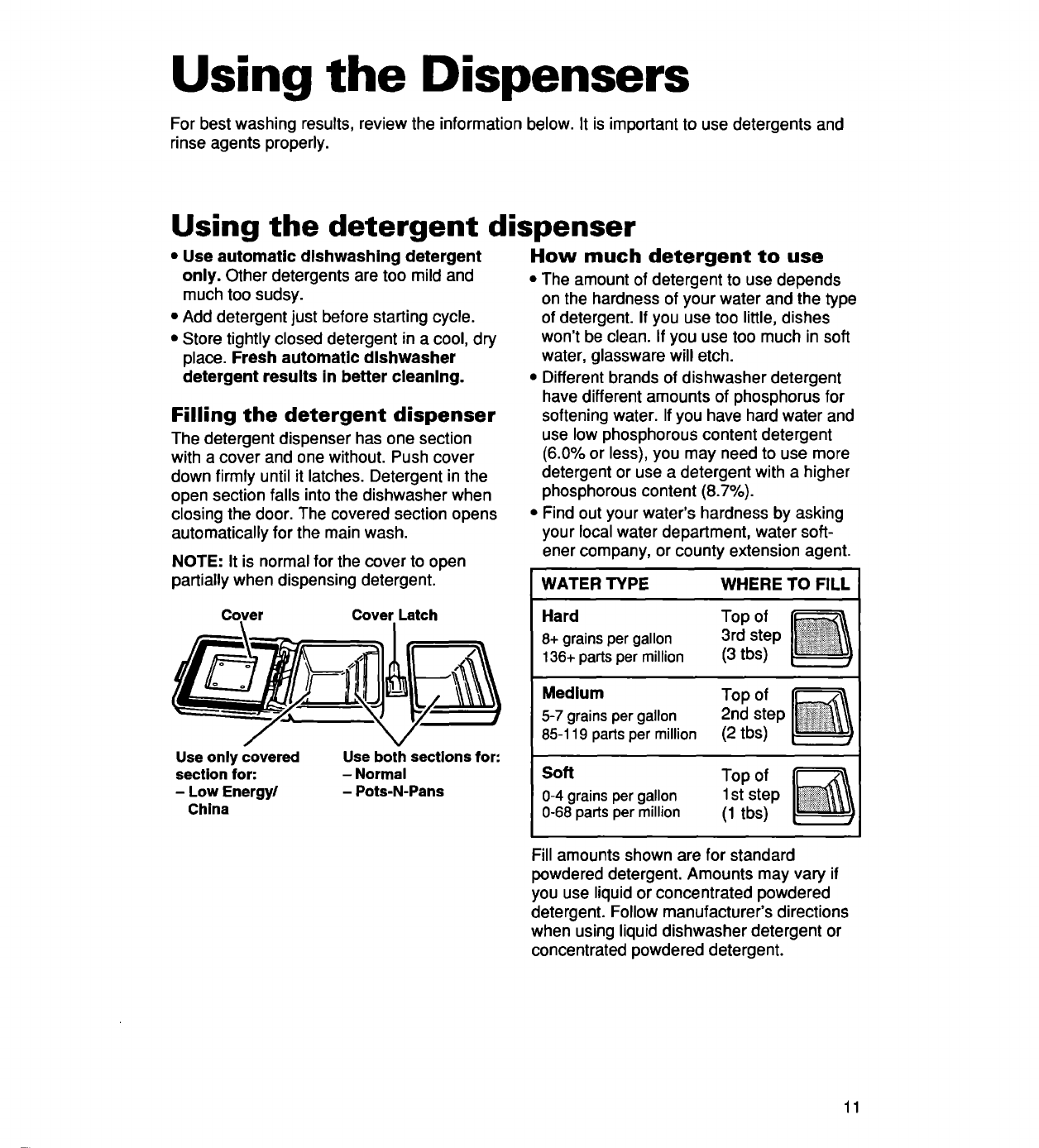

Using the Dispensers
For best washing results, review the information below. It is important to use detergents and
rinse agents properly.
Using the detergent dispenser
• Use automatic dishwashing detergent
only. Other detergents are too mild and
much too sudsy.
• Add detergent just before starting cycle.
•Store tightly closed detergent in a cool, dry
place, Fresh automatic dishwasher
detergent results in better cleaning.
Filling the detergent dispenser
The detergent dispenser has one section
with a cover and one without. Push cover
down firmly until it latches. Detergent in the
open section falls into the dishwasher when
closing the door. The covered section opens
automatically for the main wash.
NOTE: It is normal for the cover to open
partially when dispensing detergent.
Cover Cover Latch
Use only covered
section for:
- Low Energy/
China
Use both sections for:
- Normal
- Pots-N-Pans
How much detergent to use
•The amount of detergent to use depends
on the hardness of your water and the type
of detergent. If you use too little, dishes
won't be clean. If you use too much in soft
water, glassware will etch.
• Different brands of dishwasher detergent
have different amounts of phosphorus for
softening water. If you have hard water and
use low phosphorous content detergent
(6.0% or less), you may need to use more
detergent or use a detergent with a higher
phosphorous content (8.7%).
•Find out your water's hardness by asking
your local water department, water soft-
ener company, or county extension agent.
WATER TYPE WHERE TO FILL
Hard Top of
8+ grainsper gallon 3rd step
136+ partsper million (3 tbs)
Medium
5-7 grains per gallon
85-119 parts per million Top of
2nd step
(2 tbs)
Soft Top of
0-4 grainsper gallon 1st step
0-68 partspermillion (1 tbs)
Fill amounts shown are for standard
powdered detergent. Amounts may vary if
you use liquid or concentrated powdered
detergent. Follow manufacturer's directions
when using liquid dishwasher detergent or
concentrated powdered detergent.
11

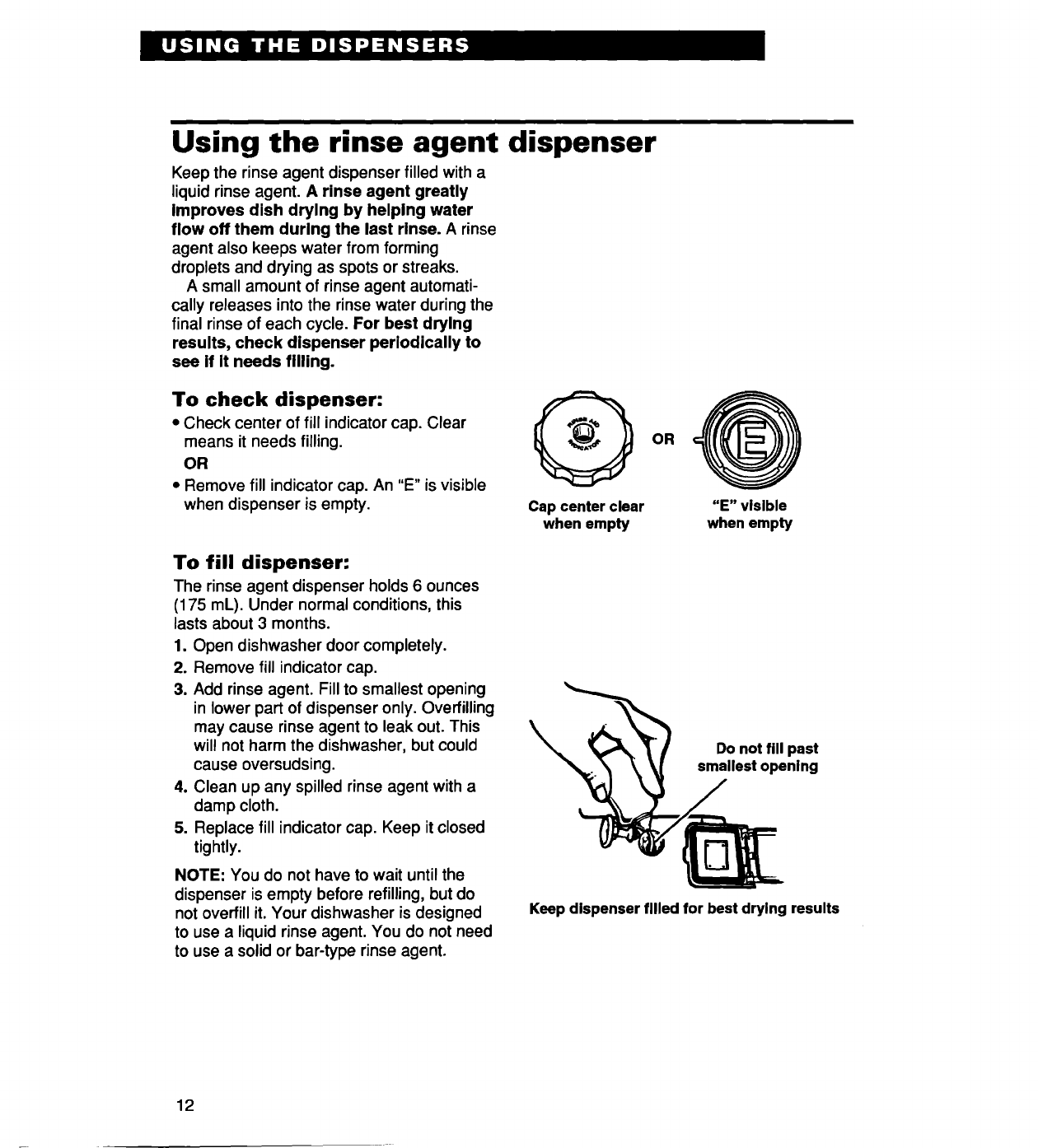

Using the rinse agent dispenser
Keep the rinse agent dispenser filled with a
liquid rinse agent. A rinse agent greatly
Improves dish drying by helping water
flow off them during the last rinse. A rinse
agent also keeps water from forming
droplets and drying as spots or streaks,
A small amount of rinse agent automati-
cally releases into the rinse water during the
final rinse of each cycle. For best drying
results, check dispenser periodically to
see if it needs filling.
To check dispenser:
•Check center of fill indicator cap. Clear
means it needs filling.
OR
• Remove fill indicator cap. An "E" is visible
when dispenser is empty. @
Cap center clear
when empty
OR
To fill dispenser:
The rinse agent dispenser holds 6 ounces
(175 mL). Under normal conditions, this
lasts about 3 months.
1. Open dishwasher door completely.
2. Remove fill indicator cap.
3. Add rinse agent. Fill to smallest opening
in lower part of dispenser only. Overfilling
may cause rinse agent to leak out. This
will not harm the dishwasher, but could
cause oversudsing.
4. Clean up any spilled rinse agent with a
damp cloth.
5. Replace fill indicator cap. Keep it closed
tightly.
NOTE: You do not have to wait until the
dispenser is empty before refilling, but do
not overfill it. Your dishwasher is designed
to use a liquid rinse agent. You do not need
to use a solid or bar-type rinse agent.
"E" visible
when empty
Do not fill past
smallest opening
Keep dispenser filled for best drying results
12
Setting the Controls
Operating your dishwasher's controls properly helps you obtain the best possible washing
results. This section tells you how to select wash cycles and options.

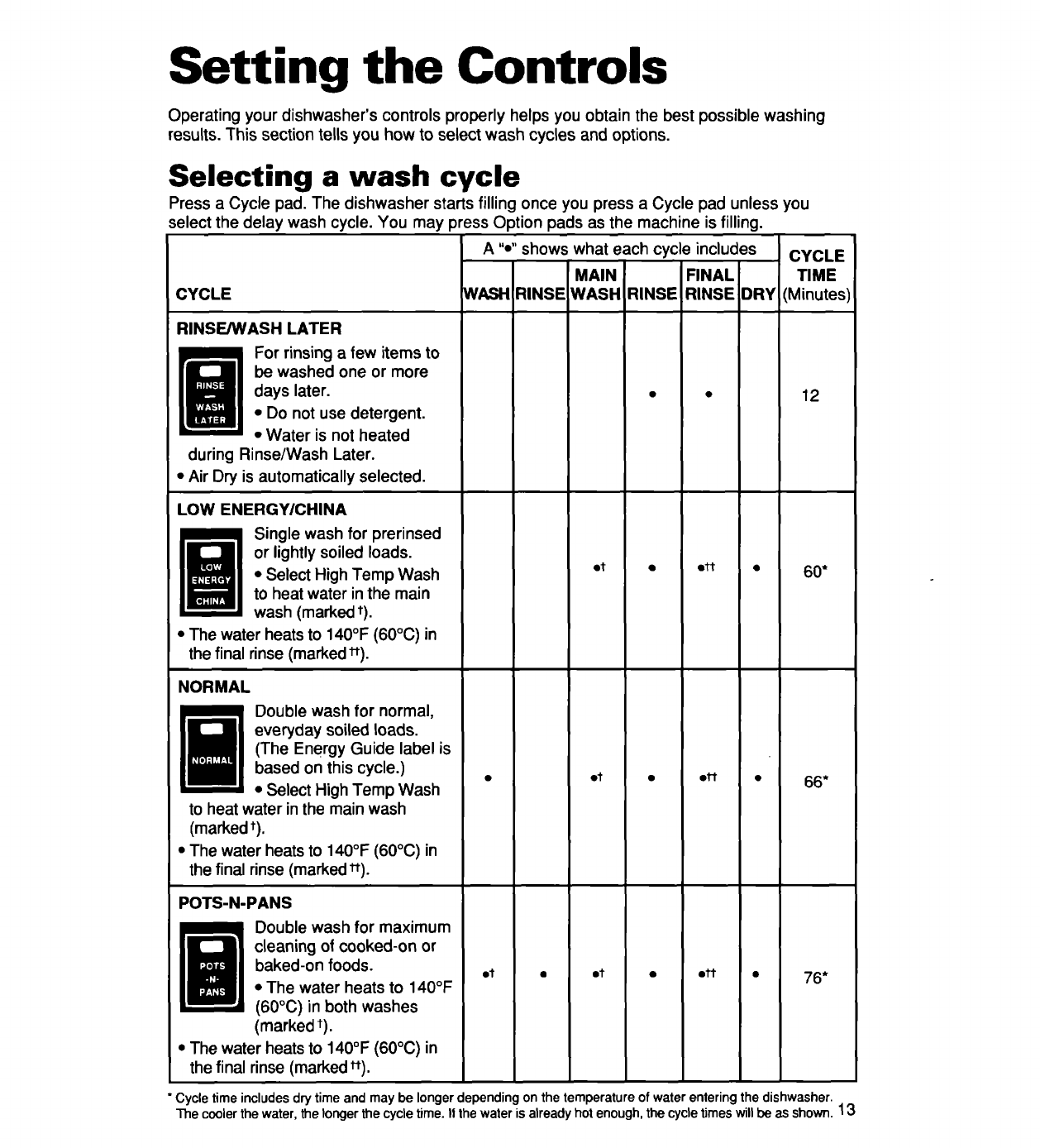

Selecting a wash cycle
Press a Cycle pad. The dishwasher starts filling once you press a Cycle pad unless you
select the delay wash cycle. You may press Option pads as the machine is filling.
CYCLE
RINSE/WASH LATER
For rinsing a few items to
be washed one or more
days later.
• Do not use detergent.
• Water is not heated
during Rinse/Wash Later.
• Air Dry is automatically selected.
LOW ENERGY/CHINA
Single wash for prerinsed
or lightly soiled loads,
•Select High Temp Wash
to heat water in the main
wash (marked t),
•The water heats to 140°F (60°C) in
the final rinse (markedtr),
NORMAL
Double wash for normal,
I[';11 everydayso,ed,oads
IIWI!1 (TheEnergy Guide label is
li iii based on this cycle.)
• Select High Temp Wash
to heat water in the main wash
(marked t).
• The water heats to 140°F (60°C) in
the final rinse (marked tt).
POTS-N-PANS
Double wash for maximum
cleaning of cooked-on or
baked-on foods.
• The water heats to 140°F
(60°C) in both washes
(marked _).
• The water heats to 140°F (60°C) in
the final rinse (marked tt).
A"0" shows what each cycle includes
MAIN FINAL
WASH RINSE ,WASH RINSE RINSE DRY
• t • o_ •
01" • o1-1" •
ol • ot • o1_ •
CYCLE
TIME
(Minutes)
12
60*
66*
76*
Cycle time includes dry time and may be longer depending on the temperature of water entering the dishwasher.
The cooler the water, the longer the cycle time. It the water is already hot enough, the cycle times will be as shown. 13

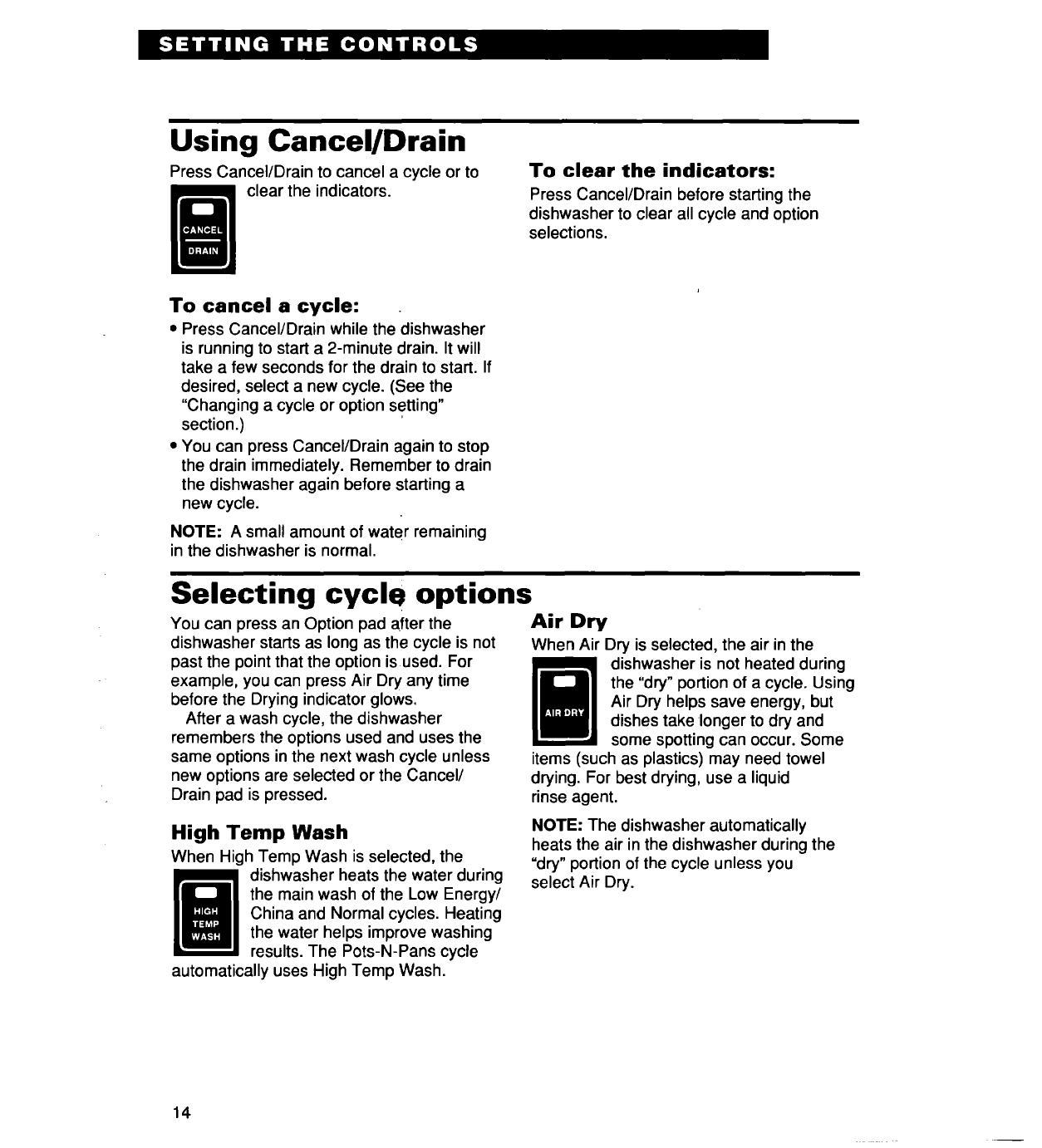

Using Cancel/Drain
Press Cancel/Drain to cancel a cycle or to
clear the indicators.
To clear the indicators:
Press Cancel/Drain before starting the
dishwasher to clear all cycle and option
selections.
To cancel a cycle:
•Press Cancel/Drain while the dishwasher
is running to start a 2-minute drain. It will
take a few seconds for the drain to start. If
desired, select a new cycle. (See the
"Changing a cycle or option setting"
section.)
• You can press Cancel/Drain again to stop
the drain immediately. Remember to drain
the dishwasher again before starting a
new cycle.
NOTE: A small amount of water remaining
in the dishwasher is normal.
Selecting cycle options
You can press an Option pad after the
dishwasher starts as long as the cycle is not
past the point that the option is used. For
example, you can press Air Dry any time
before the Drying indicator glows.
After a wash cycle, the dishwasher
remembers the options used and uses the
same options in the next wash cycle unless
new options are selected or the Cancel/
Drain pad is pressed.
Air Dry
When Air Dry is selected, the air in the
IW! dishwasher is not heated during
the "dry" portion of a cycle. Using
Air Dry helps save energy, but
dishes take longer to dry and
some spotting can occur. Some
items (such as plastics) may need towel
drying. For best drying, use a liquid
rinse agent.
High Temp Wash
When High Temp Wash is selected, the
_ ishwasher heats the water during
the main wash of the Low Energy/
China and Normal cycles. Heating
the water helps improve washing
results. The Pots-N-Pans cycle
automatically uses High Temp Wash.
NOTE: The dishwasher automatically
heats the air in the dishwasher during the
"dry" portion of the cycle unless you
select Air Dry.
14
Changing a cycle or option setting
During the first minute
of a cycle
1. Press new Cycle and/or Option pads.
2. Check the detergent dispensers. They
must be filled properly for the new cycle°
After the first minute
of a cycle
1. Press Cancel/Drain. A 2-minute drain
cycle starts. Wait for drain cycle to finish.
2. Press a new Cycle pad.
3. If desired, press one or more Option
pad(s).
4. Check the detergent dispensers. They
must be filled properly for the new cycle.
Adding an item during a cycle
You can add an item to the dishwasher
anytime before the main wash portion of a
cycle. See the "Selecting a wash cycle"
section.
1. Lift up the door latch to stop the cycle.
Wait for spraying action to stop before
opening the door.
2. Open the door and add the item.
3. Close the door, but do not latch it. Wait
30 seconds for the air in the dishwasher
to warm up. Doing so reduces the
amount of moisture in the vent when
restarting a cycle.
4. Close the door firmly until it latches. The
dishwasher resumes the cycle.
15
Understanding the status
Lock Out
The Lock Out feature lets you lock out the
function of the control
pads. When using Lock
Out, you cannot start
the dishwasher.
indicators
Rinsing
The Rinsing indicator glows during the last
two rinses of all cycles.
To use Lock Out:
• Press and hold Air Dry (about 5 seconds)
auntil the Lock Out indicator glows.
To turn off Lock Out:
• Press and hold Air Dry (about
5 seconds) untilthe Lock Out
indicator turns off.
Washing
The Washing indicator glows at the start
of the first fill of any cycle
(except Rinse/Wash
Later) and remains on
until the end of the main
wash.
Water Heating
The Water Heating indicator glows whenever
water is heated during a
cycle.
Drying
The Drying indicator glows during the
drying portion of each
cycle - even if you select
Air Dry. It turns off at the
end of the cycle. If
dishes are not as dry as you expected when
using Air Dry, either allow longer drying
times (overnight) or do not use Air Dry.
Clean
The Clean indicator glows at the end of a
cycle to show that the
load is clean. All other
indicators turn off. The
Clean indicator glows
until you press Cancel/Drain or any other
control pad.
16
Washing Special Items
If you have any doubts about washing a particular piece of dishware, check with the
manufacturer to see if it is dishwasher safe.
MATERIAL DISHWASHER SAFE? EXCEPTIONSISPECIAL INFORMATION
Aluminum Yes High water temperature and detergents can pit
finish of anodized aluminum.
Bottles No Wash bottles and cans by hand. Labels attached
and Cans with glue can loosen in your dishwasher. Loose
labels and glue can clog spray arms or the pump
and will reduce washing performance.
Cast Iron No Seasoning will be removed and iron will rust.
China/ Yes Always check manufacturer's recommendations
Stoneware before washing. Antique, hand-painted, or over-
the-glaze patterns may fade. Gold leaf can
discolor or fade.
Crystal Yes Always check manufacturer's recommendations
before washing. Some types of leaded crystal
can etch with repeated washings.
Gold No Gold-colored flatware will discolor.
Glass Yes Milk glass will yellow with repeated dishwasher
washing.
Hollow- No Handles of some knives are attached to the
Handle blade with adhesives which may loosen if
Knives washed in the dishwasher.
Pewter No High water temperatures and detergent can
discolor or pitfinish.
Disposable No Cannot withstand high water temperatures and
Plastics detergents.
Plastics Yes Always check manufacturer's recommendations
before washing. Plastics vary in their capacity to
withstand high water temperatures and deter-
gents. Load plastics in top rack only.
Stainless Yes Run the Rinse/Wash Later cycle if not washing
Steel immediately. Prolonged contact with food
containing salt, vinegar, milk products, or fruit
juice can damage finish.
Sterling Yes Run the Rinse/Wash Later cycle if not washing
Silver or immediately. Prolonged contact with food
Silver Plate containing salt, acid, or sulfide (eggs, mayon-
naise, and seafood) can damage finish.
Tin No Can rust.
Wooden No Always check manufacturer's recommendations
Ware before washing. Untreated wood can warp,
crack, or lose its finish.
17

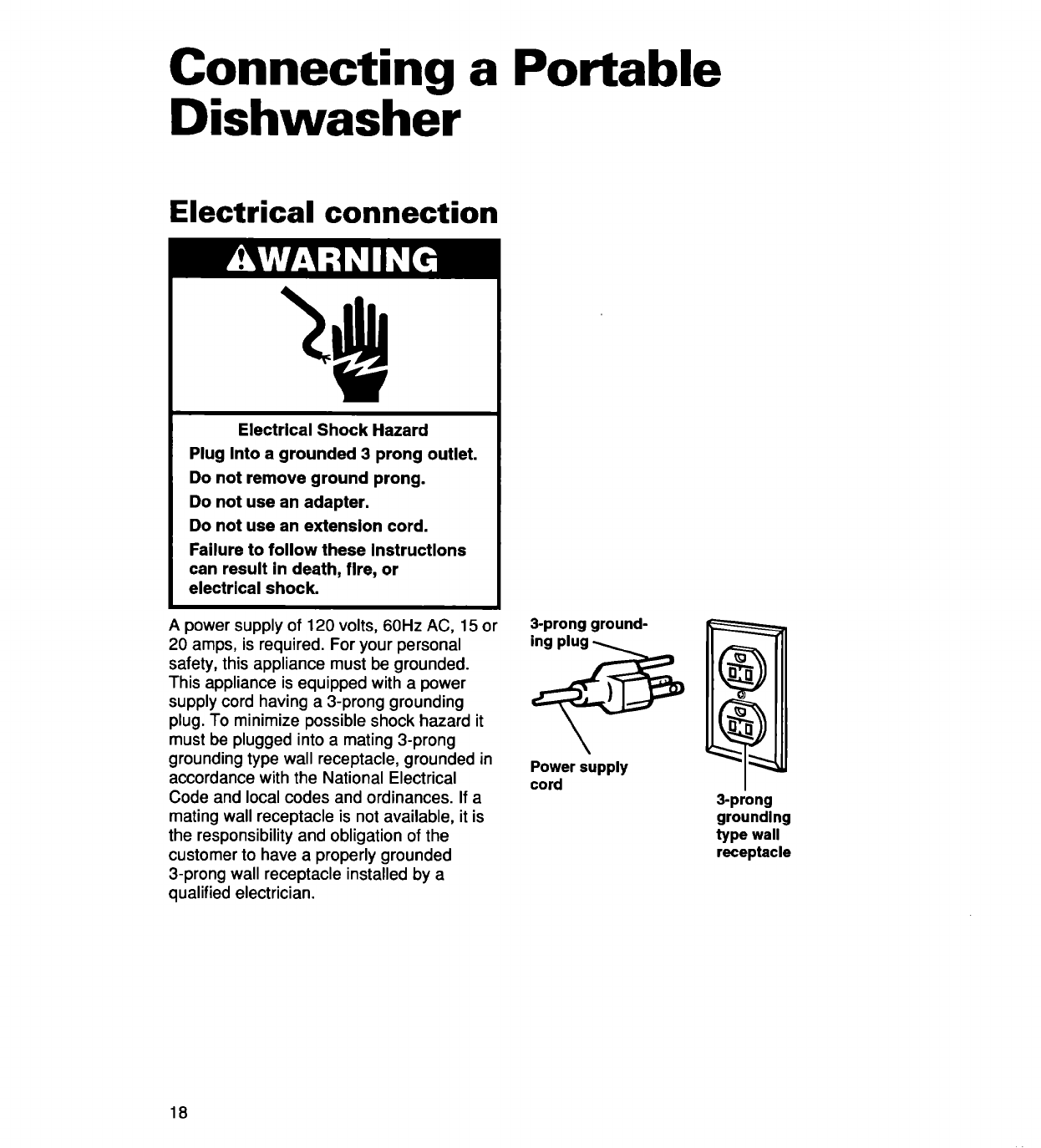

NOTE: A special adapter must be installed
on the faucet before the dishwasher can be
connected. Complete instructions and the
adapter are packed with your dishwasher.
When moving your dishwasher make sure
the door is latched. Hold the dishwasher at
the top front corners.

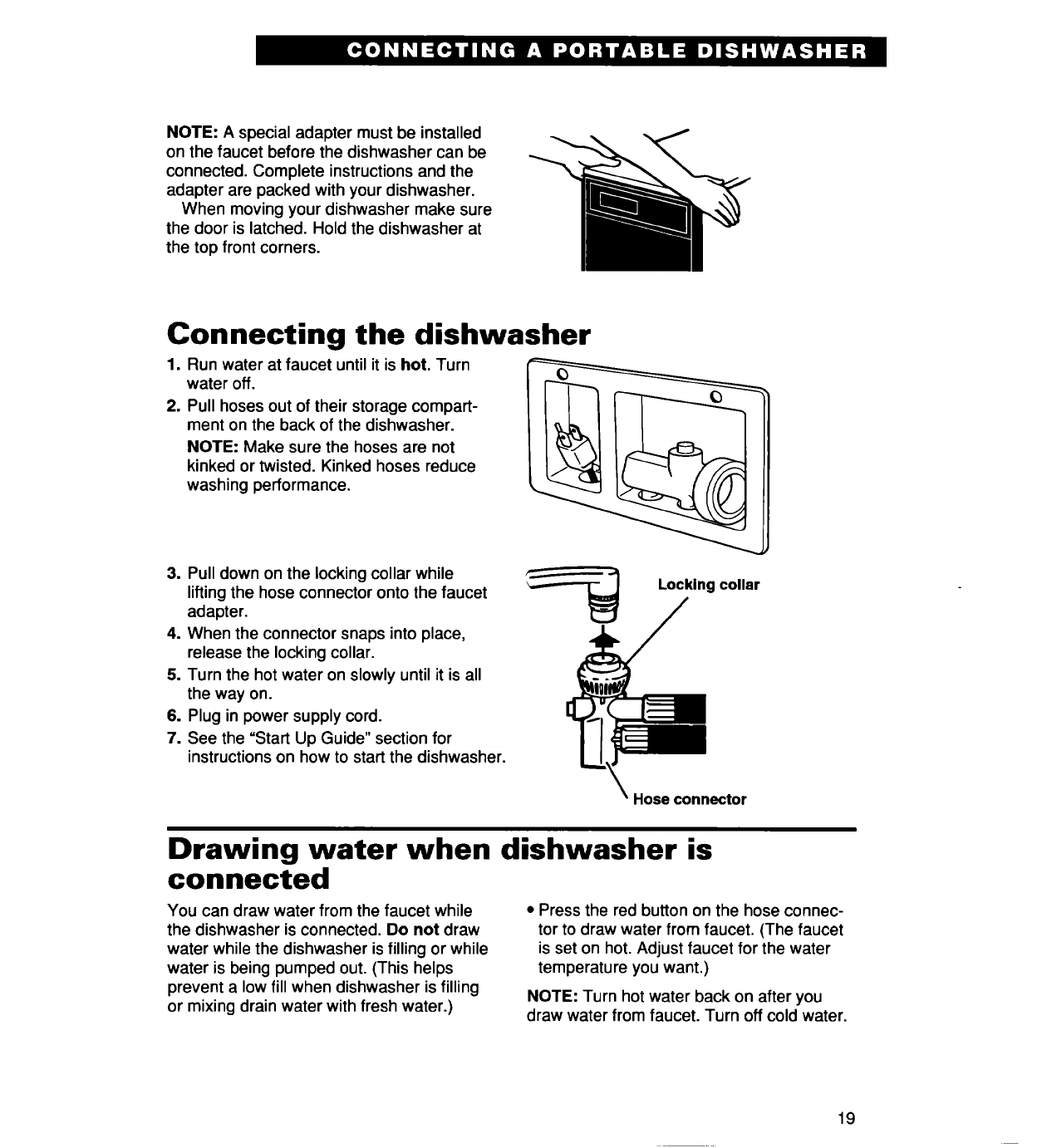

Connecting the dishwasher
1. Run water at faucet until it is hot. Turn
water off.
2. Pull hoses out of their storage compart-
ment on the back of the dishwasher.
NOTE: Make sure the hoses are not
kinked or twisted. Kinked hoses reduce
washing performance.
3. Pull down on the locking collar while
liftingthe hose connector onto the faucet
adapter.
4. When the connector snaps into place,
release the locking collar.
5. Turn the hot water on slowly until it is all
the way on.
6. Plug in power supply cord.
7. See the "Start Up Guide" section for
instructions on how to start the dishwasher.
Locking collar
Hose connector
Drawing water when dishwasher is
connected
You can draw water from the faucet while
the dishwasher is connected. Do not draw
water while the dishwasher is filling or while
water is being pumped out. (This helps
prevent a low fill when dishwasher is filling
or mixing drain water with fresh water.)
•Press the red button on the hose connec-
tor to draw water from faucet. (The faucet
is set on hot. Adjust faucet for the water
temperature you want.)
NOTE: Turn hot water back on after you
draw water from faucet. Turn off cold water.
19

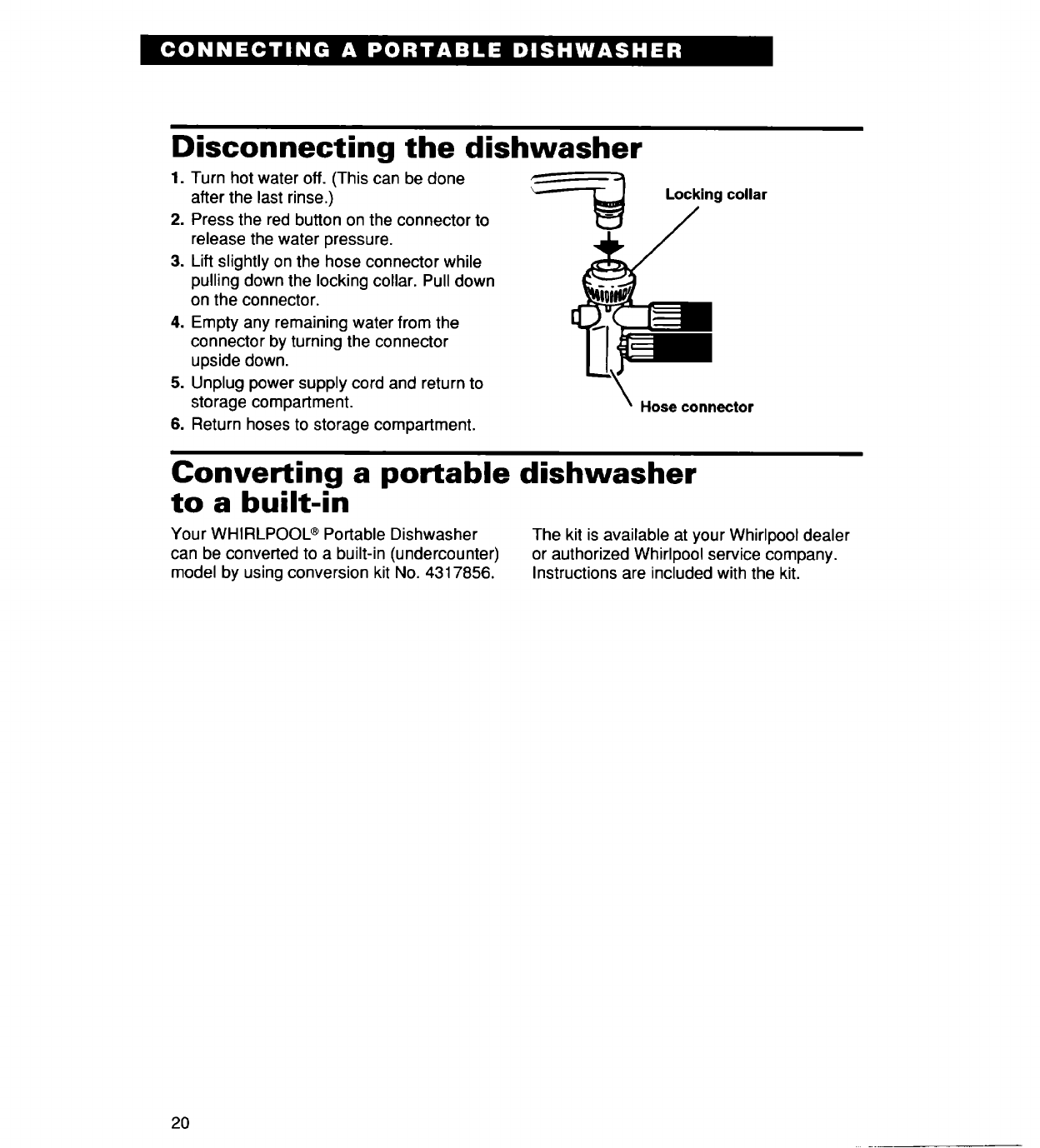

Disconnecting the dishwasher
1. Turn hot water off. (This can be done
after the last rinse.)
2. Press the red button on the connector to
release the water pressure.
3. Lift slightly on the hose connector while
pulling down the locking collar. Pull down
on the connector.
4. Empty any remaining water from the
connector by turning the connector
upside down.
5. Unplug power supply cord and return to
storage compartment.
6. Return hoses to storage compartment.
Locking collar
Hose connector
Converting a portable dishwasher
to a built-in
Your WHIRLPOOL ®Portable Dishwasher
can be converted to a built-in (undercounter)
model by using conversion kit No. 4317856.
The kit is available at your Whirlpool dealer
or authorized Whirlpool service company.
Instructions are included with the kit.
20

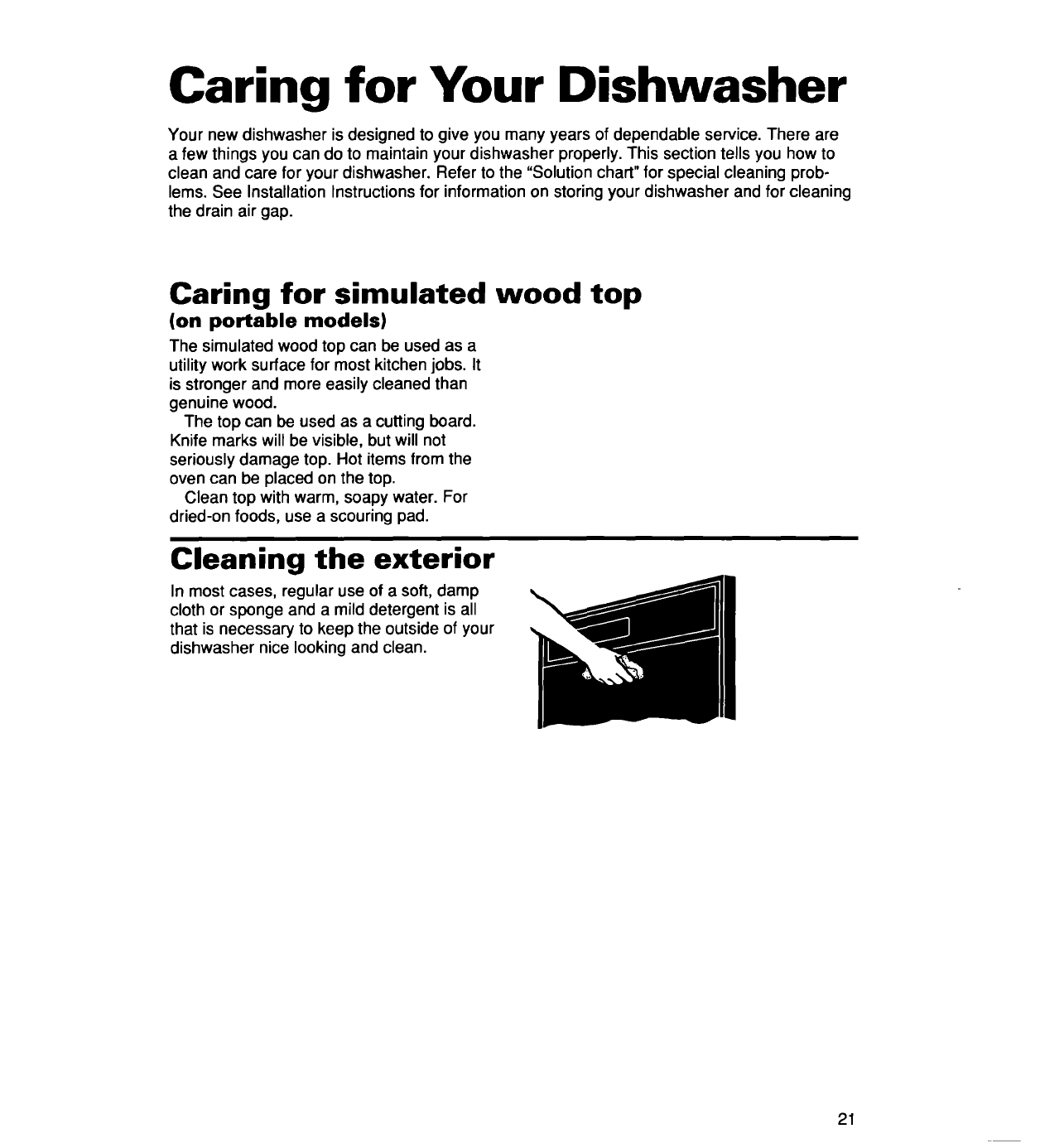

Caring for Your Dishwasher
Your new dishwasher is designed to give you many years of dependable service. There are
a few things you can do to maintain your dishwasher properly. This section tells you how to
clean and care for your dishwasher. Refer to the "Solution chart" for special cleaning prob-
lems. See Installation Instructions for information on storing your dishwasher and for cleaning
the drain air gap.
Caring for simulated wood top
(on portable models)
The simulated wood top can be used as a
utility work surface for most kitchen jobs. It
is stronger and more easily cleaned than
genuine wood.
The top can be used as a cutting board.
Knife marks will be visible, but will not
seriously damage top. Hot items from the
oven can be placed on the top.
Clean top with warm, soapy water. For
dried-on foods, use a scouring pad.
Cleaning the exterior
In most cases, regular use of a soft, damp
cloth or sponge and a mild detergent is all
that is necessary to keep the outside of your
dishwasher nice looking and clean.
21

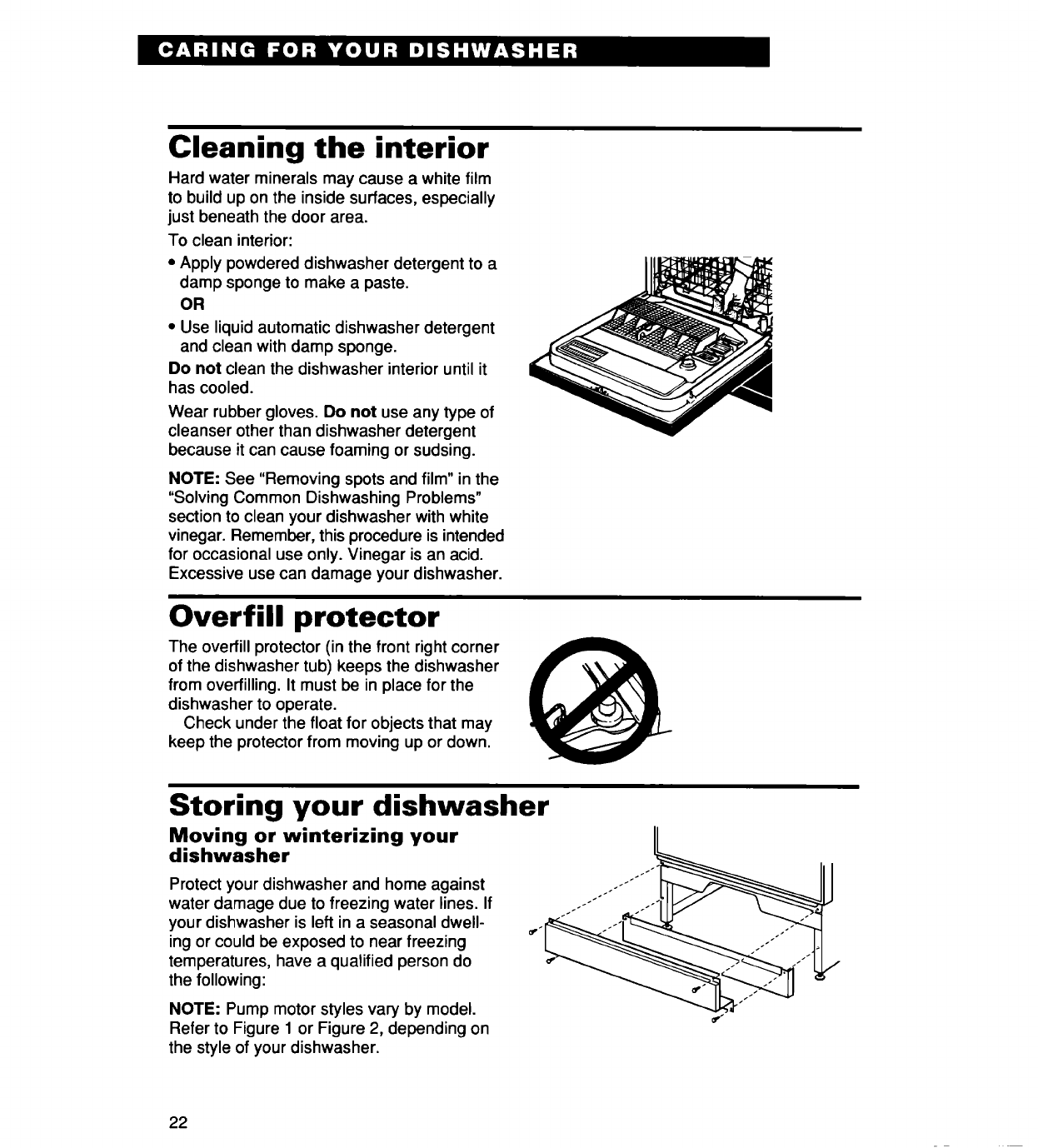

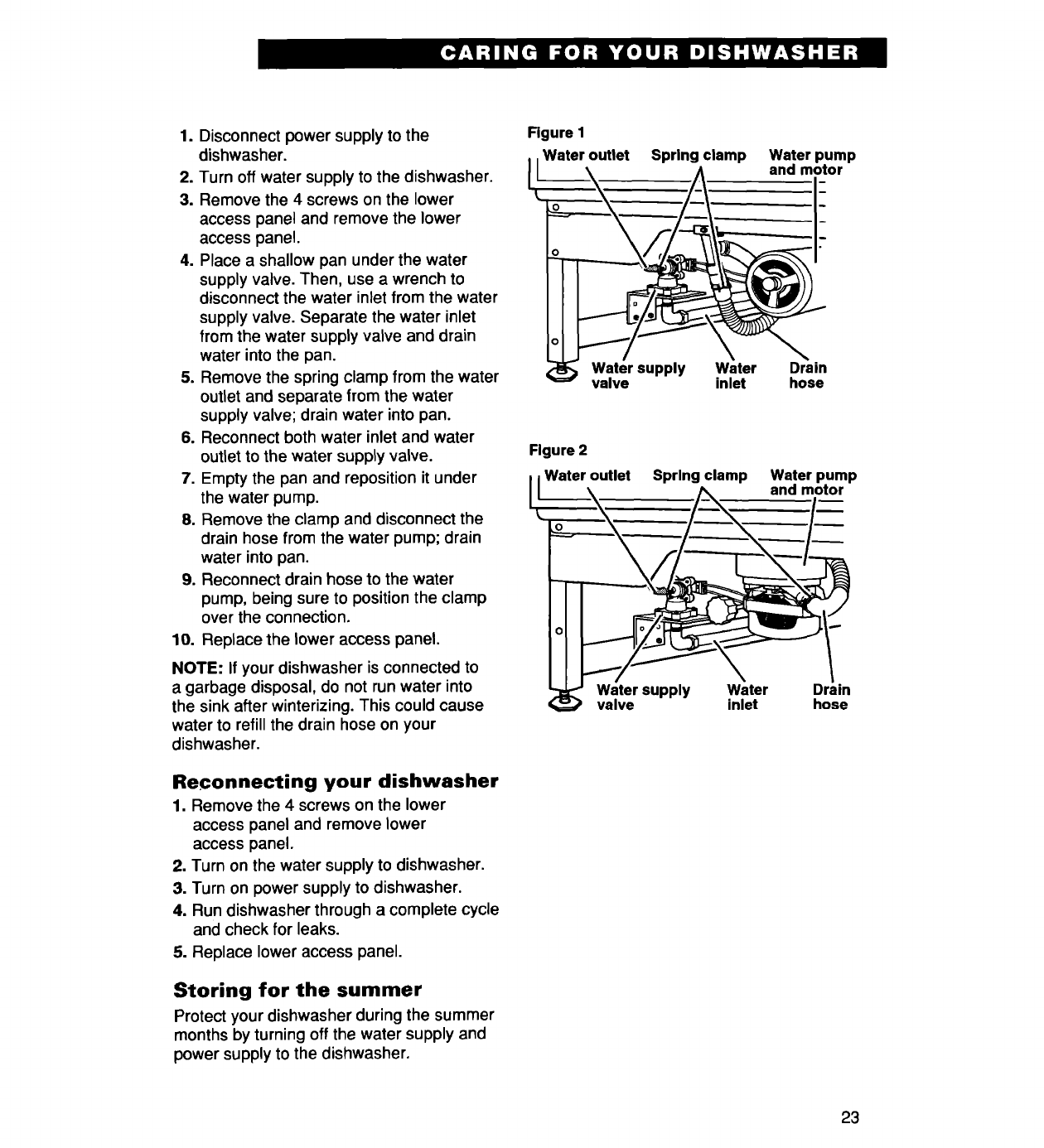

1. Disconnect power supply to the
dishwasher.
2. Turn off water supply to the dishwasher.
3. Remove the 4 screws on the lower
access panel and remove the lower
access panel.
4. Place a shallow pan under the water
supply valve. Then, use a wrench to
disconnect the water inlet from the water
supply valve. Separate the water inlet
from the water supply valve and drain
water into the pan.
5. Remove the spring clamp from the water
outlet and separate from the water
supply valve; drain water into pan.
6. Reconnect both water inlet and water
outlet to the water supply valve.
7. Empty the pan and reposition it under
the water pump.
8. Remove the clamp and disconnect the
drain hose from the water pump; drain
water into pan.
9. Reconnect drain hose to the water
pump, being sure to position the clamp
over the connection.
10. Replace the lower access panel.
NOTE: If your dishwasher is connected to
a garbage disposal, do not run water into
the sink after winterizing. This could cause
water to refill the drain hose on your
dishwasher.
Reconnecting your dishwasher
1. Remove the 4 screws on the lower
access panel and remove lower
access panel,
2. Turn on the water supply to dishwasher.
3. Turn on power supply to dishwasher.
4. Run dishwasher through a complete cycle
and check for leaks.
5. Replace lower access panel.
Storing for the summer
Protect your dishwasher during the summer
months by turning off the water supply and
power supply to the dishwasher,
Figure 1
Water outlet Spring clamp Water pump
and motor
Water supply Water Drain
valve inlet hose
Figure 2
II Water outlet Spring clamp Water pump
I\ _ /% and motor
Water supply Water Drain
valve inlet hose
23

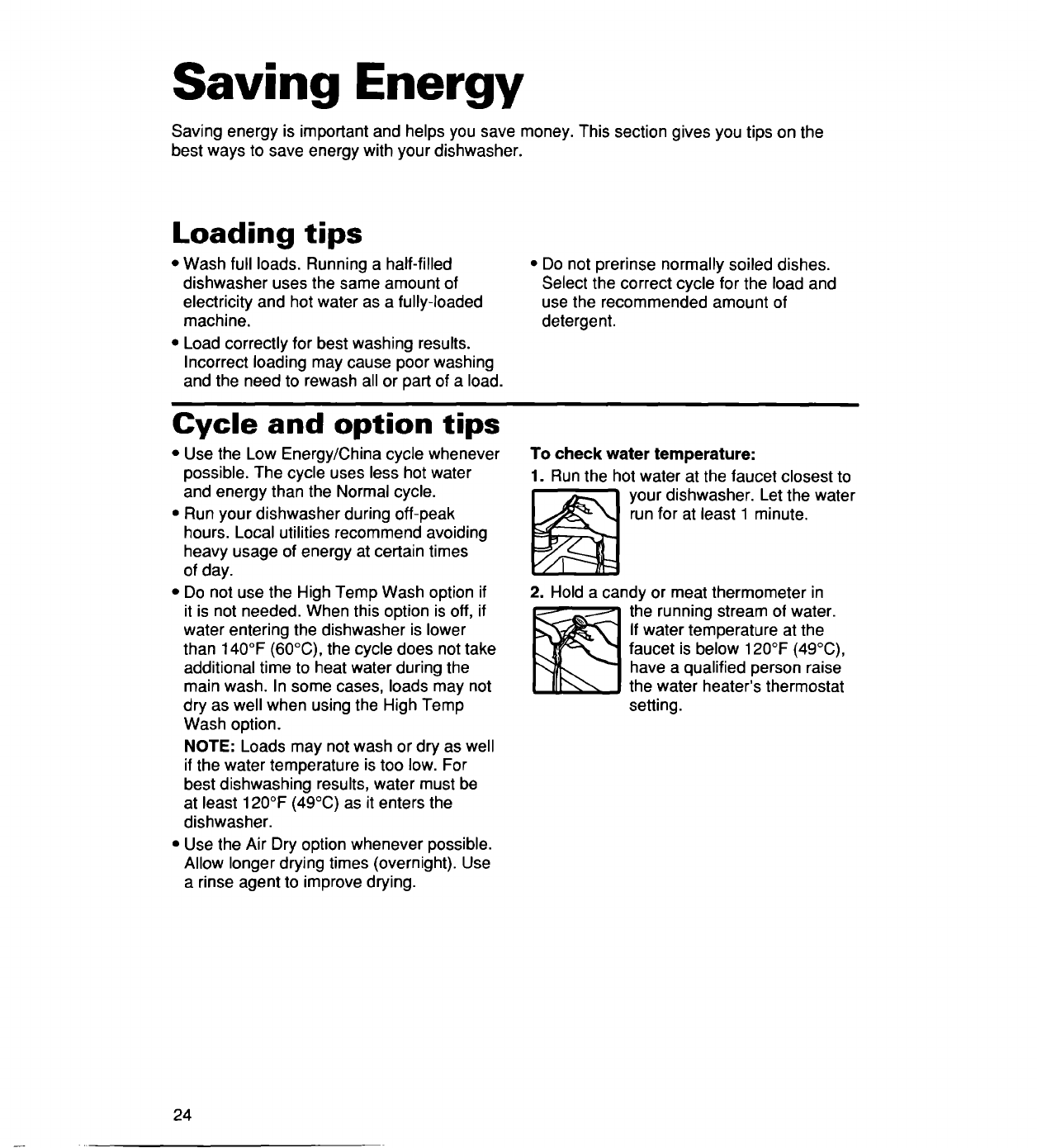

Saving Energy
Saving energy is important and helps you save money. This section gives you tips on the
best ways to save energy with your dishwasher.
Loading tips
•Wash full loads. Running a half-filled
dishwasher uses the same amount of
electricity and hot water as a fully-loaded
machine.
•Load correctly for best washing results.
Incorrect loading may cause poor washing
and the need to rewash all or part of a load.
• Do not prerinse normally soiled dishes.
Select the correct cycle for the load and
use the recommended amount of
detergent.
Cycle and option tips
•Use the Low Energy/China cycle whenever
possible. The cycle uses less hot water
and energy than the Normal cycle.
•Run your dishwasher during off-peak
hours. Local utilities recommend avoiding
heavy usage of energy at certain times
of day.
• Do not use the High Temp Wash option if
it is not needed. When this option is off, if
water entering the dishwasher is lower
than 140°F (60°C), the cycle does not take
additional time to heat water during the
main wash. In some cases, loads may not
dry as well when using the High Temp
Wash option.
NOTE: Loads may not wash or dry as well
if the water temperature is too low. For
best dishwashing results, water must be
at least 120°F (49°C) as it enters the
dishwasher.
• Use the Air Dry option whenever possible.
Allow longer drying times (overnight). Use
a rinse agent to improve drying.
To check water temperature:
1. Run the hot water at the faucet closest to
your dishwasher. Let the water
run for at least 1 minute.
2. Hold a candy or meat thermometer in
the running stream of water.
If water temperature at the
faucet is below 120°F (49°C),
have a qualified person raise
the water heater's thermostat
setting.
24

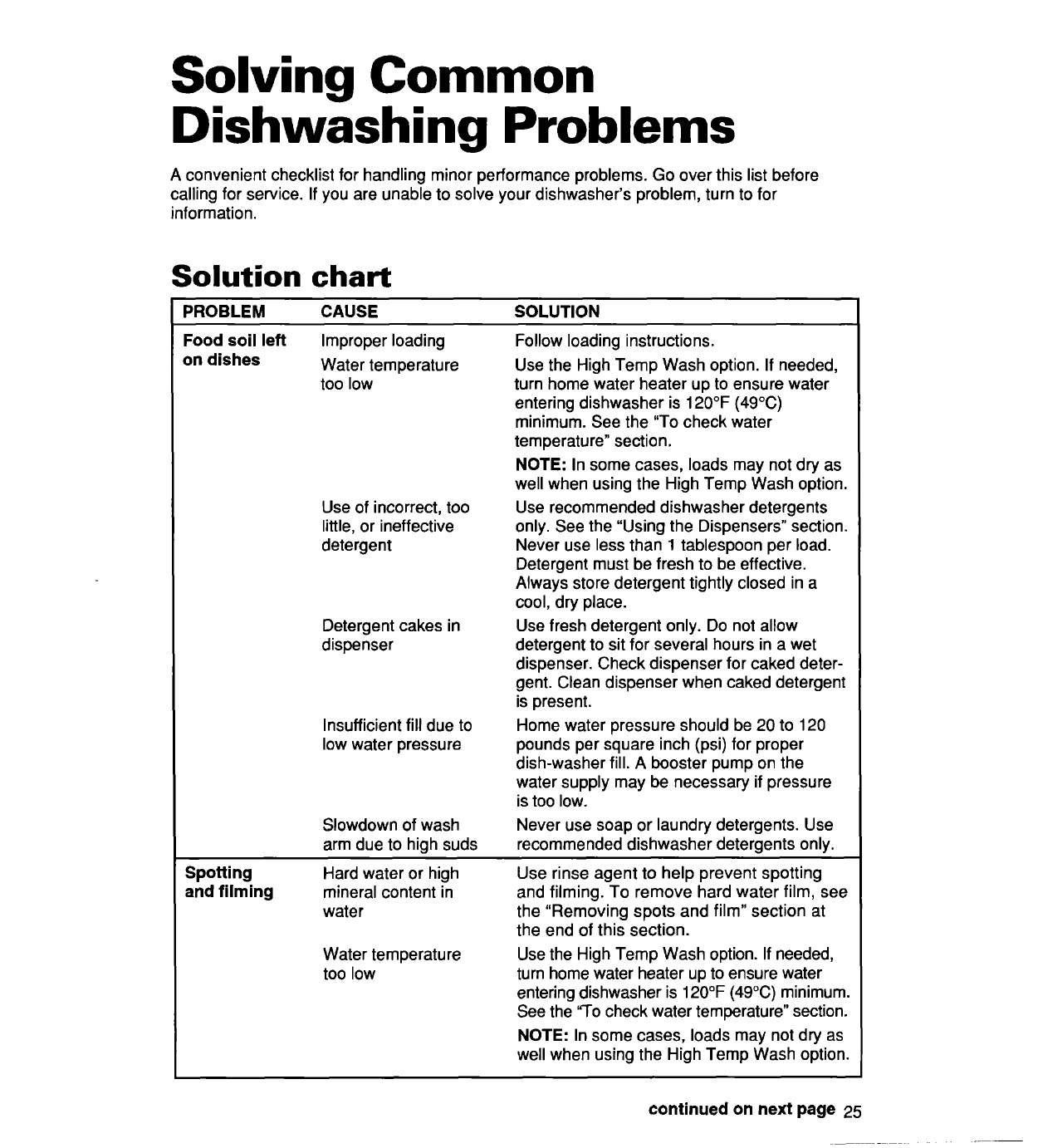

Solving Common
Dishwashing Problems
Aconvenient checklist for handling minor performance problems. Go over this list before
calling for service. If you are unable to solve your dishwasher's problem, turn to for
information.
Solution chart
PROBLEM CAUSE
Food soil left Improper loading
on dishes Water temperature
too low
Spotting
and filming
Use of incorrect, too
little, or ineffective
detergent
Detergent cakes in
dispenser
Insufficient fill due to
low water pressure
Slowdown of wash
arm due to high suds
Hard water or high
mineral content in
water
Water temperature
too low
SOLUTION
Follow loading instructions.
Use the High Temp Wash option. If needed,
turn home water heater up to ensure water
entering dishwasher is 120°F (49°C)
minimum. See the "To check water
temperature" section.
NOTE: In some cases, loads may not dry as
well when using the High Temp Wash option.
Use recommended dishwasher detergents
only. See the "Using the Dispensers" section.
Never use less than 1 tablespoon per load.
Detergent must be fresh to be effective.
Always store detergent tightly closed in a
cool, dry place.
Use fresh detergent only. Do not allow
detergent to sit for several hours in a wet
dispenser. Check dispenser for caked deter-
gent. Clean dispenser when caked detergent
is present.
Home water pressure should be 20 to 120
pounds per square inch (psi) for proper
dish-washer fill. A booster pump on the
water supply may be necessary if pressure
is too low.
Never use soap or laundry detergents. Use
recommended dishwasher detergents only.
Use rinse agent to help prevent spotting
and filming. To remove hard water film, see
the "Removing spots and film" section at
the end of this section.
Use the High Temp Wash option. If needed,
turn home water heater up to ensure water
entering dishwasher is 120°F (49°C) minimum.
See the "To check water temperature" section.
NOTE: In some cases, loads may not dry as
well when using the High Temp Wash option.
continued on next page 25

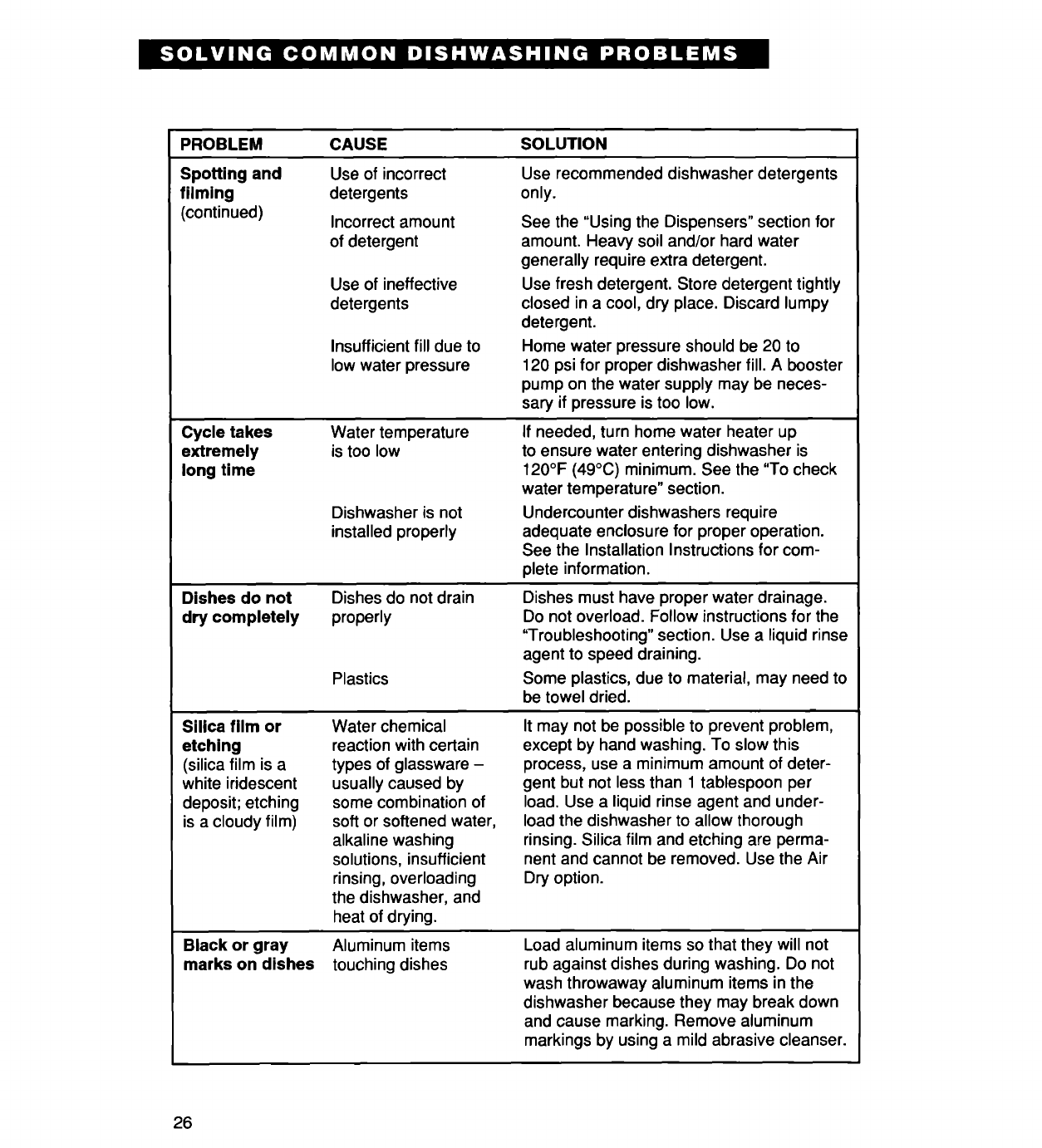

PROBLEM CAUSE SOLUTION
Spotting and Use of incorrect
filming detergents
(continued) Incorrect amount
of detergent
Use of ineffective
detergents
Insufficient fill due to
low water pressure
Cycle takes Water temperature
extremely is too low
long time
Dishes do not
dry completely
Silica film or
etching
(silica film is a
white iridescent
deposit; etching
is a cloudy film)
Black or gray
marks on dishes
Dishwasher is not
installed properly
Dishes do not drain
properly
Plastics
Use recommended dishwasher detergents
only.
See the "Using the Dispensers" section for
amount. Heavy soil and/or hard water
generally require extra detergent.
Use fresh detergent. Store detergent tightly
closed in a cool, dry place. Discard lumpy
detergent.
Home water pressure should be 20 to
120 psi for proper dishwasher fill. A booster
pump on the water supply may be neces-
sary if pressure is too low.
If needed, turn home water heater up
to ensure water entering dishwasher is
120°F (49°C) minimum. See the "To check
water temperature" section.
Undercounter dishwashers require
adequate enclosure for proper operation.
See the Installation Instructions for com-
plete information.
Dishes must have proper water drainage.
Do not overload. Follow instructions for the
"Troubleshooting" section. Use a liquid rinse
agent to speed draining.
Some plastics, due to material, may need to
be towel dried.
Water chemical
reaction with certain
types of glassware -
usually caused by
some combination of
soft or softened water,
alkaline washing
solutions, insufficient
rinsing, overloading
the dishwasher, and
heat of drying.
Aluminum items
touching dishes
It may not be possible to prevent problem,
except by hand washing. To slow this
process, use a minimum amount of deter-
gent but not less than 1 tablespoon per
load. Use a liquid rinse agent and under-
load the dishwasher to allow thorough
rinsing. Silica film and etching are perma-
nent and cannot be removed. Use the Air
Dry option.
Load aluminum items so that they will not
rub against dishes during washing. Do not
wash throwaway aluminum items in the
dishwasher because they may break down
and cause marking. Remove aluminum
markings by using a mild abrasive cleanser.
26

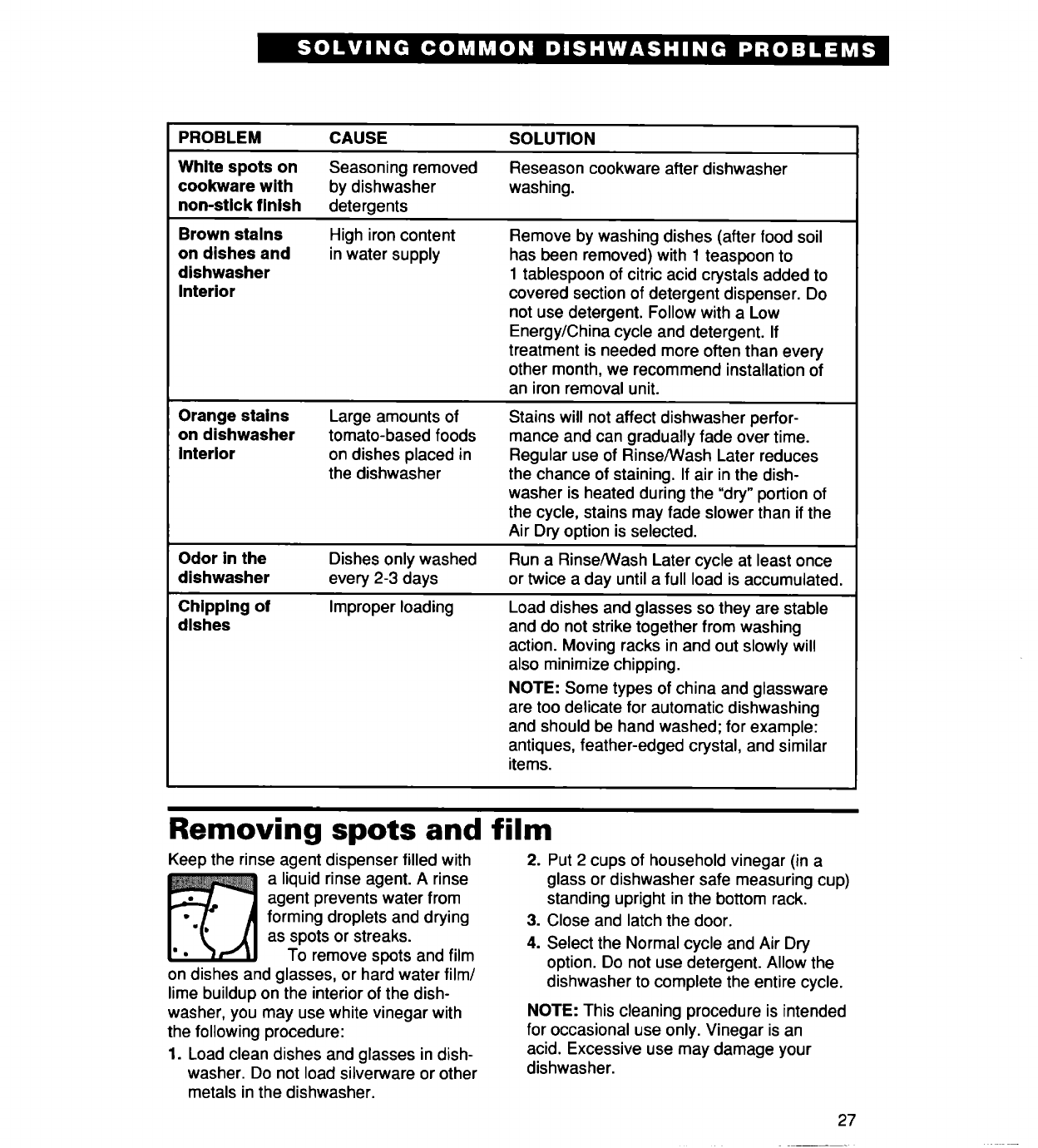

PROBLEM CAUSE SOLUTION
White spots on Seasoning removed Reseason cookware after dishwasher
cookware with by dishwasher washing.
non-stick finish detergents
Brown stains
on dishes and
dishwasher
Interior
Orange stains
on dishwasher
Interior
High iron content
in water supply
Large amounts of
tomato-based foods
on dishes placed in
the dishwasher
Remove by washing dishes (after food soil
has been removed) with 1 teaspoon to
1 tablespoon of citric acid crystals added to
covered section of detergent dispenser. Do
not use detergent. Follow with a Low
Energy/China cycle and detergent. If
treatment is needed more often than every
other month, we recommend installation of
an iron removal unit.
Stains will not affect dishwasher perfor-
mance and can gradually fade over time.
Regular use of Rinse/Wash Later reduces
the chance of staining. If air in the dish-
washer is heated during the "dry" portion of
the cycle, stains may fade slower than if the
Air Dry option is selected.
Odor in the Dishes only washed Run a Rinse/Wash Later cycle at least once
dishwasher every 2-3 days or twice a day until a full load is accumulated.
Chipping of Improper loading Load dishes and glasses so they are stable
dishes and do not strike together from washing
action. Moving racks in and out slowly will
also minimize chipping.
NOTE: Some types of china and glassware
are too delicate for automatic dishwashing
and should be hand washed; for example:
antiques, feather-edged crystal, and similar
items.
Removing spots and film
Keep the rinse agent dispenser filled with
a liquid rinse agent. A rinse
agent prevents water from
forming droplets and drying
as spots or streaks.
To remove spots and film
on dishes and glasses, or hard water film/
lime buildup on the interior of the dish-
washer, you may use white vinegar with
the following procedure:
1. Load clean dishes and glasses in dish-
washer. Do not load silverware or other
metals in the dishwasher.
2. Put 2 cups of household vinegar (in a
glass or dishwasher safe measuring cup)
standing upright in the bottom rack.
3. Close and latch the door.
4. Select the Normal cycle and Air Dry
option. Do not use detergent. Allow the
dishwasher to complete the entire cycle.
NOTE: This cleaning procedure is intended
for occasional use only. Vinegar is an
acid. Excessive use may damage your
dishwasher.
27

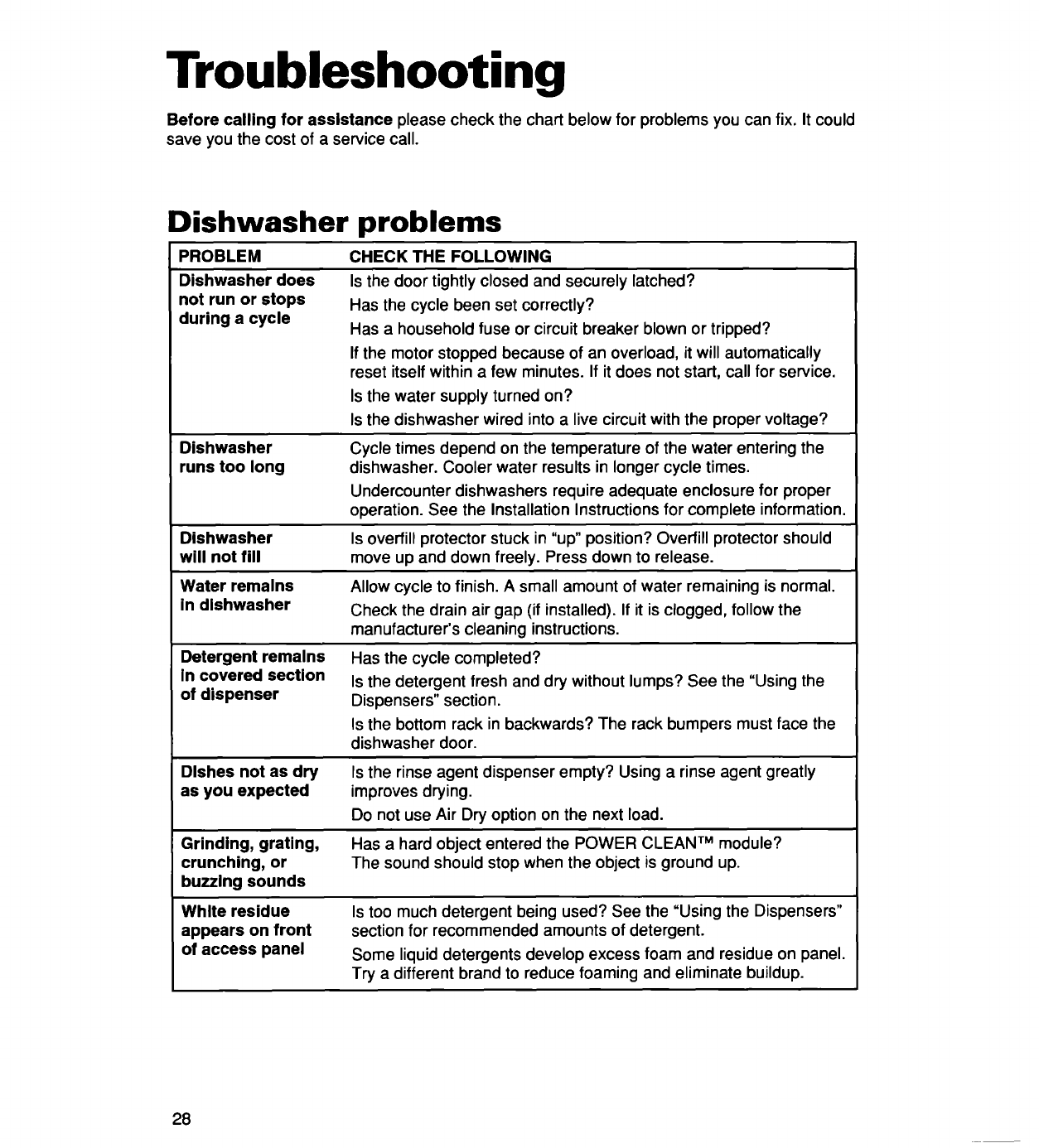

Troubleshooting
Before calling for assistance please check the chart below for problems you can fix. It could
save you the cost of a service call.
Dishwasher problems
PROBLEM
Dishwasher does
not run or stops
during a cycle
CHECK THE FOLLOWING
Is the door tightly closed and securely latched?
Has the cycle been set correctly?
Has a household fuse or circuit breaker blown or tripped?
If the motor stopped because of an overload, it will automatically
reset itself within a few minutes. If it does not start, call for service.
Is the water supply turned on?
Is the dishwasher wired into a live circuit with the proper voltage?
Dishwasher
runs too long Cycle times depend on the temperature of the water entering the
dishwasher. Cooler water results in longer cycle times.
Undercounter dishwashers require adequate enclosure for proper
operation. See the Installation Instructions for complete information.
Dishwasher
will not fill Is overfill protector stuck in "up" position? Overfill protector should
move up and down freely. Press down to release.
Water remains
in dishwasher
Detergent remalns
In covered sectlon
of dispenser
Allow cycle to finish. A small amount of water remaining is normal.
Check the drain air gap (if installed). If it is clogged, follow the
manufacturer's cleaning instructions.
Has the cycle completed?
Is the detergent fresh and dry without lumps? See the "Using the
Dispensers" section.
Is the bottom rack in backwards? The rack bumpers must face the
dishwasher door.
Dishes not as dry
as you expected Is the rinse agent dispenser empty? Using a rinse agent greatly
improves drying.
Do not use Air Dry option on the next load.
Grinding, grating,
crunching, or
buzzing sounds
Has a hard object entered the POWER CLEAN TM module?
The sound should stop when the object is ground up.
White residue
appears on front
of access panel
Is too much detergent being used? See the "Using the Dispensers"
section for recommended amounts of detergent.
Some liquid detergents develop excess foam and residue on panel.
Try a different brand to reduce foaming and eliminate buildup.
28

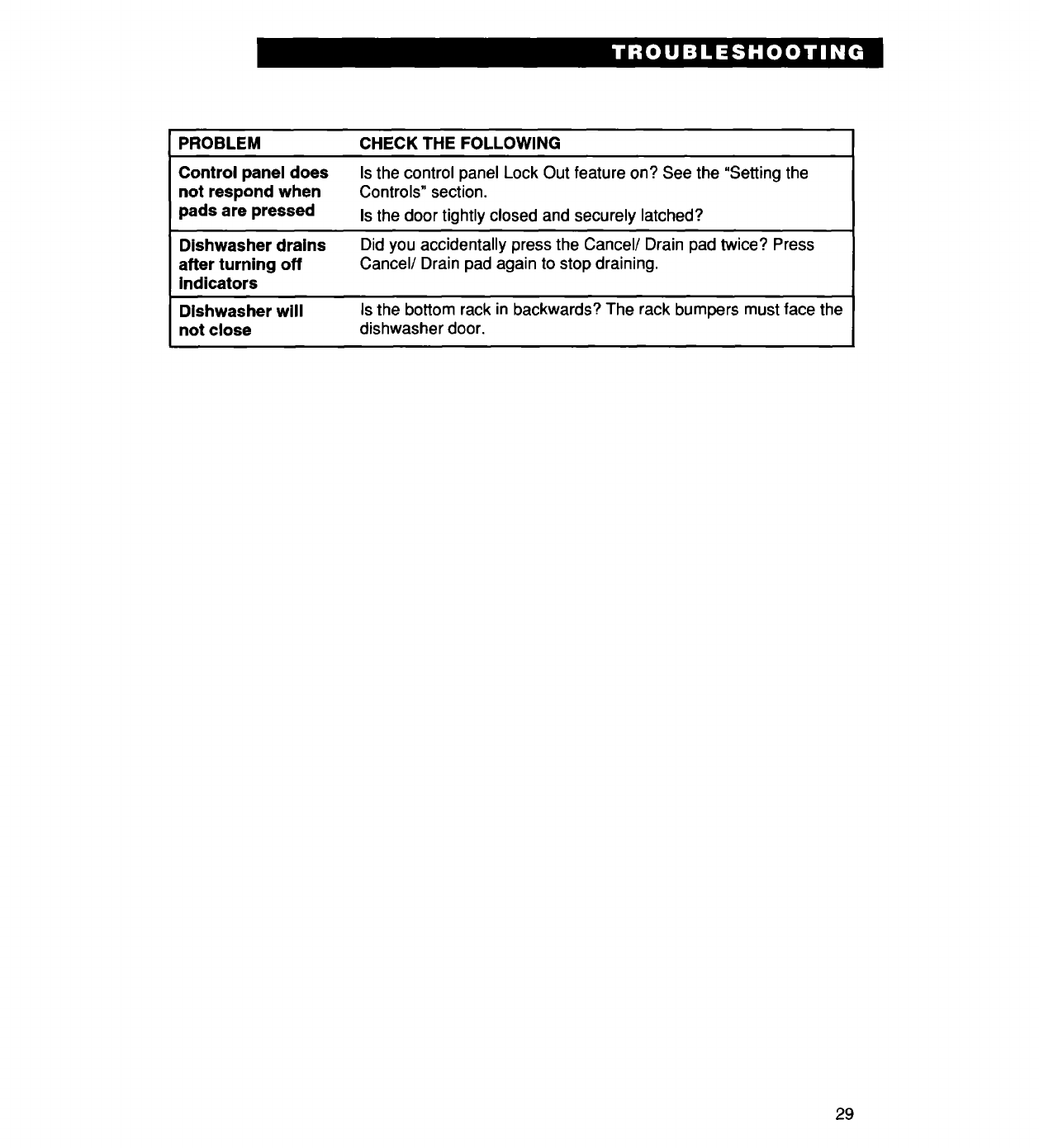

PROBLEM CHECK THE FOLLOWING
Control panel does Is the control panel Lock Out feature on? See the "Setting the
not respond when Controls" section.
pads are pressed Is the door tightly closed and securely latched?
Dishwasher drains Did you accidentally press the Cancel/Drain pad twice? Press
after turning off Cancel/Drain pad again to stop draining.
Indicators
Dishwasher will Is the bottom rack in backwards? The rack bumpers must face the
not close dishwasher door.
29

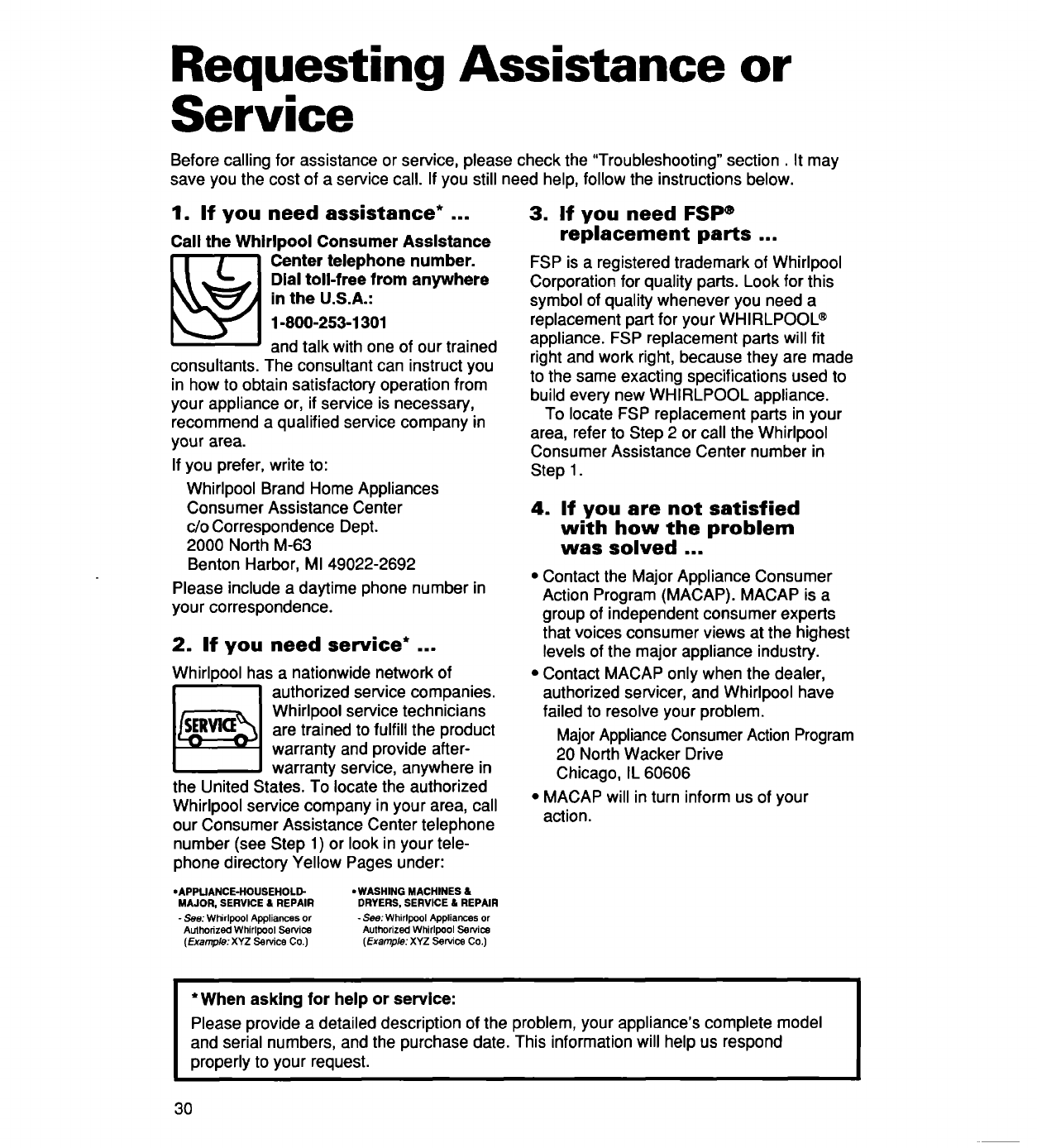

Requesting Assistance or
Service
Before calling for assistance or service, please check the "Troubleshooting" section. It may
save you the cost of a service call. If you still need help, follow the instructions below.
1. If you need assistance* ...
Call the Whirlpool Consumer Assistance
_enter telephone number.
Dial toll-free from anywhere
in the U.S.A.:
1-800-253-1301
and talk with one of our trained
consultants. The consultant can instruct you
in how to obtain satisfactory operation from
your appliance or, if service is necessary,
recommend a qualified service company in
your area.
If you prefer, write to:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in
your correspondence.
2. If you need service* ...
Whirlpool has a nationwide network of
I_ uthorized service companies.
Whirlpool service technicians
are trained to fulfill the product
warranty and provide after-
I warranty service, anywhere in
the United States, To locate the authorized
Whirlpool service company in your area, call
our Consumer Assistance Center telephone
number (see Step 1) or look in your tele-
phone directory Yellow Pages under:
3. If you need FSP ®
replacement parts ...
FSP is a registered trademark of Whirlpool
Corporation for quality parts. Look for this
symbol of quality whenever you need a
replacement part for your WHIRLPOOL ®
appliance. FSP replacement parts will fit
right and work right, because they are made
to the same exacting specifications used to
build every new WHIRLPOOL appliance.
To locate FSP replacement parts in your
area, refer to Step 2 or call the Whirlpool
Consumer Assistance Center number in
Step 1.
4. If you are not satisfied
with how the problem
was solved ...
• Contact the Major Appliance Consumer
Action Program (MACAP). MACAP is a
group of independent consumer experts
that voices consumer views at the highest
levels of the major appliance industry.
• Contact MACAP only when the dealer,
authorized servicer, and Whirlpool have
failed to resolve your problem.
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
• MACAP will in turn inform us of your
action.
,APPLIANCE-HOUSEHOLD-
MAJOR, SERVICE & REPAIR
-See: Whirlpool Appliances or
Authorized Whirlpool Service
(Example:XYZ Service Co.)
• WASHING MACHINES &
DRYERS, SERVICE & REPAIR
-See: Whirlpool Appliances or
Authorized Whirlpool Service
(Example: XYZ Service Co.)
* When asking for help or service:
Please provide a detailed description of the problem, your appliance's complete model
and serial numbers, and the purchase date, This information will help us respond
properly to your request,
30

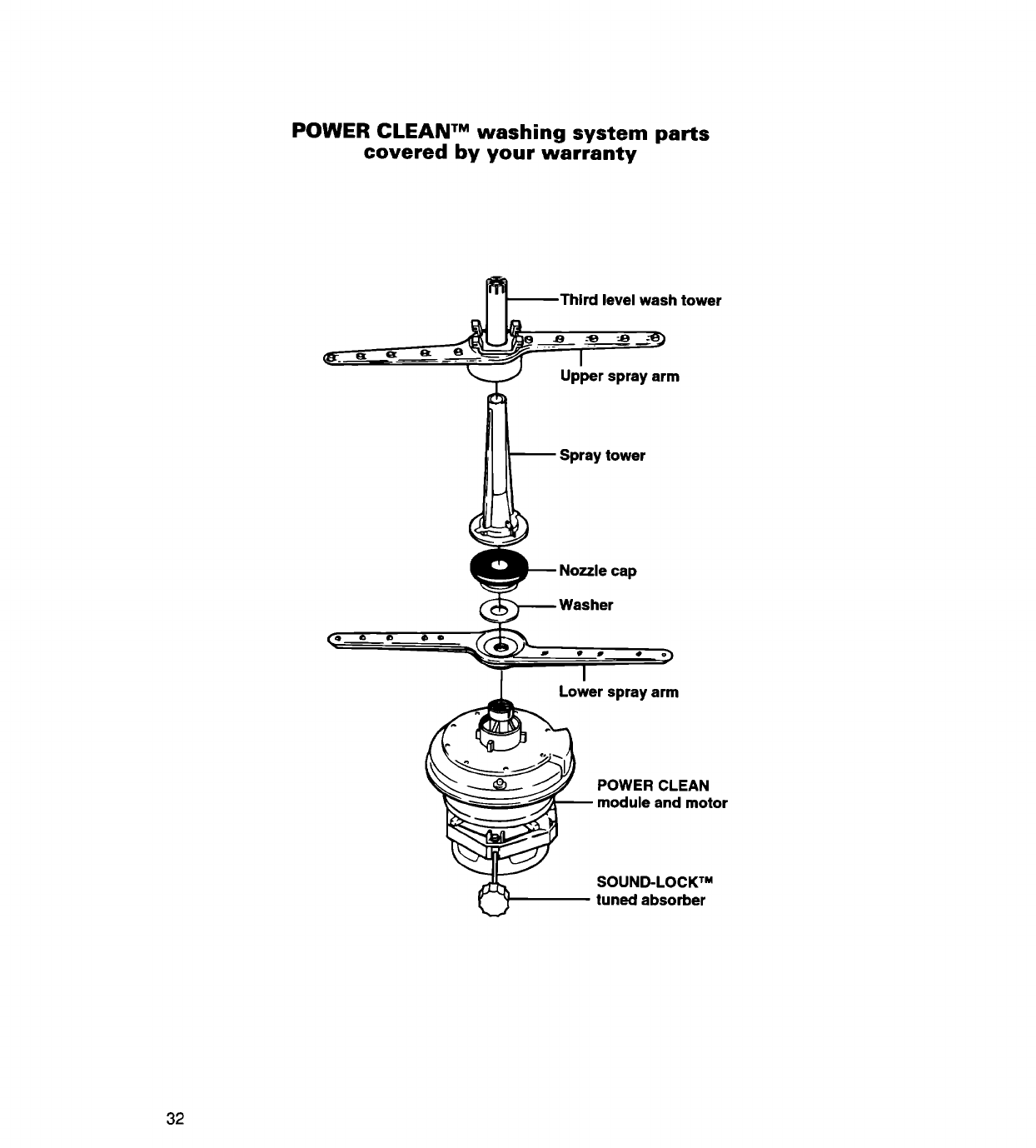

POWER CLEAN TM washing system parts
covered by your warranty
_Third lev.el wash tower
Spray tower
_ozzle cap
Washer
I
Lower spray arm
POWER CLEAN
and motor
SOUND-LOCK TM
tuned absorber
32
WHIRLPOOL ®
Dishwasher Warranty
LENGTH OF WARRANTY
FULL ONE-YEAR
WARRANTY
FROM DATE OF
PURCHASE
LIMITED ONE-YEAR
WARRANTY
SECOND YEAR FROM
DATE OF PURCHASE
LIMITED FOUR-YEAR
WARRANTY
SECOND THROUGH
FIFTH YEAR FROM DATE
OF PURCHASE
FULL TWENTY-YEAR
WARRANTY
FROM DATE OF
PURCHASE
WHIRLPOOL WILL PAY FOR
FSP ®replacement parts and repair labor to correct defects
in materials or workmanship. Service must be provided by
an authorized Whirlpool service company.
FSP replacement parts for any part of the POWER CLEAN TM
washing system if defective in materials or workmanship.
These parts are shown on page 32 of this book.
FSP replacement parts for Electronic Control System if
defective in materials or workmanship.
For models with dishracks that are oyster-colored, FSP
replacement parts for the top and/or bottom dishracks if
they rust due to defective materials or workmanship.
FSP replacement parts and repair labor for the
DURAPERM TMtub and/or inner door should they fail to
contain water due to defective materials or workmanship.
Service must be provided by an authorized Whirlpool
service company.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of the dishwasher.
2. Instruct you how to use the dishwasher.
3. Replace house fuses or correct house wiring or plumbing.
B. Repairs when dishwasher is used in other than normal, single-family household use.
C. Pickup and delivery. This product is designed to be repaired in the home.
D. Damage to dishwasher caused by accident, misuse, fire, flood, acts of God, or use of
products not approved by Whirlpool.
E. Any labor costs during limited warranties.
F. Repairs to parts or systems caused by unauthorized modifications made to the
appliance. 3/96
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so this exclusion or limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
Outside the United States, a different warranty may apply. For details, please contact
your authorized Whirlpool dealer.
If you need service, first see the "Troubleshooting" section of this book. After checking
"Troubleshooting," additional help can be found by checking the "Requesting Assistance or
Service" section, or by calling our Consumer Assistance Center telephone number,
1-800-253-1301, from anywhere in the U.S.A.
PART NO. 3376817 Rev. A 1_97
©1997 Whirlpool Corporation ®Registered trademark/TM Trademark of Whirlpool, U.S.A. Printed in U,S.A.

Navigation menu
