TWOSPEED
AUTOMATIC
WASHERS
_' T_ 'j+, • _
Table of Contents ............................... 2
3950318 www.whirlpool.com
TABLEOF
CONTENTS
WASHER SAFETY ............................................................ 3
PARTS AND FEATURES ..................................................4
USING YOUR WASHER ......................................................5
UnderstandingWasher Cycles........................................5
Loading.............................................................................5
Normal Washer Sounds ...................................................6
StartingYour Washer .......................................................6
Selectinga Cycleand Time .............................................8

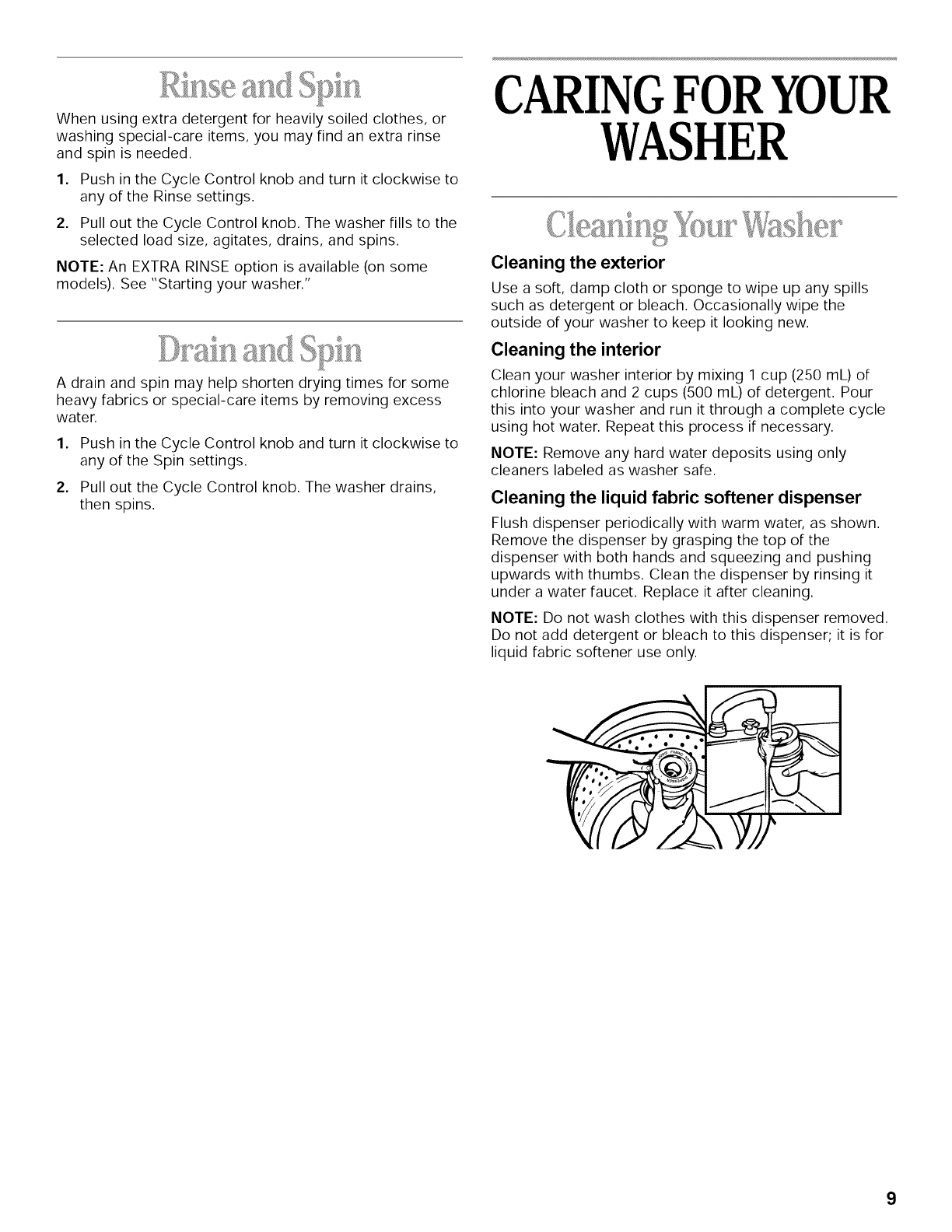

Rinseand Spin.................................................................9
Drainand Spin..................................................................9
CARING FOR YOUR WASHER ..........................................9
CleaningYour Washer .....................................................9

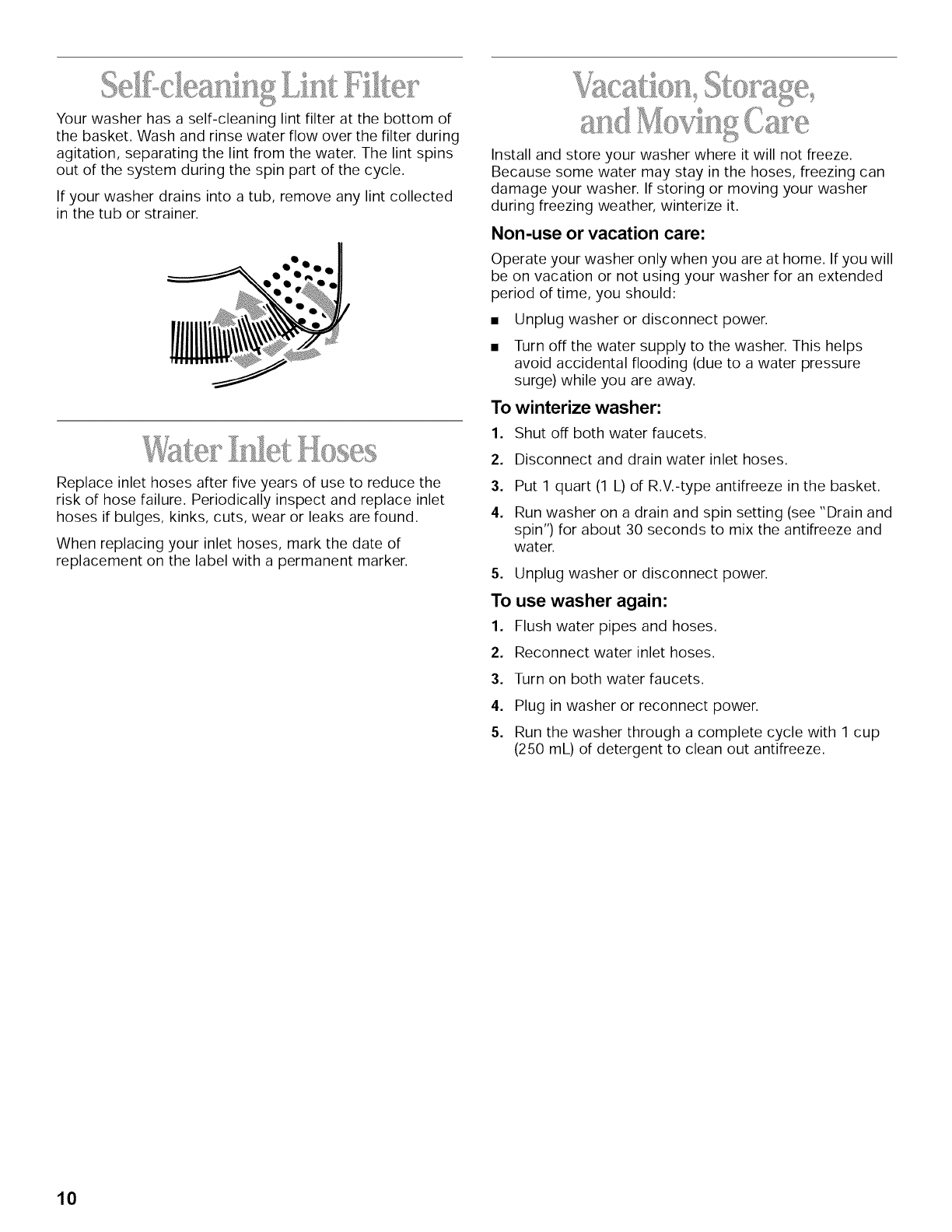

Self-cleaningLintFilter..................................................10
Water InletHoses ...........................................................10
Vacation,Storage,and Moving Care ............................10

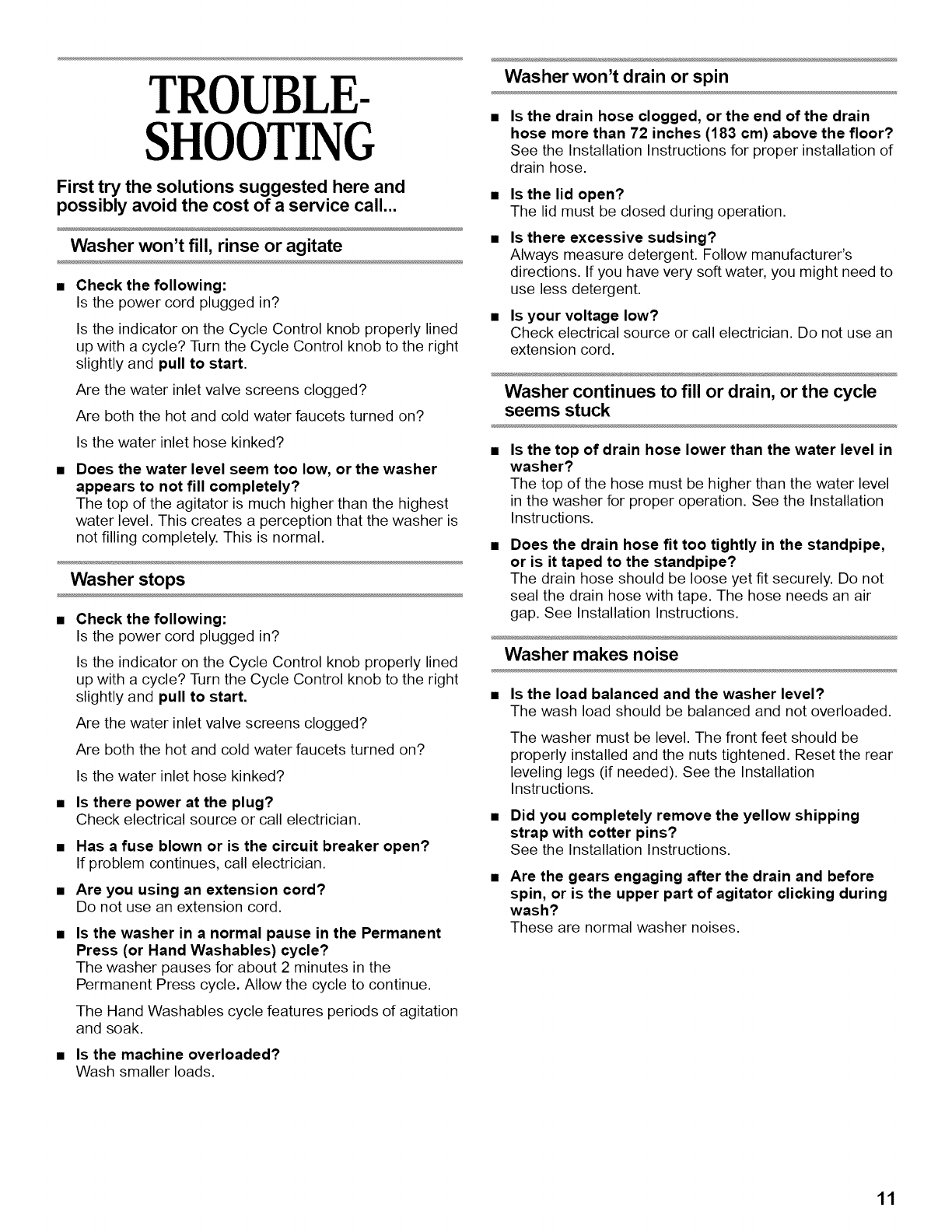

TROUBLESHOOTING .......................................................11

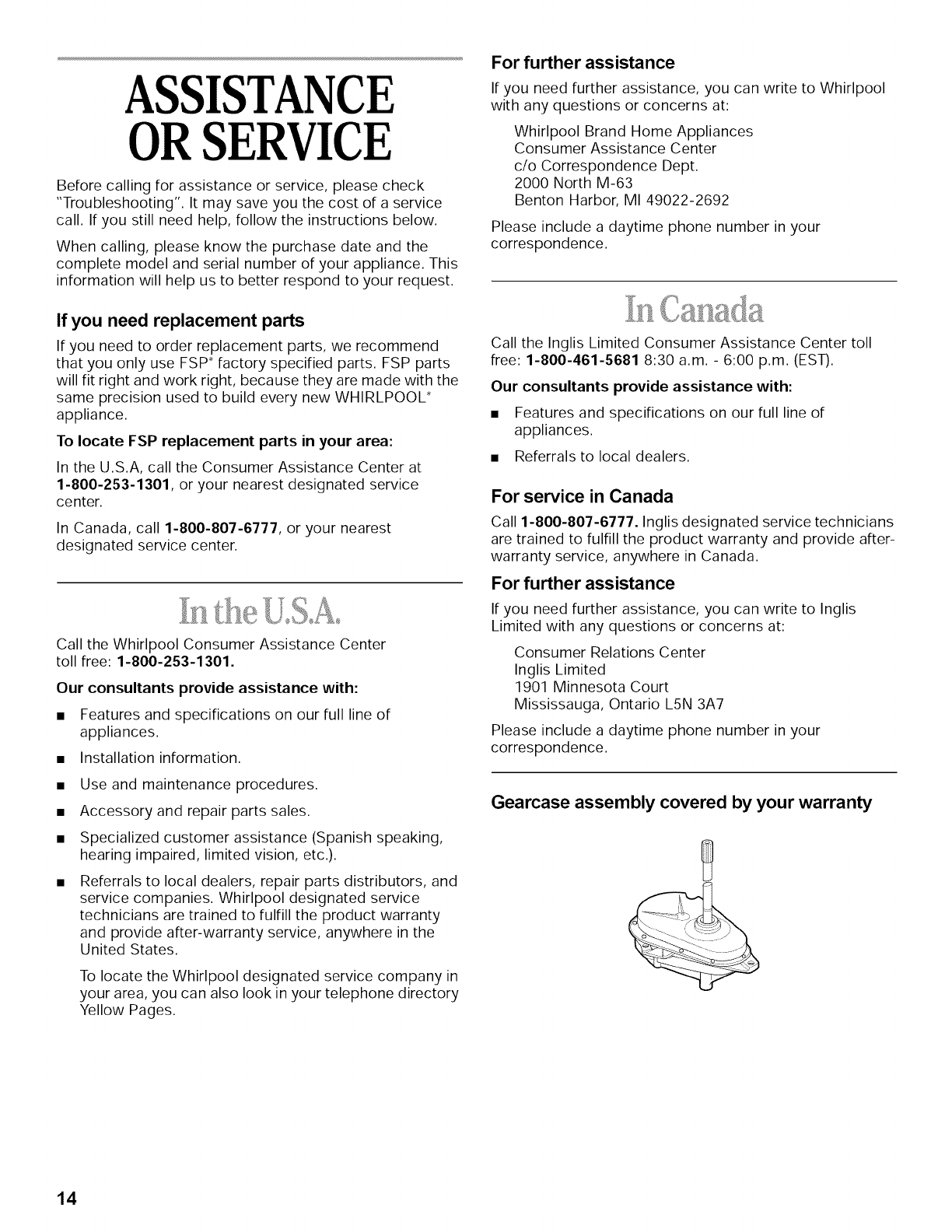

ASSISTANCE OR SERVICE .............................................14
In the U.S.A ..................................................................... 14
In Canada ........................................................................ 14

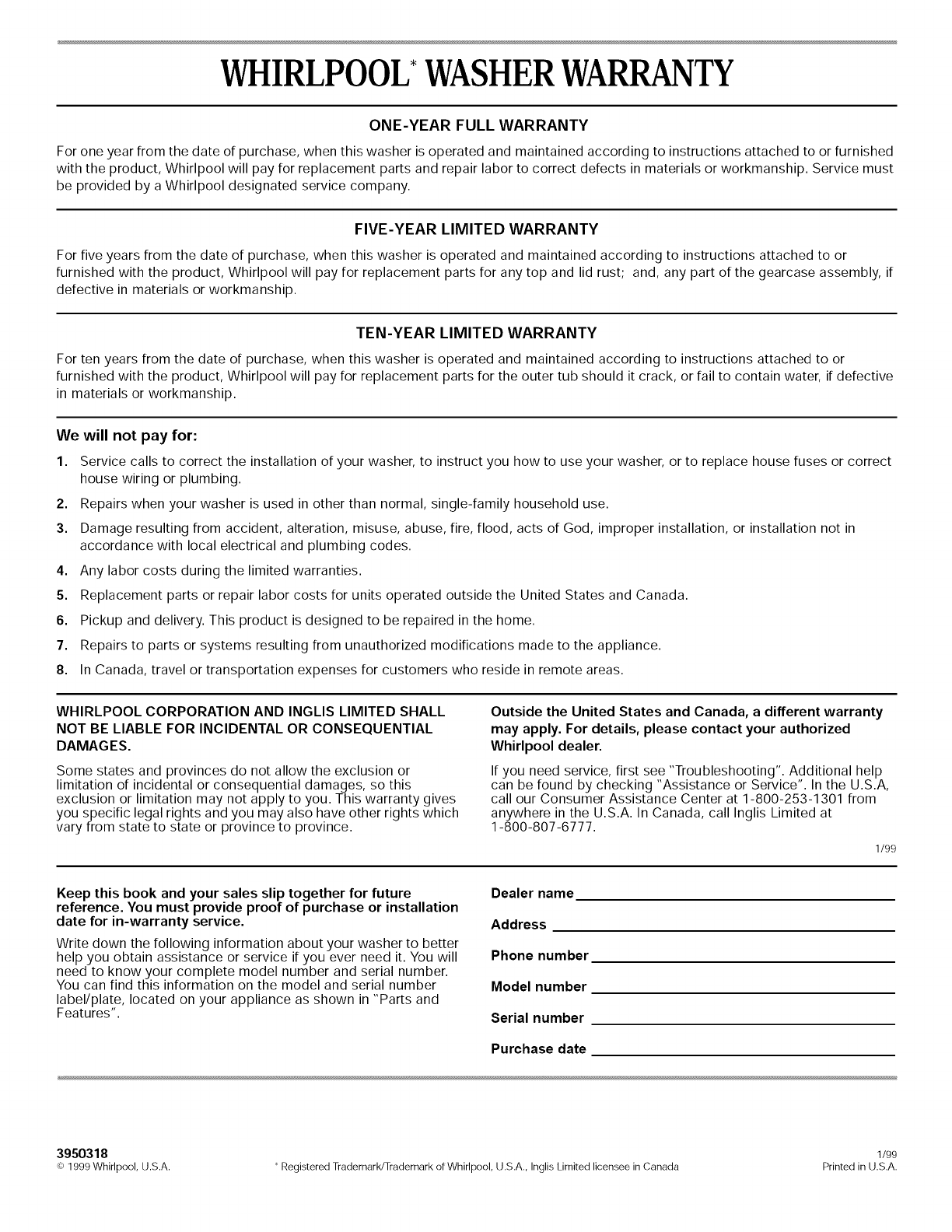

WARRANTY ....................................................................... 16

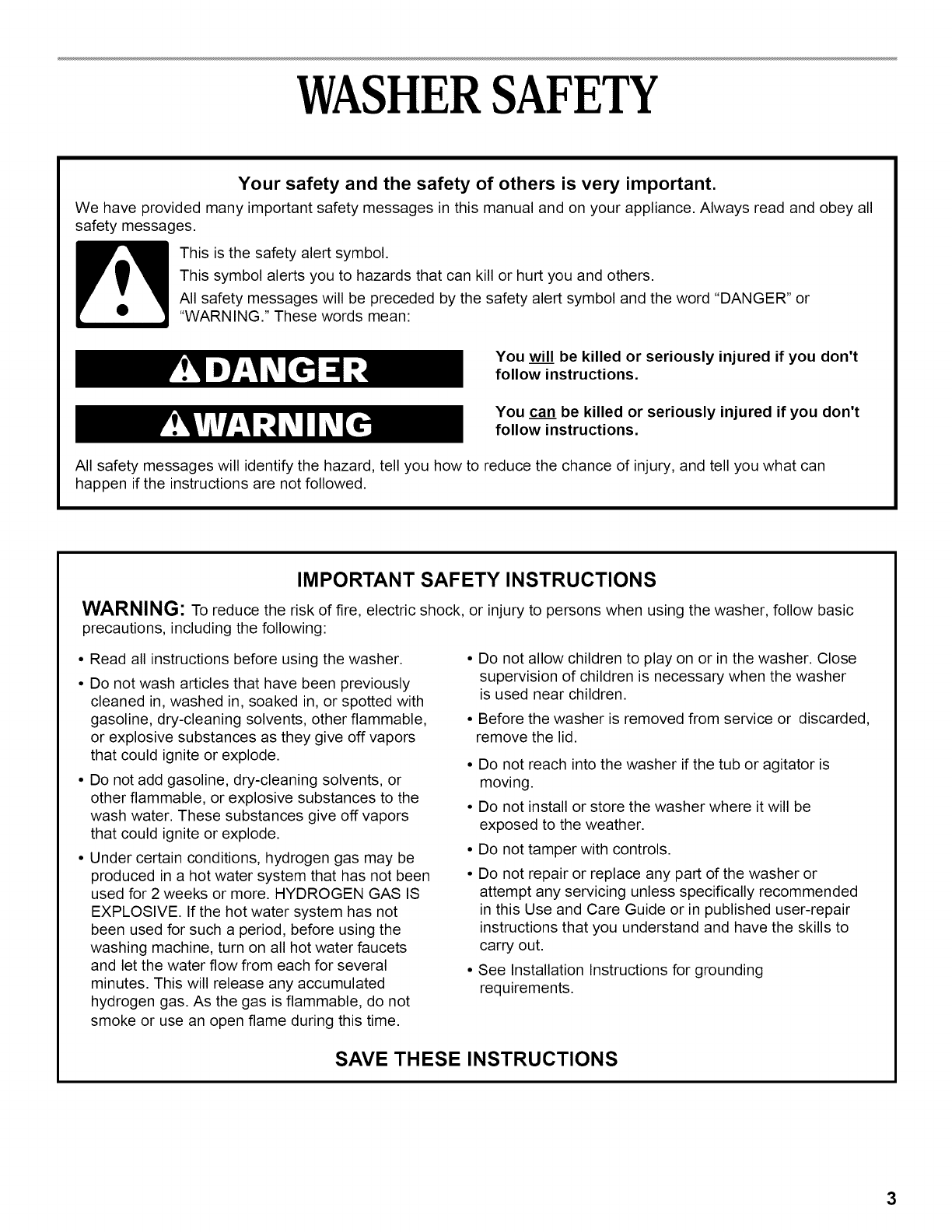

WASHERSAFETY
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word "DANGER" or
"WARNING." These words mean:
You will be killed or seriously injured if you don't
follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic
precautions, including the following:
• Read all instructions before using the washer.
° Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, other flammable,
or explosive substances as they give off vapors
that could ignite or explode.
° Do not add gasoline, dry-cleaning solvents, or
other flammable, or explosive substances to the
wash water. These substances give off vapors
that could ignite or explode.
° Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not
been used for such a period, before using the
washing machine, turn on all hot water faucets
and let the water flow from each for several
minutes. This will release any accumulated
hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer
is used near children.
Before the washer is removed from service or discarded,
remove the lid.
° Do not reach into the washer if the tub or agitator is
moving.
° Do not install or store the washer where it will be
exposed to the weather.
° Do not tamper with controls.
° Do not repair or replace any part of the washer or
attempt any servicing unless specifically recommended
in this Use and Care Guide or in published user-repair
instructions that you understand and have the skills to
carry out.
° See Installation Instructions for grounding
requirements.
SAVE THESE INSTRUCTIONS
3
PARTSANDFEATURES
This manual covers several different models. The washer you have purchased may have some or all of the parts and
features listed below.
6
8
1. Control panel
2. Model and serial number label
7. Basket
8. Tub
3. Liquid fabric softener dispenser t
4. Agitator
5. Lid
6. Liquid bleach dispenser t
Other features your washer may have:
MAGIC CLEAN* lint filter
XTRA ROLL ACTION PLUS* agitator
Extra rinse selector
_On some models
Control panel
Medium
Sinai Super
lus
Warm Cold
Wash
Rinse
Temperature -- End of Cycle Signal
Load Size
-- Regular _Normal
Super Wash _Heavy I"_i_ °w
Permanent i.,_. _ kow
4
USINGYOUR
WASHER Loading suggestions
For these suggested full-sized loads, set the LOAD SIZE
selector to the highest load size setting.
SUPER CAPACITY PLUS WASHERS
When the Cycle Control knob is set to a number and pulled
out, the washer fills (to the selected load size) before
agitation and timing start. The washer begins agitating
immediately after filling; agitation occurs with the washer
lid up or down.
During agitation, the agitator creates a continuous rollover
action that provides a thorough cleaning of the wash load.
Heavy Work Clothes
3 pair pants 1 coverall
3 shirts 1 overall
4 pair jeans
Delicates
3 camisoles 2 bras
1 quilted robe 2 nighties
4 slips 1 baby's dress
4 panties
Towels
10 bath towels 14 wash cloths
10 hand towels 1 bath mat
After agitation starts, the Cycle Control knob turns
clockwise until it points to an Off area and the cycle ends.
NOTE: The washer pauses briefly throughout each cycle.
These pauses are normal for washer operation.
WASH RINSE
1. Fill _, 1. Fill
l__r_l _ 2. Wash
selected
time
2. Rinse
h_ 3. Draint
No agitation
3. Drain
No agitation
._ 4. Spin-Spray
rinse
Mixed Load
3 double sheets 2 shirts
4 pillowcases 2 blouses
8 T-shirts 8 handkerchiefs
6 pair shorts
EXTRA LARGE CAPACITY WASHERS
Heavy Work Clothes
2 pair pants 3 pair jeans
3 shirts 1 coverall
Delicates
3 camisoles 2 bras
4 slips 2 nighties
4 panties
Towels
8 bath towels 10 wash cloths
8 hand towels 1 bath mat
Mixed Load
2 double sheets or
1 king size sheet(s)
4 pillowcases
6 T-shirts
6 pair shorts
2 shirts
2 blouses
6 handkerchiefs
The Permanent Press
cycle partially drains,
fills, agitates briefly,
and drains.
6. Off
5

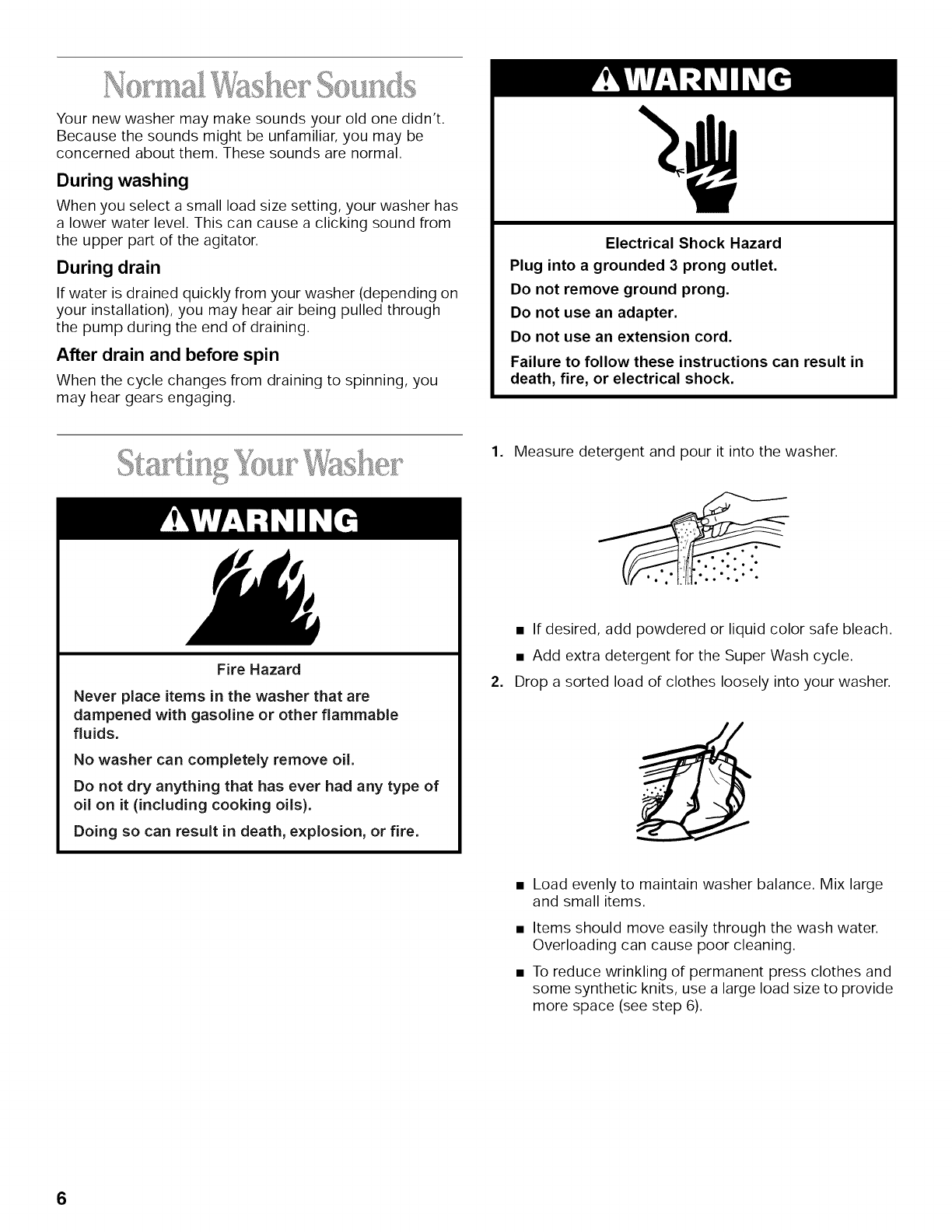

Your new washer may make sounds your old one didn't.
Because the sounds might be unfamiliar, you may be
concerned about them. These sounds are normal.
During washing
When you select a small load size setting, your washer has
a lower water level. This can cause a clicking sound from
the upper part of the agitator.
During drain
If water is drained quickly from your washer (depending on
your installation), you may hear air being pulled through
the pump during the end of draining.
After drain and before spin
When the cycle changes from draining to spinning, you
may hear gears engaging.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
1, Measure detergent and pour it into the washer.
Fire Hazard
Never place items in the washer that are
dampened with gasoline or other flammable
fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type of
oil on it (including cooking oils).
Doing so can result in death, explosion, or fire.
.
• If desired, add powdered or liquid color safe bleach.
• Add extra detergent for the Super Wash cycle.
Drop a sorted load of clothes loosely into your washer.
• Load evenly to maintain washer balance. Mix large
and small items.
• Items should move easily through the wash water.
Overloading can cause poor cleaning.
• To reduce wrinkling of permanent press clothes and
some synthetic knits, use a large load size to provide
more space (see step 6).

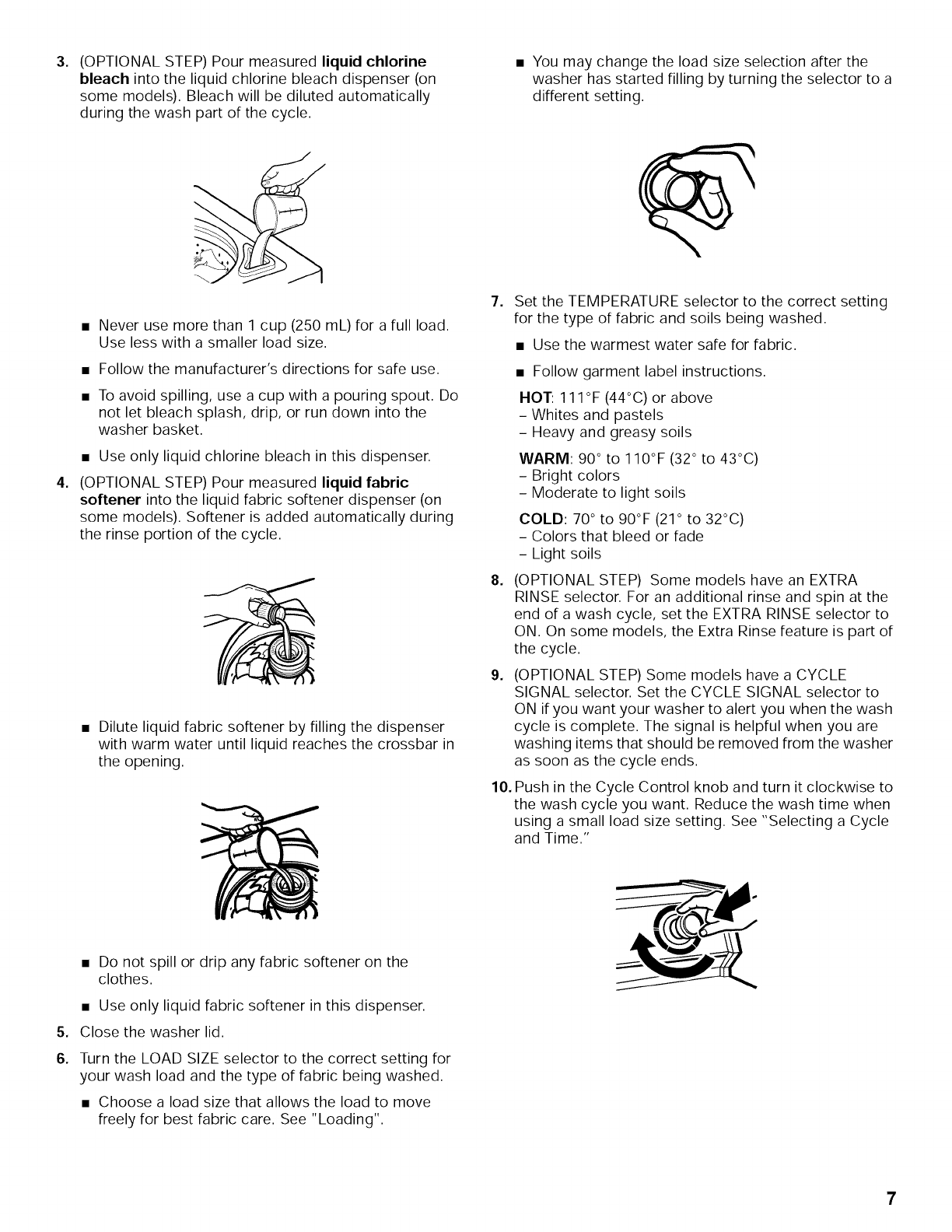

,(OPTIONAL STEP) Pour measured liquid chlorine
bleach into the liquid chlorine bleach dispenser (on
some models). Bleach will be diluted automatically
during the wash part of the cycle.
• You may change the load size selection after the
washer has started filling by turning the selector to a
different setting.
,
• Never use more than 1 cup (250 mL) for a full load.
Use less with a smaller load size.
• Follow the manufacturer's directions for safe use.
• To avoid spilling, use a cup with a pouring spout. Do
not let bleach splash, drip, or run down into the
washer basket.
• Use only liquid chlorine bleach in this dispenser.
(OPTIONAL STEP) Pour measured liquid fabric
softener into the liquid fabric softener dispenser (on
some models). Softener is added automatically during
the rinse portion of the cycle.
• Dilute liquid fabric softener by filling the dispenser
with warm water until liquid reaches the crossbar in
the opening.
,
,
,
10.
Set the TEMPERATURE selector to the correct setting
for the type of fabric and soils being washed.
• Use the warmest water safe for fabric.
• Follow garment label instructions.
HOT: 111°F (44°C) or above
- Whites and pastels
- Heavy and greasy soils
WARM: 90 ° to 110°F (32° to 43°C)
- Bright colors
- Moderate to light soils
COLD: 70° to 90°F (21° to 32°C)
- Colors that bleed or fade
- Light soils
(OPTIONAL STEP) Some models have an EXTRA
RINSE selector. For an additional rinse and spin at the
end of a wash cycle, set the EXTRA RINSE selector to
ON. On some models, the Extra Rinse feature is part of
the cycle.
(OPTIONAL STEP) Some models have a CYCLE
SIGNAL selector. Set the CYCLE SIGNAL selector to
ON if you want your washer to alert you when the wash
cycle is complete. The signal is helpful when you are
washing items that should be removed from the washer
as soon as the cycle ends.
Push in the Cycle Control knob and turn it clockwise to
the wash cycle you want Reduce the wash time when
using a small load size setting See "Selecting a Cycle
and Time"
,
6.
• Do not spill or drip any fabric softener on the
clothes.
• Use only liquid fabric softener in this dispenser.
Close the washer lid.
Turn the LOAD SIZE selector to the correct setting for
your wash load and the type of fabric being washed.
• Choose a load size that allows the load to move
freely for best fabric care. See "Loading".
7

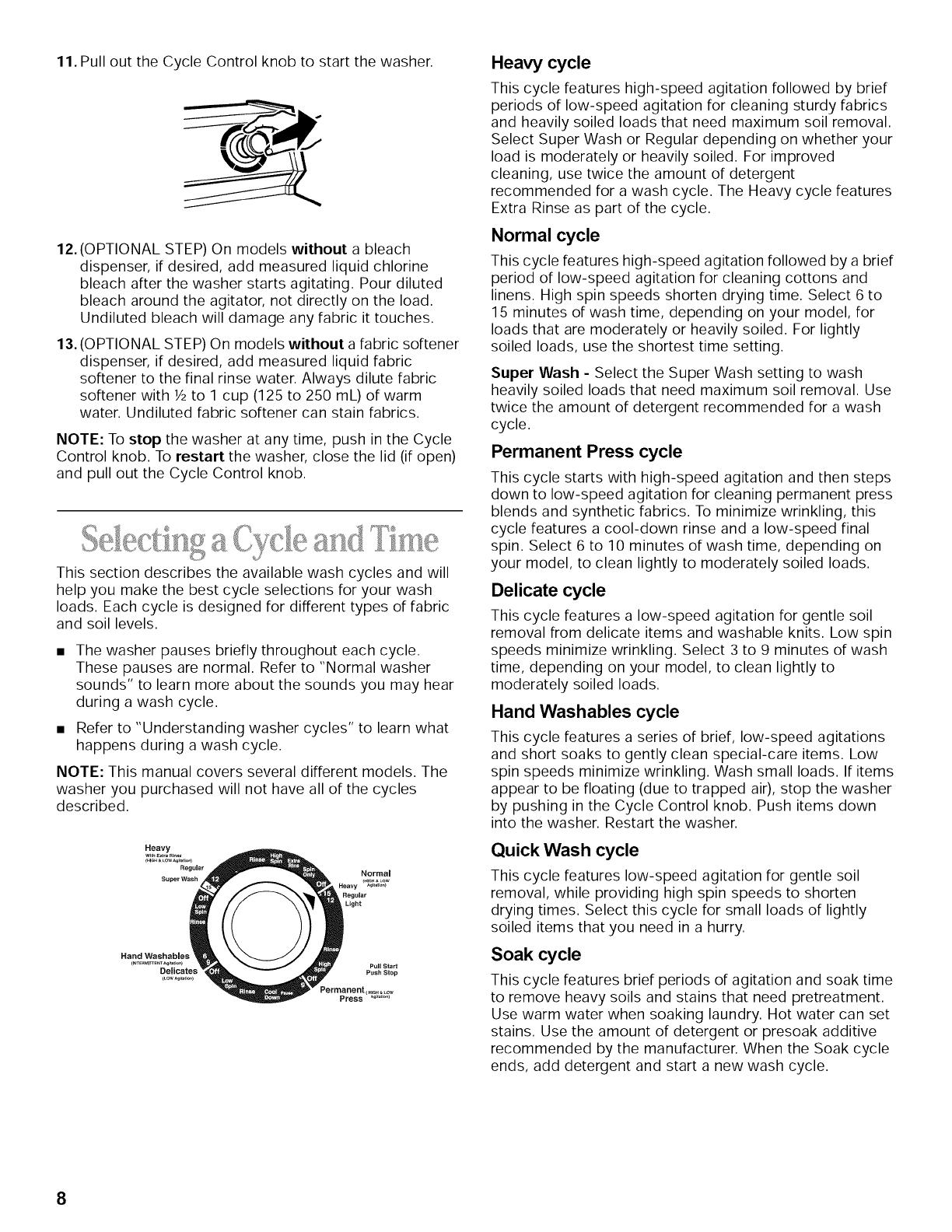

11, Pull out the Cycle Control knob to start the washer.
12,(OPTIONAL STEP) On models without a bleach
dispenser, if desired, add measured liquid chlorine
bleach after the washer starts agitating. Pour diluted
bleach around the agitator, not directly on the load.
Undiluted bleach will damage any fabric it touches.
13, (OPTIONAL STEP) On models without a fabric softener
dispenser, if desired, add measured liquid fabric
softener to the final rinse water. Always dilute fabric
softener with 1/2to 1 cup (125 to 250 mL) of warm
water. Undiluted fabric softener can stain fabrics.
NOTE: To stop the washer at any time, push in the Cycle
Control knob. To restart the washer, close the lid (if open)
and pull out the Cycle Control knob.
This section describes the available wash cycles and will
help you make the best cycle selections for your wash
loads. Each cycle is designed for different types of fabric
and soil levels.
The washer pauses briefly throughout each cycle.
These pauses are normal. Refer to "Normal washer
sounds" to learn more about the sounds you may hear
during a wash cycle.
Refer to "Understanding washer cycles" to learn what
happens during a wash cycle.
NOTE: This manual covers several different models. The
washer you purchased will not have all of the cycles
described.
Heavy
Regular
Super Wash Normal
Regular
Light
Hand Washables
Delicatel
Heavy cycle
This cycle features high-speed agitation followed by brief
periods of low-speed agitation for cleaning sturdy fabrics
and heavily soiled loads that need maximum soil removal.
Select Super Wash or Regular depending on whether your
load is moderately or heavily soiled. For improved
cleaning, use twice the amount of detergent
recommended for a wash cycle. The Heavy cycle features
Extra Rinse as part of the cycle.
Normal cycle
This cycle features high-speed agitation followed by a brief
period of low-speed agitation for cleaning cottons and
linens. High spin speeds shorten drying time. Select 6 to
15 minutes of wash time, depending on your model, for
loads that are moderately or heavily soiled. For lightly
soiled loads, use the shortest time setting.
Super Wash - Select the Super Wash setting to wash
heavily soiled loads that need maximum soil removal. Use
twice the amount of detergent recommended for a wash
cycle.
Permanent Press cycle
This cycle starts with high-speed agitation and then steps
down to low-speed agitation for cleaning permanent press
blends and synthetic fabrics. To minimize wrinkling, this
cycle features a cool-down rinse and a low-speed final
spin. Select 6 to 10 minutes of wash time, depending on
your model, to clean lightly to moderately soiled loads.
Delicate cycle
This cycle features a low-speed agitation for gentle soil
removal from delicate items and washable knits. Low spin
speeds minimize wrinkling. Select 3 to 9 minutes of wash
time, depending on your model, to clean lightly to
moderately soiled loads.
Hand Washables cycle
This cycle features a series of brief, low-speed agitations
and short soaks to gently clean special-care items. Low
spin speeds minimize wrinkling. Wash small loads. If items
appear to be floating (due to trapped air), stop the washer
by pushing in the Cycle Control knob. Push items down
into the washer. Restart the washer.
Quick Wash cycle
This cycle features low-speed agitation for gentle soil
removal, while providing high spin speeds to shorten
drying times. Select this cycle for small loads of lightly
soiled items that you need in a hurry.
Soak cycle
This cycle features brief periods of agitation and soak time
to remove heavy soils and stains that need pretreatment.
Use warm water when soaking laundry. Hot water can set
stains. Use the amount of detergent or presoak additive
recommended by the manufacturer. When the Soak cycle
ends, add detergent and start a new wash cycle.
Whenusingextradetergentforheavilysoiledclothes,or
washingspeciahcareitems,youmayfindanextrarinse
andspinisneeded.
1. PushintheCycleControlknobandturnit clockwiseto
anyoftheRinsesettings
2, PullouttheCycleControlknob.Thewasherfillsto the
selectedloadsize,agitates,drains,andspins.
NOTE:AnEXTRARINSEoptionisavailable(onsome
models).See"Startingyourwasher."
Adrainandspinmayhelpshortendryingtimesforsome
heavyfabricsorspecial-careitemsbyremovingexcess
water.
=
=
Push in the Cycle Control knob and turn it clockwise to
any of the Spin settings
Pull out the Cycle Control knob. The washer drains,
then spins.
CARINGFORYOUR
WASHER
Cleaning the exterior
Use a soft, damp cloth or sponge to wipe up any spills
such as detergent or bleach. Occasionally wipe the
outside of your washer to keep it looking new.
Cleaning the interior
Clean your washer interior by mixing 1 cup (250 mL) of
chlorine bleach and 2 cups (500 mL) of detergent. Pour
this into your washer and run it through a complete cycle
using hot water. Repeat this process if necessary.
NOTE: Remove any hard water deposits using only
cleaners labeled as washer safe.
Cleaning the liquid fabric softener dispenser
Flush dispenser periodically with warm water, as shown.
Remove the dispenser by grasping the top of the
dispenser with both hands and squeezing and pushing
upwards with thumbs. Clean the dispenser by rinsing it
under a water faucet. Replace it after cleaning.
NOTE: Do not wash clothes with this dispenser removed.
Do not add detergent or bleach to this dispenser; it is for
liquid fabric softener use only.
9
Your washer has a self-cleaning lint filter at the bottom of
the basket. Wash and rinse water flow over the filter during
agitation, separating the lint from the water. The lint spins
out of the system during the spin part of the cycle.
If your washer drains into a tub, remove any lint collected
in the tub or strainer.
Replace inlet hoses after five years of use to reduce the
risk of hose failure. Periodically inspect and replace inlet
hoses if bulges, kinks, cuts, wear or leaks are found.
When replacing your inlet hoses, mark the date of
replacement on the label with a permanent marker.
Install and store your washer where it will not freeze.
Because some water may stay in the hoses, freezing can
damage your washer. If storing or moving your washer
during freezing weather, winterize it.
Non-use or vacation care:
Operate your washer only when you are at home. If you will
be on vacation or not using your washer for an extended
period of time, you should:
To
1.
Unplug washer or disconnect power.
Turn off the water supply to the washer. This helps
avoid accidental flooding (due to a water pressure
surge) while you are away.
winterize washer:
Shut off both water faucets.
2, Disconnect and drain water inlet hoses.
3, Put 1 quart (1 L) of R.V.-type antifreeze in the basket.
4, Run washer on a drain and spin setting (see "Drain and
spin") for about 30 seconds to mix the antifreeze and
water.
5, Unplug washer or disconnect power.
To use washer again:
1, Flush water pipes and hoses.
2, Reconnect water inlet hoses.
3. Turn on both water faucets.
4, Plug in washer or reconnect power.
5, Run the washer through a complete cycle with 1 cup
(250 mL) of detergent to clean out antifreeze.
10
TROUBLE-
SHOOTING
First try the solutions suggested here and
possibly avoid the cost of a service call...
Washer won't fill, rinse or agitate
Check the following:
Is the power cord plugged in?
Is the indicator on the Cycle Control knob properly lined
up with a cycle? Turn the Cycle Control knob to the right
slightly and pull to start.
Are the water inlet valve screens clogged?
Are both the hot and cold water faucets turned on?
Is the water inlet hose kinked?
Does the water level seem too low, or the washer
appears to not fill completely?
The top of the agitator is much higher than the highest
water level. This creates a perception that the washer is
not filling completely. This is normal.
Washer stops
Check the following:
Is the power cord plugged in?
Is the indicator on the Cycle Control knob properly lined
up with a cycle? Turn the Cycle Control knob to the right
slightly and pull to start.
Are the water inlet valve screens clogged?
Are both the hot and cold water faucets turned on?
Is the water inlet hose kinked?
•Is there power at the plug?
Check electrical source or call electrician.
Has afuse blown or is the circuit breaker open?
If problem continues, call electrician.
Are you using an extension cord?
Do not use an extension cord.
Is the washer in a normal pause in the Permanent
Press (or Hand Washables) cycle?
The washer pauses for about 2 minutes in the
Permanent Press cycle. Allow the cycle to continue.
The Hand Washables cycle features periods of agitation
and soak.
•Is the machine overloaded?
Wash smaller loads.
Washer won't drain or spin
Is the drain hose clogged, or the end of the drain
hose more than 72 inches (183 cm) above the floor?
See the Installation Instructions for proper installation of
drain hose.
Is the lid open?
The lid must be closed during operation.
Is there excessive sudsing?
Always measure detergent. Follow manufacturer's
directions. If you have very soft water, you might need to
use less detergent.
Is your voltage low?
Check electrical source or call electrician. Do not use an
extension cord.
Washer continues to fill or drain, or the cycle
seems stuck
Is the top of drain hose lower than the water level in
washer?
The top of the hose must be higher than the water level
in the washer for proper operation. See the Installation
Instructions.
Does the drain hose fit too tightly in the standpipe,
or is it taped to the standpipe?
The drain hose should be loose yet fit securely. Do not
seal the drain hose with tape. The hose needs an air
gap. See Installation Instructions.
Washer makes noise
Is the load balanced and the washer level?
The wash load should be balanced and not overloaded.
The washer must be level. The front feet should be
properly installed and the nuts tightened. Reset the rear
leveling legs (if needed). See the Installation
Instructions.
Did you completely remove the yellow shipping
strap with cotter pins?
See the Installation Instructions.
Are the gears engaging after the drain and before
spin, or is the upper part of agitator clicking during
wash?
These are normal washer noises.
11

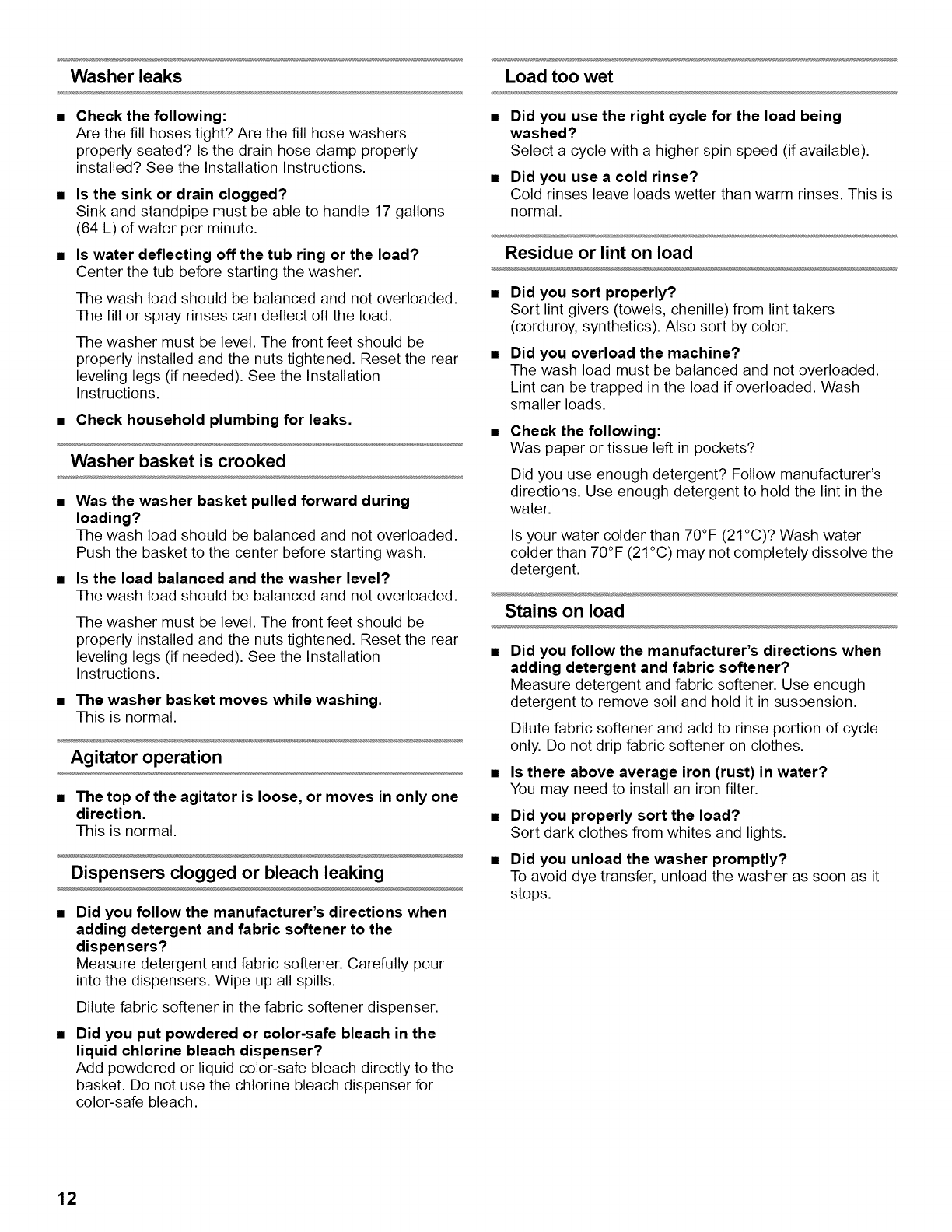

Washer leaks Load too wet
Check the following:
Are the fill hoses tight? Are the fill hose washers
properly seated? Is the drain hose clamp properly
installed? See the Installation Instructions.
Is the sink or drain clogged?
Sink and standpipe must be able to handle 17 gallons
(64 L) of water per minute.
Is water deflecting off the tub ring or the load?
Center the tub before starting the washer.
The wash load should be balanced and not overloaded.
The fill or spray rinses can deflect off the load.
The washer must be level. The front feet should be
properly installed and the nuts tightened. Reset the rear
leveling legs (if needed). See the Installation
Instructions.
•Check household plumbing for leaks.
Washer basket is crooked
Was the washer basket pulled forward during
loading?
The wash load should be balanced and not overloaded.
Push the basket to the center before starting wash.
Is the load balanced and the washer level?
The wash load should be balanced and not overloaded.
The washer must be level. The front feet should be
properly installed and the nuts tightened. Reset the rear
leveling legs (if needed). See the Installation
Instructions.
•The washer basket moves while washing.
This is normal.
Agitator operation
•The top of the agitator is loose, or moves in only one
direction,
This is normal.
Dispensers clogged or bleach leaking
Did you follow the manufacturer's directions when
adding detergent and fabric softener to the
dispensers?
Measure detergent and fabric softener. Carefully pour
into the dispensers. Wipe up all spills.
Dilute fabric softener in the fabric softener dispenser.
Did you put powdered or color-safe bleach in the
liquid chlorine bleach dispenser?
Add powdered or liquid color-safe bleach directly to the
basket. Do not use the chlorine bleach dispenser for
color-safe bleach.
Did you use the right cycle for the load being
washed?
Select a cycle with a higher spin speed (if available).
Did you use acold rinse?
Cold rinses leave loads wetter than warm rinses. This is
normal.
Residue or lint on load
Did you sort properly?
Sort lint givers (towels, chenille) from lint takers
(corduroy, synthetics). Also sort by color.
Did you overload the machine?
The wash load must be balanced and not overloaded.
Lint can be trapped in the load if overloaded. Wash
smaller loads.
Check the following:
Was paper or tissue left in pockets?
Did you use enough detergent? Follow manufacturer's
directions. Use enough detergent to hold the lint in the
water.
Is your water colder than 70°F (21°C)? Wash water
colder than 70°F (21°C) may not completely dissolve the
detergent.
Stains on load
Did you follow the manufacturer's directions when
adding detergent and fabric softener?
Measure detergent and fabric softener. Use enough
detergent to remove soil and hold it in suspension.
Dilute fabric softener and add to rinse portion of cycle
only. Do not drip fabric softener on clothes.
Is there above average iron (rust) in water?
You may need to install an iron filter.
Did you properly sort the load?
Sort dark clothes from whites and lights.
Did you unload the washer promptly?
To avoid dye transfer, unload the washer as soon as it
stops.
12
Load is wrinkled Garment damage
Did you unload the washer promptly?
Unload the washer as soon as it stops.
Did you use the right cycle for the load being
washed?
Use the Permanent Press cycle or another cycle with
low spin speeds (if available) to reduce wrinkling.
Did you overload the machine?
The wash load must be balanced and not overloaded.
Loads should move freely during washing.
Was the wash water warm enough to relax wrinkles,
or are you using warm rinses?
If safe for the load, use warm or hot wash water. Use
cold rinse water.
Are the hot and cold water hoses reversed?
Check to be sure the hot and cold water hoses are
connected to the right faucets. See the Installation
Instructions.
•Check the following:
Were sharp items removed from pockets before
washing? Empty pockets, zip zippers, snap or hook
fasteners before washing.
Were strings and sashes tied to prevent tangling?
Were items damaged before washing? Mend rips and
broken threads in seams before washing.
•Did you overload the machine?
The wash load must be balanced and not overloaded.
Loads should move freely during washing.
•Did you properly add chlorine bleach?
Do not pour chlorine bleach directly on load. Wipe up
bleach spills. Undiluted bleach will damage fabrics.
•Did you follow the manufacturer's care label
instructions?
Load is tangled or twisted
Did you overload the machine?
The wash load must be balanced and not overloaded.
Loads should move freely during washing.
Did you wrap items around the agitator?
Drop items loosely into the washer. Do not wrap items
around the agitator.
Gray whites, dingy colors
Did you properly sort the load?
Dye transfer can occur when mixing whites and colors in
a load. Sort dark clothes from whites and lights.
Was the wash temperature too low?
Use hot or warm washes if safe for the load. Hot water
should be at least 120°F (49°C) to clean heavy or greasy
soils.
Did you use enough detergent, or do you have hard
water?
Use more detergent for washing heavy soils in cold or
hard water.
Are the hot and cold water hoses reversed?
Check to be sure the hot and cold water hoses are
connected to the right faucets. See the Installation
Instructions.
13
ASSISTANCE
OR SERVICE
Before calling for assistance or service, please check
"Troubleshooting". It may save you the cost of a service
call. If you still need help, follow the instructions below.
When calling, please know the purchase date and the
complete model and serial number of your appliance. This
information will help us to better respond to your request.
If you need replacement parts
If you need to order replacement parts, we recommend
that you only use FSP* factory specified parts. FSP parts
will fit right and work right, because they are made with the
same precision used to build every new WHIRLPOOL*
appliance.
To locate FSP replacement parts in your area:
In the U.S.A, call the Consumer Assistance Center at
1-800-253-1301, or your nearest designated service
center.
In Canada, call 1-800-807-6777, or your nearest
designated service center.
Call the Whirlpool Consumer Assistance Center
toll free: 1-800-253-1301.
Our consultants provide assistance with:
• Features and specifications on our full line of
appliances.
• Installation information.
Use and maintenance procedures.
Accessory and repair parts sales.
Specialized customer assistance (Spanish speaking,
hearing impaired, limited vision, etc.).
Referrals to local dealers, repair parts distributors, and
service companies. Whirlpool designated service
technicians are trained to fulfill the product warranty
and provide after-warranty service, anywhere in the
United States.
To locate the Whirlpool designated service company in
your area, you can also look in your telephone directory
Yellow Pages.
For further assistance
If you need further assistance, you can write to Whirlpool
with any questions or concerns at:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your
correspondence.
Call the Inglis Limited Consumer Assistance Center toll
free: 1-800-461-5681 8:30 a.m. - 6:00 p.m. (EST).
Our consultants provide assistance with:
• Features and specifications on our full line of
appliances.
•Referrals to local dealers.
For service in Canada
Call 1-800-807-6777. Inglis designated service technicians
are trained to fulfill the product warranty and provide after-
warranty service, anywhere in Canada.
For further assistance
If you need further assistance, you can write to Inglis
Limited with any questions or concerns at:
Consumer Relations Center
Inglis Limited
1901 Minnesota Court
Mississauga, Ontario L5N 3A7
Please include a daytime phone number in your
correspondence.
Gearcase assembly covered by your warranty
14
WHIRLPOOL* WASHERWARRANTY
ONE-YEAR FULL WARRANTY
For one year from the date of purchase, when this washer is operated and maintained according to instructions attached to or furnished
with the product, Whirlpool will pay for replacement parts and repair labor to correct defects in materials or workmanship. Service must
be provided by a Whirlpool designated service company.
FIVE-YEAR LIMITED WARRANTY
For five years from the date of purchase, when this washer is operated and maintained according to instructions attached to or
furnished with the product, Whirlpool will pay for replacement parts for any top and lid rust; and, any part of the gearcase assembly, if
defective in materials or workmanship.
TEN-YEAR LIMITED WARRANTY
For ten years from the date of purchase, when this washer is operated and maintained according to instructions attached to or
furnished with the product, Whirlpool will pay for replacement parts for the outer tub should it crack, or fail to contain water, if defective
in materials or workmanship.
We will not pay for:
1. Service calls to correct the installation of your washer, to instruct you how to use your washer, or to replace house fuses or correct
house wiring or plumbing.
2. Repairs when your washer is used in other than normal, single-family household use.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, or installation not in
accordance with local electrical and plumbing codes.
4. Any labor costs during the limited warranties.
5. Replacement parts or repair labor costs for units operated outside the United States and Canada.
6. Pickup and delivery. This product is designed to be repaired in the home.
7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
8. In Canada, travel or transportation expenses for customers who reside in remote areas.
WHIRLPOOL CORPORATION AND INGLIS LIMITED SHALL
NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
Some states and provinces do not allow the exclusion or
limitation of incidental or consequential damages, so this
exclusion or limitation may not apply to you. This warranty gives
you specific legal rights and you may also have other rights which
vary from state to state or province to province.
Outside the United States and Canada, a different warranty
may apply. For details, please contact your authorized
Whirlpool dealer.
If you need service, first see "Troubleshooting". Additional help
can be found by checking "Assistance or Service". In the U.S.A,
call our Consumer Assistance Center at 1-800-253-1301 from
anywhere in the U.S.A. In Canada, call Inglis Limited at
1-800-807-6777.
1/99
Keep this book and your sales slip together for future
reference. You must provide proof of purchase or installation
date for in-warranty service.
Write down the following information about your washer to better
help you obtain assistance or service if you ever need it. You will
need to know your complete model number and serial number.
You can find this information on the model and serial number
label/plate, located on your appliance as shown in "Parts and
Features".
Dealer name
Address
Phone number
Model number
Serial number
Purchase date
3950318 1/99
¢) 1999 Whirlpool, U.S.A. *Registered Trademark/Trademark of Whirlpool, U.S.A., Inglis Limited licensee in Canada Printed in U.S.A.

Navigation menu
