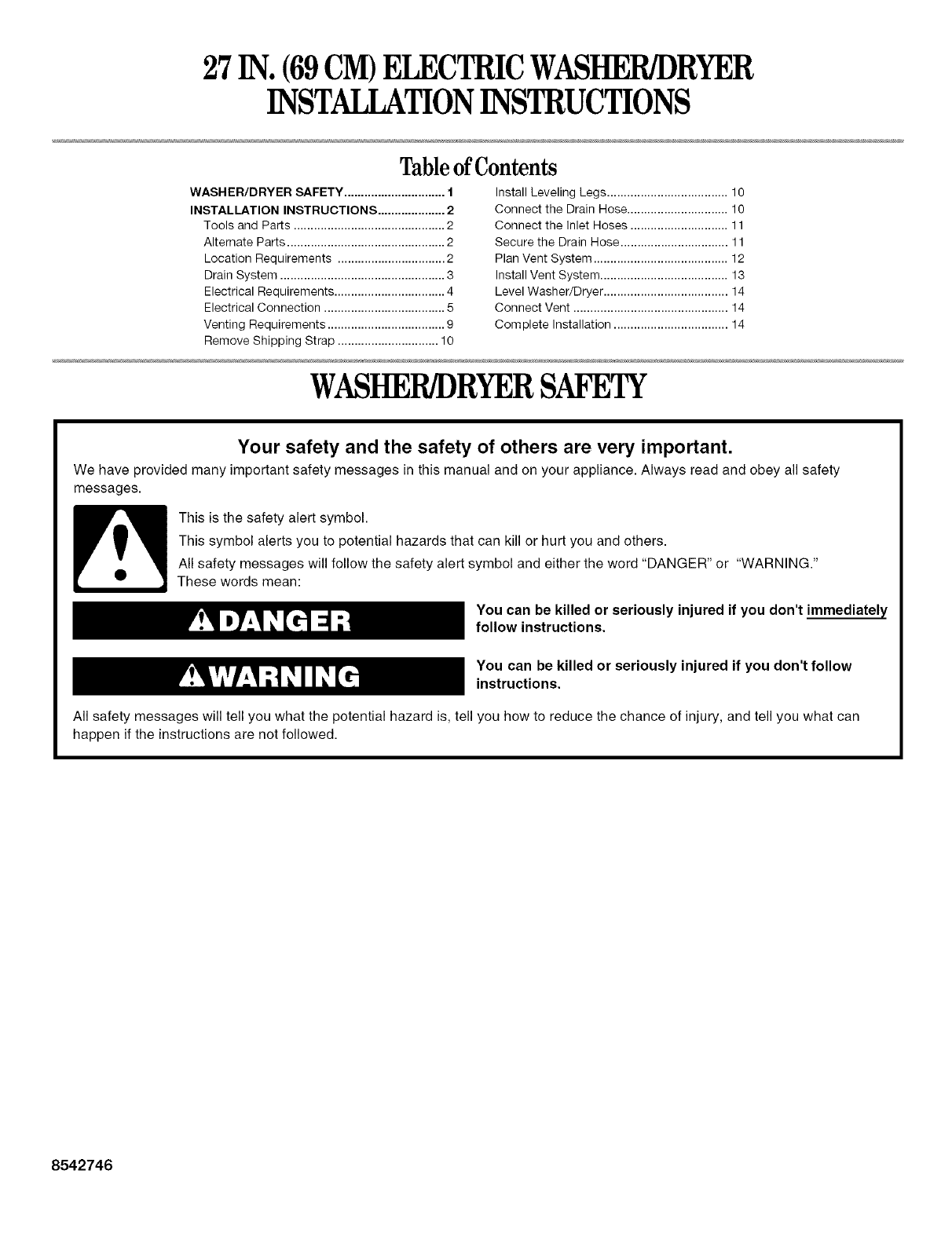

27IN. (69CM)ELECTRIC WAStlER/DRYER

INSTAILATION INSTRUCTIONS

Tableof Contents

WASHER/DRYER SAFETY .............................. 1

INSTALLATION INSTRUCTIONS .................... 2

Tools and Parts ............................................. 2

Alternate Parts ............................................... 2

Location Requirements ................................ 2

Drain System ................................................. 3

Electrical Requirements ................................. 4

Electrical Connection .................................... 5

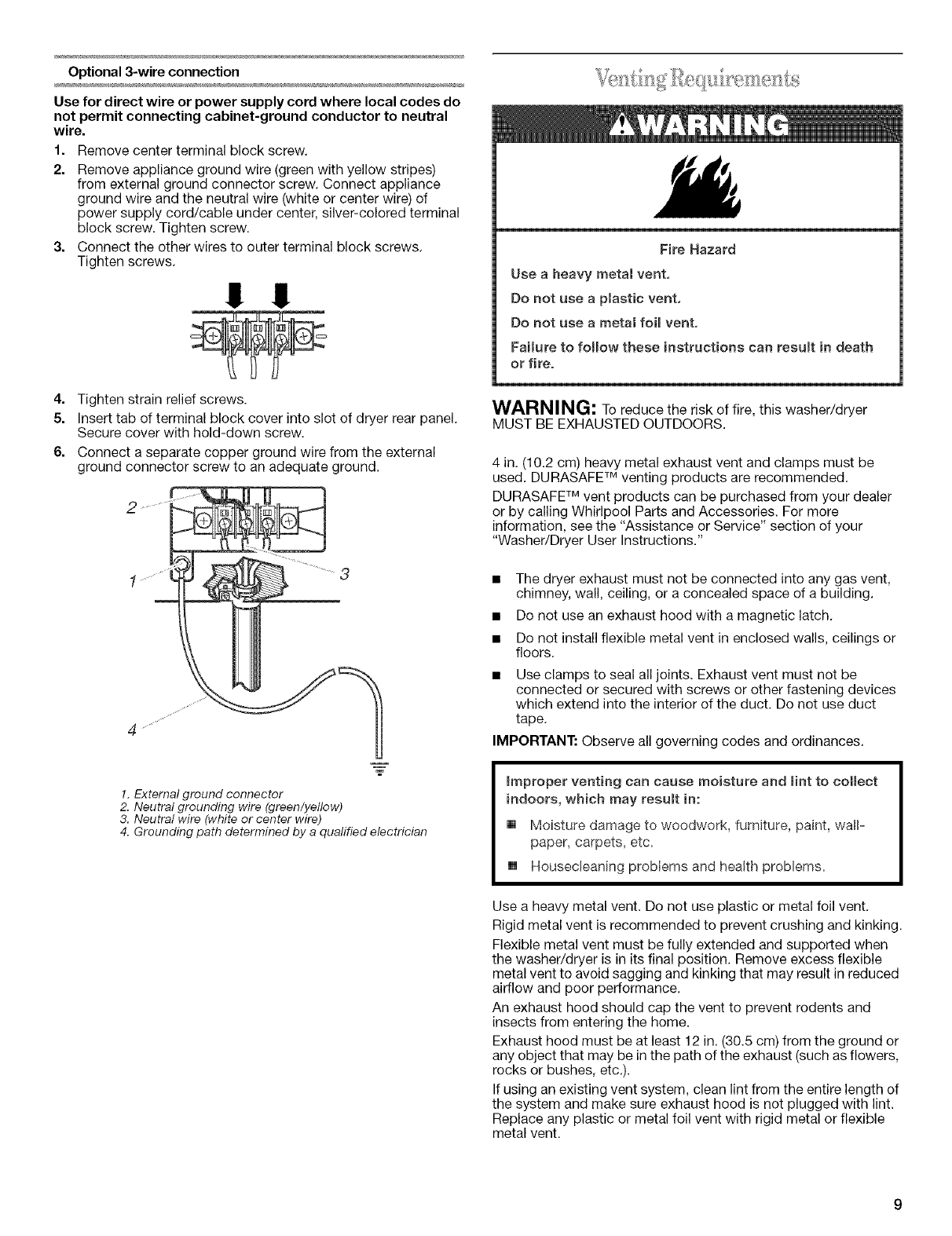

Venting Requirements ................................... 9

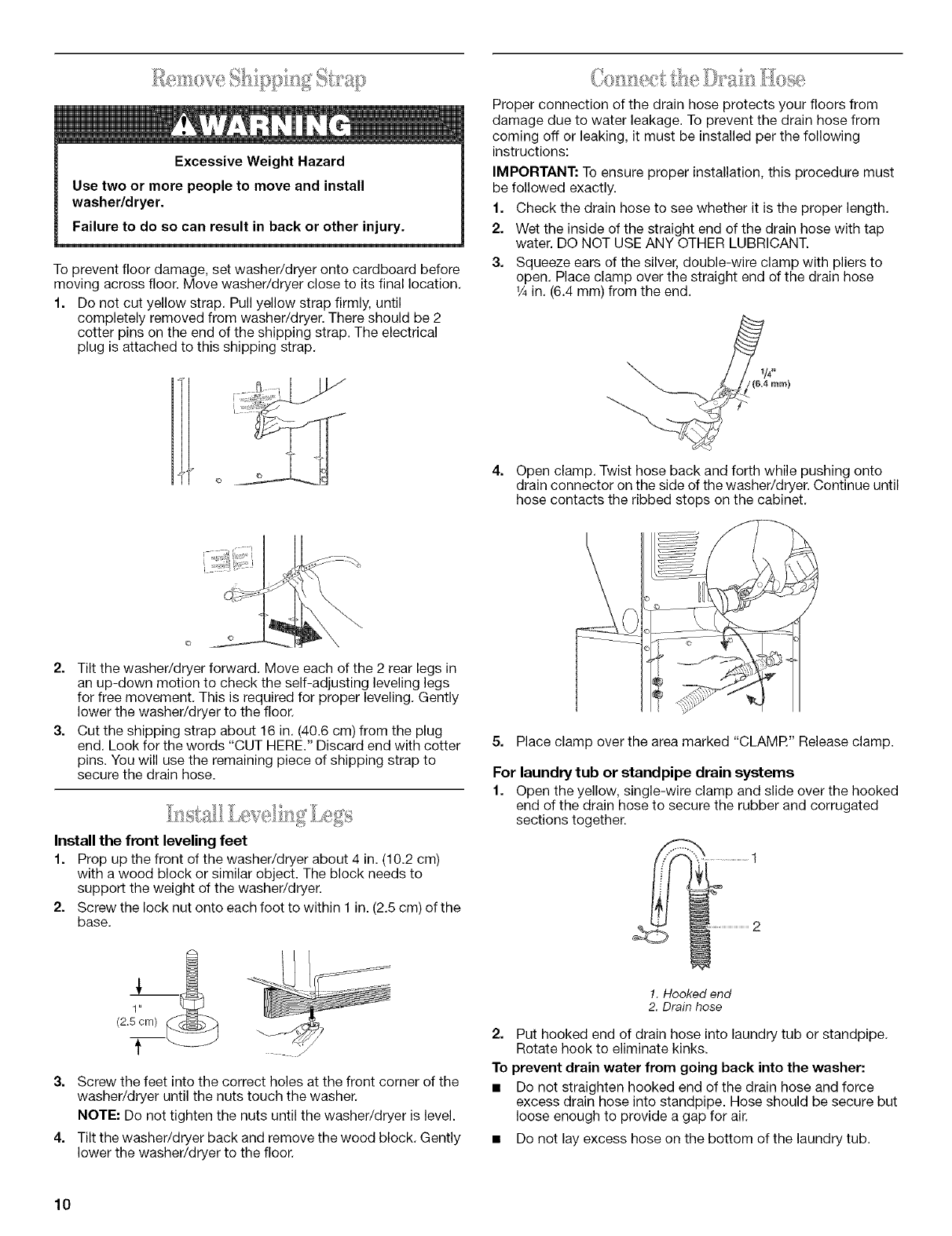

Remove Shipping Strap .............................. 10

Install Leveling Legs .................................... 10

Connect the Drain Hose .............................. 10

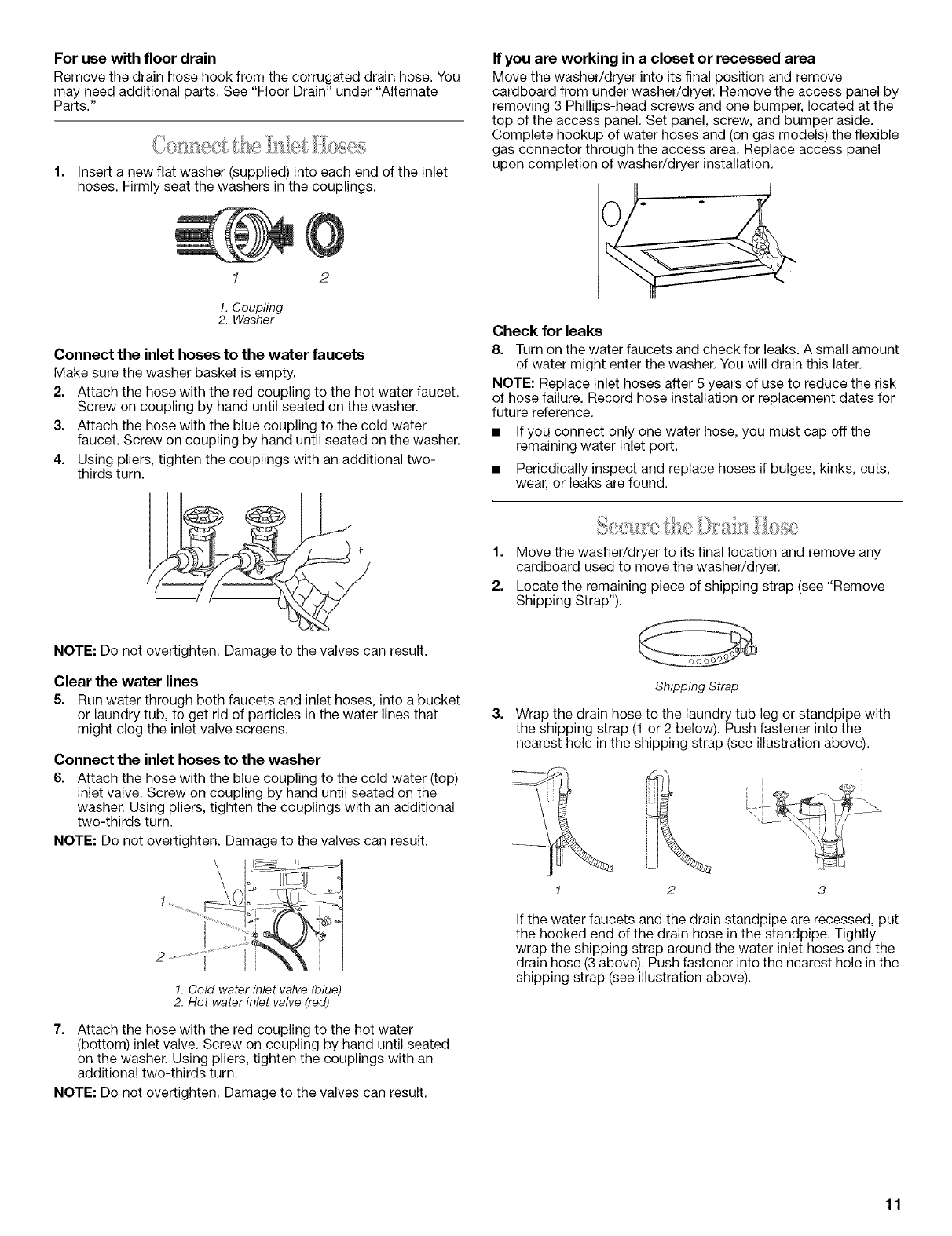

Connect the Inlet Hoses ............................. 11

Secure the Drain Hose ................................ 11

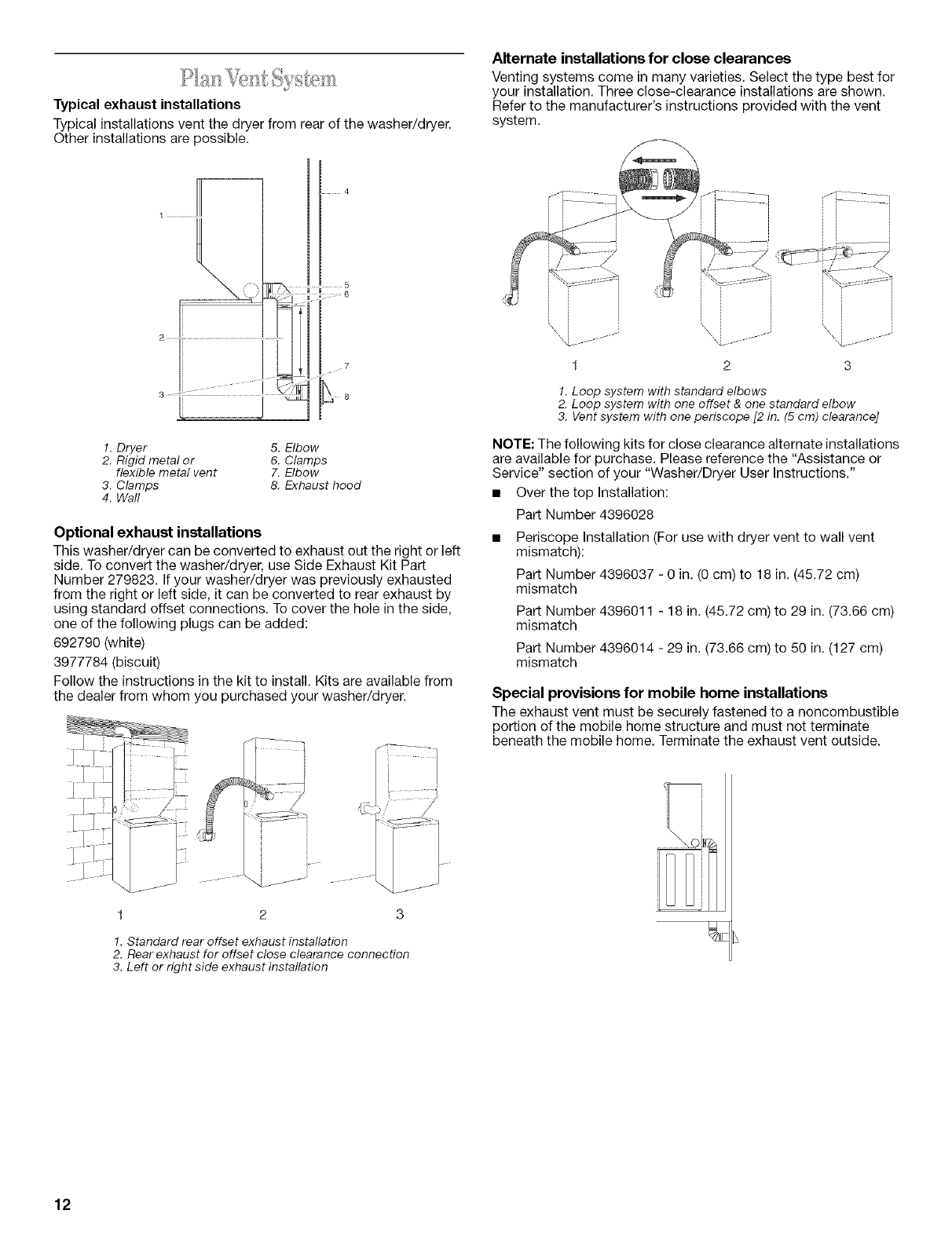

Plan Vent System ........................................ 12

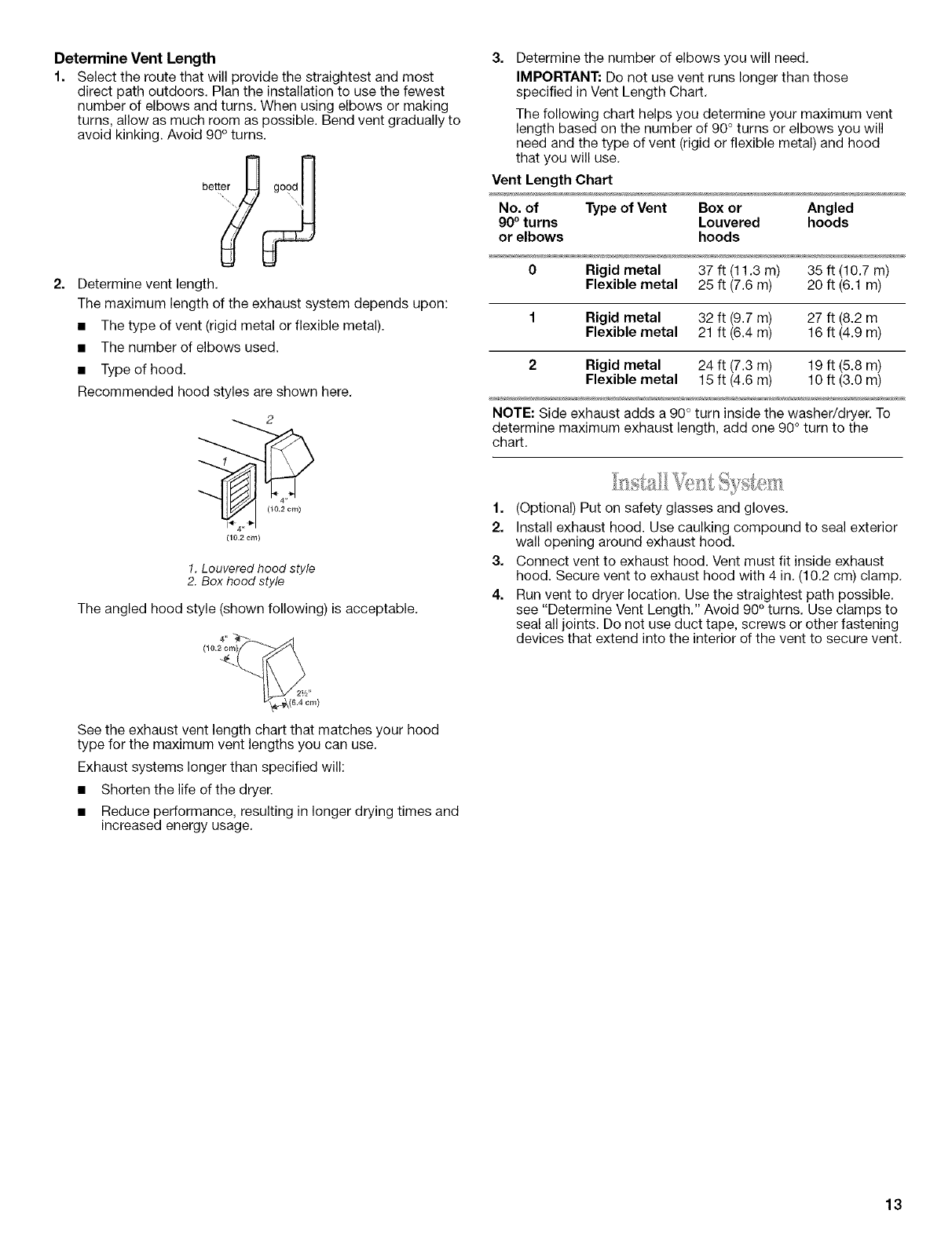

Install Vent System ...................................... 13

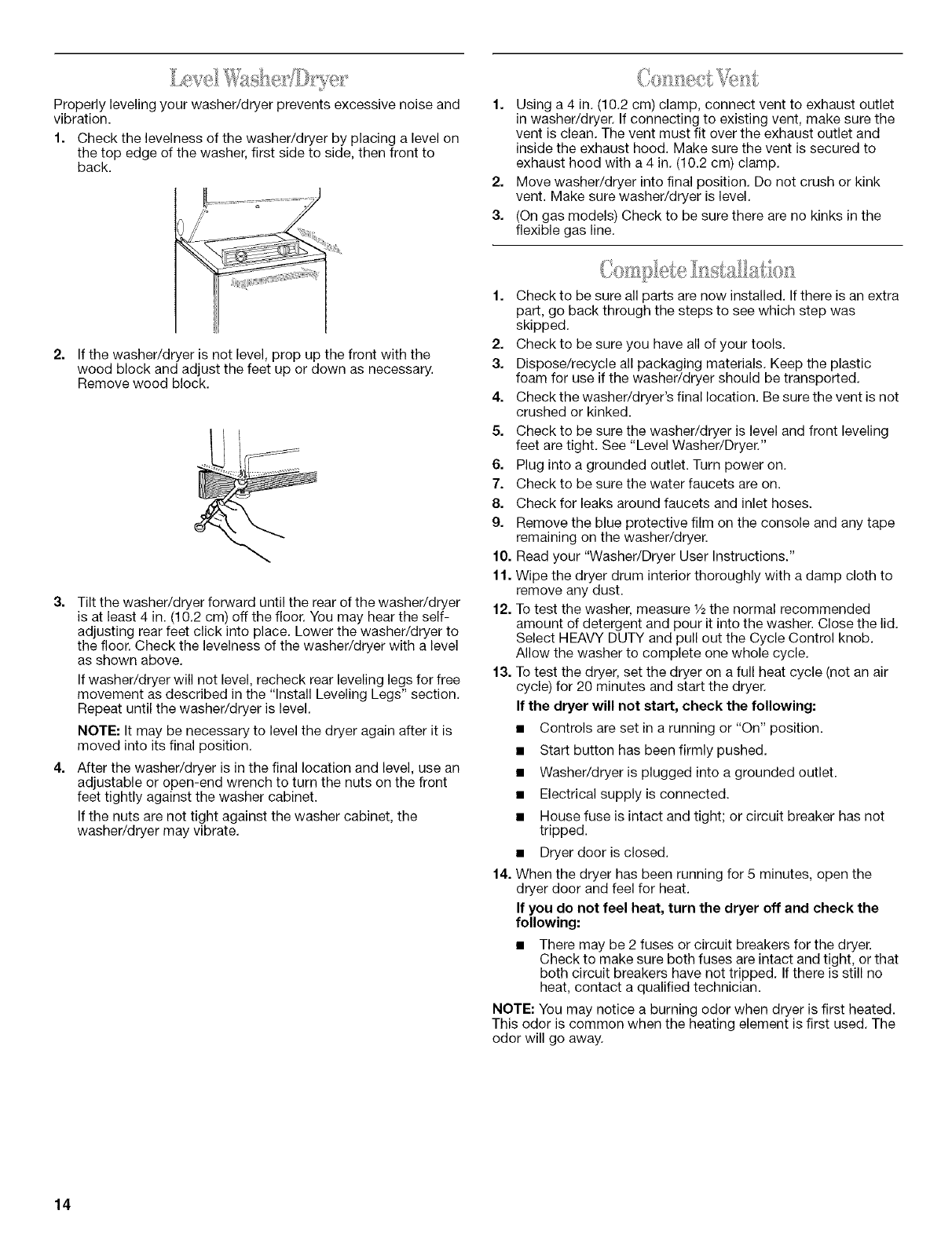

Level Washer/Dryer ..................................... 14

Connect Vent .............................................. 14

Complete Installation .................................. 14

WASHER/DRYERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

8542746

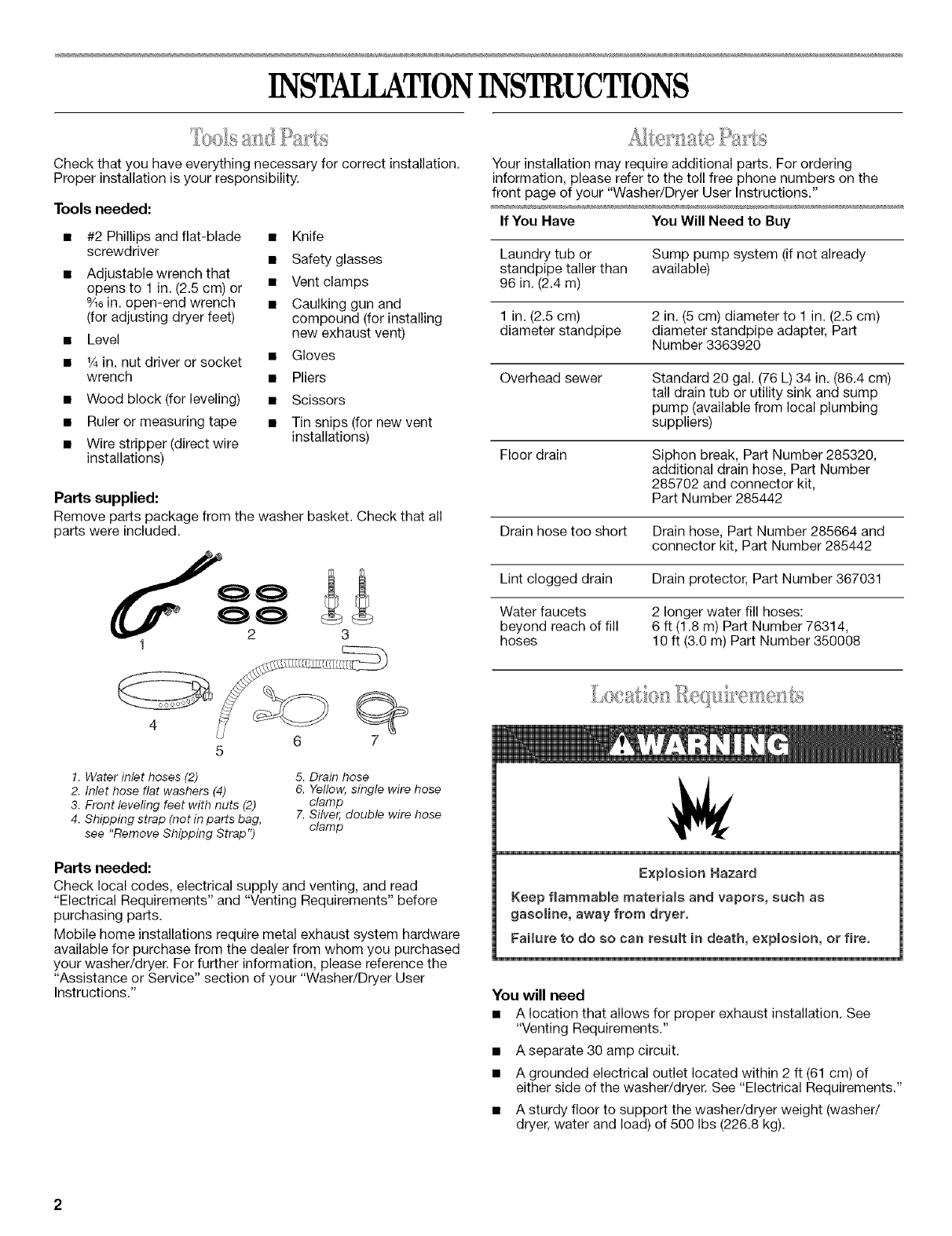

INSTAILATIONINSTRUCTIONS

Check that you have everything necessary for correct installation.

Proper installation is your responsibility.

Tools needed:

• #2 Phillips and flat-blade • Knife

screwdriver • Safety glasses

• Adjustable wrench that

opens to 1 in. (2.5 cm) or • Vent clamps

9/16in. open-end wrench • Caulking gun and

(for adjusting dryer feet) compound (for installing

• Level new exhaust vent)

• 1/4in. nut driver or socket • Gloves

wrench • Pliers

• Wood block(for leveling) • Scissors

• Ruler or measuring tape • Tin snips (for new vent

• Wire stripper (direct wire installations)

installations)

Parts supplied:

Remove parts package from the washer basket. Check that all

parts were included.

Your installation may require additional parts. For ordering

information, please refer to the toll free phone numbers on the

front page of your "Washer/Dryer User Instructions."

If You Have You Will Need to Buy

Laundry tub or Sump pump system (if not already

standpipe taller than available)

96 in. (2.4 m)

1 in. (2.5 cm) 2 in. (5 cm) diameter to 1 in. (2.5 cm)

diameter standpipe diameter standpipe adapter, Part

Number 3363920

Overhead sewer Standard 20 gal. (76 L) 34 in. (86.4 cm)

tall drain tub or utility sink and sump

pump (available from local plumbing

suppliers)

Floor drain Siphon break, Part Number 285320,

additional drain hose, Part Number

285702 and connector kit,

Part Number 285442

Drain hose too short Drain hose, Part Number 285664 and

connector kit, Part Number 285442

Lint clogged drain Drain protector, Part Number 367031

Water faucets 2 longer water fill hoses:

beyond reach of fill 6 ft (1.8 m) Part Number 76314,

hoses 10 ft (3.0 m) Part Number 350008

!. Water inlet hoses (2)

2. Inlet hose flat washers (4)

3. Front leveling feet with nuts (2)

4. Shipping strap (not in parts bag,

see "Remove Shipping Strap")

6 7

5. Drain hose

6. Yellow, single wire hose

clamp

7. Silver, double wire hose

clamp

Parts needed:

Check local codes, electrical supply and venting, and read

"Electrical Requirements" and "Venting Requirements" before

purchasing parts.

Mobile home installations require metal exhaust system hardware

available for purchase from the dealer from whom you purchased

your washer/dryer. For further information, please reference the

"Assistance or Service" section of your "Washer/Dryer User

Instructions."

Explosion Hazard

Keep flammable materiaBs and vapors, such as

gasoline, away from dryer.

Failure to do so can result in death, expmosion, or fire.

You will need

• A location that allows for proper exhaust installation. See

"Venting Requirements."

• A separate 30 amp circuit.

• A grounded electrical outlet located within 2 ft (61 cm) of

either side of the washer/dryer. See "Electrical Requirements."

• A sturdy floor to support the washer/dryer weight (washer/

dryer, water and load) of 500 Ibs (226.8 kg).

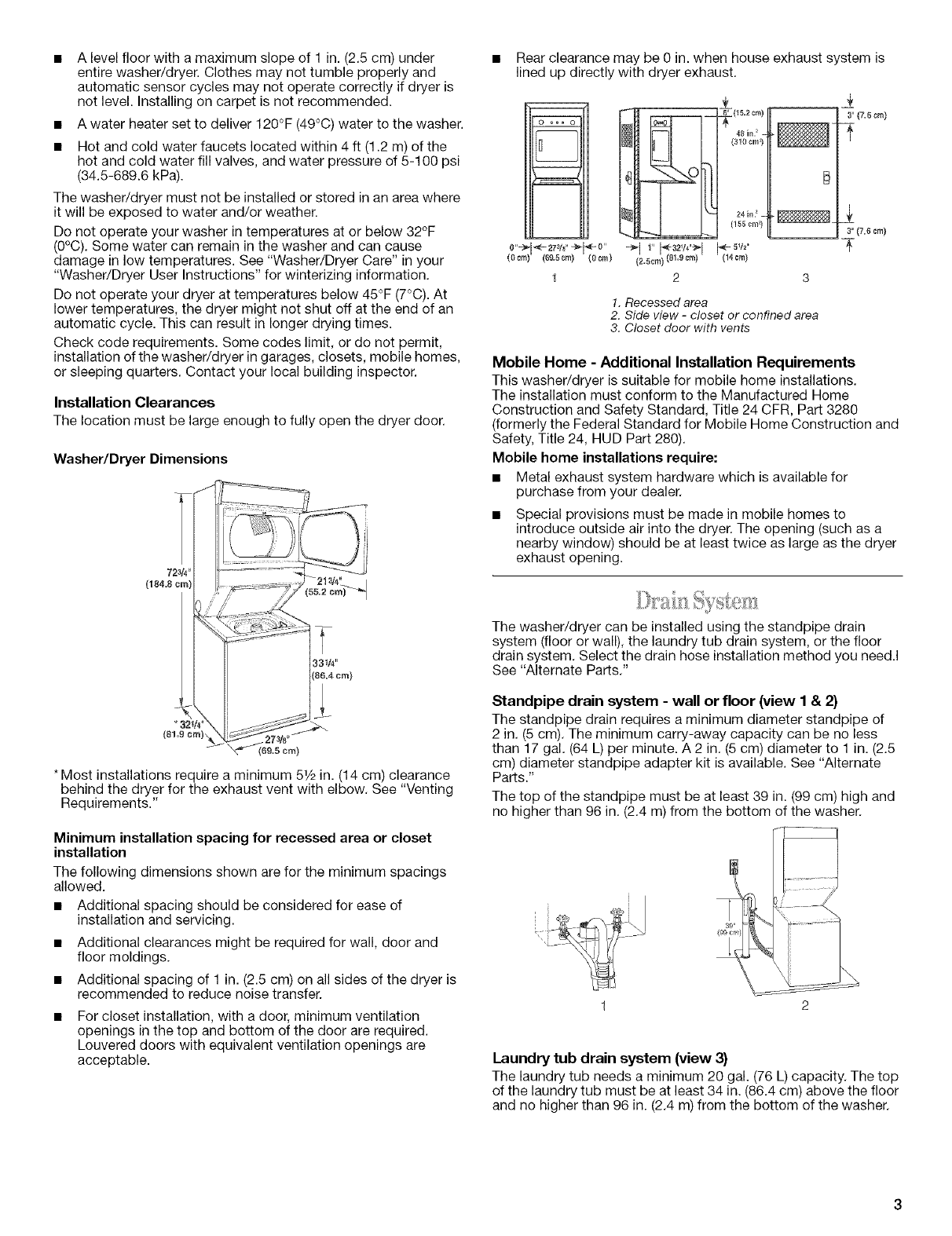

• Alevelfloorwithamaximumslopeof1in.(2.5cm)under

entirewasher/dryer.Clothesmaynottumbleproperlyand

automaticsensorcyclesmaynotoperatecorrectlyifdryeris

notlevel.Installingoncarpetisnotrecommended.

• Awaterheatersettodeliver120°F(49°C)watertothewasher.

• Hotandcoldwaterfaucetslocatedwithin4ft(1.2m)ofthe

hotandcoldwaterfillvalves,andwaterpressureof5-100psi

(34.5-689.6kPa).

Thewasher/dryermustnotbeinstalledorstoredinanareawhere

itwillbeexposedtowaterand/orweather.

Donotoperateyourwasherintemperaturesatorbelow32°F

(0°C).Somewatercanremaininthewasherandcancause

damageinlowtemperatures.See"Washer/DryerCare"inyour

"Washer/DryerUserInstructions"forwinterizinginformation.

Donotoperateyourdryerattemperaturesbelow45°F(7°C).At

lowertemperatures,thedryermightnotshutoffattheendofan

automaticcycle.Thiscanresultinlongerdryingtimes.

Checkcoderequirements.Somecodeslimit,ordonotpermit,

installationofthewasher/dryeringarages,closets,mobilehomes,

orsleepingquarters.Contactyourlocalbuildinginspector.

Installation Clearances

The location must be large enough to fully open the dryer door.

Washer/Dryer Dimensions

723/4"

(184=8cm)

Rear clearance may be 0 in. when house exhaust system is

lined up directly with dryer exhaust.

(0era 69=5em 0¢rn) (2.5cm) (81=9cm)

_(15=2era) 3" (7=6cm)

(3!0 cm _)

(155 cra) 3" (7=_¢m)

(14cm)

1. Recessed area

2. Side view -closet or confined area

3. Closet door with vents

Mobile Home -Additional Installation Requirements

This washer/dryer is suitable for mobile home installations.

The installation must conform to the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280

(formerly the Federal Standard for Mobile Home Construction and

Safety, Title 24, HUD Part 280).

Mobile home installations require:

• Metal exhaust system hardware which is available for

purchase from your dealer.

• Special provisions must be made in mobile homes to

introduce outside air into the dryer. The opening (such as a

nearby window) should be at least twice as large as the dryer

exhaust opening.

* Most installations require a minimum 51/2in. (14 cm) clearance

behind the dryer for the exhaust vent with elbow. See "Venting

Requirements."

Minimum installation spacing for recessed area or closet

installation

The following dimensions shown are for the minimum spacings

allowed.

• Additional spacing should be considered for ease of

installation and servicing.

• Additional clearances might be required for wall, door and

floor moldings.

• Additional spacing of 1 in. (2.5 cm) on all sides of the dryer is

recommended to reduce noise transfer.

For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings are

acceptable.

The washer/dryer can be installed using the standpipe drain

system (floor or wall), the laundry tub drain system, or the floor

drain system. Select the drain hose installation method you need.I

See "Alternate Parts."

Standpipe drain system - wall or floor (view I & 2)

The standpipe drain requires a minimum diameter standpipe of

2 in. (5 cm). The minimum carry-away capacity can be no less

than 17 gal. (64 L) per minute. A 2 in. (5 cm) diameter to 1 in. (2.5

cm) diameter standpipe adapter kit is available. See "Alternate

Parts."

The top of the standpipe must be at least 39 in. (99 cm) high and

no higher than 96 in. (2.4 m) from the bottom of the washer.

Laundry tub drain system (view 3}

The laundry tub needs a minimum 20 gal. (76 L) capacity. The top

of the laundry tub must be at least 34 in. (86.4 cm) above the floor

and no higher than 96 in. (2.4 m) from the bottom of the washer.

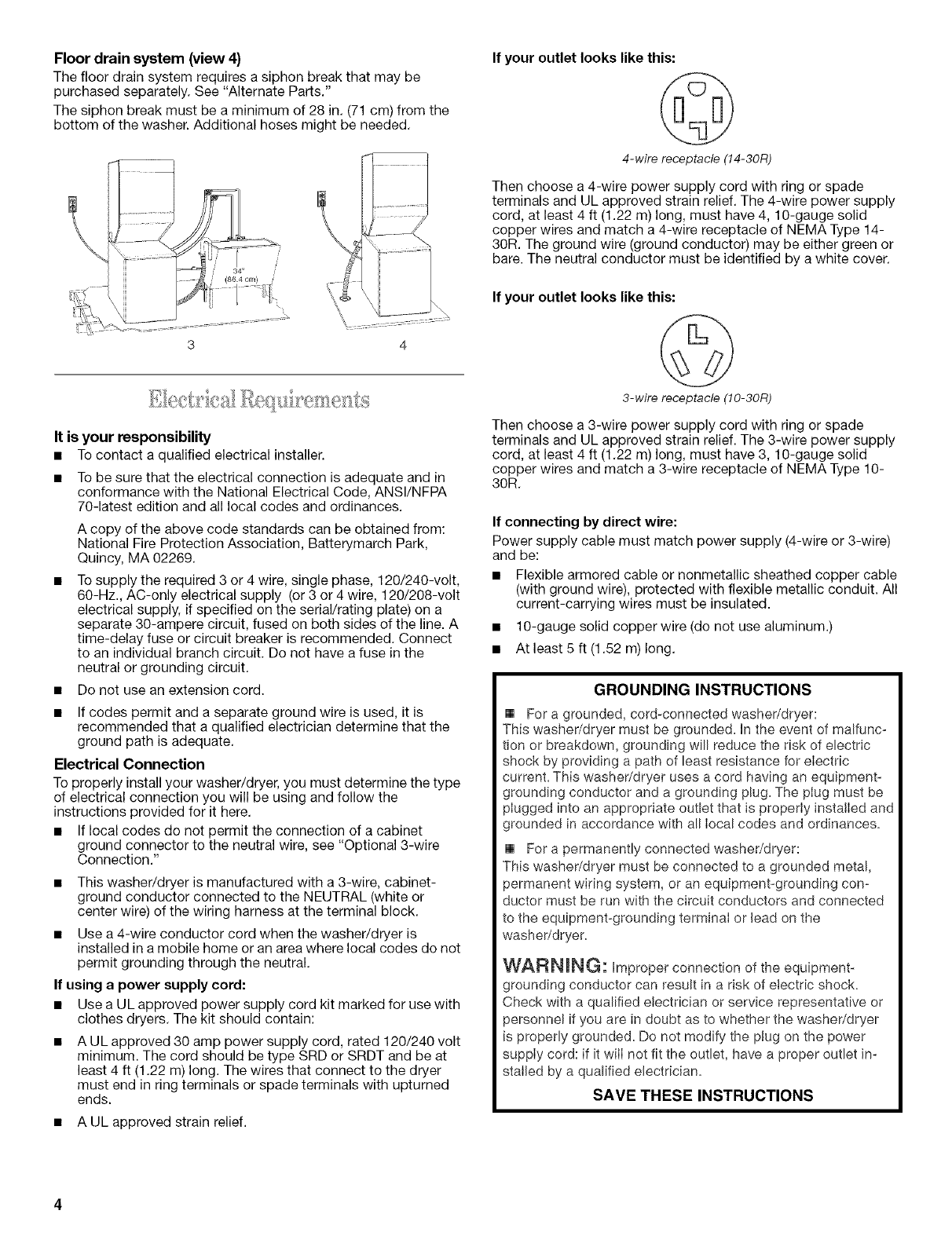

Floor drain system (view 4)

The floor drain system requires a siphon break that may be

purchased separately. See "Alternate Parts."

The siphon break must be a minimum of 28 in. (71 cm) from the

bottom of the washer. Additional hoses might be needed.

It is your responsibility

• To contact a qualified electrical installer.

• To be sure that the electrical connection is adequate and in

conformance with the National Electrical Code, ANSI/NFPA

70-latest edition and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association, Batterymarch Park,

Quincy, MA 02269.

• To supply the required 3 or 4 wire, single phase, 120/240-volt,

60-Hz., AC-only electrical supply (or 3 or 4 wire, 120/208-volt

electrical supply, if specified on the serial/rating plate) on a

separate 30-ampere circuit, fused on both sides of the line. A

time-delay fuse or circuit breaker is recommended. Connect

to an individual branch circuit. Do not have a fuse in the

neutral or grounding circuit.

• Do not use an extension cord.

•If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the

ground path is adequate.

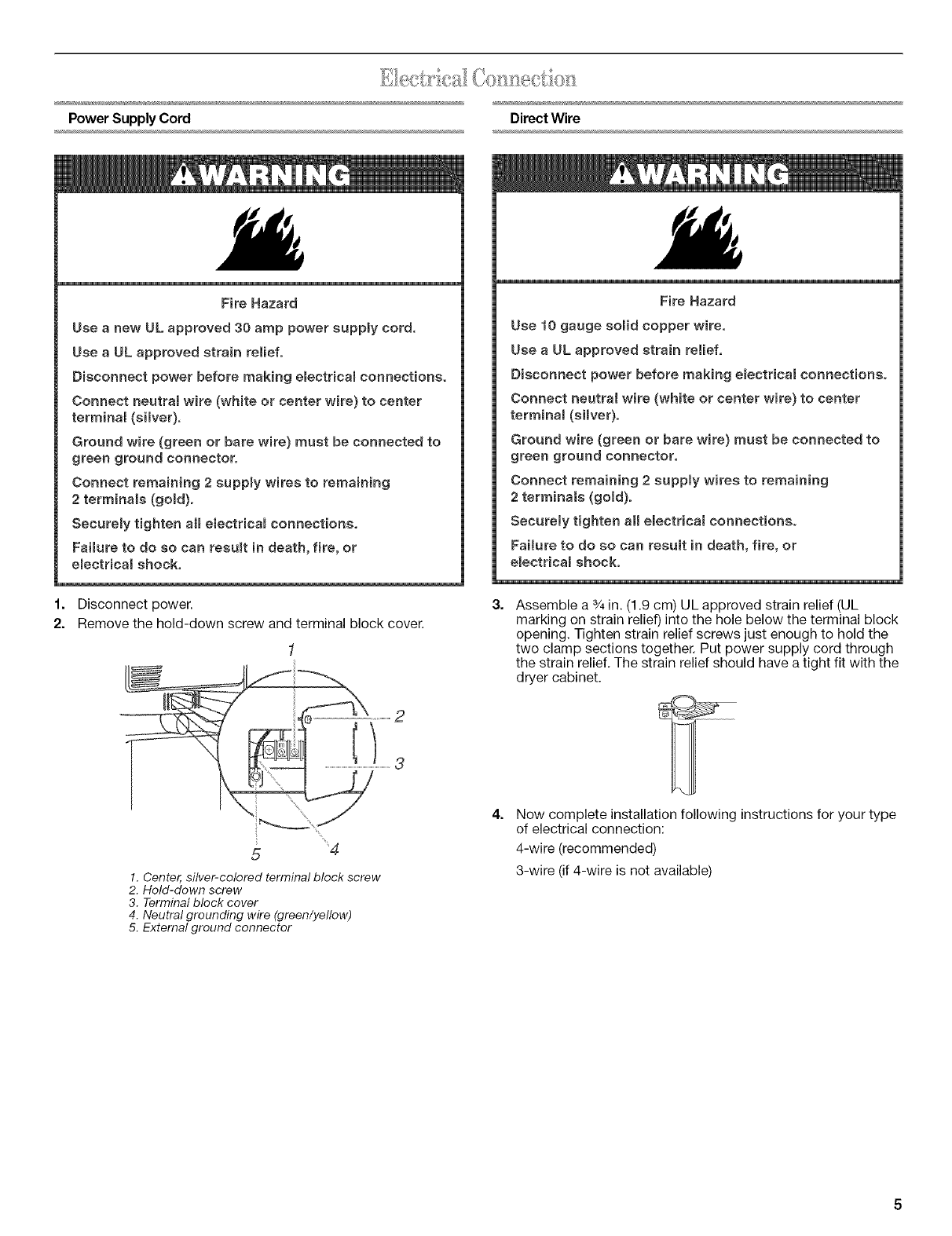

Electrical Connection

To properly install your washer/dryer, you must determine the type

of electrical connection you will be using and follow the

instructions provided for it here.

• If local codes do not permit the connection of a cabinet

ground connector to the neutral wire, see "Optional 3-wire

Connection."

• This washer/dryer is manufactured with a 3-wire, cabinet-

ground conductor connected to the NEUTRAL (white or

center wire) of the wiring harness at the terminal block.

• Use a 4-wire conductor cord when the washer/dryer is

installed in a mobile home or an area where local codes do not

permit grounding through the neutral.

If using a power supply cord:

• Use a UL approved power supply cord kit marked for use with

clothes dryers. The kit should contain:

• A UL approved 30 amp power supply cord, rated 120/240 volt

minimum. The cord should be type SRD or SRDT and be at

least 4 ft (1.22 m) long. The wires that connect to the dryer

must end in ring terminals or spade terminals with upturned

ends.

• A UL approved strain relief.

If your outlet looks like this:

4-wire receptacle (14-30R)

Then choose a 4-wire power supply cord with ring or spade

terminals and UL approved strain relief. The 4-wire power supply

cord, at least 4 ft (1.22 m) long, must have 4, 10-gauge solid

copper wires and match a 4-wire receptacle of NEMA Type 14-

30R. The ground wire (ground conductor) may be either green or

bare. The neutral conductor must be identified by a white cover.

If your outlet looks like this:

3-wire receptacle (10-30R)

Then choose a 3-wire power supply cord with ring or spade

terminals and UL approved strain relief. The 3-wire power supply

cord, at least 4 ft (1.22 m) long, must have 3, 10-gauge solid

copper wires and match a 3-wire receptacle of NEMA Type 10-

30R.

If connecting by direct wire:

Power supply cable must match power supply (4-wire or 3-wire)

and be:

• Flexible armored cable or nonmetallic sheathed copper cable

(with ground wire), protected with flexible metallic conduit. All

current-carrying wires must be insulated.

• 10-gauge solid copper wire (do not use aluminum.)

• At least 5 ft (1.52 m) long.

GROUNDING INSTRUCTIONS

[] For a grounded, cord-connected washer/dryer:

This washer/dryer must be grounded. Hnthe event of malfunc-

tion or breakdown, grounding will reduce the risk of electric

shock by providing a path of least resistance for electric

current. This washer/dryer uses a cord having an equipment-

grounding conductor and a grounding plug. The plug must be

plugged into an appropriate outlet that is properly installed and

grounded in accordance with all local codes and ordinances.

[] For a permanently connected washer/dryer:

This washer/dryer must be connected to a grounded metal,

permanent wiring system, or an equipment-grounding con-

ductor must be run with the circuit conductors and connected

to the equipment_grounding terminal or lead on the

washer/dryer.

WARNING: Hmproper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative or

personnel if you are in doubt as to whether the washer/dryer

is properly grounded. Do not modify the plug on the power

supply cord: if it wiiI not fit the outlet, have a proper outlet in-

stalled by a qualified electrician.

SAVE THESE INSTRUCTIONS

PowerSupplyCord DirectWire

Fire Hazard

Use a new UL approved 30 amp power supply cord,

Use a UL approved strain retief.

Disconnect power before making emectrical connections.

Connect neutram wire (white or center wire) to center

terminal (silver),

Ground wire (green or bare wire) must be connected to

green ground connector.

Connect remaining 2 suppmy wires to remaining

2 terminals (gored).

Securemy tighten aimeJectrical connections,

Failure to do so can resumt in death, fire, or

emectrical shock,

1. Disconnect power.

2. Remove the hold-down screw and terminal block cover.

1. Center,silver-colored terminal block screw

2. Hold-down screw

3. Terminalblock cover

4. Neutralgrounding wire(green/yellow)

5. Externalground connector

Fire Hazard

Use t0 gauge somid copper wire,

Use aUL approved strain retief,

Disconnect power before making emectricamconnections.

Connect neutral wire (white or center wire) to center

terminal (simver).

Ground wire (green or bare wire) must be connected to

green ground connector,

Connect remaining 2 suppmy wires to remaining

2terminals (gold).

Securely tighten aimemectrica{ connections.

Failure to do so can result in death, fire, or

electrica_ shock.

3. Assemble a 3/,in. (1.9 cm) UL approved strain relief (UL

marking on strain relief) into the hole below the terminal block

opening. Tighten strain relief screws just enough to hold the

two clamp sections together. Put power supply cord through

the strain relief, The strain relief should have a tight fit with the

dryer cabinet.

Now complete installation following instructions for your type

of electrical connection:

4-wire (recommended)

3-wire (if 4-wire is not available)

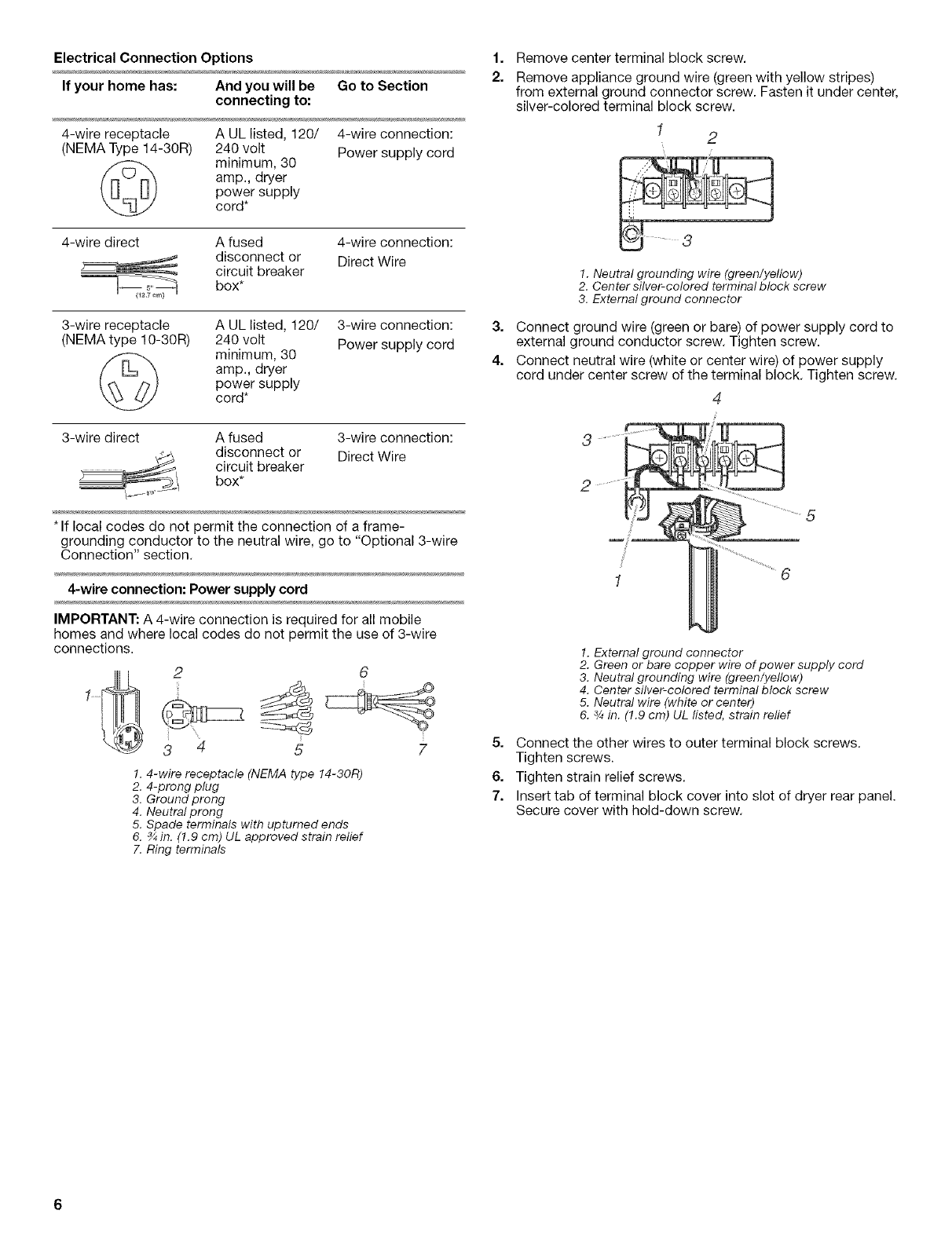

Electrical Connection Options

If your home has: And you will be Go to Section

connecting to:

4-wire receptacle A UL listed, 120/ 4-wire connection:

(NEMA Type 14-30R) 240 volt Power supply cord

minimum, 30

amp., dryer

power supply

cord*

4-wire direct A fused 4-wire connection:

disconnect or Direct Wire

circuit breaker

box*

3-wire receptacle A UL listed, 120/

(NEMA type 10-30R) 240 volt

minimum, 30

amp., dryer

power supply

cord*

3-wire connection:

Power supply cord

3-wire direct 3-wire connection:

Direct Wire

A fused

disconnect or

circuit breaker

box*

* If local codes do not permit the connection of a frame-

grounding conductor to the neutral wire, go to "Optional 3-wire

Connection" section.

4-wire connection: Power supply cord

IMPORTANT: A 4-wire connection is required for all mobile

homes and where local codes do not permit the use of 3-wire

connections.

3 4

5 7

1.4-wire receptacle (NEMA type !4-30R)

2. 4-prong plug

3. Ground prong

4. Neutral prong

5. Spade terminals with upturned ends

6. ¾in. (1.9 cm) UL approved strain relief

7. Ring terminals

1. Remove center terminal block screw.

2. Remove appliance ground wire (green with yellow stripes)

from external ground connector screw. Fasten it under center,

silver-colored terminal block screw.

1 2

1. Neutral grounding wire (green/yellow)

2. Center silver-colored terminal block screw

3. External ground connector

Connect ground wire (green or bare) of power supply cord to

external ground conductor screw. Tighten screw.

Connect neutral wire (white or center wire) of power supply

cord under center screw of the terminal block. Tighten screw.

1. External ground connector

2. Green or bare copper wire of power supply cord

3. Neutral grounding wire (green/yellow)

4. Center silver-colored terminal block screw

5. Neutral wire (white or center)

6. 3/4in. (1.9 cm) UL listed, strain relief

5. Connect the other wires to outer terminal block screws.

Tighten screws.

6. Tighten strain relief screws.

7. Insert tab of terminal block cover into slot of dryer rear panel.

Secure cover with hold-down screw.

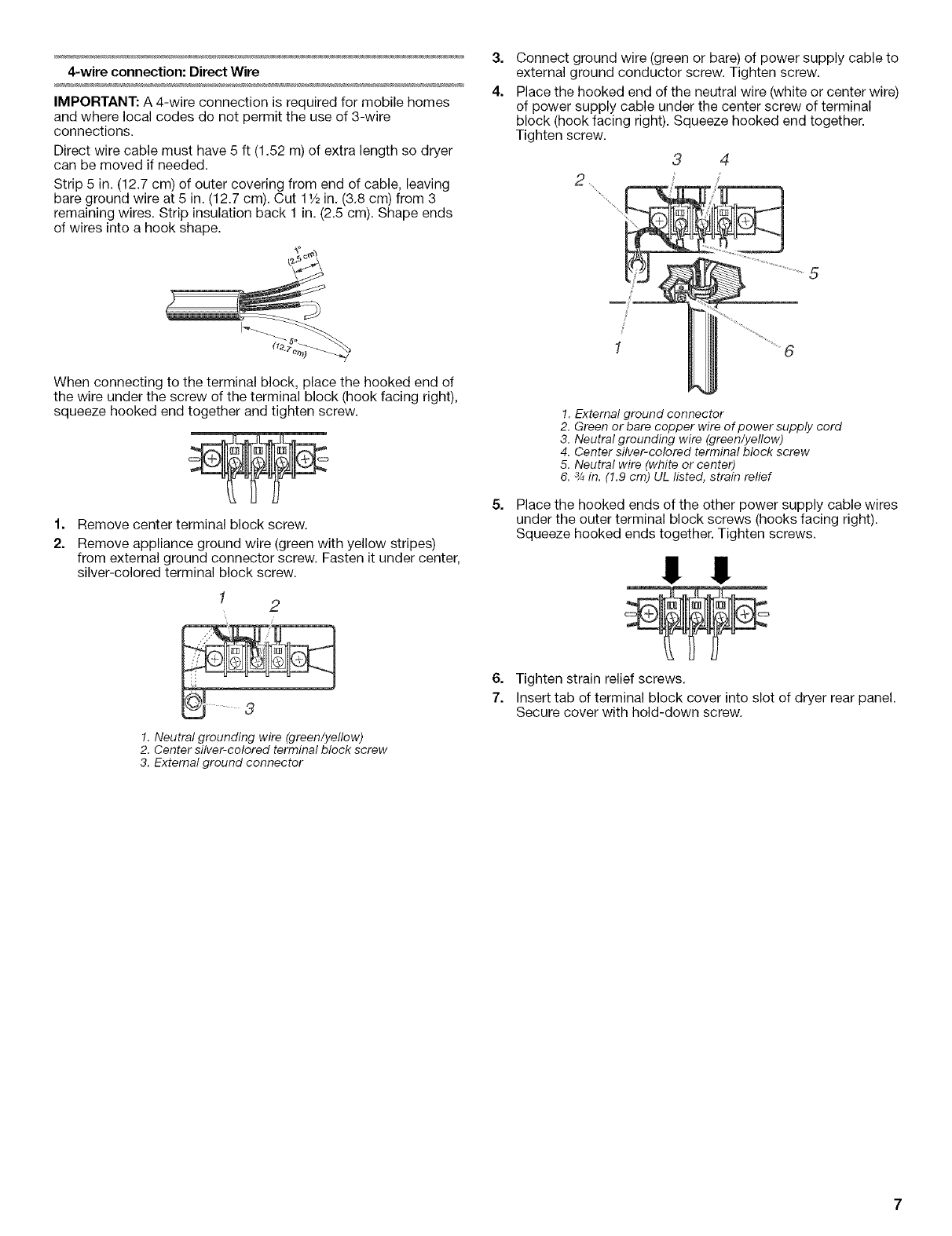

4-wire connection: Direct Wire

IMPORTANT: A 4-wire connection is required for mobile homes

and where local codes do not permit the use of 3-wire

connections.

Direct wire cable must have 5 ft (1.52 m) of extra length so dryer

can be moved if needed.

Strip 5 in. (12.7 cm) of outer covering from end of cable, leaving

bare ground wire at 5 in. (12.7 cm). Cut 11/2in. (3.8 cm) from 3

remaining wires. Strip insulation back 1 in. (2.5 cm). Shape ends

of wires into a hook shape.

When connecting to the terminal block, place the hooked end of

the wire under the screw of the terminal block (hook facing right),

squeeze hooked end together and tighten screw.

1. Remove center terminal block screw.

2. Remove appliance ground wire (green with yellow stripes)

from external ground connector screw. Fasten it under center,

silver-colored terminal block screw.

t 2

Connect ground wire (green or bare) of power supply cable to

external ground conductor screw. Tighten screw.

Place the hooked end of the neutral wire (white or center wire)

of power supply cable under the center screw of terminal

block (hook facing right), Squeeze hooked end together.

Tighten screw.

!. External ground connector

2. Green or bare copper wire of power supply cord

3. Neutral grounding wire (green/yellow)

4. Center sliver-colored terminal block screw

5. Neutral wire (white or center)

6. 3/4in. (1.9 cm) UL listed, strain relief

Place the hooked ends of the other power supply cable wires

under the outer terminal block screws (hooks facing right).

Squeeze hooked ends together. Tighten screws.

!! !!

1. Neutral grounding wire (green/yellow)

2. Center silver-colored terminal block screw

3. External ground connector

6. Tighten strain relief screws.

7. Insert tab of terminal block cover into slot of dryer rear panel.

Secure cover with hold-down screw,

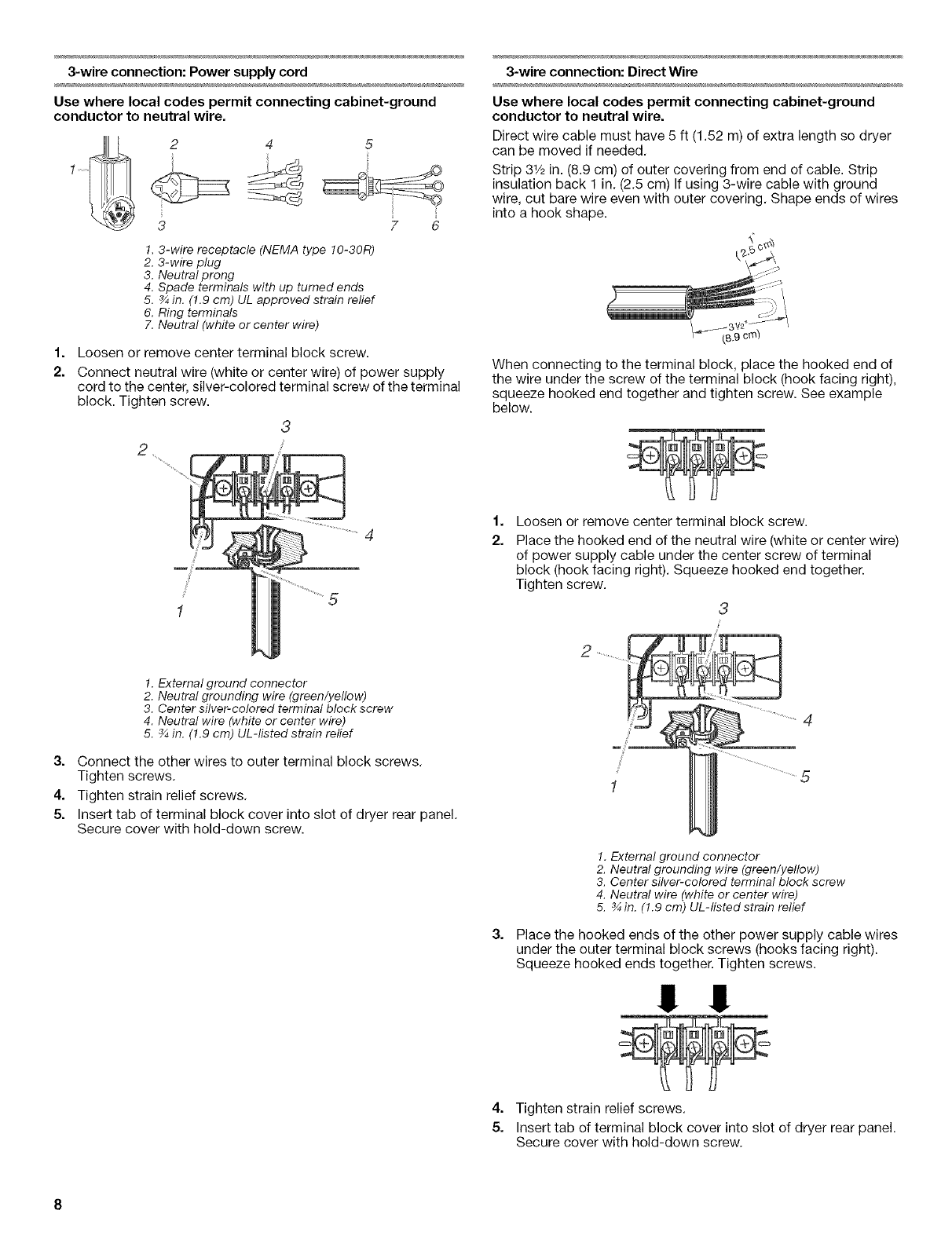

3-wire connection: Power supply cord

Use where local codes permit connecting cabinet-ground

conductor to neutral wire.

1. 3-wire receptacle (NEMA type 10-30R)

2. 3-wire plug

3. Neutral prong

4. Spade terminals with up turned ends

5. ¾in. (1.9 cm) UL approved strain relief

6. Ring terminals

7. Neutral (white or center wire)

Loosen or remove center terminal block screw.

Connect neutral wire (white or center wire) of power supply

cord to the center, silver-colored terminal screw of the terminal

block. Tighten screw.

3-wire connection: Direct Wire

Use where local codes permit connecting cabinet-ground

conductor to neutral wire.

Direct wire cable must have 5 ft (1.52 m) of extra length so dryer

can be moved if needed.

Strip 31/2in. (8.9 cm) of outer covering from end of cable. Strip

insulation back 1 in. (2.5 cm) If using 3-wire cable with ground

wire, cut bare wire even with outer covering. Shape ends of wires

into a hook shape.

When connecting to the terminal block, place the hooked end of

the wire under the screw of the terminal block (hook facing right),

squeeze hooked end together and tighten screw. See example

below.

Loosen or remove center terminal block screw.

Place the hooked end of the neutral wire (white or center wire)

of power supply cable under the center screw of terminal

block (hook facing right). Squeeze hooked end together.

Tighten screw.

1. External ground connector

2. Neutral grounding wire (green/yellow)

3. Center silver-colored terminal block screw

4. Neutral wire (white or center wire)

5. ¾in. (1.9 cm) UL-listed strain relief

3. Connect the other wires to outer terminal block screws.

Tighten screws.

4. Tighten strain relief screws.

5. Insert tab of terminal block cover into slot of dryer rear panel.

Secure cover with hold-down screw.

1. External ground connector

2. Neutral grounding wire (green/yellow)

3. Center silver-colored terminal block screw

4. Neutral wire (white or center wire)

5. ¾in. (1.9 cm) UL-listed strain relief

Place the hooked ends of the other power supply cable wires

under the outer terminal block screws (hooks facing right).

Squeeze hooked ends together. Tighten screws.

!! !!

4. Tighten strain relief screws.

5. Insert tab of terminal block cover into slot of dryer rear panel.

Secure cover with hold-down screw.

Optional 3-wire connection

Use for direct wire or power supply cord where local codes do

not permit connecting cabinet-ground conductor to neutral

wire.

1. Remove center terminal block screw,

2. Remove appliance ground wire (green with yellow stripes)

from external ground connector screw, Connect appliance

ground wire and the neutral wire (white or center wire) of

power supply cord/cable under center, silver-colored terminal

block screw. Tighten screw.

3. Connect the other wires to outer terminal block screws,

Tighten screws,

4. Tighten strain relief screws.

5. Insert tab of terminal block cover into slot of dryer rear panel.

Secure cover with hold-down screw.

6. Connect a separate copper ground wire from the external

ground connector screw to an adequate ground.

1. External ground connector

2. Neutral grounding wire (green/yellow)

3. Neutral wire (white or center wire)

4. Grounding path determined by a qualified electrician

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use a metal foil vent.

Failure to follow these instructions can resumt in death

or fire.

WARNING: To reduce the risk of fire, this washer/dryer

MUST BE EXHAUSTED OUTDOORS.

4 in. (10.2 cm) heavy metal exhaust vent and clamps must be

used. DURASAFE TM venting products are recommended.

DURASAFE TM vent products can be purchased from your dealer

or by calling Whirlpool Parts and Accessories. For more

information, see the "Assistance or Service" section of your

"Washer/Dryer User Instructions."

• The dryer exhaust must not be connected into any gas vent,

chimney, wall, ceiling, or a concealed space of a building.

• Do not use an exhaust hood with a magnetic latch.

• Do not install flexible metal vent in enclosed walls, ceilings or

floors.

• Use clamps to seal all joints. Exhaust vent must not be

connected or secured with screws or other fastening devices

which extend into the interior of the duct. Do not use duct

tape.

IMPORTANT: Observe all governing codes and ordinances,

_mproper venting can cause moisture and mintto co,meet

indoors, which may resumt in:

[] Moisture damage to woodwork, furniture, paint, waif

paper, carpets, etc=

[] Housecleaning problems and health problems.

Use a heavy metal vent. Do not use plastic or metal foil vent.

Rigid metal vent is recommended to prevent crushing and kinking.

Flexible metal vent must be fully extended and supported when

the washer/dryer is in its final position. Remove excess flexible

metal vent to avoid sagging and kinking that may result in reduced

airflow and poor performance.

An exhaust hood should cap the vent to prevent rodents and

insects from entering the home.

Exhaust hood must be at least 12 in. (30.5 cm) from the ground or

any object that may be in the path of the exhaust (such as flowers,

rocks or bushes, etc.).

If using an existing vent system, clean lint from the entire length of

the system and make sure exhaust hood is not plugged with lint.

Replace any plastic or metal foil vent with rigid metal or flexible

metal vent.

Excessive Weight Hazard

Use two or more people to move and install

washer/dryer.

Failure to do so can result in back or other injury.

To prevent floor damage, set washer/dryer onto cardboard before

moving across floor. Move washer/dryer close to its final location.

1. Do not cut yellow strap. Pull yellow strap firmly, until

completely removed from washer/dryer. There should be 2

cotter pins on the end of the shipping strap. The electrical

plug is attached to this shipping strap.

Proper connection of the drain hose protects your floors from

damage due to water leakage. To prevent the drain hose from

coming off or leaking, it must be installed per the following

instructions:

IMPORTANT: To ensure proper installation, this procedure must

be followed exactly.

1. Check the drain hose to see whether it is the proper length.

2. Wet the inside of the straight end of the drain hose with tap

water. DO NOT USE ANY OTHER LUBRICANT.

3. Squeeze ears of the silver, double-wire clamp with pliers to

open. Place clamp over the straight end of the drain hose

1Ain. (6.4 mm) from the end.

4. Open clamp. Twist hose back and forth while pushing onto

drain connector on the side of the washer/dryer. Continue until

hose contacts the ribbed stops on the cabinet.

2. Tilt the washer/dryer forward. Move each of the 2 rear legs in

an up-down motion to check the self-adjusting leveling legs

for free movement. This is required for proper leveling. Gently

lower the washer/dryer to the floor.

3. Cut the shipping strap about 16 in. (40.6 cm) from the plug

end. Look for the words "CUT HERE." Discard end with cotter

pins. You will use the remaining piece of shipping strap to

secure the drain hose.

Install the front leveling feet

1. Prop up the front of the washer/dryer about 4 in. (10.2 cm)

with a wood block or similar object. The block needs to

support the weight of the washer/dryer.

2. Screw the lock nut onto each foot to within I in. (2.5 cm) of the

base.

5. Place clamp over the area marked "CLAMR" Release clamp.

For laundry tub or standpipe drain systems

1. Open the yellow, single-wire clamp and slide over the hooked

end of the drain hose to secure the rubber and corrugated

sections together.

1 "

(2.5crn)

3. Screw the feet into the correct holes at the front corner of the

washer/dryer until the nuts touch the washer.

NOTE: Do not tighten the nuts until the washer/dryer is level.

4. Tilt the washer/dryer back and remove the wood block, Gently

lower the washer/dryer to the floor.

!. Hooked end

2. Drain hose

2. Put hooked end of drain hose into laundry tub or standpipe.

Rotate hook to eliminate kinks.

To prevent drain water from going back into the washer:

• Do not straighten hooked end of the drain hose and force

excess drain hose into standpipe. Hose should be secure but

loose enough to provide a gap for air.

• Do not lay excess hose on the bottom of the laundry tub.

For use with floor drain

Remove the drain hose hook from the corrugated drain hose. You

may need additional parts. See "Floor Drain" under "Alternate

Parts."

_,_ _j= _/_t, t,,=C_ _

1. Insert a new flat washer (supplied) into each end of the inlet

hoses. Firmly seat the washers in the couplings.

1 2

1. Coupling

2. Washer

Connect the inlet hoses to the water faucets

Make sure the washer basket is empty.

2. Attach the hose with the red coupling to the hot water faucet.

Screw on coupling by hand until seated on the washer.

3. Attach the hose with the blue coupling to the cold water

faucet. Screw on coupling by hand until seated on the washer.

4. Using pliers, tighten the couplings with an additional two-

thirds turn.

NOTE: Do not overtighten. Damage to the valves can result.

Clear the water lines

5. Run water through both faucets and inlet hoses, into a bucket

or laundry tub, to get rid of particles in the water lines that

might clog the inlet valve screens.

Connect the inlet hoses to the washer

6. Attach the hose with the blue coupling to the cold water (top)

inlet valve. Screw on coupling by hand until seated on the

washer. Using pliers, tighten the couplings with an additional

two-thirds turn.

NOTE: Do not overtighten. Damage to the valves can result.

If you are working in a closet or recessed area

Move the washer/dryer into its final position and remove

cardboard from under washer/dryer. Remove the access panel by

removing 3 Phillips-head screws and one bumper, located at the

top of the access panel. Set panel, screw, and bumper aside.

Complete hookup of water hoses and (on gas models) the flexible

gas connector through the access area. Replace access panel

upon completion of washer/dryer installation.

Check for leaks

8. Turn on the water faucets and check for leaks. A small amount

of water might enter the washer. You will drain this later.

NOTE: Replace inlet hoses after 5 years of use to reduce the risk

of hose failure. Record hose installation or replacement dates for

future reference.

• If you connect only one water hose, you must cap off the

remaining water inlet port.

• Periodically inspect and replace hoses if bulges, kinks, cuts,

wear, or leaks are found.

1. Move the washer/dryer to its final location and remove any

cardboard used to move the washer/dryer.

2. Locate the remaining piece of shipping strap (see "Remove

Shipping Strap").

Shipping Strap

Wrap the drain hose to the laundry tub leg or standpipe with

the shipping strap (1 or 2 below). Push fastener into the

nearest hole in the shipping strap (see illustration above).

1. Cold water inlet valve (blue)

2. Hot water inlet valve (red)

7. Attach the hose with the red coupling to the hot water

(bottom) inlet valve. Screw on coupling by hand until seated

on the washer. Using pliers, tighten the couplings with an

additional two-thirds turn.

NOTE: Do not overtighten. Damage to the valves can result.

If the water faucets and the drain standpipe are recessed, put

the hooked end of the drain hose in the standpipe. Tightly

wrap the shipping strap around the water inlet hoses and the

drain hose (3 above). Push fastener into the nearest hole in the

shipping strap (see illustration above).

Typical exhaust installations

Typical installations vent the dryer from rear of the washer/dryer.

Other installations are possible.

Alternate installations for close clearances

Venting systems come in many varieties. Select the type best for

your installation, Three close-clearance installations are shown.

Refer to the manufacturer's instructions provided with the vent

system.

I .....................!

1. Dryer 5. Elbow

2. Rigid metal or 6. Clamps

flexible metal vent 7. Elbow

3. Clamps 8. Exhaust hood

4. Wall

Optional exhaust installations

This washer/dryer can be converted to exhaust out the right or left

side. To convert the washer/dryer, use Side Exhaust Kit Part

Number 279823. If four washer/dryer was previously exhausted

from the right or left side, it can be converted to rear exhaust by

using standard offset connections. To cover the hole in the side,

one of the following plugs can be added:

692790 (white)

3977784 (biscuit)

Follow the instructions in the kit to install. Kits are available from

the dealer from whom you purchased your washer/dryer.

1. Standard rear offset exhaust installation

2. Rear exhaust for offset close clearance connection

3. Left or right side exhaust installation

1. Loop system with standard elbows

2. Loop system with one offset & one standard elbow

3. Vent system with one periscope [2 in. (5 cm) clearance]

NOTE: The following kits for close clearance alternate installations

are available for purchase. Please reference the "Assistance or

Service" section of your "Washer/Dryer User Instructions."

• Over thetop Installation:

Part Number 4396028

Periscope Installation (For use with dryer vent to wall vent

mismatch):

Part Number 4396037 - 0 in, (0 cm) to 18 in. (45,72 cm)

mismatch

Part Number 4396011 - 18 in, (45.72 cm) to 29 in. (73.66 cm)

mismatch

Part Number 4396014 - 29 in. (73.66 cm) to 50 in. (127 cm)

mismatch

Special provisions for mobile home installations

The exhaust vent must be securely fastened to a noncombustible

portion of the mobile home structure and must not terminate

beneath the mobile home, Terminate the exhaust vent outside.

Determine Vent Length

1. Select the route that will provide the straightest and most

direct path outdoors. Plan the installation to use the fewest

number of elbows and turns. When using elbows or making

turns, allow as much room as possible. Bend vent gradually to

avoid kinking. Avoid 90° turns.

2= Determine vent length.

The maximum length of the exhaust system depends upon:

• The type of vent (rigid metal or flexible metal).

• The number of elbows used.

• Typeof hood.

Recommended hood styles areshown here.

(10.2 or#)

1. Louvered hood style

2. Box hood style

The angled hood style (shown following) is acceptable.

See the exhaust vent length chart that matches your hood

type for the maximum vent lengths you can use.

Exhaust systems longer than specified will:

• Shorten the life of the dryer.

• Reduce performance, resulting in longer drying times and

increased energy usage.

3. Determine the number of elbows you will need.

IMPORTANT" Do not use vent runs longer than those

specified in Vent Length Chart.

The following chart helps you determine your maximum vent

length based on the number of 90 ° turns or elbows you will

need and the type of vent (rigid or flexible metal) and hood

that you will use.

Vent Length Chart

No. of Type of Vent Box or Angled

go° turns Louvered hoods

or elbows hoods

0 Rigid metal 37 ft (11.3 m) 35 ft (10.7 m)

Flexible metal 25 ft (7.6 m) 20 ft (6.1 m)

1 Rigid metal 32 ft (9.7 m) 27 ft (8.2 m

Flexible metal 21 ft (6.4 m) 16 ft (4.9 m)

2 Rigid metal 24 ft (7.3 m) 19 ft (5.8 m)

Flexible metal 15 ft (4.6 m) 10 ft (3.0 m)

NOTE: Side exhaust adds a 90° turn inside the washer/dryer. To

determine maximum exhaust length, add one 90 ° turn to the

chart.

1. (Optional) Put on safety glasses and gloves.

2. Install exhaust hood. Use caulking compound to seal exterior

wall opening around exhaust hood.

3. Connect vent to exhaust hood. Vent must fit inside exhaust

hood. Secure vent to exhaust hood with 4 in. (10.2 cm) clamp.

4. Run vent to dryer location. Use the straightest path possible.

see "Determine Vent Length." Avoid 90° turns. Use clamps to

seal all joints. Do not use duct tape, screws or other fastening

devices that extend into the interior of the vent to secure vent.

Properly leveling your washer/dryer prevents excessive noise and

vibration.

1. Check the levelness of the washer/dryer by placing a level on

the top edge of the washer, first side to side, then front to

back.

1. Using a 4 in. (10.2 cm) clamp, connect vent to exhaust outlet

in washer/dryer. If connecting to existing vent, make sure the

vent is clean. The vent must fit over the exhaust outlet and

inside the exhaust hood. Make sure the vent is secured to

exhaust hood with a 4 in. (10.2 cm) clamp.

2. Move washer/dryer into final position. Do not crush or kink

vent. Make sure washer/dryer is level.

3. (On gas models) Check to be sure there are no kinks in the

flexible gas line.

2= If the washer/dryer is not level, prop up the front with the

wood block and adjust the feet up or down as necessary.

Remove wood block.

3. Tilt the washer/dryer forward until the rear of the washer/dryer

is at least 4 in. (10.2 cm) off the floor. You may hear the self-

adjusting rear feet click into place. Lower the washer/dryer to

the floor. Check the levelness of the washer/dryer with a level

as shown above.

If washer/dryer will not level, recheck rear leveling legs for free

movement as described in the "Install Leveling Legs" section.

Repeat until the washer/dryer is level.

NOTE: It may be necessary to level the dryer again after it is

moved into its final position.

4. After the washer/dryer is in the final location and level, use an

adjustable or open-end wrench to turn the nuts on the front

feet tightly against the washer cabinet.

If the nuts are not tight against the washer cabinet, the

washer/dryer may vibrate.

1. Check to be sure all parts are now installed. If there is an extra

part, go back through the steps to see which step was

skipped.

2. Check to be sure you have all of your tools.

3. Dispose/recycle all packaging materials. Keep the plastic

foam for use if the washer/dryer should be transported.

4. Check the washer/dryer's final location. Be sure the vent is not

crushed or kinked.

5. Check to be sure the washer/dryer is level and front leveling

feet are tight. See "Level Washer/Dryer."

6. Plug into a grounded outlet. Turn power on.

7. Check to be sure the water faucets are on.

8. Check for leaks around faucets and inlet hoses.

9. Remove the blue protective film on the console and any tape

remaining on the washer/dryer.

10. Read your "Washer/Dryer User Instructions."

11. Wipe the dryer drum interior thoroughly with a damp cloth to

remove any dust.

12. To test the washer, measure 1/2the normal recommended

amount of detergent and pour it into the washer. Close the lid.

Select HEAVY DUTY and pull out the Cycle Control knob.

Allow the washer to complete one whole cycle.

13. To test the dryer, set the dryer on a full heat cycle (not an air

cycle) for 20 minutes and start the dryer.

If the dryer will not start, check the following:

• Controls are set in a running or "On" position.

• Start button has been firmly pushed.

• Washer/dryer is plugged into a grounded outlet.

• Electrical supply is connected.

• House fuse is intact and tight; or circuit breaker has not

tripped.

• Dryer door is closed.

14. When the dryer has been running for 5 minutes, open the

dryer door and feel for heat.

If you do not feel heat, turn the dryer off and check the

following:

• There may be 2 fuses or circuit breakers for the dryer.

Check to make sure both fuses are intact and tight, or that

both circuit breakers have not tripped. If there is still no

heat, contact a qualified technician.

NOTE: You may notice a burning odor when dryer is first heated.

This odor is common when the heating element is first used. The

odor will go away.

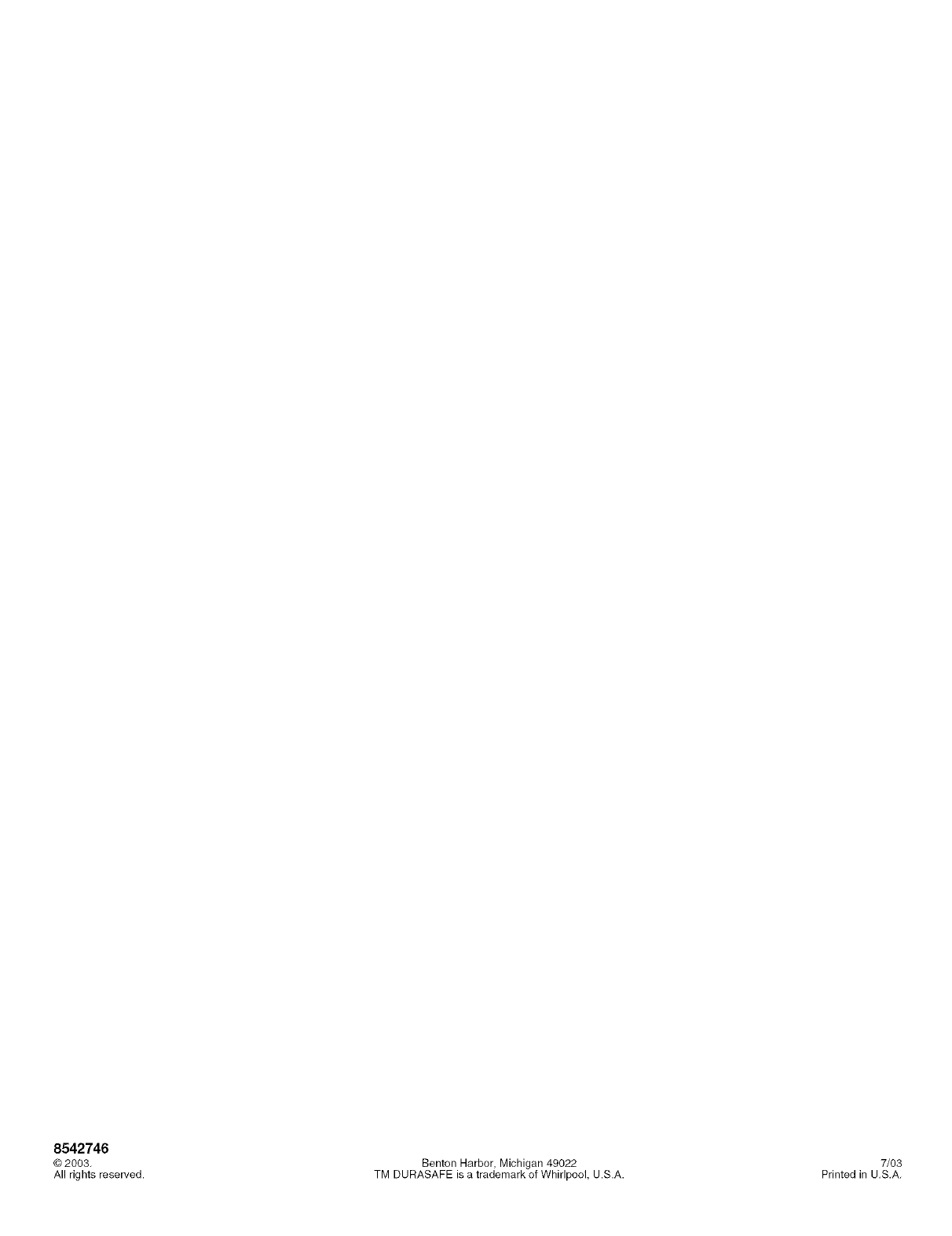

8542746

TM DURASAFE is a trademark of Whirlpool, U.S.A.

7/03

Printed in U.S.A.

Whirlpool LTE6234DQ3 User Manual LAUNDRY CENTER Manuals And Guides L0412414

WHIRLPOOL Laundry Centers Manual L0412414 WHIRLPOOL Laundry Centers Owner's Manual, WHIRLPOOL Laundry Centers installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
