UseAndCare

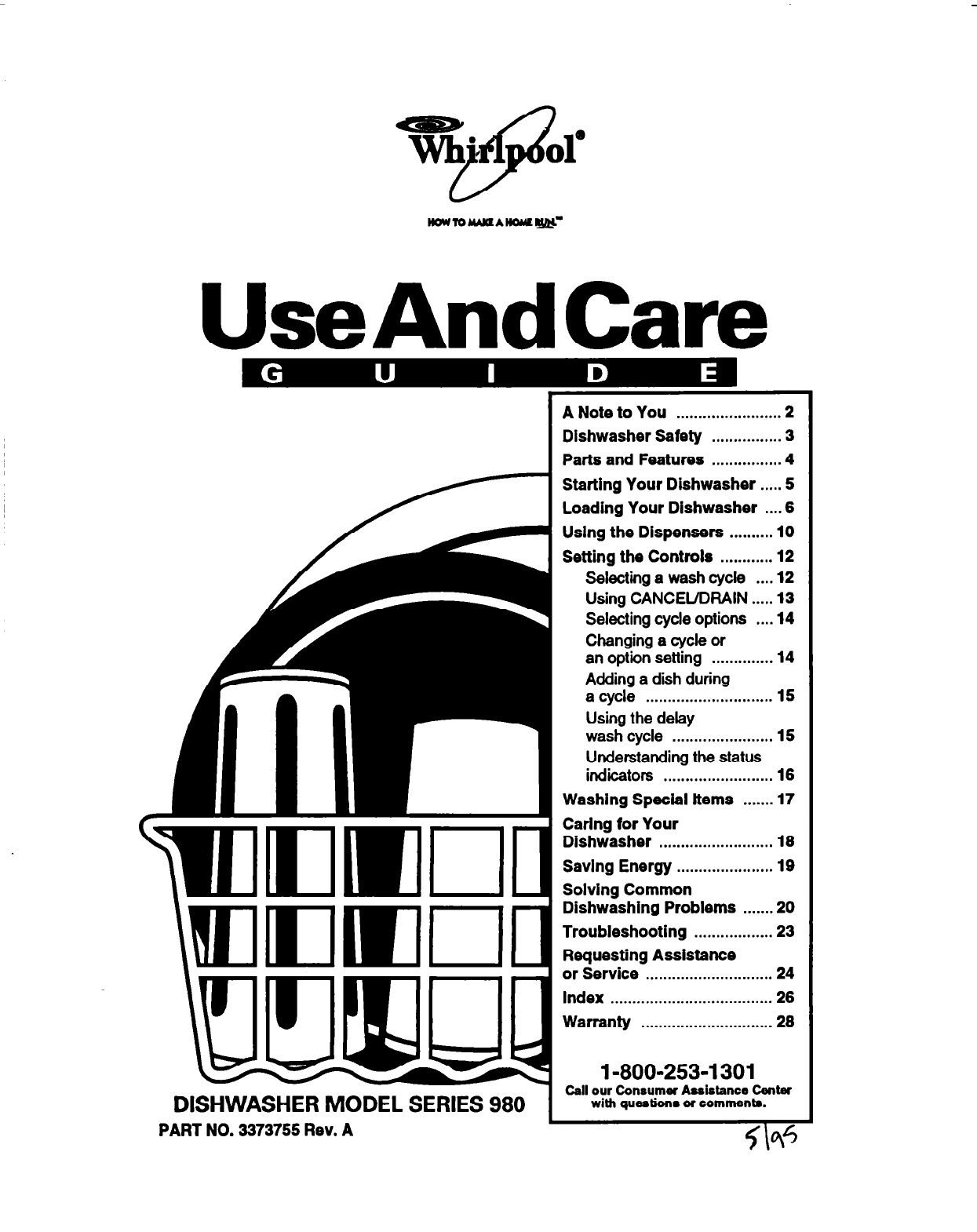

DISHWASHER MODEL SERIES 980

PART NO. 3373755 Rev. A

A Note to You ........................ 2

Dishwasher Safety ................ 3

Parts and Features ............... .4

Starting Your Dishwasher.. .. .5

Loading Your Dishwasher ... .6

Using the Dispensers .......... 10

Setting the Controls ............ 12

Selecting

a wash cycle ... .12

Using

CANCEL/DRAIN.. .. .13

Selecting cycle options ... .14

Changing

a cycle or

an option setting .............. 14

Adding a dish during

a cycle

............................. 15

Using the delay

wash cycle

....................... 15

Understanding the status

indicators

......................... 16

Washing Special ftems ......

.17

Carlng for Your

Dishwasher .......................... 18

Saving Energy ...................... 19

Solving Common

Dishwashing Problems ......

.20

Troubleshooting .................. 23

Requesting Assistance

or Service ............................. 24

Index ..................................... 26

Warranty ..............................

28

1-800-253-I 301

Call our Consumer Assistance Center

with questione or comments.

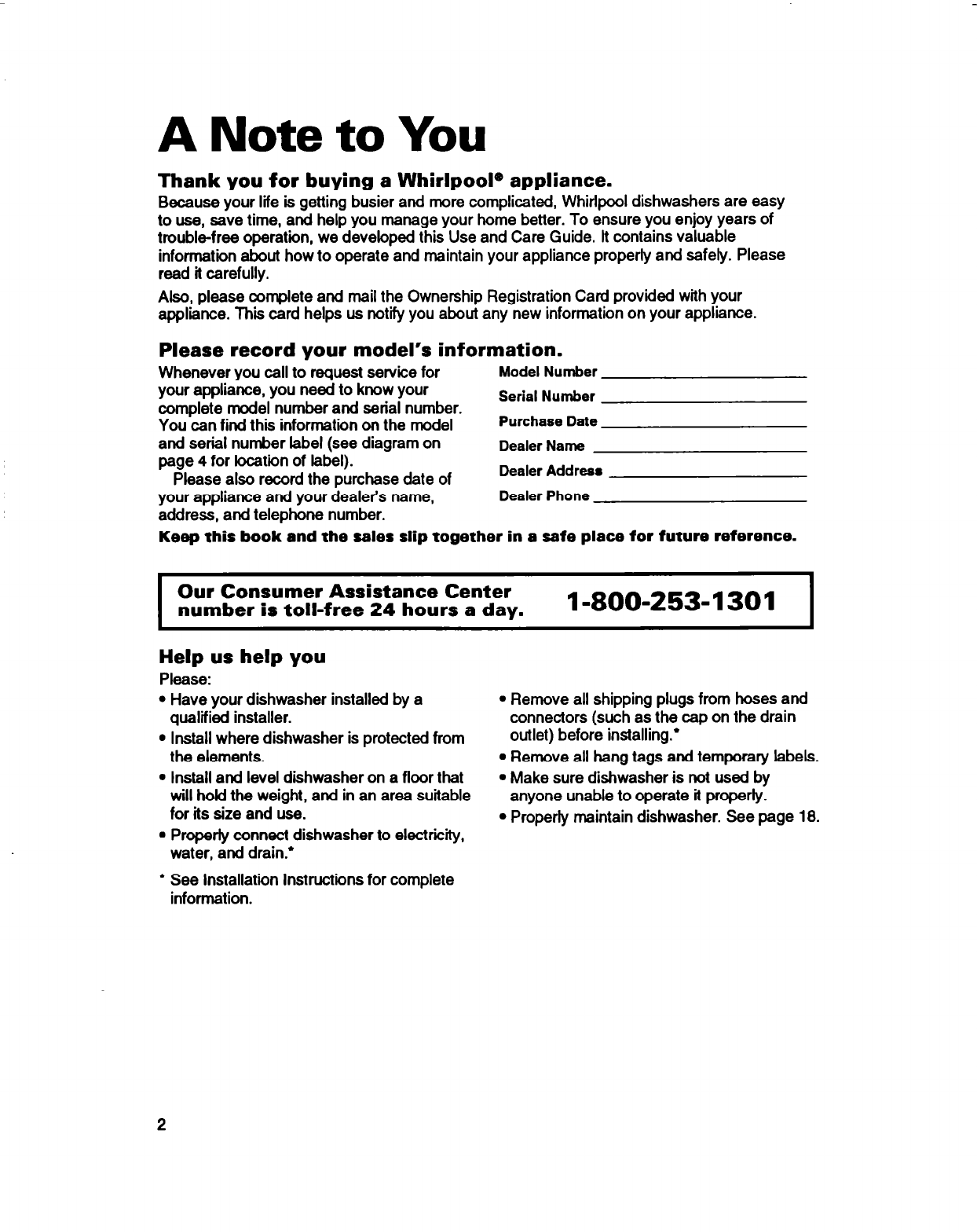

A Note to You

Thank you for buying a Whirlpool@ appliance.

Because your life is getting busier and more complicated, Whirlpool dishwashers are easy

to use, save time, and help you manage your home better. To ensure you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. Thii card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for Model Number

your appliance, you need to know your

complete model number and serial number. Serial Number

You can find this information on the model Purchase Date

and serial number label (see diagram on Dealer Name

page 4 for location of label).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

I

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-1301 1

Help us help you

Please:

l Have your dishwasher installed by a

qualified installer.

l Install where dishwasher is protected from

the elements.

l Install and level dishwasher on a floor that

will hold the weight, and in an area suitable

for its size and use.

l Properly connect dishwasher to electricii,

water, and drain.’

l Remove all shipping plugs from hoses and

connectors (such as the cap on the drain

outlet) before installing.*

l Remove all hang tags and temporary labels.

l Make sure dishwasher is not used by

anyone unable to operate it properly.

l Properly maintain dishwasher. See page 18.

l See Installation Instructions for complete

information.

2

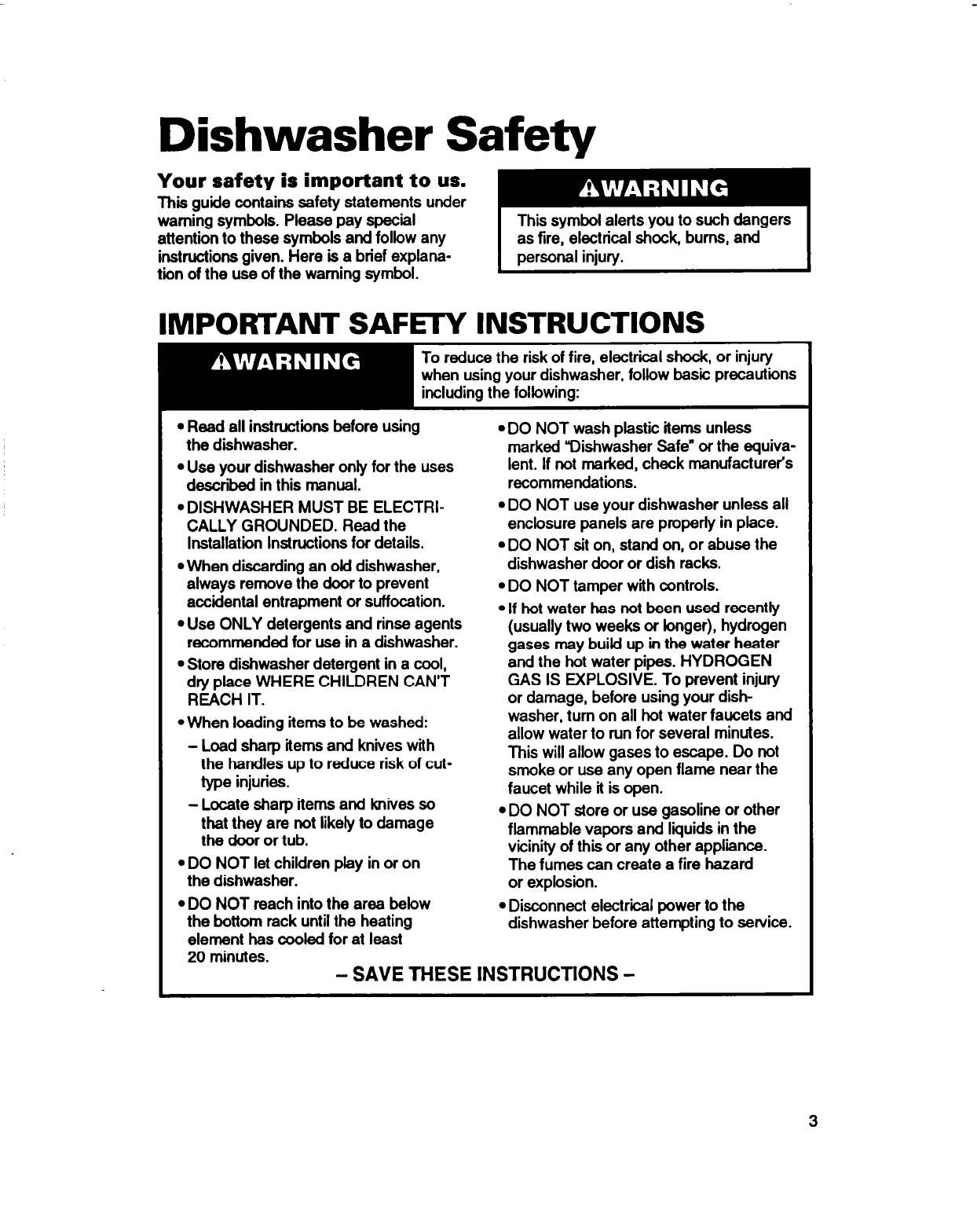

Dishwasher Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the warning symbol.

1 This symbol alerts you to such dangers

;~~~I;~;1 shock, burns, and

IMPORTANT SAFETY INSTRUCTIONS

l

Read all instructions before using

the dishwasher.

l

Use your dishwasher only for the uses

described in this manual.

. DISHWASHER MUST BE ELECTRI-

CALLY GROUNDED. Read the

Installation Instructions for details.

l

When discarding an old dishwasher,

always remove the door to prevent

accidental entrapment or suffocation.

l

Use ONLY detergents and rinse agents

recommended for use in a dishwasher.

l

Store dishwasher detergent in a cool,

dry place WHERE CHILDREN CAN’T

REACH IT.

l

When loading items to be washed:

- Load sharp items and knives with

the handles up to reduce risk of cut-

type injuries.

- Locate sharp items and knives so

that they are not likely to damage

the door or tub.

l

DO NOT let children play in or on

the dishwasher.

l

DO NOT reach into the area below

the bottom rack until the heating

element has cooled for at least

20 minutes.

l

DO NOT wash plastic items unless

marked “Dishwasher Safe” or the equiva-

lent. If

not

marked, check manufacturer’s

recommendations.

l

DO NOT use your dishwasher unless all

enclosure panels are properly in place.

l

DO NOT sit on, stand on, or abuse the

dishwasher door or dish racks.

l

DO NOT tamper with controls.

l

If hot water has not been used recently

(usually two weeks or longer), hydrogen

gases may buikf up in the water heater

and the hot water pipes. HYDROGEN

GAS IS D(PLOSIVE. To prevent injury

or damage, before using your dish

washer, turn on all hot water faucets and

allow water to run for several minutes.

This will allow gases to escape. Do not

smoke or use any open flame near the

faucet while it is open.

l

DO NOT store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

The fumes can create a fire hazard

or explosion.

l

Disconnect electrical power to the

dishwasher before attempting to service.

- SAVE THESE INSTRUCTIONS -

3

Parts and Features

Your dishwasher is illustrated below with the parts and features called out. To help you find

information on specific parts or features quickly, page references are included.

Third level wash

@a 9)

Adjustable top rack

@. 9)

~=ap=ity

folddown shelf

(not shown)

(P. 9)

/

Top rack adjuster

@- 9)

I

UDDER s~rav

arm

/

. . . -

(P. 9)

/

/

Spray tower

@. 8)

/

Folddown divider

(P. 9)

Water Inlet opening

(P- 9)

Rack bumper

@- 8)

Bottom rack

b 8)

Heatlng element - I

DasKel -

:jlrh/ p

Model and serial

number label

(on

right side)

POWER CLEAN’”

4 Lower spray arm

(P- 9)

- Overfill protector

(P- ‘9)

Detergent

- dispensers

(P. 10)

\

(P- 11)

Access panel*

Door color panePI ‘SW Installation Instructions

for more Information.

Control panel

Your dishwasher has a row of push pads to select cycles and options. You must select a

. --. -_-----

cycle to sta

art your dishwasher..You may select one or more options.

status

indicators -

Starting Your Dishwasher

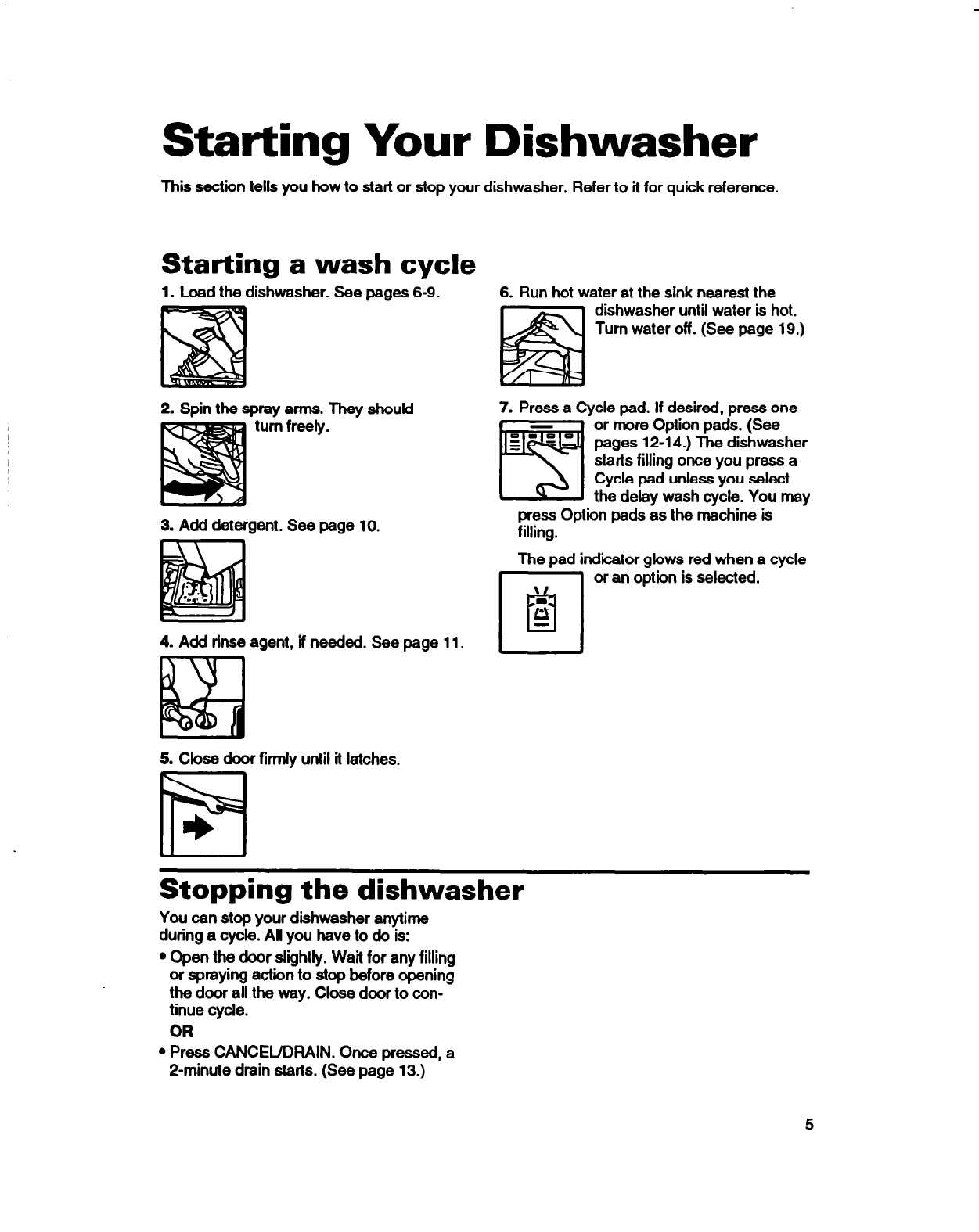

This section tells you how to start or stop your dishwasher. Refer to it for quick reference.

Starting a wash cycle

1. Load the dishwasher. See pages 6-9.

2. Spin the spray arms. They should

turn freely.

3. Add detergent. See page 10.

4. Add rinse agent, if needed. See page 11.

5. Close door firmly until it latches.

6. Run hot water at the sink nearest the

dishwasher until water is hot.

Turn water off. (See page 19.)

7. Press a Cycle pad. If desired, press one

-

! = = Q

R

or more Option pads. (See

pages 12-14.) The dishwasher

starts filling once you press a

Cycle pad unless you select

the delay wash cycle. You may

press Option pads as the machine is

filling.

The pad indicator glows red when a cycle

I or an option is selected.

Stopping the dishwasher

You can stop your dishwasher anytime

during a cycle. All you have to do is:

l

Open the door slightly. Watt for any filling

or spraying action to stop before opening

the door all the way. Close door to con-

tinue cycle.

OR

l

Press CANCEL/DRAIN. Once pressed, a

2-minute drain starts. (See page 13.)

5

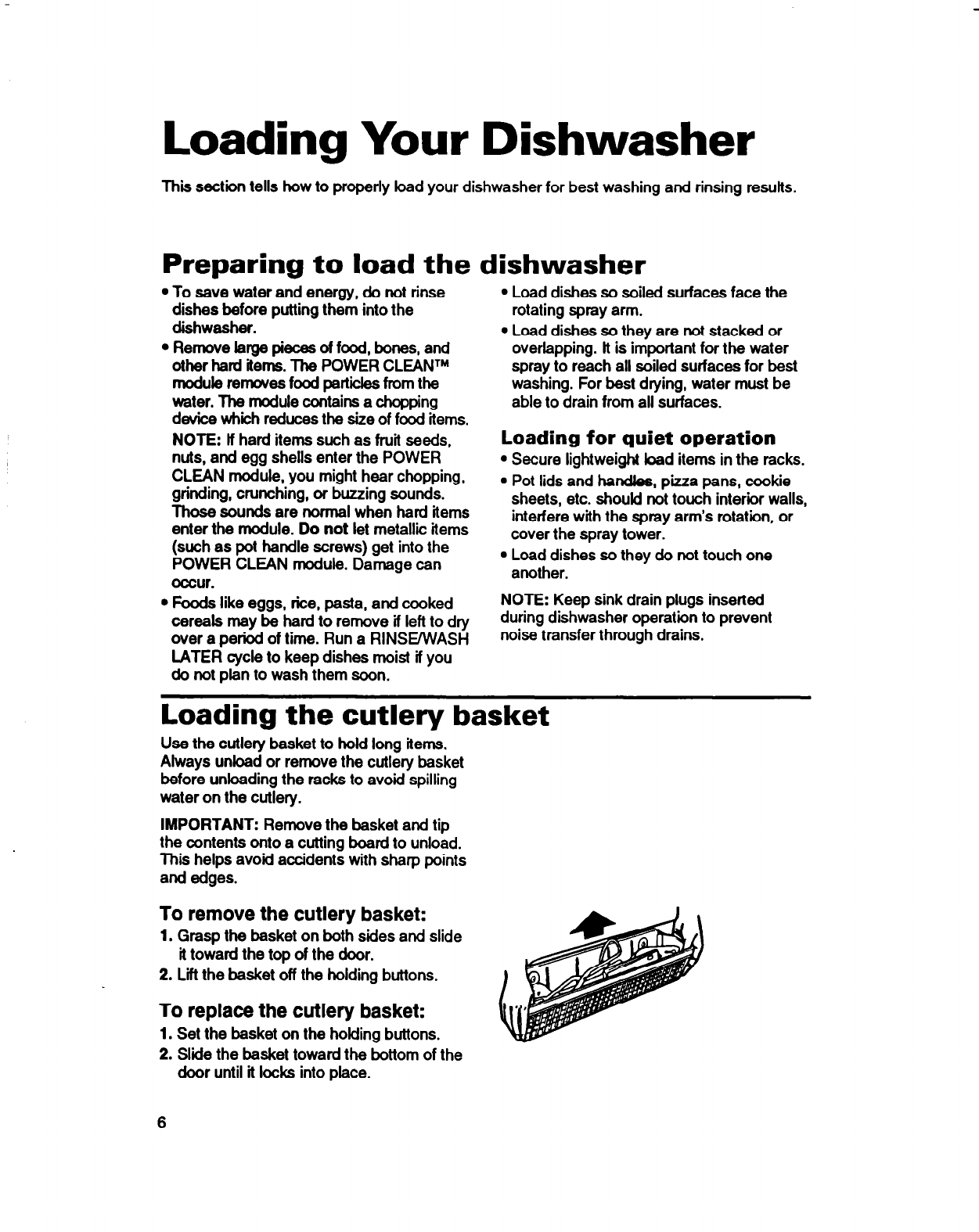

Loading Your Dishwasher

This section tells how to properly load your dishwasher for best washing and rinsing results.

Preparing to load the dishwasher

l

To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

l

Remove large pieces of food, bones, and

other hard items. The POWER CLEANTM

module remves food particles from the

water. The module contains a chopping

device whit reduces the size of food items.

NOTE: If hard items such as fruit seeds,

nuts, and egg shells enter the POWER

CLEAN module, you might hear chopping,

grinding, crunching, or buzzing sounds.

Those sounds are normal when hard items

enter the module. Do

not

let metallic items

(such as pot handle screws) get into the

POWER CLEAN module. Damage can

occur.

l

Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to dry

over a period of time. Run a RINSE/WASH

LATER cycle to keep dishes moist if you

do not plan to wash them soon.

l

Load dishes so soiled surfaces face the

rotating spray arm.

l

Load dishes so they are not stacked or

overlapping. lt is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

l

Secure lightweight bad items in the racks.

l

Pot lids and handles, pizza pans, cookie

sheets, etc. should not touch interior walls,

interfere with the spray arm’s rotation, or

cover the spray tower.

l

Load dishes so they do not touch one

another.

NOTE: Keep

sink

drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

Loading the cutlery basket

Use the cutlery basket to hold long items.

Always unload or remove the cutlery basket

before unloading the racks to avoid spilling

water on the cutlery.

IMPORTANT: Remove the basket and tip

the contents onto a cutting board to unload.

This helps avoid accidents with sharp points

and edges.

To remove the cutlery basket:

1. Grasp the basket on both sides and slide

it toward the top of the door.

2. Lii the basket off the holding buttons.

To replace the cutlery basket:

1. Set the basket on the hokfing buttons.

2. Slide the basket toward the bottom of the

door until it locks into place.

6

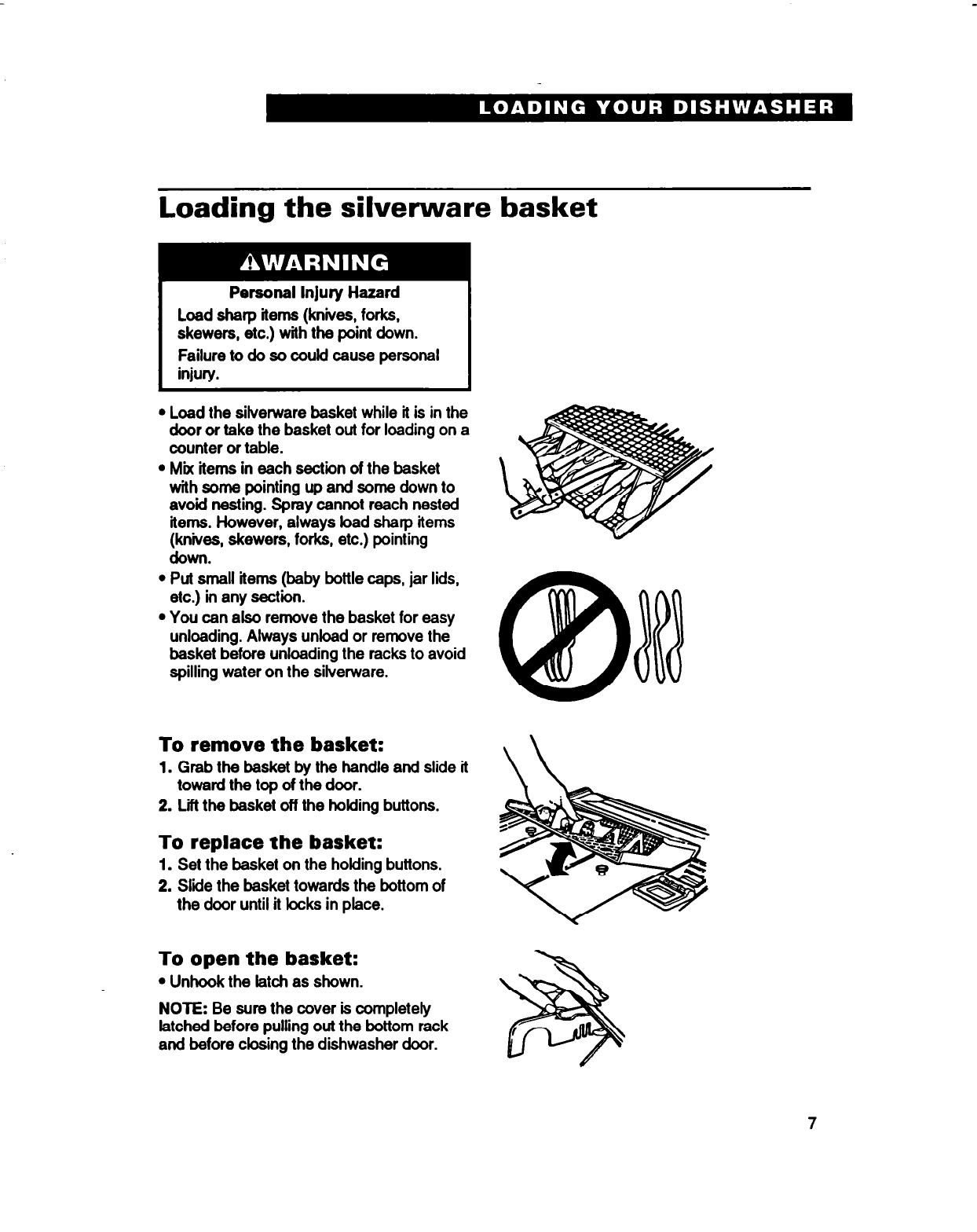

Loading the silverware basket

Personal Injury Hazard

Load sharp items (knives, forks,

skewers, etc.) with the point down.

Failure to do so coukf cause personal

injury.

l

Load the silvemrare basket while it is in the

door or take the basket out for loading on a

counter or table.

l

Mix Items in each section of the basket

wfth some pointing up and some down to

avoid nesting. Spray cannot reach nested

items. However, always bad sharp items

(knives, skewers, forks, etc.) pointing

&Wll.

l

Put small items (baby bottle caps, jar lids,

etc.) in any section.

l

You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to avoid

spilling water on the silverware.

To remove the basket:

1. Grab the basket by the handle and slide it

toward the top of the door.

2. Lii the basket off the holding buttons.

To replace the basket:

1. Set the basket on the holding buttons.

2. Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

l

Unhook the latch as shown.

NOTE: Be sure the cover is completely

latched before pulling out the bottom rack

and before closing the dishwasher door.

7

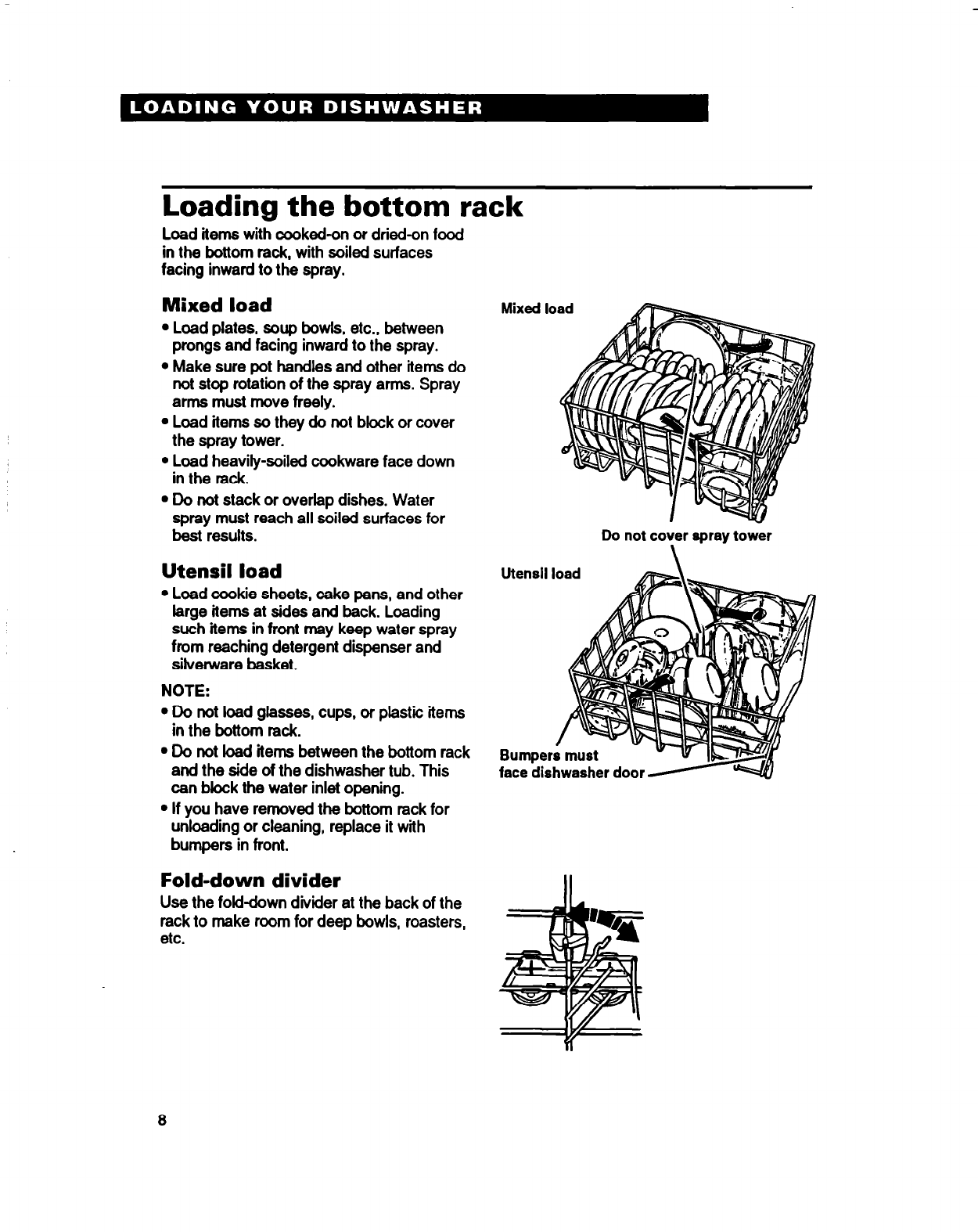

Loading the bottom rack

Load items with cooked-on or dried-on food

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

l

Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

l

Make sure pot handles and other items do

not stop rotation of the spray arms. Spray

arms must move freely.

l

Load items so they do not block or cover

the spray tower.

l

Load heavily-soiled cookware face down

in the rack.

l

Do not stack or overlap dishes. Water

spray must reach all soiled surfaces for

best results.

Utensil load

l

Load cookie sheets, cake pans, and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTE:

l

Do not load glasses, cups, or plastic items

in the bottom rack.

l

Do not load items between the bottom rack

and the side of the dishwasher tub. This

can block the water inlet opening.

l

If you have removed the bottom rack for

unloading or cleaning, replace it with

bumpers in front.

Fold-down divider

Use the fold-down divider at the back of the

rack

to make room for deep bowls, roasters,

etc.

Mixed load

Do not cover spray tower

Utensil load

Bumperr/muot

face dishwasher door

8

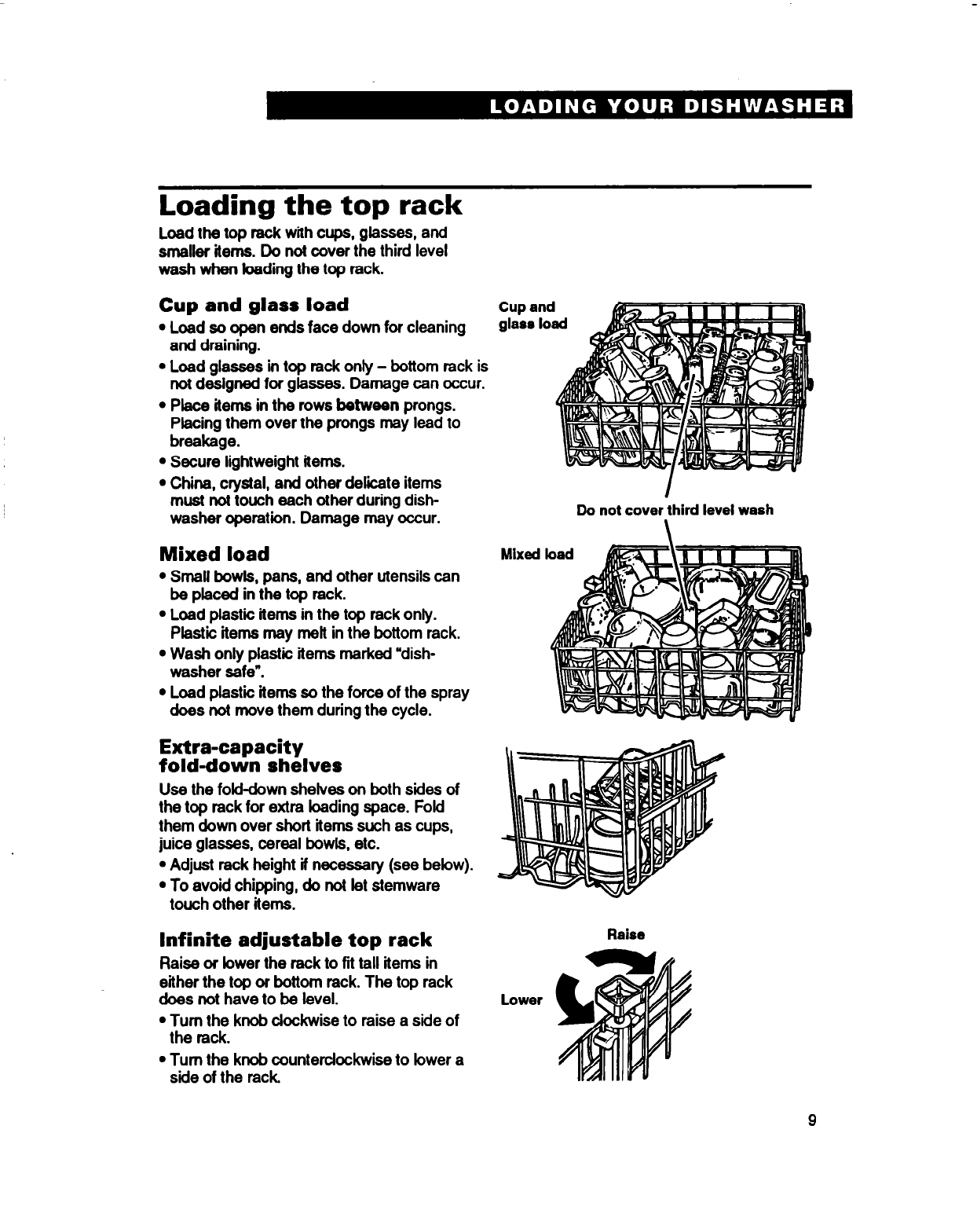

Loading the top rack

Load the top rack with cups, glasses, and

smaller items. Do not cover the third level

wash when bading the top rack.

Cup and glass load

Cup and

l

Load so open ends face down for cleaning glass load

and draining.

l

Load glasses in top rack only - bottom rack is

not designed for gbsses. Damage can occur.

l

Place items in the rows between prongs.

Placing them over the prongs may lead to

breakage.

l

Secure lightweight items.

l

China, crystal, and other delicate items

must not touch each other during dish-

washer operation. Damage may occur. Do not cover third level wash

Mixed load

l

Small bowls, pans, and other utensils can

be placed in the top rack.

l

Load plastic items in the top rack only.

Plastic items may rneft in the bottom rack.

l

Wash only plastic items marked “dish-

washer safe”.

l

Load plastic items so the force of the spray

does not move them during the cycle.

Extra-capacity

fold-down shelves

Use the fold-down shelves on both sides of

the top rack for extra loading space. Fold

them down over short items such as cups,

juice glasses, cereal howls, etc.

l

Adjust rack height if necessary (see below).

l

To avoid chipping, do not let stemware

touch other items.

Infinite adjustable top rack

Raise or lower the rack to fit tall items in

either the top or bottom rack. The top rack

does not have to he level.

l

Turn the knob clockwise to raise a side of

the rack.

l

Turn the knob counterdockwii to lower a

side of the rack

Mixed

Raise

Lower

Using the Dispensers

For best washing results, review the information below. It is important to use detergents and

rinse agents properly.

Using the detergent dispenser

l

Usa automatic dlshwashlng detergent

only.

Other detergents are too mild and

much too sudsy.

l

Add detergent just before starting cycle.

l

Store tightly-closed detergent in a cool, dry

place. Fresh automatic dishwasher

detergent results In better cleaning.

Filling the detergent dispenser

The detergent dispenser has one section

with a cover

and

one without. Push cover

down firmly until it latches. Detergent in the

open section falls into the dishwasher when

closing the door. The covered section opens

automatically for the main wash.

NOTE: It is normal for the cover to open

partially when dispensing detergent.

Go\ver Cover, Latch

Use only covered

section for:

- LOW ENERGY

- Cl-llNAlCRYSTAL

Use both sections for:

-NORMAL

- HEAW

- POTS-N-PANS

How much detergent to use

l

The amount of detergent to use depends

on the hardness of your water and the type

of detergent. If you use too little, dishes

won’t be clean. If you use too much in soft

water, glassware will etch.

l

Different brands of dishwasher detergent

have different amounts of phosphorus for

softening water. If you have hard water

and use bw phosphorus content detergent

(6.0%

or less), you may need to use more

detergent or use a detergent with a higher

phosphorus content (8.7%).

l

Find out your water’s hardness by asking

your focal water department, water soft-

ener company, or county extension agent.

I

WATER TYPE WHERE TO FILL

Hard

8+ grains per gallon

136+

parts par million

Top of

3rd step

(3W

Medium

Top of

5-7

grains per gallon 2nd step

85-l 19

parts per million (2 W

Fill amounts shown are for standard

powdered detergent. Amounts may vary if

you use liquid or concentrated powdered

detergent. Follow manufacturer’s directions

when using liquid dishwasher detergent or

concentrated powdered detergent.

10

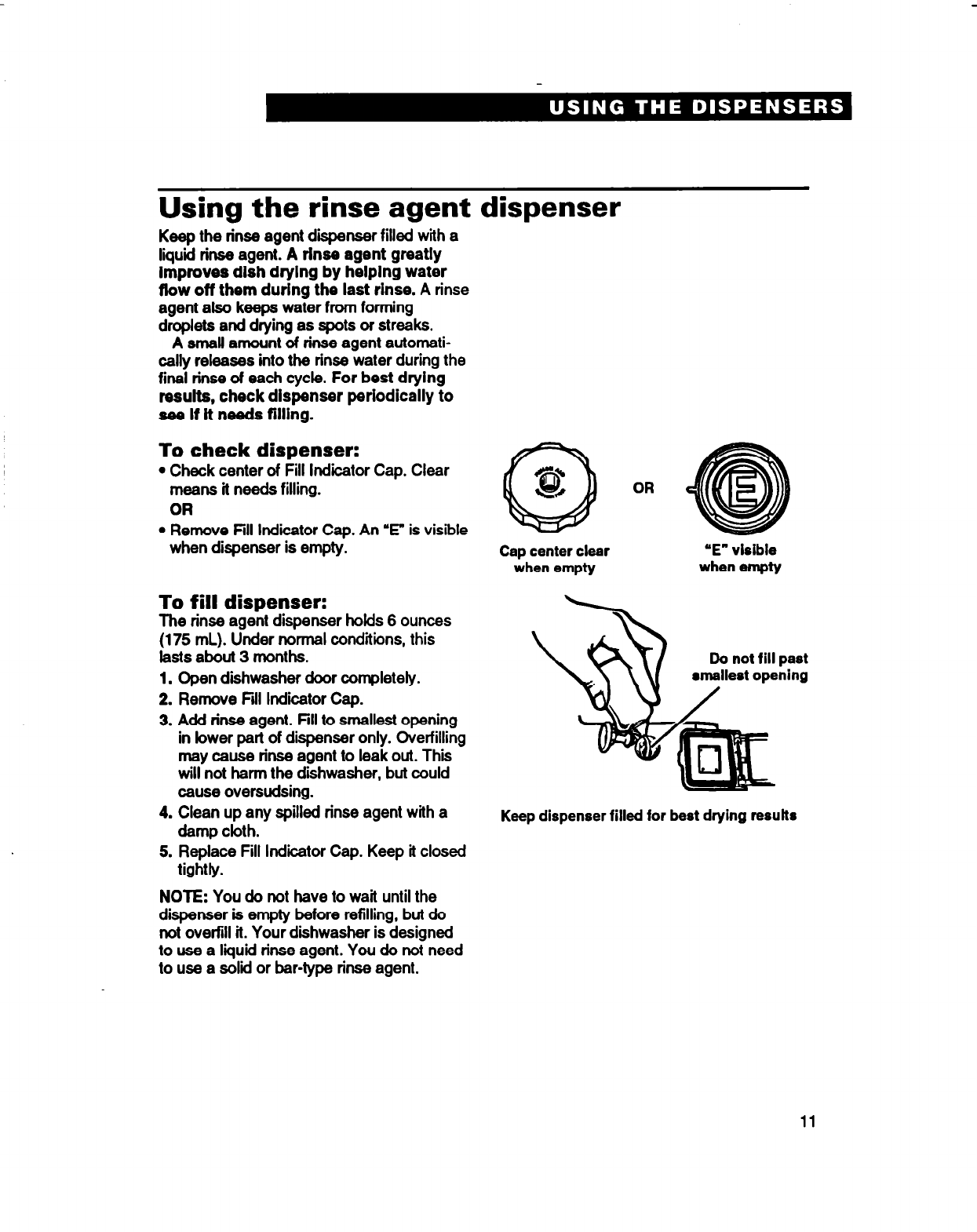

Using the rinse agent dispenser

Keep the rinse agent dispenser filled with a

liquid

rinse agent. A rinse agent

greatly

Improves dish drying by helping water

flow off them during the last rinse.

A rinse

agent also keeps water from forming

droplets and drying as spots or streaks.

A small

amount

of rinse agent automati-

cally releases into the rinse water during the

final rinse of each cycle.

For best

drying

results, check dispenser periodically to

see It It needs filling.

To check dispenser:

l

Check center of Fill Indicator Cap. Clear

means it needs filling.

OR

l

Remove Fill Indicator Cap. An ‘F is visible

when dispenser is empty.

To fill dispenser:

The rinse agent dispenser holds 6 ounces

(175 mL). Under normal conditions, this

lasts about 3

months.

1.

Open dishwasher door completely.

2. Remove Fill Indicator Cap.

3. Add rinse agent. Fill to smallest opening

in lower part of dispenser only. Overfilling

may cause rinse agent to leak out. This

will not harm the dishwasher, but could

cause oversudsing.

4. Clean up any spilled rinse agent with a

damp cloth.

5. Replace Fill Indicator Cap. Keep it closed

tightly.

NOTE: You do not have to wait until the

dispenser is empty before refilling, but do

not overfill it. Your dishwasher is designed

to use a liquid rinse agent. You do not need

to use a solii or bar-type rinse agent.

Cap center clear

when empty ‘E” visible

when empty

Do not fill past

rmallest opening

Keep dispenser filled for best drying results

11

Setting the Controls

Operating your dishwasher’s controls properly helps you obtain the best possible washing

results. This section tells you how to select wash cycles and options.

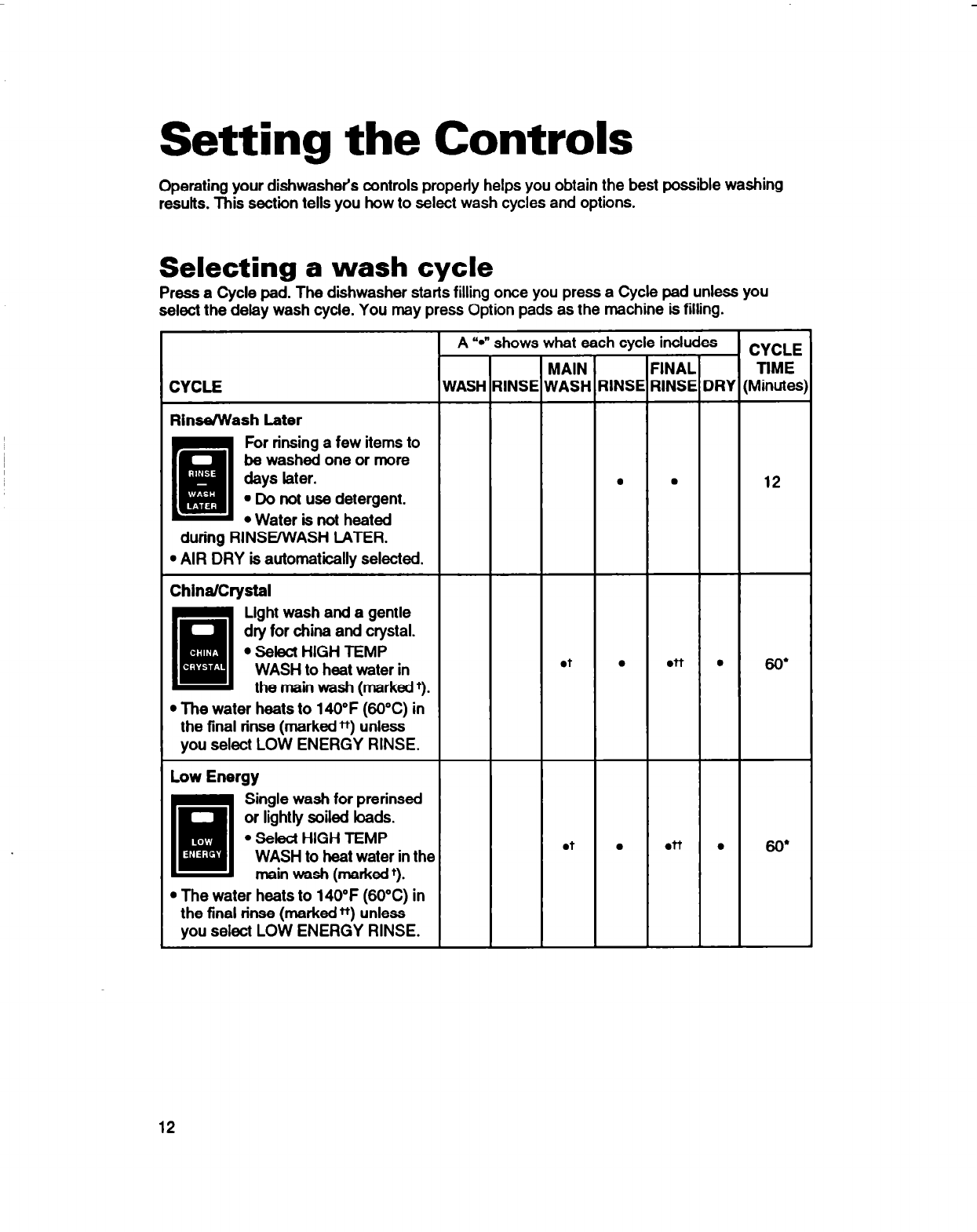

Selecting a wash cycle

Press a Cycle pad. The dishwasher starts filling once you press a Cycle pad unless you

select the delay wash cycle. You may press Option pads as the machine is filling.

CYCLE

Rinse/Wash Later

A %” shows what each cycle includes CYCLE

MAIN FINAL TIME

WASH RINSE WASH RINSE RINSE DRY (Minutes:

For rinsing a few items to

be washed one or more

days later.

l

Do not use detergent.

l

Water is not heated

during RINSE/WASH LATER.

l

AIR DRY is automatically selected.

l .

12

China/Crystal

liii

Light wash and

a

gentle

dry for china and crystal.

. Select HIGH TEMP

. WASH to heat water in

the main wash (markedt).

l

The water heats to 140°F (60°C) in

the final rinse (markedw) unless

you select LOW ENERGY RINSE.

Low Energy

lliiii

Single wash for prerinsed

or lightly soiled loads.

.

l

Select HIGH TEMP

WASH to heat water in the

main wash (marked t).

l

The water heats to 140°F (60%) in

the final rinse (marked n) unless

you select LOW ENERGY RINSE.

l t .

l w 0 60’

12

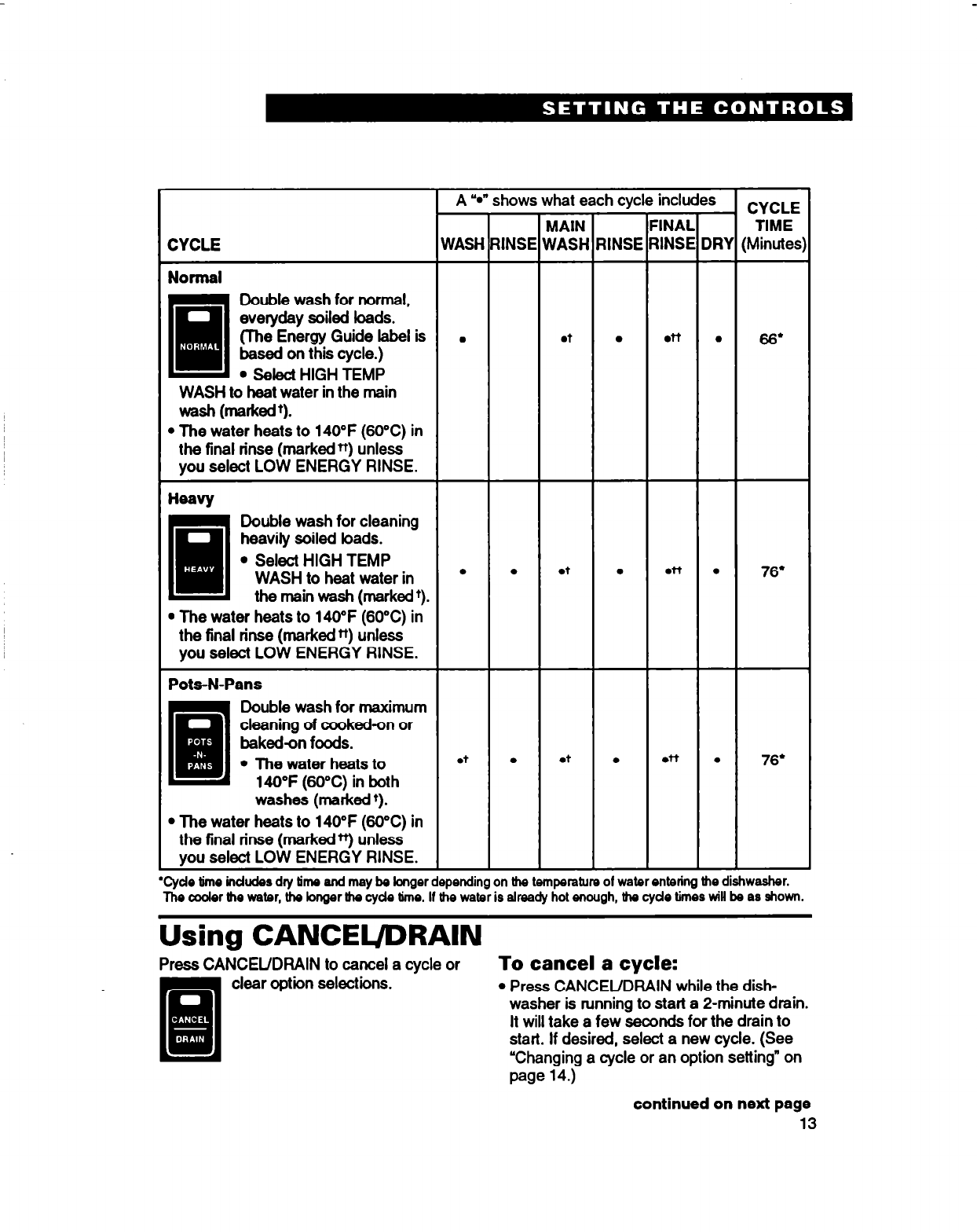

A %” shows what each cycle includes CYCLE

MAIN FINAL TIME

CYCLE WASH RINSE WASH RINSE RINSE DRY (Minutes

Normal

Iii

Double wash for normal,

everyday soiled loads.

(The Energy Guide label is .

l t . Ott .

. . 66’

based on this cycle.)

. Select HIGH TEMP

WASH to heat water in the main

wash (martcedt).

l

The water heats to 140°F (60°C) in

the final rinse (marked n) unless

you select LOW ENERGY RINSE.

H-W

iiiiii

Double wash for cleaning

heavily soiled loads.

l

Select HIGH TEMP

WASH to heat water in

l l

l

t ’

l

tt

l

76’

the main wash (markedt).

l

The water heats to 140°F (60%) in

the final rinse (marked n) unless

you select LOW ENERGY RINSE.

Pots-N-Pans

liiiiii

Double wash for maximum

cleaning of cooked-on or

. . baked-on foods.

l

The water heats to at . et 0

l w .

. 76’

140°F (60%) in both

washes (marked t).

l

The water heats to 140°F (60°C) in

the final rinse (marked t+) unless

you select LOW ENERGY RINSE.

‘Cycle time indudes dry time and may be longer depending on the temperature of water entering the dishwasher.

Tha cooler the water, the bnger lhe cyde lime. If the water is already hot enough, UN cyde times will be as shown.

Using CANCEIJDRAIN

Press CANCEL/DRAIN to cancel a cycle or

clear option selections.

To cancel a cycle:

l

Press CANCEL/DRAIN while the dish-

washer is running to start a P-minute drain.

It will take a few seconds for the drain to

start. If desired, select a new cycle. (See

“Changing a cycle or an option setting” on

page 14.)

continued on next page

13

l

You can press CANCEL/DRAIN again to

stop the drain immediately. Remember to

drain the dishwasher again before starting

a new cycle.

To clear the indicators:

Press CANCEL/DRAIN before starting the

dishwasher to clear all cycle and option

selections.

NOTE: A small amount of water remaining

in the dishwasher is normal.

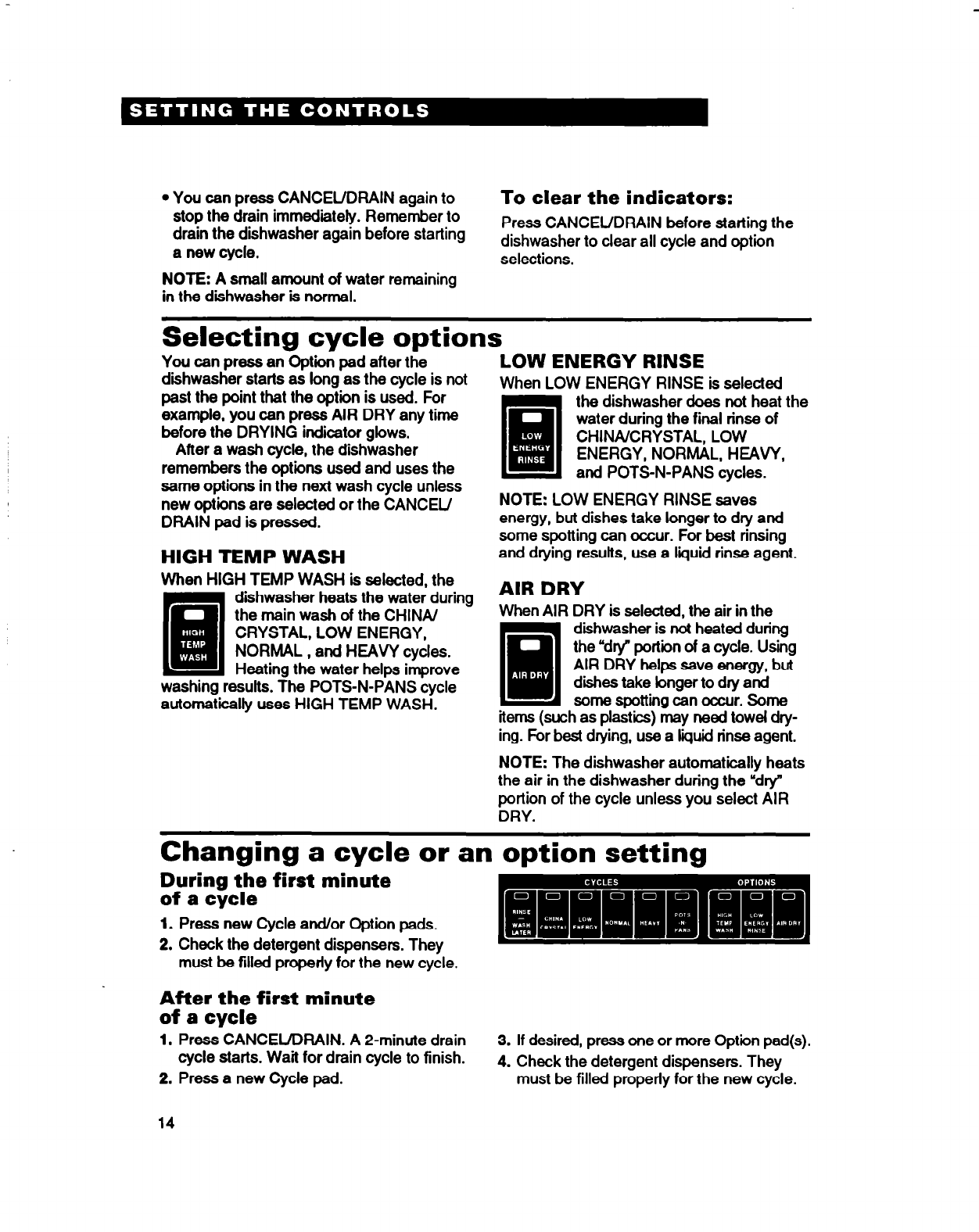

Selecting cycle options

You can press an Option pad after the

dishwasher starts as long as the cycle is not

past the point that the option is used. For

example, you can press AIR DRY any time

before the DRYING indicator glows.

After a wash cycle, the dishwasher

remembers the options used and uses the

same options in the next wash cycle unless

new options are selected or the CANCEU

DRAIN pad is pressed.

HIGH TEMP WASH

When HIGH TEMP WASH is selected, the

B

dishwasher heats the water during

the main wash of the CHINA/

CRYSTAL, LOW ENERGY,

NORMAL, and HEAVY cycles.

Heating the water helps improve

washing results. The POTS-N-PANS cycle

automatically uses HIGH TEMP WASH.

LOW ENERGY RINSE

When LOW ENERGY RINSE is selected

the dishwasher does not heat the

water during the final rinse of

CHINA/CRYSTAL, LOW

ENERGY, NORMAL, HEAVY,

and POTS-N-PANS cycles.

NOTE: LOW ENERGY RINSE saves

energy, but dishes take longer to dry and

some spotting can occur. For best rinsing

and drying results, use a liquid rinse agent.

AIR DRY

When AIR DRY is selected, the air in the

iii!

dishwasher is not heated during

the “dr)r portion of a cycle. Using

option setting

. ,. AIR DRY helps save energy, but

dishes take longer to dry and

some spotting can occur. Some

items (such as plastics) may need towel dry-

ing. For best drying, use a liquid rinse agent.

NOTE: The dishwasher automatically heats

the air in the dishwasher during the “d’dry”

portion of the cycle unless you select AIR

DRY.

Changing a cycle or an

During the first minute

of a cycle

1. Press new Cycle and/or Option pads.

2. Check the detergent dispensers. They

must be filled properly for the new cycle.

After the first minute

of a cycle

1. Press CANCEUDRAIN. A P-minute drain 3. If desired, press one or more Option pad(s).

cycle starts. Wait for drain cycle to finish. 4. Check the detergent dispensers. They

2. Press a new Cycle pad. must be filled properly for the new cycle.

14

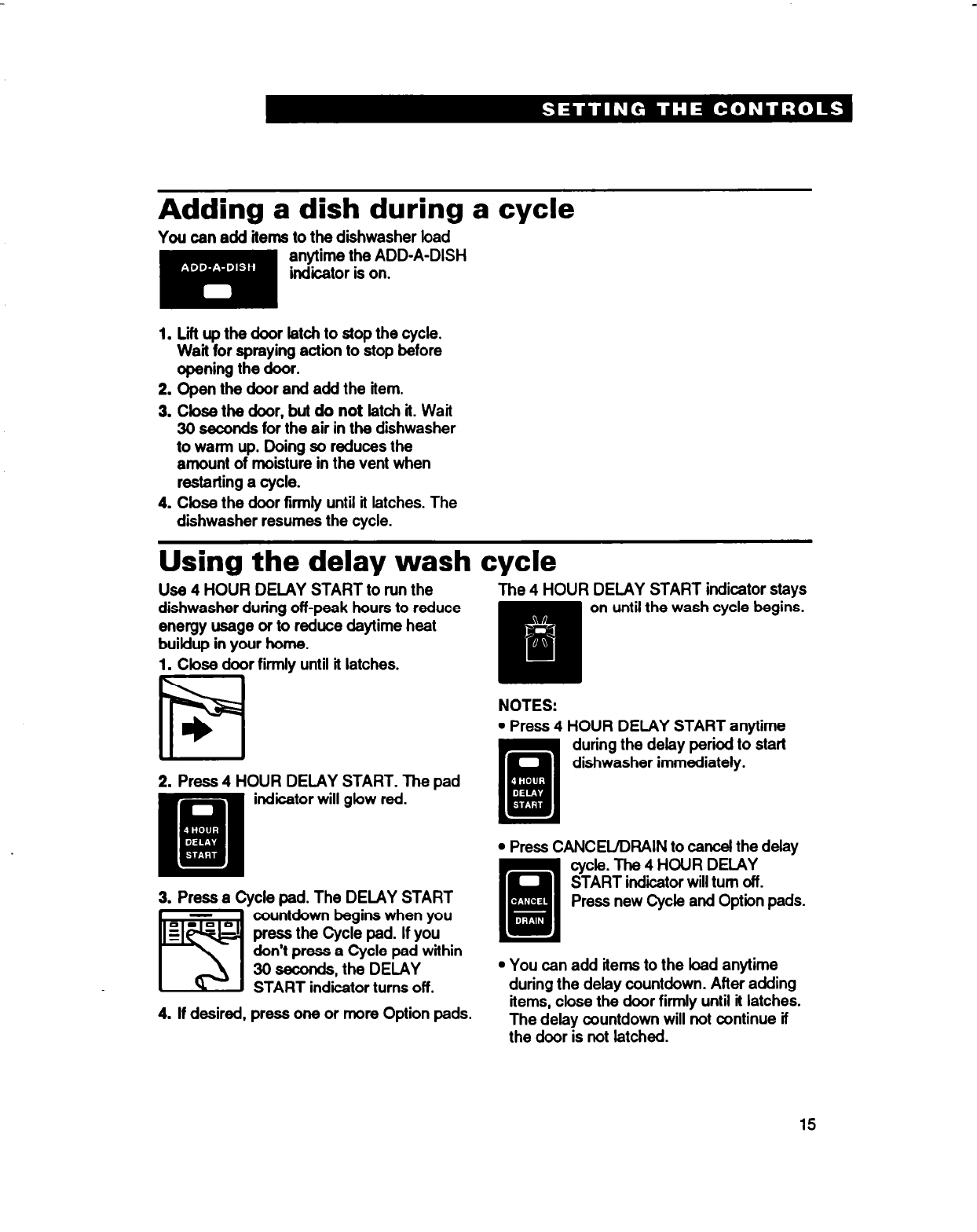

Adding a dish during a cycle

You can add items to the dishwasher bad

anytime the ADD-A-DISH

indicator is on.

1. Lii up the door latch to stop the cycle.

Wait for spraying action to stop before

opening the door.

2. Open the door and add the item.

3. Close the door, but do

not

latch

it.

Wait

30 seconds for the air in the dishwasher

to warm up. Doing so reduces the

amount of moisture in the vent when

restarting a cycle.

4. Close the door firmly until it latches. The

dishwasher resumes the cycle.

Using the delay wash cycle

Use 4 HOUR DELAY START to run the

dishwasher during off -peak hours to reduce

energy usage or to reduce daytime heat

buildup in your home.

1. Close door firmly until it latches.

2. Press 4 HOUR DELAY START. The Dad

3. Press a Cycle pad. The DELAY START

-

0-o

= - -

R

countdown begins when you

press the Cycle pad. If you

don’t press a Cycle pad within

30 seoonds, the DELAY

START indicator turns off.

4. If desired, press one or more Option pads.

The 4 HOUR DELAY START indicator stays

NOTES:

l

Press 4 HOUR DELAY START anytime

during the delay period to start

dishwasher immediately.

l

Press CANCEUDRAIN to cancel the delay

liii

cycle. The 4 HOUR DELAY

START indiitor will turn off.

Press new Cycle and Option pads.

a.,

l

You can add items to the bad anytime

during the delay countdown. After adding

items, close the door firmly until it latches.

The delay countdown will not continue if

the door is not latched.

15

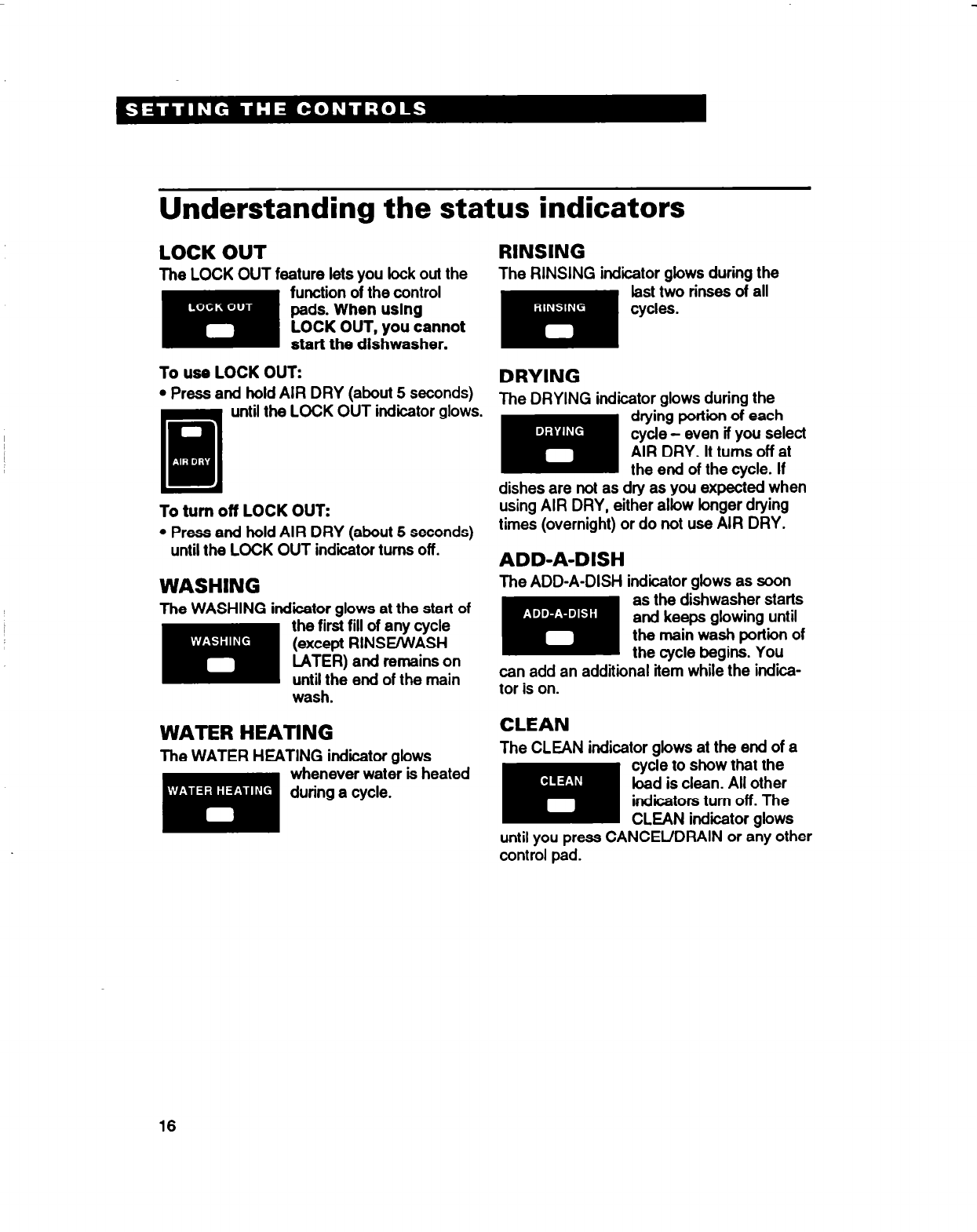

Understanding the status indicators

LOCK OUT

The LOCK OUT feature lets YOU bck out the

E!¶

function of the control

. . pads. When using

LOCK OUT, you cannot

start the dishwasher.

To use LOCK OUT:

l

Press and hold AIR DRY (about 5 seconds)

until the LOCK OUT indicator glows.

To turn off LOCK OUT:

l

Press and hold AIR DRY (about 5 seconds)

until the LOCK OUT indicator turns off.

WASHING

The WASHING indicator glows at the start of

the first fill of any cycle

(except RINSE/WASH

LATER)

and

remains on

until the end of the main

wash.

WATER HEATING

The WATER HEATING indicator glows

RINSING

The RINSING indicator glows during the

DRYING

The DRYING indicator glows during the

dishes are not as dry as you expected when

using AIR DRY, either allow longer drying

times (overnight) or do not use AIR DRY.

ADD-A-DISH

The ADD-A-DISH indicator glows as -n

1

as the dishwasher starts

and keeps glowing until

the main wash portion of

the cycle begins. You

can add an additional item while the indica-

tor is on.

CLEAN

The CLEAN indicator glows at the end of a

1

cycle to show that the

load is clean. All other

indicators turn off. The

CLEAN indicator glows

until you press CANCEL/DRAIN

or

any other

control pad.

16

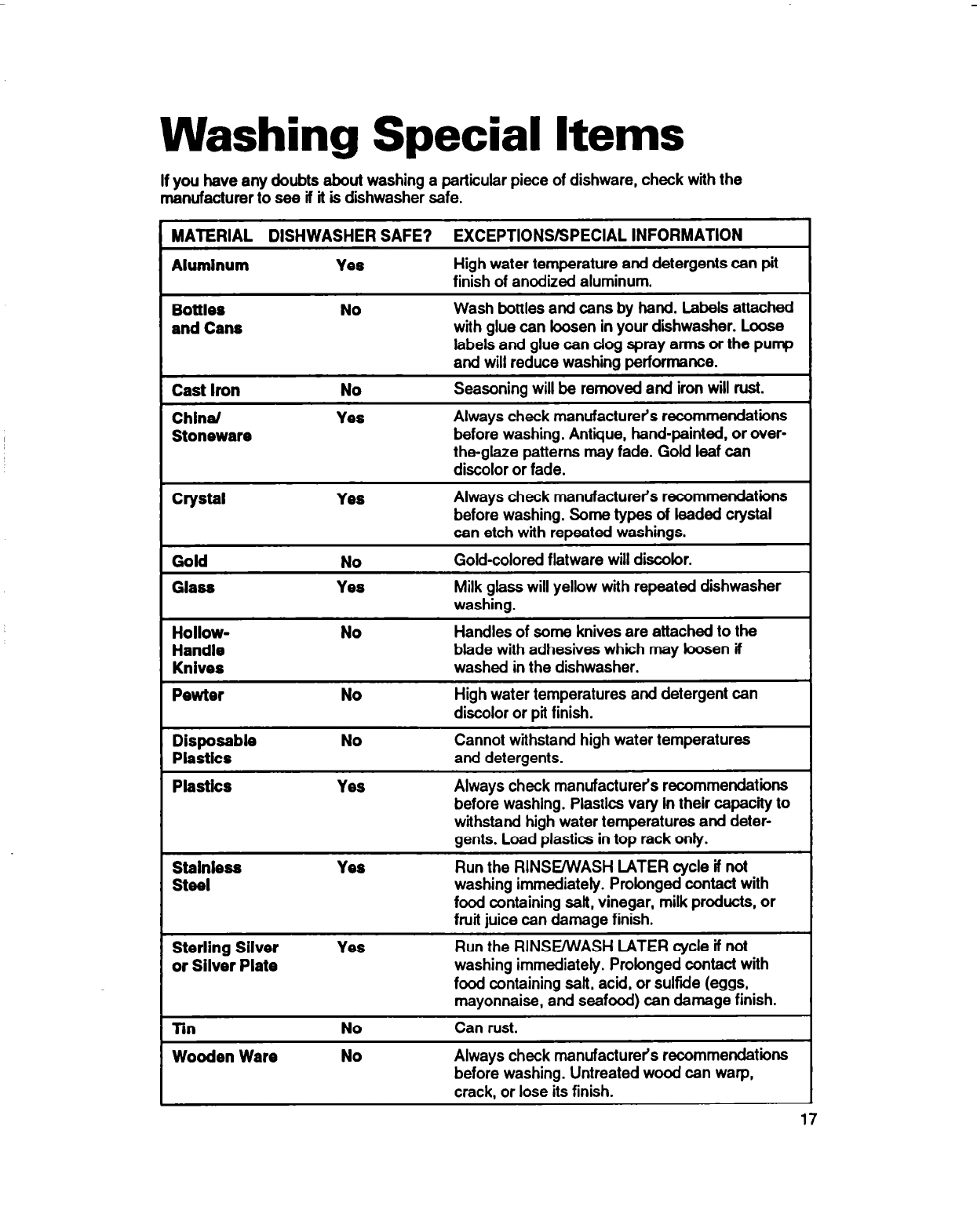

Washing Special Items

If you have any doubts about washing a particular piece of dishware, check with the

manufacturer to see if it is dishwasher safe.

MATERIAL DISHWASHER SAFE? EXCEPTIONS/SPECIAL INFORMATION

Aluminum Yes

High water temperature and detergents can pit

finish of anodized aluminum.

Bottles

and Cans No

Wash bottles and cans by hand. Labels attached

with glue can loosen in your dishwasher. Loose

labels and glue can clog spray arms or the pump

and will reduce washing performance.

Cast iron No

Seasoning will be removed and iron will rust.

China/

Stoneware Yes

Always check manufacturer’s recommendations

before washing. Antique, hand-painted, or over-

the-glaze patterns may fade. GoM leaf can

discolor or fade.

Crystal Yes Always check manufacturer’s recommendations

before washing. Some types of leaded crystal

can etch with repeated washings.

Gold No

Gold-colored flatware will discolor.

Glass Yes

Milk glass will yellow with repeated dishwasher

washing.

Hollow-

Handle

Knives

No

Handles of some knives are attached to the

blade with adhesives which may loosen if

washed in the dishwasher.

Pewter No

High water temperatures and detergent can

discolor or pit finish.

Disposable

Plastics No

Cannot withstand high water temperatures

and detergents.

Plastics Yes

Always check manufacturer’s recommendations

before washing. Plastics vary in their capacity to

withstand high water temperatures and deter-

gents. Load plastics in top rack only.

Stalnless

steel Yes

Run the RINSE/WASH LATER cycle if not

washing immediately. Prolonged contact with

food containing salt, vinegar, milk products, or

fruit juice can damage finish.

Sterling Silver

or Silvk Plate Yes

Run the RlNSEMlASH LATER cycle if not

washing immediately. Prolonged contact with

food containing salt, acid, or sulftie (eggs,

mayonnaise, and seafood) can damage finish.

Tin No

Can rust.

Wooden Ware No

Always check manufacturer’s recommendations

before washing. Untreated wood can warp,

crack. or lose its finish.

17

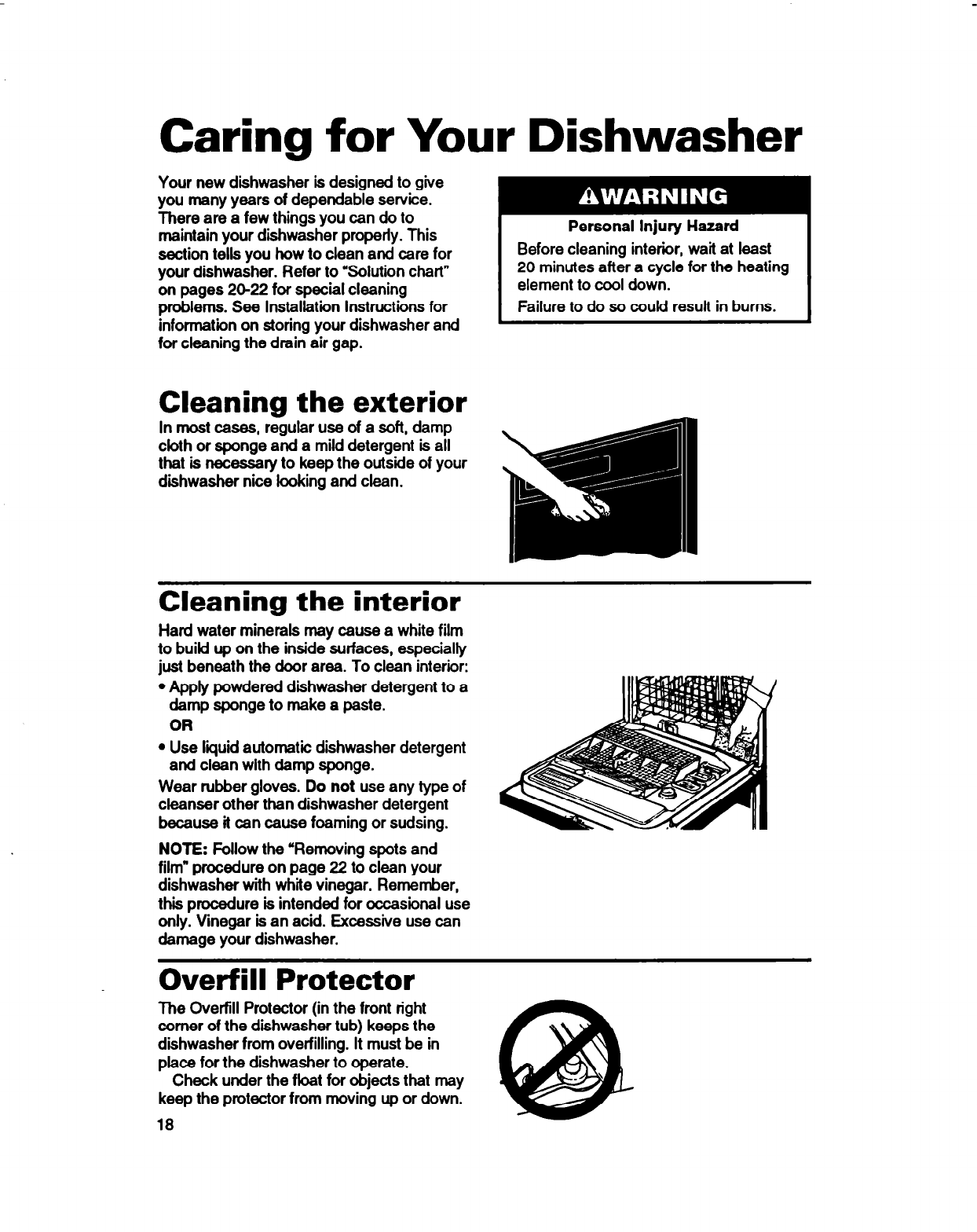

Caring for Your Dishwasher

Your new dishwasher is designed to give

you many years of dependable service.

There are

a few

things you can do to

maintain your dishwasher properly. This

section tells you how to clean

and

care for

your dishwasher. Refer to ‘Solution chart”

on pages 20-22 for special cleaning

problems. See Installation instructions for

information on storing your dishwasher and

for cleaning the drain air gap.

Personal Injury Hazard

Before cleaning interior, wait at least

20 minutes after a cycle for the heating

element to cool down.

Failure to do so could result in burns.

Cleaning the exterior

In most cases, regular use of a soft, damp

cloth or sponge and a mild detergent is all

that is necessary to

keep the outside of your

dishwasher nice looking and clean.

Cleaning the interior

Hard water minerals may cause a white film

to build up on the inside surfaces, especially

just beneath the door area. To clean interior:

l

Appty powdered dishwasher detergent to a

damp sponge to make a paste.

OR

l

Use liquid automatic dishwasher detergent

and clean with damp sponge.

Wear rubber gloves. Do

not

use any type of

cleanser other than dishwasher detergent

because it can cause foaming or sudsing.

NOTE: Follow the ‘Removing spots and

film” procedure on page 22 to clean your

dishwasher with whiie vinegar. Remember,

this procedure is intended for occasional use

only. Vinegar is an acid. Excessive use can

damage your dishwasher.

Overfill Protector

The Overfill Protector (in the front right

comer of the dishwasher tub) keeps the

dishwasher from overfilling. It must be in

place for the dishwasher to operate.

Check under the float for objects that may

keep the protector from moving up or down.

18

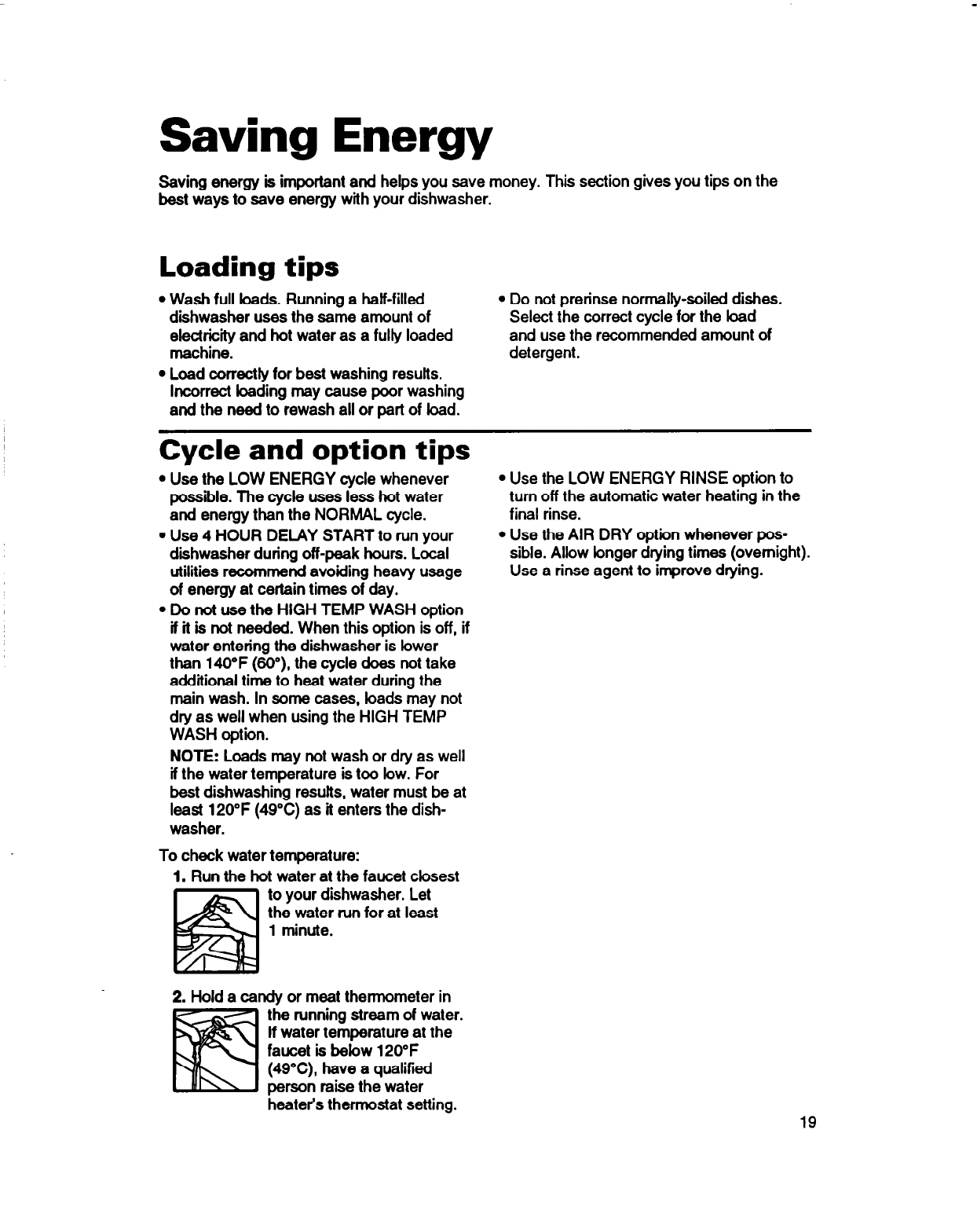

Saving Energy

Saving energy is important and helps you save money. This section gives you tips on the

best ways to save energy with your dishwasher.

Loading tips

l

Wash full loads. Running a half-filled

dishwasher uses the same amount of

electricity and hot water as a fully loaded

machine.

l

Load correctfy for best washing results.

Incorrect loading may cause poor washing

and the need to rewash all or part of bad.

l

Do not prerinse normally-soiled dishes.

Select the correct cycle for the bad

and use the recommended amount of

detergent.

Cycle and option tips

l

Use the LOW ENERGY cycle whenever

l

Use the LOW ENERGY RINSE option to

possible. The cycle uses less hot water turn off the automatic water heating in the

and energy than the NORMAL cycle. final rinse.

l

Use 4 HOUR DELAY START to run your

l

Use the AIR DRY option whenever pos

dishwasher during off -peak hours. Local sible. Allow longer drying times (overnight).

utilities recommend avoiding heavy

usage

Use a rinse agent to improve drying.

of energy at certain times of day.

l

Do not use the HIGH TEMP WASH option

if it is not needed. When this option is off, if

water entering the dishwasher is lower

than 14O’F (60”), the cycle does not take

additional time to heat water during the

main wash. In some cases, loads may not

dry as well when using the HIGH TEMP

WASH option.

NOTE: Loads may not wash or dry as well

if the water temperature is too low. For

best dishwashing results, water must be at

least 120°F (49°C) as it enters the dish-

washer.

To check water temperature:

1. Run the hot water at the faucet closest

to your dishwasher. Let

the water run for at least

1 minute.

2. Hold a candy or meat thermometer in

the running stream of water.

If water temperature at the

faucet is below 120°F

(49°C) have a qualified

person raise the water

heater’s thermostat setting. 19

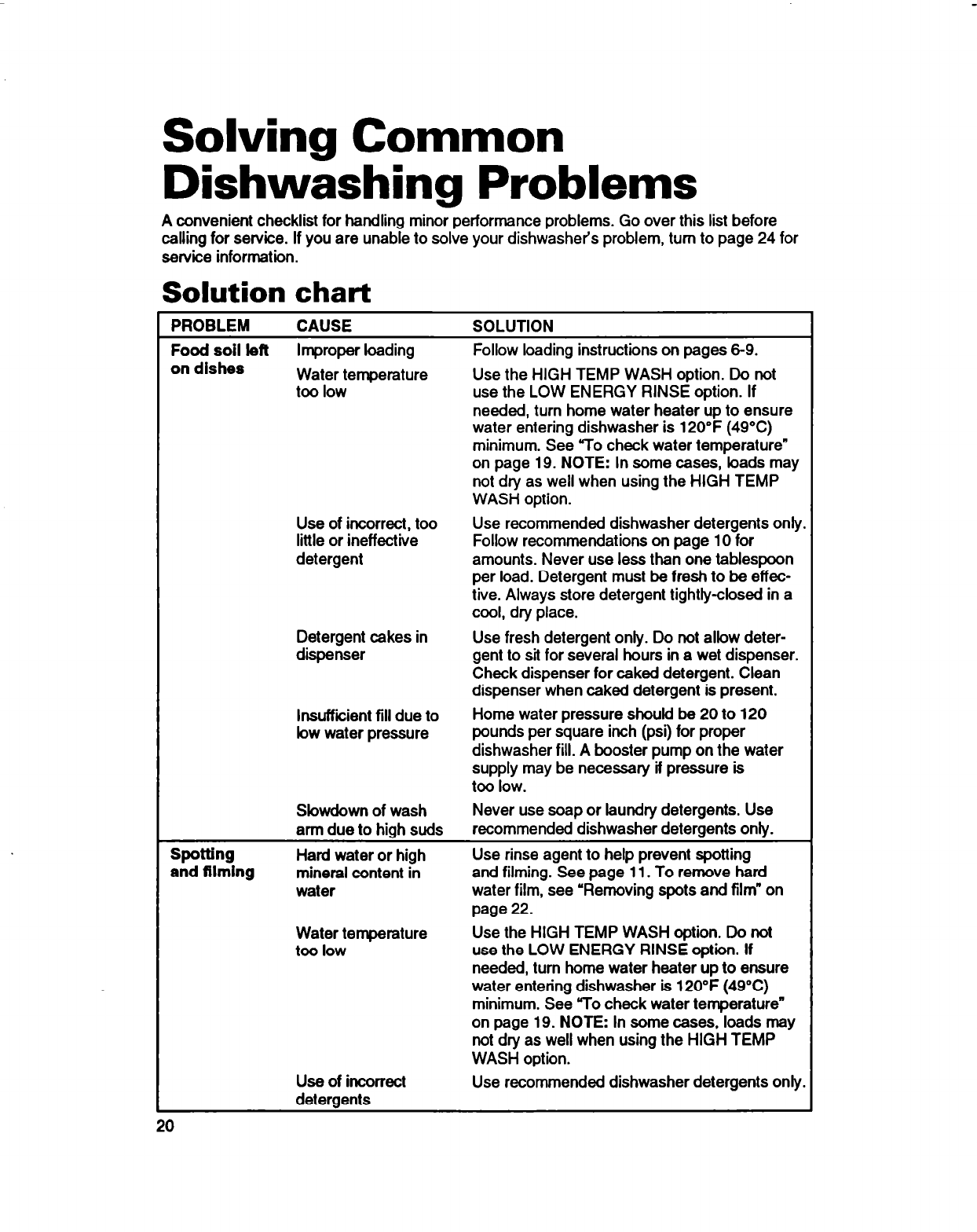

Solving Common

Dishwashing Problems

A convenient checklist for handling minor performance problems. Go over this list before

calling for service. If you are unable to solve your dishwasher’s problem, turn to page 24 for

service information.

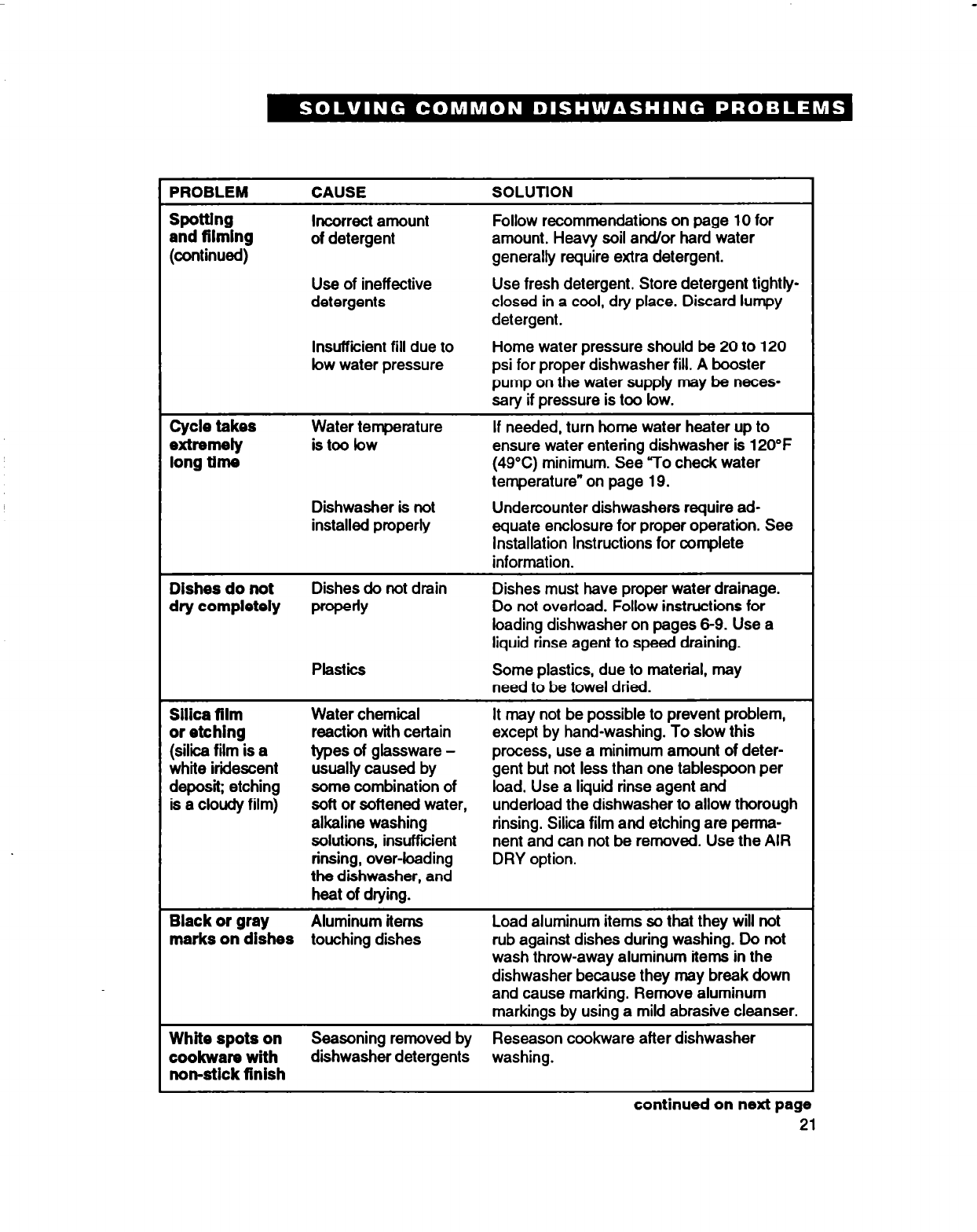

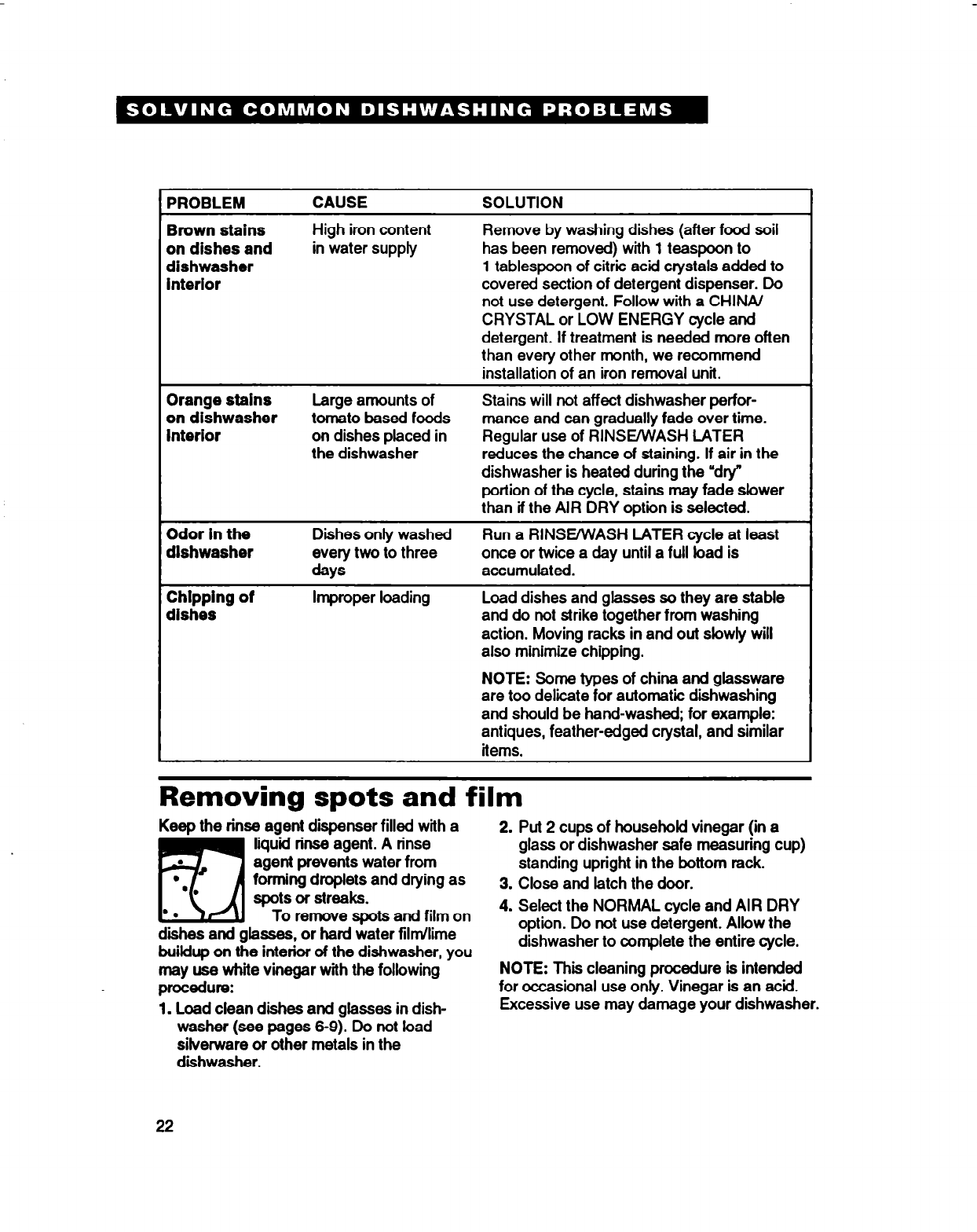

Solution chart

PROBLEM CAUSE SOLUTION

Food soil left Improper loading Follow loading instructions on pages 6-9.

on dishes Water temperature Use the HIGH TEMP WASH option. Do not

too low use the LOW ENERGY RINSE option. If

needed, turn home water heater up to ensure

water entering dishwasher is 120°F (49°C)

minimum. See “To check water temperature”

on page 19. NOTE: In some cases, loads may

not dry as well when using the HIGH TEMP

WASH option.

Use of incorrect, too Use recommended dishwasher detergents only.

little or ineffective Follow recommendations on page 10 for

detergent amounts. Never use less than one tablespoon

per load. Detergent must be fresh to be effec-

tive. Always store detergent tightly-closed in a

cool, dry place.

Detergent cakes in Use fresh detergent only. Do not allow deter-

dispenser gent to sit for several hours in a wet dispenser.

Check dispenser for caked detergent. Clean

dispenser when caked detergent is present.

lnsuffiiient fill due to Home water pressure should be 20 to 120

bw water pressure pounds per square inch (psi) for proper

dishwasher fill. A booster pump on the water

supply may be necessary if pressure is

too low.

Spotting

and filming

Slowdown of wash Never use soap or laundry detergents. Use

am-r due to high suds recommended dishwasher detergents only.

Hard water or high Use rinse agent to help prevent spotting

mineral content in and filming. See page 11. To remove hard

water water film, see “Removing spots and film” on

page 22.

Water temperature Use the HIGH TEMP WASH option. Do not

too low use the LOW ENERGY RINSE option. If

needed, turn home water heater up to ensure

water entering dishwasher is 120°F (49°C)

minimum. See “To check water temperature”

on page 19. NOTE: In some cases, loads may

not dry as well when using the HIGH TEMP

WASH option.

Use of incorrect Use recommended dishwasher detergents only.

detergents

20

PROBLEM

Spotth

and fiimlng

(continued)

Cycle takes

extremely

long time

CAUSE

Incorrect amount

of detergent

Use of ineffective

detergents

Insufficient fill due to

bw water pressure

Water temperature

is too bw

Dishwasher is not

installed properly

SOLUTION

Follow recommendations on page 10 for

amount. Heavy soil and/or hard water

generally require extra detergent.

Use fresh detergent. Store detergent tightly-

closed in a cool, dry place. Discard lumpy

detergent.

Home water pressure should be 20 to 120

psi for proper dishwasher fill. A booster

pump on the water supply may be neces-

sary if pressure is too low.

If needed, turn home water heater up to

ensure water entering dishwasher is 120°F

(49°C) minimum. See “To check water

temperature” on page 19.

Undercounter dishwashers require ad-

equate enclosure for proper operation. See

Installation Instructions for complete

information.

Dishes do not

Dishes do not drain Dishes must have proper water drainage.

dry completely properly

Do not overload. Follow instructions for

loading dishwasher on pages 6-9. Use a

liquid rinse agent to speed draining.

Plastics Some plastics, due to material, may

need to be towel dried.

Silica film

Water chemical It may not be possible to prevent problem,

or etching

reaction with certain except by hand-washing. To slow this

(silica film is

a

types of glassware - process, use a minimum amount of deter-

white iridescent usually caused by gent but not less than one tablespoon per

deposit; etching some combination of load. Use a liquid rinse agent and

is

a

cloudy film) soft or softened water, underload the dishwasher to allow thorough

alkaline washing rinsing. Silica film and etching are perma-

solutions, insufficient nent and can not be removed. Use the AIR

rinsing, over-loading DRY option.

the dishwasher, and

heat of drying.

Black or gray

Aluminum items Load aluminum items so that they will not

marks on dishes

touching dishes rub against dishes during washing. Do not

wash throw-away aluminum items in the

dishwasher because they may break down

and cause marking. Remove aluminum

markings by using a mild abrasive cleanser.

White spots on

Seasoning removed by Reseason cookware after dishwasher

cookware with

dishwasher detergents washing.

non-stick finish

continued

on next page

21

PROBLEM

Brown stains

on dishes and

dishwasher

interior

CAUSE

High iron content

in water supply

SOLUTION

Remove by washing dishes (after food soil

has been removed) with 1 teaspoon to

1 tablespoon of citric acid crystals added to

covered section of detergent dispenser. Do

not use detergent. Follow with a CHINA/

CRYSTAL or LOW ENERGY cycle and

detergent. If treatment is needed more often

than every other month, we recommend

installation of an iron removal unit.

Orange stains

on dishwasher

Interior

Odor in the

dlshwasher

Chlpping of

dishes

Large amounts of

tomato based foods

on dishes placed in

the dishwasher

Dishes only washed

every two to three

&YS

Improper loading

Stains will not affect dishwasher perfor-

mance and can gradually fade over time.

Regular use of RINSE/WASH LATER

reduces the chance of staining. If air in the

dishwasher is heated during the “dry”

portion of the cycle, stains may fade slower

than if the AIR DRY option is selected.

Run a RlNSEMlASH LATER cycle at least

once or twice a day until a full bad is

accumulated.

Load dishes and glasses so they are stable

and do not strike together from washing

action. Moving racks in and out slowly will

also minimize chipping.

NOTE: Some types of china and glassware

are too delicate for automatic diihwashing

and should be hand-washed; for example:

antiques, feather-edged crystal, and similar

items.

Removing spots and film

Keep the rinse agent dispenser filled with a 2. Put 2 cups of household vinegar (in

a

liquid rinse agent. A rinse glass or dishwasher safe measuring cup)

agent

prevents water from standing upright in the bottom rack.

forming

droplets and drying as 3. Close and latch the door.

spots or streaks.

To remove spots and film on 4. Select the NORMAL cycle and AIR DRY

dishes and glasses, or hard water film/lime option. Do not use detergent. Allow the

buildup on the interior of the dishwasher, you dishwasher to complete the entire cycle.

may use white vinegar with the following NOTE: This cleaning procedure is intended

procedure: for occasional use onfy. Vinegar is an acid.

1.

Load clean dishes and glasses in dish- Excessive use may damage your dishwasher.

washer (see pages 6-9). Do not bad

sifvennrare or other metals in the

dishwasher.

22

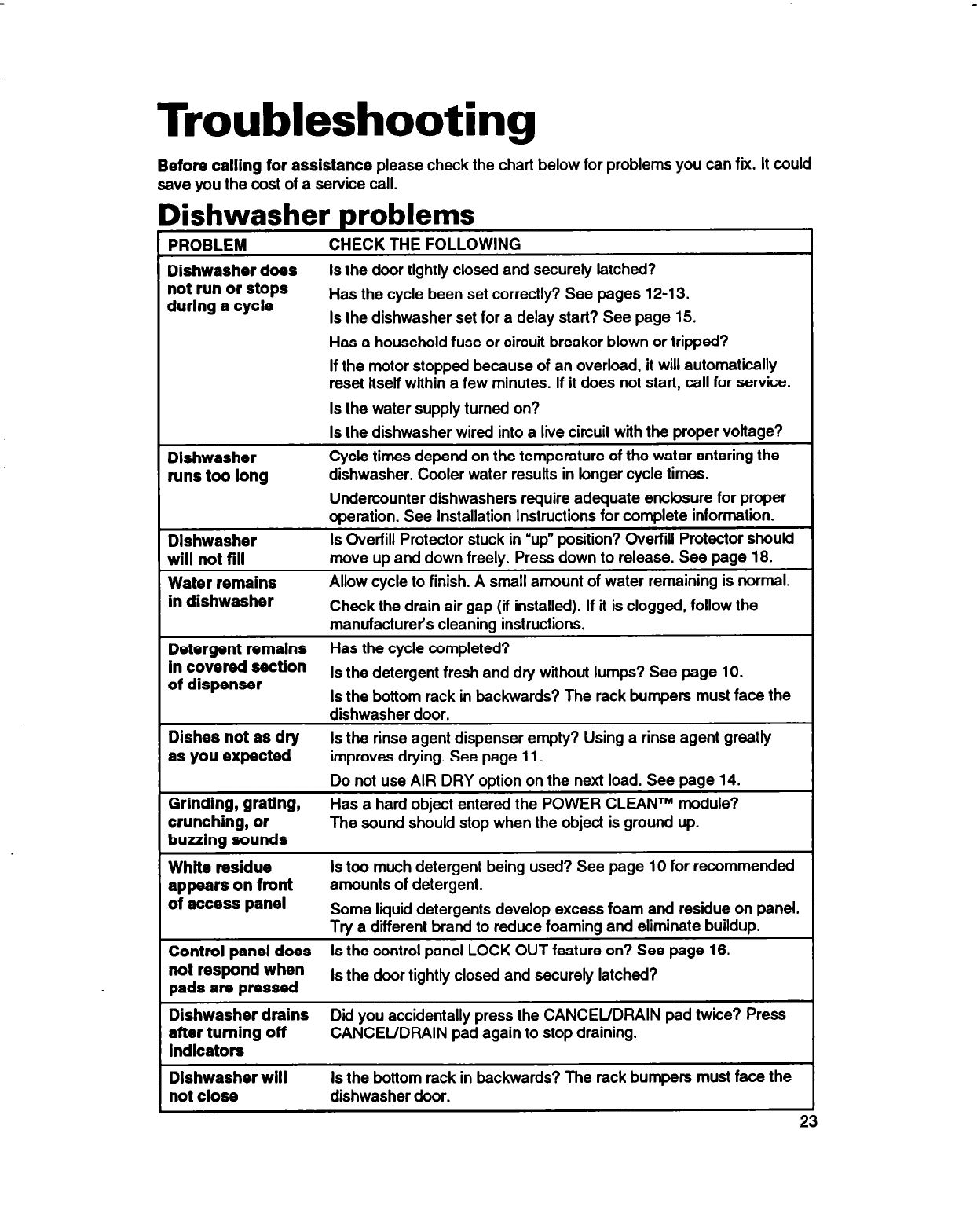

Troubleshooting

Before calling for assistance

please check the chart below for problems you can fix. It could

sew you the cost of

a service

call.

Dishwasher Droblems

PROBLEM CHECK THE FOLLOWING

Dishwasher does

is the door tightly closed and securely latched?

not run or stops

during a cycle

Has the cycle been set correctly? See pages 12-13.

Is the dishwasher set for a delay start? See page 15.

Has a household fuse or circuit breaker blown or tripped?

If the motor stopped because of an overload, it will automatically

reset itself within a few minutes. If it does not start, call for service.

is the water supply turned on?

Dishwasher

runs too long

Dishwasher

will not fill

Water remains

in dishwasher

is the dishwasher wired into a live circuit with the proper voltage?

Cycle times depend on the temperature of the water entering the

dishwasher. Cooler water results in longer cycle times.

Undercounter dishwashers require adequate enclosure for proper

operation. See Installation Instructions for complete information.

is Overfill Protector stuck in “up” position? Overfill Protector shouM

move up and down freely. Press down to release. See page 18.

Allow cycle to finish. A small amount of water remaining is normal.

Check the drain air gap (if installed). If it is clogged, follow the

manufacturer’s cleaning instructions.

Detergent remains

Has the cycle completed?

in covered section

of dispenser

is the detergent fresh and dry without lumps? See page 10.

is the bottom rack in backwards? The rack bumpers must face the

dishwasher door.

Dishes not as dry

is the rinse agent dispenser empty? Using a rinse agent greatly

as you expected

improves drying. See page 11.

Do not use AIR DRY option on the next load. See page 14.

Grinding, grating,

Has a hard object entered the POWER CLEANTM module?

crunching, or

The sound should stop when the object is ground up.

buzzing sounds

White residue

appears on front

of access panel

Is too much detergent being used? See page 10 for recommended

amounts of detergent.

Some liquid detergents develop excess foam and residue on panel.

Try a different brand to reduce foaming and eliminate buildup.

is the control panel LOCK OUT feature on? See page 16.

is the door tightly closed and securely latched?

Control panel does

not respond when

pads are pressed

Dishwasher drains

after turning off

indicators

Did you accidentally press the CANCEUDRAIN pad twice? Press

CANCEL/DRAIN pad again to stop draining.

Dishwasher wlii

is the bottom rack in backwards? The rack bumpers must face the

not close

dishwasher door.

i

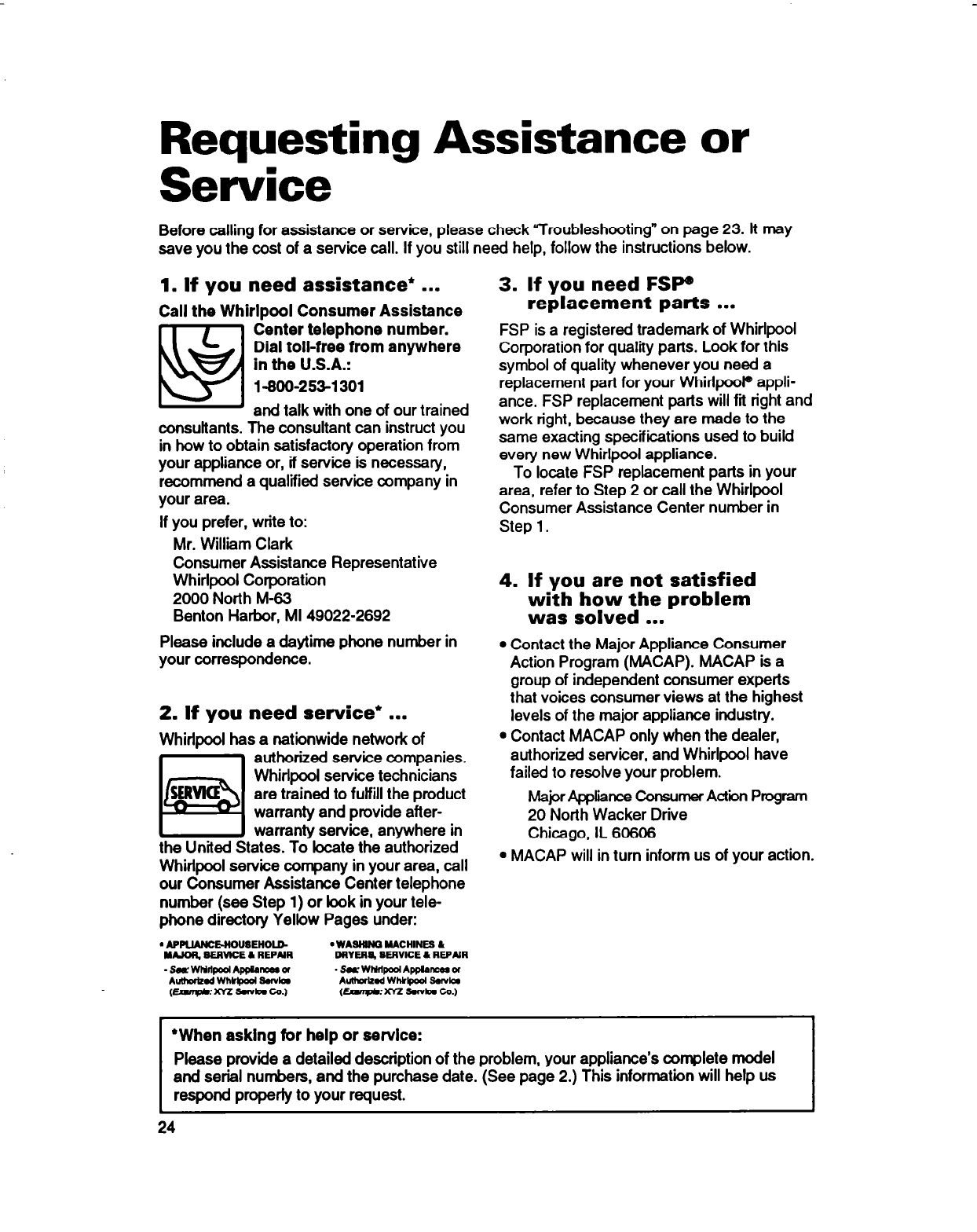

Reauestina Assistance

or

- -m--- - -~ -w

Service

Before calling for assistance or service, please check “Troubleshooting” on page

23.

It may

save you the cost of a service call. If you still need help, follow the instructions below.

1. If you need assistance* . . .

Call the Whirlpool Consumer Assistance

El

Center telephone number.

w

Dial toil-free from anywhere

in the U.S.A.:

1-800-253-l 301

and

talk with one of our trained

consultants. The consultant can instruct you

in how to obtain satisfactory operation from

your appliance or, if service is necessary,

recommend a qualified service company in

your area.

If you prefer, write to:

Mr. William Clark

Consumer Assistance Representative

Whirlpool Corporation

2000

North M-62

Benton Harbor, MI 49022-2692

Please include

a

daytime phone number in

your correspondence.

2. If you need service* . . .

Whirlpool has a nationwide network of

El

authorized service companies.

Whirlpool service technicians

SERYICE are trained to fulfill the product

warranty and provide after-

warranty service, anywhere in

the United States. To locate the authorized

Whirlpool service company in your area, call

our Consumer Assistance Center telephone

number (see Step

1)

or look in your tele-

phone directory Yellow Pages under:

3. If you need FSP

replacement parts . . .

FSP is a registered trademark of Whirlpool

Corporation for quality parts. Look for this

symbol of quality whenever you need

a

replacement part for your Whirlpool@ appli-

ance. FSP replacement parts will fit right and

work right, because they are made to the

same exacting specifications used to build

every new Whirlpool appliance.

To locate FSP replacement parts in your

area, refer to Step 2 or call the Whirlpool

Consumer Assistance Center number in

Step 1.

4. If you are not satisfied

with how the problem

was solved . . .

l

Contact the Major Appliance Consumer

Action Program (MACAP). MACAP is

a

group of independent consumer experts

that voices consumer views at the highest

levels of the major appliance industry.

l

Contact MACAP only when the dealer,

authorized servicer, and Whirlpool have

failed to resolve your problem.

Mapr Appliance Consumer Action Program

20 North Wacker Drive

Chicago, IL 60606

l

MACAP will in turn inform us of your action.

*When asking for help or service:

Please provide a detailed description of the problem, your appliance’s complete model

and serial numbers, and the purchase date. (See page 2.) This information will help us

respond properfy to your request.

24

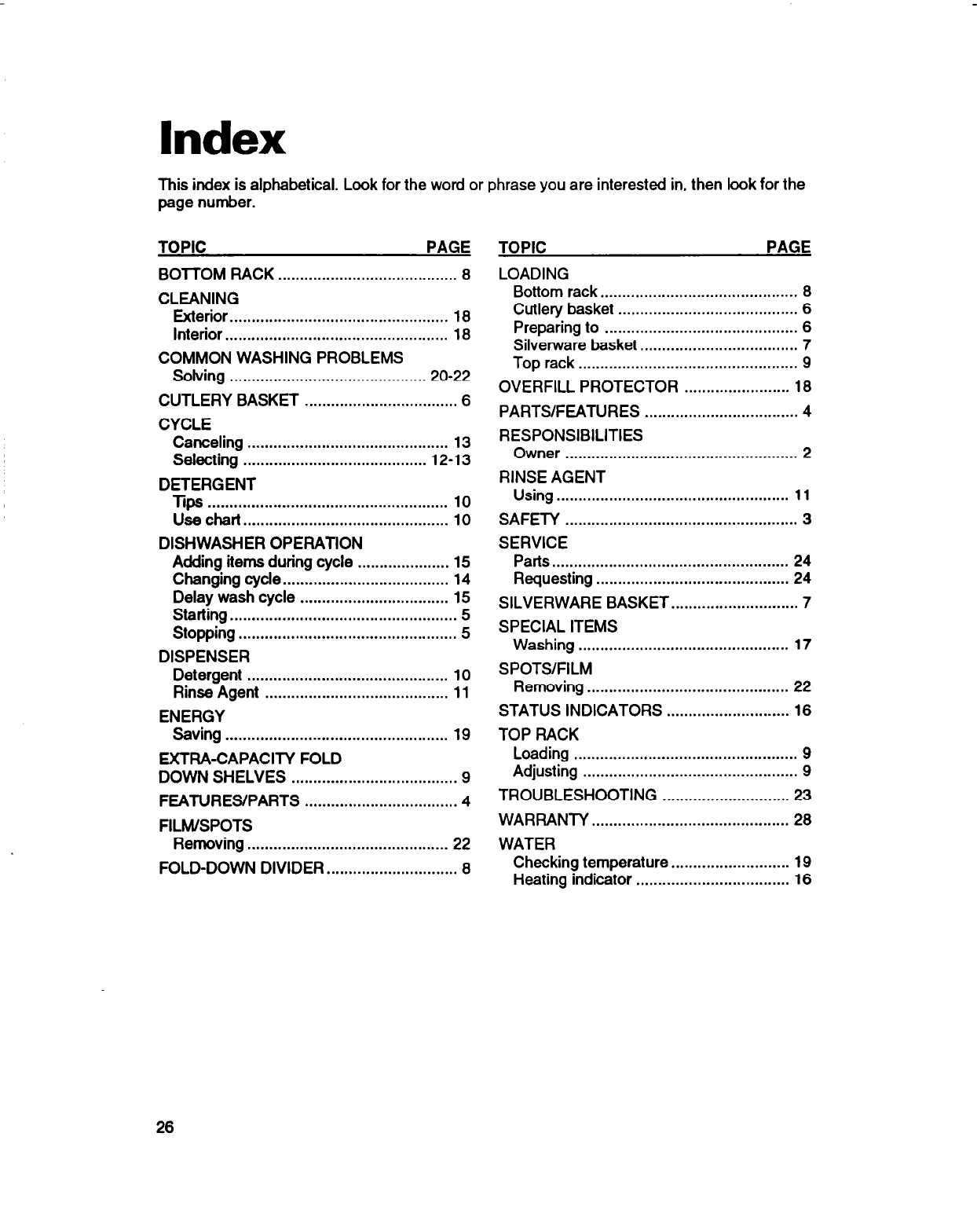

Index

This index is alphabetical. Look for the word or phrase you are interested in, then look for the

page number.

TOPIC PAGE

BOTTOM RACK ......................................... 8

CLEANING

Exterior.. ................................................ 18

interior.. ................................................. 18

COMMON WASHING PROBLEMS

Solving ............................................. 20-22

CUTLERY BASKET ................................... 6

CYCLE

Canceling .............................................. 13

Selecting .......................................... 12-l 3

DETERGENT

Tips ....................................................... 10

use chart.. ............................................. 10

DISHWASHER OPERATION

Adding items during cycle ..................... 15

Changing cycle ...................................... 14

Delay wash cycle .................................. 15

Starting.. .................................................. 5

Stopping .................................................. 5

DISPENSER

Detergent .............................................. 10

Rinse Agent .......................................... 11

ENERGY

Saving ................................................... 19

EXTRA-CAPACITY FOLD

DOWN SHELVES ...................................... 9

FEATURES/PARTS ................................... 4

FILM/SPOTS

Removing .............................................. 22

FOLD-DOWN DIVIDER .............................. 8

TOPIC PAGE

LOADING

Bottom rack.. ........................................... 8

Cutlery basket ......................................... 6

Preparing to ............................................ 6

Silverware basket .................................... 7

Top rack .................................................. 9

OVERFILL PROTECTOR ........................ 18

PARTS/FEATURES ................................... 4

RESPONSIBILITIES

Owner ..................................................... 2

RINSE AGENT

Using ..................................................... 11

SAFETY ..................................................... 3

SERVICE

Parts.. .................................................... 24

Requesting ............................................ 24

SILVERWARE BASKET.. ........................... 7

SPECIAL ITEMS

Washing ................................................ 17

SPOTS/FILM

Removing .............................................. 22

STATUS INDICATORS ............................ 16

TOP RACK

Loading ................................................... 9

Adjusting ................................................. 9

TROUBLESHOOTING ............................. 23

WARRANTY.. ........................................... 28

WATER

Checking temperature ........................... 19

Heating indicator ................................... 16

26

POWER CLEAN” washing system parts

covered by your warranty

Third level wash tower

Spray tower

Nozzle cap

Lower spray arm

SOUNPLOCKTY

o- tuned absorber

27

WHIRLPOOL”

Dishwasher Warranty

LENGTH OF WARRANTY

FULL ONE-YEAR

WARRANTY

From Date of Purchase

LIMITED ONE-YEAR

WARRANTY

Second Year From Date of

Purchase

LIMITED FOUR-YEAR

WARRANTY

Second Through Ftih Year

From Date of Purchase

FULL TWENTY-YEAR

WARRANTY

From Date of Purchase

WHIRLPOOL WILL NOT Pi

A. Service calls to:

WHIRLPOOL WILL PAY FOR

FSP@ replacement parts and repair labor to correct defects in

materials or workmanship. Service must be provided by an

authorized Whirlpool service company.

FSP replacement parts for any part of the POWER CLEANTM

washing system if defective in materials or workmanship.

These parts are shown on page 27 of this book.

FSP replacement parts for Electronic Control System if

defective in materials or workmanship.

For models with dishracks that are oystercolored, FSP

replacement parts for the top and/or bottom dishracks if they

rust due to defective materials or workmanship.

FSP replacement parts and repair labor for the

DURAPERMTM tub and/or inner door should they fail to

contain water due to defective materials or workmanship.

Service must be provided by an authorized Whirlpool service

company.

’ FOR

1. Correct the installation of the dishwasher.

2. instruct you how to use the dishwasher.

3. Replace house fuses or correct house wiring or plumbing.

B. Repairs when dishwasher is used in other than normal, single-family household use.

C. Pickup and delivery. This product is designed to be repaired in the home.

D. Damage to dishwasher caused by accident, misuse, fire, flood, acts of God, or use of

products not approved by Whirlpool.

E. Any labor costs during limited warranties.

F. Repairs to parts or systems caused by unauthorized modifications made to the

appliance. aJo4

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE-

QUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or

consequential damages, so this exclusion or limitation may not apply to you. This warranty

gives you specific legal rights, and you may also have other rights which vary from state to

state.

Outside the United States, a different warranty may apply. For details, please contact your

authorized Whirlpool dealer.

if you need service, first see the “Requesting Assistance or Service” section of this book. After

checking ‘Requesting Assistance or Service,” additional help can be found by calling our

Consumer Assistance Center telephone number, l-300-253-1301, from anywhere in the U.S.A.

PART NO. 3373755 Rev. A 4m5

ol~wmpoal-

l

hgWmdTrdammrk/lMTr~ d Whbw. USA. Pdntsd h USA
