1

CABINET PARTS

For Model: ED5FVGXSS04

(Stainless Steel)

05−08 Litho in U.S.A. (jdc)(bay) Part No. W10208118 Rev. A

REFRIGERATOR

CABINET PARTS

2

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2318594 Use & Care Guide

W10142157

Service & Wiring

Sheet

W10196284

Energy Guide

628370 Modular Icemaker

Service Sheet

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

9 2203771 Hinge Top RC

10 8281227 Screw

11 3400858 Screw

12 Hinge Cover FC

2203407B Black

13

W10138965

Hinge Bottom

14 Filler, Wrapper

2304848 Black

15 Grille

2260500B Black

16 489497 Screw

17 489464 Screw

18 2304888 Drain Fitting

19 1108438 Extension Tube

20 1108439 Clip, Drain Tube

21 2188735 Cover, Unit

22 Hinge Cover RC

2203408B Black

23 549193 Clamp, Service Cord

24 489084 Screw

25 2155311 Door Closer,

Lower Cam (2)

26 489483 Screw

27 Cabinet (Not a

Serviceable Part)

28 2203770 Hinge Top, FC

29 2260519 Block, Housing

Support

30 2260507 Housing, Water

Filter

31 4396841 Water Filter

32 489500 Screw

33 Cap, Water

Filter

2260502B Black

34 3400113 Screw

35 2255012 Tube, Filter

Outlet

36 2319867 Tube, Filter

Inlet

37 Button, Water

Filter

2260503B Black

38 3400858 Screw

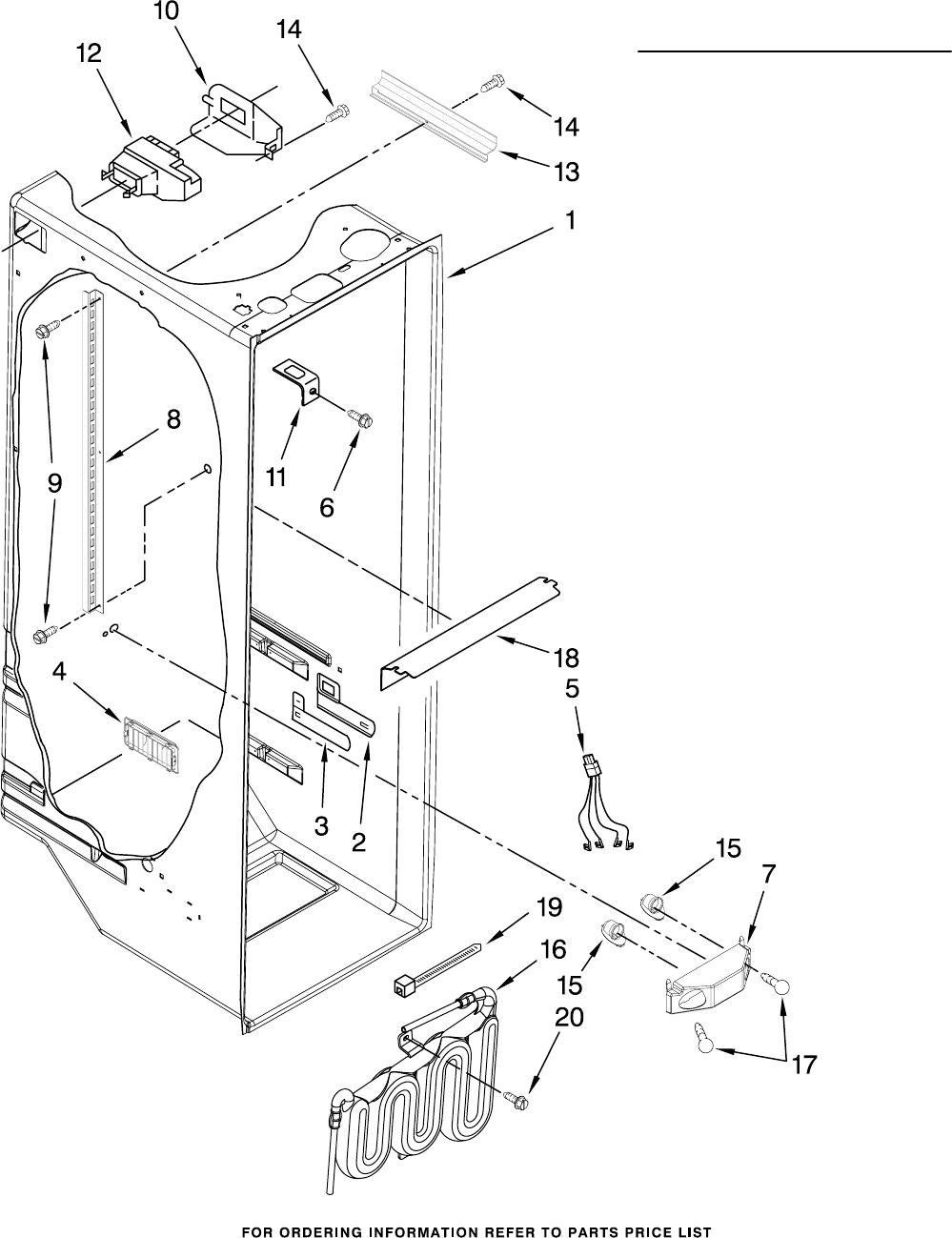

REFRIGERATOR LINER PARTS

3

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2

W10175967

Escutcheon, Meat

Pan Control

3 2182757 Slide, Meat

Pan Control

4 2257741 Louver

5 2311637 Wire Harness,

Dual Crisper

6 489290 Screw (2)

7 2256035 Bracket,

Dual Crisper

Light

8 2319866 Shelf Ladder

9 489478 Screw

10 2152019 Air Diffuser

Cover

11 2256085 Bracket Retainer

12

W10151374

Air Diffuser

Assembly

13 2150331 Cover, Conduit

14

W10004810

Screw

15 2162085 Socket

16 2307107 Reservoir

17 527949 Light Bulb

18 2209769 Light Lens

19 2172840 Strap

20 488280 Screw (2)

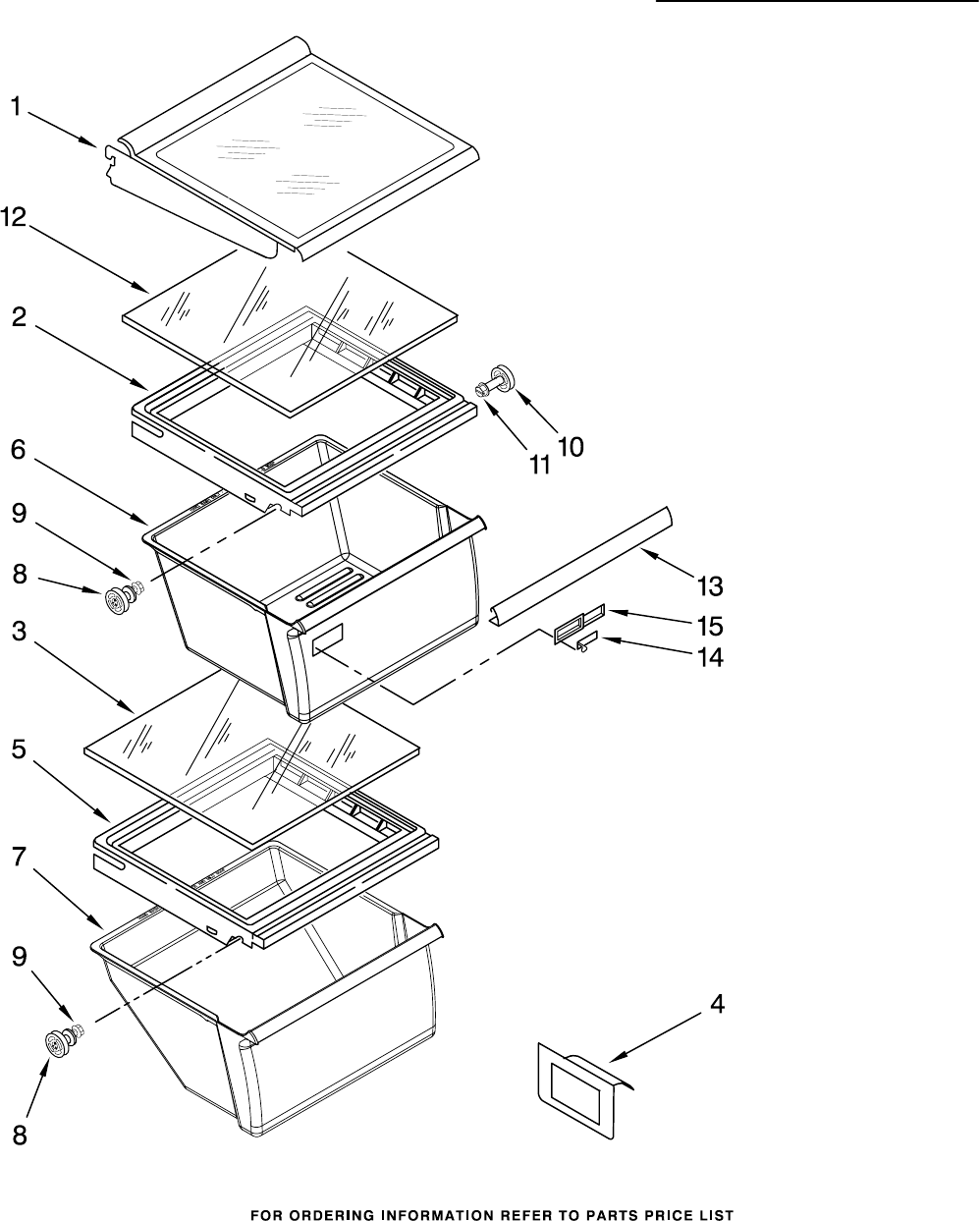

REFRIGERATOR SHELF PARTS

4

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION

1

W10141749

Shelf Assembly,

Spillguard (3)

2 2209698 Cover, Crisper

3 2179259 Glass, Cover

4 2179350 Deflector

5 2311726 Cover, Meat Pan

6 2188652 Crisper Pan

7 2188654 Meat Pan

8 2196485 Stud Assembly

9 3400894 Screw

10 2196483 Stud Assembly

11 8281158 Screw

12

W10141752

Glass, Cover

13 2255593 Trim, Handle

14 2179342 Slide, Humidity

Control

15 2179343 Body, Humidity

Control

5

FREEZER LINER PARTS

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

6

FREEZER LINER PARTS

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2171713K Door, Ice

Compartment

3 2174267K Shelf, Upper

4 2174268K Shelf (2)

5 842534 Clip, Air Duct (2)

6 2196206 Support, Stud (4)

7 3400893 Screw

8 2176134 Grommet

9 2182971 Freezer Bin

10 Slide, Basket

2261449 Right Side

2261448 Left Side

11

W10004810

Screw

12 1115373 Switch, Rocker Arm

13 8281158 Screw

14 2196483 Stud Assembly

15 3400893 Screw

16 2171714K Shelf, Top

Compartment

17 2171705 Lens, Light

18 527949 Light Bulb

19 2162085 Light Socket

20 2196207 Stud, Rear

21 Slide, Container

1119237 Left Side

1119293 Right Side

22 489100 Screw

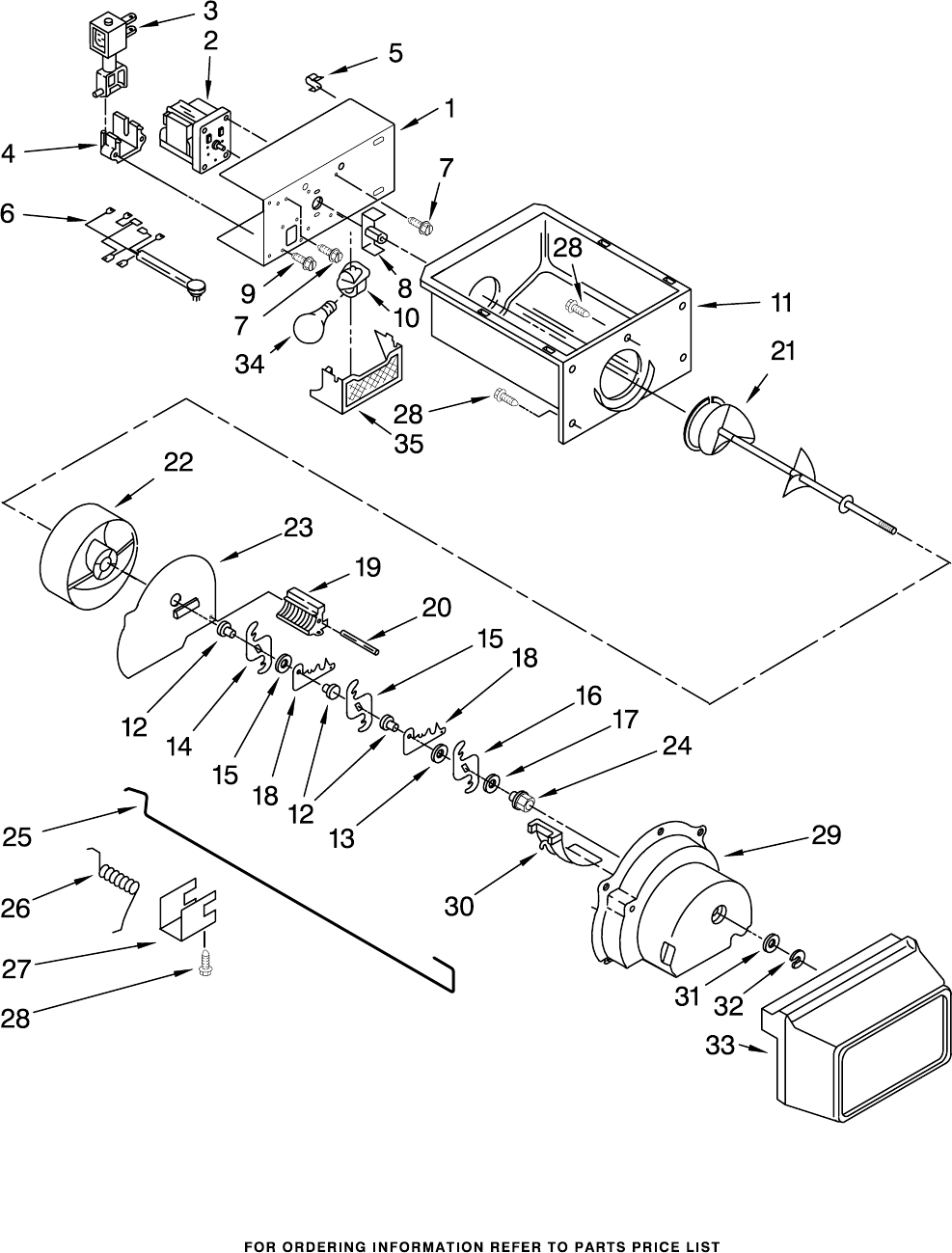

MOTOR AND ICE CONTAINER PARTS

7

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

MOTOR AND ICE CONTAINER PARTS

8

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION

1 2254587 Bracket, Motor

2

W10181208

Motor, Dispenser

3 2152713 Soleniod Assembly

4 2149100 Guide, Soleniod

5 1115374 Clip, Wiring

6 2206501 Wiring Assembly,

Ice Dispenser

7 489399 Screw

8

W10140958

Coupling, Motor

9 489478 Screw

10 2162085 Socket, Light

11 2196091 Ice Container

12 1119005 Spacer, Step (3)

13 1119007 Spacer, Flat (2)

14 2257022 Blade, Rotary

15 2257023 Blade, Rotary

16 2257024 Blade, Rotary

17 489235 Washer, Plain

18 1119009 Blade, Fixed (2)

19 2157405 Block, Blade

20 489229 Roll Pin

21 2196295 Auger

22 2305377 Drum

23 2171682 Floating Baffle

24 1119018 Nut, Bearing

25 2155231 Control Arm

26 1119020 Spring, Return

27 1119021 Retainer Clip, Rod

28 488886 Screw

29 2180348 Housing, Crusher

30 1119017 Deflector, Ice

31 489234 Washer, Plain

32 489236 Retainer Ring

33 2204321 Front Cover,

Ice Container

34 527949 Light Bulb

35 2171706 Light Lens,

Dispenser

100 2209780 Ice Container

Assembly

9

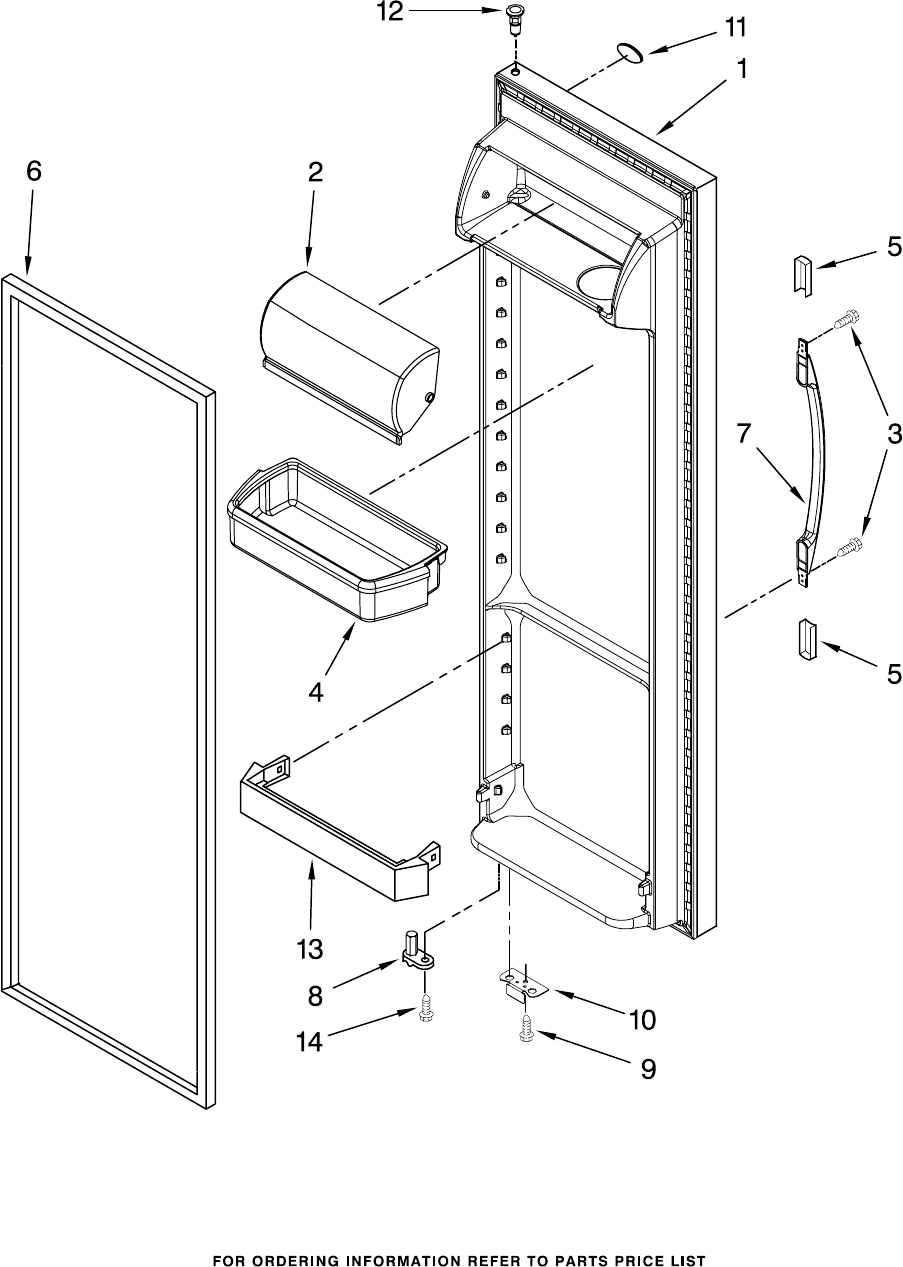

REFRIGERATOR DOOR PARTS

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

REFRIGERATOR DOOR PARTS

10

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item 6)

2206825S Stainless Steel

2 2256101 Door, Compartment

3 489491 Screw

4 2203828K Door Bin (3)

5 Extension, Handle

2193353B Black

6 Door Gasket,

Magnetic (Repair)

2221313 Black

7 Handle, Center

2186649B Black

8 2182178 Door Closer,

Upper Cam

9 489420 Screw

10 Bracket, Door Stop

2206629B Black

11 2255121 Nameplate

12 2182181 Thimble, Top

13 2156022 Trivet

14 3400012 Screw

11

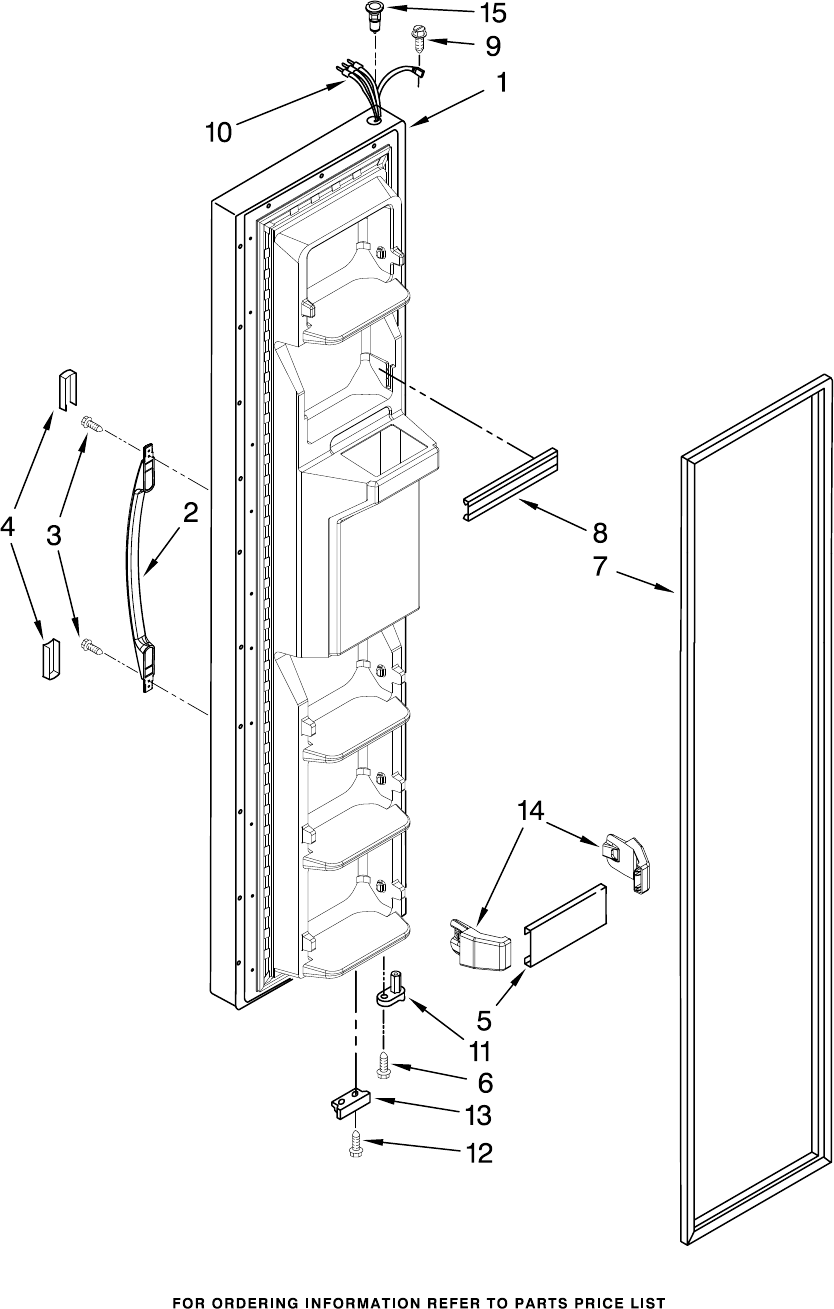

FREEZER DOOR PARTS

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

12

FREEZER DOOR PARTS

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(Includes Item 8

And Dispenser

Front Parts)

2318425S Stainless Steel

2 Handle, Center

2186649B Black

3 489491 Screw

4 Extension, Handle

2193353B Black

5 2313199K Trim, Door (4)

6 3400012 Screw

7 Door Gasket,

Magnetic (Repair)

2221314 Black

8 2209681 Trim, Door Shelf

9 488500 Screw

10 2206601 Wire Harness

11 2182179 Door Closer,

Upper Cam

12 489420 Screw

13 Bracket, Door Stop

2206629B Black

14 2195917 End Cap (8)

15 2182181 Thimble, Top

13

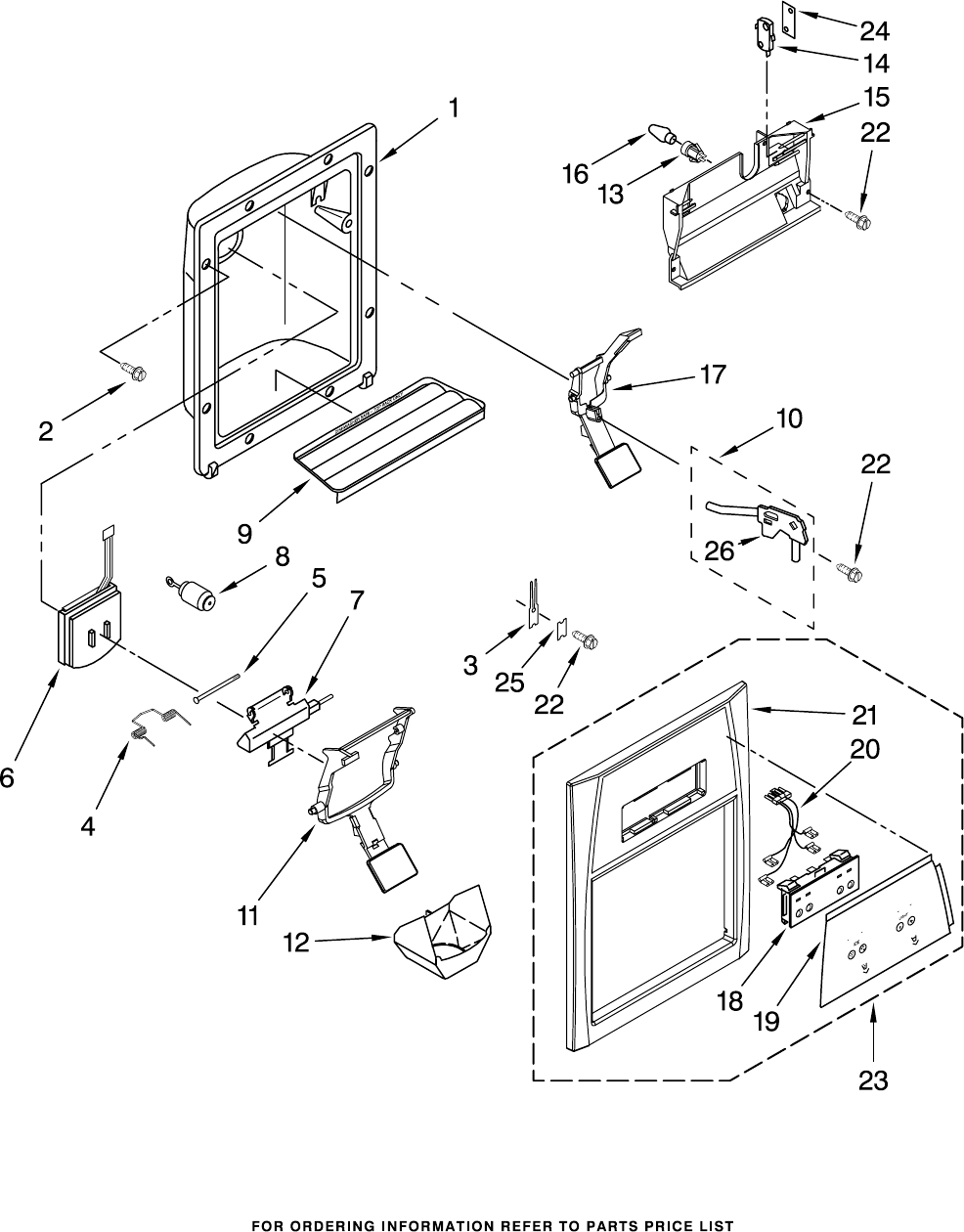

DISPENSER FRONT PARTS

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

DISPENSER FRONT PARTS

14

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION

1 Housing, Dispenser

(Not Serviced)

2 3196537 Screw

3 2194719 Retainer, Levers

4 2304772 Spring, Torsion

5 2196195 Pin

6 2180353 Door, Ice

7 2304355 Door Mechanism

Assembly

8 2205686 Mechanism Delay

9 Grille, Overflow

2206670B Black

10 2304317 Water Fitting

Assembly (Includes

Water Tube)

11 Lever, Ice

Dispenser

2195089B Black

12 2180224 Guide, Ice

13 2180200 Lamp Holder

14 2162361 Switch (4)

15 2183771 Bracket, Control

16 3406124 Bulb, Light

17 Lever, Water

Dispenser

2195090B Black

18 2180279 Switch Assembly

19 Overlay, Front

Cover

(Not Available

Order #23)

20 2187408 Wire Assembly

21 Front Cover,

Housing

(Not Available,

Order #23)

22 489000 Screw

23 Front Cover

Assembly

(Includes Items

18, 19, 20 & 21)

2318424B Black

24 625834 Spacer, Switch (2)

25 2195051 Strain Relief

26 2304673 Bracket, Dispenser

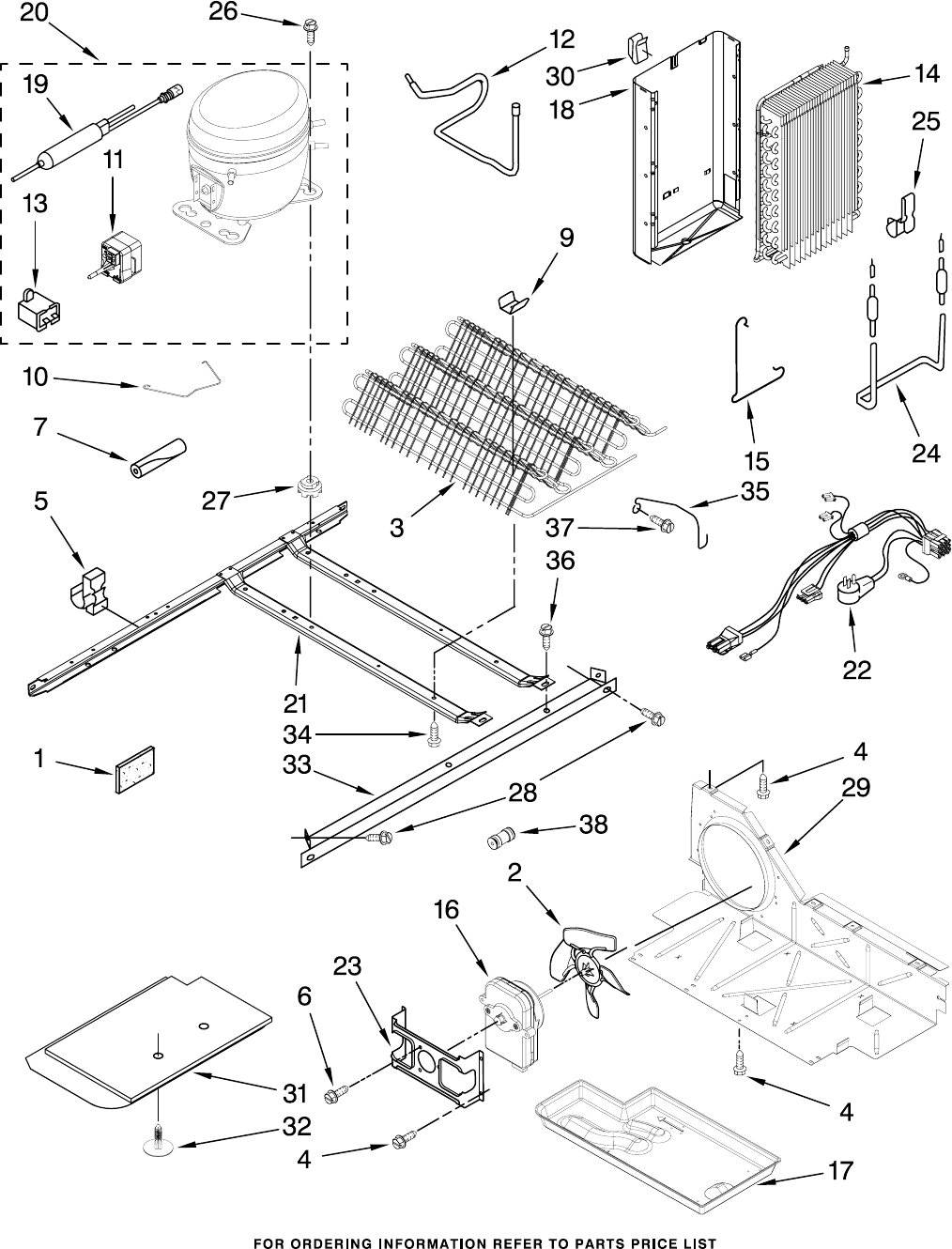

UNIT PARTS

15

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

UNIT PARTS

16

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2169104 Insulation−Sound

2 2225834 Fan, Blade

3

W10121484

Condenser

Assembly

(Also Order #9)

4 489464 Screw

5 2208280 Clip, Wire

6 8533993 Screw

7 2161302 Sleeve

9 2216914 Clip, Condenser

10 2223313 Bale Strap

11 2304885 Start−Device,

Combination

(Start Relay and

Overload)

12 2205765 Tube Suction

13 2264017 Capacitor

14 2188823 Evaporator

15 2161324 Clamp

16

W10130108

Fan, Motor

17 1105523 Tray, Evaporator

18 2217194 Heat Shield

19 Drier

W10177049

Production

2317845 Service

20

W10120460

Compressor

(Includes Items

11, 13, 19 & 27)

(Also Order

876765 Tube Kit)

21 2304904 Unit Mounting

Frame

22 2187510 Unit, Harness

23 2181929 Fan, Motor Bracket

24 2323198 Heater, Defrost

25 2304287 Clip

26 489373 Screw (4)

27 4387558 Grommet (4)

28 489340 Screw

29 2196202 Air Baffle

30 2155547 Clip, Heat Shield

31 2304899 Unit Cover, Bottom

32 489396 Clip

33 2305374 Unit Mounting

Rail

34 8281232 Screw

35 2260517 Guard, Fan

36 489427 Screw

37 488649 Screw

38 2320322 Connector, Water

Tube

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 oz.

(R−134A)

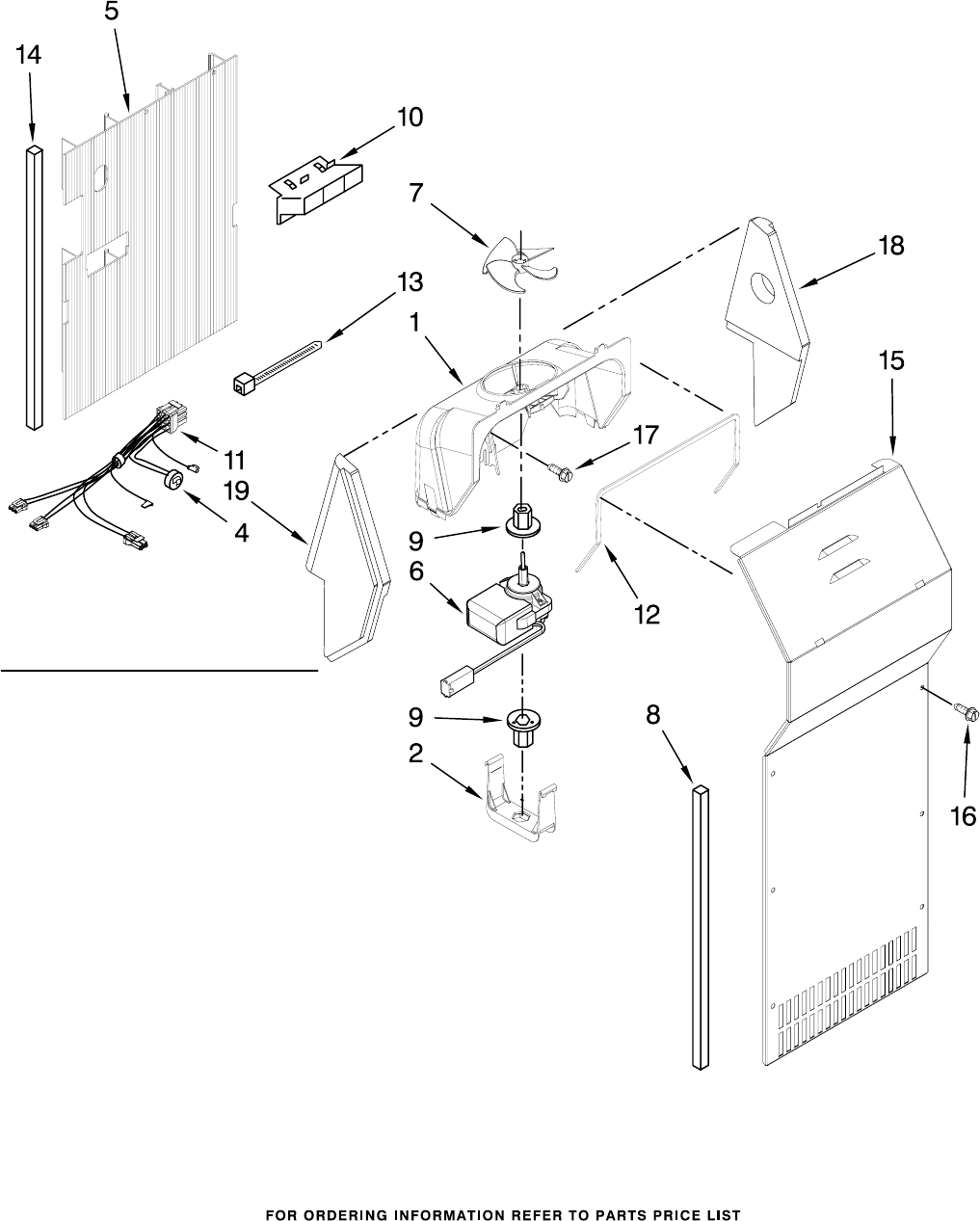

AIR FLOW PARTS

17

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION

1 2182120 Fan Scroll

2 2155590 Retainer,

Fan Motor

4 2321799 Bi−Metal, Defrost

5 2203593 Air Duct Freezer

6

W10131845

Fan Motor

7 2169142 Fan Blade

8 2304241 Gasket, Evaporator

Cover (2)

9 2176759 Fan Grommet (2)

10 2182146 Duct, Icemaker

11

W10129821

Harness, Fan

Evaporator

(Includes #4)

12 2155789 Gasket, Fan Scroll

13 2172840 Wire Tie

14 2203876 Gasket

15 2203841 Cover, Evaporator

(Includes #8)

16 8281159 Screw

17 489478 Screw

18 2203595 Support, R.S

19 2203596 Support, L.S

CONTROL PARTS

18

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2200137 Control Box

2 1110629 Mounting Bracket

3 3196537 Screw (4)

4 2149705 Light Switch

5 2188375 Defrost Timer

6 489398 Screw (2)

7 940014 Hole Plug

8 2198202 Thermostat

Assembly

9 487869 Screw

10 2182195 Cam Assembly

11 1110560 Bearing Body

12 2196062 Clip, Damper

Control

13 1110559 Pivot Arm

14 627068 Screw

15 2162085 Light Socket

16 2196001 Thermostat,

Barrier

17 527949 Light Bulb

18 2206512 Control Box

Harness

19 1115374 Clip, Wiring

20 1115375 Clip, Wiring

21 1123960 Connecting Rod

22 489285 Fastener, Push−On

23

W10127398

Escutcheon,

Control Box

24 2182111 Thermostat knob

25 2197871 Knob, Air Control

26 489203 Spring Washer

19

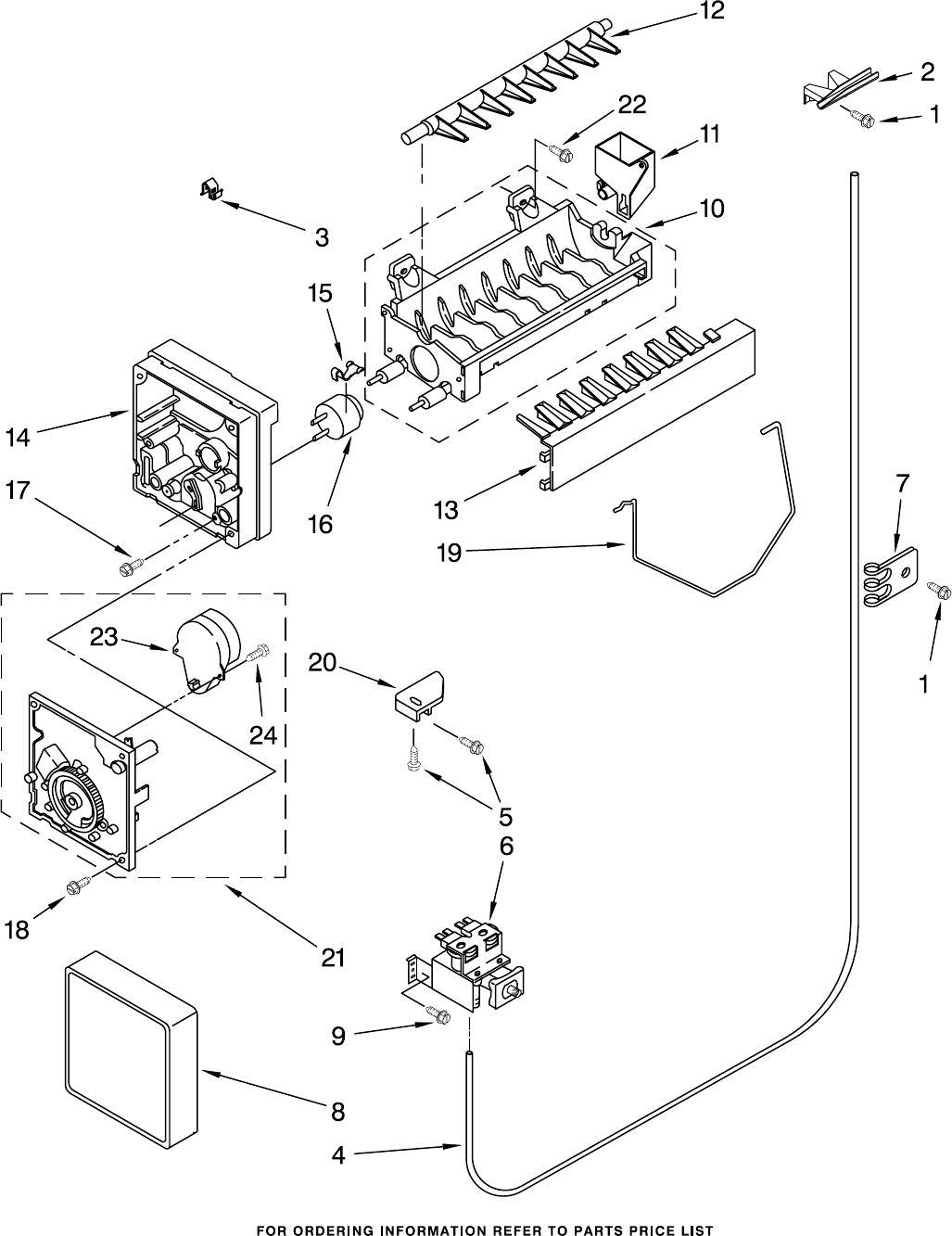

ICEMAKER PARTS

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

ICEMAKER PARTS

20

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION

1 489084 Screw

2 2209774 Chute, Water

3 628379 Clip, Fuse

4 2223137 Tube, Water

5 489478 Screw

6 2315534 Filter Valve Asm

7 2208136 Tube Clip

8 2174155 Cover

9 488649 Screw

10

W10122527

Mold & Heater

Assembly (Also

Order 542638

11 628515 Cup, Water Fill

12 627843 Ejector

13 2182124 Ice Striper

14 2194712 Support

15 2315522 Retainer,

Thermostat

16 628397 Thermostat (Also

Order 542369

Cement

Alumilastic)

17 8533917 Screw

18 489276 Screw

19 2304354 Shut Off Arm

20 628320 Bracket

21 626691 Module Assembly

(Includes Items

23 and 24)

22 488208 Screw

23 626683 Motor

24 489136 Screw

100

W10122507

Complete Icemaker

Assembly

21

OPTIONAL PARTS (NOT INCLUDED)

For Model: ED5FVGXSS04

(Stainless Steel)

W10208118

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, PRESSURIZED SPRAY

(12 oz.)

350942 Primer, White

8171357 Graphite

PAINT, TOUCH−UP (1/2oz.)

80051 Graphite

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

PAINT, BULK (1 qt.)

8171358 Graphite

Miscellaneous

8129 Coil Brush

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

505587 Sealer, Mastic

(1 Qt.)

503695 Cork, Sealer

(1/4 Pound)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

833938 Kit, Terminal

Connector

TORX SCREW WRENCH

1117510 Torx Key
