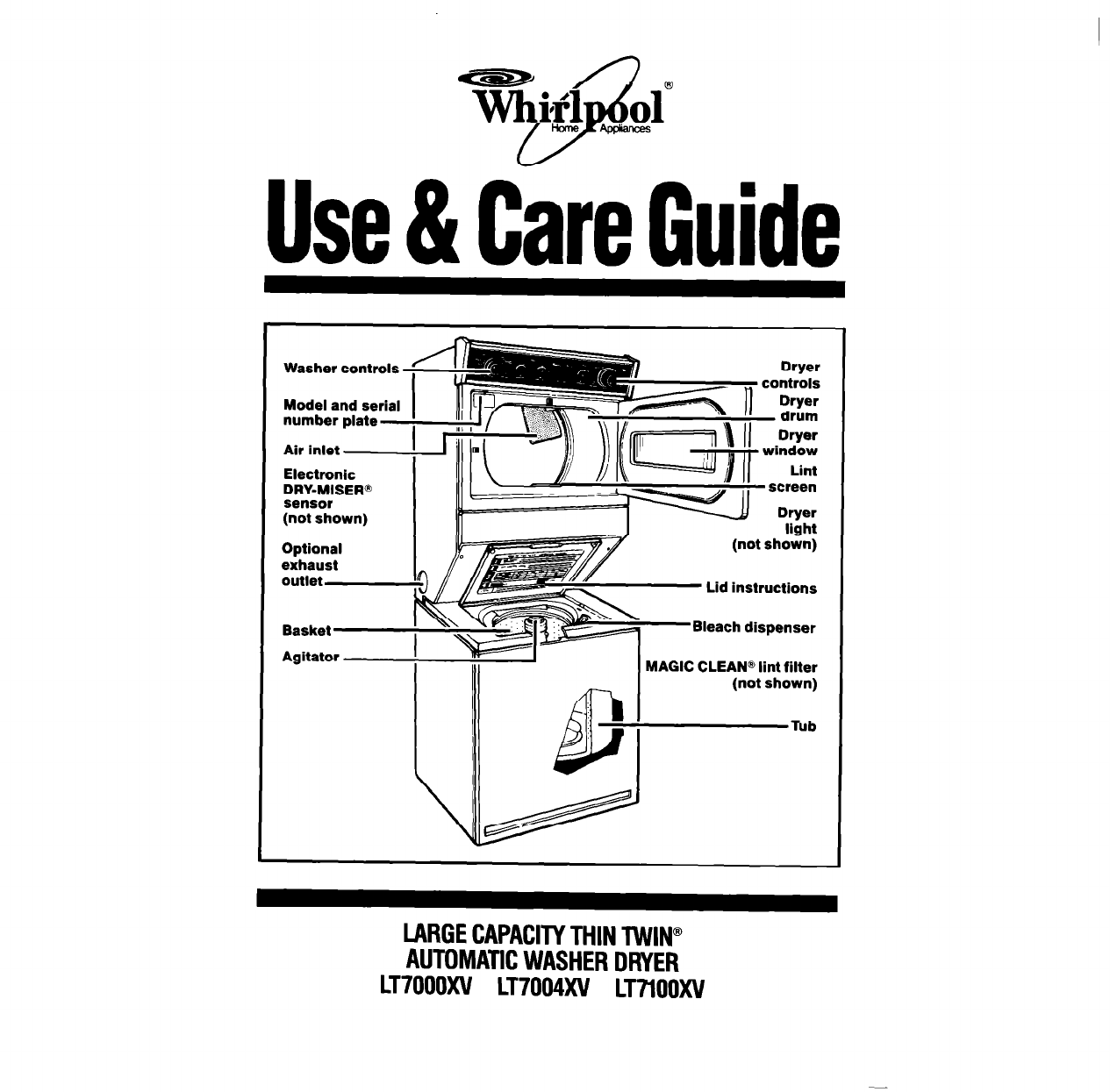

Washer controls
Model and se
number plate
Dryer
-!%==a
controls
r==? 1.. \ Dryer
drum
7111 Drver
Air inlet
Electronic
DRY-MISER@
j
sensor
I
Lint
Screen
I --ii- ir
III‘ r-.--
(not shown) I Ill---- l - uryer
liaht
exhaust
.-=..-
(not shown)
Lid instructions
leach dispenser
MAGIC CLEAN@ lint filter
I III - I
(not shown)
Tub
LARGECAPACITYTHINTWIN"
AUTOMATICWASHERDRYER
LT7OOOxV LT7004xV LT7lOOXV

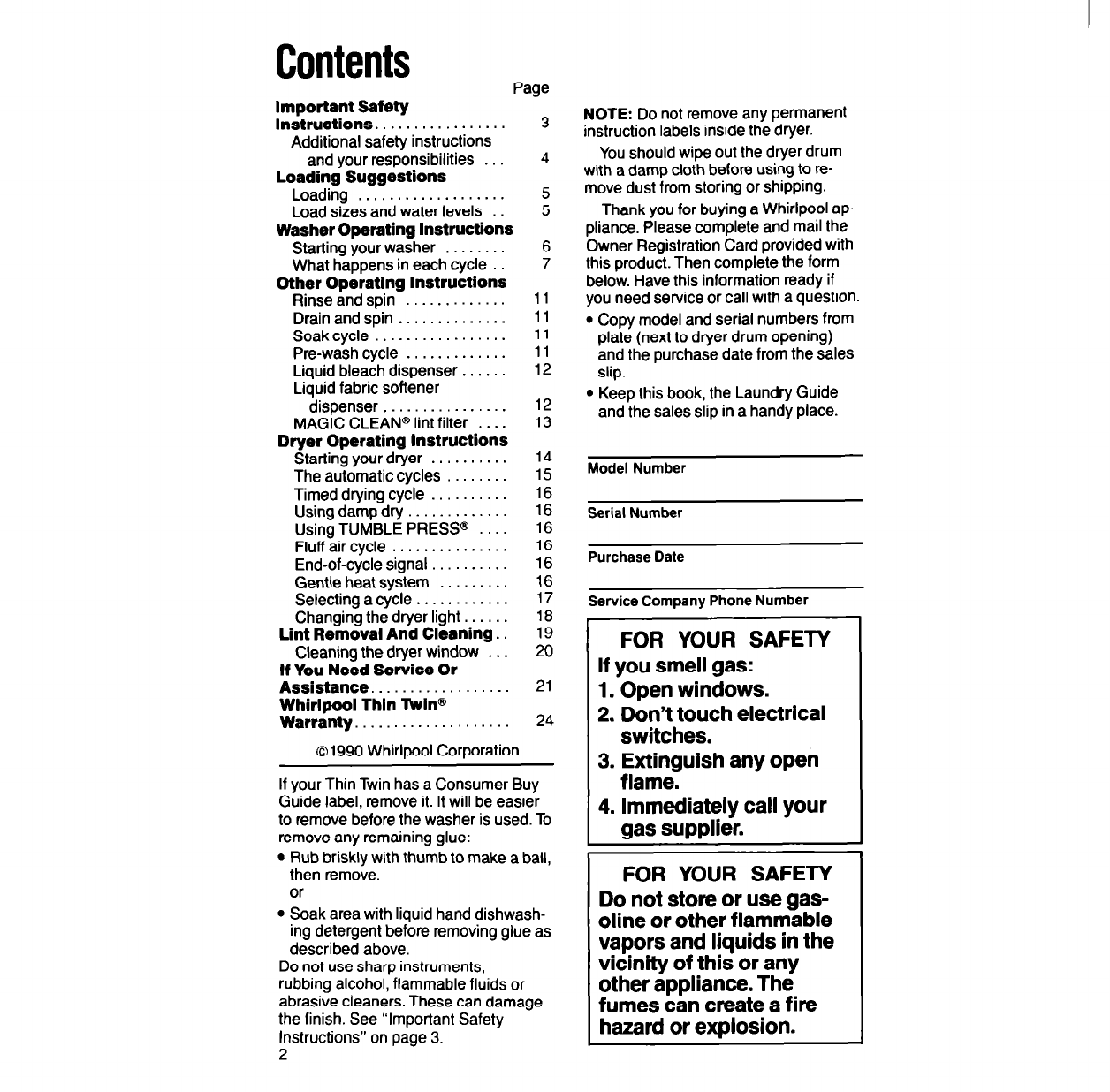

Contents
Page
Important Safety
Instructions. . . . . . . . . . . . . . . . 3
Additional safety instructions
and your responsibilities . . . 4
Loading Suggestions
Loading . . . . . . . . . . . . . . . . . . .
Load sizes and water levels . z
Washer Operating Instructions
Starting your washer . . . . . . . . 6
What happens in each cycle 7
Other Operating Instructions
Rinse and spin . . . . . 11
Drain and spin . . . . . . . . . . 11
Soak cycle . . . . . . . . . 11
Pre-wash cycle . . . . . . . . . . . . . 11
Liquid bleach dispenser . . . . 12
Liquid fabric softener
dispenser . . . . . . . . . 12
MAGIC CLEAN@ lint filter . . . . 13
Dryer Operating Instructions
Starting your dryer . . . . . . . . . . 14

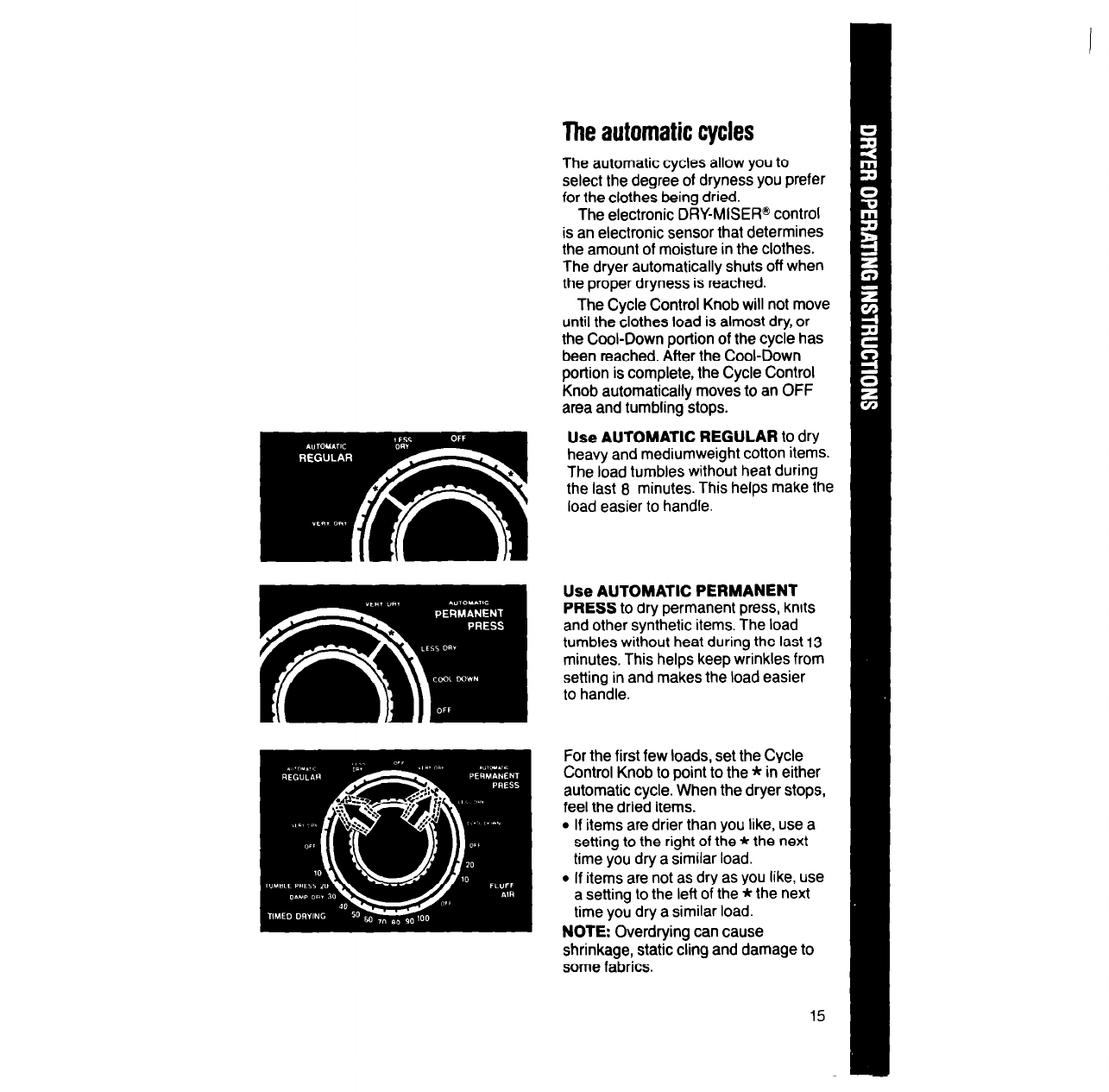

The automatic cycles . 15
Timed drying cycle . . 16
Usingdampdry . . . . . . . . . . . 16
Using TUMBLE PRESS@ . 16
Fluff air cycle . . . . . . . . . . . . . 16
End-of-cycle signal . . . 16
Gentle heat system . . . . . . . . . 16
Selecting a cycle . . . . . . . . 17

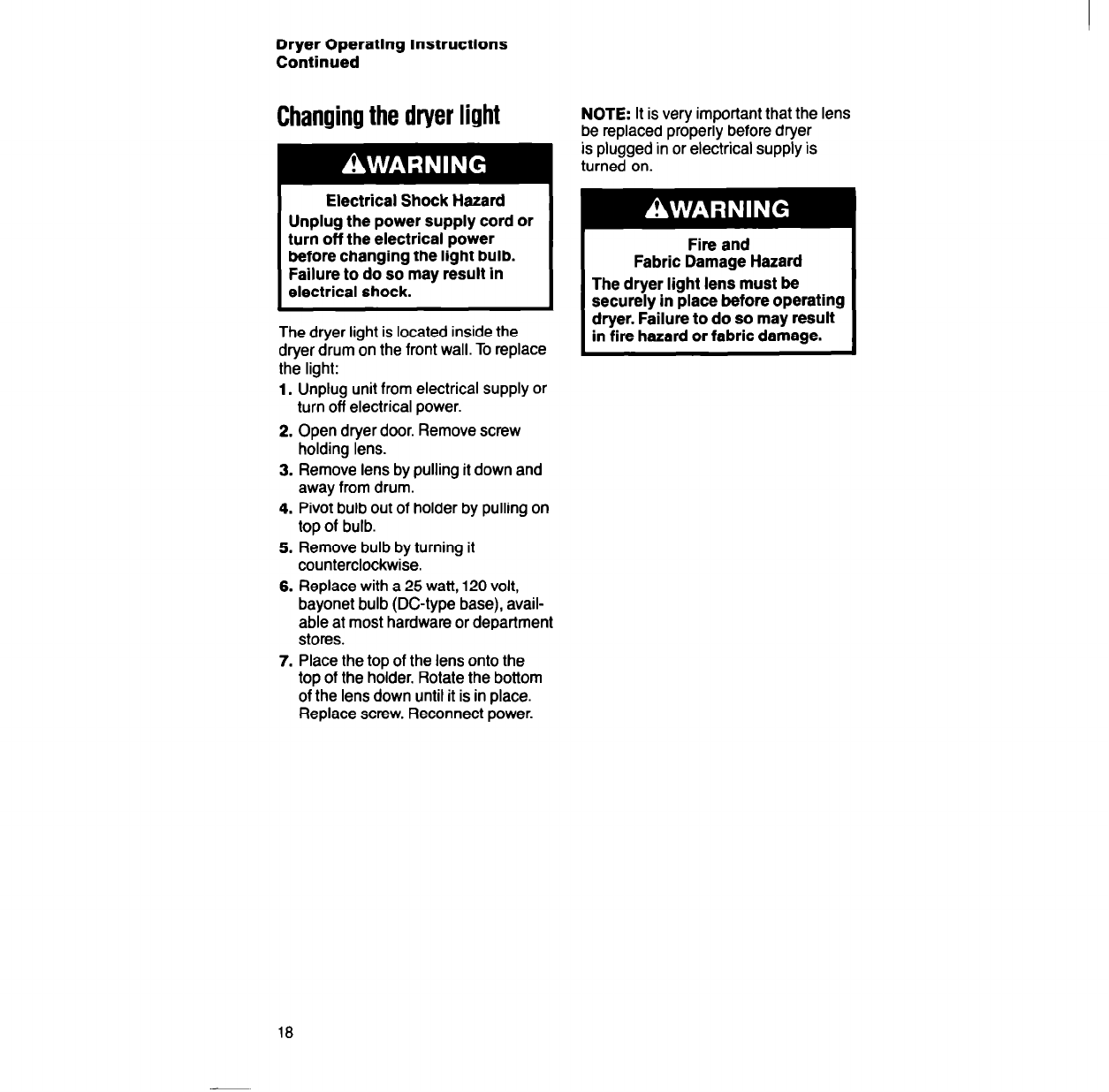

Changing the dryer light. . . . . . 18

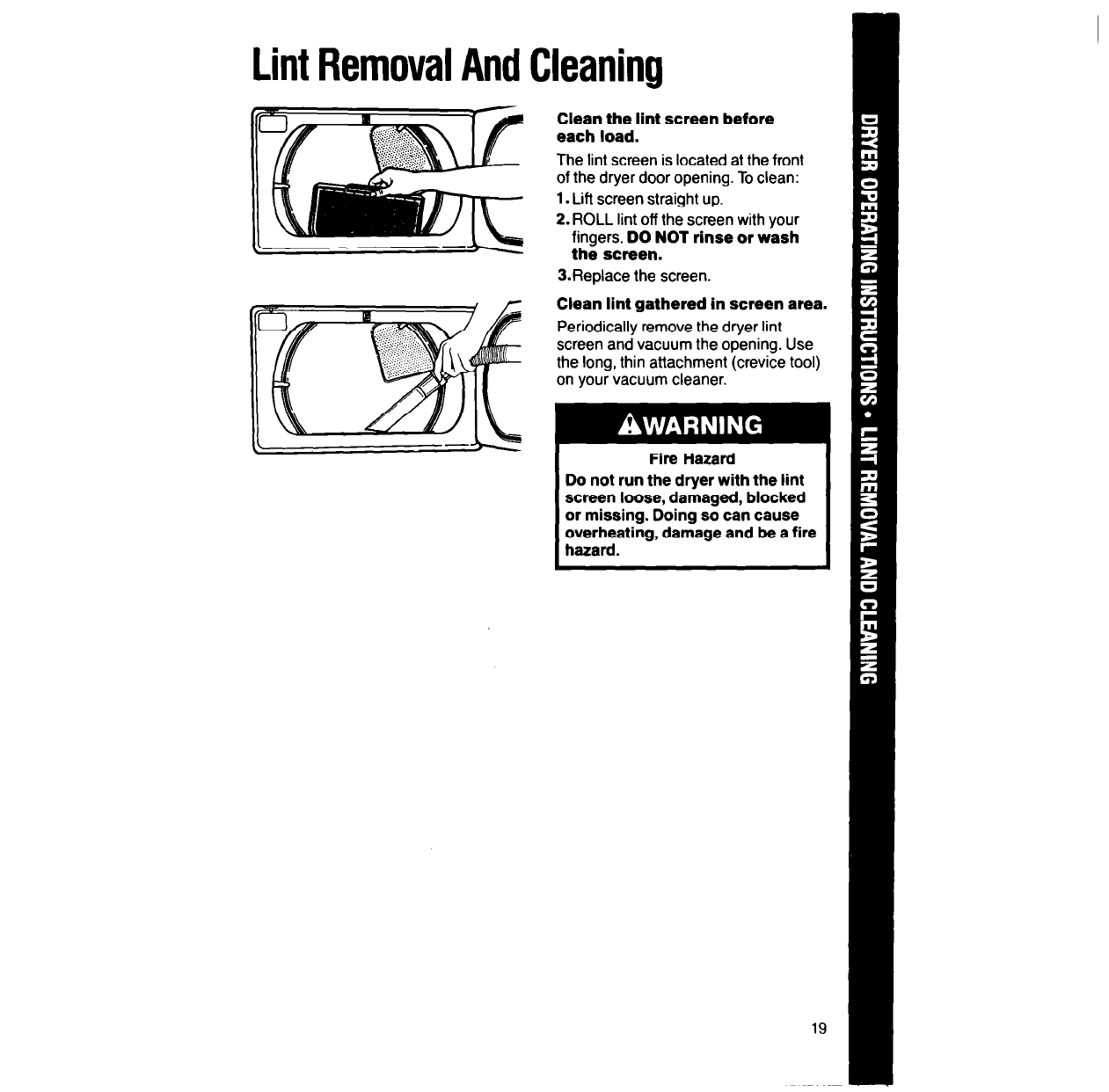

Lint Removal And Cleaning. . 19
Cleaning the dryer window . . . 20

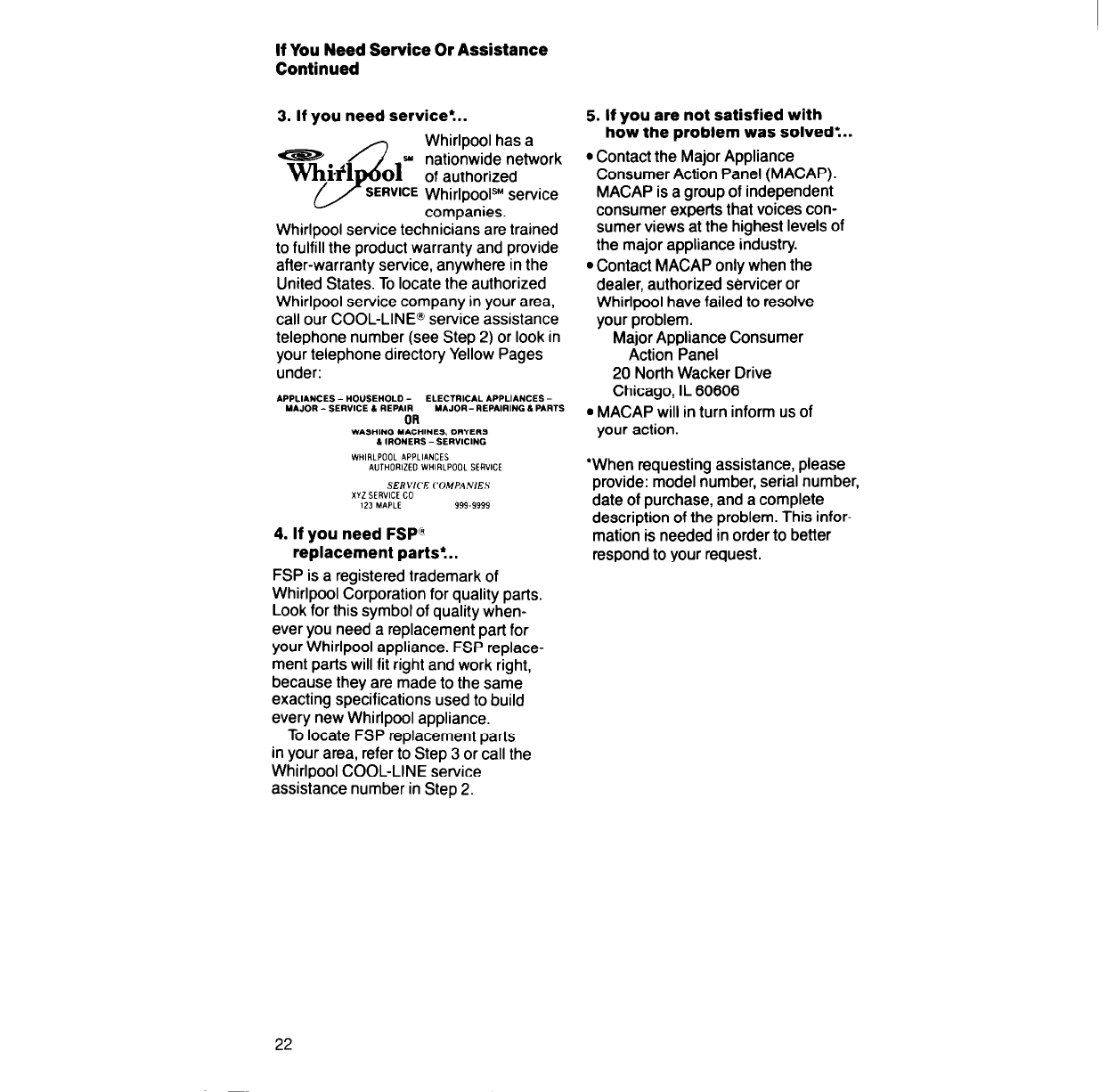

If You Need Service Or
Assistance. . . . . . 21

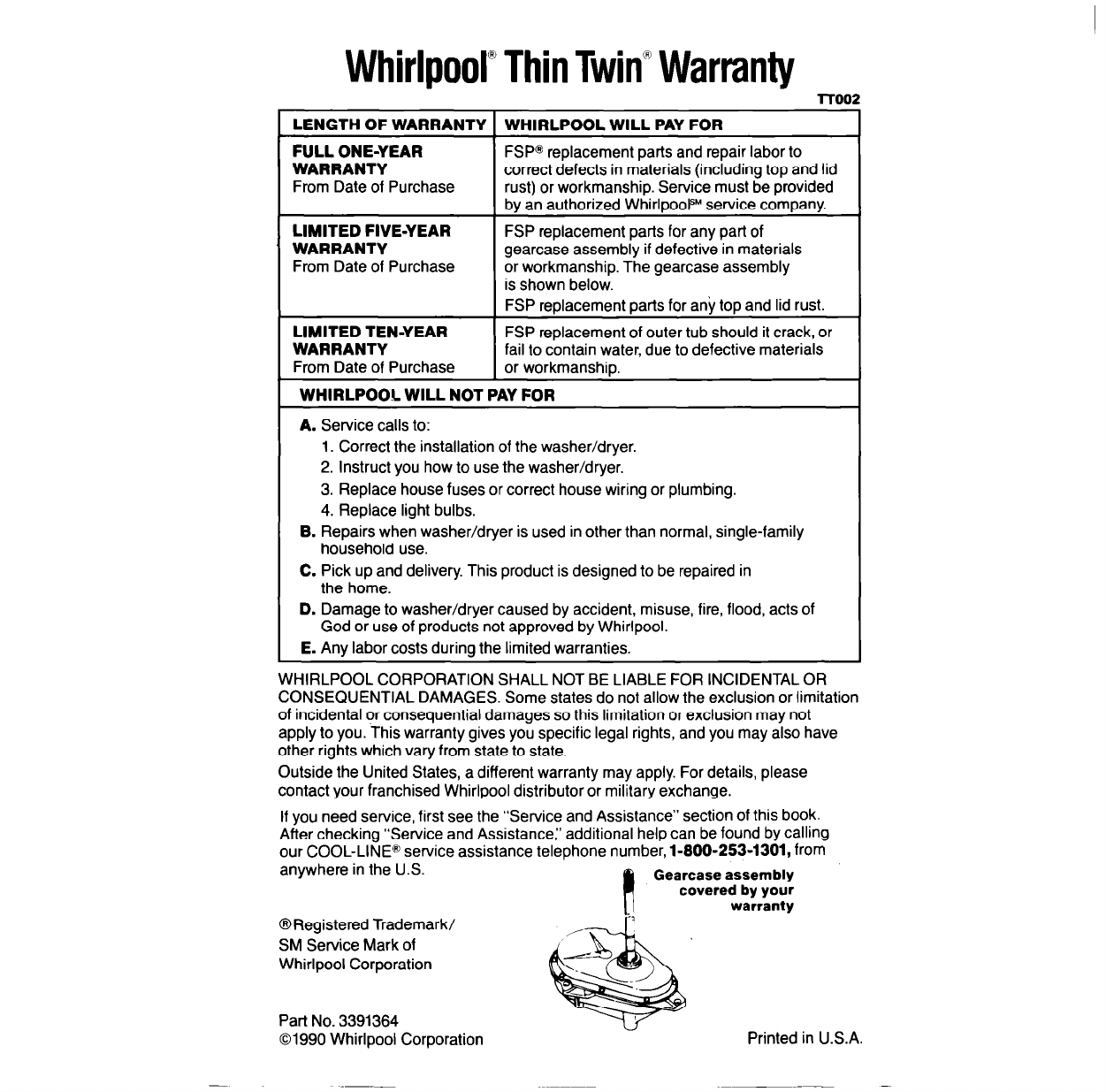

Whirlpool Thin Twin@
Warranty. . . . .
24
01990 Whirlpool Corporation
If your Thin Twin has a Consumer Buy
Guide label, remove it. It will be easier
to remove before the washer is used. To
remove any remaining glue:
l
Rub briskly with thumb to make a ball,
then remove.
or
l
Soak area with liquid hand dishwash-
ing detergent before removing glue as
described above.
Do not use sharp instruments,
rubbing alcohol, flammable fluids or
abrasive cleaners. These can damage
the finish. See “Important Safety
Instructions” on page 3.
2
NOTE:
Do not remove any permanent
instruction labels inside the dryer.
You should wipe out the dryer drum
with a damp cloth before using to re-
move dust from storing or shipping.
Thank you for buying a Whirlpool ap-
pliance. Please complete and mail the
Owner Registration Card provided with
this product. Then complete the form
below. Have this information ready if
you need service or call with a question.
l
Copy model and serial numbers from
plate (next to dryer drum opening)
and the purchase date from the sales
slip.
l
Keep this book, the Laundry Guide
and the sales slip in a handy place.
Model Number
Serial Number
Purchase
Date
Service Company Phone Number
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don’t touch electrical
switches.
3. ;fceguish any open
.
4. Immediately call your
gas supplier.
FOR YOUR SAFETY
Do not store or use gas-
oline or other flammable
vapors and liquids in the
vicinity of this or any
other appliance. The
fumes can create a fire
hazard or explosion.
Important Safety Instructions
To reduce the risk of fire, electric shock, or in-
jury to persons when using your Thin Twin, fol-
low basic precautions, including the following:
b Read all instructions before l NEVER
use or store flammable
using the Thin Twin.
fluids (dry-cleaning solvents,
l NEVER
wash or dry items cleaned, gasoline, kerosene) in or near your
washed, soaked in or spotted with Thin Twin. Do not add flammable
wax, paint, gasoline or flammable fluids to the wash water. These
fluids in the Thin Twin. The fumes substances give off vapors that
can create a
FIRE HAZARD
or
EX-
can create a
FIRE HAZARD
or
PLOSION.
ALWAYS hand launder
EXPLOSION.
and air dry fabrics containing these
l
Use only dryer fabric softeners
materials. specifically labeled as not being
l NEVER
allow children to operate, harmful to the dryer.
play with, or crawl inside the Thin
l FIRE HAZARD
and
DAMAGE
to
Twin. Close supervision of children is materials can result from:
necessary when the Thin Twin is - drying rubber, rubber-like and
used near children. heat sensitive materials with heat.
l
When discarding an old Thin Twin, - allowing lint to build-up inside
ALWAYS
remove the lid and door to the dryer or exhaust system -
prevent accidental entrapment. cleaning should be done by a
l NEVER
reach into the Thin Twin qualified person.
until all the motion stops. If the lid is
l
Clean lint screen before or after
opened while the washer basket is each load.
spinning, the basket will automati-
l
If hot water has not been used
tally stop in a few seconds. recently (usually 2 weeks or longer),
.
DO NOT
install or store Thin Twin hydrogen gases may build up in
where it will be exposed to the the water heater and the hot water
weather. pipes.
HYDROGEN GAS IS
l DO NOT
tamper with the controls.
EXPLOSIVE.
To prevent injury or
l You are responsible for making
damage, before using your washer,
sure that your Thin Twin
is turn on all hot water faucets and al-
installed, repaired and parts low water to run for several minutes.
replaced by a qualified person. This will allow gases to escape. DO
NOT smoke or use any open flame
near the faucet while it is open.
l DO NOT
let dust, paper, rags, lint,
chemicals, etc. pile up, around or
under the Thin Twin.
l
The Thin Twin must be electrically
grounded. See the Installation
Instructions.
- SAVE THESE INSTRUCTIONS -
Important Safety Instructions
Continued

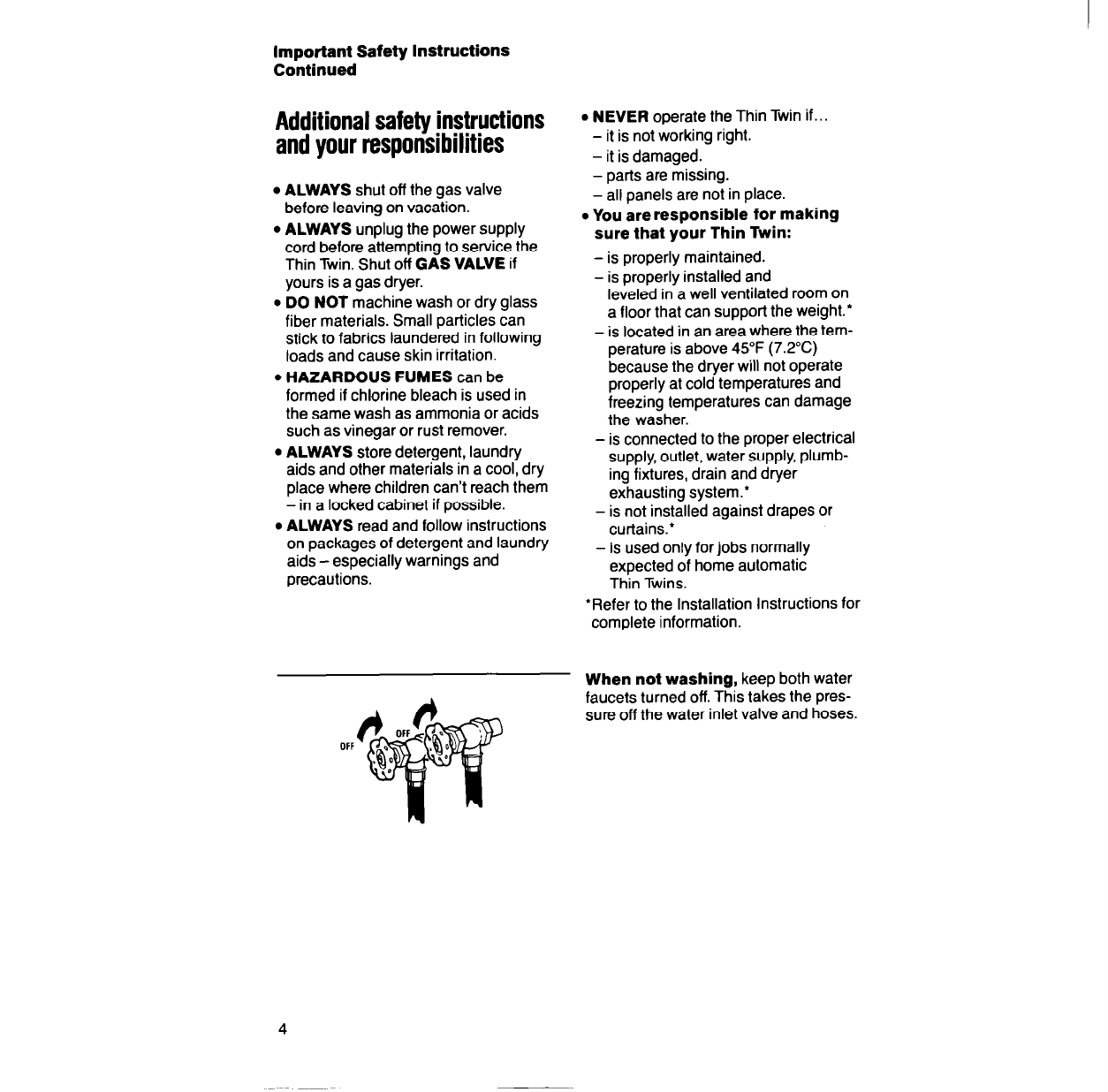

Additional safety instructions
and your responsibilities
l ALWAYS
shut off the gas valve
before leaving on vacation.
l ALWAYS
unplug the power supply
cord before attempting to service the
Thin Twin. Shut
off GAS VALVE
if
yours is a gas dryer.
l DO NOT
machine wash or dry glass
fiber materials. Small particles can
stick to fabrics laundered in following
loads and cause skin irritation.
l HAZARDOUS FUMES
can be
formed if chlorine bleach is used in
the same wash as ammonia or acids
such as vinegar or rust remover.
l ALWAYS
store detergent, laundry
aids and other materials in a cool, dry
place where children can’t reach them
- in a locked cabinet if possible.
l ALWAYS
read and follow instructions
on packages of detergent and laundry
aids - especially warnings and
precautions.
l NEVER
operate the Thin Twin if..
- it is not working right.
- it is damaged.
- parts are missing.
- all panels are not in place.
l You areresponsible for making
sure that your Thin Twin:
- is properly maintained.
- is properly installed and
leveled in a well ventilated room on
a floor that can support the weight.’
- is located in an area where the tem-
perature is above 45°F (7.2%)
because the dryer will not operate
properly at cold temperatures and
freezing temperatures can damage
the washer.
- is connected to the proper electrical
supply, outlet, water supply, plumb-
ing fixtures, drain and dryer
exhausting system.’
- is not installed against drapes or
curtains.*
- is used only for jobs normally
expected of home automatic
Thin Twins.
*Refer to the Installation Instructions for
complete information.
When not washing,
keep both water
faucets turned off. This takes the pres-
sure off the water inlet valve and hoses.
4

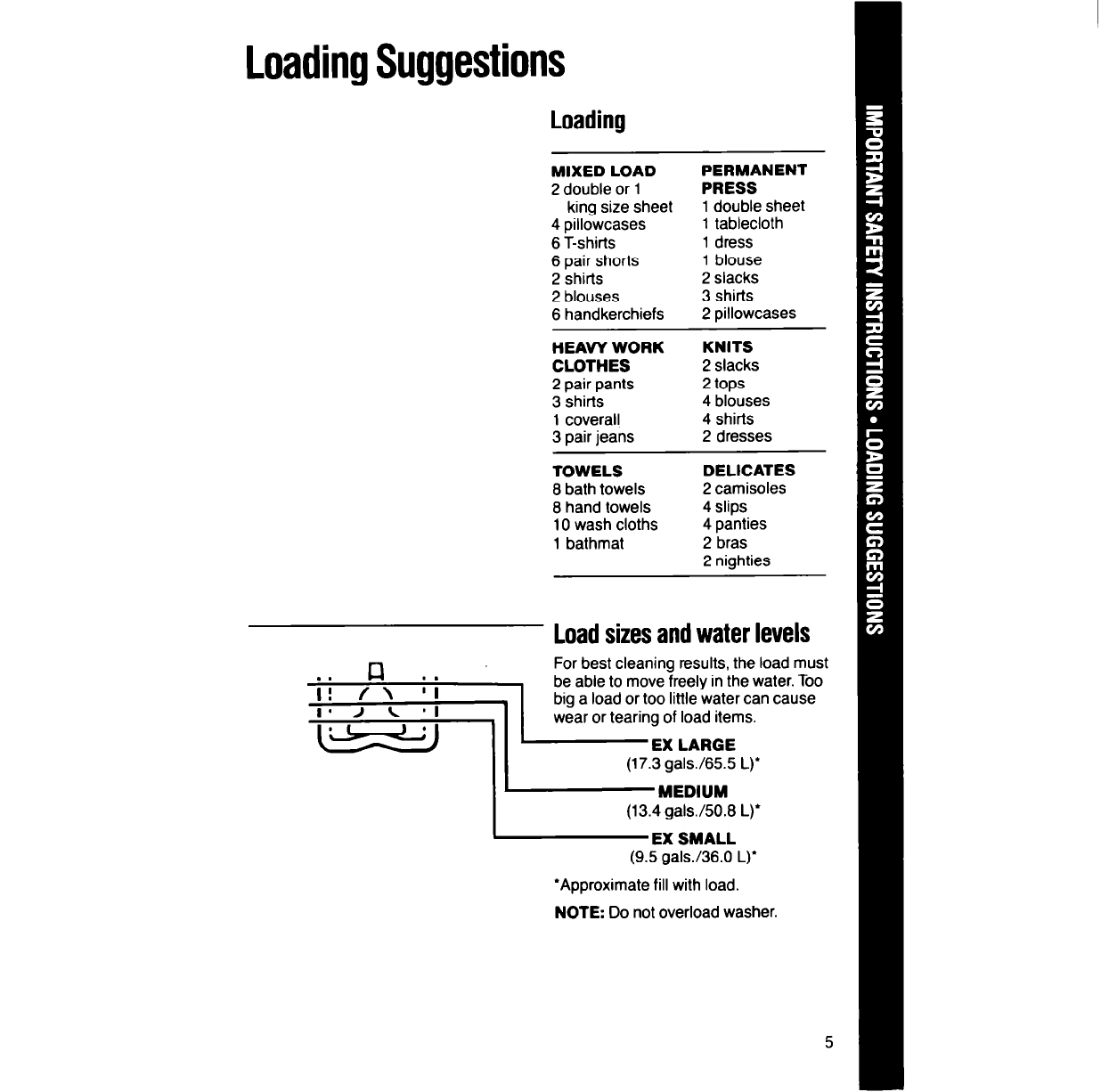

Loading Suggestions
Loading
MIXED LOAD
2 double or 1
king size sheet
4 pillowcases
6 T-shirts
6 pair shorts
2 shirts
2 blouses
6 handkerchiefs
HEAVY WORK
CLOTHES
2 pair pants
3 shirts
1 coverall
3 pair jeans
TOWELS
8 bath towels
8 hand towels
10 wash cloths
1 bathmat
PERMANENT
PRESS
1 double sheet
1 tablecloth
1 dress
1 blouse
2 slacks
3 shirts
2 pillowcases
KNITS
2 slacks
2 tops
4 blouses
4 shirts
2 dresses
DELICATES
2 camisoles
4 slips
4 panties
2 bras
2 nighties
Load sizes and water levels
For best cleaning results, the load must
be able to move freely in the water. Too
big a load or too little water can cause
wear or tearing of load items.
(13.4 gals.EO.8 L)’
- EX SMALL
(9.5 galsJ36.0 L)’
*Approximate fill with load.
NOTE:
Do not overload washer.

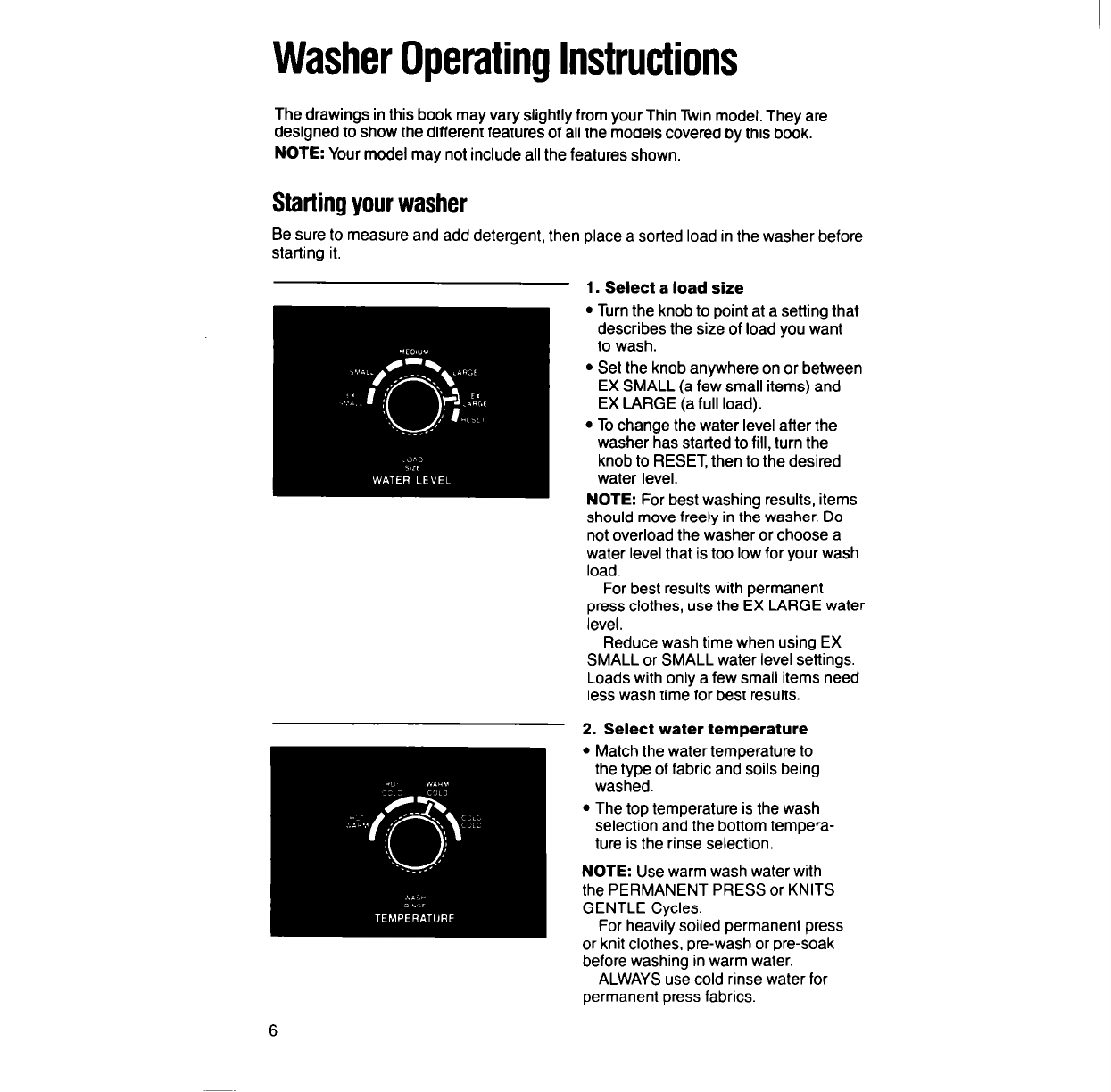

Washer Operating Instructions
The drawings in this book may vary slightly from your Thin Twin model. They are
designed to show the different features of all the models covered by this book.
NOTE:
Your model may not include all the features shown.
Starting your washer
Be sure to measure and add detergent, then place a sorted load in the washer before
starting it.
1. Select a load size
l
Turn the knob to point at a setting that
describes the size of load you want
to wash.
l
Set the knob anywhere on or between
EX SMALL (a few small items) and
EX LARGE (a full load).
l
To change the water level after the
washer has started to fill, turn the
knob to RESET then to the desired
water level.
NOTE:
For best washing results, items
should move freely in the washer. Do
not overload the washer or choose a
water level that is too low for your wash
load.
For best results with permanent
press clothes, use the EX LARGE water
level.
Reduce wash time when using EX
SMALL or SMALL water level settings.
Loads with only a few small items need
less wash time for best results.
2. Select water temperature
l
Match the water temperature to
the type of fabric and soils being
washed.
l
The top temperature is the wash
selection and the bottom tempera-
ture is the rinse selection.
NOTE:
Use warm wash water with
the PERMANENT PRESS or KNITS
GENTLE Cycles.
For heavily soiled permanent press
or knit clothes, pre-wash or pre-soak
before washing in warm water.
ALWAYS use cold rinse water for
permanent press fabrics.
6

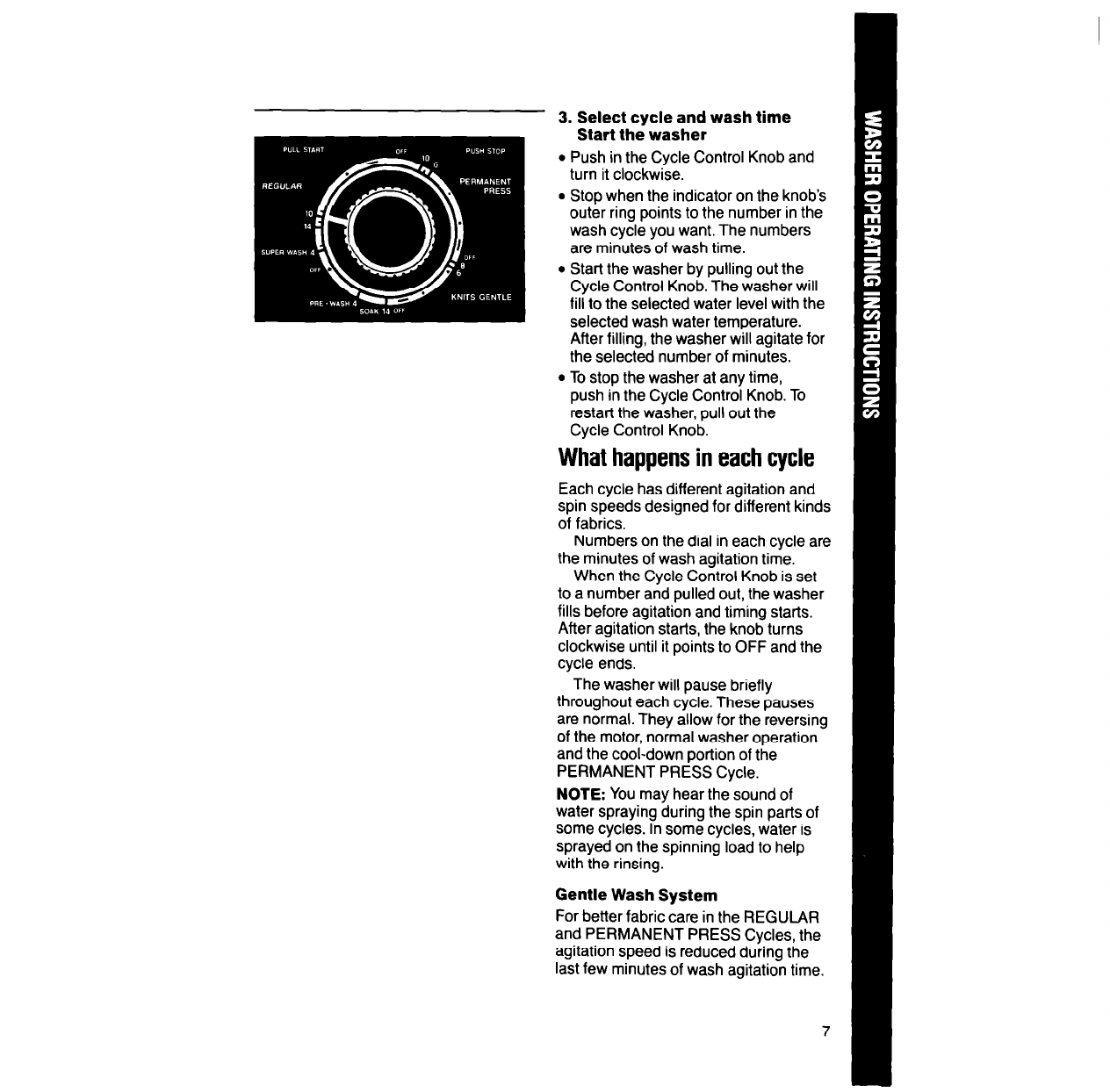

3. Select cycle and wash time
Start the washer
l
Push in the Cycle Control Knob and
turn it clockwise.
l
Stop when the indicator on the knob’s
outer ring points to the number in the
wash cycle you want. The numbers
are minutes of wash time.
l
Start the washer by pulling out the
Cycle Control Knob. The washer will
fill to the selected water level with the
selected wash water temperature.
After filling, the washer will agitate for
the selected number of minutes.
l
To stop the washer at any time,
push in the Cycle Control Knob. To
restart the washer, pull out the
Cycle Control Knob.

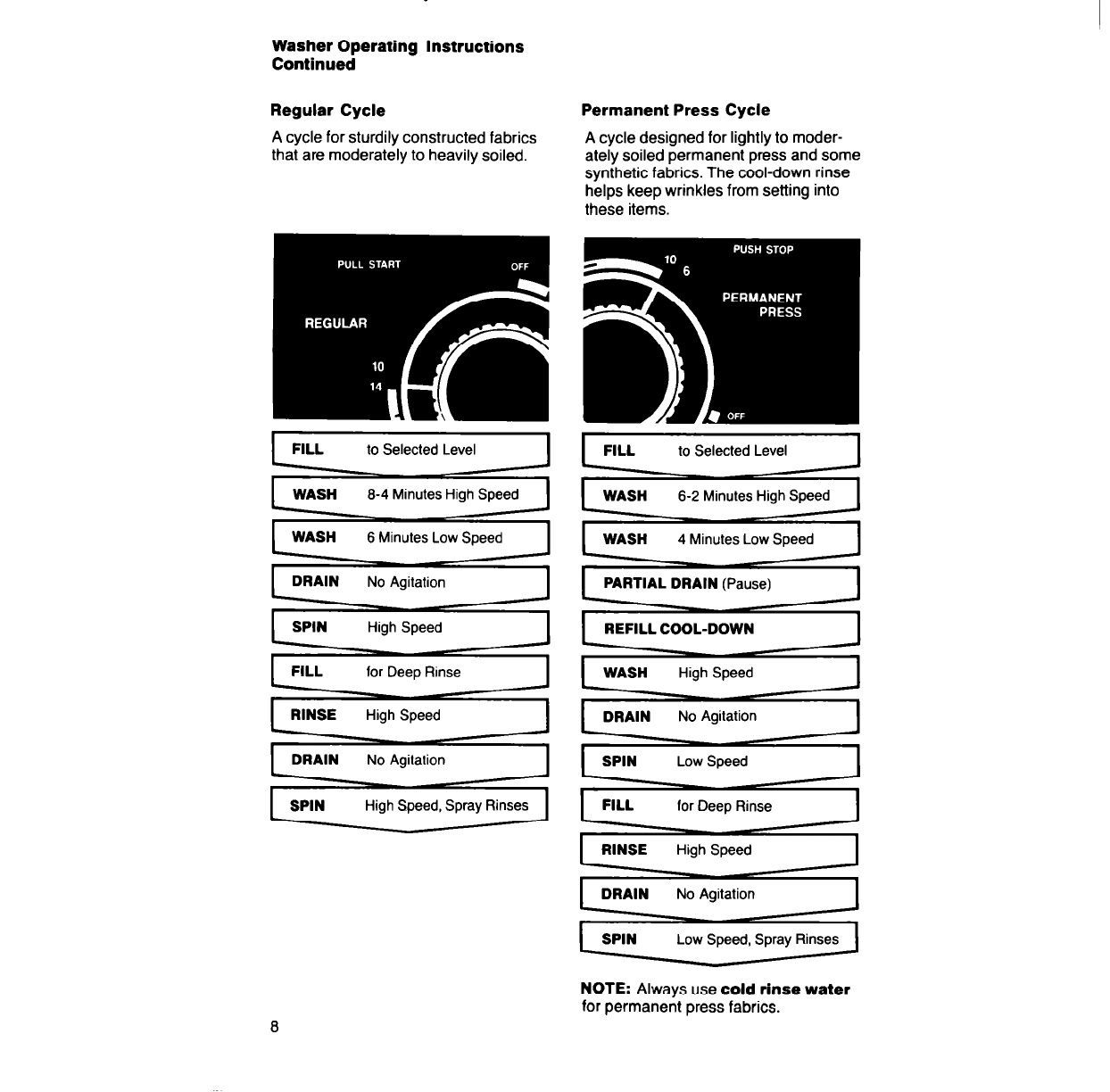

What happens in each cycle
Each cycle has different agitation and
spin speeds designed for different kinds
of fabrics.
Numbers on the dial in each cycle are
the minutes of wash agitation time.
When the Cycle Control Knob is set
to a number and pulled out, the washer
fills before agitation and timing starts.
After agitation starts, the knob turns
clockwise until it points to OFF and the
cycle ends.
The washer will pause briefly
throughout each cycle. These pauses
are normal. They allow for the reversing
of the motor, normal washer operation
and the cool-down portion of the
PERMANENT PRESS Cycle.
NOTE:
You may hear the sound of
water spraying during the spin parts of
some cycles. In some cycles, water is
sprayed on the spinning load to help
with the rinsing.
Gentle Wash System
For better fabric care in the REGULAR
and PERMANENT PRESS Cycles, the
agitation speed is reduced during the
last few minutes of wash agitation time.
7
Washer Operating Instructions
Continued
Regular Cycle
A cycle for sturdily constructed fabrics
that are moderately to heavily soiled.
Permanent Press Cycle
A cycle designed for lightly to moder-
ately soiled permanent press and some
synthetic fabrics. The cool-down rinse
helps keep wrinkles from setting into
these items.
to Selected Level
High Speed, Spray Rinses
to Selected Level
SPIN Low Speed
FILL for Deep Rinse I
NOTE:
Always use
cold rinse water
for permanent press fabrics.
Washer Operating Instructions
Continued

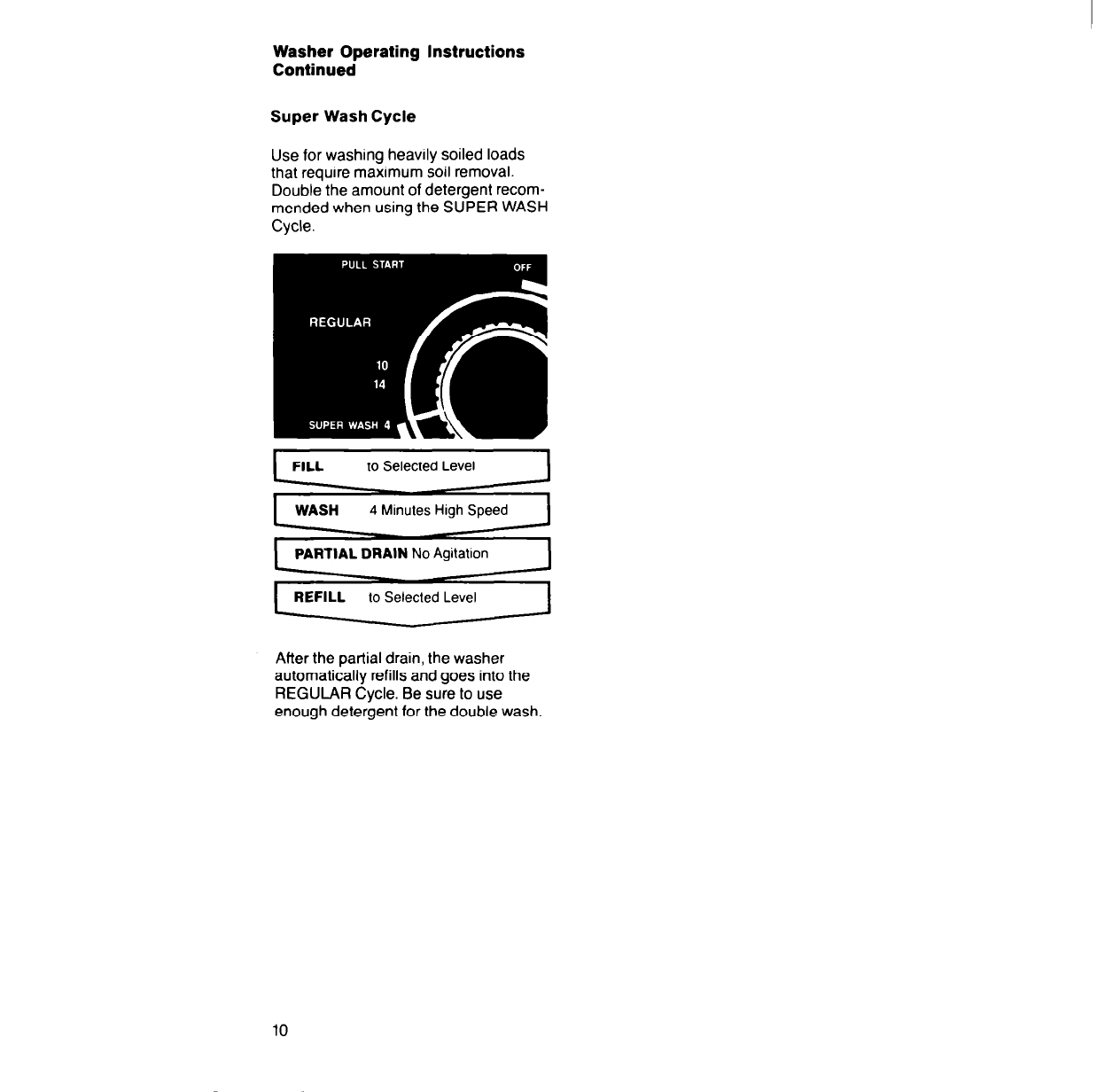

Super Wash Cycle
Use for washing heavrly soiled loads
that require maximum soil removal.
Double the amount of detergent recom-
mended when using the SUPER WASH
Cycle.
to Selected Level
PARTIAL DRAIN No
Agitation
lo Selected Level
After the partial drain, the washer
automatically refills and goes into the
REGULAR Cycle. Be sure to use
enough detergent for the double wash.
10

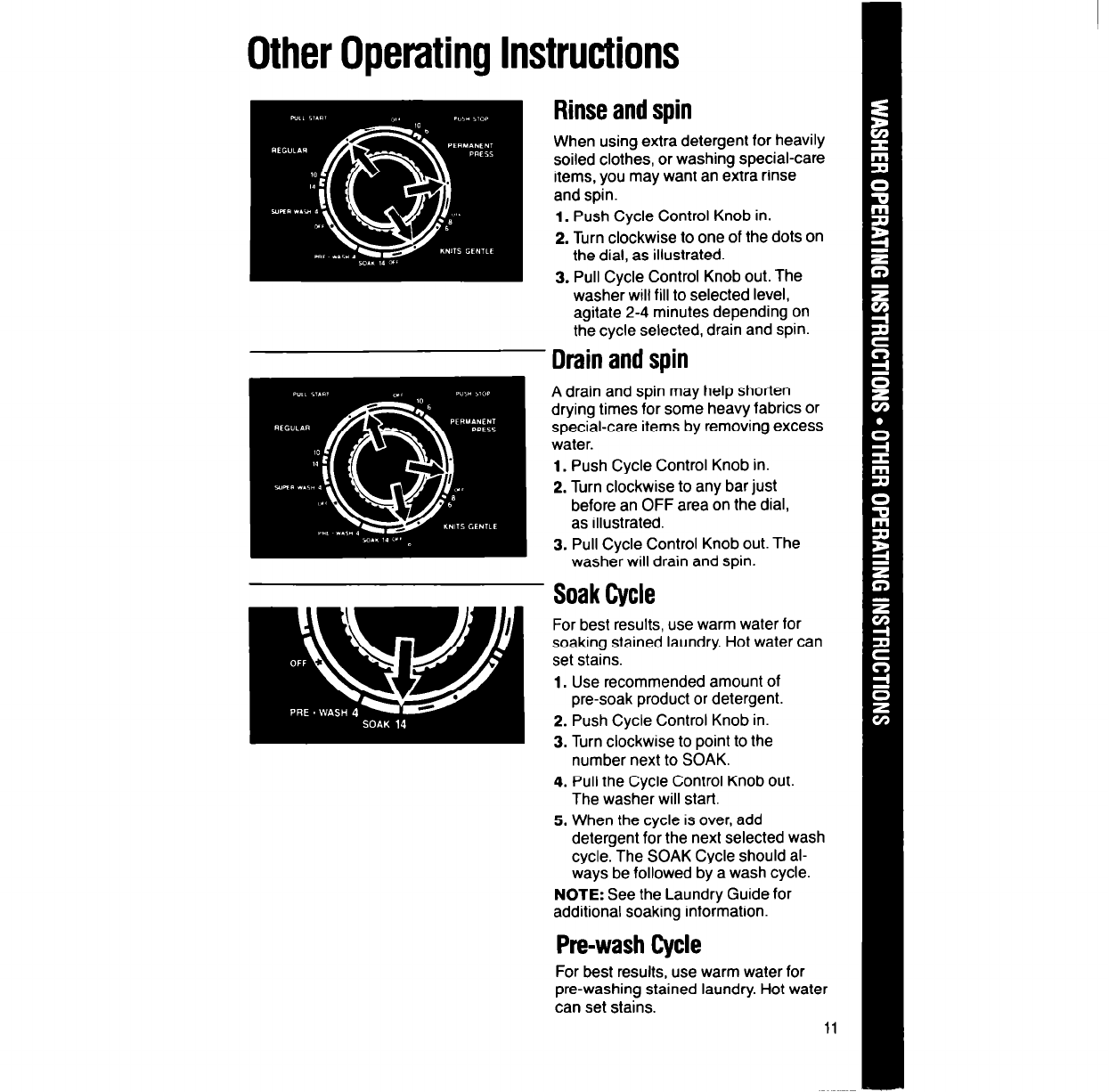

Other Operating Instructions
Rinse and spin
When using extra detergent for heavily
soiled clothes, or washing special-care
items, you may want an extra rinse
and spin.
1. Push Cycle Control Knob in.
2. Turn clockwise to one of the dots on
the dial, as illustrated.
3. Pull Cycle Control Knob out. The
washer will fill to selected level,
agitate 2-4 minutes depending on
the cycle selected, drain and spin.
Soak Cycle
For best results, use warm water for
soaking stained laundry. Hot water can
set stains.
1. Use recommended amount of
pre-soak product or detergent.
2. Push Cycle Control Knob in.
3. Turn clockwise to point to the
number next to SOAK.
4. Pull the Cycle Control Knob out.
The washer will start.
5. When the cycle is over, add
detergent for the next selected wash
cycle. The SOAK Cycle should al-
ways be followed by a wash cycle.
NOTE:
See the Laundry Guide for
additional soaking information.
Pre-wash Cycle
For best results, use warm water for
pre-washing stained laundry. Hot water
can set stains.
Other Operating Instructions
Continued
1. Use recommended amount of
presoak product or detergent,
2. Push Cycle Control Knob in.
3. Turn clockwise to point to the
number next to PRE-WASH.
4. Pull the Cycle Control Knob out.
The washer will start.
5. When the cycle is over, add
detergent for the next selected wash
cycle. The PRE-WASH Cycle should
always be followed by a wash cycle.
NOTE:
See the Laundry Guide for
additional pre-washing information.
Liquid bleach dispenser
Always measure bleach. Do not guess.
Never use more than 1 cup (250ml) for
a full load. Use less with lower water
level settings. Follow directions on
bottle for safe use. Use a cup with a
pouring spout to avoid spilling.
1. Load the washer first.
2. Pour measured bleach carefully into
dispenser. Do not let bleach splash,
drip or run down into washer basket.
Undiluted bleach will damage any
fabric it touches.
3. Start the washer. Bleach will be
diluted automatically during the
wash part of the cycle.
Liquid fabric softener
dispenser
A liquid fabric softener dispenser is
available for the washer. Write to:
Whirlpool Corporation
Attention: Customer Service Dept.
1900 Whirlpool Drive
LaPorte, IN 46305
and order the LT7000XT fabric softener
dispenser, Part No. 3350634.
12

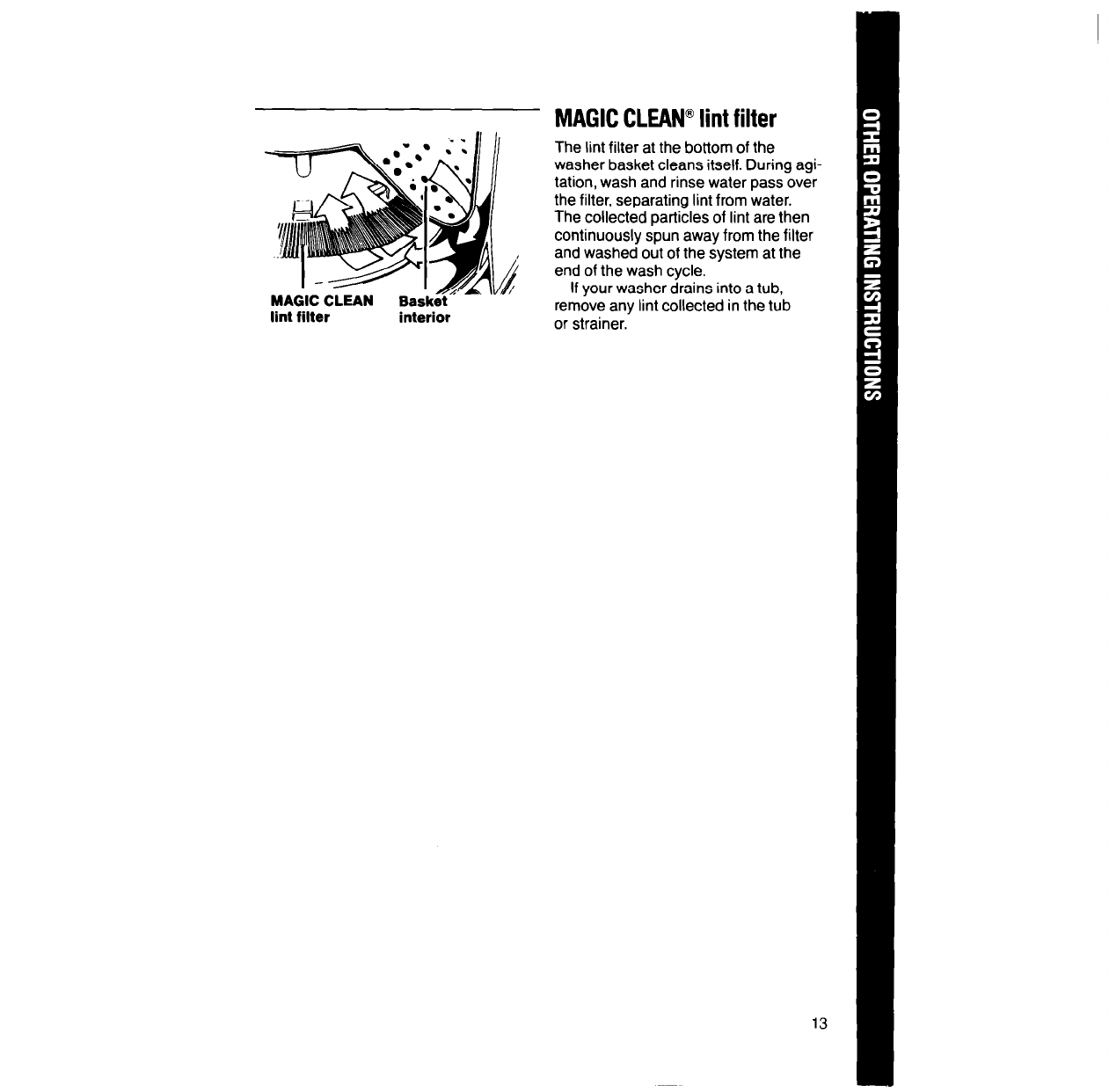

MAGIC CLEAN@ lint filter
The lint filter at the bottom of the
washer basket cleans itself. During agi-
tation, wash and rinse water pass over
the filter, separating lint from water.
The collected particles of lint are then
continuously spun away from the filter
and washed out of the system at the
end of the wash cycle.
If your washer drains into a tub,
remove any lint collected in the tub
or strainer.

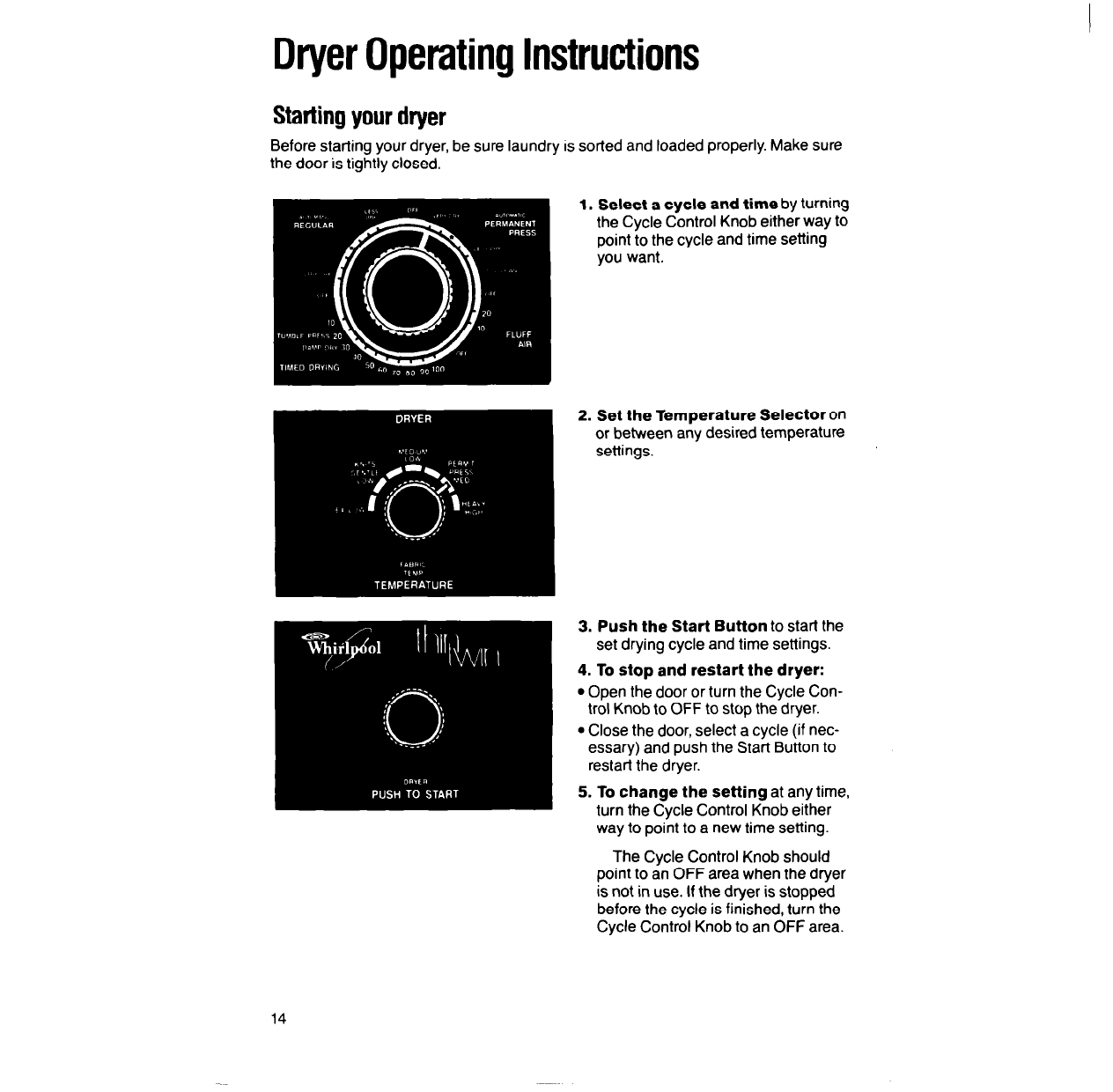

Dryer Operating Instructions
Starting your dryer
Before starting your dryer, be sure laundry IS sorted and loaded properly. Make sure
the door is tightly closed.
1. Select a cycle and time
by turning
the Cycle Control Knob either way to
point to the cycle and time setting
you want.
2. Set the Temperature Selector
on
or between any desired temperature
settings.
3. Push the Start Button
to start the
set drying cycle and time settings.
4. To stop and restart the dryer:
l
Open the door or turn the Cycle Con-
trol Knob to OFF to stop the dryer.
l
Close the door, select a cycle (if nec-
essary) and push the Start Button to
restart the dryer.
5. To change the setting
at any time,
turn the Cycle Control Knob either
way to point to a new time setting.
The Cycle Control Knob should
point to an OFF area when the dryer
is not in use. If the dryer is stopped
before the cycle is finished, turn the
Cycle Control Knob to an OFF area.
14
The automatic cycles
The automatic cycles allow you to
select the degree of dryness you prefer
for the clothes being dried.
The electronic DRY-MISER@ control
is an electronic sensor that determines
the amount of moisture in the clothes.
The dryer automatically shuts off when
the proper dryness is reached.
The Cycle Control Knob will not move
until the clothes load is almost dry, or
the Cool-Down portion of the cycle has
been reached. After the Cool-Down
portion is complete, the Cycle Control
Knob automatically moves to an OFF
area and tumbling stops.
For the first few loads, set the Cycle
Control Knob to point to the * in either
automatic cycle. When the dryer stops,
feel the dried items.
l
If items are drier than you like, use a
setting to the right of the * the next
time you dry a similar load.
l
If items are not as dry as you like, use
a setting lo the left of the *the next
time you dry a similar load.
NOTE: Overdrying can cause
shrinkage, static cling and damage to
some fabrics.
15

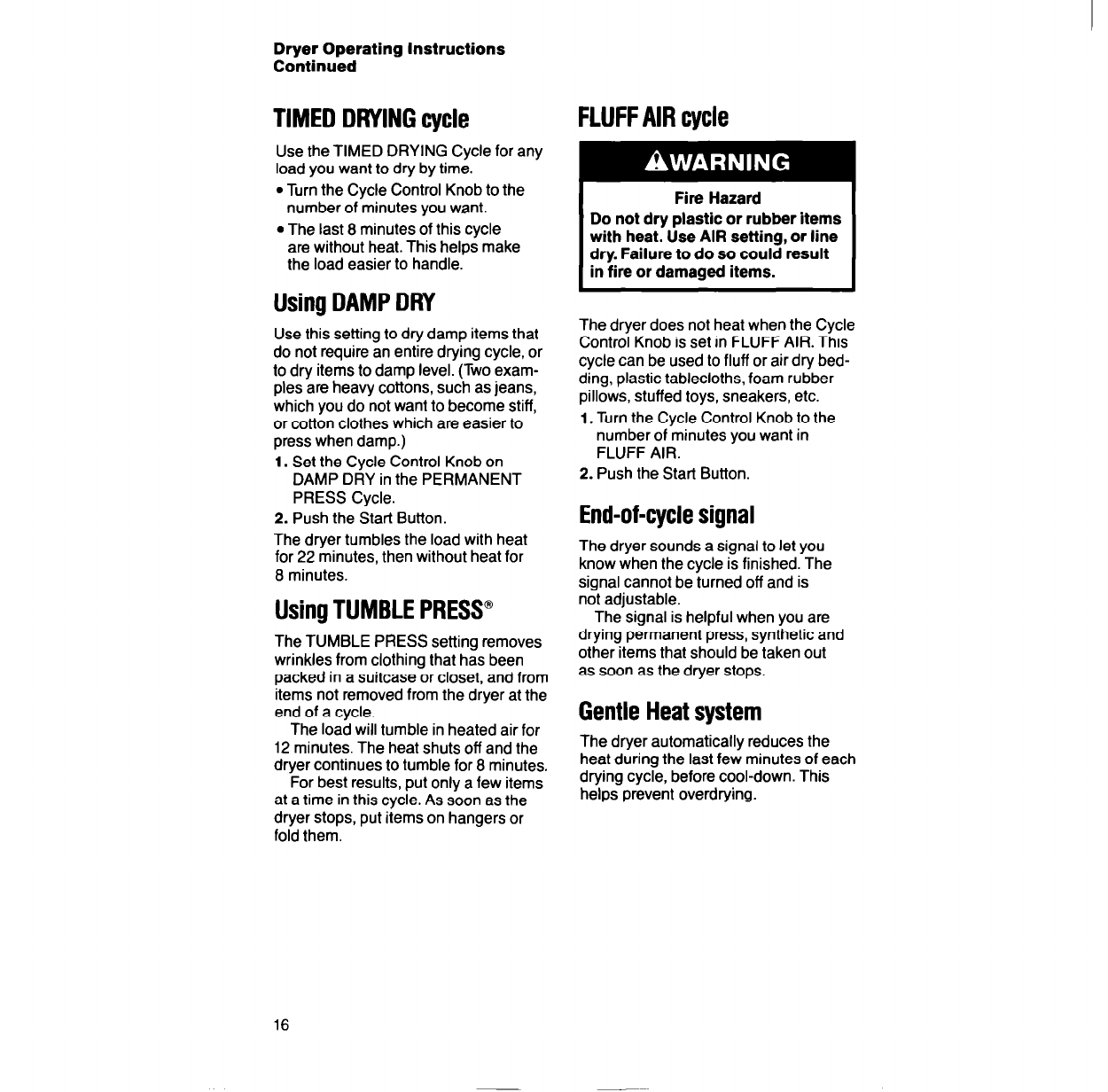

Dryer Operating Instructions
Continued
TIMED DRYING cycle
Use the TIMED DRYING Cycle for any
load you want to dry by time.
l
Turn the Cycle Control Knob to the
number of minutes you want.
l
The last 8 minutes of this cycle
are without heat. This helps make
the load easier to handle.
Using DAMP DRY
Use this setting to dry damp items that
do not require an entire drying cycle, or
to dry items to damp level. (Two exam-
ples are heavy cottons, such as jeans,
which you do not want to become stiff,
or cotton clothes which are easier to
press when damp.)
1.
Set the Cycle Control Knob on
DAMP DRY in the PERMANENT
PRESS Cycle.
2. Push the Start Button.
The dryer tumbles the load with heat
for 22 minutes, then without heat for
8 minutes.
Using TUMBLE PRESS”
The TUMBLE PRESS setting removes
wrinkles from clothing that has been
packed in a suitcase or closet, and from
items not removed from the dryer at the
end of a cycle.
The load will tumble in heated air for
12 minutes. The heat shuts off and the
dryer continues to tumble for 8 minutes.
For best results, put only a few items
at a time in this cycle. As soon as the
dryer stops, put items on hangers or
fold them.
FLUFF AIR cycle
Fire Hazard
Do not dry plastic or rubber items
with heat. Use AIR setting, or line
dry. Failure to do so could result
in fire or damaged items.
The dryer does not heat when the Cycle
Control Knob is set in FLUFF AIR. This
cycle can be used to fluff or air dry bed-
ding, plastic tablecloths, foam rubber
pillows, stuffed toys, sneakers, etc.
1.
Turn the Cycle Control Knob to the
number of minutes you want in
FLUFF AIR.
2. Push the Start Button.
End-of-cycle signal
The dryer sounds a signal to let you
know when the cycle is finished. The
signal cannot be turned off and is
not adjustable.
The signal is helpful when you are
drying permanent press, synthetic and
other items that should be taken out
as soon as the dryer stops.
Gentle Heat system
The dryer automatically reduces the
heat during the last few minutes of each
drying cycle, before cool-down. This
helps prevent overdrying.
16
Selecting a cycle
TYPE OF LOAD SUGGESTED SUGGESTED
CYCLE TEMPERATURE
Cottons and linens AUTOMATIC REGULAR
EXTRA HEAVY - Bedspreads, mattress HEAVY HIGH
pads, quilts
HEAVYWEIGHT-Towels, jeans,
corduroys, work clothes
MEDIUMWEIGHT- Sheets, pillowcases, PERM’T PRESS
cotton, underwear, diapers MED
LIGHTWEIGHT - Batistes, organdies, KNITS GENTLE
lingerie LOW
Permanent press, synthetics
and blends
HEAVYWEIGHT-Work clothes,
jackets, raincoats
MEDIUMWEIGHT - Shirts, play clothes,
sheets, slacks
LIGHTWEIGHT - Lingerie, blouses,
dresses
AUTOMATIC
PERMANENT PRESS
PERM’T PRESS
MED
MEDIUM LOW
Knits
HEAVYWEIGHT-Cottons, rayons,
blends, T-shirts, slacks, shirts
LIGHTWEIGHT - Synthetic (polyester,
acrylic, etc.) and blends, lingerie,
blouses, dresses
AUTOMATIC
PERMANENT PRESS
MEDIUM LOW
KNITS GENTLE
LOW
Delicate fabrics
Sheer curtains (2 or 3 panels), gauze,
lace, etc.
AUTOMATIC
PERMANENT PRESS
EX LOW
Rubber, plastic,
heat-sensitive fabrics
FOAM RUBBER - Pillows, bras,
stuffed toys
PLASTIC - Shower curtains, tablecloths
RUBBER-BACKED RUGS
OLEFIN, POLYPROPYLENE,
SHEER NYLON
FLUFF AIR
20 minutes
20 minutes
20 minutes
15-20 minutes
(No temperature
needs to be
selected.
Cycle is
unheated.)
DO NOT OVERDRY.
Overdrying can cause shrinkage, static cling, and damage
some fabrics.
Dryer Operating Instructions
Continued
Changing the dryer light
Electrical Shock Hazard
Unplug the power supply cord or
turn off the electrical power
before changing the light bulb.
Failure to do so may result in
electrical shock.
The dryer light is located inside the
dryer drum on the front wall. To replace
the light:
1.
Unplug unit from electrical supply or
turn off electrical power.
2. Open dryer door. Remove screw
holding lens.
3. Remove lens by pulling it down and
away from drum.
4. Pivot bulb out of holder by pulling on
top of bulb.
5. Remove bulb by turning it
counterclockwise.
6. Replace with a 25 watt, 120 volt,
bayonet bulb (DC-type base), avail-
able at most hardware or department
stores.
7. Place the top of the lens onto the
top of the holder. Rotate the bottom
of the lens down until it is in place.
Replace screw. Reconnect power.
NOTE:
It is very important that the lens
be replaced properly before dryer
is plugged in or electrical supply is
turned on.
Fire and
Fabric Damage Hazard
The dryer light lens must be
securely in place before operating
dryer. Failure to do so may result
in fire hazard or fabric damage.
18
Lint Removal And
Cleaning
Clean the lint screen before
each load.
The lint screen is located at the front
of the dryer door opening. To clean:
1. Lift screen straight up.
2. ROLL lint off the screen with your
fingers.
DO NOT rinse or wash
the screen.
3.Replace the screen.
Clean lint gathered in screen area.
Periodically remove the dryer lint
screen and vacuum the opening. Use
the long, thin attachment (crevice tool)
on your vacuum cleaner.
Fire Hazard
Do not run the dryer with the lint
screen loose, damaged, blocked
or missing. Doing so can cause
overheating, damage and be a fire
hazard.

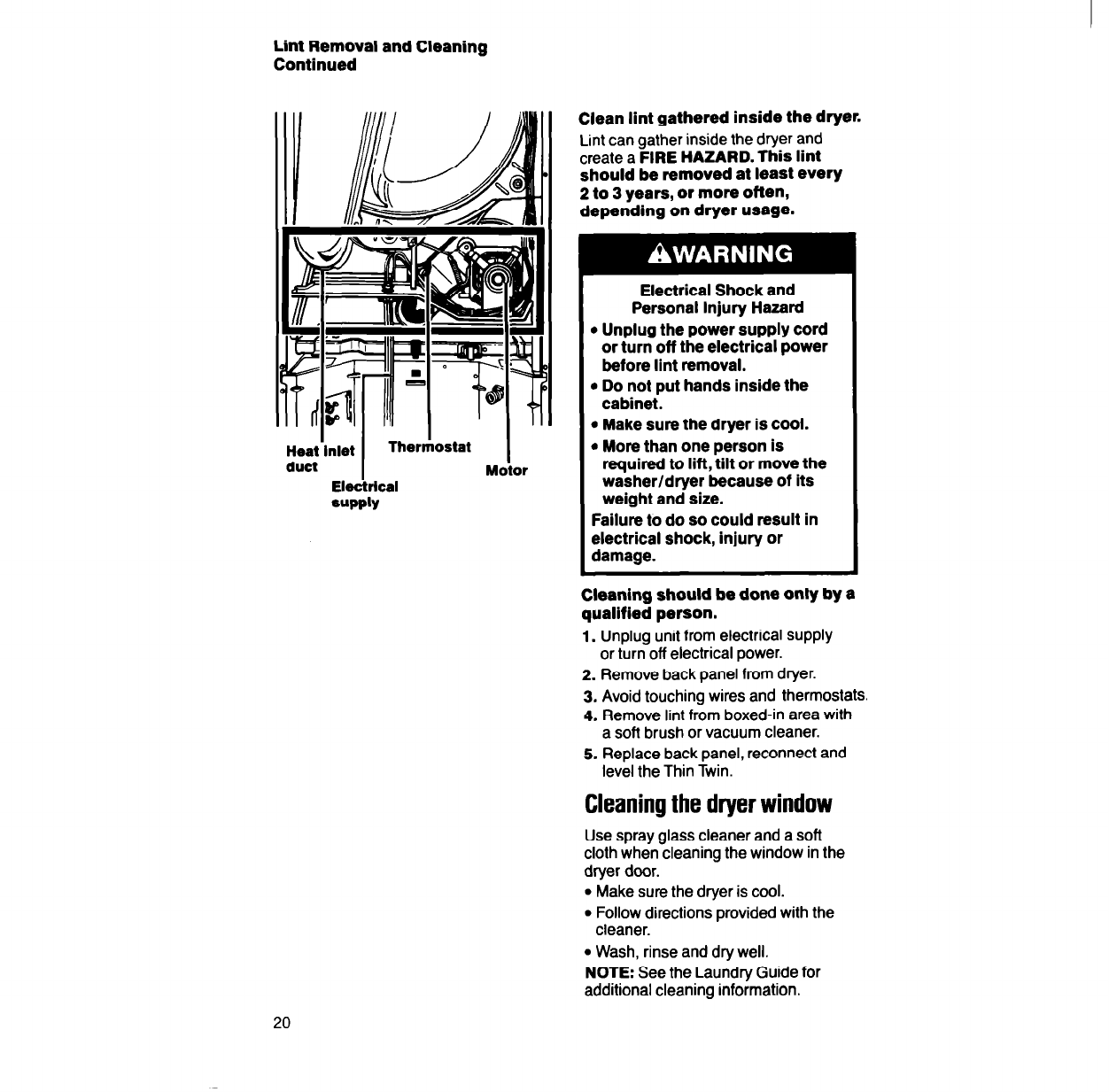

Lint Removal and Cleaning
Continued
I
Heat Inlet
I
Thern!ostat
duct
ElectrIcal
SUPPlY
Motor
Clean lint gathered inside the dryer.
Lint can gather inside the dryer and
create a
FIRE HAZARD. This lint
should be removed at least every
2
to 3 years, or more often,
depending on dryer usage.
Electrical Shock and
Personal Injury Hazard
l Unplug the power supply cord
or turn off the electrical power
before lint removal.
l Do not put hands inside the
cabinet.
l Make sure the dryer is cool.
l More than one person is
required to lift, tilt or move the
washer/dryer because of its
weight and size.
Failure to do so could result in
electrical shock, injury or
damage.
Cleaning should be done only by a
qualified person.
1.
Unplug unit from electrical supply
or turn off electrical power.
2. Remove back panel from dryer.
3. Avoid touching wires and thermostats.
4. Remove lint from boxed-in area with
a soft brush or vacuum cleaner.
5. Replace back panel, reconnect and
level the Thin Twin.
Cleaning the dryer window
Use spray glass cleaner and a soft
cloth when cleaning the window in the
dryer door.
l
Make sure the dryer is cool.
l
Follow directions provided with the
cleaner.
l
Wash, rinse and dry well.
NOTE:
See the Laundry Guide for
additional cleaning information.
20
If You Need Service Or Assistance.. .
We suggest you follow
these steps:
1. Before calling for assistance...
Performance problems often result from
little things you can find and fix yourself
without tools of any kind.
If your washer does not fill:
l
Is the power supply cord plugged into
a live circuit with the proper voltage?
l
Are both water faucets open?
l
Have you checked your home’s main
fuses or circuit breaker box?
l
Are the water supply hoses kinked?
l
Is the Cycle Control Knob set and
pulled out?
If your washer does not spin:
l
Is the lid closed?
l
Is the power supply cord plugged into
a live circuit with the proper voltage?
l
Have you checked your home’s main
fuses or circuit breaker box?
If your washer drains at the
wrong time:
l
The drain hose should be at least 28
inches above the floor and secured.
l
The drain hose should not fit tightly in
the drain pipe.
l
Make sure that the Cycle Control
Knob is pointing to a number in the
cycle.
Make sure the drain hose is higher
than the water level in the washer.
If it isn’t...
l
The washer may seem to be draining
during wash and rinse cycles.
l
Water can siphon out. (See Installa-
tion Instructions.)
If your washer stops during
a cycle:
l
Remember, the washer pauses briefly
at different times in each cycle. These
pauses are normal.
If your dryer does not run:
l
IS the power supply plugged into a live
circuit with the proper voltage?
l
Is the door closed tightly?
l
Did you push the START Button?
l
Have you checked your home’s main
fuses or circuit breaker box?
If your dryer does not heat:
l
The FLUFF AIR setting is without
heat.
l
The last few minutes of heated cycle
settings are without heat.
l
An electric dryer circuit uses 2 break-
ers or 2 fuses. If one breaker is tripped
or one fuse is blown, the dryer may
run, but not heat.
If drying time seems too long:
. Is the gas turned on? If not, turn the
Cycle Control Knob to OFF. Turn on
gas. Wait 5 minutes. Reset controls
and start.
l
Is the lint screen clean? See page 19
of this book for cleaning instructions.
l
Is exhaust system clean? Cleaning
should be done by a qualified person.
2. If you need assistance’..
Call Whirlpool COOL-LINE@
service assistance telephone
number. Dial free from anywhere
in the U.S.:
l-6W-253-1301
and talk with one of our trained consul-
tants. The consultant can instruct you in
how to obtain satisfactory operation
from your appliance or, if service is nec-
essary, recommend a qualified service
company in your area.
If you prefer, write to:
Mr. Donald Skinner
Director of Consumer Relations
Whirlpool Corporation
2000 M-63
Benton Harbor, Ml 49022
Please include a daytime phone
number in your correspondence.
21
If You Need Service Or Assistance
Continued
3. If you need service’...
46^
Whirlpool has a
zi.*l elm ~~~~~~~&~twork
ssnvrcs WhirlpoolSM service
companies.
Whirlpool service technicians are trained
to fulfill the product warranty and provide
after-warranty service, anywhere in the
United States. To locate the authorized
Whirlpool service company in your area,
call our COOL-LINE@ service assistance
telephone number (see Step 2) or look in
your telephone directory Yellow Pages
under:
SERVICE COMP.~N,ES
XYZ SERVICE co
123 MAPLE 999-9999
4. If you need FSP@
replacement parts+...
FSP is a registered trademark of
Whirlpool Corporation for quality parts.
Look for this symbol of quality when-
ever you need a replacement part for
your Whirlpool appliance. FSP replace-
ment parts will fit right and work right,
because they are made to the same
exacting specifications used to build
every new Whirlpool appliance.
To locate FSP replacement parts
in your area, refer to Step 3 or call the
Whirlpool COOL-LINE service
assistance number in Step 2.
5. If you are not satisfied with
how the problem was solved’...
l
Contact the Major Appliance
Consumer Action Panel (MACAP).
MACAP is a group of independent
consumer experts that voices con-
sumer views at the highest levels of
the major appliance industry.
l
Contact MACAP only when the
dealer, authorized servicer or
Whirlpool have failed to resolve
your problem.
Major Appliance Consumer
Action Panel
20 North Wacker Drive
Chicago, IL 60606
l
MACAP will in turn inform us of
your action.
‘When requesting assistance, please
provide: model number, serial number,
date of purchase, and a complete
description of the problem. This infor-
mation is needed in order to better
respond to your request.
22

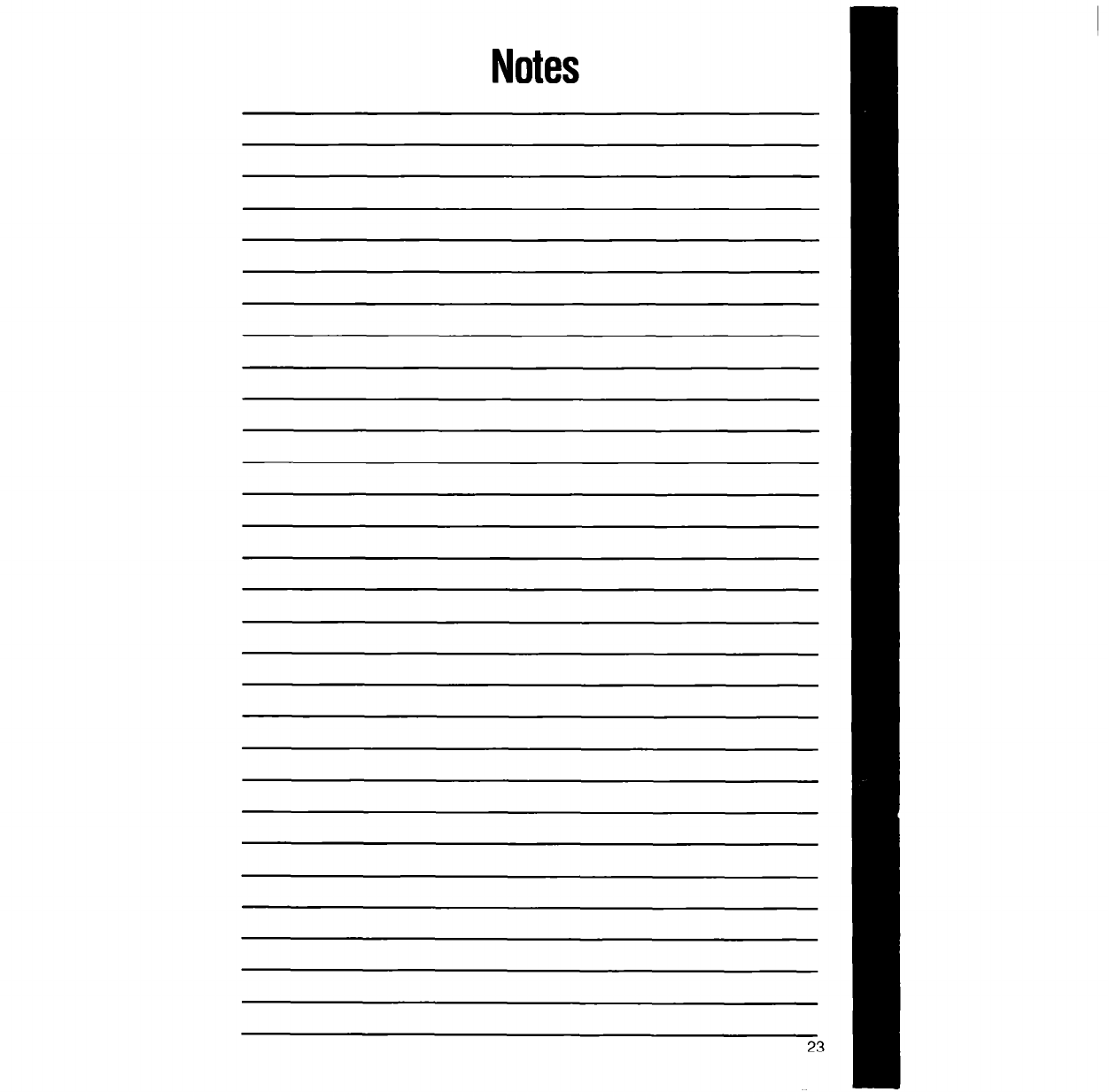

Notes
23
Whirlpool” Thin Twin@ Warranty
TTOOZ
.ENGTH OF WARRANTY 1 WHIRLPOOL WILL PAY FOR
:ULL ONE-YEAR
WARRANTY
Yom Date of Purchase
FSP@ replacement parts and repair labor to
correct defects in materials (including top and lid
rust) or workmanship. Service must be provided
by an authorized Whirlpool” service company.
FSP replacement parts for any part of
gearcase assembly if defective in materials
or workmanship. The gearcase assembly
is shown below.
FSP reolacement Darts for anv too and lid rust.
.IMITED FIVE-YEAR
WARRANTY
Yom Date of Purchase
.IMITED TEN-YEAR
FSP replacement of outer tub should it crack, or
WARRANTY
fail to contain water, due to defective materials
:rom Date of Purchase or workmanshio.
WHIRLPOOL WILL NOT PAY FOR
A.
Service calls to:
1. Correct the installation of the washer/dryer.
2. Instruct you how to use the washer/dryer.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace light bulbs.
B. Repairs when washer/dryer is used in other than normal, single-family
household use.
C. Pick up and delivery. This product is designed to be repaired in
the home.
D.
Damage to washer/dryer caused by accident, misuse, fire, flood, acts of
God or use of products not approved by Whirlpool.
E.
Any labor costs during the limited warranties.
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow the exclusion or limitation
of incidental or consequential damages so this limitation or exclusion may not
apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please
contact your franchised Whirlpool distributor or military exchange.
If you need service, first see the ‘Service and Assistance” section of this book.
After checking “Service and Assistance;’ additional help can be found by calling
our COOL-LINE@ service assistance telephone number,
l-800-253-1301,
from
anywhere in the U.S.
Gearcase assembly
covered by your
warranty
@Registered Trademark/
SM Service Mark of
Whirlpool Corporation
Part No. 3391364
01990 Whirlpool Corporation Printed in U.S.A.
- -

Navigation menu
