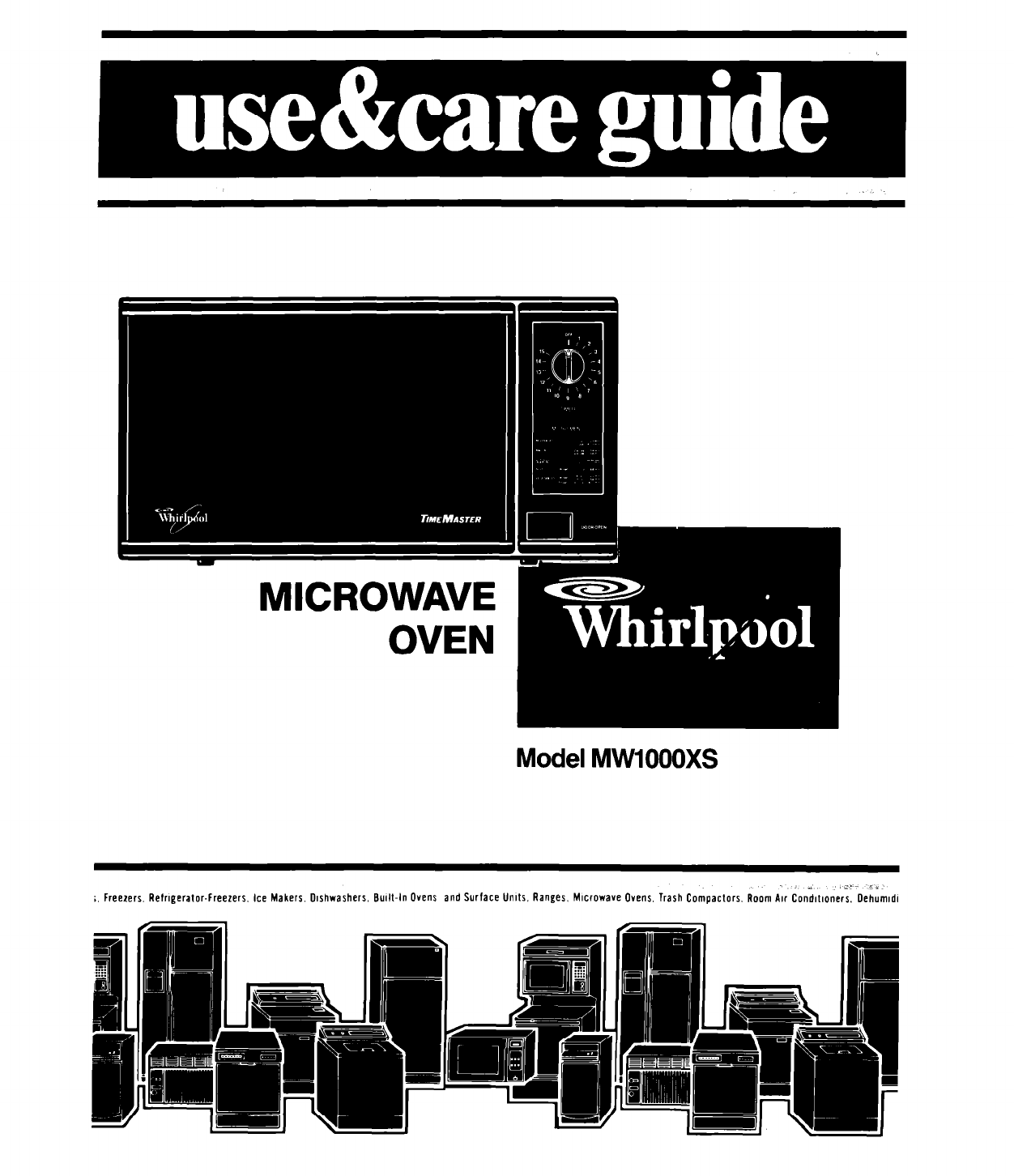

Whirlpool Mwioooxs Users Manual Unknown

Model MWIOOOXS

;, Freezers. Refrigerator-Freezers. Ice Makers. Dishwashers, Built-In Ovens and Surface Units. Ranges. Mlctowave Ovens. Trash Compactors. Room AM Condllloners. Oehumldl

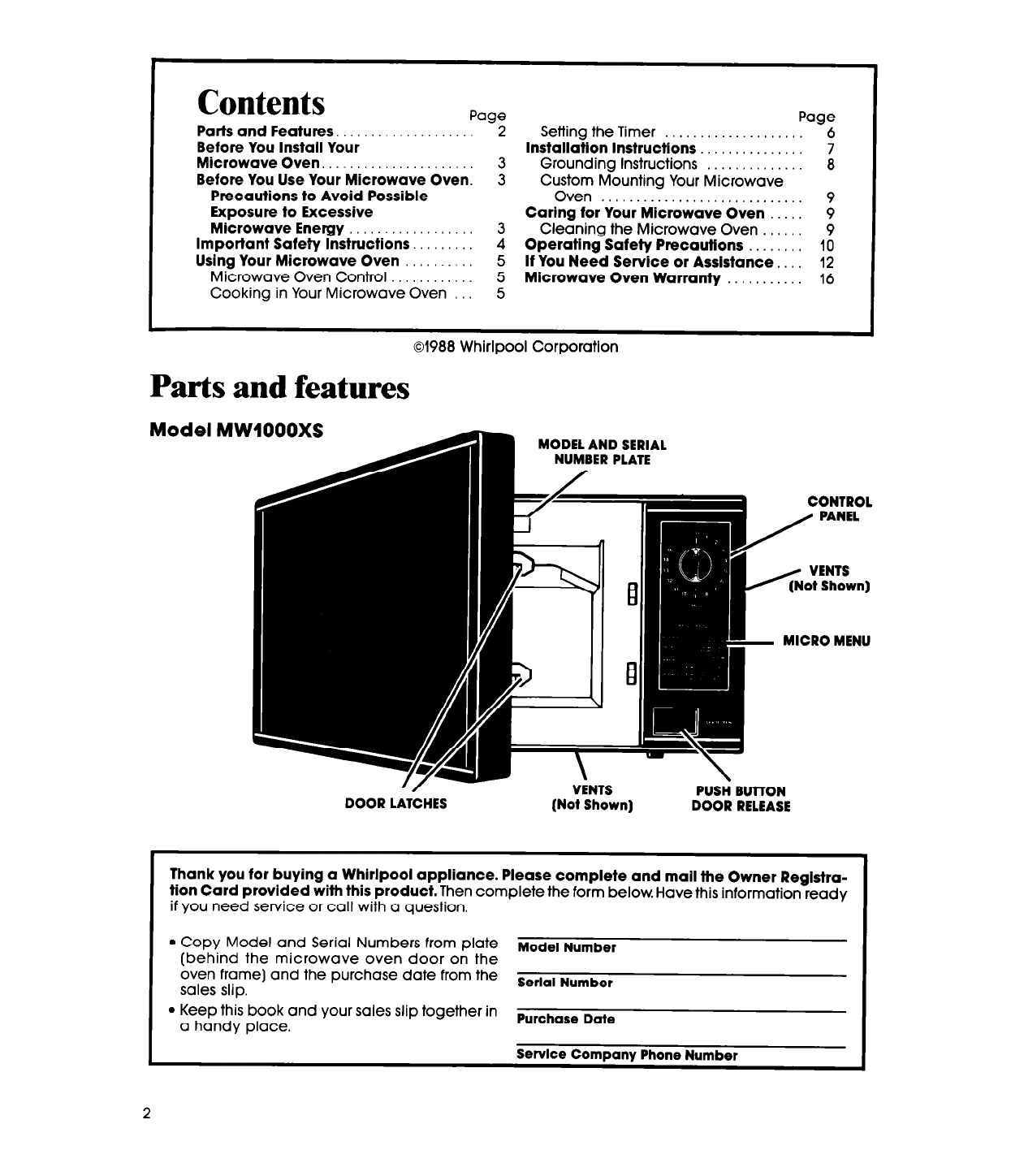

Contents

Paae

Parts and Features. -2

Before You Install Your

Microwave Oven. 3

Before You Use Your Microwave Oven. 3

Precautions to Avoid Possible

Exposure to Excessive

Microwave Energy 3

Important SafetY Instructions. 4

Using Your Microwave Oven 5

Microwave Oven Control 5

Cooking in Your Microwave Oven 5

Page

Setting the Timer . 6

Installation Instructions . . 7

Grounding Instructions . . 8

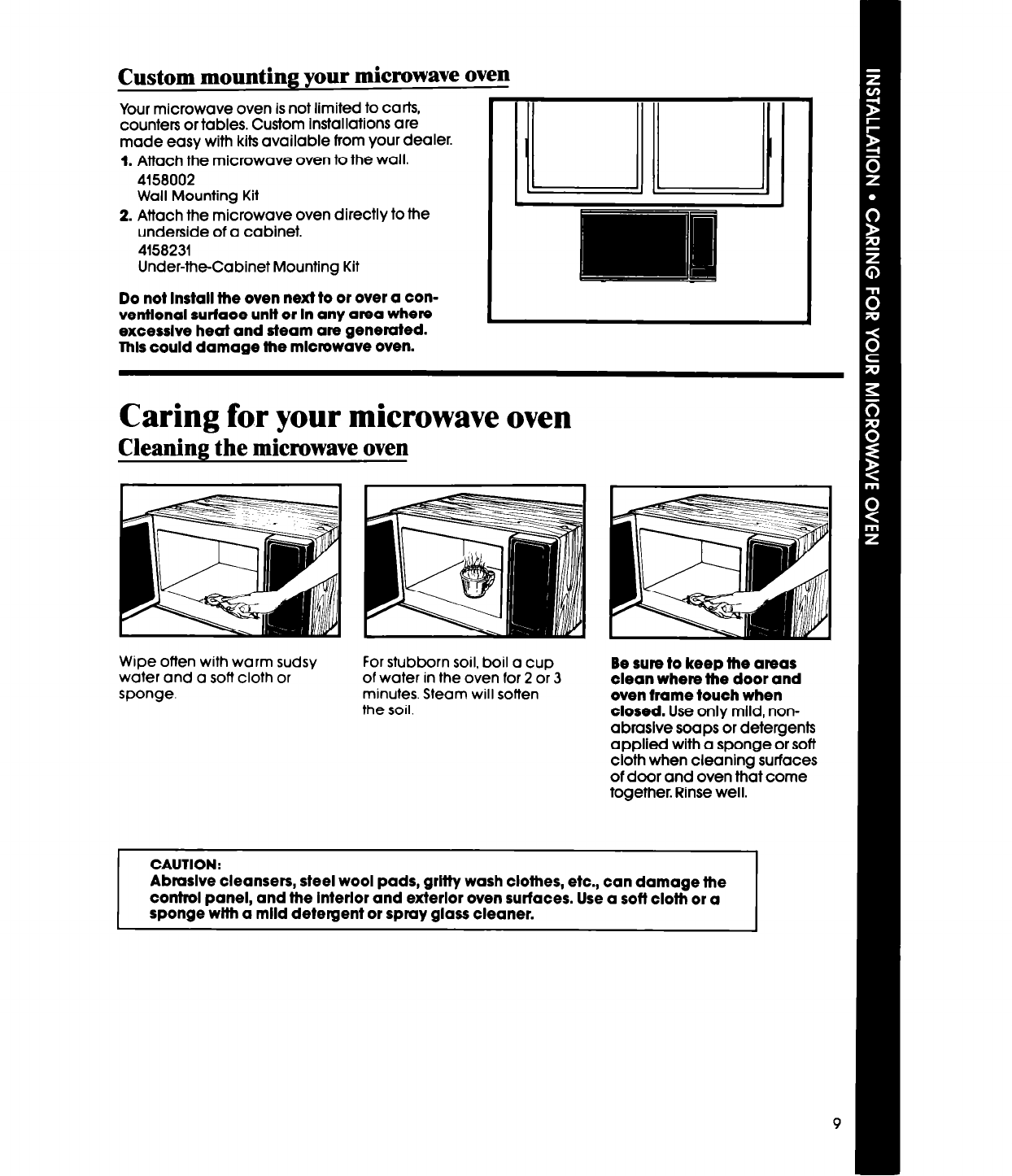

Custom Mounting Your Microwave

Oven . . . . . . . 9

Caring for Your Microwave Oven . . 9

Cleaning the Microwave Oven . 9

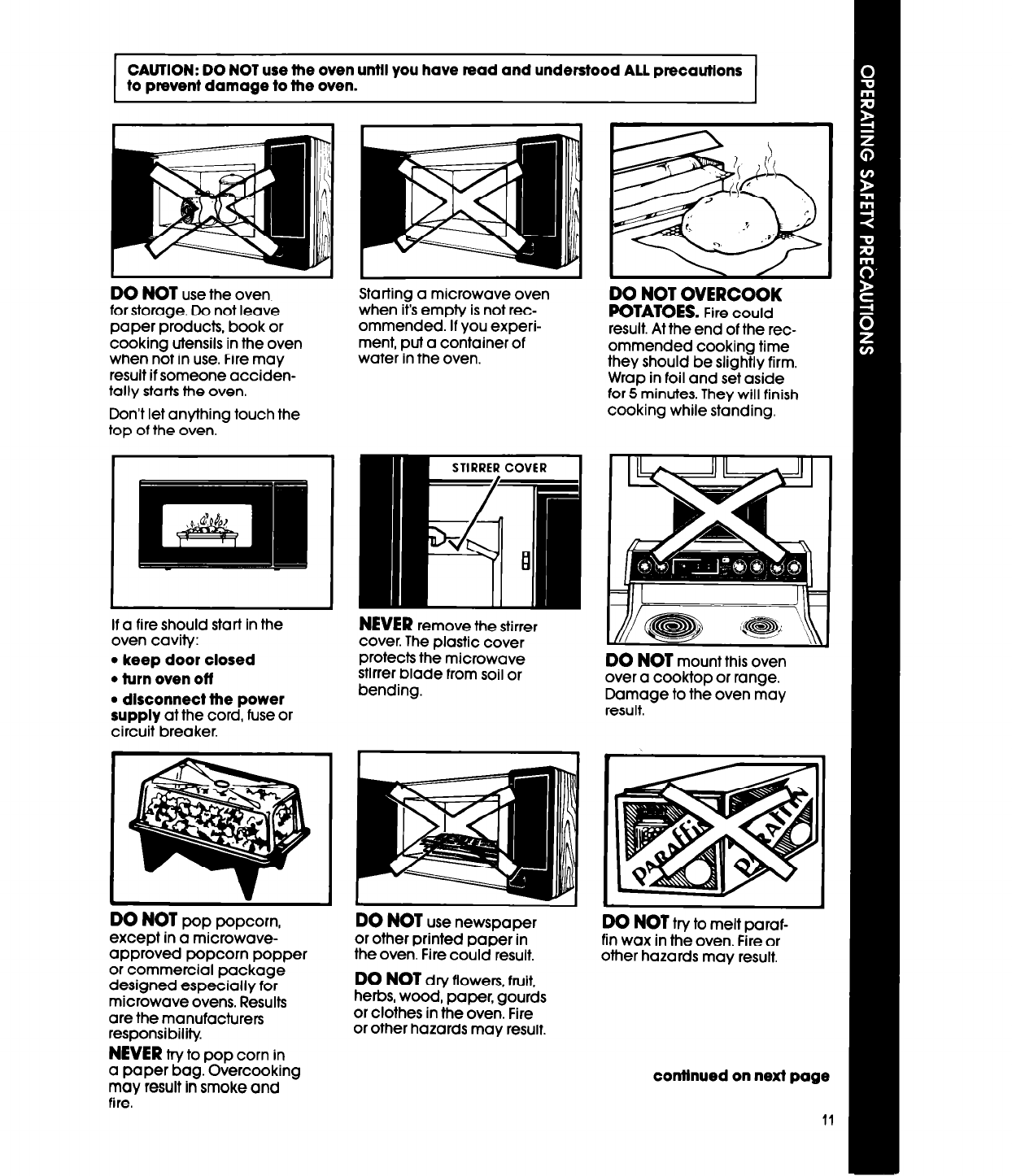

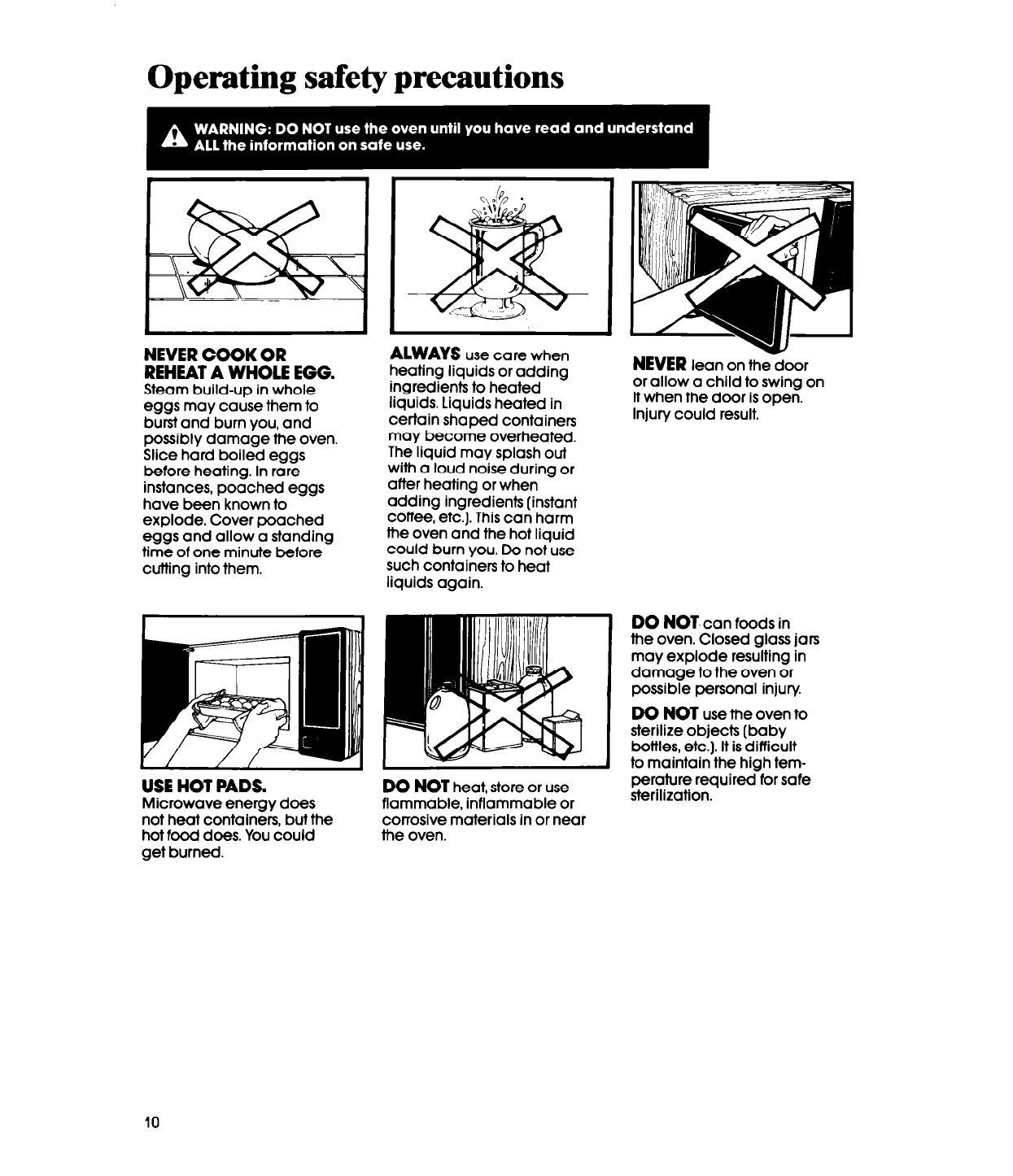

Operating Safety Precautions 10

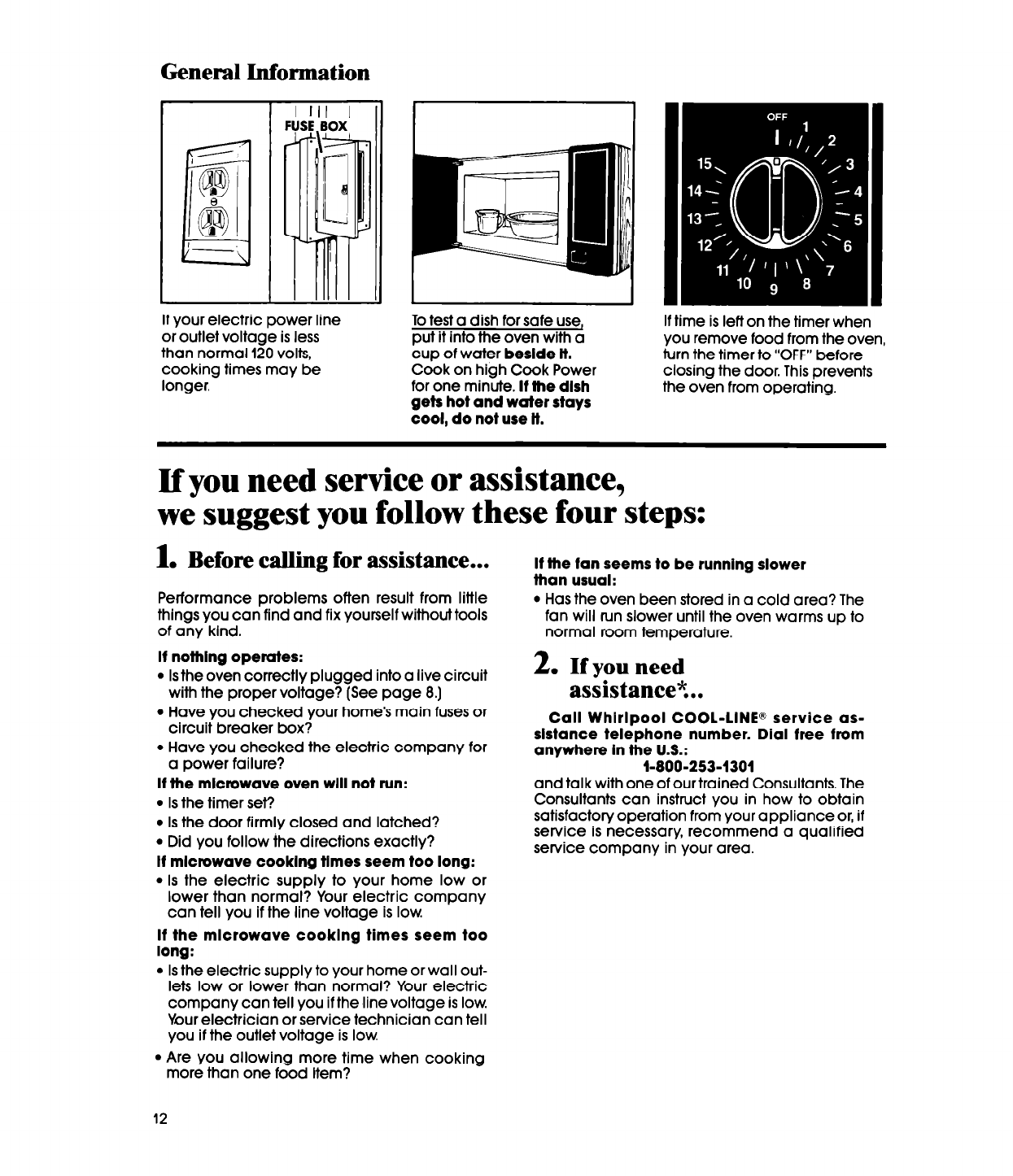

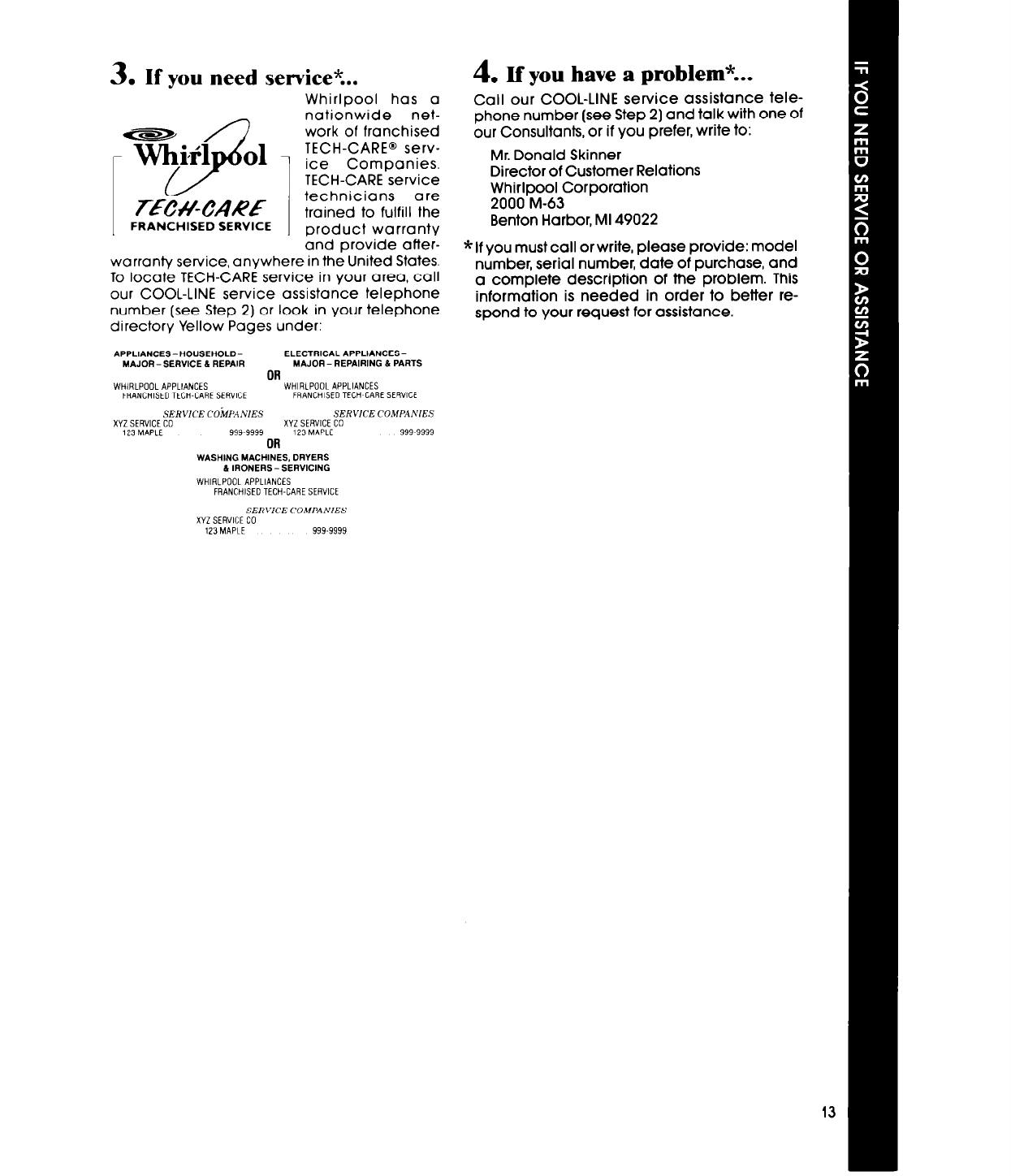

If You Need Service or Assistance.. 12

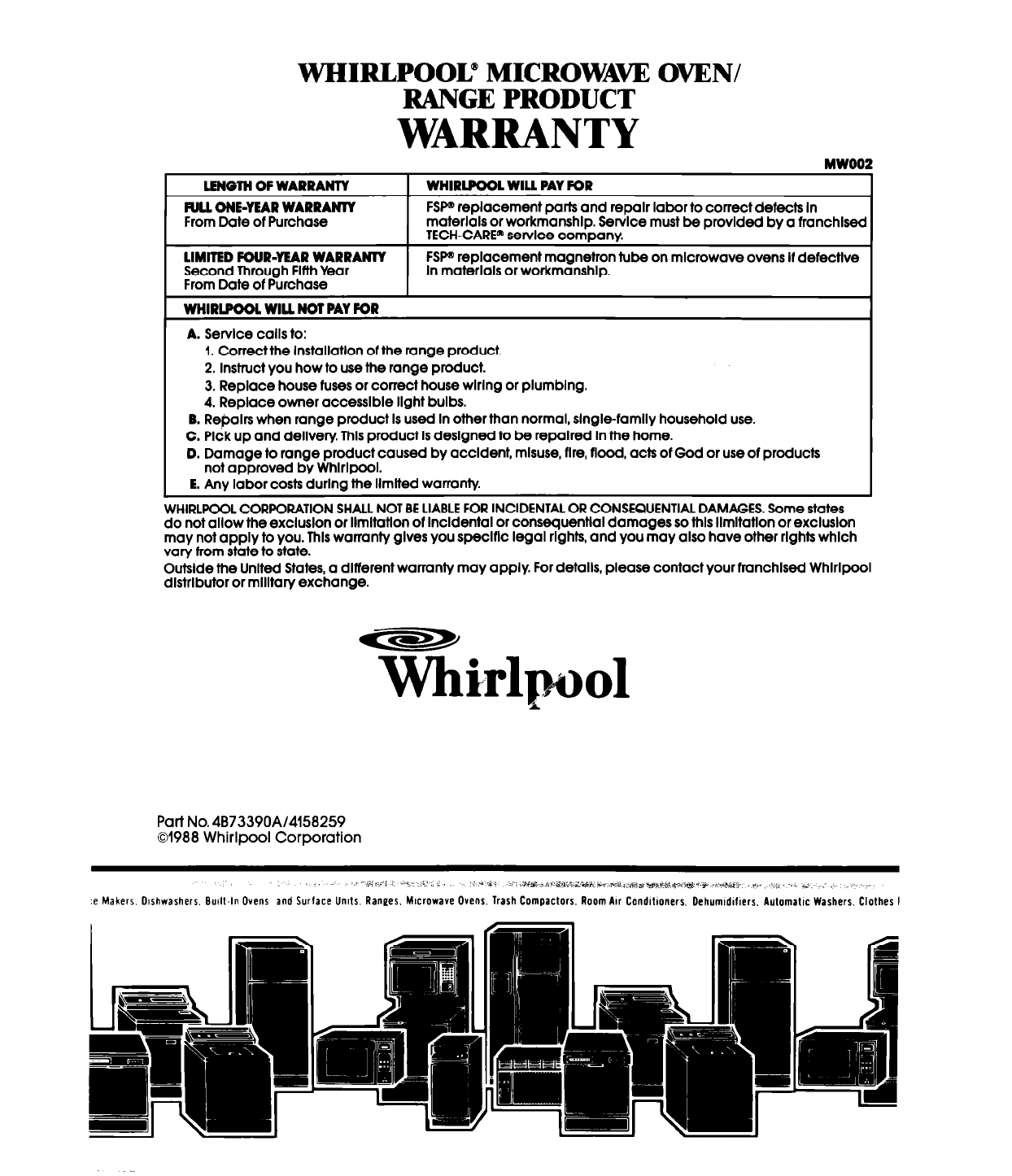

Microwave Oven Warranty . 16

~IYUU

wnrnpoor r;orporarron

Parts and features

M

ode1

CONTROL

/ PANEL

/ VENTS

(Not Shown)

MICRO MENU

DOOR LATCHES VENTS PUSH BUTTON

(Not Shown) DOOR RELEASE

Thank you for buying a Whirlpool appliance. Please complete and mall the Owner Reglstra-

tion Card provided with this product. Then complete the form below. Have this information ready

if you need service or call with a question.

l

Copy Model and Serial Numbers

from plate

(behind the microwave oven door on the

Model Number

oven frame] and the purchase date from the

sales slip. Serial Number

l

Keep this book and your sales slip together in

a handy place. Purchase Dote

Service Company Phone Number

2

l

Has been installed on a surface strong enbugh-to support its-weight.

l

Has been properly connected to electrical supply and grounded. (See

“Installation Instructions:‘)

l

Is not used by children or anyone unable to operate it properly.

l

Is properly maintained.

l

Is used only for jobs expected of a home microwave oven.

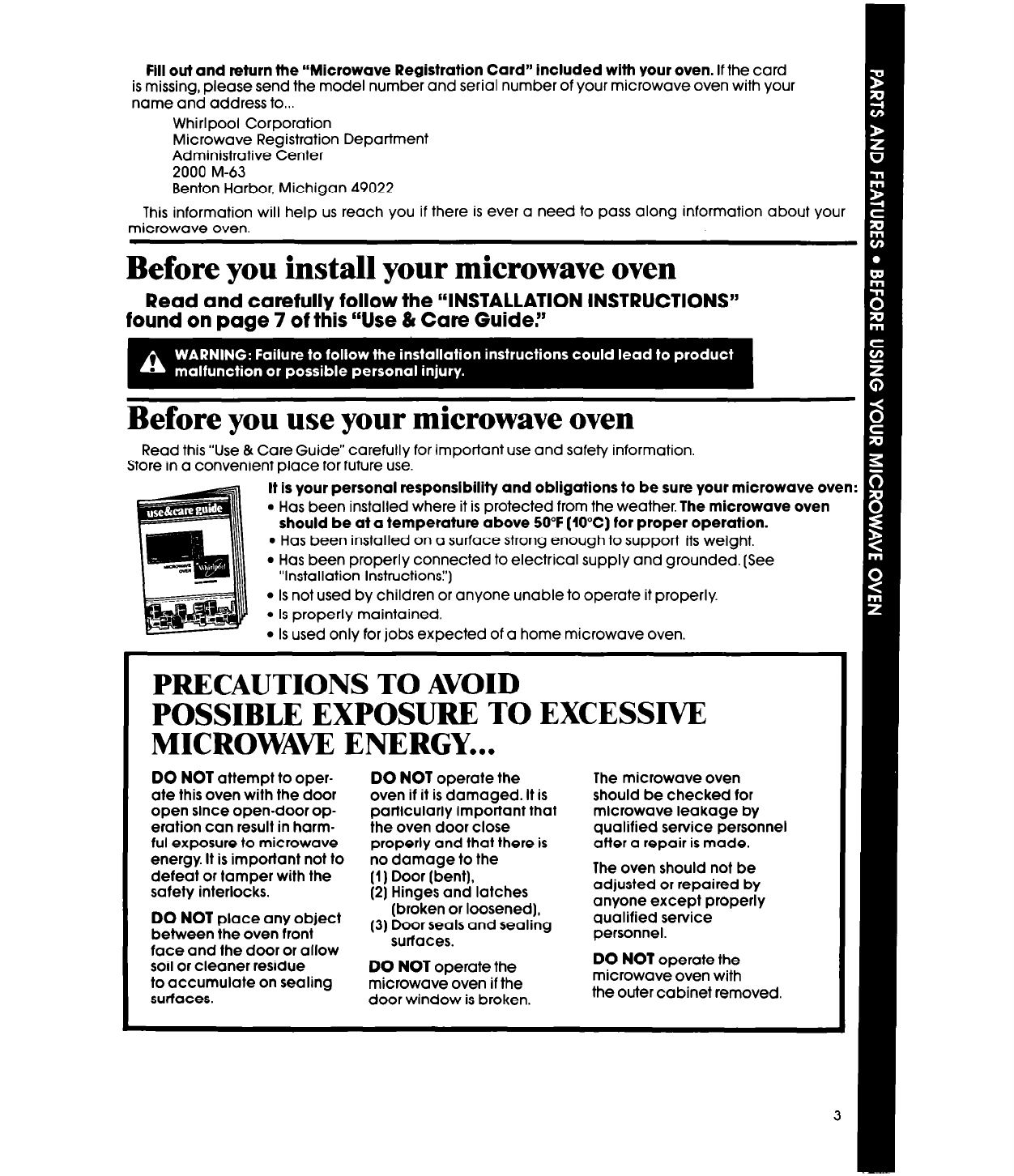

Fill out and return the “Microwave Registration Card” included with your oven. If the card

is missing, please send the model number and serial number of your microwave oven with your

name and address to...

Whirlpool Corporation

Microwave Registration Department

Administrative Center

2000 M-63

Benton Harbor, Michigan 49022

This information will help us reach you if there is ever a need to pass along information about your

microwave oven.

Before you install your microwave oven

Read this “Use & Care Guide” carefully for important use and safety information.

Store in a convenient place for future use.

It is your personal responsibility and obligations to be sure your microwave oven:

l

Has been installed where it is protected from the weather. The microwave oven

should be at a temperature above 50°F IlOW for Drover operation.

PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAW ENERGY...

DO NOT

attempt to oper-

ate this oven with the door

open since open-door op-

eration can result in harm-

ful exposure to microwave

energy. It is important not to

defeat or tamper with the

safety interlocks.

DO NOT

place any object

between the oven front

face and the door or allow

soil or cleaner residue

to accumulate on sealing

surfaces.

DO NOT

operate the

oven if it is damaged. It is

particularly important that

the oven door close

properly and that there is

no damage to the

(1) Door (bent),

(2) Hinges and latches

(broken or loosened],

(3) Door seals and sealing

surfaces.

DO NOT

operate the

microwave oven if the

door window is broken.

The microwave oven

should be checked for

microwave leakage by

qualified service personnel

after a repair is made.

The oven should not be

adjusted or repaired by

anyone except properly

qualified service

personnel.

DO NOT

operate the

microwave oven with

the outer cabinet removed.

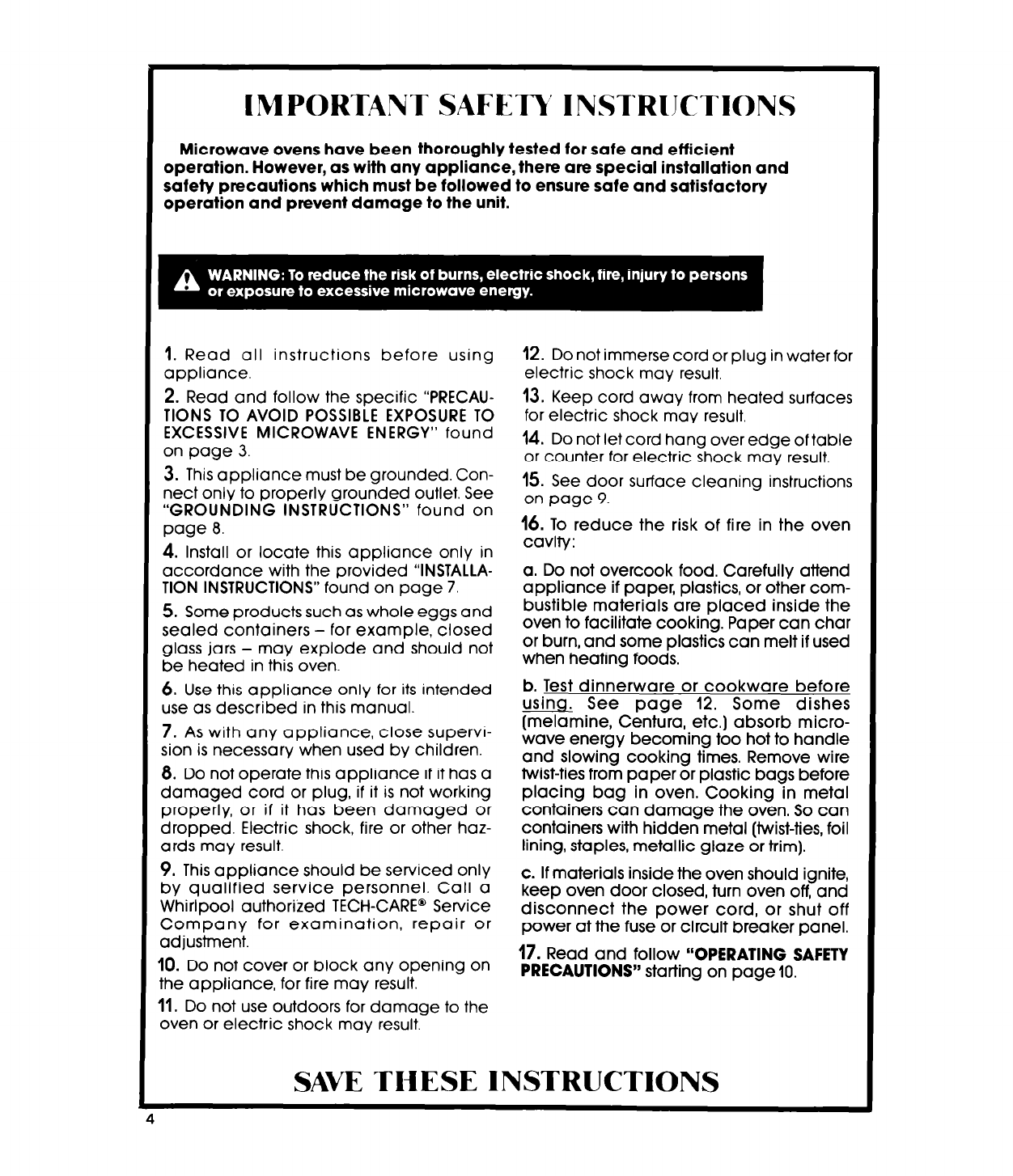

IMPORTANT SAFFTY INSTRUCTIONS

Microwave ovens have been thoroughly tested for safe and efficient

operation. However, as with any appliance, there are special installation and

safety precautions which must be followed to ensure safe and satisfactory

operation and prevent damage to the unit.

1.

Read all instructions before using

appliance.

2. Read and follow the specific “PRECAU-

TIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY” found

on page 3.

3. This appliance must be grounded. Con-

nect only to properly grounded outlet. See

“GROUNDING INSTRUCTIONS” found on

page 8.

4. Install or locate this appliance only in

accordance with the provided “INSTALLA-

TION INSTRUCTIONS” found on page 7.

5. Some products such as whole eggs and

sealed containers - for example, closed

glass jars - may explode and should not

be heated in this oven.

6.

Use this appliance only for its intended

use as described in this manual.

7. As with any appliance, close supervi-

sion is necessary when used by children.

8.

Do not operate this appliance if it has a

damaged cord or plug, if it is not working

properly, or if it has been damaged or

dropped. Electric shock, fire or other haz-

ards may result.

9. This appliance should be serviced only

by qualified service personnel. Call a

Whirlpool authorized TECH-CARE@ Service

Company for examination, repair or

adjustment.

IO.

Do not cover or block any opening on

ihe appliance, for fire may result.

II.

Do not use outdoors for damage to the

3ven or electric shock may result.

12. Do not immerse cord or plug in water for

electric shock may result,

13. Keep cord away from heated surfaces

for electric shock may result.

14. Do not let cord hang over edge of table

or counter for electric shock may result.

15.

See door surface cleaning instructions

on page 9.

16.

To reduce the risk of fire in the oven

cavity:

a. Do not overcook food. Carefully attend

appliance if paper, plastics, or other com-

bustible materials are placed inside the

oven to facilitate cooking. Paper can char

or burn, and some plastics can melt if used

when heating foods.

b. Test dinnerware or cookware before

using. See page 12. Some dishes

(melamine, Centura, etc.) absorb micro-

wave energy becoming too hot to handle

and slowing cooking times. Remove wire

twist-ties from paper or plastic bags before

placing bag in oven. Cooking in metal

containers can damage the oven. So can

containers with hidden metal (twist-ties, foil

lining, staples, metallic glaze or trim).

c. If materials inside the oven should ignite,

keep oven door closed, turn oven off, and

disconnect the power cord, or shut off

power at the fuse or circuit breaker panel.

17. Read and follow “OPERATING SAFETY

PRECAUTIONS” starting on page 10.

SAVE: TIiESE INSTRUCTIONS

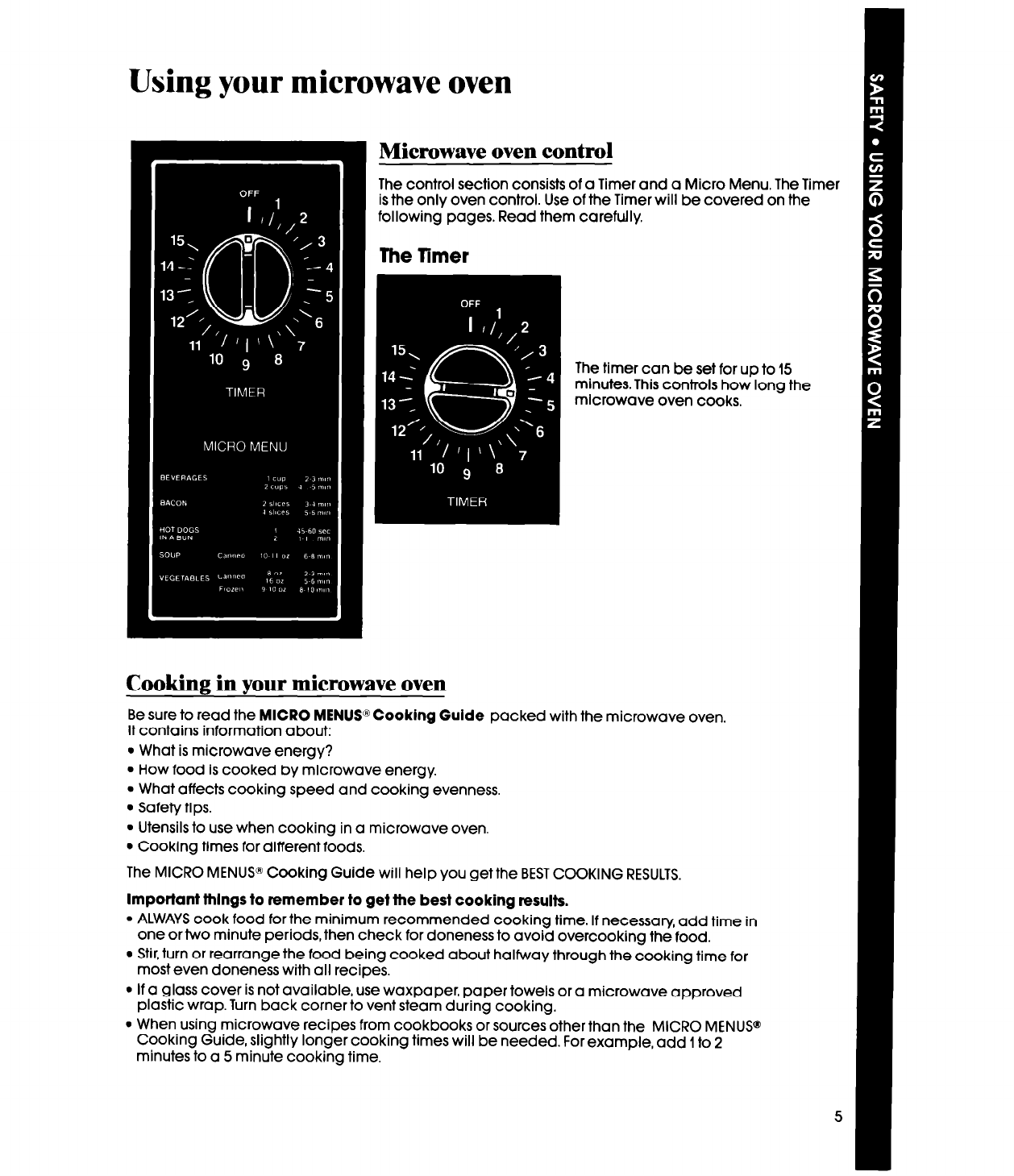

Using your microwave oven

Microwave oven control

The control section consists of a Timer and a Micro Menu. The Timer

is the only oven control. Use of the Timer will be covered on the

following pages. Read them carefully.

The Timer

The timer can be set for up to 15

minutes. This controls how long the

mlcrowave oven cooks.

Cooking in your microwave oven

Be sure to read the MICRO MENUS@ Cooking Guide packed with the microwave oven.

It contains information about:

l

What is microwave energy?

. How food is cooked by microwave energy.

9 What affects cooking speed and cooking evenness.

9 Safety tips.

l

Utensils to use when cooking in a microwave oven.

9 Cooking times for different foods.

The MICRO MENUS@ Cooking Guide will help you get the BEST COOKING RESULTS.

Important things to remember to get the best cooking results.

l

ALWAYS cook food for the minimum recommended cooking time. If necessary, add time in

one or two minute periods, then check for doneness to avoid overcooking the food.

l

Stir, turn or rearrange the food being cooked about halfway through the cooking time for

most even doneness with all recipes.

l

If a glass cover is not available, use waxpaper, paper towels or a microwave approved

plastic wrap. Turn back corner to vent steam during cooking.

l

When using microwave recipes from cookbooks or sources other than the MICRO MENUS@

Cooking Guide, slightly longer cooking times will be needed. For example, add 1 to 2

minutes to a 5 minute cooking time.

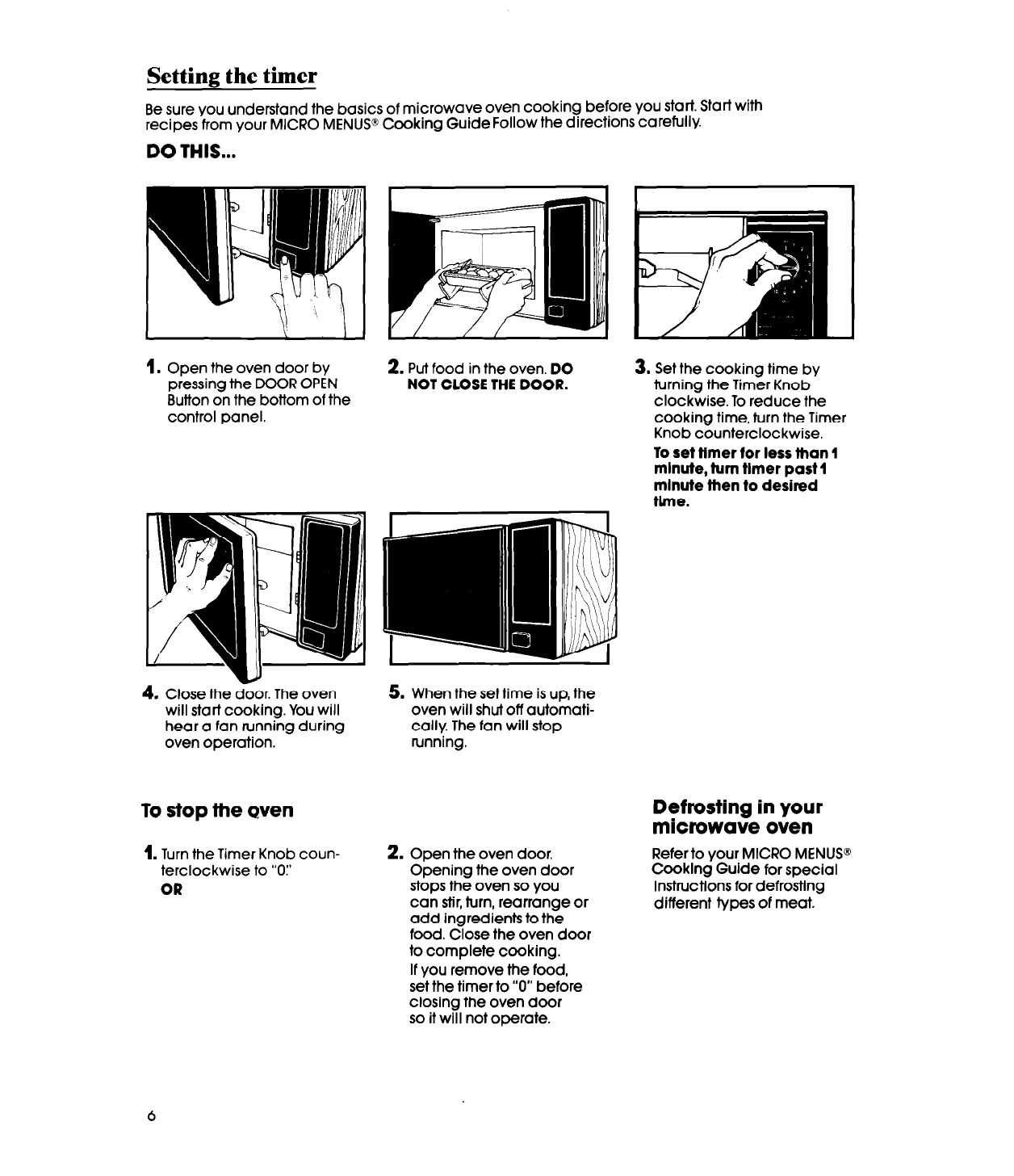

Setting the timer

Be sure you understand the basics of microwave oven cooking before you start. Start with

recipes from your MICRO MENUS@ Cooking Guide Follow the directions carefully.

DO THIS...

1. Open the oven door by

pressing the DOOR OPEN

Button on the bottom of the

control panel.

2.

Put food in the oven. DO

NOT CLOSE THE DOOR.

4.

Close the door. The oven

will start cooking. You will

hear a fan running during

oven operation.

TO stop the Bven

1. Turn the Timer Knob coun-

terclockwise to “0:’

OR

5. When the set time is up, the

oven will shut off automati-

cally. The fan will stop

running.

2.

Open the oven door.

Opening the oven door

stops the oven so you

can stir, turn, rearrange or

add ingredients to the

food. Close the oven door

to complete cooking.

If you remove the food,

set the timer to “0” before

closing the oven door

so it will not operate.

3.

Set the cooking time by

turning the Timer Knob

clockwise. To reduce the

cooking time, turn the Timer

Knob counterclockwise.

To set timer for less than 1

mlnute, turn tlmer past 1

mlnute then to desired

the.

Defrosting in your

microwave oven

Refer to your MICRO MENUS@

CookIng Guide for special

instructions for defrosting

different types of meat.

6

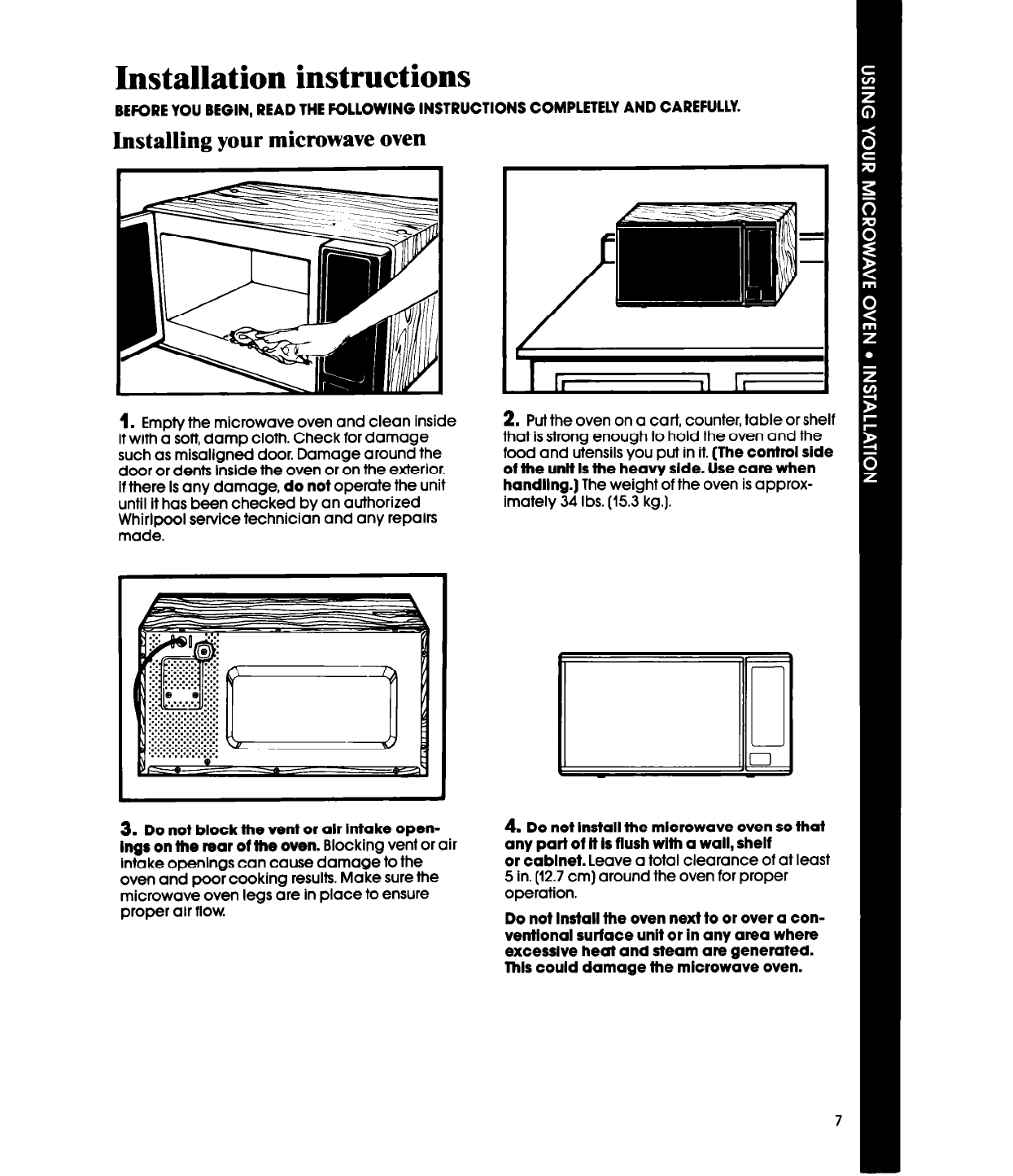

Installation instructions

BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.

Installing your microwave oven

1. Empty the microwave oven and clean inside

it with a soft, damp cloth. Check for damage

such as misaligned door. Damage around the

door or dents Inside the oven or on the exterior.

If there Is any damage, do not operate the unit

until it has been checked by an authorized

Whirlpool service technician and any repairs

made.

3. Do not block the vent or ah Intake open-

Ings on lhe rear of the oven. Blocking vent or air

intake openlngs can cause damage to the

oven and poor cooking results. Make sure the

microwave oven legs are in place to ensure

proper air flow.

2. Put the oven on a cart, counter, table or shelf

that is strong enough to hold the oven and the

food and utensils you put in it. (The control side

of the unlt Is the heavy side. Use care when

handling.) The weight of the oven is approx-

imately 34 Ibs. (15.3 kg.].

4. Do not Install the mlcrowave oven so that

any part of lt Is flush with a wall, shelf

or cabinet. Leave a total clearance of at least

5 in. (12.7 cm) around the oven for proper

operation.

Do not Install the oven next to or over a con-

ventlonal surface unit or in any area where

excessive heat and steam are generated.

Thls could damage the mlcrowave oven.

7

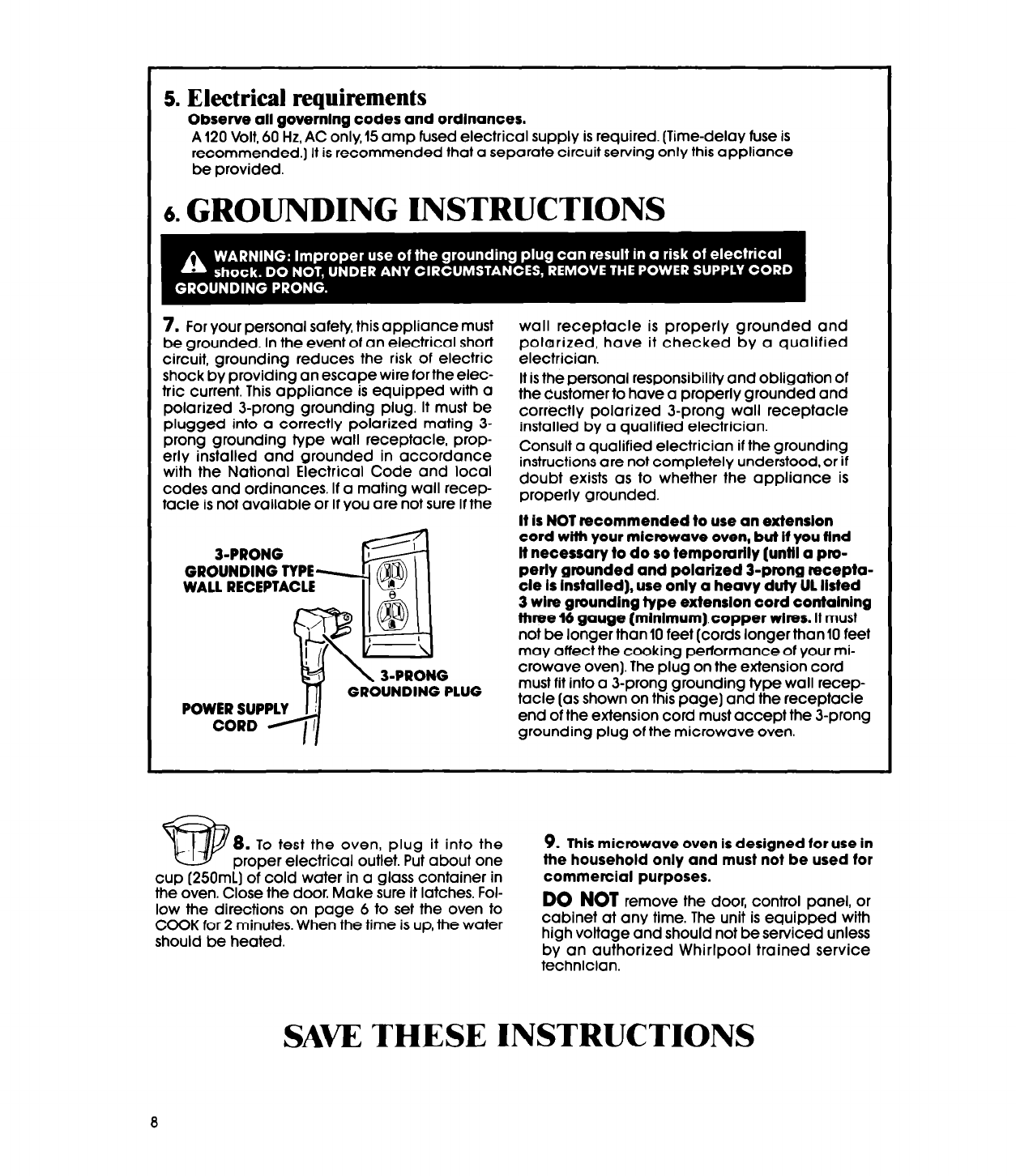

5. Electrical requirements

Observe all governlng codes and ordinances.

A 120 Volt, 60 Hz, AC only, 15 amp fused electrical supply is required. (Time-delay fuse is

recommended.] It is recommended that a separate circuit serving only this appliance

be provided.

6. GROUNDING INSTRUCTIONS

7. For your personal safety, this appliance must

be grounded. In the event of an electrical short

circuit, grounding reduces the risk of electric

shock by providing an escape wire forthe elec-

tric current. This appliance is equipped with a

polarized 3-prong grounding plug. It must be

plugged into a correctly polarized mating 3-

prong grounding type wall receptacle, prop-

erly installed and grounded in accordance

with the National Electrical Code and local

codes and ordinances. If a mating wall recep-

tacle is not available or if you are not sure if the

3-PRONG

GROUNDING TYPE

WALL RECEPTACLE

POWER SUPPLY

CORD

.UG

wall receptacle is properly grounded and

polarized, have it checked by a qualified

electrician.

It is the personal responsibility and obligation of

the customer to have a properly grounded and

correctly polarized J-prong wall receptacle

installed by a qualified electrician.

Consult a qualified electrician if the grounding

instructions are not completely understood, or if

doubt exists as to whether the appliance is

properly grounded.

It Is NOT recommended to use an extension

cord wlth your microwave oven, but if you Hnd

lt necessary to do so temporarily (unttl a pro-

perly grounded and polarized 3-prong recepta-

cle Is Installed), use only a heavy duty UL listed

3 wire groundtng type extenslon cord contalnlng

three 16 gauge (mlnlmum),copper wires. It must

not be longer than 10 feet (cords longer than10 feet

may affect the cooking performance of your mi-

crowave oven]. The plug on the extension cord

must fit into a 3-prong grounding type wall recep-

tacle (as shown on this page] and the receptacle

end of the extension cord must accept the 3-prong

grounding plug of the microwave oven.

73

I

8. To test the oven, plug it into the 9. This microwave oven is designed for use in

proper electrical outlet. Put about one the household only and must not be used for

cup (250mL) of cold water in a glass container in commercial purposes.

the oven. Close the door. Make sure it latches. Fol-

low the directions on page 6 to set the oven to DO NOT remove the door, control panel, or

COOK for 2 minutes. When the time is up, the water cabinet at any time. The unit is equipped with

should be heated. high voltage and should not be serviced unless

by an authorized Whirlpool trained service

technician.

SAVE THESE INSTRUCTIONS

Custom mounting your microwave oven

Your microwave oven is not limited to carts,

counters or tables. Custom Installations are

made easy with kits available from your dealer.

1. Attach the microwave oven to the wall.

4158002

Wall Mounting Kit

2. Attach the microwave oven directly to the

underside of a cabinet.

4158231

Under-the-Cabinet Mounting Kit

Do not Install the oven next to or over a con-

ventlonal surface unlt or In any area where

excessive heat and steam are genemted.

Thls could damage the mlcrowave oven.

Caring for your microwave oven

Cleaning the microwave oven

Wipe otten with warm sudsy

water and a soft cloth or

sponge.

For stubborn soil, boil a cup

of water in the oven for 2 or 3

minutes. Steam will soften

the soil.

Be sure to keep the areas

clean where the door and

oven frame touch when

closed. Use only mfld, non-

abraslve soaps or detergents

applied with a sponge or soft

cloth when cleaning surfaces

of door and oven that come

together. Rinse well.

CAUTION:

Abmslve cleansers, steel wool pads, gritty wash clothes, etc., can damage the

control panel, and the lnterlor and exterior oven surfaces. Use a soft cloth or a

sponge wtth a mlld detergent or spmy glass cleaner.

1

Operating safety precautions

NEVER COOK OR

REHEAT A WHOLE EGG.

Steam build-up in whole

eggs may cause them to

burst and burn you, and

possibly damage the oven.

Slice hard boiled eggs

before heating. In rare

instances, poached eggs

have been known to

explode. Cover poached

eggs and allow a standing

time of one minute before

cutting into them.

ALWAYS

use care when

heating liquids or adding

ingredients to heated

liquids. Liquids heated in

certain shaped containers

may become overheated.

The liquid may splash out

with a loud noise during or

after heating or when

adding ingredients (instant

coffee, etc.]. This can harm

the oven and the hot liquid

could burn you. Do not use

such containers to heat

liquids again.

1 1 / , I

USE HOT PADS.

Microwave energy does

not heat containers, but the

hot food does. You could

get burned.

DO NOT

heat, store or use

flammable, inflammable or

corrosive materials in or near

the oven.

NEVER

lean on the-door

or allow a child to swing on

it when the door is open.

Injury could result.

DO NOT.

can foods in

the oven. Closed glass jars

may explode resulting in

damage to the oven or

possible personal injury

DC NOT

use the oven to

sterilize objects (baby

bottles, etc.). It is difficult

to maintain the high tem-

perature required for safe

sterilization.

10

CAUTION: DO NOT use the oven until you have read and understood ALL precautions

to prevent damage to the oven.

DO NOT

use the oven

for storage. Do not leave

paper products, book or

cooking utensils in the oven

when not in use. Fire may

result if someone acciden-

tally starts the oven.

Don’t let anything touch the

top of the oven.

Starting a microwave oven

when its empty is not rec-

ommended. If you experi-

ment, put a container of

water in the oven.

If a fire should start in the

oven cavity:

l

keep door closed

l

turn oven off

l

disconnect the power

supply at the cord, fuse or

circuit breaker.

DO NOT

pop popcorn,

except in a microwave-

approved popcorn popper

or commercial package

designed especially for

microwave ovens. Results

are the manufacturers

responsibility

NEVER try

to pop corn in

a paper bag. Overcooking

may result in smoke and

fire.

STIRRER COVER

NEVER

remove the stirrer

cover. The plastic cover

protects the microwave

stirrer blade from soil or

bending.

, -

DO NOT

use newspaper

or other printed paper in

the oven. Fire could result.

DO NOT

dry flowers, fruit,

herbs, wood, paper, gourds

or clothes in the oven. Fire

or other hazards may result.

DO NOT OVERCOOK

POTATOES.

Fire could

result. At the end of the rec-

ommended cooking time

they should be slightly firm.

Wrap in foil and set aside

for 5 minutes. They will finish

cooking while standing.

41 : i IL

-

t

DO NOT

mount this oven

over a cooktop or range.

Damage to the oven may

result.

DO NOT

try to melt paraf-

fin wax in the oven. Fire or

other hazards may result.

continued on next page

11

General Information

If your electric power line

or outlet voltage is less

than normal 120 volts,

cooking times may be

longer.

To test a dish for safe use,

put it into the oven with a

cup of water beslde lt.

Cook on high Cook Power

for one minute. If the dlsh

gets hot and water stays

cool, do not use lt.

If time is left on the timer when

you remove food from the oven,

turn the timer to “OFF” before

closing the door. This prevents

the oven from operating.

If you need service or assistance,

we suggest you follow these four steps:

1.

Before caEng for assistance...

Performance problems often result from little

things you can find and fix yourself without tools

of any klnd.

If nothlng operates:

l

Is the oven correctly plugged into a live circuit

with the proper voltage? (See page 8.)

l

Have you checked your home’s main fuses or

circuit breaker box?

l

Have you checked the electric company for

a power failure?

If the mlcrowave oven will not run:

l

Is the timer set?

l

Is the door firmly closed and latched?

l

Did you follow the directions exactly?

If mlcrowave cooklng times seem too long:

l

Is the electric supply to your home low or

lower than normal? Your electric company

can tell you If the line voltage is low.

If the mlcrowave cooklng times seem too

long:

l

Is the electric supply to your home or wall out-

lets low or lower than normal? Your electric

company can tell you if the line voltage is low.

Your electrician or service technician can tell

you if the outlet voltage is low.

l

Are you allowing more time when cooking

more than one food Item?

If the fan seems to be running slower

than usual:

l

Has the oven been stored in a cold area? The

fan will run slower until the oven warms up to

normal room temperature.

2.

If you need

assistance%.

Call Whirlpool COOL-LINE@ servtce as-

slstance telephone number. Dial free from

anywhere In the U.S.:

l-800-253-1301

and talk with one of ourtrained Consultants. The

Consultants can instruct you in how to obtain

satisfactory operation from your appliance or, if

service is necessary, recommend a qualified

service company in your area.

12

3.

If you need service:..

Whirlpool has a

- nationwide net-

work of franchised

FRANCHISED SERVICE

1 product warranty

and provide after-

warranty service, anywhere in the United States.

To locate TECH-CARE service in your area, call

our COOL-LINE service assistance telephone

number [see Step 2) or look in your telephone

directory Yellow Pages under:

APPLIANCES-HOUSEHOLD- ELECTRlCAL APPLIANCES-

MAJOR-SERVICE (L REPAIR MAJOR-REPAIRING 8 PARTS

OR

WHIRLPOOL APPLIANCES WHIRLPOOL APPLIANCES

FRANCHISEDTECH-CARESERVICE FRANCHISEDTECHKARESERVICE

SERVICE COtiPA.WES SERVICE COMPANIES

XYZSERVICECO XYLSERVICECO

123 MAPLE 999~9999 123MAPLE 999 9999

OR

WASHING MACHINES, DRYERS

& IRONERS-SERVICING

WHIRLPOOL APPLIANCES

FRANCHISEDTECH-CARESERVICE

4. If you have a problem*...

Call our COOL-LINE service assistance tele-

phone number (see Step 2) and talk with one of

our Consultants, or if you prefer, write to:

Mr. Donald Skinner

Director of Customer Relations

Whirlpool Corporation

2000 M-63

Benton Harbor, Ml 49022

* If you must call or write, please provide: model

number, serial number, date of purchase, and

a complete description of the problem. This

information is needed in order to better re-

spond to your request for assistance.

SERVICE COMPANIES

XYLSERVICECO

123MAPLE 999-9999

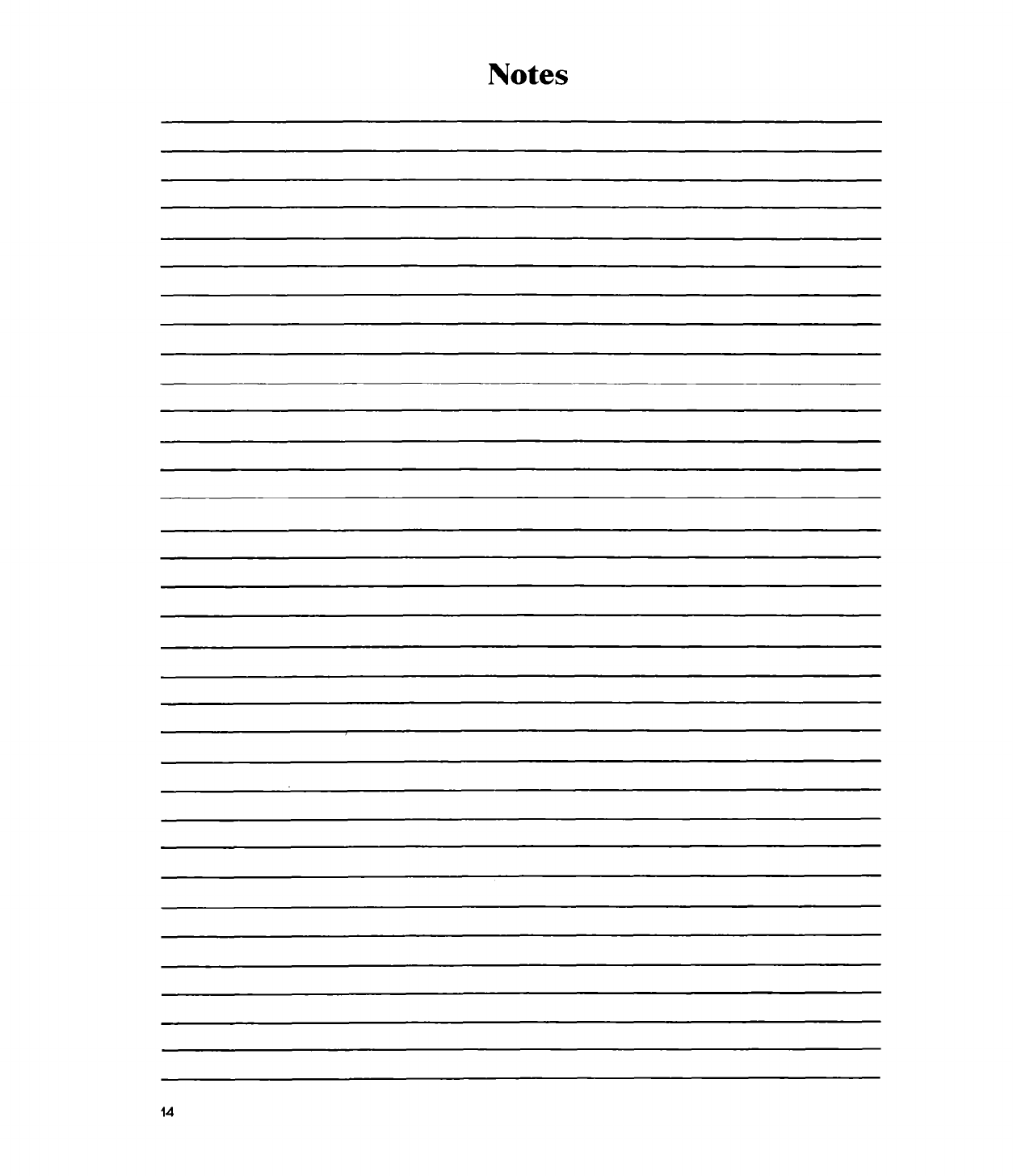

Notes

14

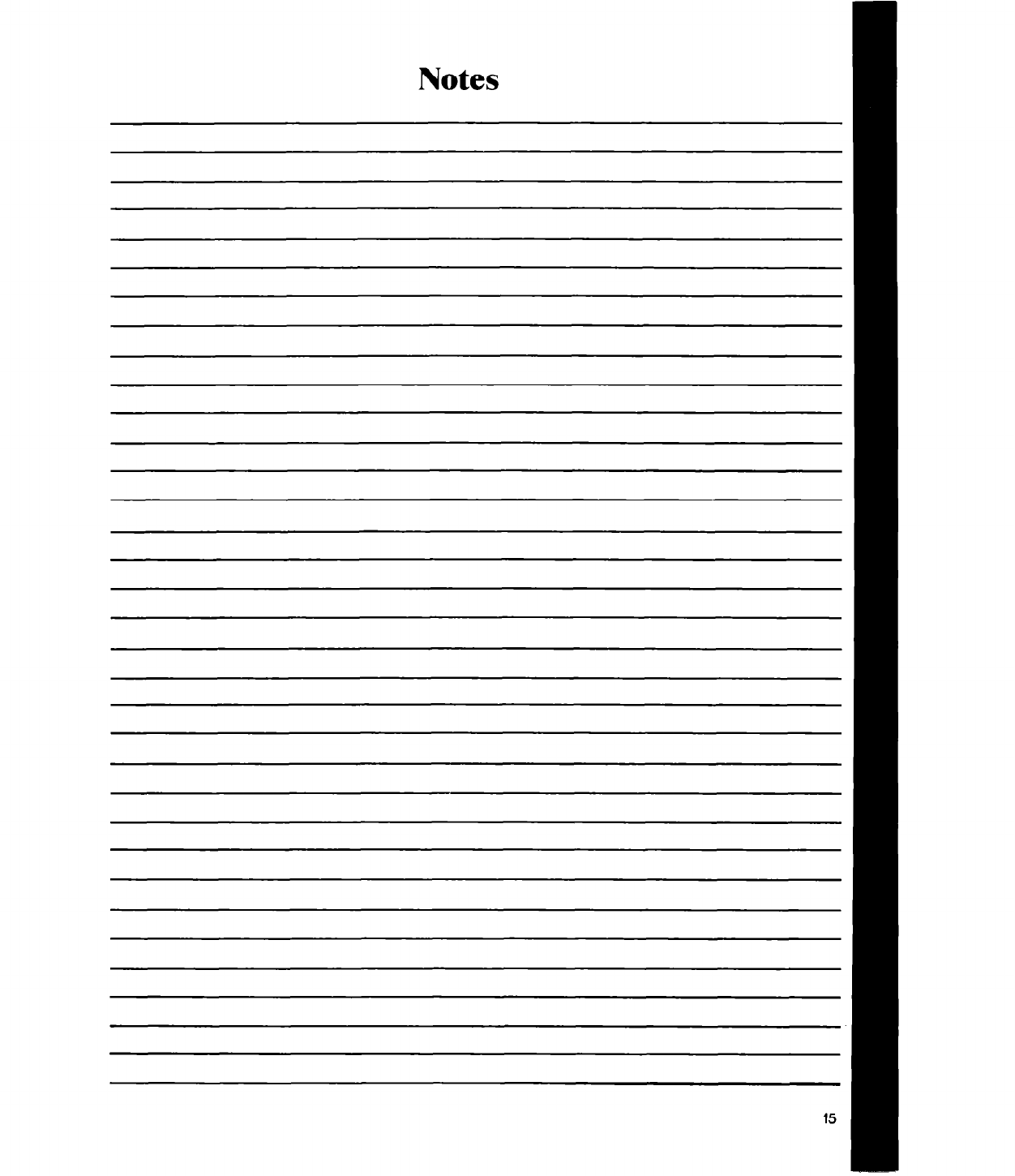

Notes

WHIRLPOOL@ MICROWAW OVEN/

RANGE PRODUCT

WARRANTY

r

MWOOi

LENGTH CF WARRANTY

RIU ONE-YEAR WARRAlYrr

From Date of Purchase

WHIRLPOCL WILL PAY K)R

FSP@ replacement parts and repalr labor to correct detects In

materlals or workmanshlp. Servlce must be provlded by a franchised

TECH-CARE” servlce comoanv.

LIMITED FQUR-YBAR WARRANlY

Second Through Flfth Year

From Date of Purchase

. ~

FSP replacement magnetron tube on mlcrowave ovens If defective

In materlals or workmanshlp.

WHIRLPOOL WILL MOT PAY FOR

A. Service calls to:

1. Correct the lnstallatlon of the range product.

2. Instruct you how to use the range product.

3. Replace house fuses or correct house wlrlng or plumblng.

4. Replace owner accessible light bulbs.

8. Repalrs when range product Is used In other than normal, single-family household use.

C. Pldk up and dellvery. Thls product Is deslgned to be repalred In the home.

D. Damage to range product caused by accident, misuse, fire, flood. acts of God or use of products

not approved by Whlrlpool.

E. Any labor costs durlng the llmlted warranty.

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states

do not allow the exclusion or llmltatlon of lncldental or

CCtIS~Udlal

damages so thls llmltatlon or exclusion

may not apply to you. Thls warranty gives you speclflc legal rlghts, and you may also have other rlghts which

vary from state to state.

Outslde the Unlted States, a dlfferent warranty may apply. For details, please contact your fmnchlsed Whlrlpool

dlstrlbutor or mllltary exchange.

Part No. 4873390Al4158259

01988 Whirlpool Corporation

Whirlpool Mwioooxs Users Manual Unknown

MWIOOOXS to the manual d7530ba7-7128-4744-aa52-a401f133ad07

Navigation menu

Versions of this User Manual:

Views

Navigation
