COOKTOP PARTS

1

For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2

(Black) (Designer White) (Designer Biscuit) (Stainless Steel)

12−07 Litho In U.S.A. (mo) Part No. W10181235 Rev. A

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9762998 Installation

Instructions

Anti−Tip Template

9757142 English/Spanish

9757143 English/French

W10162213

Owners Manual

W10116296

Tech Sheet

9762761 Safer Cooking Tips

2 Cap, Burner

Left Front

3191904 Black

3191905 Grey

8273345 Espresso

R. Front, L. Rear

3191901 Black

3191903 Grey

8273344 Espresso

Right Rear

3191898 Black

3191899 Grey

8273343 Espresso

3 Burner

4455981 Left Front

4455980 R. Front, L. Rear

4455979 Right Rear

4 Cooktop

8272251 White

8272743 Biscuit

8272253 Black

5 Panel, Manifold

8523855 Black

8523854 White

8523856 Biscuit

6 Knob, Control (3)

8273279 Stainless Steel

8522623 White

8522626 Biscuit

7 Knob, Powerburner

8273281 Black

8522624 White

8522627 Biscuit

8 Grate, Burner (4)

8522851 Black

8522850 Grey

8522853 Espresso

9 3400701 Screw

10 3196557 Screw

CONTROL PANEL PARTS

2

For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2

(Black) (Designer White) (Designer Biscuit) (Stainless Steel)

W10181235

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap, Left Hand

W10009080

Black

W10009040

White

W10009060

Biscuit

Endcap, Right Hand

W10009090

Black

W10009050

White

W10009070

Biscuit

2 8053505 Shield, Lower Heat

3 Panel, Control

9762093 Black

9762091 White

9762092 Biscuit

9762094 Silver for Stnlss

5 9758080 Module, Spark

6 9762095 Brkt−Mntg, Console

7 8523412 Bracket, Support

8 9756301 Cover, Upper

9 8053910 Shield, Heat

10 8273132 Cover, Lower

11 3196169 Screw

12 Control, Range

W10108190

Black

W10108180

White

W10108200

Biscuit

13 3196178 Screw

14 9757609 Badge

15 9762078 Brkt, Mntg EOC

16 9762726 Brkt−Mntg, DSI

17 8273564 Clip

MANIFOLD PARTS

3

For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2

(Black) (Designer White) (Designer Biscuit) (Stainless Steel)

W10181235

MANIFOLD PARTS

4

For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2

(Black) (Designer White) (Designer Biscuit) (Stainless Steel)

W10181235

Illus. Part

No. No. DESCRIPTION

1 8273096 Screw, Valve

2 Burner Base

8273700 Large (3)

8273701 Small (1)

3 Tubing, Burner

W/Orifice

8273693 Left Front

8273698 Left Rear

8273695 Right Front

8273697 Right Rear

4 8523402 Tubing (Manifold

to Regulator)

5 8523406 Harness, Igniter

(W/Switches)

6 8523793 Electrode (4)

7 9762230 Pipe, Manifold

8 Valve

9757218 LF − RF − LR

8273004 Right Rear

9 8273060 Nut (4)

10 8273062 Screw (4)

11 3400228 Bolt

12 8054078 Burner, Broiler

13 8053970 Spreader, Flame

(Oven)

14 9758078 Burner, Bake

15 9761959 Valve/Regulator

16 Igniter

8054129 Broil

9758079 Bake

17 8272222 Tubing (Broiler

Fitting To Valve)

18 3186489 Fitting, Broiler

19 Orifice, Burner

8273064 Left Front

8273065 Right Front

8273066 Left Rear

8273067 Right Rear

20 8053262 Spreader, Flame

(Broiler)

21 3196265 Screw

22 3196176 Screw

23 3196385 Screw

24 3400016 Screw

Following Parts Not Illustrated

8523418 Spuds, LP Gas

(Kit of 4)

CHASSIS PARTS

5

For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2

(Black) (Designer White) (Designer Biscuit) (Stainless Steel)

W10181235

CHASSIS PARTS

6

For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2

(Black) (Designer White) (Designer Biscuit) (Stainless Steel)

W10181235

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1

W10153186

Flue Box

2 8272747 Shield, Flue

3 8273036 Burner Box

4 Panel, Side (2)

8053830 White−Textured

8272519 Biscuit−Textured

8053832 Black−Textured

6 8523249 Brkt, Manifold Mtg

8

W10067840

Screw

9 3196037 Foot, Front (2)

10

W10058460

Foot, Rear (2)

11 3195097 Bottom, Oven

12

W10131826

Sensor, Oven

13 8053967 Baffle, Burner

14 8053969 Shield, Heat

15 8053968 Shield, Lower

16 9760314 Rail, Base (2)

18 9761517 Clip,Door Mntg(2)

19 9758701 Spacer, Door

20 9757098 Back, Main

21 8522416 Seal, Oven

22 8053971 Brace, Main Back

23 Retainer, Insul.

9761449 Left Hand

9761448 Right Hand

24 3196576 Clip, Panel (6)

25 9757891 Cord, Power

26 9760407 Brkt − Hinge

27 9757262 SWITCH, DOOR

28 3196701 Light Socket Assy

29 311255 Bulb, Oven Light

30 9761013 Latch, Door

31

W10078370

Rod, Latch

32

W10107820

Latch−Mtr

33

W10114344

Glide, Drawer

35 9761490 Insulation

36 9761512 Clip, Mounting

37 3196178 Screw

38 3196152 Screw

39 Screw

3196166 White

8281194 Biscuit

41

W10031780

Screw

42 3196179 Screw

44 3196177 Screw

45 3196168 Screw

46 9757239 Rod − Door Switch,

Rear Mount

47 3196560 Screw

INSULATION

8524099 Insulation, Wrap

8272614 Insulation, Back

8272613 Insulation, Vent

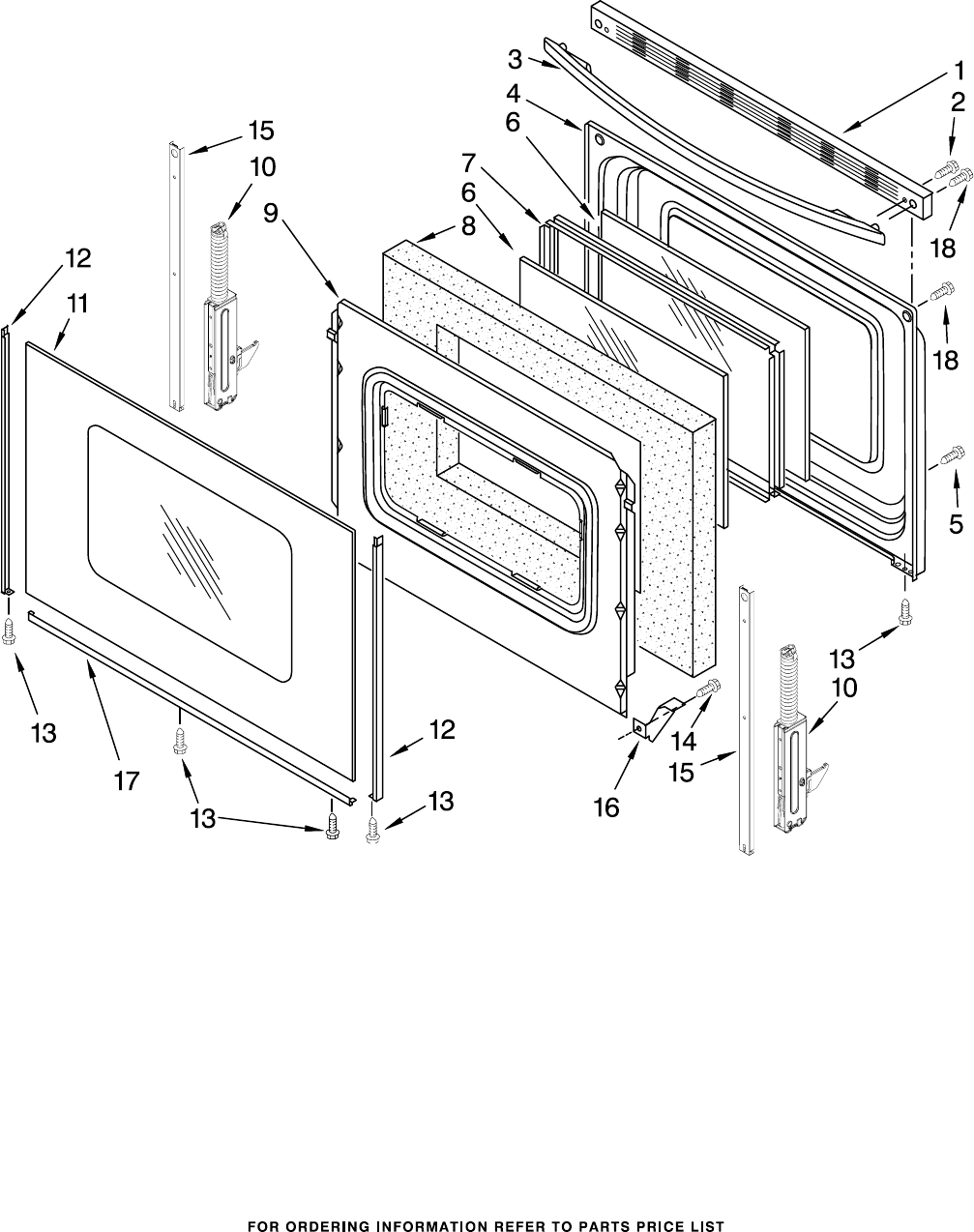

DOOR PARTS

7

For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2

(Black) (Designer White) (Designer Biscuit) (Stainless Steel)

W10181235

DOOR PARTS

8

For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2

(Black) (Designer White) (Designer Biscuit) (Stainless Steel)

W10181235

Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9762391 Black

9761975 White

9761976 Biscuit

9762394 Stainless Steel

2 3196164 Screw

3 Handle, Door

9761983 Black

9761982 White

9761984 Biscuit

4 9761344 Liner, Door

5

W10031790

Screw

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 Hinge, Door

9761493 Wh,Bl,Bis Model

9761496 Stainless Model

11 Glass, Outer Door

W10075990

Black

W10075980

White

W10076000

Biscuit

9756435 Stainless Model

12 Trim, Door Side

Left Hand

8523171 Black

8523172 White

8523173 Biscuit

Right Hand

8523165 Black

8523166 White

8523167 Biscuit

13 3196160 Screw

14 3196165 Screw

15

W10113759

Strap, Door

16 3196794 Bracket, Window(2)

17 Trim, Bottom

8523177 Black

8523175 White

8523178 Biscuit

8523180 Stainless Model

18

W10031780

Screw

DRAWER & BROILER PARTS

9

For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2

(Black) (Designer White) (Designer Biscuit) (Stainless Steel)

W10181235

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1

W10138079

Rack, Oven (2)

2 9761031 Drawer, Storage

3 3196817 Bracket, Drawer(2)

4

W10031790

Screw,

Stainless Model

5 Handle, Door

9757219 Stainless Model

6 9781235 Clip, Stainlees

Steel Model

7 Panel, Drawer Frnt

W10022090

White

W10022110

Biscuit

W10022100

Black

8 9755797 Panel, Stainless

Steel Model

9 3196168 Screw

10 Rivet, Push (2)

3196814 White

3196815 Almond

3196813 Black

11 8053334 Spacer, Glide

OPTIONAL PARTS (NOT INCLUDED)

10

For Models: SF265LXTB2, SF265LXTQ2, SF265LXTT2, SF265LXTS2

(Black) (Designer White) (Designer Biscuit) (Stainless Steel)

W10181235

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

REFINISHING MATERIAL

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

4396923 Pan − Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10082160

Harness, Main

(EOC Pyro)

8524207 Harness, Wire

Bake/Broil

8523599 Harness, Wire

(Cooktop Spark)

W10045060

Harness, Wire

(DSI Ground)

3196896 Clip, Wire

3400964 Clip, Wire

313438 Clip, Harness

3196173 Screw

3196696 Clip, Harness

3196174 Screw−Grnd Harns
