If you have any problems or quesons, visit us at www.whirlpool.com

Use & Care Guide

240-VOLT ELECTRIC DRYER

W10557652B

DRYER SAFETY ......................................................................2

OPERATING INSTRUCTIONS ................................................4

CONTROL PANEL AND FEATURES ...............................4

CYCLE GUIDE ..................................................................4

USING YOUR DRYER ...................................................... 5

DRYER CARE ...................................................................6

INSTALLATION INSTRUCTIONS ............................................8

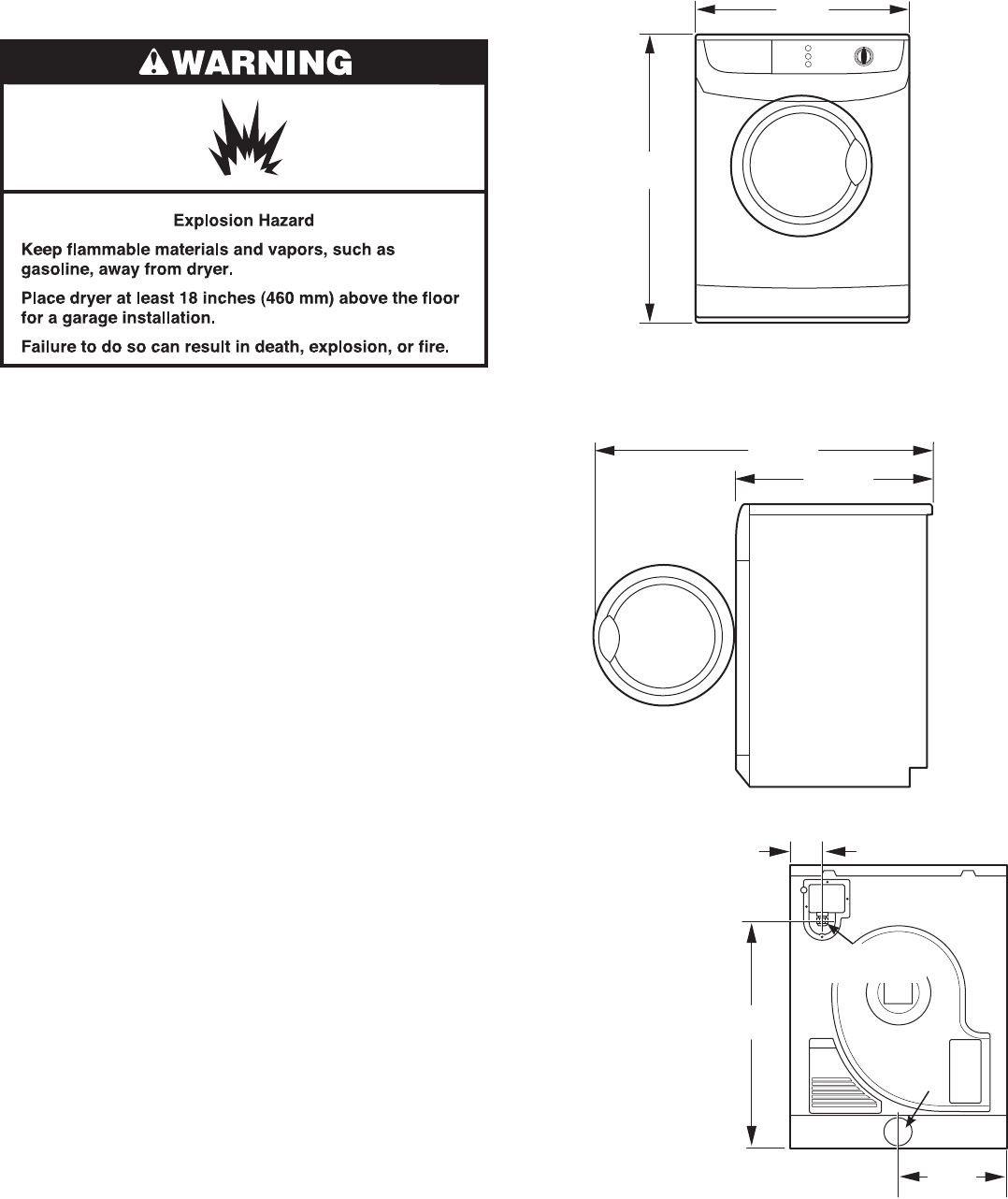

INSTALLATION REQUIREMENTS...................................8

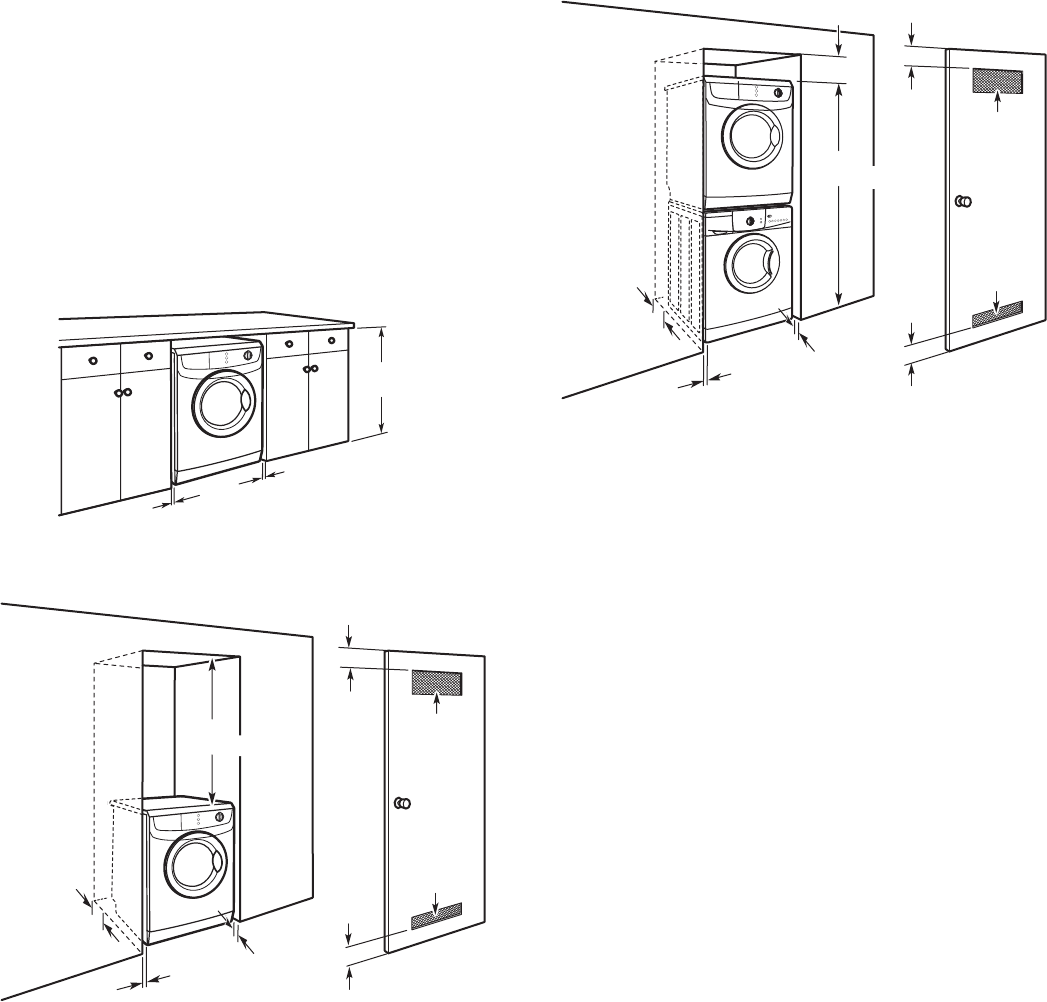

LOCATION REQUIREMENTS ..........................................9

ELECTRICAL REQUIREMENTS ....................................10

ELECTRIC INSTALLATION ............................................12

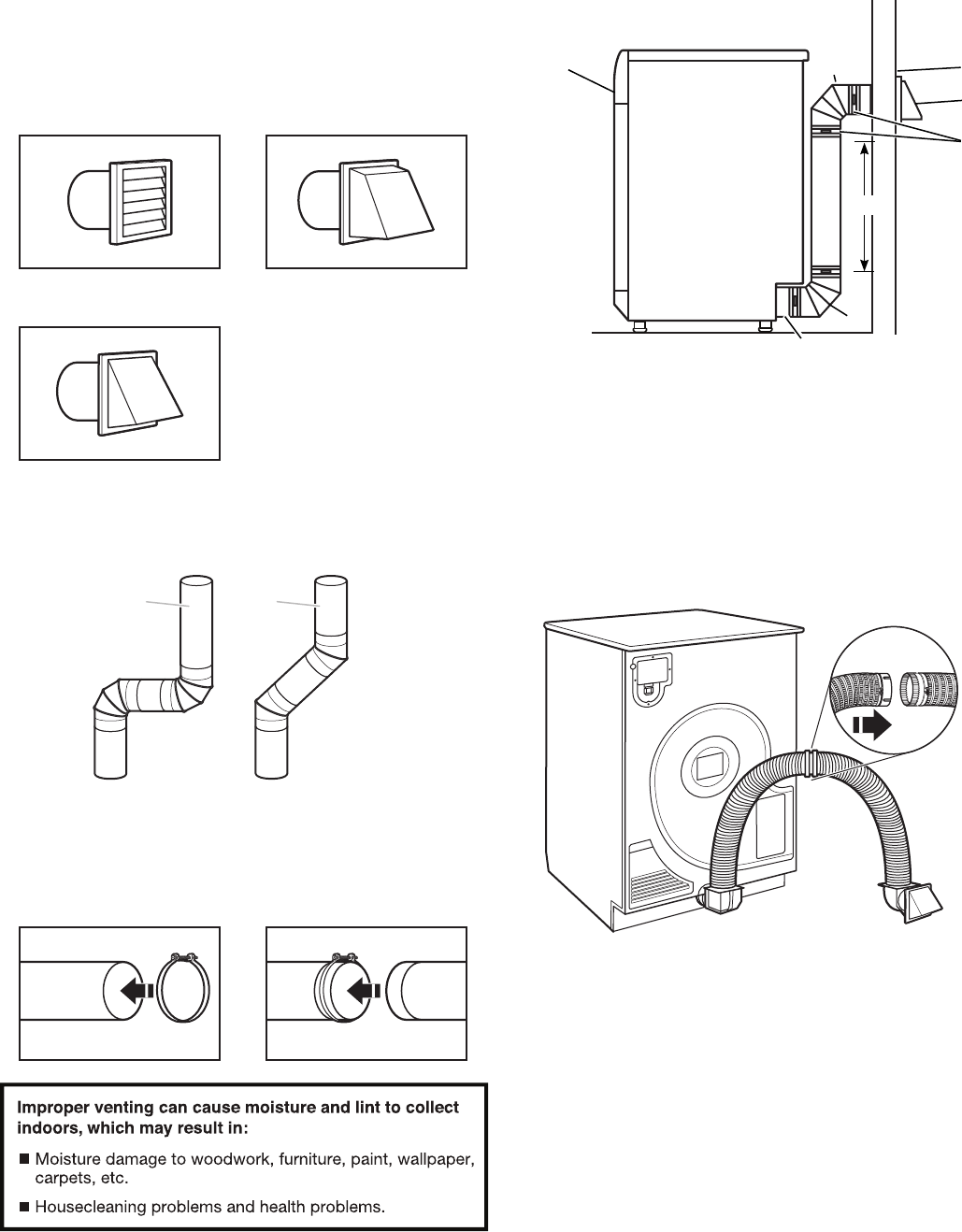

VENTING ........................................................................16

CONNECT VENT ............................................................ 18

LEVEL DRYER ................................................................19

COMPLETE INSTALLATION CHECKLIST .................... 19

TROUBLESHOOTING ...........................................................20

WARRANTY ........................................................................... 23

ASSISTANCE OR SERVICE .................................. Back Cover

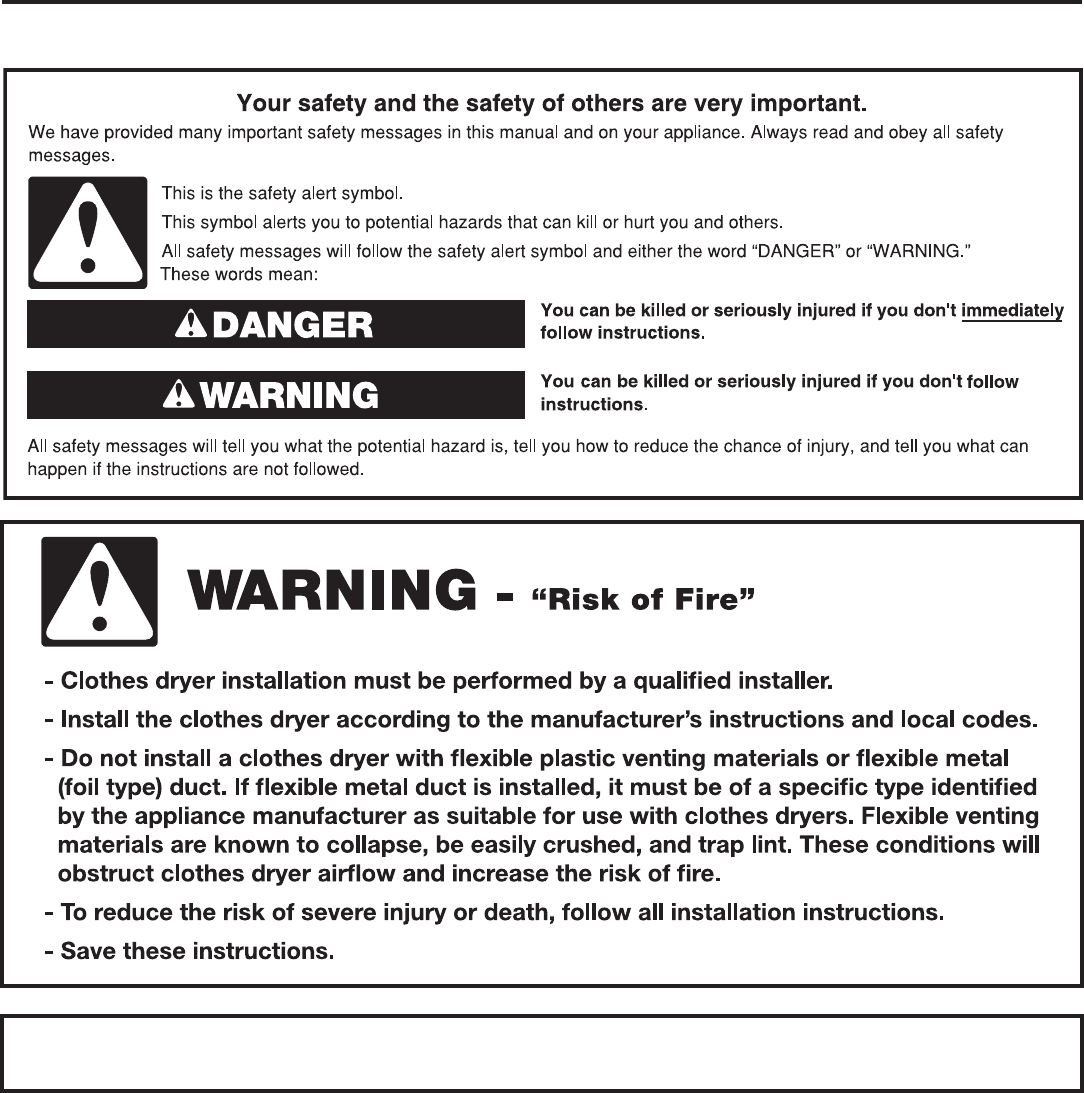

DRYER SAFETY

Table of Contents

IMPORTANT: When discarding or storing your old clothes dryer, remove the door.

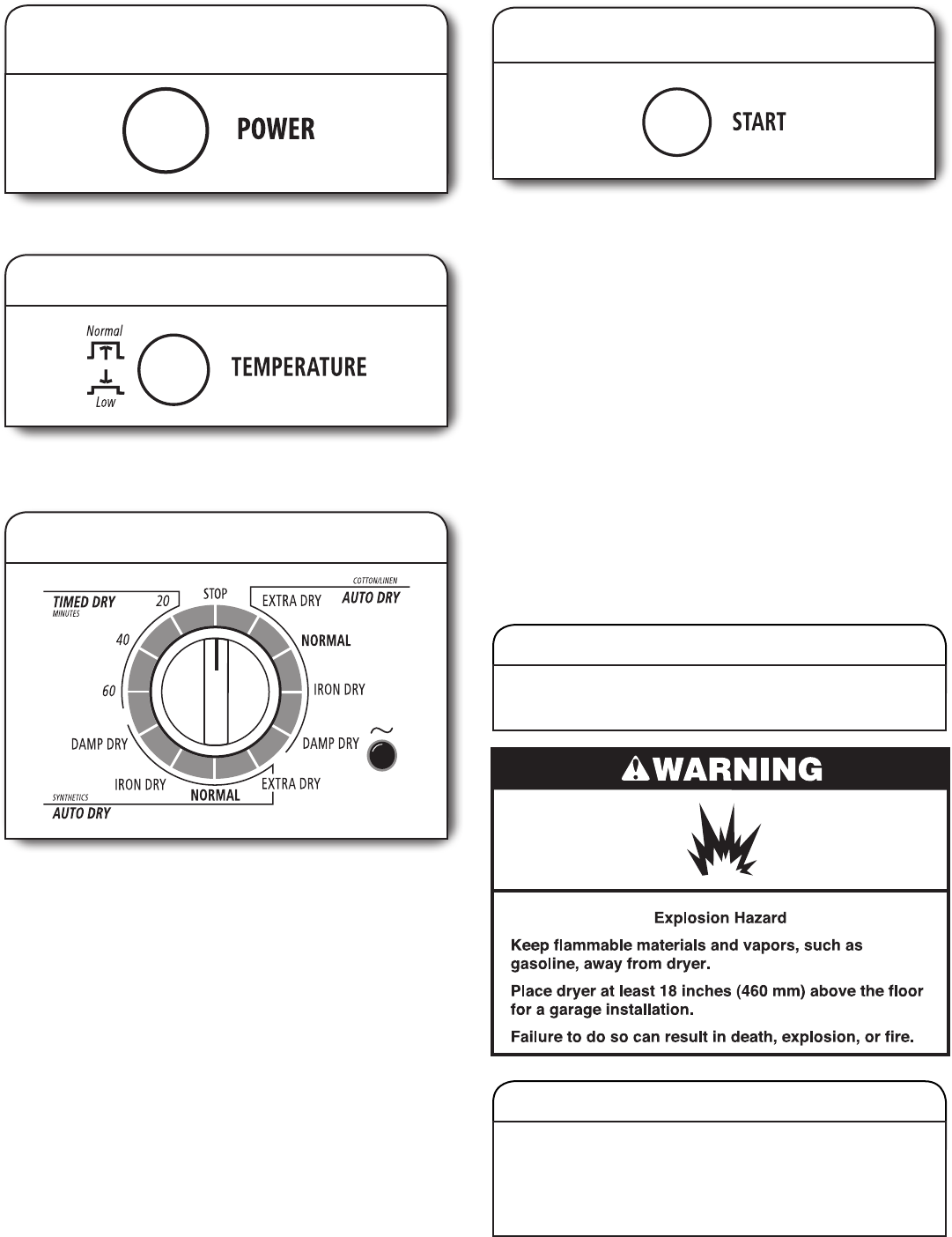

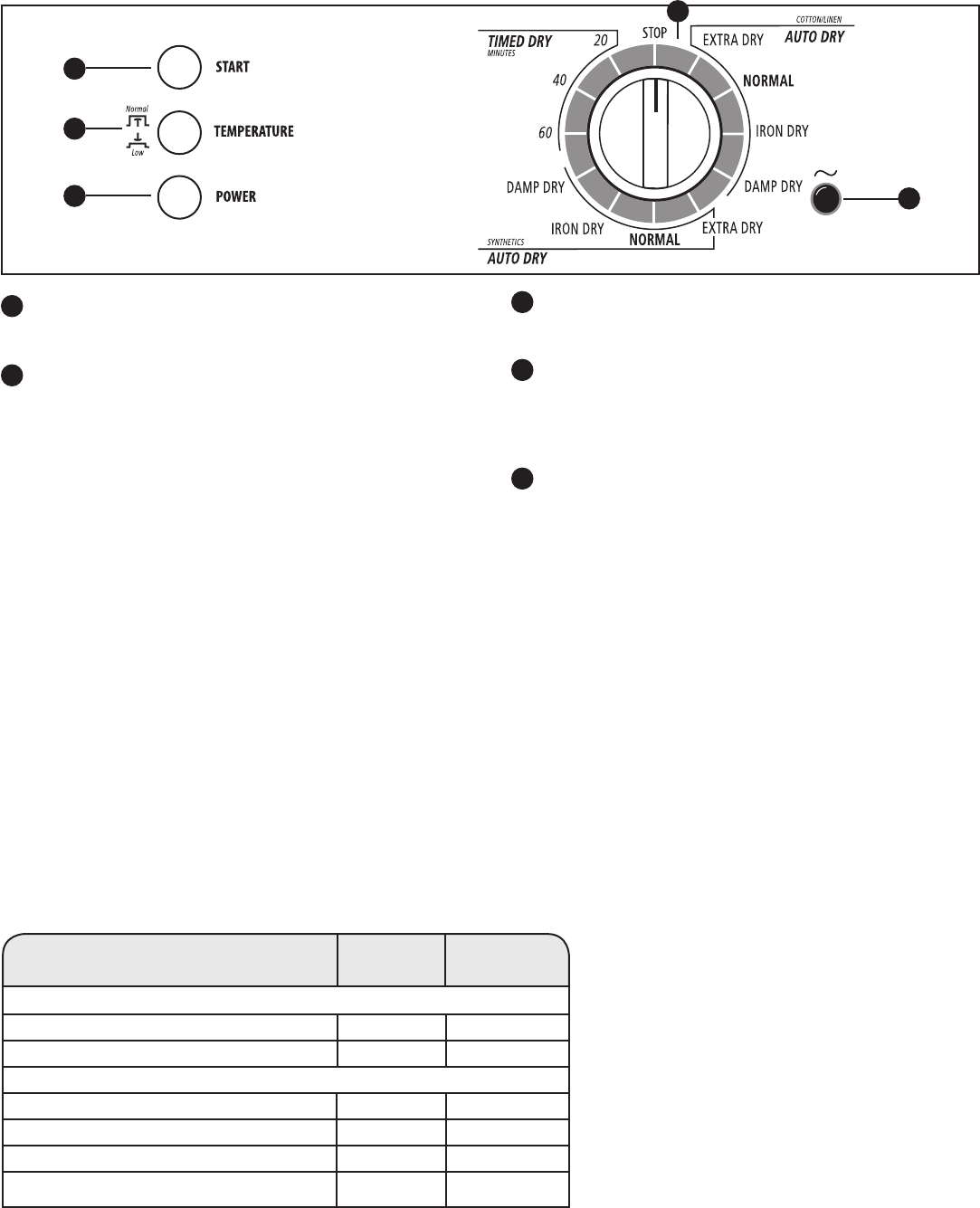

CONTROL PANEL AND FEATURES

START BUTTON

Press to start a cycle. Indicator light will glow to indicate

the cycle has started.

TEMPERATURE BUTTON

The Temperature Control button lets you choose between

a normal and low drying temperature.

Normal

The Normal temperature setting is for sturdy fabrics, such

as cotton, linen, and denim. If the Temperature Control

button is not pressed in, the temperature setting is Normal.

Low

The Low setting is for synthetics, such as cotton/polyester

blend, rayon, acetate, washable silk, or nylon. If the

Temperature Control button is pressed in, the temperature

setting is Low.

NOTE: Always refer to the care label on the garment to

determine whether it can be tumble dried.

POWER

Press to turn the dryer on and off. Press again to stop/

cancel a cycle at any time.

CYCLE CONTROL KNOB

Use your dryer’s Cycle Control knob to select available

cycles on your dryer. Turn the knob to select a cycle

for your laundry load. See “Cycle Guide” for detailed

descriptions of cycles.

POWER INDICATOR

This light ashes when the power is on and glows when

a cycle is running.

CYCLE GUIDE — SENSOR DRY CYCLES

Cotton/Linen

Heavy cottons and denims Extra Dry Normal

Cottons and linens Normal Normal

Synthetics

White and colorfast permanent press Normal Low

White and colorfast items that require ironing Iron Dry Low

Polyester/acrylic blends, rayon, acetate Damp Dry Low

Washable silk and nylon Damp Dry Low

Items to dry: Cycle: Temperature

Setting:

Use Sensor Dry Cycles for better fabric care and energy savings

When you are using the GentleBreeze™ Drying System with IntelliDry® Sensor, two metal strips located in the dryer determine the

dryness of the load. When there is moisture left in the clothes, the dryer will continue to run. As clothes begin to dry, the amount of

water left in the clothes decreases, and the timer advances through the remainder of the cycle. When the selected dryness level is

reached, the dryer goes into a cool-down period.

Sensor dry cycles may be used for most loads. Sensor dry cycles give the best drying results in the shortest time. Drying time varies

according to the type of fabric, size of the load, and dryness setting.

After drying a load, check the dryness.

n If the load is drier than you like, select a setting closer to Iron Dry the next time you dry a similar load.

If a load is not as dry as you like, complete drying using a Timed cycle. Select a setting closer to Extra Dry the next time you dry

a similar load.

OPERATING INSTRUCTIONS

CYCLE GUIDE — TIMED DRY CYCLES

IMPORTANT: It is not recommended drying heavyweight items in Timed Dry cycle. Heavyweight items can be dried using

automatic cycles.

Use this cycle to get up to 60 minutes of heated drying time or to complete drying if items are still damp after the automatic cycle.

Timed Dry is useful for lightweight items, such as lingerie, blouses, and knits that require a short drying time.

White and colorfast permanent press 40 Low

White and colorfast items that require ironing 40 Low

Polyester/acrylic blends, rayon, acetate 40 Low

Washable silk and nylon 40 Low

Items to dry: Time

(Minutes):

Temperature

Setting:

USING YOUR DRYER

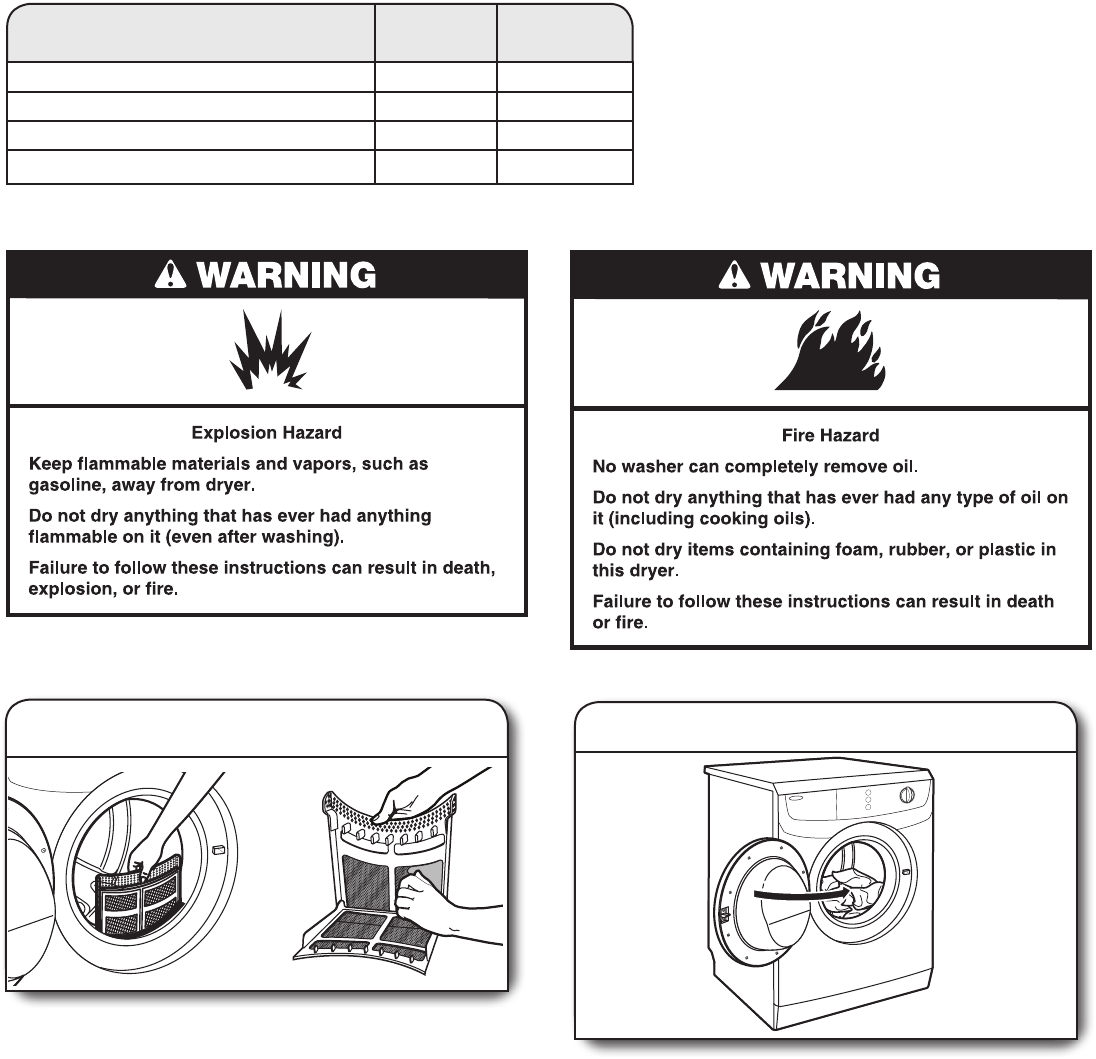

1. Clean the lint screen

Clean the lint screen before each load. Pull the lint screen

straight up. Open lint screen. Roll lint off the screen with your

ngers. Do not rinse or wash screen to remove lint. Wet lint is

hard to remove. Close lint screen. Push the lint screen rmly

back into place.

For additional cleaning information, see “Dryer Care.”

2. Load the dryer

Open the door by pulling on the handle. Place laundry in the

dryer. Add a static reducing sheet to wet load, if desired. Close

the door.

IMPORTANT: Do not tightly pack the dryer. Items need to

tumble freely. Tightly packing the load can lead to poor drying

performance and may increase wrinkling and tangling.

WARNING: To reduce the risk of re, electric shock, or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS before

operating this appliance.

5. Select the desired cycle

Select the desired cycle for your load. See the “Cycle Guide”

for more information about each cycle.

NOTE: Most loads may be dried using the Normal dryness

level, which is shown in bold letters on the control panel.

Normal is the energy preferred dryness level and will use

the least energy.

6. Press START to begin cycle

Press and hold the START button to begin the cycle.

To stop your dryer at any time:

Turn the Cycle Control knob to the STOP position, push the

POWER button, or open the door.

To restart the dryer:

1. Close the door.

2. Select a new cycle and temperature (if desired).

3. Press the START button.

To change the cycle or temperature after pressing

START:

1. Open the dryer door.

2. Press the TEMPERATURE button to change the

temperature (if desired).

3. Turn the cycle knob to the new desired position.

4. Press the START button.

DRYER CARE

CLEANING THE DRYER LOCATION

Keep dryer area clear and free from items that would

block the air ow for proper dryer operation. This includes

clearing piles of laundry in front of the dryer.

CLEANING THE DRYER INTERIOR

To clean dryer drum

1. Use a mild hand dish detergent mixed at a low

concentration with very warm water, and rub with

a soft cloth.

2. Rinse well with a wet sponge or towel.

3. Press POWER

Press the POWER button to turn on the dryer.

4. Press TEMPERATURE

Press the TEMPERATURE button to select the recommended

temperature setting for the type of load being dried.

REMOVING ACCUMULATED LINT

From Inside the Dryer Cabinet

Lint should be removed every 2 years, or more often,

depending on dryer usage. Cleaning should be done by a

qualied appliance servicer or ventilation system cleaner.

From the Exhaust Vent

Lint should be removed every 2 years, or more often,

depending on dryer usage.

CLEANING THE DRYER INTERIOR (cont.)

3. Tumble a load of clean clothes or towels to dry drum

Use a microber cloth and hot water in a spray bottle

to clean the drum and a second microber towel to dry.

NOTE: Garments that contain unstable dyes, such as

denim blue jeans or brightly colored cotton items, may

discolor the rear of the dryer interior. These stains are

not harmful to your dryer and will not stain future loads

of clothes. Dry unstable dye items inside out to avoid

transfer of dye.

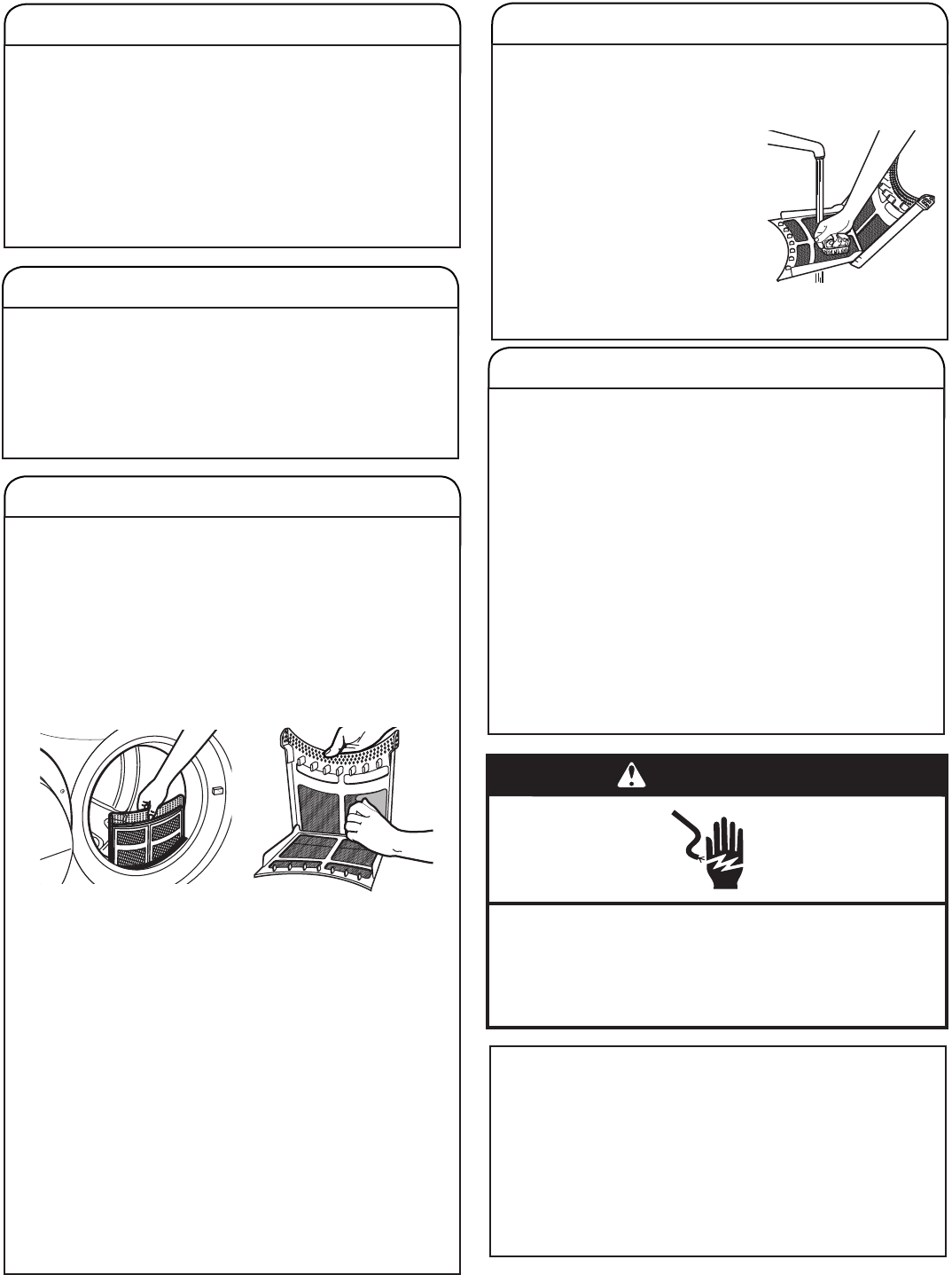

CLEANING THE LINT SCREEN

Every load cleaning

The lint screen is located in the door opening of the dryer.

The control panel has an indicator light to remind you to

clean the lint screen before each load. A screen blocked

by lint can increase drying time.

To clean:

1. Pull the lint screen straight up. Open lint screen. Roll lint

off the screen with your ngers. Do not rinse or wash

screen to remove lint. Wet lint is hard to remove.

2. Close lint screen. Push the lint screen rmly back into

place.

IMPORTANT:

n Do not run the dryer with the lint screen loose,

damaged, blocked, or missing. Doing so can cause

overheating and damage to both the dryer and fabrics.

n If lint falls off the screen into the dryer during removal,

check the exhaust hood and remove the lint. See

“Venting Requirements.”

As needed cleaning

Laundry detergent and fabric softener residue can build

up on the lint screen. This buildup can cause longer drying

times for your clothes, or cause the dryer to stop before

your load is completely dry. The screen is probably clogged

if lint falls off while the screen is in the dryer.

Clean the lint screen with a nylon brush every 6 months,

or more frequently, if it becomes clogged due to a residue

buildup.

VACATION, STORAGE, AND MOVING CARE

Install and store your dryer where it will not freeze. Because

some water may stay in the hoses, freezing can damage

your dryer. If storing or moving your dryer during freezing

weather, winterize it.

Non-Use or Storage Care

Operate your dryer only when you are at home. If you will

be on vacation or not using your dryer for an extended

period of time, you should:

1. Unplug dryer or disconnect power.

2. Clean lint screen. See “Cleaning the Lint Screen.”

Moving Care

For power supply cord-connected dryers:

1. Unplug the power supply cord.

2. Make sure leveling legs are secure in dryer base.

3. Use masking tape to secure dryer door.

For direct-wired dryers:

1. Disconnect power.

2. Disconnect wiring.

3. Make sure leveling legs are secure in dryer base.

4. Use tape to secure dryer door.

Reinstalling the Dryer

Follow the “Installation Instructions” to locate, level, and

connect the dryer.

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

CLEANING THE LINT SCREEN (cont.)

To wash:

1. Roll lint off the screen with your ngers.

2. Wet both sides of lint screen with hot water.

3. Wet a nylon brush with

hot water and liquid detergent.

Scrub lint screen with the brush

to remove residue buildup.

4. Rinse screen with hot water.

5. Thoroughly dry lint screen with a clean towel.

Reinstall screen in dryer.

INSTALLATION REQUIREMENTS

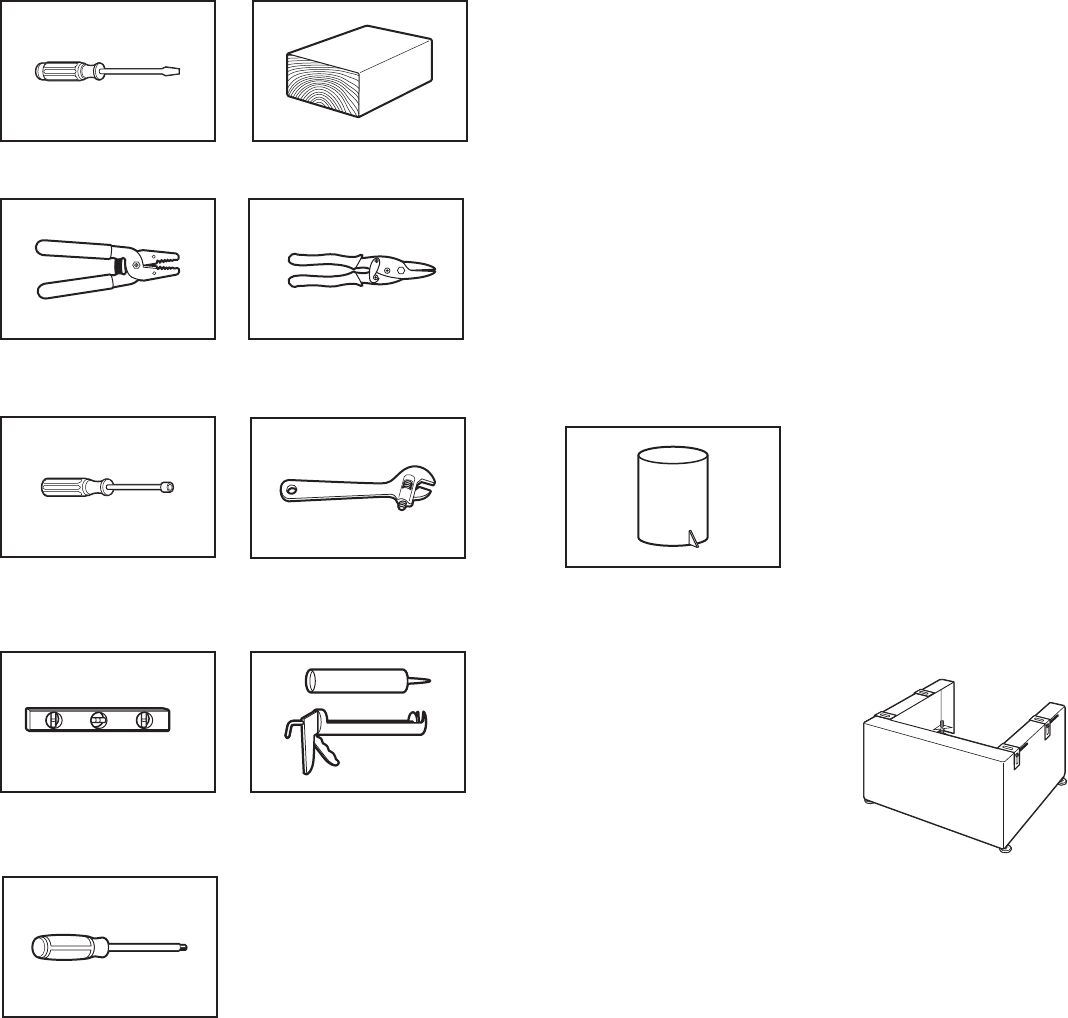

TOOLS AND PARTS

Gather the required tools and parts before starting installation.

Tools needed:

Flat-blade screwdriver Wood block

Adjustable wrench that

opens to 1" (25 mm) or

hex-head socket wrench

Wire stripper (direct wire

installations)

Tin snips (new vent

installations)

1/4" (7 mm) nut driver

(recommended)

Level

Parts supplied:

Caulking gun and

compound (for installing

new exhaust vent)

Coupling

Parts needed: (Not supplied with dryer)

Parts package is located in dryer drum. Check that all parts

are included.

NOTE: Do not use leveling legs supplied if installing with

a pedestal or a stack kit.

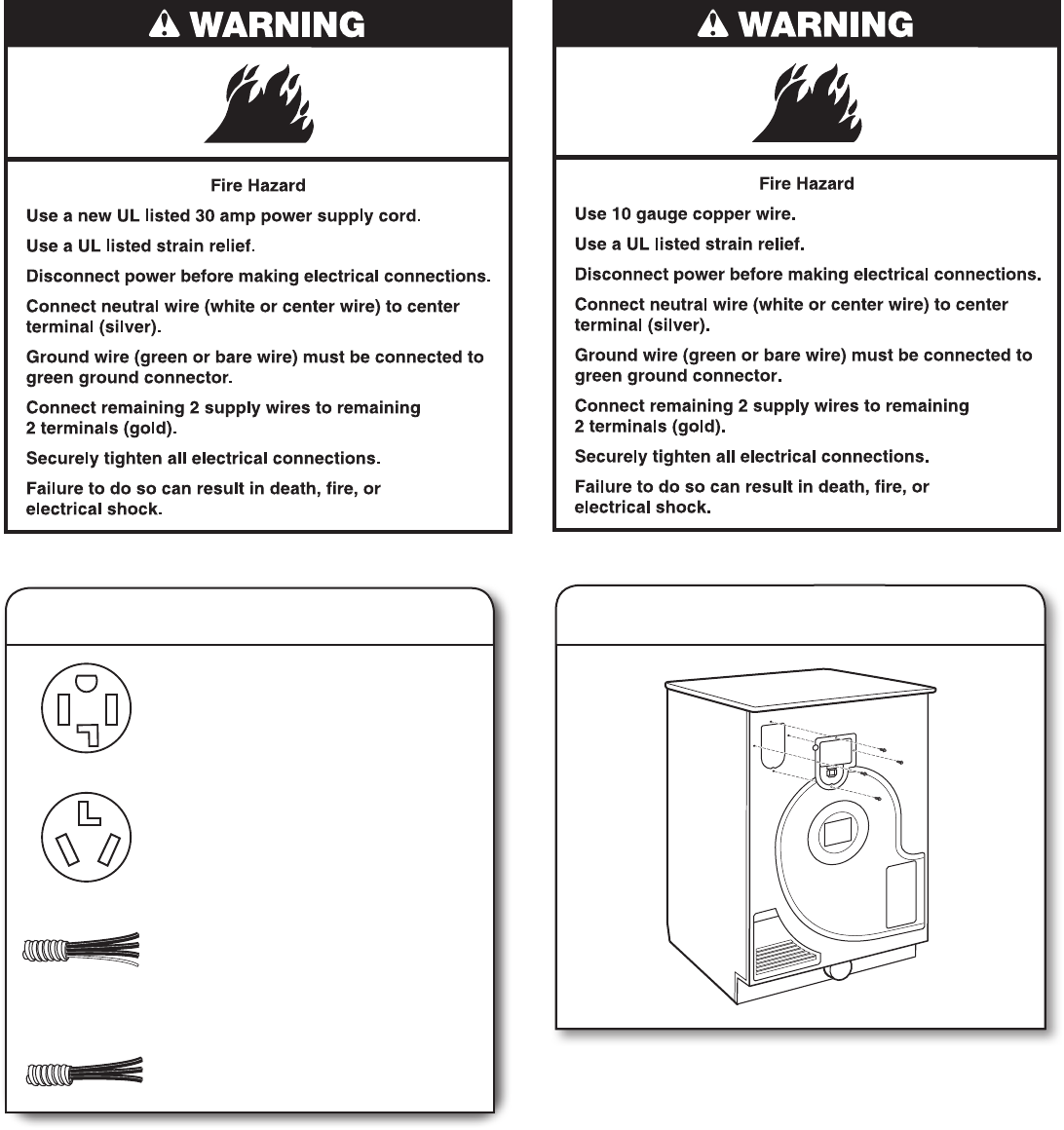

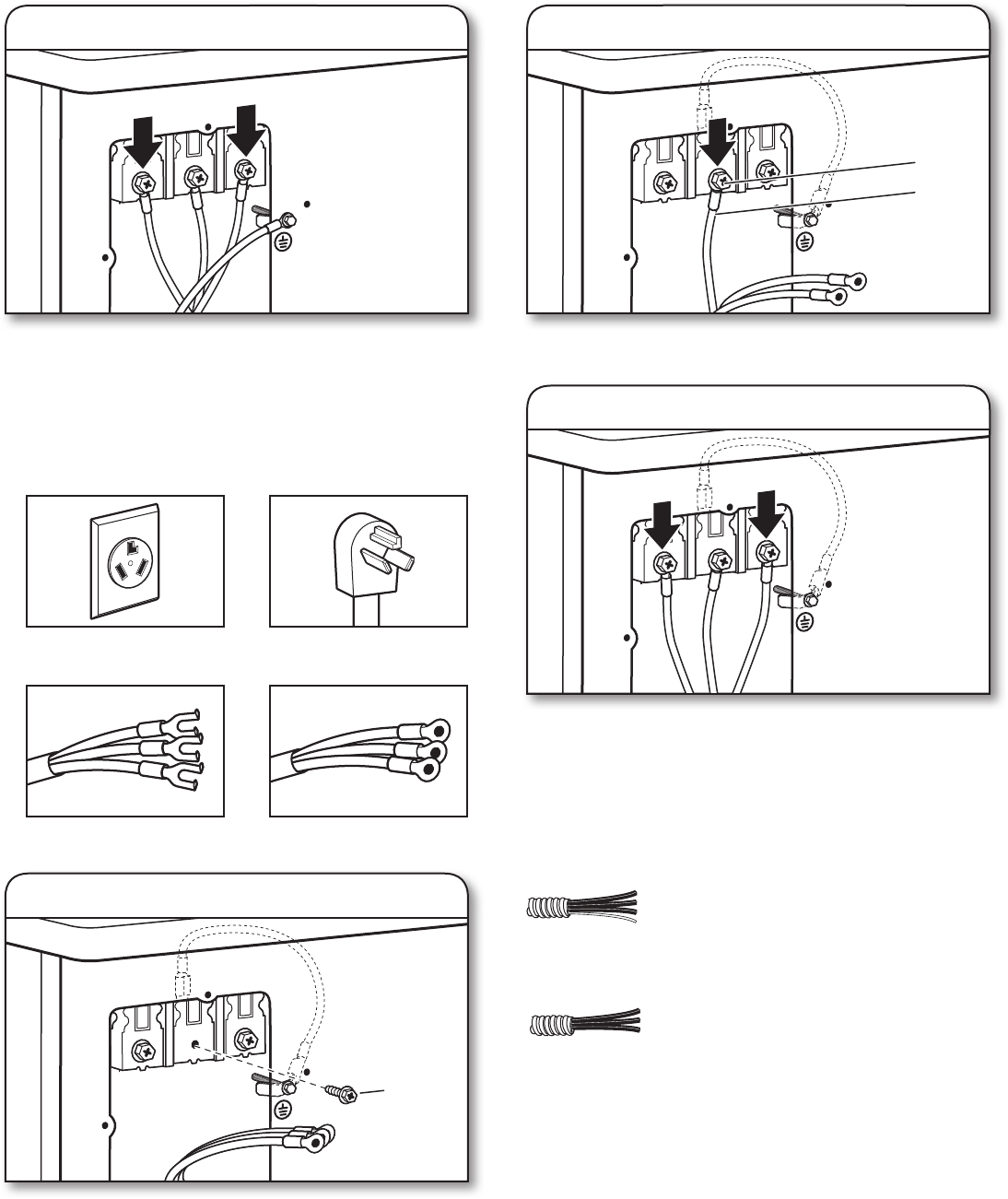

If using a power supply cord:

Use a UL listed power supply cord kit marked for use with

clothes dryers. The kit should contain:

n A UL listed 30-amp power supply cord, rated 120/240 volt

minimum. The cord should be type SRD or SRDT and be

at least 4 ft. (1.22 m) long. The wires that connect to

the dryer must end in ring terminals or spade terminals

with upturned ends.

n A UL listed strain relief.

Torx®† T20 screwdriver

†® TORX is a registered trademark of Saturn Fasteners, Inc.

Options: (Not supplied with dryer)

Vent clamps

Vent elbows and ductwork

Additional parts may be required, depending on your

installation. Check local codes. Check existing electrical

supply and venting. Read “Electrical Requirements” and

“Venting Requirements” before purchasing parts.

Pedestal

You may order a pedestal

separately for this dryer. This

pedestal will add about 12"

(305 mm) to the height of your unit

for a total height of approximately

45" (1.14 m).

To order, call the dealer from

whom you purchased your dryer

or refer to the “Assistance or

Service” section of this manual.

Ask for Model Number LAB0050PQ.

Stack kit

Are you planning to stack your washer and dryer? Your dryer

is shipped with Stack Kit W10178021, which ts Whirlpool®

washer models starting with WFC.

If you have any other washer model, call the dealer from whom

you purchased your dryer or refer to the “Assistance or Service”

section of this manual.

INSTALLATION INSTRUCTIONS

DRYER DIMENSIONS

233/8"

(594 mm)

331/4"

(845 mm)

231/4"

(603 mm)

39"

(991 mm)

Back view:

NOTE: Most

installations require a

minimum of 3" (76 mm)

clearance behind dryer

for exhaust vent with

elbow. See “Venting

Requirements.”

LOCATION REQUIREMENTS

Check code requirements. Some codes limit, or do not permit,

installing dryer in garages, closets, mobile homes, or sleeping

quarters. Contact your local building inspector.

You will need:

n A location allowing for proper exhaust installation.

See “Venting Requirements.”

n A separate 30 amp circuit.

n If using power supply cord, a grounded electrical outlet

located within 2 ft. (610 mm) of either side of dryer.

See “Electrical Requirements.”

n Floor must support dryer weight of 200 lbs. (90.7 kg).

Also consider weight of companion appliance.

n Level oor with maximum slope of 1" (25 mm) under entire

dryer.

n For garage installation, place dryer at least 18" (460 mm)

above oor. If using a pedestal, you will need 18" (460 mm)

to bottom of dryer.

n The dryer must not be installed or stored in an area where

it will be exposed to water and/or weather.

IMPORTANT: Do not operate, install, or store dryer where

it will be exposed to water, weather, or at temperatures below

45° F (7° C). Lower temperatures may cause dryer not to

shut off at end of sensor cycles, resulting in longer drying times.

Installation Clearances

Space must be large enough to allow door to fully open.

Side view:

Front view:

31/4"

(83 mm)

113/4"

(299 mm)

27"

(686 mm)

Power supply

cord/cable

Vent

Installation spacing for recessed area

or closet installation

n All dimensions show recommended and minimum spacing

allowed.

n Additional spacing should be considered for ease of

installation and servicing.

n Additional clearances might be required for wall, door, oor

moldings, and dryer venting.

n Additional spacing should be considered on all sides of the

dryer to reduce noise transfer.

n For closet installation with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings are

acceptable.

n Companion appliance spacing should also be considered.

(25 mm)

(76 mm)

24 in.2

(155 cm2)

48 in.2

(310 cm2)

(76 mm)

(25 mm)

(229 mm)

18" min

(457 mm)

Recessed or closet installation (dryer only):

Mobile home - Additional installation requirements:

This dryer is suitable for mobile home installations.

The installation must conform to the Manufactured

Home Construction and Safety Standard, Title 24 CFR,

Part 3280 (formerly the Federal Standard for Mobile home

construction and Safety, Title 24, HUD Part 280).

Mobile home installations require:

n Metal exhaust system hardware, available for purchase

from your dealer.

n Special provisions must be made in mobile homes to

introduce outside air into dryer. Openings (such as a nearby

window) should be at least twice as large as dryer exhaust

opening.

Custom undercounter installation (dryer only):

(25 mm)

331/4"

(845 mm)

233/8"

(594 mm)

(25 mm)

51/4"

(133 mm)

24 in.2

(155 cm2)

48 in.2

(310 cm2)

(76 mm)

661/4"

(1683 mm)

12"

(305 mm)

(25 mm)

Recessed or closet installation –

Stacked with stack kit:

ELECTRICAL REQUIREMENTS

It is your responsibility:

n To contact a qualied electrical installer.

n To be sure that the electrical connection is adequate and in

conformance with the National Electrical Code, ANSI/NFPA

70 – latest edition and all local codes and ordinances.

The National Electrical Code requires a 4-wire power supply

connection for homes built after 1996, dryer circuits involved

in remodeling after 1996, and all mobile home installations.

A copy of the above code standards can be obtained from:

National Fire Protection Association, One Batterymarch

Park, Quincy, MA 02269.

n To supply the required 3 or 4 wire, single phase, 120/240

volt, 60 Hz, AC only electrical supply (or 3 or 4 wire, 120/208

volt electrical supply, if specied on the serial/rating plate)

on a separate 30-amp circuit, fused on both sides of the

line. Connect to an individual branch circuit. Do not have

a fuse in the neutral or grounding circuit.

n Do not use an extension cord.

n If codes permit and a separate ground wire is used, it is

recommended that a qualied electrician determine that

the ground path is adequate.

Then choose a 4-wire power supply cord with

ring or spade terminals and UL listed strain

relief. The 4-wire power supply cord, at least

4 ft. (1.22 m) long, must have four 10-gauge

copper wires and match a 4-wire receptacle of

NEMA Type 14-30R. The ground wire (ground

conductor) may be either green or bare. The

neutral conductor must be identied by a

white cover.

Then choose a 3-wire power supply cord with

ring or spade terminals and UL listed strain

relief. The 3-wire power supply cord, at least

4 ft. (1.22 m) long, must have three 10-gauge

copper wires and match a 3-wire receptacle of

NEMA Type 10-30R.

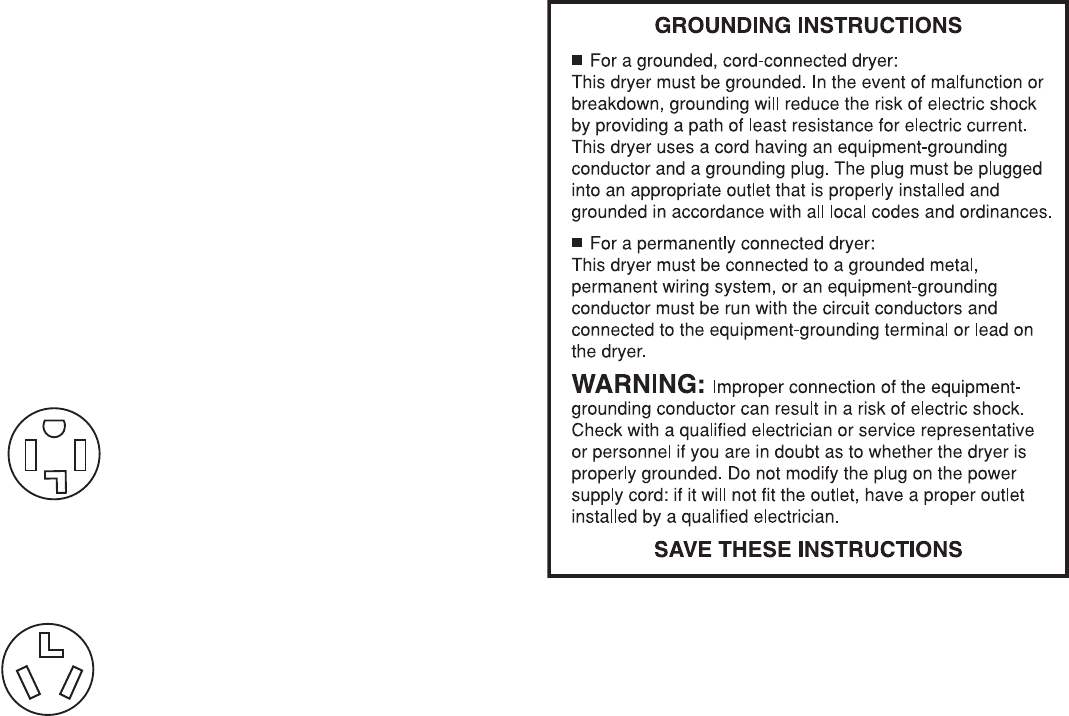

4-wire receptacle

(14-30R)

3-wire receptacle

(10-30R)

If connecting by direct wire:

Power supply cable must match power supply (4-wire or 3-wire)

and be:

n Flexible armored cable or nonmetallic sheathed copper

cable (with ground wire), covered with exible metallic

conduit. All current-carrying wires must be insulated.

n 10-gauge solid copper wire (do not use aluminum) at least

5 ft. (1.52 m) long.

If your outlet looks like this:

Electrical Connection

To properly install your dryer, you must determine the type

of electrical connection you will be using and follow the

instructions in “Electric Installation.”

n This dryer is manufactured ready to install with a 3-wire

electrical supply connection. The neutral ground conductor

is permanently connected to the neutral conductor (white

wire) within the dryer. If the dryer is installed with a 4-wire

electrical supply connection, see “4-Wire Direct Wire

Connection.”

n A 4-wire power supply connection must be used when the

appliance is installed in a location where grounding through

the neutral conductor is prohibited. Grounding through the

neutral is prohibited for (1) new branch-circuit installations

after 1996, (2) mobile homes, (3) recreational vehicles, and

(4) areas where local codes prohibit grounding through the

neutral conductors.

If using a power supply cord:

Use a UL listed power supply cord kit marked for use with

clothes dryers. The kit should contain:

n A UL listed 30-amp power supply cord, rated 120/240 volt

minimum. The cord should be type SRD or SRDT and be

at least 4 ft. (1.22 m) long. The wires that connect to

the dryer must end in ring terminals or spade terminals

with upturned ends.

n A UL listed strain relief.

For direct wire installations:

ELECTRIC INSTALLATION

For power supply cord installations:

Remove hold-down screw and terminal block cover.

1. Choose electrical connection type

Power supply cord 4-wire receptacle

(NEMA Type 14-30R).

Go to “Power Supply Cord Connection.”

3-wire direct connection:

Go to “Direct Wire Connection.”

4-wire direct connection:

Go to “Direct Wire Connection.”

Power supply cord 3-wire receptacle

(NEMA Type 10-30R).

Go to “Power Supply Cord Connection.”

2. Remove terminal block cover

Before you start: disconnect power.

Power supply cord strain relief:

4-Wire Power Supply Cord Connection

Power Supply Cord Connection

4-wire receptacle (NEMA

type 14-30R)

4-prong plug

Spade terminals with

upturned ends

Ring terminals

IMPORTANT: A 4-wire connection is required for mobile

homes

and where local codes do not permit the use of 3-wire

connections.

1. Remove neutral ground wire

2. Replace strain relief

2. Connect ground wire and neutral wire

Attach power supply cord to strain relief

Replace strain relief (B) (with power cord [D] inserted) back

into the terminal block cover (A). Do not tighten strain relief

nut (C).

Unscrew the strain relief (A) from the terminal block cover.

Unscrew the strain relief nut (B) from the strain relief (A).

Put the power supply cord (C) through the strain relief nut (B),

then the strain relief (A). Be sure that the wire insulation on

the power supply cord is inside the strain relief.

Remove the neutral ground wire (F) located inside the dryer

cabinet, behind the external ground conductor screw (A).

Connect ground wire (E) (green or bare) of power supply

cord to external ground conductor screw (A). Tighten screw.

Connect neutral wire (D) (white or center wire) of power supply

cord under center screw (B) of the terminal block.

Power supply cord 4-wire receptacle

(NEMA Type 14-30R):

Go to “4-Wire Power Supply Cord

Connection” on this page.

Power supply cord 3-wire receptacle

(NEMA Type 10-30R):

Go to “3-Wire Power Supply Cord

Connection” on page 15.

If your outlet looks like this:

3-wire receptacle (NEMA

type 10-30R)

3-prong plug

Spade terminals with

upturned ends

Ring terminals

Use where local codes permit connecting cabinet-ground

conductor to neutral wire.

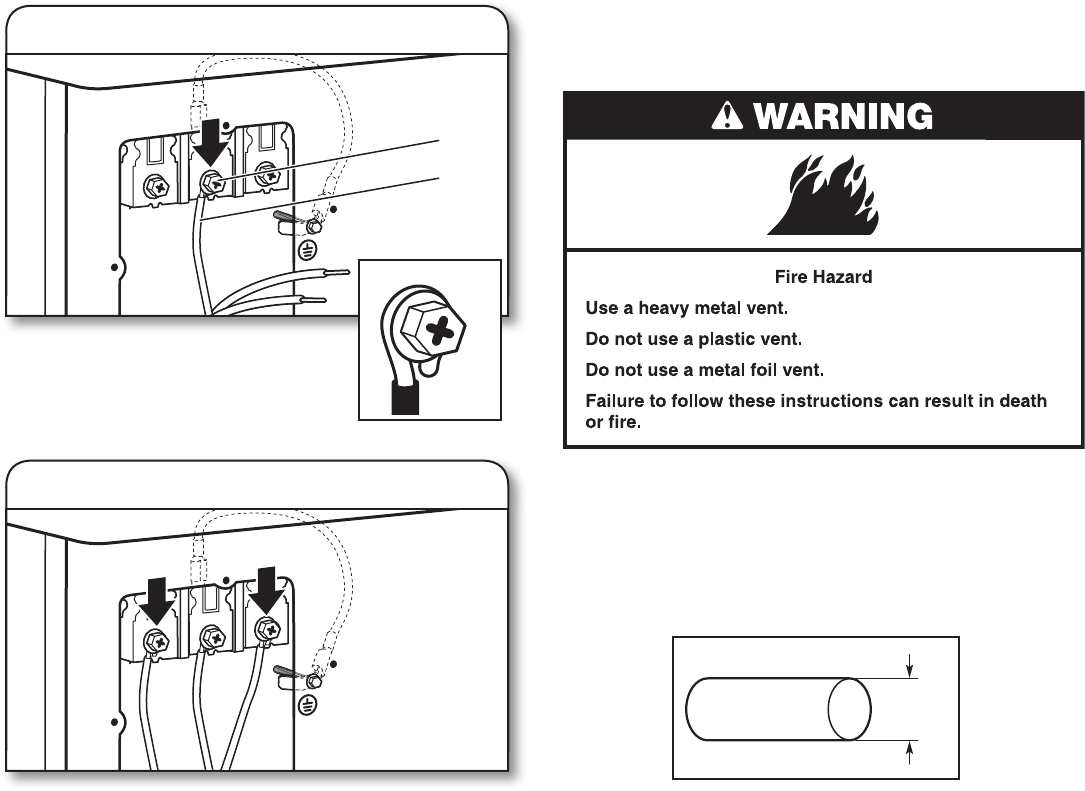

3. Connect remaining wires

2. Connect neutral wire

3. Connect remaining wires

1. Remove center screw

Connect remaining wires under outer terminal block screws.

Tighten screws. Finally, reinsert tab of terminal block cover

into slot of dryer rear panel. Tighten strain relief nut. Now,

go to “Venting Requirements.”

Connect the other wires to outer terminal block screws.

Tighten screws. Replace the terminal block cover on the back

of the dryer. Tighten strain relief nut. Now, go to “Venting

Requirements.”

Connect neutral wire (white or center) (D) of power supply cord

under center terminal block screw (B). Tighten screw.

Remove center terminal block screw (B).

3-Wire Power Supply Cord Connection

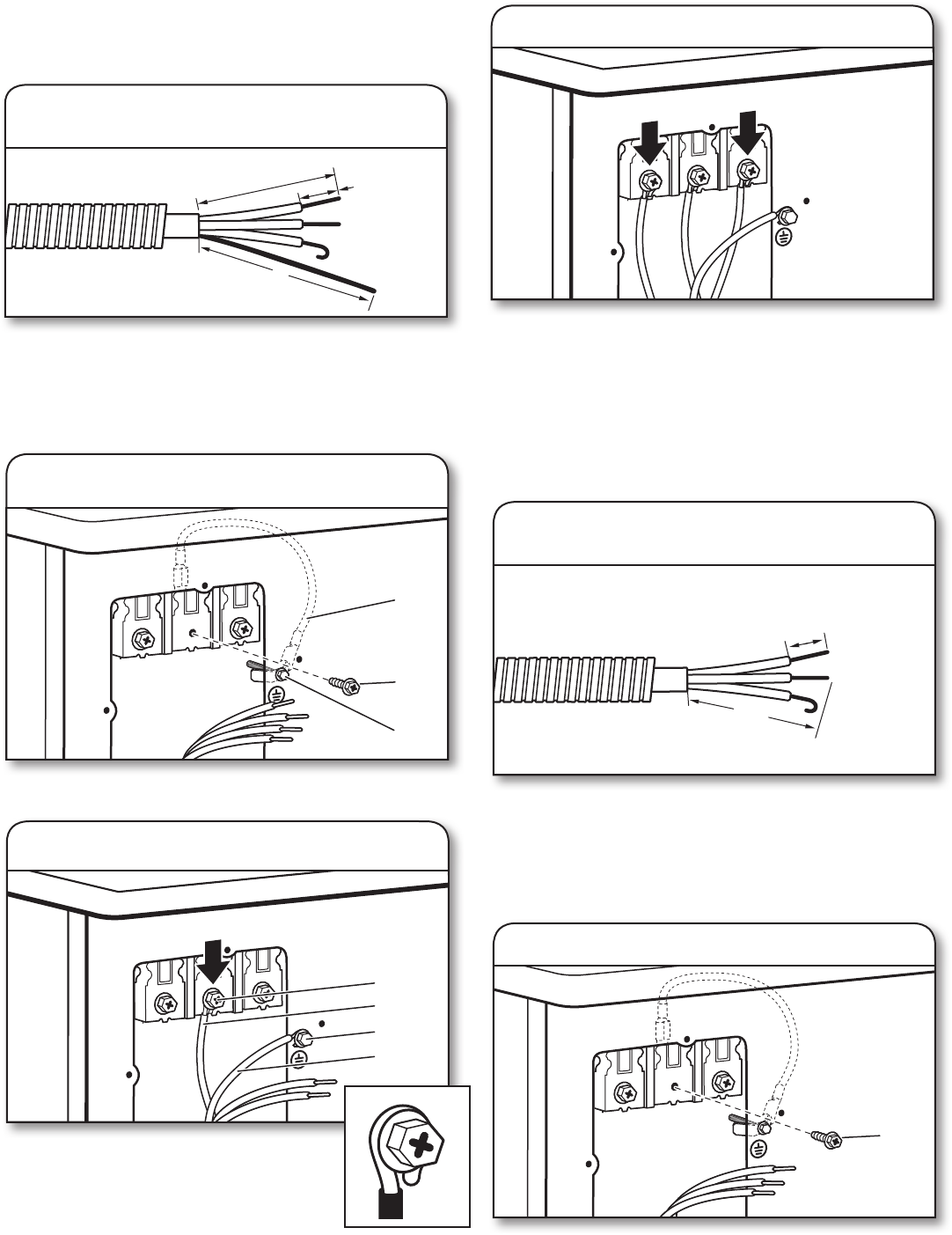

Direct Wire Connection

3-wire direct connection:

Go to “3-Wire Direct Connection”

on page 17.

4-wire direct connection:

Go to “4-Wire Direct Connection”

on this page.

If your wiring looks like this:

1. Prepare your 4-wire cable

for direct connection

(25 mm)

31⁄2"

(89 mm)

(127 mm)

2. Remove neutral ground wire

4-Wire Direct Wire Connection

IMPORTANT: A 4-wire connection is required for mobile homes

and where local codes do not permit 3-wire connections.

Remove the neutral ground wire (white) (F) located inside the

dryer cabinet, behind the external ground conductor screw (A).

Direct wire cable must have 5 ft. (1.52 m) of extra length so

dryer may be moved if needed.

Strip 5" (127 mm) of outer covering from end of cable,

leaving bare ground wire at 5" (127 mm). Cut 11/2" (38 mm)

from remaining 3 wires. Strip insulation back 1" (25 mm).

Shape ends of wires into hooks.

4. Connect remaining wires

Place hooked ends of remaining direct wire cable wires under

outer terminal block screws (hooks facing right). Squeeze

hooked ends together and tighten screws. Replace the terminal

block cover on the back of the dryer.

Tighten strain relief nut.

Now, go to “Venting Requirements.”

3. Connect power supply cable wire

Place hooked end of ground wire (E) (green

or bare) of power supply cord under external

ground conductor screw (A). Squeeze hooked

end together and tighten screw. Connect

hooked end of neutral wire (D) (white or center

wire) of power supply cord under center screw

(B) of the terminal block. Squeeze hooked end together and

tighten screw.

1. Prepare your 3-wire cable

for direct connection

(25 mm)

3½"

(89 mm)

2. Remove center screw

Use where local codes permit connecting cabinet-ground

conductor to neutral wire.

Remove center terminal block screw (B).

Direct wire cable must have 5 ft. (1.52 m) of extra length so

dryer may be moved if needed.

Strip 31/2" (89 mm) of outer covering from end of cable. Strip

insulation back 1" (25 mm). If using 3-wire cable with ground

wire, cut bare wire even with outer covering. Shape wire ends

into hooks.

3-Wire Direct Wire Connection

3. Connect neutral wire

Place hooked end of neutral wire (white

or center) (D) of direct wire cable under

center terminal block screw (B), hook

facing right. Squeeze hooked end together.

Tighten screw.

4. Connect remaining wires

Place hooked ends of remaining direct wire cable wires under

outer terminal block screws (hooks facing right). Squeeze

hooked ends together and tighten screws. Replace the

terminal block cover on the back of the dryer. Tighten strain

relief nut. Now, go to“ Venting Requirements.”

Venting Requirements

VENTING

WARNING: To reduce the risk of re, this dryer MUST BE

EXHAUSTED OUTDOORS.

IMPORTANT: Observe all governing codes and ordinances.

Dryer exhaust must not be connected into any gas vent,

chimney, wall, ceiling, attic, crawlspace, or a concealed space

of a building. Only rigid or exible metal vent shall be used for

exhausting.

n Only a 4" (102 mm) heavy metal exhaust vent and clamps

may be used.

n Do not use plastic or metal foil vent.

Rigid metal vent:

n Recommended for best drying performance and to avoid

crushing and kinking.

Flexible metal vent: (Acceptable only if accessible to clean)

n Must be fully extended and supported in nal dryer location.

n Remove excess to avoid sagging and kinking that may result

in reduced airow and poor performance.

n Do not install in enclosed walls, ceilings, or oors.

n The total length should not exceed 73/4 ft. (2.4 m).

n The length of exible metal vent used must be included in

the overall vent system design as shown in the “Vent System

Chart.”

NOTE: If using an existing vent system, clean lint from

entire length of the system and make sure exhaust hood is not

plugged with lint. Replace plastic or metal foil vents with rigid

metal or exible metal vents. Review “Vent System Chart” and,

if necessary, modify existing vent system to achieve best drying

performance.

(102 mm)

4" (102 mm) heavy metal exhaust vent

Louvered Hood

Angled Hood

Box Hood

Exhaust hoods:

Elbows:

Recommended Styles:

n 45° elbows provide better airow than 90° elbows.

Clamps:

n Use clamps to seal all joints.

n Exhaust vent must not be connected or secured with screws

or other fastening devices that extend into interior of duct

and catch lint. Do not use duct tape.

n An exhaust hood should cap the vent to keep rodents and

insects from entering the home.

n Must be at least 12" (305 mm) from ground or any object

that may obstruct exhaust (such as owers, rocks, bushes,

or snow).

n Do not use an exhaust hood with a magnetic latch.

Good Better

Acceptable Style:

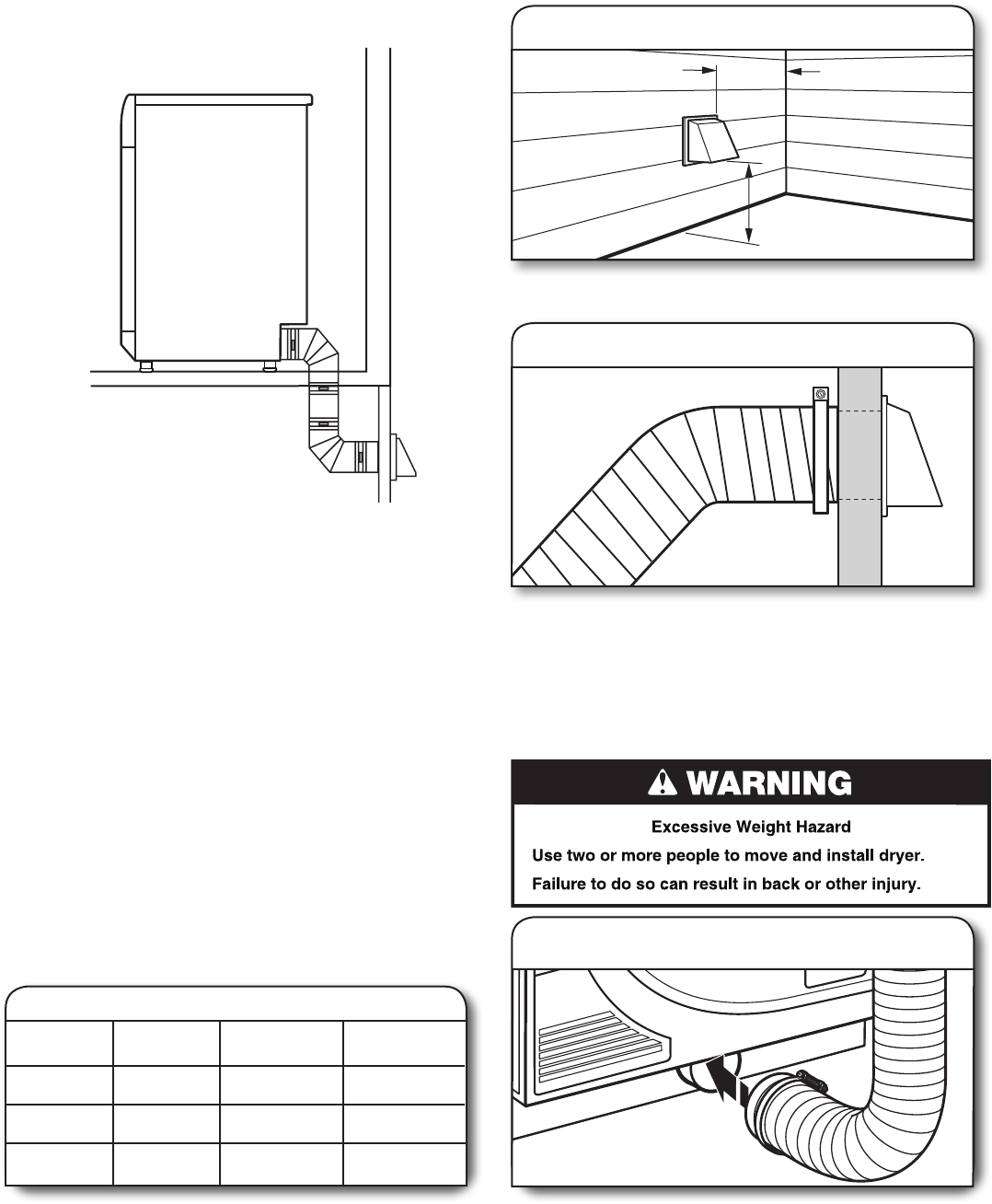

Plan Vent System

Choose your exhaust installation type

Recommended exhaust installation:

A. Dryer

B. Elbow

C. Wall

D. Exhaust hood

E. Clamps

F. Rigid metal or

exible metal vent

G. Vent length necessary to

connect elbows

H. Exhaust outlet

A B C

Alternate installations for close clearances:

Venting systems come in many varieties. Select the type best

for your installation. A close-clearance installation is shown

below. Refer to the manufacturer’s instructions.

Over-the-top installation (also available with one offset elbow)

Over-the-Top Installation Kit Part Number 4396028 for close

clearance alternate installation is available for purchase.

For ordering information, see “Assistance or Service.”

Vent System Chart

Number of

90° elbows

Type

of vent

Box/louvered

hoods

Angled

hoods

0Rigid metal

Rigid metal

90 ft. (27.4 m)

80 ft. (24.4 m)

70 ft. (21.3 m)

80 ft. (24.4 m)

70 ft. (21.3 m)

60 ft. (18.3 m)

The “Vent System Chart” provides venting requirements that

will help achieve best drying performance.

Special provisions for mobile homes:

Exhaust vent must be securely fastened to a noncombustible

portion of mobile home and must not terminate beneath the

mobile home. Terminate exhaust vent outside.

Determine vent path:

n Select route that will provide straightest and most direct

path outdoors.

n Plan installation to use fewest number of elbows and turns.

n When using elbows or making turns, allow as much room

as possible.

n Bend vent gradually to avoid kinking.

n Use as few 90° turns as possible.

Determine vent length and elbows needed for best

drying performance:

Use the following “Vent System Chart” to determine type of vent

material and hood combinations acceptable to use.

NOTE: Do not use vent runs longer than those specied

in “Vent System Chart.”

Exhaust systems longer than those specied will:

nShorten life of dryer.

nReduce performance, resulting in longer drying times

and increased energy usage.

Install Vent System

1. Install exhaust hood

12" min.

(305 mm)

12" min.

(305 mm)

2. Connect vent to exhaust hood

Install exhaust hood and use caulking compound to seal

exterior wall opening around exhaust hood.

Vent must t over the exhaust hood. Secure vent to exhaust

hood with 4" (102 mm) clamp. Run vent to dryer location using

straightest path possible. Avoid 90° turns. Use clamps to seal

all joints. Do not use duct tape, screws, or other fastening

devices that extend into interior of vent to secure vent,

because they can catch lint.

CONNECT VENT

1. Connect vent to exhaust outlet

Using a 4" (102 mm) clamp, connect vent to exhaust outlet

in dryer. If connecting to existing vent, make sure vent is

clean. Dryer vent must t over dryer exhaust outlet and inside

exhaust hood. Check that vent is secured to exhaust hood

with a 4" (102 mm) clamp.

2. Move dryer to nal location

Move dryer to nal location, taking care not to crush or

kink vent.

After dryer is in place, remove corner posts and cardboard

from under dryer.

2. Adjust leveling legs

If dryer is not level, prop up using a wood block, use wrench

to adjust legs up or down, and check again for levelness.

Once dryer is level, make sure all four legs are snug against

the oor and dryer does not rock.

LEVEL DRYER

1. Level dryer

Place

level here

Not Level LEVEL Not Level

Check levelness of dryer from

side to side. Repeat from front to back.

NOTE: The dryer must be level for the moisture sensing

system to operate correctly.

COMPLETE INSTALLATION

CHECKLIST

q Check that all parts are now installed. If there is an extra

part, go back through steps to see what was skipped.

q Check that you have all of your tools.

q Dispose of/recycle all packaging materials.

q Check dryer’s nal location. Be sure vent is not crushed

or kinked.

q Check that dryer is level. See “Level Dryer.”

q Remove lm on console and any tape remaining on dryer.

q Wipe dryer drum interior thoroughly with a damp cloth to

remove any dust.

q Read “Using Your Dryer.”

q For power supply cord installation, plug into a grounded

outlet. For direct wire installation, turn on power.

q Set the dryer on a full heat cycle (not an air cycle) for

20 minutes and start the dryer.

If dryer will not start, check the following:

• Controls are set in a running or “On” position.

• Start button has been pushed rmly.

• Dryer is plugged into an outlet and/or electrical

supply.

• Household fuse is intact and tight, or circuit breaker

has not tripped.

• Dryer door is closed.

NOTE: You may notice an odor when dryer is rst heated.

This odor is common when heating element is rst used.

The odor will go away.

First try the solutions suggested here or visit our website at www.maytag.com/product_help -

for assistance and to possibly avoid a service call.

If you experience Possible Causes Solution

Door not closed completely. Make sure the dryer door is closed completely.

Press and hold the START button 2–5 seconds.

Household fuse is blown or circuit

breaker has tripped.

There may be 2 household fuses or circuit breakers for the

dryer. Check that both fuses are intact and tight, or that both

circuit breakers have not tripped. Replace the fuses or reset the

circuit breaker. If the problem continues, call an electrician.

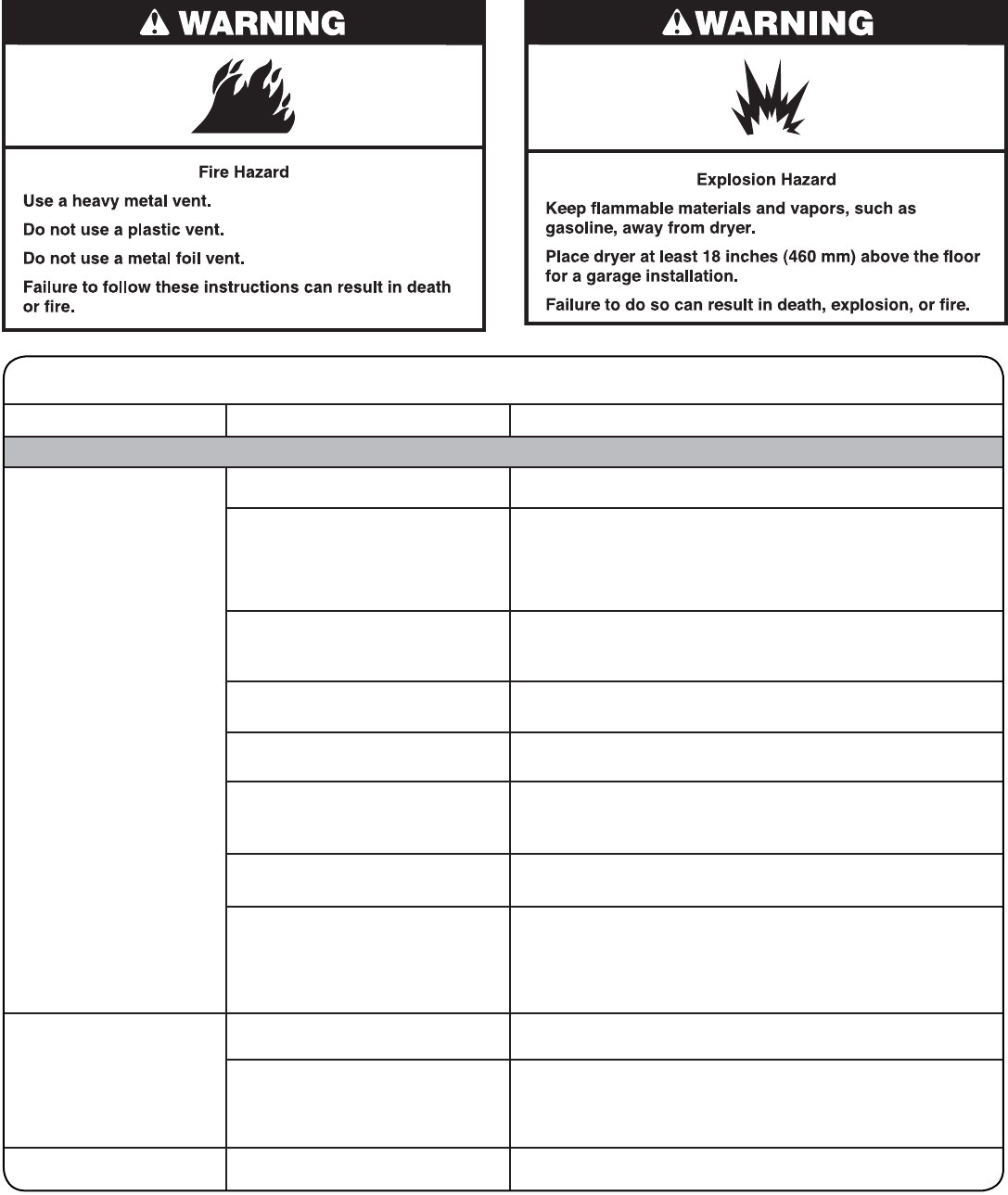

TROUBLESHOOTING

Dryer will not run

Unusual Noise

START button not pressed rmly or

held long enough.

Dryer Operation

Incorrect power supply. Electric dryers require 240-volt power supply.

Check with a qualied electrician.

Wrong type of fuse. Use a time-delay fuse.

Thumping noise Dryer hasn’t been used in a while. This is normal. The thumping sound should diminish after a few

minutes of use.

Rattling or vibrating

noise

A small object caught between the

edges of dryer drum.

Check the front and rear edges of the drum for small objects.

Clean out pockets before laundering.

Dryer isn’t properly leveled. The dryer may vibrate if not properly installed. See “Level

Dryer.” All four dryer feet should be in rm contact with the

oor.

Clothing is balled up in dryer. When balled up, the load will bounce, causing the dryer to

vibrate. Separate the load items and restart the dryer.

Dryer will not heat Household fuse is blown or circuit

breaker has tripped.

The drum may be turning, but you may not have heat. Electric

dryers use 2 household fuses or circuit breakers. Replace the

fuses or reset the circuit breaker. If the problem continues, call

an electrician.

Incorrect power supply. Electric dryers require 240-volt power supply.

Check with a qualied electrician.

Possible Causes Solution

The dryer is located in a room with

temperature below 45ºF (7ºC).

Proper operation of dryer cycles requires temperatures above

45ºF (7ºC).

The dryer is located in a closet. Closet doors must have ventilation openings at the top

and bottom of the door. The front of the dryer requires

a minimum of 1" (25 mm) of airspace, and, for most

installations, the rear of the dryer requires 5" (127 mm).

See “Location Requirements.”

Cycle time is too short

The sensor cycle is ending early. Change the dryness level setting on Sensor Cycles. Increasing

or decreasing the dryness level will change the amount of

drying time in a cycle. If loads are consistently ending too early,

see also “Cycle Guide – Sensor Dry Cycles.”

Lint on load Lint screen is clogged with lint.

The load is too large and heavy

to dry quickly.

Fabric softener sheets are blocking

the grille.

The air outlet grille is just inside the door, behind the lint screen.

Check that it is not blocked by a fabric softener sheet.

Use only one fabric softener sheet, and use it only once.

Separate the load to tumble freely.

The load may not be contacting the

sensor strips on Sensor Cycles.

Level the dryer. See “Level Dryer.” All four dryer

feet should be in rm contact with the oor.

Clean lint screen before each load.

TROUBLESHOOTING

First try the solutions suggested here or visit our website at www.maytag.com/product_help -

for assistance and to possibly avoid a service call.

If you experience

Dryer Results

Clothes are not drying

satisfactorily or drying

times are too long

Lint screen is clogged with lint. Clean lint screen before each load.

Run the dryer for 5–10 minutes. Hold your hand under

the outside exhaust hood to check air movement. If you

do not feel air movement, clean exhaust system of lint

or replace exhaust vent with heavy metal or exible metal vent.

See “Venting.”

The exhaust vent or outside

exhaust hood is clogged with lint,

restricting air movement.

The exhaust vent is not the correct

length.

Check that the exhaust vent is not too long or has

too many turns. Long venting will increase drying times.

See “Venting.”

The exhaust vent diameter is not

the correct size.

Use 4" (102 mm) diameter vent material.

TROUBLESHOOTING

Possible Causes Solution

Dryer Results (cont.)

Stains on load Improper use of fabric softener. Add dryer fabric softener sheets at the beginning of the cycle.

Fabric softener sheets added to a partially dried load can

stain your garments.

Loads are wrinkled The load was not removed from

dryer at the end of the cycle.

Refer to garment care label instructions. Dry clean only

garments are not recommended.

The dryer was tightly packed. Dry smaller loads that can tumble freely.

Stains on drum Loose dyes in clothes. Drum stains are caused by dyes in clothing (usually blue

jeans). These will not transfer to other clothing.

First try the solutions suggested here or visit our website at www.maytag.com/product_help -

for assistance and to possibly avoid a service call.

If you experience

Load removed before cool down

portion of cycle complete.

Allow the dryer to complete the cool down portion of the cycle

before removing the load.

Load too hot

Using Timed Dry cycle with a

normal temperature setting.

Select a Sensor cycle with a lower heat setting to avoid

overdrying the load.

Odors Recent painting, staining, or

varnishing in the area where your

dryer is located.

Ventilate the area. When the odors or fumes are gone from

the area, rewash and dry the clothing.

WHIRLPOOL CORPORATION LAUNDRY WARRANTY

LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions

attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory

Specied Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance

was purchased.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.

Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or

Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective

from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is

used in a manner that is inconsistent to published user or operator instructions and/or installation instructions.

2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or

repair house fuses, or to correct house wiring or plumbing.

3. Service calls to repair or replace appliance light bulbs, air lters, or water lters. Consumable parts are excluded from warranty

coverage.

4. Damage resulting from accident, alteration, misuse, abuse, re, ood, acts of God, improper installation, installation not in

accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.

5. Cosmetic damage, including scratches, dents, chips or other damage to the nish of your major appliance, unless such damage

results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Pick up and delivery. This major appliance is intended to be repaired in your home.

7. Repairs to parts or systems resulting from unauthorized modications made to the appliance.

8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an

authorized Whirlpool servicer is not available.

9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance

with Whirlpool published installation instructions.

10. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered, or

cannot be easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS

FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and

provinces do not allow limitations on the duration of implied warranties of merchantability or tness, so this limitation may not apply

to you. This warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to

province.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN.

WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow

the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This

warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to province.

If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies.

If you think you need repair service, rst see the “Troubleshooting” section of the Use & Care Guide. If you are unable to resolve

the problem after checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by

calling Whirlpool. In the U.S.A., call 1 -800 -253-1301. In Canada, call 1-800 -807- 6777. 10/11

Keep this book and your sales slip together for future

reference. You must provide proof of purchase or installation

date for in-warranty service.

Write down the following information about your major appliance

to better help you obtain assistance or service if you ever need

it. You will need to know your complete model number and serial

number. You can nd this information on the model and serial

number label located on the product.

Dealer name _____________________________________________

Address __________________________________________________

Phone number ____________________________________________

Model number ____________________________________________

Serial number ____________________________________________

Purchase date ____________________________________________

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the

representations contained in this Warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes

with this major appliance, you should ask Whirlpool or your retailer about buying an extended warranty.

W10557652B 10/13

Printed in Mexico

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting” or visit www.whirlpool.ca.

It may save you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance.

This information will help us to better respond to your request.

You can write with any questions or concerns at:

Customer eXperience Centre

Whirlpool Canada LP

Unit 200-6750 Century Ave

Mississauga, Ontario L5N 0B7

Please include a daytime phone number

in your correspondence.

Whirlpool Canada LP

Customer eXperience Centre

1-800-807-6777

www.whirlpool.ca

Our consultants provide assistance with

If you need replacement parts or to order accessories

We recommend that you use only FSP® Factory Specied Parts.

These parts will t right and work right because they are made with the same precision

used to build every new WHIRLPOOL® appliance.

To locate FSP® replacement parts, assistance in your area, or accessories:

or call your nearest designated service center or refer to your Yellow Pages telephone directory.

 Use and maintenance procedures.

 Accessory and repair parts sales.

 Referrals to local dealers, repair parts distributors,

and service companies. Whirlpool designated service

technicians are trained to fulll the product warranty

and provide after-warranty service, anywhere in the

United States and Canada.

For more assistance

Whirlpool Wed7500Vw Owner S Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
