CABINET PARTS

1

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

5−04 Printed In U.S.A. (kdj) Part No. 8198499 Rev. B

REFRIGERATOR

CABINET PARTS

28198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

1 2305892 Energy Guide

2261717 Owner’s Manual

2255774 Service & Wiring

Sheet

2220407 Modular Icemaker

Service Sheet

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

787316 Icemaker

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2203771 Hinge Top (RC)

11 8281227 Screw

12 Hinge Cover

2203407W White

2203407T Biscuit

2203407B Black

13 2217075 Hinge Bottom (2)

14 Filler, Wrapper

2196094 White

2196150 Biscuit

2196097 Black

15 Grille

2198468W White

2198468T Biscuit

2198468B Black

16 489497 Screw

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Extension Tube

20 1108439 Clip, Drain Tube

21 2188739 Cover, Unit

22 Cabinet (Not A

Serviceable Part)

23 Hinge Cover

2203408W White

2203408T Biscuit

2203408B Black

24 549193 Clamp, Service

Cord

25 489084 Screw

26 2155311 Door Closer,

Lower Cam (2)

27 489483 Screw

28 2186443 Housing, Water

Filter

29 2255519 Water Filter

30 Cap, Water

Filter

2186494W White

2186494T Biscuit

2186494B Black

31 489500 Screw

32 3400113 Screw

33 3400103 Screw

34 2203098 Plate, Screw

35 2305536 Tube, Filter

Outlet

36 2203770 Hinge Top (FC)

37 2255012 Tube, Filter

Inlet

REFRIGERATOR LINER PARTS

3

8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2194744 Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2257741 Louver

8 1118894 Switch,

Rocker Arm

9 2206273 Shelf Ladder

10 487539 Screw

12 2261601 Door Control Asm

15 2209753 Air Diffuser

Assembly

18 2162085 Socket

19 2217199 Reservoir

20 2255743 Light Bulb

21 2209769 Light Lens

22 488280 Screw

23 2256035 Bracket,

Dual Crisper

24 2256037 Wire Harness,

Dual Crisper

REFRIGERATOR SHELF PARTS

48198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION

1 2223517 Frame Assembly

2 2223261 Snack Bin Asm

3 2223592 Cover, Crisper

4 2196485 Stud Assembly

5 3400894 Screw

6 2223714 Glass, Meat Cover

7 2223591 Glass, Cover

8 2223242 Cover, Meat Pan

9 2196483 Stud Assembly

10 2223235 Crisper Pan Asm

11 2223308 Slide, Humidity

Control

12 2223309 Knob, Humidity

Control

13 2223288 Shelf Pan Assemly

14 2223243 Meat Pan Asm

15 2216624 Egg Bin

16 8281158 Screw

18 2179350 Deflector

22 2255160 Shelf, Slide

Out (2)

23 2223320 Slide, Pan

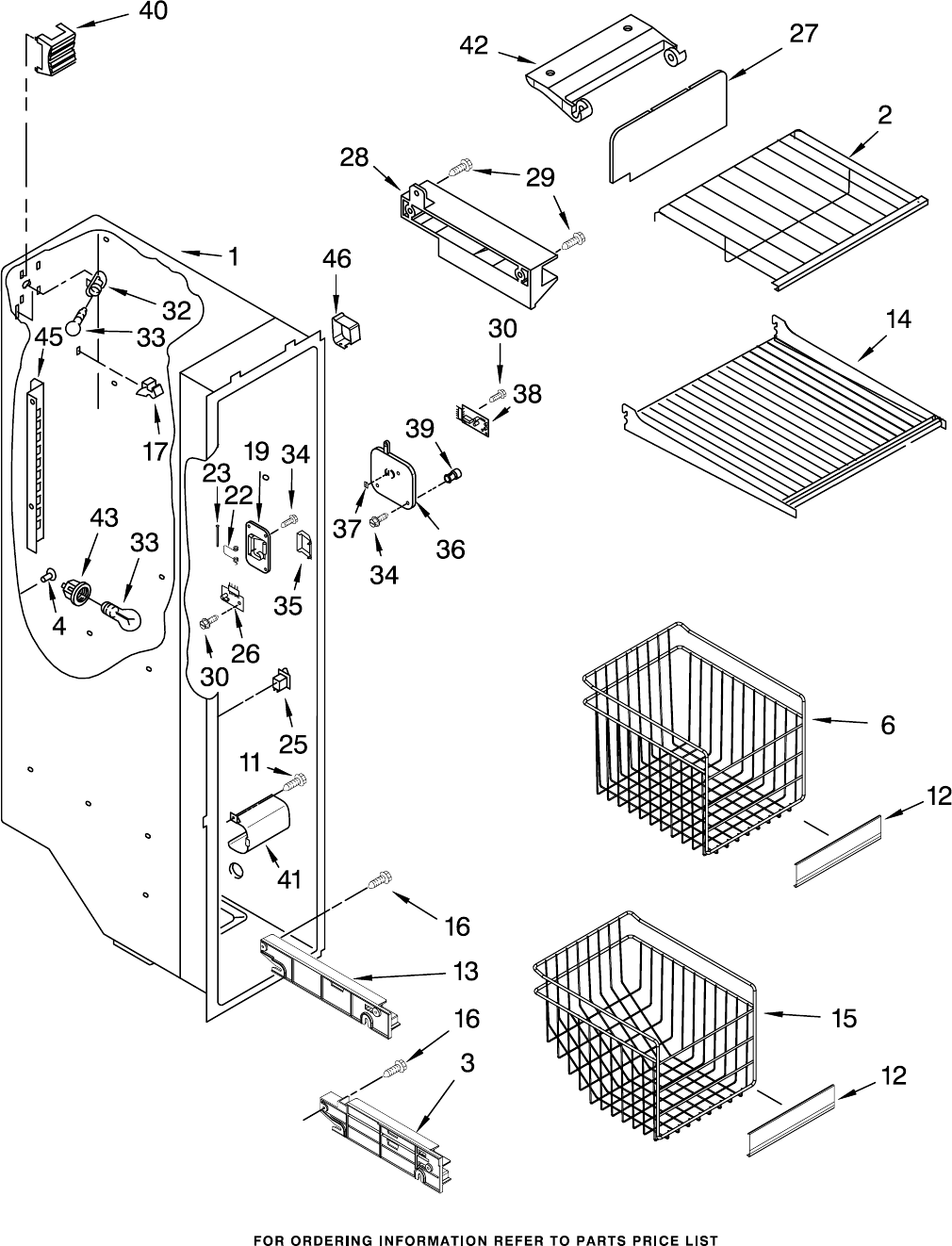

FREEZER LINER PARTS

5

8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

FREEZER LINER PARTS

68198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2211746 Shelf, Slide Out

Upper

3 Track, Basket−Dual

2301293 Right

2301294 Left

4 941839 Hole Plug

6 2301355 Basket, Tall

(Includes #12)

11 3400893 Screw

12 2195905 Trim, Basket

13 Shelf Track

2301289 Right Side

2301290 Left Side

14 2205837 Shelf

15 2301356 Basket

(Includes #12)

16 486298 Screw (8)

17 842534 Clip, Air Duct (2)

19 2255572 Cover, Emitter

22 2198635 Spring

23 2198634 Pin

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2255588 Cover, Ice Maker

28 2212321 Slide, Ice Maker

Mounting

29 489478 Screw

30 489214 Screw

32 2162085 Light Socket

33 2255743 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2255558 Cover, Receiver

37 2255562 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

45 Ladder

2198609 Left Side

2198610 Right Side

46 2219878 Shield, Wiring

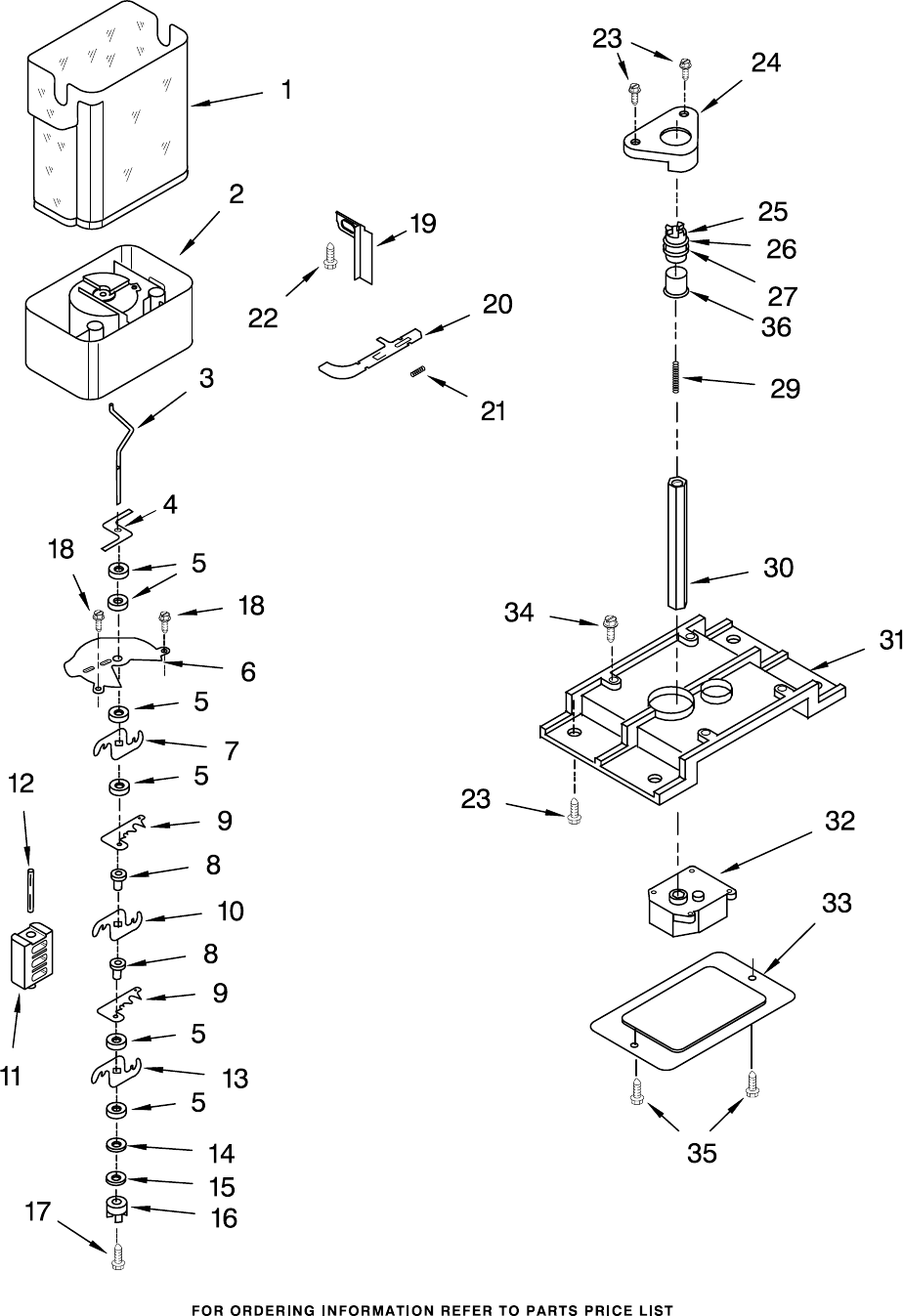

MOTOR AND ICE CONTAINER PARTS

7

8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

MOTOR AND ICE CONTAINER PARTS

88198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

2 2255574 Crusher Bin

3 2211590 Auger

4 2257021 Blade, Stirring

5 1119007 Spacer, Flat (6)

6 2255460 Cover, Crusher

7 1119013 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 1119012 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 1119006 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2255575 Button, Bin

20 2212371 Latch, Bin

21 2198608 Spring, Latch

22 2198671 Screw (2)

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

29 2198607 Spring

30 999536 Drive Shaft

31 2198655 Bracket, Motor

32 2198594 Dispenser, Motor

33 2198626 Cover

34 8281162 Screw

35 489478 Screw

36 2212365 Sleeve, Coupling

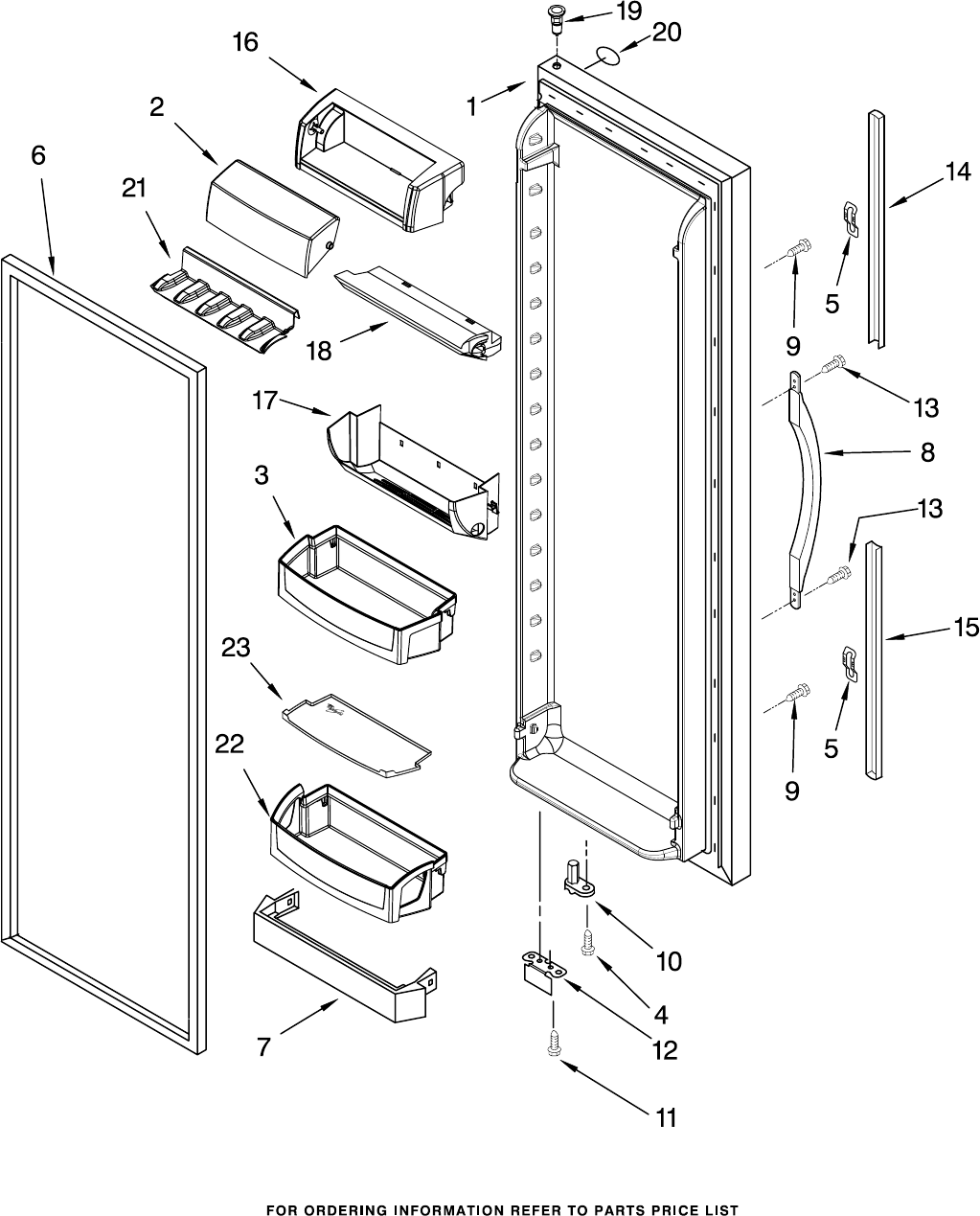

REFRIGERATOR DOOR PARTS

9

8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

REFRIGERATOR DOOR PARTS

10 8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

2255501W White

2255501T Biscuit

2255501B Black

2255501L Stainless−VCM

2 2255421 Dairy Door

3 2223239 Door Bin (2)

4 3400012 Screw

5 2195327 Clip

6 Door Gasket,

Magnetic

2221302 Mist Beige

2221313 Black

7 2223727 Trivet

8 Handle

2186649W White

2186649T Biscuit

2186649B Black

9 3400852 Screw (4)

10 2182178 Door Closer,

Upper Cam

11 489420 Screw

12 Bracket, Door Stop

2206629 Chrome

2206629B Black

13 489491 Screw (4)

14 Trim, Door−Top

2194973W White

2194973T Biscuit

2194973B Black

15 Trim, Door−Bottom

2194969W White

2194969T Biscuit

2194969B Black

16 2255420 Door Compartment

17 2255422 Frame, Can Rack

18 2255424 Air Diffuser Asm

19 2182180 Thimble−Top

20 2220214 Nameplate

21 2255423 Floor, Can Rack

22 2223463 Door Bin

23 2223464 Mat, Bin

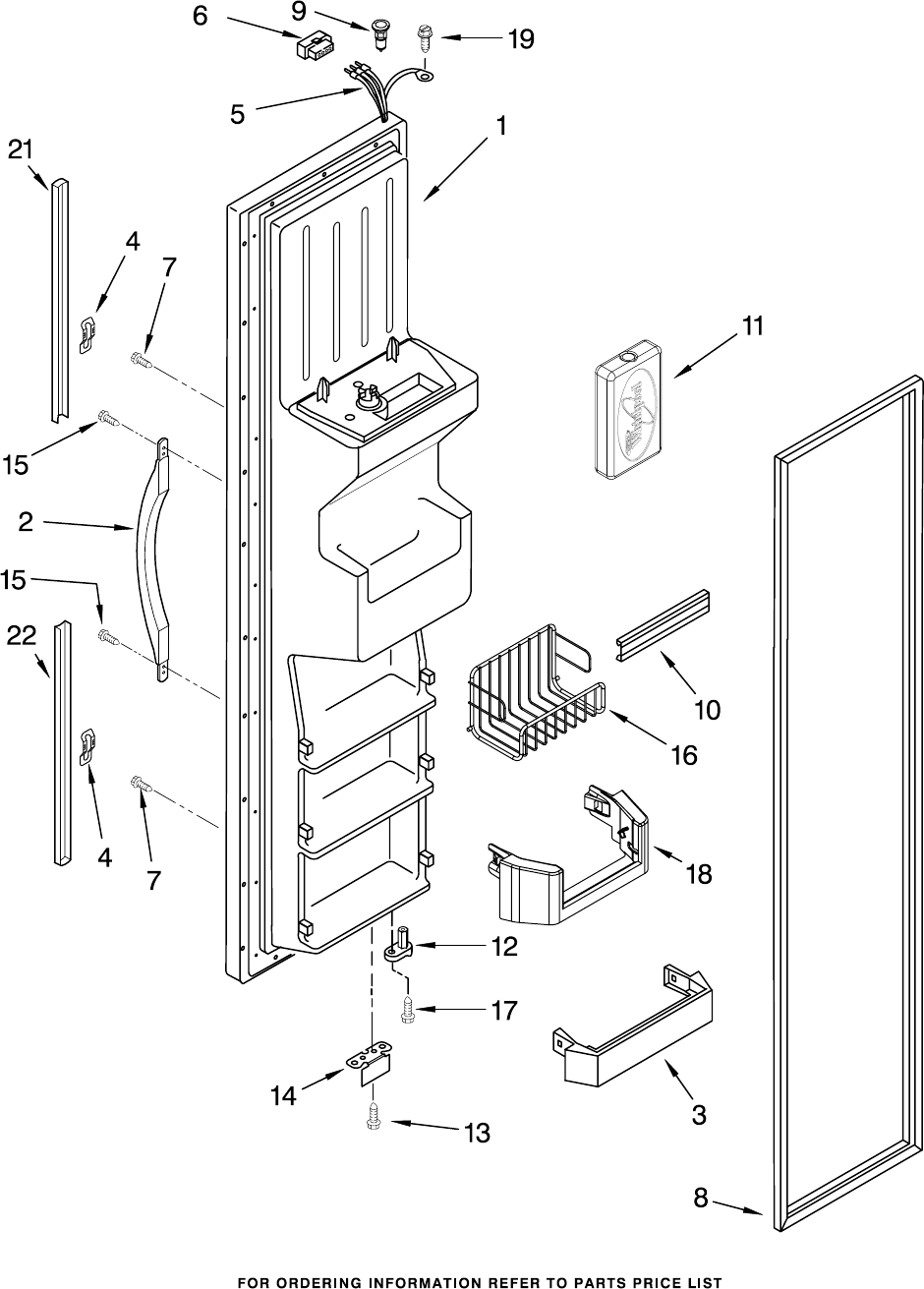

FREEZER DOOR PARTS

11

8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

FREEZER DOOR PARTS

12 8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(Includes #8

And Dispenser

Front Parts)

2260905W White

2260905T Biscuit

2260905B Black

2260905L Stainless−VCM

2 Handle

2186649W White

2186649T Biscuit

2186649B Black

3 2171157 Shelf Bin (4)

4 2195327 Clip

5 2198619 Dispenser Harness

6 2154473 Connector

7 3400852 Screw (4)

8 Door Gasket,

Magnetic

2221303 Mist Beige

2221314 Black

9 2182181 Thimble−Top

10 2219982 Trim, Door Shelf

11 2255459 Bottle, Ice Pack

12 2182179 Door Closer,

Upper Cam

13 489420 Screw

14 Bracket, Door Stop

2206629 Chrome

2206629B Black

15 489491 Screw (4)

16 2304309 Basket,

Tilt−Out (2)

17 3400012 Screw

18 2223334 Trivet,

Tilt−Out (2)

19 488500 Screw

21 Trim, Door−Top

2194973W White

2194973T Biscuit

2194973B Black

22 Trim, Door−Bottom

2194969W White

2194969T Biscuit

2194969B Black

DISPENSER FRONT PARTS

13

8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

DISPENSER FRONT PARTS

14 8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION

1 Housing, Dispenser

(Not Serviced)

2 3196537 Screw

3 2194719 Retainer, Levers

4 2256199 Spring, Torsion

5 2196195 Pin

6 2180353 Door, Ice

7 2206423 Door Mechanism

Assembly

8 2205686 Mechanism Delay

9 Grille, Overflow

2206670W White

2206670T Biscuit

2206670B Black

10 2209718 Water Fitting

Assembly (Includes

Water Tube)

11 Lever, Ice

Dispenser

2255431W White

2255431T Biscuit

2255431B Black

12 2180224 Guide, Ice

13 2180200 Lamp Holder

14 2162361 Switch

15 2183771 Bracket, Control

16 3406124 Bulb, Light

17 Lever, Water

Dispenser

2255432W White

2255432T Biscuit

2255432B Black

18 Switch Assembly

(Not Avaialble

Order #23)

19 Overlay, Front

Cover

(Not Available

Order #23)

20 2187406 Wire Assembly

21 Front Cover,

Housing

(Not Available,

Order #23)

22 489000 Screw

23 Front Cover

Assembly

(Includes Items

18, 19, 20 & 21)

2260993W White

2260993T Biscuit

2260993B Black

24 625834 Spacer, Switch (2)

25 2195051 Strain Relief

26 2188355 Bracket, Dispenser

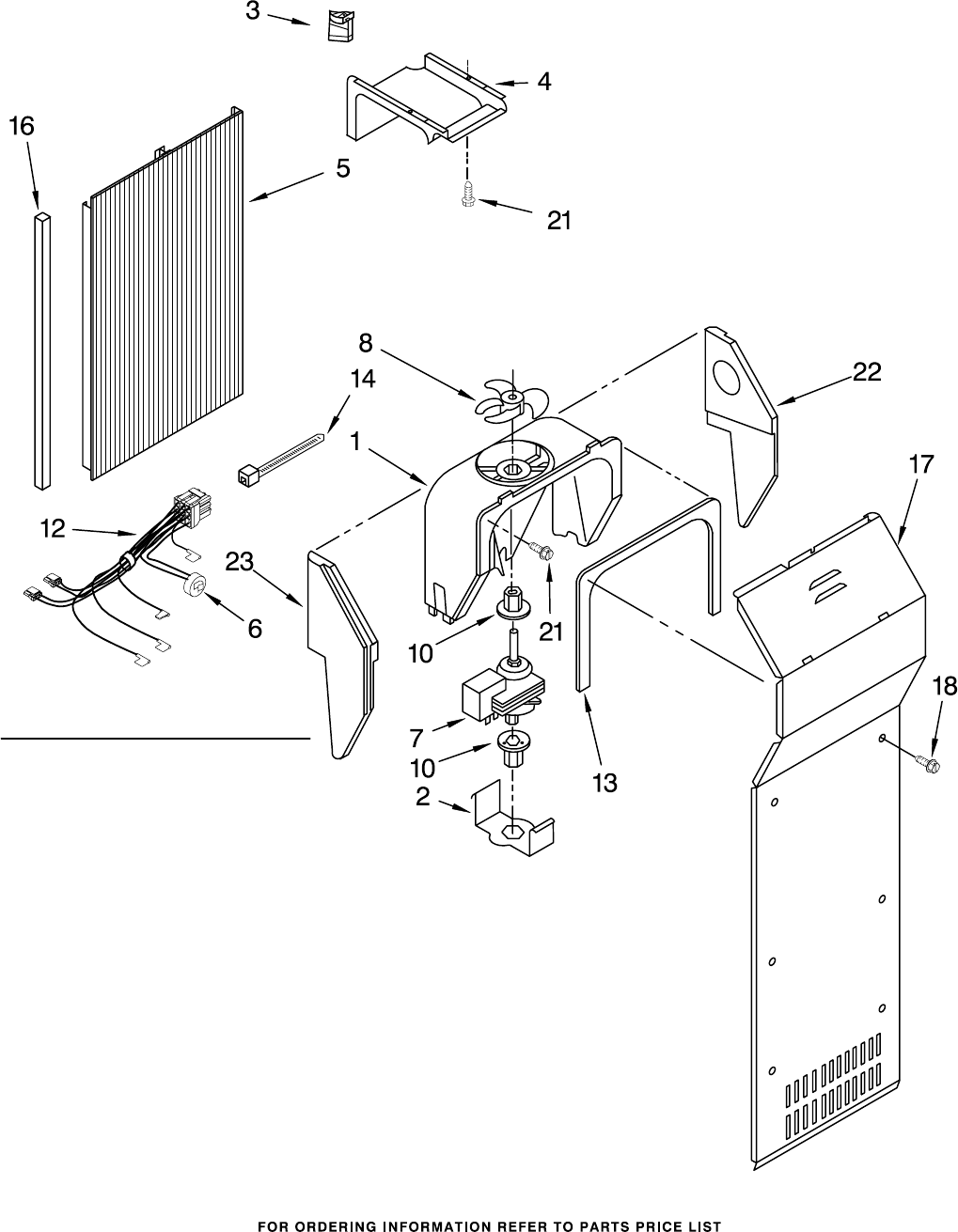

AIR FLOW PARTS

15

8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION

1 2182120 Fan Scroll

2 2155590 Retainer

Fan Motor

3 2198595 Air Scoop

4 2212377 Air Duct, Upper

5 2198580 Air Duct Freezer

6 2188824 Bi−Metal, Defrost

7 2162404 Fan Motor

8 2169142 Fan Blade

10 2176759 Fan Grommet (2)

12 2187826 Harness, Fan

Evaporator

(Includes #6)

13 2155789 Gasket,

Evaporator Cover

14 2172840 Strap

16 2203876 Gasket

17 2206314 Cover, Evaporator

18 489355 Screw (6)

21 489478 Screw

22 2203595 Support, R.S.

23 2203596 Support, L.S.

CONTROL PARTS

16 8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2255222 Control Box

2 2255991 Shield

3 3196537 Screw (4)

4 3400972 Washer

5 2255225 Lens, Light

6 2303804 Electronic

Control

7 489084 Screw (2)

8 940014 Hole Plug

9 2261232 Shield, Electrical

10 2261231 Shield, Electrical

(Internal)

11 2255226 Cam Assembly

12 2255413 Bearing Body

13 3400971 Nut, Hex

15 2255227 Pivot Arm

16 627068 Screw

17 2162085 Light Socket

18 2255666 Shield, Heat

19 2255743 Light Bulb

20 2255235 Control Box

Harness

21 2261329 Shield, Foam

23 2255228 Connecting Rod

24 489285 Fastner, Push−On

25 2261334 Escutcheon,

Control Box

26 2255232 Knob, RC

27 2255992 Knob, FC

28 2216113 Thermistor

29 489203 Spring Washer

31 2261265 Air Seal,

Thermistor

UNIT PARTS

17

8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

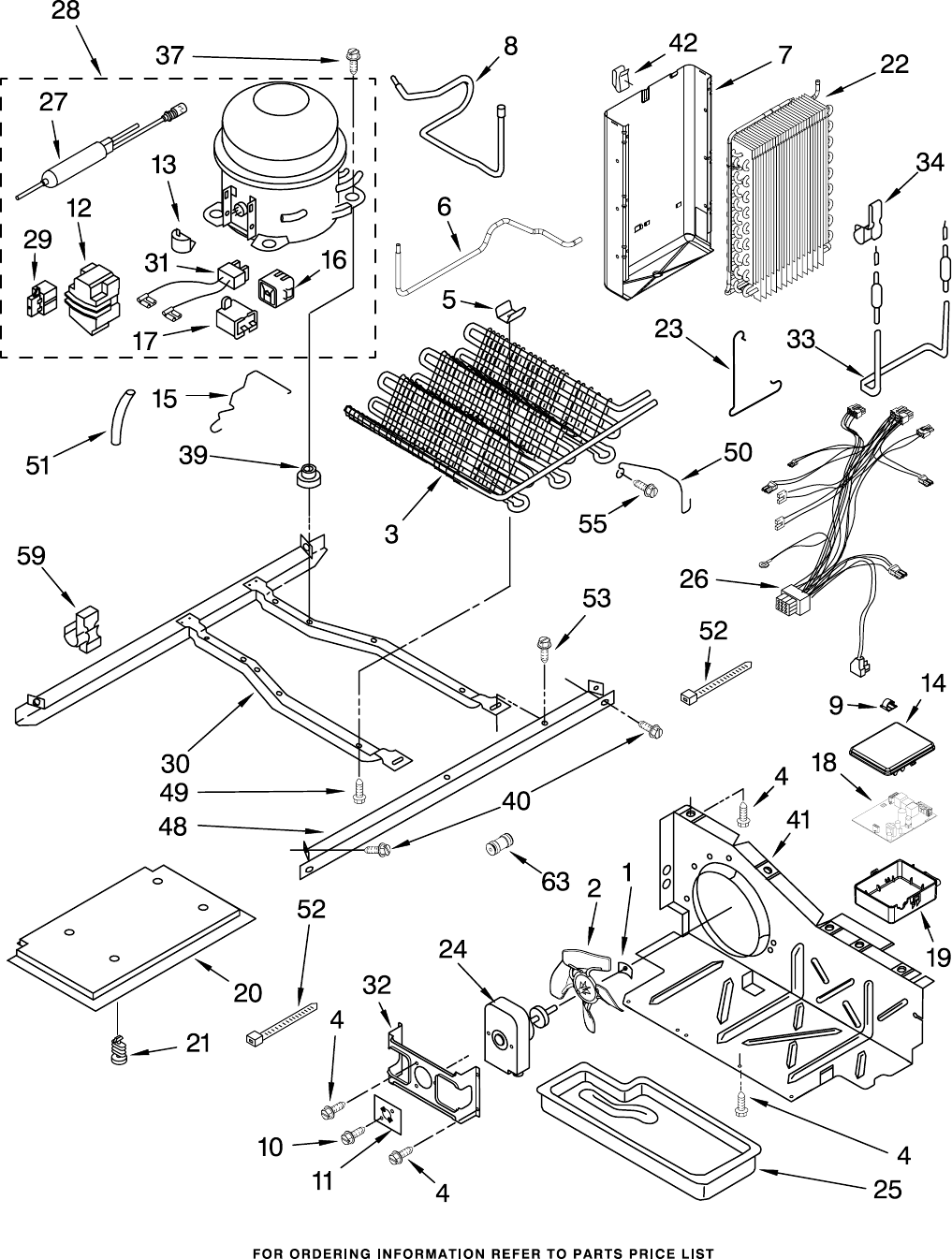

UNIT PARTS

18 8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 486692 Speed Nut

2 2225834 Fan, Blade

3 2223953 Condenser Assembly

4 489464 Screw

5 2216914 Clip, Condenser

6 2261599 Tube, Condenser to

Heat Loop

7 2256150 Heat Shield

And Drain Pan

8 2205765 Tube Suction

9 1115374 Clip, Wiring

10 8281160 Screw

11 2216997 Bracket, Insert

12 4387731 Cover (Service

Compressor Only)

13 2154697 Overload (Service

Compressor Only)

14 2255624 Cover

15 2255199 Clip, Retaining

16 2255198 Start−Device,

Combination

(Start Relay and

Overload) for

Production

Compressor Only

17 Capacitor

999532 Production

1118576 Service

18 2252189 Elec. Control

19 2255623 Control Box

20 2206281 Unit Cover, Bottom

21 489396 Clip

22 2188823 Evaporator

23 2161324 Clip

24 2188729 Motor, Fan

25 1105523 Tray, Evaporator

26 2187748 Harness, Unit

27 Drier

2199167 Production

4387019 Service

28 2255197 Compressor

(Includes Items

12, 13, 17, 27,

29 & 31)

(Also Order

876765 Tube Kit)

29 2183454 Relay

(Service Only)

30 2157397 Unit Mounting

Frame

31 4387765 Wire, Capacitor

(Service Only)

32 2181929 Bracket, Fan Motor

33 2188175 Heater, Defrost

34 2161330 Clip, Heater

37 489373 Screw

39 Grommet (4)

1100826 (Production)

4387558 (Service)

40 489340 Screw

41 2196202 Air Baffle

42 2155547 Clip, Heat

48 1127911 Unit Mounting

Rail

49 8281232 Screw

50 2186495 Guard, Fan

51 2161302 Sleeve

52 2172840 Wire Tie

53 489427 Screw

55 489478 Screw

59 2261316 Clip, Wire & Tube

63 2209709 Union

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 oz.

(R−134A)

ICEMAKER PARTS

19

8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

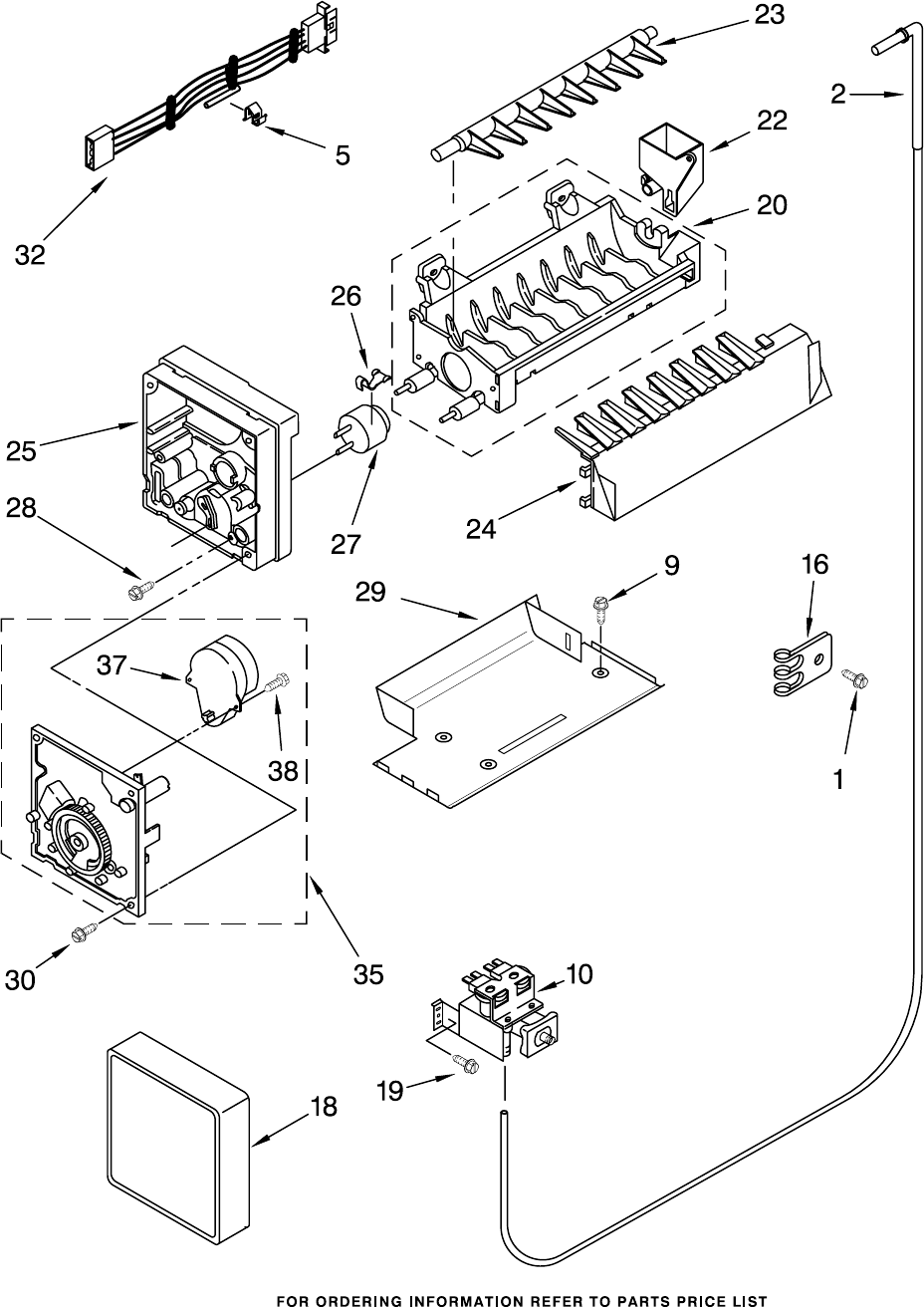

ICEMAKER PARTS

20 8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION

1 489084 Screw

2 2256096 Fitting, Water

Tube

5 628379 Clip, Fuse

9 489478 Screw

10 2188746 Filter Valve Asm

16 2208136 Clip, Tube

18 2174358 Cover

19 488649 Screw

20 628228 Mold & Heater

Assembly (Also

Order 542638

Silicone Grease)

22 628356 Bearing & Inlet

23 627843 Ejector

24 2198598 Ice Stripper

25 2194712 Support

26 627796 Retainer,

Thermostat

27 627985 Thermostat (Also

Order 542369

Cement

Alumilastic)

28 8533917 Screw

29 2212322 Bracket, Ice Maker

Mounting

30 489276 Screw

32 2187467 Harness, Wiring

35 626653 Module Assembly

(Includes Items

37 & 38)

37 627811 Motor

38 489136 Screw

100 2198597 Icemaker Assembly

PARTS NOT ILLUSTRATED

21

8198499

For Models: GD5NHAXMQ00, GD5NHAXMT00, GD5NHAXMB00, GD5NHAXML00

(White) (Biscuit) (Black) (Stainless−VCM)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Customer Touch−Up Material

350942 Primer, White

(12 Oz. Spray Can)

350939 Enamel, Black

(12 Oz. Spray Can)

350930 Enamel, White

(12 Oz. Spray Can)

4392901 Enamel, Biscuit

(12 Oz. Spray Can)

8171357 Enamel, Graphite

(12 oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

4392899 Brush Touch−Up Kit

(Biscuit)

72032 Brush Touch−up Kit

(Black)

80051 Brush Touch−up Kit

(Graphite)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Miscellaneous

8129 Coil Brush

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

876370 Kit, Insulation

(2 Pcs. x 3" x 24"

X 48")

876305 Kit, Insulation

(14 Pcs. x 3"

x 24" x 48")

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

X 2−5/8)

876029 Kit, Foam Slab

(30" x 32−1/2"

x 1−1/2")

505587 Sealer, Mastic

(1 Qt.)

503695 Cork, Sealer

(1/4 Pound)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

833938 Kit, Terminal

Connector

2255573 Ice Container−

Crusher Assembly

Refinishing Material

799340 Enamel, Black

(1 Qt. Uncut)

799344 Enamel, White

(1 Qt. Uncut)

4392900 Enamel,

Biscuit

(1 Qt. Uncut)

8171358 Enamel, Graphite

TORX SCREW WRENCH

1117510 Torx Key
