TOP AND CABINET PARTS

For Model: LXR7133JQ1

(Designer White)

9−02 Litho In U.S.A. (awm) Part No. 8179579

AUTOMATIC

WASHER

TOP AND CABINET PARTS

2

For Model: LXR7133JQ1

(Designer White)

8179579

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

LIT3952817

English

LIT3951578

French

Use & Care Guide

LIT3955156

English

LIT3954821

French

LIT3954860

Energy Guide

LIT3954705

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, Washer

2 8274315 Top

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 63424 Cabinet

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

9 3949237 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 91770 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 3361411 Lid

20 358684 Strike, Lid Switch

22 9724509 Bumper, Lid (2)

28 3390631 Screw,

10−16 x 3/8

31 90016 Clip, Harness

CONTROLS AND REAR PANEL PARTS

3

For Model: LXR7133JQ1

(Designer White)

8179579

CONTROL AND REAR PANEL PARTS

4

For Model: LXR7133JQ1

(Designer White)

8179579

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 9740848 Screw

3 Hose, Water

Inlet (2)

3949374 Blue Coupler

3949375 Red Coupler

4 3357027 Nozzle−Drain

Hose

5 8318255 Strap, Console (2)

6 8528062 Panel, Rear

7 62747 Pad, Rear Panel

8 3951609 Hose, Drain

(4’− 8")

661577 Hose, Drain

(9’−9")

(Not Included)

3357090 Extension,

Drain Hose

(21 Inches)

(Not Included)

9 3948323 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, Ground

11 90767 Screw, 8A x 3/8

12 3366848 Switch, Water Level

13 3948608 Bracket, Control

14 3948063 Cord, Power

15 3952821 Strain Relief,

Power Cord

16 8271365 Cap, End (L.H.)

17 3400073 Screw

18 3952164 Valve, Water

Mixing

19 90864 Screw, 10−24 x 1/2

20 8318201 Clip, Capacitor

21 370451 Clamp, Hose

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 8519200 Support, Rear

Panel

26 3361805 Hose−Corrugated

Assembly

27 3366912 Clamp, Hose

28 661606 Capacitor,

Motor Start

30 3363366 Clamp, Hose

31 660628 Clamp, Hose

32 3951449 Hose, Pump To Tub

33 8055003 Clip, Harness

& Pressure Hose

35 661612 Switch, Water

Temperature

36 3400064 Screw, Timer

Mounting

39 3954203 Panel, Console

44 8274290 Knob, Timer

45 8274331 Dial, Timer

47 8271339 Knob, Control

49 388326 Screw, 8−18 x 1.25

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 8271359 Cap, End (R.H.)

55 3390647 Screw, 8−18 x 1/2

58 3366913 Clamp, Drain

Hose

59 3954932 Harness, Wiring

(For Detail See

Pages 9 & 10)

AGITATOR, BASKET AND TUB PARTS

5

For Model: LXR7133JQ1

(Designer White)

8179579

6

AGITATOR, BASKET AND TUB PARTS

For Model: LXR7133JQ1

(Designer White)

8179579

Illus. Part

No. No. DESCRIPTION

1 3352483 Cap, Agitator

2 358237 Screw & Washer

(5/16−24 x 1)

3 63377 Agitator

5 3360611 Tub Ring & Gasket

6 3359586 Gasket, Tub Ring

7 387868 Balance Ring

8 387867 Clip, Balance

Ring (8)

12 21366 Nut, Spanner

13 8271646 Basket & Balance

Ring

(Also Order #14)

14 3952746 Filter, Plate

16 63125 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

26 3949550 Washer

7

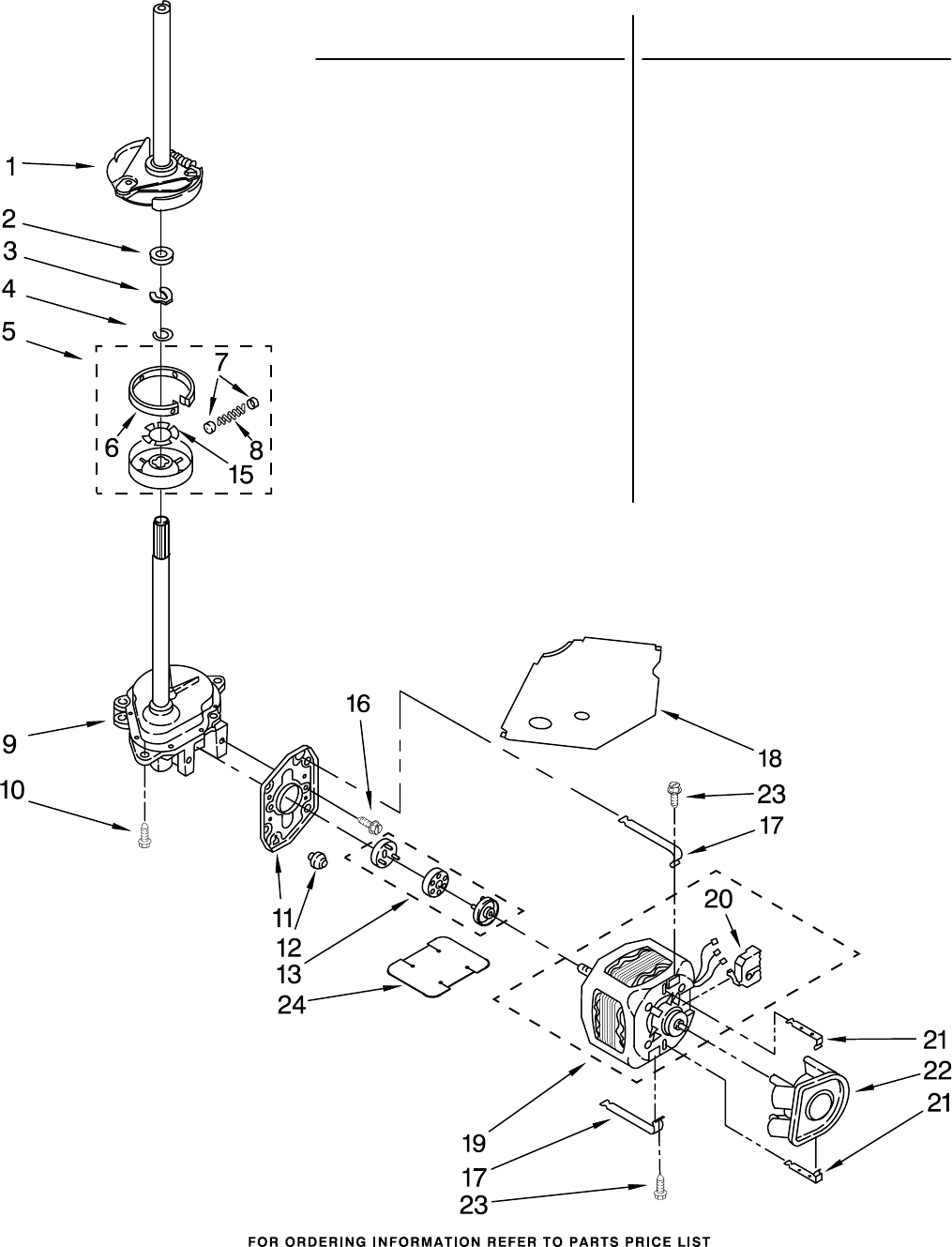

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: LXR7133JQ1

(Designer White)

8179579

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388951 Brake & Drive

Tube (Complete)

(Refer to Page 12

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 13

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 661599 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

8

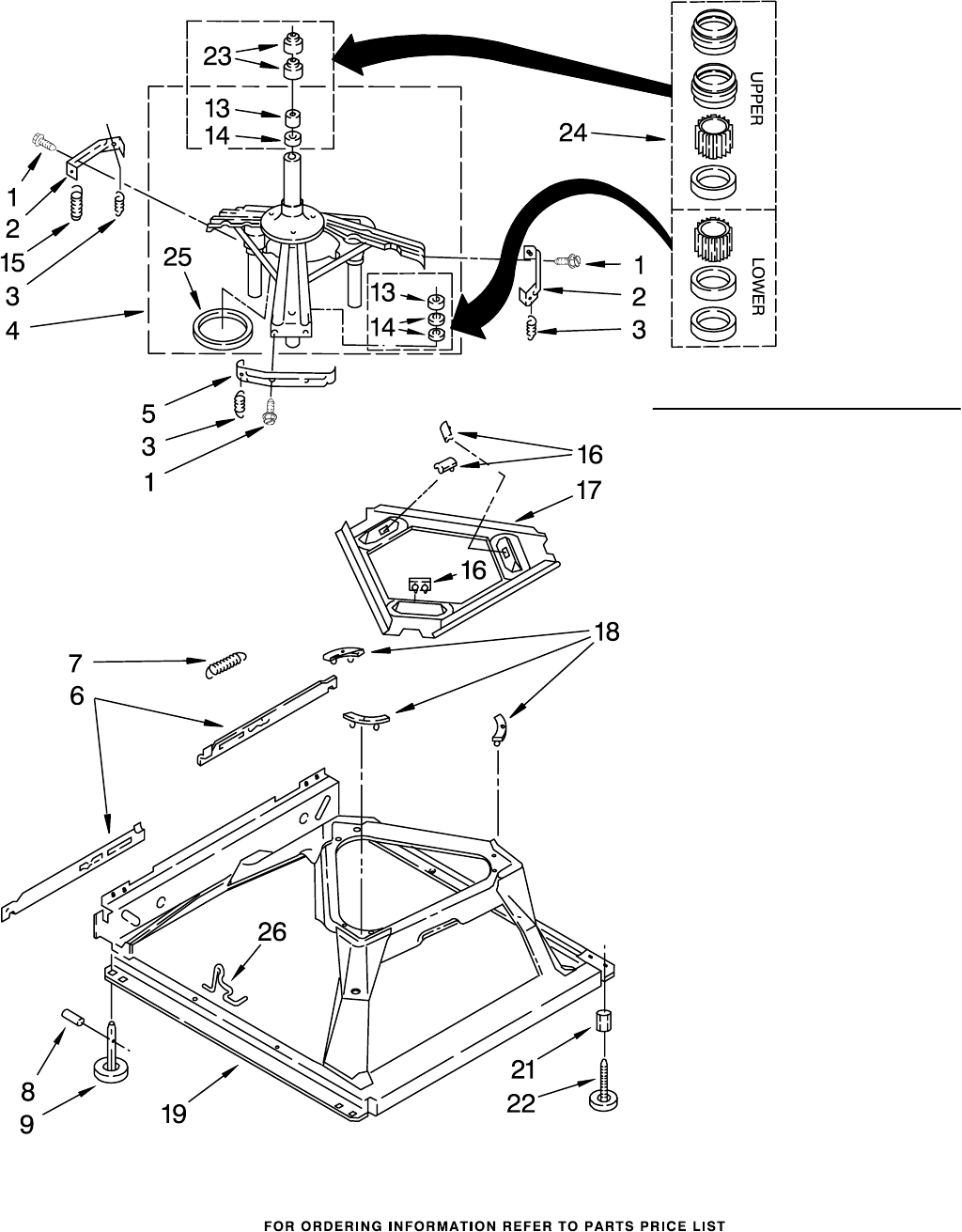

MACHINE BASE PARTS

For Model: LXR7133JQ1

(Designer White)

8179579

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring, Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3946512 Base Assembly

(Includes Illus, 6,

7, 8, 9, 16, 17,18

& 26.)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

WIRING HARNESS PARTS

WH2G

9

For Model: LXR7133JQ1

(Designer White)

8179579

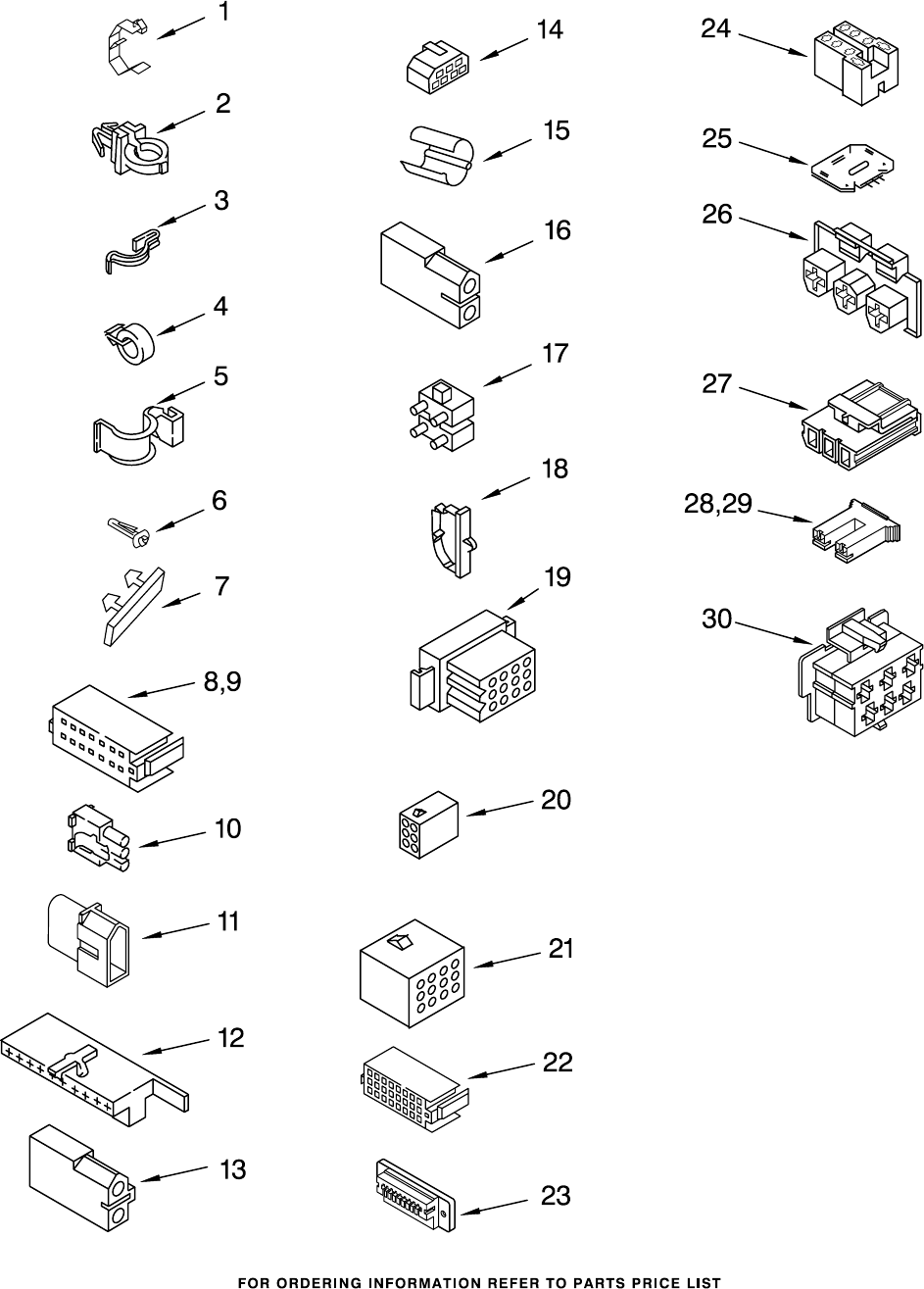

WIRING HARNESS PARTS

WH2G

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569)

25 3407125 E.T.C. Control

26 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

(Use Term. 3948619

OR 3948620.)

27 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

(Use Term.3948619

OR 3948620.)

28 3354925 Block, Connector

(Cold Valve)

(Use Term.693217)

29 3354926 Block, Connector

(Hot Valve)

(Use Term.693217)

30 3948615 Connector (T.P.A.)

(6−Circuit)

(Temp. Switch)

(Use Term.3948619

OR 3948620.)

10

For Model: LXR7133JQ1

(Designer White)

8179579

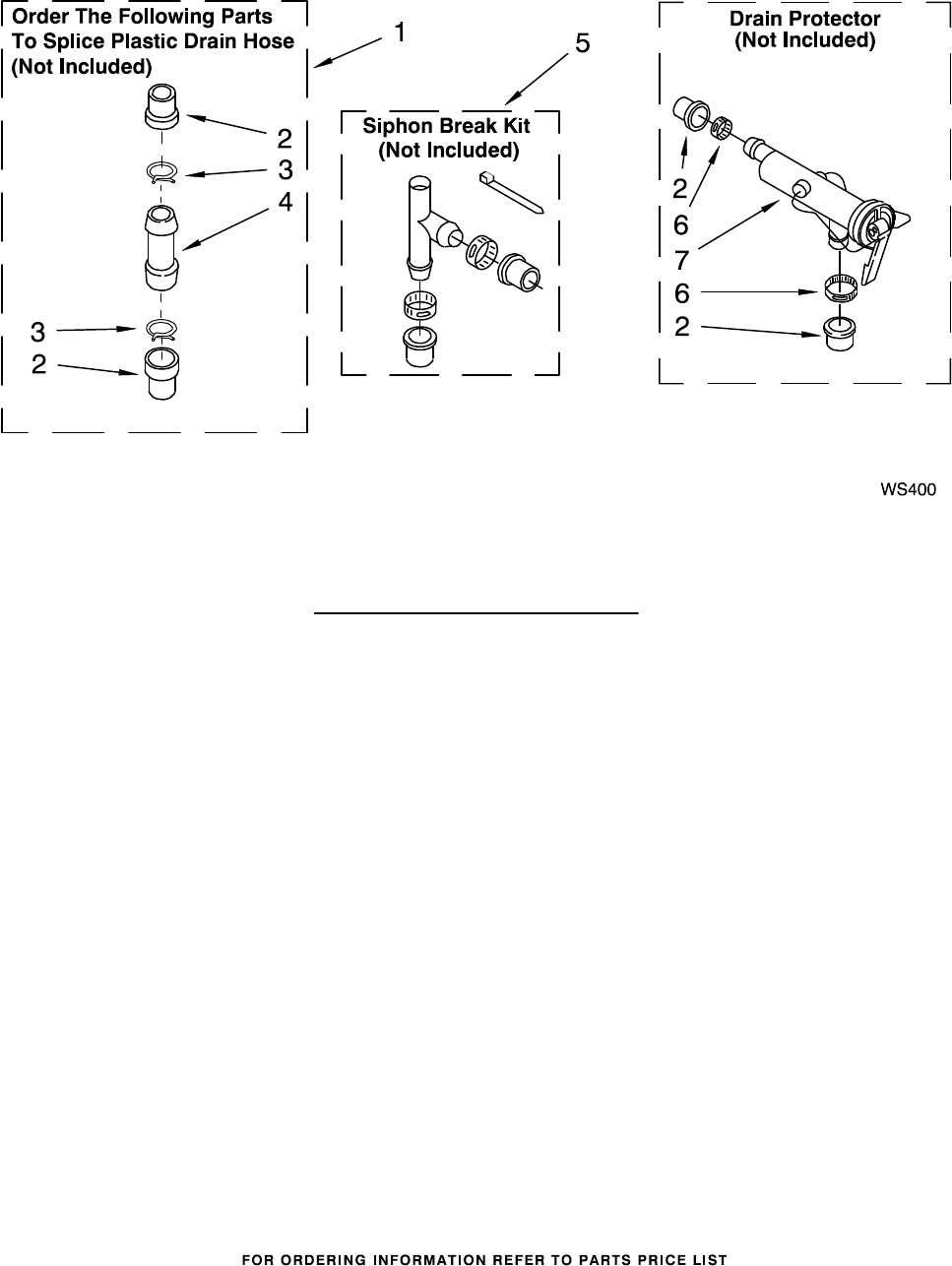

WATER SYSTEM PARTS

1 285442 Connector Kit,

Plastic Drain

Hose

2 285321 Sleeve Kit,

(Contains 2

Sleeves)

3 370447 Clamp, Hose

4 16272 Connector,

Straight

5 285320 Siphon Break

Kit

(Not Included)

6 65349 Clamp, Hose

7 367031 Drain Protector

(Not Included)

Illus. Part

No. No. DESCRIPTION

11

For Model: LXR7133JQ1

(Designer White)

8179579

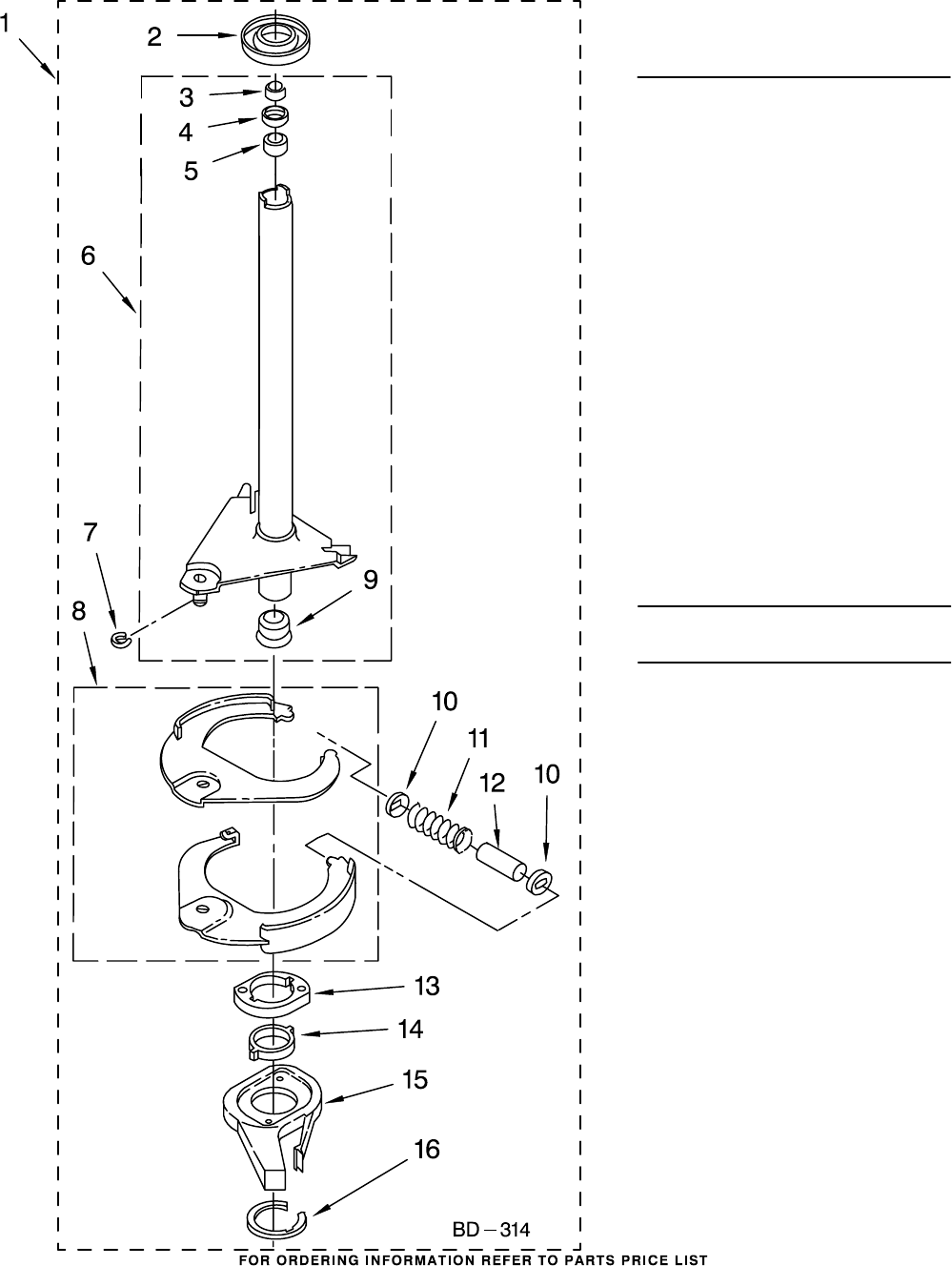

BRAKE AND DRIVE TUBE PARTS

1 388951 Brake And Drive

Tube (Complete)

2 62658 Ring, Thrust

3 91939 Seal, Oil

4 356427 Seal, Drive Tube

5 356937 Spacer, Drive

Tube

6 64027 Tube, Basket

Drive (Includes

Illus. 3, 4, 5 & 9)

7 64035 Ring, Retaining

8 64232 Brake Shoe

9 62703 ‘‘T’’ Bearing,

Spin Tube

10 62648 Cap, Brake

Spring (2)

11 62647 Spring, Brake

12 62909 Sleeve, Brake

Spring

13 63023 Cam, Brake

Release

14 63022 Sleeve, Cam

15 64194 Driver, Brake

Cam

16 90368 Ring, Retaining

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In

Brake Shoe

Assembly On

Roller & Pin)

Illus. Part

No. No. DESCRIPTION

12

For Model: LXR7133JQ1

(Designer White)

8179579

GEARCASE PARTS

Illus. Part

No. No. DESCRIPTION

GC−215C

1 3360630 Gearcase

(Complete)

2 285202 Cover, Gearcase

3 3349985 Seal, Gearcase

Cover

4 285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

5 63320 Pinion, Spin

(Includes Illus. 25)

6 356427 Seal, Spin

Pinion

7 389387 Shaft, Agitator

(Complete)

8 90369 Ring, Retaining (2)

9 62677 Retainer, Spring

10 62676 Spring, Agitate

11 63273 Gear, Agitate

(Includes 15 and 29)

12 62619 Washer, Agitate

Gear

13 62580 Cam Follower

(Includes 14)

14 62581 Cam, Agitate

(Includes 13)

15 285509 Shaft, Agitator

(Includes 11 and 29)

16 62618 Washer, Cam Thrust

17 16018 Bearing, Thrust

18 85529 Ball, Bearing

19 389230 Bottom and Pinion,

Gearcase

21 285352 Seal, Thrust Plug

22 3351614 Screw, Gearcase

Cover, Mounting (8)

(10−24 x 3/8)

23 3362552 Ring, Retaining

24 285735 Washer Kit,

Thrust

25 62570 Gear, Spin

26 388253 Neutral Assembly

27 3349296 Rack, Connecting

28 62621 Actuator, Shift

29 388815 Washer,

Intermediate

13

For Model: LXR7133JQ1

(Designer White)

8179579

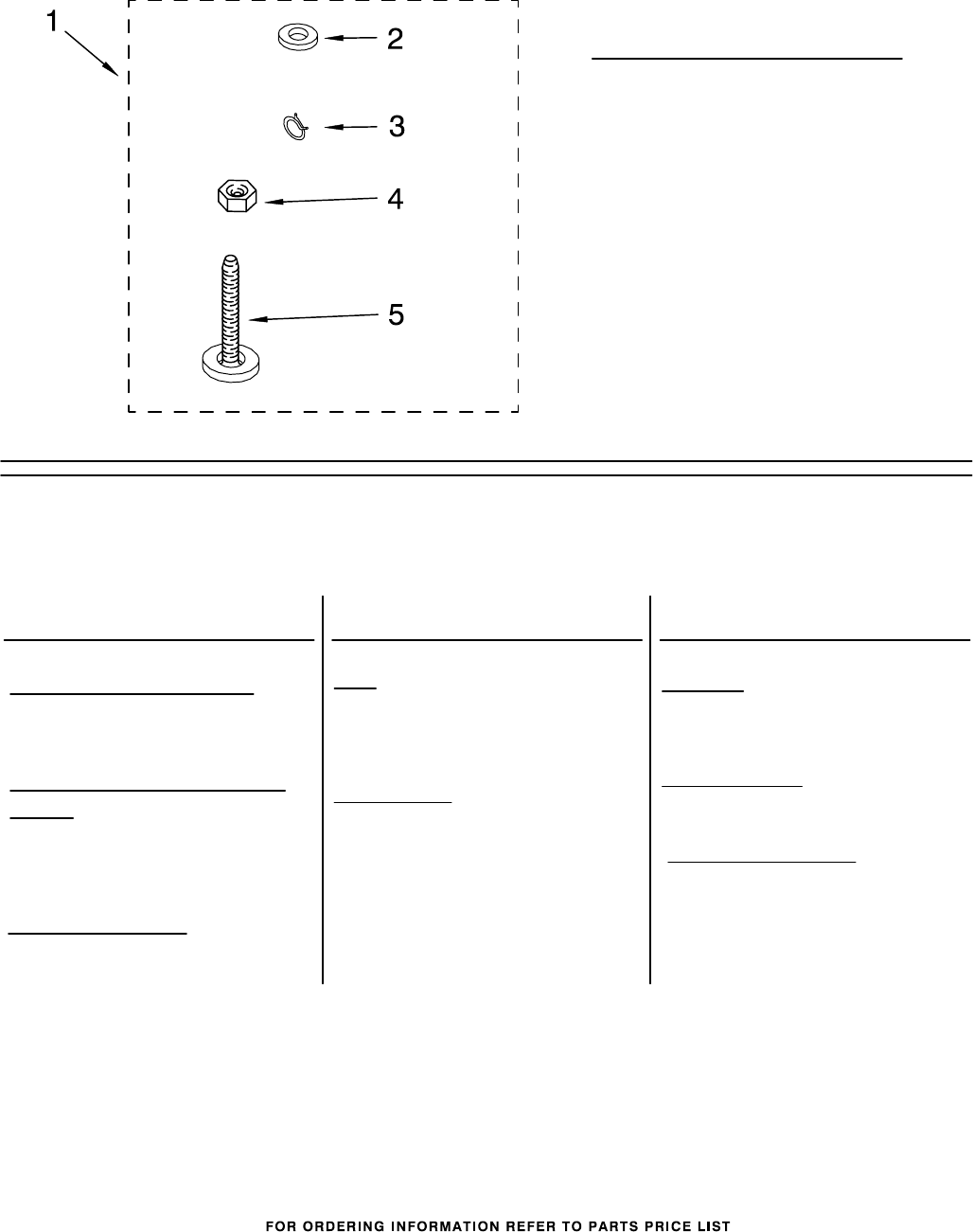

MISCELLANEOUS PARTS

14

OPTIONAL PARTS (NOT INCLUDED)

For Model: LXR7133JQ1

(Designer White)

8179579

Illus. Part

No. No. DESCRIPTION

1 3976263 Miscellaneous

Parts Bag

2 3976300 Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

3 3366912 Clamp, Hose

4 3359452 Nut, Lock

(3/8−16)

5 389102 Foot, Front

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

4392901 Biscuit

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

63580 Fabric Dispenser

367031 Drain Protector

285320 Siphon Break Kit
