TOP AND CABINET PARTS

1

For Model: WTW5505SQ1

(White)

02−07 Litho in U.S.A. (drd) Part No. W10118744 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

2

For Model: WTW5505SQ1

(White)

W10118744

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10044800

Installation

Instructions

3957874 Feature Sheet

3955884 Use & Care Guide

W10114626

Wiring Diagram

W10023792

Energy Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

4313896 Manual, Washer

2 9724509 Bumper, Lid (2)

3 8542383 Lid

4

W10119872

Screw, Lid Hinge

Mounting (4)

5 8318088 Hinge, Lid (L.H.)

6 54583 Hinge, Lid (R.H.)

7 19119 Bumper, Lid Hinge

8 3351614 Screw, Ground

9 8318084 Switch, Lid

10 62780 Clip, Top &

Cabinet & Rear

Panel (2)

11 357213 Nut, Push−In (2)

12 8541621 Top

13 21258 Bearing, Lid

Hinge (2)

14 3357011 Screw, 10−16 x 1/2

15 63128 Cabinet

16 3390631 Screw,

10−16 x 3/8 (4)

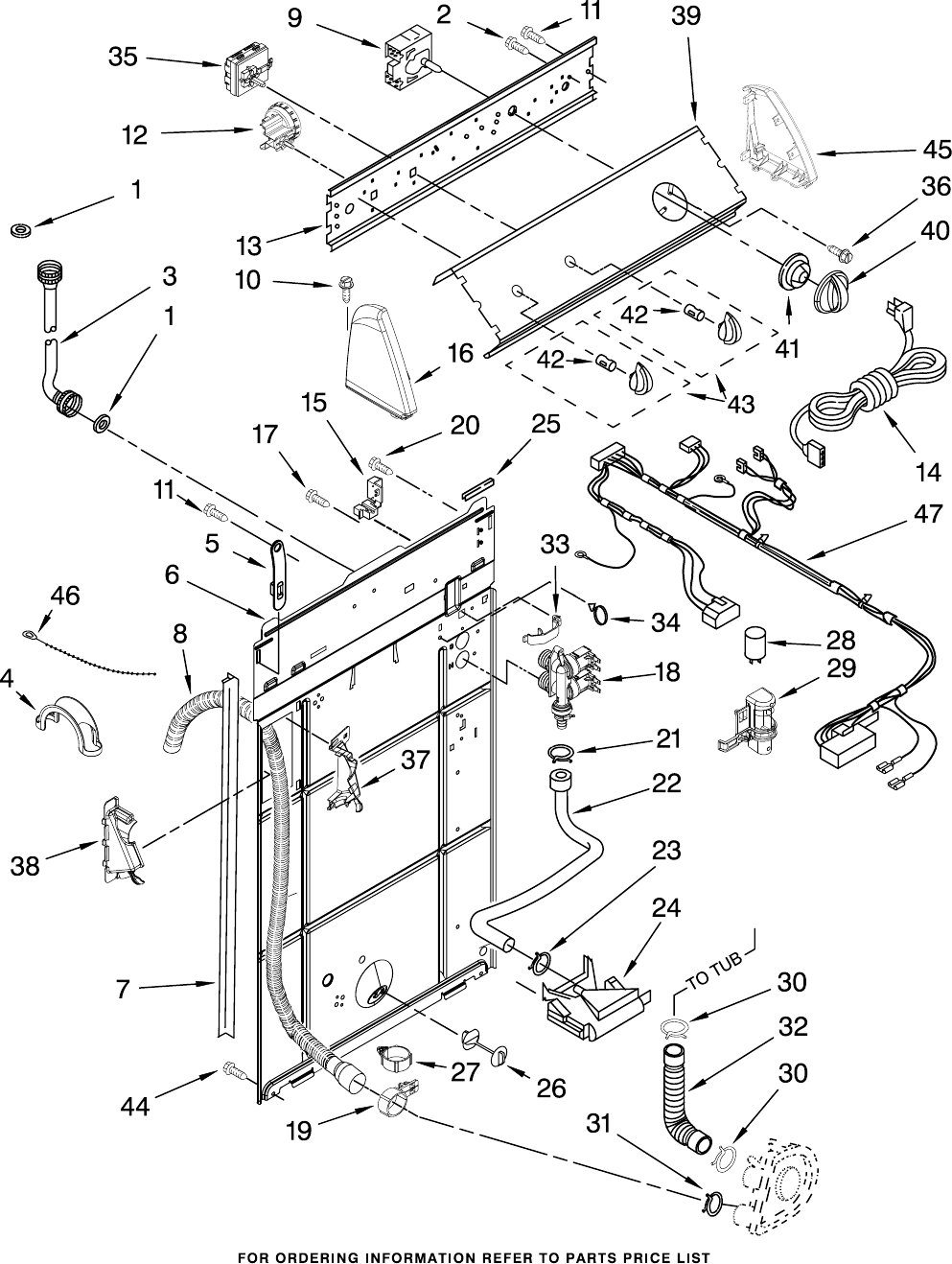

CONTROLS AND REAR PANEL PARTS

3

For Model: WTW5505SQ1

(White)

W10118744

CONTROLS AND REAR PANEL PARTS

4

For Model: WTW5505SQ1

(White)

W10118744

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

2 3400073 Screw, Ground

3 Hose, Water

Inlet

8571377 Cold

8571378 Hot

4 8577378 U−Bend,

Drain Hose

5 8568314 Strap, Console (2)

6 8541686 Panel, Rear

7 62747 Pad, Rear Panel

8 8559373 Drain Hose

Assembly (Includes

Items 19 & 27)

9 8557226 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 388326 Screw, 8−18 x 1.25

11 90767 Screw, 8−18 x 3/8

12 8577846 Switch, Water Level

13 3948814 Bracket, Control

14 8578842 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 8271365 Cap, End (L.H.)

17 9740848 Screw, 8−18 x 1/2

18 3979347 Valve, Water Inlet

& Thermistor Assy.

19 8541668 Clamp, Hose

20 3351614 Screw, Ground

21 301958 Clamp, Hose

22 8317974 Hose, Vacuum

Break

23 370450 Clamp, Hose

24 3347034 Break, Vacuum

25 303294 Edge Protector

26 8519200 Support, Rear

Panel

27 8541667 Clamp, Hose

28 8572717 Capacitor,

Motor Start

29 8318046 Clip, Capacitor

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes Item 30)

33 3349557 Retainer, Harness

34 8559320 Restraint, Hose

35

W10112532

Switch, Water

Temperature (ATC)

36 3400818 Screw, Timer

Mounting

37 8541669 Bucket, Drain Hose

(Left Half)

38 8541658 Bucket, Drain Hose

(Right Half)

39

W10114826

Panel, Console

40 8566022 Knob, Timer

41 8566018 Dial, Timer

42 8536939 Clip, Knob

43 8565944 Knob, Control

44 62863 Screw, 10−16 x 3/8

45 8271359 Cap, End (R.H.)

46 3347868 Cable Tie

47

W10116348

Harness, Wiring

(For Detail See

Page 9 & 10)

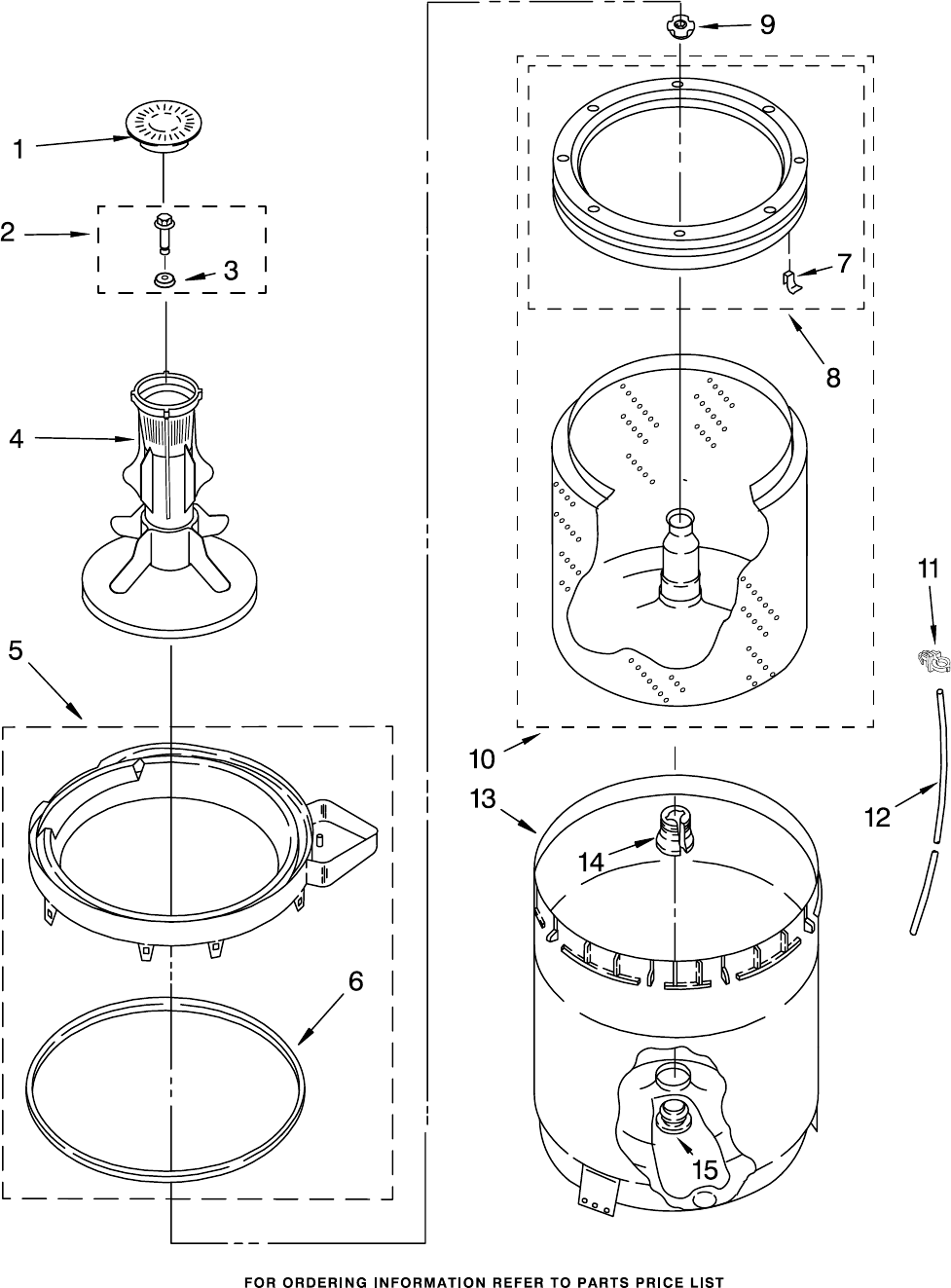

AGITATOR, BASKET AND TUB PARTS

5

For Model: WTW5505SQ1

(White)

W10118744

AGITATOR, BASKET AND TUB PARTS

6

For Model: WTW5505SQ1

(White)

W10118744

Illus. Part

No. No. DESCRIPTION

1 3352483 Cap, Agitator

2 358237 Screw & Washer

(5/16−24 x 1)

3 3949550 Washer

4 63377 Agitator

5 3360611 Tub Ring & Gasket

Assembly

6 3359586 Gasket, Tub Ring

7 8519815 Clip, Balance

Ring (8)

8 3956205 Balance Ring

9 21366 Nut, Spanner

10 3956206 Basket &

Balance Ring

11 2219077 Clip, Pressure

Switch Hose

12 3363657 Hose, Pressure

Switch

13 63125 Tub

14 389140 Block, Basket

Drive

15 383727 Gasket, Centerpost

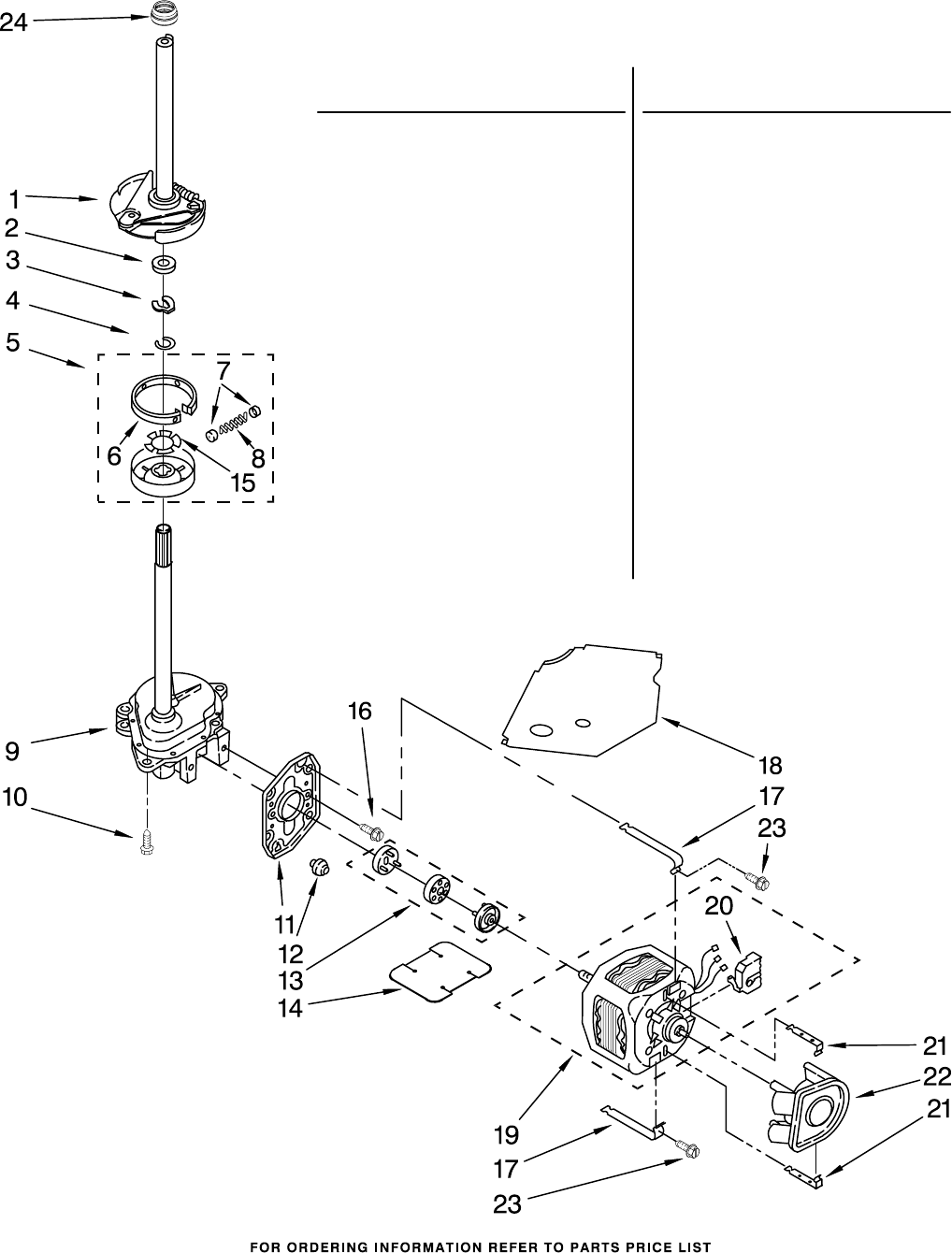

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

7

For Model: WTW5505SQ1

(White)

W10118744

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388951 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page

12 For Further

Breakdown.)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

And Isolation

Coupling

14 3946532 Shield, Motor

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528157 Motor, Main

Drive

20 3952056 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 8577374 Seal

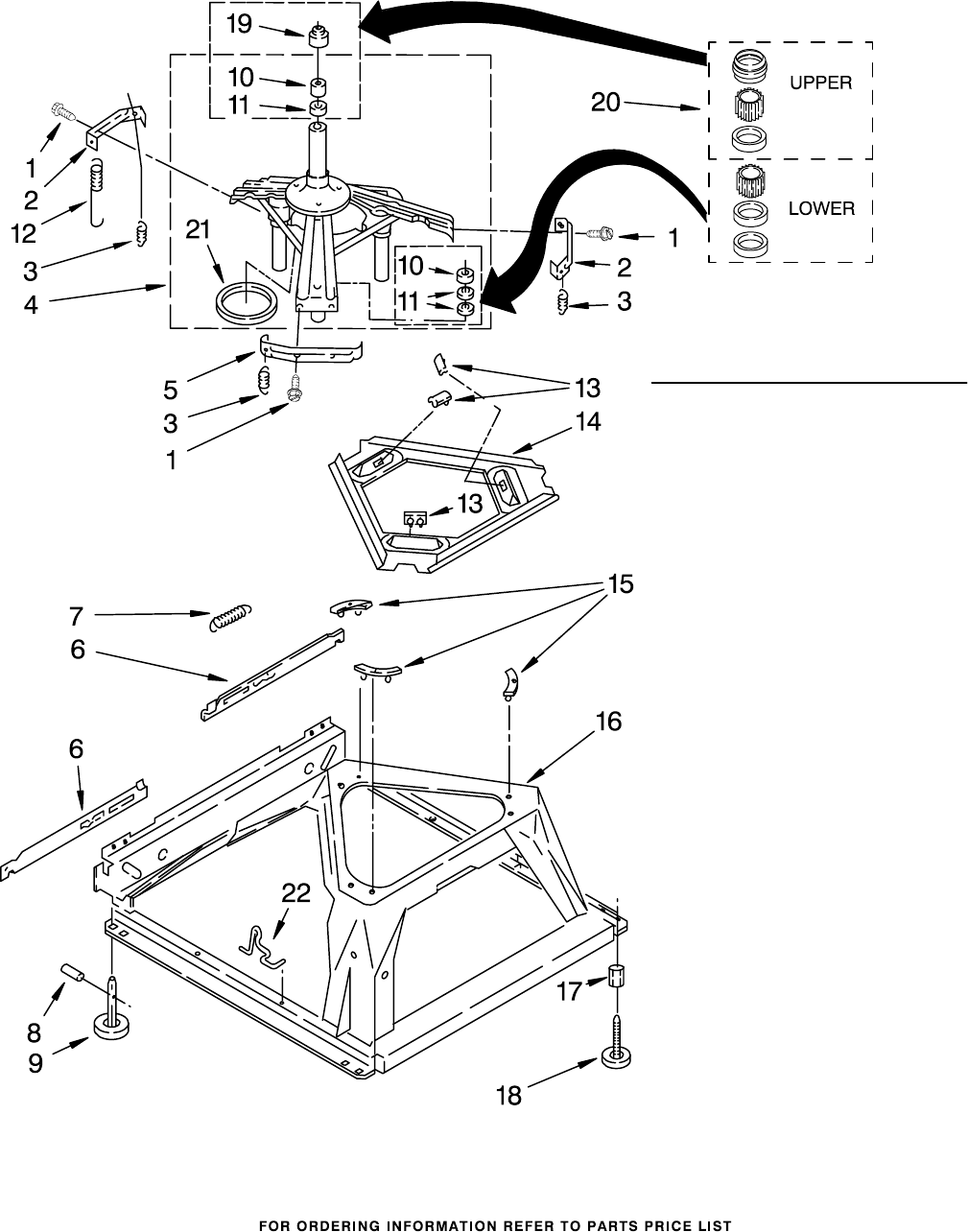

MACHINE BASE PARTS

8

For Model: WTW5505SQ1

(White)

W10118744

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring (3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63138 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 388492 Spring,

Counterweight

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3349337 Base Assembly

(Includes Items 2,

3, 5, 6, 7, 8, 9,

15,16,17,18 & 22

17 3359452 Nut, Lock (2)

(3/8−16)

18

W10001130

Foot, Front (2)

19 8577376 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

22 63806 Retainer,

Suspension Spring

WIRING HARNESS PARTS

9

For Model: WTW5505SQ1

(White)

W10118744

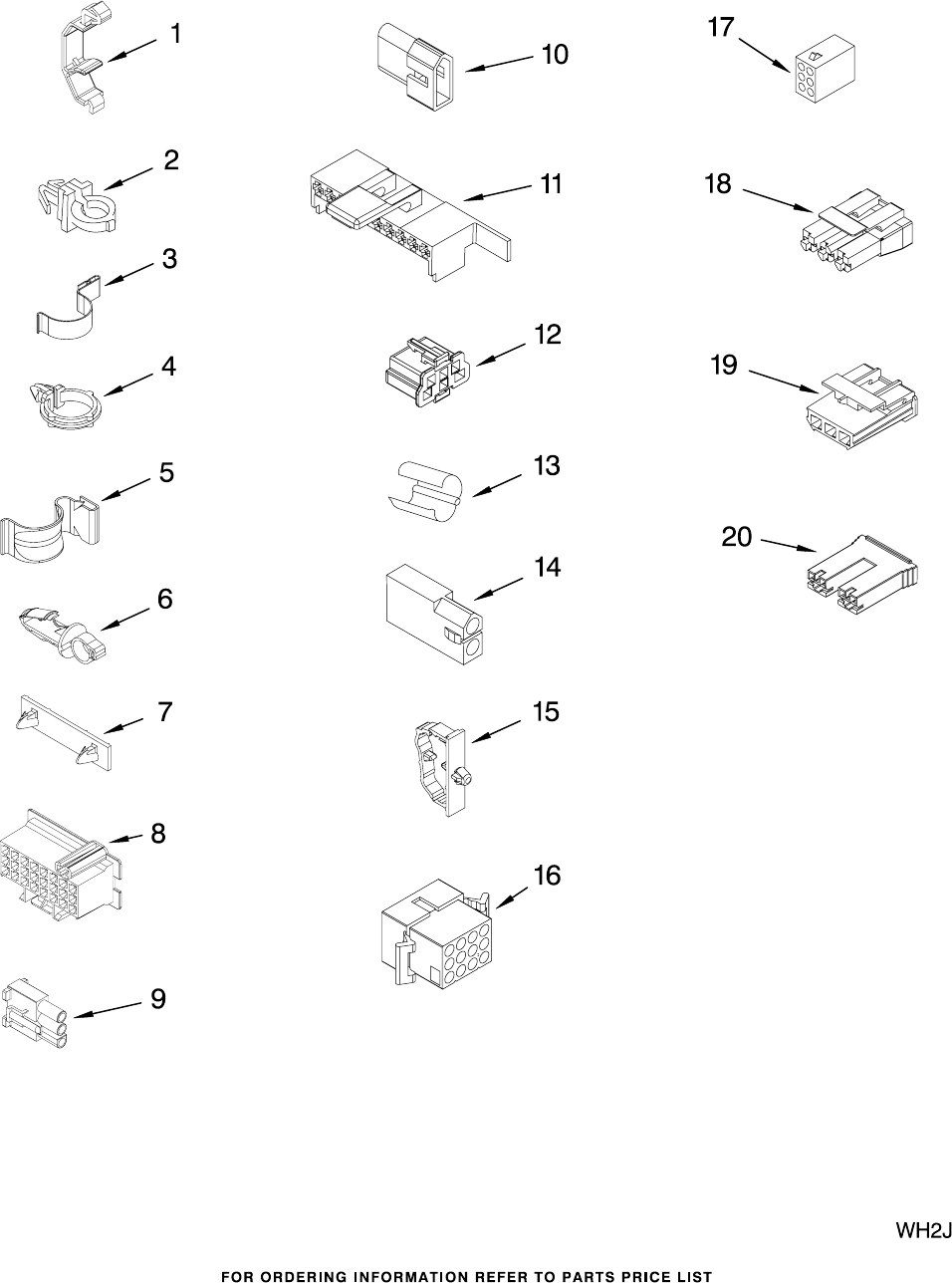

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)

6 3390496 Clip, Harness

7 389379 Retainer, Harness

8 Timer, Block

Disconnect

3948614 Natural

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)

12 3347243 Block, Disconnect

13 63523 Protector

14 717252 Connector

(2−Way)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)

(Pressure Switch)

20 Block, Connector

3354925 Natural

3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

10

For Model: WTW5505SQ1

(White)

W10118744

BD−314A

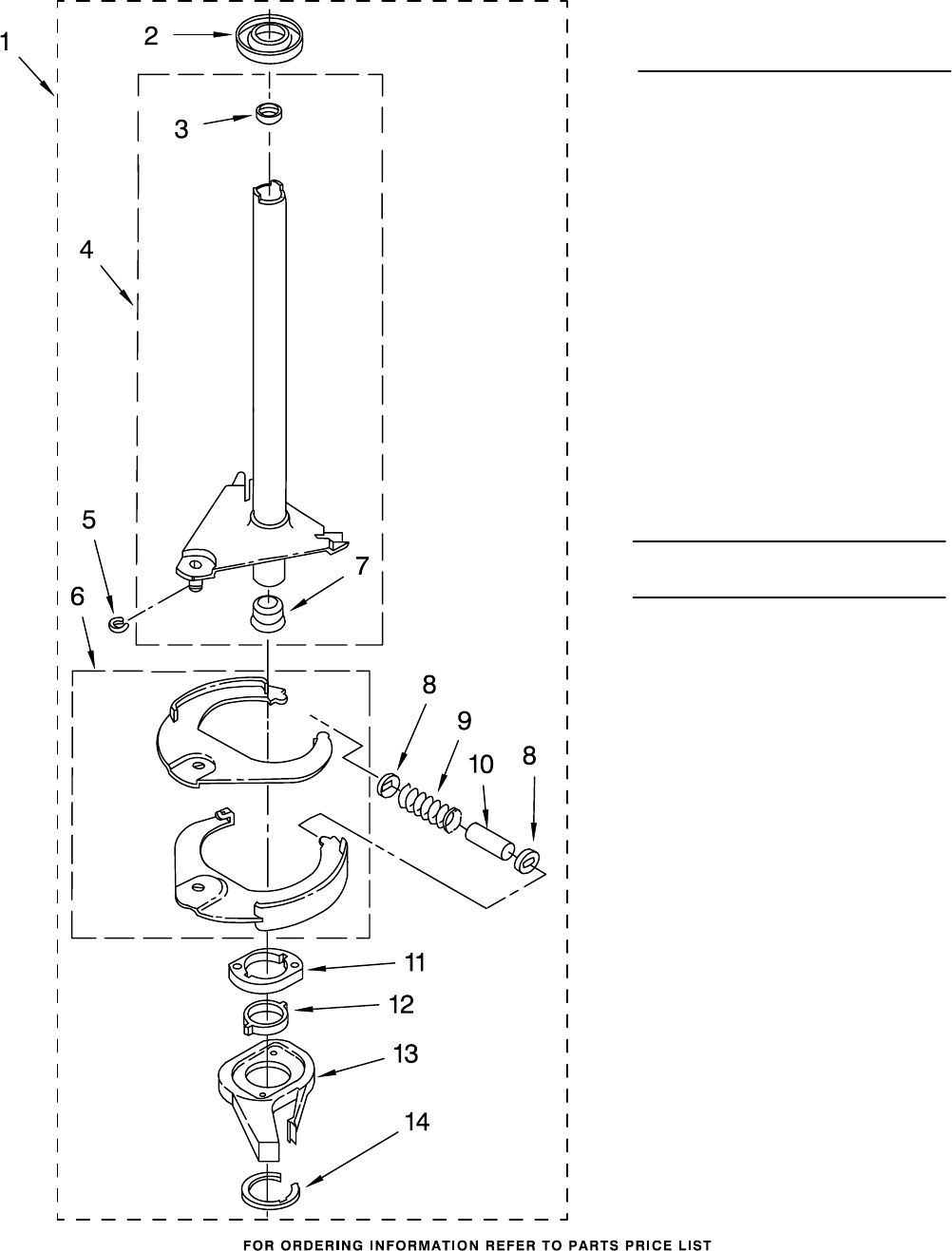

BRAKE AND DRIVE TUBE PARTS

Illus. Part

No. No. DESCRIPTION

1 388951 Brake And Drive

Tube (Complete)

2 62658 Ring, Thrust

3 356427 Seal, Drive Tube

4 64027 Tube, Basket

Drive (Includes

Illus. 3, 4, 5 & 9)

5 64035 Ring, Retaining

6 64232 Shoe, Brake (2)

7 62703 "T" Bearing,

Spin Tube

8 3353956 Cap, Brake

Spring (2)

9 62647 Spring, Brake

10 3355360 Sleeve, Brake

Spring

11 661516 Cam, Brake

Release

12 63022 Sleeve, Cam

13 64194 Driver, Brake

Cam

14 90368 Ring, Retaining

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In

Brake Shoe

Assembly On

Roller & Pin)

11

For Model: WTW5505SQ1

(White)

W10118744

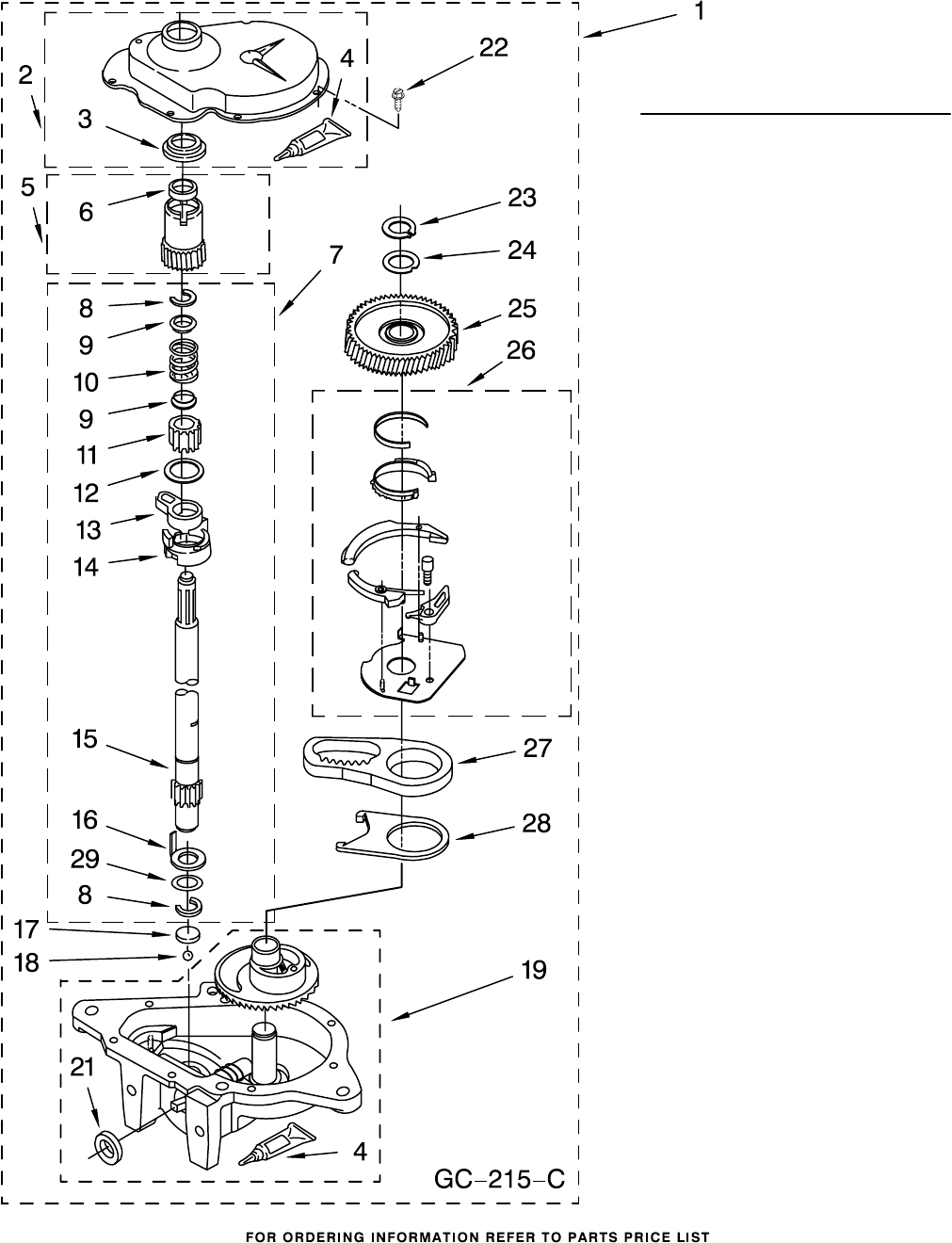

GEARCASE PARTS

Illus. Part

No. No. DESCRIPTION

1 3360630 Gearcase

(Complete)

2 285202 Cover, Gearcase

3 3349985 Seal, Gearcase

Cover

4 285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

5 63320 Pinion, Spin

(Includes Illus. 25)

6 356427 Seal, Spin

Pinion

7 389387 Shaft, Agitator

(Complete)

8 90369 Ring, Retaining (2)

9 62677 Retainer, Spring

10 62676 Spring, Agitate

11 63273 Gear, Agitate

(Includes 15 and 29)

12 62619 Washer, Agitate

Gear

13 62580 Cam Follower

(Includes 14)

14 62581 Cam, Agitate

(Includes 13)

15 285509 Shaft, Agitator

(Includes 11 and 29)

16 62618 Washer, Cam Thrust

17 16018 Bearing, Thrust

18 85529 Ball, Bearing

19 389230 Bottom and Pinion,

Gearcase

21 285352 Seal, Thrust Plug

22 3351614 Screw, Gearcase

Cover, Mounting (8)

(10−24 x 3/8)

23 3362552 Ring, Retaining

24 285735 Washer Kit,

Thrust

25 62570 Gear, Spin

26 388253 Neutral Assembly

27 3349296 Rack, Connecting

28 62621 Actuator, Shift

29 388815 Washer,

Intermediate

12

For Model: WTW5505SQ1

(White)

W10118744

OPTIONAL PARTS (NOT INCLUDED)

13

For Model: WTW5505SQ1

(White)

W10118744

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

ACCESSORY PARTS

367031 Drain Protector

280129 Siphon Break Kit

280130 Drain Hose

Adapter Kit

280131 Drain Hose

Extension Kit
