IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722

Model Series

950-959

960-969

E960-E969

PRINTED IN U.S.A.

OPERATOR’S MANUAL

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting

applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have

similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized

service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722.

FORM NO.

770-10061A.fm

(12/99)

Model 969D Shown

2

TABLE OF CONTENTS

Content Page

Important Safe Operation Practices .................................................................. 3

Slope Gauge ..................................................................................................... 6

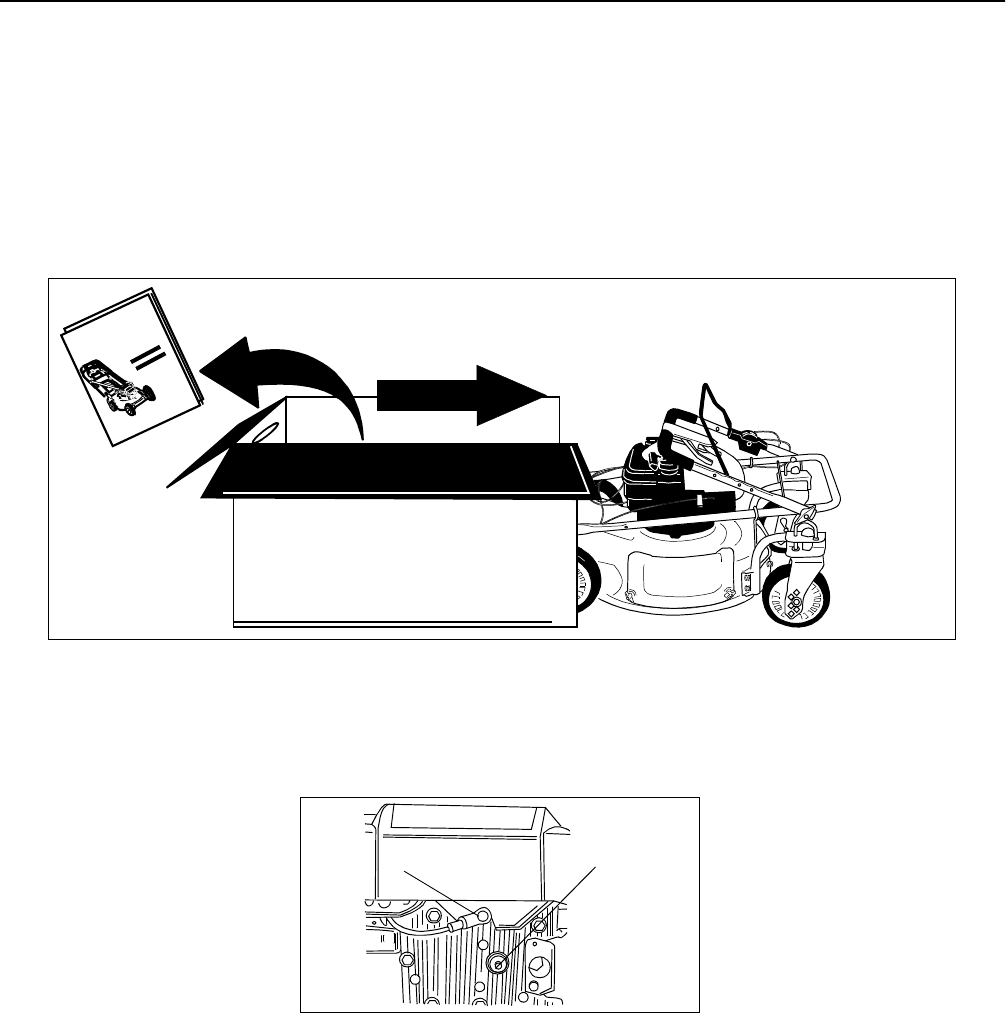

Unpacking Instructions...................................................................................... 7

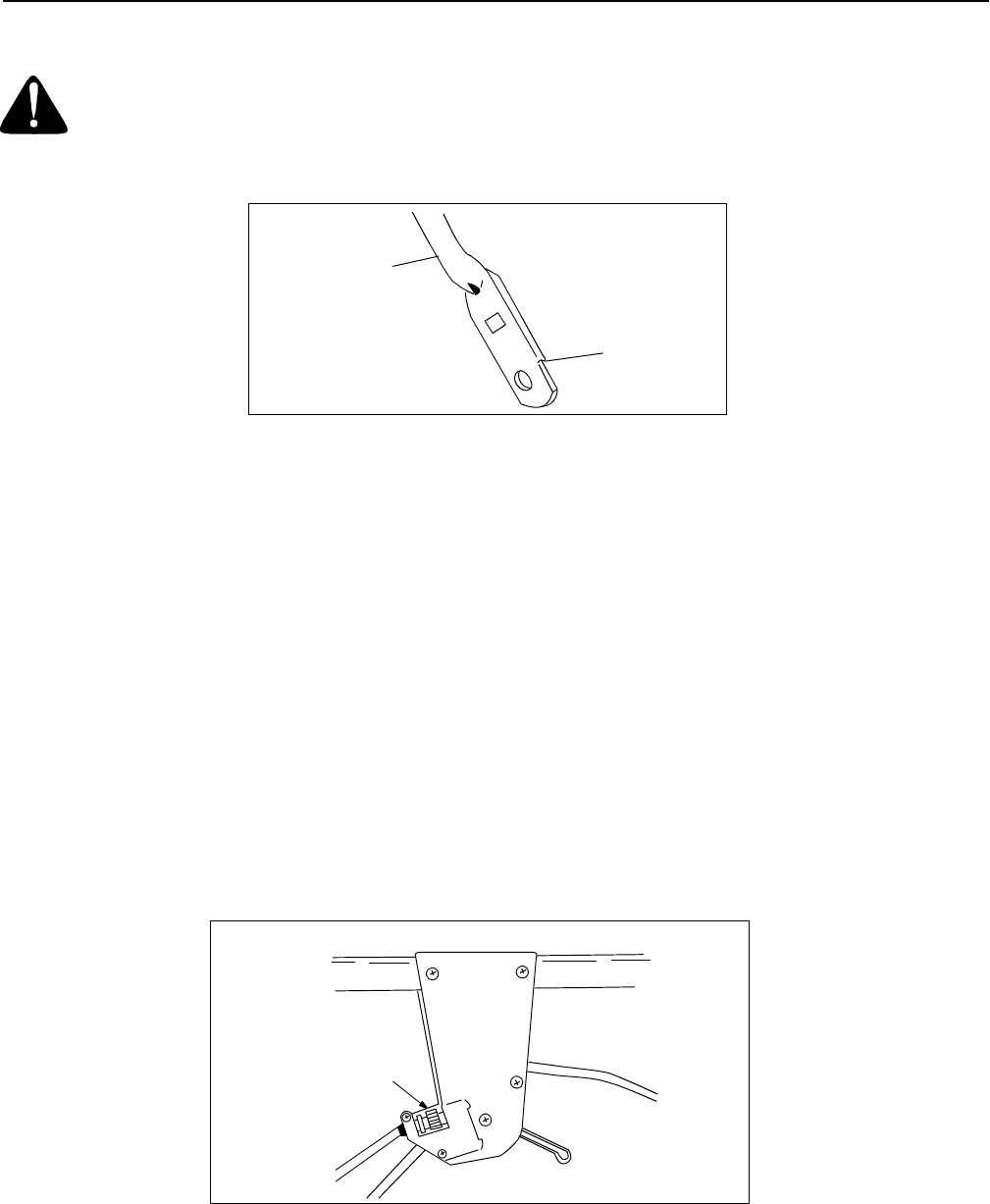

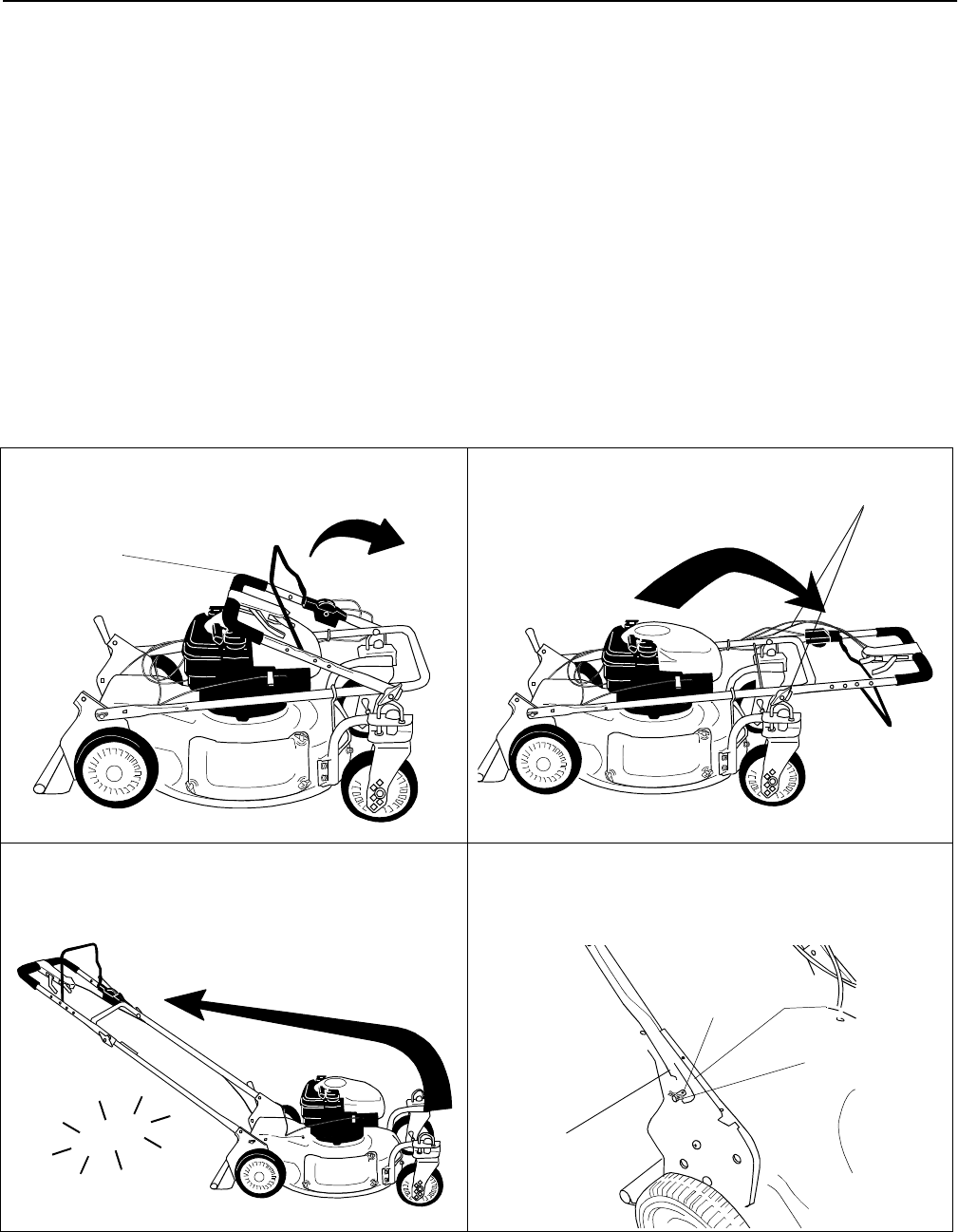

Assembling Your Lawn Mower .......................................................................... 8

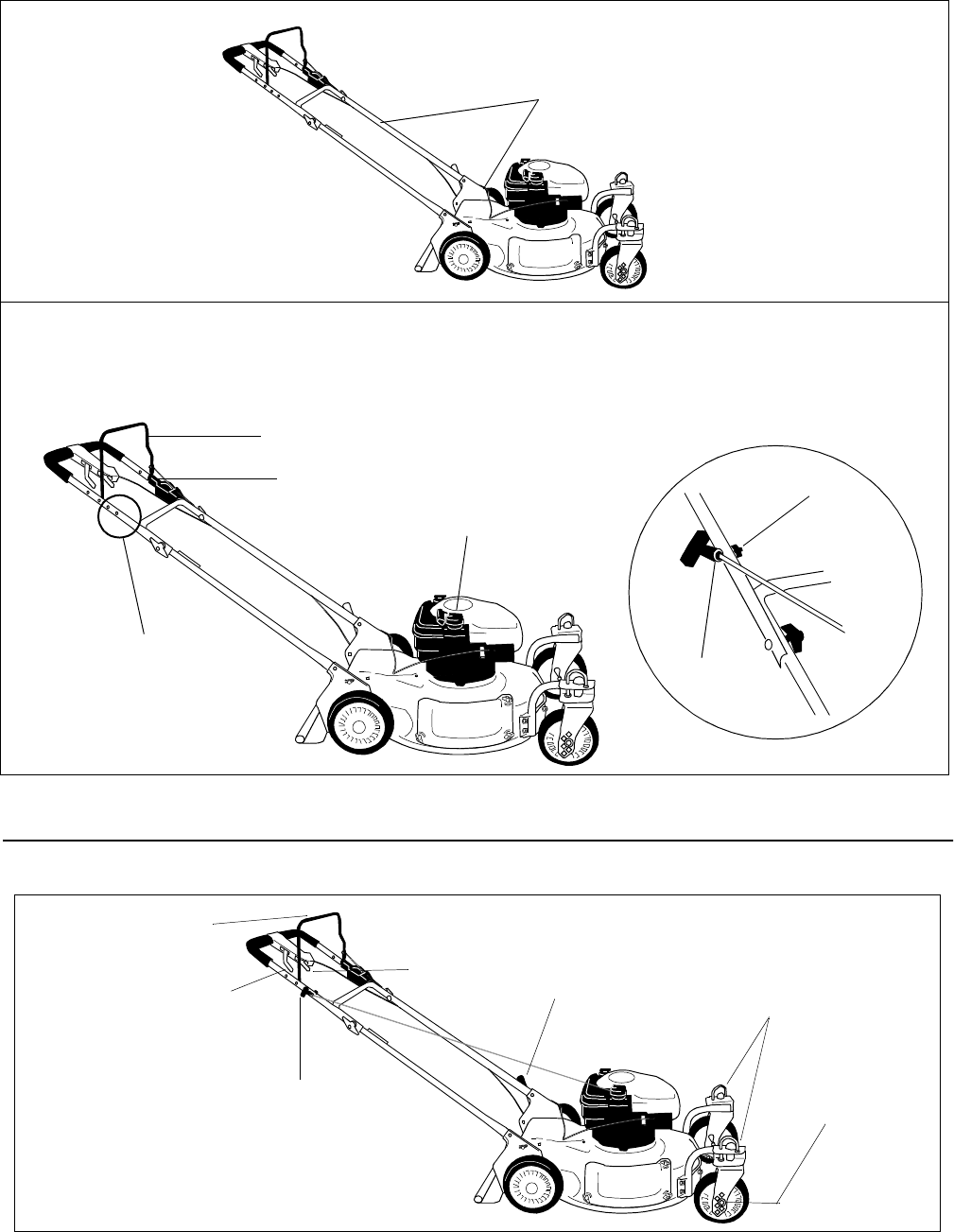

Know Your Lawn Mower.................................................................................... 9

Operating Your Lawn Mower............................................................................. 11

Making Adjustments.......................................................................................... 14

Maintaining Your Lawn Mower .......................................................................... 15

Service .............................................................................................................. 21

Off-Season Storage .......................................................................................... 21

Troubleshooting ................................................................................................ 22

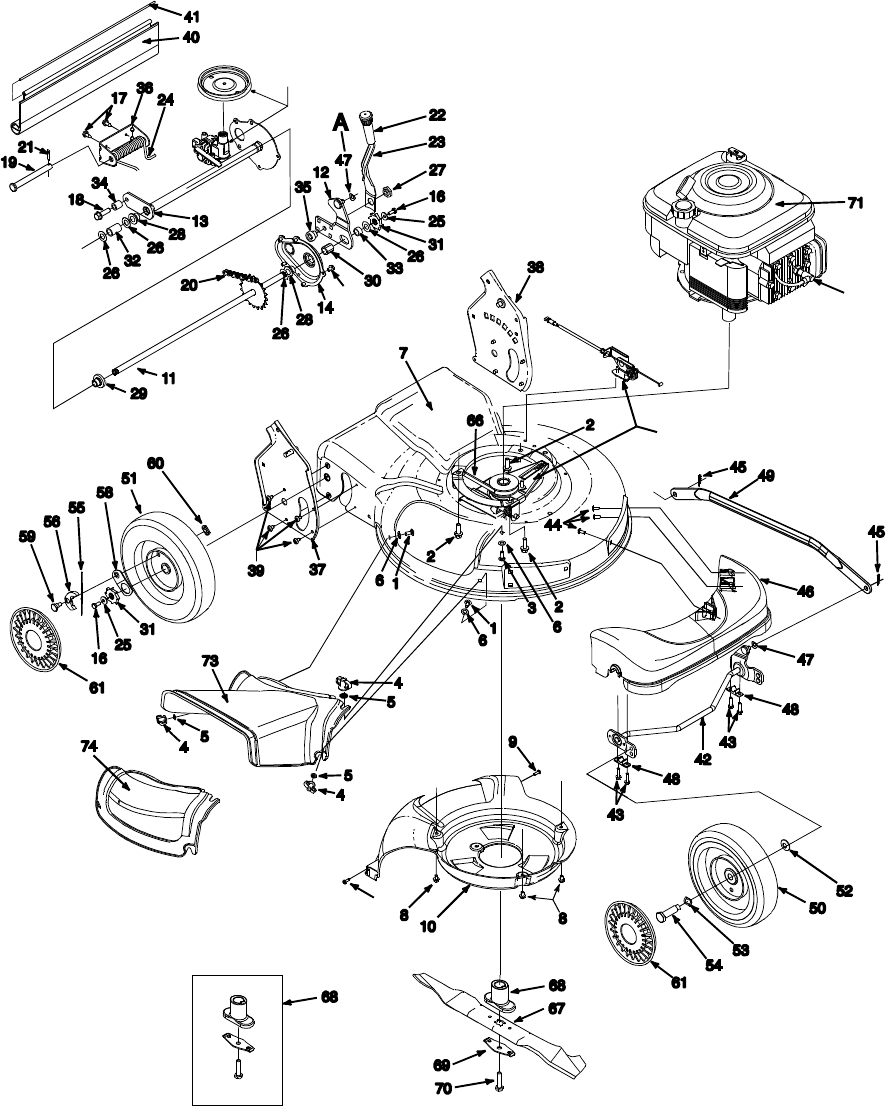

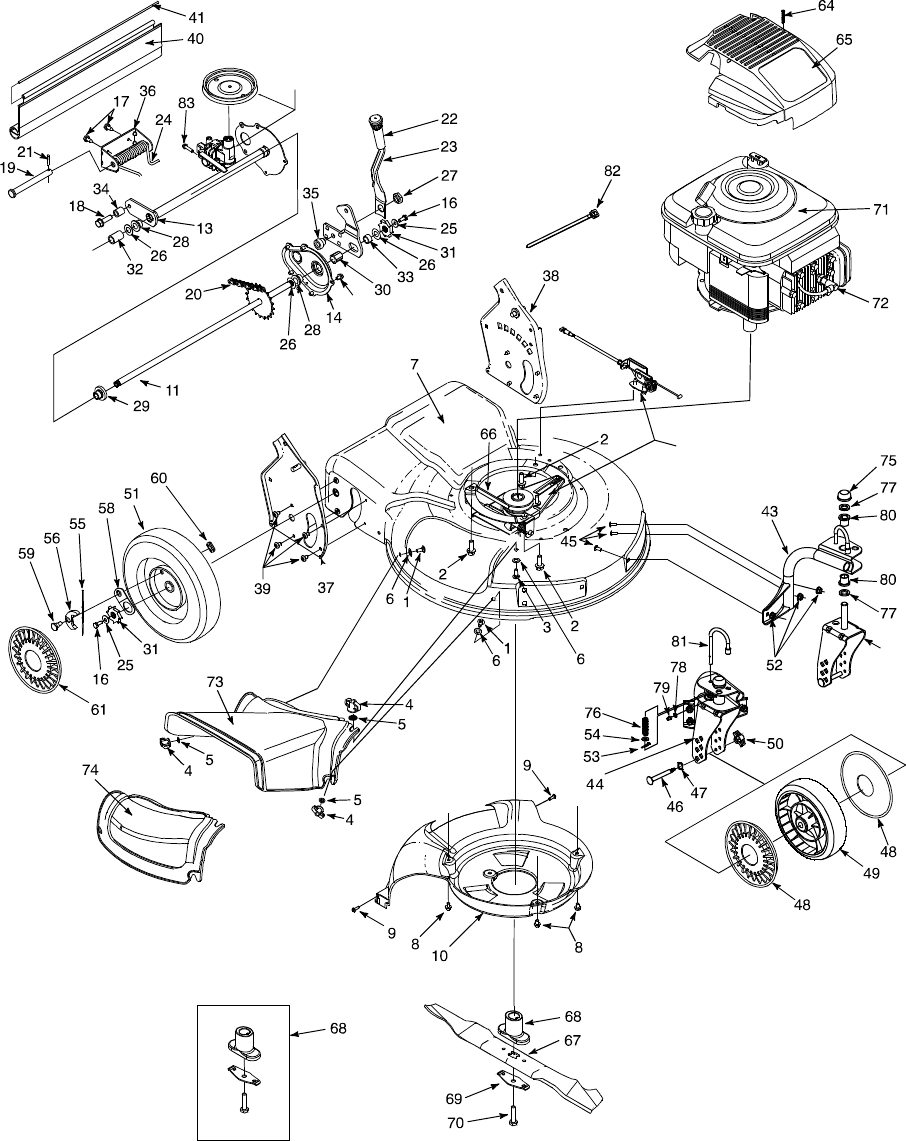

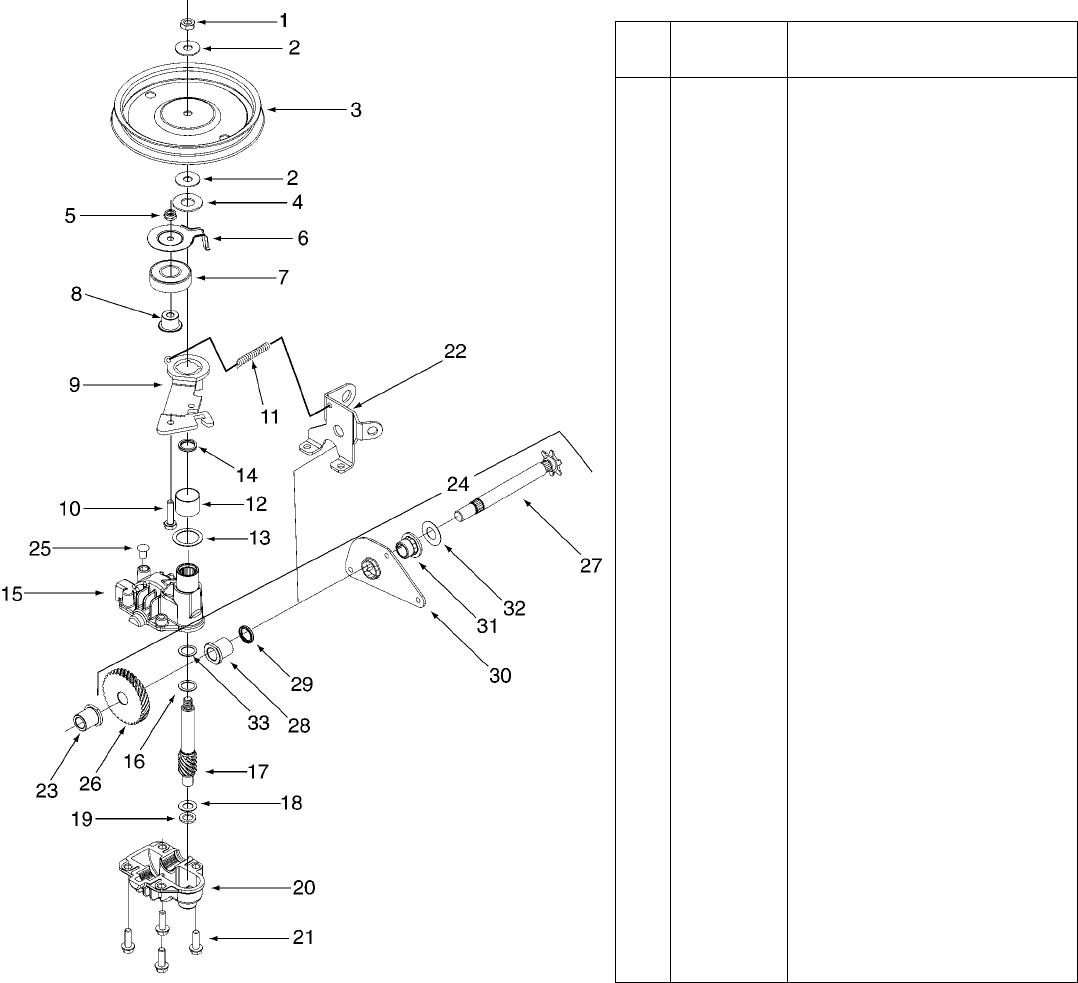

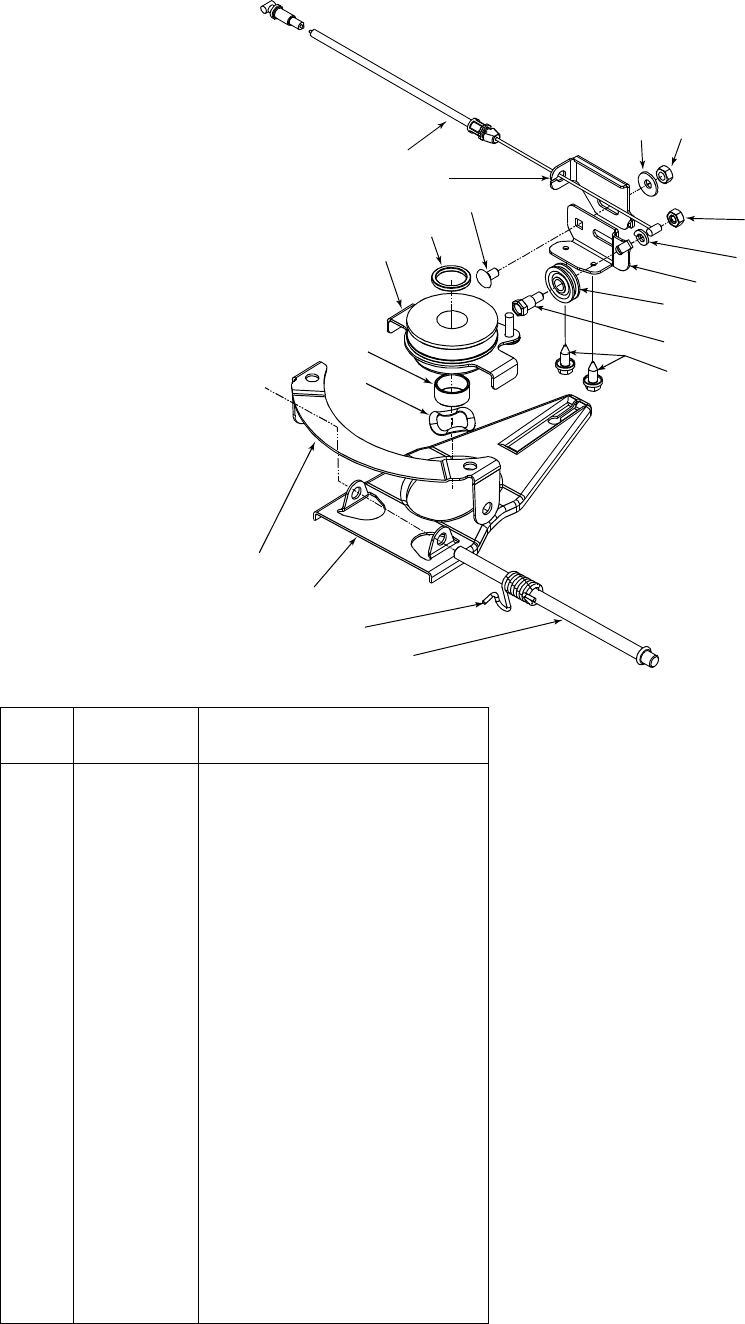

Parts List ........................................................................................................... 23

FINDING MODEL NUMBER

This Operator’s Manual is an important part of your new Lawn Mower. It will help you assemble, prepare and

maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the

equipment and copy the information from it in the space provided below. The information on the

model plate is very important if you need help from our Customer Support Department or an

authorized dealer.

• You can locate the model number by standing behind the unit in the operating position and looking down at

the rear of the deck. A sample model plate is explained below. For future reference, please copy the model

number and the serial number of the equipment in the space below.

CALLING CUSTOMER SUPPORT

If you have difficulty assembling this product or have any questions regarding the controls, operation or

maintenance of this unit, please call the Customer Support Department.

Call 1- (800)-949-4483 to reach a Customer Support representative. Please have your unit’s model

number and serial number ready when you call. See previous section to locate this information. You

will be asked to enter the serial number in order to process your call.

Copy the model number here:

Copy the serial number here:

(Model Number) (Serial Number)

WHITE OUTDOOR

CLEVELAND, OHIO 44136

PRODUCTS COMPANY

P.O. BOX 361131

3

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

Warning: THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH, IF NOT

FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF

AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING

TO OPERATE YOUR LAWN MOWER. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY

RESULT IN PERSONAL INJURY. WHEN YOU SEE THIS SYMBOL, HEED ITS WARNING.

Danger: Your lawn mower was built to be operated according to the rules for safe operation in

this manual. As with any type of power equipment, carelessness or error on the part of the

operator can result in serious injury. This lawn mower is capable of amputating hands and feet

and throwing objects. Failure to observe the following safety instructions could result in serious

injury or death.

GENERAL OPERATION

• Read this owner’s guide carefully in its entirety

before attempting to assemble this machine. Read,

understand, and follow all instructions on the

machine and in the manual(s) before operation. Be

completely familiar with the controls and the proper

use of this machine before operating it. Keep this

manual in a safe place for future and regular

reference and for ordering replacement parts.

• Your rotary mower is a precision piece of power

equipment, not a plaything. Therefore, exercise

extreme caution at all times. Your unit has been

designed to perform one job: to mow grass. Do not

use it for any other purpose.

• Never allow children under 14 years old to operate

a power mower. Children 14 years old and over

should only operate mower under close parental

supervision. Only responsible individuals who are

familiar with these rules of safe operation should be

allowed to use your mower.

• Keep the area of operation clear of all persons,

particularly small children and pets. Stop engine

when they are in the vicinity of your mower to help

prevent blade contact or thrown object injury.

Although the area of operation should be

completely cleared of foreign objects, an object

may have been overlooked and could be

accidentally thrown by the mower in any direction

and cause serious personal injury to the operator or

any others allowed in the area.

• Thoroughly inspect the area where the equipment

is to be used. Remove all stones, sticks, wire,

bones, toys and other foreign objects which could

be picked up and thrown by the mower in any

direction and cause serious personal injury to the

operator or any others allowed in the area. Plan

your mowing pattern to avoid discharge of material

toward roads, sidewalks, bystanders and the like.

To help avoid a thrown objects injury, keep

children, bystanders and helpers at least 75 feet

from the mower while it is in operation.

• Always wear safety glasses or safety goggles

during operation or while performing an adjustment

or repair, to protect eyes from foreign objects that

may be thrown from the machine in any direction.

• Wear sturdy, rough-soled work shoes and close-

fitting slacks and shirts. Shirts and pants that cover

the arms and legs and steel-toed shoes are

recommended. Do not wear loose fitting clothes or

jewelry. They can be caught in moving parts. Never

operate a unit in bare feet, sandals, slippery or light

weight (e.g. canvas) shoes.

• Do not put hands or feet near or under rotating

parts. Keep clear of discharge opening at all times

as the rotating blade can cause injury.

• Many injuries occur as a result of the mower being

pulled over the foot during a fall. Do not hang on to

the mower if you are falling; release the handle

immediately.

• Never pull the mower toward you while you are

walking. If you must back the mower away from a

wall or obstruction first look down and behind, and

then follow these steps:

• Step back from the mower to fully extend your

arms.

• Be sure you are well balanced with sure footing.

• Pull the mower back slowly, no more than half way

toward you.

• Repeat these steps as needed.

• Do not operate the mower while under the influence

of alcohol or drugs.

• Do not engage the self-propelled mechanism on

units so equipped while starting engine.

• The blade control handle is a safety device. Never

attempt to bypass its operation. Doing so makes

the safety device inoperative and may result in

personal injury through contact with the rotating

blade. The blade control handle must operate

easily in both directions and automatically return to

the disengaged position when released.

4

• Never operate the mower in wet grass. Always be

sure of your footing. A slip and fall can cause

serious personal injury. Keep a firm hold on the

handle and walk, never run. If you feel you are

losing your footing, RELEASE THE BLADE

CONTROL HANDLE IMMEDIATELY and the blade

will stop rotating within three seconds.

• Mow only in daylight or good artificial light.

• Stop the blade when crossing gravel drives, walks

or roads.

• If the equipment should start to vibrate abnormally,

stop the engine and check immediately for the

cause. Vibration is generally a warning of trouble.

• Shut the engine off and wait until the blade comes

to a complete stop before removing the grass

catcher or unclogging the chute. The cutting blade

continues to rotate for a few seconds after the

engine is shut off. Never place any part of the body

in the blade area until you are sure the blade has

stopped rotating.

• Never operate mower without proper guards, grass

catcher, plates or other safety protective devices in

place.

• Muffler and engine become hot and can cause a

burn. Do not touch.

• Only use accessories approved for this machine by

the manufacturer. Read, understand, and follow all

instructions provided with the approved accessory.

• If situations occur which are not covered in this

manual, use care and good judgment. Contact your

dealer for assistance.

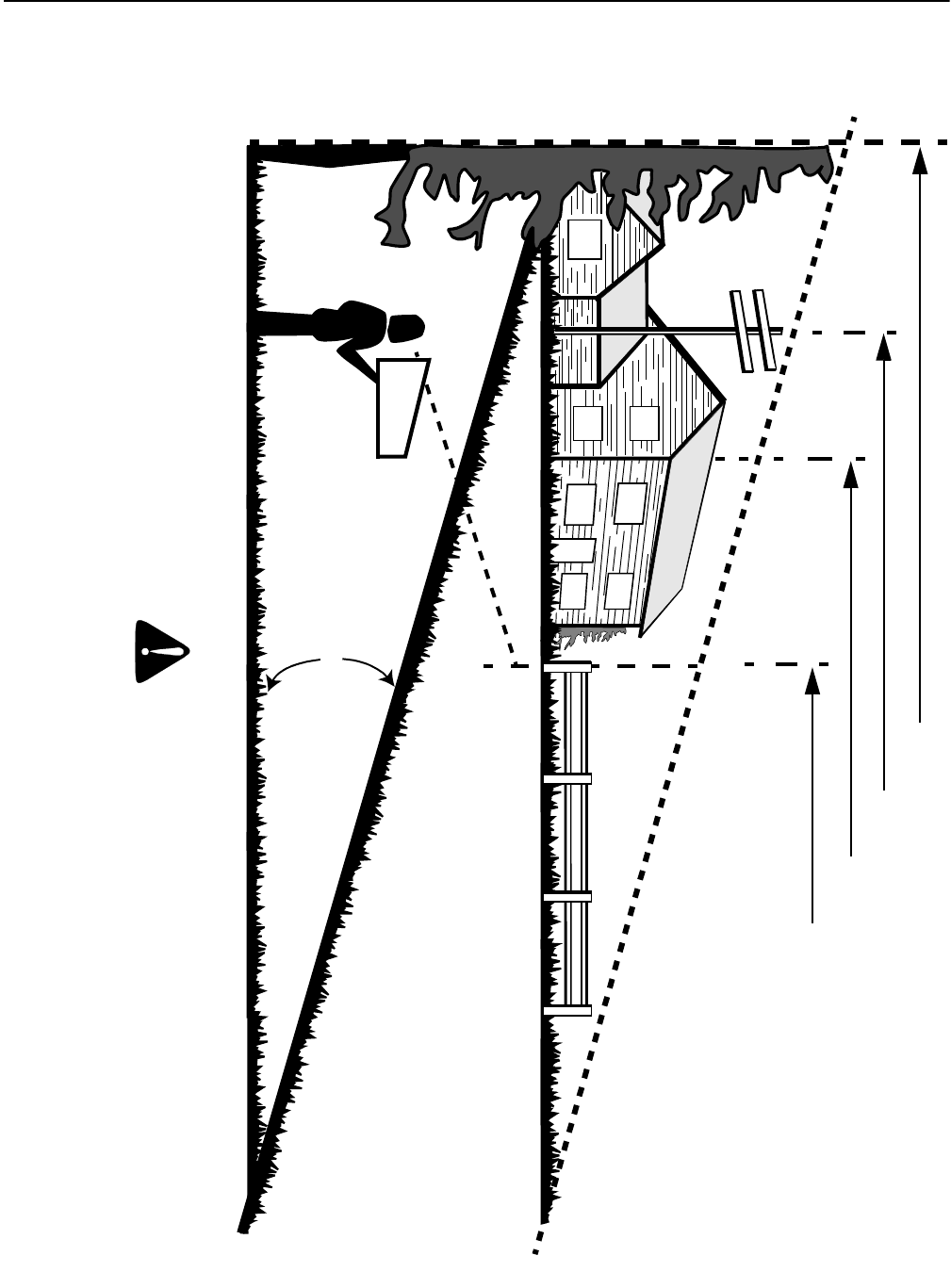

SLOPE OPERATION

For your safety, use the slope gauge included as part of

this manual to measure slopes before operating this

unit on a sloped or hilly area. If the slope is greater than

15 degrees as shown on the slope gauge, do not

operate this unit on that area or serious injury could

result.

DO:

• Mow across the face of slopes; never up and down.

Exercise extreme caution when changing direction

on slopes.

• Watch for holes, ruts, hidden objects, or bumps.

Tall grass can hide obstacles.

• Always be sure of your footing. A slip and fall can

cause serious personal injury. If you feel you are

losing your balance release the blade control

handle immediately and the blade will stop in less

than 3 seconds.

• ON MODELS WITH CASTER WHEELS: Lock both

front wheels so they do not pivot while mowing on

the face of slopes. To turn the mower, depress the

handle and raise the front wheels slightly.

•DO NOT:

• Do not mow near drop-offs, ditches or

embankments. The operator could lose footing or

balance.

• Do not mow slopes greater than 15 degrees as

shown on the slope gauge.

• Do not mow on wet grass. Reduced footing could

cause slipping.

• ON MOWERS WITH CASTER WHEELS: Mow on

slopes with casters unlocked since the mower has

a tendency to drift down hill.

• CHILDREN

• Tragic accidents can occur if the operator is not

alert to the presence of children. Children are often

attracted to the mower and the mowing activity.

Never assume that children will remain where you

last saw them.

• Keep children out of the mowing area and under the

watchful care of a responsible adult other than the

operator.

• Be alert and turn mower off if a child enters the

area.

• Before and while moving backwards, look behind

and down for small children or other objects.

• Never allow children under age 14 to operate the

mower. Children 14 years of age and above should

read and understand the operation instructions and

safety rules in this manual.

• Use extreme care when approaching blind corners,

shrubs, trees, or other objects that may obscure

your vision of a child or hazard.

SERVICE

• Use extreme care in handling gasoline and other

fuels. They are extremely flammable and the

vapors are explosive.

• Use only an approved gasoline container.

• Never remove gas cap or add fuel while the engine

is running. Allow engine to cool at least two minutes

before refueling.

• Replace gasoline cap securely and wipe off any

spilled gasoline before starting the engine as it may

cause a fire or explosion.

• Extinguish all cigarettes, cigars, pipes and other

sources of ignition.

• Never refuel machine indoors because flammable

vapors will accumulate in the area.

• Never store the machine or fuel container inside

where there is an open flame or spark such as a

gas water heater, space heater, or furnace.

• Never run an engine inside a closed area.

• To reduce fire hazard, keep mower free of grass,

leaves, or other debris build-up. Clean up oil or fuel

spillage. Allow mower to cool at least 5 minutes

before storing.

5

• Before cleaning, repairing, or inspecting, make

certain the blade and all moving parts have

stopped. Disconnect the spark plug wire, and keep

the wire away from the spark plug to prevent

accidental starting.

• We do not recommend the use of pressure

washers or garden hose to clean your unit. They

may cause damage to electric components,

spindles, pulleys, bearings or the engine. The use

of water will result in shortened life and reduce

serviceability.

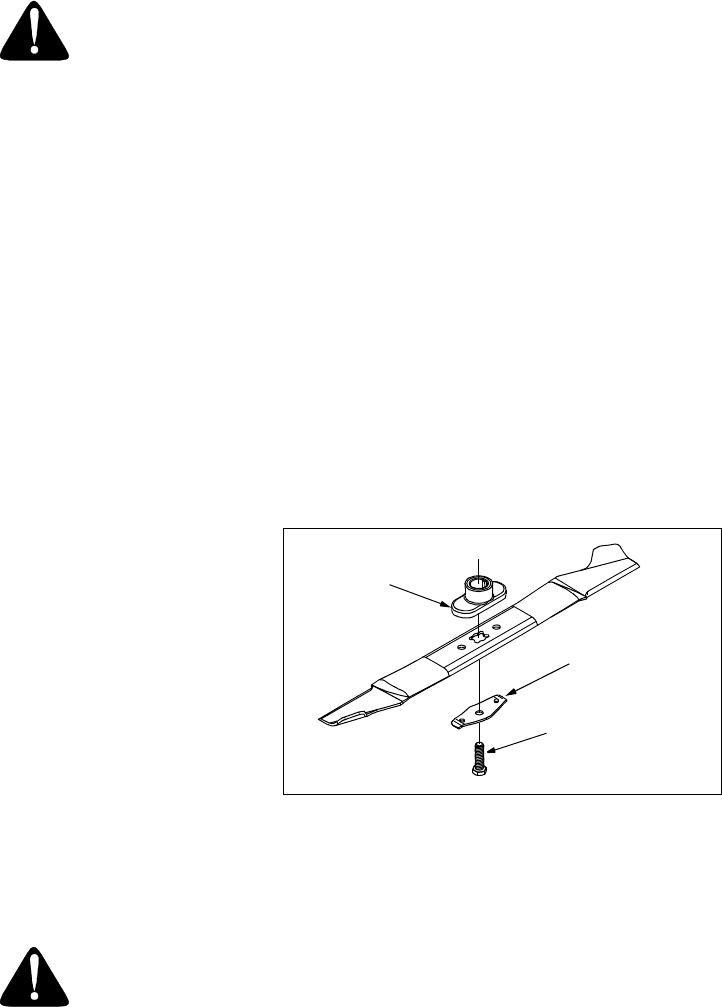

• Check the blade and engine mounting bolts at

frequent intervals for proper tightness. Also,

visually inspect blade for damage (e.g., bent,

cracked or worn). Replace with blade which meets

original equipment specifications listed in this

manual.

• Keep all nuts, bolts, and screws tight to be sure the

equipment is in safe working condition.

• Never tamper with safety devices. Check their

proper operation regularly.

• After striking a foreign object, stop the engine,

remove the wire from the spark plug, and

thoroughly inspect the mower for any damage.

Repair the damage before starting and operating

the mower.

• Never attempt to make a wheel or cutting height

adjustment while the engine is running.

• Grass catcher components are subject to wear,

damage and deterioration, which could expose

moving parts or allow objects to be thrown. For

safety protection, frequently check components

and replace with manufacturer’s recommended

parts, when necessary.

• Mower blades are sharp and can cut. Wrap the

blade(s) or wear gloves, and use extra caution

when servicing them.

• Do not change the engine governor setting or

Warning — Your Responsibility: Restrict the use of this power machine to persons

who read, understand and follow the warnings and instructions in this manual and on the machine.

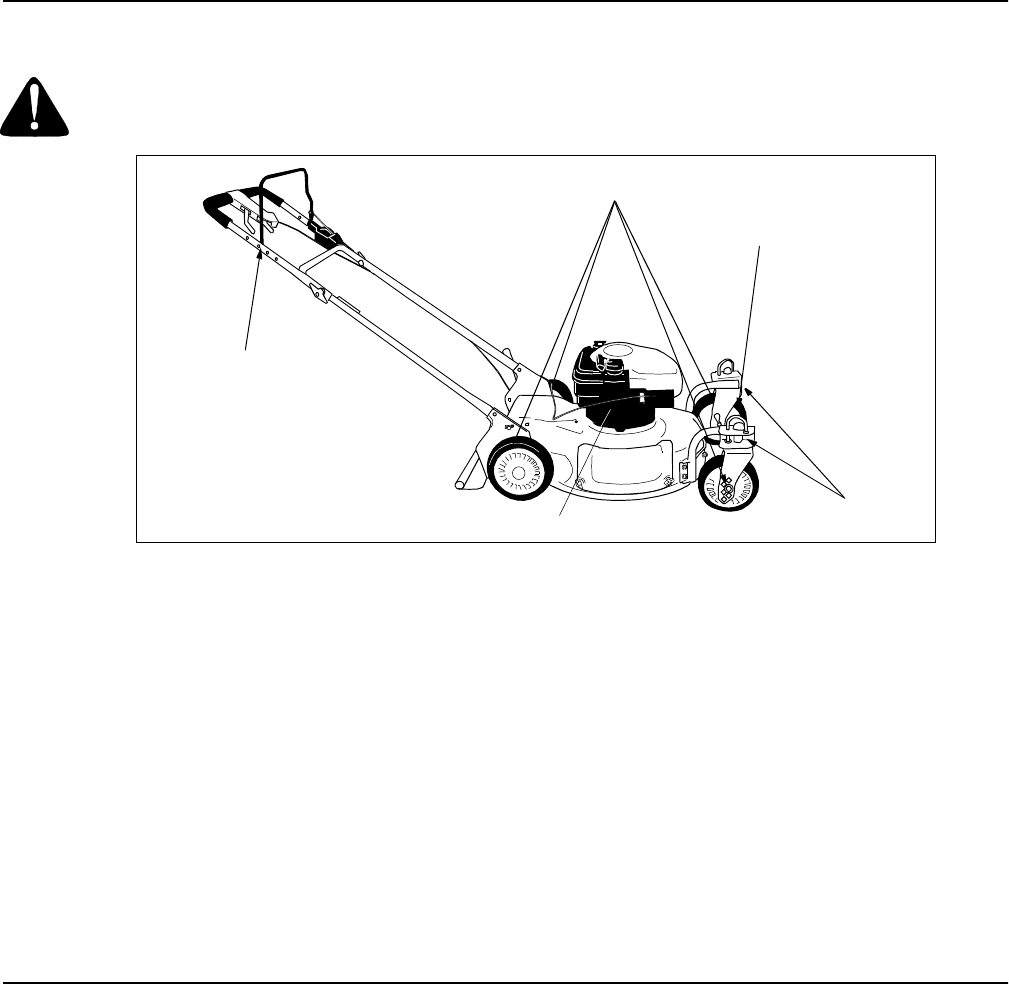

Three of the safety labels on your mower have been shown below in Figure 1. Please follow the

instruction on these labels and maintain safety.

Figure 2

W

A

R

N

I

N

G

T

O

A

V

O

I

D

T

H

E

R

I

S

K

O

F

I

N

J

U

R

Y

,

N

E

V

E

R

O

P

E

R

A

T

E

M

O

W

E

R

U

N

L

E

S

S

S

I

D

E

C

H

U

T

E

D

E

F

L

E

C

T

O

R

,

M

U

L

C

H

P

L

U

G

O

R

E

N

T

I

R

E

G

R

A

S

S

C

A

T

C

H

E

R

I

S

I

N

I

T

S

P

R

O

P

E

R

P

L

A

C

E

.

5270

6

SECTION 2: SLOPE GAUGE

15°

SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE

A POWER POLE

A CORNER OF A BUILDING

OR A FENCE POST

FOLD ON DOTTED LINE, REPRESENTING A 15° SLOPE

USE THIS PAGE AS A GUIDE TO DETERMINE SLOPES WHERE YOU MAY NOT OPERATE SAFELY.

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower

could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain

your footing and you could slip, resulting in serious injury.

Operate RIDING mowers up and down slopes, never across the face of slopes.

Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.

WARNING

7

SECTION 3: UNPACKING INSTRUCTIONS

Remove Unit From Carton

•See Figure 3.

•Remove staples, break glue on top flaps, or cut tape at carton end and peel along top flap to open carton.

•Remove loose parts if included with unit (i.e., operator’s manual, etc.).

•Cut corner’s and lay carton down flat.

•Remove packing material.

•Roll or slide unit out of carton. Check carton thoroughly for loose parts.

Figure 3

Disconnect Spark Plug Wire

Before setting up your lawn mower, disconnect the spark plug wire from the spark plug, and ground it against the

engine by attaching rubber boot to a bolt or metal clip to the grounding post on the engine. See Figure 4.

Figure 4

PUSH

REMOVE MANUAL & LOOSE PARTS

Operator’s Manual

Spark Plug Wire Spark Plug

8

SECTION 4: ASSEMBLING YOUR LAWN MOWER

This guide covers two model series. Models 950 thru 959 have fixed front wheels; models 960 thru 969 have caster

front wheels. All models are six speed, self propelled mowers. Much of this owner’s manual pertains to both models.

However, there are some model-specific information too. Use only the information appropriate for your mower

model.

Items Required For Assembly

•Pair of Pliers (Not necessary, but helpful)

•Motor Oil

•Fresh Gasoline

IMPORTANT:

This unit is shipped WITHOUT GASOLINE in the fuel tank or OIL in the engine. Be certain to service

engine with gasoline and oil as instructed in the separate engine manual before operating your mower.

NOTE: Reference to right or left hand side of the mower is observed from the operating position.

Setting Up Your Lawn Mower

Follow steps 1 through 10 to set up your lawn mower.

Step 1. Lift upper handle. Align it with lower

handle. Step 2. Tighten wing nuts.

Step 3. Raise complete handle assembly until it

clicks into place. Make sure not to kink

the control cables.

Step 4. Pinch lower handle against mounting

bracket with pliers.

Step 5. Move hairpin clip from outer to inner hole on

handle mounting bracket.

Upper Handle

Here

CLICK

Pinch Here

Hairpin Clip

Inner Hole

9

•Your mower has been shipped in the lowest cutting position for shipping purposes. Please see the “cutting

height adjustment lever” section on page 10 of this owner’s guide to adjust cutting height.

SECTION 5: KNOW YOUR LAWN MOWER

Figure 5

Step 6. Tighten the cable ties and insert pegs on ties in lower handle holes. Cut off excess.

Step 7. Loosen the wing nut holding the rope guide to the upper handle.

Step 8. Squeeze the blade control handle against the upper handle and pull out starter rope slowly.

Step 9. Thread starter rope into rope guide.

Step 10. Tighten wing nut.

Here

Rope Guide

Wing Nut

Look here

Starter Rope

Blade Control Handle

Upper Handle

for rope

guide placement

Blade Control Handle

Drive Clutch Control

*Model 959 - adjusts all 4 wheels

Model 969 - adjusts rear wheels only

Front Wheel

Height Adjuster

(969 only)

Recoil Starter

Cutting Height

Shift Lever

Adjustment Lever* Front Wheel

Caster Locks

(969 only)

10

Blade Control Handle

The blade control handle is located on the upper handle of the mower. See Figure 5 . The blade control handle must

be depressed in order to start and operate the unit. Release the blade control handle to stop the engine and the

blade.

WARNING: The blade control handle is a safety device. Never attempt to bypass its operations. The

blade will be rotating whenever the engine is running.

Throttle Control

The throttle control is located on the engine. It is used to regulate the engine speed.

WARNING: The throttle control cannot be used to stop the engine. Do not adjust the throttle

control with the engine running.

Ignition Switch (Electric Start Unit Only)

The ignition switch is located on the left side of the handle panel. It is used for starting only. See Figure 6.

Figure 6, Electric Start Unit Only

Recoil Starter

The recoil starter handle is attached to the upper handle. See Figure 5. Stand behind the unit in the operating

position to start the unit.

Drive Clutch Control

Squeeze the drive clutch control to engage the drive system; release to disengage. Release the clutch control to

slow down when negotiating an obstacle, making a turn or stopping.

Shift Lever

The shift lever is located on the drive clutch control housing on the upper handle. See Figure 5. This lever is used to

select the forward speed of the mower. When changing mower speed, release the drive clutch control.

NOTE: Move the shift lever only when the engine is running. Changing the shift lever setting with the engine off can

cause damage to the mower.

Cutting Height Adjustment Lever (Model 950 Thru 959)

The cutting height adjustment lever is located above the left rear wheel. To adjust the cutting height, pull the lever

out and away from the mower. Then move it forward or back to the desired cutting height. See Figure 5.

Ignition switch

11

Cutting Height Adjustment Lever (Model 960 Thru 969)

The rear wheel cutting height adjustment lever is located above the left rear wheel. To adjust the cutting height, pull

the lever out and away from the mower. Move it forward or backward to the desired cutting height. See Figure 5.

The front wheel cutting height is determined by the selection of one of six positions in each caster assembly.To

adjust, remove the wing nut from the axle bolt. Slide the axle bolt and spring washer from the assembly and select a

cutting height. With the spring washer placed on the axle bolt, reinsert the axle bolt in the square hole desired,

through the wheel assembly, and secure with the wing nut previously removed. Remember that higher the position,

lower the cut.

IMPORTANT:

All wheels must be placed in the same relative position. For rough or uneven lawns, raise the cutting

height of your mower. This will help stop scalping.

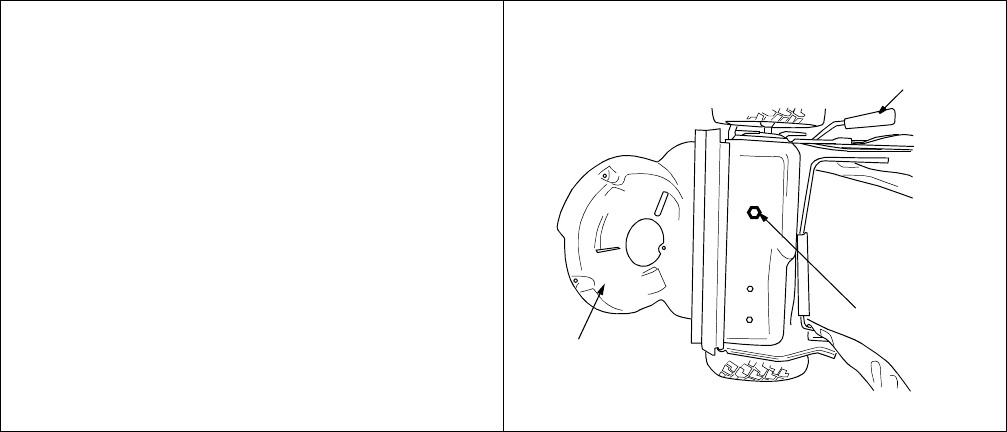

Caster Lock (Models 960 Thru 969)

Warning: When operating mower on hills, front wheels should be locked in the straight ahead position.

The casters can be locked in a straight ahead position or can be left to swivel freely. Lift and place the lock pins in

the larger holes for locked, straight ahead operation, place pins in smaller holes to allow casters to rotate freely.

Engine Controls

See the engine manual for the location and function of the controls located on the engine.

SECTION 6: OPERATING YOUR LAWN MOWER

Warning: Keep hands and feet away from the chute area on the cutting deck. See Section 4. The

operation of any lawn mower can result in foreign objects being thrown into the eyes, which can result in

severe eye damage. Always wear safety glasses or eye shields.

NOTE: For best results raise the cutting position until it is determined which height is best for your lawn. See

CUTTING HEIGHT ADJUSTMENT LEVER in the CONTROLS section.

Gas And Oil Fill Up

Service the engine with gasoline and oil as instructed in the separate engine manual. Read all instructions carefully.

Warning: Never fill fuel tank indoors, with engine running or until the engine has been allowed to

cool for at least two minutes after running.

Each Time Before You Start Your Mower

Electric Start Units Only:

Warning: The battery contains corrosive fluid and toxic material—HANDLE WITH CARE. Keep

away from children. Do not puncture, disassemble, mutilate or incinerate the battery. Explosive gases

could be vented during charging or discharging. Use in a well ventilated area, away from sources of

ignition.

Charging Instructions

Charge battery for 16 hours before initial use. Do not charge longer than 20 hours.

IMPORTANT:

Use only the battery charger supplied with this mower.

12

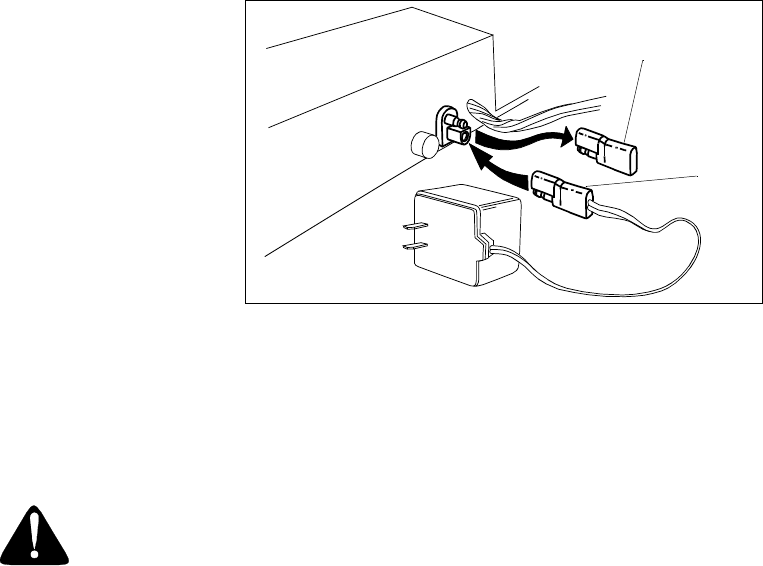

Figure 7

To charge the battery, remove the protective cap from the end of the battery pack lead. Plug charger lead into

battery pack lead and then insert battery charger plug into 120 volt standard household outlet. See Figure 7. Follow

this order of action every time you charge the battery.

After charging, disconnect battery charger plug from household outlet first, then disconnect charger lead from

battery pack lead.

Warning: Do not remove the battery pack from the handle panel for any reason other than

replacement. When replacing the battery pack, refer to the instructions in the maintenance section.

All Units:

•Attach spark plug wire to spark plug. Make certain the metal cap on the end of the spark plug wire is fastened

securely over the metal tip on the spark plug.

•Check for proper drive clutch operation using the NEUTRAL ADJUSTMENT TEST.

Neutral Adjustment Test

To perform the NEUTRAL ADJUSTMENT TEST answer the following questions.

•With the drive clutch control released, push mower forward and pull it backward. Does it move freely?

•Squeeze the drive clutch control and pull the mower backward. Do the rear wheels lock (not turn)?

•Is the drive clutch control cable free of kinks or sharp bends?

If you answered “yes” to all three questions, your mower passed the test and you can start your mower. If you

answered “no” to any of the three questions, you need to adjust the drive clutch control following instructions on 14

of this book.

To Start Engine And Engage Blade

•Move the throttle control lever on the engine to the fast (rabbit) position.

•Prime or choke engine as instructed in the engine manual.

•Stand behind the unit, squeeze and hold the blade control handle against the upper handle.

•Electric Start: Turn the ignition key to the right to start the engine. Release the key after the engine starts.

•Recoil Start: Grasp starter handle and pull rope out slowly until engine reaches start of compression cycle

(rope will pull slightly harder at this point). Let the rope rewind slowly. Pull rope with a rapid, continuous, full arm

stroke. Keep a firm grip on starter handle. Return it slowly to the rope guide.

•After engine starts, move throttle control to desired engine speed. (The mower is designed to be operated at full

throttle.)

NOTE: If any problems are encountered, refer to the TROUBLE SHOOTING Section of this manual.

Protective cap

Battery

pack

lead

13

To Stop Engine And Blade

•Release the blade control handle to stop the engine and the blade.

WARNING: The blade continues to rotate for a few seconds after the engine is shut off.

Using Your Rotary Mower

Be sure that the lawn is clear of stones, sticks, wire, or other objects which could damage the lawn mower or engine.

Such objects could be accidently thrown by the mower in any direction and cause serious personal injury to the

operator and others.

For best results, do not cut wet grass because it tends to stick to the underside of the mower, preventing proper

discharge of grass clippings, and could cause you to slip and fall. New grass, thick grass or wet grass may require a

narrower cut.

For a healthier lawn, never cut off more than one-third of the total length of the grass. Your lawn should be cut in the

fall season as long as there is growth.

This mower is designed to be operated at full throttle to give you the best cut and do the most effective job of mowing

or mulching.

Warning: If you strike a foreign object, stop the engine. Remove wire from the spark plug,

thoroughly inspect the mower for any damage, and repair the damage before restarting the mower.

Extensive vibration of the mower during operation is an indication of damage. The unit should be

promptly inspected and repaired.

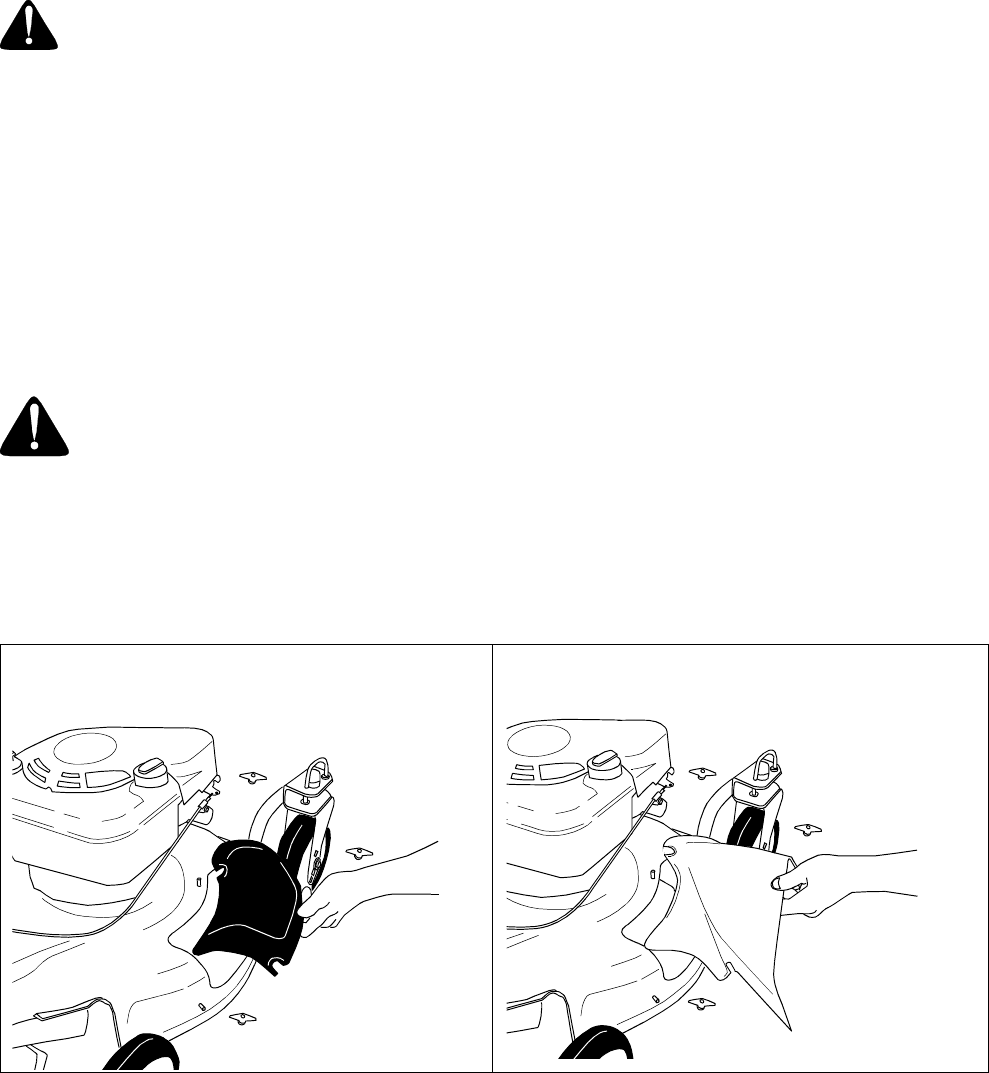

Side Discharge Grass Clippings

This mower can side discharge grass clippings. Follow steps 1 and 2 to ready this mower for side discharge

operation.

Step 1. Remove three plastic wing nuts and

mulching cover. Step 2. Replace with side discharge chute and

three plastic wing nuts.

14

SECTION 7: MAKING ADJUSTMENTS

Warning: Do not at any time make any adjustment to lawn mower without first stopping engine and

disconnecting spark plug wire.

Handle Height Adjustment

Figure 8

Your mower is shipped with the handle in the higher height position. To lower the handle height, proceed as follows.

•Remove the starter rope from the rope guide.

•Remove the upper handle by removing the hand knobs and carriage bolts. Lay the upper handle out of the way

being careful not to bend or kink the cables.

•Remove the hairpin clips from the weld pins on the handle brackets. Press out on the legs of the lower handle.

Remove the lower handle from the mower.

•Turn the lower handle around so that the notch on the bottom of the lower handle is facing forward as shown in

Figure 8. Reassemble placing the bottom holes in the handle over the weld pins in the handle mounting bracket.

•Reassemble the upper handle to the lower handle.

•Place the hairpin clips in the inner holes in the weld pins and attach the starter rope as instructed in the Set-Up

Instructions.

Drive Clutch Control Adjustment

The drive clutch control adjustment wheel is located in the drive clutch control handle housing and is used to tighten

or loosen the drive belt. You will have to adjust the drive clutch control if any of the following happens:

•The mower does not propel itself with the drive clutch engaged.

•The mower’s drive wheels hesitate with the drive clutch engaged.

To resolve the above problems, rotate the adjustment wheel with your fingers—clockwise to tighten the cable and

counter-clockwise to loosen the cable. See Figure 9.

Figure 9

NOTE: For some operators, the drive clutch handle may not be in a comfortable position. You can adjust the handle

by tightening or loosening the adjustment wheel.

Notch

Lower Handle

Bottom View

Adjustment wheel

15

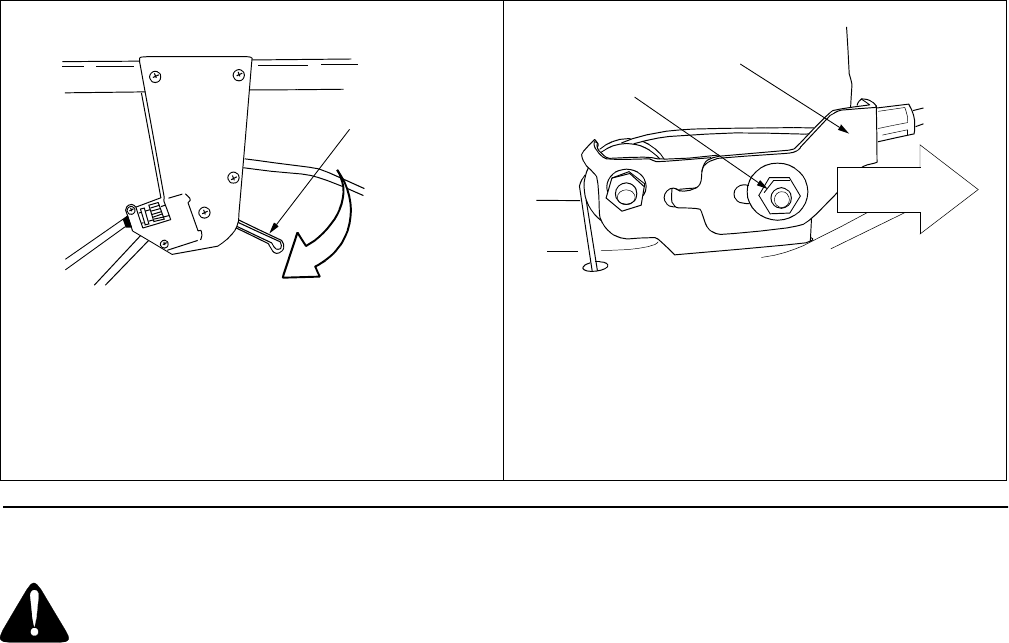

Shift Lever Cable Adjustment

Periodic adjustment of the six-speed shift cable may be required due to normal wear on the cable. Adjustment is

needed if all six speeds do not work.

The adjustable cable bracket is located beside the engine on the left side of the mower. Follow steps 1 through 7 to

adjust the shift lever

.

SECTION 8: MAINTAINING YOUR LAWN MOWER

WARNING: Be sure to disconnect and ground the spark plug wire before performing any repairs or

maintenance.

NOTE: When tipping the unit, empty the fuel tank and keep the engine spark plug side up. Never tip the mower more

than 90 degrees and do not leave the mower tipped for any length of time. Oil can drain into the upper part of the

engine causing a starting problem.

Engine

Refer to the separate engine manual for all engine maintenance instructions.

•Maintain engine oil as instructed in the separate engine manual packed with your unit. Read and follow

instructions carefully.

•Service air cleaner every 25 hours under normal conditions. Clean every few hours under extremely dusty

conditions. Poor engine performance and flooding usually indicates that the air cleaner should be serviced. To

service the air cleaner, refer to the engine manual packed with your unit.

•The spark plug should be cleaned and the gap reset once a season. Spark plug replacement is recommended

at the start of each mowing season; check engine manual for correct plug type and gap specifications.

•Clean the engine regularly with a cloth or brush. Keep the cooling system (blower housing area) clean to permit

proper air circulation which is essential to engine performance and life. Be certain to remove all grass, dirt and

combustible debris from the muffler area.

Step 1. Start engine.

Step 2. Place speed control in the sixth speed

position.

Step 3. Stop engine.

Step 4. Disconnect spark plug wire and ground it.

Step 5. Loosen hex nut (A) which secures the

adjustable cable bracket.

Step 6. Push back on the adjustable cable bracket.

Step 7. Tighten hex nut (A).

Bottom View

Speed Control

Lever

Hex Nut (A)

Adjustable Cable Bracket

PUSH

16

Deck

The underside of the mower deck should be cleaned after each use to prevent a build-up of grass clippings, leaves,

dirt or other matter. If this debris is allowed to accumulate, it will invite rust and corrosion, and may prevent proper

mulching, discharge or bagging.

The deck may be cleaned by tilting the mower and scraping clean with a suitable tool (make certain the spark plug

wire is disconnected before starting to clean).

Electric Start Units Only:

Battery Pack Replacement

Remove the battery pack from the handle panel for replacement only. Do not separate the batteries for any reason.

Dispose of batteries properly.

Warning: Batteries contain sulfuric acid which may cause burns. Do not short circuit or mutilate

batteries in any way. Do not put batteries in fire as these may burst or release toxic materials.

When replacing battery pack in handle panel, battery pack must be positioned with the positive terminal to the right

hand side and the negative terminal to the left hand side of panel. Replacing the battery pack incorrectly will cause

serious damage. The positive lead on the wire harness has the smaller connector. Connect the positive lead to the

positive side of the battery pack, then connect the negative side.

In-line Fuse

The unit is equipped with an in-line fuse. If the unit fails to start, check the fuse inside the battery cover by turning the

end of the fuse holder and removing from the battery cover. Replace with standard automotive 7-1/2 amp fuse.

Storage Of The Battery

The battery must be stored with a full charge. A discharged battery will freeze.

IMPORTANT:

All batteries discharge during storage. Recharge battery every two months and before returning to

service. Refer to charging instructions in OPERATION section.

Cutting Blade Removal, Replacement And Sharpening

Figure 10

•When removing the cutting blade for sharpening or replacement, protect your hands by using heavy gloves or a

rag to handle the blade.

•Remove the bolt and the blade bell support which hold the blade and the adapter to the engine crankshaft.

•Remove the blade and the adapter from the crankshaft.

Warning: Periodically inspect the blade adapter for cracks, especially if you strike a foreign object.

Replace when necessary.

Blade

Hex Bolt

Blade Bell

Adapter

Support

17

When sharpening the blade, follow the original angle of grind as a guide. It is extremely important that each cutting

edge receives an equal amount of grinding to prevent an unbalanced blade. An unbalanced blade will cause

excessive vibration when rotating at high speeds. It may cause damage to the mower, and it could break causing

personal injury.

The blade can be tested by balancing it on a round shaft screwdriver. Remove metal from the heavy side until it

balances evenly. It is recommended that the blade be removed from the adapter when testing for balance.

Before reinstalling the blade and the blade adapter to the unit, lubricate the engine crankshaft and the inner surface

of the blade adapter with light oil.

•Be sure to install the blade with the side of the blade marked “Bottom” (or with part number) facing the ground

when the mower is in the operating position.

•Slide the blade adapter onto the engine crankshaft.

•Place the blade on the adapter. Be certain the blade is aligned with and seated onto the blade adapter flanges.

•Place the blade bell support on the blade. Make sure the notches on the blade bell support are aligned with the

small holes in the blade.

•Replace hex bolt.

•Tighten hex bolt to torque: 450 in. lbs. min., 600 in. lbs. max.

NOTE: To ensure safe operation of your unit, the blade bolt must be checked periodically for correct torque.

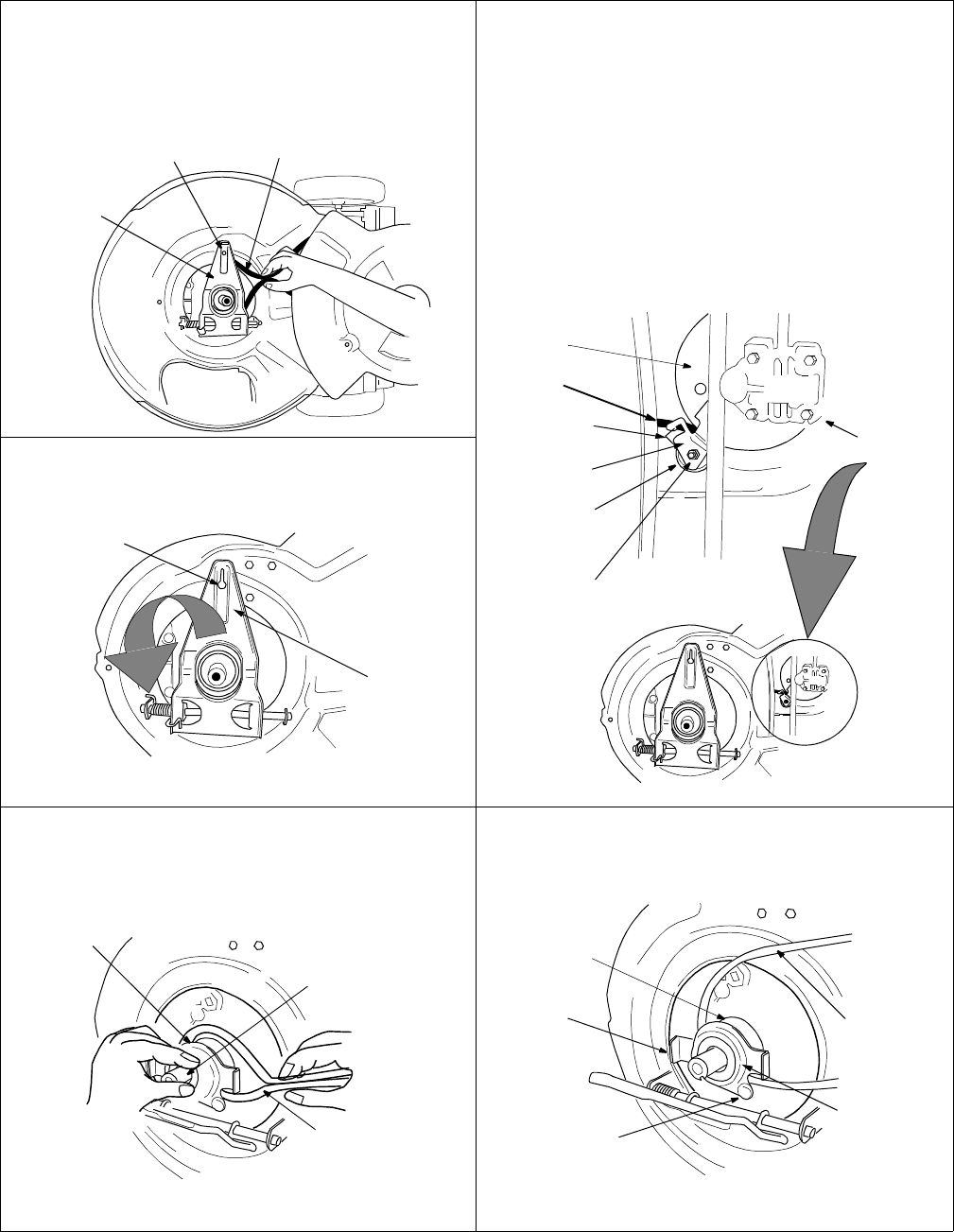

Drive Belt Removal And Replacement

Step 1. Disconnect the spark plug wire and ground

it against the engine.

Step 2. Drain the fuel tank or place a piece of

plastic beneath the cap to prevent gasoline

leakage.

Step 3. Place shift lever in the first position.

Step 4. Tip the mower on its side. Block securely.

Step 5. Remove the center bolt which secures the

blade to the crankshaft. Remove the

blade, and the blade adapter, wave

washer, and spacer. Refer to Cutting

Blade Removal, Replacement and

Sharpening in the Maintenance Section.

Step 6. Move rear height adjuster to the sixth

position.

Step 7. Remove the hex bolt holding the

transmission to the mower housing.

Rear Height Adjustment Lever

Baffle

Hex Bolt

18

Step 8. Using a 3/8” socket, remove three hex

screws holding the baffle to the deck. Step 9. Tilt the transmission forward and loosen

the idler pulley bolt and locknut 1/2 turn

using two 7/16” wrenches.

Step 10. Using a pair of pliers, pull back and rotate

belt keeper bracket from the slot on idler

pulley.

Step 11. Slide the belt out from between the Belt

Keeper Bracket and the idler pulley.

Step 12. Pivot baffle towards the rear of the mower.

Hex Screw

Hex Screw Hex

Screw

Transmission

Belt Keeper

Bracket

Idler Pulley

Belt

Idler Pulley

Bracket

Transmission

Pulley

Bolt and

Locknut

Baffle

19

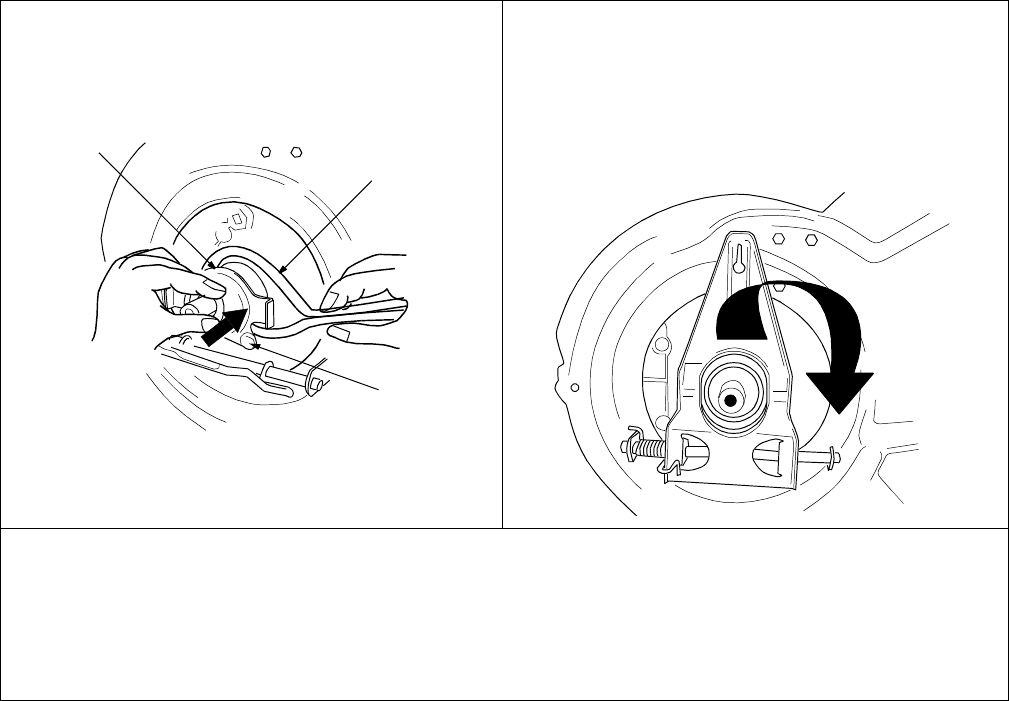

Step 13. Squeeze the belt together and push belt

forward. Press the control arm inward

towards the deck and remove the six

speed cable from the slot.

Step 14. Place the new belt over the transmission

pulley. Start the belt in pulley groove and

rotate pulley until belt is seated in

transmission pulley.

Step 15. Place belt between idler pulley and the belt

keeper bracket.

Step 16. Using pliers, rotate the belt keeper bracket

so that it snaps into slot on the idler

bracket.

Step 17. Tighten the idler pulley bolt and locknut

1/2 turn using two 7/16” wrenches.

Step 18. Pivot the control arm down away from the

pulley and belt.

Step 19.

Step 20. Lift off the lower pulley assembly and

remove the old belt from around the

crankshaft.

Step 21. Place belt between the two pulley halves

on the crankshaft. Make sure to route the

belt inside the belt guard pin.

Step 22. When changing the belt, do not

disassemble the lower pulley assembly.

Belt

Six-Speed

Cable Slot

Control

Arm

Transmission

Belt Keeper

Bracket

Idler Pulley

Belt

Idler Pulley

Bracket

Transmission

Pulley

Bolt and

Locknut

Control

Arm

Six-Speed

Cable Slot

Belt

Lower Pulley

Half

Crankshaft

Belt

Lower

Pulley

Half

Upper

Pulley

Half

Belt

Pin

Tab

Guard

20

Step 23. Pinch belt together so that it is not in the

pulley groove, and the lower pulley can be

pushed towards the engine.

Step 24. Pivot the control arm back to its original

position and reinstall the six-speed cable

into the slot.

Step 25. Check and make sure the belt is routed

inside the pulley halves and the belt guard

pin.

Step 26. Reinstall the bolt securing transmission to rear mower housing.

Step 27. Pivot the baffle back to its original position and secure with three hex screws earlier removed. You

will need a 3/8” socket for these screws.

Step 28. Lightly lubricate the inside of the blade adapter and reinstall spacer, wave washer, blade adapter

assembly and the blade in the correct order.

Step 29. Tighten the hex bolt to secure the blade. Follow recommended torque which is 450-600 in. lbs.

Belt

Lower Pulley

Belt

Guard

Pin

Half

21

SECTION 9: SERVICE

WARNING: Always stop engine and disconnect spark plug wire before cleaning, lubricating or doing

any kind of work on the lawn mower.

Figure 11

Blade Control

Lubricate the pivot points on the blade control handle and the brake cable at least once a season with light oil. See

Figure 11. The blade control must operate freely in both directions.

Wheels

Lubricate the wheel at least once a season with light oil (or engine oil). Also, if the wheels are removed for any

reason, lubricate the surface of the axle bolt and the inner surface of the wheel with light oil. See Figure 11.

Caster Assembly (960-969 Only)

Grease fittings are provided for easy lubrication of the swivel pins located on the front caster assembly.

Engine

Follow engine manual for lubrication instructions.

SECTION 10: OFF-SEASON STORAGE

The following steps should be taken to prepare lawn mower for storage.

•Clean and lubricate mower thoroughly as described in the lubrication instructions.

•We do not recommend the use of pressure washers or garden hose to clean your unit. They may cause damage

to electric components, spindles, pulleys, bearings or the engine. The use of water will result in shortened life

and reduce serviceability.

•Refer to engine manual for correct engine storage instructions.

•Coat mower’s cutting blade with chassis grease to prevent rusting.

•Follow battery storage instructions on 16 (Electric Start Units Only).

•Store mower in a dry, clean area. Do not store next to corrosive materials, such as fertilizer.

NOTE: When storing any type of power equipment in an unventilated or metal storage shed, care should be taken to

rust-proof the equipment. Using a light oil or silicone, coat the equipment, especially cables and all moving parts.

SEE ENGINE MANUAL

LUBRICATE

Wheels

Caster Assembly

Blade Control

Handle

22

SECTION 11: TROUBLE SHOOTING GUIDE

Refer to separate engine manual packed with your mower for more engine related information.

NOTE: For repairs beyond the minor adjustments listed above, contact your nearest authorized service dealer or call

1-800-94WHITE.

Trouble Possible Cause(s) Corrective Action

Engine fails to start Blade control handle disengaged.

Spark plug wire disconnected.

Throttle control lever not in correct

starting position.

Fuel tank empty, or stale fuel.

Blocked fuel line.

Faulty spark plug.

Engine flooded.

Engage blade control handle.

Connect wire to spark plug.

Move throttle lever to FAST or START posi-

tion.

Fill tank with clean, fresh gasoline.

Clean fuel line.

Clean, adjust gap or replace.

Crank engine with throttle in FAST posi-

tion.

Engine runs erratic Unit running in START position.

Spark plug wire loose.

Blocked fuel line or stale fuel.

Vent in gas cap plugged.

Water or dirt in fuel system.

Dirty air cleaner.

Carburetor out of adjustment.

Move throttle lever to FAST position.

Connect and tighten spark plug wire.

Clean fuel line; fill tank with clean, fresh

gasoline.

Clear vent.

Drain fuel tank. Refill with fresh fuel.

Clean air cleaner.

Adjust carburetor.

Engine overheats Engine oil level low.

Air flow restricted.

Carburetor not adjusted properly.

Fill crankcase with proper oil.

Remove blower housing and clean.

Adjust carburetor.

Occasional skip (hesitates)

at high speed Spark plug gap too close. Adjust gap to.030”.

Idles poorly Spark plug fouled, faulty or gap too

wide.

Carburetor improperly adjusted.

Dirty air cleaner.

Reset gap to.030” or replace spark plug.

Adjust carburetor.

Clean air cleaner.

Excessive vibration Cutting blade loose or unbalanced.

Bent cutting blade. Tighten blade and adapter. Balance blade.

Replace blade.

Mower will not mulch grass Engine speed too low.

Wet grass.

Excessively high grass.

Dull blade.

Run at full throttle.

Do not mow when grass is wet; wait until

later to cut.

Mow once at a high cutting height, then

mow again at desired height or make a nar-

rower cutting swath (1/2 width).

Sharpen or replace blade.

Uneven cut Wheels not positioned correctly.

Dull blade.

Place all four wheels in same height posi-

tion.

Sharpen or replace blade.

23

Ref.

No. Part No. Description

1 712-3025 Hx. Jam Nut 5/16-24

2 736-0425 Bell Wash. .325 x .930 x .045

3 756-0656 Pulley

4 736-3084 Fl. Wash. .510 x 1.120 x .060

5 712-0896 Hx. Jam Nut 1/4-28

6 782-7598 Belt Keeper

7 741-0600 Bearing

8 750-1050 Flange Spacer

9 682-0027A Idler Bracket Assembly

10 710-0299 Hx. Cap Scr. 1/4-28 x 1.00 Gr. 5

11 732-0849A Extension Spring

12 741-0682A Bearing Sleeve

13 736-0570 Fl. Wash. .885 x 1.145 x.030

14 721-0329 Oil Seal

15 618-0253 Upper Housing Assembly

16 736-0616 Thrust Wash. .504 x .700 x .030

17 717-1487 Pinion Shaft 10 T.

18 736-0314 Thr. Wash. 3/8 x .70 x .030

19 736-0569 Thr. Wash. .388 x .625 x .062

20 618-0252 Lower Housing Assembly

21 710-0642 Hx. Scr. 1/2-20 x .75

22 782-7601A Cable Bracket

23 741-0674 Bearing

24 611-0066 Shaft Assembly

25 721-0325 Plug

26 717-1469 Gear 34 T.

27 711-1168 Output Shaft 6 T.

28 741-0673 Flange Bearing

29 721-0329 Oil Seal

30 782-7595 Pivot Bracket

31 741-0324 Flange Bearing

32 736-0369 Wash. Fl. .508 I.D. x 1.00 O.D. x

.020

33 741-0690 Bearing

- 618-0263A Transmission Complete

Models 950 thru E969

24

Models 950 thru 959

15

8

Pulley Assembly for

reference only

Transmission and pulley

for reference only

72

25

Ref.

No. Part No. Description

1 710-0134 Scr. Carr. 1/4-20 x .62

2 710-0654A Scr. TT:3/8-18:1.00

3 710-0703 Scr. 1/4-20 x .750

4 712-0397 Wing Nut 1/4-20

5 726-0233 Nut, Push .25 I.D. x .50 O.D.

6 736-0204 Wash. Fl. .334 I.D.x .62 x.03

7 782-0046A-0662 Deck - 21”

8 710-0653 Scr. TT. 1/4-20 x .375

10 731-1828 Baffle

11 638-0012 Rear Axle Ass’y

12 682-0531 Pivot Arm Ass’y

13 682-7526 Trans. Axle Ass’y

14 682-7528 Chain Cover Ass’y

15 710-0969 Scr., Truss Machine TT 1.0”

16 710-0751 Cap Screw HH 1/4-20 x .620

17 710-0896 Scr., AB 1/4-14 x .825

18 710-1315 Scr., 3/8 116 x .25

19 711-0835 Clevis Pin .50 Dia. x 4.82 Lg.

20 713-0453 Chain-Endls. #48 .500P x 24L

21 714-0474 Cotter Pin .125O.D. x .75

22 720-0223 Grip

23 732-0803A Spring Lever

24 732-0832 Torsion Spring

25 736-0270 Bell Wash. .285 x .75 x .082

26 736-0369 Fl. Wash..508 I.D. 1.000 x.020

27 738-0529 Nut Shld. .825 Dia. x .165 Lg.

28 741-0324 Hx.Flg. Brg..506 I.D. x .590 L.

29 741-0522 Hx.Flg. Brg. .506 I.D. x.715 L.

30 741-0978 Hx. Slv. Brg..504 I.D. x .830 L.

31 748-0318 Wheel Rachet

32 750-0151 Spa. .550 I.D. x /750 O.D.

33 750-0515 Spa. .51 .D. x .70 O.D. x 38 L.

34 750-0807 Spa. .385 x .624 x .700

35 750-1056 Shld. Spa. .385 I.D. X .715 Lg.

36 782-0568 Brkt. - Ht. Adj. Spring

37 682-3052-0662 Handle Brkt. Assembly R.H.

38 682-3053-0662 Handle Brkt. Assembly L.H.

39 710-1348 Scr. AB 1/4-14 x .500

40 731-1901 Trail Shield

41 732-0842 Trail Shield Wire

42 611-0064-0662 Fr. Axle Ass’y.

43 710-1241 Hx Scr. Wash Hd. Hi.-Lo.

44 710-1242 Scr. Torx, Truss Hi.-Lo.

45 714-0104 Cotter Pin .072 x 1.12 Lg.

46 731-1834 Fr. Axle Cover

47 736-0286 Bowed Washer

48 741-0492A Bush. Block .505 Dia. x .62

49 782-0565-0662 Control Arm

50 734-1978 Wheel 8 x 2 Link Gray

51 734-1981 Wheel 9 x 2 Link Gray, Sleeve

52 736-0105 Spr. Wash. .401 x .870 x .o63

53 736-0504 Wave Wash .510 x .750 x .017

54 738-0102 Shldr Scr .498 x 1.445 x3/8-16

55 10622B Spring, Ratchet, Plastic

56 748-0381 Pawl - R.H.

57 748-0188B Pawl - L.H. (Not Illustrated)

58 16855 Ratchet Pawl Plate

59 738-0137A Hubcap - Gray

60 712-0414 Top Lock Tab Weld Nut 1/4-20

61 731-0981A Hubcap - Gray

66 754-0460 Belt

67 742-0741 21” Mulching Blade

68 753-0609 Blade Adapter Kit

69 736-0524A Blade Bell Support

70 710-1257 Hex Bolt 3/8-24x2.5”Lg.

71 Engine

72 735-0639 Spark Plug Insulator

73 731-1832 Side Discharge Chute

74 731-1833 Mulch Cover

75 710-0604 Scr. Hex.

5/15-18

76 725-0157 Cable Tie

Ref.

No. Part No. Description

Models 950 thru 959

26

Models 960 thru E969

84

8

Pulley Assembly for

reference only

Transmission and pulley

for reference only

27

Ref.

No. Part No. Description

1 710-0134 Scr. Carr. 1/4-20 x .62

2 710-0654A Scr. TT:3/8-18:1.00

3 710-0703 Scr. 1/4-20 x .750

4 712-0397 Wing Nut 1/4-20

5 723-0233 Nut, Push .25 I.D. x .50 O.D.

6 736-0204 Wash. Fl. .334 I.D.x .62 x.03

7 782-0046A-

0662 Deck - 21”

8 710-0653 Scr. TT. 1/4-20 x .375

9 710-0969 Scr. Truss Machine TT

10 731-1828 Baffle

11 638-0012 Rear Axle Ass’y

12 782-0566 Pivot Arm Ass’y

13 682-7526 Trans. Axle Ass’y

14 682-7528 Chain Cover Ass’y

16 710-0751 Cap Screw HH 1/4-20 x .620

17 710-0896 Scr. AB 1/4-14 x .825

18 710-1315 Scr. 3/8 116 x .25

19 711-0835 Clevis Pin .50 Dia. x 4.82

20 713-0453 Chain-Endls.

21 714-0474 Cotter Pin .125O.D. x .75

22 720-0223 Grip

23 732-0803A Spring Lever

24 732-0832 Torsion Spring

25 736-0270 Bell Wash. .285 x .75 x .082

26 736-0369 Fl. Wash..508 I.D.

27 738-0529 Nut Shld. .825 Dia. x .165

28 741-0324 Hx.Flg. Brg..506 I.D. x .590

29 741-0522 Hx.Flg. Brg. .506 I.D. x.715

30 741-0978 Hx. Slv. Brg..504 I.D. x .830

31 748-0318 Wheel Rachet

32 750-0151 Spa. .550 I.D. x /750 O.D.

33 750-0515 Spa. .51 .D. x .70 O.D. x 38

34 750-0807 Spa. .385 x .624 x .700

35 750-1056 Shld. Spa. .385 I.D. X .715

36 782-0568 Brkt. - Ht. Adj. Spring

37 682-3052-

0662 Handle Brkt. Assembly R.H.

38 682-3053-

0662 Handle Brkt. Assembly L.H.

39 710-1348 Scr. AB 1/4-14 x .500

40 731-1901 Trail Shield

41 732-0842 Trail Shield Wire

42 682-9020A-

0662 Caster Ass’y R.H (Not Shown)

43 682-9021A-

0662 Caster Ass’y L.H.

44 682-9024A-

0662 Brkt. Ass’y, Wheel Caster RH

45 710-0260 Carr. Bolt 5/16-18 x .62

46 711-1146 Caster Axle .374 Dia. x 2.50”

47 736-0232 Wave Wash.

48 731-1887 Hub Cap Whole Gray

49 734-1857 Wheel 7 x 2, Caster Black

50 712-0397 Wing Nut 1/4-20 Thd.

51 734-1837 Wheel 9 x 2 Link Gray,

52 712-3004A Lock Nut 5/16-18

53 714-0104 Pin, Cotter .072 x 1.12

54 736-0264 Fl. Wash. .330 x .830 x .06

55 10622B Spring, Ratchet, Plastic

56 748-0381 Pawl - R.H.

57 748-0188B Pawl - L.H. (Not shown)

58 16855 Ratchet Pawl Plate

59 738-0137A Shld. Scr. .340 x .285

60 712-0414 Top Lock Weld Nut 1/4-20

61 731-0981A Hubcap - Gray

62 710-1237 Screw .620 Hx. Slt. Wsh.

63 751B213146 Casing Clamp, Throttle

64 710-1256 Scr. Hi-Lo #10 x 1.25

65 751B281451 Shroud - Gray

66 754-0460 Belt

67 742-0741 21” Mulching Blade

68 753-0609 Blade Adapter Kit

69 736-0524A Blade Bell Support

70 710-1257 Hex Bolt 3/8-24x2.5”Lg.

71 —Engine

72 735-0639 Spark Plug Insulator

73 731-1832 Side Discharge Chute

74 731-1833 Mulch Cover

75 726-0214 Push Cap

76 732-0306 Compression Spring

77 736-0366 Fl. Wash. 5/8 O.D. x 1” O.D.

78 736-0931 Fl. Wash. .203 I.D. x .403

79 737-3000 Fitting - Lube

80 741-0685 Flange Bearing

81 747-0924 Lock Pin: Front Wheel

82 725-0157 Cable Tie

83 710-0604 Hex Scr. 5/16-18

84 682-9026-

0662 Bracket Assembly, Wheel Caster LH

Ref.

No. Part No. Description

Models 960 thru E969

28

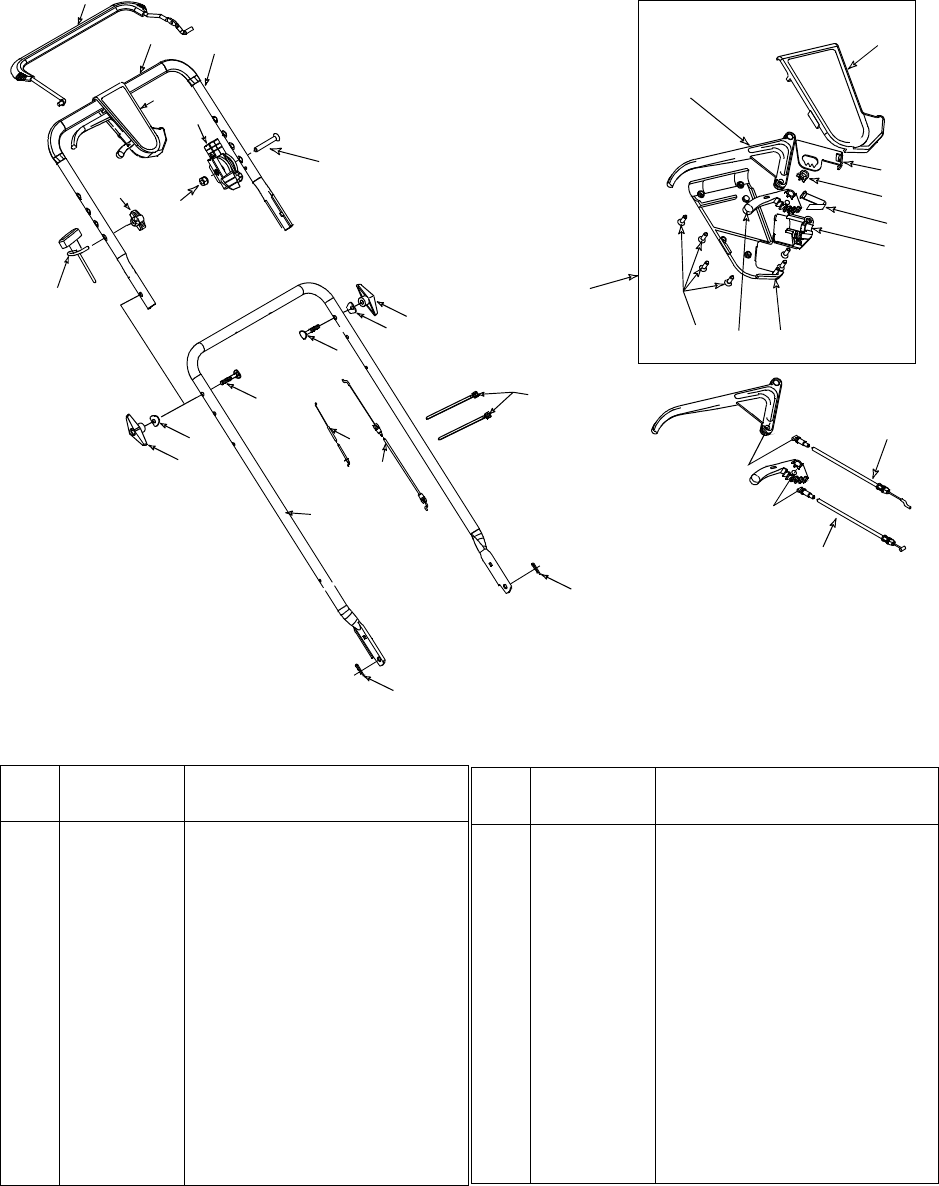

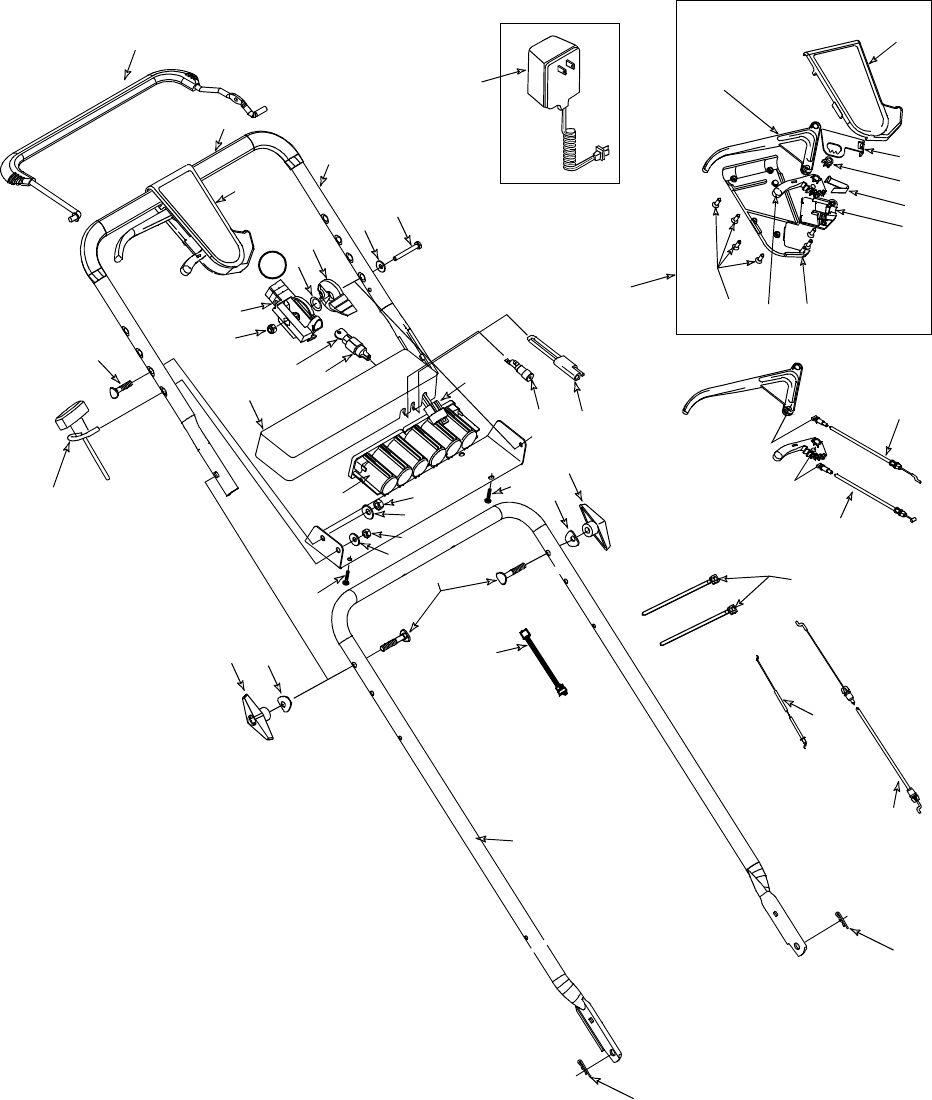

Model E969

39

40

51

37

29

16

21

18

20

23

22

17

19

24

A

26

25

A

28

27

10

43

14

15

30

2

2

4

7

35

1

5

3

9

12

11

42 41

47

55

46

38

50

54

47

44

45

52

13

51

29

Model E969

Ref.

No. Part No. Description

1 710-1174 Bolt Cur. Carr. 5/16-18 x 2.0

2 714-0104 Cotter Pin .072 x 1.12 Lg.

3 720-0241 Knob Assembly

4 726-0240 Strap 4.3 Lg.

5 736-0451 Wash. Sad. .320 ID x.830 OD

7 710-1205 Eyebolt

9 746-0876 Throttle Lever

10 736-0501 Spring Wash.Curved

11 712-0324 Nut 1/4-20 Top locknut Insert

12 646-0875 Housing, Throttle

13 811-00303 Throttle Control (Includes reference

9,10,11 & 12)

14 746-0557 Control Cable 47” Lg.

15 746-0841 Cable Throttle 60” Lg.

16 731-0904 Upper Control Housing

17 731-0924 6 Speed Shift Lever

18 713-0397 Gear Insert

19 710-0841 C Sunk Tap Screw #10 x .75 L

20 732-0627 Shift Lever Spring

21 16864 6 Spd. Rack Cable Brkt.

22 731-0905 Lower Control Housing

23 731-0906 Cable Mounting Cap

24 731-0620 Control Lever

25 746-0939 6 Spd. Cable

26 746-0710A S.P. Cable

27 747-0824 Control Handle

28 720-0294 Foam Grip (2 Reqd.)

29 749-0439B Upper Handle

30 749-0907A Lower Handle

37 710-1250 Cur. Carr. Bolt 5/16-18 x 1” Lg.

38 712-0267 Hex Nut 5/16-18 Thd.

39 725-1276 Battery Pack - 12 Volt

40 731-0891A Battery Tray

41 725-0873 Ignition Switch

42 725-0201 Ignition Key

43 425-1428

725-0298 Fuse Holder

Fuse 7-1/2 Amp

(Not shown)

44 725-1206 Plug

45 725-1442 Wire Harness

46 710-0501 Hex Bolt 1/4-20 x 2” Lg.

47 736-0270 Bell Wash 1/4” I.D.

49 782-9012 Lower Battery Tray

50 736-0242 Bell Wash. 5/16” I.D.

51 710-0969 Truss Mch. Tap Scr. 1” Lg.

52 725-1538 Harness Ext.

54 712-0287 Hex Nut 1/4-20

55 725-0727 Battery Charger

Ref.

No. Part No. Description

Ref.

No. Part No. Description

N/I 777S30116 Danger - right rear

N/I 777S30118 Danger - discharge chute

N/I 777S30128 Warning - deck above opening

N/I 777D02253 White LC 210 Logo (959)

N/I 777-4724 White LC 215 Logo (969)

N/I 777-4725 White Logo

(E969)

N/I 777D00299 Wheel Cover Label

N/I 777I20291 Height Adjustment Label

N/I 777I20293 Drive lever on Handle

N/I 777-5242 Caster Wheel Lock (969, E969)

N/I 777-5902 Electric Start Instructions

(E969)

N/I 777-4857 White - On Battery Pack

(E969)

Ref.

No. Part No. Description

Labels

30

Models 950 thru 969

7

6

A

28

27

29

13

14

15

30

2

2

4

1

5

3

153

11

8

16

21

18

20

23

22

17

19

24

A

26

25

Ref.

No. Part No. Description

1 710-1174 Bolt Curv. Carr. 5/16-18 x 2.0

2 714-0104 Cotter Pin .072 x 1.12 Lg.

3 720-0241 Knob Assembly

4 726-0240 Strap

5 736-0451 Wash. Sad. .320 ID x.830 OD

6 720-0279 Knob Handle ERS - 1/4-20

7 710-1205 Rope Guide Eyebolt

8 710-1270 Oval C-Sunk Screw

11 712-0324 Nut 1/4-20 Top lock Nut Insert

13 746-0883 Control Housing

14 746-0912 Control Cable 44” Lg.

16 731-0904A Upper Control Housing

17 731-0924 6 Speed Shift Lever

18 713-0397 Gear Insert

19 710-1667A CSunk Tap Scr #10 x .75 L

20 732-0627 Shift Lever Spring

21 16864 6 Spd. Rack Cable Brkt.

22 731-0905A Lower Control Housing

23 731-0906 Cable Mounting Cap

24 731-0620 Control Lever

25 746-0939 6 Spd. Cable

26 746-0713 S.P. Cable

27 647-0004 Control Handle

28 720-0294 Foam Grip (2 Reqd.)

29 749-0439C Upper Handle

30 749-0907A Lower Handle

Ref.

No. Part No. Description

31

Models 950 thru E969

Ref.

No. Part No. Description

1 746-0939 6 Spd. Cable

2 656-0613 Pulley Ass’y Mult - Spd.

3 710-0167 Scr. 1/4-20 x .50 Carr.

4 710-0896 Scr. AB 1/4-14 x .625 Hex hd.

Wsh.

5 711-1114 Pivot Shaft

6 712-0287 Nut 1/4-20

7 732-0807 Torsion Spring LH

8 736-0270 Bell Wash. .265 X .75 X .062

9 736-0329 Lock Wash. 1/4 Reg Duty

10 736-0526 Wave Wash. 1.38 x .88 x .029

11 738-0924 Shld.Scr. .375 x 1/4 -14AB

12 750-1070 Slev Spcr..88 ID 1.00 OD x.48

13 750-1071 Slev Spcr .88 ID x 1.13 ID x .12

14 756-0625 Roller Cable

15 782-7574-

0662 6 Spd. Cable Adj. Bracket

16 782-7575-

0662 6 Spd. Cable Mt. Bracket

17 782-7596 6 Sp. Control Arm

18 782-7597 6 Sp. Pivot Bracket

19 712-0138 Hex Nut 1/4-28

15

2

8

1

4

11

3

13

10

12

17

18

5

7

16

14

6

9

19

MANUFACTURER’S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by White Out-

door Products Co. with respect to new merchandise pur-

chased and used in the United States, its possessions and

territories.

White Outdoor Products Co. warrants this product against

defects in material and workmanship for a period of two (2)

years commencing on the date of original purchase and

will, at its option, repair or replace, free of charge, any part

found to be defective in material or workmanship. This lim-

ited warranty shall only apply if this product has been oper-

ated and maintained in accordance with the Operator’s

Manual furnished with the product, and has not been sub-

ject to misuse, abuse, commercial use, neglect, accident,

improper maintenance, alteration, vandalism, theft, fire,

water or damage because of other peril or natural disaster.

Damage resulting from the installation or use of any acces-

sory or attachment not approved by White Outdoor Prod-

ucts Co. for use with the product(s) covered by this manual

will void your warranty as to any resulting damages.

Normal wear parts or components thereof are subject to

separate terms as follows: All normal wear part or compo-

nent failures will be covered on the product for a period of

90 days regardless of cause. After 90 days, but within the

two year period, normal wear part failures will be covered

ONLY IF caused by defects in material or workmanship of

OTHER component parts. Normal wear parts and compo-

nents include, but are not limited to, belts, blades, blade

adapters, grass bags, rider deck wheels, seats, snow

thrower skid shoes, shave plates and tires. Batteries are

covered by a 90-day limited replacement warranty.

HOW TO OBTAIN SERVICE: Warranty service is available,

WITH PROOF OF PURCHASE THROUGH YOUR LOCAL

WHITE OUTDOOR DEALER. To locate the dealer in your

area, please check for a listing in the Yellow Pages or con-

tact the Customer Dealer Referral Line of White Outdoor

Co. by calling 1-330-225-8883 or writing to P.O. Box

361131, Cleveland, Ohio 44136-0019.

This limited warranty does not provide coverage in the

following cases:

a. The engine or component parts thereof. These items

carry a separate manufacturer’s warranty. Please refer

to the applicable manufacturer’s warranty on these

items.

b. Routine maintenance items such as lubricants, filters,

blade sharpening and tune-ups, or adjustments such

as brake adjustments, clutch adjustments or deck

adjustments; and normal deterioration of the exterior

finish due to use or exposure.

c. Log splitter pumps, valves and cylinders have a sepa-

rate one year warranty.

d. White Outdoor Co. does not extend any warranty for

products sold or exported outside of the United States

of America, its possessions and territories, except

those sold through White Outdoor Co. authorized

channels of export distribution.

No implied warranty, including any implied warranty of

merchantability or fitness for a particular purpose,

applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty or guaranty, whether written or oral,

except as mentioned above, given by any person or

entity, including a dealer or retailer, with respect to any

product shall bind White Outdoor Co. During the

period of the Warranty, the exclusive remedy is repair

or replacement of the product as set forth above.

(Some states do not allow limitations on how long an

implied warranty lasts, so the above limitation may not

apply to you.)

The provisions as set forth in this Warranty provide the

sole and exclusive remedy arising from the sales.

White Outdoor Co. shall not be liable for incidental or

consequential loss or damages including, without limi-

tation, expenses incurred for substitute or replace-

ment lawn care services, for transportation or for

related expenses, or for rental expenses to temporarily

replace a warranted product. (Some states do not allow

the exclusion or limitation of incidental or consequential

damages, so the above exclusion or limitation may not

apply to you.)

In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold. Alteration

of the safety features of the product shall void this War-

ranty. You assume the risk and liability for loss, damage, or

injury to you and your property and/or to others and their

property arising out of the use or misuse or inability to use

the product.

This limited warranty shall not extend to anyone other than

the original purchaser, original lessee or the person for

whom it was purchased as a gift.

How State Law Relates to this Warranty: This limited

warranty gives you specific legal rights, and you may also

have other rights which vary from state to state.
