WaterproofMetal DetectorUser’s GuideMXSPORTWhite’s Electronics, Inc. 1011 Pleasant Valley Rd Sweet Home, OR 97386www.WhitesElectronics.comAll rights reserved ©White’s Electronics, Inc.
Contents Specifications .............................................................................................................................. 2Assembly .........................................................................................................................................4Batteries .........................................................................................................................................5Getting Started ............................................................................................................................6Quick Reference TablesSearch Mode .................................................................................................................. 7Options Keypad ...............................................................................................................8Options ...............................................................................................................................9Search Programs ......................................................................................................11FeaturesDisplay & ControlsPower ............................................................................................................................... 14Track ................................................................................................................................14Sensitivity ........................................................................................................................16Programs ....................................................................................................................... 16Reset ................................................................................................................................18Discrimination ............................................................................................................. 18Volume ............................................................................................................................20Threshold .......................................................................................................................20Tone ID ............................................................................................................................21Depth Units ...................................................................................................................22Backlight .........................................................................................................................22Frequency Offset 22Salt Track .......................................................................................................................23All Metal FeaturesSAT (Self-adjusting Thresold) ................................................................................24VCO (Voltage Controlled Oscillator) ...................................................................25Preparation for Water Hunting ........................................................................................26Proper Care ................................................................................................................................27Searching .....................................................................................................................................26Digging ........................................................................................................................................... 26Accessories ................................................................................................................................27Service .......................................................................................................................................... 29Warranty .....................................................................................................................................293SpecificationsMXSportType of Detector All-PurposeWeight4 lbs.Waterproof YesBacklight YesAdjustable Shaft YesAssembled Length Minimum41"Assembled Length Maximum50"Rechargeable System Not IncludedBatteries AA x 8Headphone Jack 1/4" Adapter IncludedArm Rest AdjustableArm Rest Strap IncludedControl Box Mount StandardNumber of Frequencies 1Frequencies 13.8kHzMft. Warranty 2 YearInstruction ManualYesSearchcoil Size 10"Searchcoil Shape RoundSearchcoil Build OpenSearchcoil Type DDInterchangeable SearchcoilYesWaterproof Searchcoil YesSubmersible Searchcoil YesOptional Searchcoil AvailableDisplay Type LCDNumber of Search Modes 7All MetalCoins & JewelryBeachRelics ProspectingHi- TrashPinpointTechnology VLF Single FrequencyDiscrimination AdjustableThreshold YesSensitivity AdjustableGround Balancing (Fixed) YesGround Balancing (Automatic)YesTarget Identification YesProgrammable Target ID YesNumber of Target ID Segments20Depth Indication YesPinpoint Mode YesVolume AdjustableAudio Tones YesNumber of Audio Tones 22Low Battery Warning YesBattery Life 20+ HoursAll Search ModesMX Sport Specifications
41. Remove all parts from the shipping carton and check assembly diagram to ensure all parts are present.2. Install black rubber washers on fiber lower rod; attach search coil to lower fiber rod. Use only the nonmetallic washers, fiber bolt, and fiber thumbnut provided to secure search coil loop to the lower fiber rod.3. Insert lower fiber rod into center rod so that the spring buttons line up with one of the length-adjustment holes in the center rod. Turn the camlock to eliminate any slack.4. Insert the center extension rod into the hand-grip section. Turn the camlock to eliminate any slack.5. Wind the search coil cable around the rods, first revolution over the top of the rod, all the way to the display pod. Plug the cable into the connector on the back of the display. When looking at the back of the display, it is the connector on the right. Tighten the retainer ring securely.6. Thread the velcro armcup through the slots on the armcup. With your arm in position, fold the strap over onto the velcro so that the strap is loose enough to to pull your arm in and out of the armcup.Assembly 7. Grip the detector and sweep the search coil over the floor. If the fit feels uncom-fortable, adjust the position of the lower fiber rod. The ideal position allows you to stand up straight and sweep the search coil over the ground without stooping over. 8. Install eight “AA” batteries in the battery holder carefully noting the + & - positions marked inside the battery holder. Insert the battery pack, lining up the contacts. Tighten the battery seal. Search CoilNon-metallicWashersFiber Bolt &ThumbnutFiber RodCamlockCamlockCenter RodControl PodDisplayControl ButtonsHandgripVelcro AmrstrapBattery Holderwith Cap5Tips on Batteries• The MX-Sport operates for up to 40 hours (without backlight) using eight quality “AA” batteries.• High-quality “AA” alkaline batteries are recommended. Rechargeable NiCad, Nickel Metal Hydride, or other similar “AA” substitutions work well. Batteries near or above 2 volts per cell and higher are not recommended.• Battery life will change with battery type, operating temperature, and backlight use. Lowering the volume of the built in speaker or using headphones extends battery life.Search CoilCableSearch CoilConnector
Getting Started with MX Sport 1. Press the power ON button. Upon initial power up, the detec-tor defaults to the Coin and Jewelry program.2. Sweep the search coil from side to side, keeping it level and close to the ground. Overlap each search pass by at least 50%.3. Once a target is detected, indicated by a consistent beep, sweep several passes over the target center and note the display identification and target depth.4. If the target indicates dig worthy, press and hold the Pinpoint button(√/X).Iftapped,thepinpointbuttonwilllockinthePin-point mode. After pinpointing remember to tap the pinpoint button once more to return to Search mode.5. When using MX Sport’s DD search coil, the pinpoint spot is an imaginary line through the center of the search coil. It is important to determine where this detection line begins and ends on the coil. When using an optional concentric search coil, the pinpoint spot is in the center of the search coil6. Sweep the target area slowly in an “x” pattern. The strongest beep and shallowest depth indicates target center.7. Practice with a visible object above ground, moving back and forth over the target. 8. Use care in digging properly for the terrain. Fill in all holes and discard any trash found in the proper receptacle. By not leaving trash and unsightly holes behind you, open areas will continue to be available for you and others to metal detect.ControlsThe MX Sport operates in either Search or Options mode. The detector will continue to provide audio feedback when in Options mode, but the display will be used to show options rather than target information.6Power Button: The power button turns on the MX Sport. Tapping the power button while the detector is on will turn on the back-light. Holding the power button while on will turn the MX Sport off.Search ModeThe MX Sport enters Search mode when turned on. In Search mode, the buttons on the keypad perform the following functions:7
Options Keypad FunctionsWhen the user presses the Options button while in Search mode, the MX Sport enters Options mode. As mentioned above, Options mode will only affect the display. The MX Sport will still provide au-dio feedback from the target system. The MX Sport will automati-cally leave Options mode approximately 10-15 seconds after the last time any button is pressed on the keypad. When in Options mode, the buttons on the keypad perform the following functions:OptionsThe following is a list of options available in the MX Sport.89

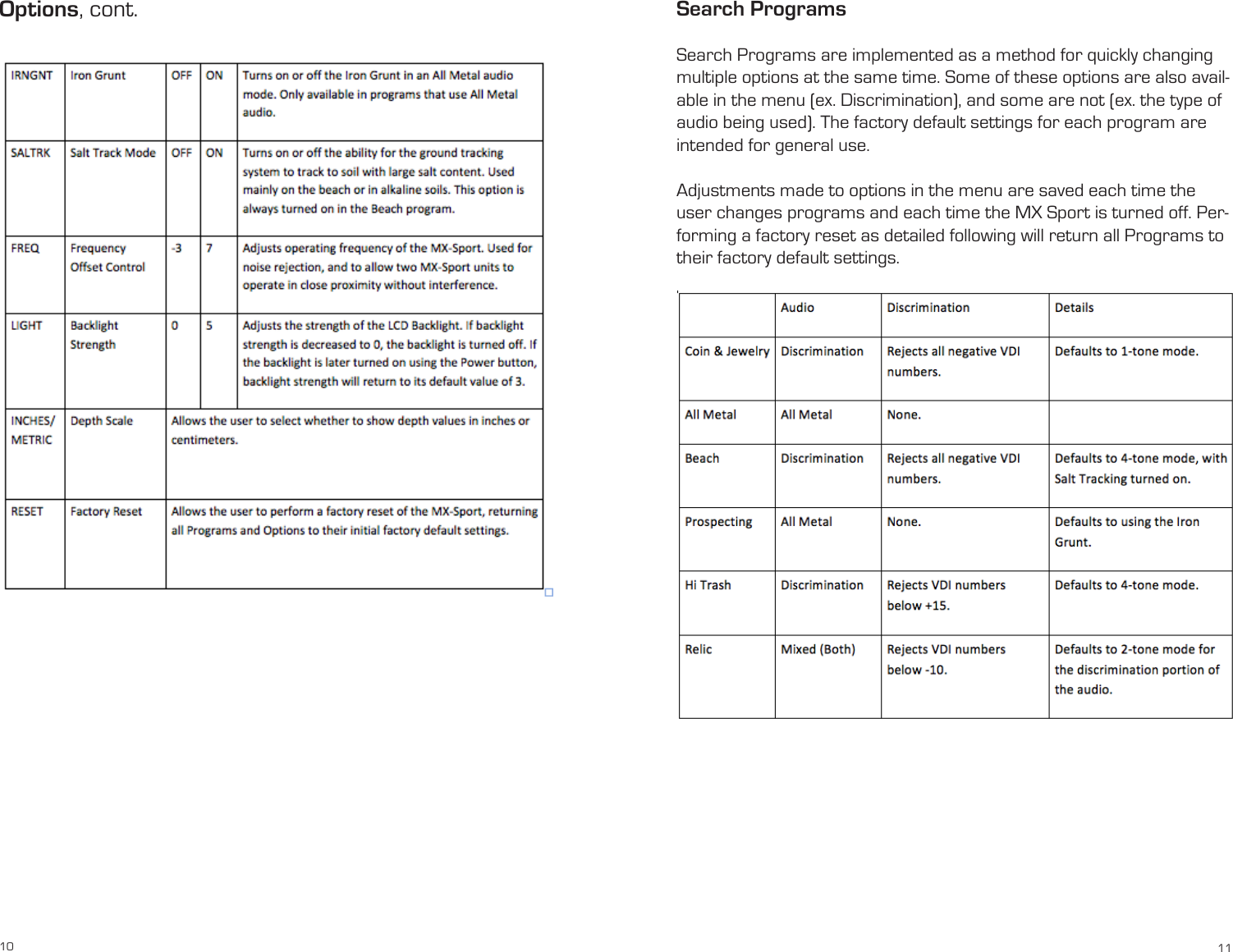

Options, cont. Search ProgramsSearch Programs are implemented as a method for quickly changing multiple options at the same time. Some of these options are also avail-able in the menu (ex. Discrimination), and some are not (ex. the type of audio being used). The factory default settings for each program are intended for general use. Adjustments made to options in the menu are saved each time the user changes programs and each time the MX Sport is turned off. Per-forming a factory reset as detailed following will return all Programs to their factory default settings.10 11
Features (Detailed) NavigationDuring normal searching there are two live controls that add convenience for the two most common adjustments; Sensitivity and Threshold.SENSITIVITY: During searching (in all search modes) pressing the + & - buttons adjusts the sensitivity, or responsiveness, of the MX Sport. If the sensitivity is set too high, excessive noise will make it difficult to locate targets due to the noise from either the ground or external electric interference. Too-high sensitiv-ity is noted by false signals. Lowering the sensitivity will improve performance. Increase sensitivity for increased depth when the ground and external conditions allow. Note: Few areas will allow maximum sensitivity.THRESHOLD: The MX Sport can be efficiently used with or without a threshold hum. Threshold can be defined as a steady continuous background hum. In all search modes, the up & down arrows control the Threshold. The lowest setting of 0 is Silent Search. Use of a threshold provides more information regard-ing what the metal detector sees. Rejected targets or ground peculiarities often cause the threshold to fade to silent. Changing the search orientation can correct this anomaly. Searching in silence (no threshold) has the advantage of better focus on the desired target responses. Unlike older metal detectors, there is no difference in detection depth using either threshold or silent search. However, those who search with a threshold tend to find more artifacts as the threshold alerts the user to spots that have something unusual about them—perhaps two targets near each other—and thus more attention is paid checking for pos-sible worthwhile targets. Options- Pressing the Options button, the up and down arrows are used to select the specific option to adjust. The + & - buttons make adjustments to the selected option.Summary:Press Option button and use arrows to view all the options; press + & - to adjust a specific option. Go to the next option or exit to search. Exit from Options is automatic after 10–15 seconds. Simply press Option again if you desire further adjustment.Detection (Search mode) will continue while in the Options mode. Once options have been adjusted, pressing Option button again will exit options. Options will be slightly different depending on the search pro-gram. For example All Metal, Prospecting, and Relic have the features that are specific to All Metal-type programs. Features such as Self-Adjusting Threshold (SAT) and Voltage Controlled Oscillation (VCO) only appear when one of the All Metal modes are in use. These features have no influence over the Discrimina-tion programs and they will not appear as options.12 13

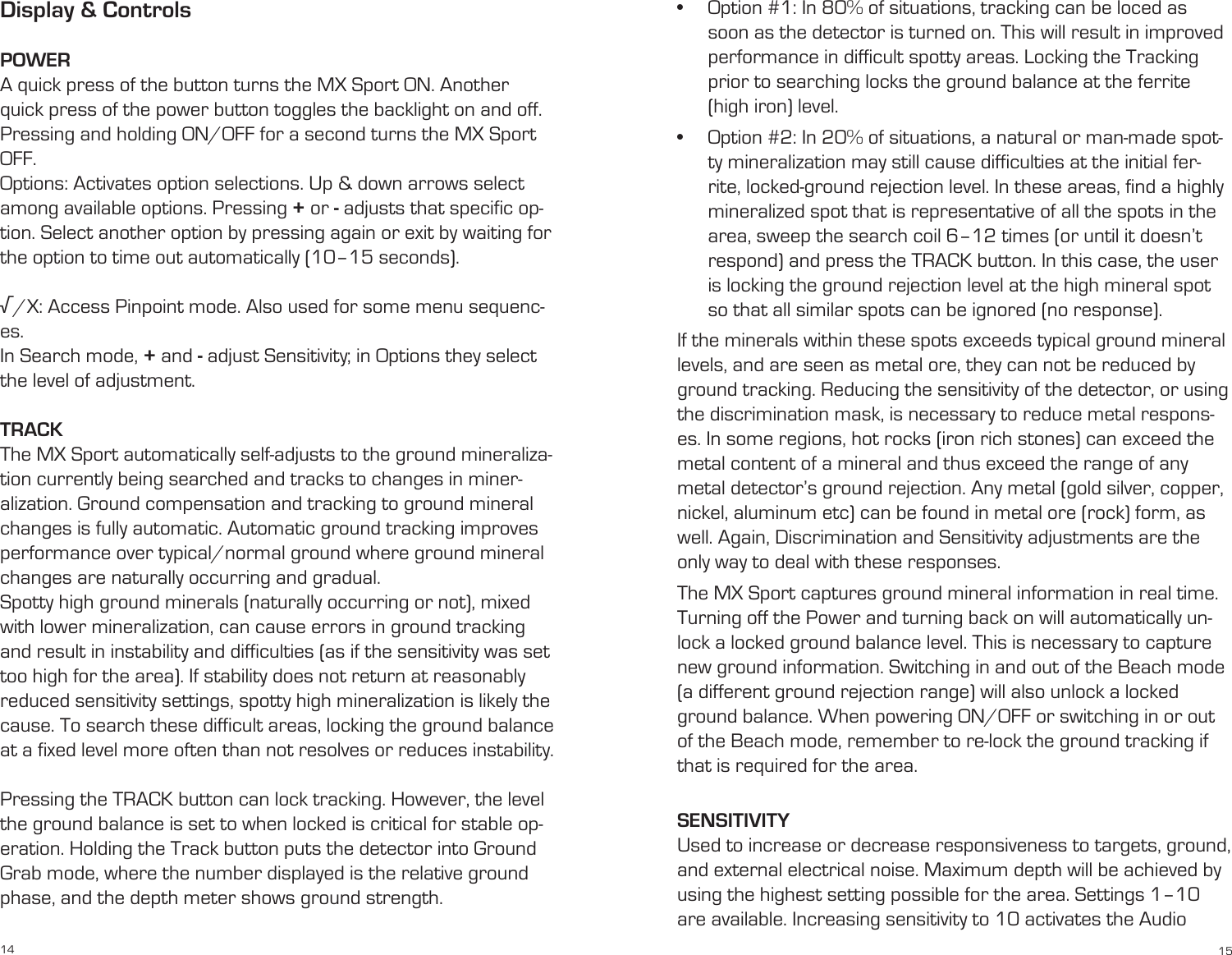

Display & ControlsPOWERA quick press of the button turns the MX Sport ON. Another quick press of the power button toggles the backlight on and off. PressingandholdingON/OFFforasecondturnstheMXSportOFF.Options: Activates option selections. Up & down arrows select among available options. Pressing + or - adjusts that specific op-tion. Select another option by pressing again or exit by waiting for the option to time out automatically (10–15 seconds).√/X:AccessPinpointmode.Alsousedforsomemenusequenc-es. In Search mode, + and - adjust Sensitivity; in Options they select the level of adjustment.TRACKThe MX Sport automatically self-adjusts to the ground mineraliza-tion currently being searched and tracks to changes in miner-alization. Ground compensation and tracking to ground mineral changes is fully automatic. Automatic ground tracking improves performanceovertypical/normalgroundwheregroundmineralchanges are naturally occurring and gradual. Spotty high ground minerals (naturally occurring or not), mixed with lower mineralization, can cause errors in ground tracking and result in instability and difficulties (as if the sensitivity was set too high for the area). If stability does not return at reasonably reduced sensitivity settings, spotty high mineralization is likely the cause. To search these difficult areas, locking the ground balance at a fixed level more often than not resolves or reduces instability. Pressing the TRACK button can lock tracking. However, the level the ground balance is set to when locked is critical for stable op-eration. Holding the Track button puts the detector into Ground Grab mode, where the number displayed is the relative ground phase, and the depth meter shows ground strength. • Option #1: In 80% of situations, tracking can be loced as soon as the detector is turned on. This will result in improved performance in difficult spotty areas. Locking the Tracking prior to searching locks the ground balance at the ferrite (high iron) level.• Option #2: In 20% of situations, a natural or man-made spot-ty mineralization may still cause difficulties at the initial fer-rite, locked-ground rejection level. In these areas, find a highly mineralized spot that is representative of all the spots in the area, sweep the search coil 6–12 times (or until it doesn’t respond) and press the TRACK button. In this case, the user is locking the ground rejection level at the high mineral spot so that all similar spots can be ignored (no response).If the minerals within these spots exceeds typical ground mineral levels, and are seen as metal ore, they can not be reduced by ground tracking. Reducing the sensitivity of the detector, or using the discrimination mask, is necessary to reduce metal respons-es. In some regions, hot rocks (iron rich stones) can exceed the metal content of a mineral and thus exceed the range of any metal detector’s ground rejection. Any metal (gold silver, copper, nickel, aluminum etc) can be found in metal ore (rock) form, as well. Again, Discrimination and Sensitivity adjustments are the only way to deal with these responses.The MX Sport captures ground mineral information in real time. Turning off the Power and turning back on will automatically un-lock a locked ground balance level. This is necessary to capture new ground information. Switching in and out of the Beach mode (a different ground rejection range) will also unlock a locked groundbalance.WhenpoweringON/OFForswitchinginoroutof the Beach mode, remember to re-lock the ground tracking if that is required for the area.SENSITIVITYUsed to increase or decrease responsiveness to targets, ground, and external electrical noise. Maximum depth will be achieved by using the highest setting possible for the area. Settings 1–10 are available. Increasing sensitivity to 10 activates the Audio 14 15

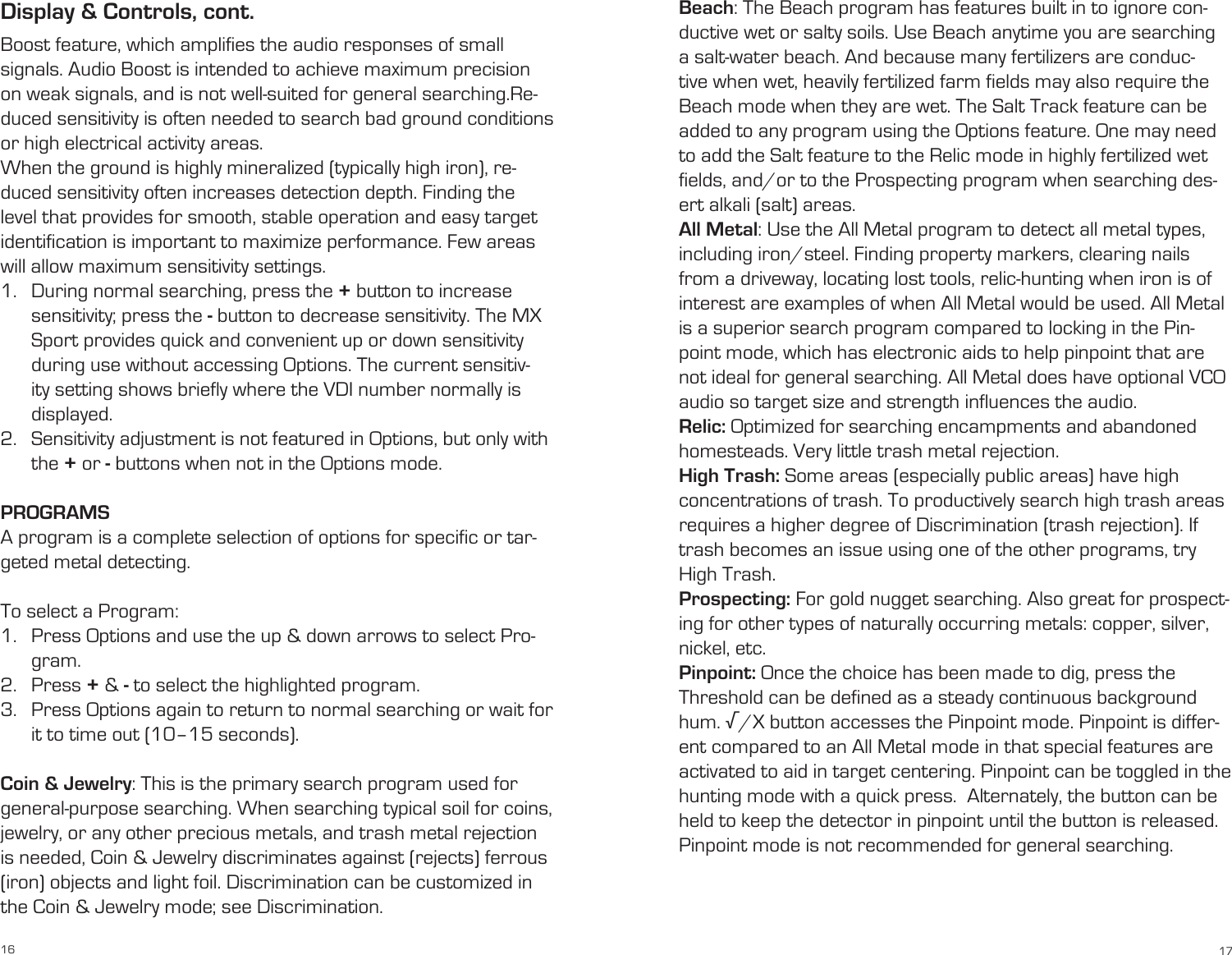

Display & Controls, cont.Boost feature, which amplifies the audio responses of small signals. Audio Boost is intended to achieve maximum precision on weak signals, and is not well-suited for general searching.Re-duced sensitivity is often needed to search bad ground conditions or high electrical activity areas. When the ground is highly mineralized (typically high iron), re-duced sensitivity often increases detection depth. Finding the level that provides for smooth, stable operation and easy target identification is important to maximize performance. Few areas will allow maximum sensitivity settings. 1. During normal searching, press the + button to increase sensitivity; press the - button to decrease sensitivity. The MX Sport provides quick and convenient up or down sensitivity during use without accessing Options. The current sensitiv-ity setting shows briefly where the VDI number normally is displayed. 2. Sensitivity adjustment is not featured in Options, but only with the + or - buttons when not in the Options mode. PROGRAMSA program is a complete selection of options for specific or tar-geted metal detecting. To select a Program:1. Press Options and use the up & down arrows to select Pro-gram. 2. Press + & - to select the highlighted program. 3. Press Options again to return to normal searching or wait for it to time out (10–15 seconds). Coin & Jewelry: This is the primary search program used for general-purpose searching. When searching typical soil for coins, jewelry, or any other precious metals, and trash metal rejection is needed, Coin & Jewelry discriminates against (rejects) ferrous (iron) objects and light foil. Discrimination can be customized in the Coin & Jewelry mode; see Discrimination. Beach: The Beach program has features built in to ignore con-ductive wet or salty soils. Use Beach anytime you are searching a salt-water beach. And because many fertilizers are conduc-tive when wet, heavily fertilized farm fields may also require the Beach mode when they are wet. The Salt Track feature can be added to any program using the Options feature. One may need to add the Salt feature to the Relic mode in highly fertilized wet fields,and/ortotheProspectingprogramwhensearchingdes-ert alkali (salt) areas.All Metal: Use the All Metal program to detect all metal types, includingiron/steel.Findingpropertymarkers,clearingnailsfrom a driveway, locating lost tools, relic-hunting when iron is of interest are examples of when All Metal would be used. All Metal is a superior search program compared to locking in the Pin-point mode, which has electronic aids to help pinpoint that are not ideal for general searching. All Metal does have optional VCO audio so target size and strength influences the audio. Relic: Optimized for searching encampments and abandoned homesteads. Very little trash metal rejection. High Trash: Some areas (especially public areas) have high concentrations of trash. To productively search high trash areas requires a higher degree of Discrimination (trash rejection). If trash becomes an issue using one of the other programs, try High Trash. Prospecting: For gold nugget searching. Also great for prospect-ing for other types of naturally occurring metals: copper, silver, nickel, etc.Pinpoint: Once the choice has been made to dig, press the Threshold can be defined as a steady continuous background hum.√/XbuttonaccessesthePinpointmode.Pinpointisdiffer-ent compared to an All Metal mode in that special features are activated to aid in target centering. Pinpoint can be toggled in the hunting mode with a quick press. Alternately, the button can be held to keep the detector in pinpoint until the button is released. Pinpoint mode is not recommended for general searching.16 17
RESET1. Restore to Factory Settings: 2. Press Option, use the up and down arrows to select RESET.3. Press and hold Pinpoint button.4. All options return to factory settings.DiscriminationEach of the MX Sport programs begins with Discrimination set-tings pre-selected for most hunting.The MX Sport has the ability to accept or reject metaltypesbasedontheirconductivityand/orelectricalphase.Targetconductivity/phaseisindicated on the display VDI scale (Visual Discrim-ination Indication) with a VDI reference number. By learning what targets consistently indicate specific VDI numbers, you can be sure to accept or reject the different target VDI ranges that interest you. Many types of targets share similar VDI number ranges.Forexamplegoldjewelryofvariedsizes/types shares the same VDI number range as aluminumofvariedsizes/types.Deeperdepthssuggest the target being heavier gold; shallow depth indications suggest the target being light-er-weight aluminum. However, due to the wide variety of gold alloys and sizes, to find all the gold jewelry, digging lead, pull tabs, and screw caps is to be expected.Trash metals (iron) often produce some beep, different from an accepted good target. In most cases, iron will produce a broken or inconsistent tone whereas an accepted good target produces a more consistent beep. The display can help, but an inconsistent tone is most likely a rejected target. If you have trouble recognizing these inconsis-tent beeps and displays, find the sweep speed that enhances the rejection sound to the point you can recognize it when compared to the sound of a good target. Accuracy is greatly increased sweepingthecenterofthetarget.Pinpoint(press√/Xand“x”thearea,returntoDiscrimination(press√/Xagain),thenpassthe search coil over target center and note the sound and display indication.When a metal target doesn’t indicate as expected, peculiarities within that metal’s alloy mix (metal types) are usually to blame. As alloyed steel bottle caps age, the iron deteriorates and the better (non-iron) alloys remain and become prominent (e.g., very old bottle caps are likely to indicate as quarters). The longer they areintheground,themoretheirondissolvesandthestronger/better the non-iron looks to a metal detector. Soil conditions, corrosion factors, depth, and other variables can skew the audio and display indications and, thus, Discrimination settings. Used properly, however, Discrimination will more than double your time spent digging valued targets. The point is to reject the most com-mon trash and accept the most common good targets. The MX Sport has 20 rejection ranges. Discrimination comes already set up for the Program you have selected.To Customize Discrimination:It is sometimes necessary to customize discrimination for tar-getsyouwanttoaccept/reject.Ironwilllikelyjumpalloverthescale inconsistently. You can only reject the first range for iron. For other targets that indicate consistently in a range, identify and then reject that range.1. Press Options and use up & down arrows to select Discrimi-nation.2. Use the + or - buttons to select the desired range you want to change, indicated by the flashing curser. Press pinpoint button to toggle between accepting or rejecting that range. The pinpoint button changes that range from reject (solid indicator bar) to accept (blank indicator bar) or from accept (blank indicator bar) to reject (solid indicator bar).3. Press Options to exit, or wait 10–15 seconds for the Options mode to automatically time out.18 19
Disc Tips: In the DISC menu option, if the zone selection cursor is left under a particular zone for a couple seconds, the text will change from DISC to a short descriptor of what kind of targets one might find in that zone, (e.g. GOLD, QUARTR, etc.)In the DISC menu option, all zones to the left of the zone selection cursor can be discriminated, and all others accepted, by holding the pinpoint button for a short time. The disc mask can be quickly cleared by placing the cursor on the lowest zone, and holding the pinpoint button.VolumeVolume adjusts how loudly a metal target beeps. The MX Sport provides adequate volume levels for individuals with good hearing. Those with impaired hearing should use headphones. To Adjust Volume:1. Press Options and use the up & down arrows to select Vol-ume.2. Press + & - buttons to select the desired volume level.3. Press Options to exit, or wait 10–15 seconds for the options mode to automatically time out.ThresholdThe MX Sport can be used in silent search (no sound until a target is detected), or with a Threshold (steady continuous back-ground hum) with virtually no difference in maximum detection depths. However, searching with a continuous threshold has the advantage of providing more information regarding what the de-tector is seeing. The threshold fading to silence indicates either a rejected target, or a ground anomaly. By focusing more closely around that spot, often a good target can be found near trash.To Adjust Threshold:During searching simply press up and down arrows next to the Options button to adjust threshold.Optionally while in the menu:1. Press Options and use the up & down arrows to select Threshold. 2. Press + & - buttons to adjust threshold. Threshold level should be as quiet as possible while still hearing a hum. 3. Press Options to exit, or wait 10–15 seconds for the Options mode to automatically time out.Tone Identification or Tone IDThe pitch or audio frequency produced by each target’s display identification range can be highlighted with differently pitched sounds, called Tone Identification or Tone ID.A specific audio pitch reference for each range provides quick au-dio ID based on the pitch of the beep it produces during search-ing- without looking at the display. When Tone Identification is in single tone, all accepted metal types produce the same audio pitch during searching. If the Discrimination is set to reject a specific target range, that range may not produce a beep of any pitch. Rejected targets often do not produce any tone (silence). To Adjust Tone Identification:1. Press Options and use up & down arrows to select Tone ID. 2. Press + & - to select the type of Tone Identification desired. 3. Press Options to exit or wait 10–15 seconds for the options mode to automatically time out.Tone ID Settings1-Tone: All targets produce the same pitch beep (no tone ID). 2-Tone ID: Iron targets produce a low-pitched beep; all other targets produce a higher pitched beep.4-Tone ID: • Iron (lowest)• Foil & Pull Tabs• Nickels• Coins (highest pitch)20 21
8-Tone ID:• Large Iron (lowest)• Small Iron• Foil/SmallGold• Nickels• Pulltab• Screwcap• Zinc/IndianHeadPenny• Dime – Dollar (highest pitch)20-Tone ID:Each of the 20 Display ID segments (discrimination zones) produce their own uniquely-pitched beep, starting with iron (the lowest pitch) to Silver Dollars (highest pitched).Depth Units The MX Sport can report target depth in inches or metric. 1. PressOptionsanduseUp&DownarrowstoselectINCHES/METRIC2. Press + & - to select the units of measure desired. 3. Press Options to exit or wait 10–15 seconds to automatically time out. Backlight The MX Sport has a backlit display option for use in low-light conditions. Backlight use will reduce battery life (slightly, 10% to 20%) but may be necessary in some conditions. During use, tap the Power button momentarily to select Backlight. Alternately, press Option, use the up & down arrows to select LIGHT, then use the + & - buttons to select the desired intensity of the backlight. Press Options again to exit, or wait 10–15 sec-onds to automatically time out.Frequency OffsetWhen two or more metal detectors of the same frequency are used near each other, interference (cross talk) among them is likely to occur. By slightly changing the frequency of the MX Sport, such interference can be eliminated both for the MX Sport and for the other detectors being operated nearby. Interference from another metal detector is typically obvious chatter, similar to having your sensitivity set too high for the area, only often with a more regular pattern of sound.When it appears another metal detector is causing interference:Press Options and use the up & down arrows to select Frequen-cy. Use + & - to select among the five available frequencies. Fre-quency shifting on the MX Sport is slight—not enough to result in any measurable differences in sensitivity—just enough to avoid interference from another metal detector nearby.Salt TrackThe MX Sport is a single frequency (VLF) metal detector. More expensive multi-frequency and pulse-induction metal detectors do have some advantage in wet conductive (salt) grounds. How-ever, the MX Sport provides for excellent results in these wet conductive salt conditions. The MX Sport Beach program has a revised ground balance range to accommodate use in wet salt sand because salt (when wet) is conductive like a metal target is conductive.Other situations where a person may need the expanded salt ground balance range added to a program other than Beach include Relic or Prospecting programs Thus, the salt option is available in the Options mode and can be added or subtracted from any program. Relic hunting is often conducted in farm fields. These farm fields, when wet and heavily fertilized, produce conductive conditions similar to wet conductive salt. Add the Salt Track feature to the Relic program when searching heavily fertilized wet farm fields.In desert regions alkali (salt) patches are often found in good nugget shooting areas. By adding the Salt Track feature to the Prospecting program, these alkali areas can be searched effec-tively for nuggets even when wet.22 23

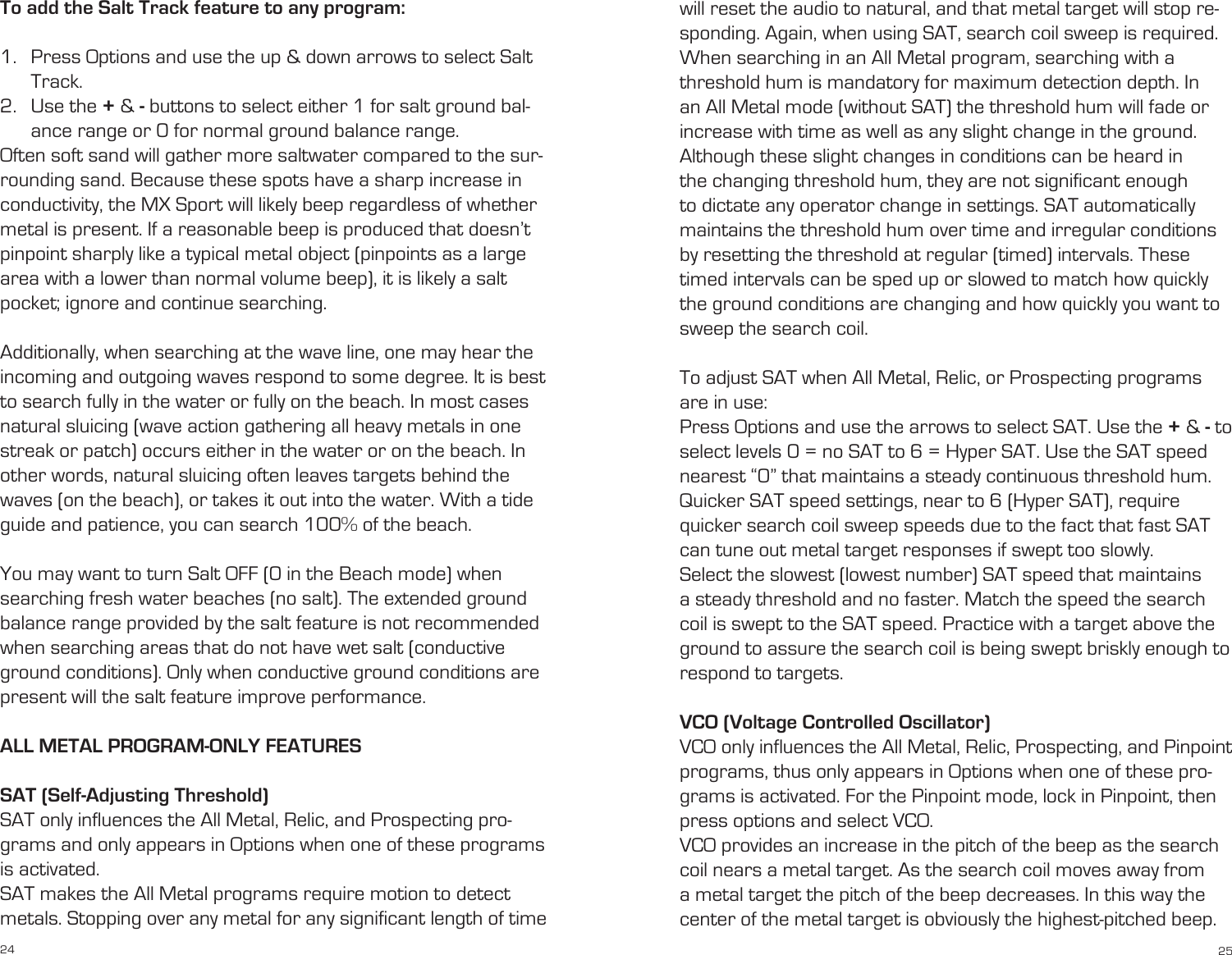

To add the Salt Track feature to any program:1. Press Options and use the up & down arrows to select Salt Track. 2. Use the + & - buttons to select either 1 for salt ground bal-ance range or 0 for normal ground balance range.Often soft sand will gather more saltwater compared to the sur-rounding sand. Because these spots have a sharp increase in conductivity, the MX Sport will likely beep regardless of whether metal is present. If a reasonable beep is produced that doesn’t pinpoint sharply like a typical metal object (pinpoints as a large area with a lower than normal volume beep), it is likely a salt pocket; ignore and continue searching. Additionally, when searching at the wave line, one may hear the incoming and outgoing waves respond to some degree. It is best to search fully in the water or fully on the beach. In most cases natural sluicing (wave action gathering all heavy metals in one streak or patch) occurs either in the water or on the beach. In other words, natural sluicing often leaves targets behind the waves (on the beach), or takes it out into the water. With a tide guide and patience, you can search 100% of the beach.You may want to turn Salt OFF (0 in the Beach mode) when searching fresh water beaches (no salt). The extended ground balance range provided by the salt feature is not recommended when searching areas that do not have wet salt (conductive ground conditions). Only when conductive ground conditions are present will the salt feature improve performance.ALL METAL PROGRAM-ONLY FEATURESSAT (Self-Adjusting Threshold)SAT only influences the All Metal, Relic, and Prospecting pro-grams and only appears in Options when one of these programs is activated.SAT makes the All Metal programs require motion to detect metals. Stopping over any metal for any significant length of time will reset the audio to natural, and that metal target will stop re-sponding. Again, when using SAT, search coil sweep is required.When searching in an All Metal program, searching with a threshold hum is mandatory for maximum detection depth. In an All Metal mode (without SAT) the threshold hum will fade or increase with time as well as any slight change in the ground. Although these slight changes in conditions can be heard in the changing threshold hum, they are not significant enough to dictate any operator change in settings. SAT automatically maintains the threshold hum over time and irregular conditions by resetting the threshold at regular (timed) intervals. These timed intervals can be sped up or slowed to match how quickly the ground conditions are changing and how quickly you want to sweep the search coil.To adjust SAT when All Metal, Relic, or Prospecting programs are in use:Press Options and use the arrows to select SAT. Use the + & - to select levels 0 = no SAT to 6 = Hyper SAT. Use the SAT speed nearest “0” that maintains a steady continuous threshold hum.Quicker SAT speed settings, near to 6 (Hyper SAT), require quicker search coil sweep speeds due to the fact that fast SAT can tune out metal target responses if swept too slowly. Select the slowest (lowest number) SAT speed that maintains a steady threshold and no faster. Match the speed the search coil is swept to the SAT speed. Practice with a target above the ground to assure the search coil is being swept briskly enough to respond to targets.VCO (Voltage Controlled Oscillator)VCO only influences the All Metal, Relic, Prospecting, and Pinpoint programs, thus only appears in Options when one of these pro-grams is activated. For the Pinpoint mode, lock in Pinpoint, then press options and select VCO.VCO provides an increase in the pitch of the beep as the search coil nears a metal target. As the search coil moves away from a metal target the pitch of the beep decreases. In this way the center of the metal target is obviously the highest-pitched beep.24 25

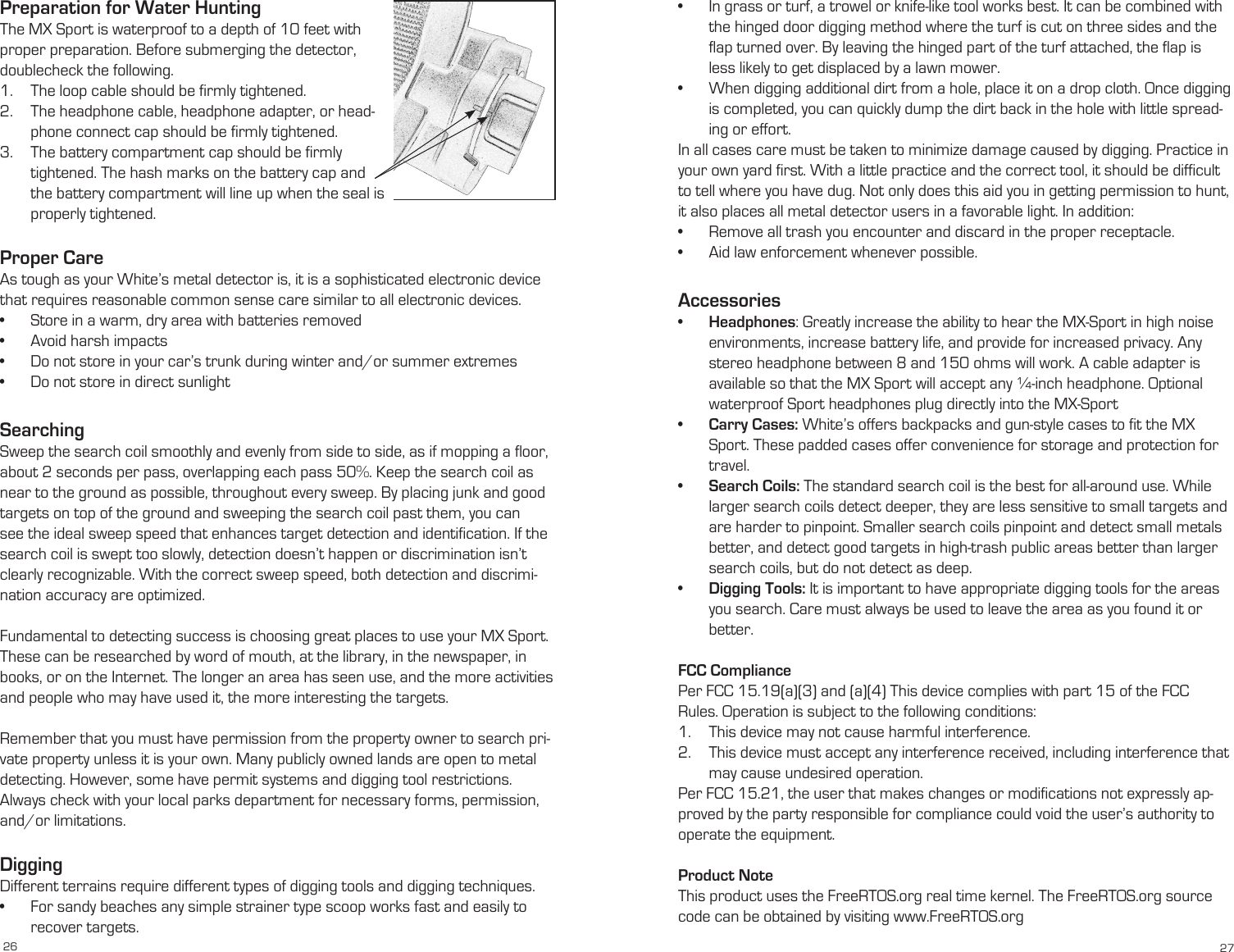

Preparation for Water Hunting The MX Sport is waterproof to a depth of 10 feet with proper preparation. Before submerging the detector, doublecheck the following.1. The loop cable should be firmly tightened.2. The headphone cable, headphone adapter, or head-phone connect cap should be firmly tightened.3. The battery compartment cap should be firmly tightened. The hash marks on the battery cap and the battery compartment will line up when the seal is properly tightened.Proper CareAs tough as your White’s metal detector is, it is a sophisticated electronic device that requires reasonable common sense care similar to all electronic devices. • Store in a warm, dry area with batteries removed • Avoid harsh impacts • Donotstoreinyourcar’strunkduringwinterand/orsummerextremes• Do not store in direct sunlightSearchingSweep the search coil smoothly and evenly from side to side, as if mopping a floor, about 2 seconds per pass, overlapping each pass 50%. Keep the search coil as near to the ground as possible, throughout every sweep. By placing junk and good targets on top of the ground and sweeping the search coil past them, you can see the ideal sweep speed that enhances target detection and identification. If the search coil is swept too slowly, detection doesn’t happen or discrimination isn’t clearly recognizable. With the correct sweep speed, both detection and discrimi-nation accuracy are optimized. Fundamental to detecting success is choosing great places to use your MX Sport. These can be researched by word of mouth, at the library, in the newspaper, in books, or on the Internet. The longer an area has seen use, and the more activities and people who may have used it, the more interesting the targets.Remember that you must have permission from the property owner to search pri-vate property unless it is your own. Many publicly owned lands are open to metal detecting. However, some have permit systems and digging tool restrictions. Always check with your local parks department for necessary forms, permission, and/orlimitations.Digging Different terrains require different types of digging tools and digging techniques. • For sandy beaches any simple strainer type scoop works fast and easily to recover targets. • In grass or turf, a trowel or knife-like tool works best. It can be combined with the hinged door digging method where the turf is cut on three sides and the flap turned over. By leaving the hinged part of the turf attached, the flap is less likely to get displaced by a lawn mower. • When digging additional dirt from a hole, place it on a drop cloth. Once digging is completed, you can quickly dump the dirt back in the hole with little spread-ing or effort. In all cases care must be taken to minimize damage caused by digging. Practice in your own yard first. With a little practice and the correct tool, it should be difficult to tell where you have dug. Not only does this aid you in getting permission to hunt, it also places all metal detector users in a favorable light. In addition:• Remove all trash you encounter and discard in the proper receptacle.• Aid law enforcement whenever possible.Accessories• Headphones: Greatly increase the ability to hear the MX-Sport in high noise environments, increase battery life, and provide for increased privacy. Any stereo headphone between 8 and 150 ohms will work. A cable adapter is available so that the MX Sport will accept any ¼-inch headphone. Optional waterproof Sport headphones plug directly into the MX-Sport• Carry Cases: White’s offers backpacks and gun-style cases to fit the MX Sport. These padded cases offer convenience for storage and protection for travel.• Search Coils: The standard search coil is the best for all-around use. While larger search coils detect deeper, they are less sensitive to small targets and are harder to pinpoint. Smaller search coils pinpoint and detect small metals better, and detect good targets in high-trash public areas better than larger search coils, but do not detect as deep.• Digging Tools: It is important to have appropriate digging tools for the areas you search. Care must always be used to leave the area as you found it or better.FCC CompliancePer FCC 15.19(a)(3) and (a)(4) This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.Per FCC 15.21, the user that makes changes or modifications not expressly ap-proved by the party responsible for compliance could void the user’s authority to operate the equipment. Product NoteThis product uses the FreeRTOS.org real time kernel. The FreeRTOS.org source code can be obtained by visiting www.FreeRTOS.org 26 27

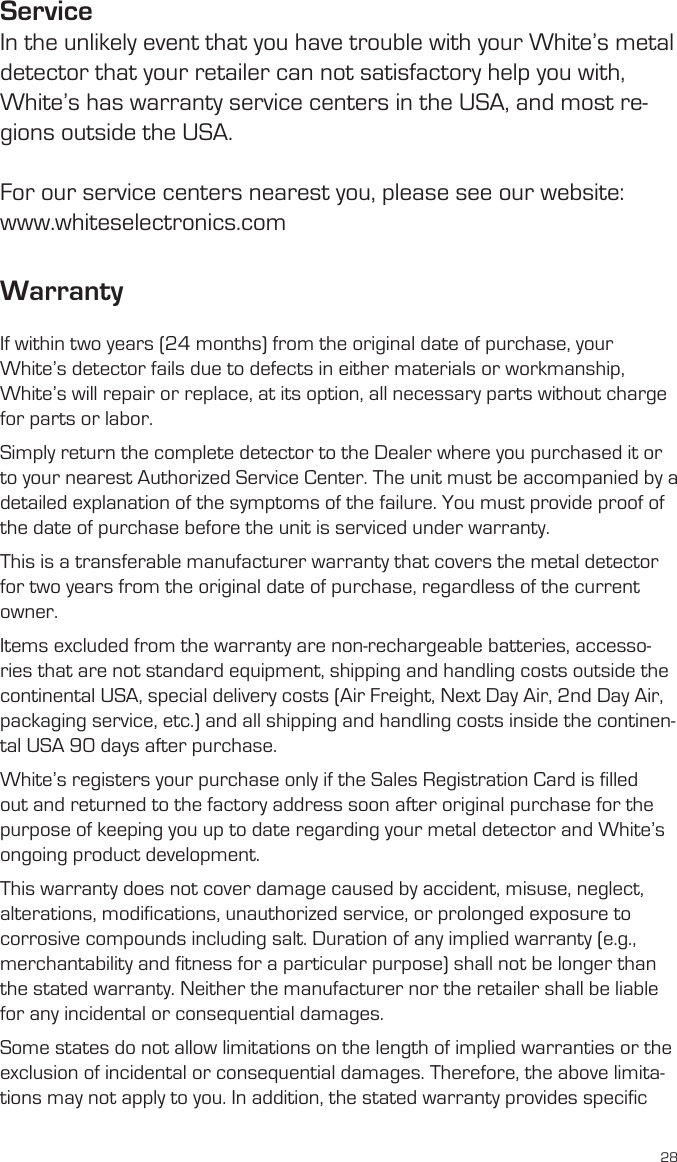

28ServiceIn the unlikely event that you have trouble with your White’s metal detector that your retailer can not satisfactory help you with, White’s has warranty service centers in the USA, and most re-gions outside the USA.For our service centers nearest you, please see our website:www.whiteselectronics.comWarrantyIf within two years (24 months) from the original date of purchase, your White’s detector fails due to defects in either materials or workmanship, White’s will repair or replace, at its option, all necessary parts without charge for parts or labor. Simply return the complete detector to the Dealer where you purchased it or to your nearest Authorized Service Center. The unit must be accompanied by a detailed explanation of the symptoms of the failure. You must provide proof of the date of purchase before the unit is serviced under warranty. This is a transferable manufacturer warranty that covers the metal detector for two years from the original date of purchase, regardless of the current owner. Items excluded from the warranty are non-rechargeable batteries, accesso-ries that are not standard equipment, shipping and handling costs outside the continental USA, special delivery costs (Air Freight, Next Day Air, 2nd Day Air, packaging service, etc.) and all shipping and handling costs inside the continen-tal USA 90 days after purchase. White’s registers your purchase only if the Sales Registration Card is filled out and returned to the factory address soon after original purchase for the purpose of keeping you up to date regarding your metal detector and White’s ongoing product development. This warranty does not cover damage caused by accident, misuse, neglect, alterations, modifications, unauthorized service, or prolonged exposure to corrosive compounds including salt. Duration of any implied warranty (e.g., merchantability and fitness for a particular purpose) shall not be longer than the stated warranty. Neither the manufacturer nor the retailer shall be liable for any incidental or consequential damages. Some states do not allow limitations on the length of implied warranties or the exclusion of incidental or consequential damages. Therefore, the above limita-tions may not apply to you. In addition, the stated warranty provides specific
