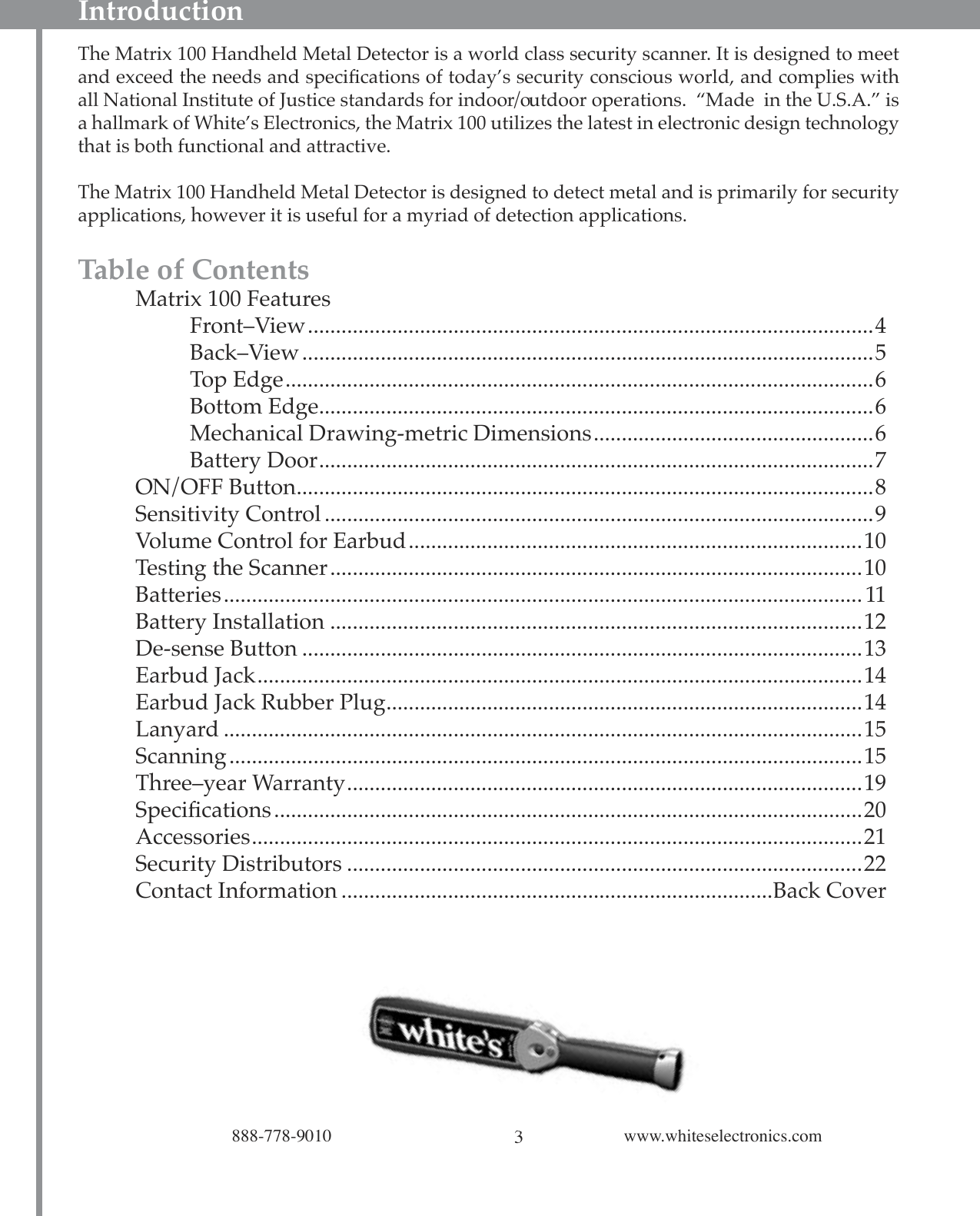

3888-778-9010 www.whiteselectronics.comIntroductionThe Matrix 100 Handheld Metal Detector is a world class security scanner. It is designed to meet and exceed the needs and specifications of today’s security conscious world, and complies with all National Institute of Justice standards for indoor/outdoor operations. “Made in the U.S.A.” is a hallmark of White’s Electronics, the Matrix 100 utilizes the latest in electronic design technology that is both functional and attractive.The Matrix 100 Handheld Metal Detector is designed to detect metal and is primarily for security applications, however it is useful for a myriad of detection applications.Table of Contents Matrix 100 Features Front–View .....................................................................................................4 Back–View ......................................................................................................5 Top Edge .........................................................................................................6 Bottom Edge ...................................................................................................6 Mechanical Drawing-metric Dimensions ..................................................6 Battery Door ...................................................................................................7 ON/OFF Button .......................................................................................................8 Sensitivity Control ..................................................................................................9 Volume Control for Earbud .................................................................................10 Testing the Scanner ...............................................................................................10 Batteries ..................................................................................................................11Battery Installation ...............................................................................................12De-sense Button ....................................................................................................13 Earbud Jack ............................................................................................................14Earbud Jack Rubber Plug .....................................................................................14Lanyard ..................................................................................................................15Scanning .................................................................................................................15Three–year Warranty ............................................................................................19Specifications .........................................................................................................20Accessories .............................................................................................................21Security Distributors ............................................................................................22Contact Information .............................................................................Back CoverFeatures – Front view

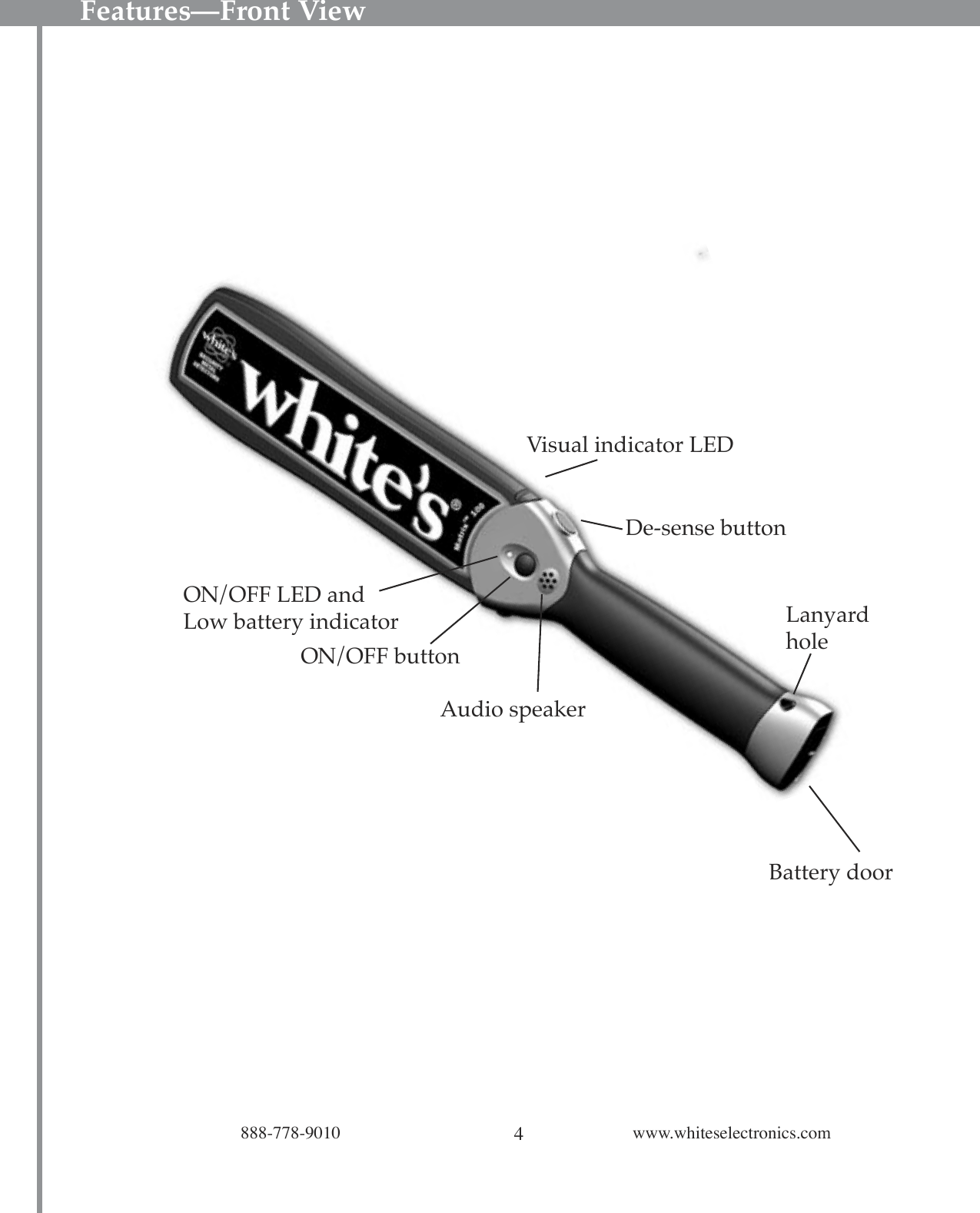

4888-778-9010 www.whiteselectronics.comFeatures—Front ViewFeatures – Back viewON/OFF buttonBattery doorDe-sense buttonVisual indicator LEDAudio speakerON/OFF LED andLow battery indicator Lanyardhole
5888-778-9010 www.whiteselectronics.comFeatures—Back ViewBatterydoorDe-sense buttonVisual indicator LEDScan areaSensitivity controlaccessholeVolume controlaccessholeEarbud jack withrubber plugLanyardhole 20 cm

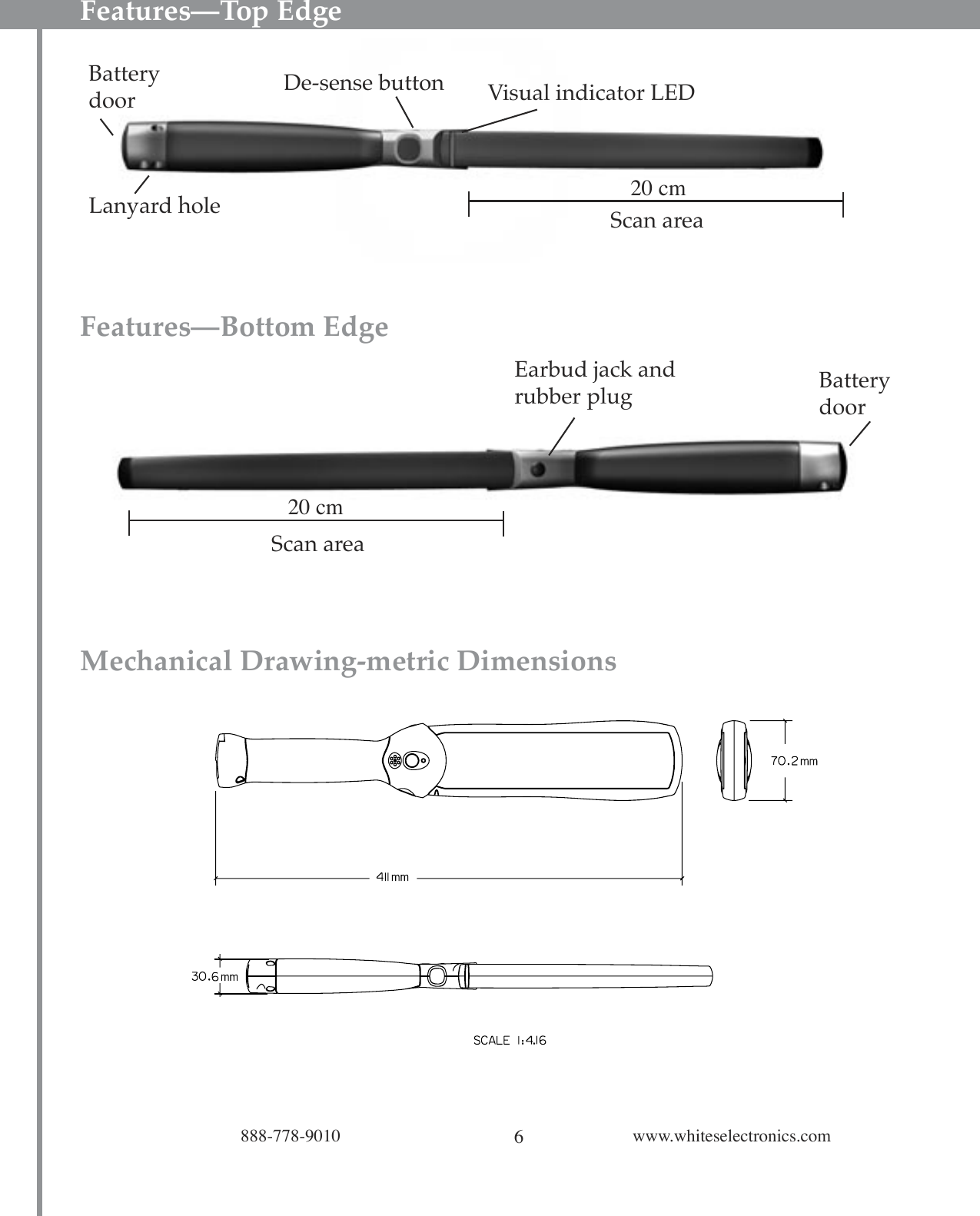

6888-778-9010 www.whiteselectronics.comFeatures—Top Edge Features—Bottom EdgeMechanical Drawing-metric DimensionsDe-sense buttonScan areaVisual indicator LEDBatterydoorLanyard holeScan areaBatterydoorEarbud jack andrubber plug20 cm20 cm

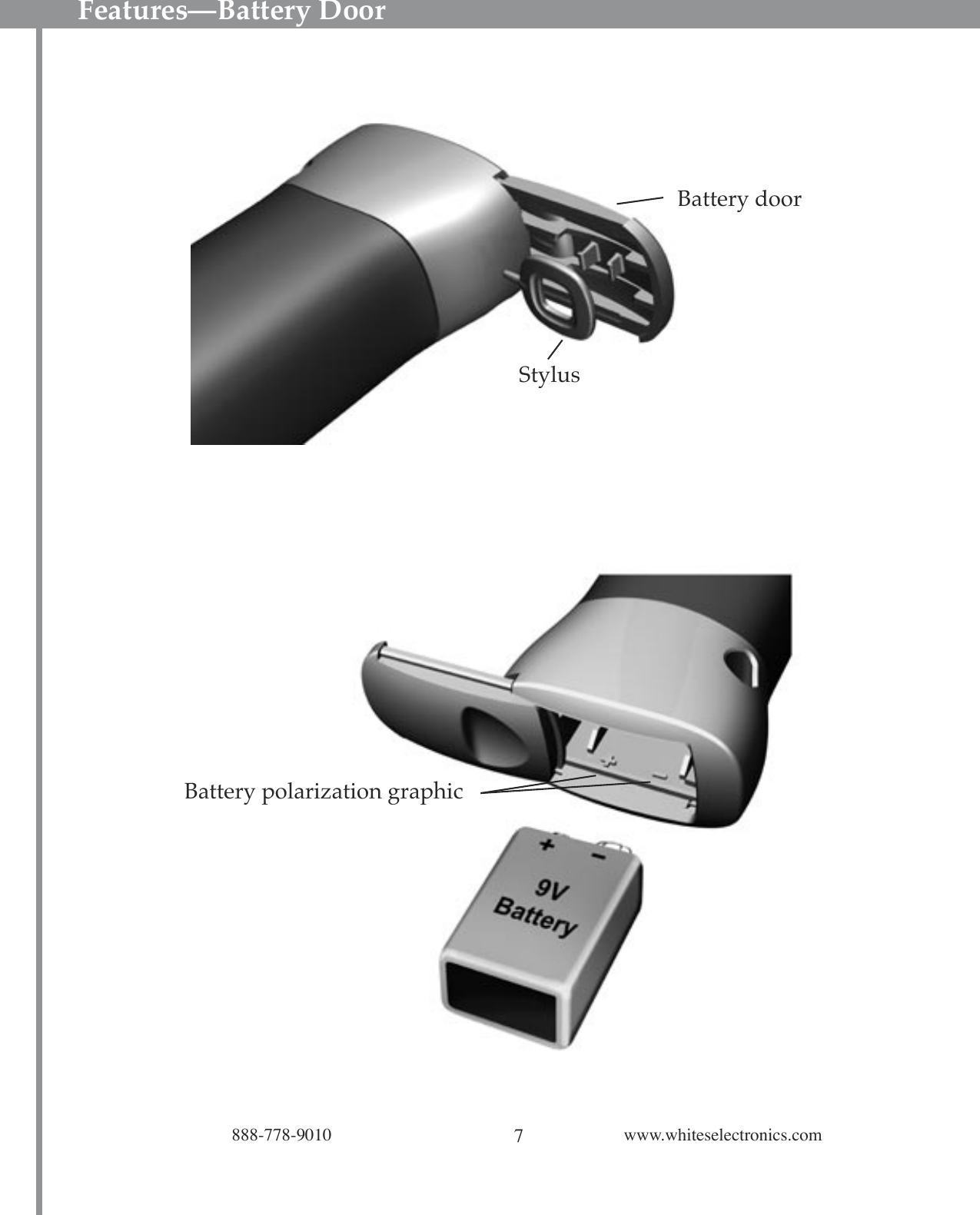

7888-778-9010 www.whiteselectronics.comFeatures—Battery Door Battery doorStylusBattery polarization graphic

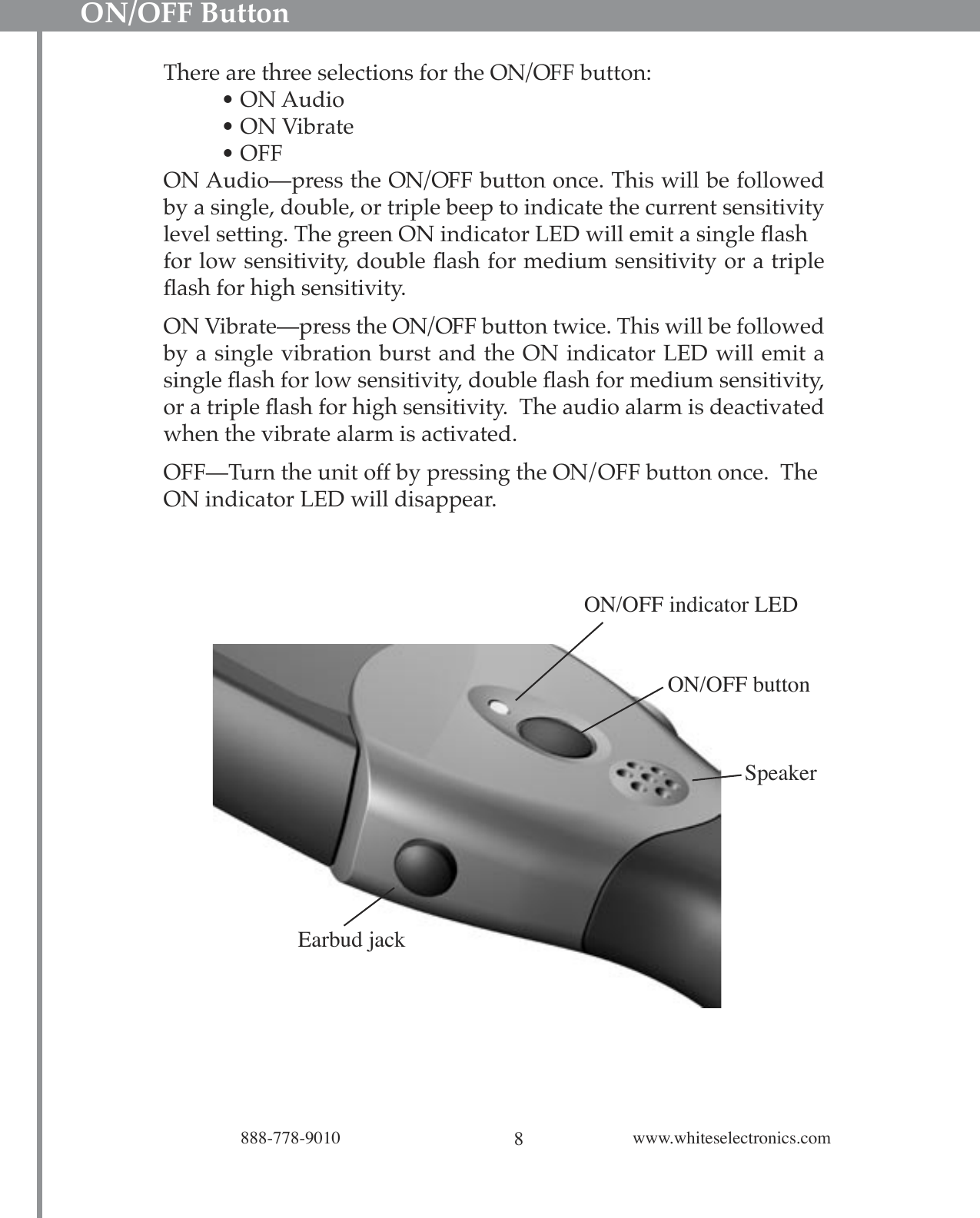

8888-778-9010 www.whiteselectronics.comThere are three selections for the ON/OFF button: • ON Audio • ON Vibrate • OFFON Audio—press the ON/OFF button once. This will be followed by a single, double, or triple beep to indicate the current sensitivity level setting. The green ON indicator LED will emit a single flash for low sensitivity, double flash for medium sensitivity or a triple flash for high sensitivity. ON Vibrate—press the ON/OFF button twice. This will be followed by a single vibration burst and the ON indicator LED will emit a single flash for low sensitivity, double flash for medium sensitivity, or a triple flash for high sensitivity. The audio alarm is deactivated when the vibrate alarm is activated. OFF—Turn the unit off by pressing the ON/OFF button once. The ON indicator LED will disappear. ON/OFF indicator LEDON/OFF buttonSpeakerEarbud jackON/OFF Button
9888-778-9010 www.whiteselectronics.comThe unit is preset, at the factory, to medium sensitivity. The sensitivity level can be changed to the low, medium, or high level.* The Specifications List (see Page 20) shows the effect of the different sensitivity levels for detecting objects of various sizes. To change the sensitivity level, open the battery door and remove the stylus (see Page 7). Use the stylus to press the sensitivity control to cycle through the sensitivity levels,(low, medium, or high). The unit will beep or vibrate and will flash the red visual indicator LED to announce the new sensitivity level: One beep/vibration/flash = low sensitivity Two beeps/vibrations/flashes = medium sensitivity Three beeps/vibrations/flashes = high sensitivityWhen the unit is turned off or the battery is removed, the sensitivity level setting is retained in the memory.Earbud volumeStylusSensitivityVisual indicator LEDDe-sense button* To be determined by administration policy and supervisor control.Sensitivity Control

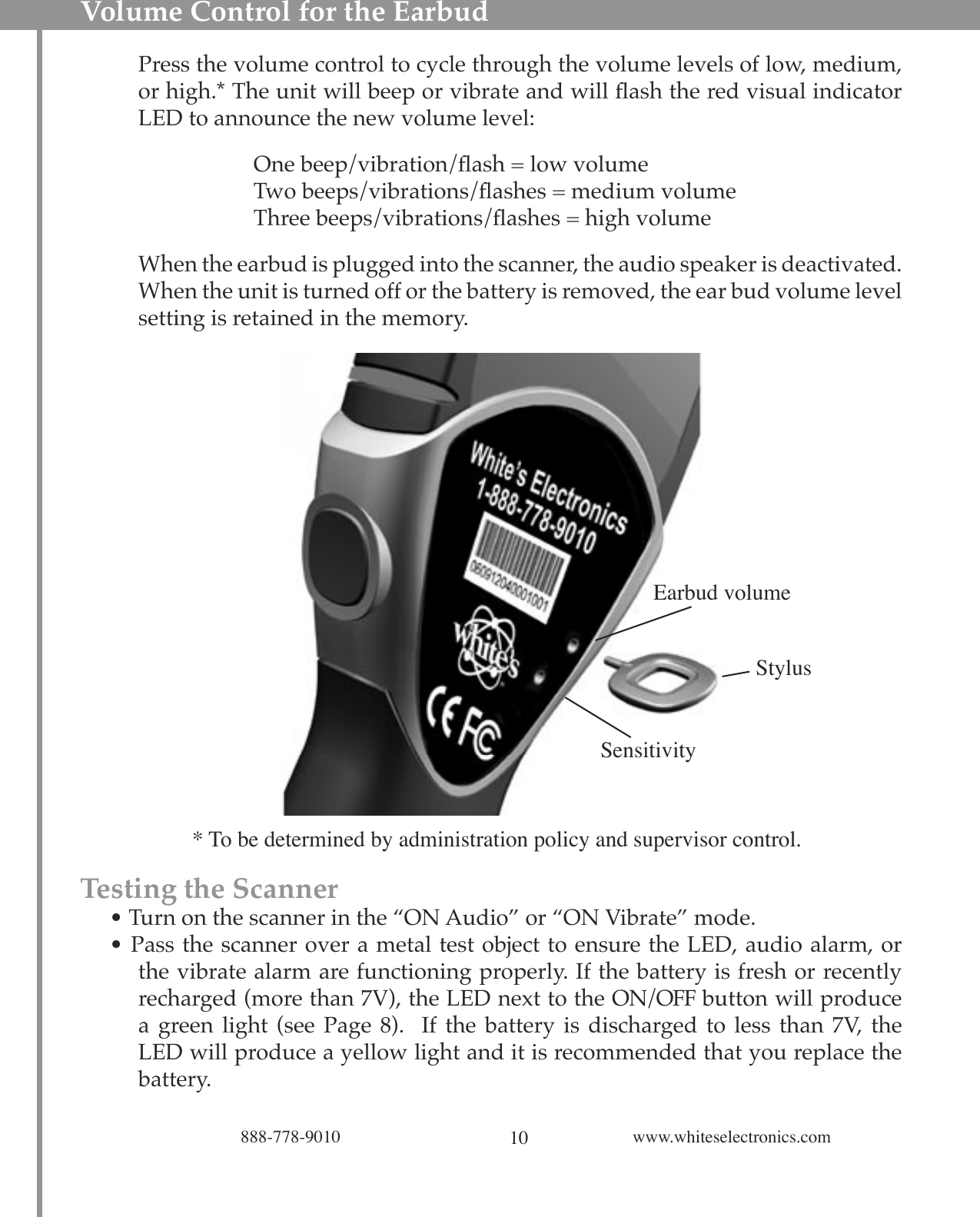

10888-778-9010 www.whiteselectronics.comVolume Control for the EarbudPress the volume control to cycle through the volume levels of low, medium, or high.* The unit will beep or vibrate and will flash the red visual indicator LED to announce the new volume level: One beep/vibration/flash = low volume Two beeps/vibrations/flashes = medium volume Three beeps/vibrations/flashes = high volumeWhen the earbud is plugged into the scanner, the audio speaker is deactivated. When the unit is turned off or the battery is removed, the ear bud volume level setting is retained in the memory.Testing the Scanner• Turn on the scanner in the “ON Audio” or “ON Vibrate” mode.• Pass the scanner over a metal test object to ensure the LED, audio alarm, or the vibrate alarm are functioning properly. If the battery is fresh or recently recharged (more than 7V), the LED next to the ON/OFF button will produce a green light (see Page 8). If the battery is discharged to less than 7V, the LED will produce a yellow light and it is recommended that you replace the battery.De-Sense buttonEarbud volumeSensitivityStylus* To be determined by administration policy and supervisor control.

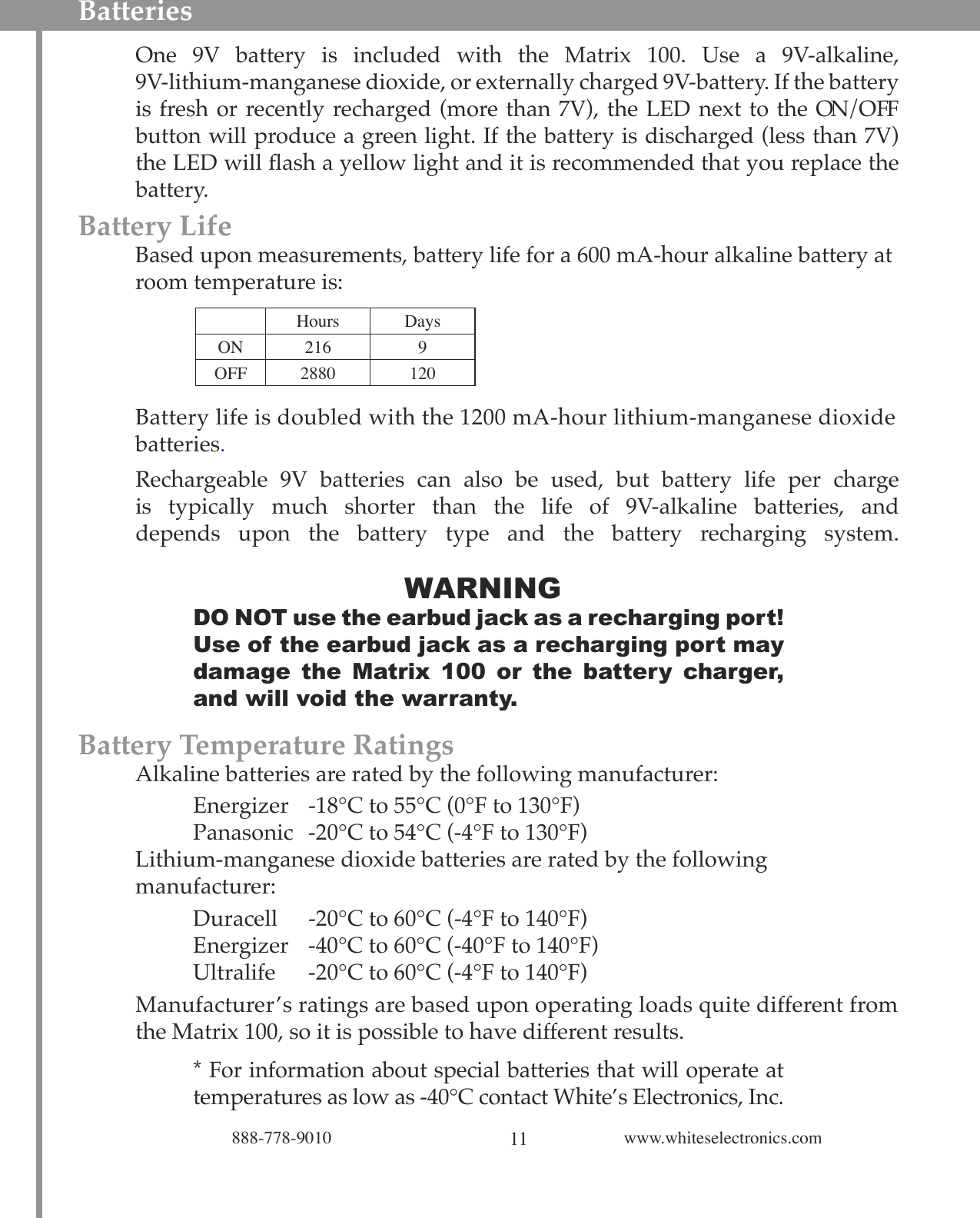

11888-778-9010 www.whiteselectronics.comOne 9V battery is included with the Matrix 100. Use a 9V-alkaline, 9V-lithium-manganese dioxide, or externally charged 9V-battery. If the battery is fresh or recently recharged (more than 7V), the LED next to the ON/OFF button will produce a green light. If the battery is discharged (less than 7V) the LED will flash a yellow light and it is recommended that you replace the battery.Battery Life Based upon measurements, battery life for a 600 mA-hour alkaline battery at room temperature is:Battery life is doubled with the 1200 mA-hour lithium-manganese dioxide batteries. Rechargeable 9V batteries can also be used, but battery life per charge is typically much shorter than the life of 9V-alkaline batteries, and depends upon the battery type and the battery recharging system. WARNINGDO NOT use the earbud jack as a recharging port! Use of the earbud jack as a recharging port may damage the Matrix 100 or the battery charger, and will void the warranty.Battery Temperature Ratings Alkaline batteries are rated by the following manufacturer: Energizer -18°C to 55°C (0°F to 130°F) Panasonic -20°C to 54°C (-4°F to 130°F) Lithium-manganese dioxide batteries are rated by the following manufacturer: Duracell -20°C to 60°C (-4°F to 140°F) Energizer -40°C to 60°C (-40°F to 140°F) Ultralife -20°C to 60°C (-4°F to 140°F)Manufacturer’s ratings are based upon operating loads quite different from the Matrix 100, so it is possible to have different results.* For information about special batteries that will operate at temperatures as low as -40°C contact White’s Electronics, Inc.BatteriesHours DaysON 216 9OFF 2880 120

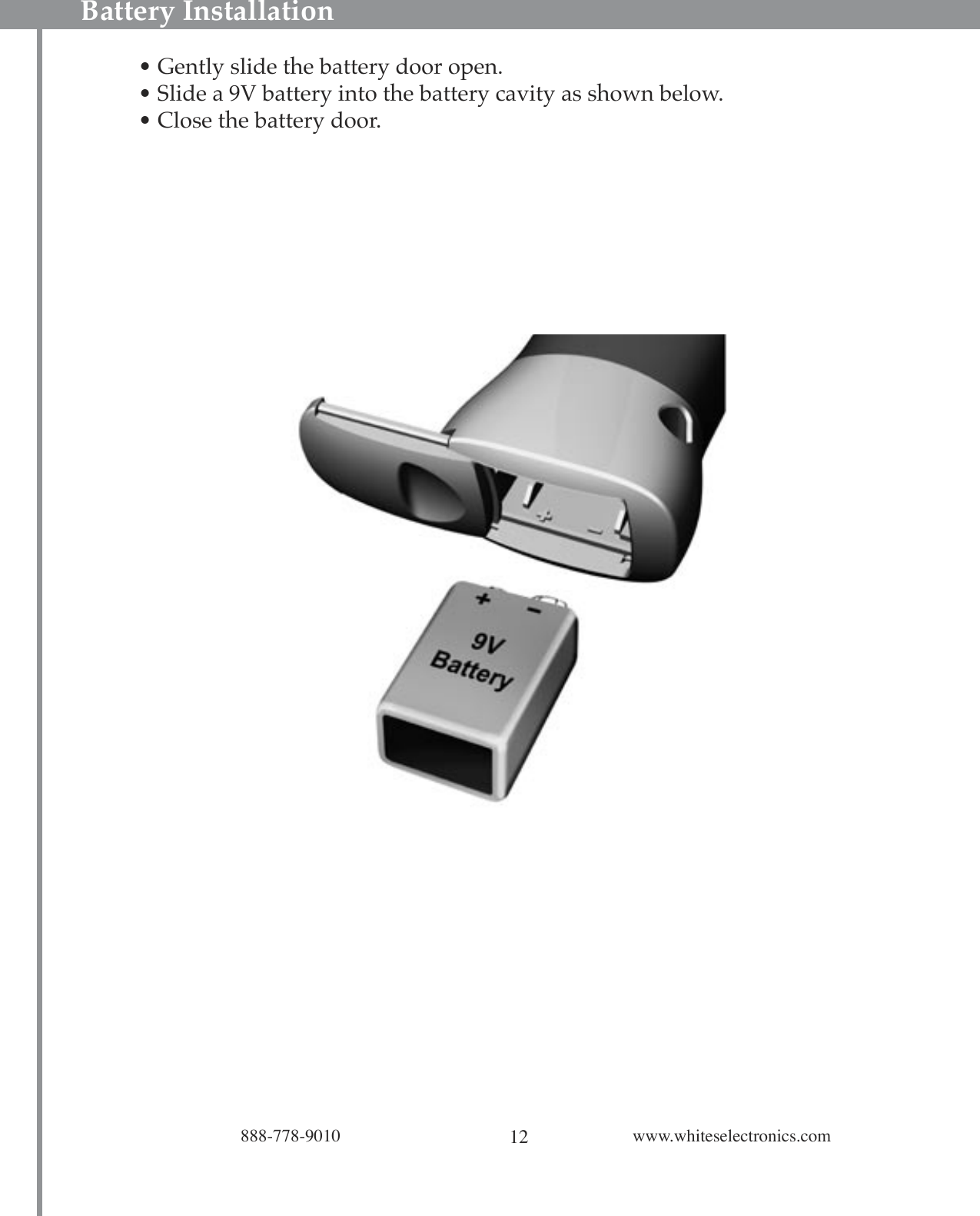

12888-778-9010 www.whiteselectronics.comBattery Installation• Gently slide the battery door open.• Slide a 9V battery into the battery cavity as shown below. • Close the battery door.L

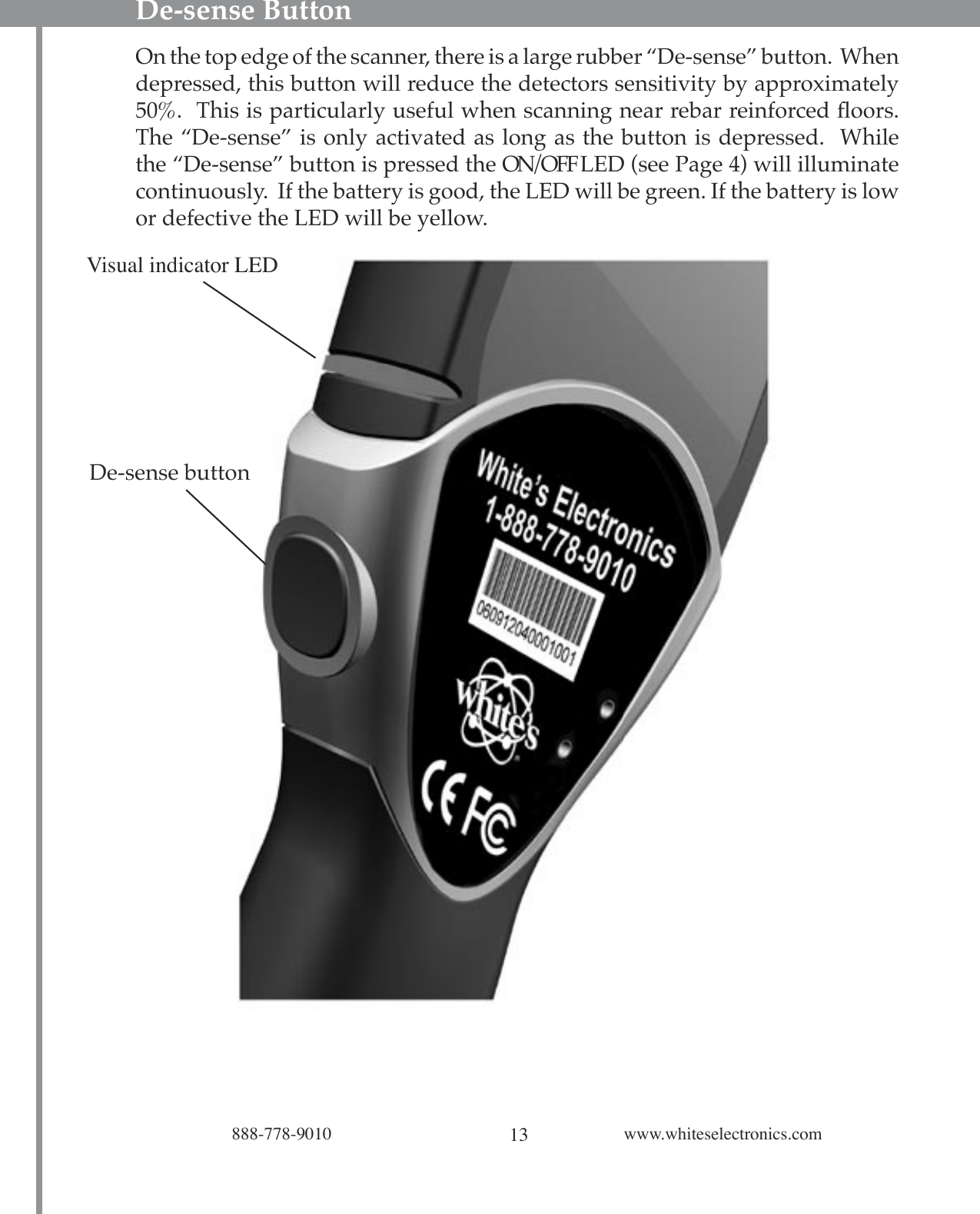

13888-778-9010 www.whiteselectronics.comDe-sense ButtonOn the top edge of the scanner, there is a large rubber “De-sense” button. When depressed, this button will reduce the detectors sensitivity by approximately 50%. This is particularly useful when scanning near rebar reinforced floors. The “De-sense” is only activated as long as the button is depressed. While the “De-sense” button is pressed the ON/OFF LED (see Page 4) will illuminate continuously. If the battery is good, the LED will be green. If the battery is low or defective the LED will be yellow. Visual indicator LEDDe-sense button

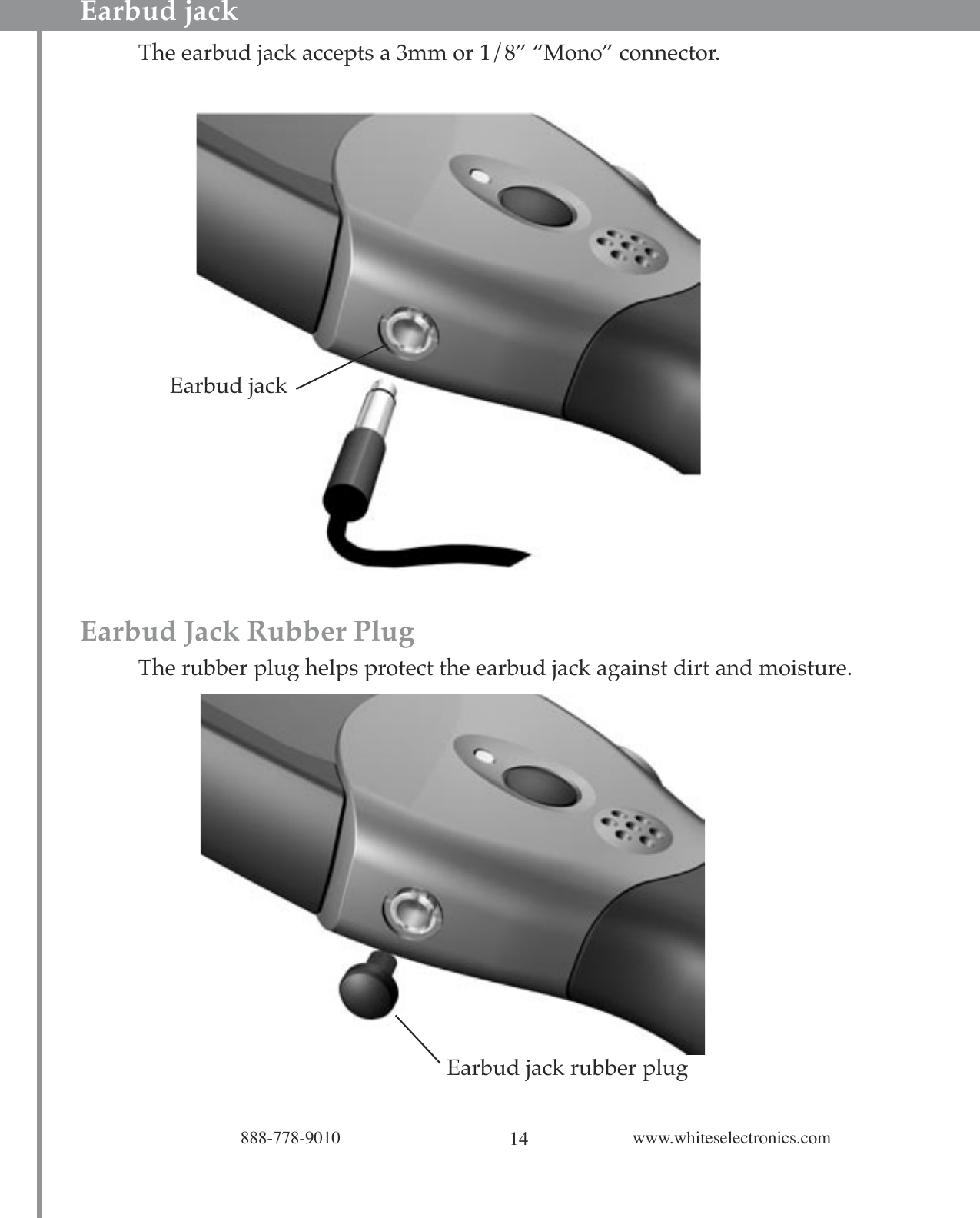

14888-778-9010 www.whiteselectronics.comEarbud jack The earbud jack accepts a 3mm or 1/8” “Mono” connector.Earbud Jack Rubber Plug The rubber plug helps protect the earbud jack against dirt and moisture.Earbud jackEarbud jack rubber plug
15888-778-9010 www.whiteselectronics.comLanyardA lanyard is provided with each Matrix 100. The small nylon loop can be threaded through the lanyard hole and looped back through itself to secure the Matrix 100. The lanyard is tested to withhold approximately 25 pounds of force, before breaking. Scanning a Person• Warning: Follow the approved policy & procedure for scanning a person. This policy & procedure should be approved by the administrator and/or supervisor of the person using the scanner. • It is recommended that the operator “NOT” touch the individual being scanned with the detector.• The detector is not a weapon and should not be treated as such and will void the warranty. • Treat the detector with care. Do not abuse.National Institute of Justice Guidelines for use of handheld detectors in schools.While it is not difficult to learn to use a handheld metal detector correctly, school administrators should not underestimate the value of annual training for their operators, as well as training for staff who may be called upon to serve as backup or supplemental operators. However, on-the-job practice is important in allowing the school to achieve the type of throughput that will be required in order to process students quickly.Every school will want to tailor its own set of operator procedures to take into consideration its students’ and community needs. Some generic procedures: • The detector should be passed over the scannee’s body at a distance of no more than 3 to 4 inches. Avoid touching the body or clothing with the detector. However, for some baggier clothing, such as pants or jackets, it may be necessary to hold the detector against or more into the fabric while scanning in order to stay within 3 to 4 inches of all body surfaces.

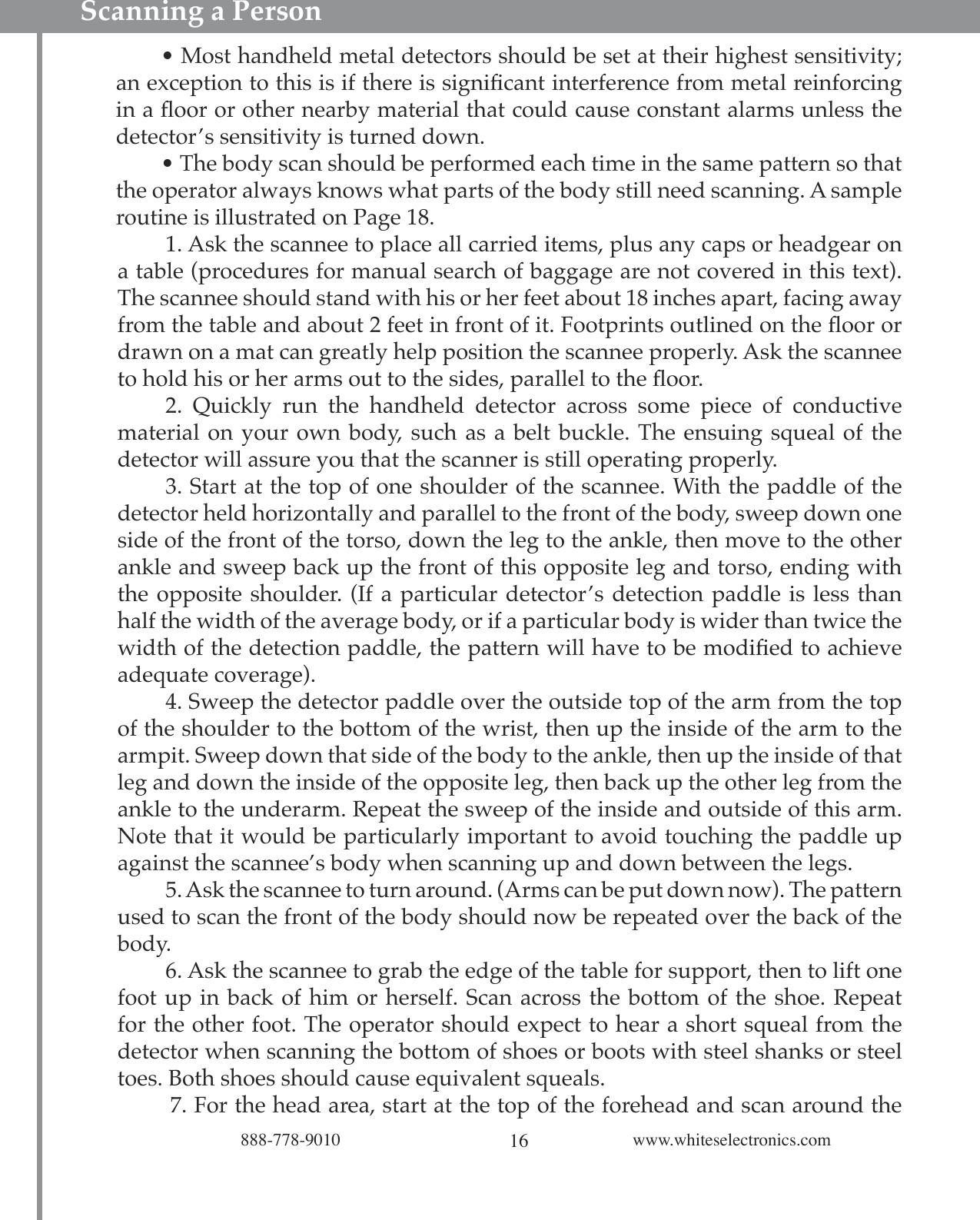

16888-778-9010 www.whiteselectronics.com • Most handheld metal detectors should be set at their highest sensitivity; an exception to this is if there is significant interference from metal reinforcing in a floor or other nearby material that could cause constant alarms unless the detector’s sensitivity is turned down. • The body scan should be performed each time in the same pattern so that the operator always knows what parts of the body still need scanning. A sample routine is illustrated on Page 18. 1. Ask the scannee to place all carried items, plus any caps or headgear on a table (procedures for manual search of baggage are not covered in this text). The scannee should stand with his or her feet about 18 inches apart, facing away from the table and about 2 feet in front of it. Footprints outlined on the floor or drawn on a mat can greatly help position the scannee properly. Ask the scannee to hold his or her arms out to the sides, parallel to the floor. 2. Quickly run the handheld detector across some piece of conductive material on your own body, such as a belt buckle. The ensuing squeal of the detector will assure you that the scanner is still operating properly. 3. Start at the top of one shoulder of the scannee. With the paddle of the detector held horizontally and parallel to the front of the body, sweep down one side of the front of the torso, down the leg to the ankle, then move to the other ankle and sweep back up the front of this opposite leg and torso, ending with the opposite shoulder. (If a particular detector’s detection paddle is less than half the width of the average body, or if a particular body is wider than twice the width of the detection paddle, the pattern will have to be modified to achieve adequate coverage). 4. Sweep the detector paddle over the outside top of the arm from the top of the shoulder to the bottom of the wrist, then up the inside of the arm to the armpit. Sweep down that side of the body to the ankle, then up the inside of that leg and down the inside of the opposite leg, then back up the other leg from the ankle to the underarm. Repeat the sweep of the inside and outside of this arm. Note that it would be particularly important to avoid touching the paddle up against the scannee’s body when scanning up and down between the legs. 5. Ask the scannee to turn around. (Arms can be put down now). The pattern used to scan the front of the body should now be repeated over the back of the body. 6. Ask the scannee to grab the edge of the table for support, then to lift one foot up in back of him or herself. Scan across the bottom of the shoe. Repeat for the other foot. The operator should expect to hear a short squeal from the detector when scanning the bottom of shoes or boots with steel shanks or steel toes. Both shoes should cause equivalent squeals. 7. For the head area, start at the top of the forehead and scan around the Scanning a Person

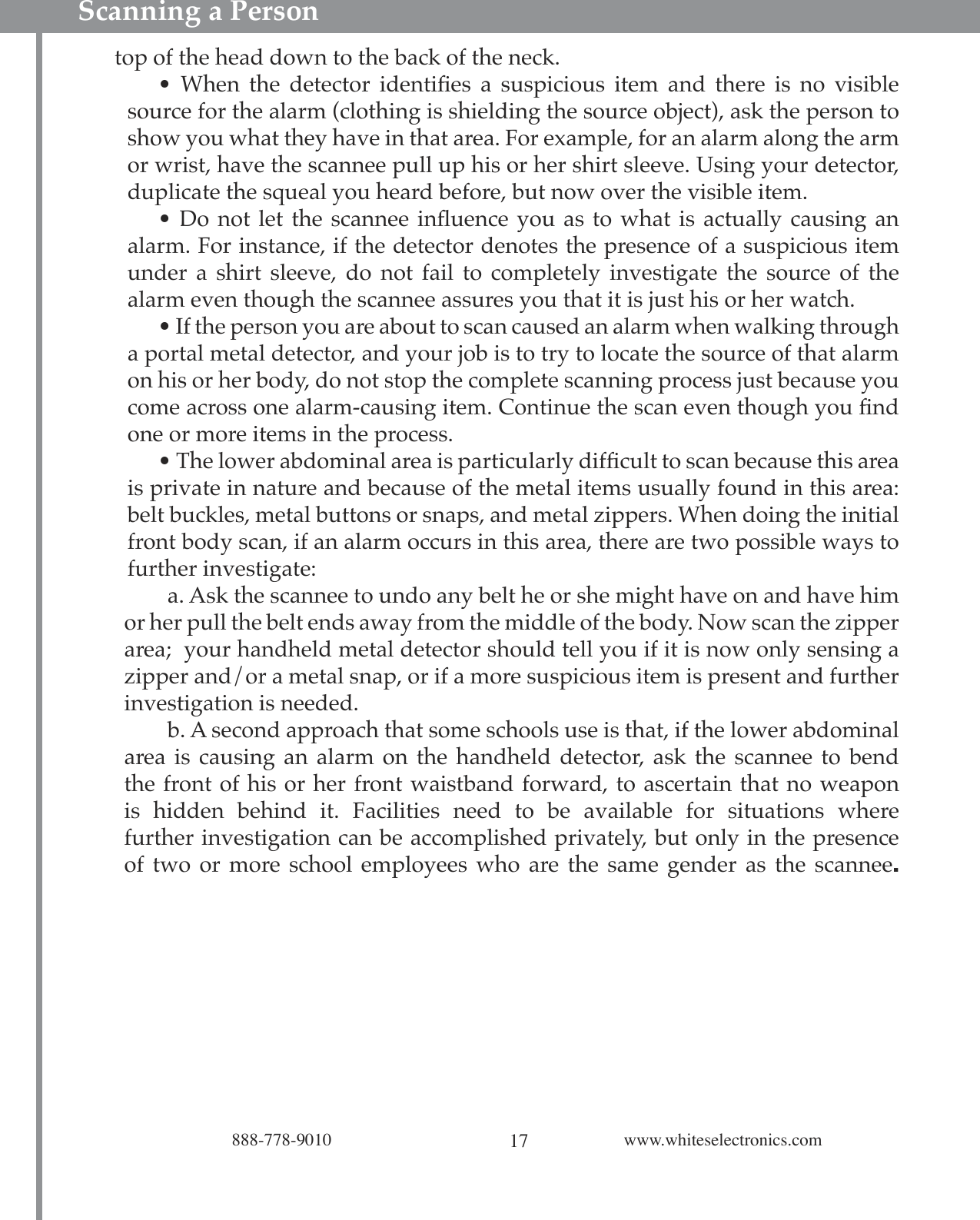

17888-778-9010 www.whiteselectronics.comtop of the head down to the back of the neck. • When the detector identifies a suspicious item and there is no visible source for the alarm (clothing is shielding the source object), ask the person to show you what they have in that area. For example, for an alarm along the arm or wrist, have the scannee pull up his or her shirt sleeve. Using your detector, duplicate the squeal you heard before, but now over the visible item. • Do not let the scannee influence you as to what is actually causing an alarm. For instance, if the detector denotes the presence of a suspicious item under a shirt sleeve, do not fail to completely investigate the source of the alarm even though the scannee assures you that it is just his or her watch. • If the person you are about to scan caused an alarm when walking through a portal metal detector, and your job is to try to locate the source of that alarm on his or her body, do not stop the complete scanning process just because you come across one alarm-causing item. Continue the scan even though you find one or more items in the process. • The lower abdominal area is particularly difficult to scan because this area is private in nature and because of the metal items usually found in this area: belt buckles, metal buttons or snaps, and metal zippers. When doing the initial front body scan, if an alarm occurs in this area, there are two possible ways to further investigate: a. Ask the scannee to undo any belt he or she might have on and have him or her pull the belt ends away from the middle of the body. Now scan the zipper area; your handheld metal detector should tell you if it is now only sensing a zipper and/or a metal snap, or if a more suspicious item is present and further investigation is needed. b. A second approach that some schools use is that, if the lower abdominal area is causing an alarm on the handheld detector, ask the scannee to bend the front of his or her front waistband forward, to ascertain that no weapon is hidden behind it. Facilities need to be available for situations where further investigation can be accomplished privately, but only in the presence of two or more school employees who are the same gender as the scannee. Scanning a Person

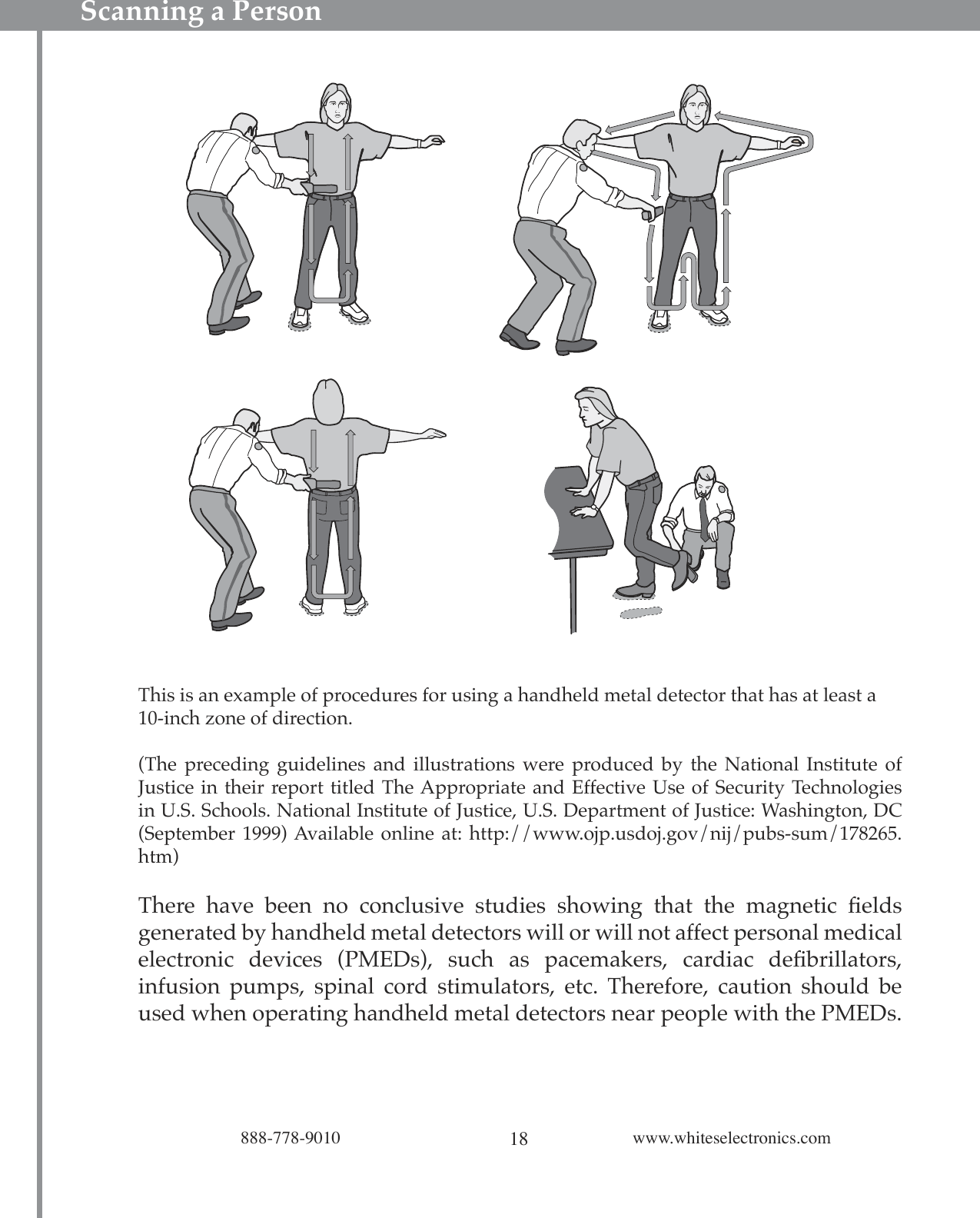

18888-778-9010 www.whiteselectronics.comThis is an example of procedures for using a handheld metal detector that has at least a 10-inch zone of direction.(The preceding guidelines and illustrations were produced by the National Institute of Justice in their report titled The Appropriate and Effective Use of Security Technologies in U.S. Schools. National Institute of Justice, U.S. Department of Justice: Washington, DC (September 1999) Available online at: http://www.ojp.usdoj.gov/nij/pubs-sum/178265.htm)There have been no conclusive studies showing that the magnetic fields generated by handheld metal detectors will or will not affect personal medical electronic devices (PMEDs), such as pacemakers, cardiac defibrillators, infusion pumps, spinal cord stimulators, etc. Therefore, caution should be used when operating handheld metal detectors near people with the PMEDs. Scanning a Person

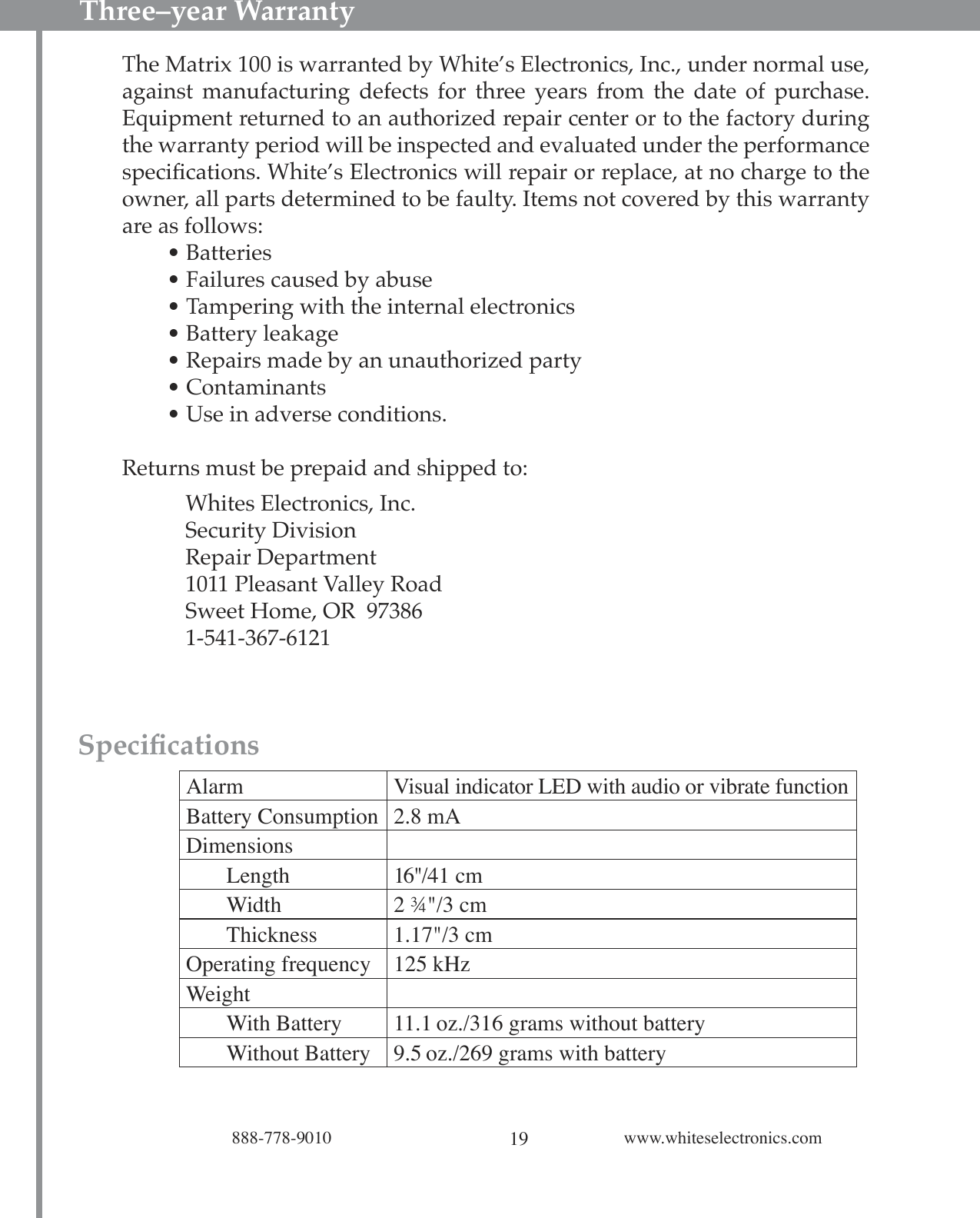

19888-778-9010 www.whiteselectronics.comSpecifications The Matrix 100 is warranted by White’s Electronics, Inc., under normal use, against manufacturing defects for three years from the date of purchase. Equipment returned to an authorized repair center or to the factory during the warranty period will be inspected and evaluated under the performance specifications. White’s Electronics will repair or replace, at no charge to the owner, all parts determined to be faulty. Items not covered by this warranty are as follows: • Batteries • Failures caused by abuse • Tampering with the internal electronics • Battery leakage • Repairs made by an unauthorized party • Contaminants • Use in adverse conditions. Returns must be prepaid and shipped to: Whites Electronics, Inc.Security DivisionRepair Department1011 Pleasant Valley RoadSweet Home, OR 97386 1-541-367-6121 Three–year WarrantyAlarm Visual indicator LED with audio or vibrate functionBattery Consumption 2.8 mA DimensionsLength 16"/41 cmWidth 2 ¾"/3 cmThickness 1.17"/3 cmOperating frequency 125 kHzWeightWith Battery 11.1 oz./316 grams without batteryWithout Battery 9.5 oz./269 grams with battery

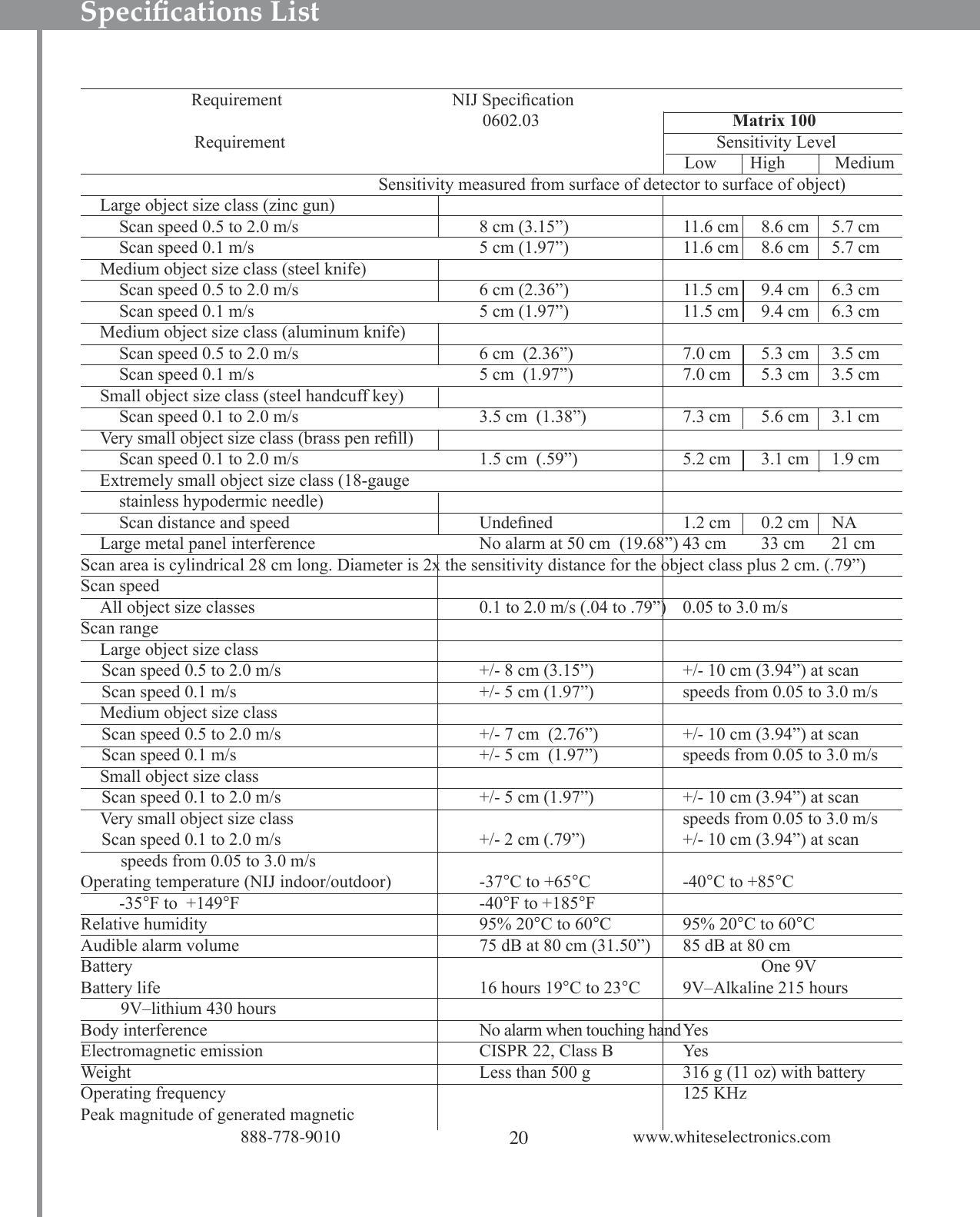

20888-778-9010 www.whiteselectronics.comSpecifications List Requirement NIJ Specification 0602.03 Matrix 100 Requirement Sensitivity Level Low High Medium Sensitivity measured from surface of detector to surface of object) Large object size class (zinc gun) Scan speed 0.5 to 2.0 m/s 8 cm (3.15”) 11.6 cm 8.6 cm 5.7 cm Scan speed 0.1 m/s 5 cm (1.97”) 11.6 cm 8.6 cm 5.7 cm Medium object size class (steel knife) Scan speed 0.5 to 2.0 m/s 6 cm (2.36”) 11.5 cm 9.4 cm 6.3 cm Scan speed 0.1 m/s 5 cm (1.97”) 11.5 cm 9.4 cm 6.3 cm Medium object size class (aluminum knife) Scan speed 0.5 to 2.0 m/s 6 cm (2.36”) 7.0 cm 5.3 cm 3.5 cm Scan speed 0.1 m/s 5 cm (1.97”) 7.0 cm 5.3 cm 3.5 cm Small object size class (steel handcuff key) Scan speed 0.1 to 2.0 m/s 3.5 cm (1.38”) 7.3 cm 5.6 cm 3.1 cm Very small object size class (brass pen refill) Scan speed 0.1 to 2.0 m/s 1.5 cm (.59”) 5.2 cm 3.1 cm 1.9 cm Extremely small object size class (18-gauge stainless hypodermic needle) Scan distance and speed Undefined 1.2 cm 0.2 cm NA Large metal panel interference No alarm at 50 cm (19.68”) 43 cm 33 cm 21 cmScan area is cylindrical 28 cm long. Diameter is 2x the sensitivity distance for the object class plus 2 cm. (.79”)Scan speed All object size classes 0.1 to 2.0 m/s (.04 to .79”) 0.05 to 3.0 m/sScan range Large object size class Scan speed 0.5 to 2.0 m/s +/- 8 cm (3.15”) +/- 10 cm (3.94”) at scan Scan speed 0.1 m/s +/- 5 cm (1.97”) speeds from 0.05 to 3.0 m/s Medium object size class Scan speed 0.5 to 2.0 m/s +/- 7 cm (2.76”) +/- 10 cm (3.94”) at scan Scan speed 0.1 m/s +/- 5 cm (1.97”) speeds from 0.05 to 3.0 m/s Small object size class Scan speed 0.1 to 2.0 m/s +/- 5 cm (1.97”) +/- 10 cm (3.94”) at scan Very small object size class speeds from 0.05 to 3.0 m/s Scan speed 0.1 to 2.0 m/s +/- 2 cm (.79”) +/- 10 cm (3.94”) at scan speeds from 0.05 to 3.0 m/sOperating temperature (NIJ indoor/outdoor) -37°C to +65°C -40°C to +85°C -35°F to +149°F -40°F to +185°FRelative humidity 95% 20°C to 60°C 95% 20°C to 60°CAudible alarm volume 75 dB at 80 cm (31.50”) 85 dB at 80 cm Battery One 9VBattery life 16 hours 19°C to 23°C 9V–Alkaline 215 hours 9V–lithium 430 hoursBody interference No alarm when touching hand YesElectromagnetic emission CISPR 22, Class B YesWeight Less than 500 g 316 g (11 oz) with batteryOperating frequency 125 KHzPeak magnitude of generated magnetic

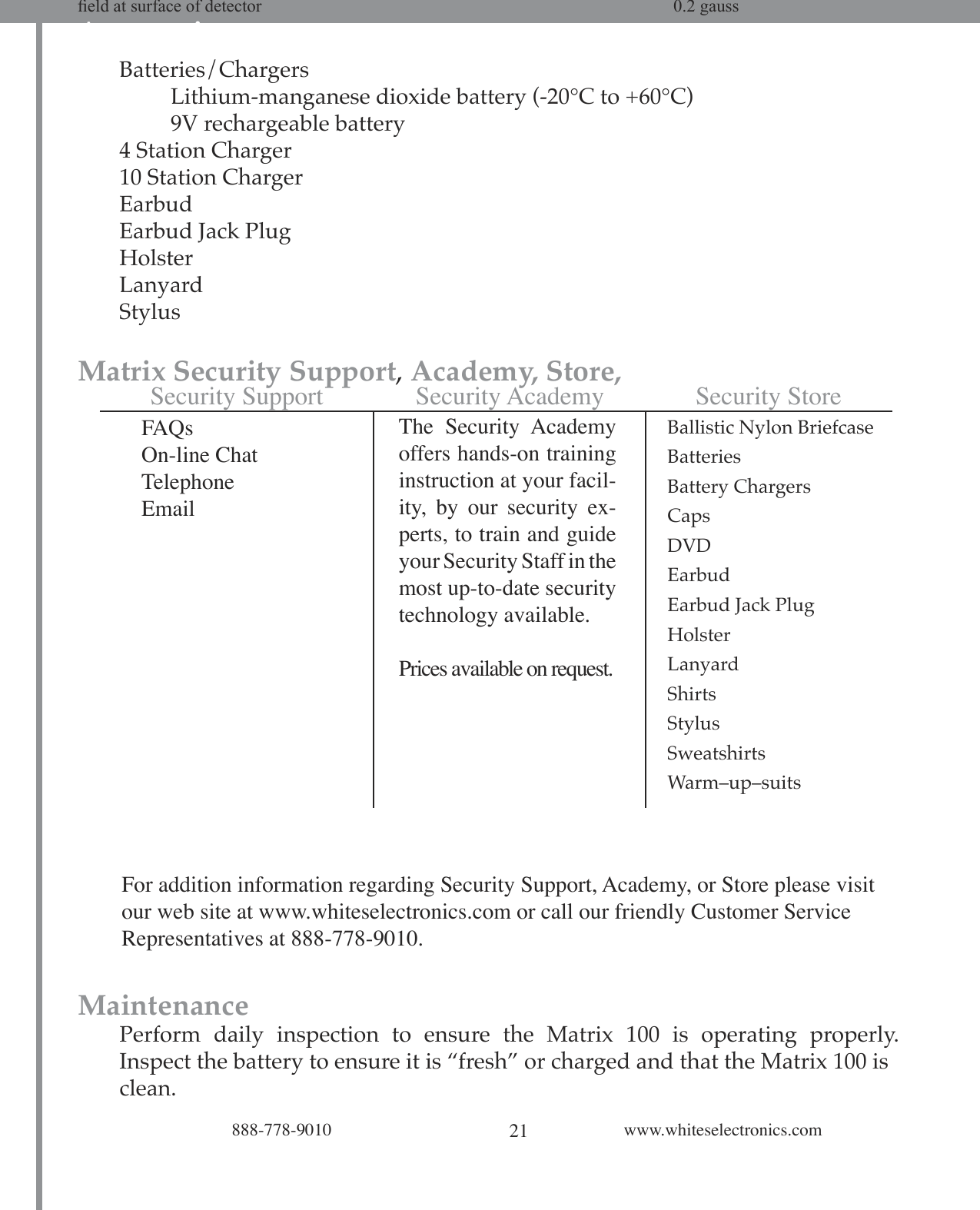

21888-778-9010 www.whiteselectronics.comfield at surface of detector 0.2 gaussAccessories Batteries/Chargers Lithium-manganese dioxide battery (-20°C to +60°C) 9V rechargeable battery 4 Station Charger 10 Station Charger Earbud Earbud Jack Plug Holster Lanyard Stylus Matrix Security Support, Academy, Store, For addition information regarding Security Support, Academy, or Store please visit our web site at www.whiteselectronics.com or call our friendly Customer Service Representatives at 888-778-9010. Maintenance Perform daily inspection to ensure the Matrix 100 is operating properly. Inspect the battery to ensure it is “fresh” or charged and that the Matrix 100 is clean.Security Support Security Academy Security StoreBallistic Nylon BriefcaseBatteriesBattery ChargersCapsDVDEarbudEarbud Jack PlugHolsterLanyardShirtsStylusSweatshirtsWarm–up–suitsFAQsOn-line ChatTelephoneEmailThe Security Academy offers hands-on training instruction at your facil-ity, by our security ex-perts, to train and guide your Security Staff in the most up-to-date security technology available.Prices available on request.

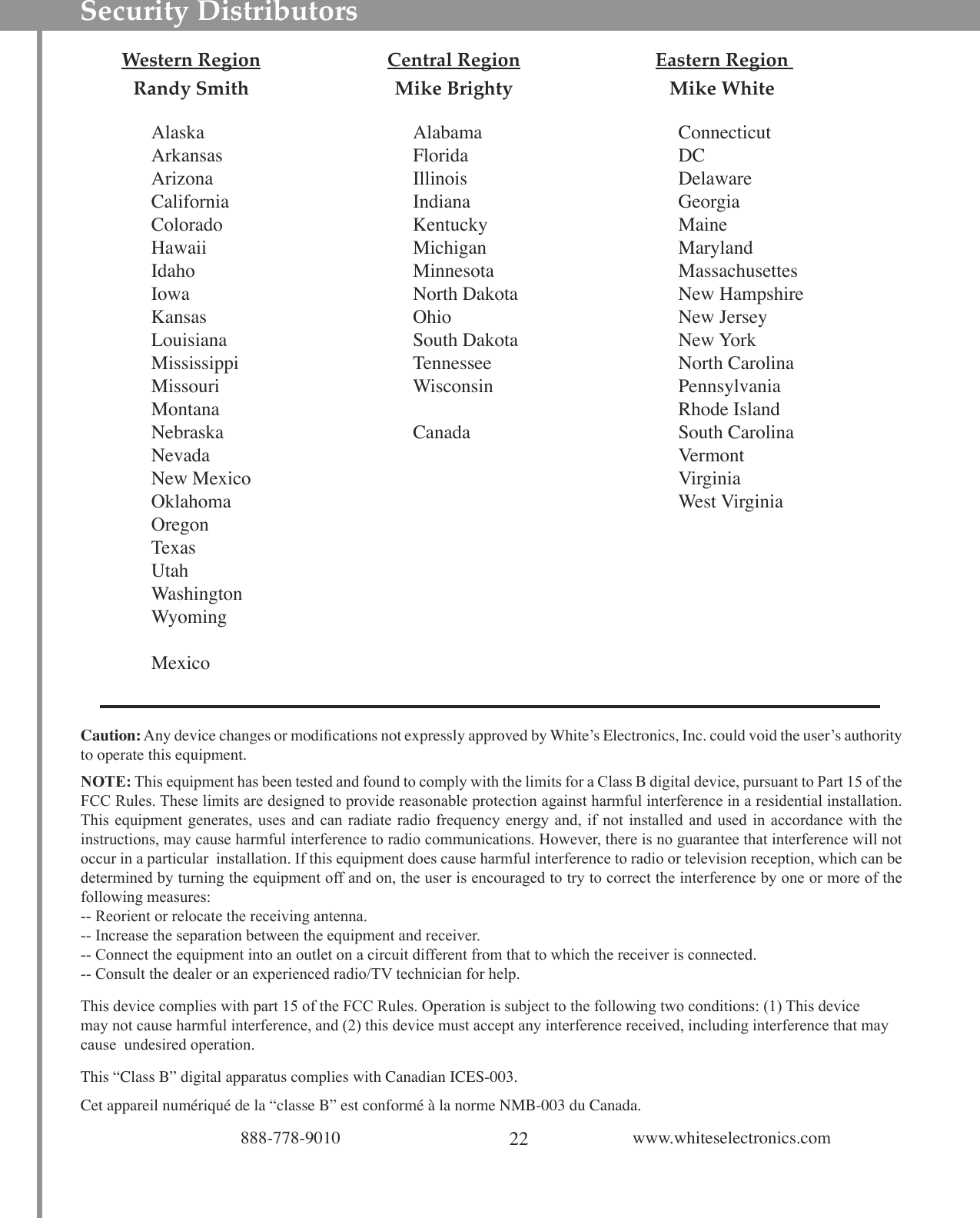

22888-778-9010 www.whiteselectronics.comSecurity Distributors Western Region Central Region Eastern Region Randy Smith Mike Brighty Mike White AlaskaArkansasArizonaCaliforniaColoradoHawaiiIdahoIowaKansasLouisianaMississippiMissouriMontanaNebraskaNevadaNew MexicoOklahomaOregonTexasUtahWashingtonWyomingMexicoAlabamaFloridaIllinoisIndianaKentuckyMichiganMinnesotaNorth DakotaOhioSouth DakotaTennesseeWisconsinCanadaConnecticutDCDelawareGeorgiaMaineMarylandMassachusettesNew HampshireNew JerseyNew YorkNorth CarolinaPennsylvaniaRhode IslandSouth CarolinaVermontVirginiaWest VirginiaCaution: Any device changes or modifications not expressly approved by Whiteʼs Electronics, Inc. could void the userʼs authority to operate this equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This “Class B” digital apparatus complies with Canadian ICES-003.Cet appareil numériqué de la “classe B” est conformé à la norme NMB-003 du Canada.
