User Manual
WiSe Infant Tag Technical Specification
WiSilica Inc
Infant Tag Hardware and Technical Specification
Version (Rev 1.3)
Issued: 02/05/2017
WiSe Infant Tag Technical Specification
WiSilica Inc
Table of Contents
General Information ............................................................................................................................... 4
Features .............................................................................................................................................. 4
General Description ............................................................................................................................ 4
Block Diagram: ........................................................................................................................................ 4
Application: ............................................................................................................................................. 5
Form factor: ............................................................................................................................................ 5
Hardware Specification: .......................................................................................................................... 5
Antenna ................................................................................................................................................... 5
Electrical characteristics.......................................................................................................................... 5
Absolute Maximum Ratings ................................................................................................................ 5
Recommended operating condition ................................................................................................... 5
Current Consumption: ............................................................................................................................ 6
RF Characteristics: ................................................................................................................................... 6
Operation of the WiSe Infant Tag: .......................................................................................................... 6
Warning: .................................................................................................................................................. 7
WiSe Infant Tag Technical Specification
WiSilica Inc
Revision History
Rev No
Date
Notes
Rev 1.0 13/03/2017
Draft Release
Rev1.1 21/04/2017
FCC Warning message included
Rev1.2 25/04/2017
TX power changed as per FCC testing
Rev1.3 02/05/2017
System Clock Updated
WiSe Infant Tag Technical Specification
WiSilica Inc
General Information
Features
Bluetooth v4.0 specification complaint
Support for Bluetooth 4.1 specification host stack
128KB of Flash memory
12 MHz clock system
TX output power upto 4 dBm
-92dbm BT4.0 RX sensitivity
RSSI Monitoring
Flex PCB printed
General Description
The Wise Infant tag emits beacons at an interval configured during pairing Infant Tag that enables
the ultra-low-power connectivity and basic data transfer for applications previously limited by the
power consumption, size constraints and complexity of other wireless standards. Infant tag is
basically used in
tracking system. Also
Infant tag is powered with CR1225 battery were it
considerably reduced power consumption and compact in size.
Block Diagram:
TLSR8261F128ET24
CRYSTAL
12
MHz
IO
512KB
FLASH
2.4GHz
Radio
CR1225
BAT
Power
ON Switch
(Metal
Dome)
LED
Indication
WiSe Infant Tag Technical Specification
WiSilica Inc
Application:
WiSe Infant Tag enables connectivity and data transfer to leading smartphone, tablet and personal
computing devices including Apple iPhone, iPad, iPod and Mac products and leading Android
devices. It is mainly use in the patient or infant tracking system.
Form factor:
Dimension: 160 x 13mm
Hardware Specification:
COMPONENTS
DESCRIPTION
BLE CHIP
TLSR8261F128ET24
CRYSTAL
12
MHz
Antenna
WiSe Infant tag has the external Flex PCB printed antenna .The WiSe infant tag has been certified
with the external antenna only.
The external antenna’s directivity determines the required position. We need to make sure the
external antenna impedance is close to 50 Ohm to have optimal matching. External antenna’s center
band frequency should be in the range of 2.4 to 2.402 GHz. The PCB antenna employs a topology
that is compact and highly efficient.
Electrical characteristics
Absolute Maximum Ratings
Ratings Min Max
Storage Temperature -65°C 125°C
Supply voltage 2.2V 3.6V
Recommended operating condition
Item
Min
Typical
Max
Operating Temperature
-40 - 125°C
Supply voltage
2.6V 3.3V 3.6V
IO Supply Voltage V - 3.6V
WiSe Infant Tag Technical Specification
WiSilica Inc
Current Consumption:
Mode
Total Typical Current at 3
V
Sleep Mode 15μA
RX/TX active ~15mA @ 3V peak current
RF Characteristics:
Path
Description
Conditions
Min
Typ
Max
Unit
Opera
ting Frequency
2402
2480
MHz
Maximum output power
4
dBm
2
nd
harmonic
54
dBuV
3
rd
harmonic
54
dBuV
TX
Modulation delta F1 average
225
255
275
kHz
Modulation delta F1 / F2
0.8
Modulation delta F2 max
100
%
Frequency accuracy
-
100
25
100
kHz
Frequency offset
-
100
25
100
kHz
RX
Receiver Sensitivity
-
92
dBm
Receiver Sensitivity (with dirty transmitter)
-
93
dBm
Maximum received signal at 30.8% PER
-
10
dBm
Operation of the WiSe Infant Tag:
The Wise Beacon tag emits beacons at an interval configured during pairing via Wise Tracking
Application.
The tag has an LED which indicates the state of the tag.
Initially tag is powered off – LED is not lit.
Tag is powered on by pressing the button for at least 2 sec and will be in pairing mode for 30
sec (duration is configurable) – LED will blink every 500ms.
After pairing mode, if tag is not paired, it will power off. If the tag is paired, normal
operation of tag is initiated - beacon packets will be transmitted at the configured interval –
LED will not be lit.
During normal operation, tag may be powered down by pressing button for 30 sec – LED will
blink thrice and turn off.
During normal operation, if button is pressed for at least 1 sec – LED will blink once
WiSe Infant Tag Technical Specification
WiSilica Inc

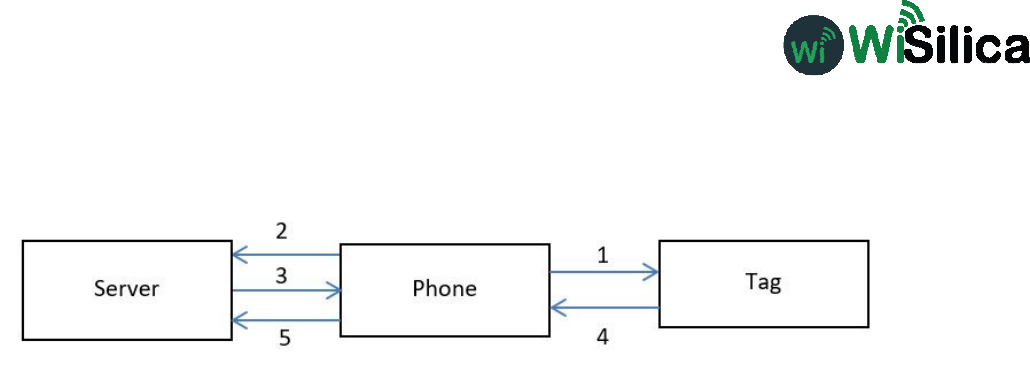

1. Phone initiates pairing with tag – reads it guid
2. GUID of tag sent to server
3. Server sends pairing key to phone
4. Phone completes pairing
5. Tag data is synced with server
Warning:
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
