PACKAGE CONTENTS AND DESCRIPTION OF DEVICE
Package contents - see illustration 1:
1.1 Fitting device
1.2 Regular neckloop (75 cm)
1.3 Long neckloop (85 cm)
1.4 Docking station
1.5 Micro USB cable
1.6 Bluetooth® adaptor (model: BT adaptor)
1.7 Plugs for the charger

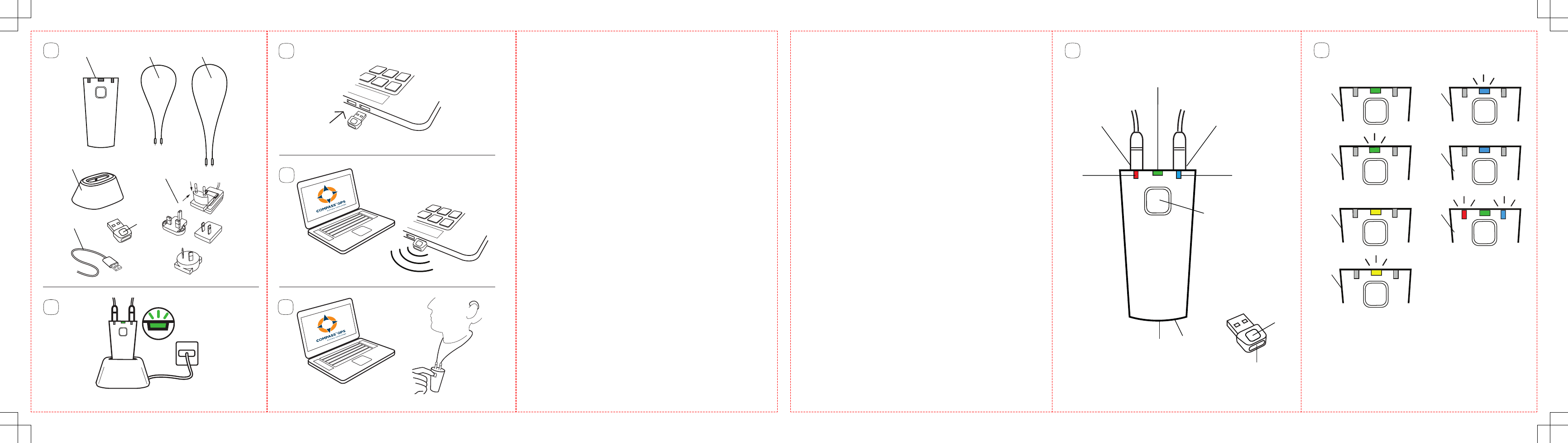

The device - see illustration 6:
6.1 Center LED
6.2 Neckloop connectors
6.3 LED for the left hearing aid
6.4 LED for the right hearing aid
6.5 Push button (on/off switch/pairing)
6.6 Micro USB port for charging
6.7 Reset pinhole button
6.8 Bluetooth adaptor - LED
6.9 Pairing button
IMPORTANT SAFETY INFORMATION
Warnings
Read this page carefully before you start using this device.
Do not use the device in mines or other areas with explosive gases.
Do not expose to extreme temperatures or high humidity.
When the device is connected via micro USB cable to external mains-operated
equipment such as a charger, PC, audio source or similar, this equipment must com-
ply with IEC 60065, IEC 60950-1, IEC 60601-1 or equivalent safety standards.
Any change or modification to the device that has not been expressly approved by
the manufacturer could void the user's authority to operate the device.
Do not use the product at altitudes above 2000 meters, as extremely low air pres-
sure may result in an explosion or the leakage of flammable liquid or gas.
Do not dispose of the product with battery into fire or a hot oven.
4
Your device should be stored and transported within the temperature and humidity
ranges of -10°C to +50°C (14°F to 122°F) and < 90% rH.
Your device is designed to operate from 5°C (41°F) to 40°C (122°F).
For more information about your device, visit: widex.pro.
Intended use
The device is intended to connect the COMPASS GPS fitting software with a wireless
WidexLink hearing aid for fitting purposes.
5
SETTING UP THE DEVICE
Charging the device - see illustration 2
Connect the docking station to a power outlet and place the fitting device on the
docking station. Alternatively, you can connect the docking station to your computer
using the micro USB cable.
NOTE
Let the battery charge up to 100% before using the device for the first time.
Connecting the device to a computer - see illustrations 3,4 and 5
To connect your fitting device to your computer using the Bluetooth adaptor, do as
follows:
3. Plug the Bluetooth adaptor into an USB port on your computer.
4. Turn on the computer.
5. Turn on the device. The system is now ready for use.
NOTE
Note that the device only connects to the Bluetooth adaptor provided.
You can also use the micro USB cable provided with your fitting device to connect it to
your computer.
6
USING THE DEVICE
Place the hearing aids and the neckloop on your client.
Press the push button on the device to turn it on and establish connection to the fit-
ting software via Bluetooth.
Follow the fitting flow as indicated on your computer.
Visual indicators
The following table shows the available LEDs and what they mean:
Power, battery status, charging and Bluetooth pairing (see illustration 7):
LED Meaning
7.1 The device is on and the battery charged
7.2 The device is charging
7.3 The battery is running low
7.4 The battery is very low
7.5 The device is in pairing mode
7.6 The device is connected via Bluetooth (only shown shortly after the de-
vice has been connected)
Communication between hearing aids and the device (see illustration 7):
LED Meaning
7.7 The device is communicating with the hearing aids
7
MAINTENANCE
It is important that you keep your device clean and disinfected before use.
●Wipe the device and neckloop with a damp cloth. Do not use any chemicals.
●Do not immerse the device or neckloop in water or any other liquid.
●Clean the power supply, docking station, Bluetooth adapter and micro USB cable
using a dry cloth.
●While the device is not in use, keep it in a dry location out of reach of children and
pets.
●Never try to open or repair the device yourself. This may only be done by author-
ised technicians.
8
TROUBLESHOOTING
Problem Possible cause Solution
The device does not work a: The device is not correct-
ly connected to your com-
puter
b: The battery is low
c: Out of operating range
a: Make sure the device is
correctly connected and
that the Bluetooth adaptor
is plugged into your PC.
b: Recharge the battery
c: Move within operating
range
If you still experience problems with connecting, pairing or using the device, contact
your supplier for help.
9
REGULATORY INFORMATION
EU Directives
Directive 2014/53/EU
Hereby, Widex A/S declares that these PRO LINK and BT adaptor are in compliance
with the essential requirements and other relevant provisions of Directive
2014/53/EU.
The PRO LINK contains radio transmitters operating at: 10.6 MHz, -54 dBµA/m @10 m
2.4 GHz, 2.2 mW EIRP.
The BT adaptor contains a radio transmitter operating at: 2.4 GHz, 2.1 mW EIRP.
A copy of the Declaration of Conformity according to 2014/53/EU can be found at:
http://global.widex.com/doc
N26346
Information regarding disposal
Do not dispose of hearing aids, hearing aid accessories and batteries with ordinary
household waste.
Hearing aids, batteries and hearing aid accessories should be disposed of at sites in-
tended for waste electrical and electronic equipment, or given to your hearing care
professional for safe disposal.
10

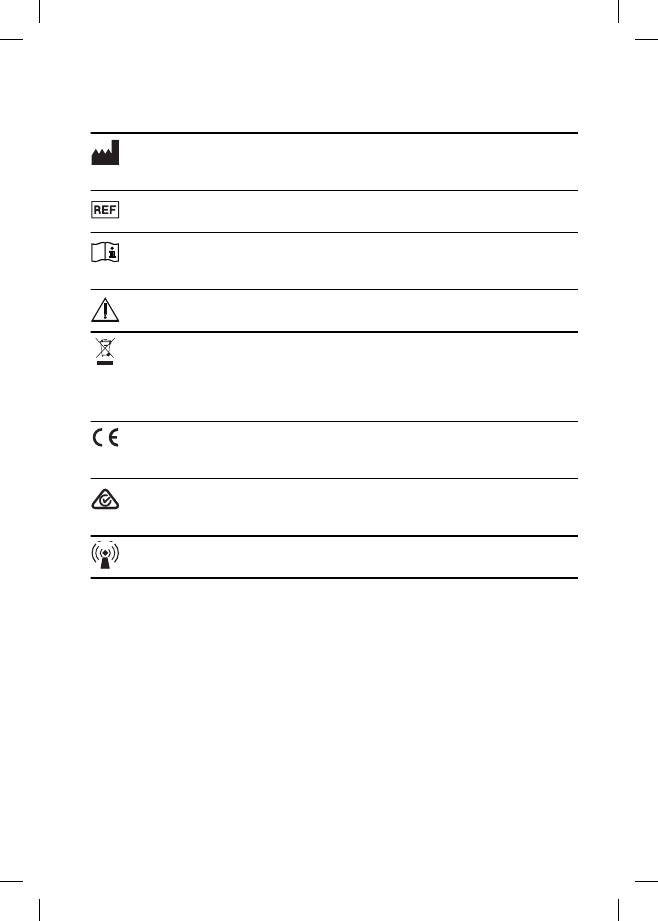

SYMBOLS
Symbols commonly used by Name in medical device labelling (labels/IFU/etc.)
Symbol Title/Description
Manufacturer
The product is produced by the manufacturer whose name and address are stated
next to the symbol. If appropriate, the date of manufacture may also be stated.
Catalogue number
The product’s catalogue (item) number.
Consult instructions for use
The user instructions contain important cautionary information (warnings/
precautions) and must be read before using the product.
Warning
Text marked with a warning symbol must be read before using the product.
WEEE mark
“Not for general waste”. When a product is to be discarded, it must be sent to a
designated collection point for recycling and recovering to prevent the risk of
harm to the environment or human health as a result of the presence of hazard-
ous substances.
CE mark
The product is in conformity with the requirements set out in European CE
marking directives.
RCM mark
The product complies with electrical safety, EMC and radio spectrum regulatory re-
quirements for products supplied to the Australian or New Zealand market.
Interference
Electromagnetic interference may occur in the vicinity of the product.
11
FCC AND IC STATEMENTS
FCC ID: TTY-PRLI
FCC ID: TTY-BA
IC: 5676B-PRLI
IC: 5676B-BA
CAN ICES-3(B)/NMB-3 (B)
Federal Communications Commission Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digi-
tal device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not instal-
led and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the follow-
ing measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
NOTE:
This equipment complies with FCC radiation exposure limits set forth for an uncontrol-
led environment. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Changes or modifications to the equipment not expressly approved by Widex could
void the user’s authority to operate the equipment.
Industry Canada Statement / Déclaration d’industrie Canada
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by In-
dustry Canada.
155
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication.
This device complies with Industry Canada licence-exempt RSS standard(s). Opera-
tion is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé
pour l’émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres
utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance iso-
trope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’éta-
blissement d’une communication satisfaisante.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appa-
reils radio exempts de licence. L’exploitation est autorisée aux deux conditions sui-
vantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en compromettre le fonctionnement.
156
LICENSE AGREEMENT
Apache License (mbed TLS)
Version 2.0, January 2004
http://apache.org/licences/
TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION
1. Definitions.
"License" shall mean the terms and conditions for use, reproduction, and distribution
as defined by Sections 1 through 9 of this document.
"Licensor" shall mean the copyright owner or entity authorized by the copyright own-
er that is granting the License.
"Legal Entity" shall mean the union of the acting entity and all other entities that con-
trol, are controlled by, or are under common control with that entity. For the purposes
of this definition, "control" means (i) the power, direct or indirect, to cause the direc-
tion or management of such entity, whether by contract or otherwise, or (ii) owner-
ship of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial owner-
ship of such entity.
"You" (or "Your") shall mean an individual or Legal Entity exercising permissions
granted by this License.
"Source" form shall mean the preferred form for making modifications, including but
not limited to software source code, documentation source, and configuration files.
"Object" form shall mean any form resulting from mechanical transformation or trans-
lation of a Source form, including but not limited to compiled object code, generated
documentation, and conversions to other media types.
"Work" shall mean the work of authorship, whether in Source or Object form, made
available under the License, as indicated by a copyright notice that is included in or
attached to the work (an example is provided in the Appendix below).
"Derivative Works" shall mean any work, whether in Source or Object form, that is
based on (or derived from) the Work and for which the editorial revisions, annota-
tions, elaborations, or other modifications represent, as a whole, an original work of
authorship. For the purposes of this License, Derivative Works shall not include works
that remain separable from, or merely link (or bind by name) to the interfaces of, the
Work and Derivative Works thereof.
"Contribution" shall mean any work of authorship, including the original version of the
Work and any modifications or additions to that Work or Derivative Works thereof,
that is intentionally submitted to Licensor for inclusion in the Work by the copyright
owner or by an individual or Legal Entity authorized to submit on behalf of the copy-
right owner. For the purposes of this definition, "submitted" means any form of elec-
tronic, verbal, or written communication sent to the Licensor or its representatives,
including but not limited to communication on electronic mailing lists, source code
control systems, and issue tracking systems that are managed by, or on behalf of, the
157
Licensor for the purpose of discussing and improving the Work, but excluding com-
munication that is conspicuously marked or otherwise designated in writing by the
copyright owner as "Not a Contribution."
"Contributor" shall mean Licensor and any individual or Legal Entity on behalf of
whom a Contribution has been received by Licensor and subsequently incorporated
within the Work.
2. Grant of Copyright License.
Subject to the terms and conditions of this License, each Contributor hereby grants to
You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copy-
right license to reproduce, prepare Derivative Works of, publicly display, publicly per-
form, sublicense, and distribute the Work and such Derivative Works in Source or Ob-
ject form.
3. Grant of Patent License.
Subject to the terms and conditions of this License, each Contributor hereby grants to
You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (ex-
cept as stated in this section) patent license to make, have made, use, offer to sell,
sell, import, and otherwise transfer the Work, where such license applies only to those
patent claims licensable by such Contributor that are necessarily infringed by their
Contribution(s) alone or by combination of their Contribution(s) with the Work to
which such Contribution(s) was submitted. If You institute patent litigation against
any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work
or a Contribution incorporated within the Work constitutes direct or contributory pat-
ent infringement, then any patent licenses granted to You under this License for that
Work shall terminate as of the date such litigation is filed.
4. Redistribution.
You may reproduce and distribute copies of the Work or Derivative Works thereof in
any medium, with or without modifications, and in Source or Object form, provided
that You meet the following conditions:
1. You must give any other recipients of the Work or Derivative Works a copy of this
License; and
2. You must cause any modified files to carry prominent notices stating that You
changed the files; and
3. You must retain, in the Source form of any Derivative Works that You distribute,
all copyright, patent, trademark, and attribution notices from the Source form of
the Work, excluding those notices that do not pertain to any part of the Derivative
Works; and
4. If the Work includes a "NOTICE" text file as part of its distribution, then any Deriv-
ative Works that You distribute must include a readable copy of the attribution
notices contained within such NOTICE file, excluding those notices that do not
pertain to any part of the Derivative Works, in at least one of the following places:
within a NOTICE text file distributed as part of the Derivative Works; within the
Source form or documentation, if provided along with the Derivative Works; or,
within a display generated by the Derivative Works, if and wherever such third-
party notices normally appear. The contents of the NOTICE file are for informa-
tional purposes only and do not modify the License. You may add Your own attri-
158
bution notices within Derivative Works that You distribute, alongside or as an ad-
dendum to the NOTICE text from the Work, provided that such additional attribu-
tion notices cannot be construed as modifying the License.
You may add Your own copyright statement to Your modifications and may pro-
vide additional or different license terms and conditions for use, reproduction, or
distribution of Your modifications, or for any such Derivative Works as a whole,
provided Your use, reproduction, and distribution of the Work otherwise complies
with the conditions stated in this License.
5. Submission of Contributions.
Unless You explicitly state otherwise, any Contribution intentionally submitted for
inclusion in the Work by You to the Licensor shall be under the terms and condi-
tions of this License, without any additional terms or conditions. Notwithstanding
the above, nothing herein shall supersede or modify the terms of any separate
license agreement you may have executed with Licensor regarding such Contribu-
tions.
6. Trademarks.
This License does not grant permission to use the trade names, trademarks, serv-
ice marks, or product names of the Licensor, except as required for reasonable
and customary use in describing the origin of the Work and reproducing the con-
tent of the NOTICE file.
7. Disclaimer of Warranty.
Unless required by applicable law or agreed to in writing, Licensor provides the
Work (and each Contributor provides its Contributions) on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied,
including, without limitation, any warranties or conditions of TITLE, NON-IN-
FRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You
are solely responsible for determining the appropriateness of using or redistribut-
ing the Work and assume any risks associated with Your exercise of permissions
under this License.
8. Limitation of Liability.
In no event and under no legal theory, whether in tort (including negligence),
contract, or otherwise, unless required by applicable law (such as deliberate and
grossly negligent acts) or agreed to in writing, shall any Contributor be liable to
You for damages, including any direct, indirect, special, incidental, or consequen-
tial damages of any character arising as a result of this License or out of the use or
inability to use the Work (including but not limited to damages for loss of good-
will, work stoppage, computer failure or malfunction, or any and all other com-
mercial damages or losses), even if such Contributor has been advised of the pos-
sibility of such damages.
9. Accepting Warranty or Additional Liability.
While redistributing the Work or Derivative Works thereof, You may choose to of-
fer, and charge a fee for, acceptance of support, warranty, indemnity, or other lia-
bility obligations and/or rights consistent with this License. However, in accepting
such obligations, You may act only on Your own behalf and on Your sole responsi-
159
bility, not on behalf of any other Contributor, and only if You agree to indemnify,
defend, and hold each Contributor harmless for any liability incurred by, or claims
asserted against, such Contributor by reason of your accepting any such warranty
or additional liability.
END OF TERMS AND CONDITIONS
Appendix: How to apply the Apache License to your work
To apply the Apache License to your work, attach the following boilerplate notice,
with the fields enclosed by brackets "[]" replaced with your own identifying informa-
tion. (Don't include the brackets!) The text should be enclosed in the appropriate
comment syntax for the file format. We also recommend that a file or class name and
description of purpose be included on the same "printed page" as the copyright notice
for easier identification within third-party archives.
Copyright [yyyy] [name of copyright owner]
Licensed under the Apache License, Version 2.0 (the "License"); you may not use this
file except in compliance with the License. You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software distributed under
the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDI-
TIONS OF ANY KIND, either express or implied. See the License for the specific lan-
guage governing permissions and limitations under the License.
Copyright © Widex A/S, 2017 - 2018. All rights reserved. Any unauthorized redistribu-
tion or use of the software in source or binary form is prohibited and will be prosecu-
ted when discovered.
160
