User instrUctions
The clear™440 SerieS
c4-m/c4-m-cb
beHinD-tHe-eAr
TENTATIVE
Contents
THANK YOU............................................. 5
THE HEARING AID ...................................... 6
RIGHT/LEFT IDENTIFICATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ACOUSTIC INDICATORS................................. 7
THE BATTERY ......................................... 8
INSERTING THE BATTERY............................ 8
REMOVING THE BATTERY............................10
BATTERY DRAWER WITHOUT A NAIL GRIP . . . . . . . . . . . . 11
LOW BATTERY INDICATION . . . . . . . . . . . . . . . . . . . . . . . . . .12
TURNING THE HEARING AID ON AND OFF . . . . . . . . . . . . . . . .13
VOLUME ADJUSTMENT .................................14
LOST PARTNER ALARM.................................15
LISTENING PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
SWITCHING BETWEEN THE LISTENING PROGRAMS . . . . .18
ZEN+ ..............................................19
USING A TELEPHONE..................................20
HEARING AID WITH AN EARMOULD . . . . . . . . . . . . . . . . . . . . . . . 21
POSITIONING THE HEARING AID AND EARMOULD. . . . . . . . 22
REMOVING THE HEARING AID AND EARMOULD . . . . . . . . . . 23
HEARING AID WITH AN INSTANT EAR-TIP . . . . . . . . . . . . . . . . . 24
RIGHT/LEFT IDENTIFICATION. . . . . . . . . . . . . . . . . . . . . . . . . . . 25
POSITIONING THE HEARING AID AND
INSTANT EAR-TIP .....................................26
THE ANCHOR.........................................27
REMOVING THE HEARING AID AND
INSTANT EAR-TIP ......................................31
2 3
Your hearing aid
(To be filled out by the hearing care professional)
Date: ___________________________
Battery size: ___________________________
Ear-set:
Earmould
Instant ear-tip
Custom ear-tip
Ear-tip size: Left Right
Tubing size: Left Right
HEARING AID WITH A CUSTOM EAR-TIP . . . . . . . . . . . . . . . . . . 32
RIGHT/LEFT IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . 33
POSITIONING THE HEARING AID AND CUSTOM EAR-TIP. . . 34
REMOVING THE HEARING AID AND CUSTOM EAR-TIP . . . . . 35
CLEANING............................................ 36
THE HEARING AID .................................... 37
THE MICROPHONE OPENINGS . . . . . . . . . . . . . . . . . . . . . . . 37
THE EAR-SET.........................................38
THE EARMOULD ...................................38
THE INSTANT AND CUSTOM EAR-TIP . . . . . . . . . . . . . . . . . 40
ASSEMBLING THE EAR-SET - INSTANT EAR-TIP. . . . . . . . 42
ASSEMBLING THE EAR-SET - CUSTOM EAR-TIP. . . . . . . . 43
IN CASE OF MALFUNCTION .............................44
CARING FOR YOUR HEARING AID . . . . . . . . . . . . . . . . . . . . . . . . 46
GOOD ADVICE AND WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . 47
REGULATORY INFORMATION.............................51
4 5
thank You...
...for choosing a Widex hearing aid.
Your hearing aid is designed with high-quality sound,
ease, comfort and freedom of choice in mind.
We hope you will be pleased with your new Widex
hearing aid.
All illustrations in this booklet
show a right-ear hearing aid.
IMPORTANT
This booklet contains important information and instructions.
Please read this booklet carefully before you start using the hear-
ing aid.
Your hearing aid, ear-set and accessories may not look exactly
as illustrated in this booklet. We also reserve the right to make
any changes considered necessary.
6 7
the hearing aid
The illustration below shows the hearing aid without
an ear-set.
Microphoneopenings
Programbutton(optional)
OnOfffunction
Nailgrip
1.
2.
3.
4.
Below, your hearing care professional can tick the
ear-set solution chosen for you.
Earmould Instant ear-tip Custom ear-tip
RIGHT/LEFT IDENTIFICATION
The arrow shows the position of the
identification mark (red mark = right
and blue mark = left).
ACOUSTIC INDICATORS
The hearing aid may be set to produce a signal to in-
dicate the use of certain functions. The signal may be
a spoken message or tones adjusted by the hearing
care professional in consultation with you. The signal
can also be deactivated.
Adjusting volume Tone* Off
Confirming program
button use
Clicking
sound Off
Changing program Message Tones Off
Starting up the hearing aid Message Tone Off
Warning about low battery Message 4 tones Off
Warning about lost partner Message Off
Service reminder Message Off
* bold indicates standard setting
8 9
THE BATTERY
We recommend zinc-air batteries. Use a size 10 bat-
tery for the hearing aid.
To obtain replacement batteries, please consult your
hearing care professional. It is important to take note
of the expiry date and the recommendations regard-
ing disposal of used batteries on the battery pack.
INSERTING THE BATTERY
Before inserting a new battery into
the hearing aid, remember to re-
move the adhesive tab. Once the tab
has been removed, the battery will
start functioning after a few sec-
onds. Do not use batteries on which
there is a sticky residue from the tab
or other unwanted substance.
Use the nail grip to gently swing the battery drawer
open. Do not press the drawer beyond the open po-
sition.
Place the battery in the drawer as illustrated, so that
the plus (+) sign on the battery is facing towards you
when you hold the hearing aid as shown. You can use
the battery magnet provided to steer the battery
into place.
If the battery drawer does not close easily, the bat-
tery is incorrectly inserted.
When changing battery, it is a good idea to hold the
hearing aid over a table.
+
10 11
REMOVING THE BATTERY
1. Open the battery drawer as previously described.
Place the hearing aid on the provided cloth on a
clean, plane surface and turn it as illustrated.
2. Supporting the drawer with your finger, use the
battery magnet provided to push the battery out
of the battery drawer from the minus side.
1 2
BATTERY DRAWER WITHOUT A NAIL GRIP
The hearing aid may be provided
with a battery drawer without a
nail grip, which means that you
need a tool to open the battery
drawer. This type of drawer can
be a good choice if the hearing
aid is worn by a child. A special
tool for opening the drawer will
be included with this drawer.
The battery drawer is opened as illus-
trated.
12 13
IMPORTANT
Your hearing aid may stop functioning, for instance if the battery
is exhausted. You should be aware of this possibility, in particular
when you are in traffic or are otherwise dependent on warning
signals.
LOW BATTERY INDICATION
An acoustic indicator will sound when the battery is
nearly exhausted, unless this function has been disa-
bled (see page 7). We recommend that you always
have a spare battery with you.
Never leave an exhausted battery in the hearing aid.
Exhausted batteries may leak, damaging the hearing
aid.
TURNING THE HEARING AID ON AND OFF
The battery drawer of the hearing aid also functions
as the on/off switch.
Close the battery drawer to turn on
the hearing aid. An acoustic indica-
tor will indicate that the hearing aid
has been switched on unless this
function has been disabled.
Open the battery drawer to turn off
the hearing aid.
Please remember to turn off the
hearing aid when it is not in use. Re-
move the battery if the hearing aid
will not be used for several days.
14 15
VOLUME ADJUSTMENT
The hearing aid volume is adjusted automatically in
accordance with your sound environment.
Ordinarily, you cannot fine tune the volume in your
hearing aid. However, if you have a remote control,
the option of fine tuning becomes available.
In the default setting, any volume adjustment via the
remote control will affect both hearing aids.
For any adjustment of the steps in which volume in-
creases or decreases, consult your hearing care pro-
fessional.
If you have a remote control, please also refer to the
user instructions for this.
IMPORTANT
If the volume in the hearing aid is generally too loud or too weak,
or the reproduced sounds are distorted, or if you would like any
further information, consult your hearing care professional.
LOST PARTNER ALARM
(Note: Only applicable if this feature has been acti-
vated by your hearing care professional).
If one of your hearing aids falls off your ear, and/or
the battery is exhausted, a tone signal and a spoken
message will sound two times in the other hearing
aid, and a diode will flash on both hearing aids.
When the lost hearing aid is repositioned, and/or the
battery is exchanged, the diodes stop flashing.
LISTENING PROGRAMS
In addition to the default Master program, your hear-
ing aid may be provided with four of the following
programs, plus the special Zen program called Zen+.
16 17
Music For listening to music
TV For listening to the TV
Comfort Attenuates background noise
Reverse focus Focus on sounds from behind
Audibility Extender Makes high-frequency sounds
audible
Zen Generates different kinds of
tones. Contains one style
Compound programs
The Master program in one ear
and Zen, Audibility Extender or
Reverse focus in the other
Zen+ Special Zen program with up to
three different Zen styles.
If your needs change over time, the combination of
listening programs can be altered.
The Zen program may be used with amplification so
that both the surrounding sounds and the Zen tones
are heard together. Or, it may be used alone (without
amplification) in quiet when you are not required to
hear surrounding sounds.
The duration of the Zen play time can be set by your
hearing care professional according to your needs.
IMPORTANT
Use of the different Zen programs may interfere with hearing sur-
rounding sounds including speech. The programs should not be
used when hearing such sounds is important. Switch the hearing
aid to a non-Zen program in those situations.
18 19
SWITCHING BETWEEN THE
LISTENING PROGRAMS
If your hearing aid model is provid-
ed with a program button, you can
switch between the listening pro-
grams by pressing the button. Each
time you switch to another pro-
gram, a click and an acoustic indicator will sound un-
less these functions have been disabled.
Program Messageoroneshortbeep
Program Messageortwoshortbeeps
Program Messageorthreeshortbeeps
Program Messageoronelongandoneshort
beep
Program Messageoronelongandtwoshort
beeps
Zen Messageortone
If you change program, the change will, by default,
affect both your hearing aids.
ZEN+
This program is accessed via a long press (two sec.)
on the program button. A short press then allows
you to cycle through the available Zen styles.
You can exit Zen+ by pressing and holding the pro-
gram button for more than a second.
20 21
USING A TELEPHONE
When using a telephone, we
recommend that you hold
the telephone against your
head at an angle above your
ear, rather than directly
against the ear. If the sound
is not optimal, try moving
the telephone earpiece to a
slightly different position.
hearing aid with an earmould
The ear-set consists of the following parts:
Earhook
Tubing
Earmould
3a Sound bore
3b Vent
2
1
3
3a
3b
22 23
POSITIONING THE HEARING AID AND EARMOULD
Insert the earmould in the
ear canal while holding
the lower part of the tub-
ing. It may help to pull the
outer ear backwards and
upwards with the oppo-
site hand.
Place the hearing aid behind the ear, so that the ear-
hook rests comfortably on the ear, close to your
head.
REMOVING THE HEARING AID AND EARMOULD
Remove the hearing aid from
its position behind the ear.
Carefully pull the ear-
mould out of the ear ca-
nal, while holding the low-
er part of the tubing.
If it is difficult, you can try to move the earmould
carefully side to side while pulling it out. It may also
help to pull the outer ear backwards and upwards
with the opposite hand.
24 25
hearing aid with an instant
ear-tiP
The ear-set consists of the following parts:
Tubingwith
1a. hook
1b. anchor
Instantear-tip
1a.
1b.
2.
1.
RIGHT/LEFT IDENTIFICATION
The earwire is available in different
lengths for the right and left ear, re-
spectively. The individual size is
printed on the ear-set (see arrow).
Red print indicates that it is for the
right ear, and blue print that it is for
the left ear.
26 27
POSITIONING THE HEARING AID AND
INSTANT EAR-TIP
Place the hearing aid behind the
ear, so that the tubing rests
comfortably on the ear, close to
your head.
Insert the ear-tip in the ear canal
while holding the lower part of
the tubing.
Make sure that the anchor is positioned correctly, se-
curing the position of the ear-set.
Check at regular intervals that the hearing aid and
ear-set are positioned correctly.

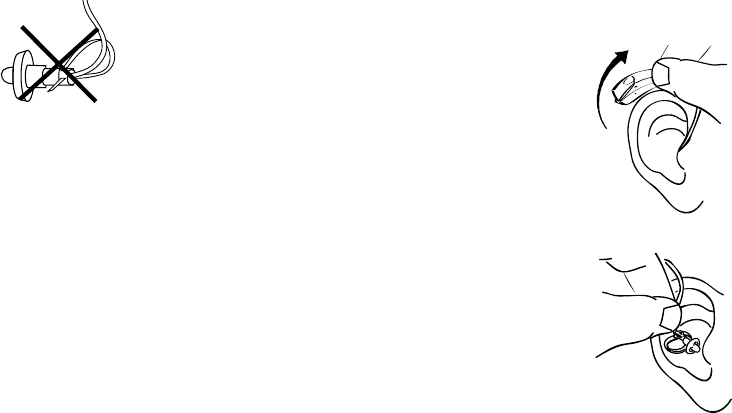

IMPORTANT
We do not recommend wearing the hearing aid without the an-
chor for the instant ear-tip solution. If the hearing aid is not se-
cured by the anchor, it can fall off your ear and be lost.
THE ANCHOR
The anchor is supplied sepa-
rately from the rest of the ear-
set and can be used in differ-
ent ways. First it is shown how
the anchor can be used with-
out prior trimming:
Pull the pointed end of the
anchor through the upper
hole on the side of the tubing
The angled grip should be
pointing towards the hearing
aid.
Continue pulling until the an-
chor is stopped by the grip at
the end.
Your ear-set is now ready for use and
is placed so that it rests comfortably
in your ear.
28 29

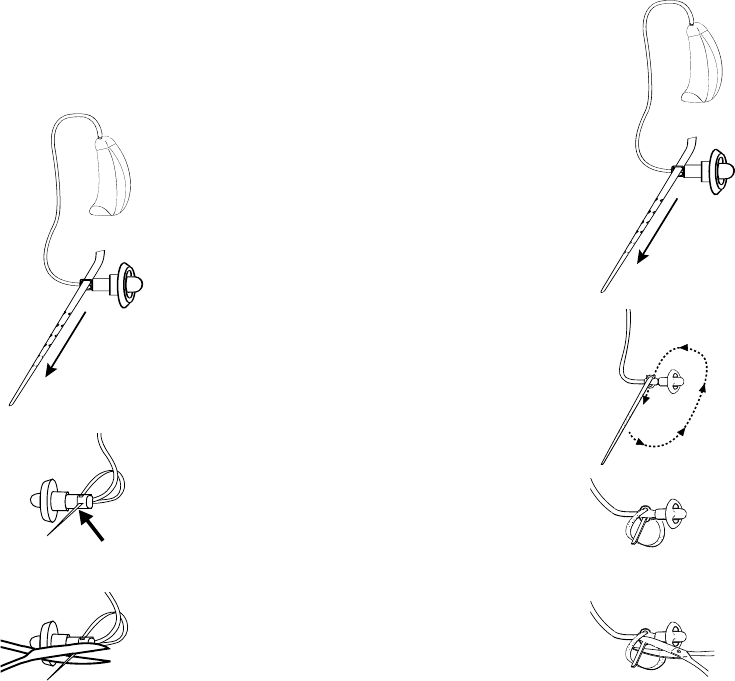

The anchor can also be trimmed to fit your ear. There
are several ways of doing this. Two such examples
are shown here:
EXAMPLE 1
Pull the pointed end of the an-
chor through the upper hole
on the side of the tubing. The
angled grip should be pointing
towards the hearing aid.
Continue pulling until the an-
chor is stopped by the grip at
the end. Now turn the ear-set
around.
Guide the pointed end of the an-
chor through the lower hole to
form a loop.
When the loop is the correct size,
cut off any excess, leaving only the
loop.
EXAMPLE 2
Pull the pointed end of the an-
chor through the upper hole
on the side of the tubing. The
angled grip should be point-
ing towards the hearing aid.
Continue pulling until the an-
chor is stopped by the grip at
the end.
Loop the anchor in the direction in-
dicated by the dotted line and ar-
rows.
Guide the anchor through the lower
hole on the side of the tubing as il-
lustrated to form a loop.
When the loop is the correct size,
cut off any excess, leaving only the
loop.
30 31
GENERAL INFORMATION WHEN TRIMMING:
Take great care to cut off all the
excess so that the end of the an-
chor loop is flush with the small
hole and there are no sharp edg-
es.
Use the tip of your finger to check for sharp edges. If
part of the anchor sticks out through the hole, creat-
ing an uneven surface, this may cause irritation of the
ear.
REMOVING THE HEARING AID AND
INSTANT EAR-TIP
Remove the hearing aid from
its position behind the ear.
Carefully pull the ear-tip out of
the ear canal, while holding
the lower part of the tubing.
32 33
hearing aid with a
Custom ear-tiP
The ear-set consists of the following parts:
Tubingwith
1a. hook
Customear-tipwith
2a. extraction cord
2b. optional vent
2.
1a.
2b.
1.
2a.
RIGHT/LEFT IDENTIFICATION
The ear-set tubing is available in dif-
ferent lengths for the right and left
ear, respectively. The individual size
is printed on the tubing. Red print in-
dicates that it is for the right ear and
blue print that it is for the left ear.
The custom ear-tip has ”Widex” print-
ed on it. Red print indicates that the
ear-tip is for the right ear and blue
print that it is for the left ear.
34 35

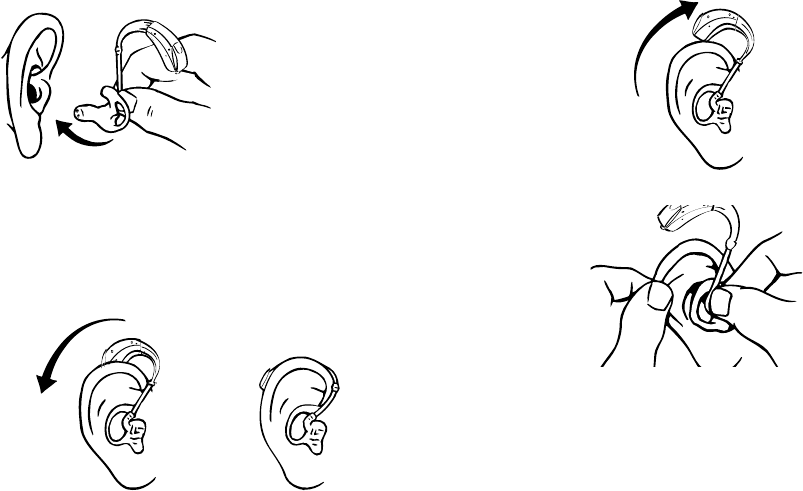

POSITIONING THE HEARING AID AND
CUSTOM EAR-TIP
Insert the custom ear-tip in the ear
canal while holding the lower part
of the tubing.
It may help to pull the
outer ear backwards
and upwards with the
opposite hand.
Place the hearing aid behind the ear, so that the tub-
ing rests comfortably on the ear, close to your head.
REMOVING THE HEARING AID AND
CUSTOM EAR-TIP
Remove the hearing aid from its
position behind the ear.
Take hold of the extraction cord
and carefully pull the custom ear-
tip out of the ear canal.
IMPORTANT
Do not pull the tubing to remove your hearing aid. Use the ex-
traction cord.
36 37
Cleaning
The following cleaning accessories are available for
the hearing aid and ear-set.*
Cloth
Waxremovingtool
Cleaningthread
Contact your hearing care professional if you need
additional supplies of cleaning accessories.
* Selection depends on ear-set type
THE HEARING AID
Clean the hearing aid with the
soft cloth after use. Never use
water or cleaning solutions to
clean the hearing aid.
THE MICROPHONE OPENINGS
Clean the microphone openings
by passing the wax removing
tool straight through the open-
ings.
If you feel resistance, withdraw
the tool and try again. Use only
the wax removing tool provided.
When the hearing aid is not in
use, the battery drawer should
be left open, to ventilate the
hearing aid and allow it to dry.
1. 2.
3.
38 39
THE EAR-SET
Make sure that your entire ear-set is clean and free or
earwax, moisture or the like. Wipe the ear-set with
the cloth at regular intervals. Never use alcohol or
other cleaning solutions to clean the ear-set.

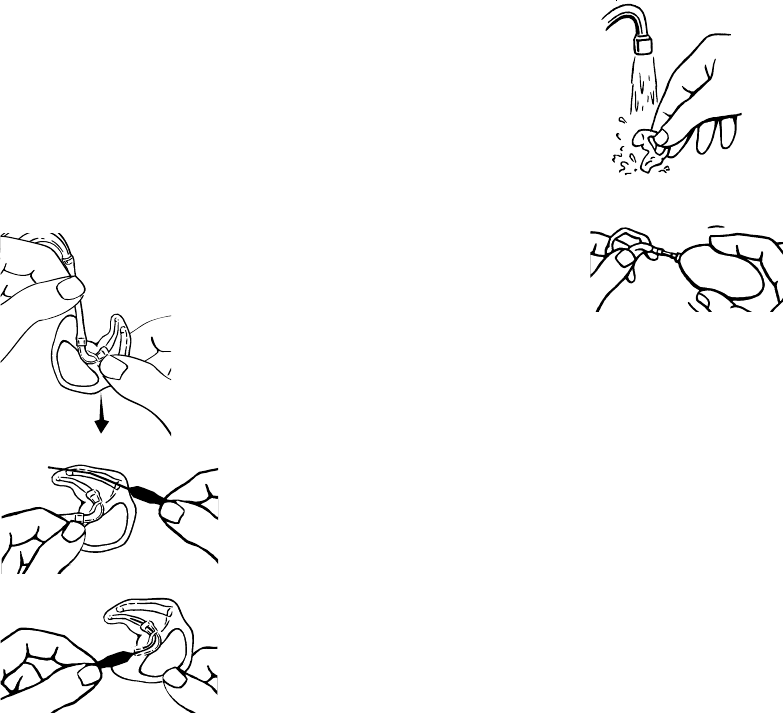

THE EARMOULD
Disconnect the earmould from
the tubing.
Clean the vent with the
wax removing tool.
Clean the sound bore
with the wax removing
tool.
At least once a week, disconnect
the earmould from the tubing
and rinse the earmould thor-
oughly in lukewarm water. Allow
it to dry overnight.
If there is still moisture in
the earmould, use a blower
or similar to blow it dry be-
fore attaching the earmould
to the tubing.
Your ear-set tubing sholuld be changed as required.
For further supplies of tubing, or if the earmould no
longer fits your ear, contact your hearing care pro-
fessional.
40 41

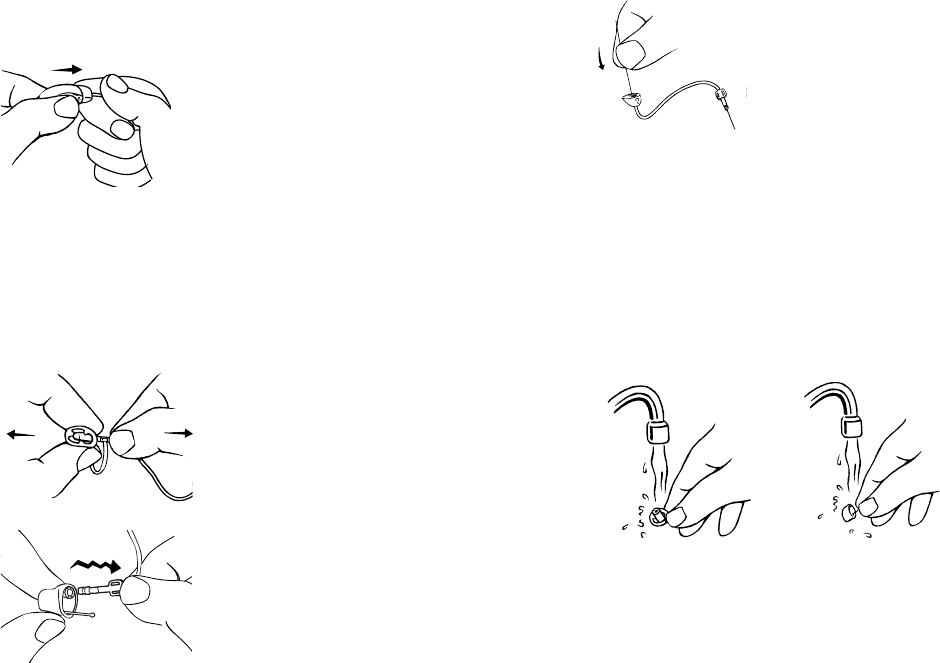

THE INSTANT AND CUSTOM EAR-TIP

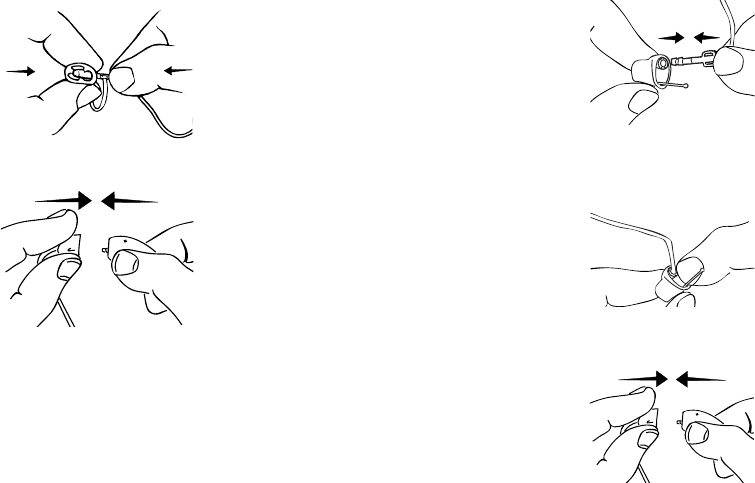

Cleaning a blocked tubing:
Grip the hearing aid between
your thumb and index finger.
With your other hand grip the
tubing and pull straight apart
as indicated by the arrow. Al-
ternatively, a small tool is avail-
able for removing the tubing.
Contact your hearing care pro-
fessional if you want more in-
formation.
Carefully pull the instant
ear-tip off the tubing.
If you have a custom ear-tip,
pull it off the tubing, wrig-
gling the tip of the tubing
gently.
Pass the cleaning thread through
the tubing. Pull the thread out at
the other end.
If necessary the instant/custom ear-tip can be rinsed
thoroughly in lukewarm water when disconnected
from the rest of the ear-set.
Allow it to dry overnight.
42 43
ASSEMBLING THE EAR-SET - INSTANT EAR-TIP
Push the ear-tip onto the
tubing. It is very important
that the ear-tip is firmly se-
cured.
Click the ear-set onto the
top of the hearing aid as il-
lustrated.
The ear-set should be changed as required.
For further supplies of ear-sets or if the ear-tip size
no longer fits your ear, contact your hearing care
professional.
ASSEMBLING THE EAR-SET - CUSTOM EAR-TIP
Hold the custom ear-tip be-
tween two fingers, with the ex-
traction cord downwards. Hold
the tubing with the other hand
as illustrated. Gently press the
tubing into place in the custom
ear-tip.
Use your fingernail to press the
tubing in as far as it will go so
that it is securely fastened.
Click the ear-set onto the top of
the hearing aid as illustrated.
The tubing should be changed as required.
For further supplies of tubing or if the custom ear-tip
no longer fits your ear, contact your hearing care
professional.
44 45
in Case of malfunCtion
Problem Possible cause Solution
The hearing
aid is dead
The hearing aid is
not turned on
Make sure the battery
drawer is closed
The battery is dead
or does not work
Insert a new battery in
the battery drawer
The sound outlet
of the earmould/
ear-tip is blocked
Earmould: Clean the
blocked sound bore
(see page 38)
Instant ear-tip:
Replace or clean the
ear-tip (see page 41)
Custom ear-tip: Clean
the ear-tip (see page
41)
The hearing
aid volume is
not powerful
enough
The battery is nearly
exhausted
Insert a new battery in
the battery drawer
The sound outlet
of the earmould/
ear-tip is blocked
Earmould: Clean the
blocked sound bore
(see page 38)
Instant ear-tip:
Replace or clean the
ear-tip (see page 41)
Custom ear-tip: Clean
the ear-tip (see page
41)
Your ear is blocked
by earwax
Contact your ENT
doctor/physician
Your hearing may
have changed
Contact your hearing
care professional
Problem Possible cause Solution
The hearing
aid whistles
continuously
Your ear is blocked
by earwax
Contact your ENT
doctor/physician
The tubing is yellow,
stiff or broken
Replace the tubing
The earmould/
ear-tip is not
correctly placed in
your ear canal
Take the earmould/
ear-tip out and rein-
sert it
The earmould/
ear-tip fit is too
loose
Contact your hearing
care professional
Earmould:
The tubing often
comes off the ear-
mould or hearing
aid hook
Replace the tubing
Earmould:
The hook is cracked
Contact your hearing
care professional
The hearing
aid functions
intermittently
The on/off switch is
dirty
Push the switch back
and forth a couple of
times (also see page 13)
Your two
hearing aids
are not
working in
synchrony
The connection
between the hearing
aids is lost
Turn the hearing aids
off and on again
46 47
Caring for Your hearing aid
The hearing aid is a valuable object and should be
treated with care. Here are some things you can do
to prolong the life of your hearing aid:
• Turn off your hearing aid when it is not in use. Re-
move the battery if the hearing aid will not be used
for several days.
• When the hearing aid is not in use, keep it in its
case in a cool, dry location out of reach of children
and pets.
• Do not expose the hearing aid to extreme temper-
atures or high humidity.
• Do not wear your hearing aid while in the shower
or swimming, or when using a hair dryer, perfume
or other sprays.
• In environments with high humidity, a Widex dry-
ing kit may be used daily to reduce the amount of
moisture inside the hearing aid. See the instruc-
tions enclosed with the Widex drying kit.
good adviCe and warnings
Hearing aids and batteries can be dangerous if
swal lowed or used improperly. Swallowing or
improper use can result in severe injury or even
fatalities. In case of ingestion, contact a physician
immediately.
• Keep hearing aids and their parts, accessories and
batteries out of reach of children and anyone else
who might swallow such items or otherwise cause
injury to themselves. Do not change batteries in
front of them and do not let them see where you
keep your battery supply. Discard used batteries
carefully.
• Batteries are very small and can easily be mistaken
for pills or the like. Never put a battery or hearing
aid in your mouth for any reason, as you may risk
swallowing it.
CAUTION
Risk of explosion if battery is replaced by an incorrect type or re-
charged. Dispose of used batteries according to the instructions.
48 49
• Never allow others to wear your hearing aid, as this
could cause permanent damage to their hear ing.
• The hearing aid will not restore normal hearing but
can help you to make the best possible use of your
remaining hearing ability. However, you should be
aware that it takes time to get used to a new hear-
ing aid and new sounds.
• When selecting a listening program, please re-
member that there are situations in which it is par-
ticularly important to be able to hear the surround-
ing sounds (e.g. traffic, warning signals).
• The use of hearing aids increases the risk of accu-
mulation of earwax. Contact your physician/ENT
doctor if you suspect that a plug of earwax has ac-
cumulated in your ear. Earwax may not only reduce
your own hearing but also the effect of the hearing
aid considerably. It is a good idea to ask your phy-
sician to clean your ears a couple of times a year.
• The hearing aid is made of modern non-allergenic
materials. Nonetheless, in rare cases skin irritation
may occur. If you notice skin irritation in or around
your ear or ear canal, contact your hearing care
professional.
• Be aware that the use of any type of hearing aid
may involve a slightly increased risk of infection in
the ear canal. An infection can arise as a result of
inadequate ventilation of the ear. We therefore rec-
ommend that you remove the hearing aid and ear-
set from your ear at night to allow the ear canal to
be ventilated. Make sure that you clean and inspect
your hearing aid and ear-set as required. If an in-
fection occurs, you should seek medical attention
and contact your hearing care professional for ad-
vice on how to disinfect the various hearing aid
parts. Do not under any circumstances use alcohol,
chlorine or similar substances.
• Your hearing aid uses a built-in transceiver for co-
ordination between the hearing aids. The magnetic
field strength of the transceiver is very low.
• Your hearing aid has been tested for interference
according to international standards. Nevertheless,
it is possible that unforeseen interference may oc-
cur in the hearing aid due to electromagnetic radi-
ation from other products such as alarm systems
and mobile phones.
50 51
• Although your hearing aid has been designed to
comply with the most stringent international elec-
tromagnetic compatibility standards, the possibili-
ty cannot be excluded that it may cause interfer-
ence with other equipment, such as medical devic-
es.
• Never try to open or repair the hearing aid your-
self.
• Do not wear your hearing aid during X-rays, scans
or radiation treatments. Other types of radiation,
such as that in a microwave oven, can also damage
your hearing aid. Radiation from, for example,
room surveillance equipment, burglar alarms and
mobile phones is weaker and will not damage the
hearing aid.
• Widex hearing aids are not certified for use in
mines or other areas with explosive gases.
regulatorY information
Hereby, Widex A/S declares that this C4-m and
C4-m-CB are in compliance with the essential re-
quirements and other relevant provisions of Direc-
tive 1999/5/EC.
A copy of the Declaration of Conformity can be found
at: http://www.widex.com
WIDEX A/S •
Nymoellevej 6, DK-
3540 Lynge
Denmark • www.widex.com
52 53
Federal Communications Commission and Industry
Canada Statement
FCC ID: TTY-C4M
FCC ID: TTY-C4MCB
IC: 5676B-C4M
IC: 5676B-C4MCB
This device complies with part 15 of the FCC Rules and
with RSS-210 of Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide rea-
sonable protection against harmful interference in a resi-
dential installation. This equipment gene rates, uses and
can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harm-
ful interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following mea sures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and
receiver.
— Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV
technician for help.
NOTE:
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in con-
junction with any other antenna or transmitter.
This equipment complies with the Industry Canada RF
radiation exposure limits set forth for an uncontrolled
environment as per IC RSS-102 Issue 3.
Changes or modifications to the equipment not expressly
approved by Widex could void the user’s authority to op-
erate the equipment.
54 55
Hearing aids, accessories and batteries
should not be disposed of with normal
household waste. Please consult your na-
tional Widex distributor for advice on
how to dispose of these items.
¡9 514 0134 001g¤ Printed by HTO / 04-10
9 514 0133 001 #01
¡#01v¤
