1
OTOPOd® PrOgLink™
Quick Guide
![](/img.php?id=1418842&img=bg2.png)
2 3
COnTenTs
WHATISTHEPROGLINK™? . . . . . . . . . . . . . . . . . . . . . . . . .
WIRELESSFITTINGWITHTHEPROGLINK™ . . . . . . . . . . . . . . . . . .
USINGTHEPROGLINKWITHCOMPASS . . . . . . . . . . . . . . . . . .
DETECTINGTHEHEARINGAIDS . . . . . . . . . . . . . . . . . . . . . . . . .
WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PROGLINKTROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . .
REGULATORYINFORMATION . . . . . . . . . . . . . . . . . . . . . . . .
FEDERALCOMMUNICATIONSCOMMISSIONAND
INDUSTRYCANADASTATEMENT . . . . . . . . . . . . . . . . . . . . . . . .
WHAT is THe PROGLiNk™?
ProgLink is a wireless adapter for programming Widex hearing aids that is
used with Otovation’s OTOPod M2 diagnostic audiometer.
The ProgLink can be added to an existing OTOPod M2 and used with
Compass to perform a wireless fitting of Clear™ and future wireless hear-
ing aids from Widex.
WIRELESS FITTING WITH THE PROGLINK™
The ProgLink was developed to make wireless programming of Widex
hearing aids available for OTOPod users. The ProgLink is plugged into
the OTOPod’s programming ports, and connects with Compass™ so that
Widex hearing aids can be programmed without the need for hearing aid
cables.
Adding the ProgLink adapter to the OTOPod
• If necessary, remove the neck string from the plastic clip on each side
of the OTOPod
• Grasp the ProgLink plug and carefully insert it into the top end of
the OTOPod where the left and right hearing aid programming cable
connectors are located.
CONTENTS OF THE OTOPOD PROGLINK PACKAGE
OTOPod ProgLink
Fixture for in-the-ear (ITE) hearing
instruments
![](/img.php?id=1418842&img=bg3.png)
4 5
Using THe PrOgLink
WiTH cOMPASS
First, insert fresh batteries in the hearing aids and turn on the hearing aids.
Use the Compass manual to assist in identifying the hearing aids.
The Otopod and the ProgLinkTM are handled in the same manner as all
other programming units. Please read the Compass manual for further
information regarding setup.
DETECTING THE HEARING AIDS

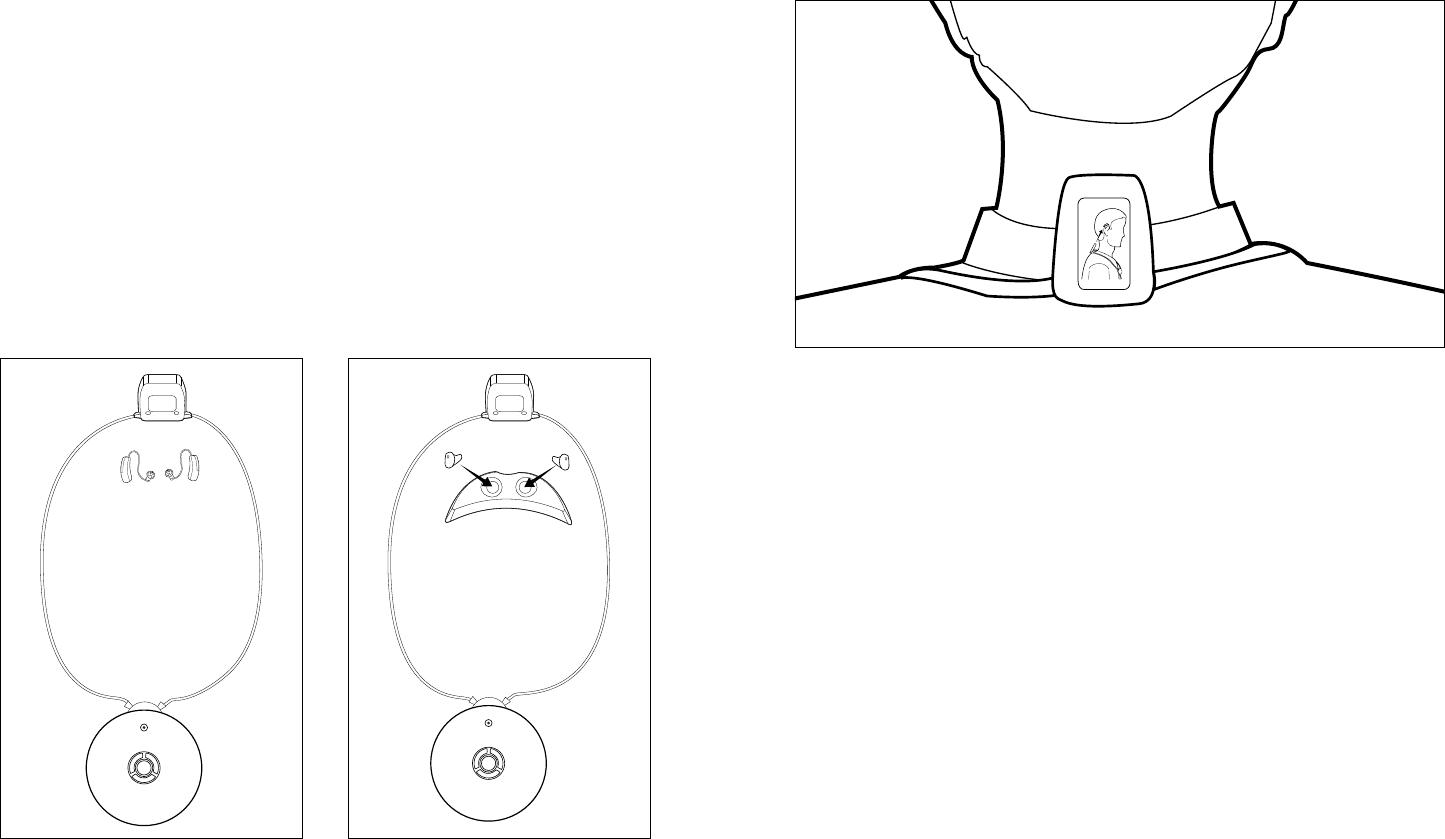

Place the OTOPod with the ProgLink attached on the table, and place the
hearing aids inside the neck loop close to the small black box (as illus-
trated).
Please read the Compass manual for further information regarding setup.
Make sure that the ProgLink unit is positioned correctly, as in the illustra-
tion below.
![](/img.php?id=1418842&img=bg4.png)
6 7
WHICH HEARING AIDS CAN BE PROGRAMMED WIRELESSLY WITH THE
OTOPOD AND PROGLINK?

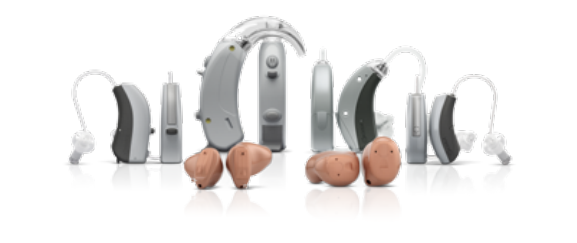

All Widex CLEAR440 and more recent hearing aids with wireless technol-
ogy from Widex are fitted wirelessly with the OTOPod with ProgLink. Use
Compass 5.3 or a later version.
The OTOPod also supports fitting with cables for models where cable fit-
ting is an option. Connect the usual cables to the OTOPod (after removing
the ProgLink) to perform the programming of these hearing aids.
WArnings
1. Never use any liquids or solutions near the ProgLink.
NevertrytoopenorrepairtheProgLink
ProgLinkpartscanbedangerousifusedimproperly
DonotdisconnecttheProgLinkduringuse
Donotusedefectiveunitstogetherwithhearingaids
DonotusetheProgLinkonaircrafts
DonotusetheProgLinkinminesorotherareaswithexplosivegasses
DonotcarrytheProgLinkduringX-raysscansorradiationtreatments
andneverplacetheProgLinkinanmicrowaveoven
AlthoughyourProgLinkhavebeendesignedtocomplywiththemost
stringentinternationalelectromagneticcompatibilitystandardsthe
possibilitycannotbeexcludedthatitmaycauseinterferencewithother
equipment
![](/img.php?id=1418842&img=bg5.png)
8 9
sYMBOLs
In Europe, do not dispose of in trash bins. Follow the local EU
WEEE regulations for the collection of electronic products.
See this user manual for information not included on the
ProgLink label.
PrOgLink TROuBLeSHOOTiNG
Problem Possible Cause Solution
Wireless program-
ming is not working
The hearing aids are not
within the ProgLink range.
Reposition the ProgLink
so that the unit is in close
proximity to the hearing
aids.
The hearing aids are not
detected by Compass.
Detect the hearing aids
by placing them in the
middle of the neck loop on
the table. Ensure that the
hearing aids are turned on.
The hearing aids are not
working.
Insert fresh batteries in the
hearing aids and turn on
the hearing aids.
ProgLink not securely
plugged into OTOPod
Check that the ProgLink is
plugged correctly into the
OTOPod.
OTOPod battery low Recharge or replace
OTOPod batteries.
OTOPod Firmware must be
updated
Contact your authorized
representative to perform
this.
![](/img.php?id=1418842&img=bg6.png)
10 11
regULATOrY iNFORMATiON
Hearing aids, accessories and batteries should not be disposed
of with normal household waste. Please consult your national
Widex distributor for advice on how to dispose of these items.
Widex A/S declares that the ProgLink is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
A copy of the Declaration of Conformity can be found at: http://www.
widex.com
FEDERAL COMMUNICATIONS COMMISSION AND
INDUSTRY CANADA STATEMENT
FCC ID: TTY-PROGL
IC: 5676B-PROGL
This device complies with part 15 of the FCC Rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particu-
lar installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
NOTE:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
This equipment complies with the Industry Canada RF radiation exposure
limits set forth for an uncontrolled environment as per IC RSS-102.
Changes or modifications to the equipment not expressly approved by
Widex could void the user’s authority to operate the equipment.
![](/img.php?id=1418842&img=bg7.png)
12
Printed by KLS / 2010-12
9 502 2323 001 #01
