User instrUctions
RC-Dex
Remote ContRol
23
Contents
YOUR NEW DEX™ REMOTE CONTROL. . . . . . . . . . . . . . . . . . . . 4
ACCESSORIES ........................................7
THE BATTERY.........................................8
CHANGING THE BATTERY .............................9
USING THE REMOTE CONTROL. . . . . . . . . . . . . . . . . . . . . . . . . .11
OPERATING RANGE ..................................11
LIGHT-EMITTING DIODE...............................11
ADJUSTING THE VOLUME ............................12
CHANGING PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CARING FOR YOUR REMOTE CONTROL . . . . . . . . . . . . . . . . . 14
WARNINGS.......................................... 15
TROUBLESHOOTING.................................. 17
REGULATORY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . 18
45
The remote control gives simple access to hearing
aid functions such as volume adjustment and pro-
gram change. It is also provided with a light-emit-
ting diode (LED) for visual indication.

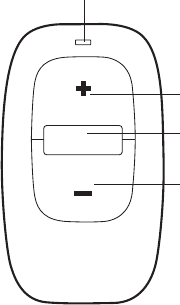

FRONT VIEW
1. LED
2. Volume up
3. Program toggle
4. Volume down
Your new Dex™ remote
Control
We hope you will be pleased with your Widex hear-
ing aid remote control. These user instructions ex-
plain how your remote control should be operated.
Please read this booklet carefully before you start
using your remote control.
1.
2.
3.
4.
67

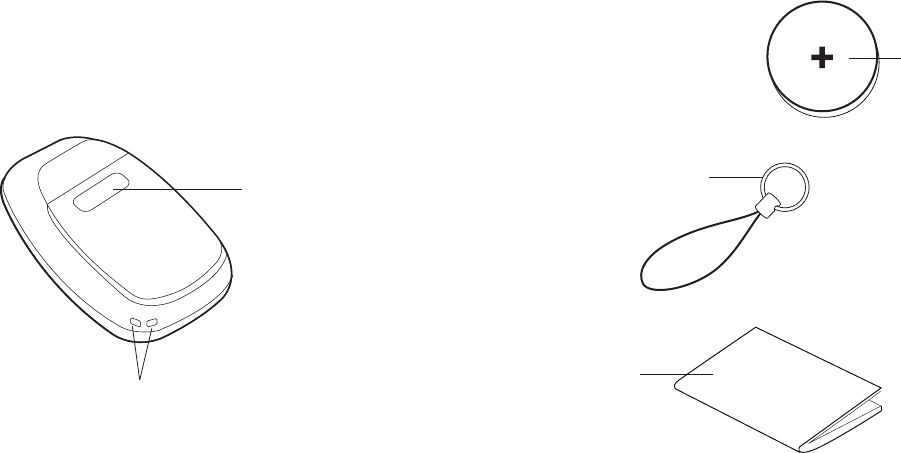

REAR VIEW
1. Battery cover
2. Attachment eye
ACCessories
1. Battery
2. Key ring/string
3. User instructions
1.
2.
1.
2.
3.
89
the bAtterY
The battery type for this remote control is:
Lithium CR2032
To obtain replacement batteries, please consult
your hearing care professional. Please note the
expiry date and the recommendations regarding
disposal of used batteries on the battery pack.
The remote control is on when a functioning bat-
tery is correctly placed in the battery compartment.
Battery life is up to 12 months, depending on how
often you activate the remote control keys.

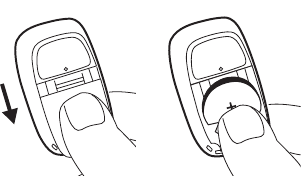

CHANGING THE BATTERY
1. Slide the battery cover downwards to remove it.
2. Press the battery as illustrated to tip it up, and
take it out.
1. 2.
10 11

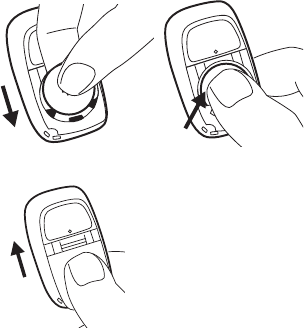

3. Insert the new battery at an angle as illustrated
and press to click the battery into place. The
plus (+) sign on the battery must face upwards.
4. Replace the battery cover.
using the remote Control
The remote control enables you to operate your
hearing aid discreetly, e.g. from your pocket or
handbag. The remote control is provided with an
eye for attachment of a key ring or similar.
OPERATING RANGE
The operating range from the remote control to the
hearing aid is up to 1.0 m.
LIGHT-EMITTING DIODE
A green light in the diode indicates that one of the
keys on the remote control has been activated.
3.
4.
12 13
ADJUSTING THE VOLUME
Press the volume up key (+) briefly to raise the vol-
ume. Press the volume down key (-) briefly to lower
the volume.
When you activate the volume keys, you will hear a
brief beep-tone. When the maximum or minimum
adjustment level is reached, you will hear a long
beep-tone.
CHANGING PROGRAMS
With your remote control, you can choose from a
number of listening programs depending on how
many programs your hearing aid has been pro-
grammed with. Press the program toggle key brief-
ly to change listening program.
Zen+
If your hearing aid is programmed with the special
Zen+ program, you access this by a long key press
(2 sec.) on the program toggle key. Short presses
on the program toggle key will then allow you to
choose from among any available Zen styles. You
return to the standard listening program with a
long press of the key.
14 15
CAring for Your remote
Control
The remote control is a valuable object and should
be treated with care. Here are some things you can
do to prolong the life of your remote control:
• Do not expose it to extreme temperatures or high
humidity.
• Clean the remote control with a soft cloth. Never
wash your remote control with water, cleaning so-
lutions or other liquids.
• Do not carry your remote control with you during
X-rays, scans or radiation treatments and never
place your remote control in a microwave oven.
These are some of the types of radiation that can
damage your remote control. However, radiation
from, for example, room surveillance equipment,
burglar alarms or mobile phones is weaker and
will not damage your remote control.
• Never try to open or repair the remote control
yourself. (To be performed by authorised person-
nel only).
wArnings
Batteries can be dangerous if swallowed or used
improperly. Swallowing or improper use can result
in severe injury, or even fatalities. In case of inges-
tion, contact a physician immediately.
• Keep your remote control and its parts, accesso-
ries and batteries out of reach of children and an-
yone else who might swallow such items or other-
wise cause injury to themselves. Do not change
batteries in front of them and do not let them see
where you keep your battery supply. Discard
used batteries carefully.
• Never put a battery or hearing aid in your mouth
for any reason as you may risk swallowing it.
• Do not use your remote control on aeroplanes or
in hospitals without permission.
• Do not use your remote control in mines or other
areas with explosive gases.
16 17
• Although your remote control has been designed
to comply with the most stringent international
electromagnetic compatibility standards, the
possibility cannot be excluded that it may cause
interference with other equipment, such as medi-
cal devices.
CAUTION
Risk of explosion if battery is replaced by an
incorrect type or recharged.
Dispose of used batteries according to the
instructions.
troubleshooting
Problem Possible cause Solution
Your remote
control does not
work
The battery is dead
or does not work
Change the battery
The battery in your
hearing aid is
exhausted
Change the battery
Out of operating
range
Move within
operating range
18 19
regulAtorY informAtion
Hereby, Widex A/S declares that this RC-DEX is in
compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
A copy of the Declaration of Conformity can be
found at: http://www.widex.com
FCC ID: TTY-RCDEX
IC: 5676B-RCDEX
FEDERAL COMMUNICATIONS COMMISSION AND
INDUSTRY CANADA STATEMENT
This device complies with part 15 of the FCC Rules and
RSS-210 of the Canadian Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired opera-
tion.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are de-
signed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more
of the following measures:
WIDEX • 3540 Lynge
Denmark • www.widex.com
20 21
Hearing aids, accessories and batteries
should not be disposed of with normal
household waste. Please consult your
national Widex distributor for advice on
how to dispose of these items.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
22 23
