Wild Planet Entertainment HIPTALKIE82013 49 MHz Walkie Talkie - TX User Manual Hip talkies I S layoutRev
Wild Planet Entertainment, Inc. 49 MHz Walkie Talkie - TX Hip talkies I S layoutRev
users manual
Important: keep these instructions. Do not discard.
1 (one) 9-volt battery required per Hip Talkie (batteries not included)
Only adults should install and replace batteries
Alkaline batteries recommended for longer life
Do not use rechargeable batteries
Do not recharge non-rechargeable batteries
Remove exhausted batteries from the toy
Insert batteries with the correct polarity (as shown in figure 2)
Do not short-circuit the battery supply terminals
Parents: to install batteries
Hip Talkies require two 9-volt Alkaline batteries, one battery for
each unit (batteries not included).
1. With a small Phillips screwdriver, remove the screw and battery door
on the back of Hip Talkie (figure 1).
2. Snap battery clip on battery as shown (figure 2).
3. Place battery into battery compartment.
4. Replace the battery door and tighten the screw.
To use the walkie talkie
1. Turn the purple knob on the front clockwise (figure 3).
You will hear a click, this means that it is on.
2. Turn knob clockwise (to the right) to increase the volume (figure 3).
3. Move the selector to the talkie position (figure 4).
4. Push the push button to talk to your friend (figure 4).
Her Hip Talkie must also be on and selector in the talkie position.
5. Release the push button to listen.
6. To turn off your Hip Talkie turn the purple knob counterclockwise
(to the left) until it clicks.
To use the FM radio
1. Turn the hip talkie on using the purple knob (figure 3).
2. Move the selector switch to radio (figure 5).
3. The radio will always start at 88 FM frequency when you turn it on.
4. To find a different station, push the scan button to select the next station higher, (figure 6).
The radio automatically scans and stops at the next available higher FM station.
5. To scan down, press the reset button (figure 6) to start scanning from 88 FM.

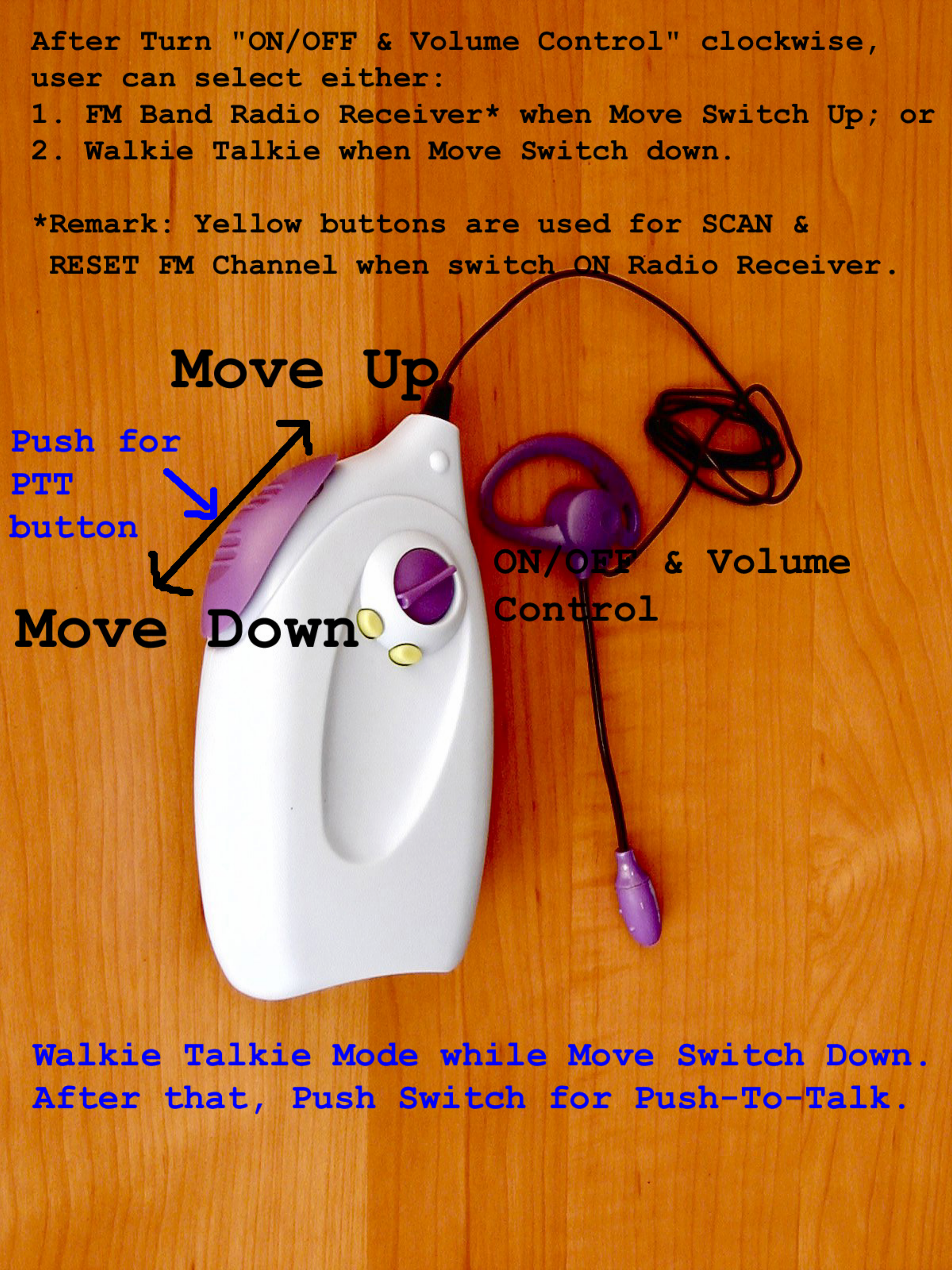

Hip Talkie features
1. Cool earbud with microphone
(wear on left ear only)
2. Belt clip (on back)
3. FM scan radio
4. Push-to-talk walkie talkie
5. Radio/talkie selector switch
6. On/off/volume knob
Ages 6 and up
82013
HIP TALKIES 82013-4000 13/05/02
IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US AT
1-800-247-6570
WWW.WILDPLANET.COM
©2002 Wild Planet Toys, Inc.
Hip Talkies
cool earbud with microphone
cool earbud with microphone
wear on left ear only, as shown
belt clip (on back)
FM scan radio
push-to-talk walkie talkie
radio/talkie selector switch
on/off/volume knob
Push
to talk
fig 1
fig 2
fig 3
fig 4
fig 6
fig 5
Warning : Changes or modifications to this toy that are not expressly
approved by Wild Planet Toys, Inc. could void the user's authority to
operate the toy.
