Williams Sound ® Helping People HearPERSONAL PA®T35 TransmitterWireless FM Listening SystemTransmitter Model PPA T35Optional Receiver Models PPA R30, R7, R7-4, R19, R19-6MANUAL AND USER GUIDEMAN 110 B

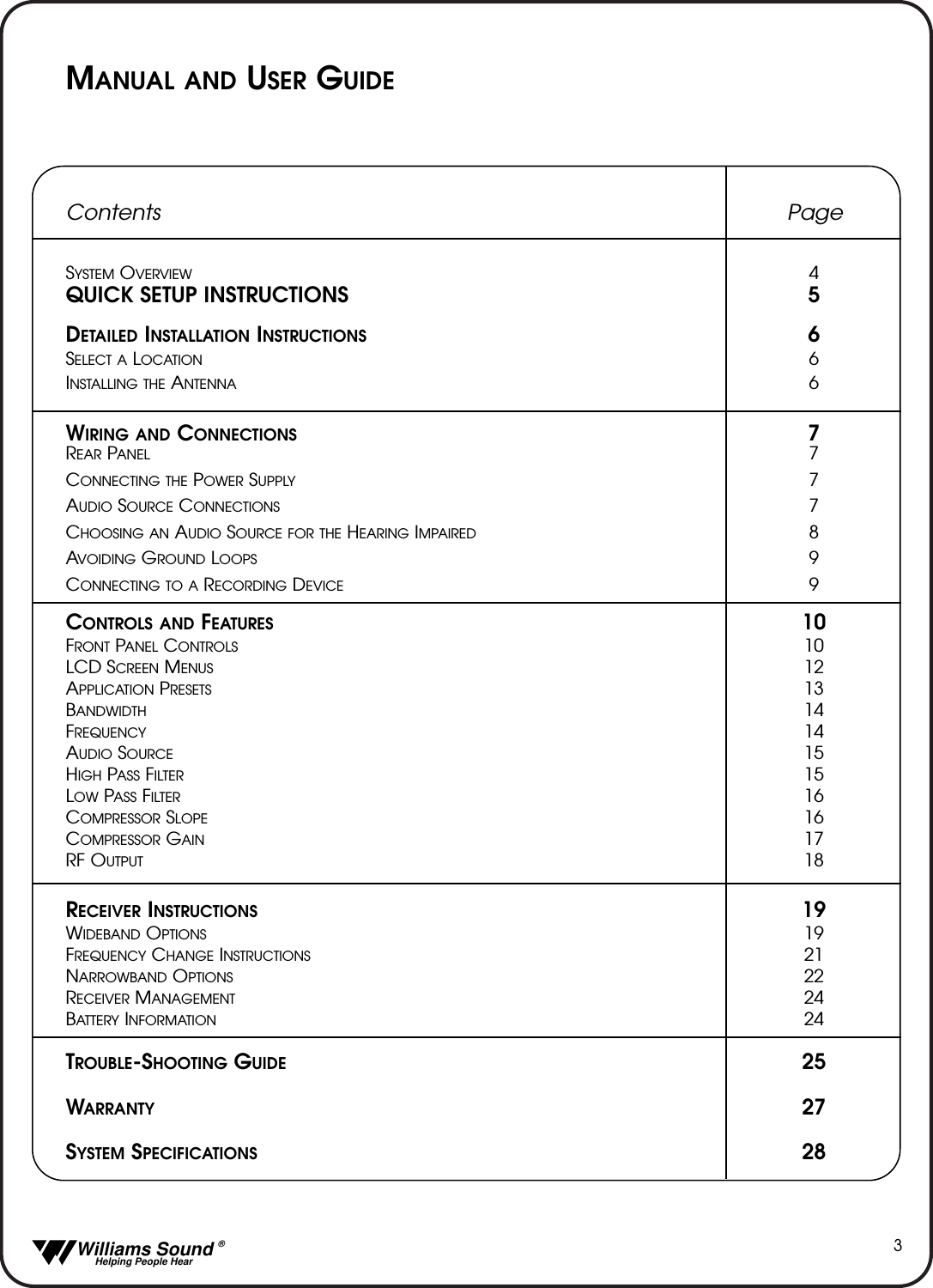

Williams Sound ® Helping People Hear3MANUAL AND USER GUIDEContents PageSYSTEM OVERVIEW 4QUICK SETUP INSTRUCTIONS 5DETAILED INSTALLATION INSTRUCTIONS 6SELECT A LOCATION 6INSTALLING THE ANTENNA 6WIRING AND CONNECTIONS 7REAR PANEL 7CONNECTING THE POWER SUPPLY 7AUDIO SOURCE CONNECTIONS 7CHOOSING AN AUDIO SOURCE FOR THE HEARING IMPAIRED 8AVOIDING GROUND LOOPS 9CONNECTING TO A RECORDING DEVICE 9CONTROLS AND FEATURES 10FRONT PANEL CONTROLS 10LCD SCREEN MENUS 12APPLICATION PRESETS 13BANDWIDTH 14FREQUENCY 14AUDIO SOURCE 15HIGH PASS FILTER 15LOW PASS FILTER 16COMPRESSOR SLOPE 16COMPRESSOR GAIN 17RF OUTPUT 18RECEIVER INSTRUCTIONS 19WIDEBAND OPTIONS 19FREQUENCY CHANGE INSTRUCTIONS 21NARROWBAND OPTIONS 22RECEIVER MANAGEMENT 24BATTERY INFORMATION 24TROUBLE-SHOOTING GUIDE 25WARRANTY 27SYSTEM SPECIFICATIONS 28
4SYSTEM OVERVIEWThe PPA T35 is an FM Wide-band / Narrow-Band transmitter which operates in the 72-76 MHzfrequency bandwidth. It is designed to be used with battery powered FM receivers:Compatible Williams Sound receivers include the R30, R7, R7-4 (Wide-Band), and the R19 andR19-6 (Narrow-band). Please contact Williams Sound Corp. for more information on availablereceivers: 800-843-3544. Or, visit us on the web: www.williamssound.com.Developed for hearing assistance in places of public access, the PPA T35 is designed forthose who need help overcoming background noise, reverberation, or distance from thesound source. It includes a complete audio processor optimized for the needs of hearingimpaired persons and is easily integrated with your existing sound system. The PPA T35 canalso be used with a microphone as a stand-alone system. Your PPA T35 transmitter operates much like an FM radio station. The transmitter picks up thelive audio directly from a microphone or sound system. Those sounds are then broadcastedover an FM radio signal. FM receivers are worn by the listener. The broadcast can be pickedup from up to 500 feet away*. This allows the listener to sit anywhere in the audience and lis-ten to the broadcast as loud as needed without disturbing anyone else.Please read through this manual carefully. It includes important setup procedures and guide-lines for proper operation. If at any time you are having problems with this product, pleasecontact Williams Sound toll free for assistance: 800-843-3544.NOTE: FCC regulations, section 15.21, requires the user to comply with the rules of transmitteroperation. Any changes or modifications made by the user not expressly approved for compli-ance may result in the loss of all privelages and authority to operate the equipment.Power PhonesSetSourceVol um eAudioLevelInputOverloadOn Air+–+9+6+30-3-6-9-12-15-18^^+--+PPA T35 Sound System AmplifierPPA T35 Transmitter FM ReceiversMicrophoneLine-LevelOutputLoudspeakerDigital Frequency Synthesized Williams Sound Williams SoundFIGURE 1: OVERALL SYSTEM DIAGRAM*Range may be affected by metal structures. 500+ feet is the maximum operating range of the T35 Williams Sound ® Helping People Hear
Williams Sound ® Helping People Hear5STEP 1: Position the PPA T35 transmitter near the sound system or mixer from which it will receive audio.STEP 2: Install the ANT 021 “rubber duckie” antenna. Gently thread the ANT 021 onto the stud recessed inthe hole on the top of the transmitter.STEP 3: Connect the power supply to the “Power In” connector (Figure 5) located in the back of the T35. Press in the power button on the front of the T35. The “On Air” green LED indicator should illuminate. If not, go back and check the power connections.STEP 4: Select an application. The T35 has three pre-configured Appl- ication Presets to choose from: Hearing Assist, Music and Voice. The performance of the T35 is optimized for each selected application. Using the menu control buttons on the front of the T35 (Figure 2), press the “ “ button to access the “Application Presets” LCD screen. Press the “+” and “-” menu buttons to alternate between Hearing Assist, Music and Voice selection. When the desired Application Preset is displayed, press the “Set” button to save the change into memory.STEP 5:The T35 is shipped from the factory in wideband mode with the frequency set to 72.900 MHz. To change the frequency orbandwidth on the T35, refer to the instructions on page 14.STEP 6: Configure the T35 for the appropriate audio source. Using the menu control buttons on the front of the T35 (Figure 2), press the “ “ button to access the “Audio Source” LCD screen. Using the “+” and “-” menu buttons (Figure 2), choose between MIC, SIM-PLEX-MIC, or LINE. When the desired audio input is displayed, pressthe “Set” button to save the change into memory. Lastly, con-nect the audio source to the audio input jack in the rear of the T35 transmitter. STEP 7: With the audio source playing, adjust the Audio Level control on the T35 so that the green “0 dB” LED generally lights and the red “+9 dB” LED lights occasionally: Press the Audio Level “+” button to increase the audio level in .5dB steps. Press the Audio Level “-” button to decrease the audio level in .5dB steps. See Figure 3.STEP 8: Listen with an FM receiver (see pages 19-23 for compatible Williams Sound receivers). Install the batteries, plug in the earphone, turn on the receiver and walk around the listening area. The sig-nal should be clear and quite loud when the volume is turned up. IMPORTANT: The FM receiver being used with the T35 transmitter will need to be on the same frequency and bandwidth as the transmitter. To retune the receiver, see page 21.Please read through this manual carefully for detailed instructions and setup procedures.^^FIG. 2: LCD Menu ControlsFront panel of the T35Set^^-+FIG. 3: Audio Input ControlsFront panel of the T35AudioLevelInputOverloadir+–+9+6+30-3-6-9-12-15-18QUICK SETUP INSTRUCTIONS

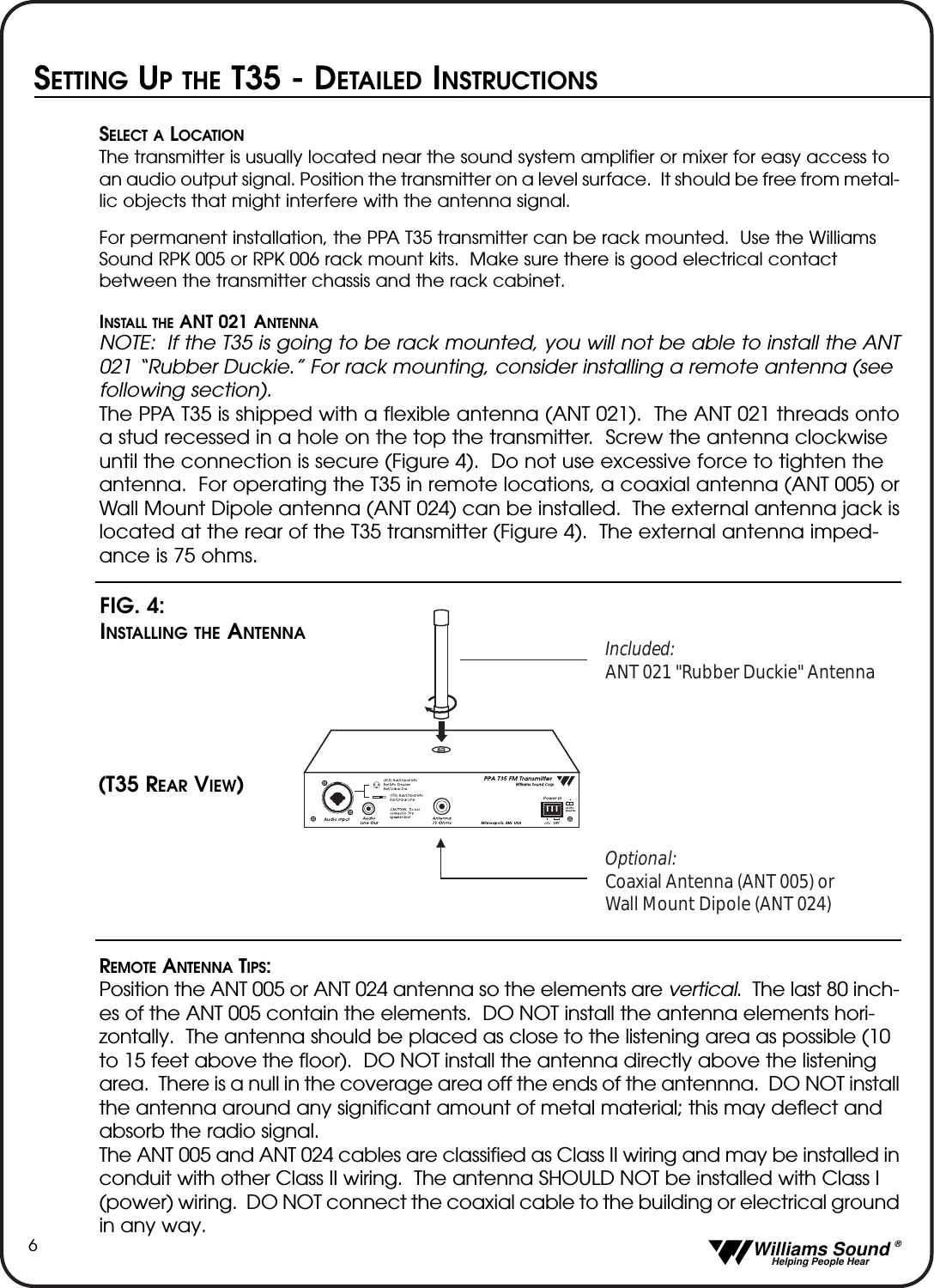

Williams Sound ® Helping People Hear6SETTING UPTHE T35 - DETAILED INSTRUCTIONSSELECT A LOCATIONThe transmitter is usually located near the sound system amplifier or mixer for easy access to an audio output signal. Position the transmitter on a level surface. It should be free from metal-lic objects that might interfere with the antenna signal.For permanent installation, the PPA T35 transmitter can be rack mounted. Use the Williams Sound RPK 005 or RPK 006 rack mount kits. Make sure there is good electrical contact between the transmitter chassis and the rack cabinet. INSTALL THEANT 021 ANTENNANOTE: If the T35 is going to be rack mounted, you will not be able to install the ANT021 “Rubber Duckie.” For rack mounting, consider installing a remote antenna (see following section). The PPA T35 is shipped with a flexible antenna (ANT 021). The ANT 021 threads ontoa stud recessed in a hole on the top the transmitter. Screw the antenna clockwise until the connection is secure (Figure 4). Do not use excessive force to tighten the antenna. For operating the T35 in remote locations, a coaxial antenna (ANT 005) orWall Mount Dipole antenna (ANT 024) can be installed. The external antenna jack islocated at the rear of the T35 transmitter (Figure 4). The external antenna imped-ance is 75 ohms.REMOTE ANTENNA TIPS: Position the ANT 005 or ANT 024 antenna so the elements are vertical. The last 80 inch-es of the ANT 005 contain the elements. DO NOT install the antenna elements hori-zontally. The antenna should be placed as close to the listening area as possible (10 to 15 feet above the floor). DO NOT install the antenna directly above the listening area. There is a null in the coverage area off the ends of the antennna. DO NOT installthe antenna around any significant amount of metal material; this may deflect and absorb the radio signal.The ANT 005 and ANT 024 cables are classified as Class II wiring and may be installed inconduit with other Class II wiring. The antenna SHOULD NOT be installed with Class I (power) wiring. DO NOT connect the coaxial cable to the building or electrical groundin any way.Included:ANT 021 "Rubber Duckie" AntennaOptional:Coaxial Antenna (ANT 005) or Wall Mount Dipole (ANT 024)FIG. 4: INSTALLING THE ANTENNA(T35 REAR VIEW)

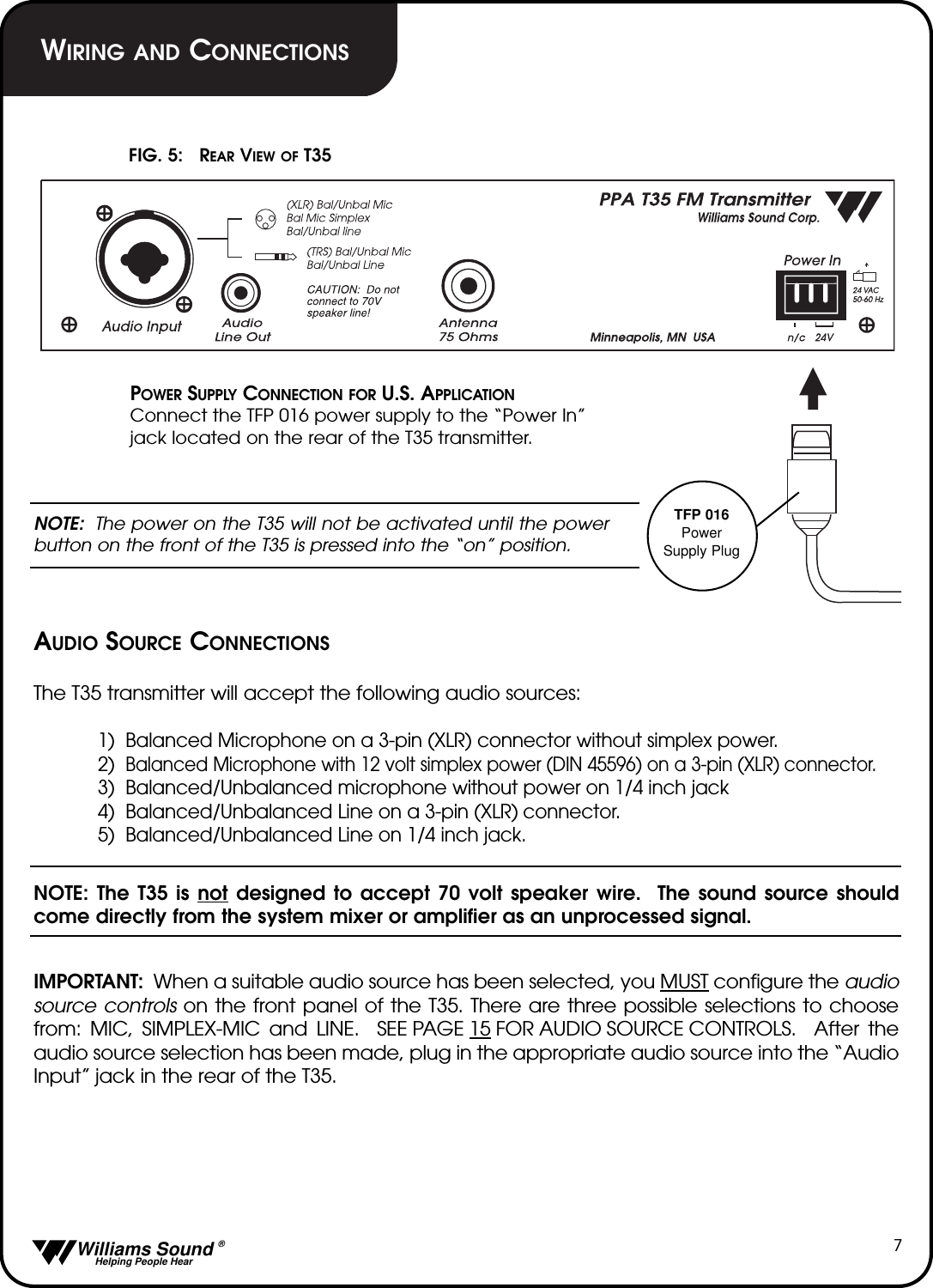

Williams Sound ® Helping People Hear7POWER SUPPLY CONNECTION FOR U.S. APPLICATIONConnect the TFP 016 power supply to the “Power In” jack located on the rear of the T35 transmitter.NOTE: The power on the T35 will not be activated until the powerbutton on the front of the T35 is pressed into the “on” position.AUDIO SOURCE CONNECTIONSThe T35 transmitter will accept the following audio sources:1) Balanced Microphone on a 3-pin (XLR) connector without simplex power.2) Balanced Microphone with 12 volt simplex power (DIN 45596) on a 3-pin (XLR) connector.3) Balanced/Unbalanced microphone without power on 1/4 inch jack4) Balanced/Unbalanced Line on a 3-pin (XLR) connector.5) Balanced/Unbalanced Line on 1/4 inch jack.NOTE: The T35 is not designed to accept 70 volt speaker wire. The sound source shouldcome directly from the system mixer or amplifier as an unprocessed signal. IMPORTANT: When a suitable audio source has been selected, you MUST configure the audiosource controls on the front panel of the T35. There are three possible selections to choosefrom: MIC, SIMPLEX-MIC and LINE. SEE PAGE 15 FOR AUDIO SOURCE CONTROLS. After theaudio source selection has been made, plug in the appropriate audio source into the “AudioInput” jack in the rear of the T35.FIG. 5: REAR VIEW OF T35TFP 016PowerSupply PlugWIRING AND CONNECTIONS

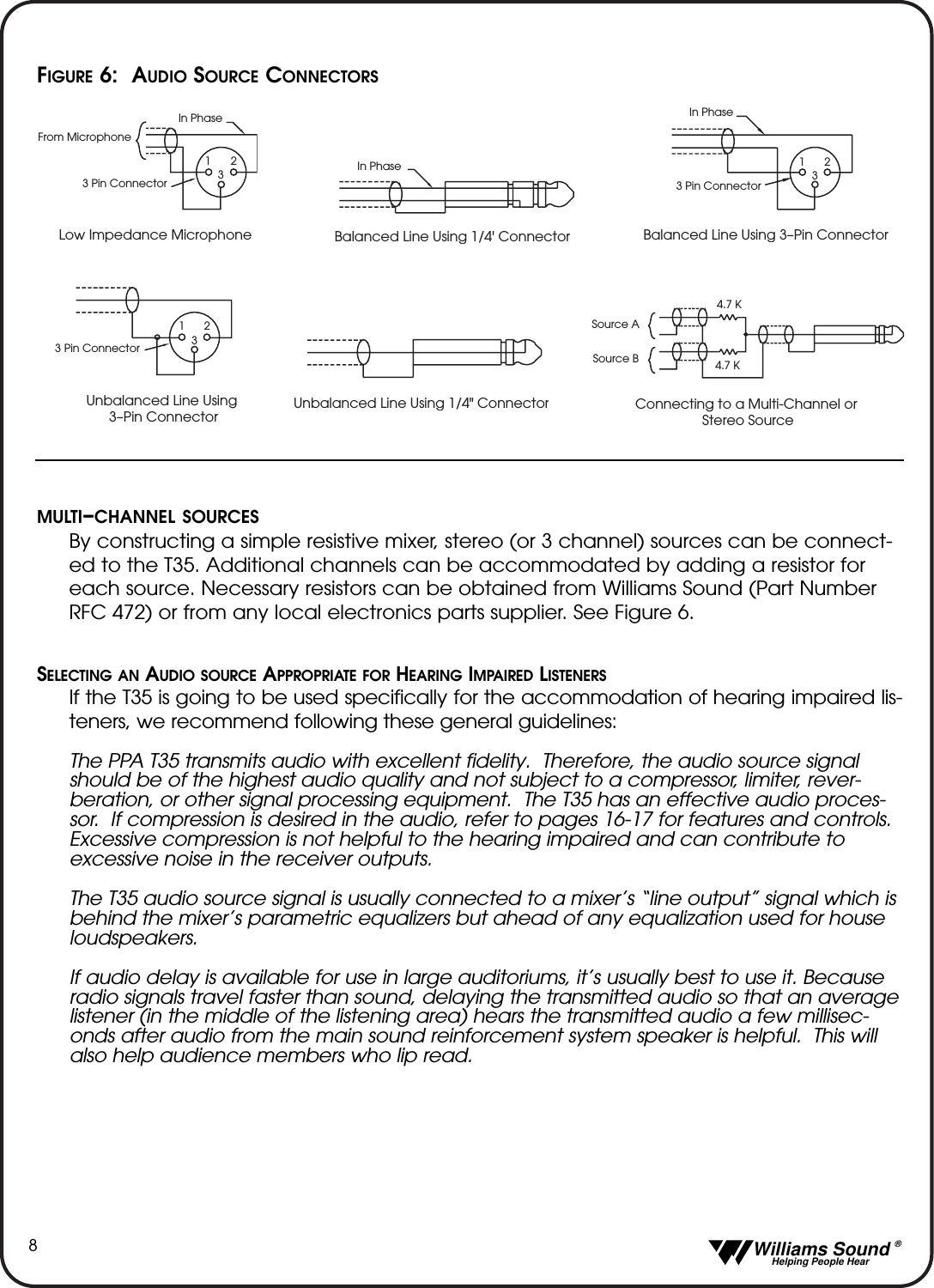

Williams Sound ® Helping People Hear8In PhaseBalanced Line Using 1/4' ConnectorUnbalanced Line Using 1/4" Connector4.7 K4.7 KSource ASource BConnecting to a Multi-Channel or Stereo SourceIn PhaseFrom Microphone1233 Pin ConnectorLow Impedance MicrophoneIn Phase3 Pin Connector123Balanced Line Using 3–Pin Connector3 Pin Connector123Unbalanced Line Using 3–Pin ConnectorFIGURE 6: AUDIO SOURCE CONNECTORSSELECTING AN AUDIO SOURCE APPROPRIATE FOR HEARING IMPAIRED LISTENERSIf the T35 is going to be used specifically for the accommodation of hearing impaired lis-teners, we recommend following these general guidelines:The PPA T35 transmits audio with excellent fidelity. Therefore, the audio source signal should be of the highest audio quality and not subject to a compressor, limiter, rever-beration, or other signal processing equipment. The T35 has an effective audio proces-sor. If compression is desired in the audio, refer to pages 16-17 for features and controls. Excessive compression is not helpful to the hearing impaired and can contribute to excessive noise in the receiver outputs.The T35 audio source signal is usually connected to a mixer’s “line output” signal which is behind the mixer’s parametric equalizers but ahead of any equalization used for house loudspeakers.If audio delay is available for use in large auditoriums, it’s usually best to use it. Because radio signals travel faster than sound, delaying the transmitted audio so that an averagelistener (in the middle of the listening area) hears the transmitted audio a few millisec-onds after audio from the main sound reinforcement system speaker is helpful. This will also help audience members who lip read.MULTI–CHANNEL SOURCESBy constructing a simple resistive mixer, stereo (or 3 channel) sources can be connect-ed to the T35. Additional channels can be accommodated by adding a resistor foreach source. Necessary resistors can be obtained from Williams Sound (Part NumberRFC 472) or from any local electronics parts supplier. See Figure 6.

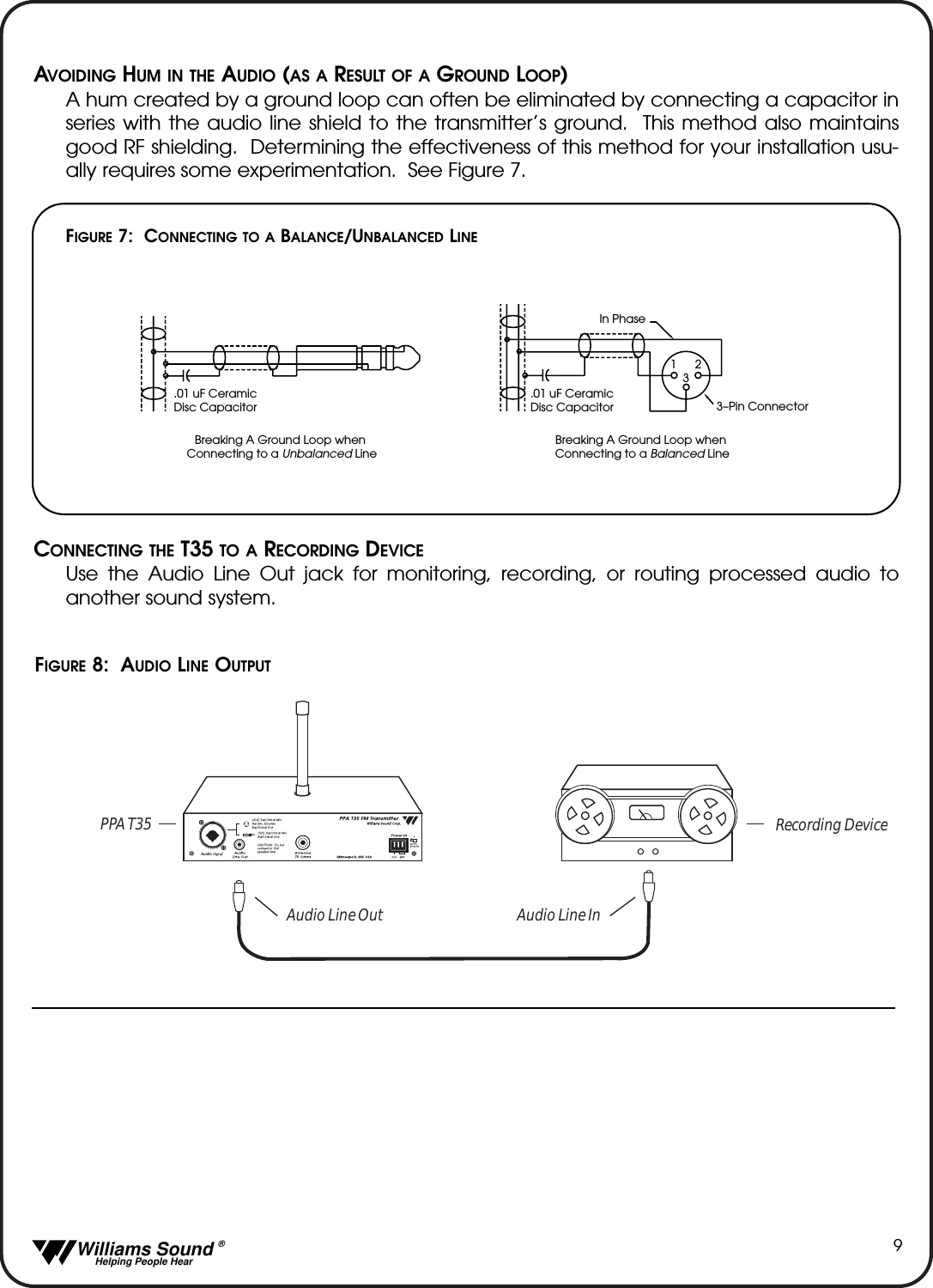

Williams Sound ® Helping People Hear9AVOIDING HUM IN THE AUDIO (AS A RESULT OF A GROUND LOOP)A hum created by a ground loop can often be eliminated by connecting a capacitor inseries with the audio line shield to the transmitter’s ground. This method also maintainsgood RF shielding. Determining the effectiveness of this method for your installation usu-ally requires some experimentation. See Figure 7.CONNECTING THE T35 TO A RECORDING DEVICEUse the Audio Line Out jack for monitoring, recording, or routing processed audio toanother sound system..01 uF CeramicDisc CapacitorIn Phase3–Pin Connector.01 uF CeramicDisc Capacitor123Breaking A Ground Loop when Connecting to a Unbalanced LineBreaking A Ground Loop when Connecting to a Balanced LineFIGURE 7: CONNECTING TO A BALANCE/UNBALANCED LINEFIGURE 8: AUDIO LINE OUTPUTAudio Line Out Audio Line InRecording DevicePPA T35

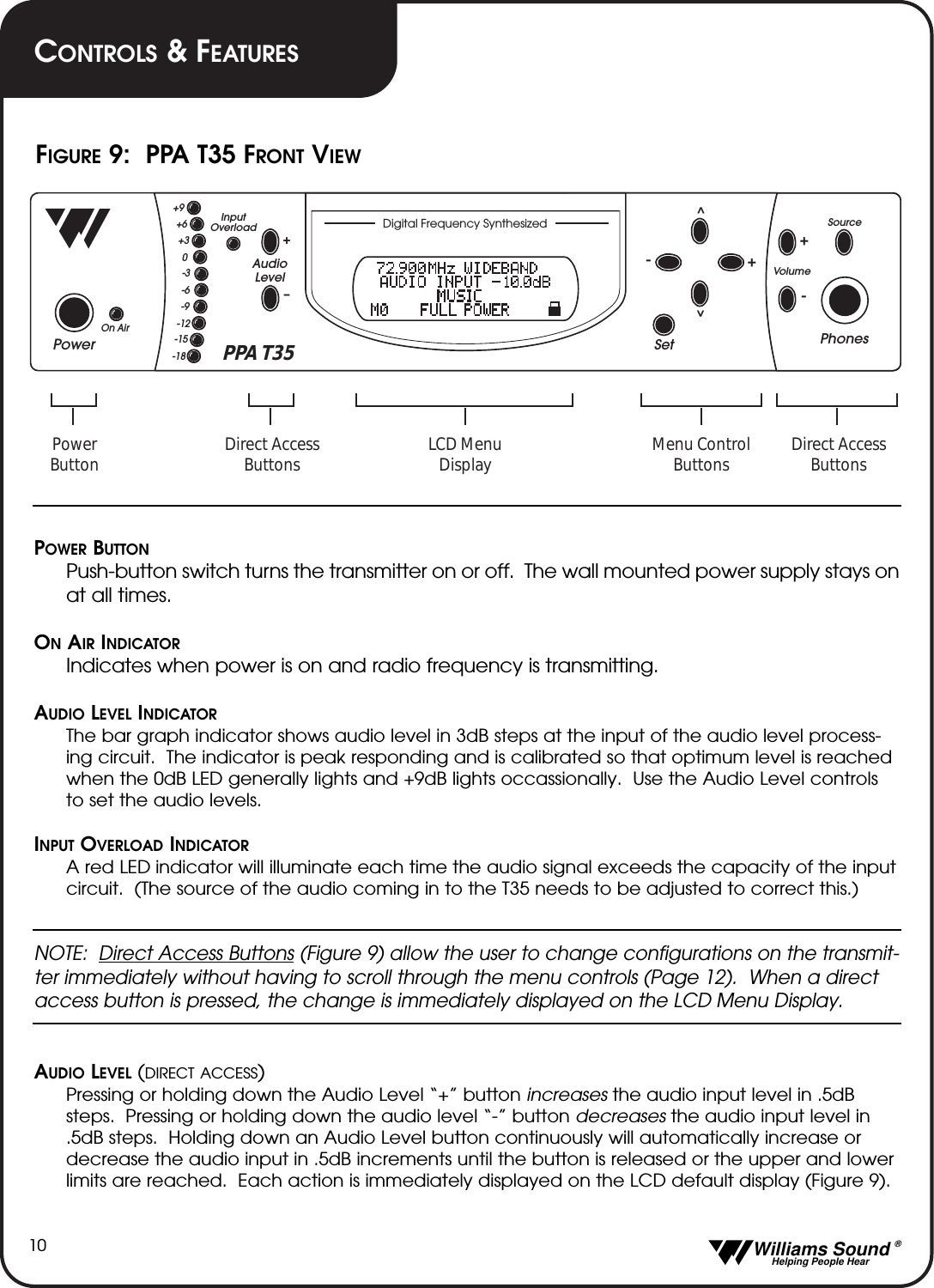

Williams Sound ® Helping People Hear10POWER BUTTONPush-button switch turns the transmitter on or off. The wall mounted power supply stays onat all times.ONAIR INDICATORIndicates when power is on and radio frequency is transmitting.AUDIO LEVEL INDICATORThe bar graph indicator shows audio level in 3dB steps at the input of the audio level process-ing circuit. The indicator is peak responding and is calibrated so that optimum level is reachedwhen the 0dB LED generally lights and +9dB lights occassionally. Use the Audio Level controlsto set the audio levels.INPUT OVERLOAD INDICATORA red LED indicator will illuminate each time the audio signal exceeds the capacity of the inputcircuit. (The source of the audio coming in to the T35 needs to be adjusted to correct this.)NOTE: Direct Access Buttons (Figure 9) allow the user to change configurations on the transmit-ter immediately without having to scroll through the menu controls (Page 12). When a directaccess button is pressed, the change is immediately displayed on the LCD Menu Display. AUDIO LEVEL (DIRECT ACCESS)Pressing or holding down the Audio Level “+” button increases the audio input level in .5dBsteps. Pressing or holding down the audio level “-” button decreases the audio input level in.5dB steps. Holding down an Audio Level button continuously will automatically increase ordecrease the audio input in .5dB increments until the button is released or the upper and lowerlimits are reached. Each action is immediately displayed on the LCD default display (Figure 9).PowerPhonesSetSourceVol umeAudioLevelInputOverloadOn Air+–+9+6+30-3-6-9-12-15-18^^+--+PPA T35 Direct AccessButtonsDirect AccessButtonsPowerButtonMenu ControlButtonsLCD MenuDisplayDigital Frequency SynthesizedFIGURE 9: PPA T35 FRONT VIEWCONTROLS &FEATURES

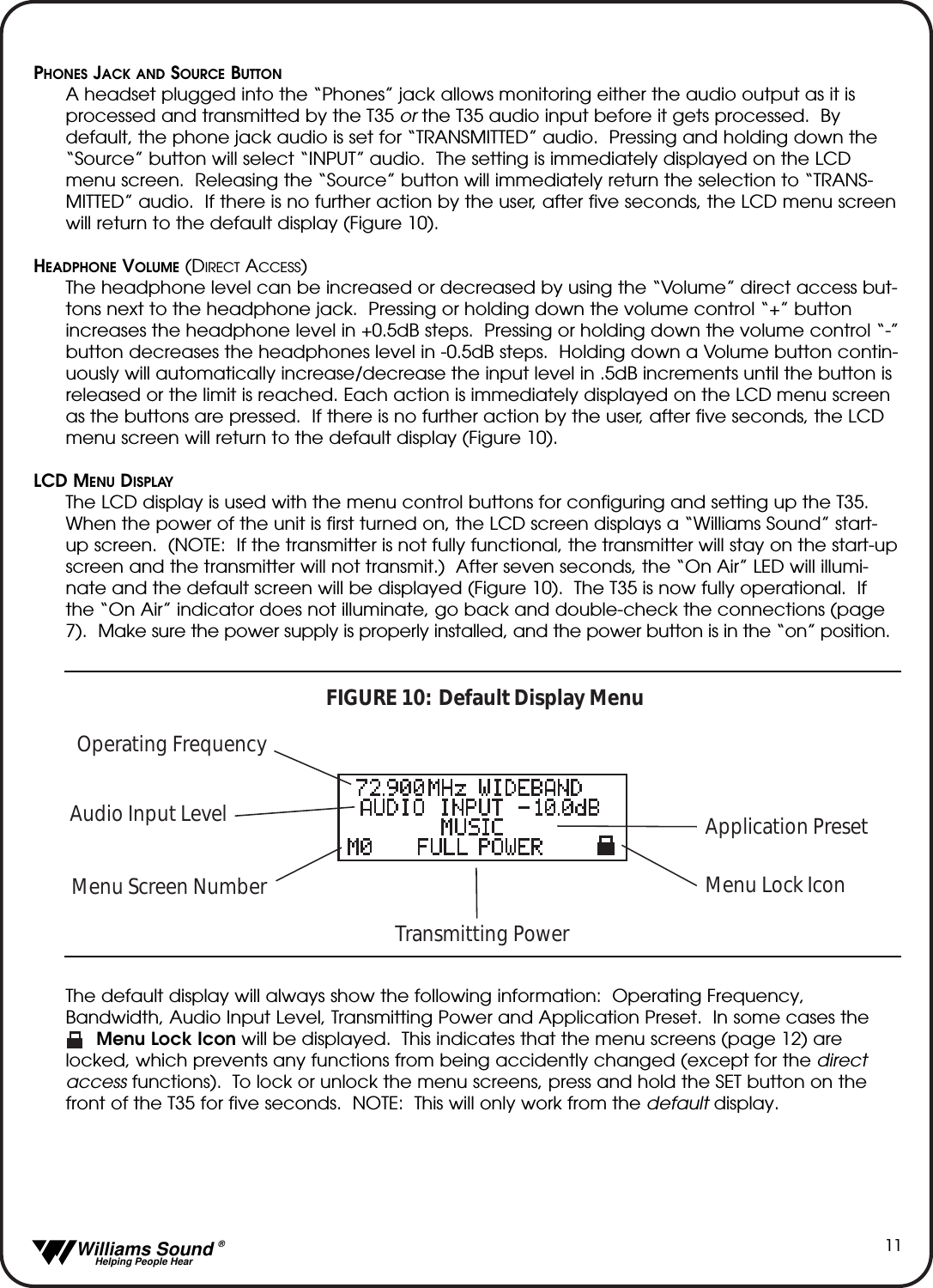

Williams Sound ® Helping People Hear11PHONES JACK AND SOURCE BUTTONA headset plugged into the “Phones” jack allows monitoring either the audio output as it isprocessed and transmitted by the T35 or the T35 audio input before it gets processed. Bydefault, the phone jack audio is set for “TRANSMITTED” audio. Pressing and holding down the“Source” button will select “INPUT” audio. The setting is immediately displayed on the LCDmenu screen. Releasing the “Source” button will immediately return the selection to “TRANS-MITTED” audio. If there is no further action by the user, after five seconds, the LCD menu screenwill return to the default display (Figure 10).HEADPHONE VOLUME (DIRECT ACCESS)The headphone level can be increased or decreased by using the “Volume” direct access but-tons next to the headphone jack. Pressing or holding down the volume control “+” buttonincreases the headphone level in +0.5dB steps. Pressing or holding down the volume control “-”button decreases the headphones level in -0.5dB steps. Holding down a Volume button contin-uously will automatically increase/decrease the input level in .5dB increments until the button isreleased or the limit is reached. Each action is immediately displayed on the LCD menu screenas the buttons are pressed. If there is no further action by the user, after five seconds, the LCDmenu screen will return to the default display (Figure 10).LCD MENU DISPLAYThe LCD display is used with the menu control buttons for configuring and setting up the T35.When the power of the unit is first turned on, the LCD screen displays a “Williams Sound” start-up screen. (NOTE: If the transmitter is not fully functional, the transmitter will stay on the start-upscreen and the transmitter will not transmit.) After seven seconds, the “On Air” LED will illumi-nate and the default screen will be displayed (Figure 10). The T35 is now fully operational. Ifthe “On Air” indicator does not illuminate, go back and double-check the connections (page7). Make sure the power supply is properly installed, and the power button is in the “on” position.The default display will always show the following information: Operating Frequency,Bandwidth, Audio Input Level, Transmitting Power and Application Preset. In some cases the Menu Lock Icon will be displayed. This indicates that the menu screens (page 12) arelocked, which prevents any functions from being accidently changed (except for the directaccess functions). To lock or unlock the menu screens, press and hold the SET button on thefront of the T35 for five seconds. NOTE: This will only work from the default display.Operating FrequencyAudio Input LevelMenu Screen NumberTransmitting PowerMenu Lock IconFIGURE 10: Default Display MenuApplication Preset

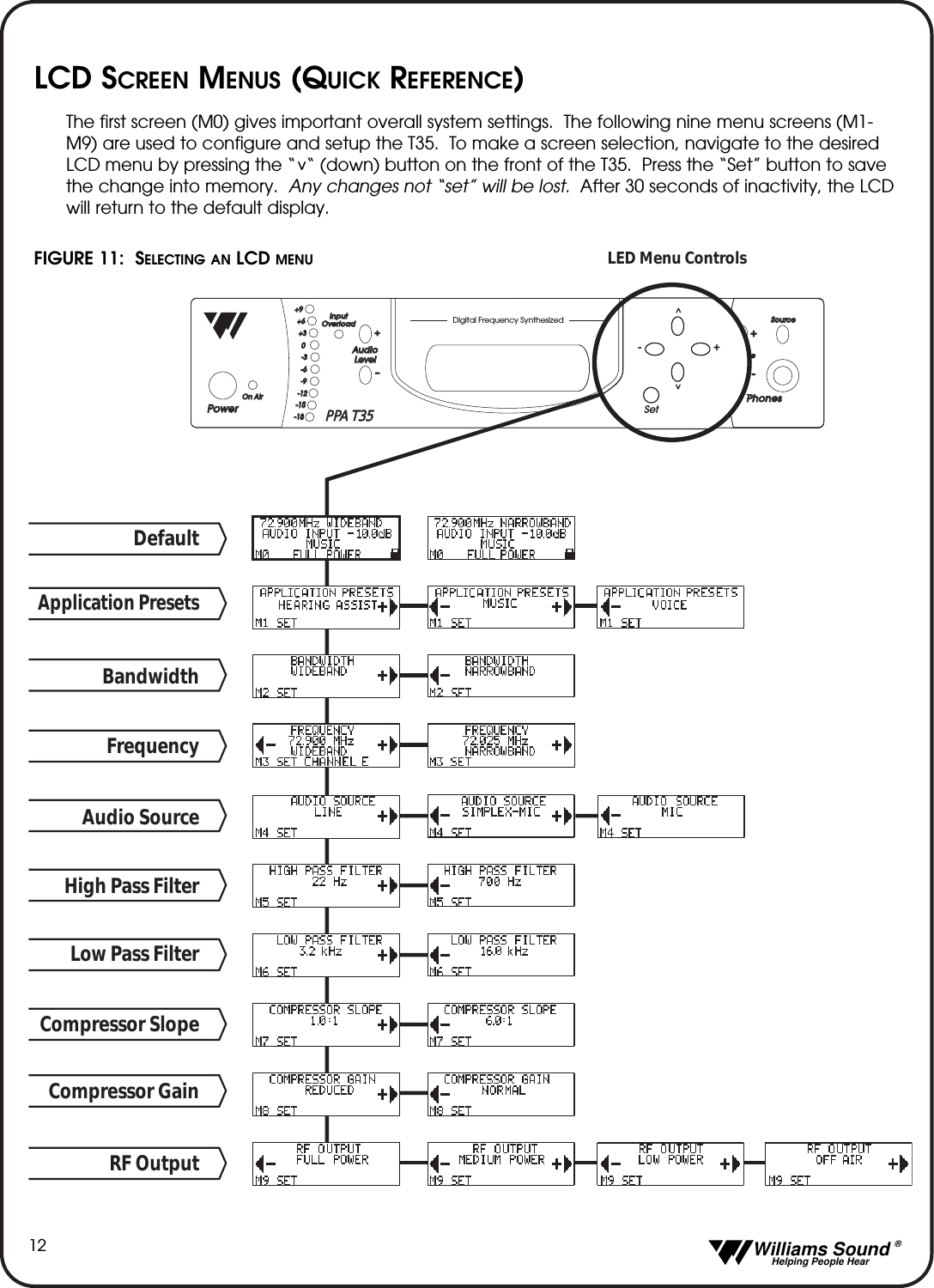

Williams Sound ® Helping People Hear12LCD SCREEN MENUS (QUICK REFERENCE)The first screen (M0) gives important overall system settings. The following nine menu screens (M1-M9) are used to configure and setup the T35. To make a screen selection, navigate to the desiredLCD menu by pressing the “ “ (down) button on the front of the T35. Press the “Set” button to savethe change into memory. Any changes not “set” will be lost. After 30 seconds of inactivity, the LCDwill return to the default display.Digital Frequency SynthesizedPowerPowerPhonesPhonesSourceSourceVolu m eVolumeAudioAudioLevelLevelInputInputOverloadOverloadOn AirOn Air+–+9+9+6+6+3+30-3-3-6-6-9-9-12-12-15-15-18-18-+PPA T35 PPA T35 Set^^-+DefaultAudio SourceHigh Pass FilterLow Pass FilterCompressor SlopeCompressor GainRF OutputLED Menu ControlsFrequencyBandwidthApplication PresetsFIGURE 11: SELECTING AN LCD MENU^

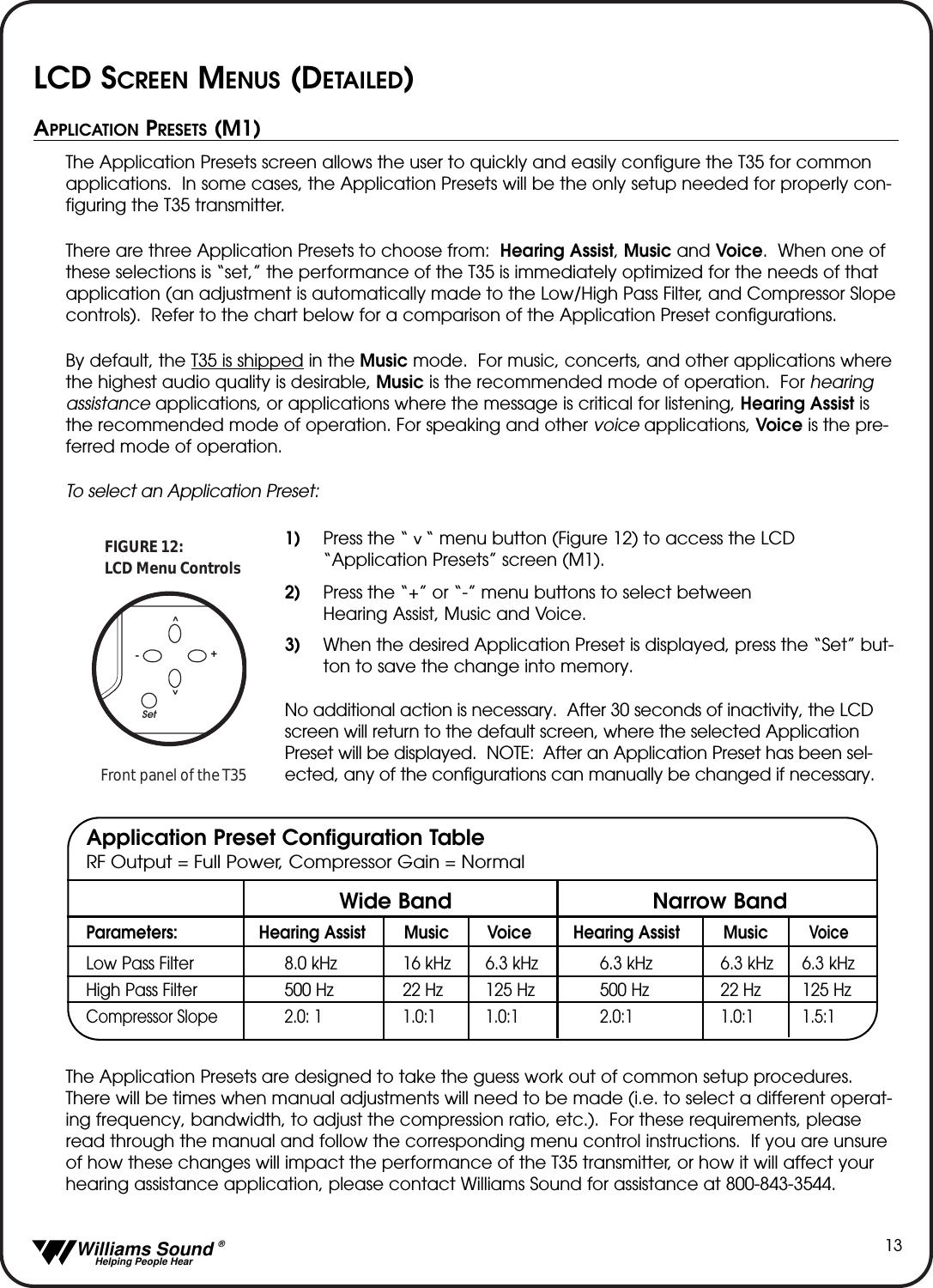

Williams Sound ® Helping People Hear13APPLICATION PRESETS (M1)The Application Presets screen allows the user to quickly and easily configure the T35 for commonapplications. In some cases, the Application Presets will be the only setup needed for properly con-figuring the T35 transmitter. There are three Application Presets to choose from: Hearing Assist, Music and Voice. When one ofthese selections is “set,” the performance of the T35 is immediately optimized for the needs of thatapplication (an adjustment is automatically made to the Low/High Pass Filter, and Compressor Slopecontrols). Refer to the chart below for a comparison of the Application Preset configurations.By default, the T35 is shipped in the Music mode. For music, concerts, and other applications wherethe highest audio quality is desirable, Music is the recommended mode of operation. For hearingassistance applications, or applications where the message is critical for listening, Hearing Assist isthe recommended mode of operation. For speaking and other voice applications, Voice is the pre-ferred mode of operation. To select an Application Preset:1) Press the “ “ menu button (Figure 12) to access the LCD “Application Presets” screen (M1).2) Press the “+” or “-” menu buttons to select between Hearing Assist, Music and Voice.3) When the desired Application Preset is displayed, press the “Set” but-ton to save the change into memory.No additional action is necessary. After 30 seconds of inactivity, the LCDscreen will return to the default screen, where the selected ApplicationPreset will be displayed. NOTE: After an Application Preset has been sel-ected, any of the configurations can manually be changed if necessary.The Application Presets are designed to take the guess work out of common setup procedures.There will be times when manual adjustments will need to be made (i.e. to select a different operat-ing frequency, bandwidth, to adjust the compression ratio, etc.). For these requirements, pleaseread through the manual and follow the corresponding menu control instructions. If you are unsureof how these changes will impact the performance of the T35 transmitter, or how it will affect yourhearing assistance application, please contact Williams Sound for assistance at 800-843-3544. Parameters: Hearing Assist Music Voice Hearing Assist MusicVoiceLow Pass Filter 8.0 kHz 16 kHz 6.3 kHz 6.3 kHz 6.3 kHz 6.3 kHzHigh Pass Filter 500 Hz 22 Hz 125 Hz 500 Hz 22 Hz 125 HzCompressor Slope 2.0: 1 1.0:1 1.0:1 2.0:1 1.0:1 1.5:1Set^^-+LCD Menu ControlsFIGURE 12:Front panel of the T35^Wide Band Narrow BandApplication Preset Configuration TableRF Output = Full Power, Compressor Gain = NormalLCD SCREEN MENUS (DETAILED)

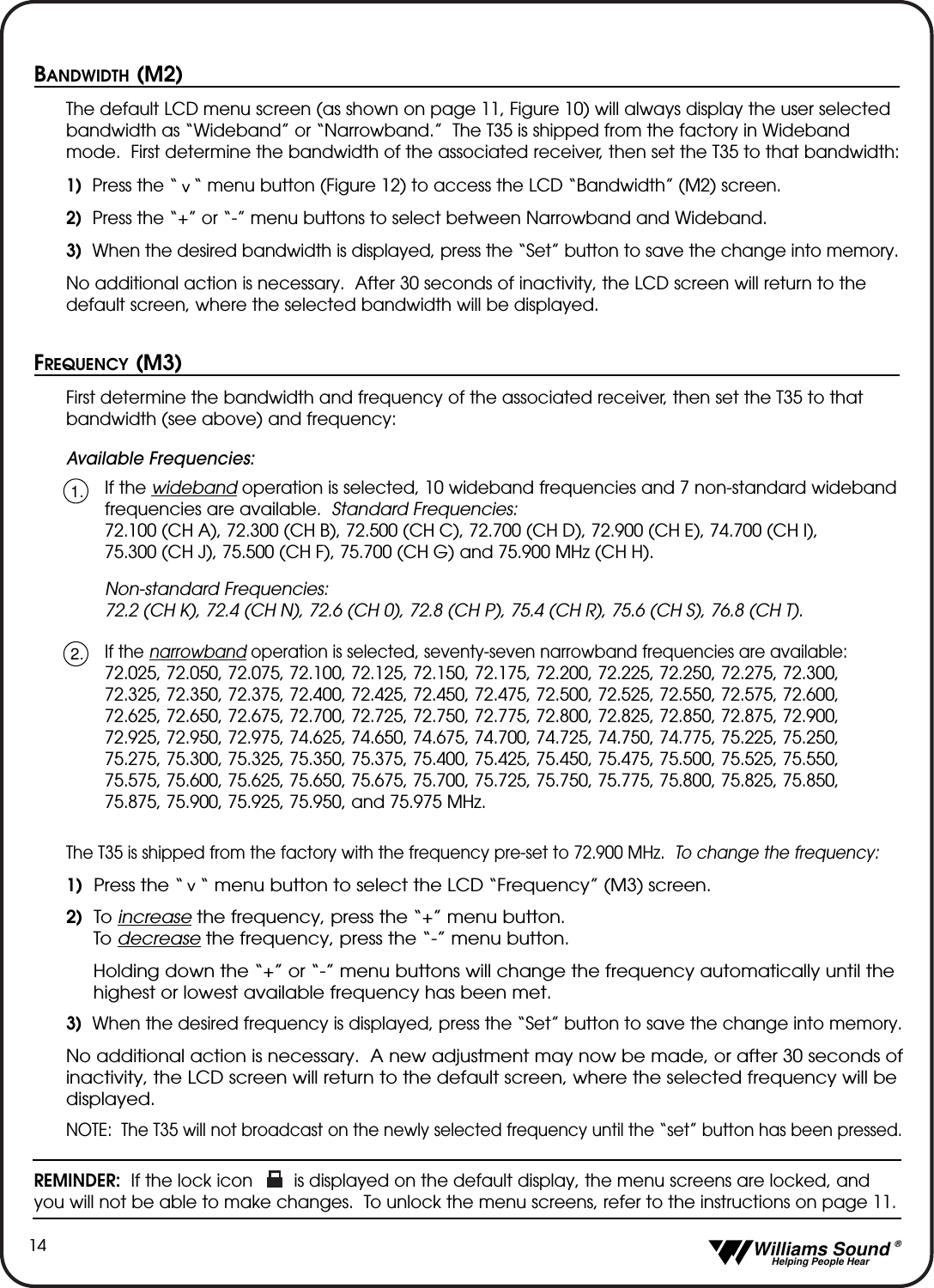

Williams Sound ® Helping People Hear14BANDWIDTH (M2)The default LCD menu screen (as shown on page 11, Figure 10) will always display the user selectedbandwidth as “Wideband” or “Narrowband.” The T35 is shipped from the factory in Widebandmode. First determine the bandwidth of the associated receiver, then set the T35 to that bandwidth:1) Press the “ “ menu button (Figure 12) to access the LCD “Bandwidth” (M2) screen. 2) Press the “+” or “-” menu buttons to select between Narrowband and Wideband. 3) When the desired bandwidth is displayed, press the “Set” button to save the change into memory.No additional action is necessary. After 30 seconds of inactivity, the LCD screen will return to thedefault screen, where the selected bandwidth will be displayed.FREQUENCY (M3)First determine the bandwidth and frequency of the associated receiver, then set the T35 to thatbandwidth (see above) and frequency:Available Frequencies:If the wideband operation is selected, 10 wideband frequencies and 7 non-standard widebandfrequencies are available. Standard Frequencies:72.100 (CH A), 72.300 (CH B), 72.500 (CH C), 72.700 (CH D), 72.900 (CH E), 74.700 (CH I), 75.300 (CH J), 75.500 (CH F), 75.700 (CH G) and 75.900 MHz (CH H).Non-standard Frequencies:72.2 (CH K), 72.4 (CH N), 72.6 (CH 0), 72.8 (CH P), 75.4 (CH R), 75.6 (CH S), 76.8 (CH T).If the narrowband operation is selected, seventy-seven narrowband frequencies are available:72.025, 72.050, 72.075, 72.100, 72.125, 72.150, 72.175, 72.200, 72.225, 72.250, 72.275, 72.300,72.325, 72.350, 72.375, 72.400, 72.425, 72.450, 72.475, 72.500, 72.525, 72.550, 72.575, 72.600,72.625, 72.650, 72.675, 72.700, 72.725, 72.750, 72.775, 72.800, 72.825, 72.850, 72.875, 72.900,72.925, 72.950, 72.975, 74.625, 74.650, 74.675, 74.700, 74.725, 74.750, 74.775, 75.225, 75.250,75.275, 75.300, 75.325, 75.350, 75.375, 75.400, 75.425, 75.450, 75.475, 75.500, 75.525, 75.550,75.575, 75.600, 75.625, 75.650, 75.675, 75.700, 75.725, 75.750, 75.775, 75.800, 75.825, 75.850,75.875, 75.900, 75.925, 75.950, and 75.975 MHz.The T35 is shipped from the factory with the frequency pre-set to 72.900 MHz. To change the frequency:1) Press the “ “ menu button to select the LCD “Frequency” (M3) screen.2) To increase the frequency, press the “+” menu button.To decrease the frequency, press the “-” menu button.Holding down the “+” or “-” menu buttons will change the frequency automatically until the highest or lowest available frequency has been met.3) When the desired frequency is displayed, press the “Set” button to save the change into memory.No additional action is necessary. A new adjustment may now be made, or after 30 seconds of inactivity, the LCD screen will return to the default screen, where the selected frequency will be displayed.NOTE: The T35 will not broadcast on the newly selected frequency until the “set” button has been pressed.REMINDER: If the lock icon is displayed on the default display, the menu screens are locked, andyou will not be able to make changes. To unlock the menu screens, refer to the instructions on page 11.^^1.2.

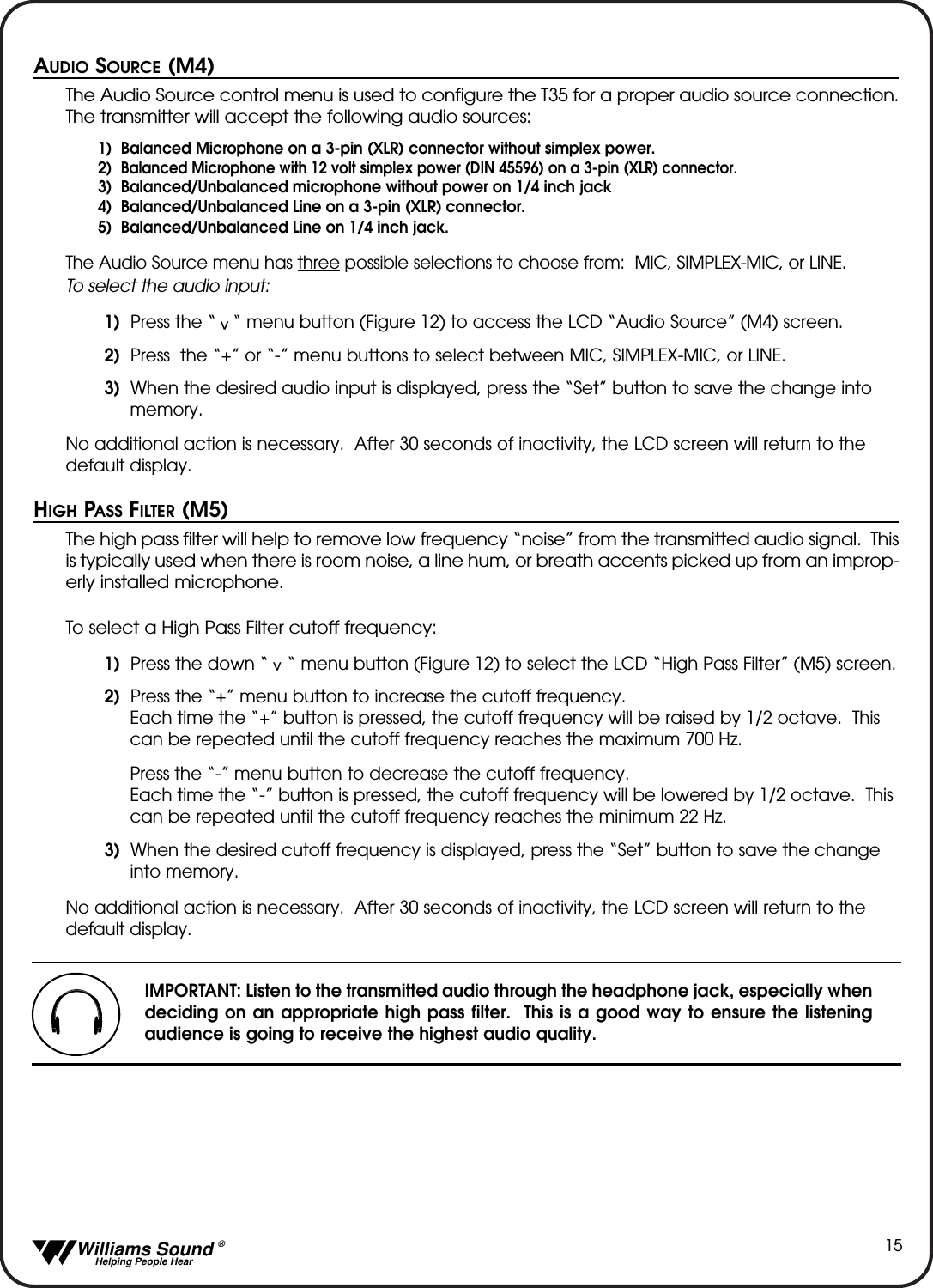

Williams Sound ® Helping People Hear15AUDIO SOURCE (M4)The Audio Source control menu is used to configure the T35 for a proper audio source connection.The transmitter will accept the following audio sources:1) Balanced Microphone on a 3-pin (XLR) connector without simplex power.2) Balanced Microphone with 12 volt simplex power (DIN 45596) on a 3-pin (XLR) connector.3) Balanced/Unbalanced microphone without power on 1/4 inch jack4) Balanced/Unbalanced Line on a 3-pin (XLR) connector.5) Balanced/Unbalanced Line on 1/4 inch jack.The Audio Source menu has three possible selections to choose from: MIC, SIMPLEX-MIC, or LINE. To select the audio input:1) Press the “ “ menu button (Figure 12) to access the LCD “Audio Source” (M4) screen. 2) Press the “+” or “-” menu buttons to select between MIC, SIMPLEX-MIC, or LINE.3) When the desired audio input is displayed, press the “Set” button to save the change into memory.No additional action is necessary. After 30 seconds of inactivity, the LCD screen will return to thedefault display.HIGH PASS FILTER (M5)The high pass filter will help to remove low frequency “noise” from the transmitted audio signal. Thisis typically used when there is room noise, a line hum, or breath accents picked up from an improp-erly installed microphone.To select a High Pass Filter cutoff frequency:1) Press the down “ “ menu button (Figure 12) to select the LCD “High Pass Filter” (M5) screen. 2) Press the “+” menu button to increase the cutoff frequency. Each time the “+” button is pressed, the cutoff frequency will be raised by 1/2 octave. This can be repeated until the cutoff frequency reaches the maximum 700 Hz.Press the “-” menu button to decrease the cutoff frequency. Each time the “-” button is pressed, the cutoff frequency will be lowered by 1/2 octave. This can be repeated until the cutoff frequency reaches the minimum 22 Hz.3) When the desired cutoff frequency is displayed, press the “Set” button to save the change into memory.No additional action is necessary. After 30 seconds of inactivity, the LCD screen will return to thedefault display.^^IMPORTANT: Listen to the transmitted audio through the headphone jack, especially whendeciding on an appropriate high pass filter. This is a good way to ensure the listeningaudience is going to receive the highest audio quality.

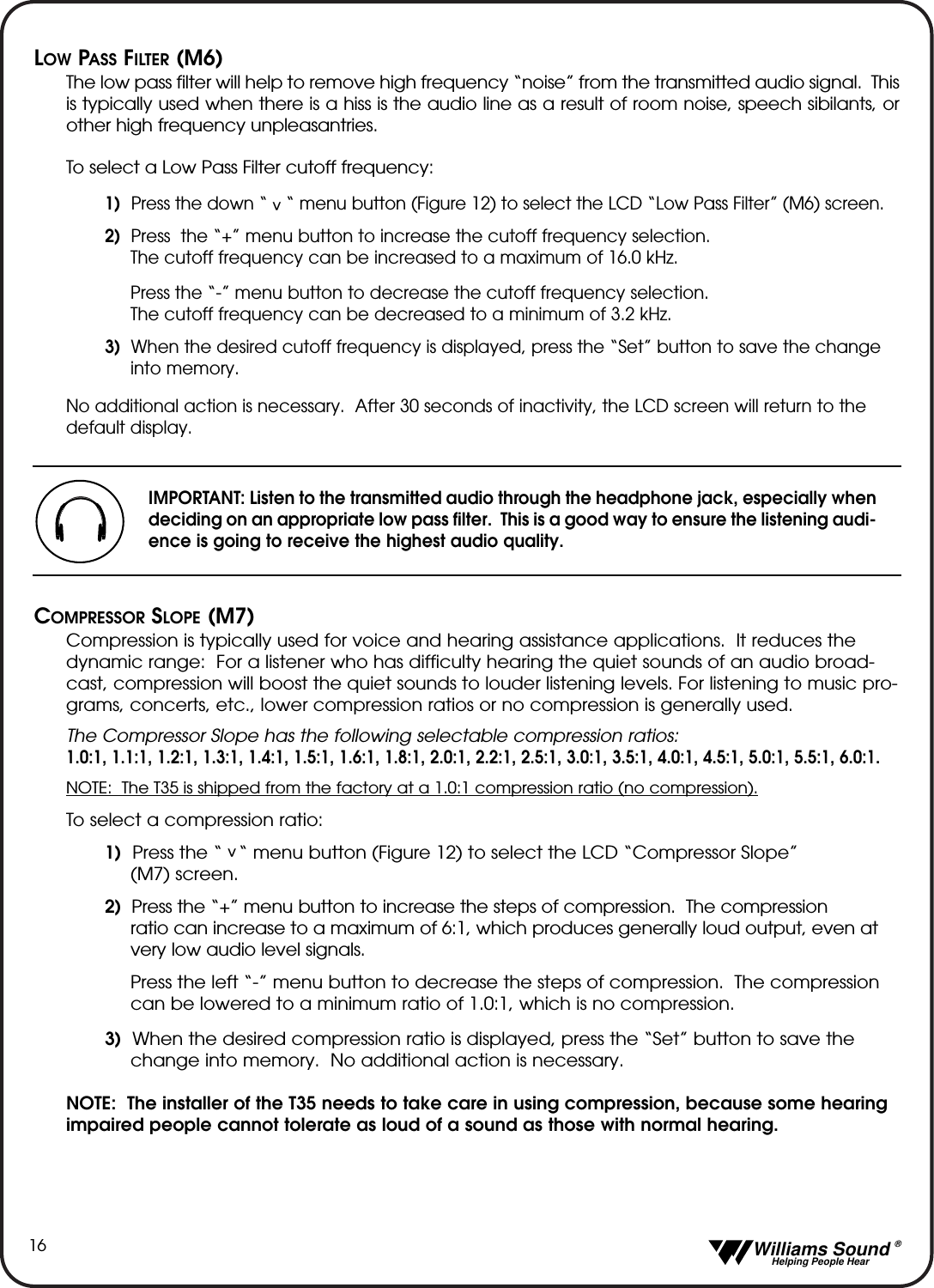

Williams Sound ® Helping People Hear16LOW PASS FILTER (M6)The low pass filter will help to remove high frequency “noise” from the transmitted audio signal. Thisis typically used when there is a hiss is the audio line as a result of room noise, speech sibilants, orother high frequency unpleasantries.To select a Low Pass Filter cutoff frequency:1) Press the down “ “ menu button (Figure 12) to select the LCD “Low Pass Filter” (M6) screen. 2) Press the “+” menu button to increase the cutoff frequency selection. The cutoff frequency can be increased to a maximum of 16.0 kHz.Press the “-” menu button to decrease the cutoff frequency selection. The cutoff frequency can be decreased to a minimum of 3.2 kHz.3) When the desired cutoff frequency is displayed, press the “Set” button to save the change into memory.No additional action is necessary. After 30 seconds of inactivity, the LCD screen will return to thedefault display.COMPRESSOR SLOPE (M7)Compression is typically used for voice and hearing assistance applications. It reduces thedynamic range: For a listener who has difficulty hearing the quiet sounds of an audio broad-cast, compression will boost the quiet sounds to louder listening levels. For listening to music pro-grams, concerts, etc., lower compression ratios or no compression is generally used. The Compressor Slope has the following selectable compression ratios:1.0:1, 1.1:1, 1.2:1, 1.3:1, 1.4:1, 1.5:1, 1.6:1, 1.8:1, 2.0:1, 2.2:1, 2.5:1, 3.0:1, 3.5:1, 4.0:1, 4.5:1, 5.0:1, 5.5:1, 6.0:1.NOTE: The T35 is shipped from the factory at a 1.0:1 compression ratio (no compression).To select a compression ratio:1) Press the “ “ menu button (Figure 12) to select the LCD “Compressor Slope” (M7) screen.2) Press the “+” menu button to increase the steps of compression. The compression ratio can increase to a maximum of 6:1, which produces generally loud output, even at very low audio level signals.Press the left “-” menu button to decrease the steps of compression. The compression can be lowered to a minimum ratio of 1.0:1, which is no compression.3) When the desired compression ratio is displayed, press the “Set” button to save the change into memory. No additional action is necessary.NOTE: The installer of the T35 needs to take care in using compression, because some hearingimpaired people cannot tolerate as loud of a sound as those with normal hearing. ^^IMPORTANT: Listen to the transmitted audio through the headphone jack, especially whendeciding on an appropriate low pass filter. This is a good way to ensure the listening audi-ence is going to receive the highest audio quality.

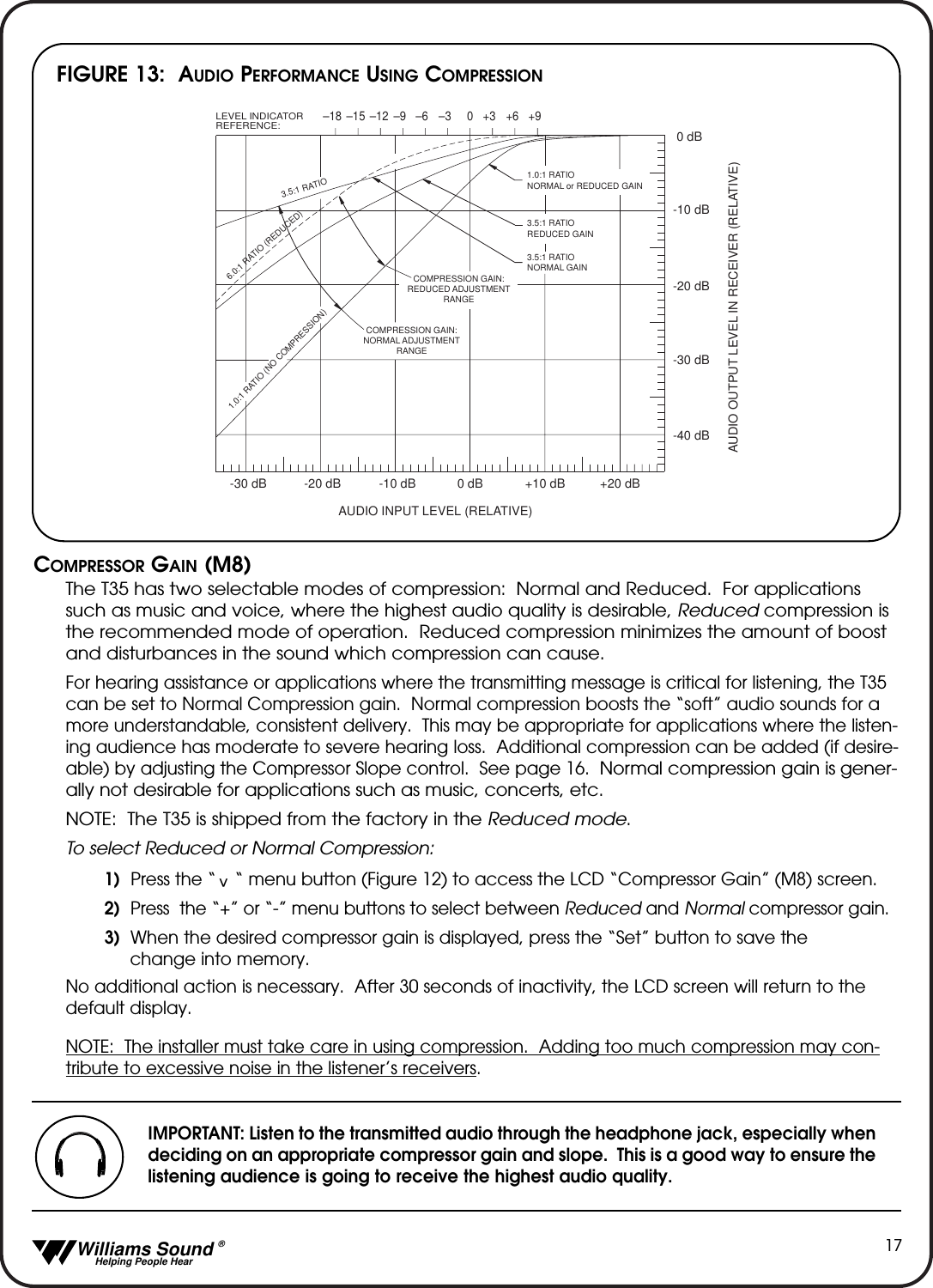

Williams Sound ® Helping People Hear17COMPRESSOR GAIN (M8)The T35 has two selectable modes of compression: Normal and Reduced. For applicationssuch as music and voice, where the highest audio quality is desirable, Reduced compression isthe recommended mode of operation. Reduced compression minimizes the amount of boostand disturbances in the sound which compression can cause. For hearing assistance or applications where the transmitting message is critical for listening, the T35can be set to Normal Compression gain. Normal compression boosts the “soft” audio sounds for amore understandable, consistent delivery. This may be appropriate for applications where the listen-ing audience has moderate to severe hearing loss. Additional compression can be added (if desire-able) by adjusting the Compressor Slope control. See page 16. Normal compression gain is gener-ally not desirable for applications such as music, concerts, etc.NOTE: The T35 is shipped from the factory in the Reduced mode. To select Reduced or Normal Compression:1) Press the “ “ menu button (Figure 12) to access the LCD “Compressor Gain” (M8) screen.2) Press the “+” or “-” menu buttons to select between Reduced and Normal compressor gain.3) When the desired compressor gain is displayed, press the “Set” button to save the change into memory.No additional action is necessary. After 30 seconds of inactivity, the LCD screen will return to thedefault display.NOTE: The installer must take care in using compression. Adding too much compression may con-tribute to excessive noise in the listener’s receivers. 1.0:1 RATIO (NO COMPRESSION)3.5:1 RATIO6.0:1 RATIO (REDUCED)1.0:1 RATIONORMAL or REDUCED GAIN3.5:1 RATIOREDUCED GAIN3.5:1 RATIONORMAL GAINCOMPRESSION GAIN:REDUCED ADJUSTMENTRANGEAUDIO INPUT LEVEL (RELATIVE)LEVEL INDICATORREFERENCE:AUDIO OUTPUT LEVEL IN RECEIVER (RELATIVE)COMPRESSION GAIN:NORMAL ADJUSTMENTRANGE+20 dB-40 dB-30 dB-20 dB-10 dB0 dB+9+6+30–3–6–9–12–15–18+10 dB0 dB-10 dB-20 dB-30 dBFIGURE 13: AUDIO PERFORMANCE USING COMPRESSIONIMPORTANT: Listen to the transmitted audio through the headphone jack, especially whendeciding on an appropriate compressor gain and slope. This is a good way to ensure thelistening audience is going to receive the highest audio quality.^

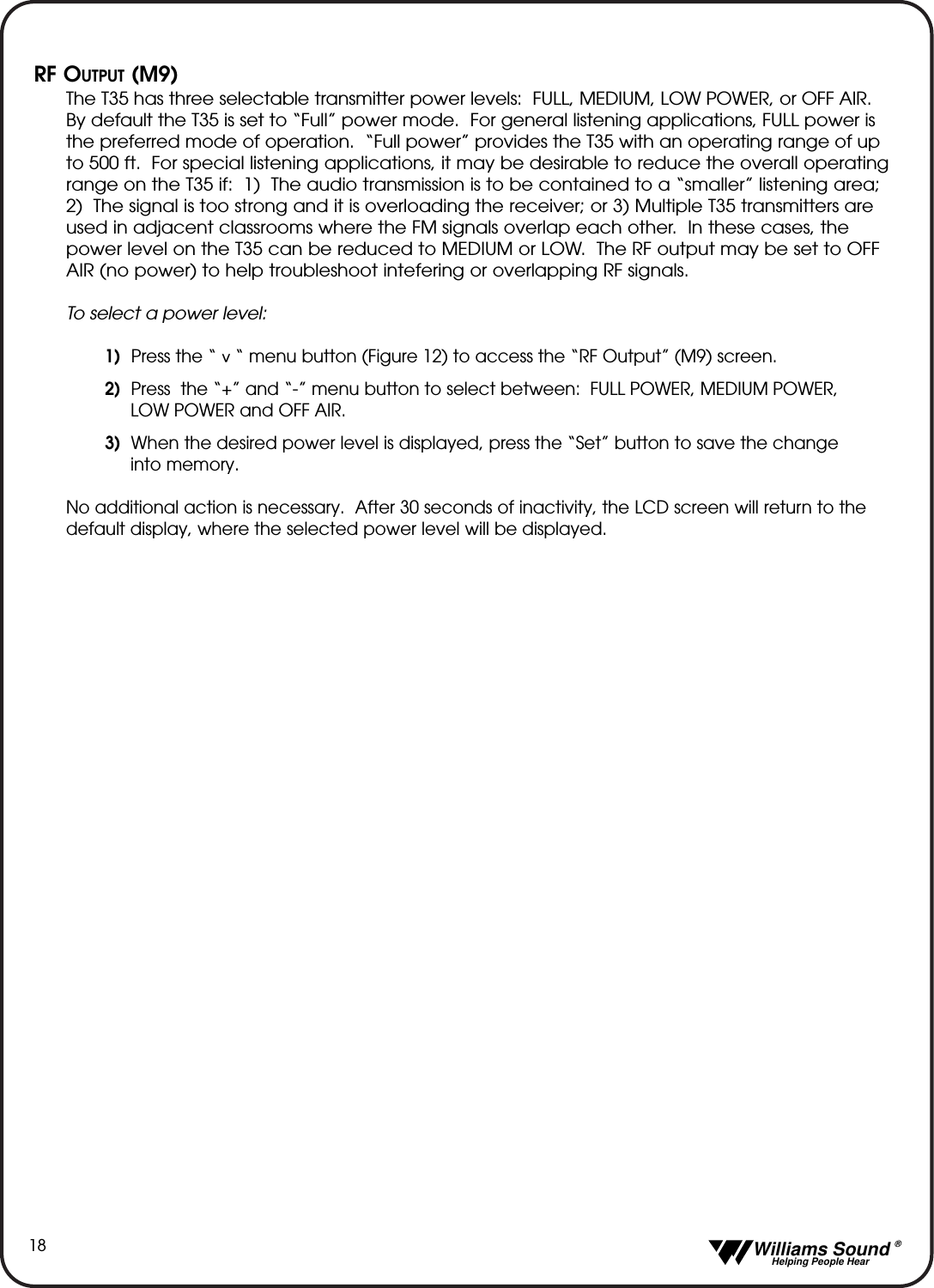

Williams Sound ® Helping People Hear18RF OUTPUT (M9)The T35 has three selectable transmitter power levels: FULL, MEDIUM, LOW POWER, or OFF AIR. By default the T35 is set to “Full” power mode. For general listening applications, FULL power isthe preferred mode of operation. “Full power” provides the T35 with an operating range of upto 500 ft. For special listening applications, it may be desirable to reduce the overall operatingrange on the T35 if: 1) The audio transmission is to be contained to a “smaller” listening area;2) The signal is too strong and it is overloading the receiver; or 3) Multiple T35 transmitters areused in adjacent classrooms where the FM signals overlap each other. In these cases, thepower level on the T35 can be reduced to MEDIUM or LOW. The RF output may be set to OFFAIR (no power) to help troubleshoot intefering or overlapping RF signals.To select a power level:1) Press the “ “ menu button (Figure 12) to access the “RF Output” (M9) screen. 2) Press the “+” and “-” menu button to select between: FULL POWER, MEDIUM POWER, LOW POWER and OFF AIR.3) When the desired power level is displayed, press the “Set” button to save the change into memory.No additional action is necessary. After 30 seconds of inactivity, the LCD screen will return to thedefault display, where the selected power level will be displayed.^

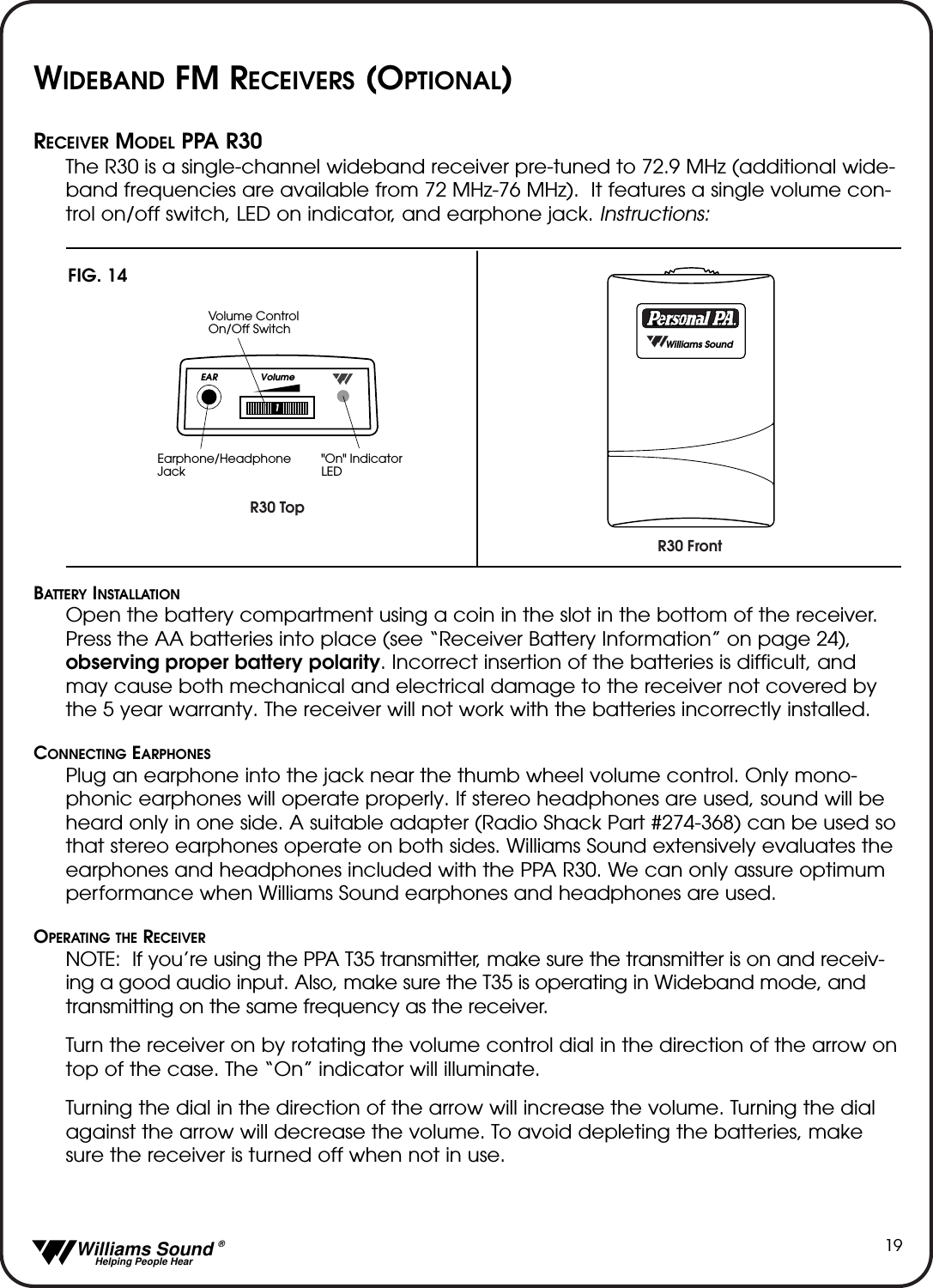

Williams Sound ® Helping People Hear19WIDEBAND FM RECEIVERS (OPTIONAL)RECEIVER MODEL PPA R30The R30 is a single-channel wideband receiver pre-tuned to 72.9 MHz (additional wide-band frequencies are available from 72 MHz-76 MHz). It features a single volume con-trol on/off switch, LED on indicator, and earphone jack. Instructions:BATTERY INSTALLATIONOpen the battery compartment using a coin in the slot in the bottom of the receiver.Press the AA batteries into place (see “Receiver Battery Information” on page 24),observing proper battery polarity. Incorrect insertion of the batteries is difficult, andmay cause both mechanical and electrical damage to the receiver not covered bythe 5 year warranty. The receiver will not work with the batteries incorrectly installed.CONNECTING EARPHONESPlug an earphone into the jack near the thumb wheel volume control. Only mono-phonic earphones will operate properly. If stereo headphones are used, sound will beheard only in one side. A suitable adapter (Radio Shack Part #274-368) can be used sothat stereo earphones operate on both sides. Williams Sound extensively evaluates theearphones and headphones included with the PPA R30. We can only assure optimumperformance when Williams Sound earphones and headphones are used.OPERATING THE RECEIVERNOTE: If you’re using the PPA T35 transmitter, make sure the transmitter is on and receiv-ing a good audio input. Also, make sure the T35 is operating in Wideband mode, andtransmitting on the same frequency as the receiver. Turn the receiver on by rotating the volume control dial in the direction of the arrow ontop of the case. The “On” indicator will illuminate. Turning the dial in the direction of the arrow will increase the volume. Turning the dialagainst the arrow will decrease the volume. To avoid depleting the batteries, makesure the receiver is turned off when not in use.R30 FrontR30 TopEAR Volume1Volume Control On/Off SwitchEarphone/Headphone Jack"On" IndicatorLED Williams SoundFIG. 14

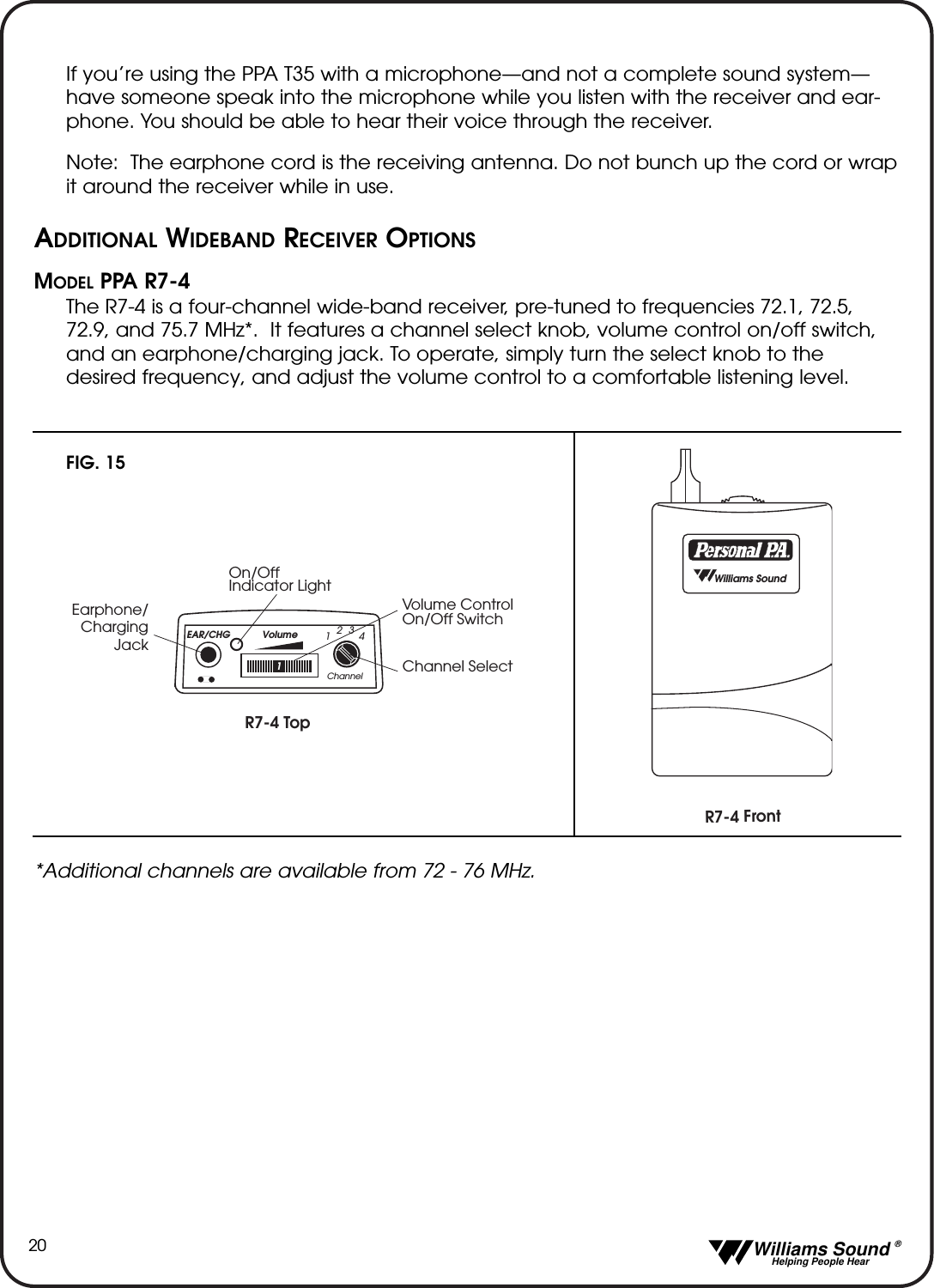

Williams Sound ® Helping People Hear20If you’re using the PPA T35 with a microphone—and not a complete sound system—have someone speak into the microphone while you listen with the receiver and ear-phone. You should be able to hear their voice through the receiver.Note: The earphone cord is the receiving antenna. Do not bunch up the cord or wrapit around the receiver while in use.ADDITIONAL WIDEBAND RECEIVER OPTIONSMODEL PPA R7-4 The R7-4 is a four-channel wide-band receiver, pre-tuned to frequencies 72.1, 72.5,72.9, and 75.7 MHz*. It features a channel select knob, volume control on/off switch,and an earphone/charging jack. To operate, simply turn the select knob to thedesired frequency, and adjust the volume control to a comfortable listening level.R7-4 TopChannel SelectOn/OffIndicator LightVolume Control On/Off SwitchEarphone/ChargingJackEAR/CHG Volume1Channel1234R7-4 Front Williams SoundFIG. 15*Additional channels are available from 72 - 76 MHz.

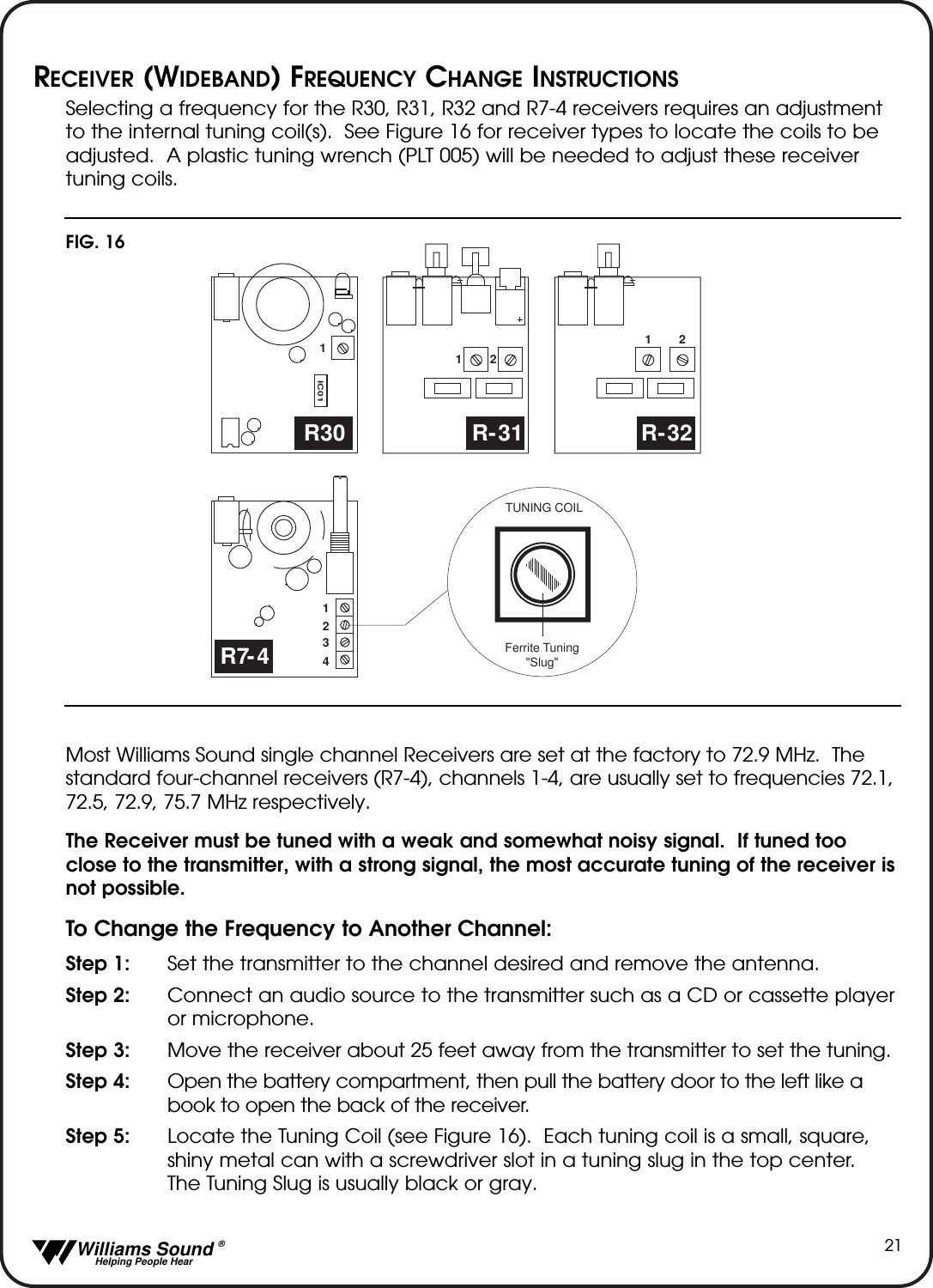

Williams Sound ® Helping People Hear21RECEIVER (WIDEBAND) FREQUENCY CHANGE INSTRUCTIONSSelecting a frequency for the R30, R31, R32 and R7-4 receivers requires an adjustmentto the internal tuning coil(s). See Figure 16 for receiver types to locate the coils to beadjusted. A plastic tuning wrench (PLT 005) will be needed to adjust these receivertuning coils.Most Williams Sound single channel Receivers are set at the factory to 72.9 MHz. Thestandard four-channel receivers (R7-4), channels 1-4, are usually set to frequencies 72.1,72.5, 72.9, 75.7 MHz respectively. The Receiver must be tuned with a weak and somewhat noisy signal. If tuned tooclose to the transmitter, with a strong signal, the most accurate tuning of the receiver isnot possible.To Change the Frequency to Another Channel:Step 1: Set the transmitter to the channel desired and remove the antenna.Step 2: Connect an audio source to the transmitter such as a CD or cassette playeror microphone.Step 3: Move the receiver about 25 feet away from the transmitter to set the tuning.Step 4: Open the battery compartment, then pull the battery door to the left like a book to open the back of the receiver.Step 5: Locate the Tuning Coil (see Figure 16). Each tuning coil is a small, square, shiny metal can with a screwdriver slot in a tuning slug in the top center. The Tuning Slug is usually black or gray.IC0111212R30 R-31 R-321234R7-4TUNING COILFerrite Tuning"Slug"FIG. 16
Williams Sound ® Helping People Hear22Step 6: With the earphone or headphone supplied with the receiver plugged into the Ear Jack, turn the volume control to a comfortable level, and listen for the transmitted signal.Step 7: Gently put the tip of the tuning tool into the slot in the tuning slug. Be careful not to push hard on the slug so as not to damage the threads in the coil, and do not screw it down more than 3 turns into the coil.Step 8: Turn the tuning slug in a counter-clockwise direction about two turns. Then, slowly turn the tuning slug in the clockwise direction until the signal is heard. There may be two signal points heard. The one which is received first is a false response. Be sure to continue tuning slightly further to the correct point, which will be much louder. Tune back and forth to find the center of the point of best response to the audio source being heard.Step 9: Mark down the date, and if a new frequency has been chosen, mark it down inside the receiver case for future reference.NARROWBAND FM RECEIVERS (OPTIONAL)RECEIVER MODEL PPA R19The R19 is a two-channel narrowband receiver operating on 72.900 and 75.700 MHzfrequencies. It features volume control on/off switch, channel selection switch, ear-phone jack, tone control selection switch and on/off power indicator.NOTE: The R19 and R19-6 narrowband receivers use crystals to designate frequencyselection and are therefore not field tunable. To select a different operating frequen-cy, the receiver must be returned to Williams Sound for service. Instructions:BATTERY INSTALLATIONOpen the battery compartment using a coin in the slot in the bottom of the receiver.Observing proper polarity, press the AA batteries into place (see “Receiver BatteryInformation” on page 24). NOTE: Incorrectly installed batteries may cause damage toyour receiver, which will void the five year warranty.R19 Top Channel SwitchTone ControlVolume Control On/Off SwitchEarphoneJackPowerOn/Off Indicator1R19 FrontEAR Channel12VolumeLo HiMid2Off MaxToneNarrow Band Williams SoundFIG. 17

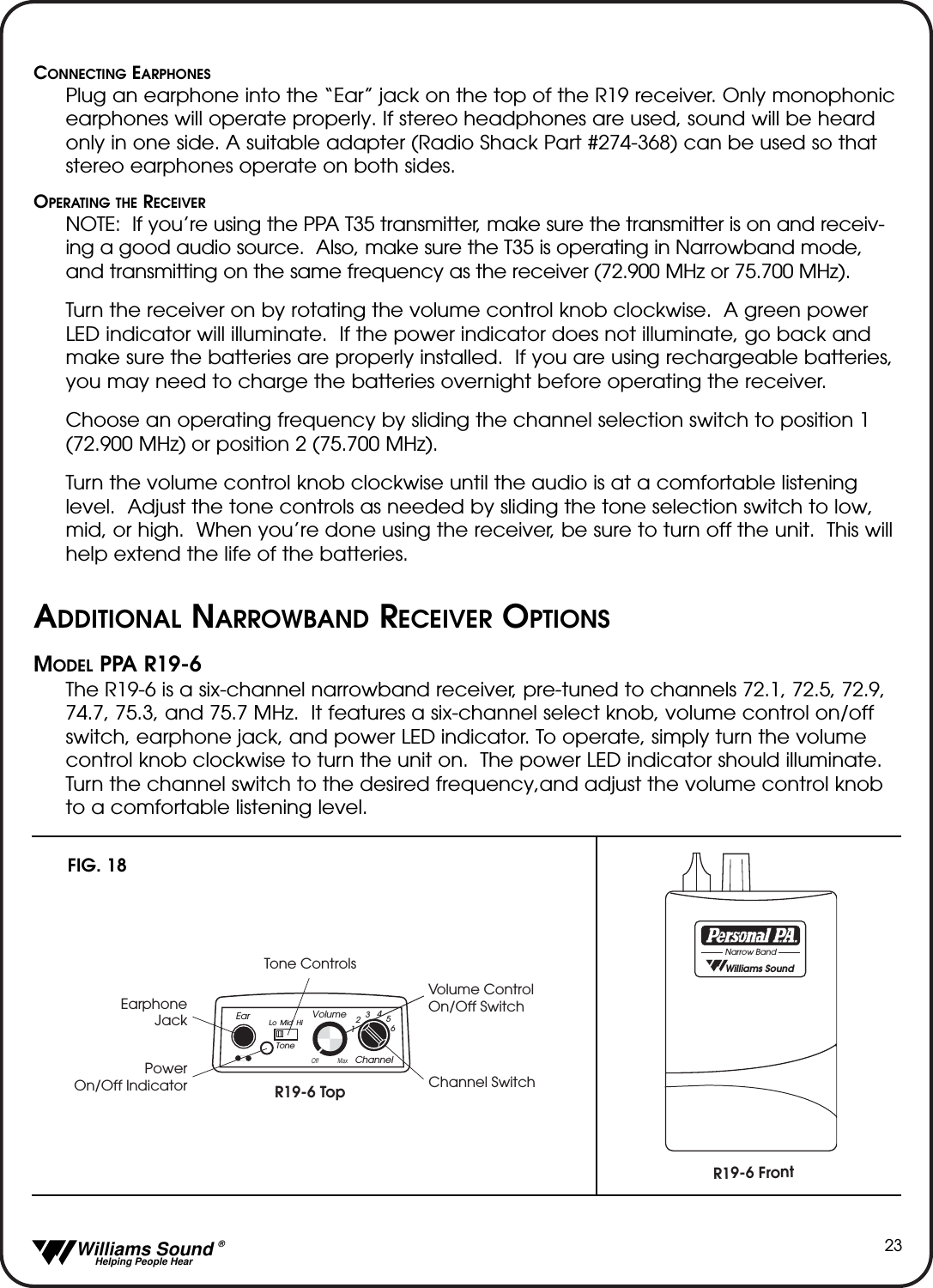

Williams Sound ® Helping People Hear23CONNECTING EARPHONESPlug an earphone into the “Ear” jack on the top of the R19 receiver. Only monophonicearphones will operate properly. If stereo headphones are used, sound will be heardonly in one side. A suitable adapter (Radio Shack Part #274-368) can be used so thatstereo earphones operate on both sides. OPERATING THE RECEIVERNOTE: If you’re using the PPA T35 transmitter, make sure the transmitter is on and receiv-ing a good audio source. Also, make sure the T35 is operating in Narrowband mode,and transmitting on the same frequency as the receiver (72.900 MHz or 75.700 MHz). Turn the receiver on by rotating the volume control knob clockwise. A green powerLED indicator will illuminate. If the power indicator does not illuminate, go back andmake sure the batteries are properly installed. If you are using rechargeable batteries,you may need to charge the batteries overnight before operating the receiver.Choose an operating frequency by sliding the channel selection switch to position 1(72.900 MHz) or position 2 (75.700 MHz).Turn the volume control knob clockwise until the audio is at a comfortable listeninglevel. Adjust the tone controls as needed by sliding the tone selection switch to low,mid, or high. When you’re done using the receiver, be sure to turn off the unit. This willhelp extend the life of the batteries.ADDITIONAL NARROWBAND RECEIVER OPTIONSMODEL PPA R19-6The R19-6 is a six-channel narrowband receiver, pre-tuned to channels 72.1, 72.5, 72.9,74.7, 75.3, and 75.7 MHz. It features a six-channel select knob, volume control on/offswitch, earphone jack, and power LED indicator. To operate, simply turn the volumecontrol knob clockwise to turn the unit on. The power LED indicator should illuminate.Turn the channel switch to the desired frequency,and adjust the volume control knobto a comfortable listening level.R19-6 Top Channel SwitchTone ControlsVolume Control On/Off SwitchEarphoneJackPowerOn/Off IndicatorR19-6 FrontEarChannel123456VolumeOff MaxLo Mid HiTone Williams SoundNarrow BandFIG. 18

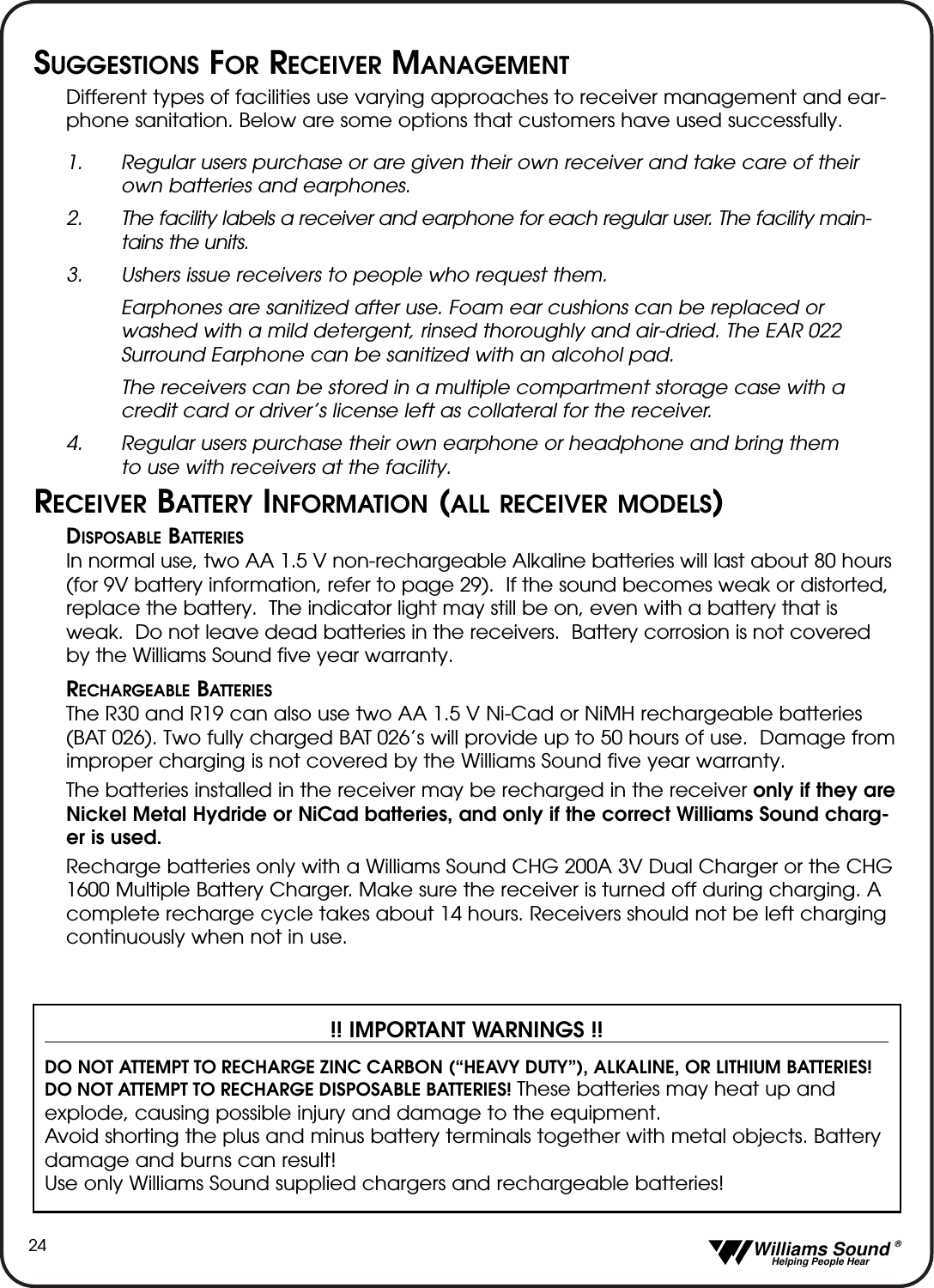

Williams Sound ® Helping People Hear24SUGGESTIONS FOR RECEIVER MANAGEMENTDifferent types of facilities use varying approaches to receiver management and ear-phone sanitation. Below are some options that customers have used successfully.1. Regular users purchase or are given their own receiver and take care of their own batteries and earphones.2. The facility labels a receiver and earphone for each regular user. The facility main-tains the units.3. Ushers issue receivers to people who request them. Earphones are sanitized after use. Foam ear cushions can be replaced or washed with a mild detergent, rinsed thoroughly and air-dried. The EAR 022 Surround Earphone can be sanitized with an alcohol pad.The receivers can be stored in a multiple compartment storage case with a credit card or driver’s license left as collateral for the receiver.4. Regular users purchase their own earphone or headphone and bring them to use with receivers at the facility.RECEIVER BATTERY INFORMATION (ALL RECEIVER MODELS)DISPOSABLE BATTERIESIn normal use, two AA 1.5 V non-rechargeable Alkaline batteries will last about 80 hours(for 9V battery information, refer to page 29). If the sound becomes weak or distorted,replace the battery. The indicator light may still be on, even with a battery that isweak. Do not leave dead batteries in the receivers. Battery corrosion is not coveredby the Williams Sound five year warranty.RECHARGEABLE BATTERIESThe R30 and R19 can also use two AA 1.5 V Ni-Cad or NiMH rechargeable batteries(BAT 026). Two fully charged BAT 026’s will provide up to 50 hours of use. Damage fromimproper charging is not covered by the Williams Sound five year warranty.The batteries installed in the receiver may be recharged in the receiver only if they areNickel Metal Hydride or NiCad batteries, and only if the correct Williams Sound charg-er is used.Recharge batteries only with a Williams Sound CHG 200A 3V Dual Charger or the CHG1600 Multiple Battery Charger. Make sure the receiver is turned off during charging. Acomplete recharge cycle takes about 14 hours. Receivers should not be left chargingcontinuously when not in use.!! IMPORTANT WARNINGS !!DO NOT ATTEMPT TO RECHARGE ZINC CARBON (“HEAVY DUTY”), ALKALINE, OR LITHIUM BATTERIES! DO NOT ATTEMPT TO RECHARGE DISPOSABLE BATTERIES! These batteries may heat up andexplode, causing possible injury and damage to the equipment. Avoid shorting the plus and minus battery terminals together with metal objects. Batterydamage and burns can result!Use only Williams Sound supplied chargers and rechargeable batteries!

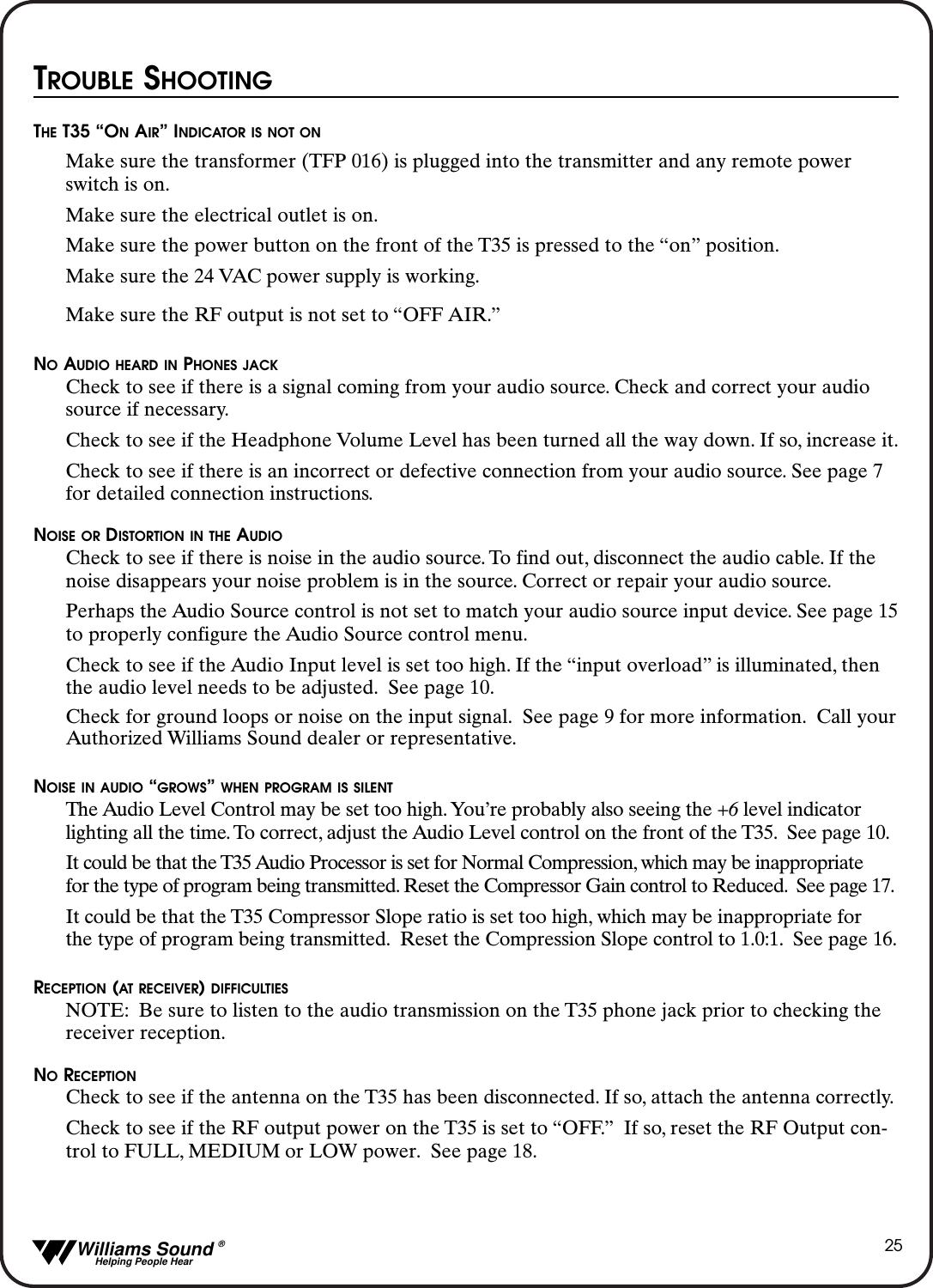

Williams Sound ® Helping People Hear25TROUBLE SHOOTINGTHE T35 “ONAIR” INDICATOR IS NOT ONMake sure the transformer (TFP 016) is plugged into the transmitter and any remote power switch is on.Make sure the electrical outlet is on.Make sure the power button on the front of the T35 is pressed to the “on” position.Make sure the 24 VAC power supply is working.Make sure the RF output is not set to “OFF AIR.”NOAUDIO HEARD IN PHONES JACKCheck to see if there is a signal coming from your audio source. Check and correct your audio source if necessary.Check to see if the Headphone Volume Level has been turned all the way down. If so, increase it.Check to see if there is an incorrect or defective connection from your audio source. See page 7 for detailed connection instructions.NOISE OR DISTORTION IN THE AUDIOCheck to see if there is noise in the audio source. To find out, disconnect the audio cable. If the noise disappears your noise problem is in the source. Correct or repair your audio source.Perhaps the Audio Source control is not set to match your audio source input device. See page 15to properly configure the Audio Source control menu.Check to see if the Audio Input level is set too high. If the “input overload” is illuminated, then the audio level needs to be adjusted. See page 10.Check for ground loops or noise on the input signal. See page 9 for more information. Call yourAuthorized Williams Sound dealer or representative.NOISE IN AUDIO “GROWS” WHEN PROGRAM IS SILENTThe Audio Level Control may be set too high. You’re probably also seeing the +6 level indicator lighting all the time. To correct, adjust the Audio Level control on the front of the T35. See page 10.It could be that the T35 Audio Processor is set for Normal Compression, which may be inappropriate for the type of program being transmitted. Reset the Compressor Gain control to Reduced. See page 17.It could be that the T35 Compressor Slope ratio is set too high, which may be inappropriate for the type of program being transmitted. Reset the Compression Slope control to 1.0:1. See page 16.RECEPTION (AT RECEIVER) DIFFICULTIESNOTE: Be sure to listen to the audio transmission on the T35 phone jack prior to checking the receiver reception.NORECEPTIONCheck to see if the antenna on the T35 has been disconnected. If so, attach the antenna correctly.Check to see if the RF output power on the T35 is set to “OFF.” If so, reset the RF Output con-trol to FULL, MEDIUM or LOW power. See page 18.

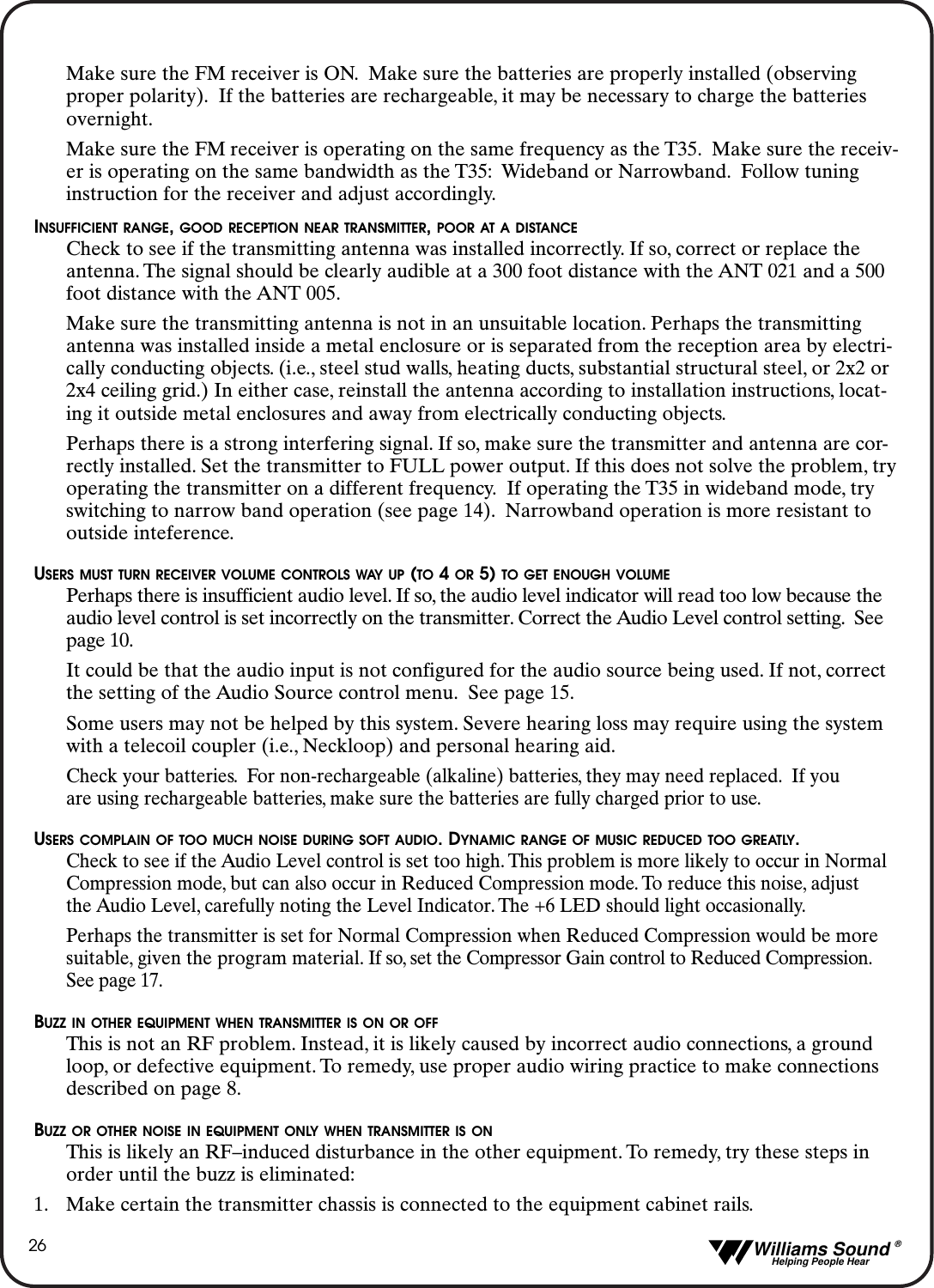

Williams Sound ® Helping People Hear26Make sure the FM receiver is ON. Make sure the batteries are properly installed (observing proper polarity). If the batteries are rechargeable, it may be necessary to charge the batteries overnight.Make sure the FM receiver is operating on the same frequency as the T35. Make sure the receiv-er is operating on the same bandwidth as the T35: Wideband or Narrowband. Follow tuning instruction for the receiver and adjust accordingly.INSUFFICIENT RANGE, GOOD RECEPTION NEAR TRANSMITTER, POOR AT A DISTANCECheck to see if the transmitting antenna was installed incorrectly. If so, correct or replace the antenna. The signal should be clearly audible at a 300 foot distance with the ANT 021 and a 500 foot distance with the ANT 005.Make sure the transmitting antenna is not in an unsuitable location. Perhaps the transmitting antenna was installed inside a metal enclosure or is separated from the reception area by electri-cally conducting objects. (i.e., steel stud walls, heating ducts, substantial structural steel, or 2x2 or 2x4 ceiling grid.) In either case, reinstall the antenna according to installation instructions, locat-ing it outside metal enclosures and away from electrically conducting objects.Perhaps there is a strong interfering signal. If so, make sure the transmitter and antenna are cor-rectly installed. Set the transmitter to FULL power output. If this does not solve the problem, tryoperating the transmitter on a different frequency. If operating the T35 in wideband mode, try switching to narrow band operation (see page 14). Narrowband operation is more resistant to outside inteference.USERS MUST TURN RECEIVER VOLUME CONTROLS WAY UP (TO 4 OR 5) TO GET ENOUGH VOLUMEPerhaps there is insufficient audio level. If so, the audio level indicator will read too low because the audio level control is set incorrectly on the transmitter. Correct the Audio Level control setting. See page 10.It could be that the audio input is not configured for the audio source being used. If not, correct the setting of the Audio Source control menu. See page 15.Some users may not be helped by this system. Severe hearing loss may require using the system with a telecoil coupler (i.e., Neckloop) and personal hearing aid.Check your batteries. For non-rechargeable (alkaline) batteries, they may need replaced. If you are using rechargeable batteries, make sure the batteries are fully charged prior to use.USERS COMPLAIN OF TOO MUCH NOISE DURING SOFT AUDIO. DYNAMIC RANGE OF MUSIC REDUCED TOO GREATLY.Check to see if the Audio Level control is set too high. This problem is more likely to occur in Normal Compression mode, but can also occur in Reduced Compression mode. To reduce this noise, adjust the Audio Level, carefully noting the Level Indicator. The +6 LED should light occasionally.Perhaps the transmitter is set for Normal Compression when Reduced Compression would be more suitable, given the program material. If so, set the Compressor Gain control to Reduced Compression.See page 17.BUZZ IN OTHER EQUIPMENT WHEN TRANSMITTER IS ON OR OFFThis is not an RF problem. Instead, it is likely caused by incorrect audio connections, a ground loop, or defective equipment. To remedy, use proper audio wiring practice to make connections described on page 8.BUZZ OR OTHER NOISE IN EQUIPMENT ONLY WHEN TRANSMITTER IS ONThis is likely an RF–induced disturbance in the other equipment. To remedy, try these steps in order until the buzz is eliminated:1. Make certain the transmitter chassis is connected to the equipment cabinet rails.

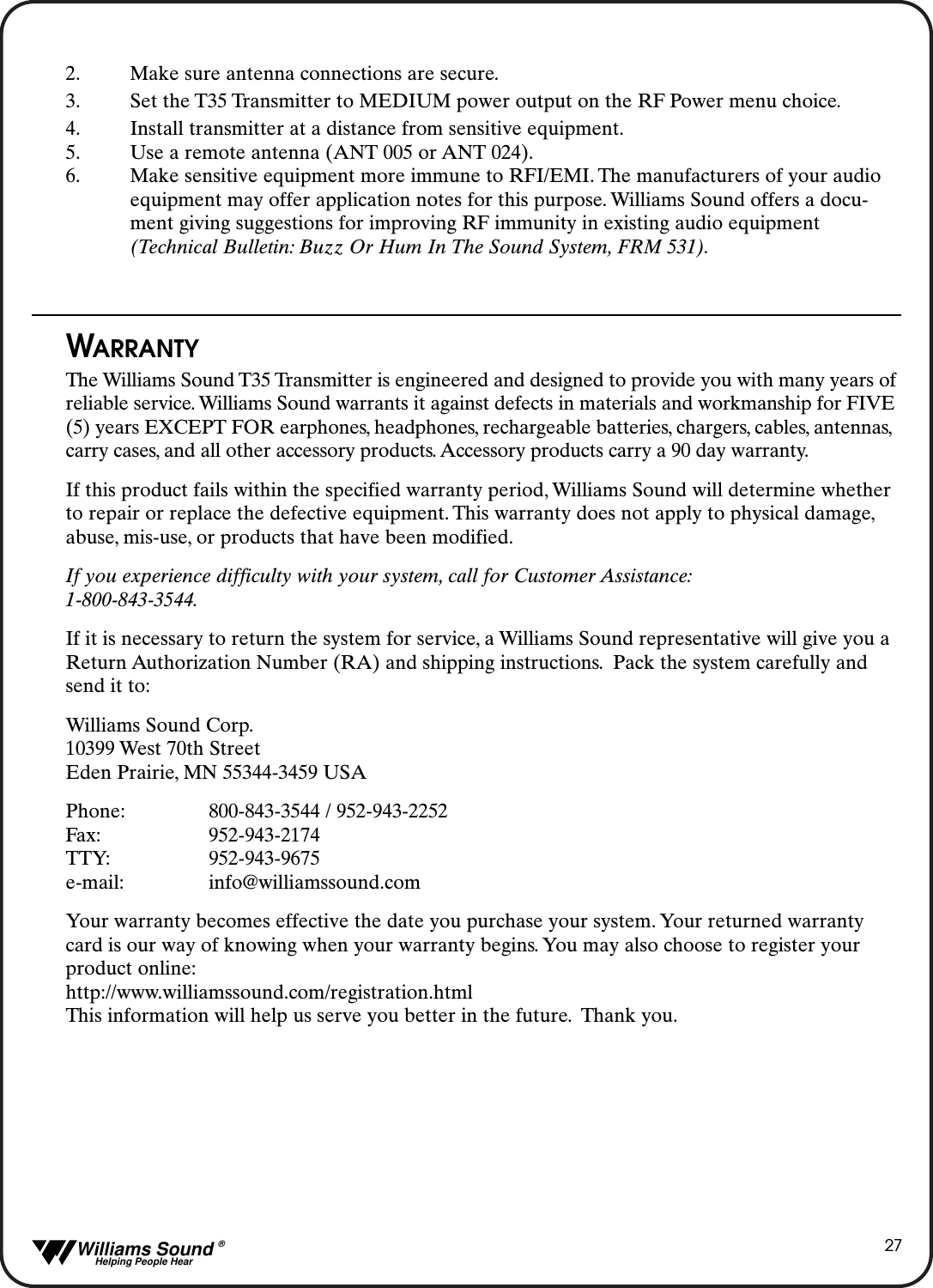

Williams Sound ® Helping People Hear272. Make sure antenna connections are secure.3. Set the T35 Transmitter to MEDIUM power output on the RF Power menu choice.4. Install transmitter at a distance from sensitive equipment.5. Use a remote antenna (ANT 005 or ANT 024).6. Make sensitive equipment more immune to RFI/EMI. The manufacturers of your audio equipment may offer application notes for this purpose. Williams Sound offers a docu-ment giving suggestions for improving RF immunity in existing audio equipment (Technical Bulletin: Buzz Or Hum In The Sound System, FRM 531).WARRANTYThe Williams Sound T35 Transmitter is engineered and designed to provide you with many years ofreliable service. Williams Sound warrants it against defects in materials and workmanship for FIVE(5) years EXCEPT FOR earphones, headphones, rechargeable batteries, chargers, cables, antennas,carry cases, and all other accessory products. Accessory products carry a 90 day warranty.If this product fails within the specified warranty period, Williams Sound will determine whetherto repair or replace the defective equipment. This warranty does not apply to physical damage,abuse, mis-use, or products that have been modified.If you experience difficulty with your system, call for Customer Assistance:1-800-843-3544.If it is necessary to return the system for service, a Williams Sound representative will give you aReturn Authorization Number (RA) and shipping instructions. Pack the system carefully andsend it to:Williams Sound Corp.10399 West 70th StreetEden Prairie, MN 55344-3459 USAPhone: 800-843-3544 / 952-943-2252Fax: 952-943-2174TTY: 952-943-9675e-mail: info@williamssound.comYour warranty becomes effective the date you purchase your system. Your returned warrantycard is our way of knowing when your warranty begins. You may also choose to register yourproduct online:http://www.williamssound.com/registration.htmlThis information will help us serve you better in the future. Thank you.

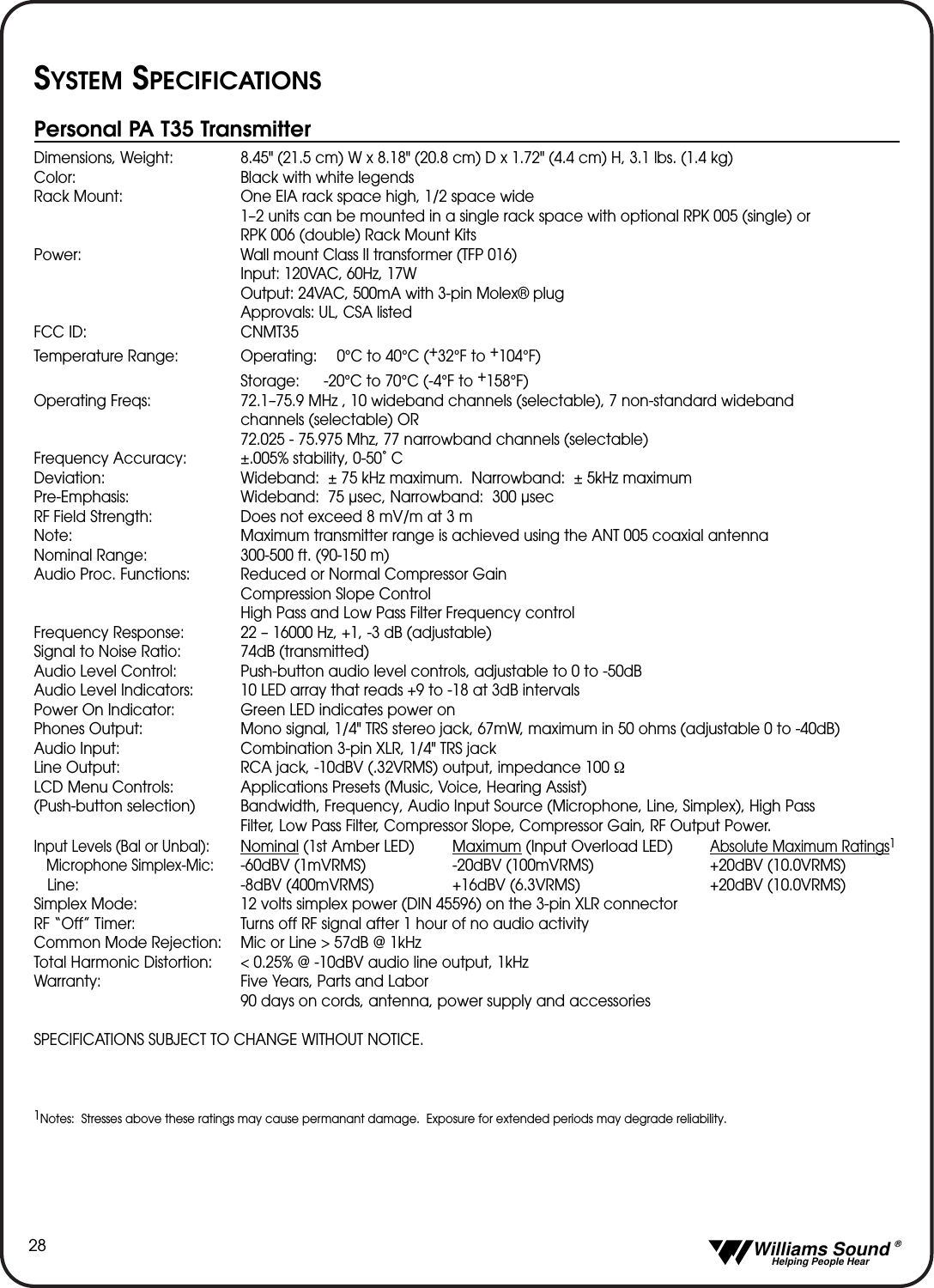

Williams Sound ® Helping People Hear28SYSTEM SPECIFICATIONSPersonal PA T35 TransmitterDimensions, Weight: 8.45" (21.5 cm) W x 8.18" (20.8 cm) D x 1.72" (4.4 cm) H, 3.1 lbs. (1.4 kg)Color: Black with white legendsRack Mount: One EIA rack space high, 1/2 space wide1–2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount KitsPower: Wall mount Class II transformer (TFP 016)Input: 120VAC, 60Hz, 17WOutput: 24VAC, 500mA with 3-pin Molex® plugApprovals: UL, CSA listedFCC ID: CNMT35Temperature Range: Operating: 0°C to 40°C (+32°F to +104°F)Storage: -20°C to 70°C (-4°F to +158°F)Operating Freqs: 72.1–75.9 MHz , 10 wideband channels (selectable), 7 non-standard wideband channels (selectable) OR 72.025 - 75.975 Mhz, 77 narrowband channels (selectable)Frequency Accuracy: ±.005% stability, 0-50˚ CDeviation: Wideband: ± 75 kHz maximum. Narrowband: ± 5kHz maximumPre-Emphasis: Wideband: 75 µsec, Narrowband: 300 µsecRF Field Strength: Does not exceed 8 mV/m at 3 m Note: Maximum transmitter range is achieved using the ANT 005 coaxial antennaNominal Range: 300-500 ft. (90-150 m)Audio Proc. Functions: Reduced or Normal Compressor GainCompression Slope ControlHigh Pass and Low Pass Filter Frequency controlFrequency Response: 22 – 16000 Hz, +1, -3 dB (adjustable)Signal to Noise Ratio: 74dB (transmitted)Audio Level Control: Push-button audio level controls, adjustable to 0 to -50dBAudio Level Indicators: 10 LED array that reads +9 to -18 at 3dB intervalsPower On Indicator: Green LED indicates power onPhones Output: Mono signal, 1/4" TRS stereo jack, 67mW, maximum in 50 ohms (adjustable 0 to -40dB)Audio Input: Combination 3-pin XLR, 1/4" TRS jackLine Output: RCA jack, -10dBV (.32VRMS) output, impedance 100 ΩLCD Menu Controls: Applications Presets (Music, Voice, Hearing Assist) (Push-button selection) Bandwidth, Frequency, Audio Input Source (Microphone, Line, Simplex), High Pass Filter, Low Pass Filter, Compressor Slope, Compressor Gain, RF Output Power.Input Levels (Bal or Unbal):Nominal (1st Amber LED) Maximum (Input Overload LED)Absolute Maximum Ratings1Microphone Simplex-Mic:-60dBV (1mVRMS) -20dBV (100mVRMS) +20dBV (10.0VRMS)Line: -8dBV (400mVRMS) +16dBV (6.3VRMS) +20dBV (10.0VRMS)Simplex Mode: 12 volts simplex power (DIN 45596) on the 3-pin XLR connectorRF “Off” Timer: Turns off RF signal after 1 hour of no audio activityCommon Mode Rejection: Mic or Line > 57dB @ 1kHzTotal Harmonic Distortion: < 0.25% @ -10dBV audio line output, 1kHzWarranty: Five Years, Parts and Labor90 days on cords, antenna, power supply and accessoriesSPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.1Notes: Stresses above these ratings may cause permanant damage. Exposure for extended periods may degrade reliability.
Williams Sound ® Helping People Hear29Personal PA R30 Wideband ReceiverDimensions: 3-5/8" L x 2-3/8" W x 7/8" H (92.1 mm x 60.3 mm x 22.2 mm) Weight: 4.6 oz (130 g) with batteriesColor: GrayBattery Type: Two (2) AA 1.5 V non-rechargeable Alkaline batteries (BAT 001), 14 mA nominal current drain, 80 hours approx. life (OR) Two (2) AA 1.5 V NiMH rechargeable batteries (BAT 026), 14 mA nominal current drain, 50 hours per charge approx., recharges in 14–16 hours, uses CHG 1600 Charger or CHG 200 ChargerFCC ID: CNM R30Industry Canada Cert.: 13601021234Operating Freq.: Pre-Tuned, Adjustable, 72 MHz - 76 MHz Intermediate Freq.: 75 kHzFM Deviation: 75 kHzDe-Emphasis: 75 µSAFC Range: ± 120 kHzSensitivity: 4 µV at 12 dB SinadInput Overload: 20 mVFrequency Response: 100 – 10 kHz, ± 3 dBSignal-to-Noise Ratio: 65 dB at strong signal conditionReceive Antenna: Integral with earphone/headphone cordAudio Output: 35 mW, max. at 16 ΩOutput Connector: 3.5 mm mono phone jackEarphone: Earbud-type with foam cushion, 3.5 mm plug, 32 ΩWarranty: Five Years, Parts and Labor. 90 days on cords, earphones, headphones, batteries and other accessoriesNotes: The R30 Receiver can be field tuned to any of 10 wideband channels using the PLT 005 Tuning Tool.Personal PA R7-4 Wideband ReceiverDimensions: 3-5/8" L x 2-3/8" W x 7/8" H (92.1 mm x 60.3 mm x 22.2 mm) Weight:3.2 oz (90 g) with batteryColor: GrayBattery Type: 9 Volt, Eveready 216 Carbon, Eveready 522 Alkaline, or BAT 003 Ni-Cad RechargeableBattery Drain: 14 mA, nominalBattery Life: 32 hours with Eveready 522, 6 hours/charge with BAT 003FCC ID: CNM R7Y, CNM R74YOperating Freq.: 4-Channel, Pre-Tuned, SelectableCH A (72.1 MHz), CH C (72.5 MHz), CH E (72.9 MHz), CH G (75.7 MHz) (OR)CH B (72.3 MHz), CH D (72.7 MHz), CH F (75.5 MHz), CH H (75.9 MHz)Intermediate Freq.: 75 kHzFM Deviation: 75 kHzDe-Emphasis: 75 µSAFC Range: ± 300 kHzSensitivity: 2 µV at 12 dB Sinad with squelch defeatedInput Overload: 20 mVSquelch: Squelches at 10 µV for minimum 50 dB S/N ratioFrequency Response: 100–10 kHz, ± 3 dBSignal-to-Noise Ratio: 65 dB at strong signal conditionReceive Antenna: Integral with earphone/headphone cordAudio Output: 250 mW, max. at 16 OhmsOutput Connector: 3.5 mm mini phone jack, also serves as a charging jack for rechargeable batteryEarphone: Earbud-type with foam cushion, 3.5 mm plug, 32 Ω(Other styles available)Channel Selector: 4–position, rotary switchWarranty: Five Years, Parts and Labor. 90 days on cords, earphones, headphones, batteries and other accessories

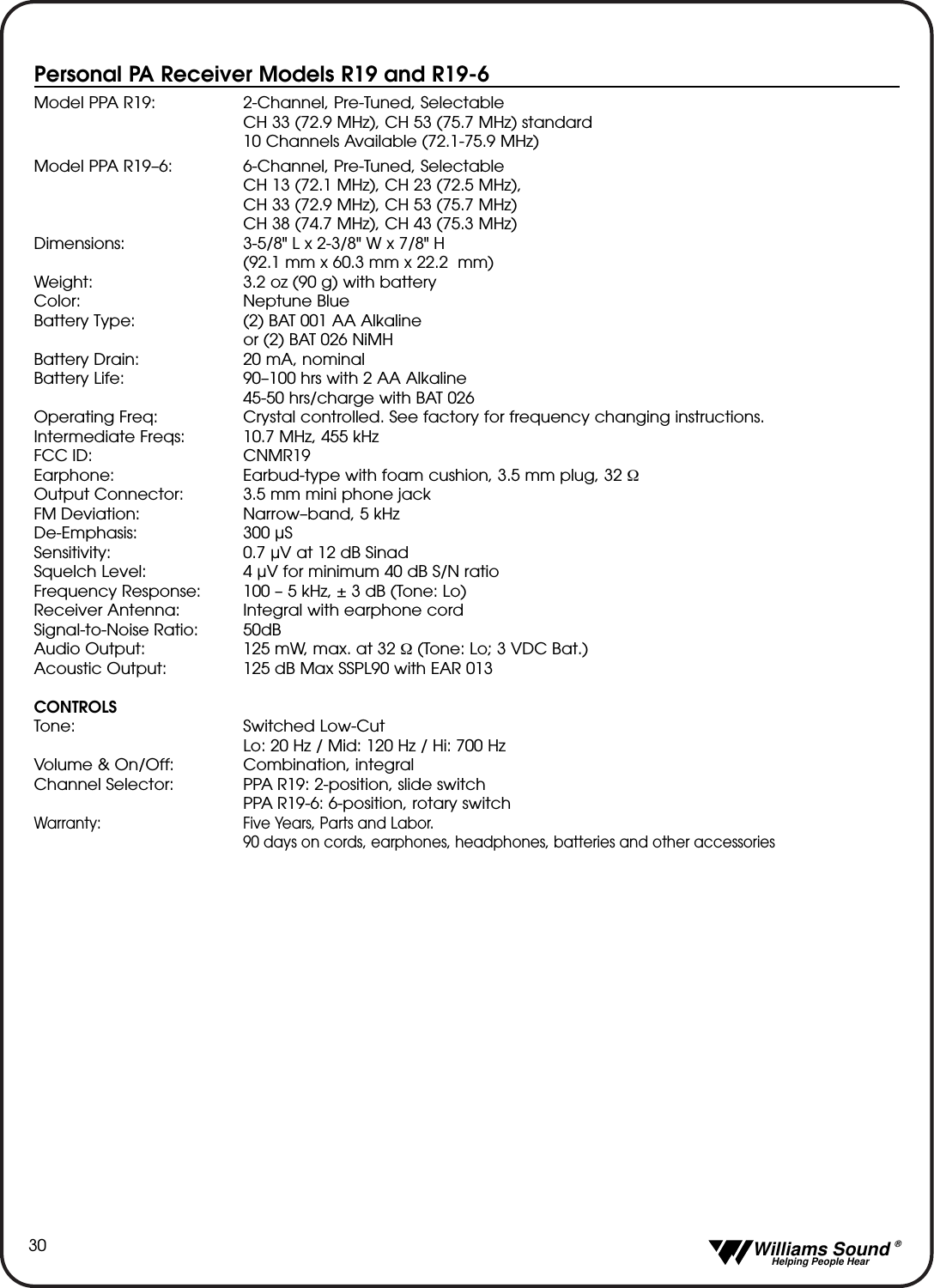

Williams Sound ® Helping People Hear30Personal PA Receiver Models R19 and R19-6Model PPA R19: 2-Channel, Pre-Tuned, SelectableCH 33 (72.9 MHz), CH 53 (75.7 MHz) standard 10 Channels Available (72.1-75.9 MHz) Model PPA R19–6: 6-Channel, Pre-Tuned, SelectableCH 13 (72.1 MHz), CH 23 (72.5 MHz), CH 33 (72.9 MHz), CH 53 (75.7 MHz)CH 38 (74.7 MHz), CH 43 (75.3 MHz)Dimensions: 3-5/8" L x 2-3/8" W x 7/8" H (92.1 mm x 60.3 mm x 22.2 mm)Weight: 3.2 oz (90 g) with batteryColor: Neptune BlueBattery Type: (2) BAT 001 AA Alkaline or (2) BAT 026 NiMHBattery Drain: 20 mA, nominalBattery Life: 90–100 hrs with 2 AA Alkaline45-50 hrs/charge with BAT 026Operating Freq: Crystal controlled. See factory for frequency changing instructions.Intermediate Freqs: 10.7 MHz, 455 kHzFCC ID: CNMR19Earphone: Earbud-type with foam cushion, 3.5 mm plug, 32 ΩOutput Connector: 3.5 mm mini phone jackFM Deviation: Narrow–band, 5 kHzDe-Emphasis: 300 µSSensitivity: 0.7 µV at 12 dB Sinad Squelch Level: 4 µV for minimum 40 dB S/N ratioFrequency Response: 100 – 5 kHz, ± 3 dB (Tone: Lo)Receiver Antenna: Integral with earphone cordSignal-to-Noise Ratio: 50dB Audio Output: 125 mW, max. at 32 Ω(Tone: Lo; 3 VDC Bat.)Acoustic Output: 125 dB Max SSPL90 with EAR 013CONTROLSTone: Switched Low-CutLo: 20 Hz / Mid: 120 Hz / Hi: 700 HzVolume & On/Off: Combination, integralChannel Selector: PPA R19: 2-position, slide switchPPA R19-6: 6-position, rotary switchWarranty: Five Years, Parts and Labor. 90 days on cords, earphones, headphones, batteries and other accessories
