Willis Electric ZW1101 Door window sensor User Manual ZW1101

Willis Electric Co., Ltd. Door window sensor ZW1101

User mnaual

FCC/IC
Door window sensor
ZW1101 Door Window Sensor
Show Home Products warrants this product to be free from manufacturing defects for
a period of two years from the original date of consumer purchase. This warranty is limited
to the repair or replacement of this product only and does not extend to consequential or
incidental damage to other products that may be used with this product.
This warranty is in lieu of all other warranties, expressed or implied. Some states do not
allow limitations on how long an implied warranty lasts or permit the exclusion or limitation
of incidental or consequential damage, so the above limitations may not apply to you.
This warranty gives you specific rights, and you may also have other rights which vary from
state to state. if the unit should prove defective within the warranty period.
RISK OF FIRE
RISK OF ELECTRICAL SHOCK
RISK OF BURNS
CONTROLLING APPLIANCES:
EXERCISE EXTREME CAUTION WHEN USING Z-WAVE
DEVICES TO CONTROL APPLIANCES. OPERATION
OF THE Z-WAVE DEVICE MAY BE IN A DIFFERENT
ROOM THAN THE CONTROLLED APPLIANCE, ALSO AN
UNINTENTIONAL ACTIVATION MAY OCCUR IF THE WRONG
BUTTON ON THE REMOTE IS PRESSED. Z-WAVE DEVICES
MAY AUTOMATICALLY BE POWERED ON DUE TO TIMED
EVENT PROGRAMMING. DEPENDING UPON THE APPLI-
ANCE, THESE UNATTENDED OR UNINTENTIONAL OP-
ERATIONS COULD POSSIBLY RESULT IN A HAZARDOUS
CONDITION. FOR THESE REASONS, WE RECOMMEND
DO NOT RETURN THIS PRODUCT TO THE STORE
THE FOLLOWING:
DO NOT USE Z-WAVE DEVICES TO CONTROL ELECTRIC
HEATERS OR ANY OTHER APPLIANCES WHICH MAY PRES-
ENT A HAZARDOUS CONDITION DUE TO UNATTENDED OR
UNINTENTIONAL OR AUTOMATIC POWER ON CONTROL.
WARNING
WARRANTY
Model:ZW1101
Power supply: battery ER14250, 1/2AA, 3V.
Signal (Frequency): 908.42 MHz.
Operating Range: Up to 100 feet line of sight
Operating Temp.: -15°C~60°C (5°F ~140°F)
Wireless Controller and the closest Z-Wave
receiver module.
Specifications subject to change without notice
due to continuing product improvement
SPECIFICATIONS
Website www.ishowlights.com
Federal Communications Commission (FCC) Statement
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may caus harmful interference to radio communications.However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.Increase the separation between the equipment and
receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.Consult the dealer or an experienced radio/TV technician for help.This equipment
should be installed and operated with minimum distance 20cm between the radiator and your body.
IC Caution:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired
operation of the device.
DECLARATION DE CONFORMITE D'INDUSTRIE CANADA
Ce périphérique a été testé et reconnu conforme aux limites spécifiées dans RSS-210.
Son utilisation est soumise aux deux conditions suivantes :
(1) il ne doit pas provoquer d'interférences gênantes et
(2) il doit tolérer les interférences re.ues, notamment cellessusceptibles d'en perturber le fonctionnement.

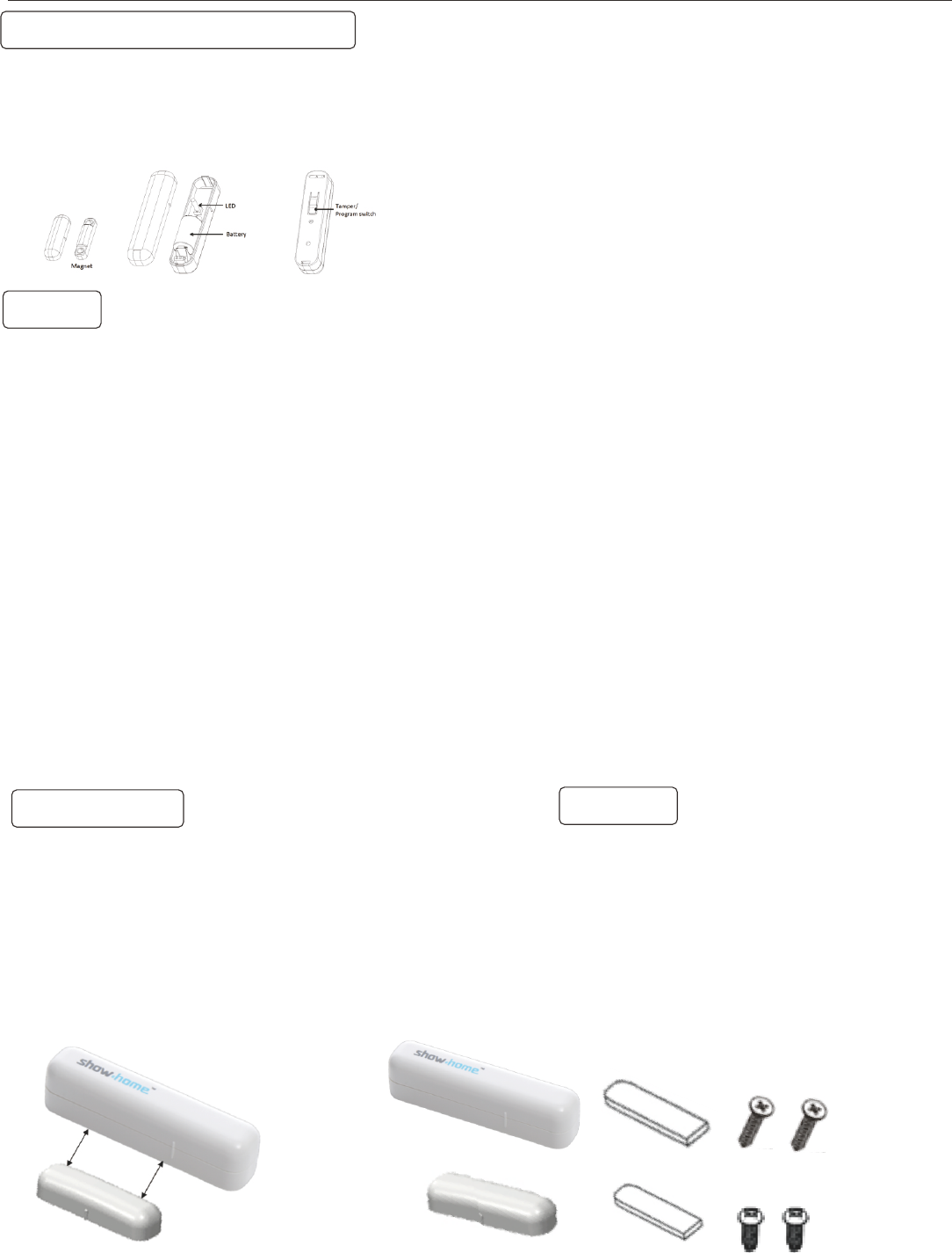

Product Introduction and description
ZW1101 Sensor-1pcs
Bracket for Contact Magnet-1pcs
Magnet-1pcs
Adhesive tape for Magnet /sensor-2pcs
CR14250 3.0V Battery-1pcs
Screws for bracket/ sensor-4pcs
Installation Operation manual-1pcs
Thanks for choosing the show home wireless door/window sensor of the home security device.This sensor is a Z-Wave™ enabled
device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™ enabled network.
Every mains powered Z-Wave enabled device acts as a signal repeater and multiple devices result in more possible transmission
routes which helps eliminate “RF dead-sports”Z-Wave™ enabled devices displaying the Z-Wave™ logo can also be used with it
regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave™ enabled networks. This sensor
monitors door/window and send Z-Wave™ signal when door or window is opened and closed.
Notice: If you install the entire Z-Wave™ system for the first time, please refer to the installation guide of Z-Wave™
Interface Controller before installing ZW1101.
1. Unscrew the screw fastening the rear cover.
2. Slide the rear cover down.
3. Using the screws or adhesive tape to affix the rear cover on the frame along the opening edge of door / window.
4. Insert a CR123A battery into the battery compartment and LED will start to flash slowly,which means the sensor has
not yet been added.
5. For adding to a network: Put the Z-Wave™ Interface Controller into adding mode, and following its
instruction to add the ZW1101 to your controller. To get in the adding mode, the distance between sensor and controller
is suggested to be in one meter. Press the program switch of ZW1101 for 1 second at least.The LED on the ZW1101 should go
solid, if not, please try again.For removing from a network: Put the Z-Wave™ Interface Controller into
removing mode, and following its instruction to delete the ZW1101 from your controller. Press the program switch of ZW1101
for 1 second at least to be removed.For “Association”: removing the cover of the ZW1101 to get into the “Awake” mode,
then put the Z-Wave™ Interface Controller into “Association”, and following its instruction to associate the ZW1101 with other
device. Close the cover back after “association” done, afterward the ZW1101 will get into “Sleep” mode for power saving.
Support one association group (5 nodes).”Awake” mode: it is to leave the “Sleep” mode by removing the cover of ZW1101, to
allow the Z-Wave™ Interface Controller to do “add”, “remove”, “Association” and to reply and receive the commands
from controller.
6. Slide back the rear cover and screw fastening with the front cover, the LED should go off.
7. Fix the Magnet by using the adhesive tape or fixing screws, locate the Magnet close to the ZW1101 sensor the distance
between these two devices should be in 1.9cm.
8. External Switch: If your window needs two sensors for fully monitoring. You could use an external switch to connect with
the ZW1101 for extending detection. The ZW1101 has 2 normally closed contact terminals. These can be used for
additional external switch wired contacts. The external switch will send an alarm report (type:01,level:11) by opening
the window/door.
Operation
Step1.The magnet shall be fixed to close
to the specific area,and the distance
from sensor shall not be over 1.9cm.
Assemble
Step2.Fixed with adhesive tap or Screws.
.
fig1 fig2
