Willis Electric ZW1104 Flood Sensor User Manual
Willis Electric Co., Ltd. Flood Sensor
User manual
FCC/IC
Flood Sensor
ZW1104 Flood Sensor
Show Home Products warrants this product to be free from manufacturing defects for
a period of two years from the original date of consumer purchase. This warranty is limited
to the repair or replacement of this product only and does not extend to consequential or
incidental damage to other products that may be used with this product.
This warranty is in lieu of all other warranties, expressed or implied. Some states do not
allow limitations on how long an implied warranty lasts or permit the exclusion or limitation
of incidental or consequential damage, so the above limitations may not apply to you.
This warranty gives you specific rights, and you may also have other rights which vary from
state to state. if the unit should prove defective within the warranty period.
RISK OF FIRE
RISK OF ELECTRICAL SHOCK
RISK OF BURNS
CONTROLLING APPLIANCES:
EXERCISE EXTREME CAUTION WHEN USING Z-WAVE
DEVICES TO CONTROL APPLIANCES. OPERATION
OF THE Z-WAVE DEVICE MAY BE IN A DIFFERENT
ROOM THAN THE CONTROLLED APPLIANCE, ALSO AN
UNINTENTIONAL ACTIVATION MAY OCCUR IF THE WRONG
BUTTON ON THE REMOTE IS PRESSED. Z-WAVE DEVICES
MAY AUTOMATICALLY BE POWERED ON DUE TO TIMED
EVENT PROGRAMMING. DEPENDING UPON THE APPLI-
ANCE, THESE UNATTENDED OR UNINTENTIONAL OP-
ERATIONS COULD POSSIBLY RESULT IN A HAZARDOUS
CONDITION. FOR THESE REASONS, WE RECOMMEND
DO NOT RETURN THIS PRODUCT TO THE STORE
THE FOLLOWING:
DO NOT USE Z-WAVE DEVICES TO CONTROL ELECTRIC
HEATERS OR ANY OTHER APPLIANCES WHICH MAY PRES-
ENT A HAZARDOUS CONDITION DUE TO UNATTENDED OR
UNINTENTIONAL OR AUTOMATIC POWER ON CONTROL.
WARNING
WARRANTY
Model:ZW1104
Power supply: battery AAA, 3V.
Signal (Frequency): 908.42 MHz.
Operating Range: Up to 100 feet line of sight
Operating Temp.: -15°C~60°C(5°F ~140°F)
Sleeping Mode current: 8uA max @DC3.0V
transmitting Mode current: 34mA max @DC 3.0V
(20ms/1time)
Wireless Controller and the closest Z-Wave
receiver module.
Specifications subject to change without notice
due to continuing product improvement
SPECIFICATIONS
Website www.ishowlights.com
Federal Communications Commission (FCC) Statement
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may caus harmful interference to radio communications.However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.Increase the separation between the equipment and
receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.Consult the dealer or an experienced radio/TV technician for help.This equipment
should be installed and operated with minimum distance 20cm between the radiator and your body.
IC Caution:
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired
operation of the device.
DECLARATION DE CONFORMITE D'INDUSTRIE CANADA
Ce périphérique a été testé et reconnu conforme aux limites spécifiées dans RSS-210.
Son utilisation est soumise aux deux conditions suivantes :
(1) il ne doit pas provoquer d'interférences gênantes et
(2) il doit tolérer les interférences re.ues, notamment cellessusceptibles d'en perturber le fonctionnement.
Pre Cautions:
1. Do not attempt to disassemble the Flood Sensor, unless described in the user’s manual. There are no user serviceable
parts.
2. Handle with Care – Avoid striking or shaking.Improper use or storage could damage the Flood Sensor. Modifying or
tampering the device or its internal components can cause a malfunction and void the Water Leak’s warranty.
3. If you feel the Flood Sensor or any part of the Choice Alert system is not operating correctly or as described, please contact
Customer Service for assistance.
Important safeguards
Introduction
The Flood Sensor is designed to be used in areas where there is a potential for damaging water leaks – dishwashers, washing
machines, hot water tanks, air conditioner condensation drip pans, etc. When mounted properly it can monitor whether water
is leaking into areas that could be damaged.When water is detected, the Sensor will transmit a signal to the Control Center.
The settings on the Control Center determine if an alarm, alert or chime sounds (see Control Center Operation). The Flood
Sensor is recommended for use the alert-only Zone. If there is a leak, Zone will not sound an alarm but will sound a continuous
alert until leak has stopped and water has dissipated.
Preparing the Flood Sensor for Installation
The Flood Sensor is composed of two sections linked together with a cable The Sensor (transmitter) and the Probe. Before
installing, remove the white battery isolation tape from the Sensor. This activates the Lithium battery inside. The approximate
battery life is up to a year. When replacing batteries it is recommended to replace all batteries in a Zone at the same time in
order ensure proper operation of the entire system.
Installation
The Probe section will need to be mounted first. It is intended to be positioned with the contacts pointing down. Find a suitable
location where water could accumulate if a leak were to occur (eg. along the baseboard of wall).You will need to determine if
the surface to mount the Probe is smooth or rough/porous. If smooth you can use one piece of the included double sided tape.
When using doublesided tape apply to clean dry surface.Remove one side of the tape and attach it to the back side of the Probe.
Once the mounting surface is ready, remove the other side of the double side tape and position probe so that the metal contacts
are pointing down, touching the floor and the back of the Probe (with the double side tape) is up against the wall, baseboard or
mounting plate. Apply pressure to secure the Probe to the surface. If the mounting surface is rough or porous, you will need to
use the alternate mounting plate and screws ( included). Secure the plate to the desired location with the screws.
Note: If postioning the probe to a metal surface, ensure the Probe’s contacts do not touch the metal surface.Next, stretch the
cable vertically and locate a suitable position to mount the transmitter. Follow the same mounting instructions above for mounting
the transmitter.Once the Flood Sensor is mounted, you’ll need to assign it to a Zone on the Control Center.
1.Insert battery into the battery compartment and LED will start
to RGB flash slowly, Adding to a z-wave network, Quick press the
program switch (Tamper switch) three times , The Green LED flash ,
inclusion successful.
2.Tamper switch closing , The blue LED flash 1time/30sec.
3.Trigger : red led flash

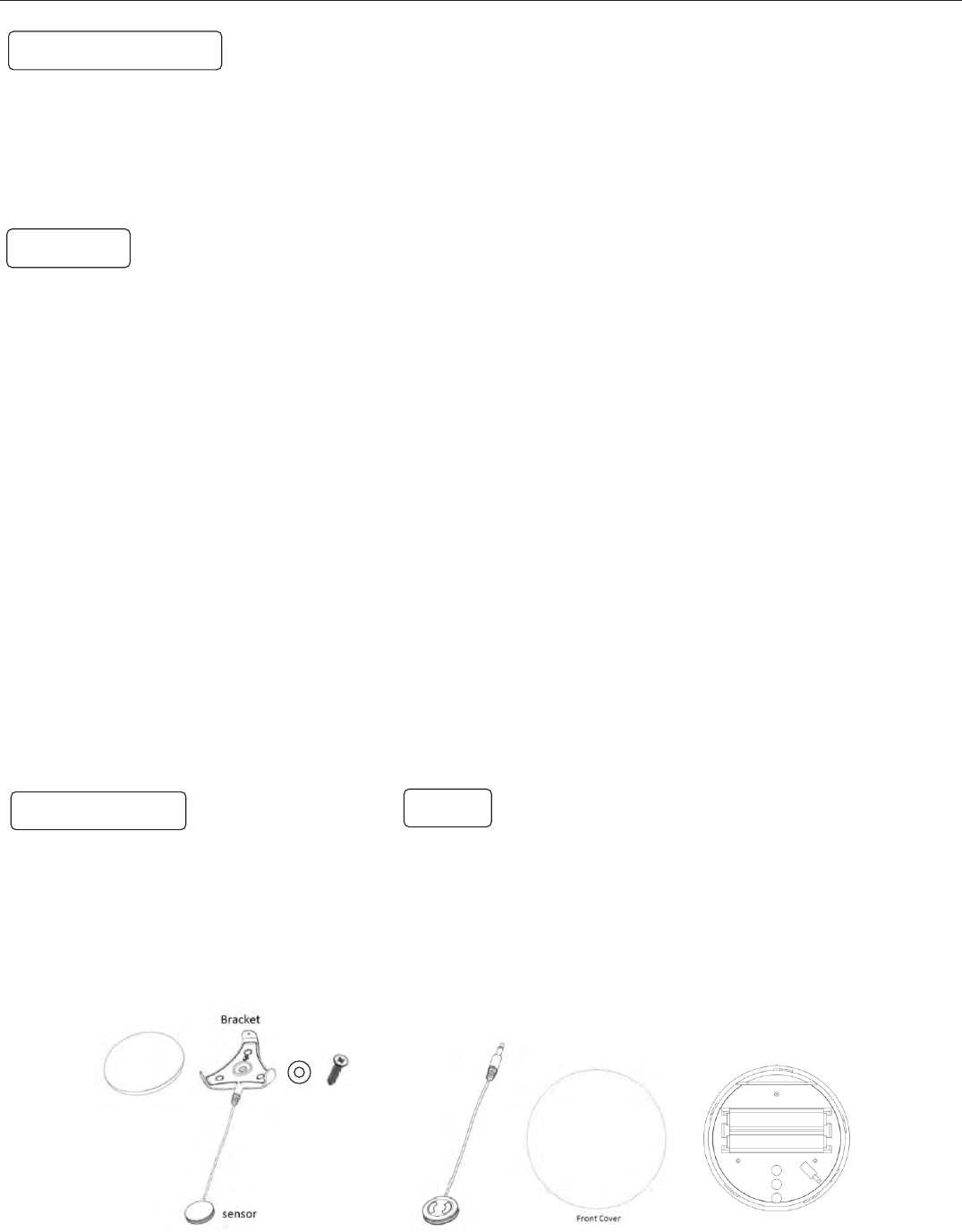

ZW1104 Flood Sensor-1pcs
Bracket -1pcs
sensor-1pcs
Adhesive tape -1pcs
Screws for bracket-1pcs
AAA Battery-2pcs
Installation Operation manual-1pcs
Package content: Adding:
AAA
AAA
LED
Tamper switch
-+
+-
