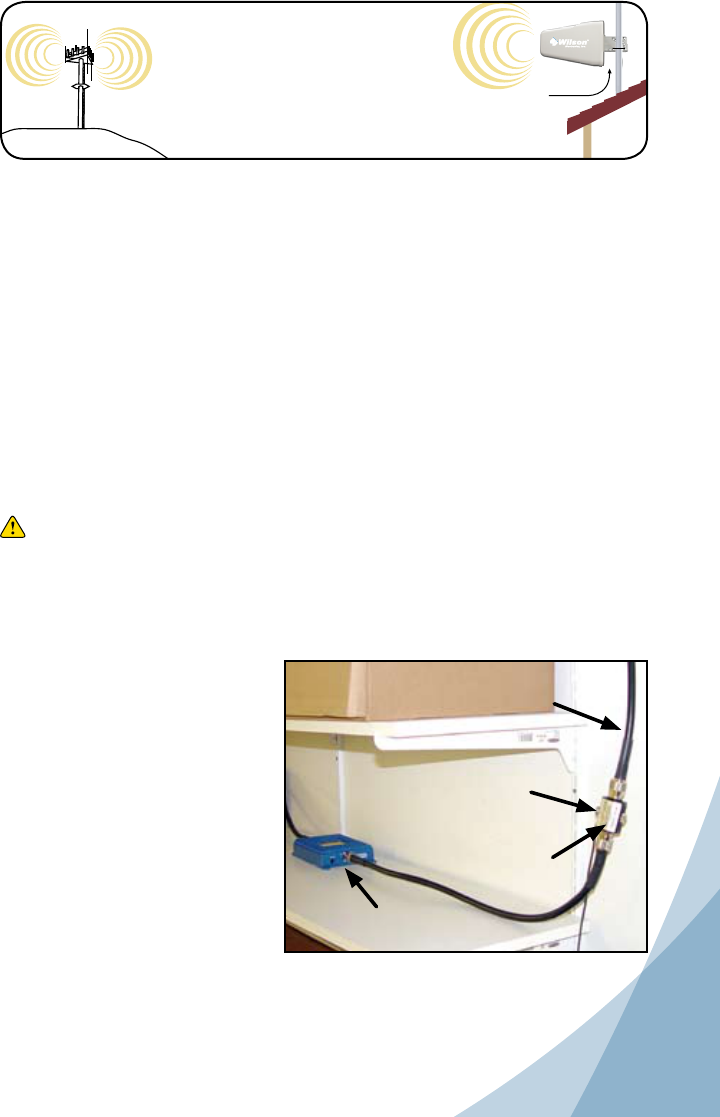

How it Works
Wilson Electronics Signal Boosters are bi-directional devices that
deliver service levels consistent with what would be expected in areas
of high cell network coverage. They amplify a weak or shadowed
signal in mobile, marine, M2M and in-building applications. When
using a Wilson Electronics Signal Booster in conjunction with
Wilson Electronics antennas, the Outside Antenna will collect
the cell tower signal and send it through the cable to the Signal
Booster. The signal is then amplified and re-transmitted through the
Inside Antenna into the room. Cell phones and cellular data cards
in that area then communicate with the improved signal. When a
cell phone or cellular device transmits, the signal is received by the
Inside Antenna, amplified by the Signal Booster and broadcasted
back to the cell tower through the Outside Antenna.

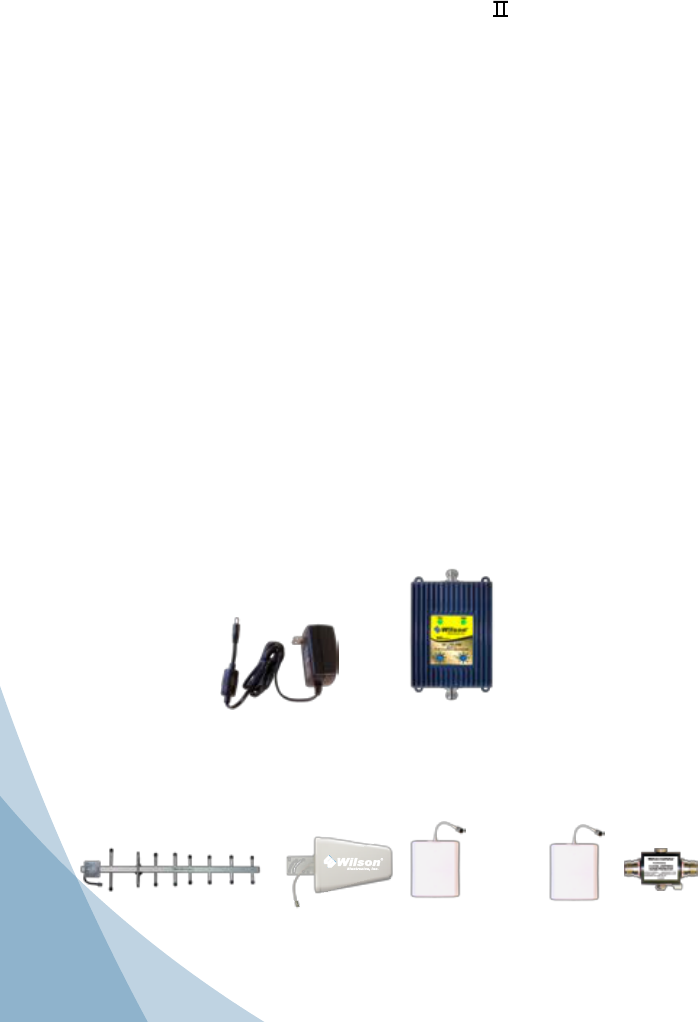

Inside this Package
Signal
Booster
AC/DC
Power
Supply
To purchase, call Wilson Electronics Sales Department at: 800-204-4104

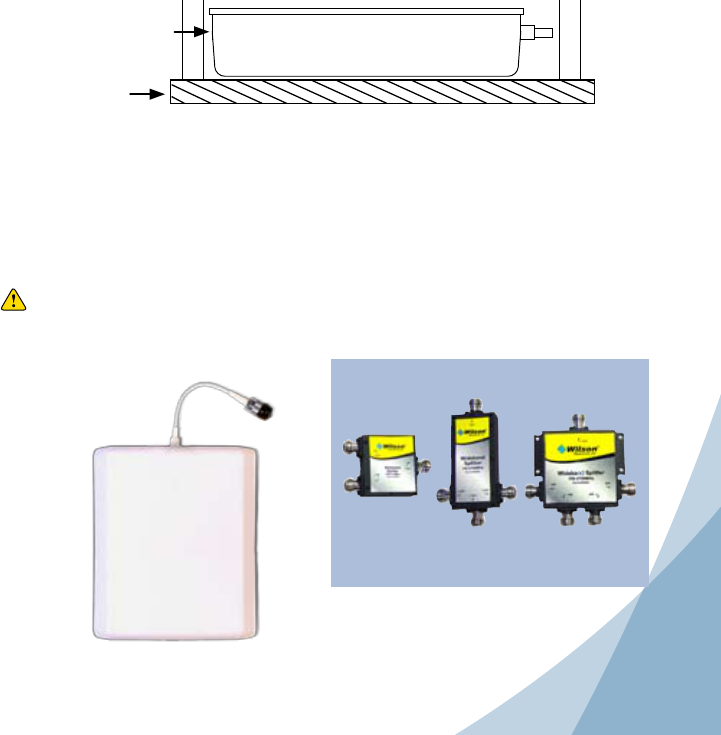

Outdoor Antenna Options Indoor Antenna Options & Accessories
1. Yagi Antenna (301111)
2. Wide Band Directional Antenna 700 MHz -
2700 MHz (304411)
3. Wide Band Panel Antenna 700-2700 MHz
(301157)
A.
Wide-Band Panel Antenna 700-2700MHz (301134 & 301135)
B. 50 Ohm Lightning Surge Protector with N-Connector
(859902)
Splitter options on page 9
2
1B
A
3
Note: Kits may contain different accessories
1
2
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
Select a location to install the Signal Booster that is away 1.
from excessive heat, direct sunlight, moisture and has proper
ventilation. Do not place the Signal Booster in an air-tight
enclosure.
Select a location on the roof of the building to install the Outside 2.
Antenna. Use a cell phone in test mode to find the strongest
signal from the cell tower. Visit www.WilsonElectronics.com
to find test mode function for your particular cell phone (see
page 11).
Run the Outside Antenna cable to the Signal Booster and 3.
attach it to the connector labeled “Outside Antenna” on the
Signal Booster. Run the Inside Antenna cable to the Signal
Booster and attach it to the connector labeled “Inside Antenna”
on the Signal Booster (see page 7 for more information on
running cable). Lightning Surge Protection is recommended for
all in-building installations (see page 6).
Select a location for the Inside Antenna, preferably in the 4.
center of where the signal needs to be amplified. A minimum
separation distance (combined vertical/horizontal) of 20 feet is
necessary for operation (see page 8). If the inside coverage is
not sufficient you may need as much as 50 feet of separation.
See installation diagram on pages 3 & 4.
Before powering up the Signal Booster, verify that both the 5.
Outside Antenna and the Inside Antenna are connected and
check that all connections are tight. Note: Be careful when
plugging the connectors in so as not to bend the center pins
on the connectors.

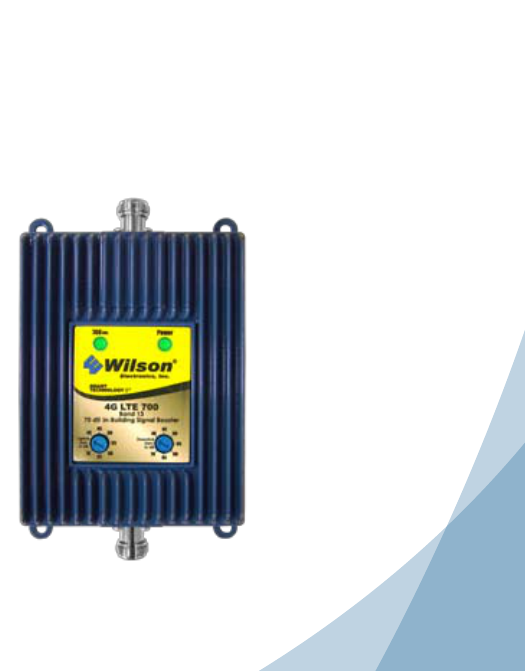

The Signal Booster has been packaged with the gain control 6.
knobs adjusted to the highest gain position. If the 700 MHz
light is not green, please refer to pages 13 & 14.
Warning: 7. Connecting the Signal Booster directly to a cell phone
with use of an adapter may damage the cell phone and the
Signal Booster.
Quick Install Overview
See Installation Diagram on page 3. Contact Wilson Electronics
Technical Support Team with any questions at 866-294-1660.
3Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
4

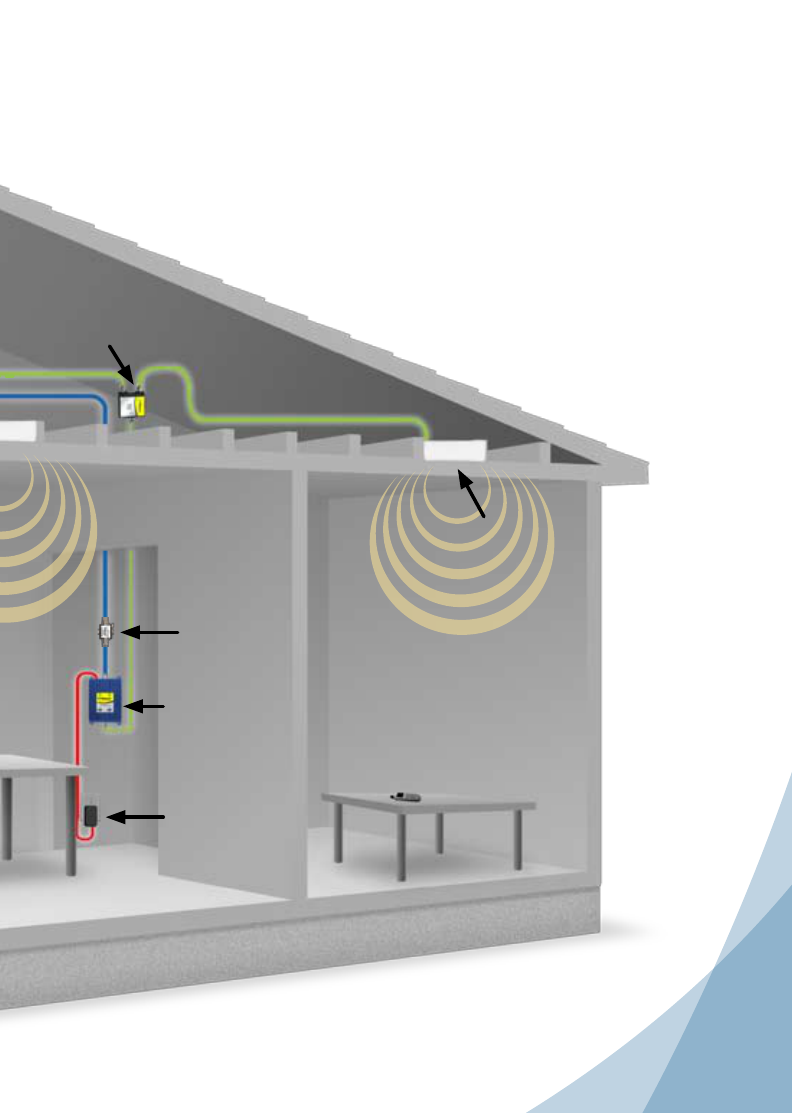

Typical Installation
Outside
Antenna
Inside Antenna
Installation Diagram
Note: The Inside Antenna may be
mounted on the wall directly under
the Outside Antenna, in the null zone,
if 15 feet of vertical separation can be
maintained.
Inside Antenna
Preferred Method: Place the Inside
Antenna in the ceiling facing down
for the best coverage.
Note: A Lightning Surge Protector is
recommended for all building installations.
Make sure the protector is installed in line
between the Outside Antenna and the
Signal Booster.
(Optional
second
antenna for
additional
coverage).
Null Zone: The area under
the Outside Antenna, where
the antenna radiates the
least.
3
4
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
Before Getting Started
This guide will help you properly install your Wilson Electronics
Signal Booster. It is important to read through all of the
installation steps for your particular application prior to
installing any equipment. Read through the instructions,
visualize where all the equipment will need to be installed and do
a soft installation before mounting any equipment.
Contact Wilson
Electronics Technical Support with any questions at: 866-294-1660.
Power
Supply
Signal
Booster
Lightning
Surge Protector
(recommended)
Splitter
(if using multiple
Inside Antennas)
(Optional
third antenna
for additional
coverage).
Inside Antenna
5Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
6

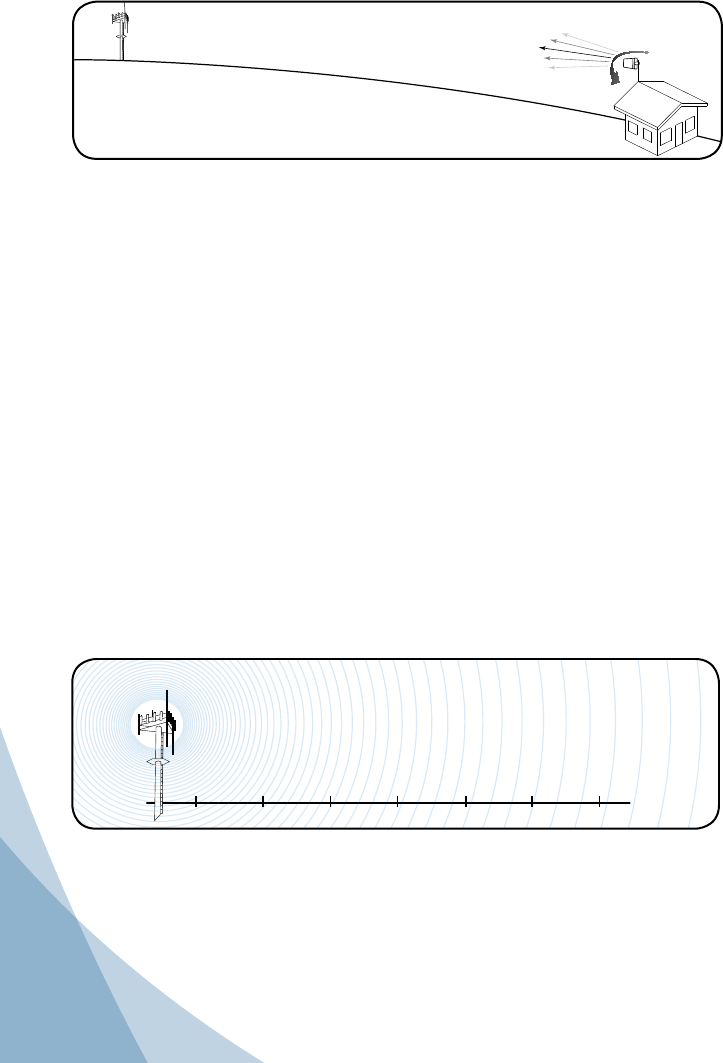

Reasons for Weak Cellular Signals
Anyone who uses a cell phone or cellular data card knows the
frustration of not being able to connect to or maintain a strong
cellular signal. When this occurs, it is generally due to one of two
reasons:
Location of the Nearest Cell Tower – Cell towers are situated 1.
to provide broad coverage; however, there are many areas in
which signal strength may be reduced by topographic features
or by local government restrictions on the height or placement
of the towers themselves. Rural areas generally have fewer cell
towers than urban regions.
Natural and Man-Made Obstructions – Signal strength can 2.
also be negatively affected by trees, hills, buildings, weather,
and other obstructions. You may be relatively close to a cell
tower but still unable to make a call. This often occurs in homes,
offices and other buildings in which stucco, concrete or metal
walls may block the signal.
The Signal Booster works with two antennas. The Inside Antenna
communicates with your cellular device and the Outside Antenna
communicates with the cell tower. The Outside Antenna receives
the cell tower signal and sends it through the cable to the Signal
Booster, where it is amplified and re-transmitted much stronger
through the Inside Antenna into the room. When the Inside Antenna
picks up a signal from your cellular device, the Signal Booster
amplifies that signal and transmits it through the cable to the Outside
Antenna and back to the cell tower. (Note: The Signal Booster will
only operate if there is an adequate signal to amplify.)
5
6
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
Cell Tower
Drip hole on bottom
Installing Lightning Protection
(sold separately)
Outside Antenna Installation
The Outside Antenna should be mounted as shown in the
illustration above. The mounting bracket, included with Outside
Antenna, is adjustable and will accommodate pipe diameters
from 1.25” to 2” (pipe sold separately Part# 901117). Mount the
antenna so that there is at least 3 feet of clearance in all directions
around it. Position the antenna so that it has an unobstructed line
of sight to the cell tower’s strongest signal. Make sure the Outside
Antenna is not pointing across your own roof or at the Inside
Antenna as this will cause the oscillation protection circuitry to
shut down the Signal Booster.
Warning
Lightning protection is recommended for all installations (sold
separately) (Part #859902). Take extreme care to ensure that neither
you nor the antenna comes near any electric power lines.
Install the Lightning Surge
Protector (LSP) close to
the Signal Booster. Attach
the cable from the Outside
Antenna to the surge
protector, using a short
length of low loss cable;
attach one end to the LSP
and the other to the Outside
Antenna connector on the
Signal Booster. Attach a
ground wire (not included)
to the LSP. LSP may be
purchased at www.WilsonElectronics.com or 800-204-4104.
To the Outside Antenna
Ground Wire
(not included)
Lightning Surge
Protector
Signal Booster
7Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
8
Mounting Tips for Running Outside
Antenna Cable
If you are mounting the Outside Antenna on the roof of your
building, we have found that it is easiest to run your cable
underneath the down side of your roof’s flashing. If you have
satellite TV service installed at your home or office, you may be
able to follow the same route as the satellite TV cables that are
already running from outside of your building to the inside. After
routing the cable, we recommend sealing any areas where the
cable passes into the building with silicone, cable bushings or
other waterproof sealant to keep your installation from leaking.
If you are mounting the Outside Antenna to the outside wall of
your home or building, the simplest way is to run the cable on
the outside of the wall and attach it to the exterior of your home
or office. Then drill a hole through the wall where you want the
cable to appear on the inside of the building. Before drilling, make
sure that there are no electrical outlets, sewer or water pipes, or
electrical wiring in the wall that you are about to drill through as
this could potentially harm you or damage the building.
After drilling the required hole, run the cable through and seal
it with silicone, cable bushings or other waterproof sealant to
Selecting a Direction for the Outside Antenna
Select a location on the roof of the building to install the Outside
Antenna. Use a cell phone in test mode to find the strongest signal
from the cell tower. See below for more information. To get the
strongest signal possible, it is very important to set up your Outside
Antenna properly. The Inside and the Outside Antenna must be
mounted in such a way that they are able to pick up the best possible
cell signal on the outside of the building and provide the best possible
signal on the inside of the building. Mount the Outside Antenna as
high as possible facing the cell tower in an area with the best possible
signal coverage. Note:
Never point the front of a directional antenna
toward the Inside Antenna. See Figures 1 & 2 on page 12.
7
8
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
enclose the hole that you have created. In some instances, it
may be possible to run the cable up into the fascia of the attic
overhang. In this circumstance, the cable will be accessible in the
attic for further routing.
Installing the Inside Antenna
Find the desired location for the Inside Antenna (Panel Antenna
option shown). Verify that the Inside Antenna and the Outside
Antenna have the necessary separation (Minimum of 20 vertical/
horizontal feet if installed with Signal Booster set at a lower
gain, for maximum gain you may need as much as 50 feet of
separation). For optimum results the antenna should be mounted
at least 6 feet off the ground.
Ceiling
Rafters
Inside
Antenna
In some cases, multiple Inside Antennas may be required, for
instance if you have multiple rooms with poor signal. A signal may
be split by using a splitter (sold separately). If using more than
one Inside Antenna, a separation of at least 20 feet is necessary
between Inside Antennas. See configuration on pages 3 & 4.
Warning: An Inside Antenna must have a separation distance
from all persons that is at least 8 inches.
Splitter Options:
3-way
(859980)
4-way
(859981)
2-way
(859957)
(sold separately)
Optional Panel
Inside Antenna
(sold separately)
9Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
10
Installing a Wilson Electronics Signal Booster
Select a location to install the Signal Booster that is away from
excessive heat, direct sunlight, moisture and that has proper
ventilation. Do not place the Signal Booster in an air-tight
enclosure. Recommended installation locations for in-building
Signal Boosters are near a power outlet and in a closet, or on a
shelf.
Note: It is important to have adequate air ventilation. Maintain at
least 6 inches of clearance from surrounding objects.
Run the Outside Antenna cable to the Signal Booster and attach it
to the connector labeled “Outside Antenna” on the Signal Booster.
Run the Inside Antenna cable to the Signal Booster and attach it to
the connector labeled “Inside Antenna” on the Signal Booster.
Note:
For distances of 20 feet or more, use Wilson low loss cable to
prevent significant signal loss.
Note: Be careful when plugging the connector in so as not to
damage the center pins on the connectors.
9
10
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
Powering up a Wilson Electronics
Signal Booster
1. Never point the front of a Directional Outside Antenna toward the
Inside Antenna. See Figures 1 & 2 on page 12.
2. Ensure that both the Outside Antenna cable and the Inside
Antenna cable are connected to the Signal Booster and the
connections are tight before powering up the Signal Booster.
3. Plug the power supply into the Signal Booster input marked “6V
DC” (carefully, to avoid damaging the center pin) and then into a
wall outlet.
4. If the Signal Booster does not have a green light (700 MHz)
please see pages 13 & 14.
5. Using multiple Signal Boosters in one installation could cause
interference to the cell tower.
6.
Contact Wilson Electronics Technical Support Team with any
questions at 866-294-1660 or email tech@wilsonelectronics.com.
Technical Support hours are 7 am to 6 pm MST.
11Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
12
Finding the Strongest Signal
When installing your Signal Booster’s Outside Antenna, aiming
it towards the best signal source from you service provider is
important. After you have completed the install, the best way
of getting the strongest signal is to have one person on the roof
to rotate the Outside Antenna, which is connected to the Signal
Booster. Turning the Outside Antenna about 45 degrees at a
time, while the second person is watching the signal strength on
the phone inside the building. This allows you to read the signal
strength from the cell tower. It is preferable to have the phone in
the test mode so the actual signal strength can be read, as bars
are not the most accurate. Go to www.WilsonElectronics.com for
help in finding the test mode for your phone. Always make sure
the person inside the building gives the signal time to arrive and
register on the phone. (Between 10-30 seconds for phone to reset
to the signal reading).
Signal readings usually appear as a negative
number (for example, -86). The closer you get to zero the stronger the
signal. (See graph below).
-50dB -60dB -70dB -80dB -90dB -100dB -110dB
EXCELLENT GOOD POOR NO
SIGNAL
Signal Strength Graph
Cell Tower
Cell Signal
Outside
Wide Band
Antenna
11
12
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
Signal Booster
Outdoor
Antenna
Inside
Antenna
Figure 2
INCORRECT INSTALLATION
Never point antennas toward each other
Point antennas away from each other
Signal Booster
Outdoor
Antenna
Inside
Antenna
Figure 1
CORRECT INSTALLATION
13Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
14
During installation mode the Signal Booster is resetting itself very
quickly to aid the installer. The Signal Booster is equipped with
one indicator light for the 700 MHz band and one for the power.
For the first 15 minutes that the Signal Booster is plugged in, it is
programed for a test and alignment period.
1. BLINKING GREEN
If the Signal Booster 700 MHz light is blinking green, the Signal
Booster is operating properly. If you are happy with the coverage
area in your building, then you are done. Blinking will stop after
the 15 minute installation period.
2. BLINKING ORANGE
If the 700 MHz light on the Signal Booster is blinking orange, the
Signal Booster is experiencing receiver (cell tower) overload.
The Signal Booster has protection shut off circuits to prevent
the disruption of cell towers. If the light is blinking orange, this
indicates that gain should be reduced due to close proximity to a
cell tower. First, turn down the uplink (UL) gain control until you
get a blinking green light. Do not adjust the downlink (DL) knob
at this time. The Signal Booster is now working with reduced gain
on the uplink. If the gain is not adequate for good coverage, you
will need to turn the UL gain to maximum and then rotate the
Outside Antenna until the light turns to blinking green, waiting
5 seconds between each adjustment for the Signal Booster to
Understanding the Signal Booster Lights and
Troubleshooting
Note: If after the initial 15 minutes you are not done with the
installation, the Signal Booster can be reset and enter installation
mode again by disconnecting and reconnecting the power supply
from the Signal Booster.
For the first 15 minutes the
700 MHz light will do one of
the following 4 things:
13
14
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
reset. If you do not get a green light, turn the UL gain down 5 dB
and rotate the Outside Antenna. Continue to adjust the UL gain
and the Outside Antenna position until the light turns blinking
green. If the UL gain was reduced and the light is green and you
have good signal strength but are unable to place a call, it may
be necessary to lower the DL gain control to the same setting as
the UL. This is because some cell systems require a balanced
gain between UL and DL for proper operation. Contact Wilson
Electronics Technical Support Team for assistance:
866-294-1660.
3. SOLID RED
If the 700 MHz light on the Signal Booster is solid red, this
indicates that the Signal Booster has shut down to prevent
an oscillation (feedback). First, make sure that all the
connections are tight. Then reduce the DL and the UL gain
of the Signal Booster in 5 dB increments by rotating the
gain control counter-clockwise, waiting 5 seconds between
each adjustment for the Signal Booster to reset. Continue
this adjustment until the 700 MHz light turns blinking or solid
green. When you are turning down the DL gain, you are
reducing the inside coverage area. If the amount of coverage
area is sufficient for your needs and the 700 MHz light is
green, the installation is complete. If the coverage area is
not large enough, it is necessary to increase the separation
distance of the Inside and Outside Antennas by moving them
horizontally and/or vertically farther apart. Then increase
the DL and UL gains until the red light comes on, and then
decrease the gains until the green or blinking green light
appears. If after separating the antennas your coverage area
is still too small, contact Wilson Electronics Technical Support
Team for assistance: 866-294-1660.
4. SOLID GREEN
The 700 MHz indicator light on the Signal Booster will be a solid
green after the first 15 minute installation period, if the unit is
powered up and working properly.
15Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
16
Warnings and Recommendations
Warning: The Directional Antenna must always be located so
the back or side points to the Inside Antenna. Never
point the front of the Outside Antenna toward the
Inside Antenna – this is to prevent oscillation.
Warning: Connecting the Signal Booster directly to the cell
phone with use of an adapter will damage the cell
phone.
Warning: Use only the power supply provided. Use of a
non-Wilson Electronics product may damage your
equipment.
Warning: RF Safety: Any fixed Outside Antenna used with this
Signal Booster may not have gain (less cable loss)
that exceeds 10 dBi and must be located at least 14
inches from all people. Any Inside Antenna used with
the Signal Booster may not have gain (less cable
loss) that exceeds 7.6 dBi and must be located at
least 8 inches from all people. The antenna options
appearing in this installation guide meet these
requirements.
Warning: Verify that both the Outside Antenna and the Inside
Antenna are connected to the Signal Booster before
powering up the Signal Booster.
Recommendation: Lightning Surge Protection is recommended
for all in-building installations.
15
16
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
About Wilson Electronics
Wilson Electronics, Inc. has been a leader in the wireless
communications industry for over 40 years. The company designs
and manufactures Signal Boosters, Antennas and related
components that significantly improve cellular phone signal
reception and transmission in a wide variety of applications, both
mobile (marine, RV, vehicles) and in-building (home, office, M2M).
With extensive experience in antenna and Signal Booster
research and design, the company’s engineering team uses
a state-of-the-art testing laboratory, including an anechoic
chamber and network analyzers, to fine-tune antenna designs
and performance. For its Signal Boosters, Wilson Electronics
uses a double electrically insulated RF enclosure and cell tower
simulators for compliance testing.
Wilson Electronics Signal Boosters feature patented Smart
Technology ™ that enables them to automatically adjust their
power based on cell tower requirements. By detecting and
preventing oscillation (feedback), signal overload and interference
with other users, these Smart Technology ™ Signal Boosters
improve network cell phone areas without compromising carrier
systems.
All products are engineered and assembled in the company’s
55,000-square-foot headquarters in St. George, Utah. Wilson
Electronics has product dealers in all 50 states as well as in
countries around the world.
17Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
18
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson
Electronics 30-day money-back guarantee. If for any reason the
performance of any product is not acceptable, simply return the
product directly to the reseller with a dated proof of purchase.
1-Year Warranty
Wilson Electronics Signal Boosters are warranted for one (1) year
against defects in workmanship and/or materials. Warranty cases
may be resolved by returning the product directly to the reseller
with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer
at the consumer’s expense, with a dated proof of purchase and a
Returned Material Authorization (RMA) number supplied by Wilson
Electronics. Wilson Electronics shall, at its option, either repair
or replace the product. Wilson Electronics will pay for delivery of
the repaired or replaced product back to the original consumer if
located within the continental U.S.
This warranty does not apply to any Signal Booster determined
by Wilson Electronics to have been subjected to misuse, abuse,
neglect, or mishandling that alters or damages physical or
electronic properties.
RMA numbers may be obtained by phoning Technical Support at
866-294-1660.
Disclaimer
The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed
by Wilson Electronics, Inc. for any business or personal losses
arising from its use, or for any infringements of patents or other
rights of third parties that may result from its use.
17
18
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Hours: 7 am to 6 pm MST.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause
undesired operation. Changes or modifications made that are not
expressly approved by Wilson Electronics could void authority to
operate this equipment.
One or more of the following U.S. Patent numbers may apply
to the Signal Booster in this product – D596,614; D596,615;
D563,381;7,729,669; 7,486,929; 7,729,656; 7,409,186; 7,783,318;
7,684,838; 12,714,994.
Copyright © 2011 Wilson Electronics, Inc. All rights reserved.
4G LTE 700 Specifications
4G LTE 700 Specifications
Model Number 271865
Antenna connectors N-Female
Antenna impedance 50 ohms
Dimensions 5.7 x 4.2 x 1.5 inch (14.0 x 10.8 x 3.9 cm)
Weight 1.27 lbs (0.544 kg)
Frequency Uplink 776 - 787 MHz / Downlink 746 - 757 MHz
1Passband Gain (nominal)
Uplink/Downlink 70 dB Typical / 75 dB Maximum
220 dB Bandwidth (nominal) Downlink
Uplink (776 - 787 MHz) 26 MHz
Downlink (746 - 757 MHz) 24 MHz
3Power Output Uplink Downlink
Power output for single cell phone (uplink) or single received channel
(downlink) 28.7 dBm 25.5 dBm
4Power output for multiple channels Maximum Power
The maximum power is reduced
by the number of channels: Number of channels Uplink Downlink
2 25.3 dBm 26.3 dBm
3 18.3 dBm 18.3 dBm
4 19.3 dBm 20.2 dBm
5 17.4 dBm 18.3 dBm
6 15.8 dBm 16.7 dBm
Noise Figure (typical downlink/uplink) 3.5 dB nominal / 5 dB nominal
Isolation > 90 dB
Power Requirements 110-240 V AC, 50-60 Hz, 10 W
Notes:
1. Nominal gain is the maximum gain at any frequency in the passband.
2. Nominal bandwidth is the difference between two frequencies that are adjacent to the passband where the amplification is 20 dB lower than the passband
amplification. One of the frequencies is lower than the passband and the other is higher.
3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating
would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power
reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.
4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB every time the number of signals is doubled.
3301 East Deseret Drive, St. George, UT 84790
For additional Technical Support visit www.WilsonElectronics.com
or email at: tech@wilsonelectronics.com
Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432
www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular
AIG #110996 - Rev1 - 08/25/11
