Wilson Electronics 273201 WIRELESS DUAL-BAND BI-DIRECTIONAL AMPLIFIER User Manual Users Guide
Wilson Electronics, LLC WIRELESS DUAL-BAND BI-DIRECTIONAL AMPLIFIER Users Guide
Users Guide
Contents:
How it Works ...................................1
Before Getting Started ............................1
Quick Installation Overview ........................2
Installing the Outside Antenna ......................2
Installing the Low-Profile Antenna ...................3
Installing a Wilson Electronics Signal Booster. . . . . . . . . . 3
Powering Up a Wilson Electronics Signal Booster . . . . . . 4
Understanding the Signal Booster Lights . . . . . . . . . . . . . 4
Warnings and Recommendations ...................5
Guarantee and Warranty ..........................6
Signal Booster Specifications . . . . . . . . . . . . . .Back Cover
Note: This manual contains important safety and operating information.
Please read and follow the instructions in this manual. Failure to
do so could be hazardous and result in damage to your Signal
Booster.
Mobile Wireless
Dual-Band
Smart Technology ™
Signal Booster
Appearance of device and accessories may vary.
1Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660
Or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7am to 6 pm MST.
2
Installation Instructions for the Following Wilson Electronics Signal Boosters:
Mobile Wireless Dual-Band Smart Technology ™ Signal Booster
Model # 273201, Part # 801201, 801212, 801215
FCC ID: PWO273201 IC: 4726A-273201
Wireless
Signal Booster

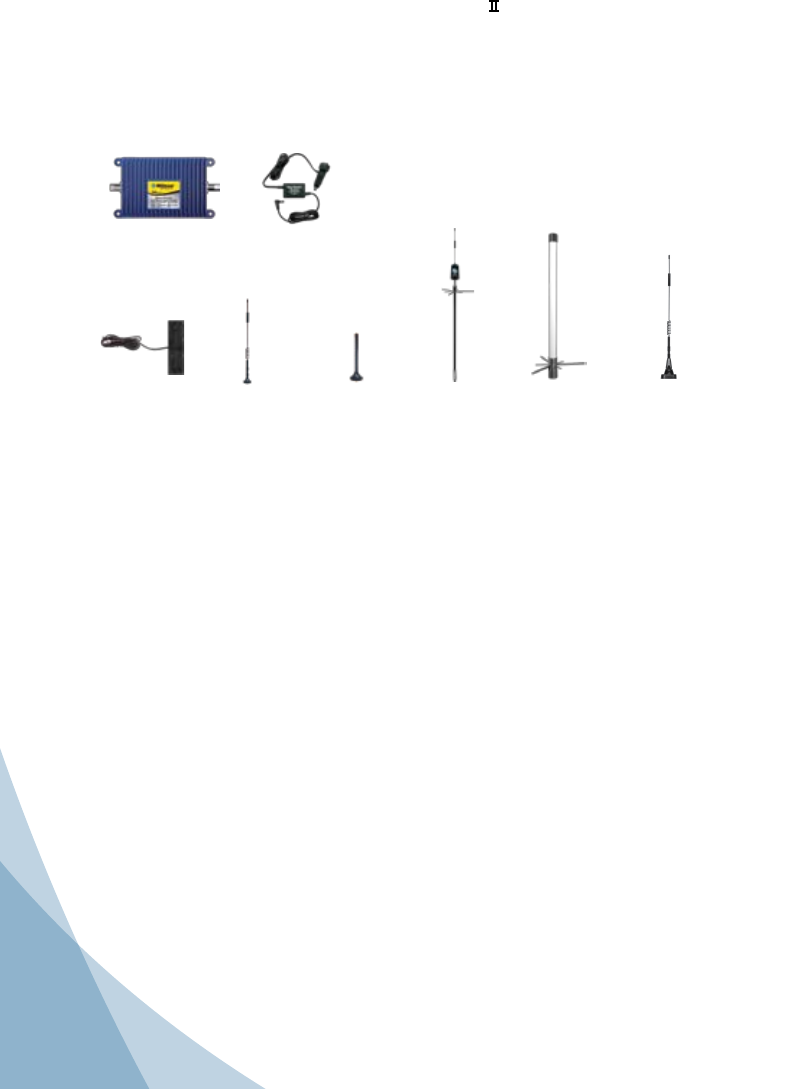

DC plug-in
power supply
(301127)
Low-Profile
Antenna
(301104)
NMO
Mount
Dual-Band
(301103)
Magnet Mount
Dual-Band
(301101)
Trucker
Mount
Tri-Band
(301113)
Mini
Magnet
Dual-Band
(301130)
Marine
Antenna
Dual-Band
How it Works
Your new Wilson Signal Booster has been carefully engineered to significantly improve the
performance of your cell phone and cellular data card in mobile applications. Together with
an Outside Antenna, the Signal Booster’s state-of-the-art technology is designed to increase
your signal more than 20 times, reduces dropped calls and increase data communication
rates needed for 3G technologies.
The Outside Antenna will collect the cell tower signal and send it through the cable to the
Signal Booster. The signal is then boosted and sent to the Inside Antenna. Your cellular
device then communicates with the improved signal. When the cellular device transmits, the
signal goes through the Inside Antenna, is boosted by the Signal Booster and transmitted to
the cell tower through the Outside Antenna.
Optional Antennas
Before Getting Started
This guide will help you properly install your Wilson Electronics Dual-Band Mobile Wireless
Signal Booster. It is important to read through all of the installation steps for your
particular application prior to installing any equipment. Read through the instructions,
visualize where all the equipment will need to be installed and do a soft installation before
mounting any equipment. Contact Wilson Electronics Technical Support Team with any
questions at 866-294-1660.
(Included with
some kits)
(Included with
some kits)
Wilson Electronics manufactures a wide variety of antennas to help you customize your
Signal Booster for your specific application. Several authorized antennas are shown above.
See your dealer or visit www.WilsonElectronics.com.
(Included with
some kits)
The term “IC” before the radio certification number only signifies that Industry Canada
technical specifications were met.
Inside this Package
Appearance of device and accessories may vary.
1
2
Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660
Or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7am to 6 pm MST.
Warning: In a
wireless installation,
do not plug the Signal
Booster directly into
the cell phone and/
or data card using
an antenna adapter.
It may damage the
Signal Booster, cell
phone and/or data
card.
!
!
!
Quick Installation Overview
Installing the Outside Antenna

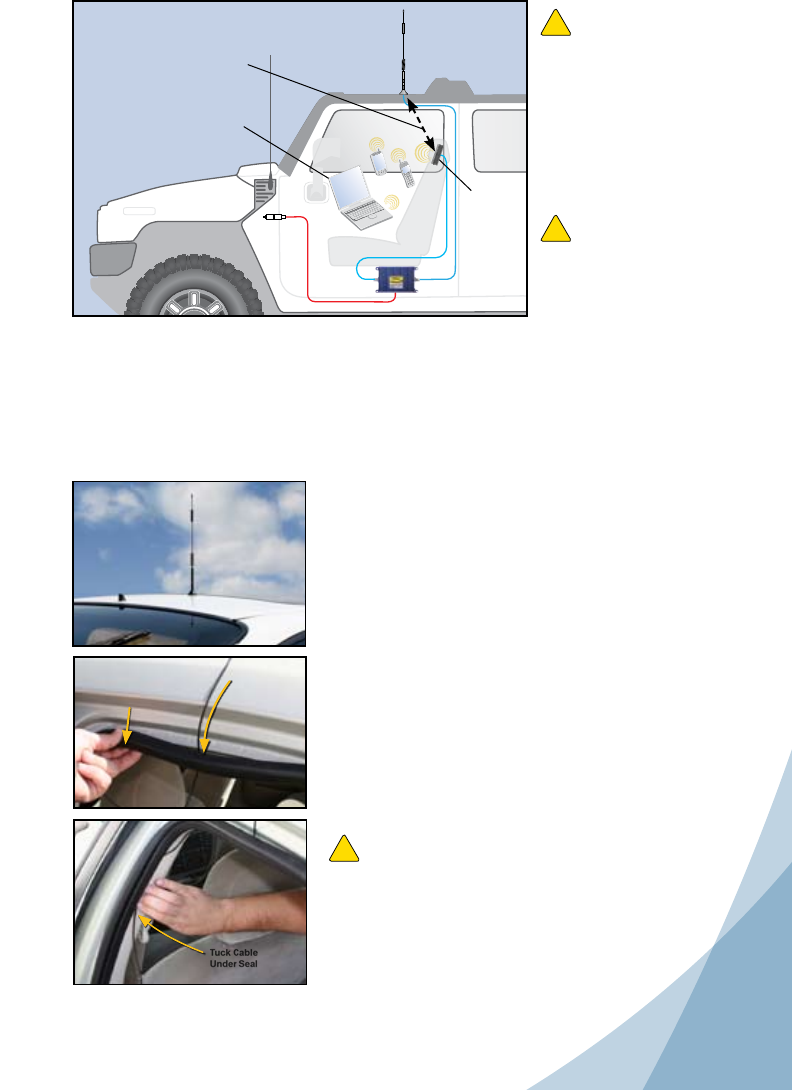

To receive the best cell signal, select a location in the center of the vehicle’s roof 12 inches
away from any other antennas or windows. If the vehicle has a sunroof, it is important to
separate the Inside and Outside Antennas by at least five feet. This prevents the Signal
Booster from overloading or oscillating. As shown above. Follow the specific antenna
installation instructions included with the Outside Antenna.
Magnet - Mount
Antenna Shown
Part #301103
Carefully
Pull Down
Door Seal
Run Cable
Under Seal
Tuck Cable
Under Seal
Separation of the Inside and Outside Antennas is
very important. The metal roof of the vehicle acts as a
barrier and helps shield the two antennas from each
other, preventing oscillation (feedback).
The Outside Antenna must be installed vertically.
Signal performance will be degraded if the antenna is
not vertical.
The antenna cable may run through the door to the
Signal Booster.
For a more professional looking installation, run the
antenna cable under the door seal. The antenna cable
is small enough to easily tuck under the door seal or
plastic molding. Carefully pull down the door seal. Run
the cable through the seal and push the seal back into
place. This prevents constant wear and tear on the
cable as the door opens and closes.
Warning: Do not plug
in the DC power supply
until the Outside and
Inside Antenna cables
are attached to the
Signal Booster.
Warning: Do not use any type of glass-mount
antenna with this Signal Booster. The Outside
and Inside Antennas must be shielded from each
other to prevent oscillation (feedback).
Installation Diagram
Outside
Antenna
Inside
Antenna
Distance between antennas
through a sunroof must be 5
feet or more.
DC Power
Supply
Signal
Booster
Cell Phone
PDA
Notebook
3Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660
Or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7am to 6 pm MST.
4

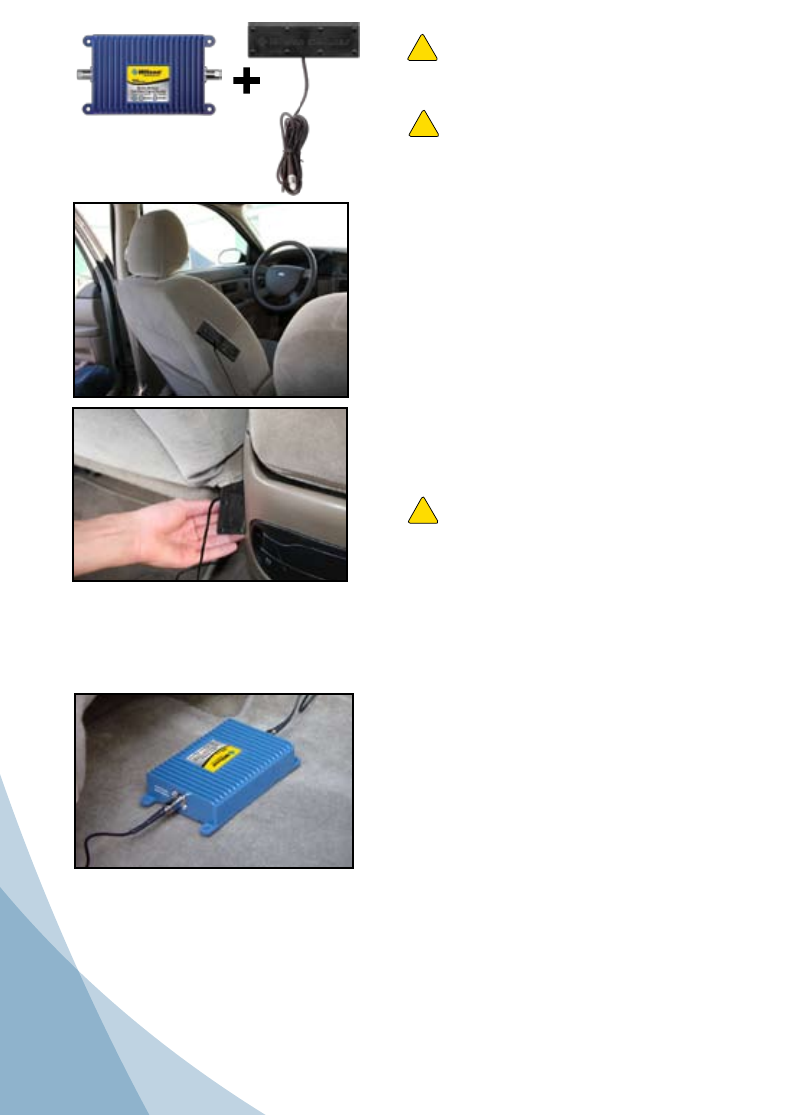

Place the Low-Profile Antenna on the
side of the driver’s seat for maximum
performance.
Install the Low-Profile Antenna at least eight
inches, but not more than 12 inches, from
where the cellular device will be used.
Install the Low-Profile Antenna at the same
angle as the cell phone when held in use, or
place next to the laptop’s cellular data card.
This will maximize the signal strength.
For a more professional looking installation,
the Low-Profile Antenna may be slid under
the seat cover or upholstery, high on the
driver’s seat.
Warning: Do not install the low-profile
antenna within four inches of metal.
(Metal found inside the vehicle’s seat will
not affect the antenna’s performance.)
Signal Booster Low-profile
Antenna
Installing the Low-Profile Antenna
Installing a Wilson Electronics Signal Booster
Warning: The Inside Antenna must be
installed with a separation of at least eight
inches from all persons and must not
be located in conjunction with any other
antenna or Signal Booster.
Warning: Do not plug in the DC power
supply until the Outside and Inside
Antenna cables are attached to the Signal
Booster.
Run the cable from the Outside Antenna and
attach it to the connector labeled “Outside
Antenna” on the Signal Booster.
Attach the Low-Profile Antenna cable to the
connector labeled “Inside Antenna” on the
Signal Booster.
!
!
!
Select a location to install the Signal Booster that is away from excessive heat, direct
sunlight, moisture and that has proper ventilation.
NOTE: The aluminum casing of a Wilson Signal Booster will adjust very quickly to the
ambient temperature of its environment. For example, in the summer, when the inside
of a car can reach 140 degrees Fahrenheit, the Signal Booster temperature may be 150
degrees or higher. The casing will be hot to the touch, similar to a metal door handle or a
steering wheel. Such high temperatures will not damage the Signal Booster, nor do they
pose a fire risk to the vehicle. As recommended in these instructions, install the Signal
Booster in a location with adequate ventilation, such as under the seat or under the
dashboard. Keep the area free of items that could block air flow to the Signal Booster.
3
4
Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660
Or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7am to 6 pm MST.
Powering up a Wilson Electronics Signal Booster
Connect the power cable from the DC plug-in power
supply to the Signal Booster marked “6 V DC” and
insert the large end into DC power socket (the vehicle
power adapter outlet).
The Signal Booster may remain on all the
time. However, leaving the Signal Booster
on in a vehicle when it is not running can
discharge or drain the battery in a day or
two. Switch the power supply off when not
in use.
A good option is to power the Signal
Booster through the ignition switch so the
Signal Booster is turned on and off with the
vehicle.
An available option to do this with is the
Hardwire Kit from Wilson Electronics.
Part# 859923.
IMPORTANT: Do not power up the Signal
Booster unless antenna cables are attached
to Signal Booster.
ON/OFF SWITCH

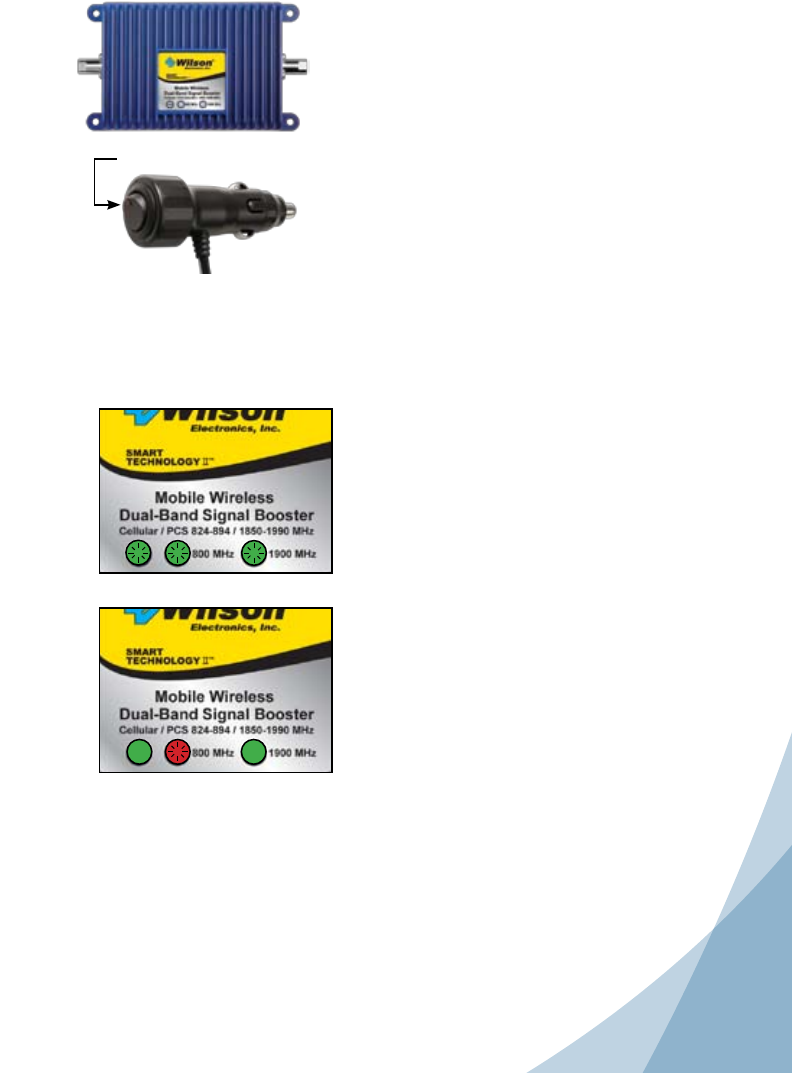

Understanding the Signal Booster Lights
The power light will turn green when the
Signal Booster is successfully powered up.
When the 800 MHz or 1900 MHz lights are
lit green, the Signal Booster is amplifying
the outside signal.
If one or both frequency lights turn red,
oscillation is occurring and the Signal
Booster has powered down on the
frequency with the red light to prevent
oscillation. The Outside Antenna needs to
be moved farther from the Inside Antenna.
Move the Outside Antenna on the roof of
the car to the rear of the car, but at least
8-12 inches from the rear or side windows.
Disconnect power from the Signal Booster
and reconnect power. This resets the
Signal Booster.
If the lights are now green, the Signal
Booster is working properly. If the red light
is still on, move the antenna farther away
and repeat the process.
Always use a magnet-mount or roof-
mount antenna. Do not use a glass-
mount antenna, as oscillation may cause
continuous shut-down of the Signal Booster.
All green lights
Red light on frequency indicator
5Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660
Or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7am to 6 pm MST.
6
About Wilson Electronics
Wilson Electronics, Inc. has been a leader in the wireless communications industry for over
40 years. The company designs and manufactures Signal Boosters, antennas and related
components that significantly improve cell phone signal reception and transmission in a
wide variety of applications, both mobile, M2M and in-building.
With extensive experience in antenna and Signal Booster research and design, the
company’s engineering team uses a state-of-the-art testing laboratory, including an
anechoic chamber and network analyzers, to fine-tune antenna designs and performance.
For its Signal Boosters, Wilson Electronics uses a double electrically shielded RF enclosure
and cell tower simulators for compliance testing.
Wilson Electronics Signal Boosters feature patent-pending Smart Technology ™ that
enables them to automatically adjust their power based on cell tower requirements. By
detecting and preventing oscillation (feedback), signal overload and interference with other
users, these Smart Technology ™ Signal Boosters improve network cell phone areas
without compromising carrier systems.
All products are engineered and assembled in the company’s 55,000-square-foot
headquarters in St. George, Utah. Wilson Electronics has product dealers in all 50 states
as well as in countries around the world.
This device complies with Part 15 of FCC rules. The transaction is subject to two
conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation. Changes or modications not expressly approved by Wilson Electronics could
void the authority to operate this equipment.
Warnings and Recommendations
Warning: In a wireless installation, do not plug the Signal Booster directly into the cell
phone or cellular data card using an antenna adapter. It will damage the
Signal Booster, cell phone or cellular data card.
Warning: Do not plug in the DC power supply until the Outside and Inside Antenna
cables are attached to the Signal Booster.
Warning: RF Safety: The Inside Antenna must be installed with a separation of at least
8 inches from all persons and must not be located in conjunction with any
other antenna or Signal Booster.
Warning: RF Safety: All Inside Antennas used with this Signal Booster may not have
gain (less cable loss) that exceeds 15 dBi and must be located at least 8
inches from all people. Outside mobile antennas may not have gain (less
cable loss) that exceeds 2.3 dBi and must be located at least 8 inches from
all people. Outside fixed antennas may not have gain that exceeds 15 dBi
(less cable loss) and must be located least 28 inches from all people. All
antennas shown on page one meet these requirements.
Warning: Use only the power supply provided in this package. The power supply must
be 6 V DC Output.
5
6
Contact Wilson Electronics’s Technical Support Team with any questions at 866-294-1660
Or email: tech@wilsonelectronics.com Mon.- Fri. Hours: 7am to 6 pm MST.
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day money-
back guarantee. If for any reason the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
1-Year Warranty
Wilson Electronics Signal Boosters are warranted for one (1) year against defects
in workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization (RMA)
number supplied by Wilson Electronics. Wilson Electronics shall, at its option, either
repair or replace the product. Wilson Electronics will pay for delivery of the repaired
or replaced product back to the original consumer within the continental U.S..
This warranty does not apply to any Signal Boosters determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by contacting Technical Support at 866-294-1660.
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to be
complete and accurate. However, no responsibility is assumed by Wilson Electronics,
Inc. for any business or personal losses arising from its use, or for any infringements of
patents or other rights of third parties that may result from its use.
Copyright © 2012 Wilson Electronics, Inc. All rights reserved.
Part # AIG 110727 - REV.28 - 04.09.12
Signal Booster Specifications
Dual Band Specifications
Model Number
Part Number
273201
Connectors FME-Male
Impedance (input/output) 50 ohms
Dimensions 5.6 x 3.6 x 1.7 inch (14.2 x 9.1 x 4.4 cm)
Weight 1.2 lbs (0.54 kg)
Frequency 824-894 MHz / 1850-1990 MHz
1Passband Gain (nominal) 800 MHz
Typical / Maximum
1900 MHz
Typical / Maximum
49 dB / 54 dB 50 dB / 55 dB
220 dB Bandwidth (nominal) 800 MHz
Typical / Maximum
1900 MHz
Typical / Maximum
25 MHz / 28 MHz 61 MHz / 67 MHz
Power output for single cell phone (uplink) dBm 800 MHz 1900 MHz
CDMA 30.2 30.7
HSPA 26.8 28.2
LTE 28.2 28.5
GSM 27.8 29.9
EDGE 27.7 29.8
3,4Power output (uplink) for multiple
cell phones. dBm
The maximum power is reduced by
the number of channels:
Number of
cell phones
Maximum Power
800 MHz 1900 MHz
2 26.0 22.2
3 22.5 18.7
4 20.0 16.2
5 18.1 14.3
6 16.5 12.7
Power output for single received channel
(downlink) dBm 800 MHz 1900 MHz
CDMA 9.3 7.3
HSPA 8.2 6.1
LTE 8.4 8.3
GSM 9.6 6.6
EDGE 8.5 6.2
3,4Power output for multiple
received channels (downlink). dBm
The maximum power is reduced by
the number of channels:
Number of
channels
Maximum Power
800 MHz 1900 MHz
2 6.2 4.6
3 2.7 1.1
4 0.2 -1.4
5 -1.7 -3.3
6 -3.3 -4.9
Noise Figure (typical) 3 dB nominal
Isolation > 65 dB
Power Requirements
Signal Booster Usage 6 V, 0.5 A - 2 A (subject to uplink power)
Notes:
1. Nominal gain is the maximum gain at any frequency in the passband.
2. Nominal bandwidth is the difference between two frequencies that are adjacent to the passband where the amplification is 20 dB
lower than the passband amplification. One of the frequencies is lower than the passband and the other is higher.
3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier
signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can
cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by
an attenuator at the output of the device.
4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB for each doubling of the number of signals.
3301 East Deseret Drive, St. George, UT 84790
For additional Technical Support visit www.WilsonElectronics.com
Phone: 866-294-1660 Fax: 435-656-2432
