Wilson Electronics 273470 Quint-Band Signal Booster User Manual
Wilson Electronics, LLC Quint-Band Signal Booster Users Manual
Users Manual
Contents:
Antenna Options & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Quick Install Overview .......................................2
Installation Diagram .........................................3
Before Getting Started .......................................4
Finding the Strongest Signal ..................................6
Outside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the Inside Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing a Wilson Electronics Signal Booster. . . . . . . . . . . . . . . . . . . . . 9
Powering up a Wilson Electronics Signal Booster .................10
Warnings and Recommendations .............................16
Guarantee & Warranty ......................................18
Specifications .................................... Back Cover
Note: This manual contains important safety and operating information. Please read and follow the
instructions in this manual. Failure to do so could be hazardous and result in damage to your Signal
Booster.
AG Pro Quint
Selectable
700 / 800 / 1700-2100 / 1900 MHz
(Band 2, 4, 5, 12 & 13)
In-Building Wireless
Smart Technology ™
Signal Booster
Appearance of device and accessories may vary.
TM
1Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
2
Installation Instructions for the Following Wilson
Electronic Signal Booster:
AG Pro™ Quint Selectable
(Band 2, 4, 5, 12 & 13) 700 / 800 / 1700-2100 / 1900 MHz
In-Building Wireless Smart Technology ™ Signal Booster
Model #273470 FCC: PWO273470
How it Works
Wilson Electronics Signal Boosters are bi-directional devices that deliver
service levels consistent with what would be expected in areas of high cell
network coverage. They amplify a weak or shadowed signal in mobile,
M2M, marine and in-building applications. When using a Wilson Electronics
Signal Booster in conjunction with Wilson Electronics antennas, the
Outside Antenna will collect the cell tower signal and send it through
the cable to the Signal Booster. The signal is then amplified and re-
transmitted through the Inside Antenna into the room. Cell phones and
cellular data cards in that area then communicate with the improved
signal. When a cell phone or cellular device transmits, the signal is
received by the Inside Antenna, amplified by the Signal Booster and
transmitted back to the cell tower through the Outside Antenna.

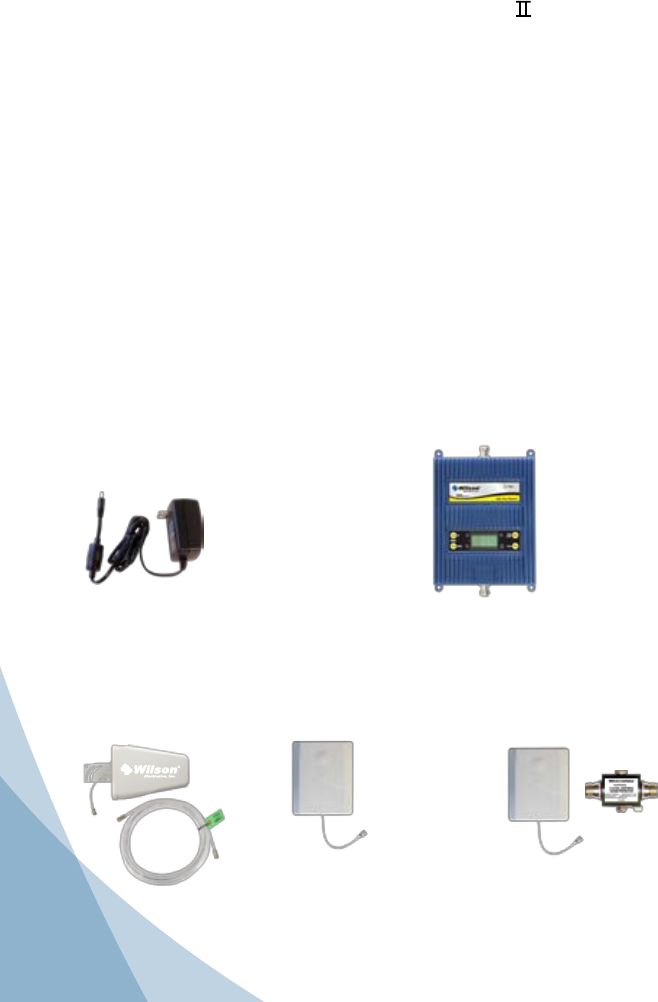

Inside this Package
Signal
Booster
AC/DC
Power Supply
5V / 4A
(859998)
To purchase, call Wilson Electronics Sales Department at: 800-204-4104
We recommend using directional antennas with this Signal Booster.
Outdoor Antenna Options
& Accessories Indoor Antenna Options & Accessories
1. Wide Band Directional Antenna 700 - 2700 MHz
(304411) Note: The outside fixed antenna must be
connected with a minimum of 26’ of RG58 coaxial
cable (950630}.
2. Pole Mount Wide Band Panel Antenna (304453)
A. Wide-Band Panel Antenna 700-2700 MHz
(multiple mounting options available)
B. 50 Ohm Lightning Surge Protector N Connector
(859902)

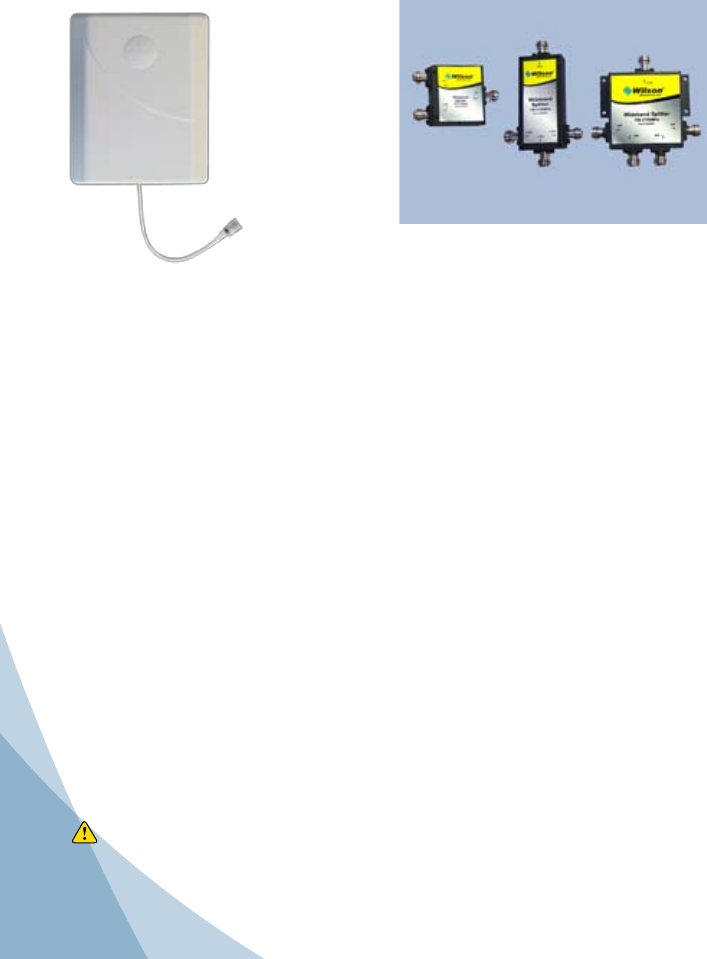

Splitter options on page 9
2
1
B
A
Note: Kits may contain different accessories
Appearance of device and accessories may vary.
1
2
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Select a location to install the Signal Booster that is away from 1.
excessive heat, direct sunlight, moisture and has proper ventilation. Do
not place the Signal Booster in an air-tight enclosure.
Select a location on the roof of the building to install the Outside Antenna. 2.
Use a cell phone in test mode to find the strongest signal from the cell tower.
Refer to page 7. Visit
www.WilsonElectronics.com
to find the test mode
function for your particular cell phone.
Run the Outside Antenna cable to the Signal Booster and attach it to the 3.
connector labeled “Outside Antenna” on the Signal Booster. Refer to page
8 for more information on running cable. Lightning Surge Protection is
recommended for all in-building installations refer to page 6.
Select a location for the Inside Antenna, preferably in the center of 4.
where the signal needs to be amplified. A minimum separation distance
of 20 vertical feet (within the null zone) or 50 horizontal feet is
necessary for proper operation. If the inside coverage is not sufficient
you may need as much as 75 feet of horizontal separation (refer to
installation diagram on pages 3 & 4).
Run the Inside Antenna cable to the
Signal Booster and attach it to the connector labeled “Inside Antenna” on
the Signal Booster.
Before powering up the Signal Booster, verify that both the Outside 5.
Antenna and the Inside Antenna are connected and check that all
connections are tight. Refer to page 9. Note: Be careful when plugging
the connectors in so as not to bend the center pins on the connectors.
If lights are not green, please refer to pages 13 & 14.6.
Quick Install Overview
See Installation Diagram on page 3 & 4. Contact Wilson Electronics
Technical Support Team with any questions at 866-294-1660.
Warning: Connecting the Signal Booster directly to a cell phone with
use of an adapter will damage the cell phone and/or the
Signal Booster.

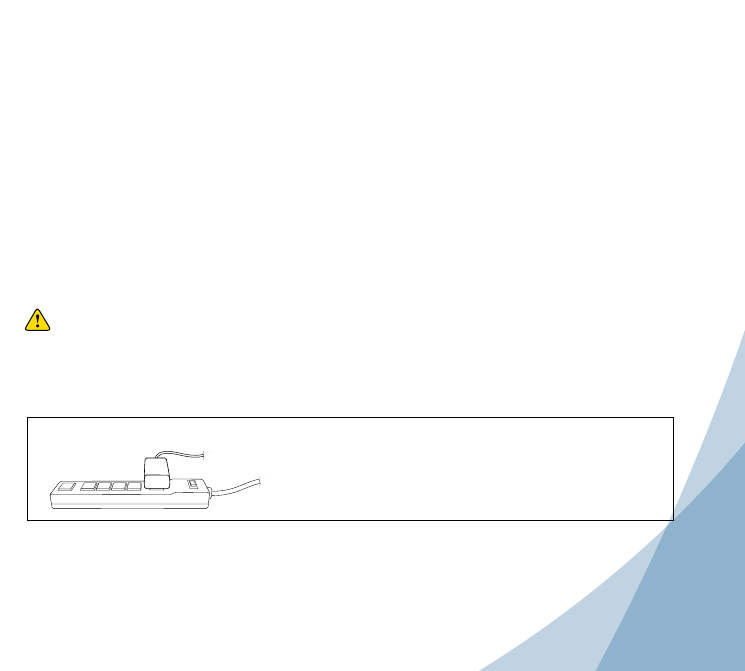

IMPORTANT NOTICE
It is very important to power your Signal Booster using a •
surge protected AC Power Strip with at least a 1000 Joule
rating.
Failure to do this will void your warranty in the • event of a
power surge or lightning strike.
3Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
4

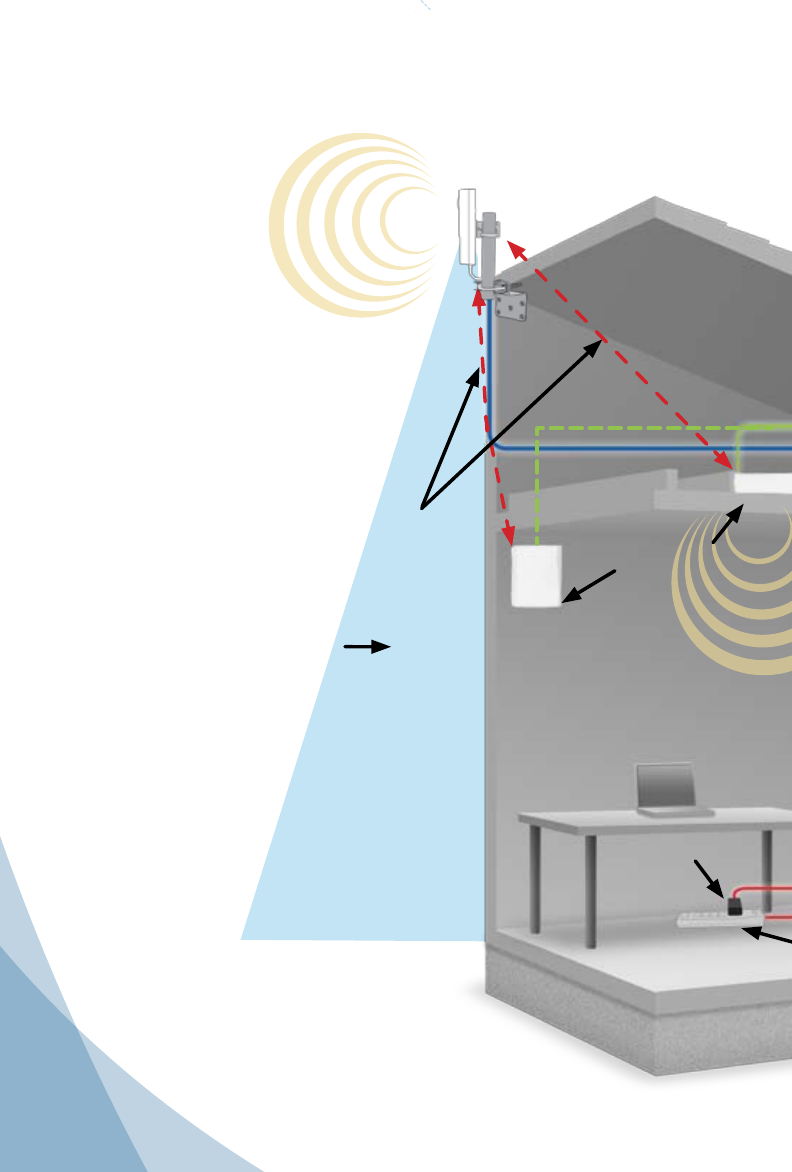

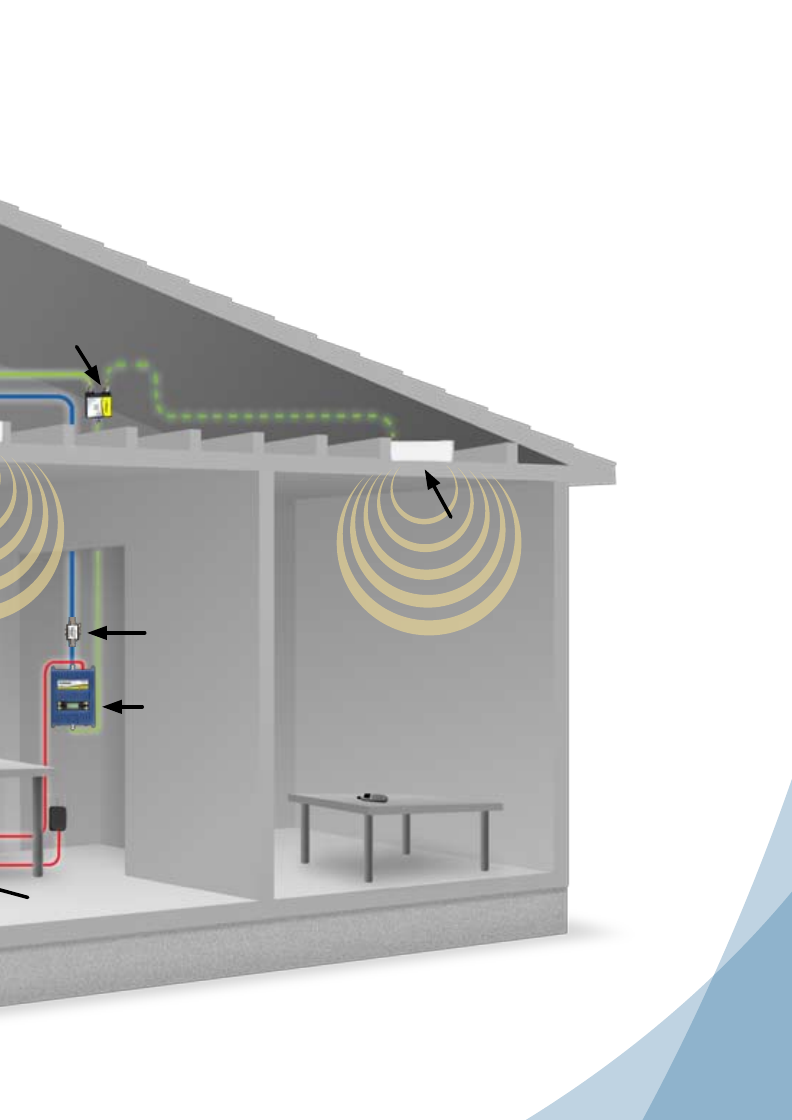

Installation Diagram
Typical Installation
Outside
Antenna
Inside Antenna
(Optional
second
antenna for
additional
coverage).
Power
Supply
Inside Antenna
Preferred Method: Place the Inside
Antenna in the ceiling facing down for
the best coverage.

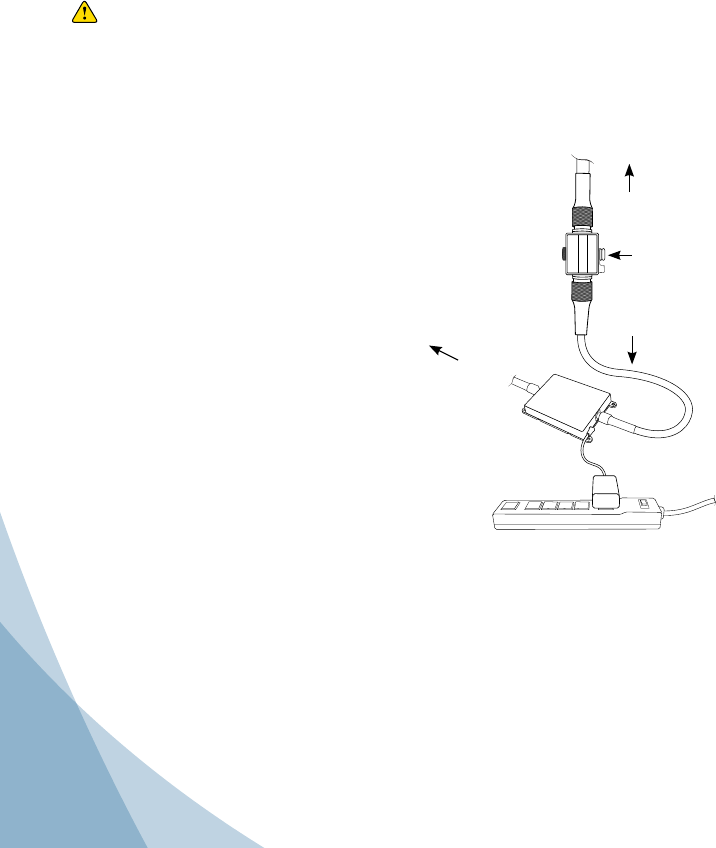

Note: A Lightning Surge Protector is
recommended for all building installations
(sold separately). Make sure the protector
is installed in line between the Outside
Antenna and the Signal Booster.
Null Zone: The area under the
Outside Antenna, where the
Outside Antenna radiates the
least.
Note: The Inside Antenna may be
mounted on the wall directly under the
Outside Antenna, in the null zone, if
20 feet of vertical separation can be
maintained.
3
4
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Before Getting Started
This guide will help you properly install your Wilson Electronics Signal
Booster. It is important to read through all of the installation steps
for your particular application prior to installing any equipment.
Read through the instructions, visualize where all the equipment will
need to be installed and do a soft installation before mounting any
equipment.
Contact Wilson Electronics Technical Support with any questions
at: 866-294-1660.
Signal
Booster
Lightning
Surge Protector
Splitter
(if using multiple
inside antennas)
(Optional
third antenna
for additional
coverage).
Inside Antenna
Surge Protector
Power Strip
5Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
6
Reasons for Weak Cellular Signals
Anyone who uses a cell phone or cellular data card knows the frustration
of not being able to connect to or maintain a strong cellular signal. When
this occurs, it is generally due to one of two reasons:
Location of the Nearest Cell Tower – Cell towers are situated to 1.
provide broad coverage; however, there are many areas in which
signal strength may be reduced by topographic features or by local
government restrictions on the height or placement of the towers
themselves. Rural areas generally have fewer cell towers than urban
regions.
Natural and Man-Made Obstructions – Signal strength can also 2.
be negatively affected by trees, hills, buildings, weather, and other
obstructions. You may be relatively close to a cell tower but still unable
to make a call. This often occurs in homes, offices and other buildings
in which stucco, concrete or metal walls may block the signal.
The Signal Booster works with two antennas. The Inside Antenna
communicates with your cell phone and the Outside Antenna communicates
with the cell tower. The Outside Antenna receives the cell tower signal and
sends it through the cable to the Signal Booster, where it is amplified and
transmitted through the Inside Antenna into the room. When the Inside
Antenna picks up a signal from your cellular device, the Signal Booster
amplifies that signal and transmits it through the cable, then through the
Outside Antenna and back to the cell tower.
Note: The Signal Booster will only operate if there is an adequate signal
to amplify.
Selecting a Direction for the Outside Antenna
Use a cell phone in test mode to find the strongest signal from the cell
tower (refer to page 7 for more information). To get the strongest signal
possible, it is very important to set up your Outside Antenna properly.
The Inside and the Outside Antenna must be mounted in such a way that
they are able to pick up the best possible cell signal on the outside of the
building and provide the best possible signal on the inside of the building.
Cell Tower
Panel Antenna
5
6
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Panel Antenna
Mount the Outside Antenna as high as possible facing the cell tower in
an area with the best possible signal coverage.
Note:
Never point the front of a directional antenna toward the Inside
Antenna. See Figures 1 & 2 on page 10.
Finding the Strongest Signal
When installing your Signal Booster’s Outside Antenna, aiming it towards
the best signal source from you service provider is important. The
best way of getting the strongest signal is to have one person on the
roof to rotate the Outside Antenna, which is connected to the Signal
Booster. Turnt the Outside Antenna about 45 degrees at a time, while the
second person is watching the signal strength on the phone inside the
building. This allows you to read the signal strength from the cell tower.
It is preferable to have the phone in the test mode so the actual signal
strength can be read, as bars are not the most accurate. Go to
www.WilsonElectronics.com for help in finding the test mode for your
phone. Always make sure the person inside the building gives the signal
time to arrive and register on the phone (between 10-30 seconds for
phone to reset to the signal reading).
-50dB -60dB -70dB -80dB -90dB -100dB -110dB
EXCELLENT GOOD POOR NO
SIGNAL
Signal Strength Graph
Cell Tower
Cell Signal
Outside
Panel
Antenna
Signal readings usually appear as a negative number (for example, -86).
The closer you get to zero the stronger the signal. (See graph below).
7Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
8
Outside Antenna Installation
The antenna should be mounted as shown in the illustration above.
The mounting bracket, included with antenna, is adjustable and will
accommodate pipe diameters from 1.25” to 2” (pipe sold separately
#901117). Mount the antenna so that there is at least 3 feet of clearance
in all directions around it. Position the antenna so that it has an
unobstructed line of sight to the cell tower’s strongest signal. Make sure
the antenna is not pointing across your own roof or at the Inside Antenna
as this will cause the oscillation protection circuitry to shut down the
Signal Booster.
Warning:
Lightning protection is recommended for all installations
(#859902-50 Ohm shown below). Take extreme care to ensure
that neither you nor the antenna comes near any electric power lines.
Installing Lightning Protection (sold separately)
Install the Lightning Surge
Protector (LSP) close to the Signal
Booster. Attach the cable from
the Outside Antenna to the surge
protector, using a short length of
low loss cable; attach one end
to the LSP and the other to the
Outside Antenna connector on the
Signal Booster. Ensure the LSP is
properly grounded (ground wire not
included). LSP sold separately, go
to www.WilsonElectronics.com or
call 800-204-4104 to order.
(not included)
Lightning
Surge Protector
(sold separately)
Signal Booster
Surge Protector Power Strip
Ground Wire
(not included)
To Outside
Antenna
To Signal
Booster
To Inside
Antenna
7
8
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Mounting Tips for Running Outside
Antenna Cable
If you are mounting the Outside Antenna on the roof of your building, we
have found that it is easiest to run your cable underneath the down side
of your roof’s flashing. If you have satellite TV service installed you may
be able to follow the same route as the satellite TV cables that are already
running from outside of your building to the inside.
After routing the cable, we recommend sealing any areas where the cable
passes into the building with cable bushings, silicone or a silicone-type
sealant to keep your installation from leaking. If you are mounting the
Outside Antenna to the outside wall of your home or building, the simplest
way is to run the cable on the outside of the wall and attach it to the
exterior of your home or office. Then drill a hole through the wall where you
want the cable to appear on the inside of the building. Before drilling, make
sure that there are no electrical outlets, sewer or water pipes, or electrical
wiring in the wall that you are about to drill through as this could potentially
harm you or damage the building.
After drilling the required hole, run the cable through and seal it with
cable bushings or a silicone-type sealant to enclose the hole that you
have created. In some instances, it may be possible to run the cable up
into the fascia of the attic overhang. In this circumstance, the cable will
be accessible in the attic for further routing.
Installing the Inside Antenna
(Instructions are for optional Inside Panel Antenna)
Select a location for the Inside Antenna, preferably in the center of where
the signal needs to be amplified. A minimum separation distance of 20
vertical feet (within the null zone) or 50 horizontal feet is necessary
for proper operation. If the inside coverage is not sufficient you may
need as much as 75 feet of horizontal separation. Refer to installation
diagram on pages 3 & 4.

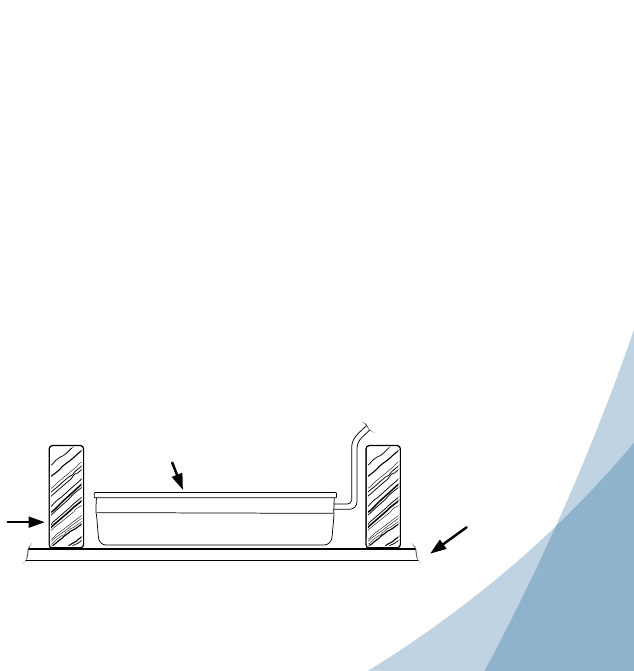

Ceiling
Rafters
Ceiling
Drywall
Inside
Antenna
Surge Protector Power Strip
Ground Wire
(not included)
To Outside
Antenna
9Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
10
Warning: An Inside Antenna must have a separation distance from
all persons that is at least 8 inches for the Panel Antenna.
In some cases, multiple Inside Antennas may be required, for instance if
you have multiple rooms with poor signal. A signal may be split by using
a splitter (sold separately). If using more than one Inside Antenna, a
separation up to 75 horizontal feet may be necessary between Inside
Antennas. Refer to the configuration on pages 3 & 4.
Installing a Wilson Electronics Signal Booster
Select a location to install the Signal Booster that is away from excessive
heat, direct sunlight, moisture and that has proper ventilation. Do not
place the Signal Booster in an air-tight enclosure. Recommended
installation locations for in-building Signal Boosters are near a power
outlet and in a closet or on a shelf.
Note: It is important to have adequate air ventilation. Maintain at least
6 inches of clearance from surrounding objects. Be careful when
plugging the connector in so as not to damage the center pins on
the connectors.
Run the Outside Antenna cable to the Signal Booster and attach it to
the connector labeled “Outside Antenna” on the Signal Booster. Run the
Inside Antenna cable to the Signal Booster and attach it to the connector
labeled “Inside Antenna” on the Signal Booster.
Note:
For distances of 20 feet or more, use Wilson low loss cable.
Note:
It is very important to power your Signal Booster using a surge
protected AC Power Strip with at least a 1000 Joule rating. Failure to
do this will void your warranty in the event of a power surge or lightning
strike.
Optional Wide Band
Inside Antenna
(sold separately)
Multiple mounting
options available
Splitter Options:
3-way
(859980)
4-way
(859981)
2-way
(859957)
9
10
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Signal Booster
Outdoor
Panel
Antenna
Outdoor
Panel
Antenna
Inside Panel
Antenna
Figure 1 Figure 2
CORRECT INSTALLATION
Never point antennas toward each other
Powering up a Wilson Electronics
Signal Booster
1. Never point the front of a directional Outside Antenna toward the
Inside Antenna. See Figures 1 & 2 above.
2. Ensure that both the Outside Antenna cable and the Inside Antenna
cable are connected to the Signal Booster and the connections are
tight before powering up the Signal Booster.
3. Plug the power supply into the Signal Booster input marked “Power”
(carefully, to avoid damaging the center pin) and then into a surge
protected AC Power Strip.
4. If the Signal Booster does not have green lights, please refer to
pages 13-14.
5. Using multiple Signal Boosters in one installation could cause
interference to the cell tower.
6.
Contact Wilson Electronics Technical Support Team with any questions
at 866-294-1660 or email tech@wilsonelectronics.com. Technical
Support hours are Mon.- Fri. 7 am to 6 pm MST.
During installation mode the Signal Booster is resetting itself very quickly
to aid the installer. The Signal Booster is equipped with one indicator
light. For the first 15 minutes that the Signal Booster is plugged in, it is
programed for a test and alignment period.
Point antennas away from each other
INCORRECT INSTALLATION
Inside Panel
Antenna
Signal Booster
11Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
12
Figure 1
OVERLOAD
62 AA’ 72
OVERLOAD
62 AA’ 72
Band
Select
Reset
PUSH
PUSH
800
MHz
1700
/2100
MHz
UP
DOWN
PUSH
PUSH 1900
MHz
700
MHz
Band
Select
Reset
PUSH
PUSH
800
MHz
1700
/2100
MHz
UP
DOWN
PUSH
PUSH 1900
MHz
700
MHz
Wilson
®
Electronics, Inc.
Power
AG Pro Quint
Selectable
SMART
TECHNOLOGY ™
™
GAIN
GAIN
2
1
3
4

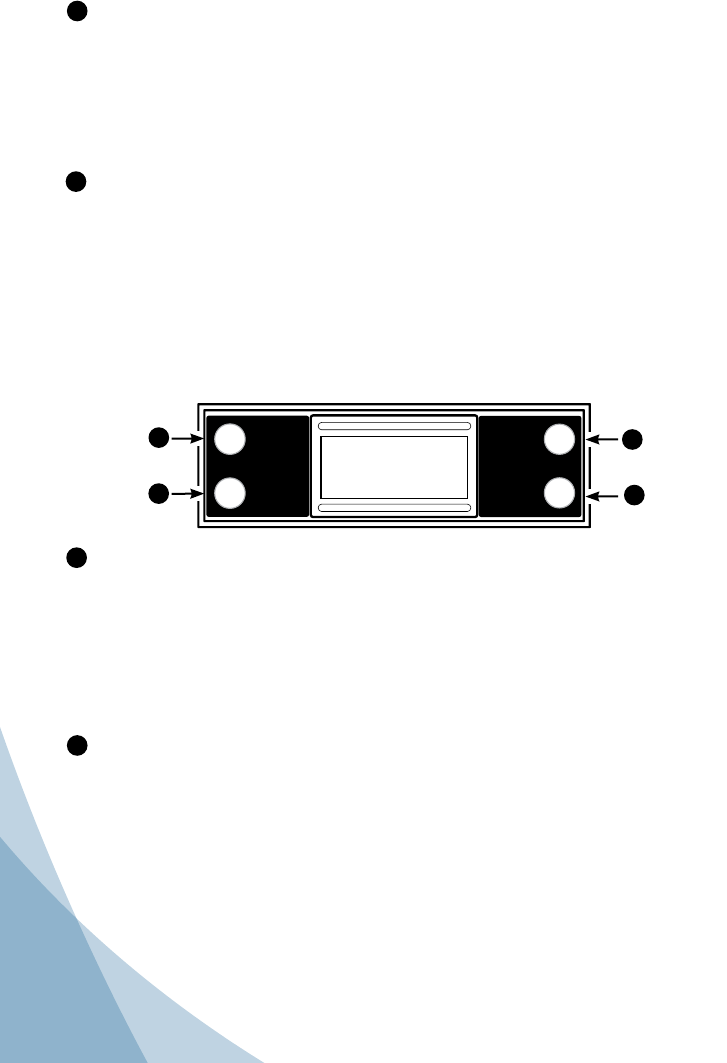

Button Operation
1 FACTORY RESET – Pushing the “Reset” (refer to Figure 1 on page
11) button will reset the Signal Booster to max gains and restart the
installation timer.
Note: If the Signal Booster is unplugged, a similar situation will occur,
except the manual gains will remain the same as they were
before being unplugged.
2 BAND SELECT – Pressing the “Band Select” button will cycle through
the bands and LTE selection.
a. The selection will flash for 15 minutes.
b. The “UP/DOWN” (refer to Figure 1) buttons are enabled only when a
selection is flashing.
c. If install period is over, pressing “BAND SELECT” will return it to
install mode.
3 UP – Controls the manual gain adjustment.
a. Pressing the “UP” (refer to Figure 1) button will cause the selected
gain to increase in 1dB increments.
b. If the “A” or “B” is flashing, “UP” will toggle between Band 12(A) and
Band 13(B).
c. Gains will never go higher than the maximum (70 dB or 75 dB).
4 DOWN – Controls the manual gain adjustment.
a. Pressing the “DOWN” (refer to Figure 1) button will cause the
selected gain to decrease in 1dB increments.
b. If the “A” or “B” is flashing, “DOWN” will toggle between Band 12(A)
and Band 13(A).
c. Gains will never go lower than the minimum (40 / 45 dB).
d. Holding the “DOWN” button on startup will turn all of the manual
gains to minimum (48/45 dB) to aid the installer during setup.
11
12
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Understanding the LCD Screen
Upon powering up the Signal Booster, the LCD should display 4 gains
and the letter “A “or “B” indicating the LTE Band that is selected as
shown in the picture below.
1. Five values are shown and can be selected (refer to Figure 2):
a The top left number shows the gain and the LTE Band that is
selected.
A (AT&T®) = Band 12
B (Verizon™) = Band 13
b The top right number shows the gain for Band 5 (AMPS).
c The bottom left number shows the gain for Band 2 (PCS).
d The bottom right number shows the gain for Band 4 (AWS).
2. When a band is selected, using the “Band Select” button, the number
will flash. The Manual gain can be changed from a maximum of 70 dB
to a minimum of 40 dB by using the UP and DOWN buttons.
3. If an “R” is next to one of the gain values, this indicates that the
corresponding frequency has been turned off because of a receiver
overload. This reduction is to prevent the disruption of cell towers, as
indicated in Figure 3. The indicator light will be orange.
R70A
OVERLOAD
62 AA’ 72
A75
A70A
A75
Band
Select
Reset
PUSH
PUSH
800
MHz
1700
/2100
MHz
UP
DOWN
PUSH
PUSH 1900
MHz
700
MHz
Band
Select
Reset
PUSH
PUSH
800
MHz
1700
/2100
MHz
UP
DOWN
PUSH
PUSH 1900
MHz
700
MHz
Wilson
®
Electronics, Inc.
Power
AG Pro Quint
Selectable
SMART
TECHNO LOGY ™
™
GAIN
GAIN
A70A
OVERLOAD
62 AA’ 72
A75
A70A
A75
Band
Select
Reset
PUSH
PUSH
800
MHz
1700
/2100
MHz
UP
DOWN
PUSH
PUSH 1900
MHz
700
MHz
Band
Select
Reset
PUSH
PUSH
800
MHz
1700
/2100
MHz
UP
DOWN
PUSH
PUSH 1900
MHz
700
MHz
Wilson
®
Electronics, Inc.
Power
AG Pro Quint
Selectable
SMART
TECHNOLO GY ™
™
GAIN
GAIN
Figure 2
Figure 3
ab
d
c
“R”= Receiver Overload
13Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
14
4. If there is an “X” next to one of the gain values, this indicates that the
corresponding frequency has been shut off due to an oscillation.
b. A red light indicates that the frequency has been turned off due to an
oscillation.
Note: A orange light indicates that the receiver has been turned off.
This is to prevent disruption of cell towers.
R70A
OVERLOAD
62 AA’ 72
A75
A70X
A75
Band
Select
Reset
PUSH
PUSH
800
MHz
1700
/2100
MHz
UP
DOWN
PUSH
PUSH 1900
MHz
700
MHz
Band
Select
Reset
PUSH
PUSH
800
MHz
1700
/2100
MHz
UP
DOWN
PUSH
PUSH 1900
MHz
700
MHz
Wilson
®
Electronics, Inc.
Power
AG Pro Quint
Selectable
SMART
TECHNOLO GY ™
™
GAIN
GAIN
Figure 4
“X”= Oscillation
Warnings and Recommendations
Warning: The Outside Antenna must always be located so the back
or side points to the Inside Antenna. Never point the front
of the Outside Antenna toward the Inside Antenna – this is
to prevent oscillation.
Warning: Connecting the Signal Booster directly to the cell phone with
use of an adapter will damage the cell phone and/or Signal
Booster.
Warning: Use only the correct Wilson Electronics power supply. Use
of a non-Wilson Electronics product may damage your
equipment.
Warning: RF Safety: All inside antennas used with this Signal
Booster may not have gain (less cable loss) that exceeds
10.1 dBi and must be located at least 8 inches from all
people. Outside fixed antennas may not have gain that
exceeds 2.8 dBi (less cable loss) and must be located
least 27 inches from all people. The outside fixed antenna
must be connected with a minimum of 26’ of RG58 coaxial
cable. All antennas shown on page one meet these
requirements.
Warning: Verify that both the Outside Antenna and the Inside
Antenna are connected to the Signal Booster before
powering up the Signal Booster.
13
14
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
Recommendation: Omni Directional Antennas are not recommended with
this Signal Booster.
Recommendation: Lightning Surge Protection is recommended for all in-
building installations.
This device complies with Part 15 of FCC rules. Operation is subject to two
conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that
may cause undesired operation. Changes or modifications not expressly
approved by Wilson Electronics could void the authority to operate this
equipment.
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day money-
back guarantee. If for any reason the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
1-Year Warranty
Wilson Electronics Signal Boosters are warranted for one (1) year against defects
in workmanship and/or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization
(RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its
option, either repair or replace the product. Wilson Electronics will pay for delivery of
the repaired or replaced product back to the original consumer if located within the
continental U.S.
This warranty does not apply to any Signal Booster determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will
void your warranty.
RMA numbers may be obtained by contacting Technical Support at 866-294-1660.
Disclaimer : The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for any
infringements of patents or other rights of third parties that may result from its use.
Copyright © 2012 Wilson Electronics, Inc. All rights reserved.
U.S. Patent Nos. –
Signal Booster Specifications
AG Pro Quint Selectable
Model Number 273470
Antenna connectors N-Female
Antenna Impedance 50 Ohms
Dimensions 8.875 x 6.0 x 1.5 inch (22.5 x 15.2 x 3.8 cm)
Weight 2.8 lbs (1.270 kg)
Frequency 698-746 MHz / 746-787 MHz / 824-894 MHz / 1850-1990 MHz / 1710-2155 MHz
3Power output for single cell phone (dBm) 700 A MHz 700 V MHz 800 MHz 1900 MHz 1700/2100 MHz
Uplink
Downlink
29.1
23.7
28.4
23.7
29.1
22.7
29.1
22.8
27.1
22.8
Noise Figure (typical downlink/uplink) 5 dB nominal
Isolation > 90 dB
Power Requirements 110-240 V AC, 50-60 Hz, 20 W
Notes: 1. Nominal gain is the maximum gain at any frequency in the passband.
2. Nominal bandwidth is the difference between two frequencies that are adjacent to the passband where the amplification is 20 dB lower than the passband amplification. One of the frequencies is lower
than the passband and the other is higher.
3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially
where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by
an attenuator at the output of the device.
4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB every time the number of signals is doubled.
111102_Rev01_09.12.12
3301 East Deseret Drive, St. George, UT 84790
For additional Technical Support visit www.WilsonElectronics.com
or email at: tech@wilsonelectronics.com
Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432
www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular
About Wilson Electronics
Wilson Electronics, Inc. has been a leader in the wireless communications industry for over
40 years. The company designs and manufactures Signal Boosters, antennas and related
components that significantly improve cellular telephone signal reception and transmission in
a wide variety of applications, both mobile (marine, RV, vehicles) and in-building (home, office,
M2M).
With extensive experience in antenna and Signal Booster research and design, the company’s
engineering team uses a state-of-the-art testing laboratory, including an anechoic chamber
and network analyzers, to fine-tune antenna designs and performance. For its Signal Boosters,
Wilson Electronics uses a double electrically shielded RF enclosure and cell tower simulators
for compliance testing.
Wilson Electronics Signal Boosters feature patented Smart Technology ™ that enables
them to automatically adjust their power based on cell tower requirements. By detecting
and preventing oscillation (feedback), signal overload and interference with other users,
these Smart Technology ™ Signal Boosters improve network cell phone areas without
compromising carrier systems.
All products are engineered and assembled in the company’s 55,000-square-foot headquarters
in St. George, Utah. Wilson Electronics has product dealers in all 50 states as well as in
countries around the world.
