Contents:
Antenna Options & Accessories . . . . . . . . . . . . . . . . . . . . . . . 1
Quick Install Overview ............................... 2
Installation Diagram ................................. 3
Before Getting Started ............................... 4
Outside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Finding the Strongest Signal .......................... 6
Installing the Inside Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing a Wilson Electronics Signal Booster. . . . . . . . . . . . . 9
Powering up a Wilson Electronics Signal Booster .......... 9
Understanding the Signal Booster Light . . . . . . . . . . . . . . . . 10
Warnings and Recommendations ..................... 12
Guarantee & Warranty .............................. 14
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: This manual contains important safety and operating information. Please read and
follow the instructions in this manual. Failure to do so could be hazardous and result in
damage to your Signal Booster.
iDEN 800 MHz
Adjustable Gain
In-Building Wireless
Smart Technology ™
Signal Booster
Appearance of device and accessories may vary.
1Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
2
Installation Instructions for the Following
Wilson Electronics Signal Booster:
iDEN 800 MHz Adjustable Gain In-Building Wireless
Smart Technology ™ Signal Booster
How it Works
Wilson Electronics Signal Boosters are bi-directional devices that deliver
service levels consistent with what would be expected in areas of high
cell network coverage. They amplify a weak or shadowed signal in
mobile, M2M, marine and in-building applications. When using a Wilson
Electronics Signal Booster in conjunction with Wilson Electronics
antennas, the Outside Antenna will collect the cell tower signal and send
it through the cable to the Signal Booster. The signal is then amplified
and re-transmitted through the Inside Antenna into the room. Cell
phones and cellular data cards in that area then communicate with the
improved signal. When a cell phone or cellular device transmits, the
signal is received by the Inside Antenna, amplified by the Signal Booster
and transmitted back to the cell tower through the Outside Antenna.
Inside this Package
Signal
Booster
7V AC/DC
Power Supply
(included in some kits)
To purchase, call Wilson Electronics Sales Department at: 800-204-4104
Outdoor Antenna Options

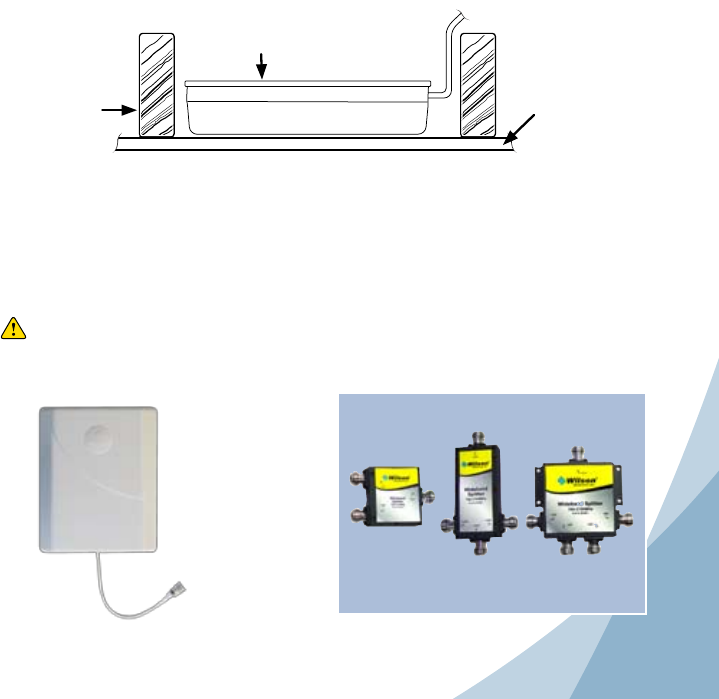

Indoor Antenna Options & Accessories
1. 800 MHz Yagi Antenna (301111)
2. 800 MHz Yagi Cellular Antenna (301129)
3. Wide Band Directional Antenna
700 - 2700 MHz (304411)
4. Outdoor Panel Antenna
700-2700 MHz (301157)
A. Wide-Band Panel Antenna 700-2700MHz (301134 & 301135)
B.
50 Ohm Lightning Surge Protector with N-Connectors
(859902)
Splitter options on page 8
3
12
B
A
4
Note: Kits may contain different accessories
Appearance of device and accessories may vary.
Model #274080 FCC ID: PWO274080 IC: 4726A-274080
1
2
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon. -Fri. Hours: 7 am to 6 pm MST.
Select a location to install the Signal Booster that is away from 1.
excessive heat, direct sunlight, moisture and has proper ventilation.
Do not place the Signal Booster in an air-tight enclosure.
Select a location on the roof of the building to install the Outside 2.
Antenna (see page 5). Use a cell phone in test mode to find the
strongest signal from the cell tower. (see page 6). Visit
www.WilsonElectronics.com to find the test mode function for your
particular cell phone.
Run the Outside Antenna cable to the Signal Booster and attach it to 3.
the connector labeled “Outside Antenna” on the Signal Booster. Run
the Inside Antenna cable to the Signal Booster and attach it to the
connector labeled “Inside Antenna” on the Signal Booster. See page
7 for more information on running cable. Lightning Surge Protection
is recommended for all in-building installations (see page 6).
Select a location for the Inside Antenna, preferably in the center of 4.
where the signal needs to be amplified (see page 8). A minimum
separation distance of 20 vertical feet is necessary for operation. If
the inside coverage is not sufficient you may need as much as 75 feet
of horizontal separation. See installation diagram on pages 3 & 4.
Before powering up the Signal Booster, verify that both the Outside 5.
Antenna and the Inside Antenna are connected and check that
all connections are tight (see page 9). Note: Be careful when
plugging the connectors in so as not to bend the center pins on the
connectors.
The Signal Booster has been packaged with the gain control knobs 6.
adjusted to the highest gain position. If the light is not green, please
refer to pages 10-11.
Quick Install Overview
See Installation Diagram on page 3. Contact Wilson Electronics Technical
Support Team with any questions at 866-294-1660.
Warning: Connecting the Signal Booster directly to a cell phone with
use of an adapter will damage the cell phone and/or the
Signal Booster.
IMPORTANT NOTICE

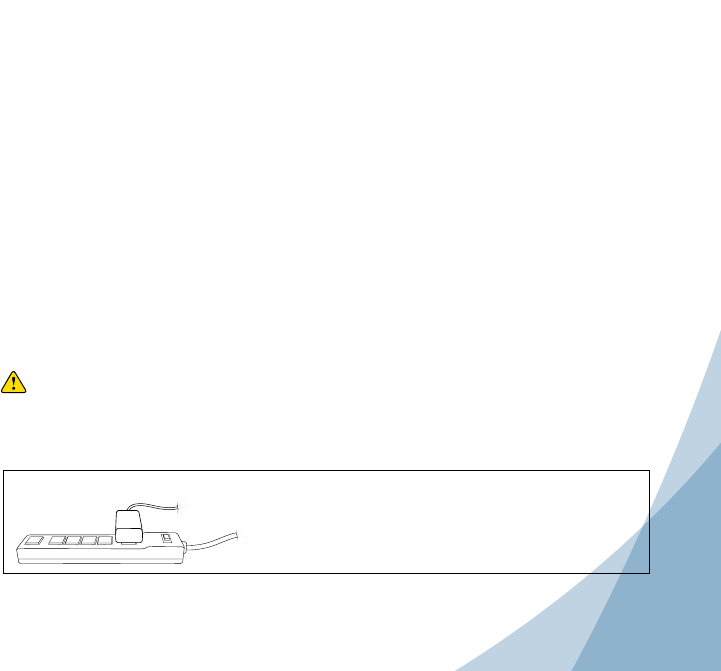

It is very important to power your Signal Booster using a •
surge protected AC Power Strip with at least a 1000 Joule
rating.
Failure to do this will void your warranty in the • event of a
power surge or lightning strike.
3Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
4

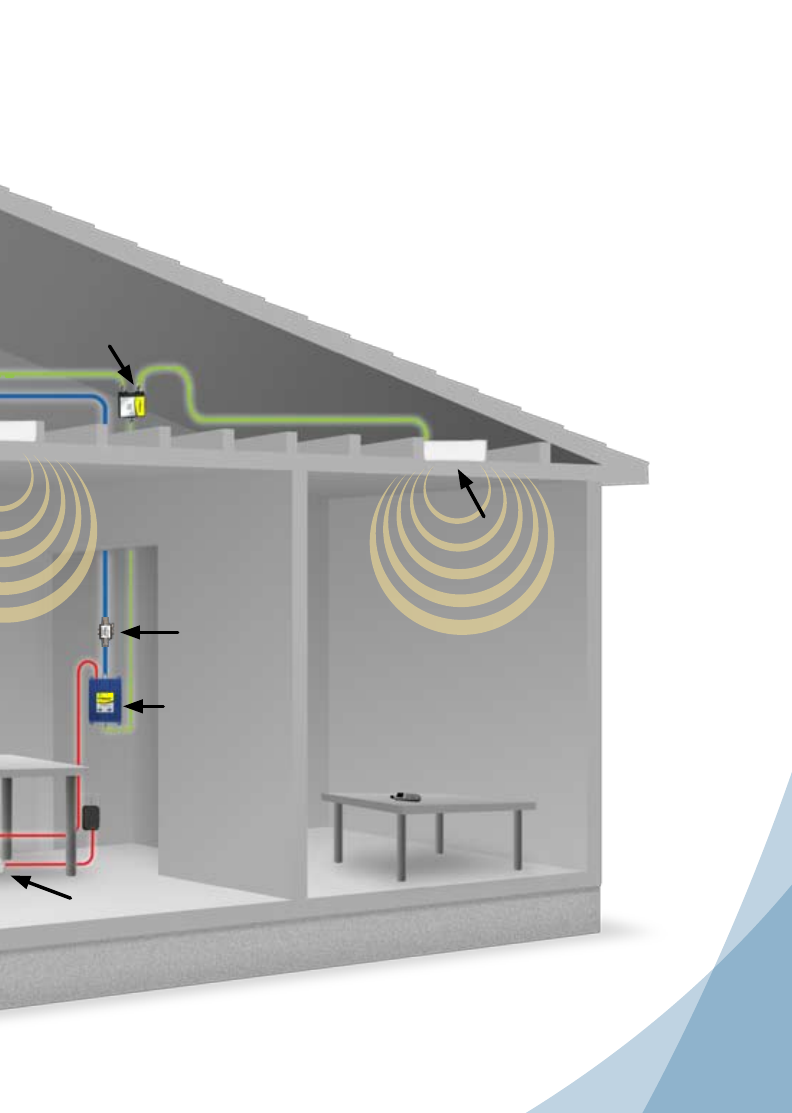

Typical Installation
Outside Antenna
(Yagi option shown)
Cell Tower
Inside Antenna
Installation Diagram
Note: The Inside Antenna may be
mounted on the wall directly under the
Outside Antenna, in the null zone, if
20 feet of vertical separation can be
maintained.
Inside Antenna
Preferred Method: Place the Inside
Antenna in the ceiling facing down for
the best coverage.
Note: A Lightning Surge Protector is
recommended for all building installations
(sold separately). Make sure the protector
is installed in line between the Outside
Antenna and the Signal Booster.
(Optional
second
antenna for
additional
coverage).
Null Zone: The area under the
Outside Antenna, where the
Outside Antenna radiates the
least.
Typical Installation
Power
Supply
3
4
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon. -Fri. Hours: 7 am to 6 pm MST.
Before Getting Started
This guide will help you properly install your Wilson Electronics Signal
Booster. It is important to read through all of the installation steps
for your particular application prior to installing any equipment.
Read through the instructions, visualize where all the equipment will
need to be installed and do a soft installation before mounting any
equipment.
Contact Wilson Electronics Technical Support with any questions
at: 866-294-1660.
Signal
Booster
Lightning
Surge Protector
(recommended)
Splitter
(if using multiple
Inside Antennas)
(Optional
third antenna
for additional
coverage).
Inside Antenna
Surge Protector
Powerstrip
5Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
6
Reasons for Weak Cellular Signals
Anyone who uses a cell phone or cellular data card knows the frustration
of not being able to connect to or maintain a strong cellular signal. When
this occurs, it is generally due to one of two reasons:
Location of the Nearest Cell Tower – Cell towers are situated to 1.
provide broad coverage; however, there are many areas in which
signal strength may be reduced by topographic features or by local
government restrictions on the height or placement of the towers
themselves. Rural areas generally have fewer cell towers than urban
regions.
Natural and Man-Made Obstructions – Signal strength can also 2.
be negatively affected by trees, hills, buildings, weather, and other
obstructions. You may be relatively close to a cell tower but still
unable to make a call. This often occurs in homes, offices and other
buildings in which stucco, concrete or metal walls may block the
signal.
The Signal Booster works with two antennas. The Inside Antenna
communicates with your cell phone and the Outside Antenna
communicates with the cell tower. The Outside Antenna receives the cell
tower signal and sends it through the cable to the Signal Booster, where
it is amplified and re-transmitted much stronger to the Inside Antenna into
the room. When the Inside Antenna picks up a signal from your cellular
device, the Signal Booster amplifies that signal and transmits it through
the cable to the Outside Antenna and back to the cell tower. (Note: The
Signal Booster will only operate if there is an adequate signal to amplify.)
Cell Tower

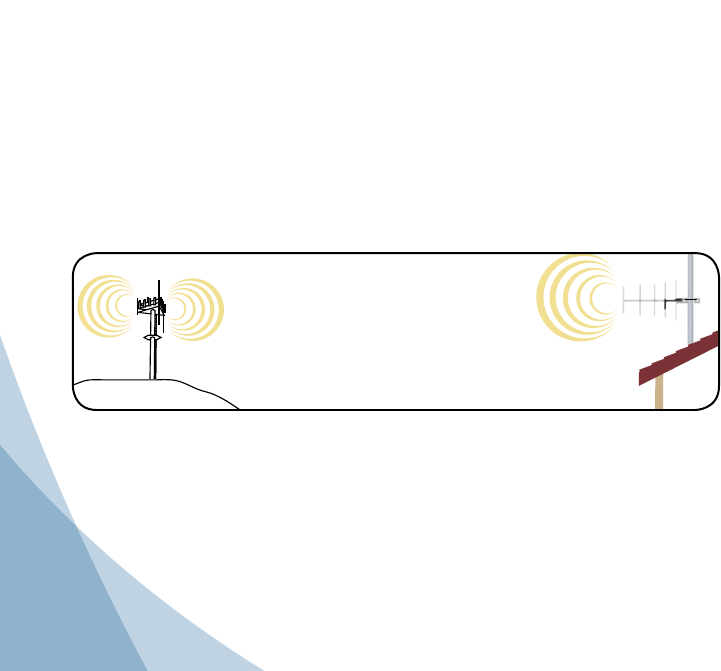

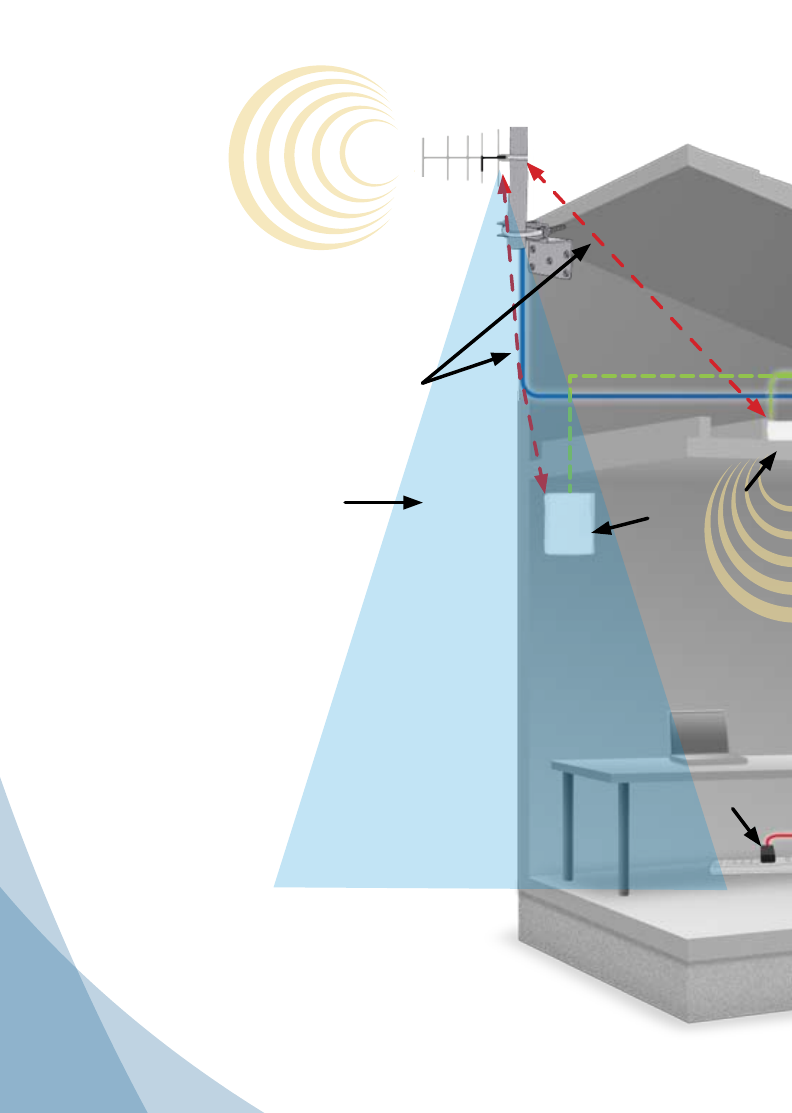

The antenna should be mounted as shown in the illustration above.
The mounting bracket, included with antenna, is adjustable and will
accommodate pipe diameters from 1.25” to 2” (pipe sold separately
part# 901117). Mount the antenna so that there is at least 3 feet of
clearance in all directions around it. Position the antenna so that it has
an unobstructed line of sight to the cell tower’s strongest signal. Make
Outside Antenna Installation (Included in some kits)
5
6
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon. -Fri. Hours: 7 am to 6 pm MST.
sure the antenna is not pointing across your own roof or at the Inside
Antenna as this will cause the oscillation protection circuitry to shut down
the Signal Booster.
Warning:
Lightning protection is recommended for all installations
(sold separately, Part #859902-50 Ohm shown below).
Selecting a Direction for the Outside Antenna
Select a location on the roof of the building to install the Outside Antenna.
Use a cell phone in test mode to find the strongest signal from the cell tower.
See page below for more information. To get the strongest signal possible, it
is very important to set up your Outside Antenna properly. The inside and the
Outside Antenna must be mounted in such a way that they are able to pick
up the best possible cell signal on the outside of the building and provide the
best possible signal on the inside of the building. Mount the Outside Antenna
as high as possible facing the cell tower in an area with the best possible
signal coverage. Note:

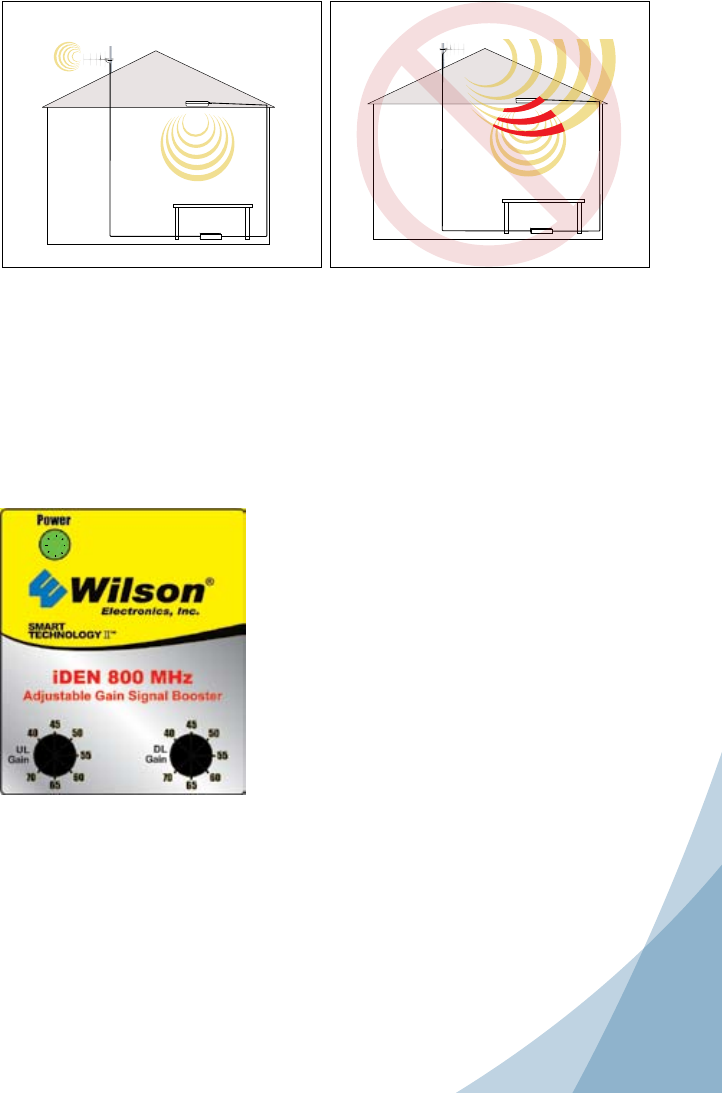

Never point the front of a directional antenna toward
the Inside Antenna. See Figures 1 & 2 on page 10.
Finding the Strongest Signal
When installing your Signal Booster’s Outside Antenna, aiming it towards
the best signal source from you service provider is important. The best way
of getting the strongest signal is to have one person on the roof to rotate
Lightning
Surge Protector
(sold separately)
Signal Booster
Surge Protector
Power Strip recommended for all AC power supplies
Ground Wire
(not included)
To Outside
Antenna
To Inside
Antenna

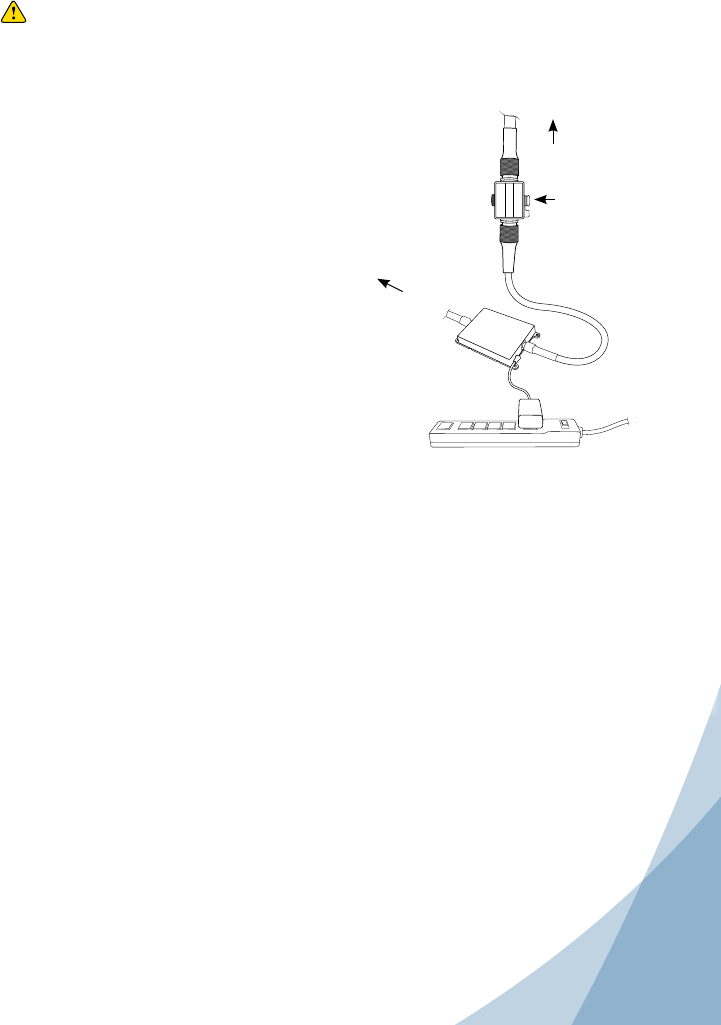

Installing Lightning Protection
(sold separately)
Install the Lightning Surge
Protector (LSP) close to the Signal
Booster. Attach the cable from
the Outside Antenna to the surge
protector, using a short length of low
loss cable; attach one end to the
LSP and the other to the Outside
Antenna connector on the Signal
Booster. Ensure the LSP is properly
grounded (ground wire not included).
Visit www.WilsonElectronics.com
or call 800-204-4104 to purchase.
7Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
8
Mounting Tips for Running Outside
Antenna Cable
If you are mounting the Outside Antenna on the roof of your building, we
have found that it is easiest to run your cable underneath the down side
of your roof’s flashing. If you have satellite TV service installed you may
be able to follow the same route as the satellite TV cables that are already
running from outside of your building to the inside.
After routing the cable, we recommend sealing any areas where the cable
passes into the building with cable bushings, silicone or other waterproof
sealant to keep your installation from leaking. If you are mounting the
Outside Antenna to the outside wall of your home or building, the simplest
way is to run the cable on the outside of the wall and attach it to the
exterior of your home or office. Then drill a hole through the wall where you
-50dB -60dB -70dB -80dB -90dB -100dB -110dB
EXCELLENT GOOD POOR NO
SIGNAL
Signal Strength Graph
Cell Tower
Cell Signal
Outside
Yagi
Antenna
Signal readings usually appear as a negative number (for example, -86).
The closer you get to zero the stronger the signal (see graph above).
the Outside Antenna, which is connected to the Signal Booster. Turning the
Outside Antenna about 45 degrees at a time, while the second person is
watching the signal strength on the phone inside the building. This allows
you to read the signal strength from the cell tower. It is preferable to have
the phone in the test mode so the actual signal strength can be read, as
bars are not the most accurate. Go to www.WilsonElectronics.com for help
in finding the test mode for your phone. Always make sure the person
inside the building gives the signal time to arrive and register on the phone
(between 10-30 seconds for phone to reset to the signal reading).
7
8
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon. -Fri. Hours: 7 am to 6 pm MST.
want the cable to appear on the inside of the building. Before drilling, make
sure that there are no electrical outlets, sewer or water pipes, or electrical
wiring in the wall that you are about to drill through as this could potentially
harm you or damage the building.
After drilling the required hole, run the cable through and seal it with cable
bushings, silicone or other waterproof sealant to enclose the hole that you
have created. In some instances, it may be possible to run the cable up
into the fascia of the attic overhang. In this circumstance, the cable will be
accessible in the attic for further routing.
Installing the Inside Antenna (Included in some kits)
Select a location for the Inside Antenna, preferably in the center of where
the signal needs to be amplified. A minimum separation distance of 20
vertical feet is necessary for operation. If the inside coverage is not
sufficient you may need as much as 75 feet of horizontal separation. See
installation diagram on pages 3 & 4.
Ceiling
Rafters
Ceiling
Drywall
Inside
Antenna
In some cases, multiple Inside Antennas may be required, for instance if
you have multiple rooms with poor signal. A signal may be split by using
a splitter (sold separately). If using more than one Inside Antenna, a
separation up to 75 horizontal feet may be necessary between Inside
Antennas. See configuration on pages 3 & 4.
Warning: An Inside Antenna must have a separation distance from all
persons that is at least 15 inches for the panel antenna.
Optional Wide
Band Inside
Antenna (Sold
Separately)
(301134 & 301135).
3-way
(859980)
4-way
(859981)
2-way
(859957)
(sold separately)
Splitter Options:
9Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
10
Installing a Wilson Electronics Signal Booster
Select a location to install the Signal Booster that is away from excessive
heat, direct sunlight, moisture and that has proper ventilation. Do not
place the Signal Booster in an air-tight enclosure. Recommended
installation locations for in-building Signal Boosters are near a power
outlet and in a closet or on a shelf.
Note: It is important to have adequate air ventilation. Maintain at least 6
inches of clearance from surrounding objects.
Run the Outside Antenna cable to the Signal Booster and attach it to
the connector labeled “Outside Antenna” on the Signal Booster. Run the
Inside Antenna cable to the Signal Booster and attach it to the connector
labeled “Inside Antenna” on the Signal Booster.
Note: Wilson® Electronics recommends that all AC power supplies for
home electronics be plugged into a Surge Protector Power Strip.
Note:
For distances of 20 feet or more, use Wilson low loss cable.
Note: Be careful when plugging the connector in so as not to damage
the center pins on the connectors.
Powering up a Wilson Electronics
Signal Booster
1. Never point the front of a directional Outside Antenna toward the Inside
Antenna. See Figures 1 & 2 on page 10.
2. Ensure that both the Outside Antenna cable and the Inside Antenna
cable are connected to the Signal Booster and the connections are
tight before powering up the Signal Booster.
3. Plug the 7-volt power supply into the Signal Booster input marked “7V
DC” (carefully, to avoid damaging the center pin) and then into a wall
outlet.
4. If the Signal Booster does not have a green light, please see pages
10 & 11.
5. Using multiple Signal Boosters in one installation could cause
interference to the cell tower.
6.
Contact Wilson Electronics Technical Support Team with any questions at
866-294-1660 or email tech@wilsonelectronics.com. Technical Support
hours are Mon.- Fri. 7 am to 6 pm MST.
9
10
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon. -Fri. Hours: 7 am to 6 pm MST.
Point antennas away from each other
Signal Booster
Outdoor
Antenna Inside Panel
Antenna Inside Panel
Antenna
Figure 1 Figure 2
CORRECT INSTALLATION
During installation mode the Signal Booster is resetting itself very quickly
to aid the installer. The Signal Booster is equipped with one indicator
light. For the first 15 minutes that the Signal Booster is plugged in, it is
programmed for a test and alignment period. During this time, the light
will do one of the following 4 things:
Understanding the Signal Booster Light and
Troubleshooting
Note: If after the initial 15 minutes you
are not done with the installation, the
Signal Booster can be reset and enter
installation mode again by disconnecting
and reconnecting the power supply from
the Signal Booster.
Note: This Signal Booster is supplied with
separate uplink (UL) and downlink (DL)
gain controls. If the UL gain is reduced,
it may be necessary to reduce the DL
gain control. Some cell systems require
a balanced gain in both UL and DL for
proper operation. Reducing DL gain will
reduce coverage in the building.
1. BLINKING GREEN
If the Signal Booster is blinking green, the Signal Booster is operating
properly. If you are happy with the coverage area in your building,
then you are done. Blinking will stop after the 15 minute installation
period. If you require increased coverage area, set both gain controls to
maximum.
Outdoor
Antenna
Signal Booster
Never point antennas toward each other
INCORRECT INSTALLATION
11Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
12
2. BLINKING ORANGE
If the light on the Signal Booster is blinking orange the Signal Booster
is experiencing receiver (cell tower) overload. The Signal Booster has
protection shut off circuits to prevent the disruption of cell towers. If
the light is blinking orange, this indicates that the Signal Booster has
automatically decreased gain due to close proximity to a cell tower. First,
turn down the uplink (UL) gain control until you get a blinking green light.
The Signal Booster is now working with reduced gain on the UL. If the
gain is not adequate for good coverage, you will need to turn the UL
gain to maximum and then turn the Outside Antenna away from the cell
tower until the light turns to blinking green. If the Signal Booster will not
respond, turn the UL gain down 5 dB and move the Outside Antenna.
Continue to adjust the UL gain and the antenna position until the light
turns blinking green.
Contact Wilson Electronics Technical Support Team
for assistance: 866-294-1660.
Note: For boosters sold outside the US & Canada, gain does not
automatically decrease.
3. SOLID RED
If the light on the Signal Booster is solid red, this indicates that the
Signal Booster has shut down to prevent an oscillation (feedback). First,
make sure that all the connections are tight. Then reduce the UL and/
or DL gain of the Signal Booster in small increments by rotating the gain
control counter clockwise, waiting 5 seconds between each adjustment
for the Signal Booster to reset. Continue this adjustment until the light
turns blinking or solid green. When you are turning down the DL gain,
you are reducing the inside coverage area. If the amount of coverage
area is sufficient for your needs and the light is green the installation is
complete. If the coverage area is not large enough, it is necessary to
increase the separation distance of the inside and Outside Antennas
by moving them horizontally or vertically farther apart. Then increase
the gains until the red light comes on, and then keep decreasing the
gains until the green or blinking green light appears. If after separating
the antennas your coverage area is still too small, contact Wilson
Electronics Technical Support Team for assistance: 866-294-1660.
If after the initial 15 minutes you are not done with the installation,
the Signal Booster can be reset and enter installation mode again
by disconnecting and reconnecting the power supply from the Signal
Booster.
4. SOLID GREEN
The indicator light on the Signal Booster will be a solid green after the
first 15 minute installation period, if the unit is powered up and working
properly.
11
12
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon. -Fri. Hours: 7 am to 6 pm MST.
Warnings and Recommendations
Warning: The directional antenna must always be located so the
back or side points to the Inside Antenna. Never point the
front of the Outside Antenna toward the Inside Antenna –
this is to prevent oscillation.
Warning: Connecting the Signal Booster directly to the cell phone with
use of an adapter will damage the cell phone and/or the
Signal Booster.
Warning: Use only the power supply provided. Use of a non-Wilson
Electronics product may damage your equipment.
Warning: RF Safety: FCC regulations require that any fixed Outside
Antenna used with this Signal Booster may not have
gain (less cable loss) that exceeds 15 dBi and must be
located at least 48 inches from all people. Inside Antennas
must not exceed 6.9 dBi gain (less cable loss) in the 800
MHz band and must be located at least 8 inches from all
persons. All antennas mentioned in this installation guide
meet these gain requirements.
Warning: Verify that both the Outside Antenna and the Inside
Antenna are connected to the Signal Booster before
powering up the Signal Booster.
Recommendation: Lightning Surge Protection is recommended
for all in-building installations.
This device complies with Part 15 of FCC rules. Operation is subject to two
conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that
may cause undesired operation. Changes or modifications not expressly
approved by Wilson Electronics could void the authority to operate this
equipment.
13Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon.- Fri. Hours: 7 am to 6 pm MST.
14
About Wilson Electronics
Wilson Electronics, Inc. has been a leader in the wireless communications
industry for over 40 years. The company designs and manufactures Signal
Boosters, antennas and related components that significantly improve
cellular phone signal reception and transmission in a wide variety of
applications, both mobile (vehicle, RV, marine) and in-building (home, office,
M2M).
With extensive experience in antenna and Signal Booster research and
design, the company’s engineering team uses a state-of-the-art testing
laboratory, including an anechoic chamber and network analyzers, to fine-
tune antenna designs and performance. For its Signal Boosters, Wilson
Electronics uses a double electrically insulated RF enclosure and cell tower
simulators for compliance testing.
Wilson Electronics Signal Boosters feature patented Smart Technology ™
that enables them to automatically adjust their power based on cell tower
requirements. By detecting and preventing oscillation (feedback), signal
overload and interference with other users, these Smart Technology ™
Signal Boosters improve network cell phone areas without compromising
carrier systems.
All products are engineered and assembled in the company’s
55,000-square-foot headquarters in St. George, Utah. Wilson Electronics
has product dealers in all 50 states as well as in countries around the world.
13
14
Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660
or email: tech@wilsonelectronics.com. Mon. -Fri. Hours: 7 am to 6 pm MST.
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson Electronics 30-day
money-back guarantee. If for any reason the performance of any product is not
acceptable, simply return the product directly to the reseller with a dated proof of
purchase.
1-Year Warranty
Wilson Electronics Signal Boosters are warranted for one (1) year against
defects in workmanship and/or materials. Warranty cases may be resolved by
returning the product directly to the reseller with a dated proof of purchase.
Signal Boosters may also be returned directly to the manufacturer at the
consumer’s expense, with a dated proof of purchase and a Returned Material
Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics
shall, at its option, either repair or replace the product. Wilson Electronics
will pay for delivery of the repaired or replaced product back to the original
consumer if located within the continental U.S.
This warranty does not apply to any Signal Booster determined by Wilson
Electronics to have been subjected to misuse, abuse, neglect, or mishandling
that alters or damages physical or electronic properties.
Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating
will void your warranty.
RMA numbers may be obtained by contacting Technical Support at 866-294-1660.
Disclaimer : The information provided by Wilson Electronics, Inc. is
believed to be complete and accurate. However, no responsibility is assumed
by Wilson Electronics, Inc. for any business or personal losses arising from its
use, or for any infringements of patents or other rights of third parties that may
result from its use.
Copyright © 2012 Wilson Electronics, Inc. All rights reserved.
3301 East Deseret Drive, St. George, UT 84790
For additional Technical Support visit www.WilsonElectronics.com
or email at: tech@wilsonelectronics.com
Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432
www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular
AIG #110995_iDEN800MHz_Rev3_05.01.12
iDEN 800 MHz Specifications
Model Number 274080
Antenna connectors N-Female
Antenna impedance 50 ohms
Dimensions 5.7 x 4.2 x 1.5 inch (14.0 x 10.8 x 3.9 cm)
Weight 1.27 lbs (0.544 kg)
Frequency 806-824 MHz / 851-869 MHz
1Passband Gain (nominal)
77 dB Typical, 82 dB Maximum
220 dB Bandwidth (nominal)
Uplink (806 - 824 MHz) 35 MHz
Downlink (851 - 869 MHz) 36.6 MHz
Power Output
Power output for single cell phone (uplink) 34.80 dBm
Power output for single received channel (downlink) 26.91 dBm
3Power output for multiple transmitted channels
(uplink) Maximum Power
The maximum power is reduced
by the number of channels: Number of channels Uplink Downlink
2 31.0 dBm 24.3 dBm
3 27.5dBm 20.7 dBm
4 25.0 dBm 18.2 dBm
5 23.1 dBm 16.3 dBm
6 21.5 dBm 14.7 dBm
Noise Figure (typical downlink/uplink) 3.5 dB nominal / 5 dB nominal
Isolation > 90 dB
Power Requirements 100-240 V AC, 50-60 Hz, 21 W
Notes:
1. Nominal gain is the maximum gain at any frequency in the passband.
2. Nominal bandwidth is the difference between two frequencies that are adjacent to the passband where the amplification is 20 dB lower than the passband
amplification. One of the frequencies is lower than the passband and the other is higher.
3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating
would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power
reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.
4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB every time the number of signals is doubled.
