Wilson Electronics 2B1401SA Dual-Band Direct Connection Amplifier with GPS User Manual

Wilson Electronics, LLC Dual-Band Direct Connection Amplifier with GPS Users Manual

Users Manual

Amplifier
Installation
Guide
Dual-Band
Direct Connection
Amplier with
GPS
Contents:
Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1
Before Getting Started / How it Works · · · · · · · · · · · · · · 3
Installing a Wilson Outside Antenna - In-Vehicle · · · · · · 4
Installing a Wilson Amplier - In-Vehicle · · · · · · · · · · · · 5
Installing a Wilson External Adapter - In-Vehicle · · · · · · 6
Installing a Wilson Outside Antenna - In-Building · · · · · 7
Installing a Wilson Amplier - In-Building · · · · · · · · · · · · 7
Installing a Wilson External Adapter - In-Building · · · · · 8
Powering Up a Wilson Amplier · · · · · · · · · · · · · · · · · · · 9
Warnings and Recommendations · · · · · · · · · · · · · · · · · 10
Amplier Specications · · · · · · · · · · · · · · · · · Back Cover
Wilson
®
Electronics, Inc.
Warning: This manual contains
important safety and operating information.
Please read and follow the instructions
in this manual. Failure to do so could be
hazardous and result in damage to your
amplier.
!
1
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson’s 30-day money-back
guarantee. If for any reason the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
1-Year Warranty
Wilson Electronics ampliers are warranted for one (1) year against defects in
workmanship and / or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Ampliers may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization
(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either
repair or replace the product. Wilson Electronics will pay for delivery of the repaired
or replaced product back to the original consumer.
This warranty does not apply to any ampliers determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
The Manufacturer’s rated output power of this equipment is for single carrier operation.
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of this device.
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for
any infringements of patents or other rights of third parties that may result from
its use.
Copyright © 2007 Wilson Electronics, Inc. All rights reserved.
2
Installation Instructions for the Following Wilson Ampliers
Direct Connection Dual-Band Amplier with GPS – Model # 2B1401 - Part #811200
Contains 1575 MHz bypass to allow for GPS reception.
FCC ID: PWO2B1401SA IC: 4726A-2B1401SA
The term “IC” before the radio certication number only signies that Industry Canada
technical specications were met.

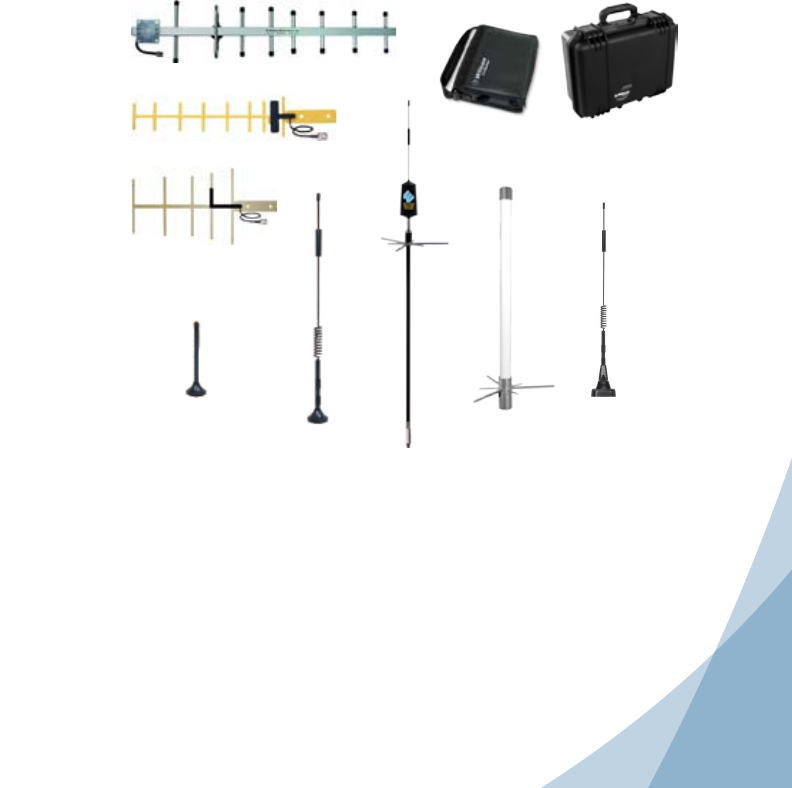

Antenna Options and Accessories
Mini
Magnet
Dual-Band Magnet
Mount
Dual-Band
NMO
Mount
Dual-Band
Marine
Antenna
Dual-Band
Trucker
Mount
Dual-Band
Amplier
Soft
Cases
Amplier
Hard Kit
Cases
800 MHz Yagi Cellular Antenna
1900 MHz Yagi PCS Antenna
800 MHz Yagi
Cellular Antenna
3
Before Getting Started
This guide will help you properly install Wilson’s direct connection ampliers in both in-
vehicle and in-building applications. It is important to read through all of the installation
steps for your particular application prior to installing any equipment. Read through
the instructions, visualize where all the equipment will need to be installed and do a soft
installation before mounting any equipment. If you do not understand the instructions in
full, seek professional help, or contact Wilson Technical Support at 866-294-1660.

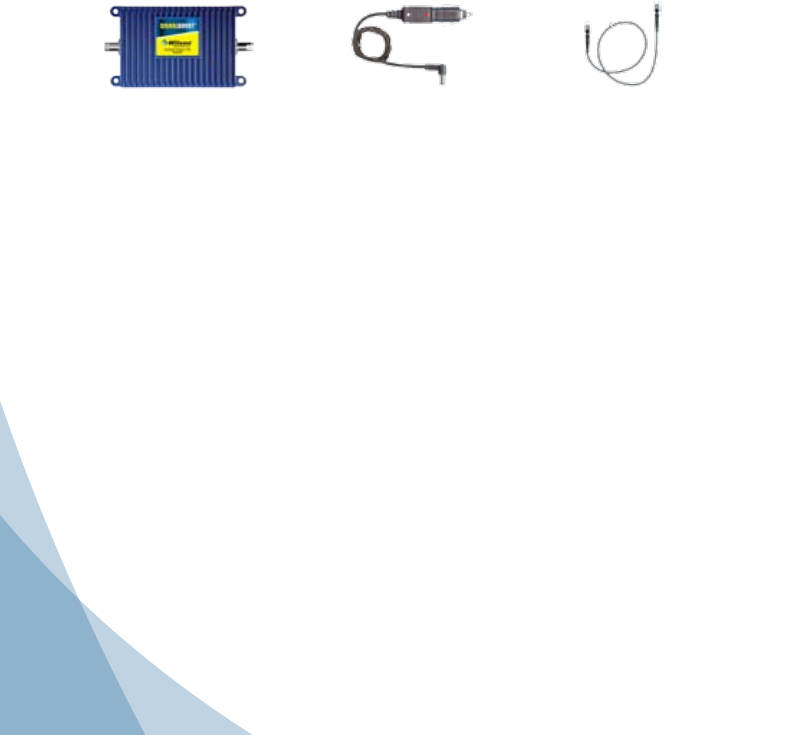

Inside this Package
• Direct connection amplier
• DC plug-in power supply with On/Off switch
• 6 ‘ extension cable
Additional Equipment
• Outside antenna for in-vehicle or in-building use (required)
(NOTE: specically tuned iDEN antennas available)
• Cell phone-specic external antenna adapter (required)
• AC/DC power supply (optional – for in-building use)
How it Works
Wilson ampliers are small, portable, bi-directional devices that deliver service levels
consistent with what would be expected in areas of high cell network coverage. They
amplify a weak or shadowed signal in mobile, marine and in-building applications.
When using a Wilson amplier in conjunction with Wilson antennas, the outside antenna
will collect the cell tower signal and send it through the cable to the amplier. Cell phones
and cellular data cards (laptops) then communicate with the improved signal. When a cell
phone or cellular data card transmits, the signal is amplied by the amplier and broadcast
back to the cell tower through the outside antenna.
Direct connection
amplier
6‘ extension
cable
DC plug-in power
supply
4

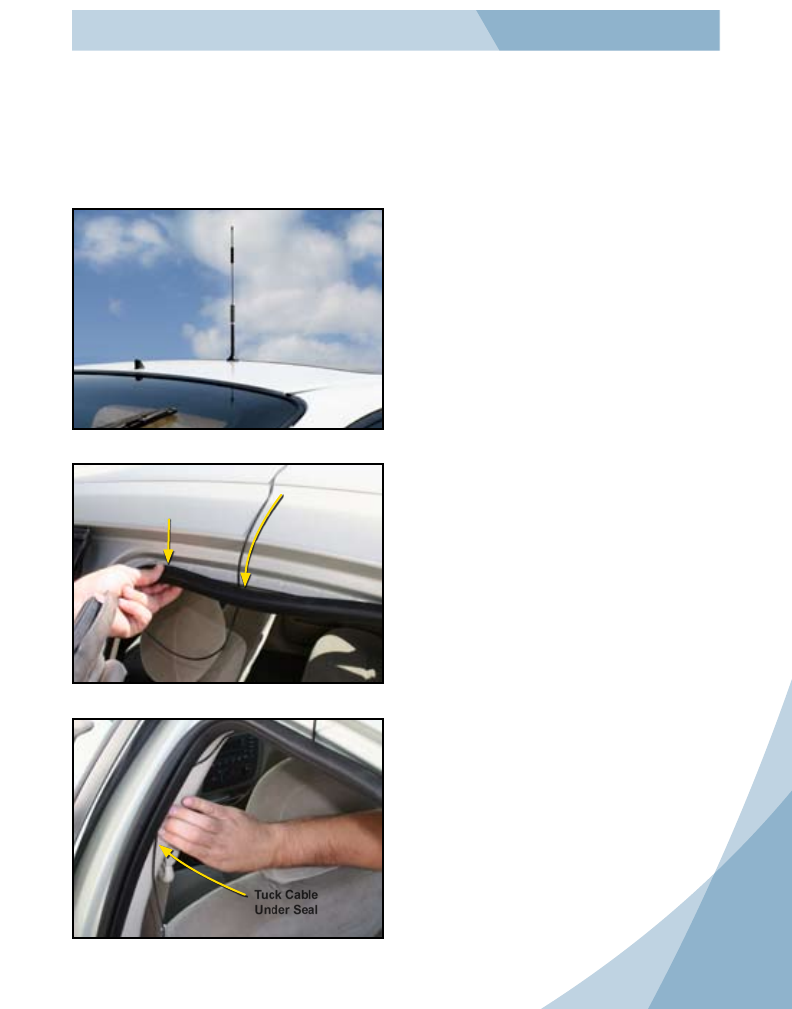

The outside antenna must be installed
vertically. Signal performance will be
degraded if the antenna is not vertical.
The antenna cable may be run through the
door to the amplier.
NOTE: See RF Safety Warnings (p. 10)
The antenna cable is small enough to easily
tuck under the door seal or plastic molding.
For a more professional-looking installation,
the antenna cable may be run under the
door seal. Carefully pull down the door
seal. Run the cable through the seal
and push the seal back into place. This
prevents constant wear and tear on the
cable as the door opens and closes.
Optional Magnet-
Mount Antenna
Shown
Carefully
Pull Down
Door Seal
Run Cable
Under
Seal
Tuck Cable
Under Seal
Installing a Wilson Outside Antenna
To receive the best cell signal, select a location in the center of the vehicle’s roof at least 12
inches away from any other antennas and free of obstructions.
Follow the specic antenna installation instructions included with the outside antenna (sold
separately).
In-Vehicle
5

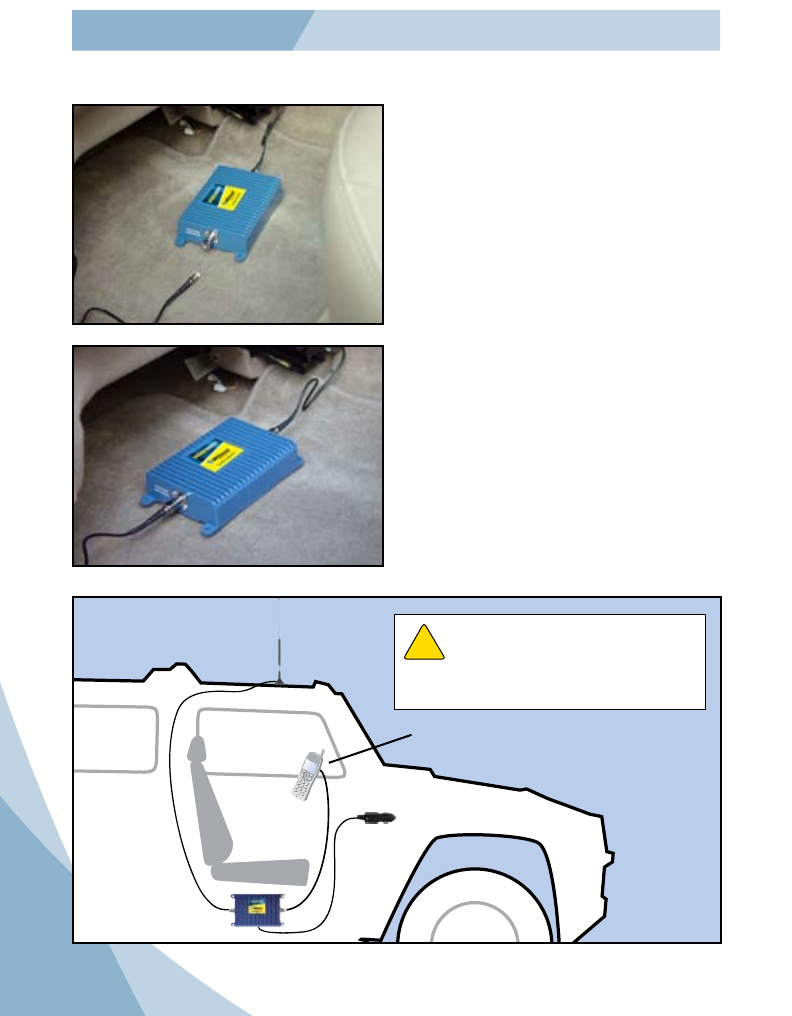

Select a location to install the amplier that
is away from excessive heat, direct sunlight,
moisture and that has proper ventilation.
Recommended installation locations for
in-vehicle are:
• Under the seat
• In the trunk
• Under the dash
Run the cable from the outside antenna and
attach it to the FME-Male connector labeled
“outside antenna” on the amplier.

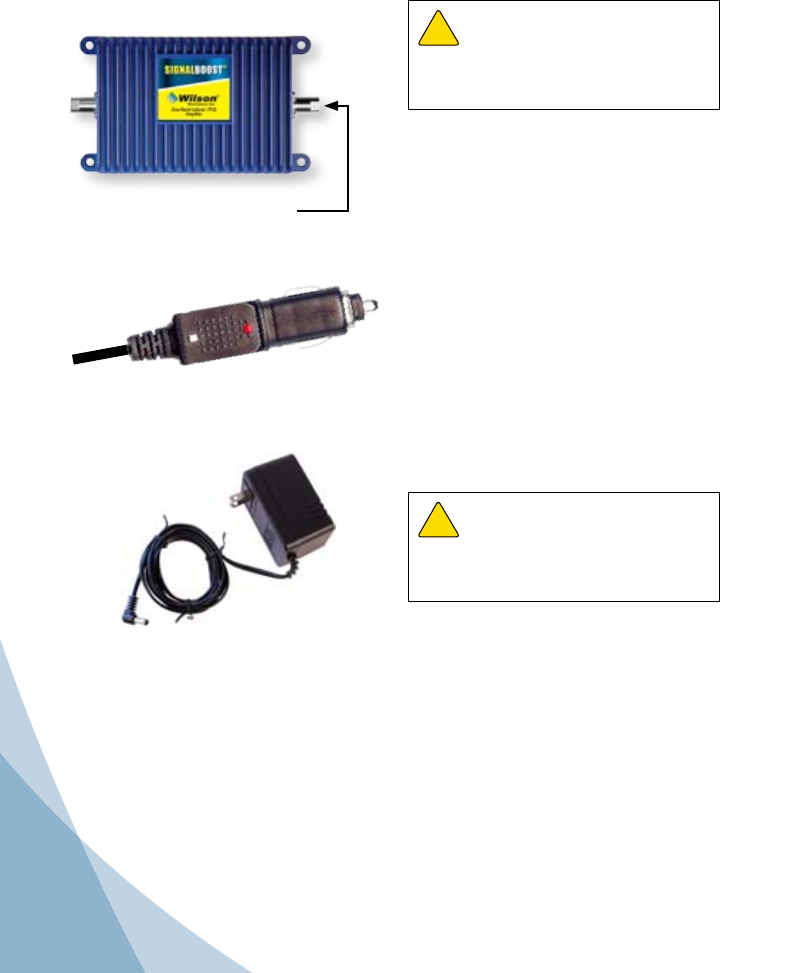

Installing a Wilson Amplier
Outside
Antenna
Amplier
DC Power
Supply
Cell Phone
Warning: Do not plug in the DC power
supply until the outside antenna and external
adapter cables are attached to the amplier.
!
In-Vehicle
6

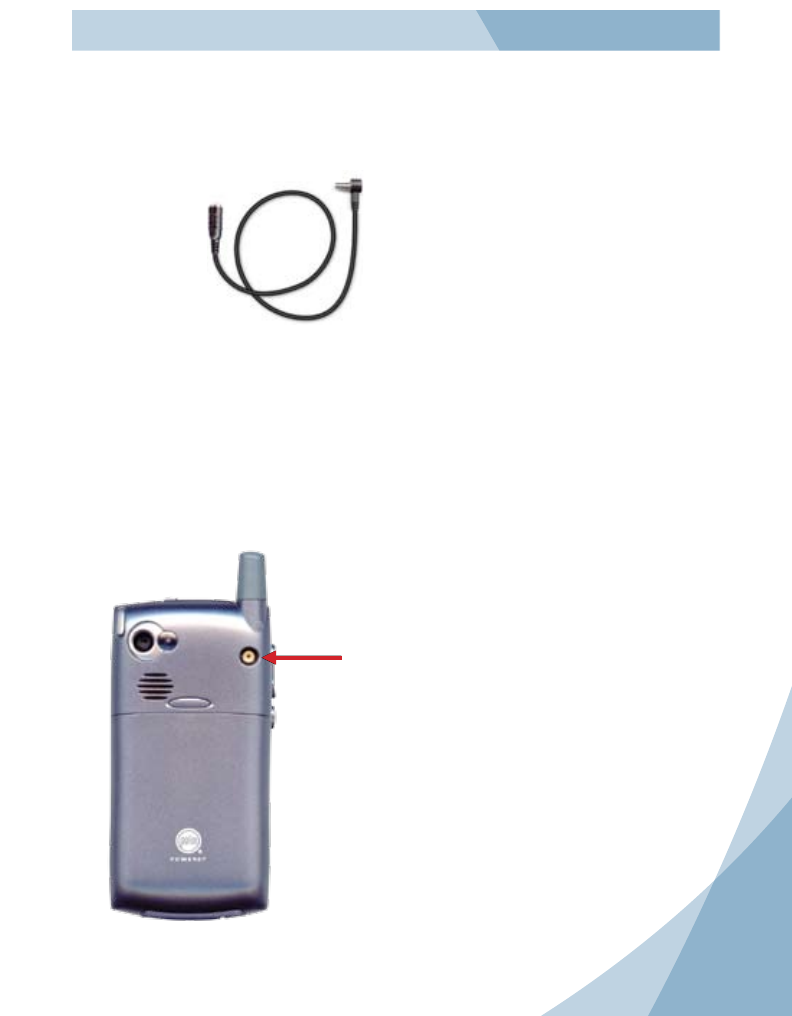

Installing a Wilson External Adapter
An 18-inch external adapter is required to connect the cell phone or cellular data card to
the amplier. The external adapter is cell phone/data card-specic and may be purchased
through a local retailer.
Refer to Wilson’s Adapter Guide to identify
the right adapter for your cell phone or
cellular data card. The adapter guide is
available through a local retailer or visit
www.wilsonelectronics.com.
The external adapter plugs into the included antenna extension cable and directly into a
socket on the cell phone or cellular data card as shown in Figure 1.
The external adapter and the included extension cable are long enough to reach the
amplier location. This allows for ease and convenience of use.
Run the extension cable from the external adapter and attach it to the FME-Male connector
labeled “cellular phone” on the amplier.
Sample
adapter
NOTE: Depending on your specic cell phone, the
adapter socket may be located beneath a rubber
plug.
Figure 1
In-Vehicle
7

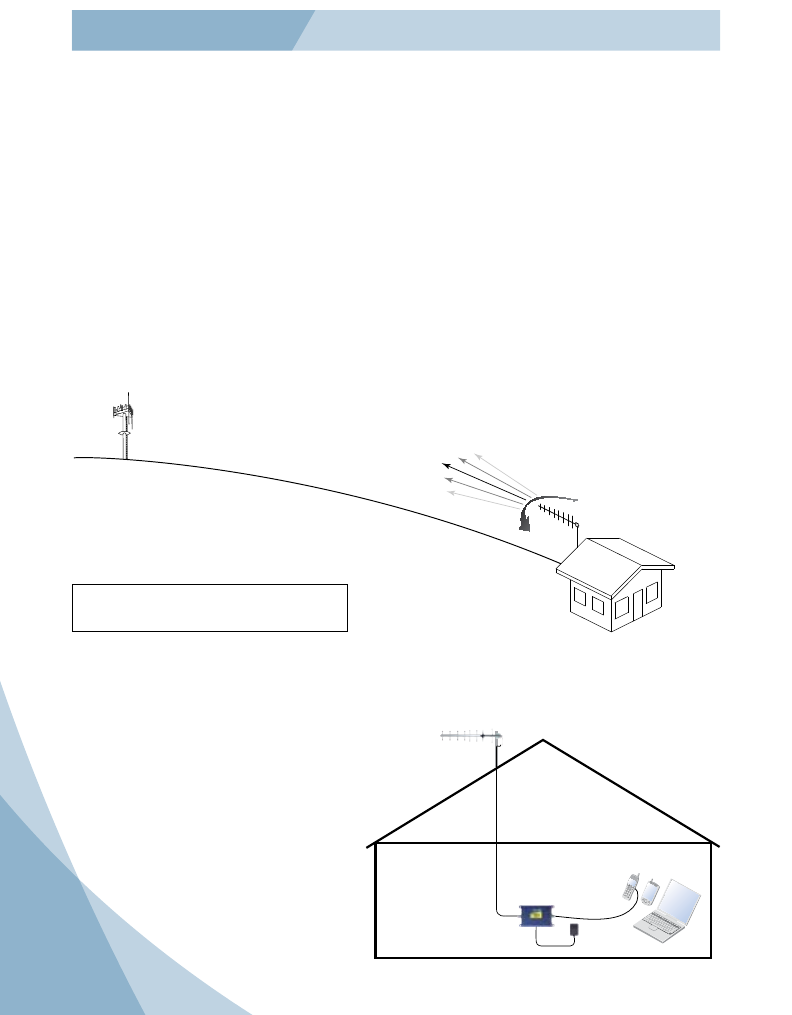

Installing a Wilson Outside Antenna – In-Building
Select a location on the roof of the building to install the outside antenna that has the most
unobstructed line of sight to the cell tower.
Follow the specic antenna installation instructions included with the outside antenna.
Lightning protection is recommended for all in-building installations. Take extreme care to
ensure neither you nor the antenna come in contact with any electrical power lines.
A Yagi antenna must be installed horizontally with the elements vertical and the drip hole
on the bottom. Ensure there are three feet of clearance in all directions surrounding the
antenna.
To obtain maximum performance, the antenna should point toward the cell tower. Follow
the instructions included with the outside antenna.
Installing a Wilson Amplier
Select a location to install the amplier that is away from excessive heat, direct sunlight,
moisture and that has proper ventilation. Ensure the amplier is installed within six feet
Cell Tower RF Signal
Yagi External Antenna
NOTE: See RF Safety Warnings (p. 10)
of where the cell phone or cellular data card will be used (to accommodate the six-foot
adapter extension cable). Run the cable from the outside antenna and attach it to the
FME-Male connector labeled “outside antenna” on the amplier. Connect the AC/DC power
supply (sold separately) to the power input labeled “DC 12 V IN” on the amplier.
Recommended installation locations for
in-building are:
• On a wall
• On the ceiling
• Near a power outlet
In-Building
8
Installing a Wilson External Adapter
An 18-inch external adapter is required to connect the cell phone or cellular data card to
the amplier. The external adapter is cell phone/data card-specic and may be purchased
through a local retailer.
Refer to Wilson’s Adapter Guide to identify
the right adapter for your cell phone or
cellular data card. The adapter guide is
available through a local retailer or visit
www.wilsonelectronics.com.
The external adapter plugs into the included six-foot extension cable and directly into a
socket on the cell phone or cellular data card as shown in Figure 1 on page 6. (NOTE: See
the user’s manual for your specic phone or data card to determine the socket location.)
Run the extension cable from the external adapter on the cell phone or cellular data card
and attach it to the FME-Male connector labeled “cellular phone” on the amplier.
Extension Cable Chart
The following Wilson extension cables are available to help you customize your installation
for peak performance.
951101 5’ Extension Cable RG58U
Low Loss Coax 0.6 dB loss
951102 10’ Extension Cable RG58U
Low Loss Coax 1.2 dB loss
951103 15’ Extension Cable RG58U
Low Loss Coax 1.8 dB loss
951104 20’ Extension Cable RG58U
Low Loss Coax 2.4 dB loss, N-Male to FME-Female
951108 20’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax
Only use 9913 Equivalent Low Loss Coax for
extensions 20’ or longer, 0.8 dB loss
951105 30’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax 1.2 dB loss
951106 50’ Extension Cable 9913 Equivalent
Ultra Low Loss Coax 2.0 dB loss
951117 75’ Extension 9913 Equivalent
Ultra Low Loss Coax 3.0 dB loss
951107 100’ Extension 9913 Equivalent
Ultra Low Loss Coax 4.0 dB loss
951113 2’ Extension 9913 Equivalent Ultra Low
Loss Coax (N-Male to N-Male Ends)
0.08 dB loss, Jumper Coax - Can be used to
connect a splitter behind an amplier.
951110 2’ Extension RG58U Low
Loss Coax (N-Male to FME-Female)
Used with the Yagi antenna to help nd the
optimum signal strength
(for installation purposes only).
RG58U - FME connectors / 9913 - N connectors
Sample
adapter
In-Building
9
Powering up a Wilson Amplier
For in-vehicle, rst connect the power cable
to the amplier input marked “DC 12 V IN”
and then insert the large end into a 12 V DC
power socket or cigarette lighter outlet.
The amplier may remain on all the time;
however, leaving the amplier on in a
vehicle when it is not running can discharge
the battery in a day or two.
A good option is to power the amplier
through the ignition switch so that the
amplier turns off and on with the vehicle.
For in-building, rst connect the optional
AC/DC power supply to the amplier input
labeled “DC 12 V IN” and then into a wall
outlet.
Carefully insert the power cable.
In-vehicle 12-volt DC power supply (included)
Warning: Use only a Wilson power
supply. Use of a non-Wilson product could
damage your equipment.
!
Testing a Wilson Amplier
To test your amplier, go to a weak signal area where your cell phone registers only 1-2
bars without the amplier turned on. Then, connect the amplier to the phone and you
should see a signal improvement of 2 or more bars. Note: many phones take up to 20
seconds to reset the bar indicator.
Warning: Verify that both the outside
antenna and the adapter extension cable are
connected to the amplier before powering up
the amplier.
!
In-building AC/DC power supply (optional)
10
Warnings and Recommendations
Warning: Verify that both the outside antenna and the adapter extension cable are
connected to the amplier before powering up the amplier.
Warning: RF Safety: In-vehicle - The outside antenna must be installed with a
separation of at least 20 inches from any of the vehicle’s occupants or
nearby persons and must not be located or operating in conjunction with
any other antenna or amplier. Use of a cellular amplier with an antenna
gain higher than 6.12 dBi is in violation of FCC regulations, for which the
offender is fully liable. All Wilson mobile antennas are 6.12 dBi or less.
Warning: RF Safety: In-vehicle - All roof-mount antennas should be centrally
located on the roof of the vehicle. Glass-mount antennas should be
located in the middle of either the front or back windshield. Mirror-mount
antennas should be at least six feet from the ground and at least 20
inches from any persons in or around the vehicle.
Warning: RF Safety: In-Building - The outside antenna must be installed on an
outdoor permanent structure with a separation of at least 26 inches from
all persons during normal operation. The outside building antenna must
not have a gain that exceeds 15 dBi. All Wilson outside building antennas
have gains of 15 dBi or less.
Lightning protection is recommended for all in-building installations.
NOTE: The aluminum casing of a Wilson amplier will adjust very quickly to the ambient
temperature of its environment. For example, in the summer, when the inside of a car can
reach 140 degrees Fahrenheit, the amplier temperature may be 150 degrees or higher.
The casing will be hot to the touch, similar to a metal door handle or a steering wheel. Such
high temperatures will not damage the amplier, nor do they pose a re risk to the vehicle.
As recommended in these instructions, install the amplier in a location with adequate
ventilation, such as under the seat, in the trunk or under the dashboard. Keep the area free
of items that could block air ow to the amplier.
Wilson® Electronics, Inc.
Phone: 866-294-1660 www.wilsonelectronics.com Fax: 435-656-2432
Part #110662 DC with GPS Bypass / 07.15.08
Amplier Specications
Dual Band
800/1900 MHz Specications
Model Number / Part Number 2B1401 / 811200
Connectors FME-Male
Impedance (input/output) 50 ohms
Dimensions 5 x 3.5 x 1.2 inch or 12.7 x 8.9 x 3 cm
Weight 1.03 lbs or 0.468 kg
Frequency 824-894 MHz / 1850-1990 MHz / 1575 MHz
1Passband Gain (nominal)
800 MHz and 1900 MHz 20 dB
1575 MHz 8 dB
220 dB Bandwidth (nominal)
800 MHz (uplink/downlink) 50 MHz / 49 MHz
1900 MHz (uplink/downlink) 121 MHz / 94 MHz
3Power output for single cell phone (uplink) 800 MHz 1900 MHz
CDMA 33 dBm 29.6 dBm
GSM 32.6 dBm 27.3 dBm
EDGE 33.1 dBm 27.8 dBm
WCDMA 33.5 dBm 29.7 dBm
3Power output for single received channel
(downlink) 800 MHz 1575 MHz 1900 MHz
CDMA 9.7 dBm 13.6 dBm
GSM 8.7 dBm 9.6 dBm
EDGE 9.1 dBm 12.3 dBm
AMPS 10.3 dBm 11.9 dBm
GPS 18 dBm
4Power output for multiple received
channels (downlink). The maximum
power is reduced by the number of
channels:
Number of
channels
Maximum Power
800 MHz 1900 MHz
2 10.1 dBm 10.9 dBm
3 6.5 dBm 7.4 dBm
4 4.0 dBm 4.9 dBm
5 2.1 dBm 2.9 dBm
6 0.5 dBm 1.4 dBm
Noise Figure (typical) 3 dB nominal
Isolation > 90 dB
Power Requirements
Amplier Usage 12 V, .5 A - 1.5 A (subject to uplink power)
Notes:
1. Nominal gain is the maximum gain at any frequency in the passband.
2. Nominal bandwidth is the difference between two frequencies that are adjacent to the passband where the
amplication is 20 dB lower than the passband amplication. One of the frequencies is lower than the passband and
the other is higher.
3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple
carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-
radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power
or gain reduction and not by an attenuator at the output of the device.
4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB every time the number of signals is doubled.

Navigation menu
