Wilson Electronics 2B4310SM 900MHZ IDEN & 1900MHZ PCS BOOSTER AMPLIFIER User Manual USERS MANUAL
Wilson Electronics, LLC 900MHZ IDEN & 1900MHZ PCS BOOSTER AMPLIFIER USERS MANUAL
USERS MANUAL
Amplifier
Installation
Guide
Warning: This manual contains
important safety and operating information.
Please read and follow the instructions
in this manual. Failure to do so could be
hazardous and result in damage to your
amplier.
!
SIGNALBOOST™
900/1900 MHz
iDEN
Amplier
Contents:
Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · · · 1
How it Works · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 2
Before Getting Started · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Installation Overview · · · · · · · · · · · · · · · · · · · · · · · · · · · 3
Installing the Antenna (Vehicle) · · · · · · · · · · · · · · · · · · · 4
Installing the SIGNALBOOST™ Amplier (Vehicle) · · · 5
Installing the Antenna (Home/Ofce) · · · · · · · · · · · · · · · 7
Installing the SIGNALBOOST™ Amplier (Home/Ofce) 7
Installing the Universal Connector (Cellular Data Card) 7
Powering Up the Amplier · · · · · · · · · · · · · · · · · · · · · · · 8
Warnings and Recommendations · · · · · · · · · · · · · · · · · 9
About Wilson Electronics · · · · · · · · · · · · · · · · · · · · · · · · 10
Amplier Specications · · · · · · · · · · · · · · · · · · Back Cover
Wilson
®
Electronics, Inc.
1
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson’s 30-day money-back
guarantee. If, for any reason, the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
1-Year Warranty
Wilson Electronics ampliers are warranted for one (1) year against defects in
workmanship and / or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Ampliers may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization
(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either
repair or replace the product. Wilson Electronics will pay for delivery of the repaired
or replaced product back to the original consumer.
This warranty does not apply to any ampliers determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
Operation is subject to the following two conditions: (1) This device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of this device.
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for
any infringements of patents or other rights of third parties that may result from
its use.
Copyright © 2008 Wilson Electronics, Inc. All rights reserved.

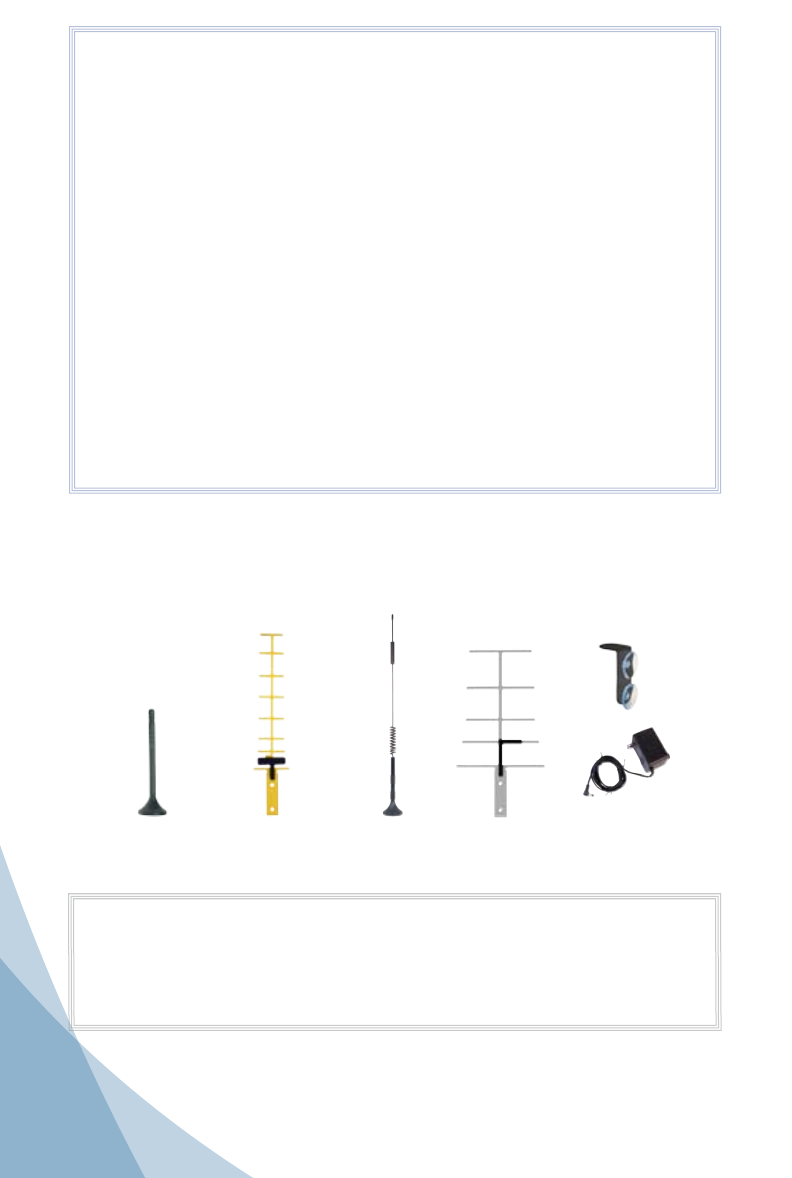

Quad-Band Magnet-
Mount Antenna
(Part #304202)
Yagi iDEN
Antenna
(Part #301142)
Window Bracket and
AC/DC Power Supply
(home/ofce)
(Part #859940)
Optional Items
Mini Magnet-Mount
Antenna
(Part #301113)
1900 MHz Yagi
Antenna
(Part #301124)
2
Installation Instructions for the Following Wilson Amplier:
SIGNALBOOST™ 900/1900 MHz iDEN Amplier
Model #2B4310, Part #814310
FCC ID: PWO2B4310SM IC: 4726A-2B4310SM
Patent Pending
The term “IC” before the radio certication number only signies that
Industry Canada technical specications were met.
Inside this Package
How it Works
Your new Wilson SIGNALBOOST™ Amplier has been carefully engineered to signicantly
improve the performance of your cell phone or cellular data card. Together with an antenna,
the amplier’s state-of-the-art technology is designed to increase your signal up to 10-15
times, reduce disconnects and dropouts, and increase data communication rates needed
for 3G technologies. The universal connector works with all iDEN data cards.
The antenna will collect the cell tower signal and send it through the cable to the amplier.
The signal is then boosted and sent through the extension cable to either the universal
connector on your data card or the cradle antenna with your cell phone, which then
communicates with the improved signal. When the cell phone or data card transmits, the
signal goes through either the universal connector or the cradle antenna, is boosted by the
amplier and broadcast back to the cell tower through the antenna.
NOTE: Use of this amplier with an antenna gain higher than 6.12 dBi on a vehicle or within
a building is in violation of FCC regulations. All Wilson mobile antennas have 6.12 dBi or
less gain. Use of this amplier with an outside xed building antenna gain exceeding 15 dBi
is in violation of FCC regulations. All Wilson Yagi antennas have gains of 15 dBi or less.
Use of antennas with higher than the above maximum allowable gains is in violation of FCC
regulations for which the offender is fully liable.

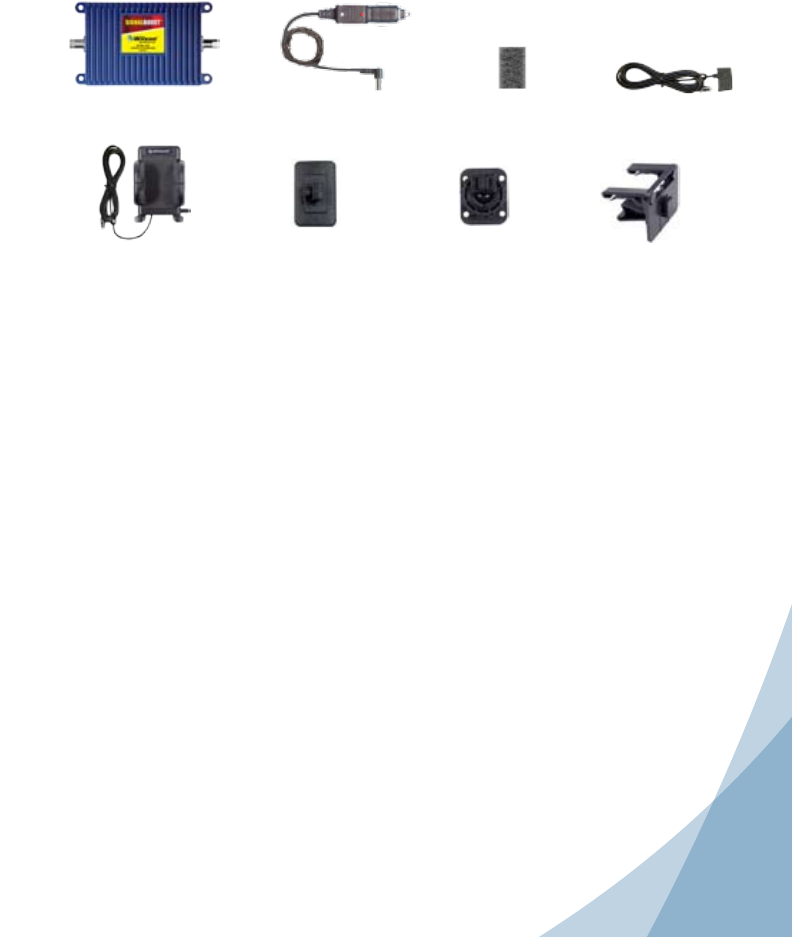

SIGNALBOOST™
amplier
12 V DC power
supply (vehicle) Universal
connector
VELCRO®
Adhesive
Bracket
Adhesive/Screw
Swivel Bracket Air-vent
Bracket
Cell Phone
Cradle Plus
3
Before Getting Started
This guide will help you properly install Wilson’s dual-band, SIGNALBOOST™ amplier.
It is important to read through all of the installation steps for your particular
application prior to installing any equipment. Read through the instructions, visualize
where all the equipment will need to be installed and do a soft installation before mounting
any equipment. If you do not understand the instructions in full, please contact Wilson
Technical Support at 866-294-1660.
Installation Overview
The following steps provide a summary of the amplier/antenna installation process using
a magnet-mount or mini magnet-mount antenna. However, they are not a substitute for the
complete installation instructions on the following pages, which you should read thoroughly.
If you are using a different antenna, follow the specic instructions that come with it.
STEP 1 Install the Antenna
For a vehicle installation, attach the antenna in the center of the vehicle’s roof and run the
cable through the door to the amplier. For a home or ofce installation, attach the magnet-
mount or mini magnet-mount antenna to the optional window bracket, afx the bracket to
a window with the suction cups and run the cable to the amplier. (See pages 4 and 6 for
details and warnings.)
STEP 2 Install the Amplier
Position the amplier in a well-ventilated location away from direct sunlight. Run the cable
from the antenna and attach it to the FME-Male connector labeled “outside antenna” on the
amplier. (See pages 5 and 6 for details.)
STEP 3 Attach the Universal Connector or the Cradle Antenna
Attach the universal connector cable to the FME-Male connector labeled “Universal
Connector” on the amplier. Attach the other end of the cable to your cellular data card with
the supplied VELCRO®. (See page 7 for details.) Or, attach the Cradle Antenna cable to
the amplier.
STEP 4 Power up the Amplier
IMPORTANT! Before connecting the power supply, ensure that both the antenna cable and
the cable to either the Cradle Antenna or the Universal Connector are connected. (See
page 8 for details.)

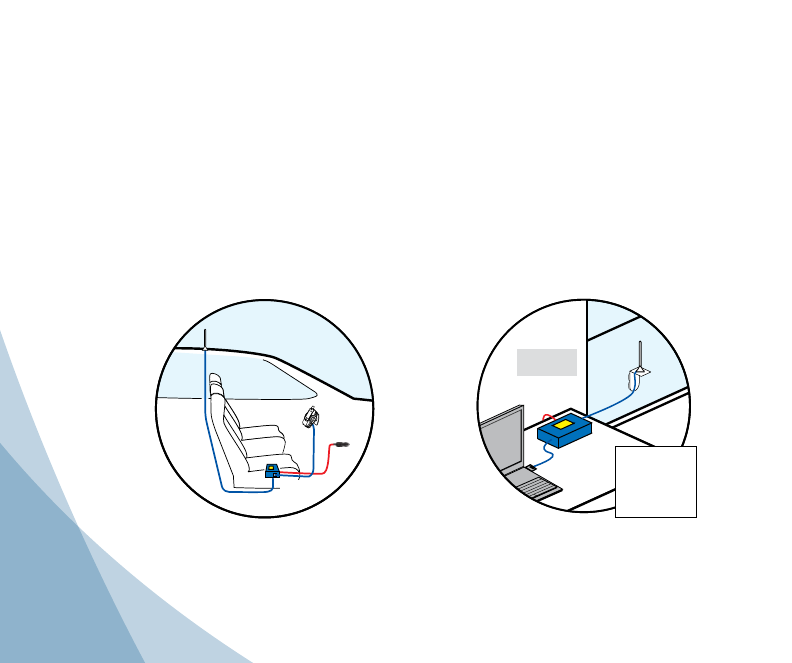

Mobile Installation Diagram Home/Ofce Installation Diagram
AC Power Supply and
Window Bracket
sold separately
(Part #859940)
SIGNALBOOST™
Amplifier
Laptop
Connection
Antenna
(sold separately)
Cigarette
Power Supply
SIGNALBOOST™
Amplifier
4
Installing the Antenna
To receive the best cell signal, select a location in the center of the vehicle’s roof at least 12
inches away from any other antennas and free of obstructions.
The antenna must be installed vertically.
Signal performance will be degraded if the
antenna is not vertical.

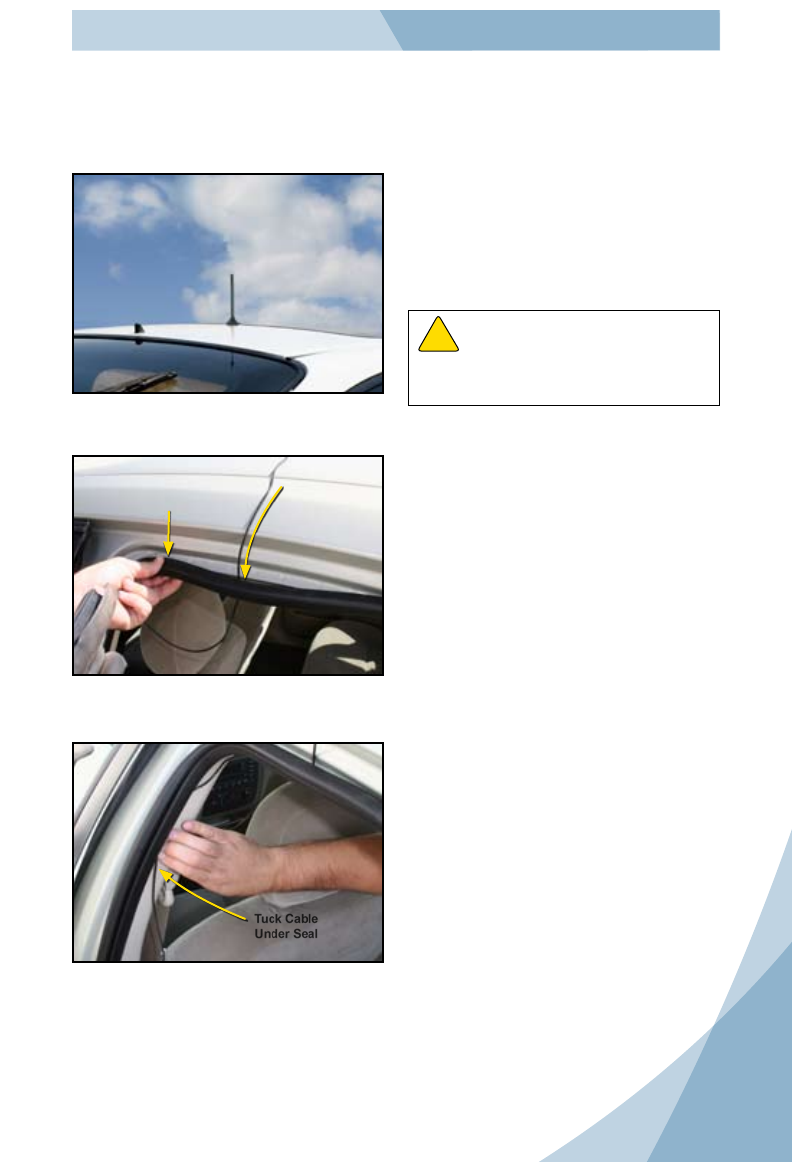

The antenna cable may be run through the
door to the amplier.
The antenna cable is small enough to easily
tuck under the door seal or plastic molding.
For a more professional-looking installation,
the antenna cable may be run under the
door seal. Carefully pull down the door
seal. Run the cable through the seal
and push the seal back into place. This
prevents constant wear and tear on the
cable as the door opens and closes.
Carefully
Pull Down
Door Seal
Run Cable
Under
Seal
Tuck Cable
Under Seal
Vehicle Installation
Warning: The mobile antenna used
with this amplier must have a separation
distance of at least 8 inches from all persons.
!
5
Installing the Wilson SIGNALBOOST™ Amplier
Warning: Do not plug in the DC power
supply until the antenna and other cables are
attached to the amplier.
!

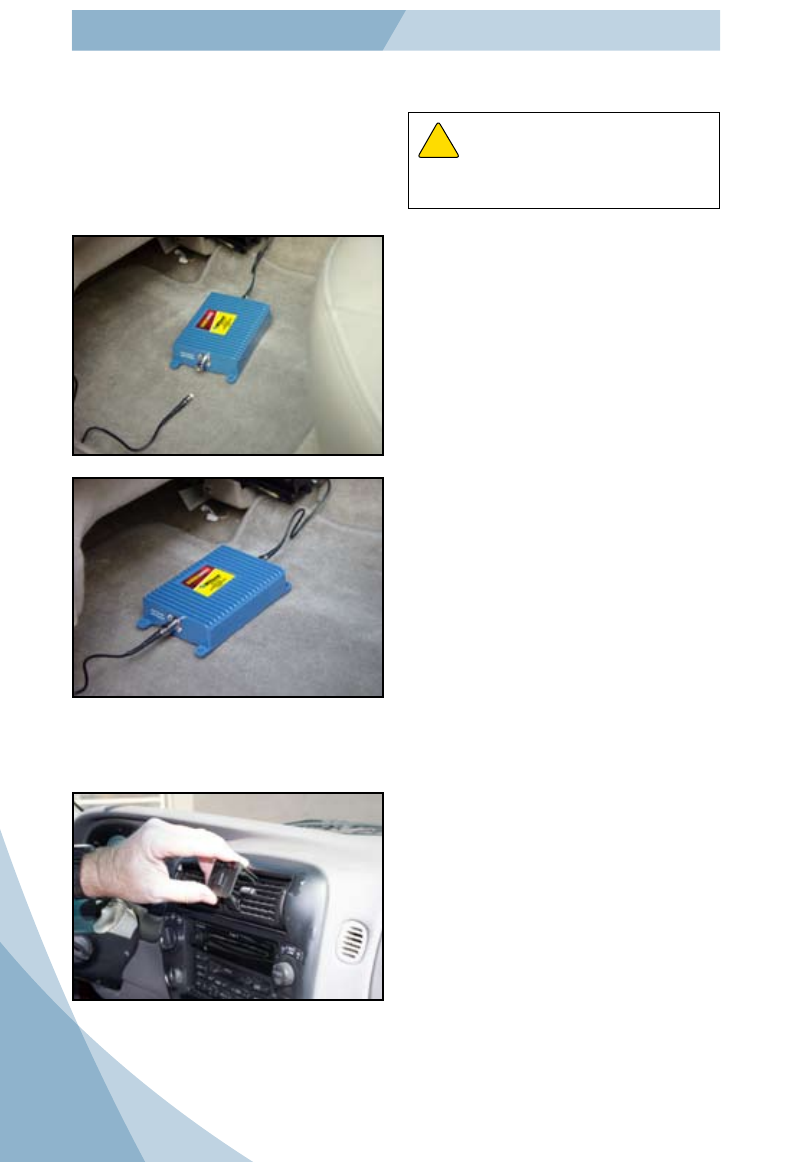

Select a location to install the amplier that
is away from excessive heat, direct sunlight
or moisture and that has proper ventilation.
Recommended installation locations are:
• Under the seat
• Under the dash
Run the cable from the antenna and attach
it to the FME-Male connector labeled
“outside antenna” on the amplier.
Attach the cradle antenna cable to the
FME-Male connector labeled “Universal
Connector” on the amplier.
Vehicle Installation
Installing the Cradle Plus

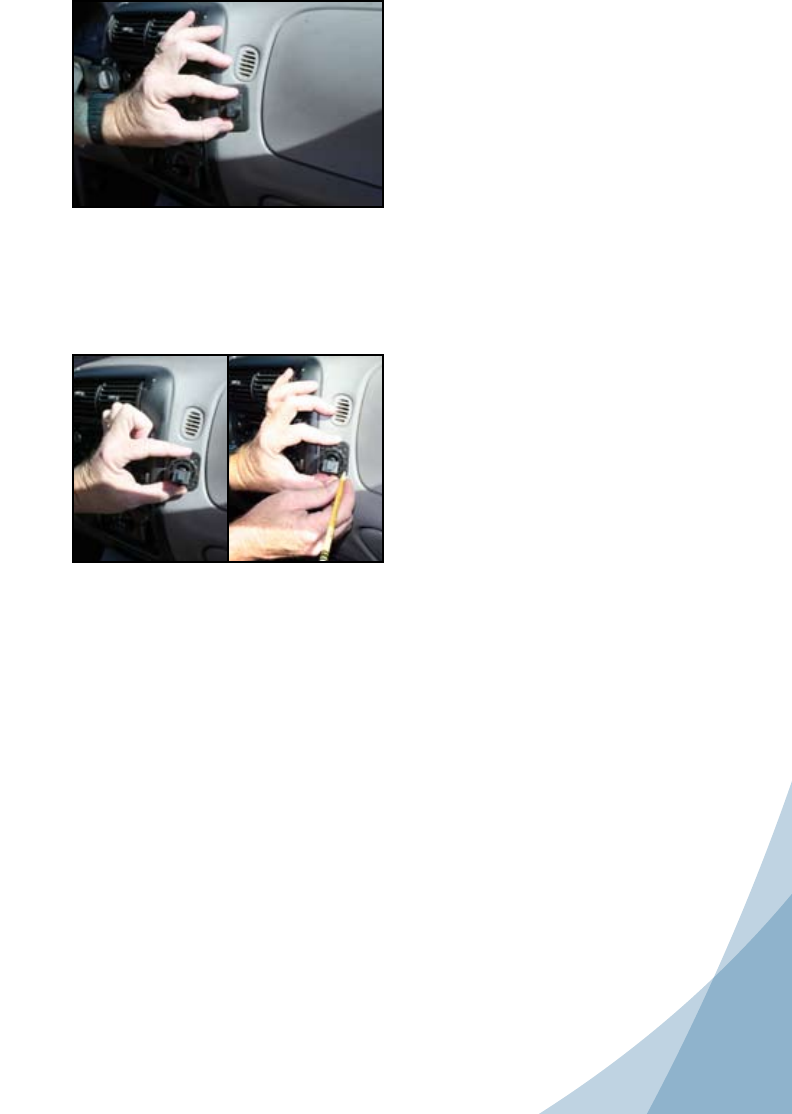

Option 1 - Air Vent Bracket
Insert the two vent clips into the circular
hole in the bracket and slide them to each
end of the slot. The at surface of the clips
should face upwards.
Slide the bracket clips into the chosen vent
until they snap into place. If necessary,
use a thin-bladed screwdriver to gently pry
the clips apart as they slide into the vent.
Position the moveable arm at the base of
the bracket to achieve the desired angle
and to provide additional stability for the
bracket.
6
Option 2 - Adhesive Bracket
Clean the area where the bracket is to be
mounted with rubbing alcohol and a soft
cloth. Allow to dry.
Peel the backing to expose the adhesive
and press the bracket onto the desired
location in the vehicle. Note: be sure
the bracket is positioned vertically, not
horizontally.
Allow the adhesive to cure for 24 hours
before you attach the cradle.
Note: Once the cradle is attached, you can
adjust the angle of the adhesive bracket
by applying gentle pressure to the top or
bottom of the cradle.
Option 3 - Adhesive/Screw Swivel
Bracket
Clean the area where the bracket is to be
mounted with rubbing alcohol and a soft
cloth. Allow to dry.
For an adhesive mount, peel the backing
to expose the adhesive and press the
bracket onto the desired location in the
vehicle. Allow the adhesive to cure for 24
hours before you attach the cradle.
For a screw mount, use an ice pick or awl
to punch through the adhesive and expose
the four screw holes in the bracket. You
must provide the screws of an appropriate
size for your particular application. Using
the bracket as a template, mark the
locations for the screws as shown, drill pilot
holes and attach the bracket with screws.
Once the cradle is attached, you can
loosen the knurled wheel and swivel the
hook to the desired angle, then re-tighten
the wheel.
Attaching the Cradle
Once you have installed the mount in the desired location, attach the cradle by aligning
the rectangular hole on its back with the hook on the mount. Grasping the sides of the
cradle, slide it downward approximately ¼ inch into place.
For best mounting results and long-
term performance, we suggest that
you choose a at smooth surface
like the console area of your vehicle
between the two front seats. If this is
not available in your vehicle, you may
mount the cradle on the front of the
dashboard.
If mounting the cradle on a sloped
area of the dashboard in your vehicle,
please note that gravity may affect
the adhesive over time. Use the
screw mount for a more permanent
attachment.
7

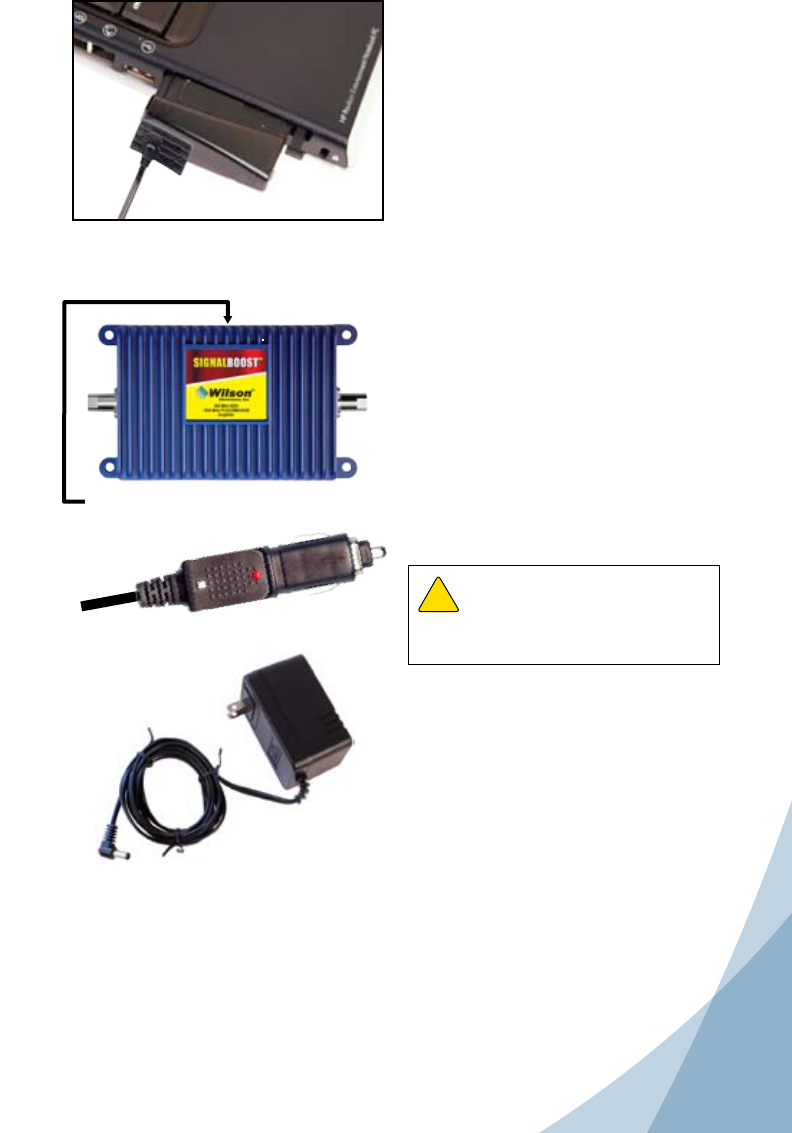

Installing the Wilson Universal Connector
Amplier
Universal
Connector

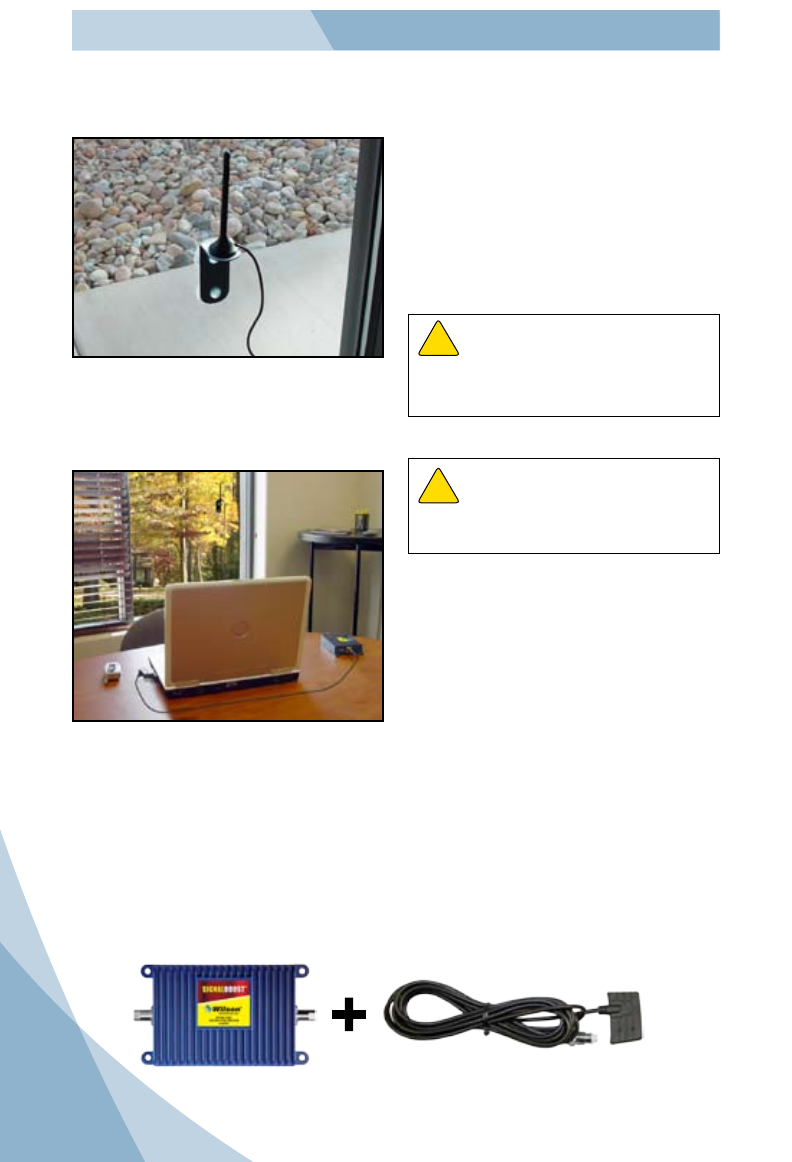

Installing the Antenna
To receive the best cell signal, select a window location at least 12 inches away from any
radio or television antennas and free of obstructions.
Using the suction cups, position the
optional mounting bracket on the window at
a height convenient to where the amplier
will be located, then attach the antenna to
the bracket.
The antenna must be installed vertically.
Signal performance will be degraded if the
antenna is not vertical.
Select a location to install the amplier that
is away from excessive heat, direct sunlight
or moisture and that has proper ventilation.
Recommended installation locations are:
• On a desk or table top
• In a bookshelf
• On the oor
Run the cable from the antenna and attach it to the FME-Male connector labeled “outside
antenna” on the amplier.
Attach the universal connector cable to the extension cable and attach the extension cable to
the FME-Male connector labeled “Universal Connector” on the amplier.
Then attach the universal connector to your cellular data card.
Home/Ofce Installation
Installing the Wilson SIGNALBOOST™ Amplier
Warning: Do not plug in the AC power
supply until the outside antenna and universal
connector cables are attached to the amplier.
!
Warning: The bracket mounted
antennas used with this amplier must have a
separation distance of at least 8 inches from
all persons.
!
8
Powering up the Amplier
Make sure both the outside antenna
and other cables are connected before
powering up the amplier.
For vehicle use, connect the power cable
from the DC power supply to the amplier
input marked “Power” and insert the large
end into DC power socket (the cigarette
lighter outlet).
For home or ofce use, connect the
cable from the AC/DC power supply (sold
separately) to the amplier input marked
“Power” and insert the plug end into a
standard wall outlet.
The amplier may remain on all the time.
However, leaving the amplier on in a
vehicle when it is not running can discharge
the battery in a day or two.
A good option is to power the amplier
through the ignition switch so the amplier
is turned on and off with the vehicle.
NOTE: The aluminum casing of the SIGNALBOOST™ amplier will adjust very quickly to
the ambient temperature of its environment. For example, in the summer, when the inside
of a car can reach 140 degrees Fahrenheit, the amplier temperature may be 150 degrees
or higher. The casing will be hot to the touch, similar to a metal door handle or steering
wheel. Such high temperatures will not damage the amplier, nor do they pose a re
risk. As recommended in these instructions, when installing the amplier in a vehicle,
select a location with adequate ventilation, such as under the seat or dashboard.
Keep the area free of items that could block air ow to the amplier.
IMPORTANT: Do not power up the
amplier unless the antenna and other
cables are attached to the amplier.
Warning: Use only Wilson power
supply units. Use of a non-Wilson
product may damage your equipment.
!
Carefully insert the power cable.
The universal connector must be placed
directly on the cellular data card to work
properly. Attach the universal connector to
the cellular data card with the VELCRO®
included in the package. IMPORTANT:
The adhesive of the gray Velcro patch
needs time to “cure.” For best results,
do not use the Velcro connection for a
minimum of 24 hours after application.
The universal connector and extension
cable included in the package are long
enough to reach the amplier location. This
allows for ease and convenience of use.
Cellular data card
12 V DC power supply (included)
AC/DC power supply (not included)
9
Warnings and Recommendations
Warning: Do not plug the amplier directly into the cell phone or cellular
data card using an antenna adapter. It will damage the cell
phone or cellular data card.
Warning: Do not plug in the power supply until the antenna other cables
are attached to the amplier.
Warning: RF Safety: Vehicle and indoor building antennas must be
installed with a separation of at least 8 inches from all persons.
Fixed outdoor building antennas must be installed with a
separation distance of at least 24 inches from all persons. These
antennas must not be located or operating in conjunction with
any other antenna or amplier.
NOTE: Use of this amplier with an antenna gain higher than
6.12 dBi on a vehicle or within a building is in violation of FCC
regulations. All Wilson mobile antennas have 6.12 dBi or less
gain. Use of this amplier with an outside building antenna gain
exceeding 15 dBi is in violation of FCC regulations. All Wilson
Yagi antennas have gains of 15 dBi or less. Use of antennas
with higher than the above maximum allowable gains is in
violation of FCC regulations for which the offender is fully liable.
Recommended amplier installation locations for a vehicle are:
• Under the seat
• Under the dash
Power the amplier through the ignition switch so the amplier is turned on and
off with the vehicle.
Recommended amplier installation locations for a home or ofce are:
• On a desk or table top
• In a bookshelf
• On the oor
9
10
About Wilson Electronics
Wilson Electronics, Inc. has been a leader in the wireless communications
industry for nearly 40 years. The company designs and manufactures ampliers,
antennas and related components that signicantly improve cellular telephone
signal reception and transmission in a wide variety of applications, both mobile
and in-building.
With extensive experience in antenna and amplier research and design, the
company’s engineering team uses a state-of-the-art testing laboratory, including
an anechoic chamber and network analyzers, to ne-tune antenna designs and
performance. For its ampliers, Wilson uses a double electrically insulated RF
enclosure and cell site simulators for compliance testing.
All products are engineered and assembled in the company’s 50,000-square-foot
headquarters in St. George, Utah. Wilson has product dealers in all 50 states as
well as countries all over the world.
Amplier Specications
Dual Band
900/1900 MHz Specications
Model Number 2B4310
Connectors FME-Male
Impedance (input/output) 50 Ohms
Dimensions 5 x 3.5 x 1.2 inch or 12.7 x 8.9 x 3 cm
Weight 1.03 lbs or 0.468 kg
Frequency 896-940 MHz / 1850-1990 MHz
1Passband Gain (nominal)
25 dB typical, 30 dB maximum
220 dB Bandwidth (nominal)
900 MHz 8 MHz maximum
1900 MHz 74 MHz maximum
³Power output for single cell phone (uplink) 900 MHz 1900 MHz
CDMA 29.0 dBm
GSM 29.2 dBm
EDGE 29.0 dBm
iDEN 29.6 dBm
Power output for single received channel
(downlink) 900 MHz 1900 MHz
CDMA 8 dBm
GSM 8 dBm
EDGE 8 dBm
iDEN -6.6 dBm
4Power output for multiple
received channels (downlink).
The maximum power is reduced by
the number of channels:
Number of
channels
Maximum Power
900 MHz 1900 MHz
25.8 dBm 13.3 dBm
3 2.2 dBm 9.8 dBm
4 -0.3 dBm 7.3 dBm
5-2.2 dBm 5.3 dBm
6 -3.8 dBm 3.8 dBm
Noise Figure (typical) 3.5 dB nominal
Isolation uplink/downlink more than 50 dB
Power Requirements 12 V, 2 A (subject to uplink power)
Notes:
1. Nominal gain is the maximum gain at any frequency in the passband.
2. Nominal bandwidth is the difference between two frequencies that are adjacent to the passband where the amplication is 20 dB
lower than the passband amplication. One of the frequencies is lower than the passband and the other is higher.
3. The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier
signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can
cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by
an attenuator at the output of the device.
4. The maximum power for 2 or more simultaneous signals will be reduced by 6 dB every time the number of signals is doubled.
Wilson
®
Electronics, Inc.
3301 East Deseret Drive, St. George UT 84790
For additional Technical Support visit
www.wilsonelectronics.com
Phone: 866-294-1660 Fax: 435-656-2432
Part #110481 AIG SBi 007 / 02.11.08
