User Manual

ENGLISH FRANÇAIS

Need help? Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

www.weBoost.com

Cellular Signal Booster

Connect 4G-X™

ENGLISH

Need help? www.weBoost.com Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

IT IS VERY IMPORTANT

TO POWER YOUR SIGNAL

BOOSTER USING A SURGE

PROTECTED AC POWER

STRIP WITH AT LEAST A 1000

JOULE RATING.

FAILURE TO DO THIS WILL VOID YOUR WARRANTY

IN THE EVENT OF A POWER SURGE OR LIGHTNING

STRIKE.

! ! THE SIGNAL BOOSTER UNIT IS DESIGNED

FOR USE IN AN INDOOR, TEMPERATURE-

CONTROLLED ENVIRONMENT (LESS

THAN 150 DEGREES FAHRENHEIT). IT IS

NOT INTENDED FOR USE IN ATTICS OR SIMILAR

LOCATIONS SUBJECT TO TEMPERATURES IN

EXCESS OF 150°F.

Contents

Package Contents .....................................................3

Before Getting Started .................................................3

Find the Strongest Signal ............................................... 3

Installation Details ..................................................... 4

Quick Install ..........................................................5

Outside Antenna Installation ............................................5

Signal Booster Installation ..............................................5

Inside Antenna Installation .............................................. 6

Powering Up the Signal Booster .........................................6

Troubleshooting & Understanding Lights ..................................6

Additional FAQ ........................................................7

Optional Equipment ...................................................8

Safety Guidelines ....................................................10

Signal Booster Specifications .......................................... 11

Guarantee ....................................................Back Cover

Installation Instructions for the Following Wilson Electronics Signal Booster:

Connect4G-X™ In-Building Wireless Band 12/17 & 13 (700 MHz), Band 5 (800 MHz),

Band 4 (1700/2100 MHz), Band 25/2 (1900 MHz)

SmarTech ® Signal Booster

Model # 471004/U471004 FCC ID: PWO460004 IC: 4726A-460004

The term “IC” before the radio certication number only signies that Industry Canada technical specications were met.

ENGLISH

Need help? Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

www.weBoost.com

Before Getting Started

Before you install your Connect 4G-X and

start enjoying improved cellular reception

in your facility, please do the following:

1. Read through all the installation

steps. This will help you know what to

expect from start to nish.

2. Watch the YouTube video

demonstrating the Connect 4G-X

installation at weboost.com/us/

connect4G-Xvideo.

3. Familiarize yourself with all materials

in your product package. This will

allow you to know which pieces we

reference in the instructions.

4. Identify the location of your best

available cellular signal. See

instructions that follow.

5. Determine the best installation

locations for your Outside Antenna,

Signal Boost, and Inside Antenna.

Connect all cables and test the

function of your Connect 4G-X system

before nalizing installation.

Package Contents

Tools Required for Installation:

(depending on your particular installation, you will need the following tools)

1. Pole mount - 10 mm open-end wrench or adjustable wrench

2. Wall mount or Rafter mount - Drill and 3/16 inch bit, Phillips-head screwdriver

Find the Strongest Cellular Signal

Before you install your Connect 4G-X signal

booster, you must determine the location of

the best available cellular signal. This will

affect the location of your Outside Antenna

and will help you get the best performance

from your Connect 4G-X. You can nd

the strongest signal outside your building,

typically at the highest point available, using

any of the following methods:

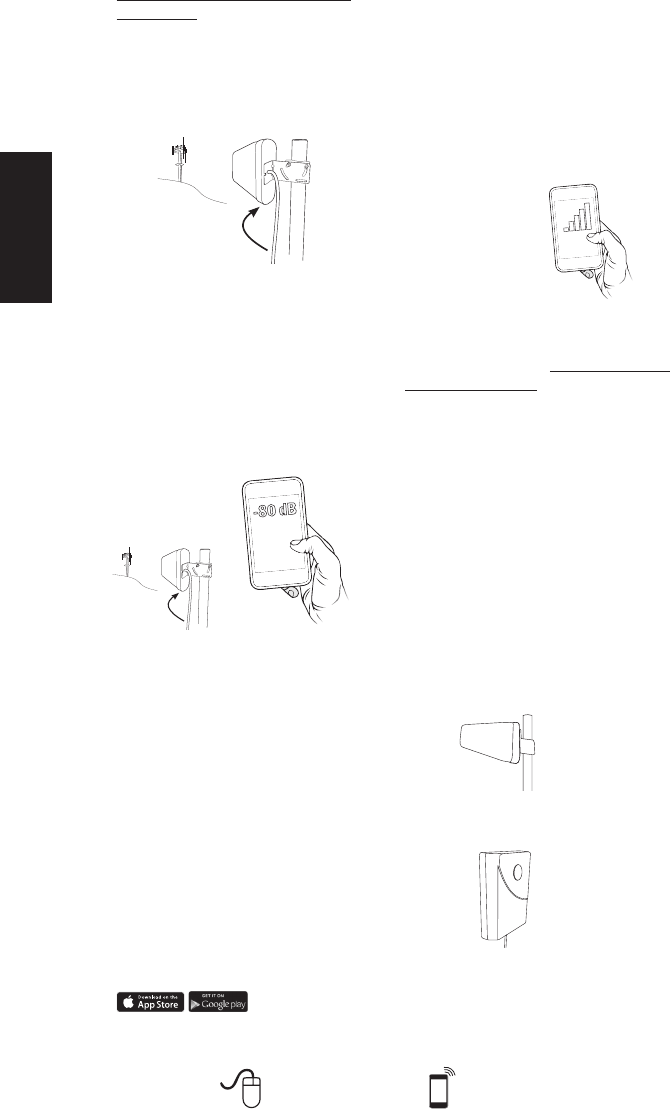

1. Best method:

After connecting power the power

supply to your surge protected power

strip, connect the Outside Antenna

to the Connect 4G-X signal booster,

and the Connect 4G-X to the Inside

Antenna. Have one person outside

(on the roof for best results) rotate the

Outside Antenna with a second person

inside the building near the Inside

Antenna watching the signal strength

on a phone. This allows you to read the

signal strength from nearby cell towers.

a. The person inside should have

the phone in test mode so the

numerical signal strength can be

read. This is more accurate than

the bar indicator. Go to

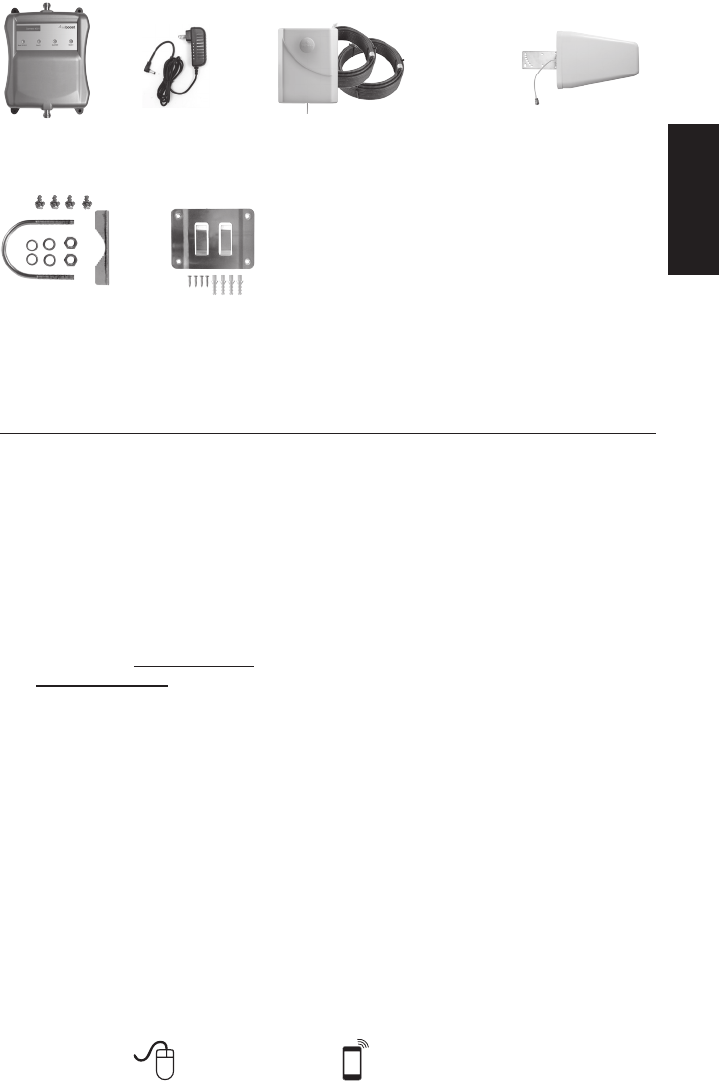

Appearance of device and accessories may vary.

Wall Mount BracketPole Mount Bracket

12V / 3A, AC/DC Power

Supply (859900)

Panel Antenna

(311135-40060)

Wide Band Directional Antenna

(314411-40075)

60’ LMR Cable

(952360)

75’ LMR Cable

(952375)

Connect 4G-X™

(461104)

ENGLISH

Need help? www.weBoost.com Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

www.weboost.com/us/test-mode-

instructions for help in nding the

test mode for your phone.

b. The person on the roof should turn

the Outside Antenna 45 degrees

at a time. Allow 30 seconds for the

phone to register with each turn.

c. The person inside should note the

readings on the phone with each

turn. Signal readings usually appear

as a negative number. The closer the

number gets to zero, the stronger the

signal (for example, -86 dB would be

a moderately good reading while -55

dB would be an excellent reading,

and -110 dB would be a weak, or

unusable signal).

d. Once you have determined which

direction provides the strongest

outside signal, you can install the

Outside Antenna in that general

direction.

2. Good methods:

a. Place calls from several locations

outside your building. As you move

to different locations, note where

you get the best reception.

b. If you have a smart phone, you

can download apps that help you

identify locations of cell phone

towers or the strongest signal. Go

to the App Store and search for

“cell signal” to nd available apps

for your device.

3. Acceptable method: Check the bar

indicator on your cell phone display

and note where the signal appears

the strongest. (Note: cell phone bars

are only an approximation of signal

strength and vary from phone to

phone.) Phones can take up to 30

seconds to reset to a new reading. Be

patient and repeat your signal check

several times.

For additional instructions on nding

the strongest cellular signal, watch the

installation video at: weboost.com/us/

connect4G-Xvideo.

Installation Details

As you plan your installation, keep the

following guidelines in mind to maximize

your signal strength:

1. Maintain a vertical distance of at least

20 feet or a horizontal distance of at

least 50 feet between the Outside

Antenna to the Inside Antenna.

2. If possible, place the Inside Antenna

directly beneath the placement of the

Outside Antenna location. This creates

a maximized signal zone within the

room where the Inside Antenna is

located.

3. Be sure the Inside Antenna is NOT

facing toward the Outside Antenna.

This creates potential oscillation

or feedback and reduces the

effectiveness of the Connect 4G-X.

WAIT 30

SECONDS

Place the inside antenna

directly beneath the

placement of the Outside

Antenna location

At least 20 feet of vertical or

50 horizontal separation

Outside Directional

Antenna

Inside Panel Antenna

Cell Tower

Outside Directional

Antenna

Outside Directional

Antenna

ENGLISH

Need help? Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

www.weBoost.com

4. If you do not know how to mount

hardware or run coax cable through

walls, ceilings and oors, get help from

a weBoost Certied Installer at www.

weboost.com/us/installers or from a

qualied contractor or electrician.

We recommend you install the Lightning

Surge Protector (859902). Attach the cable

from the Outside Directional Antenna to

the surge protector and ground the surge

protector. The LSP is sold separately.

Quick Install

For more detailed instructions on

installation, read the description later in this

guide or watch the video at weboost.com/

us/connect4G-Xvideo.

NOTE: Create a “soft” install rst by testing

components in your proposed locations

before securing them with hardware.

1. Select a location on the roof of the

building to install the Outside Antenna.

Make sure the antenna is clear of

obstructions that could block the signal

from the nearest cellular tower.

2. Select a location to install the Connect

4G-X Signal Booster that is well

ventilated and away from excessive

heat, moisture, and direct sunlight.

3. Select a location for the Inside Antenna

that is in the center of the area where

the signal needs to be amplied

and a minimum of 20 vertical feet or

50 horizontal feet from the Outside

Antenna.

Outside Directional

Antenna

Inside Panel

Antenna

Connect 4G-X

4. Run the coax cable from the Outside

Antenna to the Signal Booster and

attach it to the connector labeled

“Outside Antenna.” Connect another

coax cable to the connector labeled

“Inside Antenna” and run it to the

Inside Antenna. NOTE: Be careful

not to bend the center pins on

the connectors when securing

connections.

5. Once you have ensured all

connections are tight, connect the

Signal Booster to a surge protected

power strip with at least a 1000 Joule

rating to protect your equipment from

power surges and lightning strikes.

(See page 11 for information on

lightning protection)

6. If your Connect 4G-X is working

correctly, the lights will be green.

If the lights are not green, see the

“Troubleshooting” starting on page 6.

Outside Antenna Installation

1. Select a location on the roof or an

outside wall where the Outside

Antenna can be mounted without

obstruction (at least three feet of

clearance in all directions) and with at

least 20 feet of vertical or 50 feet of

horizontal separation from the Internal

Antenna.

2. After connecting the coax cable to the

antenna, run it underneath the down

side of your roof’s ashing if mounted

on the roof. Tip: Often you can follow

the route used by satellite TV cables.

If you attach the Outside Antenna to a

wall, run the cable along the outside

of the wall to the area where you want

the cable to appear on the inside of

the building, then drill a hole through

the wall where the cable will enter

the building. Caution: Before drilling

holes for the cable, be sure there are

no electrical outlets, wiring, or sewer

or water pipes you could puncture or

sever.

3. Seal any holes with silicone, cable

bushings or other waterproof sealant.

Signal Booster Installation

1. Select a location for the Signal

Booster that is away from excessive

heat, direct sunlight, moisture and

well ventilated. The enclosure must

NOT be air tight. Also, be sure the

location is near a power source.

ENGLISH

Need help? www.weBoost.com Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Face inside

antenna

away from

the outside

antenna.

Inside

Antenna

Outside

Antenna

4. Use the mounting hardware included

in the package to secure the Inside

Antenna to the selected location.

Powering Up The Signal Booster

1. Ensure the cables to both the Outside

Antenna and Inside Antenna are

securely connected before powering

up the Signal Booster.

2. Plug the power supply into the Signal

Booster input marked “POWER” and

then into a surge protector power strip

with a minimum 1000 Joule rating.

3. The lights on the Signal Booster should

remain green . If the lights are not

green, see the “Troubleshooting” section

starting on page 7.

For illustrations of these installation steps,

view the install video at weboost.com/us/

connect4G-Xvideo.

Troubleshooting &

Understanding Lights

The Connect 4G-X includes four indicator

lights, one for each band (see FAQ for

explanation of MHz bands). Each indicator

light will either be green, orange or red.

Green indicates that the booster is

powered and operating at maximum

gain.

Solid Red indicates that the booster

has shut off on the associated

frequencies to prevent oscillation

(feedback).

2. Connect the cables to the Signal

Booster from the Outside Antenna

and Inside Antenna at the designated

ports.

3. Do NOT connect the Signal Booster

to the power source until all cables

are connected.

Inside Antenna Installation

1. Select a location in the center of

the area where you want cellular

signals improved to mount the Inside

Antenna. If you have multiple rooms

with poor signal, you may need

multiple Inside Antennas. These can

attach to the Signal Boost by using

a splitter (sold separately). Contact

weBoost for more information.

2. Ensure a minimum of 20 feet vertical

or 50 horizontal feet separation from

the Outside Antenna.

Place the inside antenna

directly beneath the

placement of the Outside

Antenna location

At least 20 feet of vertical or

50 horizontal separation

Outside Directional

Antenna

Inside Panel Antenna

3. Inside Antennas can be mounted

above ceiling drywall, on a ceiling

inside a room, or on a wall inside a

room. Ensure the Inside Antenna

is facing AWAY from the Outside

Antenna to avoid oscillation

(feedback) and reduced performance.

ENGLISH

Need help? Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

www.weBoost.com

Solid Orange indicates that the

booster has shut off on the associated

frequencies due to close proximity of a

cell tower.

Green/Orange Blinking indicates that

the booster is operating at a reduced

gain due to close proximity of a cell

tower.

Green/Red Blinking indicates that the

booster is operating at a reduced gain

to prevent oscillation (feedback).

Note: All red light issues must be resolved

before orange light issues.

Fixing Red Light Issues

If one or more lights on the Signal Booster

are red:

1. Make sure all connections are tight.

2. Increase the distance between the

outside antenna and the inside

antenna, by moving them horizontally

and/or vertically farther apart until the

light(s) change to green.

3. Follow the same steps for a green/red

blinking light until the light goes solid

green.

4. If more separation is not possible and

the coverage of the booster is too

small with a green/red blinking light

indicating reduced gain, contact the

weBoost Customer Support Team for

assistance: 866-294-1660.

Lights Off

If one or more of the lights on the Signal

Booster are off verify power to your surge

protected power strip.

NOTE: The Signal Booster can be reset by

disconnecting and reconnecting the power

supply.

For additional descriptions on

troubleshooting, see the install video at

weboost.com/us/connect4G-Xvideo.

Additional FAQ:

What hours can I contact tech support?

Technical Support can be reached from

7:00am to 6:00pm MST, by calling (866-

294-1660), or by email, at support@

weboost.com

How does weather affect the

performance of my Outside Antenna?

Water vapor (e.g. rain, fog, snow or

other precipitation) creates an effective

lter to cellular signal. In times of

heavy precipitation, you may see less

performance.

What’s the difference between the 800

MHz and the 1900 MHz bands? How do

I know which MHz band my cell phone

uses?

The Connect 4G-X works with all major

North American cellular providers.

Traditionally, 800/1900MHz are

associated with voice and 3G data;

while 700MHz and 1700/2100MHz

are associated with 4G data.

Carrier Frequency Use

We recommend visiting www.

wirelessadvisor.com (United States)

or http://bit.ly/1mQf2Gl (Canada) for

information regarding the frequency band

used by your cell service provider in a

specic geographical location.

ENGLISH

Need help? www.weBoost.com Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

INSIDE ANTENNA EXPANSION KITS

Kit 309900-50N

2- Wall Panel antennas

1- 50 ohm 3-Way Splitter

Kit 309905-50N

3 - Wall Panel Antennas

3- 2-Way 50 Ohm Splitters

Kit 309902-75F

2 - Wall Panel Antennas

1-3-Way 75Ohm Splitter

Kit 309903-75F

3 - Wall Panel Antennas

3- 2-Way 75Ohm Splitters

Kit 309904-75F

1 - Wall Panel Antenna

1- 2-Way 75 Ohm Splitter

Kit 301213

Desktop Antenna w/ 5’ RG174

INSIDE ANTENNAS

Kit 301121-40010

50 Ohm Dome Antenna

10’ LMR400

Kit 301151-0610

75 Ohm Dome Antenna

10’ RG6 Cable

Kit 311155-0630

75 Ohm Wall Mount Panel Antenna

30’ RG6 Cable

Kit 311135-5820

50 Ohm Wall Mount Panel Antenna

20’ RG58 Cable

Kit 311135-40060

50 Ohm Wall Mount Panel Antenna

60’ LMR400 Cable

Kit 301151-1110

75 Ohm Dome Antenna

10’ RG11 cable

Kit 311155-1150

75 Ohm Wall Mount Panel Antenna

50’ RG11 Cable

Kit 311155-40060

75 Ohm Wall Mount Panel Antenna

60’ LMR400 Cable

Kit 304412-40010

50 Ohm 4G Dome Antenna

10’ Wilson400 Cable

Kit 304412-5810

50 Ohm 4G Dome Antenna

10’ RG58 cable

Kit 304419-1110

75 Ohm 4G Dome Antenna

10’ RG 11 cable

Kit 304419-17410

75 Ohm 4G Dome Antenna

10’ RG174 cable

*May need separate adapter

Kit 304419-0610

75 Ohm 4G Dome Antenna

10’ RG6 cable

50 OHM OUTSIDE ANTENNA KITS

Kit 314453-5825

50 Ohm Pole Mount Panel Antenna

25’ RG58 Cable

Kit 314411-5825

50 Ohm Wide Band Directional

25’ RG58 Cable

Kit 301111-5850

Yagi Directional Antenna

50’ RG58 Cable

Kit 311129 – 5840

800 MHz Yagi Directional

40’ RG58 Cable

Kit 311203-5820

Omni-Directional Antenna

20’ RG58 Cable

Kit 311124-5830

1900 MHz Yagi Antenna

30’ RG58 Cable

Kit 314411-40075

50 Ohm Wide Band Directional

75’ LMR400 Cable

Kit 311203-40020

Omni-Directional Antenna

20’ LMR400 Cable

Kit 301111-400170

Yagi Directional w/ N-Female

170’ LMR400

Kit 311124 – 400100

1900 MHz Yagi Directional

100’ LMR400 Cable

Kit 311129-400100

800 MHz Yagi Antenna

100’ LMR400 Cable

Kit 314453-40075

50 Ohm Pole Mount Panel Antenna

75’ LMR400 Cable

Kit 304422-40020

50 Ohm 4G Omni Antenna

20’ Wilson400 cable

Kit 304422-5810

50 Ohm 4G Omni Antenna

10’ RG58 cable

*May need separate adapter

Kit 304422-1120

50 Ohm 4G Omni Antenna

20’ RG11 cable

*May need separate adapter

Mini-Mag

301126 w/ 12.5 RG174 cable- SMA

75 OHM OUTSIDE ANTENNA KITS

Kit 301111 – 0675

Yagi Directional Antenna

75’ RG6 Cable

N-Male to F-Female adapter

Kit 311201-0620

Omni Directional w/ F-Female

20’ RG6 Cable

Kit 311129-0660

800 MHz Yagi Directional

60’ RG6 Cable

N-Male to F-Female adapter

Kit 311124-0650

1900 MHz Yagi Directional

50’ RG6 Cable

N-Male to F-Female adapter

Kit 314473 -0640

75 Ohm Pole Mount Panel Antenna

RG6 Cable

Kit 314475 – 0630

75 Ohm Wide Band Directional

30’ RG6 Cable

Kit 311141 - 0620

75 Ohm Grey Brick Antenna

20’ RG6 Cable

Kit 301111 – 11140

Yagi Directional Antenna

140’ RG11 Cable

N-Male to F-Female adapter

Kit 311201-1120

Omni Directional w/ F-Female

20’ RG11 Cable

Kit 311129-11110

800 MHz Yagi Directional

110’ RG11 Cable

N-Male to F-Female adapter

Kit 311124-1180

1900 MHz Yagi Directional

80’ RG11 Cable

N-Male to F-Female adapter

Kit 314473 -1175

75 Ohm Pole Mount Panel Antenna

75’ RG11 Cable

Kit 314475 – 1175

75 Ohm Wide Band Directional

75’ RG11 Cable

Kit 311141 - 1120

75 Ohm Grey Brick Antenna

20’ RG11 Cable

Kit 304421-1120

75 Ohm 4G Omni Antenna

20’ RG 11 cable

Kit 304421-17410

75 Ohm 4G Omni Antenna

10’ RG174 cable

*May need separate adapter

Kit 304421-0610

75 Ohm 4G Omni Antenna

10’ RG6 cable

Kit 304421-5810

75 Ohm 4G Omni Antenna

10’ RG58 cable

*May need separate adapter

ENGLISH

Need help? Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

www.weBoost.com

Notes:

_____________________________________________________________

ENGLISH

Need help? www.weBoost.com Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Safety Guidelines

WARNING: To uphold compliance with network protection standards, all active cellular devices must maintain

at least 6 feet of separation distance from Panel and Dome antennas.

WARNING: Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell

phone.

WARNING: Use only the power supply provided in this package. Use of a non-Wilson Electronics product may

damage your equipment.

WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less

than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to

temperatures in excess of that range.

WARNING: Take care to ensure that neither you nor the pole comes near any power lines during installation.

WARNING: The Outside Antenna must be installed no higher than 10 meters (32’9”) above ground.

RF SAFETY WARNING: Any antenna used with this device must be located at least 8 inches from all persons.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider

and have your provider’s consent. Most wireless providers consent to the use of

signal boosters. Some providers may not consent to the use of this device on their

network. If you are unsure, contact your provider.

You MUST operate this device with approved antennas and cables as specified by

the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any

person.

You MUST cease operating this device immediately if requested by the FCC or a

licensed wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate for

calls served by using this device.

This is a CONSUMER device.

This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation. Changes or modifications not expressly approved by Wilson Electronics could void the authority

to operate this equipment.

ENGLISH

Need help? Customer Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

www.weBoost.com

Signal Booster Specifications

Connect 4G-X

Model Number 471004 / U471004

Connectors N-Female

Antenna Impedance 50 Ohms

Frequency 698-746 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz

Passband Gain (nominal) 700MHz Band12/17

59.1

700MHz Band13

56.2

800MHz

59.2

1700/2100MHz

64.8

1900MHz

67.8

20 dB Bandwidth (MHz) 700MHz Band12/17 700MHz Band13 800MHz 1700/2100MHz 1900MHz

Typical

Maximum

28.6

33.2

27.6

33.2

38.3

40.4

80.8

81.0

76.9

80.0

Power output for single cell

phone (Uplink) dBm

700MHz Band12/17 700MHz Band13 800MHz 1700MHz 1900MHz

23.2 23.8 25.2 22.5 22.1

Power output for single cell

phone (Downlink) dBm

700MHz Band12/17 700MHz Band13 800MHz 2100MHz 1900MHz

-0.4 -2.1 -2.0 0.9 -1.4

Power output for multiple

received channels (Uplink) dBm

No. Tones

Maximum Power

700MHz Band12/17 700MHz Band13 800MHz 1700MHz 1900MHz

224.5 22.1 24.5 22.3 21.4

320.9 18.5 21.0 18.7 17.8

418.4 16.0 18.5 16.2 15.3

516.5 14.1 16.6 14.3 13.4

614.9 12.5 15.0 12.7 11.8

Power output for multiple

received channels

(Downlinklink) dBm

Maximum Power

No. Tones 700MHz Band12/17 700MHz Band13 800MHz 2100MHz 1900MHz

20.2 -2.2 -0.8 0.7 2.1

3-3.3 -5.7 -4.3 -2.8 -1.4

4-5.8 -8.2 -6.8 -5.3 -3.9

5-7.7 -10.1 -8.7 -7.2 -5.8

6-9.3 -11.7 -10.3 -8.8 -7.4

Noise Figure 5 dB nominal

Isolation > 90 dB

Power Requirements 110-240 V AC, 50-60 Hz, 20 W

Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory

reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase

coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected.

If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn

the power off on that band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1

minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually

restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s

microprocessor.

The Manufacturer’s rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are

present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to

adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the

device.

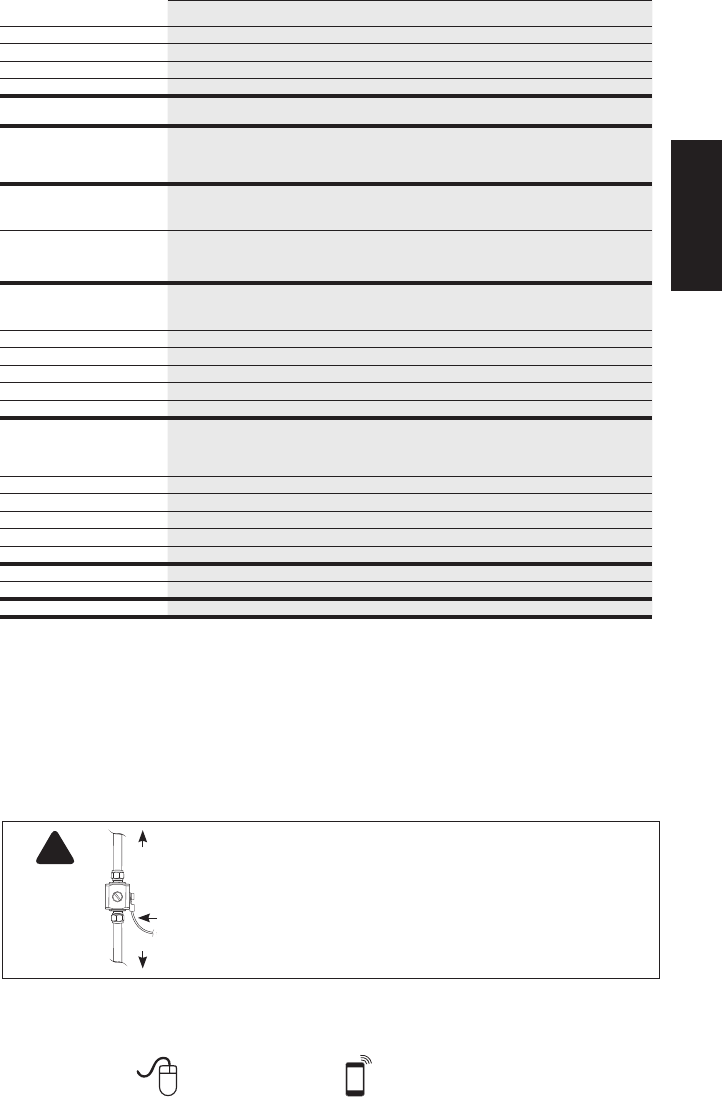

Lightning

Surge Protector

(sold separately)

To Outside

Antenna

To Signal Booster

Ground Wire

(not included)

!RECOMMENDED: INSTALLING THE LIGHTNING SURGE PROTECTOR

(SOLD SEPARATELY)

INSTALL THE LIGHTNING SURGE PROTECTOR (LSP) CLOSE TO THE SIGNAL

BOOSTER. ATTACH THE CABLE FROM THE OUTSIDE ANTENNA TO THE

SURGE PROTECTOR. ENSURE THE LSP IS PROPERLY GROUNDED.

#859902-50 OHM MAY BE PURCHASED AT WWW.WILSONELECTRONICS.COM

OR BY CALLING 800-204-4104.

U.S. Patent Nos.– 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,783,318; 8,583,033; 8,583,034; 8,639,180

Disclaimer: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed

by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights

of third parties that may result from its use.

3301 East Deseret Drive, St. George, UT 84790

web: www.weBoost.com email: customer@weboost.com

phone: 866-294-1660 local: 435-673-5021 fax: 435-656-2432

2-Year Warranty

weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials.

Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of

purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated

proof of purchase and a Returned Material Authorization (RMA) number supplied by weboost. weBoost

shall, at its option, either repair or replace the product.

This warranty does not apply to any Signal Boosters determined by weBoost to have been subjected to

misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.

RMA numbers may be obtained by contacting Customer Support at 1-866-294-1660.

111257_Connect4G-X_RevFCC_06-30-16

Wilson Electronics 460004 Model 460004 Signal Booster User Manual

Wilson Electronics, LLC Model 460004 Signal Booster

Contents

User Manual

Navigation menu

Namespaces

Views

Navigation
